Harley Davidson Parts Catalog 2019: touring models - page 18

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

72473-07

SEAL PIN (natural) (2)

FLHT

510/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

73213-07

RETAINER, anchored

FLHT

69200272

HOUSING, two-way pin

FLHT

(black)

69202385

PLUG, weather, two-way

FLHT

69200121

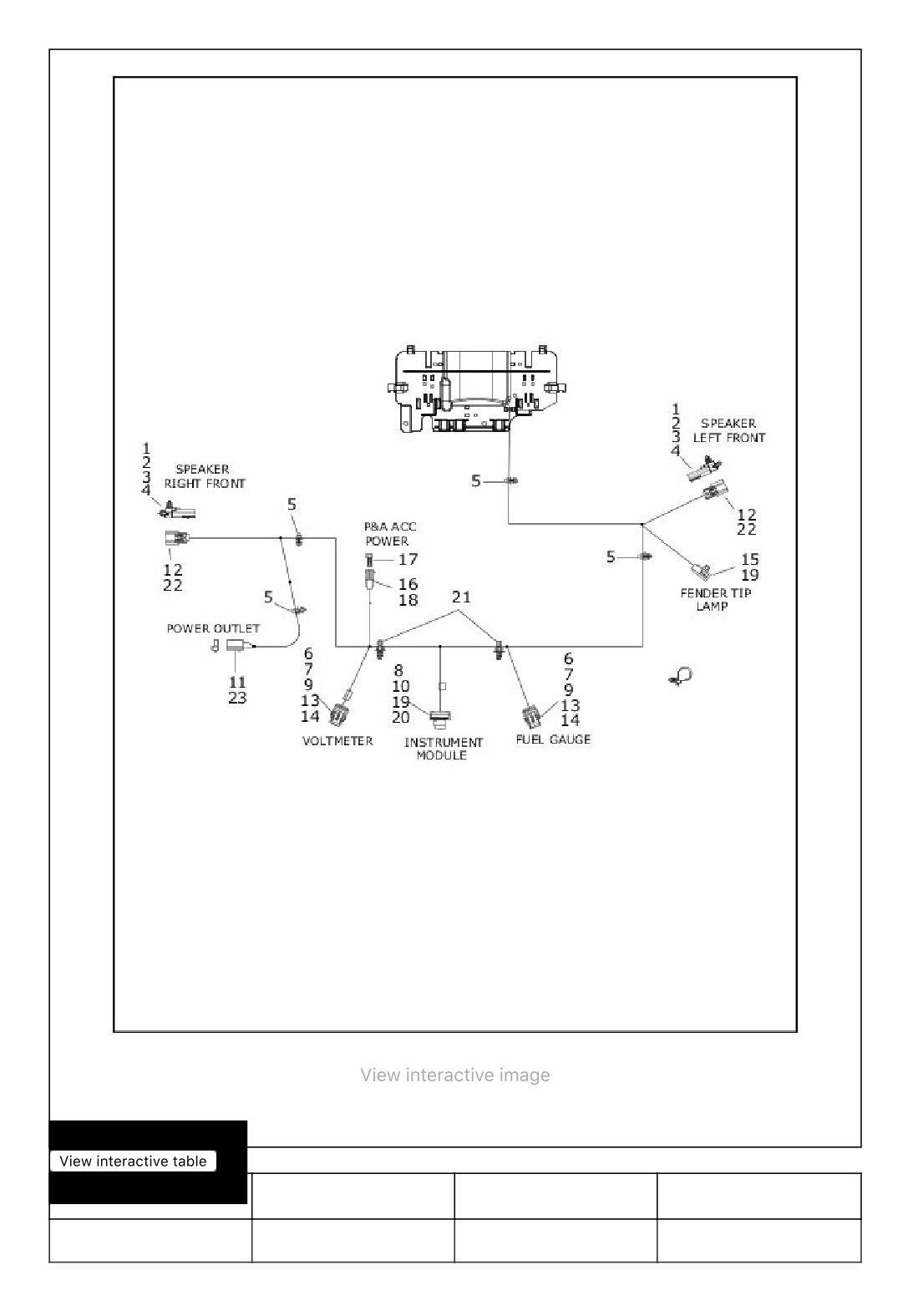

WIRING HARNESS,

FLHT, FLHTCU, FLHTK,

fairing

FLHTK SHRINE, FLHTKL,

FLHX, FLHXS

NOTE: Includes the following parts.

10177

CABLE STRAP, anchored

FLHT, FLHTCU, FLHTK,

(4)

FLHTK SHRINE, FLHTKL,

FLHX, FLHXS

72066-06A

HOUSING, four-way

FLHT, FLHTCU, FLHTK,

socket (black) (2)

FLHTK SHRINE, FLHTKL,

FLHX, FLHXS

72097-06

SEAL PIN, orange (2)

FLHT, FLHTCU, FLHTK,

FLHTK SHRINE, FLHTKL,

FLHX, FLHXS

72130-04

HOUSING, 12-way

FLHT, FLHTCU, FLHTK,

socket (black)

FLHTK SHRINE, FLHTKL,

FLHX, FLHXS

72135-06

SECONDARY LOCK,

FLHT, FLHTCU, FLHTK,

four-way socket (2)

FLHTK SHRINE, FLHTKL,

FLHX, FLHXS

72189-04

SEAL PIN (5)

FLHT, FLHTCU, FLHTK,

FLHTK SHRINE, FLHTKL,

FLHX, FLHXS

72264-94

TERMINAL, socket, 18-

FLHT, FLHTCU, FLHTK,

20 AWG (2)

FLHTK SHRINE, FLHTKL,

FLHX, FLHXS

72272-07

TERMINAL, socket, 14-

FLHT, FLHTCU, FLHTK,

16 AWG (4)

FLHTK SHRINE, FLHTKL,

FLHX, FLHXS

72484-08

TERMINAL, socket, 20

FLHT, FLHTCU, FLHTK,

AWG (6)

FLHTK SHRINE, FLHTKL,

FLHX, FLHXS

72486-08

WIRE SEAL, 20 AWG

FLHT, FLHTCU, FLHTK,

(green) (6)

FLHTK SHRINE, FLHTKL,

FLHX, FLHXS

511/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

73101-96BK

HOUSING, two-way pin

FLHT, FLHTCU, FLHTK,

(black)

FLHTK SHRINE, FLHTKL,

FLHX, FLHXS

73102-96BK

HOUSING, two-way pin

FLHT, FLHTCU, FLHTK,

(black)

FLHTK SHRINE, FLHTKL,

FLHX, FLHXS

73152-96BK

HOUSING, two-way

FLHT, FLHTCU, FLHTK,

socket (black)

FLHTK SHRINE, FLHTKL,

FLHX, FLHXS

73190-96

TERMINAL, pin, 16-20

FLHT, FLHTCU, FLHTK,

AWG (4)

FLHTK SHRINE, FLHTKL,

FLHX, FLHXS

74196-04

TERMINAL, socket, 20

FLHT, FLHTCU, FLHTK,

AWG (7)

FLHTK SHRINE, FLHTKL,

FLHX, FLHXS

74197-04

SECONDARY LOCK, 12-

FLHT, FLHTCU, FLHTK,

way socket

FLHTK SHRINE, FLHTKL,

FLHX, FLHXS

12500002

CABLE STRAP (2)

FLHT, FLHTCU, FLHTK,

FLHTK SHRINE, FLHTKL,

FLHX, FLHXS

69200271

HOUSING, two-way

FLHT, FLHTCU, FLHTK,

socket (black) (2)

FLHTK SHRINE, FLHTKL,

FLHX, FLHXS

69200337

HOUSING, two-way

FLHT, FLHTCU, FLHTK,

socket (gray)

FLHTK SHRINE, FLHTKL,

FLHX, FLHXS

WIRING HARNESS, CONSOLE - FLHR, FLHRC AND FLHRXS

512/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

513/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

72062-06

HOUSING, two-way

FLHR, FLHRC, FLHRXS

socket (gray)

72130-04

HOUSING, 12-way

FLHR, FLHRC, FLHRXS

socket (black)

72168-07

TERMINAL, socket 18-20

FLHR, FLHRC, FLHRXS

AWG (8)

72189-04

SEAL PIN (2)

FLHR, FLHRC, FLHRXS

72479-07BK

HOUSING, eight-way

FLHR, FLHRC, FLHRXS

socket (black)

72484-08

TERMINAL, socket, 20

FLHR, FLHRC, FLHRXS

AWG (2)

72485-07

HOUSING, four-way

FLHR, FLHRC, FLHRXS

socket (black)

72486-08

WIRE SEAL, 20 AWG

FLHR, FLHRC, FLHRXS

(green) (2)

72493-07

TERMINAL, socket, 16-

FLHR, FLHRC, FLHRXS

18 AWG (4)

72494-07

WIRE SEAL, 16-18 AWG

FLHR, FLHRC, FLHRXS

(yellow) (4)

72557-07

SECONDARY LOCK,

FLHR, FLHRC, FLHRXS

four-way socket

72662-11

TERMINAL, socket, 22

FLHR, FLHRC, FLHRXS

AWG (5)

74196-04

TERMINAL, socket, 20

FLHR, FLHRC, FLHRXS

AWG (5)

74197-04

SECONDARY LOCK, 12-

FLHR, FLHRC, FLHRXS

way socket

69200124

WIRE HARNESS, console

FLHR, FLHRC, FLHRXS

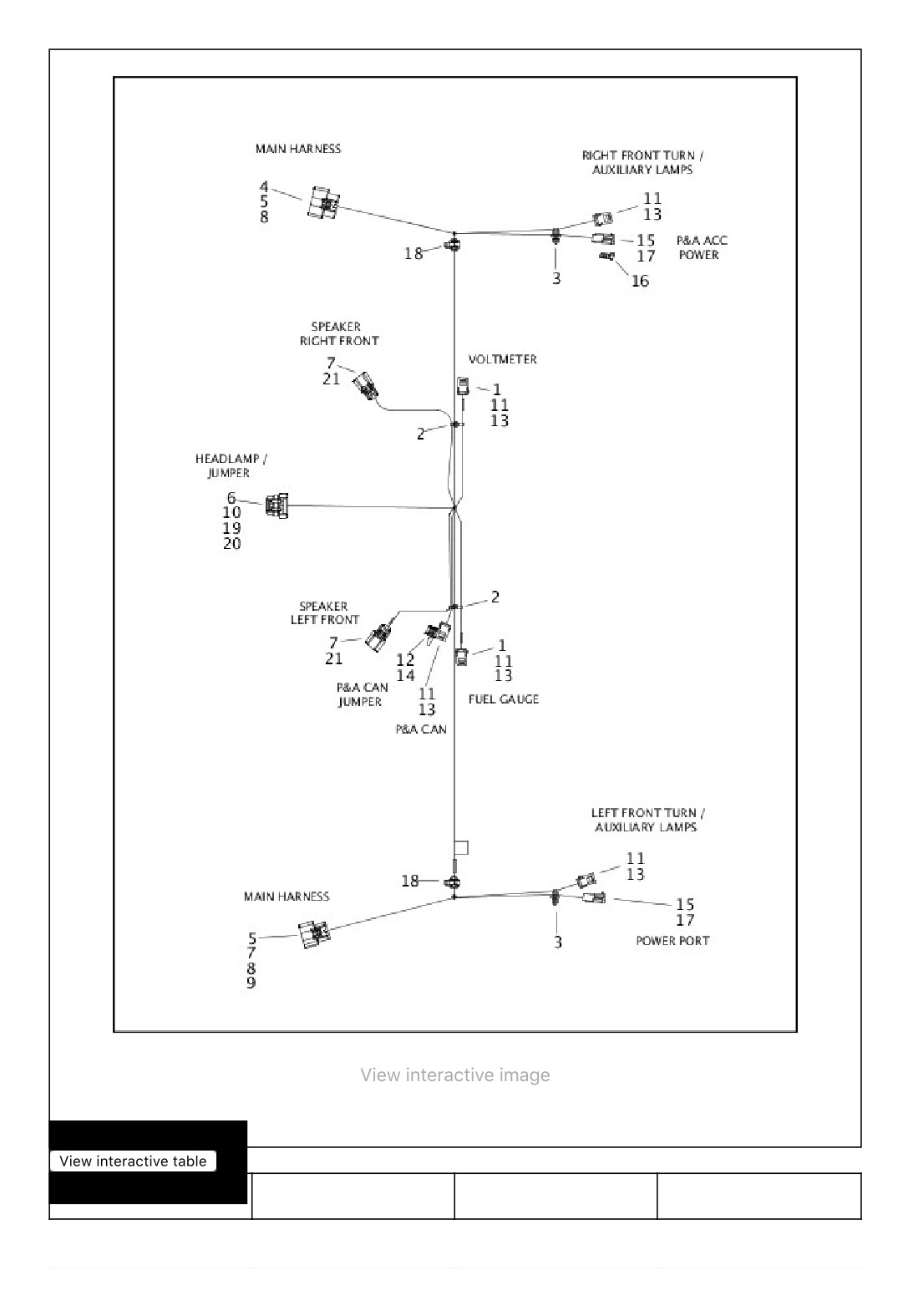

WIRING HARNESS, FAIRING - FLTRU, FLTRX AND FLTRXS

514/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

515/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

69200122

WIRING HARNESS -

FLTRU, FLTRX, FLTRXS

FAIRING

NOTE: Includes the following parts.

5118

SEAL PIN (2)

FLTRU, FLTRX, FLTRXS

10006

CABLE STRAP (2)

FLTRU, FLTRX, FLTRXS

10177

CABLE STRAP, anchored

FLTRU, FLTRX, FLTRXS

(2)

72166-07BK

HOUSING, 16-way

FLTRU, FLTRX, FLTRXS

socket (black)

72168-07

TERMINAL, socket, 18-

FLTRU, FLTRX, FLTRXS

20 AWG (16)

72213-94

TERMINAL, socket, 16-

FLTRU, FLTRX, FLTRXS

20 AWG (4)

72272-07

TERMINAL, socket, 14-

FLTRU, FLTRX, FLTRXS

16 AWG (8)

72473-07

SEAL PIN, natural (8)

FLTRU, FLTRX, FLTRXS

72489-07GY

HOUSING, 12-way

FLTRU, FLTRX, FLTRXS

socket (gray)

72610-08

WIRE SEAL, 18-20 AWG

FLTRU, FLTRX, FLTRXS

(white) (4)

72907-11

HOUSING, four-way pin

FLTRU, FLTRX, FLTRXS

(black) (5)

72908-11

HOUSING, four-way

FLTRU, FLTRX, FLTRXS

socket (black)

72909-11

TERMINAL, pin, 20-22

FLTRU, FLTRX, FLTRXS

AWG (18)

72910-11

TERMINAL, socket, 20-

FLTRU, FLTRX, FLTRXS

22 AWG (4)

73102-96BK

HOUSING, two-way pin

FLTRU, FLTRX, FLTRXS

(black) (2)

73152-96BK

HOUSING, two-way

FLTRU, FLTRX, FLTRXS

socket (black)

73190-96

TERMINAL, pin, 16-20

FLTRU, FLTRX, FLTRXS

AWG (4)

516/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

12500002

CABLE STRAP (2)

FLTRU, FLTRX, FLTRXS

69200254

HOUSING, four-way

FLTRU, FLTRX, FLTRXS

socket

69200256

SECONDARY LOCK,

FLTRU, FLTRX, FLTRXS

four-way socket

69200271

HOUSING, two-way

FLTRU, FLTRX, FLTRXS

socket (black) (2)

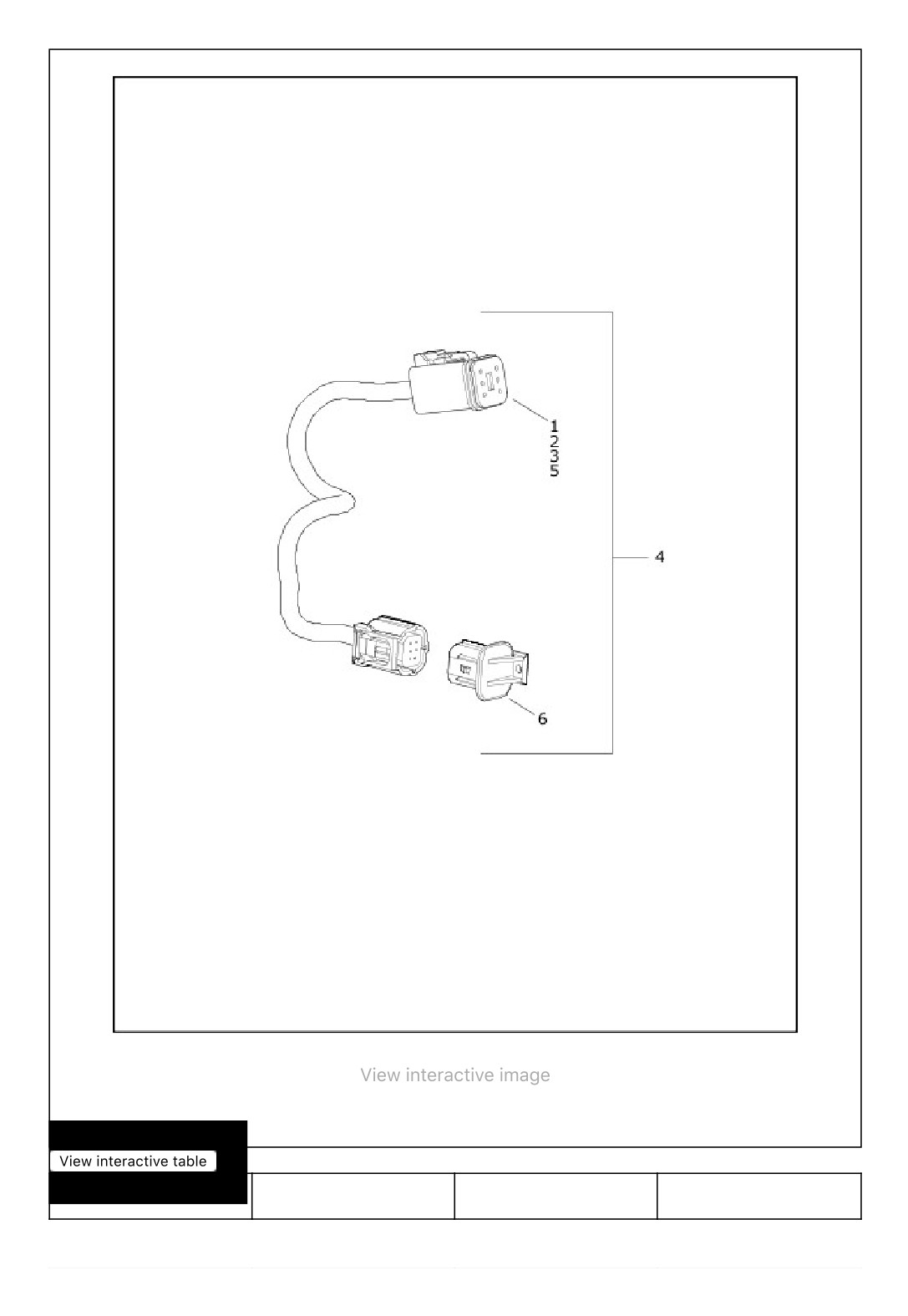

WIRING HARNESS, ON BOARD DIAGNOSTICS (OBD) JUMPER (CHINA ONLY)

517/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

518/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

72116-94BK

HOUSING, six-way

FLHR, FLHRXS, FLHTK,

socket (black) (replaces

FLHTKL, FLHX, FLHXS,

gray connector)

FLTRU, FLTRX, FLTRXS

72156-94

SECONDARY LOCK, six-

FLHR, FLHRXS, FLHTK,

way socket

FLHTKL, FLHX, FLHXS,

FLTRU, FLTRX, FLTRXS

72195-94

SEAL PIN (2)

FLHR, FLHRXS, FLHTK,

FLHTKL, FLHX, FLHXS,

FLTRU, FLTRX, FLTRXS

69202097

WIRING HARNESS, OBD

FLHR, FLHRXS, FLHTK,

JUMPER

FLHTKL, FLHX, FLHXS,

FLTRU, FLTRX, FLTRXS

69202102

TERMINAL, socket, 22

FLHR, FLHRXS, FLHTK,

AWG (4)

FLHTKL, FLHX, FLHXS,

FLTRU, FLTRX, FLTRXS

69202108

CAP (2)

FLHR, FLHRXS, FLHTK,

FLHTKL, FLHX, FLHXS,

FLTRU, FLTRX, FLTRXS

BATTERY

519/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

3634

SCREW (6)

ALL

520/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

4312C

SCREW (2)

ALL

4705

SCREW (2)

ALL

7792

NUT

ALL

14001739

LABEL, battery warning

FLHRC, FLHRXS, FLHTK,

(Brazil)

FLHTK SHRINE, FLHX,

FLHXS, FLTRU, FLTRXS

15368-01A

LABEL, battery warning

ALL

31694-90

NUT

ALL

66010-97D

BATTERY, with 4312C

ALL

(except Brazil)

66000066

BATTERY, with 4312C

FLHRC, FLHRXS, FLHTK,

(Brazil)

FLHTK SHRINE, FLHX,

FLHXS, FLTRU, FLTRXS

66051-08

STRAP, battery removal

ALL

9819

TERMINAL, ring, 12 AWG

ALL

73304-04

TERMINAL, socket, 10

ALL

AWG

73305-04

SEAL WIRE, 10 AWG

ALL

(blue)

66000010A

BATTERY TRAY

ALL

66000116

CABLE ASSEMBLY,

ALL

starter to ground, with

9819

69200174

CADDY, electronic

ALL

control module (ECM)

69201130

WIRE HARNESS, battery

ALL

positive to starter, with

73304-04, 73305-04 and

69201307

69201178

BRACKET, battery hold

ALL

down

69201307

BOOT, battery positive

ALL

HORN

521/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

3563

SCREW (2)

ALL

522/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

4775

SCREW (2)

ALL

6019

WASHER (2)

ALL

6109

WASHER

ALL

7495

NUT

ALL

7549A

ACORN NUT

ALL

8108

SPEEDNUT (2)

ALL

69060-90H

HORN ASSEMBLY

ALL

69062-91A

CLAMP

ALL

69120-91

BRACKET, horn

ALL

69123-92A

MOUNT, horn, rubber

ALL

14100764

INSERT, horn

ALL

61300523A

COVER, horn (chrome)

FLHR, FLHRC, FLHT,

FLHTCU, FLHTK, FLHTK

SHRINE, FLHTKL, FLHX,

FLTRU, FLTRX

61300626A

COVER, horn (gloss

FLHRXS, FLHXS, FLTRXS

black)

69000083

BRACKET ASSEMBLY,

ALL

horn mount

SWITCHES (1 OF 2)

523/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

NOTE: For additional fuse and relay part number information see wiring harness pages.

524/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

2647B

SCREW (2)

ALL

6150W

WASHER (2)

ALL

9907

WIRE TERMINAL (2)

ALL

10065

CABLE STRAP (2)

ALL

33926-06B

SWITCH, neutral

ALL

indicator, with O-ring

61081-92

COVER, key head (set of

ALL

66373-06

BATTERY, 3V, CR2032 (2)

ALL

68956-07

ANTENNA MODULE,

ALL

security system

68958-07C

SIREN ALARM, with

FLHR, FLHRC, FLHRXS,

68309-10 (Australia,

FLHT, FLHTK, FLHTK

England, HDI, Japan and

SHRINE, FLHTKL, FLHX,

Asia-Pacific)

FLHXS, FLTRU, FLTRX,

FLTRXS

69309-10

BATTERY, siren alarm

FLHR, FLHRC, FLHRXS,

(Australia, England, HDI,

FLHT, FLHTK, FLHTK

Japan and Asia-Pacific)

SHRINE, FLHTKL, FLHX,

FLHXS, FLTRU, FLTRX,

FLTRXS

71540-94B

FORK LOCK (specify key

FLHR, FLHRC, FLHRXS

number)

71660-03A

NUT, ignition switch

FLHT, FLHTCU, FLHTK,

FLHTK SHRINE, FLHTKL,

FLHX, FLHXS, FLTRU,

FLTRX, FLTRXS

72023-51E

KIT, SWITCH, rear

ALL

brakelite, with 9907

72594-11

PLUG, weather, two-way

FLHR, FLHTCU, FLHX,

socket (without security)

FLHXS, FLTRX, FLTRXS

14100158

DECAL, ignition switch

FLHT, FLHTCU, FLHTK,

knob

FLHTK SHRINE, FLHTKL,

FLHX, FLTRU, FLTRX

NOTE: For additional fuse and relay part number information see wiring harness pages.

525/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

32700010

SENSOR, ambient

FLHT, FLHTCU, FLHTK,

temperature

FLHTK SHRINE, FLHTKL,

FLHX, FLHXS, FLTRU,

FLTRX, FLTRXS

41000341E

BODY CONTROL

ALL

MODULE (BCM) with

security (Except Japan)

41000342E

BODY CONTROL

FLHR, FLHRXS, FLHT,

MODULE (BCM) with

FLHTK, FLHTK SHRINE,

security (Japan)

FLHTKL, FLHXS, FLTRU,

FLTRX, FLTRXS

41000351E

BODY CONTROL

FLHR, FLHTCU, FLHX,

MODULE (BCM) without

FLTRX

security

NOTE: For additional fuse and relay part number information see wiring harness pages.

SWITCHES (2 OF 2)

526/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

NOTE: For additional fuse and relay part number information see wiring harness pages.

527/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

71400010A

LOCKSET, complete,

FLHR, FLHRXS

with keys, ignition switch,

fork lock and saddle bag

lock

71400011A

LOCKSET, complete,

FLHRC

with keys, ignition switch,

cover and fork lock

71400012B

HOUSING, ignition

FLHT, FLHTCU, FLHTK,

switch, with 71660-03A

FLHTK SHRINE, FLHTKL,

and 71400081 (Domestic)

FLHX, FLHXS, FLTRU,

FLTRX, FLTRXS

71400013B

HOUSING, ignition

FLHT, FLHTK, FLHTK

switch, with 71660-03

SHRINE, FLHTKL, FLHX,

and 71400081 (HDI)

FLHXS, FLTRU, FLTRX,

FLTRXS

71400015B

LOCKSET, complete,

FLHTCU, FLHTK, FLHTK

with keys, ignition knob,

SHRINE, FLHTKL, FLTRU

saddlebag and Tour-Pak

locks

71400016B

LOCKSET, complete,

FLHT, FLHX, FLHXS,

with keys, ignition knob

FLTRX

and saddlebag lock

71400017B

KNOB, ignition switch,

FLHT, FLHTCU, FLHTK,

with 14100158 (specify

FLHTK SHRINE, FLHTKL,

key number)

FLHX, FLHXS, FLTRU,

FLTRX

71400126B

KNOB, ignition switch

FLHXS, FLTRXS

(specify key number)

71400073

SPRING, ignition knob

FLHT, FLHTCU, FLHTK,

FLHTK SHRINE, FLHTKL,

FLHX, FLHXS, FLTRU,

FLTRX, FLTRXS

71400081

COLLAR, ignition switch,

FLHT, FLHTCU, FLHTK,

top

FLHTK SHRINE, FLHTKL,

FLHX, FLHXS, FLTRU,

FLTRX, FLTRXS

90300043

KEY, with 61081-92 (set

ALL

of 2) (specify key number)

90300111

REMOTE CONTROL

ALL

FOB, with 66373-06

(except Japan) (2)

NOTE: For additional fuse and relay part number information see wiring harness pages.

528/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

90300112

REMOTE CONTROL

ALL

FOB, with 66373-06

(Japan) (2)

3622

SCREW (4)

FLHR, FLHRC, FLHRXS

71517-11

IGNITION SWITCH

FLHR, FLHRC, FLHRXS

(specify key number)

NOTE: For additional fuse and relay part number information see wiring harness pages.

SOUND SYSTEM - FLHTCU, FLHTK, FLHTKL, FLHX AND FLHXS (1 OF 2)

529/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

530/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

10006

CABLE STRAP

FLHTCU, FLHTK, FLHTK

SHRINE, FLHTKL, FLHX,

FLHXS

10065

CABLE STRAP (2)

FLHTCU, FLHTK, FLHTK

SHRINE, FLHTKL, FLHX,

FLHXS

72169-07

TERMINAL, pin, 16-20

FLHTCU, FLHTK, FLHTK

AWG (4)

SHRINE, FLHTKL, FLHX,

FLHXS

72290-94

TERMINAL, insulated (2)

FLHTCU, FLHTK, FLHTK

SHRINE, FLHTKL, FLHX,

FLHXS

72294-94

TERMINAL, insulated (2)

FLHTCU, FLHTK, FLHTK

SHRINE, FLHTKL, FLHX,

FLHXS

73213-07

RETAINER, anchored (2)

FLHTCU, FLHTK, FLHTK

SHRINE, FLHTKL, FLHX,

FLHXS

77117-10

HEADSET ASSEMBLY,

FLHTCU, FLHTK, FLHTK

with 77126-10, 77148-10

SHRINE, FLHTKL

and 76000243 (Domestic)

77117-10

HEADSET ASSEMBLY,

FLHTK, FLHTK SHRINE,

with 77126-10, 77148-10

FLHTKL

and 76000243 (HDI) (2)

77126-10

WIND SOCK,

FLHTCU, FLHTK, FLHTK

microphone (Domestic)

SHRINE, FLHTKL

77126-10

WIND SOCK,

FLHTK, FLHTK SHRINE,

microphone (HDI) (2)

FLHTKL

77148-10

COILED CORD, headset

FLHTCU, FLHTK, FLHTK

(Domestic)

SHRINE, FLHTKL

77148-10

COILED CORD, headset

FLHTK, FLHTK SHRINE,

(HDI) (2)

FLHTKL

10200205

SCREW (8)

FLHTCU, FLHTK, FLHTK

SHRINE, FLHTKL, FLHX,

FLHXS

NOTE: For all service and warranty claims on Boom!™ Audio System components please refer to the latest

Warranty Bulletin revision of the Boom!™ Audio Systems Warranty Procedures located on h-dnet.com.Customer:

For all service and warranty claims on Boom!™ Audio System components please contact your Harley-Davidson

dealership.

531/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

12600070

BOLT (4)

FLHTCU, FLHTK, FLHTK

SHRINE, FLHTKL, FLHX,

FLHXS

12600071

RETAINER, bolt (4)

FLHTCU, FLHTK, FLHTK

SHRINE, FLHTKL, FLHX,

FLHXS

12600073

SCREW, accessory

FLHTCU, FLHTK, FLHTK

module (2)

SHRINE, FLHTKL, FLHXS

69200032

WIRE HARNESS, AM/FM

FLHTCU, FLHTK, FLHTK

antenna

SHRINE, FLHTKL

69200294

CABLE, AM/FM antenna

FLHX, FLHXS

69200136

WIRE HARNESS, C.B.

FLHTK, FLHTK SHRINE,

antenna

FLHTKL

69200247

WIRE HARNESS,

FLHTCU, FLHTK, FLHTK

speaker jumper, with

SHRINE, FLHTKL, FLHX,

10065, 72169-07, 72290-

FLHXS

94, 72294-94, 73213-07

and 69200072 (2)

69200272

HOUSING, two-way pin

FLHTCU, FLHTK, FLHTK

(black) (2)

SHRINE, FLHTKL, FLHX,

FLHXS

NOTE: For all service and warranty claims on Boom!™ Audio System components please refer to the latest

Warranty Bulletin revision of the Boom!™ Audio Systems Warranty Procedures located on h-dnet.com.Customer:

For all service and warranty claims on Boom!™ Audio System components please contact your Harley-Davidson

dealership.

SOUND SYSTEM - FLHTCU, FLHTK, FLHTKL, FLHX AND FLHXS (2 OF 2)

532/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

533/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

76000783

RADIO, BOOM!™ BOX

FLHTCU, FLHTK, FLHTK

GTS, with 12600070,

SHRINE, FLHTKL, FLHX,

12600071, 12600073 and

FLHXS

76000252 (Domestic,

California, Canada) (See

NOTE 1)

76000784

RADIO, BOOM!™ BOX

FLHTK, FLHTKL, FLHX,

GTS, with 12600070,

FLHXS

12600071, 12600073 and

76000252 (HDI, England)

(See NOTE 2)

76000785

RADIO, BOOM!™ BOX

FLHTK, FLHX, FLHXS

GTS, with 12600070,

12600071, 12600073 and

76000252 (HDI, Australia,

Japan, Asia-Pacific,

Brazil, China) (See NOTE

76000785

RADIO, BOOM!™ BOX

FLHTKL

GTS, with 12600070,

12600071, 12600073 and

76000252 (HDI, Japan,

Asia-Pacific, China) (See

NOTE 3)

76000075D

RADIO, BOOM!™ BOX

FLHTCU, FLHX

4.3, with 12600070 and

12600071 (Domestic,

California)

76000096

SPEAKER, 5-1/4 in (2)

FLHTCU, FLHTK, FLHTK

SHRINE, FLHTKL, FLHX

76000320

SPEAKER, 6-1/2 in (2)

FLHXS

NOTE 1: 76000783 radio with the North America mapset is used in these countries/regions: Bahamas, Canada,

Cayman Islands, Mexico, Puerto Rico and United States.NOTE 2: 76000784 radio with the European mapset is

used in these countries/regions: Albania, Andorra, Austria, Belarus, Belgium, Bosnia Herzegovina, Bulgaria, Croatia,

Czech Republic, Denmark, Estonia, Finland, France, Germany, Gibralter, Greece, Hungary, Iceland, Ireland, Italy,

Kosovo, Latvia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Malta, Moldova, Monaco, Montenegro,

Netherlands, Norway, Poland, Portugal, Romania, San Marino, Serbia, Slovakia, Slovenia, Spain, Sweden,

Switzerland, Turkey, Ukraine, Ukraine (Crimea), United Kingdom (Great Britain) and Vatican City.NOTE 3: 76000785

radio with the Rest of World mapset is used in these countries/regions: Argentina, Australia, Azerbaijan, Bahrain,

Botswana, Brazil, Brunei, Chile, Columbia, Costa Rica, Egypt, India, Indonesia, Jordan, Kazakhstan, Kenya, Kuwait,

Lebanon, Lesotho, Malaysia, Morocco, Namibia, New Zealand, Nigeria, Oman, Peru, Qatar, Reunion, Russia, Saudi

Arabia, Singapore, South Africa, Swaziland, Thailand, United Arab Emirates, Uruguay, Venezuela, Vietnam and the

Rest of the World.NOTE: For all service and warranty claims on Boom!™ Audio System components please refer to

the latest Warranty Bulletin revision of the Boom!™ Audio Systems Warranty Procedures located on h-

dnet.com.Customer: For all service and warranty claims on Boom!™ Audio System components please contact

your Harley-Davidson dealership.

534/956

4/5/2019

INDEX NO.

PART NO.

DESCRIPTION

MODEL(S)

76000789

ANTENNA, GPS

FLHTCU, FLHTK, FLHTK

SHRINE, FLHTKL, FLHX,

FLHXS

76000243

EAR PAD, foam

FLHTCU, FLHTK, FLHTK

(Domestic) (2)

SHRINE, FLHTKL

76000243

EAR PAD, foam (HDI) (4)

FLHTK, FLHTK SHRINE,

FLHTKL

76000252

PLATE, accessory

FLHTCU, FLHTK, FLHTK

module

SHRINE, FLHTKL, FLHXS

91700034

KIT, RADIO TOUCH

FLHTCU, FLHX

SCREEN PROTECTOR
