Harley Davidson Parts Catalog 2019: touring models - page 17
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
480/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)

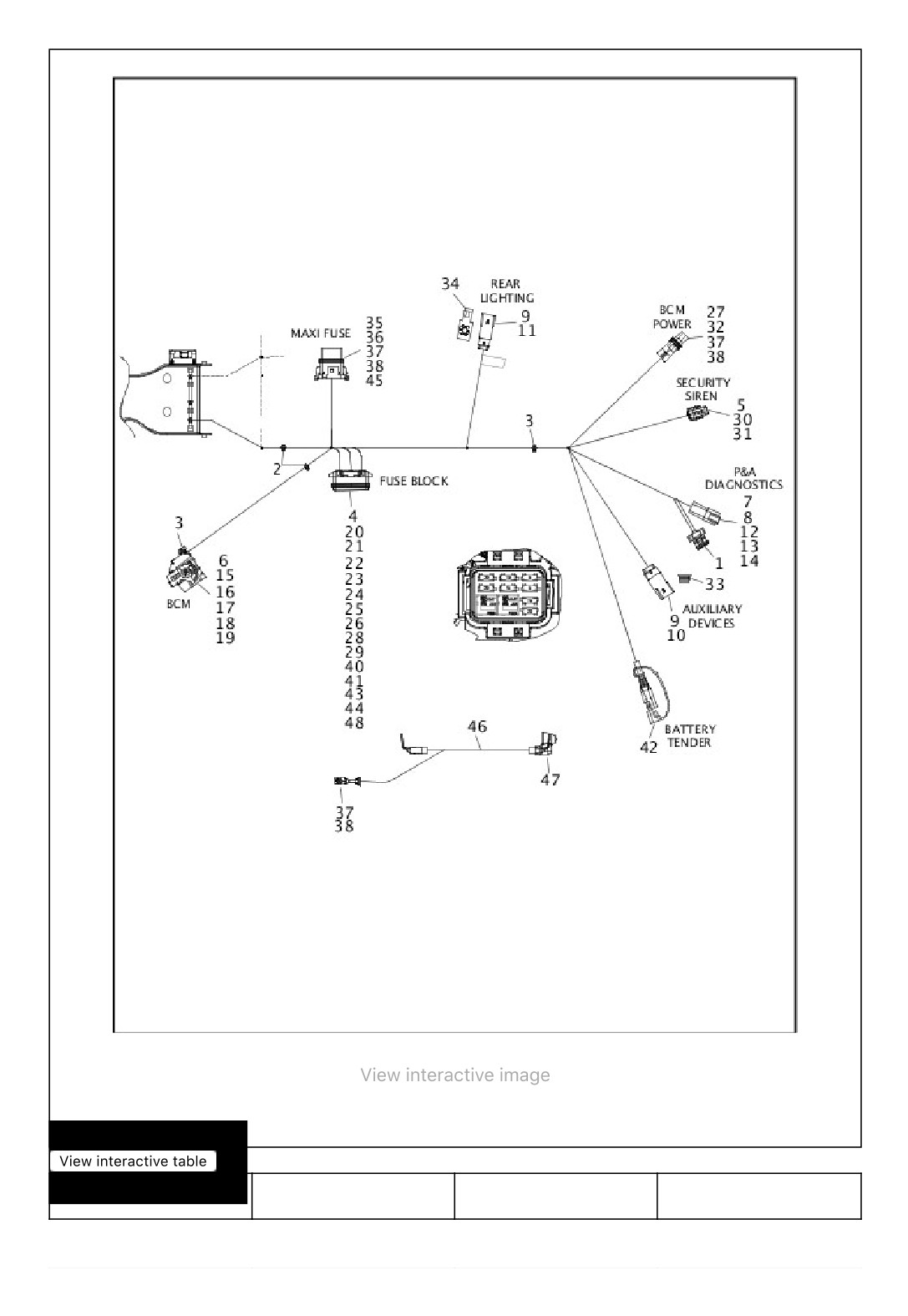

69201124A
MAIN WIRING HARNESS
FLTRX, FLTRXS
- ABS
NOTE: Includes the following parts.
1
6990
PLUG, weather, six-way
FLTRX, FLTRXS
pin
2
10006
CABLE STRAP (2)
FLTRX, FLTRXS
3
10065
CABLE STRAP (2)
FLTRX, FLTRXS
4
31586-07
RELAY (2)
FLTRX, FLTRXS
5
72064-06
HOUSING, three-way
FLTRX, FLTRXS
socket (black)
6
72081-11
HOUSING, 48-way
FLTRX, FLTRXS
socket (black)
7
72106-94BK
HOUSING, six-way pin
FLTRX, FLTRXS
(black) (replaces gray
connector)
8
72146-94
SECONDARY LOCK, six-
FLTRX, FLTRXS
way pin
9
72169-07
TERMINAL, pin, 16-20
FLTRX, FLTRXS
AWG (10)
10
72175-07BK
HOUSING, four-way pin
FLTRX, FLTRXS
(black)
11
72188-07BK
HOUSING, six-way pin
FLTRX, FLTRXS
(black)
12
72190-94
TERMINAL, pin, 16-18
FLTRX, FLTRXS
AWG (2)
13
72194-94
TERMINAL, pin, 20 AWG
FLTRX, FLTRXS
(3)
14
72195-94
SEAL PIN
FLTRX, FLTRXS
15
72209-11
COVER, wire
FLTRX, FLTRXS
16
72222-11
TERMINAL, socket, 18-
FLTRX, FLTRXS
20 AWG (21)
17
72226-11
TERMINAL, socket, 14-
FLTRX, FLTRXS
16 AWG
481/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
18
72227-11
TERMINAL, socket, 18-
FLTRX, FLTRXS
20 AWG (5)
19
72256-11
SEAL PIN, 0.6 mm (white)
FLTRX, FLTRXS
(9)
20
72296-95
TERMINAL, socket, 14-
FLTRX, FLTRXS
16 AWG (3)
21
72298-95
WIRE SEAL, 14-18 AWG
FLTRX, FLTRXS
(green) (3)
22
72299-95
SEAL PIN, green (2)
FLTRX, FLTRXS
23
72308-97
TERMINAL, socket, 12-
FLTRX, FLTRXS
14 AWG (5)
24
72330-95
FUSE, 15 A (blue)
FLTRX, FLTRXS
25
72331-95
FUSE, 5 A (tan) (2)
FLTRX, FLTRXS
26
72345-02
FUSE, 20 A (yellow) (3)
FLTRX, FLTRXS
27
72350-11
HOUSING, one-way
FLTRX, FLTRXS
socket (black)
28
72356-95
TERMINAL, socket, 18-
FLTRX, FLTRXS
20 AWG (14)
29
72412-97
WIRE SEAL, 12-14 AWG
FLTRX, FLTRXS
(gray) (5)
30
72484-08
TERMINAL, socket, 20
FLTRX, FLTRXS
AWG (3)
31
72486-08
WIRE SEAL, 20 AWG
FLTRX, FLTRXS
(green) (3)
32
72575-11
SECONDARY LOCK,
FLTRX, FLTRXS
one-way socket
33
72632-10
PLUG, weather, four-way
FLTRX, FLTRXS
pin
34
73213-07
RETAINER, anchored
FLTRX, FLTRXS
35
73301-04
HOUSING, two-way pin
FLTRX, FLTRXS
(black)
36
73303-04
SECONDARY LOCK,
FLTRX, FLTRXS
two-way socket
482/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
37
73304-04
TERMINAL, socket, 10
FLTRX, FLTRXS
AWG (3)
38
73305-04
WIRE SEAL, 10 AWG
FLTRX, FLTRXS
(blue) (3)
39
11100115
CLOTH, HARNESS
FLTRX, FLTRXS
WRAP, 50 m (not shown)
40
69200194
FUSE BLOCK, 24-way
FLTRX, FLTRXS
41
69200199
WIRE SEAL, 18-20 AWG
FLTRX, FLTRXS
(purple) (14)
42
69200212
HARNESS, battery
FLTRX, FLTRXS
tender
43
69200293
FUSE, 7.5 A (brown) (2)
FLTRX, FLTRXS
44
69200312
SECONDARY LOCK,
FLTRX, FLTRXS
fuse block (3)
45
69200336
MAIN FUSE, 50 A (red),
FLTRX, FLTRXS
NOTE: Fuse is sold
separately and is not part
of main harness
46
69201130
WIRE HARNESS, battery
FLTRX, FLTRXS
positive to starter, with
73304-04, 73305-04 and
69201307
47
69201307
BOOT, battery positive
FLTRX, FLTRXS
48
69201411
COVER, fuse block
FLTRX, FLTRXS

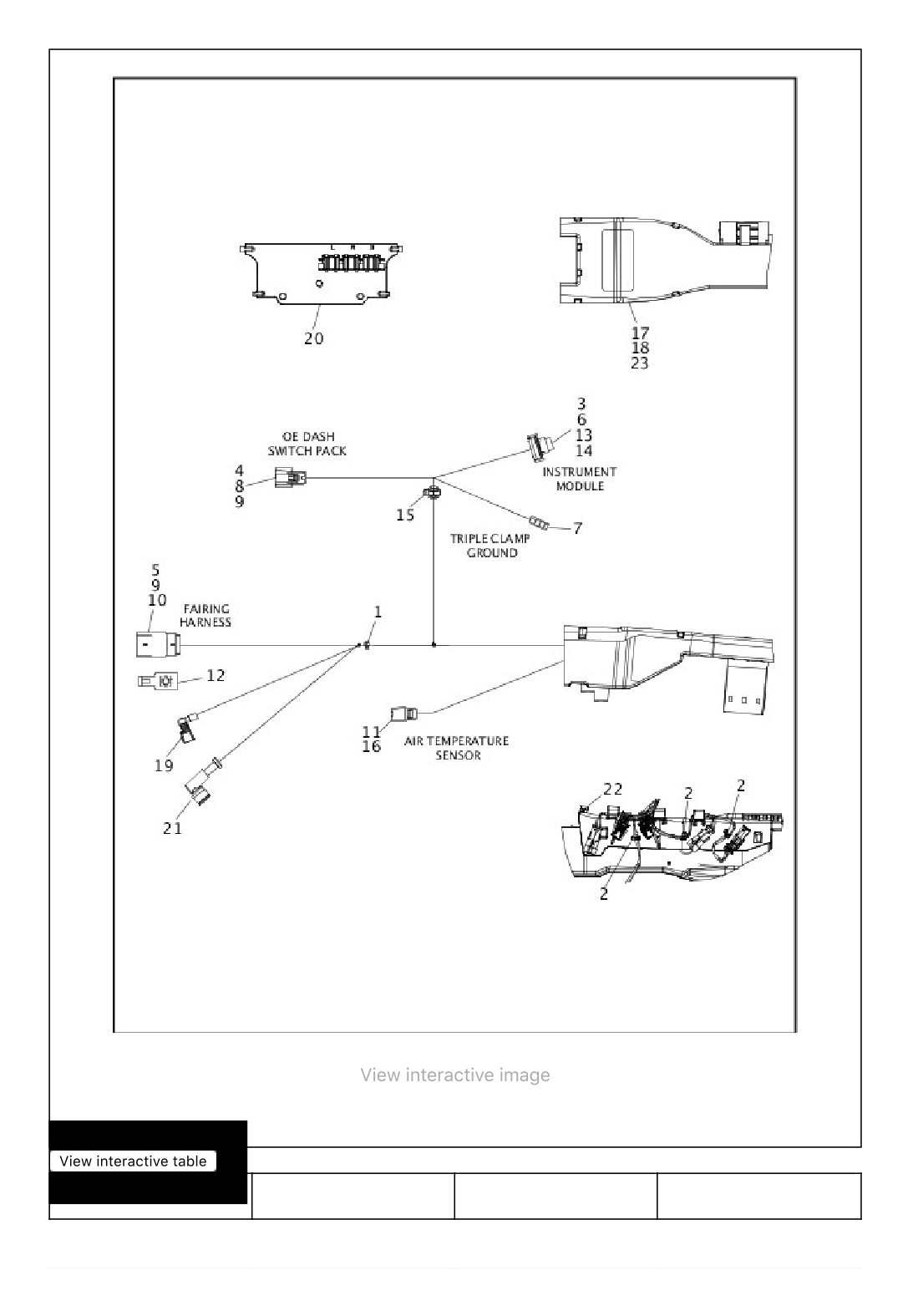

WIRING HARNESS, MAIN, ABS - FLTRU (1 OF 8)
483/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
484/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201123A
MAIN WIRING HARNESS
FLTRU
- ABS
NOTE: Includes the following parts.
1
10006
CABLE STRAP
FLTRU
2
10065
CABLE STRAP (3)
FLTRU
3
72130-04
HOUSING, 12-way
FLTRU
socket (black)
4
72168-07
TERMINAL, socket, 18-
FLTRU
20 AWG (5)
5
72169-07
TERMINAL, pin, 16-20
FLTRU
AWG (8)
6
72189-04
SEAL PIN (6)
FLTRU
7
72364-06
TERMINAL, socket, 10-
FLTRU
14 AWG
8
72414-07BK
HOUSING, six-way
FLTRU
socket (black)
9
72473-07
SEAL PIN, natural (5)
FLTRU
10
72490-07GY
HOUSING, 12-way pin
FLTRU
(gray)
11
72721-07
TERMINAL, socket, 18-
FLTRU
20 AWG (2)
12
73213-07
RETAINER, anchored
FLTRU
13
74196-04
TERMINAL, socket, 20
FLTRU
AWG (6)
14
74197-04
SECONDARY LOCK, 12-
FLTRU
way socket
15
12500002
CABLE STRAP
FLTRU
16
69200201
HOUSING, two-way
FLTRU
socket (black)
17
69200202A
WIRE TROUGH
FLTRU
18
69200203A
COVER, wire trough, with
FLTRU
15368-01A and
69201459
485/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
19
69201017
WIRE HARNESS, AM/FM
FLTRU
antenna
20
69200700
CADDY
FLTRU
21
69201018A
WIRE HARNESS, CB
FLTRU
antenna
22
69201287
BRACKET, mounting,
FLTRU
electrical connector
23
69201459
BRACKET
FLTRU

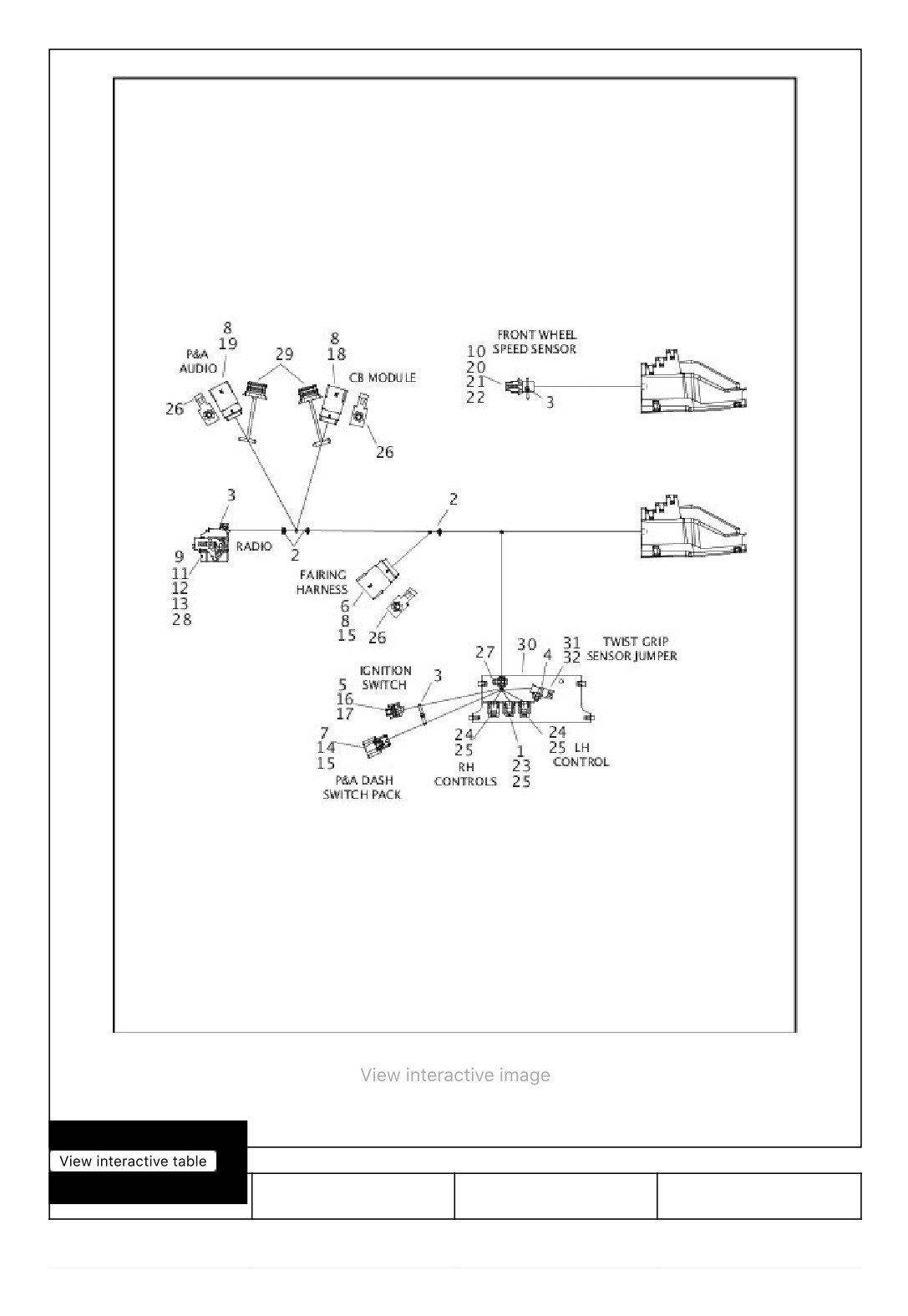

WIRING HARNESS, MAIN, ABS - FLTRU (2 OF 8)
486/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
487/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)

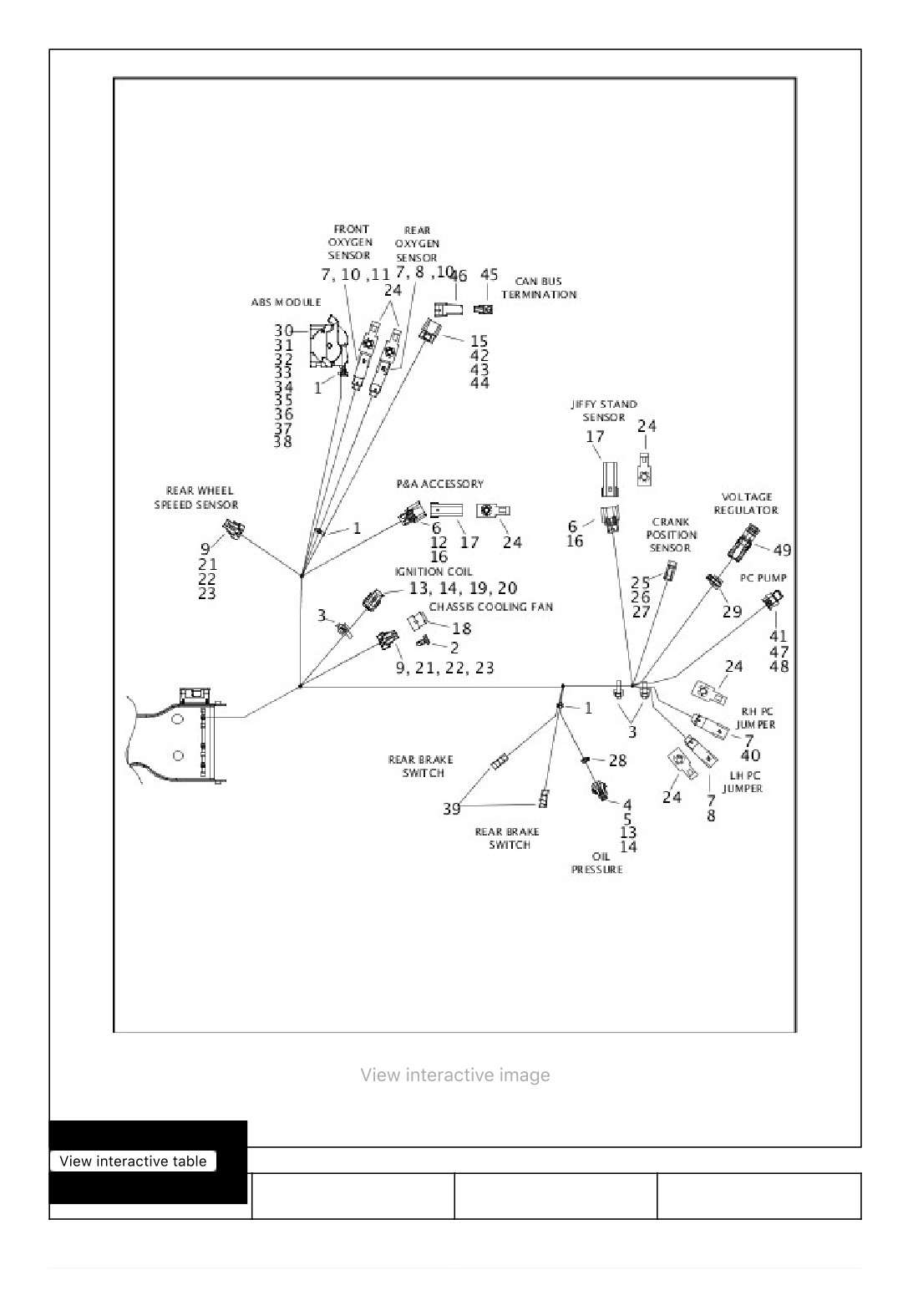

69201123A
MAIN WIRING HARNESS
FLTRU
- ABS
NOTE: Includes the following parts.
1
5118
SEAL PIN
FLTRU
2
10006
CABLE STRAP (3)
FLTRU
3
10065
CABLE STRAP (3)
FLTRU
4
10177
CABLE STRAP, anchored
FLTRU
5
72062-06
HOUSING, two-way
FLTRU
socket (gray)
6
72167-07BK
HOUSING, 16-way pin
FLTRU
(black)
7
72168-07
TERMINAL, socket, 18-
FLTRU
20 AWG (4)
8
72169-07
TERMINAL, pin, 16-20
FLTRU
AWG (36)
9
72209-11
COVER, wire
FLTRU
10
72213-94
TERMINAL, socket, 16-
FLTRU
20 AWG (2)
11
72222-11
TERMINAL, socket, 18-
FLTRU
20 AWG (27)
12
72226-11
TERMINAL, socket, 14-
FLTRU
16 AWG (8)
13
72256-11
SEAL PIN, 0.6 mm (white)
FLTRU
(13)
14
72414-07BK
HOUSING, six-way
FLTRU
socket (black)
15
72473-07
SEAL PIN, natural (6)
FLTRU
16
72484-08
TERMINAL, socket, 20
FLTRU
AWG (2)
17
72486-08
WIRE SEAL, 20 AWG
FLTRU
(green) (2)
18
72488-07BK
HOUSING, 12-way pin
FLTRU
(black)
488/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
19
72490-07GY
HOUSING, 12-way pin
FLTRU
(gray)
20
72606-08
HOUSING, two-way
FLTRU
socket (black)
21
72610-08
WIRE SEAL, 18-20 AWG
FLTRU
(white) (2)
22
72639-10
SECONDARY LOCK,
FLTRU
two-way socket
23
72905-11
HOUSING, two-way pin
FLTRU
(black)
24
72907-11
HOUSING, four-way pin
FLTRU
(black) (2)
25
72909-11
TERMINAL, pin, 20-22
FLTRU
AWG (9)
26
73213-07
RETAINER, anchored (3)
FLTRU
27
12500002
CABLE STRAP
FLTRU
28
69200193
HOUSING, 48-way
FLTRU
socket (black)
29
69200205
PLUG, weather, 12-way
FLTRU
pin (2)
30
69200700
CADDY
FLTRU
31
69201163
HOUSING, six-way pin
FLTRU
(black)
32
69201164
TERMINAL, pin, 22 AWG
FLTRU
(6)
WIRING HARNESS, MAIN, ABS - FLTRU (3 OF 8)
489/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
490/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)

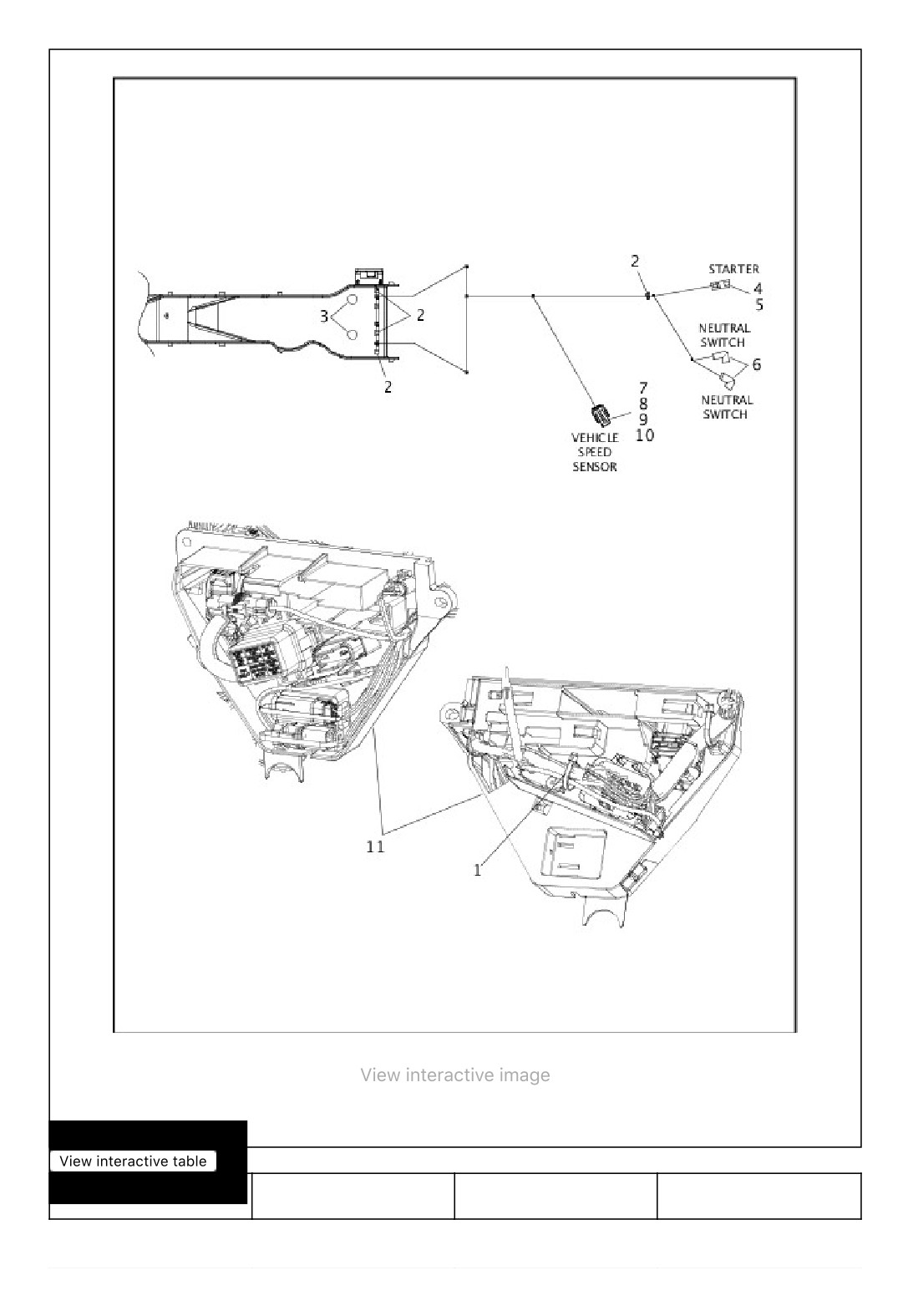

69201123A
MAIN WIRING HARNESS
FLTRU
- ABS
NOTE: Includes the following parts.
1
10065
CABLE STRAP (3)
FLTRU
2
10177
CABLE STRAP, anchored
FLTRU
(2)
3
72008-05
TERMINAL, socket, 20-
FLTRU
22 AWG (4)
4
72009-05
HOUSING, two-way pin
FLTRU
(black) (2)
5
72010-05
WIRE SEAL, 22-26 AWG
FLTRU
(green) (4)
6
72098-06
HOUSING, two-way
FLTRU
socket (gray)
7
72099-06
WIRE SEAL, 16-18 AWG
FLTRU
(blue) (4)
8
72110-06
TERMINAL, socket, 16-
FLTRU
18 AWG (4)
9
72145-06
SECONDARY LOCK,
FLTRU
two-way socket (2)
10
72283-09
TERMINAL, socket, 14-
FLTRU
16 AWG, 90 degree (2)
11
72499-07
WIRE SEAL, 20-22 AWG
FLTRU
(green) (6)
12
72569-08
TERMINAL, socket, 20-
FLTRU
22 AWG (2)
13
69201301
WIRE SEAL, 20-22 AWG
FLTRU
(green) (6)
14
69201390
HOUSING, two-way
FLTRU
socket (black) (2)
15
69201391
TERMINAL, socket, 20
FLTRU
AWG (4)
16
69201392
WIRE SEAL, 20 AWG
FLTRU
(yellow) (4)
491/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
17
69201393
HOUSING, two-way
FLTRU
socket (black)
18
69201394
HOUSING, six-way
FLTRU
socket (black)
19
69201395
SECONDARY LOCK, six-
FLTRU
way socket
20
69201396
TERMINAL, socket, 20
FLTRU
AWG (4)
21
69201397
HOUSING, two-way pin
FLTRU
(gray)
22
69201398
TERMINAL, pin, 20 AWG
FLTRU
(2)
23
69201416
SECONDARY LOCK, six-
FLTRU
way socket
24
69201441
HOUSING, four-way
FLTRU
socket
25
69201442
TERMINAL, socket, 18
FLTRU
AWG (4)

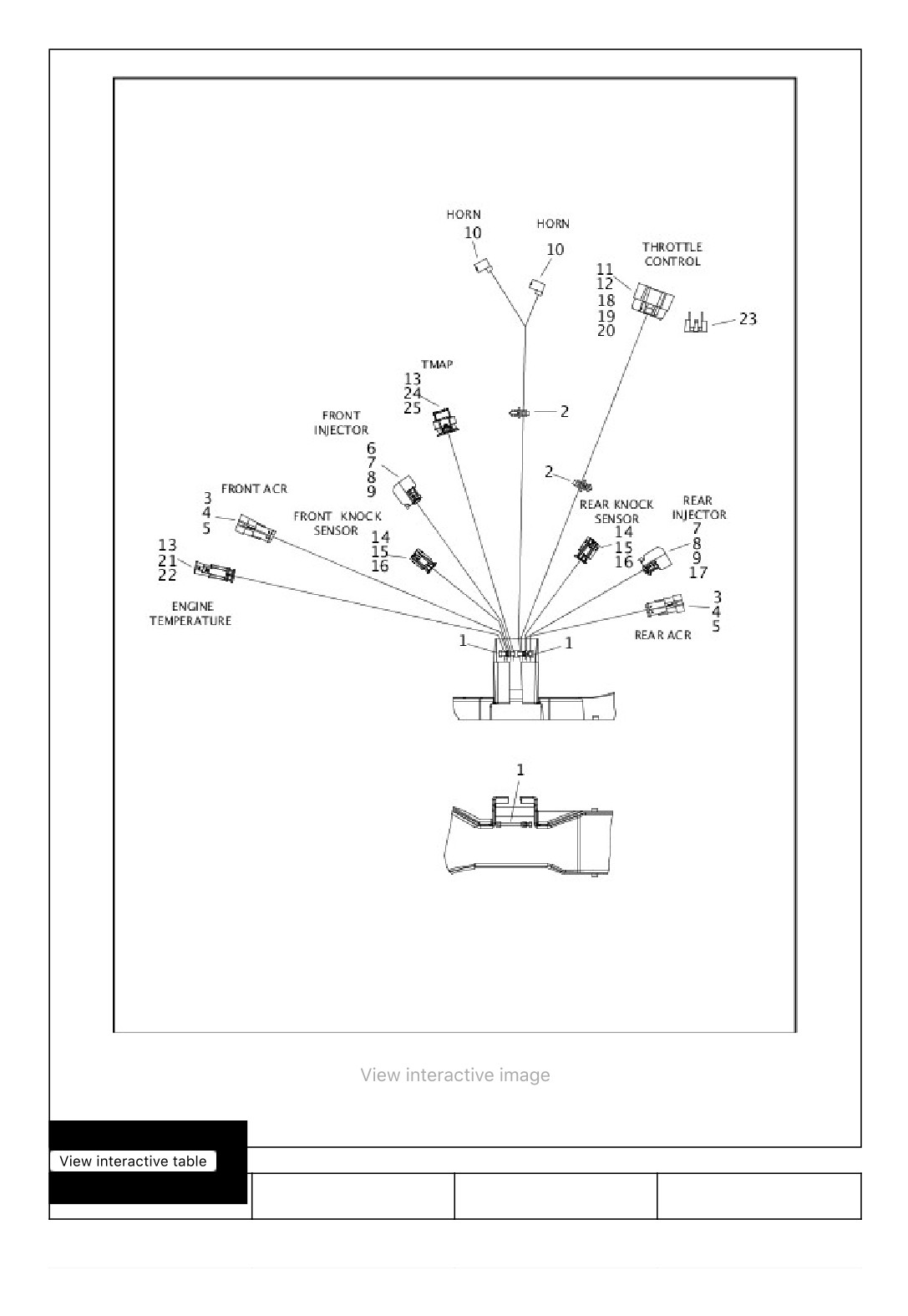

WIRING HARNESS, MAIN, ABS - FLTRU (4 OF 8)
492/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
493/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201123A
MAIN WIRING HARNESS
FLTRU
- ABS
NOTE: Includes the following parts.
1
10065
CABLE STRAP (3)
FLTRU
2
10147
CLIP, connector
FLTRU
3
72213-94
TERMINAL, socket, 16-
FLTRU
20 AWG (2)
4
72518-01
HOUSING, two-way
FLTRU
socket (red)
5
72533-06
PLUG, weather, two-way
FLTRU
pin
6
72609-08
SECONDARY LOCK,
FLTRU
two-way socket
7
72610-08
WIRE SEAL, 18-20 AWG
FLTRU
(white) (2)
8
72664-12A
HOUSING, 18-way
FLTRU
socket (black)
9
72666-12
TERMINAL, socket, 18-
FLTRU
20 AWG (46)
10
72720-07
HOUSING, two-way
FLTRU
socket (black)
11
72721-07
TERMINAL, socket, 18-
FLTRU
20 AWG (2)
12
69201168
TERMINAL, socket, 22
FLTRU
AWG (2)
13
69201410
HOUSING, 18-way
FLTRU
socket (brown)
14
69201414
HOUSING, 18-way
FLTRU
socket (gray)
WIRING HARNESS, MAIN, ABS - FLTRU (5 OF 8)
494/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
495/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)

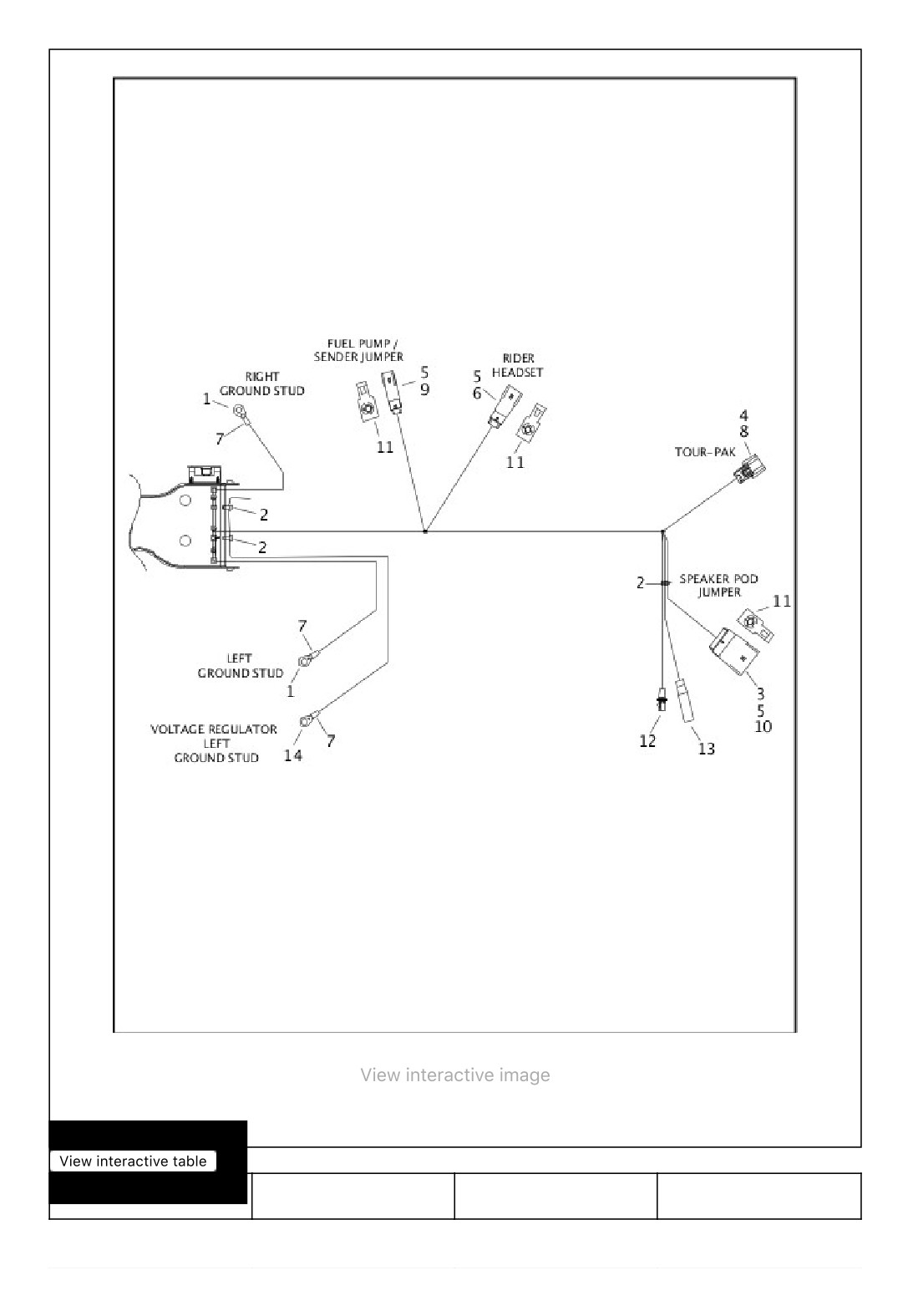

69201123A
MAIN WIRING HARNESS
FLTRU
- ABS
NOTE: Includes the following parts.
1
9819
TERMINAL, ring, 12 AWG
FLTRU
(2)
2
10065
CABLE STRAP (3)
FLTRU
3
72167-07BK
HOUSING, 16-way pin
FLTRU
(black)
4
72168-07
TERMINAL, socket, 18-
FLTRU
20 AWG (6)
5
72169-07
TERMINAL, pin, 16-20
FLTRU
AWG (23)
6
72188-07BK
HOUSING, six-way pin
FLTRU
(black)
7
72249-94
HEAT SHRINK TUBE,
FLTRU
.415 x 1 in (black)
8
72414-07BK
HOUSING, six-way
FLTRU
socket (black)
9
72415-07GY
HOUSING, four-way pin
FLTRU
(gray)
10
72473-07
SEAL PIN, natural (3)
FLTRU
11
73213-07
RETAINER, anchored (3)
FLTRU
12
69201017
WIRE HARNESS, AM/FM
FLTRU
antenna
13
69201018A
WIRE HARNESS, CB
FLTRU
antenna
14
69201596
TERMINAL, ring, 8-10
FLTRU
AWG (3)
WIRING HARNESS, MAIN, ABS - FLTRU (6 OF 8)
496/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
497/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201123A
MAIN WIRING HARNESS
FLTRU
- ABS
NOTE: Includes the following parts.
1
10006
CABLE STRAP
FLTRU
2
10065
CABLE STRAP (4)
FLTRU
3
11779
FASTENER, push-in
FLTRU
(black) (2)
4
72291-94
TERMINAL, socket, 14-
FLTRU
16 AWG
5
72295-94
CONNECTOR, starter
FLTRU
housing
6
72405-98BK
WIRE ASSEMBLY, push-
FLTRU
on, right angle molded,
65-1/2 in length (black)
(2)
7
72484-08
TERMINAL, socket, 20
FLTRU
AWG (3)
8
72486-08
WIRE SEAL, 20 AWG
FLTRU
(green) (3)
9
72543-07BK
HOUSING, three-way
FLTRU
socket (black)
10
72544-07
SECONDARY LOCK,
FLTRU
three-way socket
11
69200175
CADDY, fuse block,
FLTRU
electrical panel
WIRING HARNESS, MAIN, ABS - FLTRU (7 OF 8)
498/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
499/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201123A
MAIN WIRING HARNESS
FLTRU
- ABS
NOTE: Includes the following parts.
1
10065
CABLE STRAP (3)
FLTRU
2
10147
CLIP, connector
FLTRU
3
10177
CABLE STRAP, anchored
FLTRU
(3)
4
72065-06A
HOUSING, three-way
FLTRU
socket (black)
5
72127-06
SECONDARY LOCK,
FLTRU
three-way socket
6
72168-07
TERMINAL, socket, 18-
FLTRU
20 AWG (5)
7
72169-07
TERMINAL, pin, 16-20
FLTRU
AWG (10)
8
72175-07BK
HOUSING, four-way pin
FLTRU
(black) (2)
9
72213-94
TERMINAL, socket, 16-
FLTRU
20 AWG (4)
10
72343-10
TERMINAL, pin, 16-20
FLTRU
AWG (4)
11
72415-07GY
HOUSING, four-way pin
FLTRU
(gray)
12
72473-07
SEAL PIN (natural)
FLTRU
13
72484-08
TERMINAL, socket, 20
FLTRU
AWG (6)
14
72486-08
WIRE SEAL, 20 AWG
FLTRU
(green) (6)
15
72499-07
WIRE SEAL, 20-22 AWG
FLTRU
(green) (2)
16
72512-07BK
HOUSING, three-way
FLTRU
socket (black) (2)
17
72519-09BK
PLUG, weather, three-
FLTRU
way socket (2)
500/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
18
72533-06
PLUG, weather, two-way
FLTRU
pin
19
72544-07
SECONDARY LOCK,
FLTRU
three-way socket
20
72589-09
HOUSING, three-way
FLTRU
socket (black)
21
72606-08
HOUSING, two-way
FLTRU
socket (black) (2)
22
72609-08
SECONDARY LOCK,
FLTRU
two-way socket (2)
23
72610-08
WIRE SEAL, 18-20 AWG
FLTRU
(white) (4)
24
73213-07
RETAINER, anchored (6)
FLTRU
25
74112-98BK
HOUSING, two-way
FLTRU
socket (black)
26
74152-98
SECONDARY LOCK,
FLTRU
two-way socket
27
74191-98
TERMINAL, socket, 16-
FLTRU
20 AWG (2)
28
12500014
CABLE STRAP (2)
FLTRU
29
12500018
CABLE STRAP
FLHX
30
69200183
HOUSING, 26-way
FLTRU
socket
31
69200184
COVER, wire
FLTRU
32
69200185
TERMINAL, socket, 20
FLTRU
AWG (6)
33
69200186
TERMINAL, socket, 14-
FLTRU
16 AWG (2)
34
69200187
TERMINAL, socket, 12
FLTRU
AWG (2)
35
69200188
WIRE SEAL, 20 AWG (6)
FLTRU
36
69200189
WIRE SEAL, 14-16 AWG
FLTRU
(2)
37
69200190
WIRE SEAL, 12 AWG (2)
FLTRU
501/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
38
69200191
SEAL PIN (16)
FLTRU
39
69200238
TERMINAL, socket, 20
FLTRU
AWG (2)
40
69200272
HOUSING, two-way pin
FLTRU
(black)
41
69201301
WIRE SEAL, 20-22 AWG
FLHX
(green) (3)
42
69201396
TERMINAL, socket, 20
FLTRU
AWG (2)
43
69201400
HOUSING, two-way
FLTRU
socket, (black)
44
69201401
SECONDARY LOCK,
FLTRU
two-way socket
45
69201404
RETAINER, anchored
FLTRU
46
69201405
RESISTOR PACK
FLTRU
47
69201406
HOUSING, three-way
FLTRU
socket
48
69201407
TERMINAL, socket, 20
FLTRU
AWG (3)
49
69201423
DC LEAD ASSEMBLY,
FLTRU
two-way socket
WIRING HARNESS, MAIN, ABS - FLTRU (8 OF 8)
502/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
503/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69201123A
MAIN WIRING HARNESS
FLTRU
- ABS
NOTE: Includes the following parts.
1
6990
PLUG, weather, six-way
FLTRU
pin
2
10006
CABLE STRAP (2)
FLTRU
3
10065
CABLE STRAP (2)
FLTRU
4
31586-07
RELAY (2)
FLTRU
5
72064-06
HOUSING, three-way
FLTRU
socket (black)
6
72081-11
HOUSING, 48-way
FLTRU
socket (black)
7
72106-94BK
HOUSING, six-way pin
FLTRU
(black) (replaces gray
connector)
8
72146-94
SECONDARY LOCK, six-
FLTRU
way pin
9
72169-07
TERMINAL, pin, 16-20
FLTRU
AWG (10)
10
72175-07BK
HOUSING, four-way pin
FLTRU
(black)
11
72188-07BK
HOUSING, six-way pin
FLTRU
(black)
12
72190-94
TERMINAL, pin, 16-18
FLTRU
AWG (2)
13
72194-94
TERMINAL, pin, 20 AWG
FLTRU
(3)
14
72195-94
SEAL PIN
FLTRU
15
72209-11
COVER, wire
FLTRU
16
72222-11
TERMINAL, socket, 18-
FLTRU
20 AWG (21)
17
72226-11
TERMINAL, socket, 14-
FLTRU
16 AWG
504/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
18
72227-11
TERMINAL, socket, 18-
FLTRU
20 AWG (5)
19
72256-11
SEAL PIN, 0.6 mm (white)
FLTRU
(9)
20
72296-95
TERMINAL, socket, 14-
FLTRU
16 AWG (3)
21
72298-95
WIRE SEAL, 14-18 AWG
FLTRU
(green) (3)
22
72299-95
SEAL PIN, green (2)
FLTRU
23
72308-97
TERMINAL, socket, 12-
FLTRU
14 AWG (5)
24
72330-95
FUSE, 15 A (blue)
FLTRU
25
72331-95
FUSE, 5 A (tan) (2)
FLTRU
26
72345-02
FUSE, 20 A (yellow) (3)
FLTRU
27
72350-11
HOUSING, one-way
FLTRU
socket (black)
28
72356-95
TERMINAL, socket, 18-
FLTRU
20 AWG (14)
29
72412-97
WIRE SEAL, 12-14 AWG
FLTRU
(gray) (5)
30
72484-08
TERMINAL, socket, 20
FLTRU
AWG (3)
31
72486-08
WIRE SEAL, 20 AWG
FLTRU
(green) (3)
32
72575-11
SECONDARY LOCK,
FLTRU
one-way socket
33
72632-10
PLUG, weather, four-way
FLTRU
pin
34
73213-07
RETAINER, anchored
FLTRU
35
73301-04
HOUSING, two-way pin
FLTRU
(black)
36
73303-04
SECONDARY LOCK,
FLTRU
two-way socket
505/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
37
73304-04
TERMINAL, socket, 10
FLTRU
AWG (3)
38
73305-04
WIRE SEAL, 10 AWG
FLTRU
(blue) (3)
39
11100115
CLOTH, HARNESS
FLTRU
WRAP, 50 m (not shown)
40
69200194
FUSE BLOCK, 24-way
FLTRU
41
69200199
WIRE SEAL, 18-20 AWG
FLTRU
(purple) (14)
42
69200212
HARNESS, battery
FLTRU
tender
43
69200293
FUSE, 7.5 A (brown) (2)
FLTRU
44
69200312
SECONDARY LOCK,
FLTRU
fuse block (3)
45
69200336
MAIN FUSE, 50 A (red),
FLTRU
NOTE: Fuse is sold
separately and is not part
of main harness
46
69201130
WIRE HARNESS, battery
FLTRU
positive to starter, with
73304-04, 73305-04 and
69201307
47
69201307
BOOT, battery positive
FLTRU
48
69201411
COVER, fuse block
FLTRU

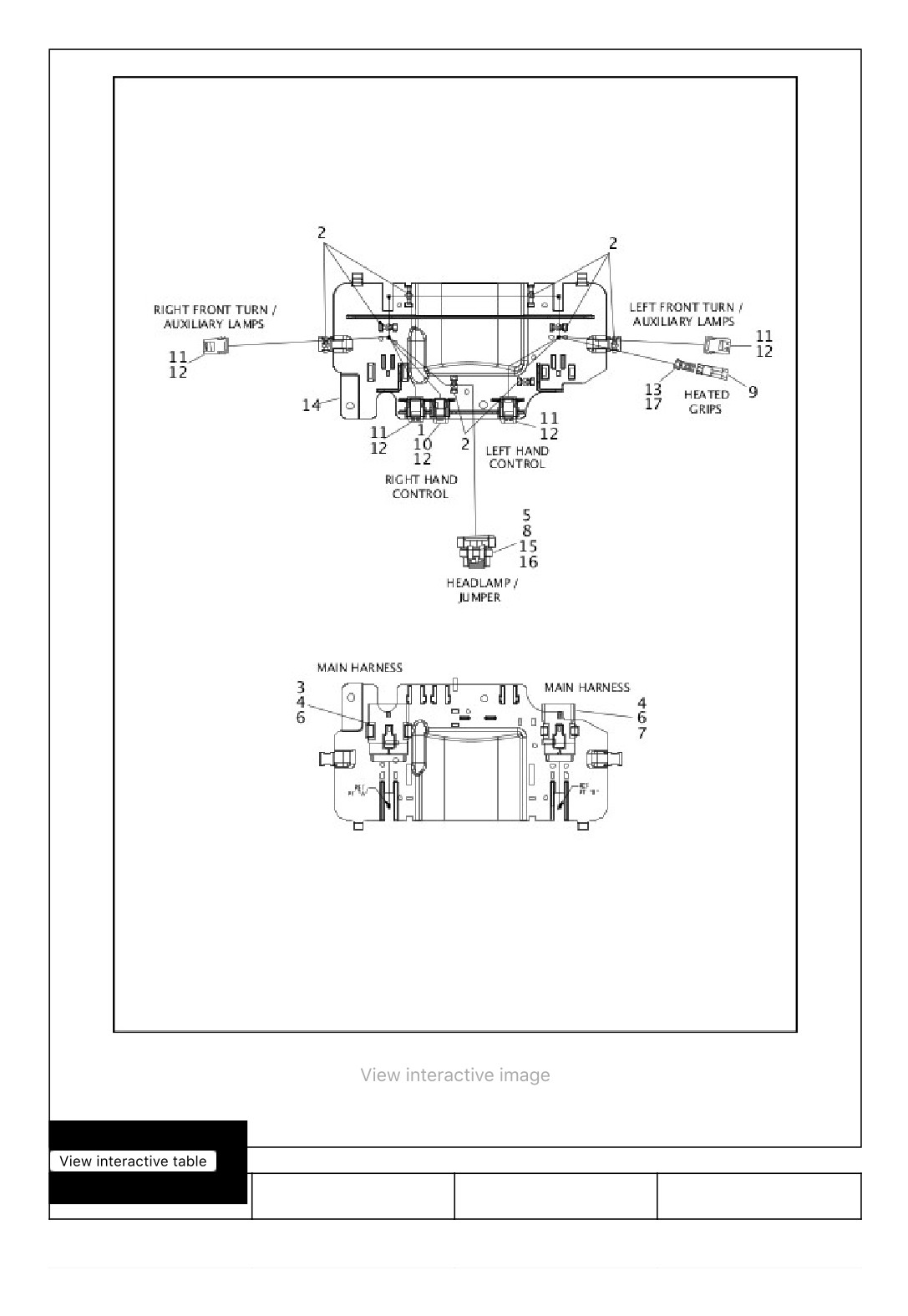

WIRING HARNESS, FAIRING - FLHT, FLHTCU, FLHTK, FLHTKL, FLHX AND
FLHXS (1 OF 2)
506/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
507/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
69200121
WIRING HARNESS,
FLHT, FLHTCU, FLHTK,
fairing
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
NOTE: Includes the following parts.
1
5118
SEAL PIN
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
2
10065
CABLE STRAP (8)
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
3
72167-07BK
HOUSING, 16-way pin
FLHT, FLHTCU, FLHTK,
(black)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
4
72169-07
TERMINAL, pin, 16-20
FLHT, FLHTCU, FLHTK,
AWG (19)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
5
72213-94
TERMINAL, socket, 16-
FLHT, FLHTCU, FLHTK,
20 AWG (4)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
6
72473-07
SEAL PIN, natural (9)
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
7
72490-07GY
HOUSING, 12-way pin
FLHT, FLHTCU, FLHTK,
(gray)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
8
72610-08
WIRE SEAL, 18-20 AWG
FLHT, FLHTCU, FLHTK,
(white) (4)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
9
72902-01BK
HOUSING, two-way pin
FLHT, FLHTCU, FLHTK,
(black)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
10
72905-11
HOUSING, two-way pin
FLHT, FLHTCU, FLHTK,
(black)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
11
72907-11
HOUSING, four-way pin
FLHT, FLHTCU, FLHTK,
(black) (4)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
12
72909-11
TERMINAL, pin, 20-22
FLHT, FLHTCU, FLHTK,
AWG (17)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
508/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
13
72912-01BK
HOUSING, two-way
FLHT, FLHTCU, FLHTK,
socket (black)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
14
69200109
CADDY, fairing harness
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
15
69200254
HOUSING, four-way
FLHT, FLHTCU, FLHTK,
socket
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
16
69200256
SECONDARY LOCK,
FLHT, FLHTCU, FLHTK,
four-way socket
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
17
69201240
TERMINAL, socket,18
FLHT, FLHTCU, FLHTK,
AWG (2)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS

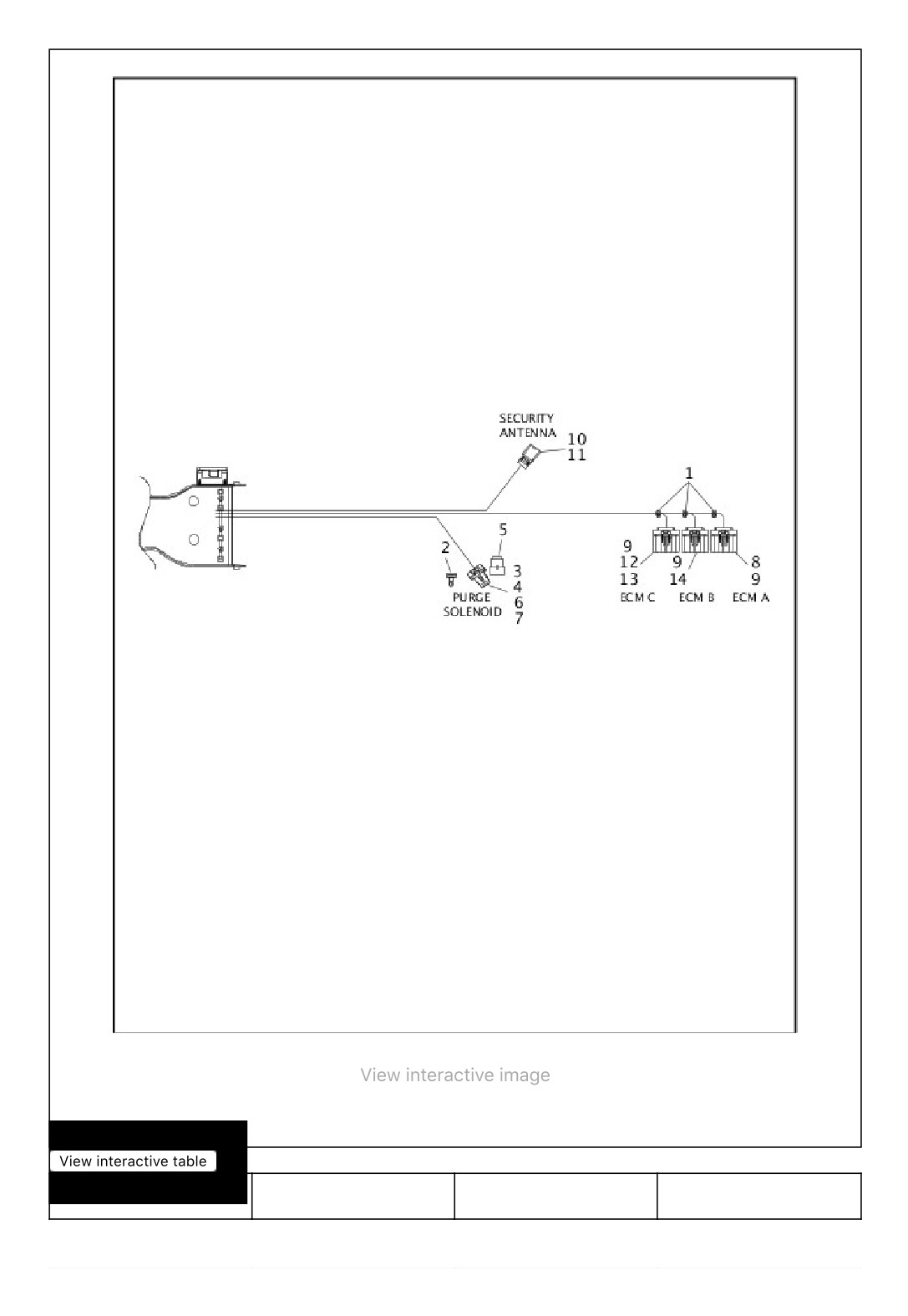

WIRING HARNESS, FAIRING - FLHT, FLHTCU, FLHTK, FLHTKL, FLHX AND
FLHXS (2 OF 2)
509/956
