Harley Davidson Parts Catalog 2019: touring models - page 23
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)

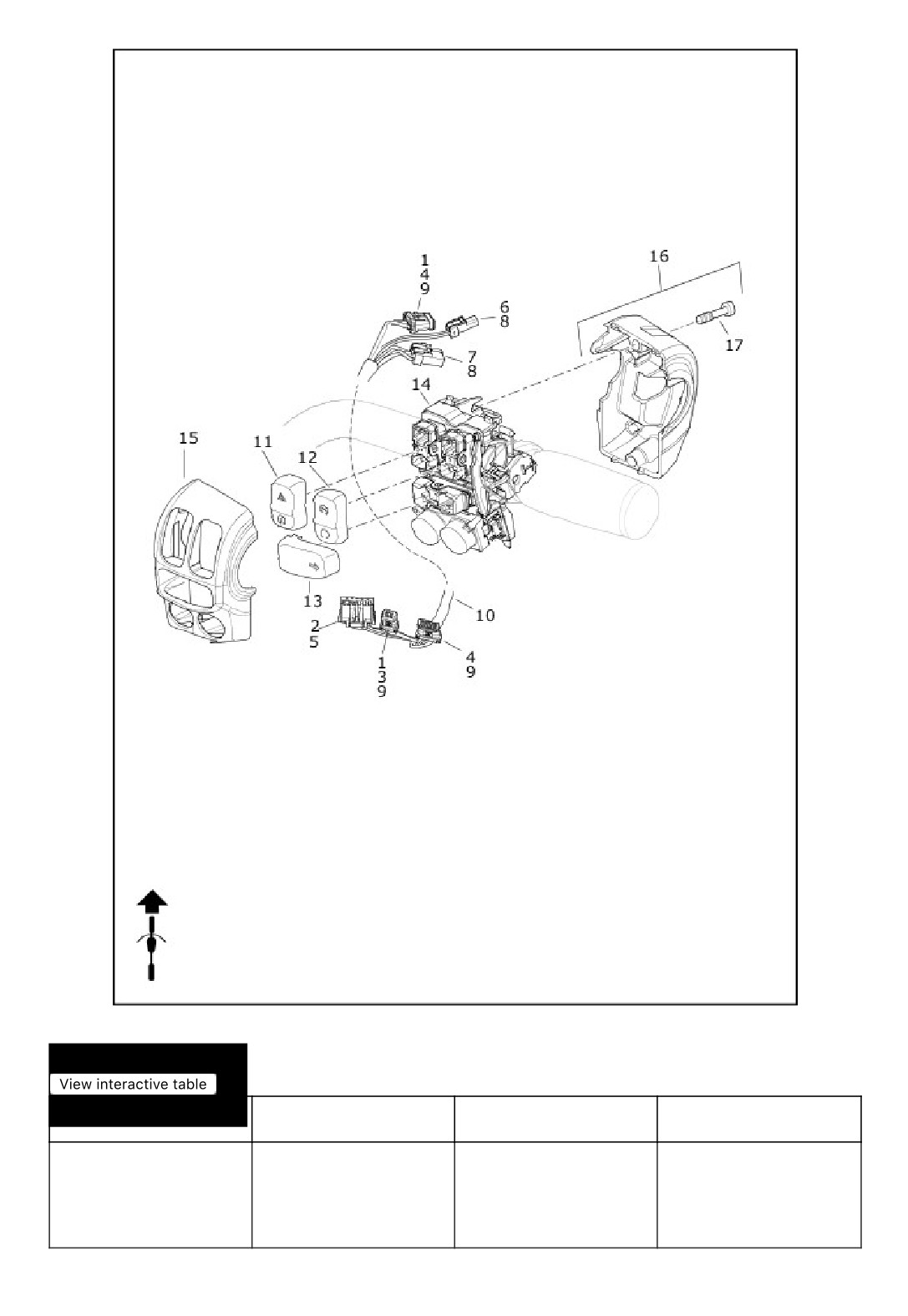

14
71500127C
SWITCH PACK, right
FLHRXS
hand control, with
71500049, 71500050 and
71500057
660/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
17
10500008
SCREW (2)
FLHRXS

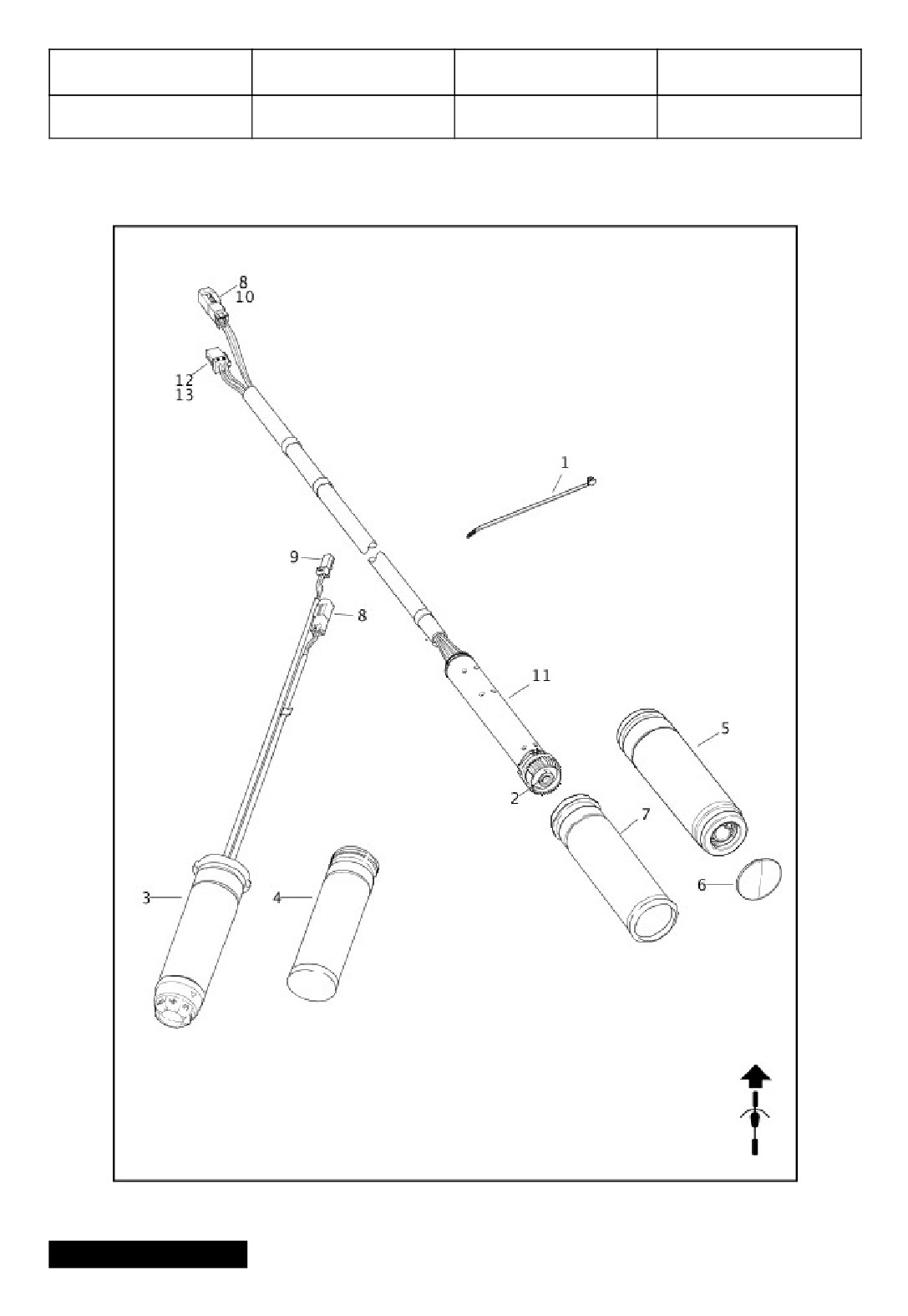

THROTTLE CONTROL
661/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
11
32700050A
SENSOR, twist grip, with
ALL
32306-08, 72902-01BK,
72990-01, 69200307 and
69201162

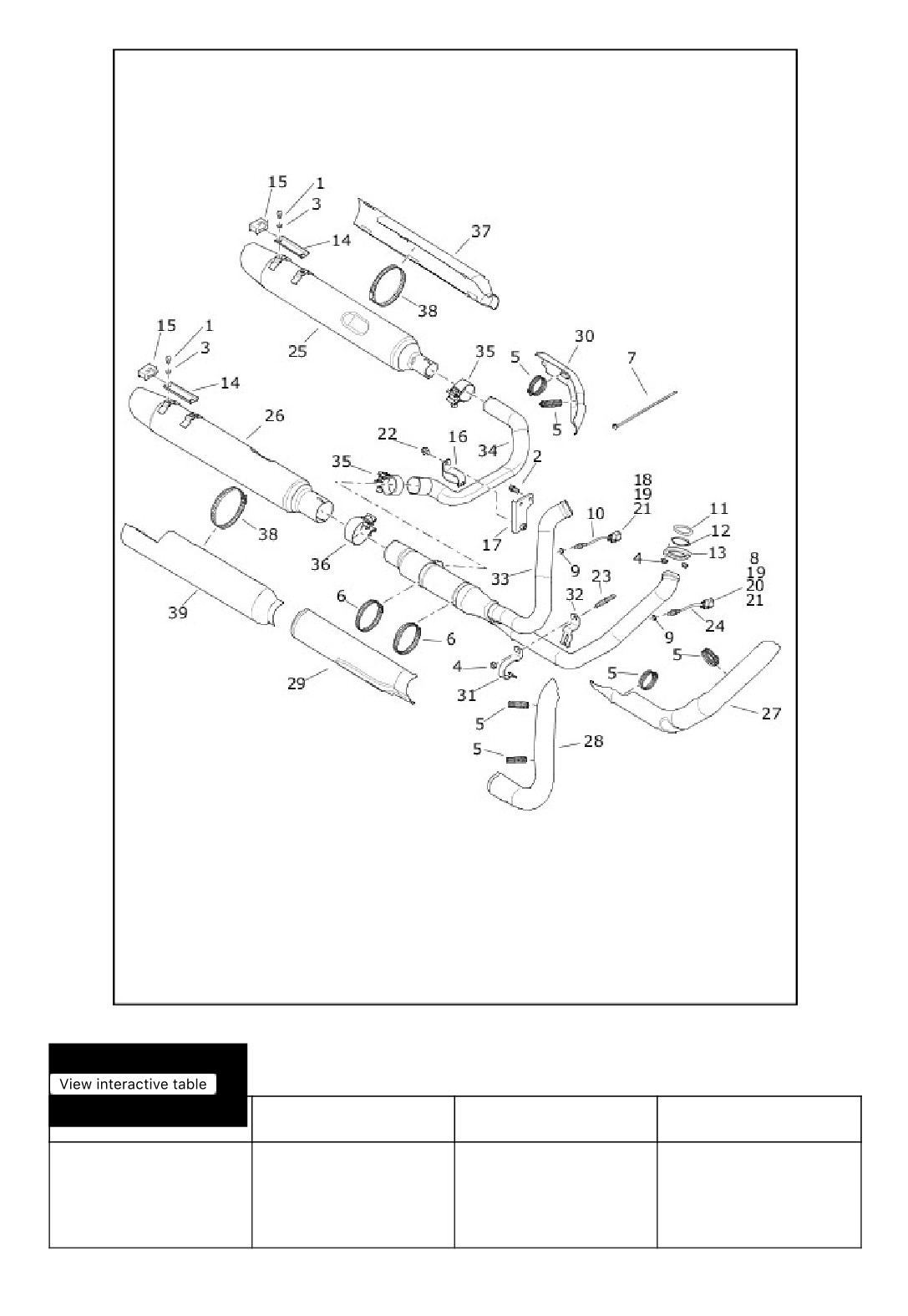

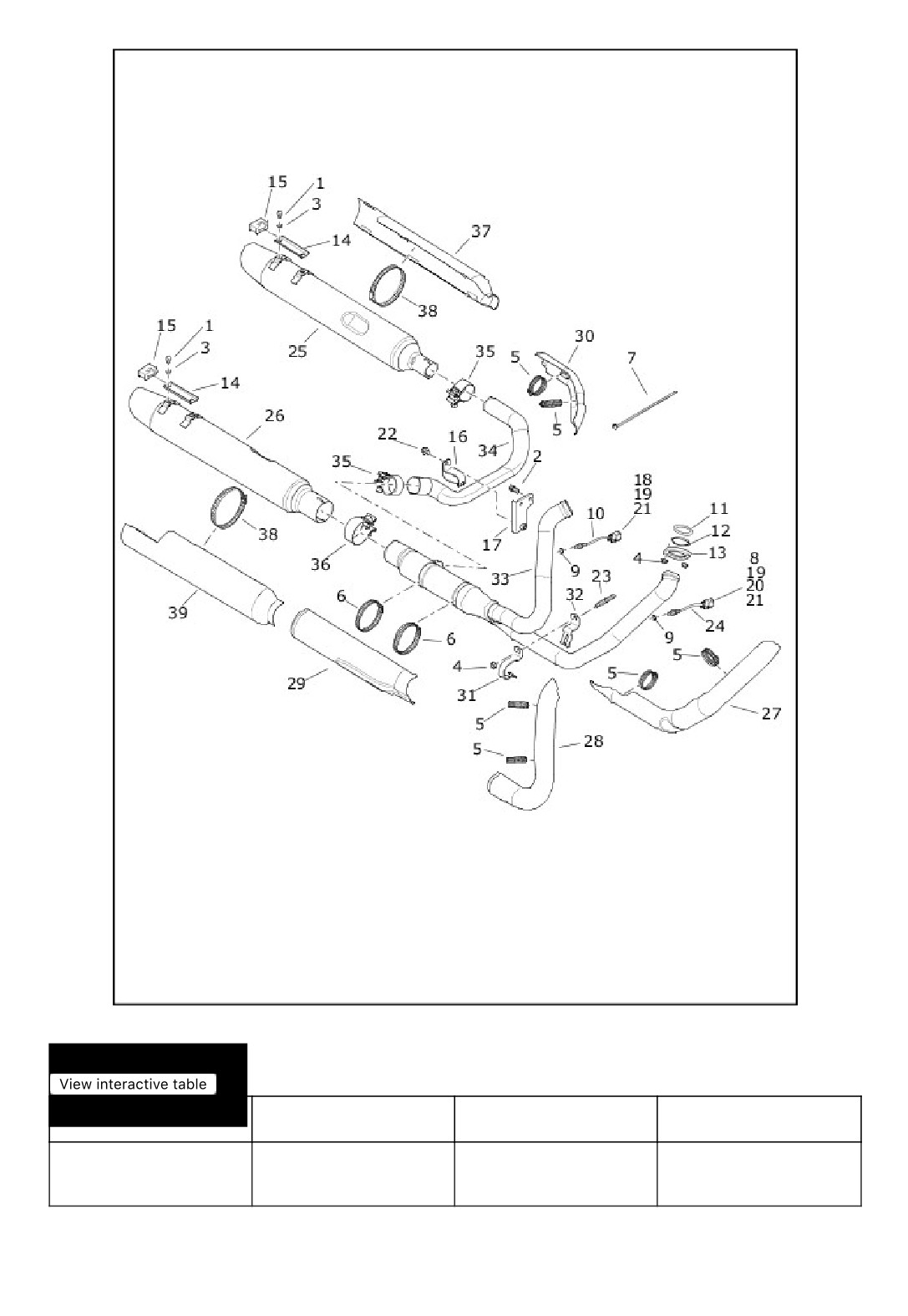

EXHAUST SYSTEM (1 OF 2)
662/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
16
66861-09B
CLAMP, exhaust pipe,
ALL
hinged
663/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
25
64900235A
MUFFLER (left) (chrome)
FLHR, FLHT, FLHTCU,
(Domestic, Canada,
FLHTK, FLHTK SHRINE,
California)
FLHTKL, FLHX, FLTRU,
FLTRX
25
64900765A
MUFFLER (left) (black)
FLHRXS, FLHXS, FLTRXS
(Domestic, Canada,
California)
25
64900815
MUFFLER (left) (chrome)
FLHR, FLHTK, FLHTK
(China)
SHRINE, FLHTKL, FLHX,
FLTRU, FLTRX
25
64900817
MUFFLER (left) (black)
FLHRXS, FLHXS, FLTRXS
(China)
EXHAUST SYSTEM (2 OF 2)
664/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
26
64900236A
MUFFLER (right)
FLHR, FLHT, FLHTCU,
(chrome) (Domestic,
FLHTK, FLHTK SHRINE,
Canada, California)
FLHTKL, FLHX, FLTRU,
FLTRX
665/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
26
64900766A
MUFFLER (right) (black)
FLHRXS, FLHXS, FLTRXS
(Domestic, Canada,
California)
26
64900814
MUFFLER (right)
FLHR, FLHTK, FLHTK
(chrome) (China)
SHRINE, FLHTKL, FLHX,
FLTRU, FLTRX
26
64900816
MUFFLER (right) (black)
FLHRXS, FLHXS, FLTRXS
(China)
37
65400545
SHIELD, muffler (left)
FLHR, FLHTK, FLHTK
(chrome) (China)
SHRINE, FLHTKL, FLHX,
FLTRU, FLTRX
37
65400546
SHIELD, muffler (left)
FLHRXS, FLHXS, FLTRXS
(black) (China)
38
66047-05
CLAMP (China) (6)
ALL
39
65400547
SHIELD, muffler (right)
FLHR, FLHTK, FLHTK
(chrome) (China)
SHRINE, FLHTKL, FLHX,
FLTRU, FLTRX
39
65400548
SHIELD, muffler (right)
FLHRXS, FLHXS, FLTRXS
(black) (China)

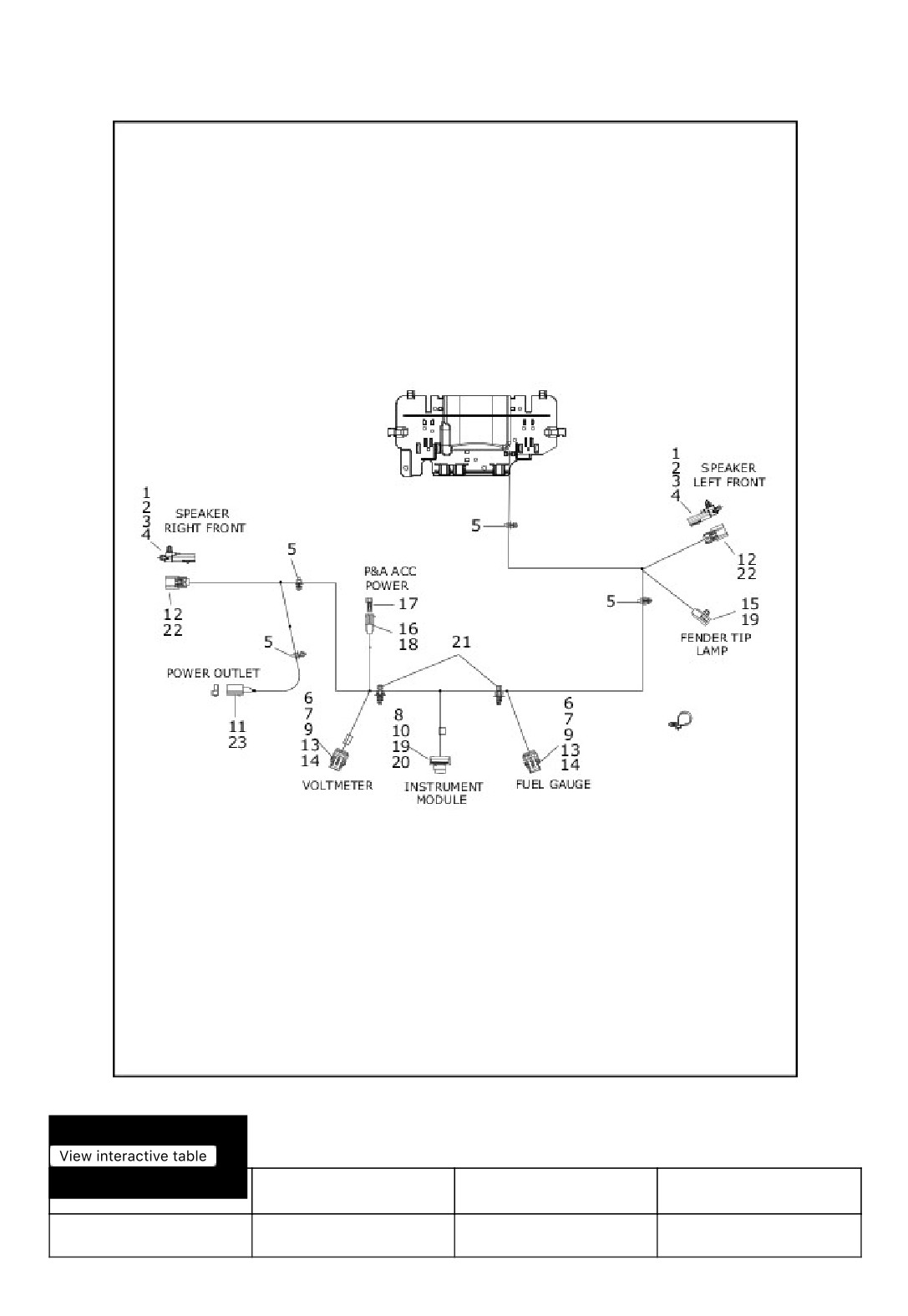

WIRING HARNESS, MAIN, NON-ABS - FLHT, FLHX (2 OF 8)
666/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
69202354
PLUG, weather
FLHT

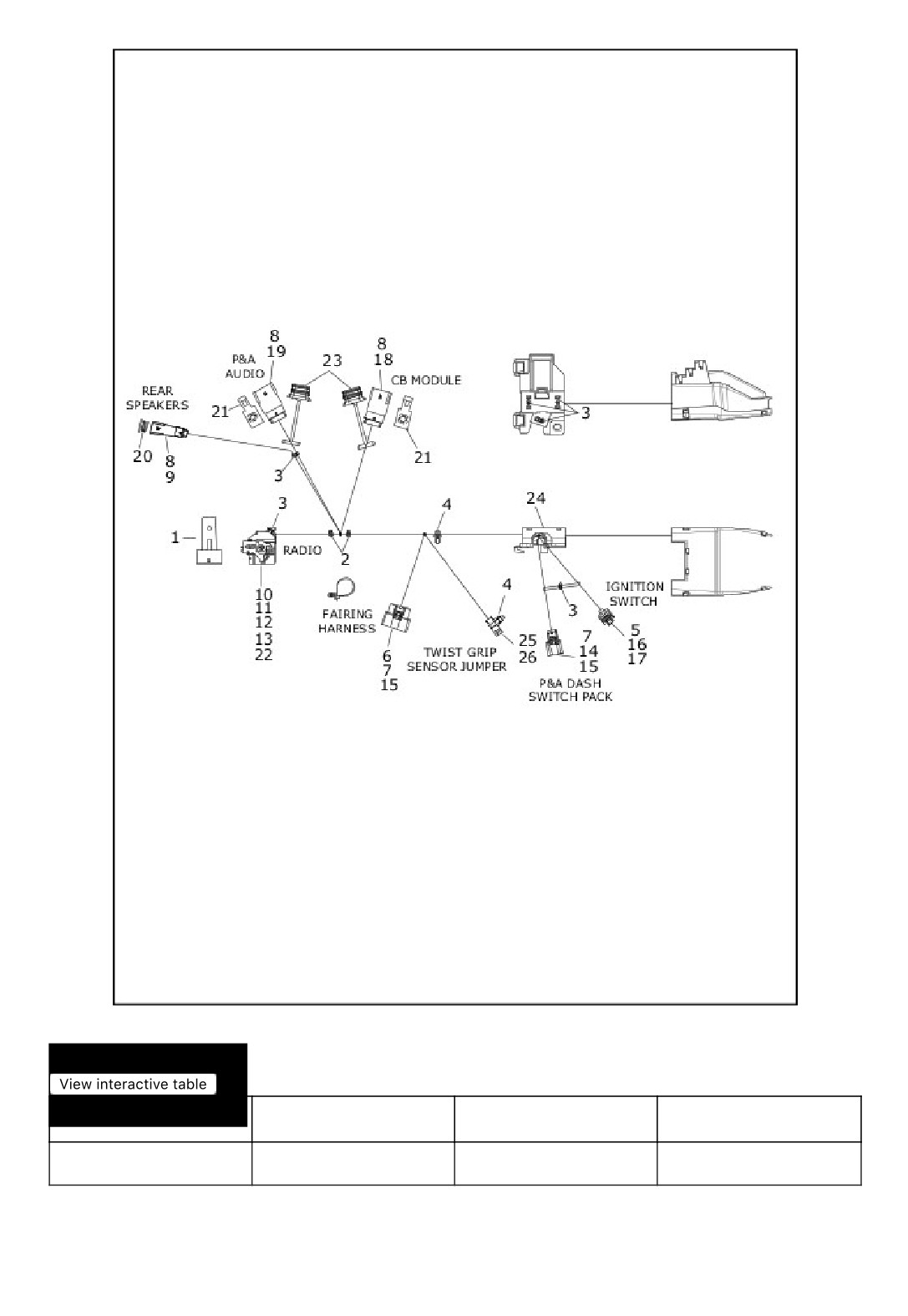

WIRING HARNESS, MAIN, ABS - FLHT, FLHX, FLHXS (2 OF 8)
667/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
69202354
PLUG, weather
FLHT
WIRING HARNESS, MAIN, ABS - FLHTCU (2 OF 8)
668/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
20
72639-10
SECONDARY LOCK,
FLHTCU
two-way socket
669/956
4/5/2019

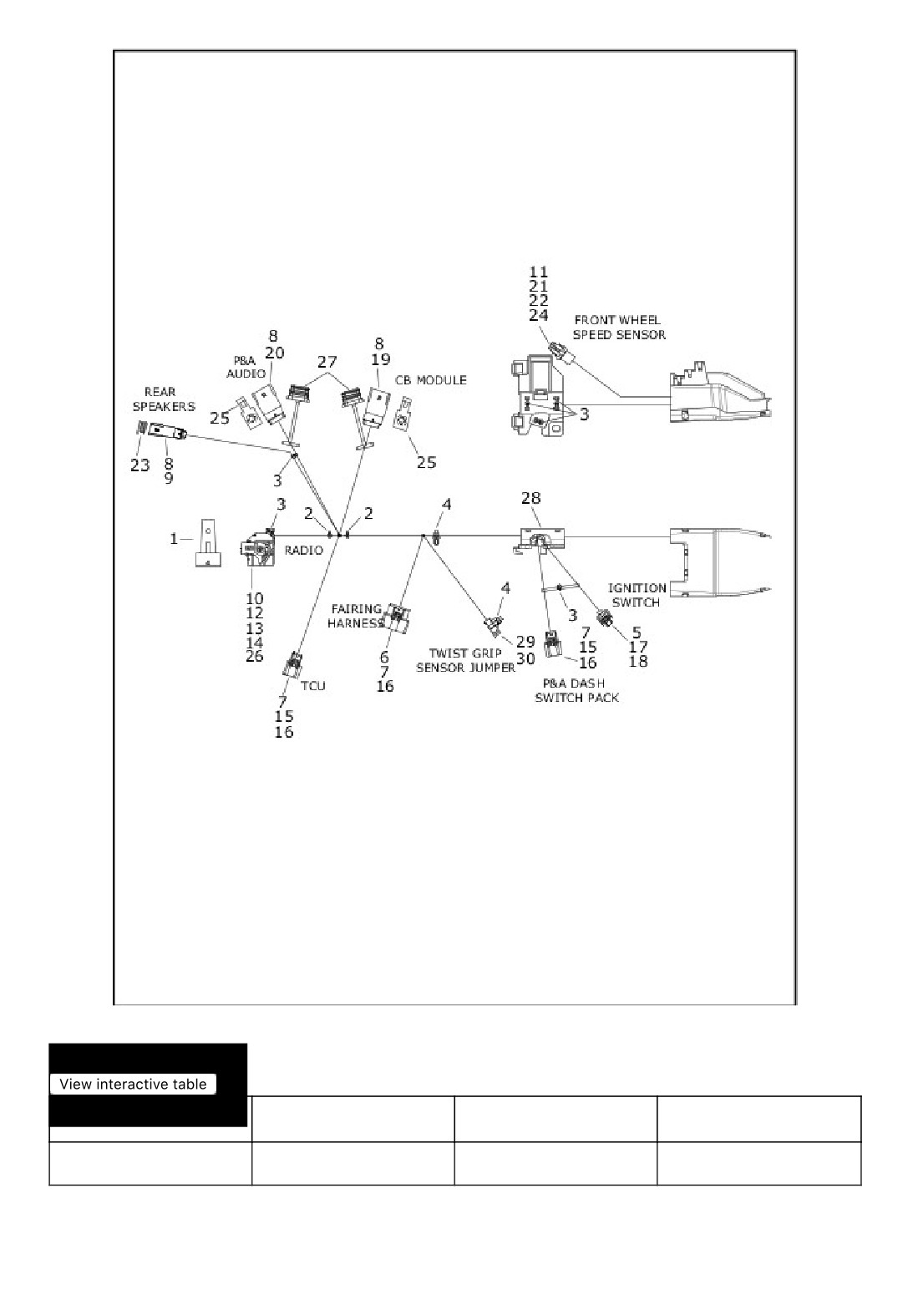

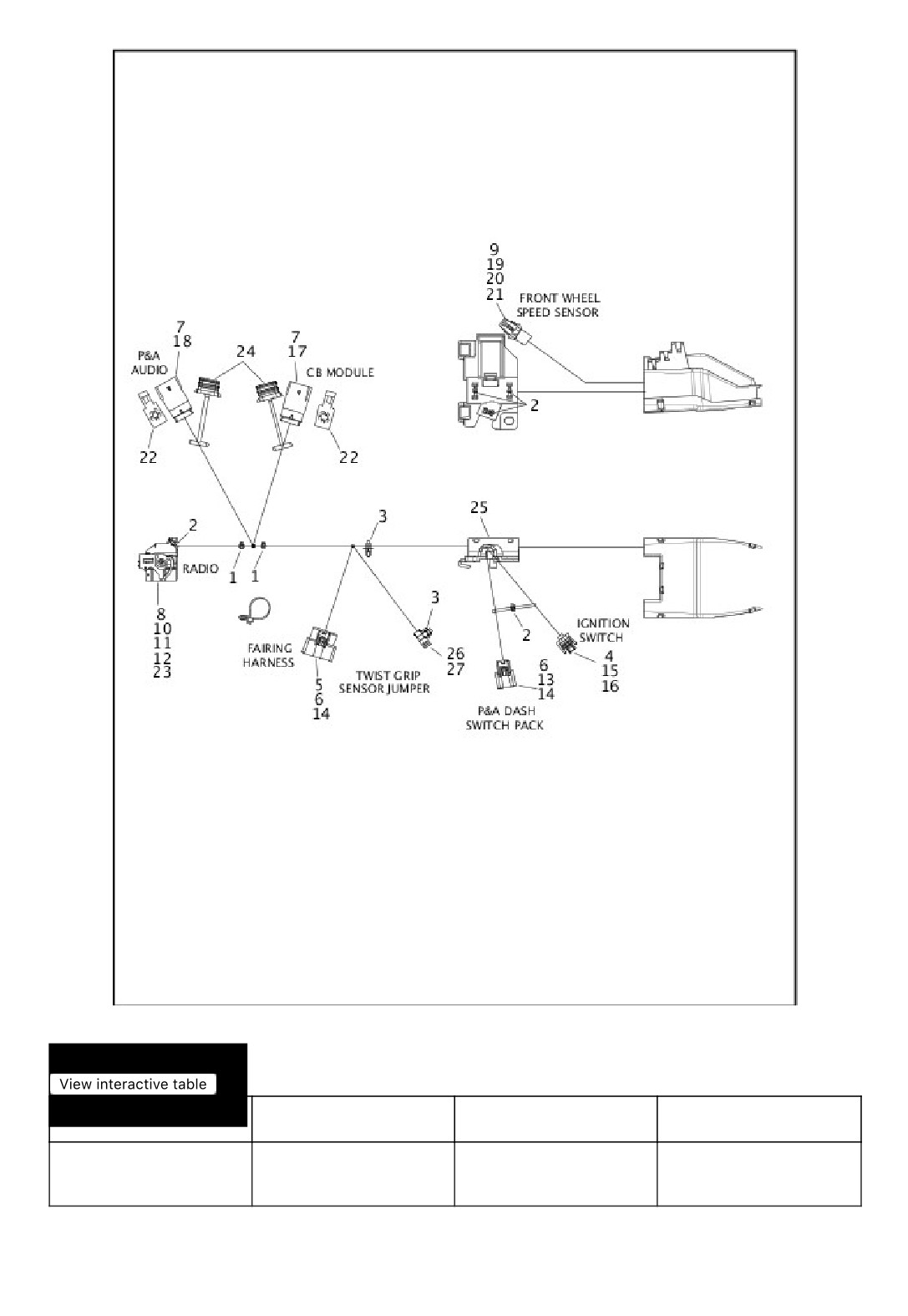

WIRING HARNESS, FAIRING - FLHT, FLHTCU, FLHTK,
FLHTKL, FLHX AND FLHXS (2 OF 2)
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
72473-07
SEAL PIN (natural) (2)
FLHT
670/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
2
73213-07
RETAINER, anchored
FLHT
3
69200272
HOUSING, two-way pin
FLHT
(black)
4
69202385
PLUG, weather, two-way
FLHT
pin

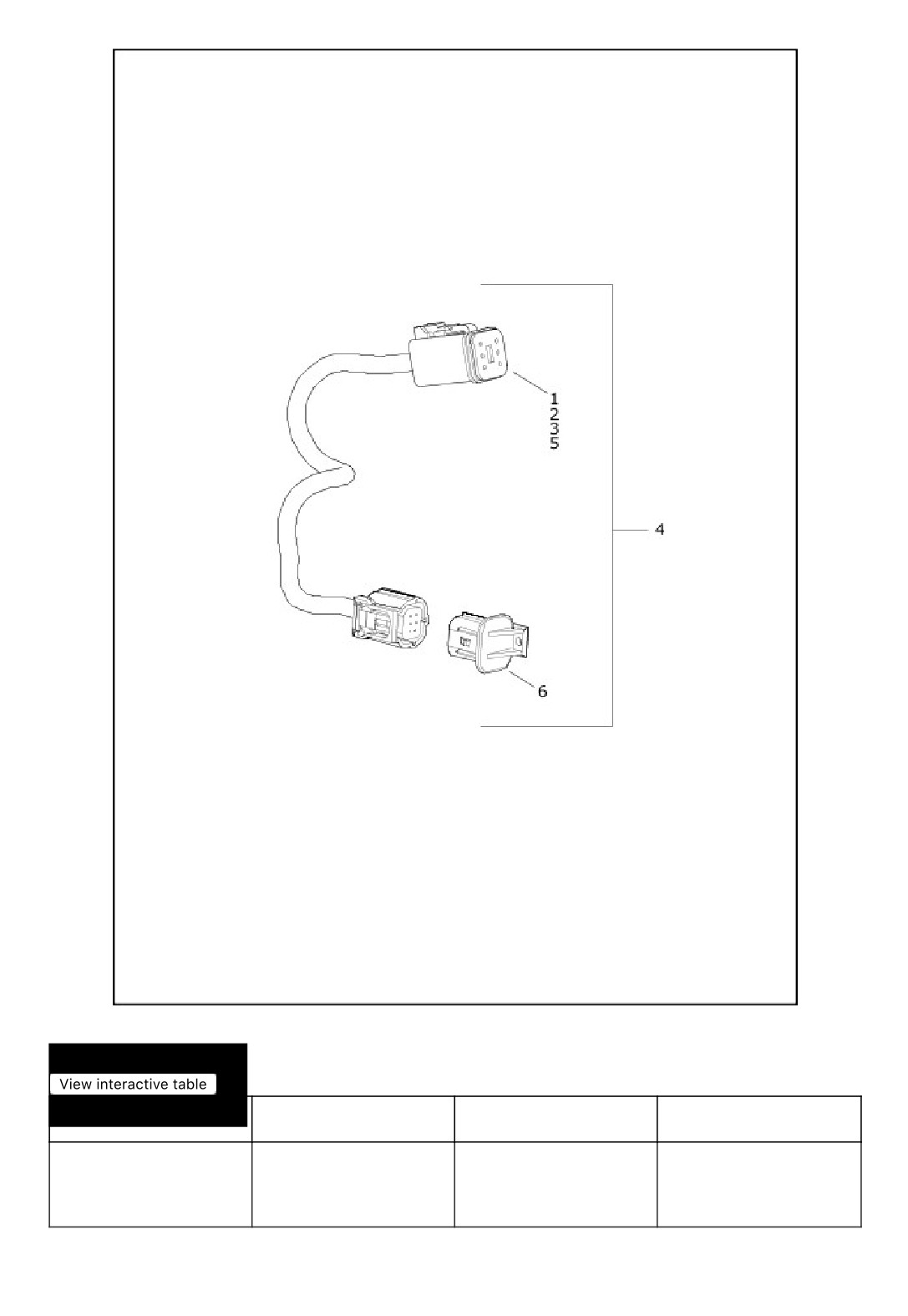

WIRING HARNESS, ON BOARD DIAGNOSTICS (OBD)
JUMPER (CHINA ONLY)
671/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
72116-94BK
HOUSING, six-way
FLHR, FLHRXS, FLHTK,
socket (black) (replaces
FLHTKL, FLHX, FLHXS,
gray connector)
FLTRU, FLTRX, FLTRXS
672/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
2
72156-94
SECONDARY LOCK, six-
FLHR, FLHRXS, FLHTK,
way socket
FLHTKL, FLHX, FLHXS,
FLTRU, FLTRX, FLTRXS
3
72195-94
SEAL PIN (2)
FLHR, FLHRXS, FLHTK,
FLHTKL, FLHX, FLHXS,
FLTRU, FLTRX, FLTRXS
4
69202097
WIRING HARNESS, OBD
FLHR, FLHRXS, FLHTK,
JUMPER
FLHTKL, FLHX, FLHXS,
FLTRU, FLTRX, FLTRXS
5
69202102
TERMINAL, socket, 22
FLHR, FLHRXS, FLHTK,
AWG (4)
FLHTKL, FLHX, FLHXS,
FLTRU, FLTRX, FLTRXS
6
69202108
CAP (2)
FLHR, FLHRXS, FLHTK,
FLHTKL, FLHX, FLHXS,
FLTRU, FLTRX, FLTRXS

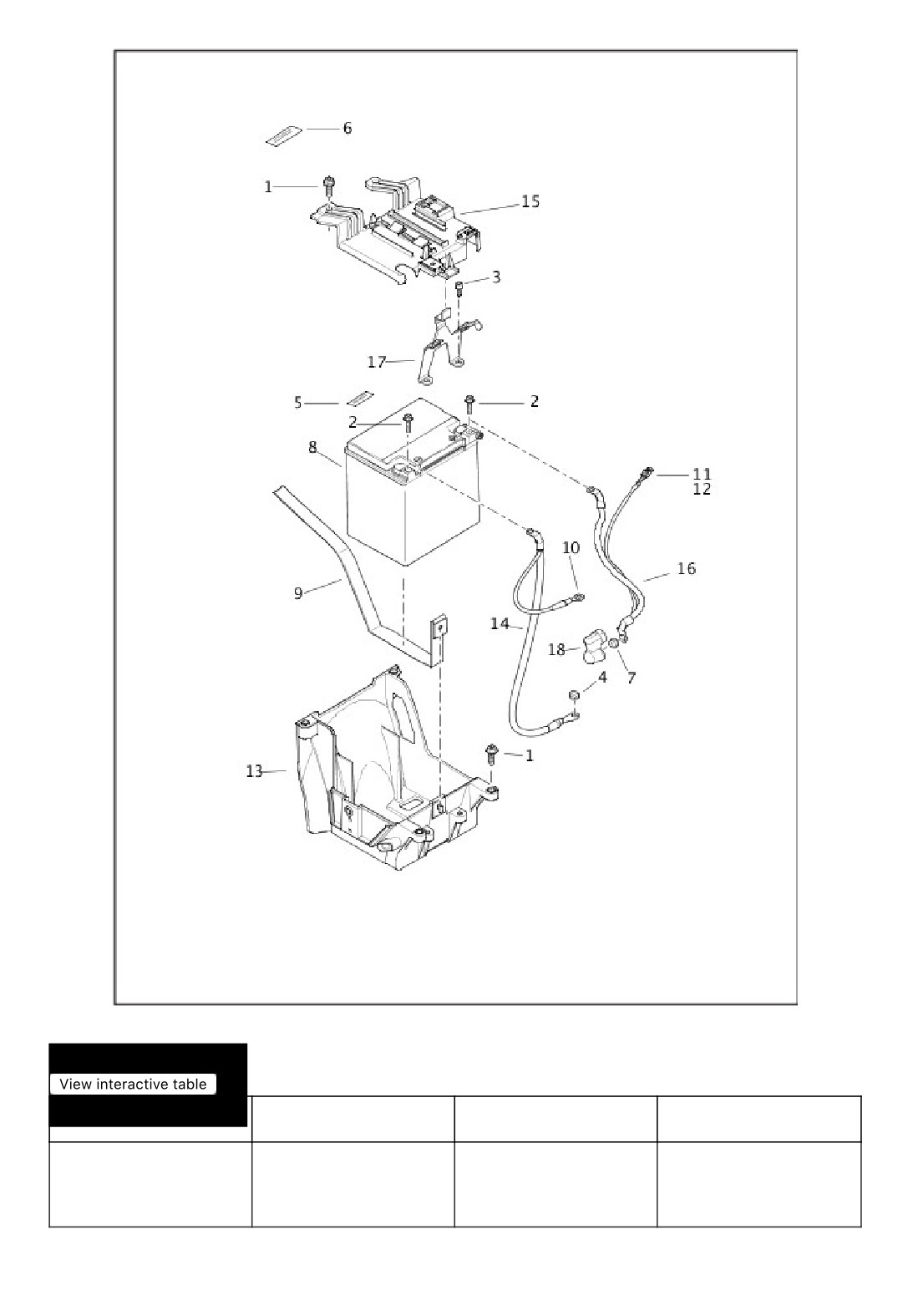

BATTERY
673/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
5
14001739
LABEL, battery warning
FLHRC, FLHRXS, FLHTK,
(Brazil)
FLHTK SHRINE, FLHX,
FLHXS, FLTRU, FLTRXS
674/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
10
9819
TERMINAL, ring, 12 AWG
ALL
13
66000010A
BATTERY TRAY
ALL

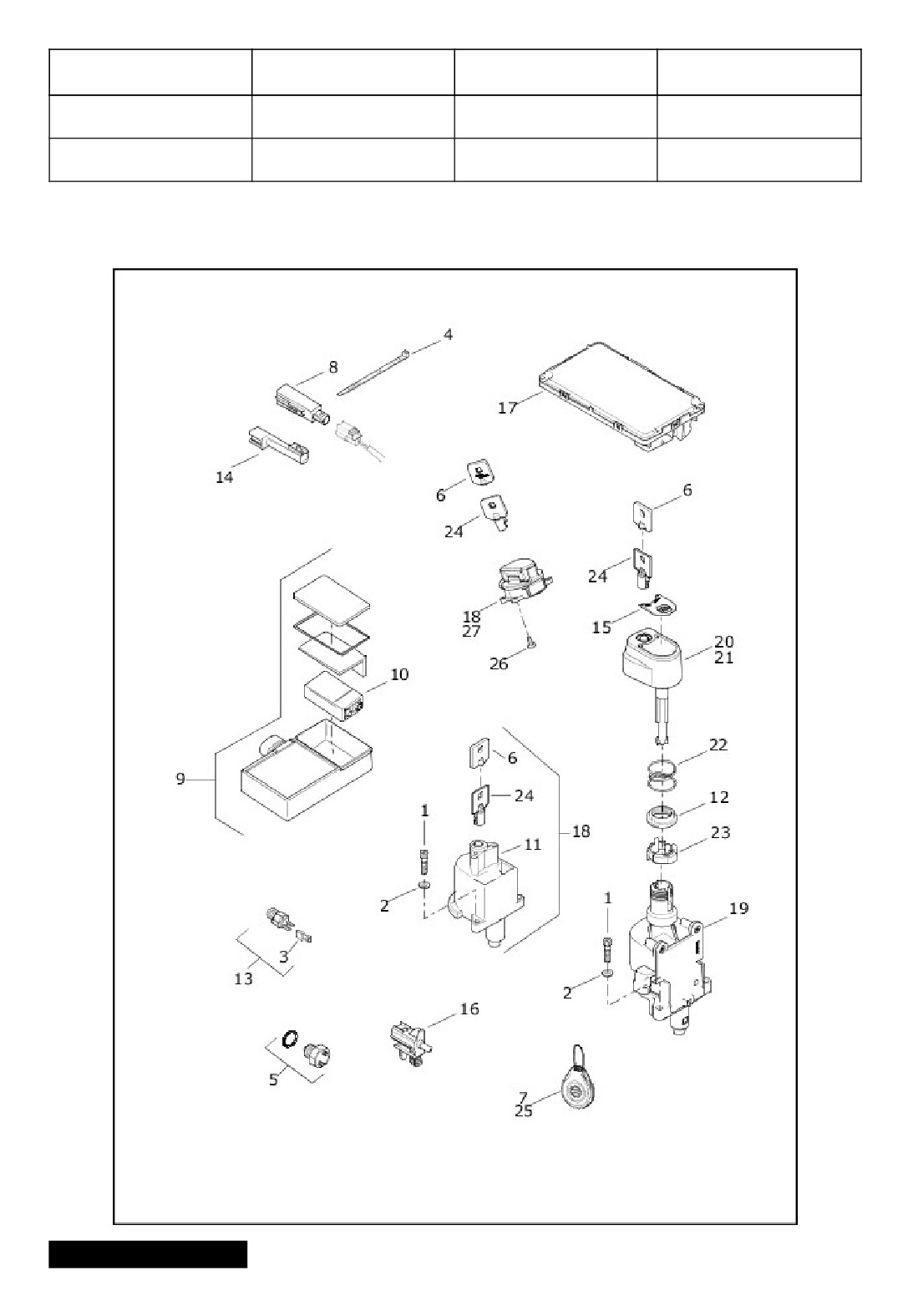

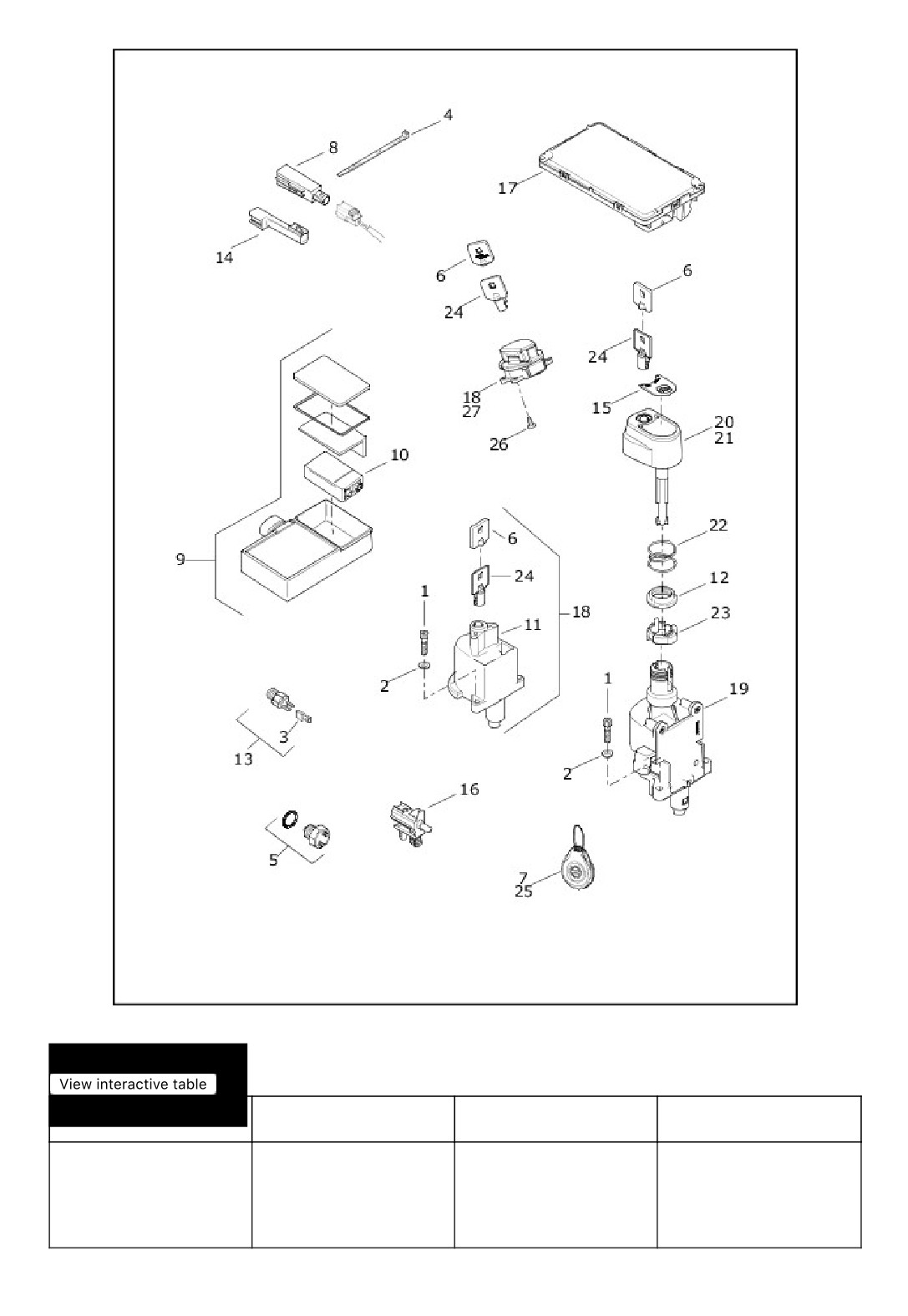

SWITCHES (1 OF 2)
675/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
12
71660-03A
NUT, ignition switch
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
17
41000341E
BODY CONTROL
ALL
MODULE (BCM) with
security (Except Japan)
17
41000342E
BODY CONTROL
FLHR, FLHRXS, FLHT,
MODULE (BCM) with
FLHTK, FLHTK SHRINE,
security (Japan)
FLHTKL, FLHXS, FLTRU,
FLTRX, FLTRXS
17
41000351E
BODY CONTROL
FLHR, FLHTCU, FLHX,
MODULE (BCM) without
FLTRX
security
SWITCHES (2 OF 2)
676/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
19
71400013B
HOUSING, ignition
FLHT, FLHTK, FLHTK
switch, with 71660-03
SHRINE, FLHTKL, FLHX,
and 71400081 (HDI)
FLHXS, FLTRU, FLTRX,
FLTRXS
677/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
20
71400015B
LOCKSET, complete,
FLHTCU, FLHTK, FLHTK
with keys, ignition knob,
SHRINE, FLHTKL, FLTRU
saddlebag and Tour-Pak
locks
20
71400016B
LOCKSET, complete,
FLHT, FLHX, FLHXS,
with keys, ignition knob
FLTRX
and saddlebag lock
21
71400017B
KNOB, ignition switch,
FLHT, FLHTCU, FLHTK,
with 14100158 (specify
FLHTK SHRINE, FLHTKL,
key number)
FLHX, FLHXS, FLTRU,
FLTRX
21
71400126B
KNOB, ignition switch
FLHXS, FLTRXS
(specify key number)

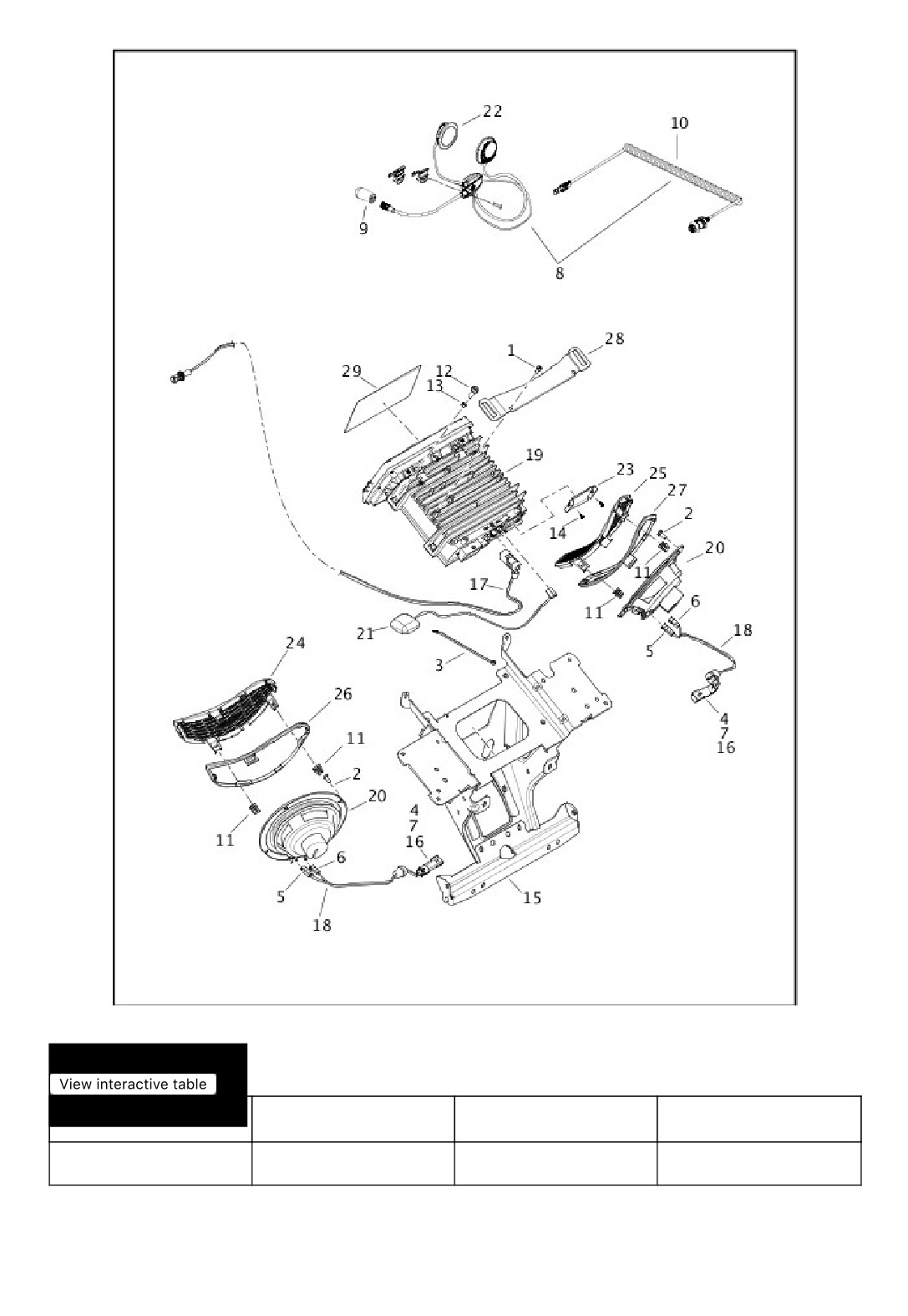

SOUND SYSTEM - FLHTCU, FLHTK, FLHTKL, FLHX AND
FLHXS (2 OF 2)
678/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
679/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
21
76000783
RADIO, BOOM!™ BOX
FLHTCU, FLHTK, FLHTK
GTS, with 12600070,
SHRINE, FLHTKL, FLHX,
12600071, 12600073 and
FLHXS
76000252 (Domestic,
California, Canada) (See
NOTE 1)
21
76000784
RADIO, BOOM!™ BOX
FLHTK, FLHTKL, FLHX,
GTS, with 12600070,
FLHXS
12600071, 12600073 and
76000252 (HDI, England)
(See NOTE 2)
21
76000785
RADIO, BOOM!™ BOX
FLHTK, FLHX, FLHXS
GTS, with 12600070,
12600071, 12600073 and
76000252 (HDI, Australia,
Japan, Asia-Pacific,
Brazil, China) (See NOTE
3)
21
76000785
RADIO, BOOM!™ BOX
FLHTKL
GTS, with 12600070,
12600071, 12600073 and
76000252 (HDI, Japan,
Asia-Pacific, China) (See
NOTE 3)
21
76000075D
RADIO, BOOM!™ BOX
FLHTCU, FLHX
4.3, with 12600070 and
12600071 (Domestic,
California)
23
76000789
ANTENNA, GPS
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLHX,
FLHXS

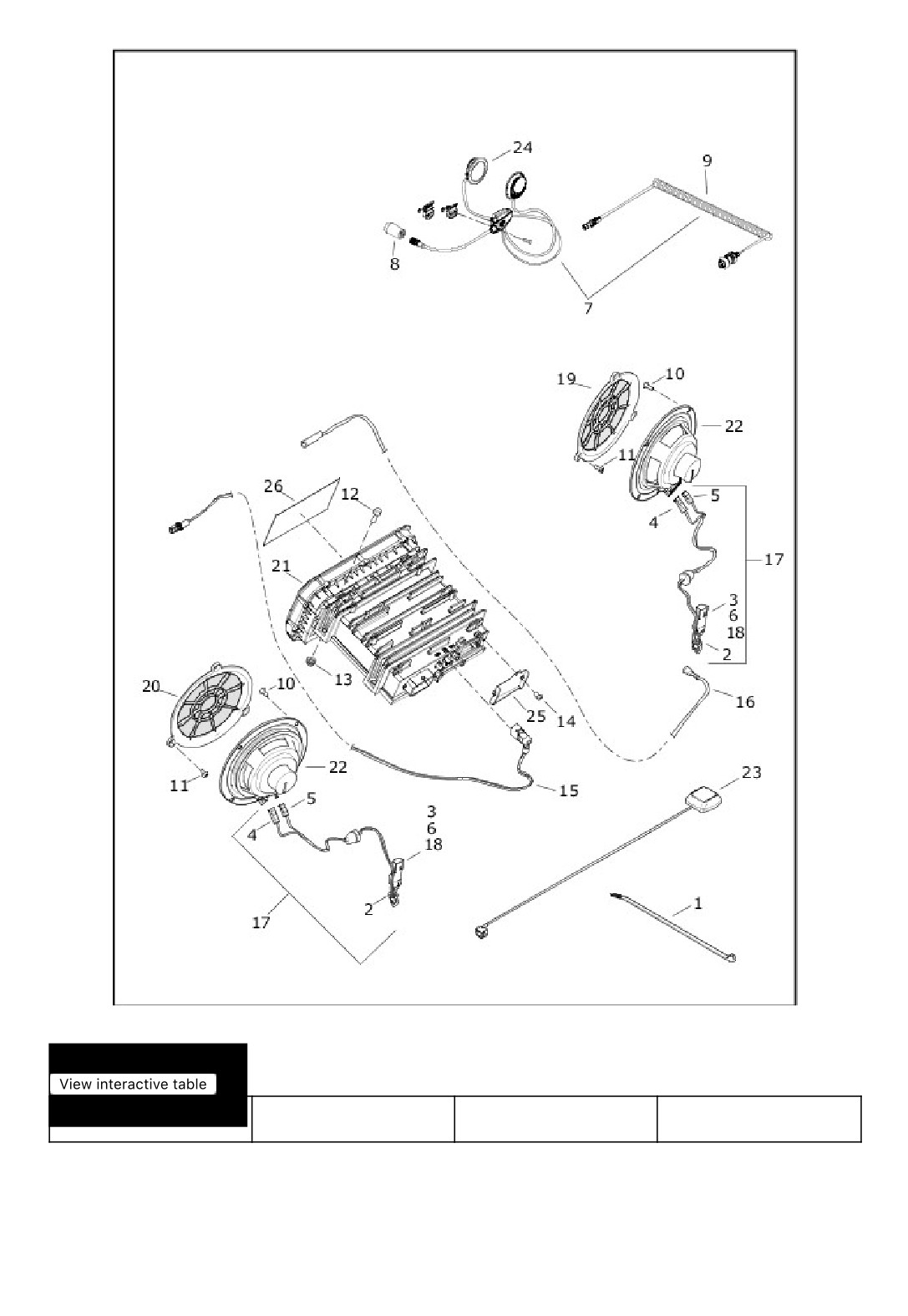

SOUND SYSTEM - FLTRU, FLTRX AND FLTRXS (1 OF 2)
680/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
2
3152
SCREW (8)
FLTRU, FLTRX, FLTRXS
681/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
19
76000779
RADIO, BOOM!™ BOX
FLTRU, FLTRX, FLTRXS
GTS, with 12600070,
12600071, 12600073 and
76000252 (Domestic,
California, Canada) (See
NOTE 1)
19
76000780
RADIO, BOOM!™ BOX
FLTRU, FLTRX, FLTRXS
GTS, with 12600070,
12600071, 12600073 and
76000252 (HDI, England)
(See NOTE 2)
19
76000781
RADIO, BOOM!™ BOX
FLTRX
GTS, with 12600070,
12600071, 12600073 and
76000252 (HDI, Australia,
Japan, Asia-Pacific,
China) (See NOTE 3)
19
76000781
RADIO, BOOM!™ BOX
FLTRXS
GTS, with 12600070,
12600071, 12600073 and
76000252 (HDI, Australia,
Japan, Asia-Pacific,
Brazil, China) (See NOTE
3)
19
76000781
RADIO, BOOM!™ BOX
FLTRU
GTS, with 12600070,
12600071, 12600073 and
76000252 (HDI, Japan,
Asia-Pacific, Brazil,
China) (See NOTE 3)
19
76000075D
RADIO, BOOM!™ BOX
FLTRX
4.3, with 12600070 and
12600071 (Domestic,
California)
SOUND SYSTEM - FLTRU, FLTRX AND FLTRXS (2 OF 2)
682/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
21
76000789
ANTENNA, GPS
FLTRU, FLTRX, FLTRXS

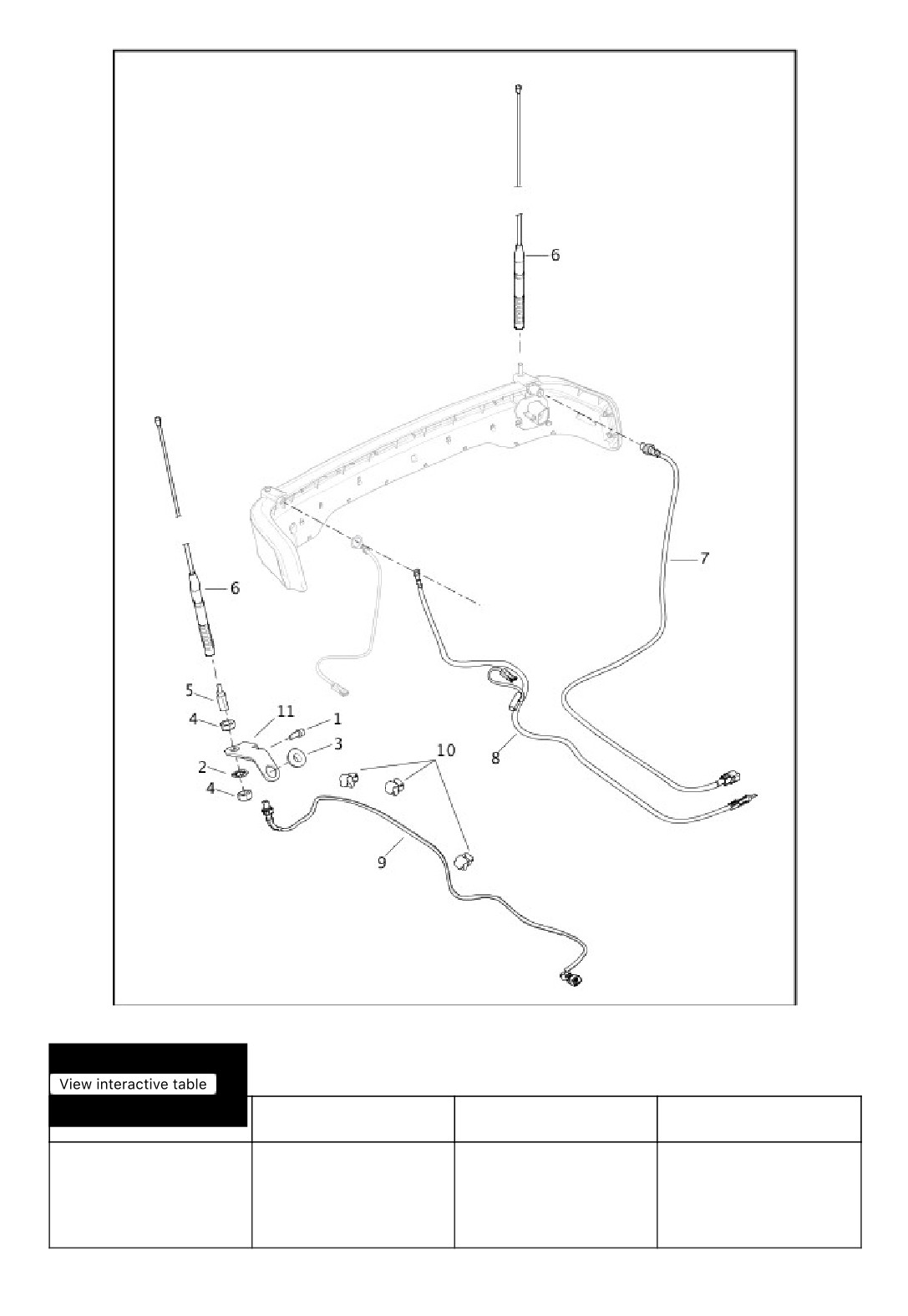

ANTENNAS
683/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
6
76000799
ANTENNA MAST,
FLHTCU, FLHTK, FLHTK
AM/FM/WB/LW
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
684/956
4/5/2019

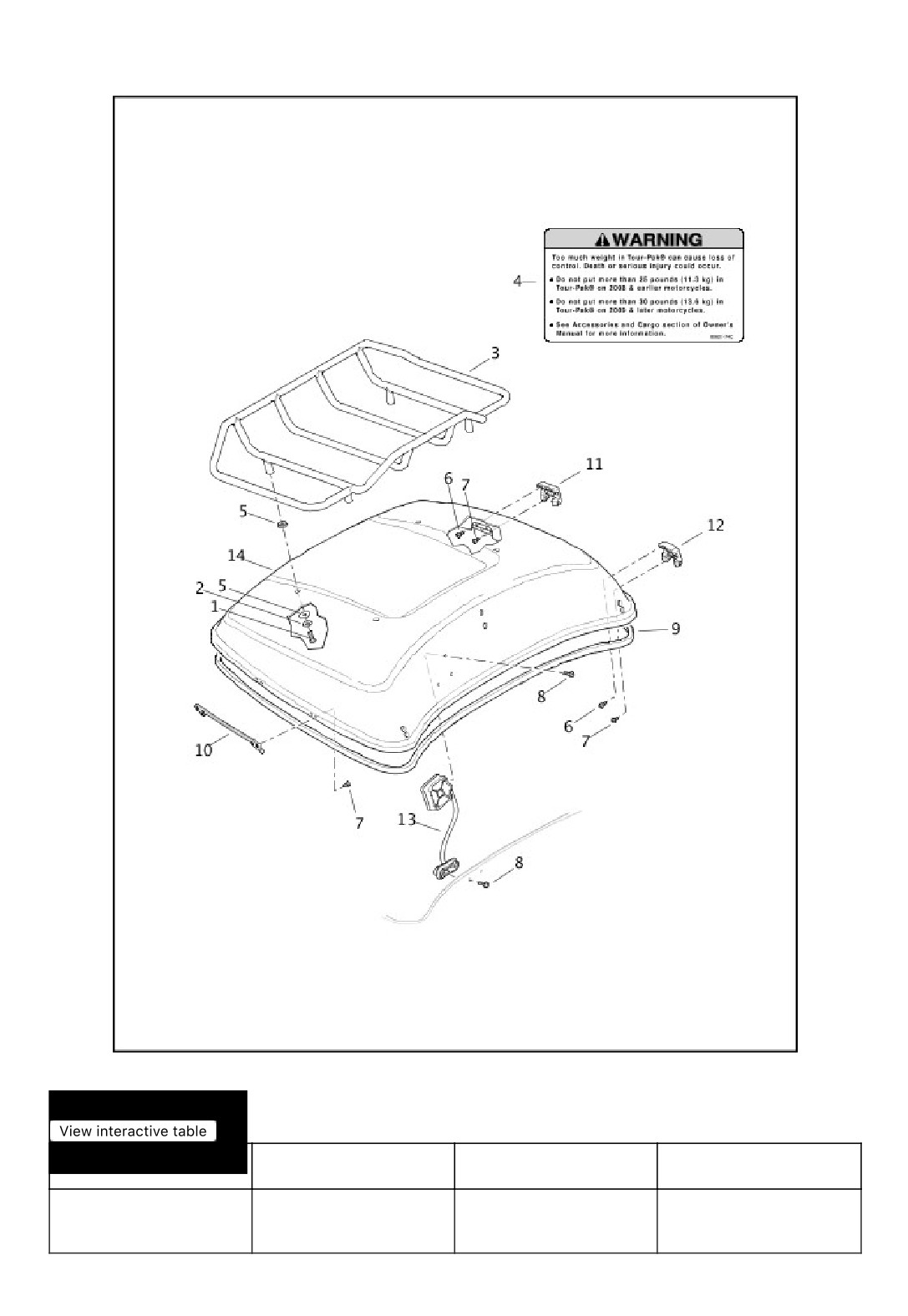

TOUR-PAK (COVER)
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
13
53000141A
TETHER, retractable
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLTRU
685/956
4/5/2019

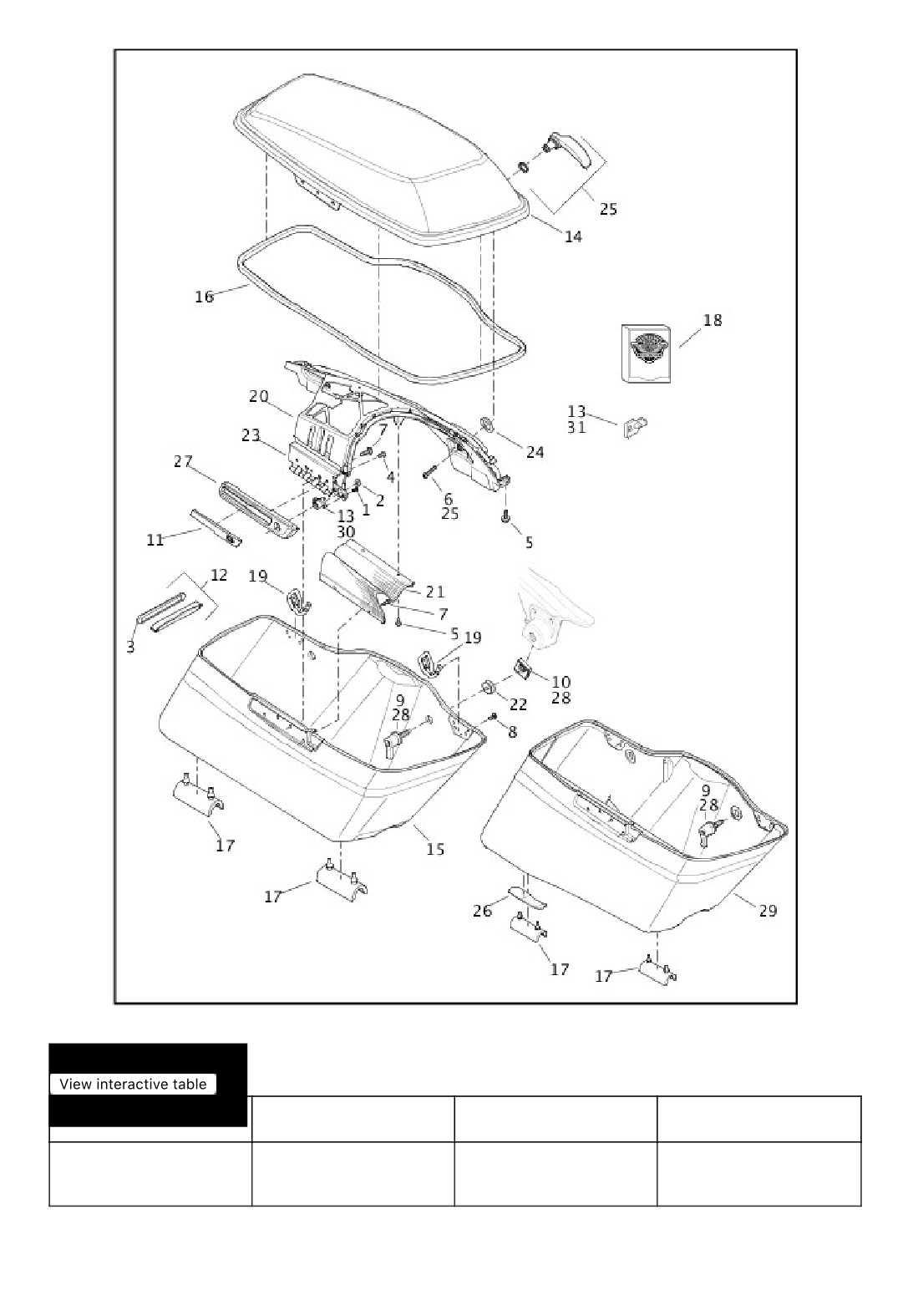

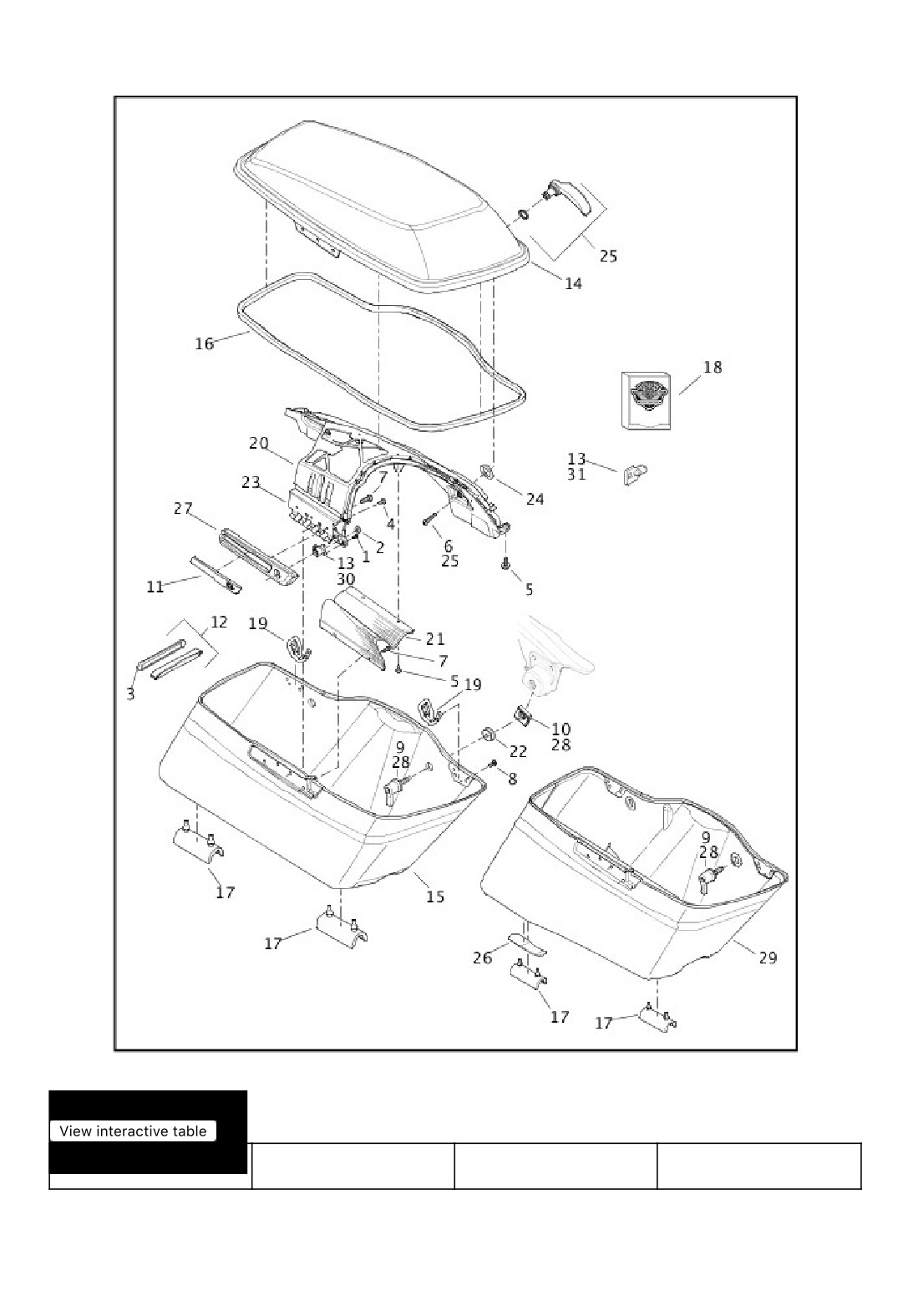

SADDLEBAGS - EXCEPT FLHRC (2 OF 4)
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
686/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
13
71400015B
LOCKSET, complete,
FLHTCU, FLHTK, FLHTK
with keys, ignition knob,
SHRINE, FLHTKL, FLTRU
saddlebag and Tour-Pak
locks
13
71400016B
LOCKSET, complete,
FLHT, FLHX, FLHXS,
with keys, ignition knob
FLTRX, FLTRXS
and saddlebag lock
SADDLEBAGS - EXCEPT FLHRC (4 OF 4)
687/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
27
90200983EKA
FACEPLATE (left)
FLHRXS, FLHX
(midnight blue)
688/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
27
90200983ELD
FACEPLATE (left) (kinetic
FLHX, FLTRX
green)
27
90200983ELE
FACEPLATE (left) (blue
FLHX, FLTRX
max)
27
90200983EKG
FACEPLATE (left) (wicked
FLHXS, FLTRXS
red denim)
27
90200983EKR
FACEPLATE (left)
FLHXS
(barracuda silver)
27
90200983ELG
FACEPLATE (left)
FLHRXS, FLHXS, FLTRXS
(scorched orange)
27
90200983EKP
FACEPLATE (left) (billiard
FLHXS, FLTRXS
blue)
27
90200983ELI
FACEPLATE (left) (silver
FLHXS, FLTRXS
flux)
27
90200983EEZ
FACEPLATE (left)
FLTRX
(industrial gray)
27
90200984EKA
FACEPLATE (right)
FLHRXS, FLHX
(midnight blue)
27
90200984ELD
FACEPLATE (right)
FLHX, FLTRX
(kinetic green)
27
90200984ELE
FACEPLATE (right) (blue
FLHX, FLTRX
max)
27
90200984EKG
FACEPLATE (right)
FLHXS, FLTRXS
(wicked red denim)
27
90200984EKR
FACEPLATE (right)
FLHXS
(barracuda silver)
27
90200984ELG
FACEPLATE (right)
FLHRXS, FLHXS, FLTRXS
(scorched orange)
27
90200984EKP
FACEPLATE (right)
FLHXS, FLTRXS
(billiard blue)
27
90200984ELI
FACEPLATE (right) (silver
FLHXS, FLTRXS
flux)
27
90200984EEZ
FACEPLATE (right)
FLTRX
(industrial gray)
LABELS
689/956
