ILLUSTRATION

TOOL NUMBER

DESCRIPTION

APPLICATION

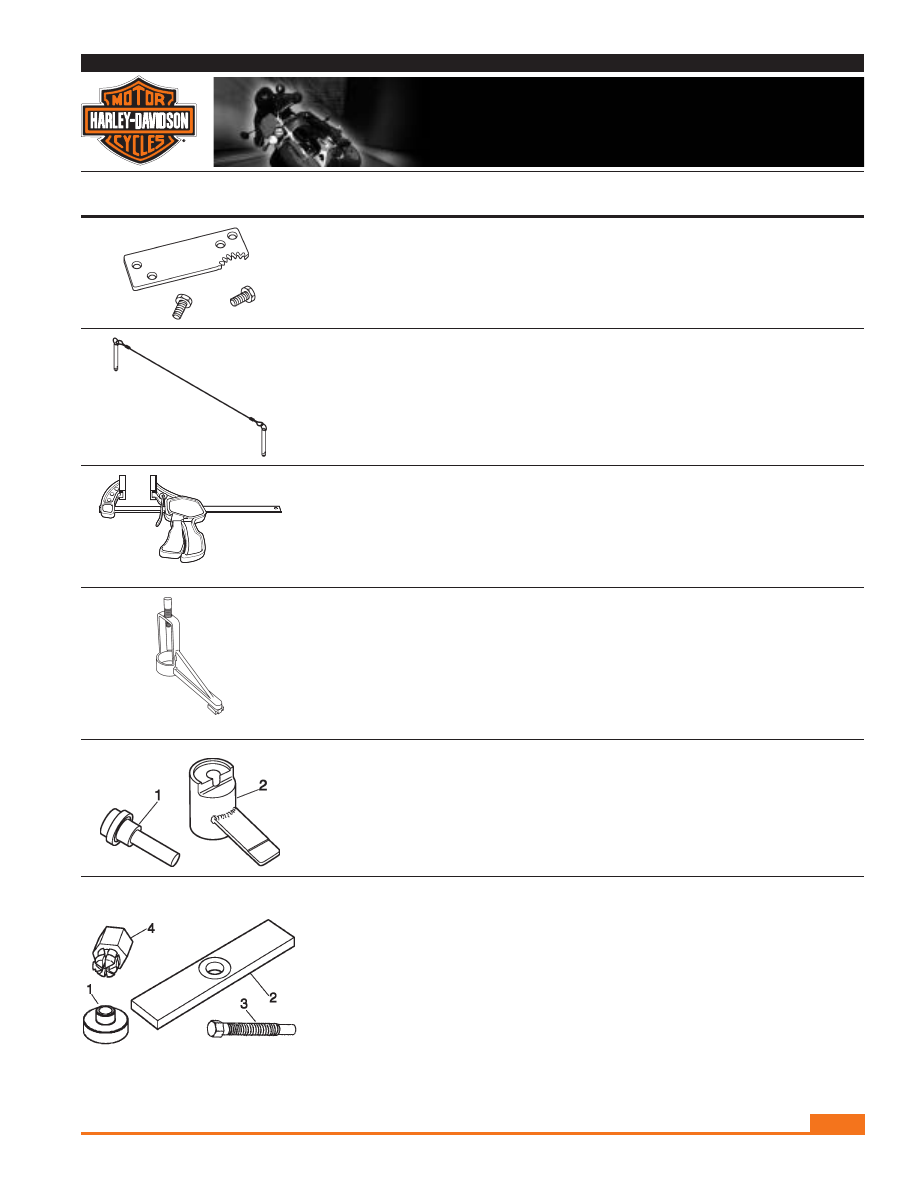

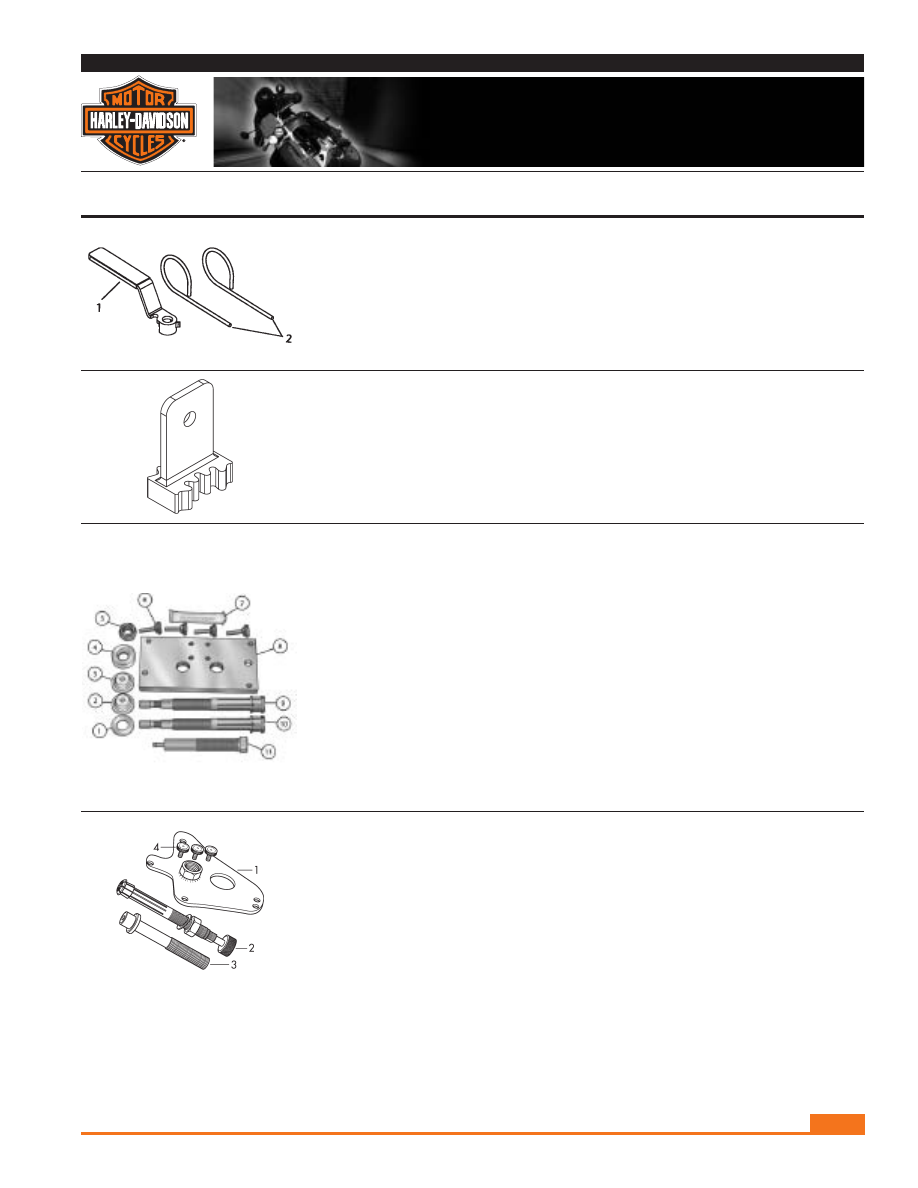

HD-43984

CRANKSHAFT LOCKING TOOL

XL Models
(2000 & Later)

Tool will lock the crankshaft by engaging the
pinion gear splines. This permits the removal
and torquing of the pinion shaft nut.

HD-44062

BALANCER SHAFT RETENTION PINS

Twin Cam 88B

Tool secures the balancers during servicing of
counterbalancer components.

HD-44063

HYDRAULIC TENSION COMPRESSOR

Twin Cam 88B

Tool will compress the hydraulic tensioner assembly
to permit balancer chain removal.

HD-44064-A

BALANCER SHAFT SPROCKET

Twin Cam 88B

ALIGNMENT TOOL

Verifies proper alignment of the crankshaft and
balancer’s three sprockets.

HD-44065

CRANKCASE BEARING REMOVER & INSTALLER

Twin Cam 88B
(2000-2002)

Removes and installs the right crankcase
main bearing.

1) HD-44065-1

Installer

2) HD-44065-4

Base

HD-44066

BALANCER SHAFT INNER/OUTER

Twin Cam 88B

BEARING REMOVER & INSTALLER

Removes and installs the balancer’s inner & outer
support bearings.

1) B-43993-6

Installer

2) HD-44066-2

Cross Plate

3) HD-44066-4

Forcing Screw

4) HD-44066-5

Collet

5) J-23444-A

Thread Lube (not shown)

V-TWIN ENGINE/

Flywheel & Crankcase cont.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

APPLICATION

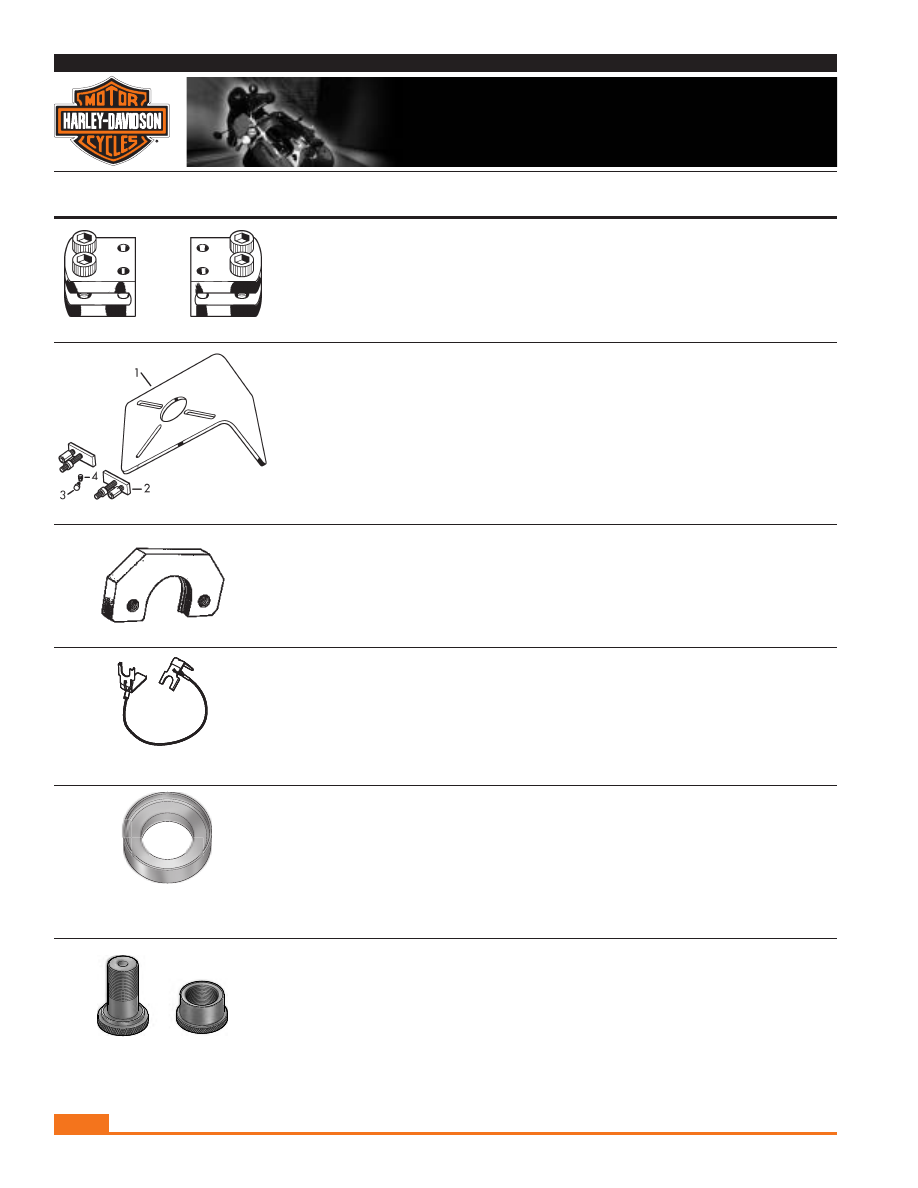

HD-44069

TIMKEN SNAP RING REMOVER & INSTALLER

XL Models
(1977-2003)

Removes and installs the Timken outer race
snap ring in the left crankcase half.

HD-44358

FLYWHEEL SUPPORT FIXTURE

Twin Cam 88
(1999 & Later),

Used to support all straight crankpin
flywheels during servicing.

Twin Cam 88B
(2000 & Later),

1) HD-44358-1

Bracket

2) HD-44358-2

Hold Down Assembly

XL Models

3) HD-44358-3

Button (10-24 thread)

(2000 & Later)

4) HD-44358-8

Button (

⁄

-16 thread)

HD-44404

TIMKEN BEARING REMOVER

XL Models
(2000-2003)

Used with the HD-34902-B to remove the
inner Timken bearing from the flywheel.

HD-44408

HYDRAULIC TENSIONER RETAINERS

Twin Cam 88B

Secures the tensioner in a compressed position
during servicing.

HD-45206

SPROCKET SHAFT SEAL INSTALLER

XL Models
(2002-2003)

Installs sprocket shaft seal to the correct depth
in the crankcase without damage to the seal lip
and case bore. Used with the HD-42579 Sprocket
Shaft Bearing Installer.

HD-46287

LAPPING TOOL ADAPTER

XL Models
(2004 & Later)

Adapts HD-96710-40D for lapping of the
right main bearing outer race. Included in

XB12/XB9

HD-96710-40D Lapping Kit.

(2003 & Later)

V-TWIN ENGINE/

Flywheel & Crankcase cont.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

APPLICATION

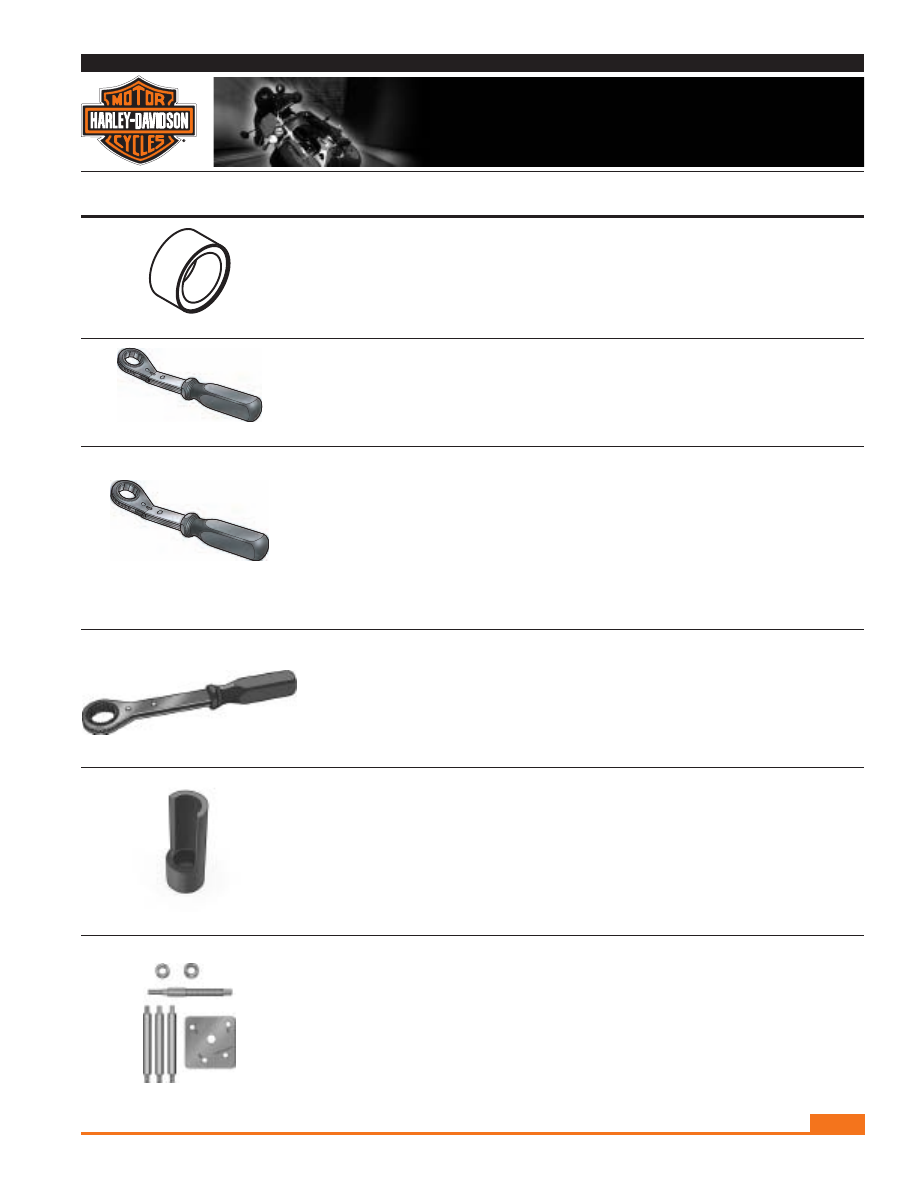

HD-46663

CRANKCASE BEARING REMOVER ADAPTER

XL Models
(2004 & Later),

Used with the HD-42720-5 Base and B-45655
Bearing Remover to remove the late style

XB9/XB12 Firebolt

crankcase bearing.

HD-47256

CRANKSHAFT ROTATING WRENCH

XL, Buell Models

Six splines engage the crankshaft to simplify
rotating the engine during service.

HD-47257

CRANKSHAFT ROTATING WRENCH

Twin Cam 88/88B

Ten splines engage the crankshaft to simplify

FL Models

rotating the engine during service.

(1999-2006)

FX Models
(2000-2006)

Dyna Models
(1999-2005)

HD-48283

CRANKSHAFT ROTATING WRENCH

Twin Cam 88/88B

24 splines engage the crankshaft to simplify rotating Dyna Models
the engine during service.

(2006 & Later)

FL/FX Models
(2007 & Later)

HD-48309

BALANCER BEARING INSTALLER

Big Twins
(2007 & Later)

Installs balancer and inner bearing as a single unit.

HD-48457

COUNTER BALANCER REMOVER

Big Twins
(2007 & Later)

Removes new style counter balancer.

V-TWIN ENGINE/

Flywheel & Crankcase cont.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

APPLICATION

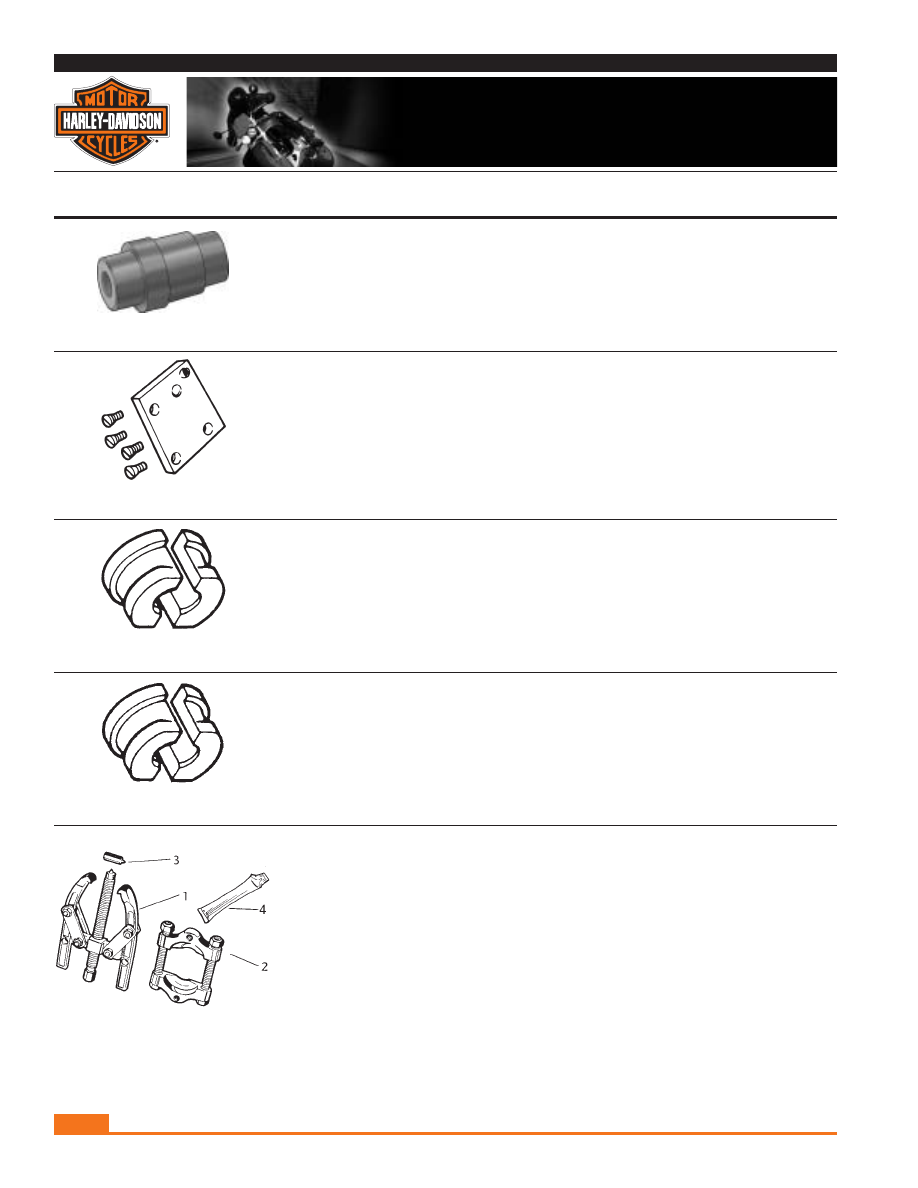

HD-48474

COUNTER BALANCER OUTER BEARING

Big Twins

REMOVER & INSTALLER

(2007 & Later)

Removes and installs outer bearing for new style
counter balancer.

HD-94461-81

CRANKCASE OIL PASSAGE DRILLING JIG

Big Twins
(1973-1980)

Replacement oil pumps have a relocated oil
passage outlet. This tool allows accurate drilling
of a matching passage into the crankcase for
proper engine oiling. Contains six mounting screws.
Two

⁄

- 24 screws for 1973 to 1975 models.

HD-94547-100

SPROCKET SHAFT BEARING RACE REMOVAL

Big Twins

& INSTALLATION TOOL

(1969-2002)

To remove and install engine sprocket shaft
bearing outer races from crankcase. Use with
HD-94547-102 Driver Handle.

HD-94547-101

SPROCKET SHAFT BEARING RACE

XL Models

REMOVAL & INSTALLATION TOOL

(1977-2003)

To remove and install engine sprocket shaft
bearing outer races from crankcase. Use with
HD-94547-102 Driver Handle.

HD-95715-19C

SPROCKET SHAFT EXTENSION AND

All Big Twins

BEARING PULLER

Used to remove sprocket shaft extension and
sprocket shaft Timken bearing inner race. Also
pulls front wheel speedometer drive gear.

1) HD-95635-46 Puller
2) HD-95637-46A Bearing Separator
3) HD-95636-46 Adapter
4) J-23444-A

Thread Lube

V-TWIN ENGINE

Flywheel & Crankcase cont.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

APPLICATION

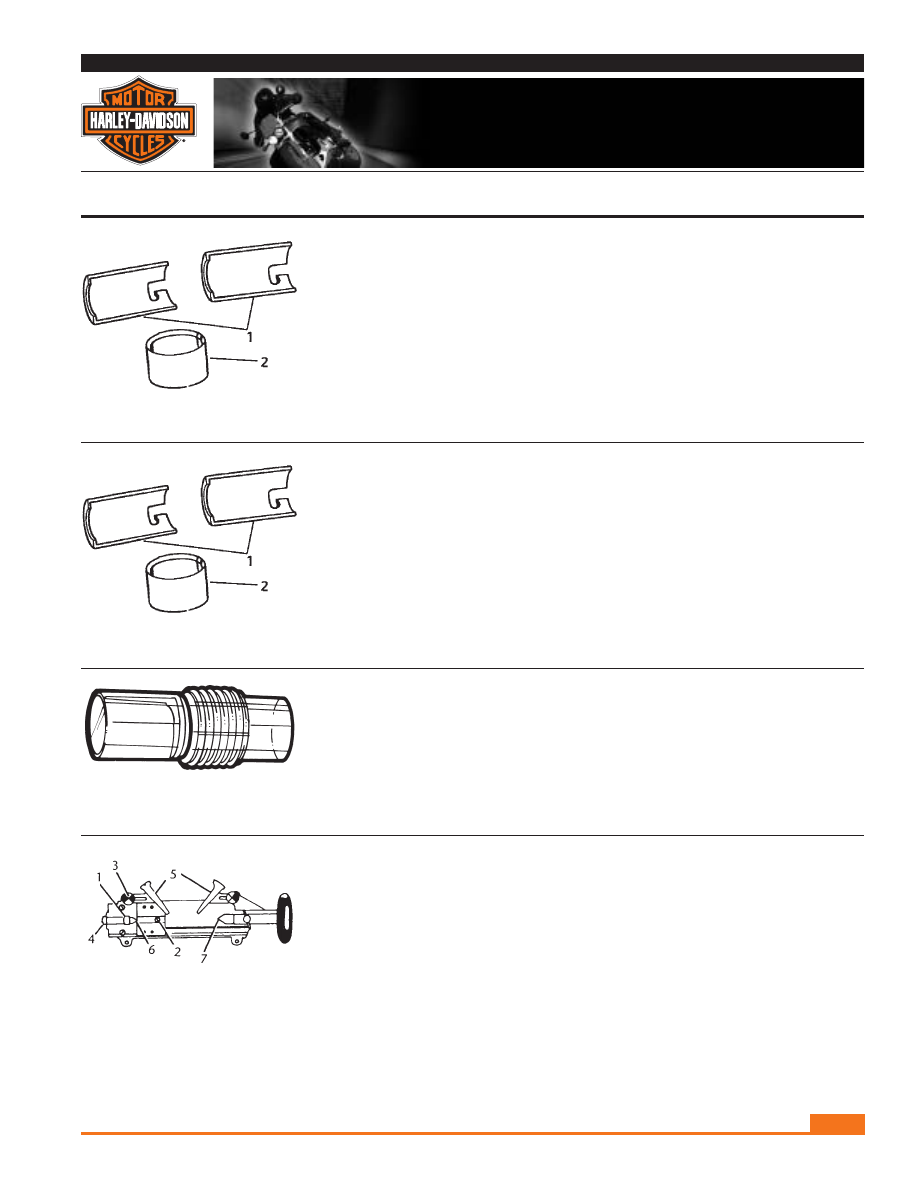

HD-96015-52

SPROCKET SHAFT TIMKEN BEARING

K, KH

INNER RACE PULLER

XL Models

Fits between sprocket shaft inner race and

(1976 & Earlier)

flywheel.

1) HD-96017-52 Puller Halves
2) HD-96018-52 Puller Collar

*Use with HD-33418 Universal Puller

Forcing Screw.

HD-96015-77B

SPROCKET SHAFT TIMKEN BEARING

XL Models

INNER RACE PULLER

(1977 - Early 1981)

Fits between sprocket shaft inner race and
flywheel.

1) HD-96017-77 Puller Halves
2) HD-96018-52 Puller Collar

*Use with HD-33418 Universal Puller Forcing Screw.

HD-96295-65D

TIMING MARK VIEW PLUG

All Models

The clear plastic plug threads into the crankcase
timing hole for accurate ignition timing with
strobe timing light, HD-33813. Allows easy viewing
without danger of getting oil all over.

HD-96650-80

FLYWHEEL TRUING STAND

All Models

Used to true crankshaft alignment. Measures and
indicates to .002"

1) Screw (not sold separately)
2) Screw (not sold separately)
3) Washer (not sold separately)
4) Nut (not sold separately)
5) Set of Indicators (not sold separately)
6) HD-96652-19 Stationary Center (sold separately)
7) HD-96660-41 Moveable Center (sold separately)

V-TWIN ENGINE

Flywheel & Crankcase cont.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

APPLICATION

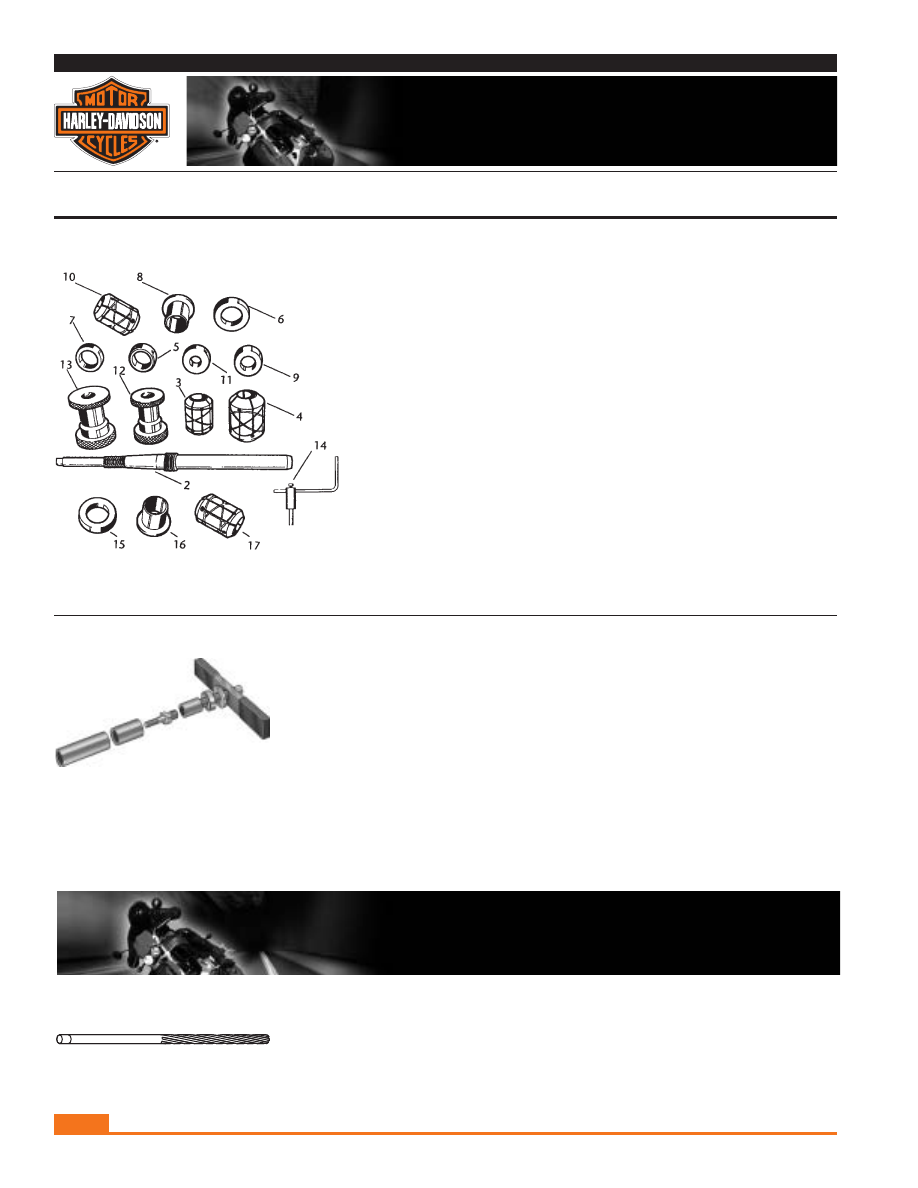

HD-96710-40D

CRANKCASE MAIN BEARING LAPPING TOOL

All Models

For aligning right and left main bearing races
and lapping. Also used to lap pinion shaft
bearing race on engines with Timken bearings.

1) HD-96710-51

Collar Spanner Wrenches

2) HD-96712-40A Lapping Arbor
3) HD-96718-40A Lap, 1

⁄

4) HD-96718-58A Lap, 1

⁄

5) HD-96719-40A Nut
6) HD-96719-87

Spacer

7) HD-96720-40A Collar
8) HD-96720-87

Adapter Sleeve

9) HD-96721-40A Collar

10) HD-96721-87A Lap, 1

⁄

11) HD-96722-40A Nut
12) HD-96728-56A Guide Sleeve & Sleeve Nut
13) HD-96727-56A Guide Sleeve & Sleeve Nut
14) HD-96710-50

Handle Assembly

15) HD-96719-87

Spacer XL (1987-2003)

16) HD-96720-87

Adapter Sleeve XL (1987-2003)

17) HD-96721-87A Lap, 1

⁄

" XL (1987-2003)

18) HD-46287

Lapping Tool Adapter XL (2004 & Later),

XB12/XB9 (2003 & Later)

HD-97225-55C

SPROCKET SHAFT BEARING INSTALLER

For installing flywheel assembly into crankcase

Big Twins

Timken bearing.

(1955 & Later)

Presses main bearing into inner race to

Dyna Models

correct depth.

(2006 & Later)

1) HD-97227-55A

Screw

FL/FX Models

2) HD-97228-55A

Collar

(2007 & Later)

3) RS-25100-300

Bearing

4) 212434

Washer

5) HD-97229-55

Handle

6) J-23444-A

Thread Lube (not shown)

7) HD-97225-1

Sprocket Shaft Adapter

8) HD-97225-2

Collar

B-45523

VALVE GUIDE REAMER (7mm)

XL Models
(2004 & Later)

Reams replacement intake and exhaust valves
guides to the proper size.

XB9/XB12 Firebolt

V-TWIN ENGINE

Flywheel & Crankcase cont.

V-TWIN ENGINE/Camshaft,

Valves & Valve Train

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

APPLICATION

B-45524-A

VALVE GUIDE REMOVER / INSTALLER (7mm)

XL Models
(2004 & Later)

Removes worn guides and installs replacement
guides to the correct height.

XB9/XB12 Firebolt

1) B-45524-1

Remover

2) B-45524-2A Installer

B-45525

VALVE GUIDE HONE (7mm)

XL Models
(2004 & Later)

Applies final surface finish and crosshatch
to replacement guides.

XB9/XB12 Firebolt

HD-33443

BIG TWIN TAPPET GUIDE ALIGNMENT TOOL

1340cc
Evolution

This tool aligns the tappet guides to the engine
case. The result is proper alignment of the cam
lobes to the valve tappets. (1340cc Evolution only).

HD-33871

SPORTSTER VALVE GUIDE INSTALLER

XL Models
(1957-1985)

Installs shoulderless valve guides to correct depth.

*Use with HD-34740 Driver & Remover Handle.

HD-34107

VALVE GUIDE DEPTH/CUTTING TOOL

All Shovelhead Models

Obtains proper clearance between exhaust valve
head and guide.

HD-34199-A

PUSHROD HEIGHT GAUGE

All Evolution Models
(1984-1990)

This tool allows the technician to quickly
and accurately determine the proper size
push rod when servicing the valve train.
Used in conjunction with HD-34199-86 for
XL Evolution.

HD-34199-86

PUSHROD HEIGHT GAUGE ADAPTER

XL Models
(1986-1990)

This tool when used with HD-34199 (previously
essential) allows the technician to quickly and
accurately determine the proper size pushrod
when servicing the valve train.

V-TWIN ENGINE/Camshaft,

Valves & Valve Train cont.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

APPLICATION

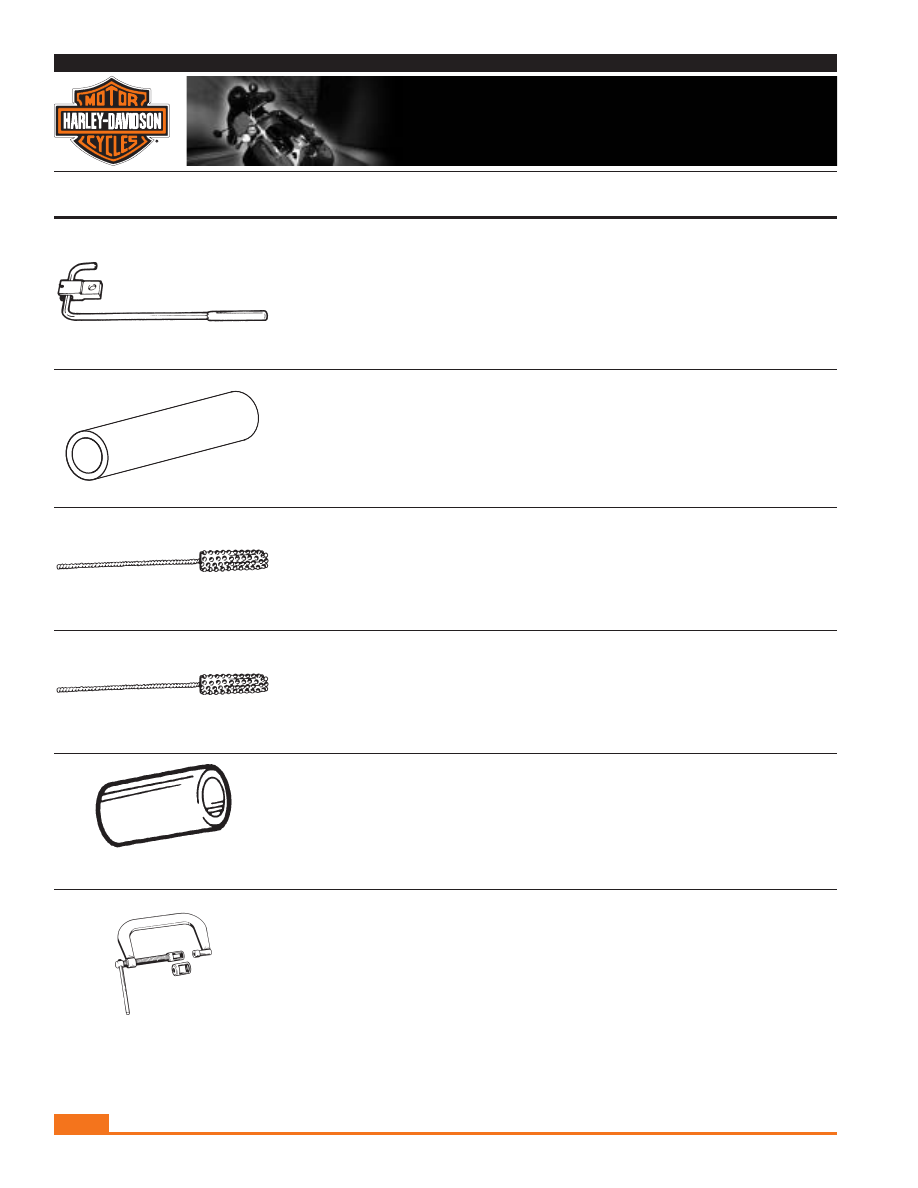

HD-34641

FXST REAR INTAKE VALVE SPRING

All Softail Models

COMPRESSOR

This tool compresses intake valve spring on the
rear cylinder of the FXST so that the rocker box
can be removed while the engine is still in the
frame. It does this without damage to the valve
stem, valve spring, or rocker cover.

HD-34643-A

EVOLUTION SHOULDERLESS VALVE

All EVO

GUIDE SEAL INSTALLER

(1984 & Later)

This tool installs the valve guide seals securely

Twin Cam 88/88B

without damage to the seal itself on all

(2000-2004)

Evolution models.

HD-34723

8mm VALVE GUIDE FLEX HONE

XL Models
Evolution - All

Used to properly finish valve guides (.315).
The hone is made of 180 grit silicon carbide

Twin Cam 88/88B

to ensure a smooth finish.

HD-34724-A

10mm VALVE GUIDE FLEX HONE

All Shovelhead Models

Used to properly finish valve guides (.394).
The hone is made of 180 grit silicon carbide
to ensure smooth finish.

HD-34731

EVOLUTION VALVE GUIDE INSTALLER

All EVO Models
(1984 & Later)

This tool takes the guesswork out of valve guide
installation and insures that the guide is installed

Twin Cam 88/88B

to the proper depth on all Evolution models.

(2000-2004)

HD-34736-B

VALVE SPRING COMPRESSOR

All Models

Compresses valve springs on all cylinder
heads. Forcing screw design allows gradual,
controlled compressing.

V-TWIN ENGINE/Camshaft,

Valves & Valve Train cont.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

APPLICATION

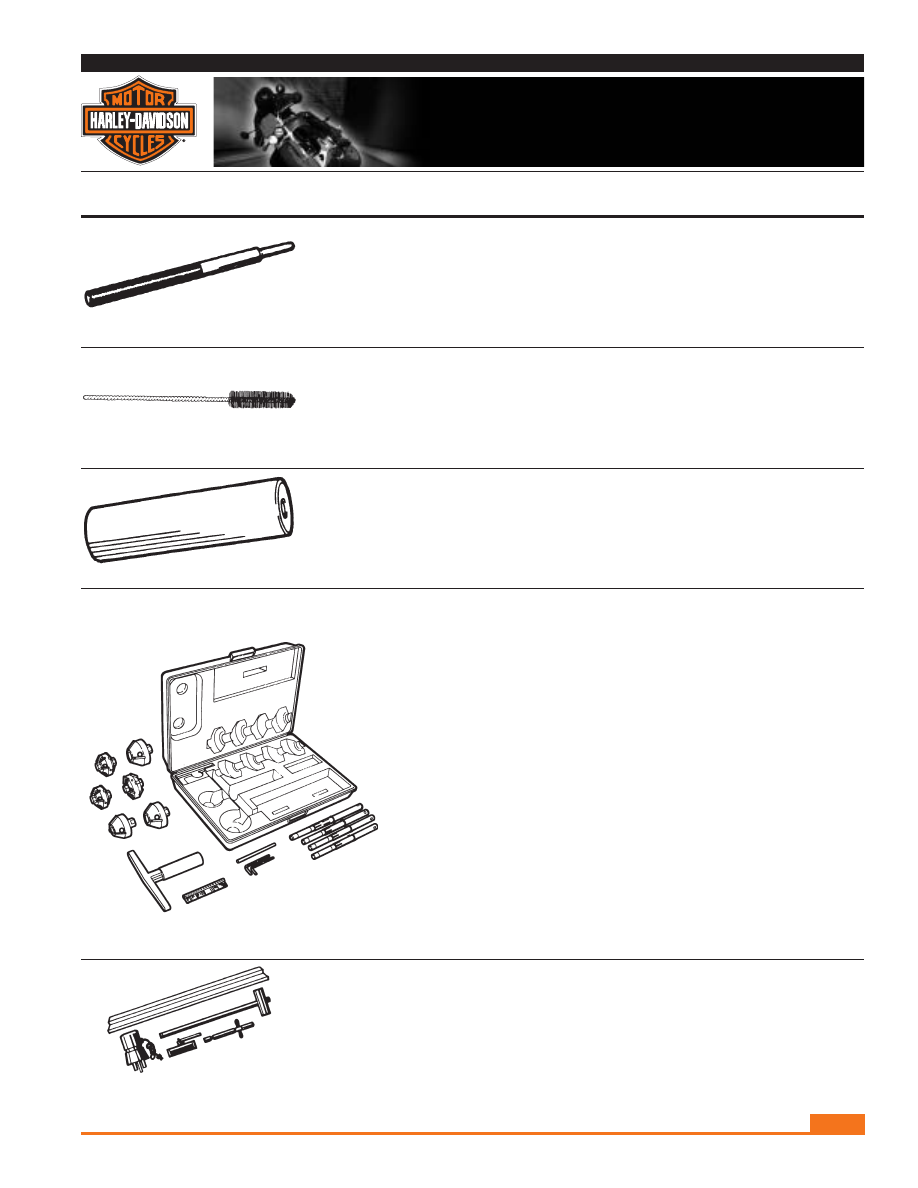

HD-34740

VALVE GUIDE & VALVE GUIDE SEAL HANDLE

All XL Models
(1957 & Later)

Use to remove shoulderless valve guides on
XL’s and the Evolution engine. (Also used as
driver for HD-33871, HD-34643, HD-34731,
and HD-35103.)

HD-34751

VALVE GUIDE CLEANING BRUSH

All Models

Hand held

⁄

" dia. nylon brush for cleaning

valve guides after honing.

HD-35103

BIG TWIN VALVE GUIDE SEAL INSTALLER

All Shovelhead Models

This tool installs the valve guide seals to proper
height without damage. For all Shovelheads.
Use with HD-34740 Handle.

HD-35758-C

NEWAY VALVE SEAT CUTTER SET

All Models

HD-35758-C is approved and recommended by
the Harley-Davidson Service Department. This
special cutter set is reasonably priced and consists
of one of each of the following Neway part numbers.

Includes:

Neway No.

Description

622

Cutter, 1

⁄

" dia. (31° x 46°)

205

Cutter, 1

⁄

" dia. (60°)

293

Cutter, 1

⁄

" dia. (60°)

642

Cutter, 1

⁄

" dia. (31° x 46°)

140-5⁄16

Solid Pilot -

⁄

" dia. -3, -2, -1, Std., +1

140-11⁄16

Solid Pilot -

⁄

" dia. -4, -3, -2, -1 Std., +1

140-3⁄8

Solid Pilot -

⁄

" dia. -2, -1, -2, Std., +1, +2, +3, +4

503

T-Wrench

160

Molded Storage/Carrying Case

14060

HD-35758-51 6mm Pilot

203

HD-35758-53 Exhaust Seat Cutter, 1

⁄

dia. (31° x 46°)

271

HD-35758-54 Intake Seat Cutter, 1

⁄

dia. (70°)

PM140702

B-35758-52A 7mm Pilot

HD-35759

NEWAY MODEL 1700 POWER HEAD

All Models

Features Include:
*115V, 60 RPM Drive
*Used with HD-35761, Track Mounted

Headstand and HD-35758 Cutter Set

V-TWIN ENGINE/Camshaft,

Valves & Valve Train cont.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

APPLICATION

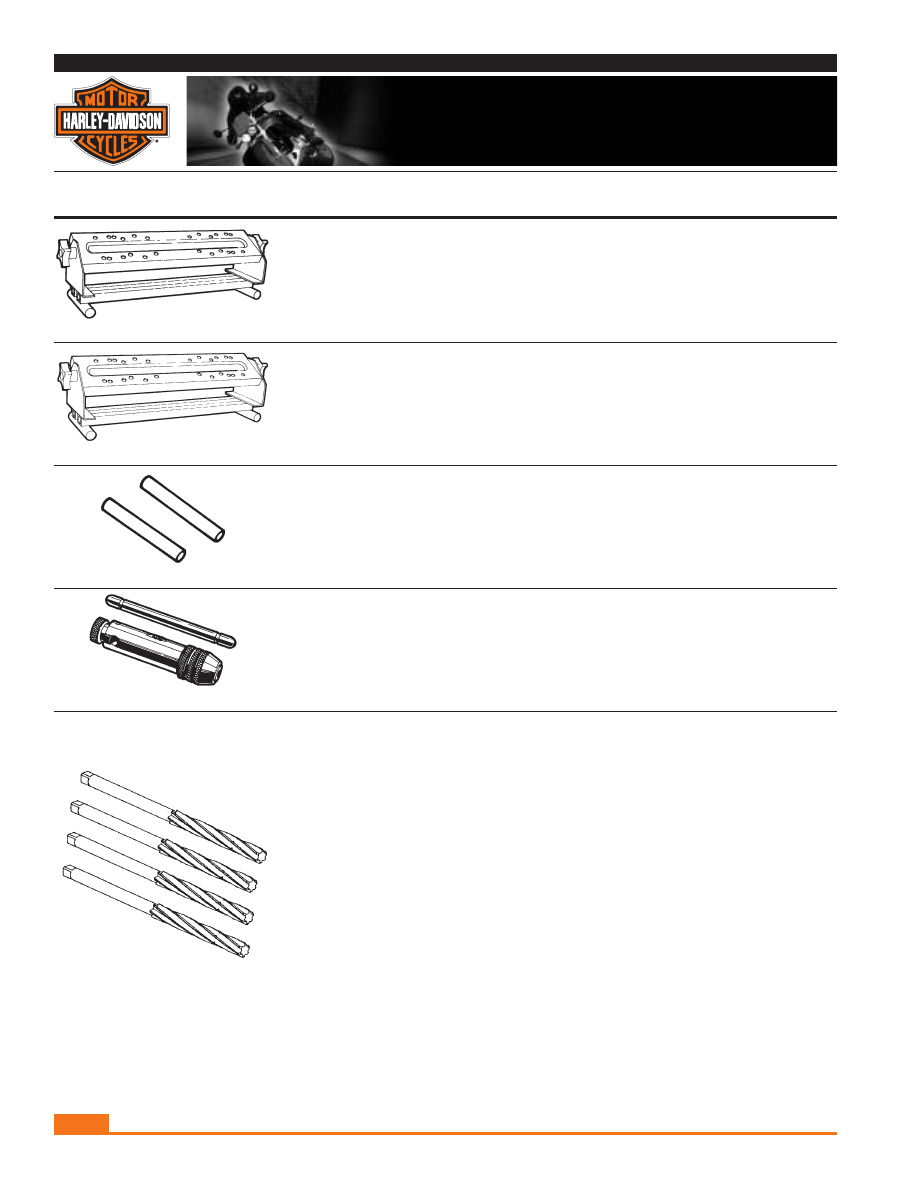

HD-35760

BENCH MOUNT HOLDING FIXTURE

All Models

For hand or stone cutters. Used with HD-35758
Cutter Set.

HD-35761

TRACK MOUNT HOLDING FIXTURE

All Models

For use with HD-35759 Neway Power Head &
HD-35758 Cutter Set.

HD-38361

CAM GEAR GAUGE PIN SET .108"

1340cc Models
(1990 & Later)

Used to measure and verify cam gear sizes
and color coding.

XL Models
(1991 & Later)

HD-39847

RATCHETING TAP HANDLE

All Models

This is a universal ratcheting tap handle.
Also works extremely well with reamers.

HD-39932

VALVE GUIDE REAMERS

HD-39933
HD-41201

These reamers are used to finish ream newly
installed valve guides.

1) a.

HD-39932

Spiral Flute

High Speed Steel

EVO All/Iron XL INT (1957-1985)
Twin Cam 88/88B (2000-2004)

HD-39932-CAR

Spiral Flute

Carbide

EVO All/Iron XL INT (1957-1985)
Twin Cam 88/88B (2000-2004)

2) a.

HD-39933-INT

Spiral Flute

High Speed Steel

Shovelhead Intake

HD-39933-INT-CAR

Spiral Flute

Carbide

Shovelhead Intake

3) a.

HD-39933-EXH

Spiral Flute

High Speed Steel

Shovelhead Exhaust

HD-39933-EXH-CAR

Spiral Flute

Carbide

Shovelhead Exhaust

4) a.

HD-41201

Spiral Flute

High Speed steel

Iron XL Exhaust (1957-1985)

HD-41201-CAR

Spiral Flute

Carbide

Iron XL Exhaust (1957-1985)

NOTE: Carbide reamers can be resharpened.

V-TWIN ENGINE/Camshaft,

Valves & Valve Train cont.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

APPLICATION

HD-42313

CAM CHAIN TENSIONER UNLOADER

Twin Cam 88/88B

Removes cam chain tensioner pressure
from cam chain during disassembly
and reassembly.

1) HD-42313-1 Tensioner Unloader
2) HD-42313-2 Retaining Pin (1 pin)

HD-42314

CAMSHAFT/CRANKSHAFT

Twin Cam 88/88B

SPROCKET LOCKING TOOL

Locks camshaft/crankshaft sprockets
during disassembly & reassembly to
permit proper torquing.

HD-42325-A

CAMSHAFT NEEDLE BEARING

Twin Cam 88/88B

REMOVER & INSTALLER TOOL

Used to remove and replace the camshaft’s
two inner needle bearings.

1) HD-42325-3

Removal Collet

2) HD-42325-5

Plate Assembly

3) HD-42325-6

Installer

4) HD-42325-7

Installer Forcing Screw

5) HD-42325-8

Thumb Screw (4 required)

6) 10213

Hex Nut

7) 13324

Washer

8) 15427

Bearing

9) J-23444-A

Thread Lube

10) HD-52325-12 Removal Collet (1”)
11) HD-52325-13 Installer (1”)

HD-42928

CAMSHAFT NEEDLE BEARING

REMOVING & INSTALLING TOOL

FL, FLT

Used to remove and install camshaft needle bearings.

(1958-1999)

1) HD-42928-1 Plate
2) HD-42928-2 Remover
3) HD-42928-3 Installer
4) HD-42928-4 Thumb Screw (3 req’d)

V-TWIN ENGINE/Camshaft,

Valves & Valve Train cont.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

APPLICATION

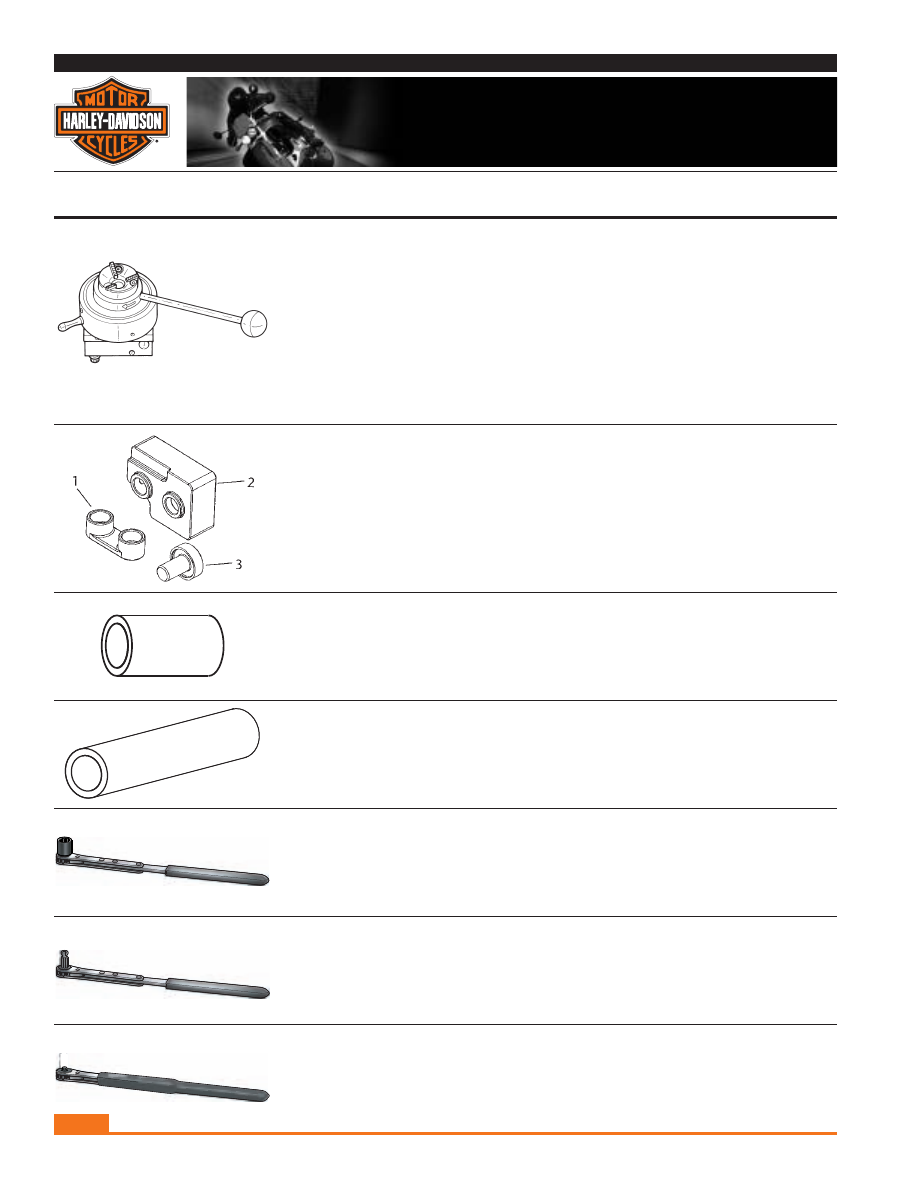

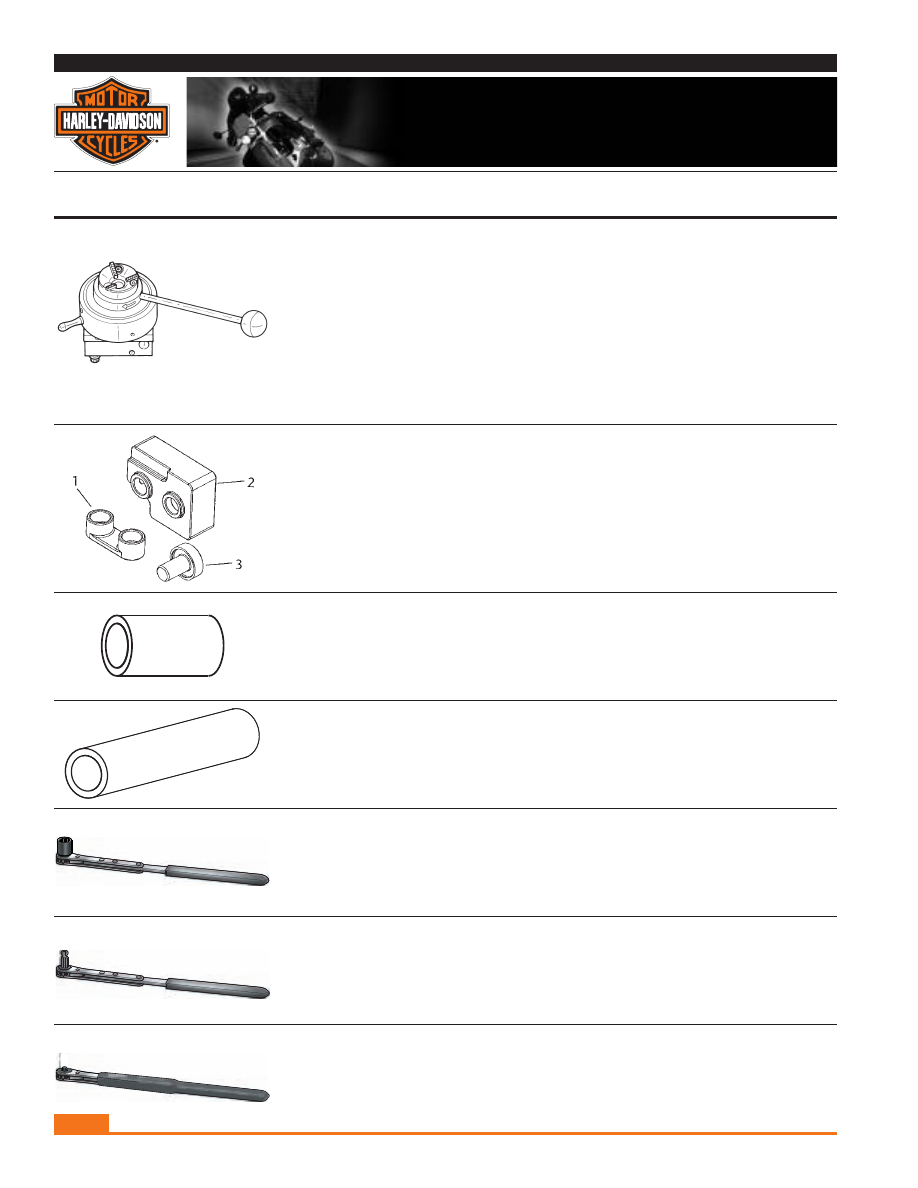

HD-43419

GIZMATIC 3

Universal

Uses tungsten carbide cutters to machine the valve face.
This unique tool allows quick resurfacing of valves by
hand. The high and low spots common to traditional
valve grinding equipment are virtually eliminated.
Grinding valves leaves a crosshatch pattern on the valve
face which is not the optimum surface for valve-to-head
seating. The Gizmatic-3 leaves a concentric pattern on
the valve face. This is the best surface for proper valve
seating in the head. Use Gizmatic-3 for the valves and
the HD-35758-B Valve Seat Cutter Set for the heads.

HD-43644

CAMSHAFT REMOVER & INSTALLER

Twin Cam 88/88B

This three piece tool is used to remove and
install front and rear cylinder camshafts and
install bearings in the support plate.

1) HD-43644-1 Camshaft Remover/Installer
2) HD-43644-2 Bearing Support Plate
3) HD-43644-3 Bearing Installer

HD-46583

VALVE GUIDE INSTALLER

103 cu. in. Powertrains

Presses replacement valve guides to the correct
height in 103 cu. in. models.

HD-46584

VALVE GUIDE SEAL INSTALLER

103 cu. in. Powertrains

Installs replacement valve guide seals to the
correct installed height in 103 cu. in. models.

HD-47248

LOWER ROCKER BOX WRENCH

Twin Cam 88/88B

Permits easy access to fasteners when servicing

XL, Buell Models

the lower rocker box.

HD-47250

INTAKE MANIFOLD WRENCH

All Models

Used for easy access to remove and install the
intake manifold fasteners.

HD-47258

UPPER ROCKER BOX WRENCH

All Models

Permits easy access to fasteners with engine in
chassis when servicing the upper rocker cover.

V-TWIN ENGINE/Camshaft,

Valves & Valve Train cont.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

APPLICATION

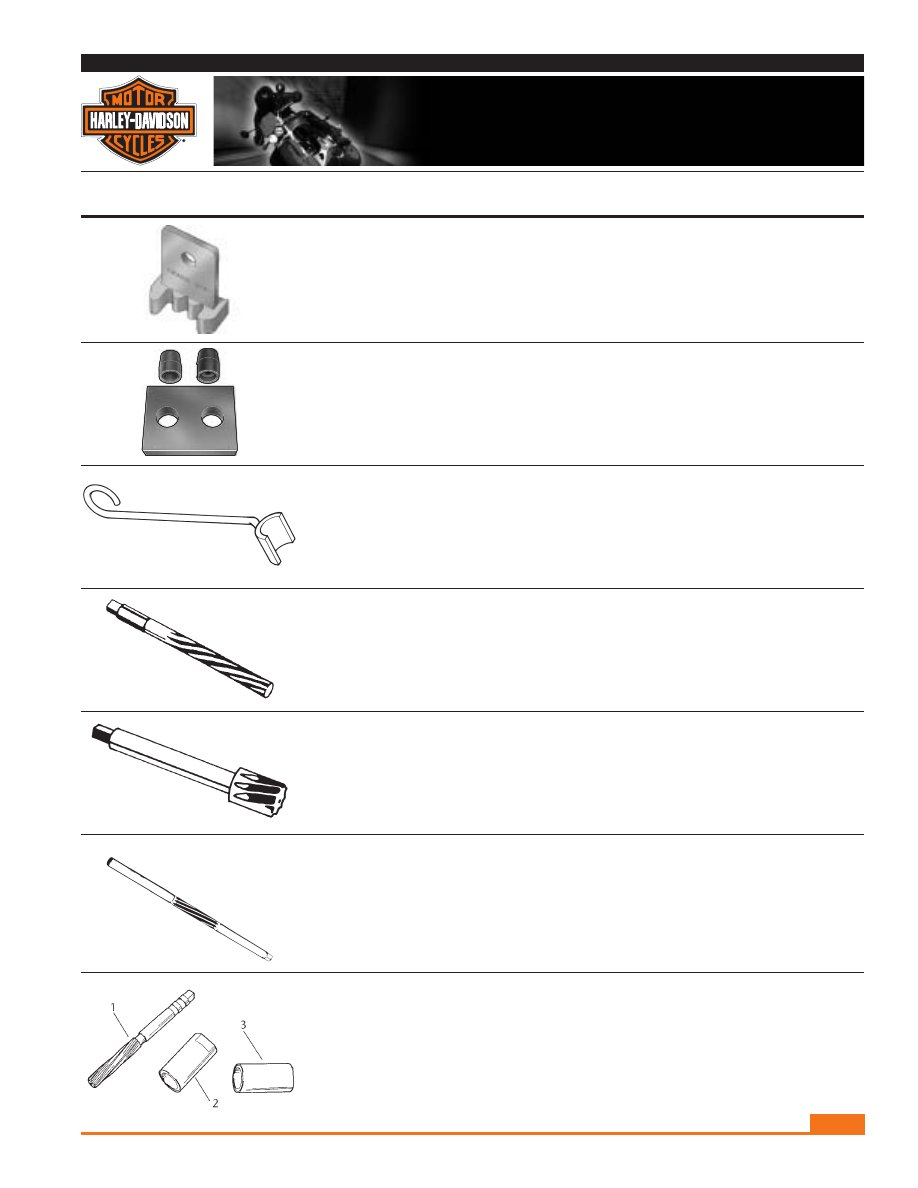

HD-47941

CAMSHAFT LOCKING TOOL

Dyna Models
(2006 & Later)

Locks camshaft/crankshaft sprockets during
disassembly and reassembly to permit proper
torquing.

HD-47956

CAMSHAFT ASSEMBLY TOOL

Dyna Models
(2006 & Later)

HD-47956 is a three-piece tool including a 1.5"
Guide (HD-47956-1), a 1.35" Guide (HD-47956-2),
and a Support Plate (HD-47956-3). The tool is used
to hold the camshafts and secondary cam chain while
the cam support plate is installed on the camshafts.

HD-94438-79

HYDRAULIC LIFTER GAUGE

All Shovelhead Models

Used to check pushrods for correct adjustment.

HD-94802-36A

CAM GEAR SHAFT BUSHING

REAMER–.812 DIA.

(1969 & Earlier)

Used to fit cam gear shaft bushings.

HD-94803-67

REAR INTAKE CAMSHAFT COVER

BUSHING REAMER—1.125 DIA.

For reaming timer shaft bushings in gear case cover.

HD-94804-57

ROCKER ARM BUSHING REAMER–.555 DIA.

Used to line ream replacement rocker arm

bushings to size.

FLT

HD-94812-77A

PINION SHAFT BUSHING REAMER

XL Models

AND PILOT

(1977 & Later)

Reams pinion shaft bushing in gear cover.

1) HD-94812-1 Reamer .563 dia.
2) HD-94812-2 Pilot (1977-1986)
3) HD-94812-87 Pilot (1987-Later)

V-TWIN ENGINE/Camshaft,

Valves & Valve Train cont.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

APPLICATION

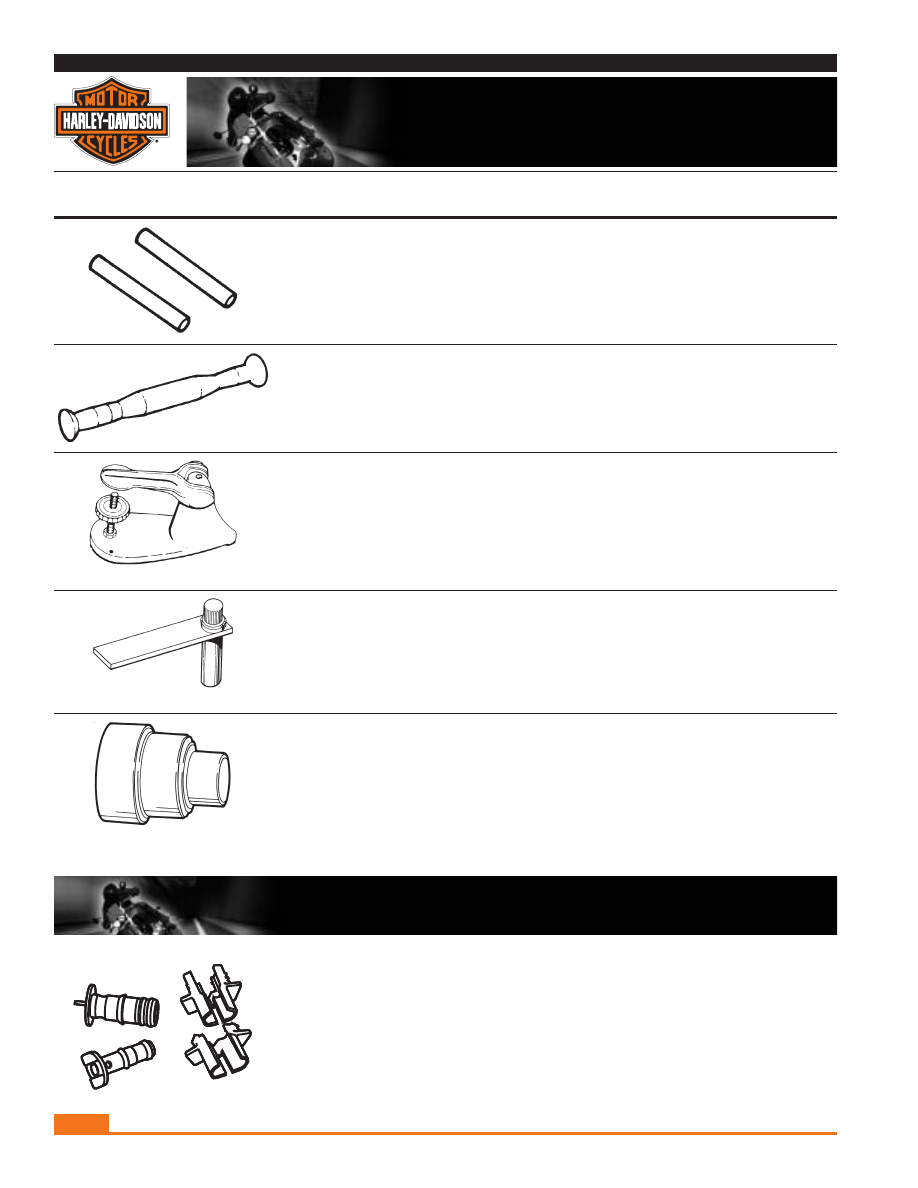

HD-95632-79

CAM GEAR GAUGE PIN SET .105"

All Models

Used to select proper cam gear size and verify
color coding.

HD-96550-36A

VALVE LAPPING TOOL

All Models

Suction cup secures to valve head while
lapping.

HD-96796-47

VALVE SPRING TEST FIXTURE

All Models

Has adjustable platform for various length
springs. A tone device indicates when to read
scale. Used with torque wrench (not included).

HD-97102-81

VALVE LIFTER REMOVER

All Shovelhead Models

Simplifies removal of loctited hydraulic valves.

HD-97273-60

CAMSHAFT NEEDLE BEARING

XL Models

INSTALLER

(1957-1990)

Used to install camshaft needle bearings.
*Use with HD-33416 Driver Handle.

HD-44455

OIL LINE REMOVER/OIL LINE

Softail Models

RETAINER INSTALLER

(2000 & Later)

Removes oil lines and installs replacement
retainer clips.

V-TWIN ENGINE/Camshaft,

Valves & Valve Train cont.

V-TWIN ENGINE/Gearcase

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

APPLICATION

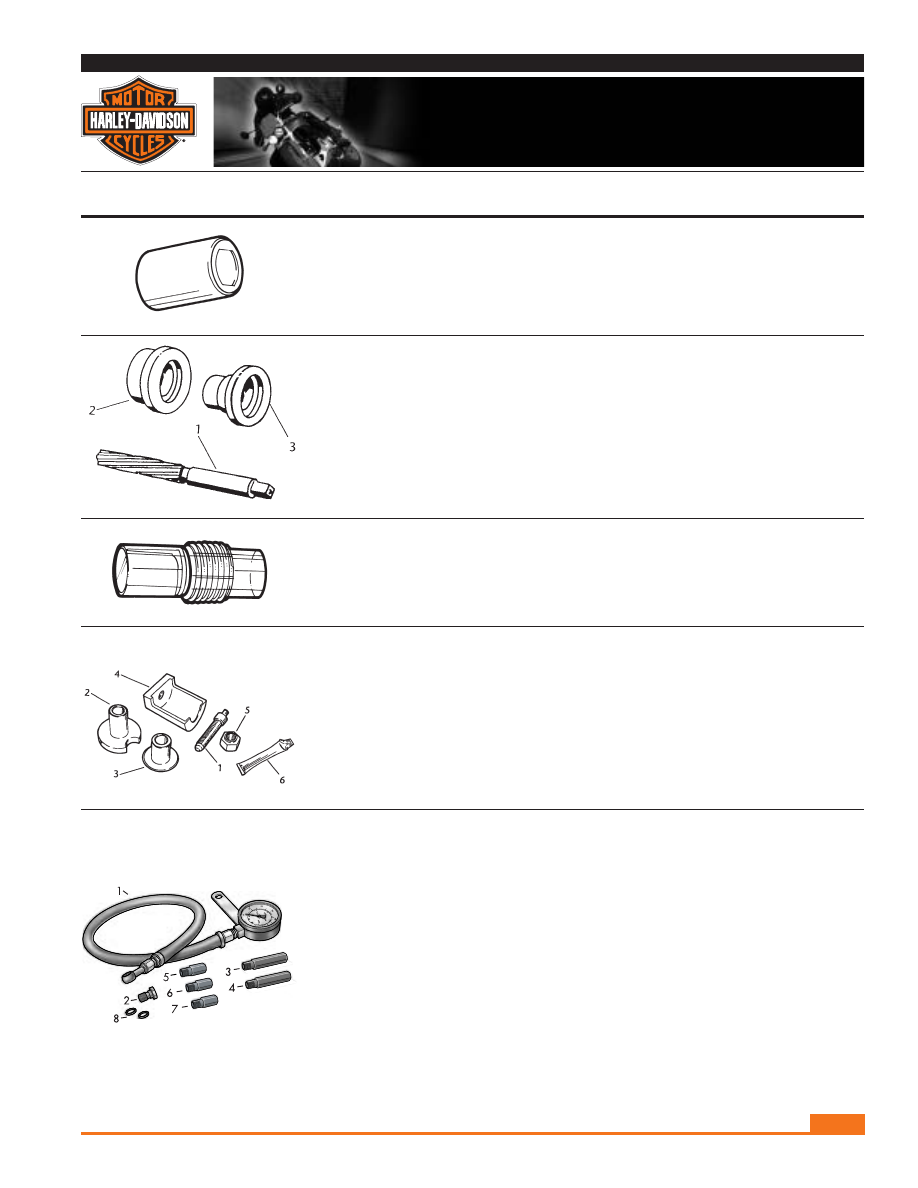

HD-94555-55C

PINION GEAR SHAFT NUT SOCKET

All Big Twins
(1954-1992)

Fits pinion gear nut which secures pinion to
gear shaft.

HD-94805-57

PINION SHAFT BUSHING REAMER AND

FLT, FX

TWO PILOTS

FL Models

Used to size pinion shaft gear case cover bushing

(1964 & Later)

on FL, FLT, FX and idler gear bushing on XL.

XL Models

1) HD-94806-57 .562 Dia. Reamer
2) HD-94815-58 Reamer Pilot

(1964 & later–FL, FLT and FX)

3) HD-94807-57 Reamer Pilot (XL)

HD-96295-65D

TIMING MARK VIEW PLUG

All Models

Clear plastic plug threads into crankcase timing
hole for accurate ignition timing with strobe
timing light.

HD-96830-51B

PINION GEAR PULLER AND COLLARS

All Big Twins
(1954 -1989)

Used to remove and install pinion gear.

1) HD-96831-51A Screw Assembly
2) HD-96836-57 Collar (G, XL, K, KH)
3) HD-96836-51 Collar (FL, FLT, FX)
4) HD-96832-51A Body
5) HD-96830-100 Nut
6) J-23444-A

Thread Lube

HD-96921-52C

OIL PRESSURE GAUGE SET

All Models

A complete oil pressure tester that includes
adapters for V-Twin applications. The tool checks
oil pump pressure under operating conditions.
Gauge is graduated 0-60 psi. Includes adapters:

1) HD-96921-100A Gauge Assembly
2) HD-96940-53

Banjo Bolt

3) HD-96921-120

Twin Cam 88B

4) HD-96921-110

Twin Cam 88

5) HD-96921-106

1/2-20 Threaded Adapter

6) HD-96925-58

XL (1986 to 1990)

7) HD-96940-52A

Banjo Bolt

8) HD-96921-104

Washer (2 req’d)

V-TWIN ENGINE/Gearcase cont.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

APPLICATION

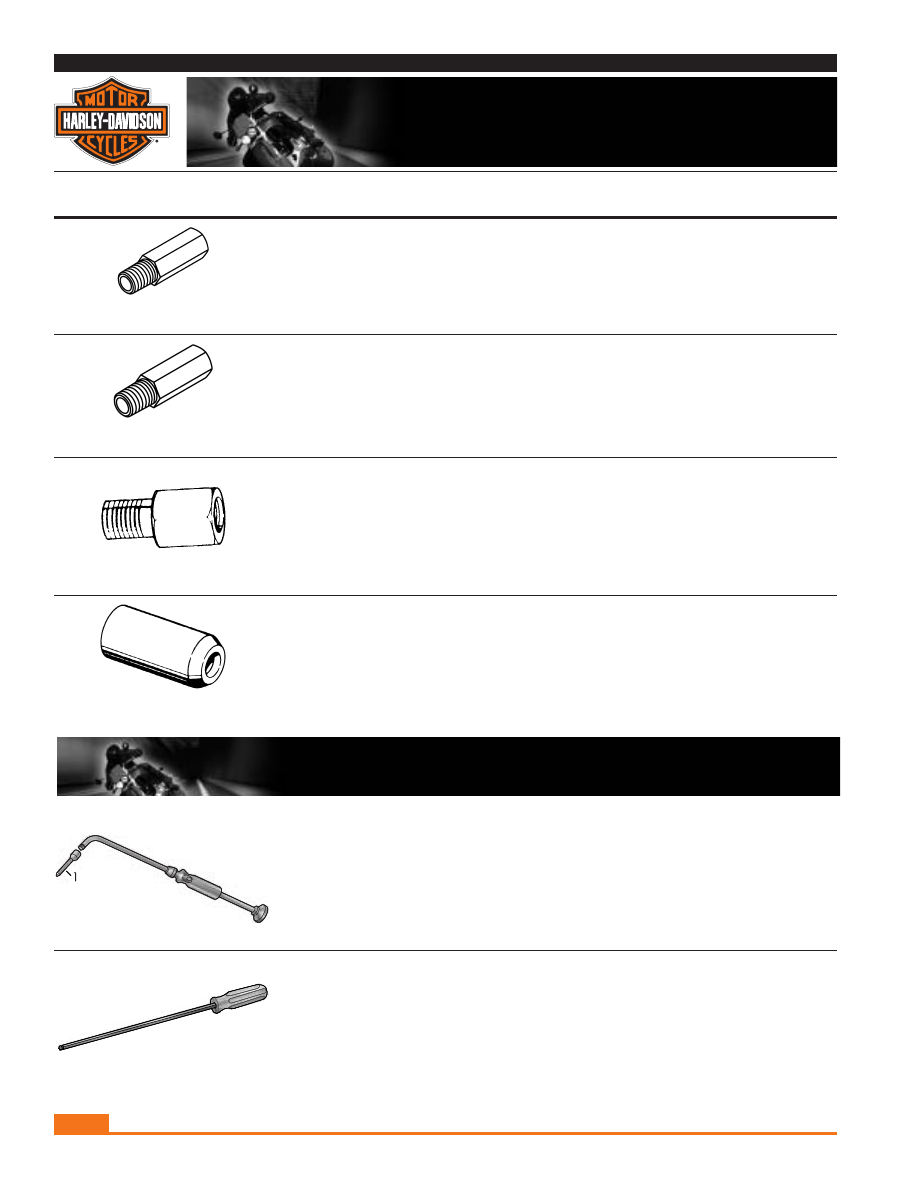

HD-96921-110

OIL PRESSURE GAUGE ADAPTER

Twin Cam 88

This tool is used with HD-96921-52B to accurately
check oil pressure.

HD-96921-120

OIL PRESSURE GAUGE ADAPTER

Twin Cam 88B

This tool is used with HD-96921-52B to accurately
check oil pressure.

HD-96925-58

OIL PRESSURE GAUGE ADAPTER

XL Models
(1986-1990)

This tool, when used with HD-96921-52B, will
allow the technician to connect the tool using
the threaded crankcase access hole.

HD-97080-77A

PINION SHAFT RACE INSTALLER

XL Models
(1977 - Early 1981)

Tool for installing inner race on pinion
gear shaft.

HD-33413-A

CARBURETOR IDLE ADJUSTMENT TOOL

All Models

Easily adjusts fast and slow idle setting without air
cleaner removal. HD-33413-1 replacement tip
& bit.

1) HD-33413-1A Replacement Tip

HD-35801

INTAKE MANIFOLD SCREW WRENCH

All Evolution Models

This extra long bolt wrench allows the technician
to remove and install the

⁄

" socket head cap

intake manifold screws quickly and easily without
having to remove vehicle components.

V-TWIN ENGINE/Gearcase cont.

V-TWIN ENGINE/Fuel System

Harley Davidson Softail Delux FLSTN BIKE 2011-2015. Service Manual - page 32
