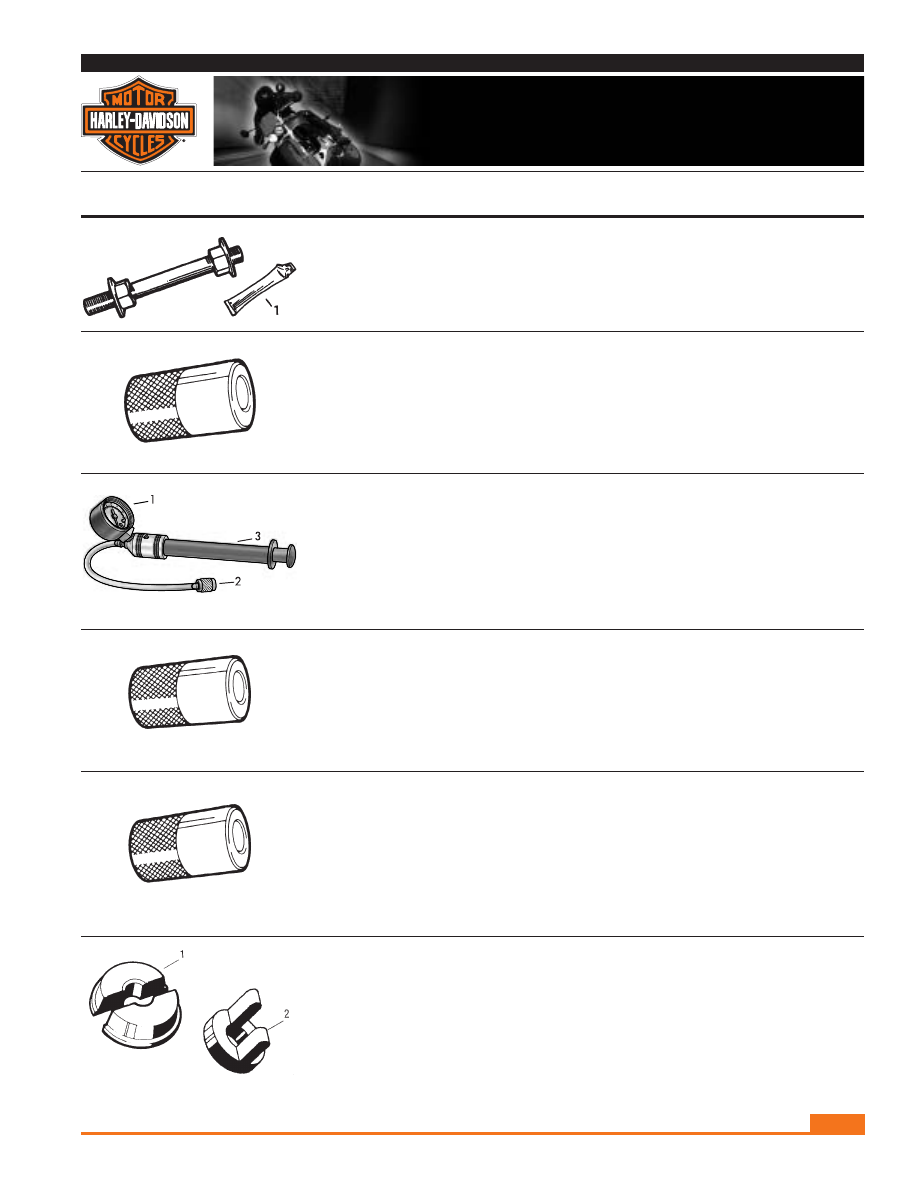

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

APPLICATION

HD-33805

CLEVEBLOCK SPREADING TOOL

All Five Speed Rubber
Mount Big Twins

This tool facilitates installation of swing arms.

(1980-2001)
(Except Dyna Models)

1) J-23444-A Thread Lube

HD-34190

FORK BUSHING AND SEAL INSTALLER

FXRT
(1983 & 1987)

Installs bushing and seal without damaging

XR &

components.

(1983-1987)

FX
(1984-1987)

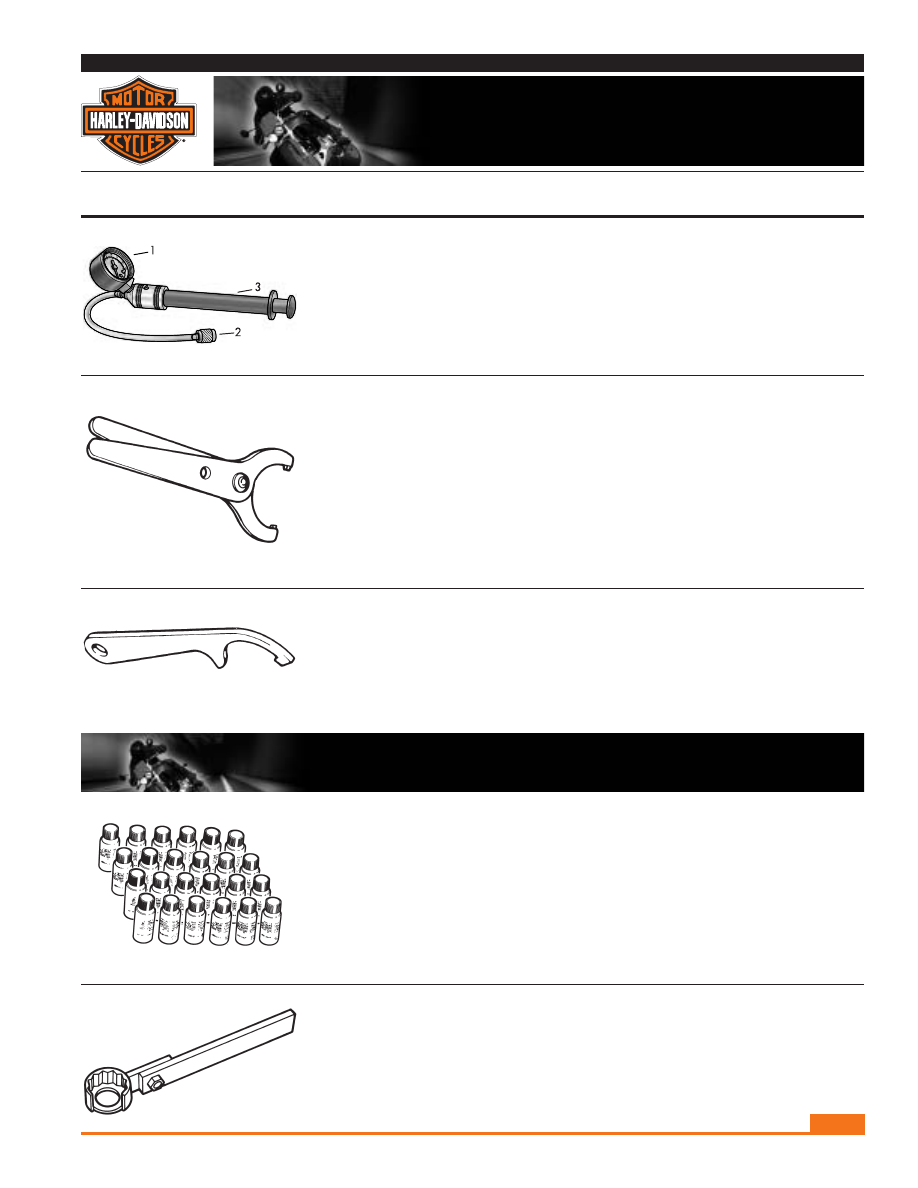

HD-34633

AIR SUSPENSION PUMP AND GAUGE

All Air Suspension
Equipped Models

Accurately fills air suspensions without pressure
loss when disconnecting. (Improved design)

1) HD-34633-3 Gauge
2) HD-34633-4 Hose & Fitting
3) HD-34633-5A Plunger

HD-34634

FORK BUSHING AND SEAL INSTALLER

FLT

Installs bushing and seal without damaging

FXWG

components.

(1984-Later)

HD-36583

FORK BUSHING AND SEAL INSTALLER

FXLR/FXRS
(1987 & Later)

Installs bushing and seal without damaging
components.

XL Models
(1988 & Later)

FXD Dyna Models
(1992 & Later)

HD-39301-A

STEERING HEAD BEARING RACE REMOVER

FXST
(1988 & Later)

Used to remove steering head bearing
outer races.

XL Models
(1982 & Later)

HD-39301-1 Removal Tool
HD-39301-2 Driver Handle Adapter

FXD Dyna Models, FLT
(1992 & Later)

V-TWIN CHASSIS/Forks & Frame

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

APPLICATION

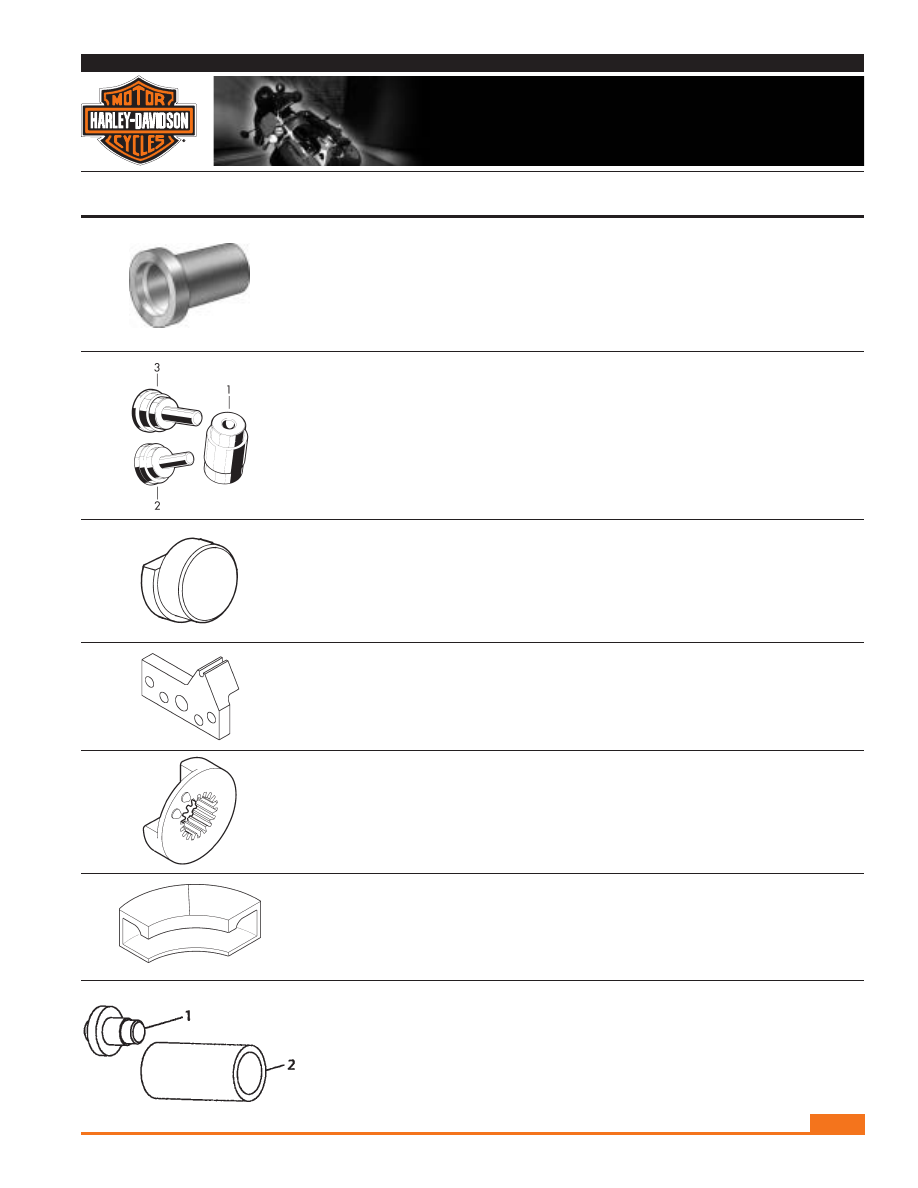

HD-39302

STEERING HEAD BEARING RACE INSTALLER

FXST
(1988 & Later)

Used to install steering head outer races.

XL Models
(1982 & Later)

FXD Dyna Models
(1992 &Later)

FLT (1993 & Later)

HD-39754

FXST FORK SPREADING TOOL

FXSTS
(1993 & Later)

This tool spreads the dog bones on the Springer
front end to allow installation of the front fender.

FXSTSB
(1995 & Later)

HD-39787-A

RIVET TOOL

All Models

HD-39787-A is great for rivets on all fiberglass
components, i.e. Tour Paks, etc. Old rivets
are drilled out and discarded. New rivets are
nice and snug when using HD-39787-A.

HD-39994-A

PAINT REPAIR KIT

All Models with
clear coat paint

This kit is used to repair surface imperfections
on painted steel or fiberglass parts. No need
to repaint or replace components when this kit
is used.

1) HD-39994-4 Hookit Pad

5) HD-39994-8

Wipes

2) HD-39994-5 Buff Pad

6) HD-39994-9

Finishing Material

3) HD-39994-6 Sanding Block

7) HD-39994-10

Final Finish

4) HD-39994-7 10 Micro Fine Discs 8) HD-39994-11A Medium Cut Material

HD-41177

FORK HOLDING TOOL

All Models

The HD-41177 is used to hold the fork legs
during normal service procedures when removed
from the chassis.

HD-45327

SWINGARM BEARING INSTALLER

FL Models
(2002 & Later)

Installs both left and right side swingarm bearings
squarely on their bores to the installed depth.

V-TWIN CHASSIS/

Forks & Frame cont.

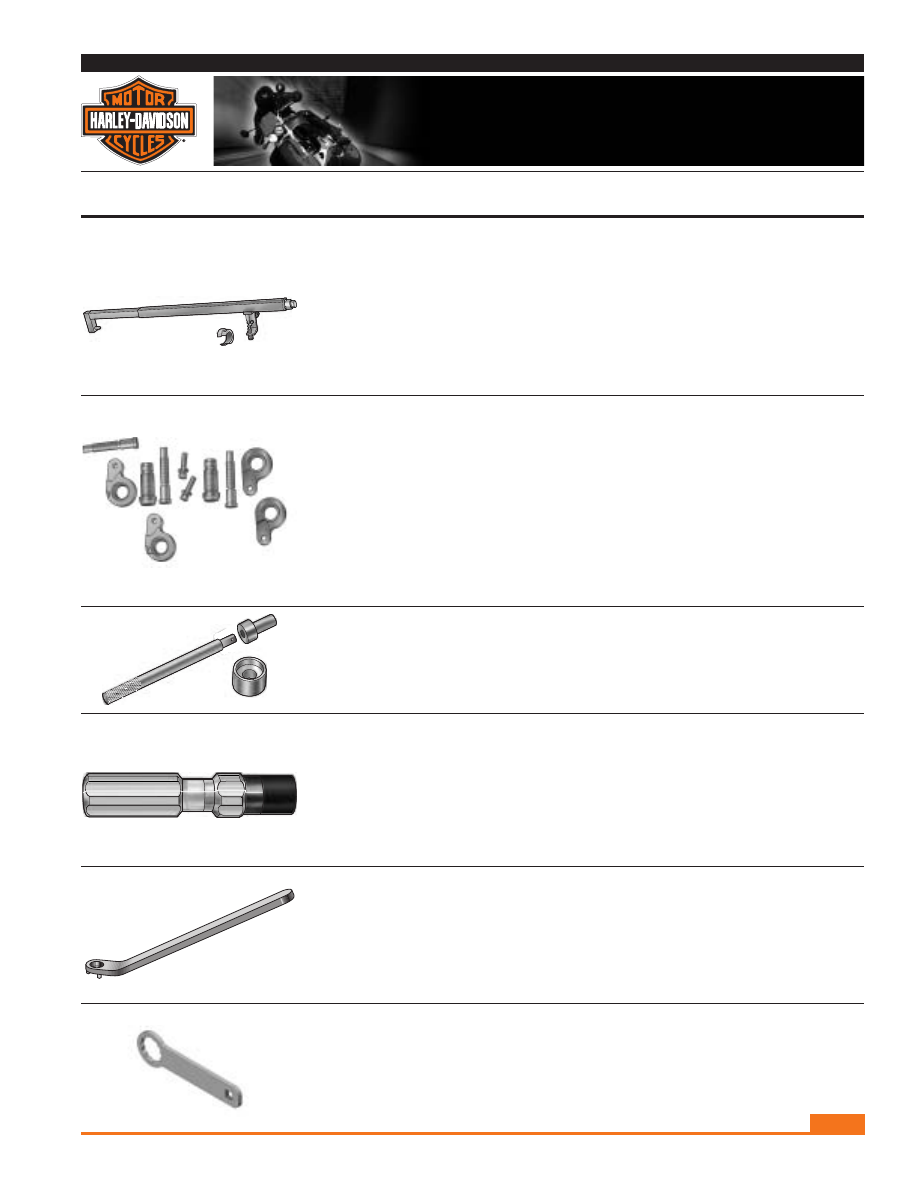

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

APPLICATION

HD-45966

FRONT FORK COMPRESSOR

All Models with
cartridge style forks

Used for quick and easy compression of cartridge
style front forks for service repairs. Mounts in a
vise and includes an adapter for FL forks to eliminate
direct contact with spring coil. Also includes a
special rod to pull up the fork damper rod. Fits
models with lowering kits.

HD-45966-2 Collar

HD-46247-A

VEHICLE ALIGNMENT TOOL

All FL Models
(1993 & Later)

Vehicle alignment is very important to ensure
proper handling and vibration control. Use of
HD-46247 greatly reduces the time required
to perform the alignment procedure. New -A
version includes -7 & -8 for 2007 models.

HD-46247-1 Left Side (1993-2006)
HD-46247-2 Right Side (1993-2006)
HD-46247-7 Left Side (2007 & Later)
HD-46247-8 Right Side (2007 & Later)

HD-46281

SWINGARM BEARING

XL Models

REMOVER & INSTALLER

(2004 & Later)

Removes and installs spherical swingarm bearings.

HD-47190

SEAT MOUNTING SCREW TOOL

Softail

Tool encapsulates the seat mounting screw to
avoid slipping off the screw and damaging the
rear fender paint.

HD-47255

STEERING BEARING ENDPLAY WRENCH

FX Springer Models

Adjusts the preload on Springer steering
head bearings.

HD-47925

REAR AXLE WRENCH

FL Models

Allows a secure hold on the rear axle nut for

VRSC Models

loosening or removal of the rear axle without
removal of the exhaust system.

V-TWIN CHASSIS/

Forks & Frame cont.

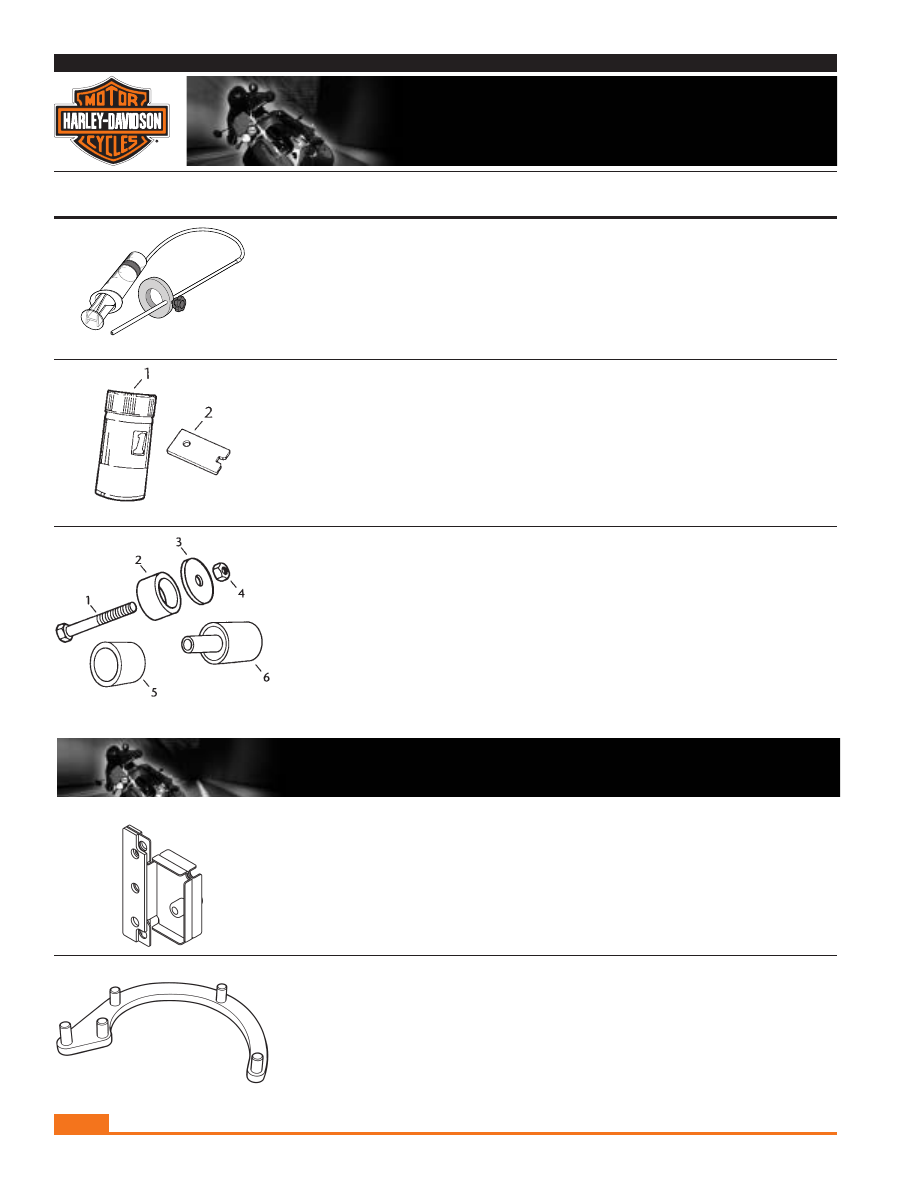

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

APPLICATION

HD-59000-B

OIL LEVEL GAUGE

Cartridge Fork Models

This tool is used for accurate fork oil
level adjustment.

HD-93330

IGNITION FORK LOCK TOOL WITH PAINT

FLT Models
(1980-1992)

Correctly spaces fork lock and adjustment screw
and prevents mispositioning of screw while
tightening.

1) HD-93330-1 Touch-Up Paint
2) HD-93330-2 Ignition Fork Gauge

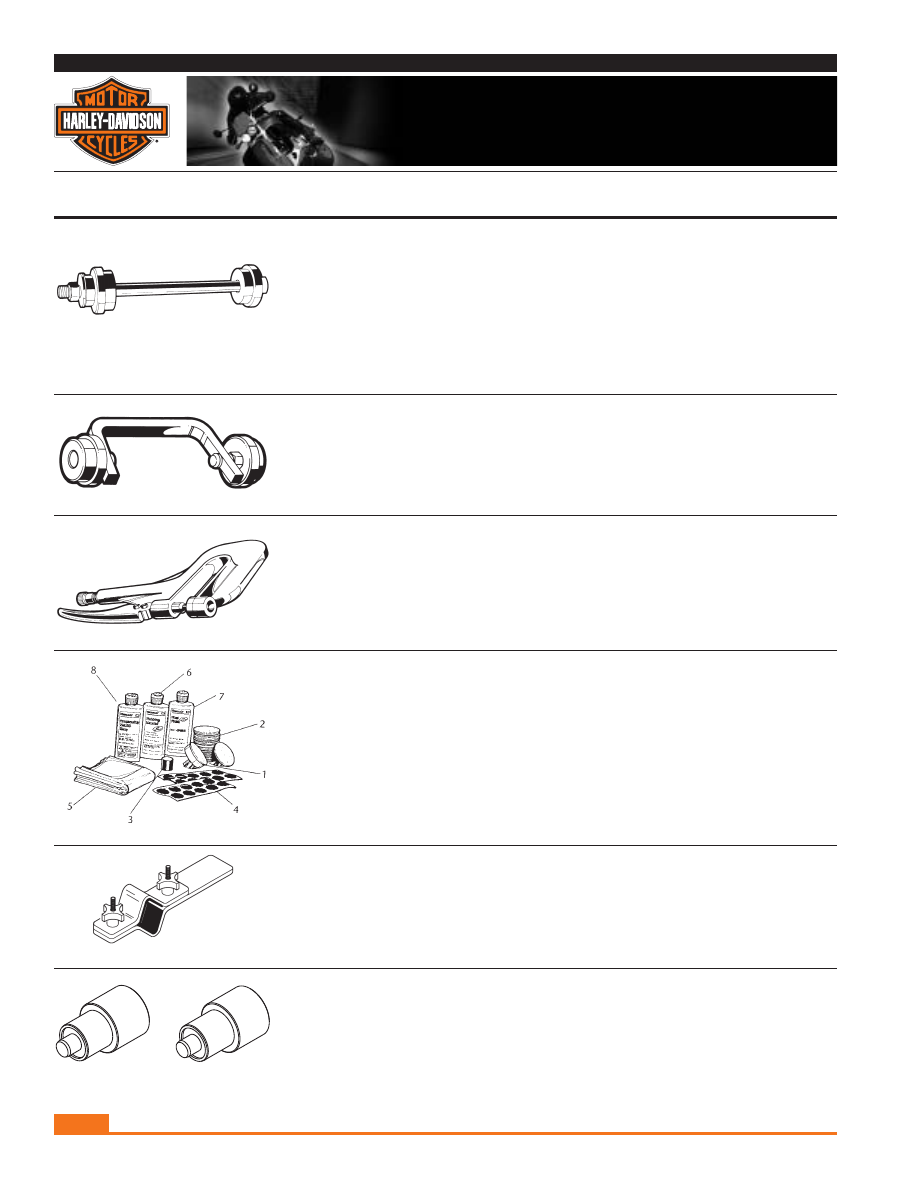

HD-96200-80

REAR SWING ARM ASSEMBLY TOOL

FLT Models
(1980-2001)

To remove and install rear swing arm pivot
components.

1) HD-96209-80 Draw Bolt
2) HD-96204-80 Inside Press Collar
3) HD-96210-80 Washer
4) Nut (

⁄

- 20)

5) HD-96202-80 Press Collar
6) HD-96208-80 Press Plug

HD-43293-A

BRAKE CALIPER PISTON REMOVER

All Models
(2000 & Later)

This tool will remove the pistons from four
piston brake calipers.

HD-97168-77

ALIGNMENT GAUGE

FL, FX
(1973-1979)

Used to align rear brake disc and brake pads.

V-TWIN CHASSIS/

Forks & Frame cont.

V-TWIN CHASSIS/Brakes

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

APPLICATION

HD-34633

AIR SUSPENSION PUMP AND GAUGE

All Air Suspension
Models

Accurately fills air suspensions without pressure
loss when disconnecting.

1) HD-34633-3 Valve
2) HD-34633-4 Hose & Fitting
3) HD-34633-5A Plunger

HD-94700-52C

SHOCK ABSORBER SPANNER WRENCH

K, KH

Used to adjust shock absorbers for more or

less spring compression.

XL Models
(1967-1974)

FXD Dyna Models
(1991 & Later)

XL Sport
(1996 & Later)

HD-94820-75A

REAR SHOCK SPANNER WRENCH

XL Models
(1975 & Later)

Adjusts spring compression.

FLT

FXR

HD-28431-C

(24) 1-OZ. FLUORESCENT ADDITIVES (OIL)

All Models

HD-28431-6A

(6) 1-OZ. FLUORESCENT ADDITIVES (OIL)

HD-28431-16

(1) 16 OZ. FLUORESCENT ADDITIVE (OIL)

Improved additive shows brighter under black light.

HD-34816

OIL FILTER SWITCH WRENCH

All 1340 cc
Evolution Models

This tool will easily install and remove oil

except FLT & FLHT

pressure switches without damage to the switch
itself. The extension handle is not used when

XL Models

servicing Sportsters.

(Late 1983-1985)

V-TWIN CHASSIS/

Shock Absorbers

V-TWIN ENGINE/General

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

APPLICATION

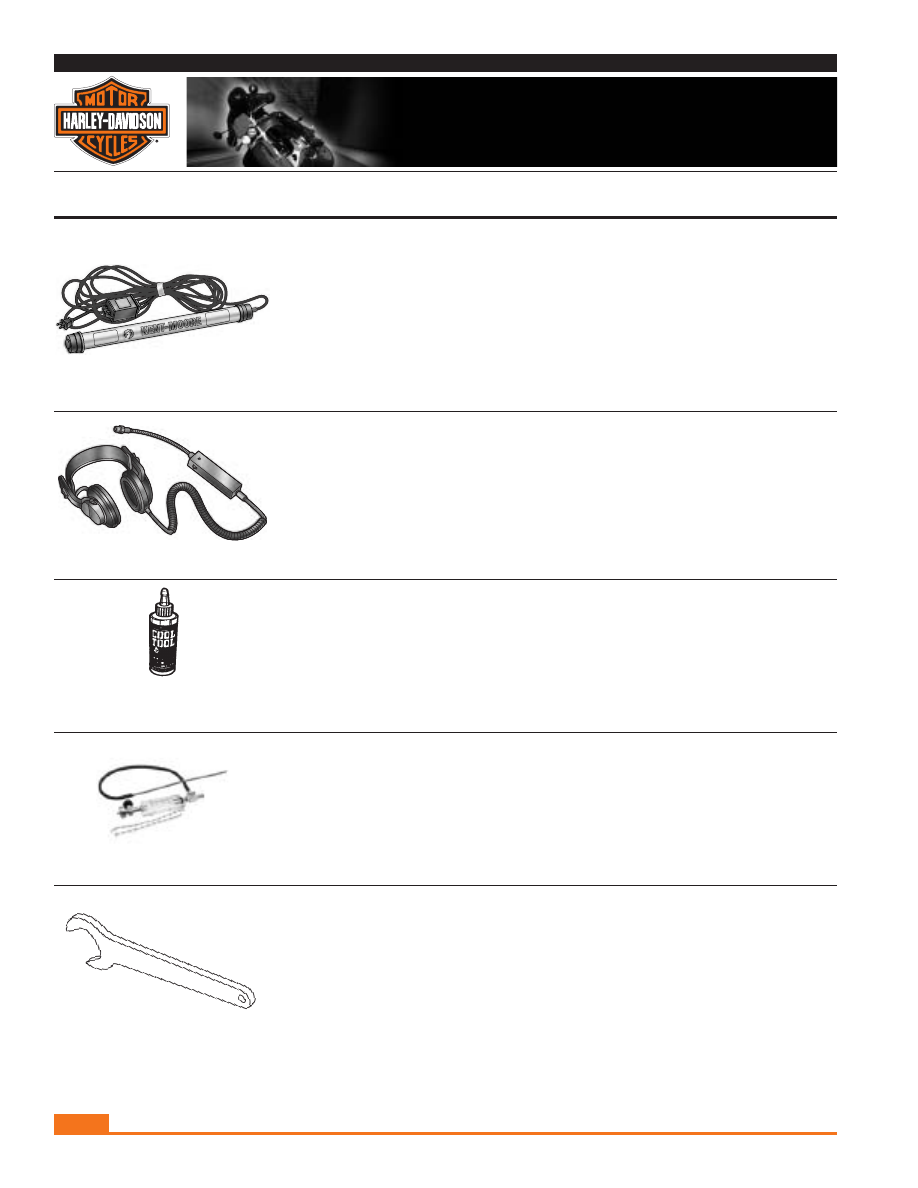

HD-35457

BLACK LIGHT LEAK DETECTOR

All Models

The Black Light Oil Leak Detector provides
an effective time saving method for pinpointing
engine oil leaks. Simply add 1 oz. of fluorescent
oil additive to the engine crankcase (6 oz.
included). Run the engine for ten minutes to
circulate the fluorescent oil additive throughout
the engine. Oil leak will fluoresce a bright yellow
when illuminated with HD-35457 Black Light.

HD-39565

ELECTRONIC LISTENING TOOL, ENGINE EAR

All Models

The Engine EAR

helps to amplify sounds and

also shuts out surrounding noises. Very helpful in
identifying worn components and internal engine
noises. Comes with carrying case.

HD-39964

COOL TOOL

All Models

This cutting fluid works well with both
taps and reamers.

HD-41417

PROPANE ENRICHMENT KIT

All Models

Checks for suspected leaks in engine intake by
changing engine tone when propane enters source
of leak. Kit comes with all necessary components
except for propane bottle.

HD-41675

OIL PRESSURE SENDING UNIT WRENCH

XL Sport
(1996 & Later)

The oil pressure sending unit on all 1995 to
current vehicles can be difficult to remove because
of its location on the engine.

V-TWIN ENGINE/General cont.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

APPLICATION

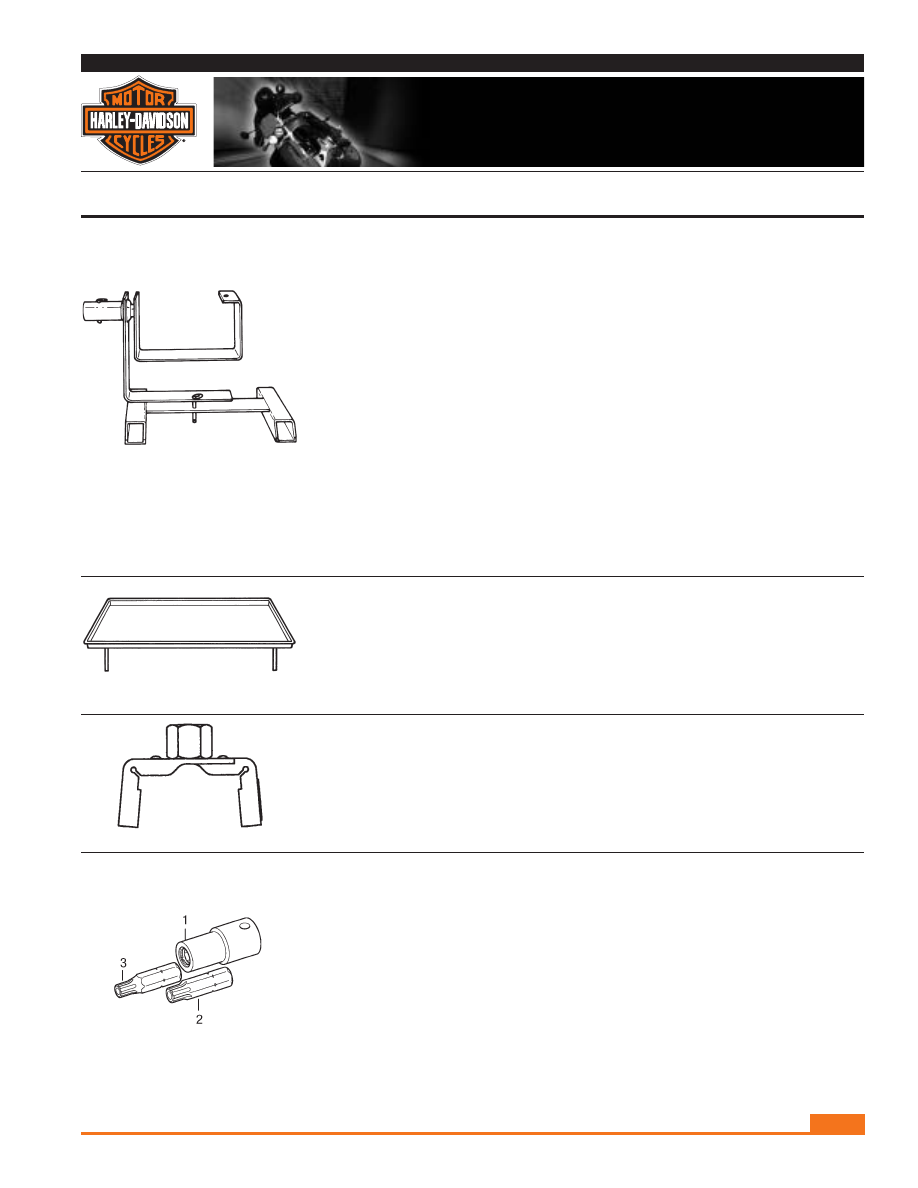

HD-42310

ENGINE/TRANSMISSION STAND

See Below

The Engine/Transmission Stand will make engine
repair easier than ever before. Engines and
transmissions can be rotated and tilted into various
work positions. Crankcases can even be split to
perform complete engine overhauls. Transmissions
can also be supported for easy maneuverability.
HD-42310-200 Wing Nut firmly locks cradle in stand
for crankcase main bearing lapping.

B-43987

Engine Cradle (Blast 2004 & Later) & (XB9R Firebolt 2003 & Later)

HD-42310

Benchtop Stand (Cradles Not Included)

HD-42310-1

Evolution/Shovelhead Cradle

HD-42310-2B

Twin Cam 88 Cradle (Slotted holes for easy attachment)

HD-42310-3

Sportster Engine Cradle (thru 2003)

HD-42310-20A

5-Speed Transmission Cradle

HD-42310-25A

Twin Cam 88B Cradle

HD-42310-40

V-Rod Cradle

HD-42310-45

Sportster Engine Cradle (2004 & Later)

HD-42310-50A

6-Speed Transmission Cradle

HD-42310-200

Cradle Lock Wing Nut

HD-42310-150

ENGINE STAND DRIP TRAY

All Models

This tool is used with the HD-42310 Engine Stand
to catch engine and transmission oil.

HD-42311

OIL FILTER WRENCH

All Models

Use to remove oil filters.

HD-42508

TORX PLUS BIT KIT

1997 Models

Torx Plus fasteners were used on 1997 model
year vehicles. The HD-42508 Torx Plus Bit Kit
includes T-40 I.P. & T-45 I.P. tools necessary to
service these fasteners.

1) HD-42508-1 Holder
2) HD-42508-2 T-40 Torx Bit
3) HD-42508-3 T-45 Torx Bit

V-TWIN ENGINE/General cont.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

APPLICATION

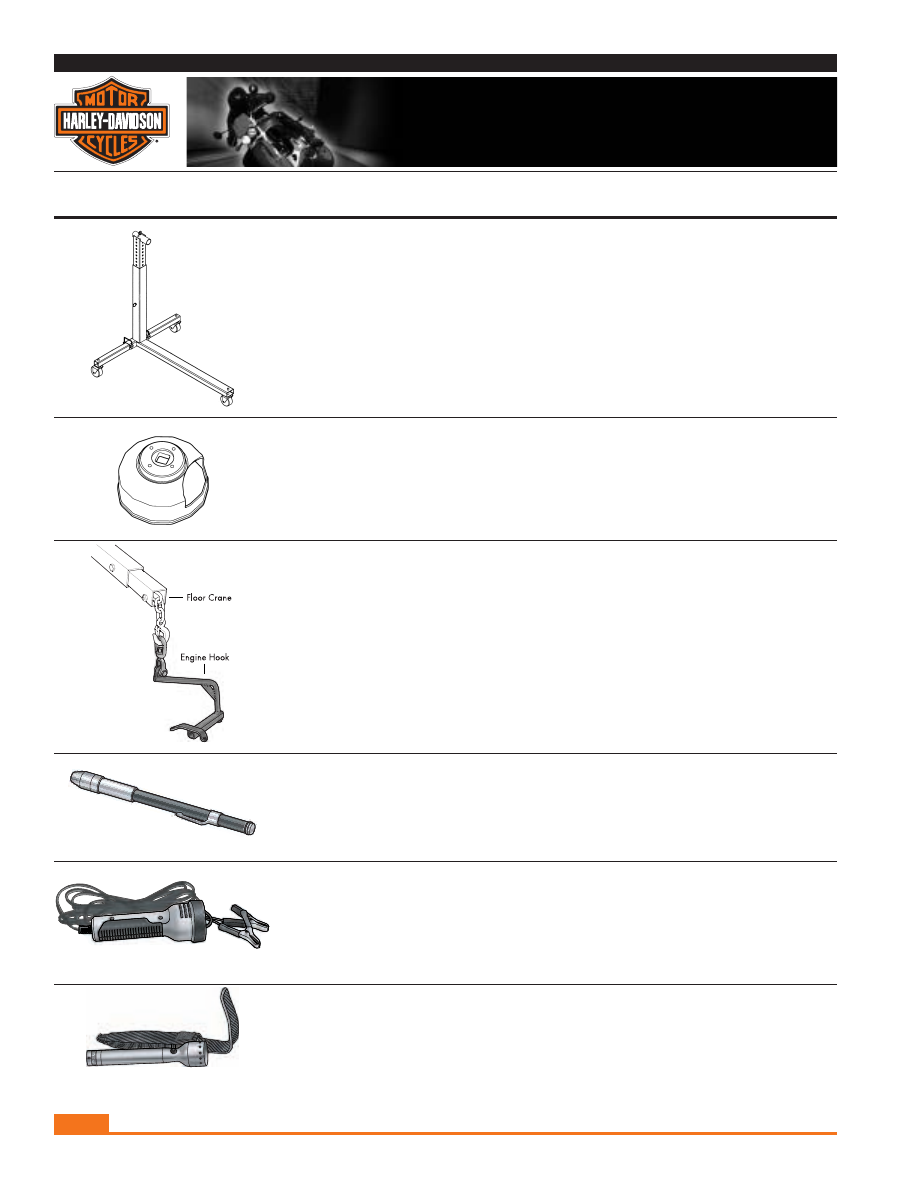

HD-43646-A

ROLLING ENGINE STAND

All Models

This engine stand uses the cradles from the
Bench Top Engine stand and can be rolled around
the service department. The engines can be tilted
into various positions and is height adjustable.
HD-43464-A includes wide span leg for V-Rod engine.

HD-43646-50 Wide Span Leg For V-Rod Engine

(for previous stand HD-43646)

HD-43646-10 Oil Drip Tray

HD-44067-A

OIL FILTER WRENCH

All Models

Allows access around the crank position
sensor to remove the oil filter. New improved
version allows removal of filters attached to an
accessory oil cooler adapter.

HD-46284

ENGINE HOOK

XL Models
(2004 & Later)

Lifts XL engine from chassis during removal and
installation. Used with floor crane or chainfall.

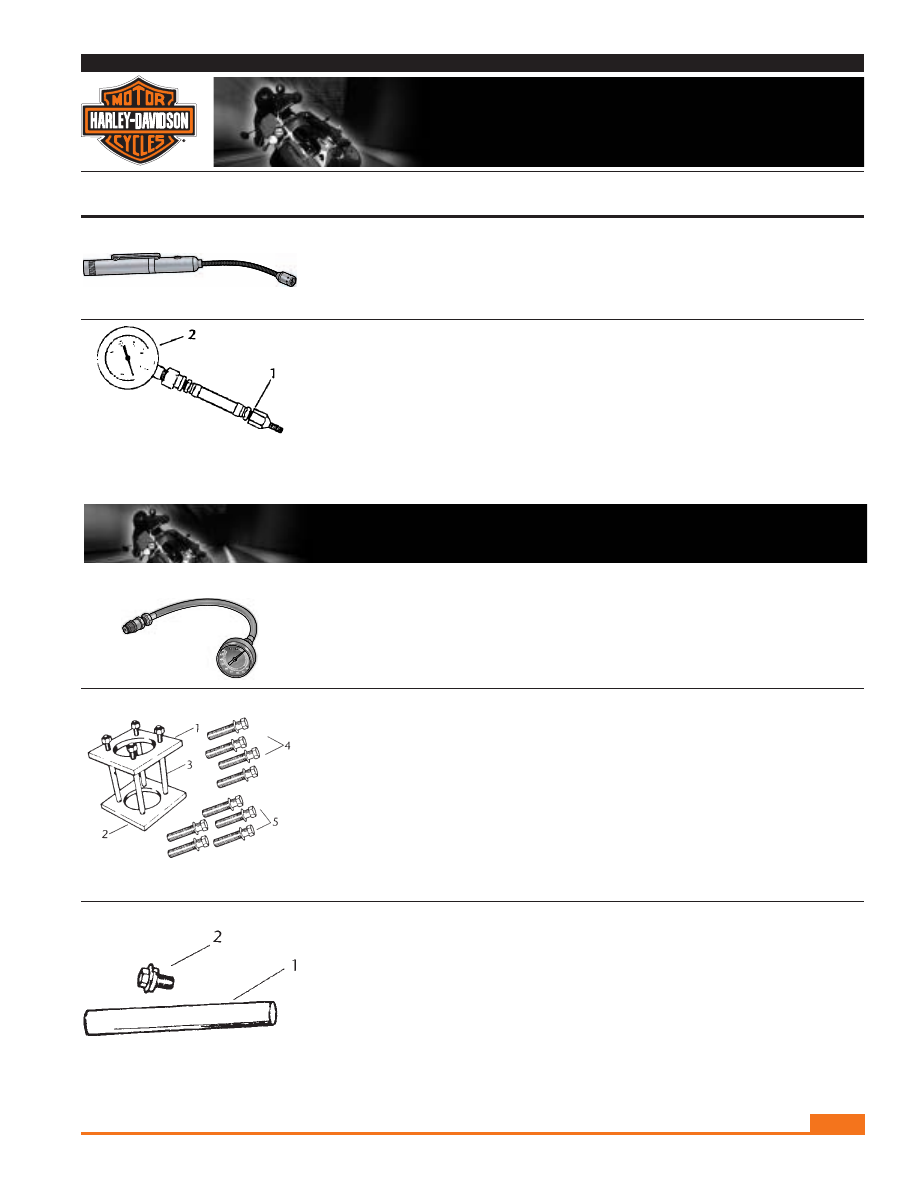

HD-47183

LEAK DETECTOR PENLIGHT

All Models

Small penlight design permits leak
detection in very tight areas.

HD-47184

LEAK DETECTOR FLASHLIGHT

All Models

Convenient flashlight design permits leak
detection in tight places. Clips to battery
terminal for 12 volt power.

HD-47187

TECHNICIAN PENLIGHT

All Models

Provides bright white light source in poorly
lit areas.

V-TWIN ENGINE/General cont.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

APPLICATION

HD-47188

TECHNICIAN FLEX LIGHT

All Models

Flexible neck provides bright white light
source in hard-to-reach areas.

HD-96950-68

VACUUM GAUGE

FL
(1965 & Earlier)

Measures front chain case vacuum to detect air
leaks (30 in. water, 1.05 P.S.I.).

FLT (1984

⁄

& Earlier)

1) HD-96955-68 Fitting

2) HD-96952-68 Gauge

HD-33223-1

CYLINDER COMPRESSION GAUGE

All Models

This new compression gauge features a quick
disconnect coupler for easy handling. Used for
all models.

HD-33446-B

CYLINDER BORING TORQUE PLATES

All Big Twin Evolution

This tool properly stresses the cylinder to simulate

Sportster Evolution

engine operating conditions. It is required to
properly hone, bore, and measure the cylinder.

Shovelhead

Used in conjunction with HD-33446-86 (included)
for XL Evolution.

1) HD-33446-1 Top Plate
2) HD-33446-2 Bottom Plate
3) HD-33446-4 Evolution Bolts (4) & Washers (4)
4) HD-33446-5 Shovelhead Lower Bolts (4) & Washers (4)
5) HD-33446-6 Shovelhead Upper Bolts (5) & Washers (5)

HD-34624

CYLINDER HEAD STUD INSTALLER

Early 1340cc
Evolution Only

This tool installs the cylinder studs into the
engine case to the proper depth. (Early 1340cc
Evolution only)

1) HD-34624-1 Guide Spacer Tube
2) HD-34624-2 Screw Assembly

V-TWIN ENGINE/General cont.

V-TWIN ENGINE/Cylinder Head & Cylinder

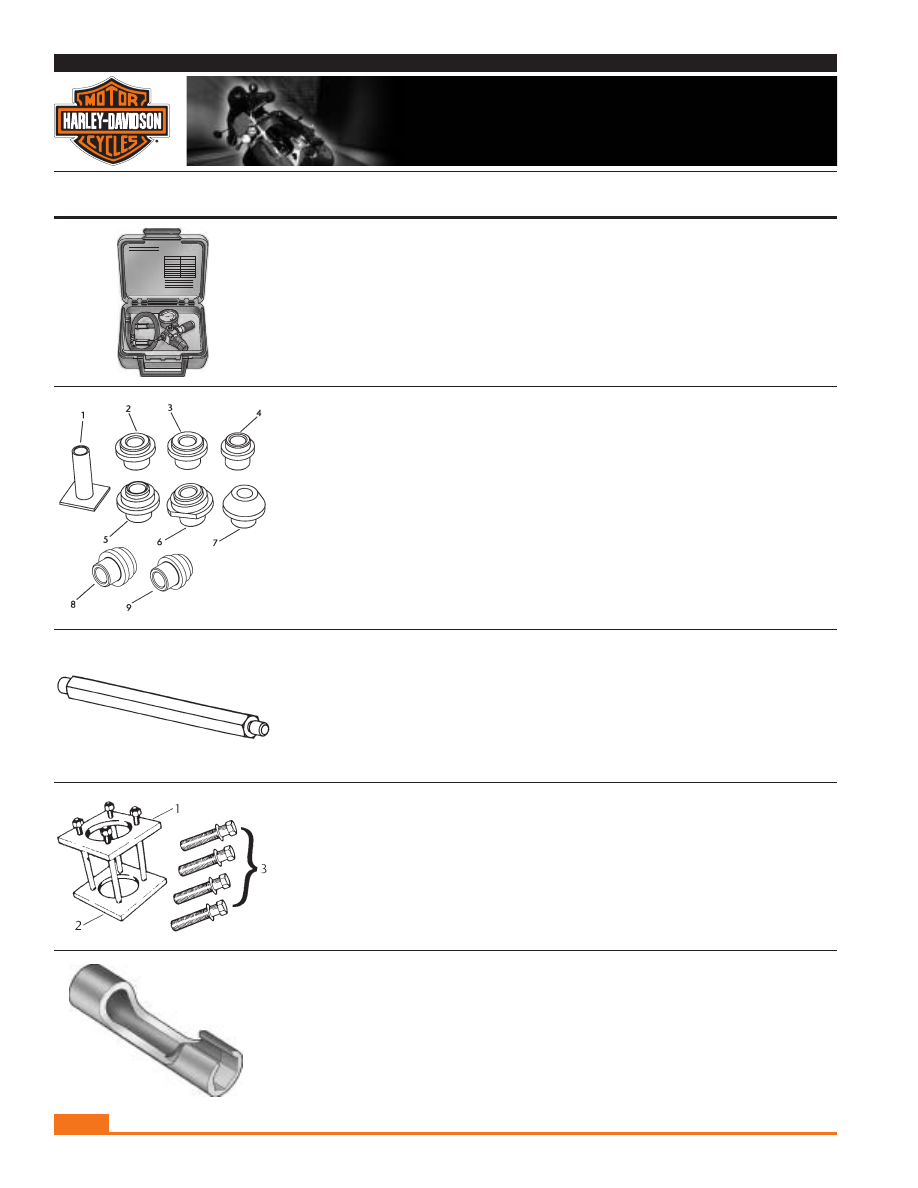

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

APPLICATION

HD-35667-A

CYLINDER LEAKDOWN TESTER

All Models

HD-35667-A will test for defective piston rings,
cylinder walls, valves, gaskets and all related
leakage problems. HD-35667-A uses existing shop
air and pinpoints the exact defect.

HD-39782-A

CYLINDER HEAD SUPPORT STAND

All Models

The cylinder head support stand kit includes
adapters to fit all Harley-Davidson cylinder heads.
These stands are especially nice for use when
removing or installing valve guides. They make
it easy to use an arbor press to push the guides
in and out on a straight line.

1) HD-39782-1 Stand

6) HD-39782-4

Adapter

2) HD-39782-2 Adapter

7) HD-39782-5

Adapter

3) HD-39782-6 Adapter

8) HD-39782-13 V-Rod Intake Adapter

4) HD-39782-7 Adapter

9) HD-39782-14 V-Rod Exhaust Adapter

5) HD-39782-3 Adapter

HD-39786

CYLINDER HEAD HOLDING FIXTURE

All Models

The cylinder head holding fixture is a
double ended tool. The ends are threaded
into the spark plug hole of the cylinder to
allow you to clamp the head into a vise.
This is especially handy when reaming and
honing valve guides.

HD-42324-A

CYLINDER TORQUE PLATES

Twin Cam 88

Permits accurate measurement of bore to
check for conditions of wear, taper, and out-of-round.

1) HD-42324-1A Lower Plate
2) HD-42324-2A Upper Plate
3) HD-42324-4 Bolt (4 Required)

HD-48116

HEAD TEMP SENSOR SOCKET

XL Models
(2007 & Later)

Used to remove head temperature sensor.

Buett Models
(1999 & Later)

CYLINDER LEAKDOWN TESTER

JHYUY

Guibikhf iugu iu ptr td6rd

Foihjolm oijfollkop Yuooifoihfm

knsdl hlno hslnslnnsdl hlno

bs npond bpdk kznh

odlbndpob npond bndb n

CYLINDER LEAKDOWN TESTER

Bdhgkjsbkdv ’ ksjjlkn lk
knsdl hlno hslnsln nlslns finbp pffb
odlbndpob nponno[bho
knsdl hlno hslnsln nlslns finbp pffb
odlbndpob npdb ndbno[bho
knsdl hlno hslnslnnsdl hlno hso[bho
knsdl hlno hslnslp pffb
odlbndpob npond bndb ndbno[bho

Bdhgkjsbkdv ’ ksjjlkn lk

knsdl hlno hslnsln nlslns finbp pffb

odlbndpob nponno[bho

knsdl hlno hslnsln nlslns finbp pklhb

odlbndpob npdb ndbno[bho

knsdl hlno hslnslnnsdl hlno hso[bho

bs npond bpdk kznh

odlbndpob npond bndb ndbno[bho

Bdhgkjsbkdv ’ ksjjlkn lk
  knsdl hlno hslnsln nlslns finbp pffb
  odlbndpob nponno[bho
  knsdl hlno hslnsln nlslns finbp pklhb

Bdhgkjsbkdv Majjlkn Nolk

knsdl hlno hslnsln
ndpob npond

Bdhgkjsbkdv hlno hslnslp

knsdl hlno hslnsln
ndpob npond

V-TWIN ENGINE/

Cylinder Head & Cylinder cont.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

APPLICATION

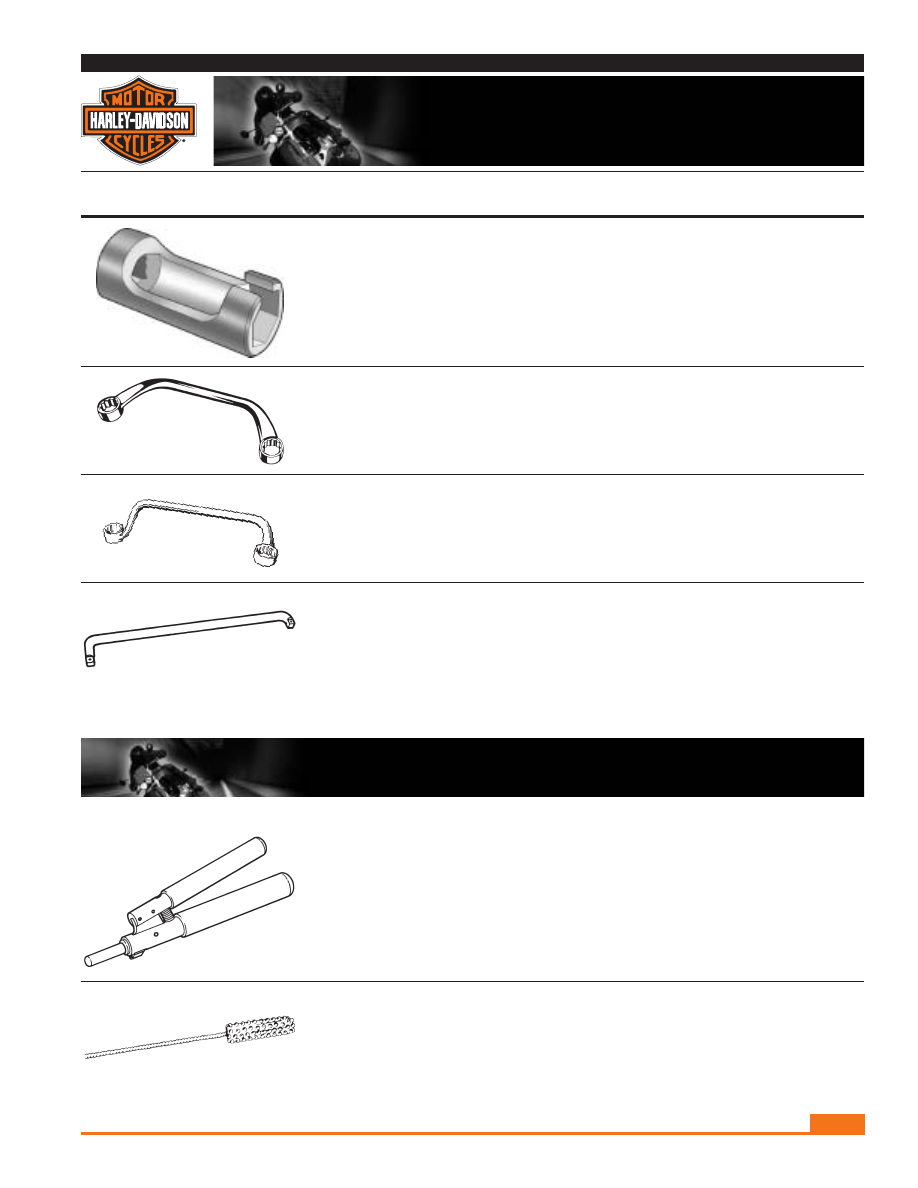

HD-48262

O2 SENSOR WRENCH

All Models w/
O2 Sensor

Used to remove O2 Sensor.

HD-94585-30

CYLINDER BASE NUT WRENCH

All Shovelhead Models

Fits

” nuts.

HD-94589-29B

CYLINDER BASE NUT AND HEAD

WL, G

BOLT WRENCH

KH, XL

Fits

” nuts.

All Shovelhead Models

HD-94590-73

SOCKET HANDLE, CYLINDER HEAD BOLT

U, K

BOLT WRENCH

KH, XL

” square drive for use with standard socket.

All Shovelhead Models

HD-34623-C

PISTON PIN RETAINING RING INSTALLER

All Evolution

This tool takes the frustration out of piston

Shovelhead

service by allowing a convenient means to
install retaining rings quickly and easily on all

XL Models

1983-Later Evolution pistons and Shovelhead

(Late 1985)

pistons 1983-later. Also works on late 1985
1000cc piston. New version adapts to redesigned
Buell XB9R Firebolt piston pin.

HD-35102

PISTON PIN BUSHING HONE (20mm)

All Models

This tool finish sizes wrist pin bushings after
reaming. Used for all models.

V-TWIN ENGINE/

Cylinder Head & Cylinder cont.

V-TWIN ENGINE/Piston & Connecting Rod

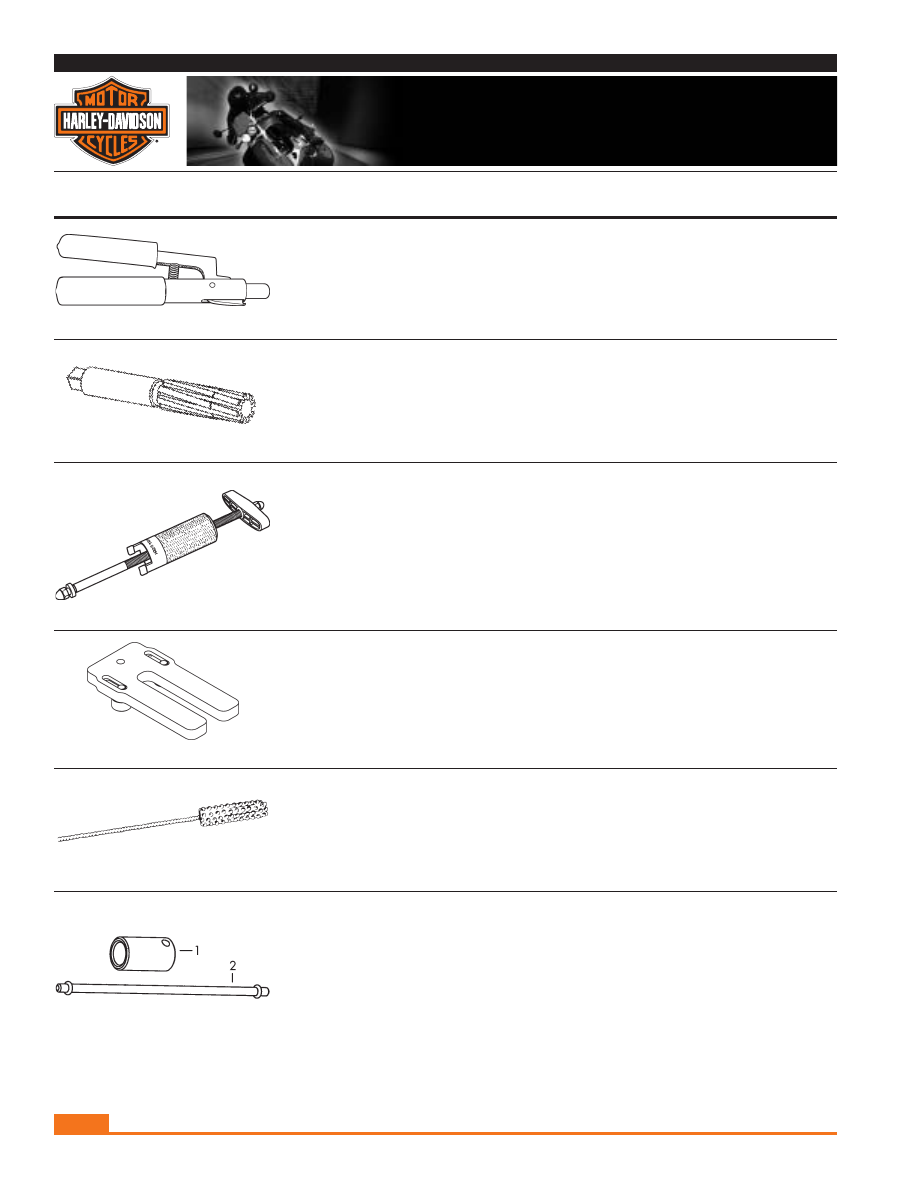

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

APPLICATION

HD-42317-A

PISTON PIN RETAINING RING INSTALLER

Twin Cam 88/B

Used to install piston pin retaining clips.

HD-42318

CONNECTING ROD BUSHING REAMER

Twin Cam 88/B

Reamer sizes replacement connecting rod
bushings to size.

HD-42320-A

PISTON PIN EXTRACTOR

All Models -
(1965 & Later)

Removal of the piston pin can be time consuming.
With the HD-42320-A Pin Extractor, the job is easy.
Position the pin extractor next to a piston pin and
turn the handle. The piston pin will be removed
in seconds. New version removes redesigned
Buell Firebolt piston pins.

HD-42322

PISTON SUPPORT PLATE

All Models

Used to provide a stable platform for the piston
during piston ring installation and cylinder installation.

HD-42569

CONNECTING ROD BUSHING HONE

Twin Cam 88/B

Hone achieves final surface finish on bushing
after it has been reamed.

HD-43645

REAMER DRIVE SOCKET

Twin Cam 88/B

Used with HD-42318 Connecting Rod Bushing
Reamer & HD-42316 Crankshaft Bushing Reamer
to turn reamer shank.

1) HD-43645-1 Socket
2) HD-43645-4 Handle

V-TWIN ENGINE/Piston &

Connecting Rod cont.

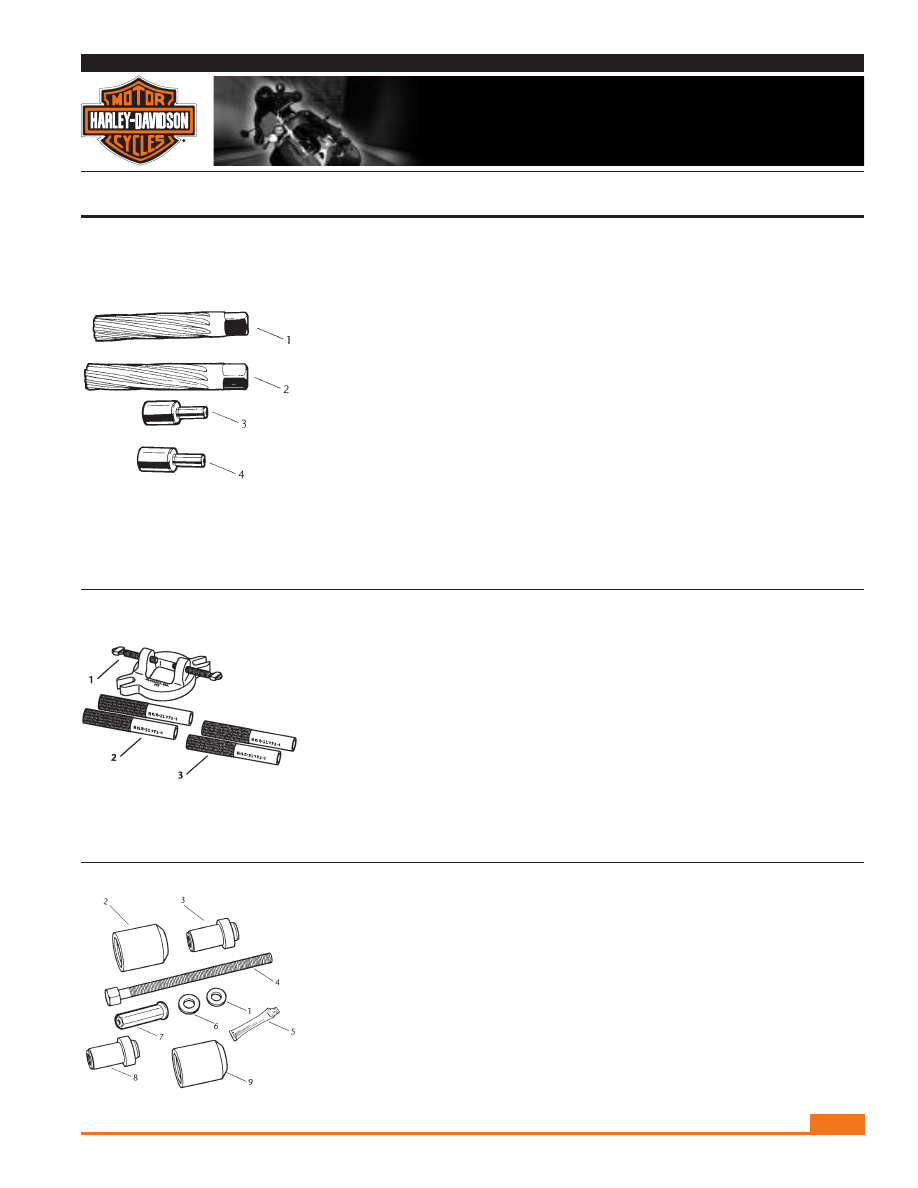

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

APPLICATION

HD-94800-26A

CONNECTING ROD BUSHING REAMER SET

Used for reaming pistons and upper connecting
rod bushings.

1) HD-94800-1

.7922/.7920

Reamer 73-83 FL
Shovelhead
84-Later Evolution
1340

2) HD-94800-2

.7916/.7914

Reamer 57-85 XL
86 & Later
Evolution XL

3) HD-94800-3

.767

Pilot
73-83 Shovelheads
84-Later Evolution
1340

4) HD-94800-4

.773

Pilot
57-85 XL
86-Later Evolution
XL

HD-95952-33C

CONNECTING ROD CLAMPING TOOL

All Models

Holds connecting rod when fitting piston
pin bushing.

1) HD-95954-33 Base

2) HD-95952-1 (pkg of 2)

XL Models
(1996 & Later)
Twin Cam 88
(1999 & Later)

3) HD-95952-3 (pkg of 2)

1340 Evolution Models
(1984 & Later)

4) RS-9400-810 Thumb Screw (2 required)

HD-95970-32D

PISTON PIN BUSHING TOOL

All Models

Used to remove and replace piston pin bushings
without removing connecting rod from
crankcase.

1) HD-95970-101 Washer
2) HD-95984-32B Receiver Cup
3) HD-95986-32B Remover/Installer
4) J-28668-5

Bolt

5) J-23444-A

Thread Lube

6) J-22342-18

Nice Bearing

7) RS-3600-450

Nut (

⁄

-16)

8) HD-95986-99

Remover/Installer

9) HD-95984-99

Receiver Cup

V-TWIN ENGINE/Piston &

Connecting Rod cont.

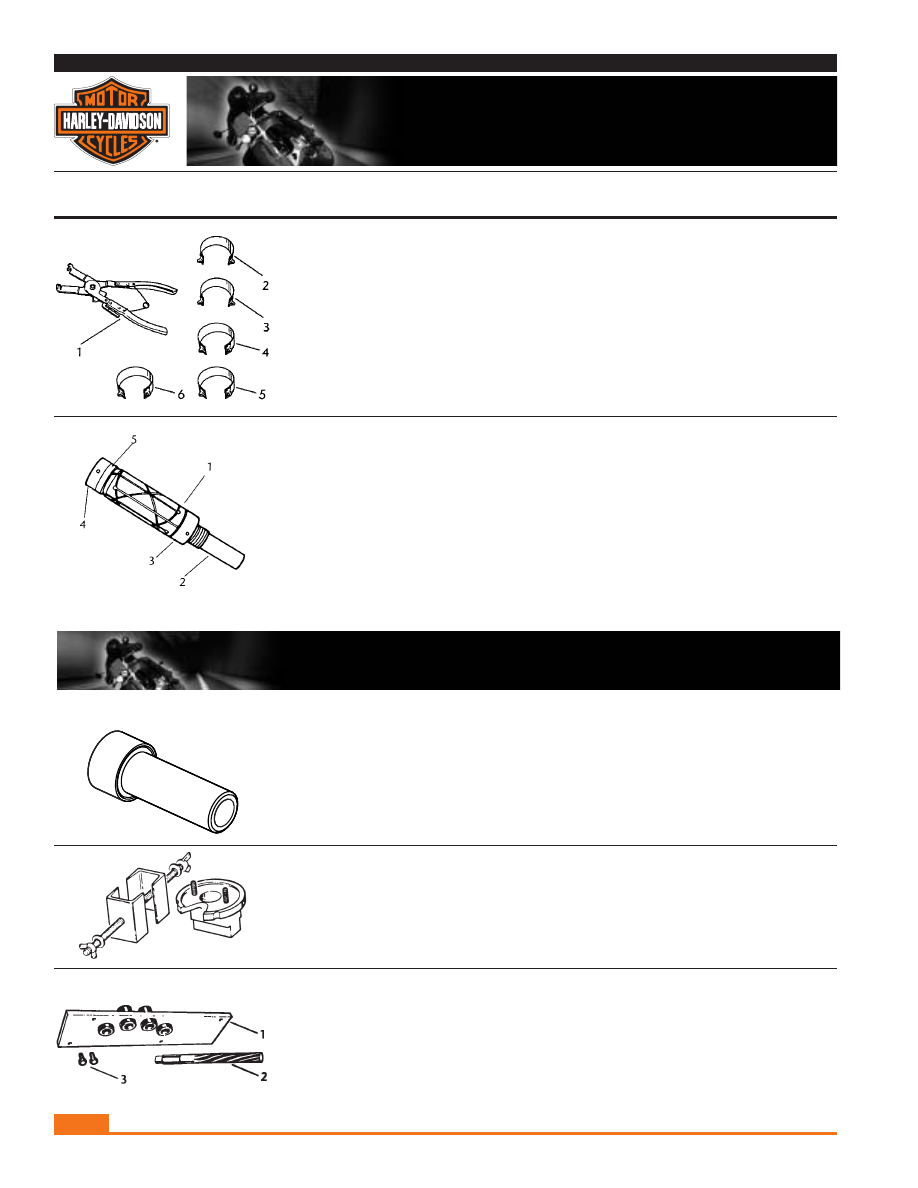

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

APPLICATION

HD-96333-51E

PISTON RING COMPRESSING TOOL

All Models

To insert pistons with rings into cylinders.
Compresses rings to bore size.

1) HD-96333-100 Ring Compressor Pliers
2) HD-96333-101 Band 2

⁄

–3

⁄

3) HD-96333-102 Band 3

⁄

–3

⁄

4) HD-96333-103 Band 3

⁄

–3

⁄

5) HD-96333-105 Band 3

⁄

–4

⁄

6) HD-96333-106 Band 4

⁄

–4

⁄

VRSC Models 1250 cc Engine

HD-96740-36

CONNECTING ROD LAPPING ARBOR

For lapping connecting rod bearing races when

fitting new rollers.

K, KH

1) HD-96746-36 1

⁄

" Lap

(FL, XL, K, KH, XR, FXU, FLT, FX)

2) HD-96741-17 Lapping Arbor
3) HD-96745-17 Adjusting Nut

FLT

4) HD-96743-17 Lock Nut
5) HD-96744-17 Adjusting Collar

B-45655

CRANKCASE BEARING REMOVER

Twin Cam 88/B

& INSTALLER

(2003 & Later)

Used with HD-42720 to remove and install

XB9/XB12 Firebolt

crankcase main bearings.

(2003 & Later)

XL Models
(2004 & Later)

HD-34813

ROWE FLYWHEEL REBUILDING JIG

All Models

This tool is used to remove and replace the
mainshaft, crank pin nut, and upper flywheel.
It is also used to tighten the crank pin nut.

HD-38871

CRANKSHAFT BUSHING PLATE

XL Models

PILOT AND REAMER

(1991 & Later)

Reams inboard Camshaft crankcase bushings.

1) HD-38871-4 Plate
2) HD-38871-2 Reamer
3) HD-38871-5 Screws

V-TWIN ENGINE/Piston &

Connecting Rod cont.

V-TWIN ENGINE/Flywheel & Crankcase

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

APPLICATION

HD-39361-B

BIG TWIN SPROCKET SHAFT SEAL INSTALLER

FL/FX
(1969 & Later)

Installs sprocket shaft seal.
Use with HD-97225-55B.

New -B version works on all models including
2006 & later models.

HD-39458

SPROCKET SHAFT BEARING OUTER

Big Twins

RACE INSTALLER

(1969-2002)

Used with a shop press to simply and easily install

XL Models

the Timkin bearing races to the correct depth.

(1977-2003)

1) HD-39458-1 Base
2) HD-39458-2 Sportster Pilot
3) HD-39458-3 Big Twin Pilot

HD-39958

PINION BEARING RACE REMOVAL

Big Twins

& INSTALLATION TOOL

(1958 & Later)

This tool is used to remove and install
the pinion bearing outer race on 1958
to current models.

HD-41492-A

CRANKSHAFT LOCKING TOOL

All Big Twins
(Except Twin Cam 88)

The HD-41492-A locks the crankshaft by engaging
the pinion shaft splines. This permits the removal
and torquing of the pinion nut during installation.

HD-41506

CRANKSHAFT LOCKING TOOL

XL Models
(1991-1999)

The HD-41506 locks the crankshaft by
engaging the pinion shaft splines.
This permits the removal and torquing of
the pinion nut during installation.

HD-42122

FLYWHEEL PROTECTIVE COVER

Fuel Injected Engines
(1995-1998)

The HD-42122 is used to protect the flywheel
when removing the crankpin.

HD-42315

CRANKSHAFT BUSHING REMOVER

Twin Cam 88

& INSTALLER

Removes and installs crankshaft bushing
in support plate.

1) HD-42315-1 Remover/Installer
2) HD-42315-2 Base

V-TWIN ENGINE/

Flywheel & Crankcase cont.

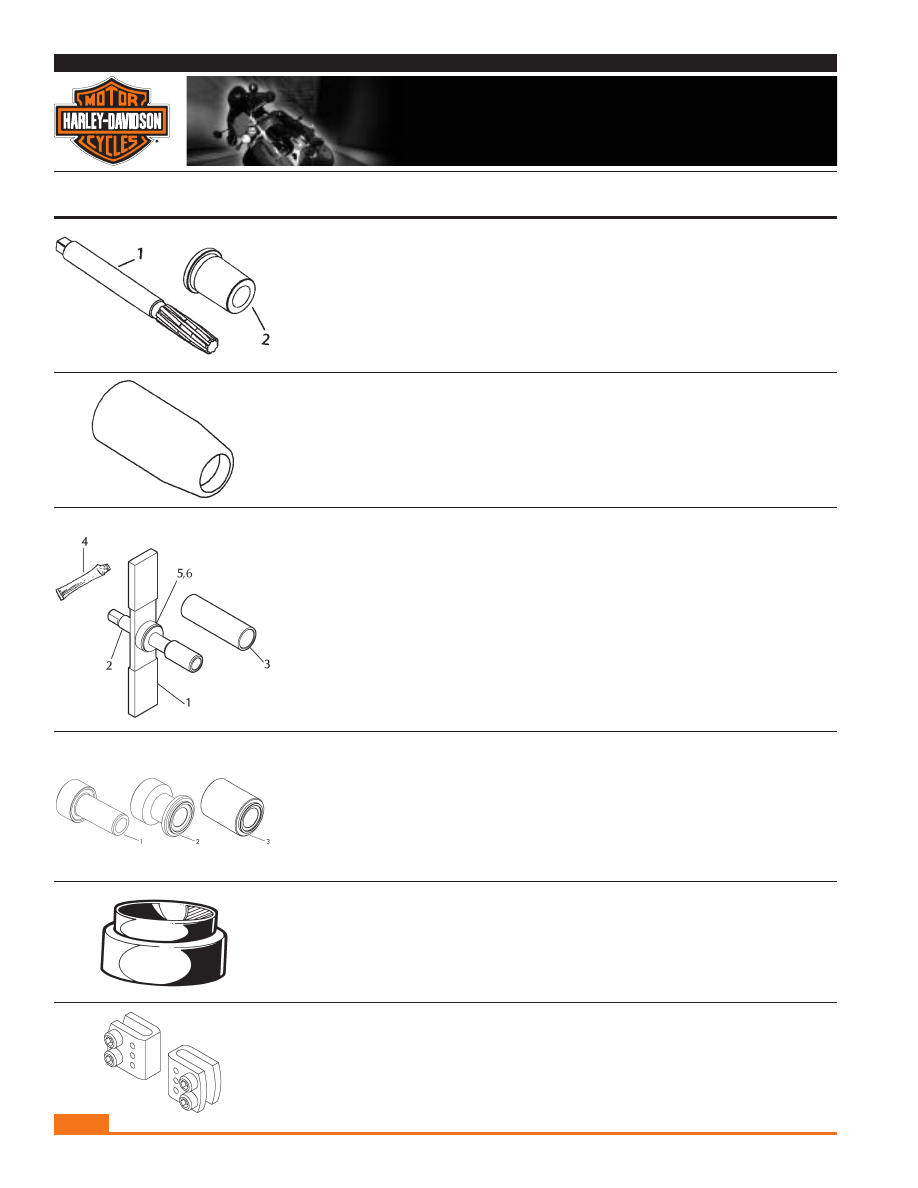

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

APPLICATION

HD-42316

CRANKSHAFT BUSHING REAMER

Twin Cam 88

Tool reams replacement crankshaft bushings.

1) HD-42316-1 Reamer
2) HD-42316-2 Pilot

HD-42326-A

CRANKSHAFT GUIDE

All Twin Cam 88/B

Spreads crankcase pinion bearing rollers

XB9/XB12 Firebolt

during crankcase reassembly.

(2003 & Later)

XL Models
(2004 & Later)

HD-42579

SPROCKET SHAFT BEARING INSTALLER

XL Models
(1977-2003)

This tool will install the Sprocket Shaft Bearing
to the proper depth.

1) HD-42579-4

Handle

2) HD-42579-2

Screw

3) HD-42579-3

Collar

4) J-23444-A

Thread Lube

5) 12702

Bearing

6) 12330

Washer

HD-42720-A

CRANKCASE BEARING REMOVER

Twin Cam 88

& INSTALLER

Removes and installs right crankcase main bearing.

1) HD-42720-1 Installer
2) HD-42720-2 Base
3) HD-42720-5 Base (2003 TC88/B)

HD-42774

SPROCKET SHAFT SEAL INSTALLER

XL Models
(1977-2001)

The HD-42774 will install the sprocket shaft seal.
Used with HD-42579 Sprocket Shaft Bearing Installer.

HD-43720

TIMKEN SNAP REMOVER & INSTALLER

Big Twin Models
(1969 & 2002)

Removes and installs the Timken outer race
snap ring in the left crankcase half.

V-TWIN ENGINE/

Flywheel & Crankcase cont.

Harley Davidson Softail Delux FLSTN BIKE 2011-2015. Service Manual - page 31
