In the event of a breakdown

► Pre-tighten the other bolts using the

wheelbrace 1 only.

► Use the knob to extend the jack 2 until its

► Remove the bolts and store them in a clean

head comes into contact with jacking point A or

place.

B, whichever is used; contact surface A or B on

► Remove the wheel.

► Lower the vehicle again fully.

the vehicle must be correctly engaged with the

central part of the head of the jack.

Fitting the wheel

► Fold jack 2 and remove it.

► Raise the vehicle until there is sufficient

space between the wheel and the ground, to

then easily fit the spare (not punctured) wheel.

Risk of injury!

Ensure that the jack is stable. If the

ground is slippery or loose, the jack may slip

or collapse.

Ensure that the jack is positioned strictly at

► If fitted to your vehicle, tighten the anti-theft

one of the jacking points A or B under the

bolt using the wheelbrace 1 fitted with the anti-

vehicle, making sure that the vehicle's contact

theft socket 4.

surface is correctly centred on the head of the

► Tighten the other bolts using the

jack. Otherwise, there is a risk of damage to

► Fit the wheel on the hub.

wheelbrace 1 only.

the vehicle and/or of the jack collapsing.

► Screw in the bolts by hand as far as possible.

► Stow the tools in the tool box.

► If fitted to your vehicle, pre-tighten the anti-

theft bolt using the wheelbrace 1 fitted with the

anti-theft socket 4.

210

CarManuals2.co

In the event of a breakdown

Fitting a steel or "space-saver" type

Tyre under-inflation detection

Changing a bulb must only be done with

spare wheel

The steel spare wheel does not have a

the ignition off and after the headlamp /

sensor.

lamp has been switched off for several

minutes - risk of serious burns!

Wheel with wheel trim

Do not touch the bulb directly with your

When refitting the wheel, refit the wheel

fingers; use a lint-free cloth.

trim, starting by aligning the cutout with the

It is essential only to use anti-ultraviolet

valve and then pushing the trim into place all

(UV) type bulbs, so as not to damage the

If the vehicle is fitted with alloy wheels, the

round its edge with the palm of your hand.

headlamp.

washers A do not make contact with the steel

Always replace a failed bulb with a new bulb

or "space-saver" type spare wheel. The wheel

of the same type and specification. To avoid

is held in place by the conical contact surface

lighting imbalance, replace the bulbs in pairs.

Changing a bulb

B of each bolt.

In some weather conditions (e.g. low

Halogen bulbs (Hx)

After changing a wheel

temperature or humidity), misting on the

To ensure good quality lighting, check

Stow the punctured wheel in the carrier.

internal surface of the glass of the headlamps

that the bulb is correctly positioned in its

Go promptly to a CITROËN dealer or a

and rear lamps is normal, and will disappear

housing.

qualified workshop.

after the lamps have been on for a few

Have the punctured tyre examined. After

minutes.

Opening the bonnet/Accessing the

inspection, the technician will advise you on

bulbs

whether the tyre can be repaired or if it must

The headlamps have polycarbonate

Proceed with caution when the engine is hot -

be replaced.

lenses with a protective coating:

risk of burns!

- Do not clean them with a dry or abrasive

Take care with objects or clothing that could

Some driving aid functions should be

cloth, nor with detergent or solvent

be caught in the blades of the cooling fan -

disabled, e.g. the Active Safety Brake.

products.

risk of strangulation!

- Use a sponge and soapy water or a pH

If your vehicle has tyre under-inflation

neutral product.

After changing a bulb

detection, check the tyre pressures and

- When using a high-pressure washer on

To refit, carry out the operations in

reinitialise the system.

persistent marks, do not keep the lance

reverse order to removal.

For more information on Tyre under-inflation

directed towards the headlamps, lamps or

Close the protective cover very carefully to

detection, refer to the corresponding section.

their edges for too long, so as not to damage

guarantee the sealing of the lamps.

their protective coating and seals.

211

CarManuals2.co

In the event of a breakdown

Model with halogen

Be aware of the zone behind the right

Do not touch the Xenon lamps (D8S)

lamp (vehicle direction), which may be

- risk of electrocution!

headlamps

hot with a risk of burning (degassing hoses).

If you need to replace this type of bulb, you

must contact a CITROËN dealer or a qualified

workshop.

Accessing the bulbs

Daytime running lamps

1. Sidelamps (W5W-5W)

2. Main beam headlamps (H1-55W)

► Press the upper clip on the cover then tilt it

3. Dipped beam headlamps (H7-55W)

backwards to remove it.

4. Daytime running lamps (W21W LL-21W)

► Press the two side clips on the connector and

5. Direction indicators (PY21W-21W amber)

Dipped beam headlamps

remove the assembly of connector and bulb.

► Pull out the bulb and replace it.

Model with Xenon

Sidelamps

headlamps

► Press the lower clip on the connector and

remove the assembly of connector and bulb.

► Pull out the bulb and replace it.

► Press the two side clips on the connector and

When refitting the connector and bulb in

remove the assembly of connector and bulb.

the lamp unit, correctly position the

1. Main beam headlamps (H1-55W)

► Pull out the bulb and replace it.

assembly in its housing until it clicks into

2. Dipped beam headlamps (D8S-25W)

place.

3. Direction indicators (PY21W-21W amber)

212

CarManuals2.co

In the event of a breakdown

Main beam headlamps

Daytime running lamps/

► Underneath the front bumper, slacken the

bolts on deflector A, then remove it.

sidelamps

► Press the lower clip on the connector and

remove the assembly of connector and bulb.

► Pull out the bulb and replace it.

► Press the locking clip and disconnect the

Direction indicators

connector.

► Unscrew the bulb holder a quarter turn anti-

clockwise and remove it.

For the replacement of these bulbs, contact a

► Replace the faulty bulb.

CITROËN dealer or a qualified workshop.

You can also contact a CITROËN dealer

A replacement kit for the LEDs is available from

or a qualified workshop to replace these

CITROËN dealers.

bulbs.

► Turn the bulb holder a quarter turn

Front foglamps (H11-55W)

anti-clockwise.

Direction indicator side

► Remove the bulb holder and replace the

faulty bulb.

repeater

Rapid flashing of a direction indicator

lamp (left or right) indicates that one of

the bulbs on the corresponding side has

failed.

Amber-coloured bulbs must be replaced

by bulbs with identical specifications and

colour.

- Push the repeater towards the rear and

release it.

213

CarManuals2.co

In the event of a breakdown

- When refitting, engage the repeater towards

the front and then slide it backwards.

Amber coloured bulbs (direction indicators and

side repeaters) must be replaced with bulbs of

identical specification and colour.

Rear lamps

► With side-hinged doors, unscrew the 2 fixing

► Spread the 3 lugs slightly, then extract the

screws from the outside.

bulb holder.

► With the tailgate, unclip the plastic trim from

► Remove the faulty bulb by pressing lightly on

the outside and then tilt it outwards to remove it.

it, then turning it a quarter turn clockwise.

Then unscrew the 2 fixing screws.

► Replace the bulb.

1. Brake lamps/Sidelamps (P21/5W-21/5W)

Third brake lamp (W5W - 5W)

2. Direction indicators (PY21W-21W amber)

3. Reversing lamps (P21W-21W)

4. Foglamps/Sidelamps (P21/4W-21/4W)

For vehicles with interior trim, contact a

CITROËN dealer or a qualified workshop

to have the work done.

► From the inside, and depending on the

version, remove the ventilation grille.

► Identify the defective lamp and then,

► While holding the lamp in place, press the

depending on the version, open the rear doors or

clip on the inside then carefully remove the lamp.

the tailgate.

► Depending on version, open the rear left-

► Disconnect the electrical connector.

hand door or tailgate.

214

CarManuals2.co

In the event of a breakdown

Number plate lamps (W5W-W)

For the replacement of these bulbs, contact a

CITROËN dealer or a qualified workshop.

A replacement kit for the LEDs is available from

CITROËN dealers.

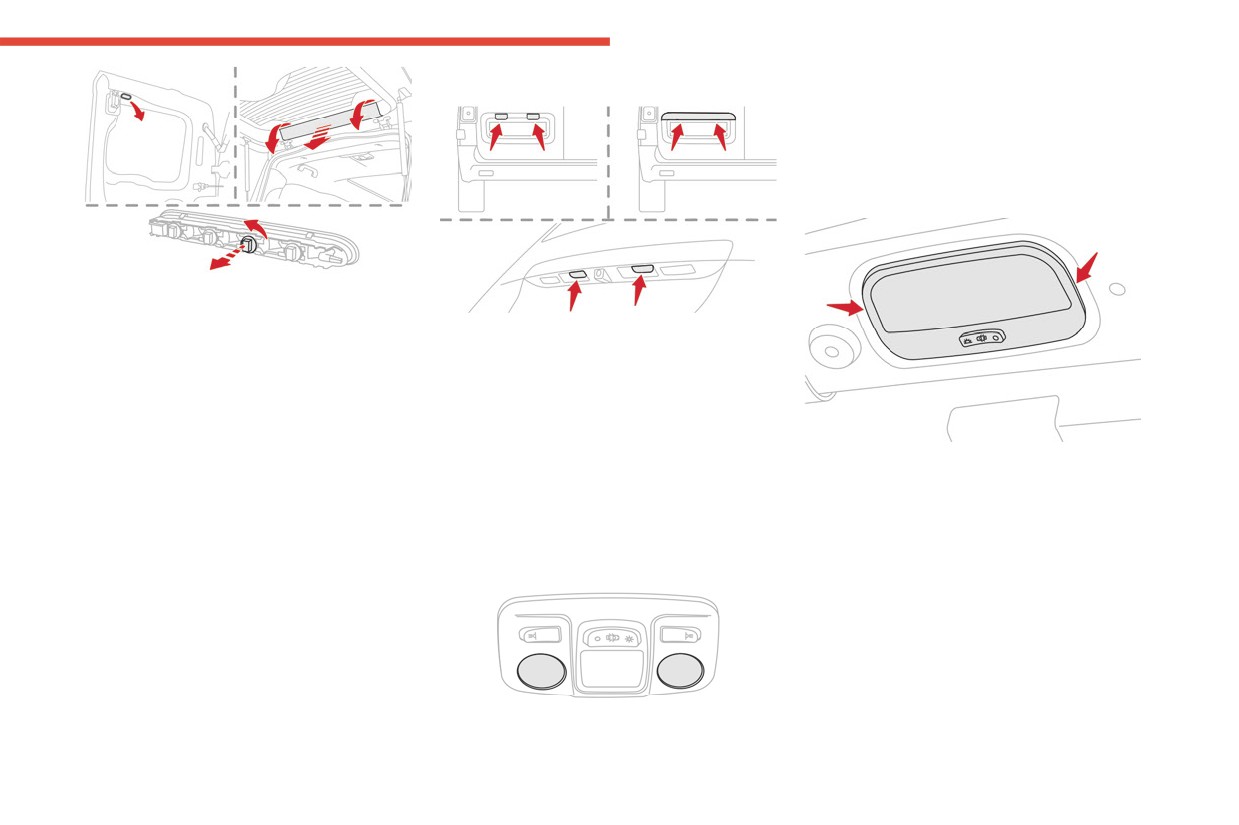

Courtesy lamps with bulb

W5W-5W

► With side-hinged doors, remove the plastic

cover with the aid of a screwdriver.

► With a tailgate, unclip the trim at each end,

► Insert a thin screwdriver into one of the cut-

rotating it from bottom to top, then unclip the

outs on the exterior of the lens.

centre clips to remove it.

► Push it outwards to unclip it.

► Using a screwdriver through the aperture,

► Remove the lens and replace the faulty bulb.

push the lamp towards the outside.

To refit, press the lens to clip it in.

► Disconnect the electrical connector and then

remove the lamp.

Courtesy lamps (front and

► Unclip the lens by inserting a thin screwdriver

► Unscrew the bulb holder a quarter turn anti-

rear)

into the slots at each side of the courtesy lamp.

clockwise and replace the faulty bulb.

► Remove the bulb and change it.

LED courtesy lamps

To refit, press on the lamp to clip it into place.

To refit, clip the lens in place and ensure that it

is secure.

215

CarManuals2.co

In the event of a breakdown

Platform cab (rear lamps)

Installing electrical accessories

circumstances be discarded with household

The vehicle's electrical system is

waste.

designed to operate with standard or optional

Dispose of used batteries at a designated

equipment.

collection point.

Before fitting other electrical equipment

or accessories to your vehicle, contact a

Protect your eyes and face before

CITROËN dealer or a qualified workshop.

handling the battery.

All operations on the battery must be carried

CITROËN accepts no responsibility for

out in a well ventilated area and away from

the cost incurred in repairing the vehicle

naked flames and sources of sparks, to avoid

1. Direction indicators (P21W-21W).

or for rectifying malfunctions resulting from

any risk of explosion or fire.

2. Brake lamps (P21W-21W).

the installation of accessories not supplied or

Wash your hands afterwards.

3. Sidelamps (R10W-10W).

not recommended by CITROËN and not

4. Reversing lamps (P21W-21W).

installed in accordance with its

Electric motor

5. Foglamps (P21W-21W).

recommendations, in particular when the

► Locate the faulty bulb.

combined power consumption of all of the

Flat accessory battery

► Unscrew the 4 fixing screws from the lens

additional equipment connected exceeds 10

It is no longer possible to start the motor

unit and remove it.

milliamperes.

or recharge the traction battery.

► Remove the faulty bulb by pressing lightly on

it, then turning it a quarter turn clockwise.

Precautions before working on the

► Change the bulb.

accessory battery

12 V battery / Accessory

Select mode P, switch off the ignition, check

battery

that the instrument panel is off and that the

Fuses

Procedure for starting the engine using another

vehicle is not being charged.

Changing a fuse

battery or for charging a discharged battery.

All work must be carried out only by a

Jump-starting another vehicle

Lead-acid starter batteries

Do not use the accessory battery to

CITROËN dealer or a qualified workshop

The replacement of a fuse by a third party

jump-start another vehicle or to charge

These batteries contain harmful

could cause a serious malfunction of the

another vehicle's battery.

substances (sulphuric acid and lead).

vehicle.

They must be disposed of in accordance

with regulations and must never under any

216

CarManuals2.co

In the event of a breakdown

Symbols

at least equal to that of the discharged

No sparks or naked flames, no smoking.

battery.

The two vehicles must not be in contact with

Always protect your eyes. Explosive

each other.

gases can cause blindness and injury.

Switch off all electricity-consuming equipment

Keep the vehicle's battery out of the reach

on both vehicles (audio system, wipers,

of children.

lighting, etc.).

The vehicle's battery contains sulphuric

Make sure that the jump leads are well away

acid which can make you go blind or

from the engine’s moving parts (fan, belt,

cause severe burns.

etc.).

For more information, refer to the

Do not disconnect the (+) terminal while the

► Remove the plastic cover to access the (+)

handbook.

engine is running.

terminal, if your vehicle has one.

Explosive gases can be present close to

The battery (-) terminal is not accessible.

the battery.

There is a remote earth point near the battery.

Always replace the battery with one of

For more information on the Bonnet and

equivalent specification.

the Engine, refer to the corresponding

sections.

Access to the battery

The battery is located under the bonnet.

Starting using another

► Open the bonnet using the interior release

battery

lever, then the exterior safety catch.

► Secure the bonnet stay.

If the vehicle's battery is flat, the engine can be

started using a backup battery (either external or

► Lift the plastic cover on the (+) terminal, if the

from another vehicle) and jump leads or using a

vehicle has one.

battery booster.

► Connect the red cable to the (+) terminal of

Never start the engine by connecting a

flat battery A (at the metal elbow), then to the

battery charger.

(+) terminal of the backup battery B or of the

Never use a 24 V or higher battery booster.

booster.

Check beforehand that the backup battery

► Connect one end of the green or black cable

has a nominal voltage of 12 V and a capacity

to the (-) terminal of the backup battery B or of

217

CarManuals2.co

In the event of a breakdown

the booster (or to an earth point on the assisting

Charging the battery using a

vehicle).

battery charger

► Connect the other end of the green or black

cable to the earth point C.

For optimum service life of the battery, it is

► Start the engine on the assisting vehicle and

essential to maintain an adequate state of

leave it running for a few minutes.

charge.

► Operate the starter on the broken down

In some circumstances, it may be necessary to

vehicle and let the engine run.

charge the battery:

If the engine does not start immediately, switch

- When using the vehicle mainly for short

off the ignition and wait a few moments before

journeys.

trying again.

- If the vehicle is to be taken off the road for

several weeks.

► Switch off charger B before connecting

► Wait for it to return to idle.

Contact a CITROËN dealer or a qualified

the cables to the battery, so as to avoid any

► Disconnect the jump leads in reverse order.

workshop.

dangerous sparks.

► Refit the plastic cover to the (+) terminal, if

► Ensure that the charger cables are in good

the vehicle has one.

To charge the vehicle's battery yourself,

condition.

► Allow the engine to run for at least

use only a charger compatible with

► Lift the plastic cover on the (+) terminal, if the

30 minutes, with the vehicle stationary, so that

lead-acid batteries with a nominal voltage of

vehicle has one.

the battery reaches an adequate state of charge.

12 V.

► Connect the cables of charger B as follows:

Driving immediately without having

• the positive (+) red cable to the (+) terminal

reached a sufficient level of charge may

Follow the instructions provided by the

of battery A.

affect some of the vehicle's functions (e.g.

manufacturer of the charger.

• the negative (-) black cable to earth point C

Stop & Start).

Never reverse polarities.

on the vehicle.

► At the end of the charging operation, switch

To disconnect, proceed in reverse order.

It is not necessary to disconnect the

off charger B before disconnecting the cables

battery.

from battery A.

► Switch the ignition off.

Automatic gearbox

► Switch off all electrical consumers (audio

Never try to start the engine by pushing

system, lighting, wipers, etc.).

the vehicle.

218

CarManuals2.co

In the event of a breakdown

If this label is present, use only a 12 V

After accessing the battery, it is only necessary

Reconnecting the (+) terminal

charger to avoid causing irreversible

to disconnect the (+) terminal.

damage to the electrical components.

Quick-release terminal clamp

24V

Disconnecting the (+) terminal

12V

Frozen battery

Never try to charge a frozen battery - risk

of explosion!

► Raise lever A fully.

If the battery has frozen, have it checked by a

► Refit open clamp B on the (+) terminal.

CITROËN dealer or by a qualified workshop,

► Push clamp B fully down.

who will verify that the internal components

► Lower lever A to lock clamp B.

have not been damaged and that the case

► Depending on equipment, lift the plastic cover

► Depending on equipment, lower the plastic

has not cracked, which could lead to a risk of

on the (+) terminal.

cover on the (+) terminal.

leakage of toxic and corrosive acid.

► Raise lever A fully to release clamp B.

Do not force the lever when pressing on

► Remove clamp B by lifting it off.

it, as if the clamp is not positioned

Disconnecting/reconnecting

correctly, locking will then not be possible.

the battery

Start the procedure again.

In order to maintain an adequate state of

charge for starting the engine, we recommend

Following reconnection

disconnecting the battery if the vehicle is to be

After reconnecting the battery, turn on the

unused for an extended period.

ignition and wait 1 minute before starting the

Before disconnecting the battery:

engine, to enable the electronic systems to

► Close all openings (doors, tailgate, windows).

initialise.

► Switch off all electricity-consuming devices

If minor problems nevertheless persist following

(audio system, wipers, lamps, etc.).

this operation, contact a CITROËN dealer or a

► Switch off the ignition and wait for 4 minutes.

qualified workshop.

219

CarManuals2.co

In the event of a breakdown

Referring to the relevant section, reinitialise

General recommendations

- towing with only two wheels on the ground;

certain equipment:

Observe the legislation in force in the

- four-wheel drive vehicle;

- Remote control key or electronic key

country where you are driving.

- no approved towbar available.

(depending on version).

Check that the towing vehicle is heavier than

- Electric windows.

the towed vehicle.

Before towing the vehicle, it is essential

- Date and time.

The driver must remain at the wheel of the

to put the vehicle in free-wheeling mode.

- Preset radio stations.

towed vehicle and must have a valid driving

For more information on Free-wheeling, refer

licence.

to the corresponding section.

The Stop & Start system may not be

When towing a vehicle with all four wheels on

operational during the trip following the

the ground, always use an approved towbar;

first engine start.

Electric motor

ropes and straps are prohibited.

In this case, the system will only be available

An electric vehicle cannot under any

The towing vehicle must move off gently.

again after a continuous period with the

circumstances be used to tow another

When the vehicle is towed with its engine

vehicle immobilised, the duration of which

vehicle.

off, there is no longer braking and steering

depends on the exterior temperature and the

However, it may be used, for example, to exit

assistance.

state of charge of the battery (up to about 8

a rut.

hours).

A professional recovery service must

With a manual gearbox, place the gear

be called in the following cases:

lever in neutral.

- broken down on a motorway or main road;

Towing the vehicle

With an automatic gearbox, place the gear

- not possible to put the gearbox into neutral,

selector in position N.

Procedure for having your vehicle towed or

unlock the steering, or release the parking

Failure to adhere to this instruction may lead

for towing another vehicle using a removable

brake;

to damage to some braking components and

mechanical device.

- not possible to tow a vehicle with an

the lack of braking assistance on restarting

automatic gearbox, with the engine running;

the engine.

220

CarManuals2.co

In the event of a breakdown

Towing constraints

Type of vehicle

Front wheels on the

Rear wheels on the

Flatbed

4 wheels on the ground

(engine/gearbox)

ground

with towbar

Internal combustion/Manual

Internal combustion/Automatic

Electric

In case of battery or electric parking brake failure, it is essential to call a professional using flatbed recovery vehicles (excluding manual gearbox).

Failure to observe this instruction could

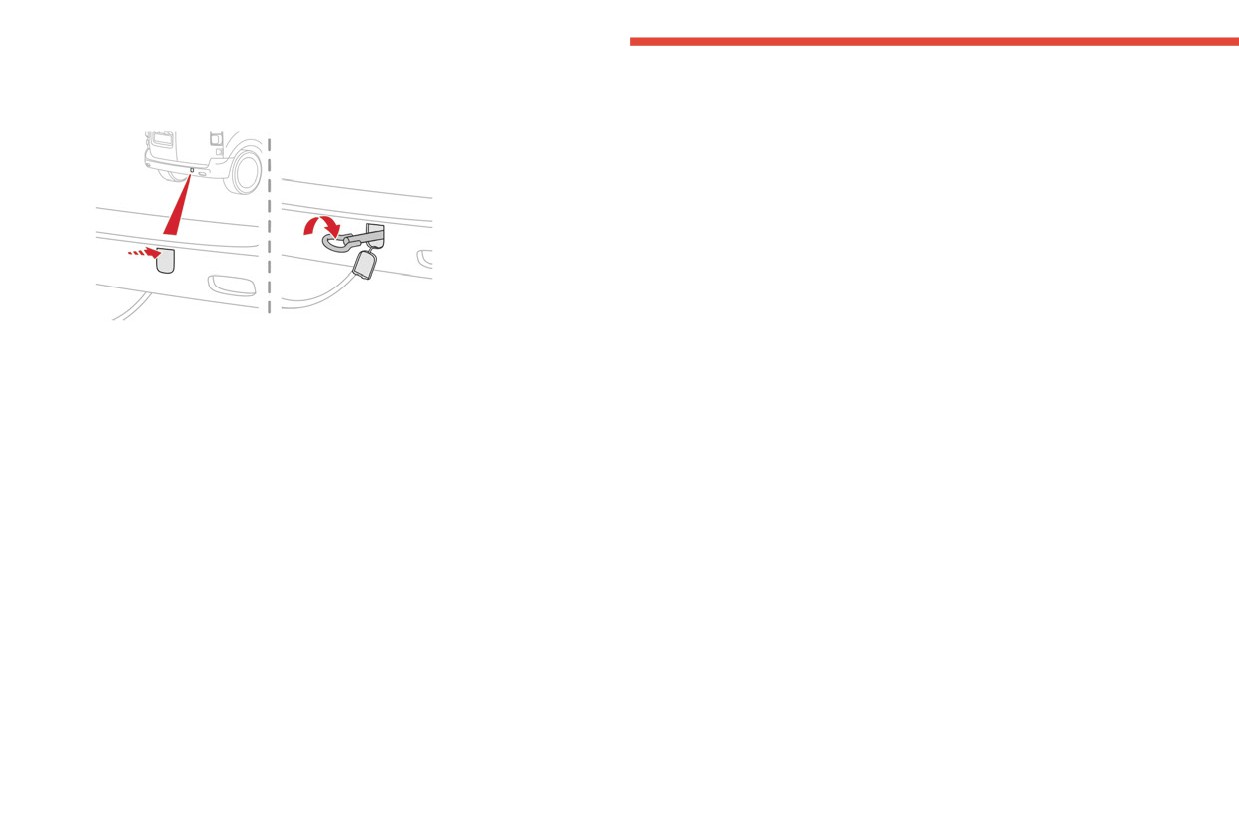

Accessing the towing eye

result in damage to certain components

The towing eye is stowed in the tool box.

(e.g. braking, transmission) and to the

For more information on the Tool box,

absence of braking assistance the next time

refer to the corresponding section.

the engine is started.

Never tow the vehicle with the driving

Towing your vehicle

wheels on the ground and the engine off.

To access the front screw thread:

- Slide a finger from the centre of the cover

► Unlock the steering and release the parking

plate to the upper corner (as shown above) to

brake.

unclip it.

► Switch on the hazard warning lamps on both

To be towed:

vehicles in accordance with the legislation in

► Screw the towing eye in fully.

force in the country in which you are driving.

► Install the towbar.

► Move off gently, drive slowly and only for a

► Put the gearbox into neutral.

short distance.

221

CarManuals2.co

Technical data

must be reduced by 10% for each additional

Engine technical data and

1,000 metres of altitude.

towed loads

The maximum authorised nose weight

corresponds to the weight permitted on the

Engines

towball.

The engine characteristics are given in the

When exterior temperatures are high, the

vehicle's registration document, as well as in

vehicle performance may be limited in

sales brochures.

order to protect the engine. When the exterior

Only the values available at the time of

temperature is higher than 37°C, reduce the

publication are presented in the tables.

towed weight.

Contact a CITROËN dealer or a qualified

workshop to obtain missing values.

Towing even with a lightly loaded vehicle

The maximum power corresponds to the

can adversely affect its road holding.

value type-approved on a test bed, under

Braking distances are increased when towing

conditions defined by European legislation

a trailer.

(Directive 1999/99/EC).

When using a vehicle to tow, never exceed

a speed of 62 mph (100 km/h) (observe the

For more information, contact a CITROËN dealer

local legislation in force).

or a qualified workshop.

Weights and towed loads

The weights and towed loads relating to

the vehicle are indicated on the registration

document, as well as in sales brochures.

These values are also indicated on the

manufacturer's plate or label.

For more information, contact a CITROËN dealer

or a qualified workshop.

The GTW (Gross Train Weight) and towed load

values indicated are valid up to a maximum

altitude of 1,000 metres. The towed load value

223

CarManuals2.co

Technical data

Engines and towed loads - Diesel EURO 4/5

Engines

BlueHDi 120 S&S

HDi 150 BVM6

HDi 150 EAT8

HDi 150 BVM6

HDi 150 EAT8

BVM6

Gearboxes

Manual 6-speed

Automatic

Manual 6-speed

Automatic

8-speed

Code

DV5RUC - ML6

DW10F

DW10FD

- STT

Cubic capacity (cc)

1,499

1,997

Max. power: EC standard (kW)

110

Fuel

Diesel

Length

M/XL

M*/XL*

M/XL

M*/XL*

M/XL

M*/XL*

M/XL

M*/XL*

M/XL

M*/XL*

(L2/L3)

(L2/

(L2/L3)

(L2/

(L2/L3)

(L2/

(L2/L3)

(L2/

(L2/L3)

(L2/

L3)*

Braked trailer

6-7-8-9 seats

1,800

2,000

1,100

800

1,100

800

(within the GTW

limit) (kg)

on a 10% or 12%

gradient

Unbraked trailer

750

(kg)

Maximum

authorised nose

weight (kg)

* Increased payload.

224

CarManuals2.co

Technical data

Engines and towed loads - Diesel EURO 6.3/6.4

Engines

BlueHDi 100 S&S BVM6

BlueHDi 120 S&S BVM6

BlueHDi 140 S&S BVM6

Gearboxes

Manual 6-speed

Code

DV5RUCd - ML6 - STT

DV5RUC - ML6 - STT

DW10FDDU - ML6 - STT

Cubic capacity (cc)

1,499

1,997

Max. power: EC standard (kW)

103

Fuel

Diesel

Length

M/XL

M*/XL*

M/XL

M*/XL*

M/XL

M*/XL*

(L2/L3)

(L2/L3)*

(L2/L3)

(L2/L3)*

(L2/L3)

(L2/L3)*

Braked trailer (within the

6-7-8-9 seats

1,400

1,900

GTW limit) (kg)

on a 10% or 12% gradient

Unbraked trailer (kg)

750

Maximum authorised nose

weight (kg)

* Increased payload.

225

CarManuals2.co

Technical data

Motor and towed loads - Electric

Electric motor

Technology

Synchronous with permanent magnets

Max. power : EC standard (kW)/(hp)

100/136

Traction battery

Technology

Lithium-Ion

Battery pack

S: 18 modules (L2/L3)

XL: 27 modules (L2/L3)*

Installed capacity (kWh)

50 or 75

Domestic charging

Mode 2

Alternating current (AC) voltage

230

Rating (A)

8 or 16

Accelerated charging

Mode 3

Alternating current (AC) voltage

230 (single-phase or three-phase)

Rating (A)

16 or 32

Superfast charging

Mode 4

Direct current (DC) voltage

400

* Battery pack not available for right-hand drive Combi, Business, Feel, Shine, Business Lounge vehicles.

227

CarManuals2.co

Technical data

** Increased payload with high body.

- Gross vehicle weight (GVW).

Identification markings

*** Depending on country of sale.

- Gross train weight (GTW).

Various visible markings for vehicle identification

Platform cab

- Maximum weight on the front axle.

and vehicle search.

- Maximum weight on the rear axle.

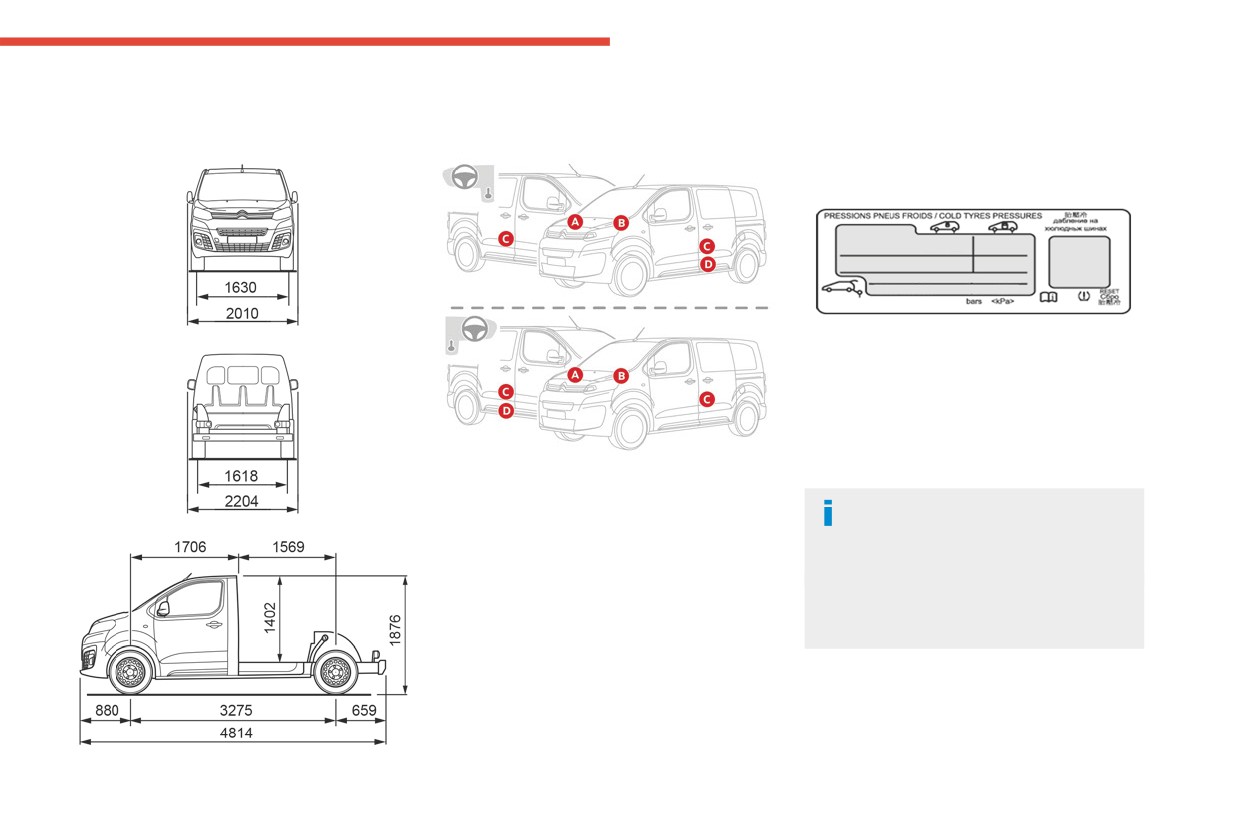

D. Tyres/paint code label.

Affixed to the driver's door.

Bears the following information about the tyres:

- Tyre pressures, unladen and laden.

- Tyre specification, made up of the dimensions

and type as well as the load and speed indices.

- Spare tyre inflation pressure.

A. Vehicle Identification Number (VIN), under

Also indicates the paint colour code.

the bonnet.

The vehicle may be originally equipped

Stamped on the chassis.

with tyres with higher load and speed

B. Vehicle Identification Number (VIN), on the

indices than those indicated on the label,

dashboard.

without affecting tyre pressure (on cold tyres).

Printed on an adhesive label visible through the

In the event of a change in the type of tyres,

windscreen.

contact a CITROËN dealer for the tyre fits

C. Manufacturer's label.

approved for the vehicle.

Affixed to the centre pillar.

Bears the following information:

- Manufacturer’s name.

- European whole vehicle type approval

number.

– Vehicle Identification number (VIN).

231

CarManuals2.co

Bluetooth® audio system

To avoid discharging the battery, the

Short press: select the preset radio station.

Bluetooth^® audio system

audio system may switch off after a few

Long press: preset a radio station.

minutes if the engine is not running.

Radio:

Automatic step by step search up/down

for radio stations.

First steps

Media:

Select previous/next CD, USB, streaming track.

Press: On/Off.

Scroll in a list.

Rotate: adjust volume.

Radio:

Short press: change audio source (radio;

Manual step by step search up/down for

USB; AUX (if equipment connected); CD;

radio stations.

streaming).

Select previous/next MP3 folder.

The different functions and settings

Long press: display the Telephone menu (if a

Media:

described vary according to the version

telephone is connected).

Select previous/next folder/genre/artist/playlist

and configuration of your vehicle.

Adjust audio settings:

on the USB device.

Front/rear fader; left/right balance; bass/

Scroll in a list.

As a safety measure and because it

treble; loudness; audio ambience.

Cancel the current operation.

requires sustained attention by the driver,

Activate/Deactivate automatic volume

Go up one level (menu or folder).

the pairing of a Bluetooth^® mobile telephone

adjustment (based on the vehicle’s speed).

Access the main menu.

with the Bluetooth^® hands-free system of your

Radio :

audio system must be done with the vehicle

Short press: display the list of radio

Activate/Deactivate TA function (traffic

stationary and the ignition on.

stations.

announcements).

Long press: update the list.

Long press: select type of announcement.

Media :

Your audio system is coded in such a

Selection of FM/DAB/AM wavebands.

Short press: display the list of folders.

way that it will only operate in your

Long press: display the available sorting options.

vehicle.

Select the screen display mode, between:

All work on the system must be carried out

Date; Audio functions; Trip computer;

exclusively by a dealer or qualified workshop,

Telephone.

to avoid any risk of electrocution, fire or

Confirm or display contextual menu.

mechanical faults.

Buttons 1 to 6.

232

CarManuals2.co

Bluetooth® audio system

Long press: reject the call.

Long press: open the "Telephone" menu.

Steering-mounted

During a telephone call:

In the event of a telephone call:

controls

Short press: open the contextual telephone

Short press: accept the call.

menu.

Long press: reject the call.

Steering mounted controls -

Long press: end the call.

During a telephone call:

Confirm a selection.

Short press: open the contextual telephone

Type 1

menu.

Increase volume.

Long press: end the call.

Start voice recognition on your

Radio:

Decrease volume.

smartphone via the system.

Select the previous / next preset radio

Radio:

station.

Mute / Restore sound by simultaneously

Short press: display the list of radio

Select the previous / next item in a menu or a

pressing the increase and decrease

stations.

list.

volume buttons.

Long press: update the list.

Media:

Select the previous / next track.

Steering mounted controls -

Short press: display the list of folders.

Select the previous / next item in a menu or a

Long press: display the available sorting options.

Type 2

list.

Radio:

Select the previous / next preset radio

Short press: display the list of radio

station.

stations.

Access to the main menu.

Select the previous / next item in a menu or a

Long press: update the list.

list.

Media:

Increase volume.

Media:

Short press: display the list of folders.

Select the previous / next track.

Long press: display the available sorting options.

Mute / Restore the sound.

Select the previous / next item in a menu or a

Other than telephone call:

list.

Short press: changing audio source

Decrease volume.

Press the thumbwheel: confirm.

(radio; USB; AUX (if equipment connected); CD;

streaming), confirmation if the "Telephone"

Other than telephone call:

Short press: changing audio source

Menus

menu is open.

Long press: open the "Telephone" menu.

(radio; USB; AUX (if equipment connected); CD;

Depending on version.

In the event of a telephone call:

streaming), confirmation if the "Telephone"

"Multimedia": Media settings, Radio

Short press: accept the call.

menu is open.

settings.

233

CarManuals2.co

Bluetooth® audio system

"Telephone": Call, Directory

Press this button to display the list of

Long procedure

management, Telephone management,

stations received locally.

Press the MENU button.

Hang up.

To update this list, press for more than two

"Trip computer".

seconds. The sound is cut while updating.

Select "Audio functions".

"Maintenance": Diagnosis, Warning log,

RDS

Press OK.

etc.

The external environment (hills,

"Connections": Manage connections,

Select the "FM waveband preferences"

buildings, tunnels, car parks,

search for devices.

function.

underground, etc.) may block reception,

"Personalisation-configuration": Define

Press OK.

including in RDS tracking mode. This is a

the vehicle parameters, Choice of

normal effect of the way in which radio waves

language, Display configuration, Choice of units,

Select "Frequency tracking (RDS)".

are transmitted and does not indicate any

Date and time adjustment.

failure of the audio system.

Press the "MENU" button.

Press OK, RDS is displayed on the

screen.

Move from one menu to another.

If RDS is not available, the RDS symbol

appears struck out on the display.

Play TA messages

Enter a menu.

RDS, if activated, allows you to continue

The TA (Traffic Announcement) function

listening to the same station by

gives priority to TA alert messages. To

automatically retuning to alternative

operate, this function needs good reception of

Radio

frequencies. However, in certain conditions,

a radio station that carries this type of

RDS station tracking may not be possible

message. When a traffic report is transmitted,

Selecting a station

nationwide, as radio stations do not always

the current audio source (Radio, CD, etc.) is

Press the SOURCE button repeatedly

cover the entire country. This can explain the

interrupted automatically to play the TA

and select the radio.

loss of reception of a station during a journey.

message. Normal play of the media

Press this button to select a waveband

previously playing is resumed at the end of

(FM / AM / DAB).

the message.

Short procedure

Press one of the buttons for an automatic

In "Radio" mode, press the OK button to activate

search for radio stations.

Take care when increasing the volume

or deactivate RDS directly.

Press one of the buttons to carry out a

while listening to TA messages. The

manual search up / down for radio

volume may prove too high on return to the

frequencies.

original audio source.

234

CarManuals2.co

Bluetooth® audio system

Press the TA button to activate or

When changing region, updating the list

DAB (Digital Audio

deactivate traffic messages.

of preset radio stations is recommended.

Broadcasting) radio

Receiving INFO messages

Terrestrial Digital Radio

The INFO function gives priority to TA

Depending on version

alert messages. To be active, this

If the current DAB radio station is not

function needs good reception of a radio

available on FM, "DAB FM" is struck out.

station that transmits this type of message.

Full list of radio stations and "multiplexes".

When a message is transmitted, the current

audio source (Radio, CD, USB, etc.) is

interrupted automatically to receive the INFO

Terrestrial digital radio

message. Normal play of the media

Digital radio provides a superior audio

previously playing is resumed at the end of

quality and also additional categories of

the message.

traffic announcements (TA INFO).

Make a long press on this button to

The different "multiplex / ensemble” services

display the list of categories.

offer a choice of radio stations in alphabetical

Select or deselect categories.

order.

Options display: if active but not available, the

display will be struck out.

Change of band (FM1, FM2, DAB, etc.)

Activate or deactivate the reception of the

Display showing the name of the current

corresponding messages.

station.

Change of station within the same

Display TEXT INFOS

Preset stations, buttons 1 to 6.

"multiplex / ensemble".

Short press: select the preset radio station.

Starting of a search for the previous / next

Radio text is information transmitted by

Long press: memorise a radio station.

"multiplex / ensemble".

the radio station related to the station's

Display showing the name of the “multiplex”

Long press: selection of the categories of

current programme or song.

service being used.

news desired among Transport, News,

RadioText (TXT) display for the current radio

Entertainment and Special Flash (available

When the radio station is displayed in the

station.

depending on the station).

screen, press OK to display the

Represents the signal strength for the band

contextual menu.

being listened to.

Select "RadioText (TXT) display" and

confirm OK to save.

235

CarManuals2.co

Bluetooth® audio system

When the radio station is displayed in the

If the "DAB" station you are listening to is

When the USB socket is used, the

screen , press "OK" to display the

not available on FM ("DAB/FM" option

portable device charges automatically.

contextual menu.

struck out), or if "DAB / FM auto tracking" is

(Frequency search (RDS), DAB / FM auto

not on, the sound will be cut when the digital

Play mode

tracking, RadioText (TXT) display, Information

signal is too weak.

The play modes available are:

on the station, etc.)

- Normal: the tracks are played in order,

depending on the classification of the selected

Media

DAB / FM station tracking

files.

- Random: the tracks in an album or folder are

"DAB" does not have 100% coverage of

USB socket

played in a random order.

the country.

Insert the USB memory stick into the USB

- Random on all media: all of the tracks saved

When the digital signal is weak, "DAB / FM

socket or connect the USB device to the

in the media are played in random order.

auto tracking" allows you to continue

USB socket using a suitable cable (not supplied).

- Repeat: the tracks played are only those from

listening to the same station, by automatically

The system changes automatically to "USB"

the current album or folder.

switching to the corresponding analogue FM

source.

Press this button to display the contextual

station (if it exists).

menu for the Media function.

When the "DAB / FM auto tracking" is active,

To protect the system, do not use a USB

Press this button to select the chosen

the DAB station will be selected automatically.

hub.

play mode.

Press this button to confirm.

Press the MENU button.

Any additional devices connected to the

system must comply with the standard

The choice made is displayed at the top of the

Select "Multimedia" and confirm.

applicable to the product and/or the standard

screen.

IEC 60950-1.

Select "DAB / FM auto tracking" and

Choosing a track to play

confirm.

The system builds playlists (in temporary

Press one of these buttons to go to the

memory); this operation can take from a

If "DAB / FM auto tracking" tracking is

previous / next track.

few seconds to several minutes at the first

enabled, there is a lag of a few seconds

Press one of these buttons to go to the

connection.

when the system switches to the analogue

previous / next folder.

Reduce the number of non-music files and the

FM station sometimes with a change in

number of folders to reduce the waiting time.

volume.

File classification

Playlists are updated every time a new USB

Make a long press on this button to

memory stick is connected.

display the different classifications.

236

CarManuals2.co

Bluetooth® audio system

Select by "Folder" / "Artist" / "Genre" /

applicable to the product and/or the standard

Press the LIST button to display the list of

"Playlist".

IEC 60950-1.

tracks on the CD.

Depending on availability and type of device

Press and hold one of these buttons for

Press the SOURCE button several times

used.

fast forward or rewind.

in succession and select "AUX".

Press OK to select the desired

classification, then press OK again to

First adjust the volume on your portable device

Playing an MP3 compilation

(to a high level). Then adjust the volume on your

confirm.

Insert an MP3 compilation in the CD player.

audio system. Controls are managed via the

The audio equipment searches for all of the

Playing files

portable device.

music tracks, which may take anything between

Make a short press on this button to

Do not connect the same device to both

a few seconds and several tens of seconds,

display the chosen classification.

the auxiliary jack socket and the USB

before play begins.

Navigate in the list using the left / right

port at the same time.

On a single disc, the CD player can read

and up / down buttons.

up to 255 MP3 files spread over 8

Confirm the selection by pressing OK.

CD player

directory levels.

However, it is advisable to keep to a limit of

Press one of these buttons to go to the

Insert circular compact discs only.

two levels to reduce the access time before

previous / next track in the list.

Some anti-pirating systems, on original discs

the CD is played.

Press and hold one of these buttons for fast

or CDs copied using a personal recorder, may

The folder structure is not observed during

forward or rewind.

cause faults which are no reflection on the

playback.

Press one of these buttons to go to the

quality of the original player.

All of the files are displayed on a single level.

previous / next "Folder" / "Artist" /

Insert a CD in the player, play begins

"Genre" / "Playlist"* in the list.

automatically.

To play a disc which has already been

External CD players connected via the

inserted, press the SOURCE button

Input AUX socket (AUX)

USB port are not recognised by the

several times in succession and select "CD".

Depending on equipment

Press one of the buttons to select a folder

system.

Connect a portable device (MP3 player,

on the CD.

etc.) to the auxiliary jack socket using an

To play a disc which has already been

Press one of the buttons to select a track

audio cable (not supplied).

inserted, press the SOURCE button

on the CD.

several times in succession and select "CD".

Press the LIST button to display the list of

Any additional devices connected to the

Press one of the buttons to select a track

directories of the MP3 compilation.

system must comply with the standard

on the CD.

* Depending on availability and the type of device used.

237

CarManuals2.co

Bluetooth® audio system

Press and hold one of these buttons for

Information and advice

In the particular case of a multi-session CD, the

fast forward or rewind.

Joliet standard is recommended.

The CD player can play audio files with “.mp3”,

To protect the system, do not use a USB hub.

“.wma”, “.wav” and “.aac” file extensions, with a

Bluetooth^® audio streaming

bit rate of 32 to 320 Kbps.

Only use USB memory sticks formatted

Streaming allows music files on the telephone to

It also supports TAG mode (ID3 tag, WMA TAG).

to FAT 32 (File Allocation Table).

be played via the vehicle's speakers.

No other file types (".mp4", etc.) can be read.

Connect the telephone.

Files of the ".wma" type should be to the wma 9

It is recommended that you use genuine

(Refer to the "Pairing a Bluetooth® telephone"

standard.

Apple^® USB cables to guarantee correct

section).

The sampling rates supported are 11, 22, 44 and

operation.

Activate the streaming source by pressing

48 kHz.

SOURCE.

Via the USB socket, the system can play audio

In certain cases, playback of the audio files must

files with the extension “.mp3”, “.wma”, “.wav”,

be initiated from the keypad.

Telephone

“.cbr”, “.vbr" with a bit rate of 32 to 320 Kbps.

Audio files can be selected using the buttons on

No other file types (".mp4", etc.) can be read.

the audio system control panel and the steering-

Pairing a Bluetooth^®

Files of the ".wma" type should be to the wma 9

mounted controls. The contextual information

standard.

telephone

can be displayed on the screen.

The sampling rates supported are 11, 22, 44 and

If the telephone supports the function. The audio

48 kHz.

As a safety measure and because it

quality depends on the quality of transmission by

File names should have fewer than 20

requires sustained attention by the driver,

the telephone.

characters, avoiding special characters (e.g.

the pairing of a Bluetooth^® mobile telephone

« ? ; ù) so as to avoid any reading or display

with the Bluetooth^® hands-free system of your

Connecting Apple^® players

problems.

audio system must be done with the vehicle

Connect the Apple^® player to the USB socket

In order to be able to play a burned CDR or

stationary and the ignition on.

using a suitable cable (not supplied).

CDRW, select ISO 9660 standards level 1, 2, or

Play starts automatically.

Joliet, if possible, when burning the CD.

Activate the telephone's Bluetooth^®

Control is via the audio system.

If the disc is burned in another format, it may not

function and ensure that it is "visible to

The classifications available are those of the

be played correctly.

all" (telephone configuration).

portable device connected (artists / albums /

It is recommended that the same burning

genres / playlists).

standard always be used on an individual disc,

The version of software in the audio system may

with the lowest speed possible (4x maximum) for

not be compatible with the generation of your

the best acoustic quality.

Apple^® player.

238

CarManuals2.co

Bluetooth® audio system

The services available depend on the

Completing the pairing

Press the MENU button.

network, the SIM card and the

To complete the pairing, whichever

compatibility of the Bluetooth^® devices used.

Select "Connections".

procedure is used (from the telephone or

Refer to your telephone’s user guide and your

from the system), confirm that the code is the

service provider to check which services you

Press OK to confirm.

same in the system and in the telephone and

are able to access.

validate.

Select "Bluetooth Connections

management" and confirm. The list of

Procedure from the telephone

If pairing fails, the number of attempts is not

paired telephones is displayed.

restricted.

Select the name of the system in the list

Press OK to confirm.

A message appears on the screen confirming

of detected devices.

the pairing.

If the pairing procedure fails, we

Indicates that a device is connected.

recommend deactivating and then

Information and advice

reactivating the Bluetooth^® function on the

The "Telephone" menu provides access to the

A number indicates the profile of the

telephone.

following functions in particular: "Directory", if

connection with the system:

your telephone is fully compatible, "Calls list",

- 1 for media or 1 for telephone.

"Consult the paired devices".

- 2 for media and telephone.

Procedure from the system

Depending on the type of telephone, you may be

Press the MENU button.

asked to accept or confirm access by the system

Indicates connection of the audio

to each of these functions.

steaming profile.

Select "Connections".

Indicates connection of the hands-free

Go to the Brand's website for more

telephone profile.

Confirm with OK.

information (compatibility, more help,

Select a telephone.

etc.).

Select "Search for a device".

Press OK to confirm.

Managing connections

Confirm with OK.

Then select and confirm:

The telephone connection automatically

A window is displayed with a search in progress

includes hands free operation and audio

- "Connect telephone"/"Disconnect

message.

streaming.

telephone" : to connect/disconnect the

In the list of devices detected, select a telephone

The ability of the system to connect to just

telephone or the hands-free kit only.

to pair. Only one telephone can be paired at a

one profile depends on the telephone. Both

- "Connect media player"/"Disconnect media

time.

profiles may connect by default.

player" : to connect/disconnect streaming only.

239

CarManuals2.co

Bluetooth® audio system

- "Connect telephone + media

Press this button for more than two

Confirm with OK.

player"/"Disconnect telephone + media

seconds for access to your directory, then

player" : to connect/disconnect the telephone

navigate using the thumb wheel.

(hands-free kit and streaming).

Microphone off

- "Delete connection": to delete the pairing.

Ending a call

(so that the caller cannot hear)

In the "Telephone" menu.

In the contextual menu:

When you delete a pairing in the system,

Select "End call".

remember to delete it from your

Confirm with OK to end the call.

- select "Micro OFF" to switch off the

telephone as well.

During a call, press one of these buttons

microphone.

Press OK to confirm.

for more than two seconds.

- deselect "Micro OFF" to switch the

microphone on.

The system accesses the telephone's

Confirm with OK.

contacts directory, depending on its

Receiving a call

compatibility, and while it is connected via

An incoming call is announced by a ring and a

Bluetooth.

Telephone mode

superimposed display in the screen.

In the contextual menu:

Select the "YES" tab in the screen using

With certain telephones connected by

the buttons.

Bluetooth you can send a contact to the

- select "Telephone mode" to transfer the

Confirm with OK.

directory of the audio system.

call to the telephone (for example, to leave the

Contacts imported in this way are saved in a

vehicle while continuing a conversation).

Press this button at the steering mounted

permanent directory visible to all, whatever

- deselect "Telephone mode" to transfer the

controls to accept the call.

the telephone connected.

call to the vehicle.

The menu for the directory is not accessible if

Confirm with OK.

Making a call

it is empty.

In the "Telephone" menu.

If the contact has been cut off, when you

Select "Call".

reconnect on returning to the vehicle,

Select "Dial".

Managing calls

the Bluetooth connection will be restored

During a call, press OK to display the

automatically and sound returned to the

Select "Directory".

contextual menu.

system (depending on the compatibility of the

telephone).

Select "Calls list".

End call

In some cases, the Telephone mode must be

Confirm with OK.

In the contextual menu, select "Hang up"

activated from the telephone.

to end the call.

240

CarManuals2.co

Bluetooth® audio system

Interactive voice response

compatibility, and while it is connected via

With the engine off, the audio system

From the contextual menu, select "DTMF

Bluetooth.

switches off after a few minutes of use.

tones" and confirm to use the digital

With certain telephones connected by

When the engine is switched off, the audio

keypad to navigate in the interactive voice

Bluetooth you can send a contact to the

system operating time depends on the state of

response menu.

directory of the audio system.

charge of the battery.

Confirm with OK.

Contacts imported in this way are saved in a

The switch-off is normal: the audio system

permanent directory visible to all, whatever the

switches to economy mode and switches off to

telephone connected.

avoid discharging the vehicle's battery.

Consultation call

The menu for the directory is not accessible if it

► Start the vehicle’s engine to increase the

From the contextual menu, select

is empty.

charge of the battery.

"Switch" and validate to return to a call

The message "the audio system is

Voice recognition

overheated" is displayed onscreen.

left on hold.

Confirm with OK.

This function allows you to use your

To protect the installation if the ambient

smartphone's voice recognition via the system.

temperature is too high, the audio system

To start voice recognition, depending on the type

switches to an automatic thermal protection

Citroen Jumpy Dispatch (2023 year). Manual in english - page 7
