Westfalia. Testing repair electrical manual - part 29
AR83.70-D-7000A
Remove and install heater unit exhaust system
28.5.04
MODEL 903.662
with CODE (ZU8) National version for USA
with CODE (Z29) "James Cook" touring camper, NAFTA
1 Clip
2 Clip

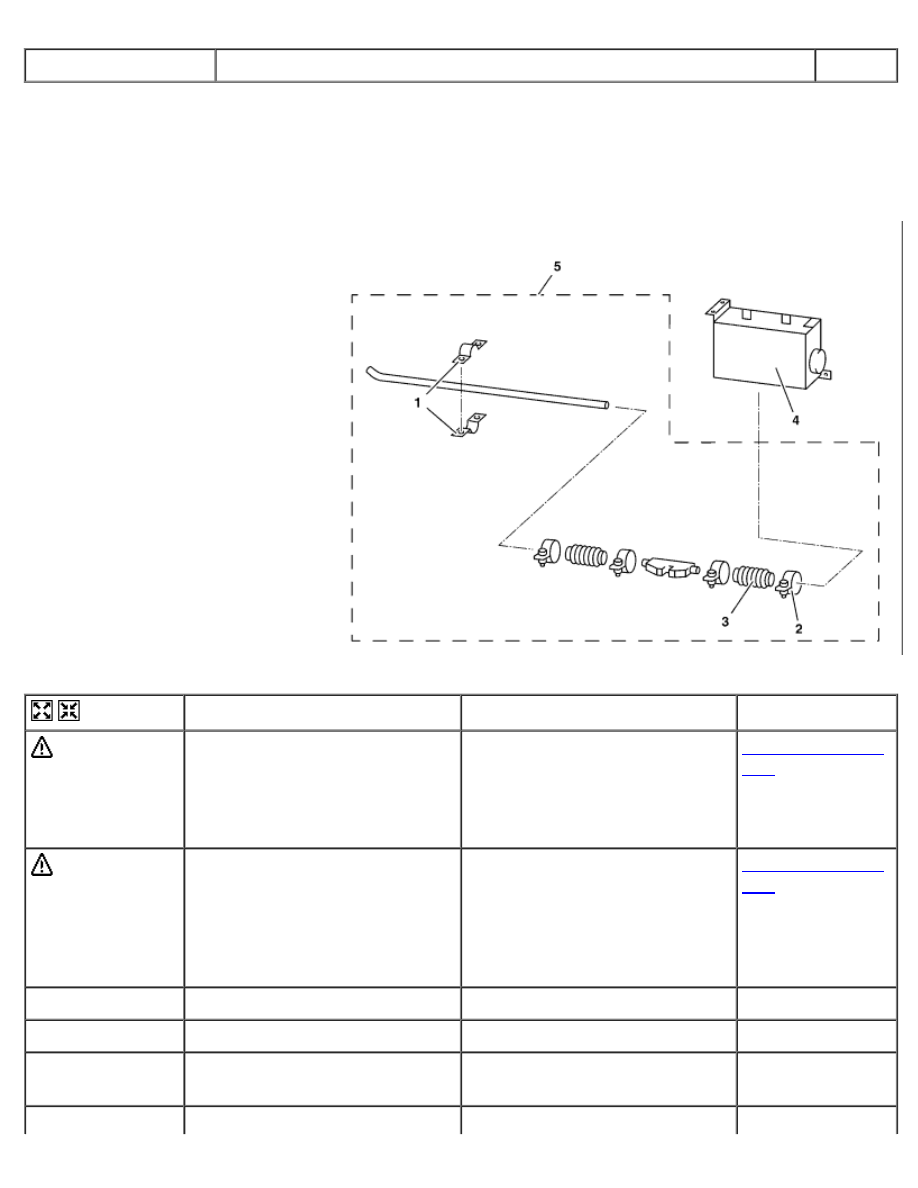

3 Exhaust line
4 Auxiliary heater
5 Exhaust system
D83.70-1328-06
Remove/Install
Danger!
Risk of injury to skin and eyes
from handling hot or glowing
objects. Risk of fire caused by
contact of glowing objects with
flammable materials.
Wear safety gloves, protective
clothing and safety glasses, if
necessary. Avoid contact
between glowing objects and
flammable materials.
Danger!
Risk of explosion caused by
fuel vapors igniting, risk of
poisoning caused by inhaling
combustible gases and risk of
injury caused by burns during
and after operation of heater unit
Do not operate stationary heater,
auxiliary heater or engine with
heater booster in closed areas or
when refueling. Allow heater unit
to cool down after operation and
wear protective gloves.
1
Open clamp (1)
2
Slacken clamp (2)
3
Pull off exhaust line (3) from
auxiliary heater (4)
4
Remove exhaust system (5)
