SANY SRT95C Off-highway truck. Parts book (Equipment No.14RT95100040) - page 10
Cooling pipeline for discs braking SRT95
SRT95C Off-highway truck
PARTS BOOK

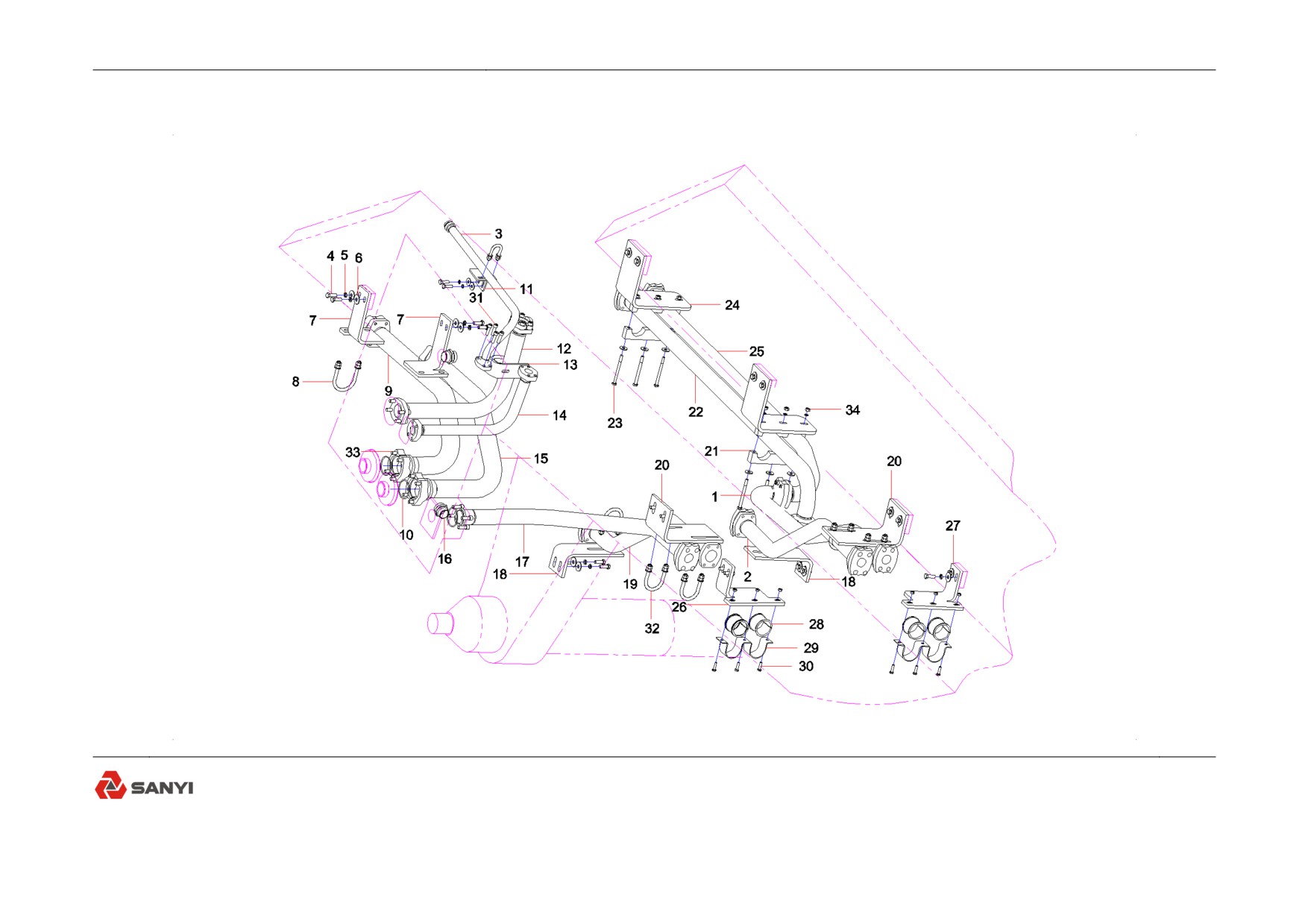

13428981 Cooling pipeline for discs braking SRT95 (4/9)
31-8
Cooling pipeline for discs braking SRT95
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
13299606
Steel Pipe Assy SRT95C.613.11
1
2
13299967
Steel pipe assy STT95C.613.6
1
3
13427607
Steel pipe assembly SRT95C.613A.11
1
4
21005215
Bolt
32
5
A210401000002
Washer
48
6
A210404000004
Washer
24
7
12954015
Pipe clamp seat
2
8
60008277
U-CLAMP
2
9
12954179
Steel pipe assy
1
10
B230101002072
O-ring
4
11
12953836
Pipe clamp seat
1
12
13427624
Steel pipe assy SRT95C.613A.15
1
13
12954020
Pipe clamp seat
1
14
13299777
Steel pipe assy SRT95C.613.19
1
15
12954177
Steel pipe assy
1
16
21029888
Pipe connector
2
17
13299973
Steel pipe assy SRT95C.613.9
1
18
13299553
Plate SRT95C.613-3
2
19
13299971
Steel pipe assy SRT95C.613.7
1
20
13299552
plate SRT95C.613-2
2
21
11653560
Clamp
4
22
12954183
Steel tube assembly
1
13428981 Cooling pipeline for discs braking SRT95 (4/9)
31-9
Cooling pipeline for discs braking SRT95
SRT95C Off-highway truck
PARTS BOOK
13428981 Cooling pipeline for discs braking SRT95 (5/9)
31-10
Cooling pipeline for discs braking SRT95
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
23
A210111000365
Bolt
6
24
12954016
Plate
2
25
12954181
Steel pipe assy.
1
26
12954019
Left pipe clamp seat
1
27
12954018
Right pipe clamp seat
1
28
11082254
Rubber ring
15
29
11644262
Pipe clamp
6
30
A210111000293
Bolt
24
31
A210204000197
Screw
4
32
60008276
U-CLAMP
7
33
A210204000226
Screw
24
34
A210307000017
Nut
6
13428981 Cooling pipeline for discs braking SRT95 (5/9)
31-11
Cooling pipeline for discs braking SRT95
SRT95C Off-highway truck
PARTS BOOK

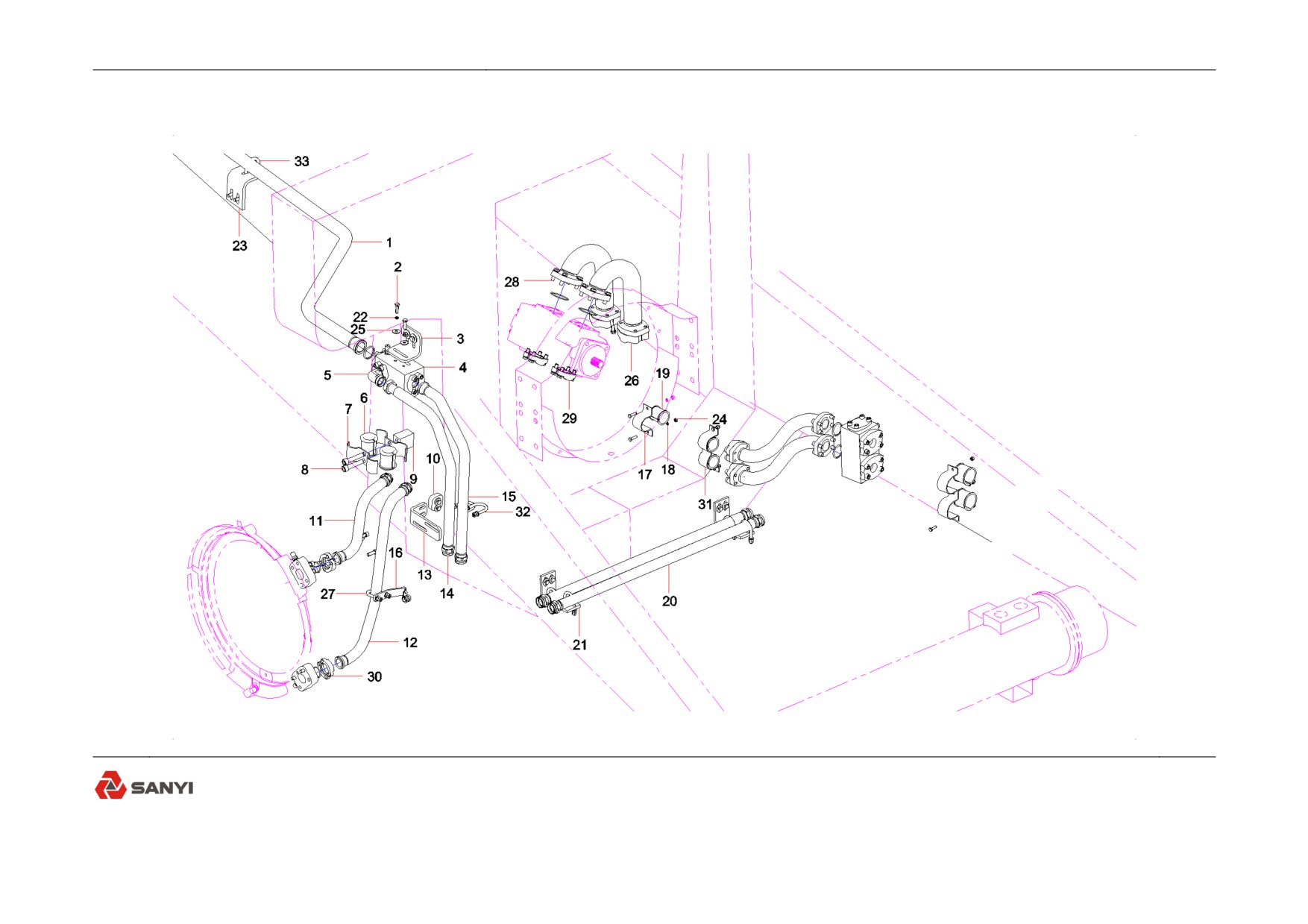

13428981 Cooling pipeline for discs braking SRT95 (6/9)
31-12
Cooling pipeline for discs braking SRT95
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
13427622
Steel pipe assembly SRT95C.613A.14
1
2
21005185
Bolt
16
3
13427399
Fixed seat SRT95C.613A-4
1
4
13427398
Block SRT95C.613A-3
1
5
A210770000614
Joint, flange, right-angle
2
6
12961727
Tube clamp pad
2
7
12961726
Clamp
2
8
24000779
Screw
2
9
13427404
Clamp bearer SRT95C.613A-9
1
10
13427402
Fixed seat SRT95C.613A-7
1
11
13427816
Steel pipe assembly SRT95C.613A.4
1
12
13427683
Steel pipe assembly SRT95C.613A.5
1
13
13427391
Fixed seat SRT95C.613A-10
1
14
13427689
Steel pipe assembly SRT95C.613A.7
1
15
13427691
Steel pipe assembly SRT95C.613A.8
1
16
13427395
plate SRT95C.613A-14
1
17
13075548
Pipe clamp
1
18
A210401000017
Washer
24
19
11082221
Rubber ring
3
20
13427779
Steel pipe assembly SRT95C.613A.10
2
21
13431894
Plate SRT95C.613A-16
2
22
A210401000001
Washer
22
13428981 Cooling pipeline for discs braking SRT95 (6/9)
31-13
Cooling pipeline for discs braking SRT95
SRT95C Off-highway truck
PARTS BOOK
13428981 Cooling pipeline for discs braking SRT95 (7/9)
31-14
Cooling pipeline for discs braking SRT95
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
23
13299431
plate SRT95C.613-1
1
24
A210307000055
Nut M8GB6170 Grade 10
24
25
A210404000003
Washer
22
26
60024155
Flange, SAE
12
27
60008272
U-Clamp
2
28
A210111000332
Bolt M12×40GB5783 12.9 grade
16
29
B210780000249
Flange, SAE
15
30
B210780000644
Flange, split
20
31
11266123
Pipe clamp
1
32
60008274
U-clamp
9
33
60008275
U-clamp
2
13428981 Cooling pipeline for discs braking SRT95 (7/9)
31-15
Cooling pipeline for discs braking SRT95
SRT95C Off-highway truck
PARTS BOOK

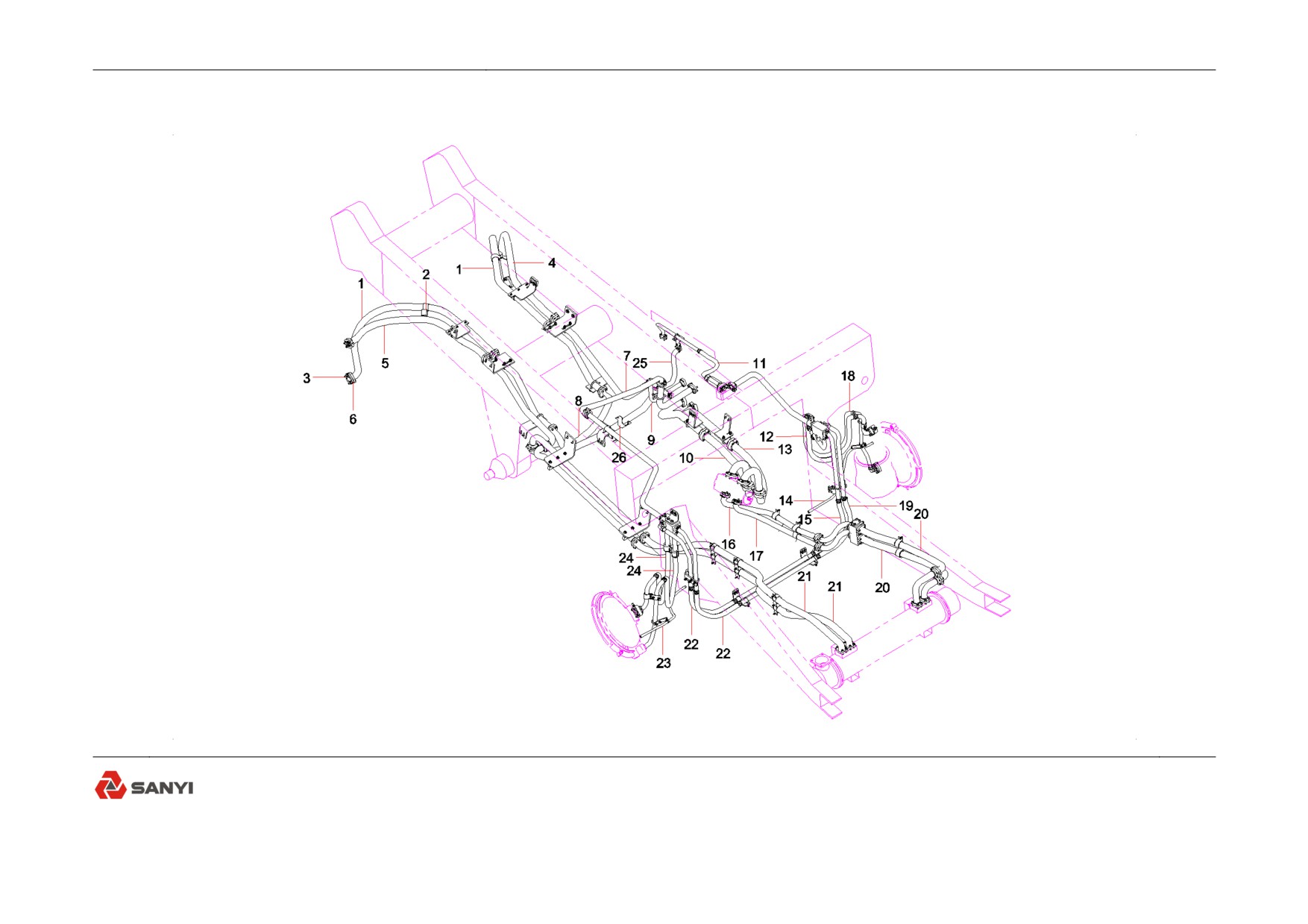

13428981 Cooling pipeline for discs braking SRT95 (8/9)
31-16
Cooling pipeline for discs braking SRT95
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
60086946
Hose,rubber
1
2
11082245
Clamp
6
3
A210204000351
Screw
8
4
60035743
Hose,rubber
1
5
B230103005092
Rubber Hose
1
6
12026181
Flange
2
7
60265081
Rubber hose
1
8
60234818
rubber hose
1
9
60234820
rubber hose
1
10
60234822
rubber hose
1
11
B230103002218
Hose
1
12
B230103001140
Hose, rubber
1
13
60234821
Rubber hose
1
14
B230103000336
Hose, rubber
1
15
60029255
Hose
1
16
B230103003630
Hose, rubber
1
17
B230103001820
Hose, rubber
1
18
B230103001070
Hose, rubber
1
19
B230103003458
Hose
1
20
60234815
rubber hose
2
21
60105326
Hose assembly
2
22
B230103000070
Hose, rubber
1
13428981 Cooling pipeline for discs braking SRT95 (8/9)
31-17
Cooling pipeline for discs braking SRT95
SRT95C Off-highway truck
PARTS BOOK
13428981 Cooling pipeline for discs braking SRT95 (9/9)
31-18
Cooling pipeline for discs braking SRT95
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
23
B230103000337
Rubber hose
1
24
60040346
Hose
2
25
60265082
Rubber hose
1
26
12954164
Pipe clamp
1
13428981 Cooling pipeline for discs braking SRT95 (9/9)
31-19

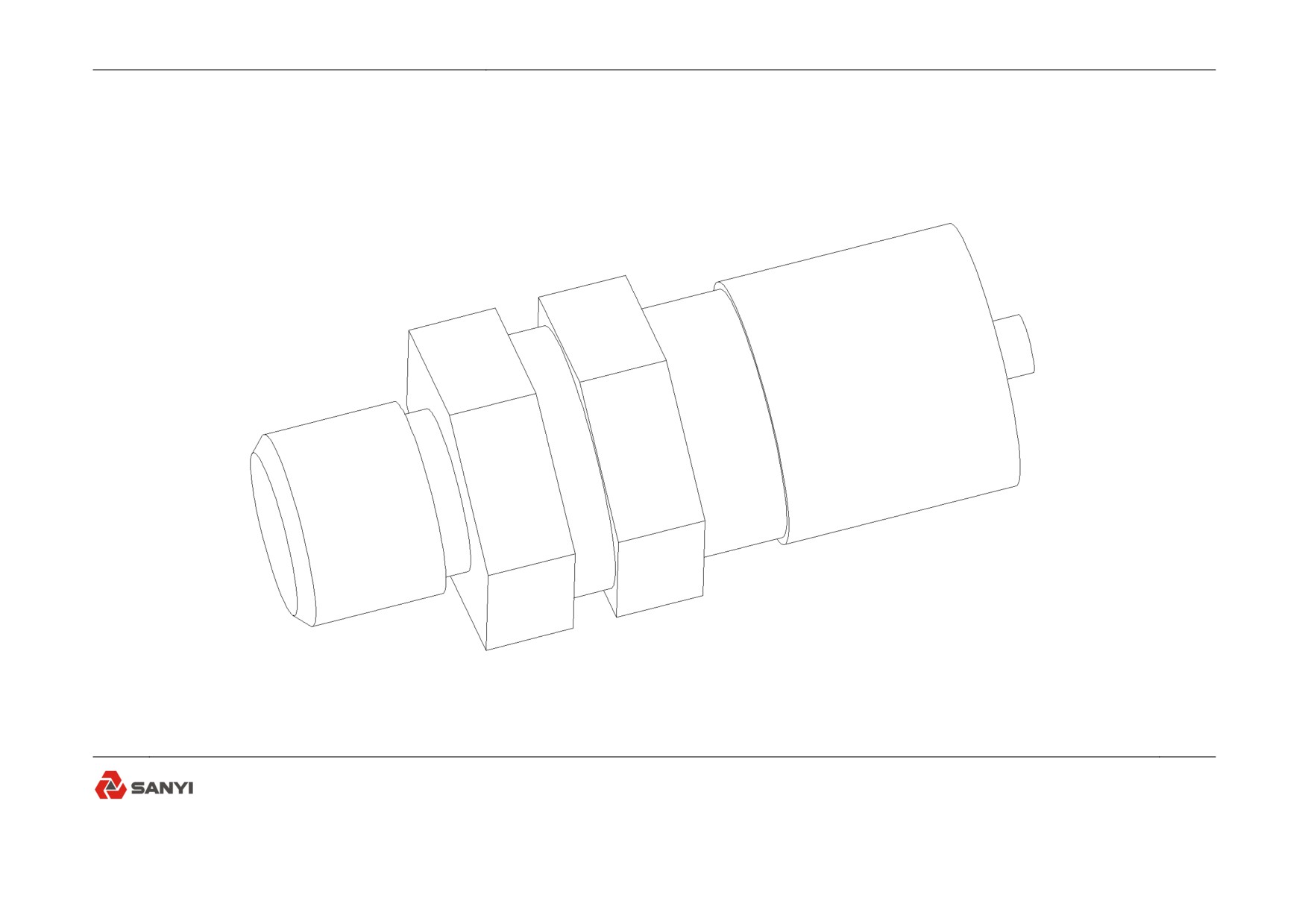

Testing connector
SRT95C Off-highway truck
PARTS BOOK
21000745 Testing connector
31-20

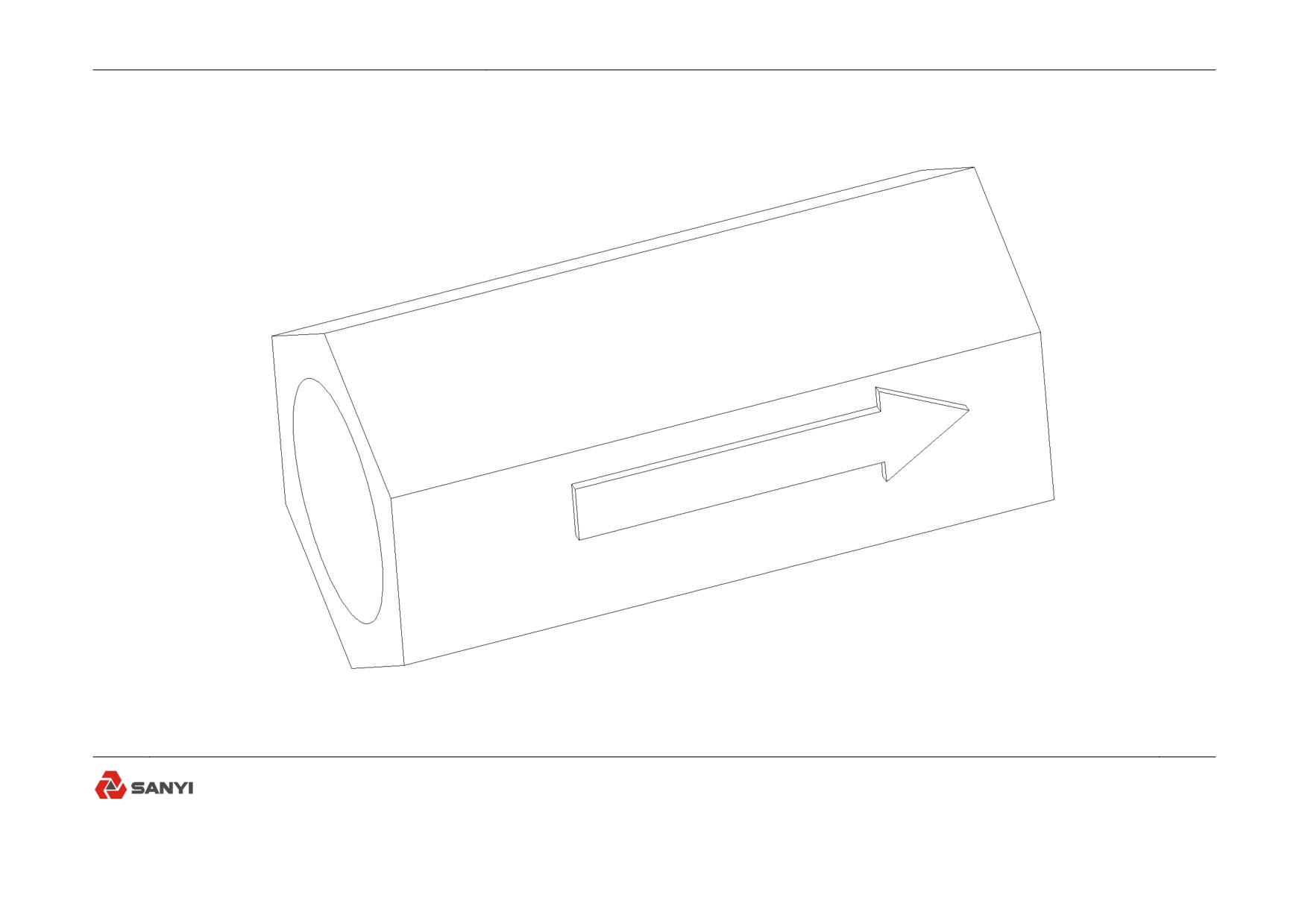

Valve, one-way
SRT95C Off-highway truck
PARTS BOOK
21022084 Valve, one-way
31-22
PARTS BOOK
Group 32
Brake pipeline and adaptor
32-1
Brake pipeline and adaptor
SRT95C Off-highway truck
PARTS BOOK

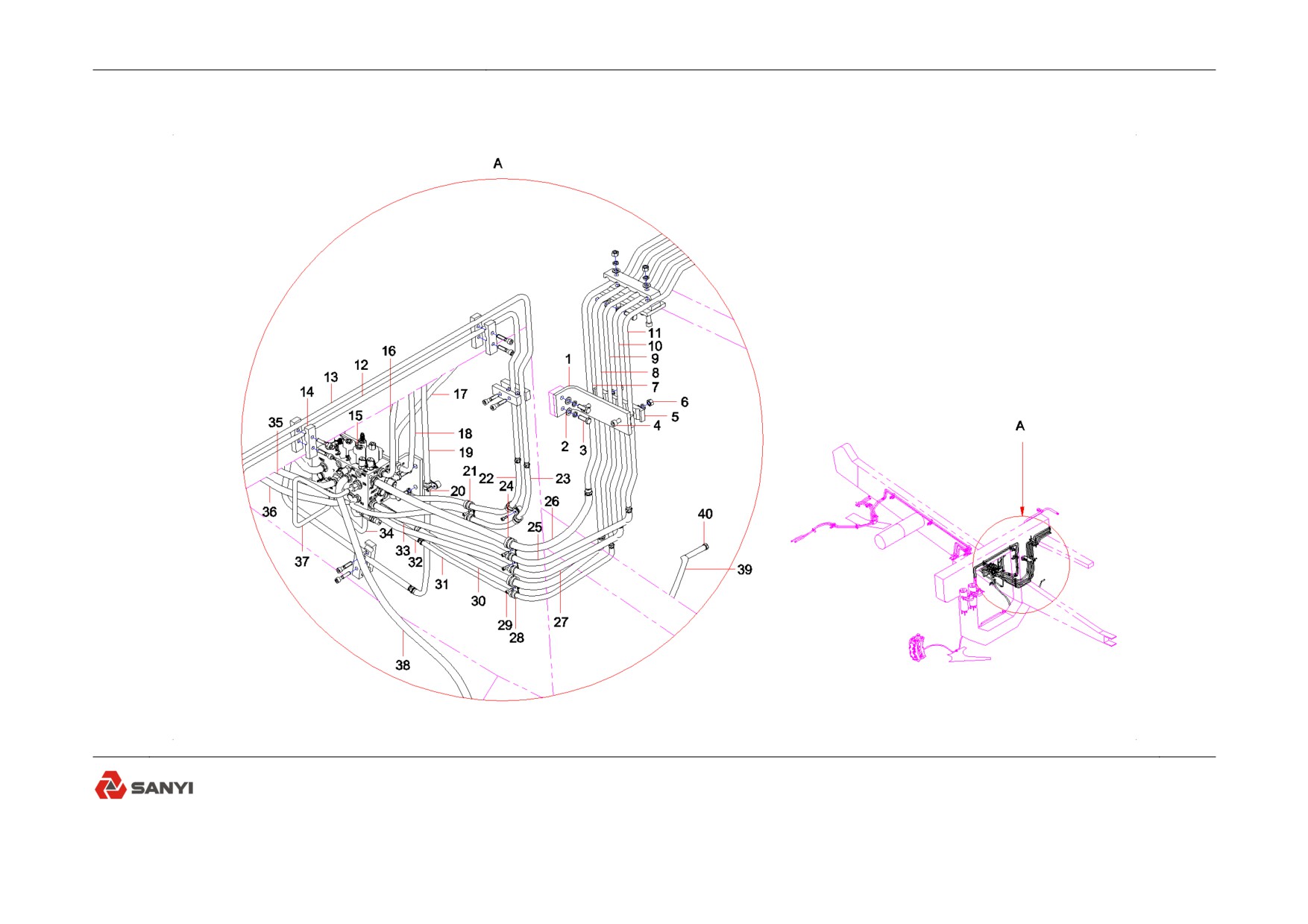

12954489 Brake pipeline and adaptor (1/5)
32-2
Brake pipeline and adaptor
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
12954325
Pipe clamp seat
2
2
24000639
Washer 12GB97.1
8
3
21005215
Bolt
8
4
A210204000228
Screw
4
5
12954326
Pipe nip
4
6
A210307000001
Nut
4
7
12954403
Steel tube assy.
1
8
12954405
Steel tube assy.
1
9
12954411
Steel tube assy.
1
10
12954413
Steel tube assy.
1
11
12954415
Steel tube assy.
1
12
12954349
Steel tube assy.
1
13
12954347
Steel tube assy.
1
14
13078381
Pipe nip
6
15
12954468
Brake valve group & adaptor installation
1
16
60245345
Rubber hose
1
17
60234831
rubber hose
1
18
60245344
Rubber hose
1
19
60234828
rubber hose
1
20
A210204000130
Screw
4
21
A229900006640
Clamp
11
22
B230103000453
Hose, rubber
1

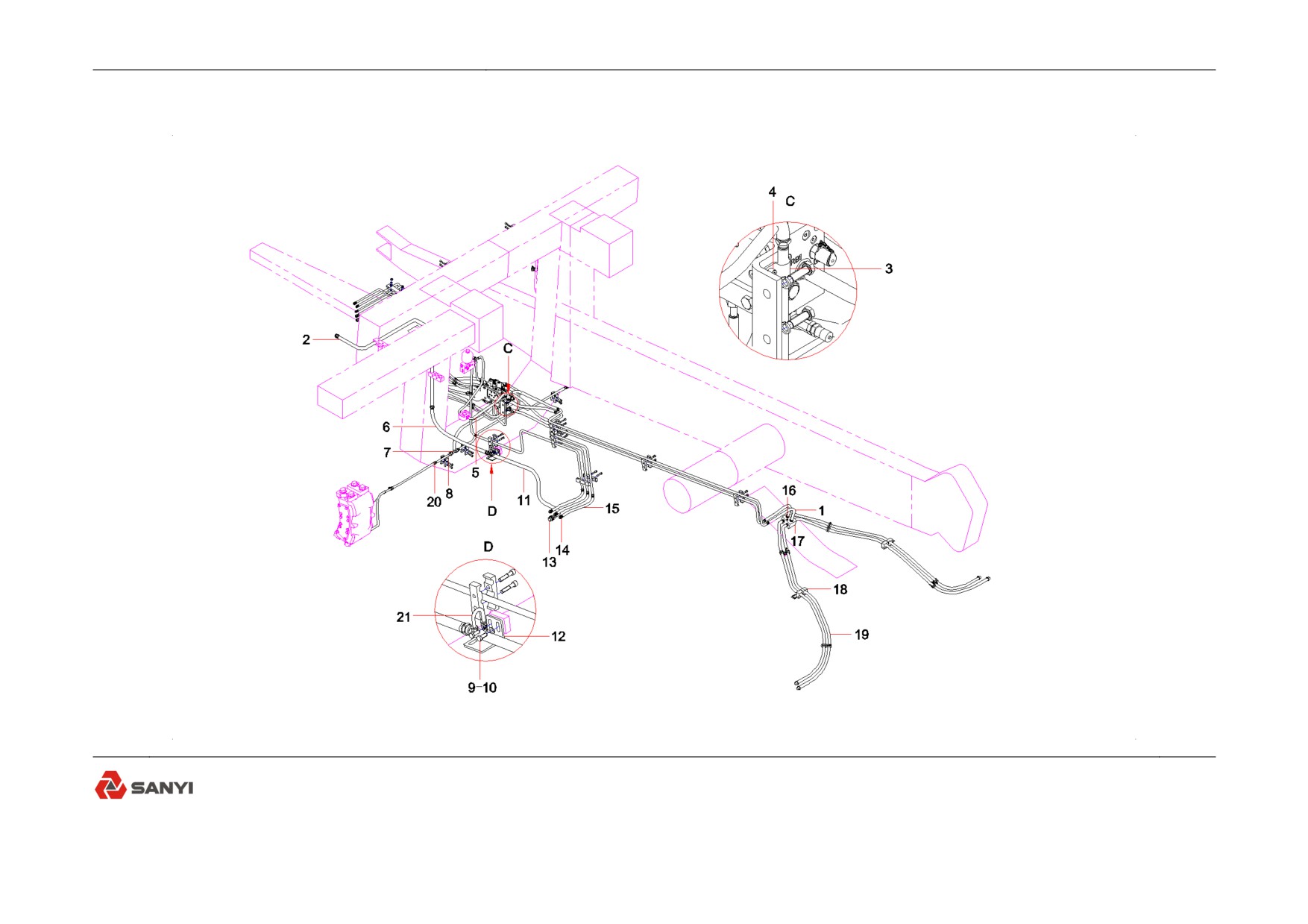

12954489 Brake pipeline and adaptor (1/5)
32-3
Brake pipeline and adaptor
SRT95C Off-highway truck
PARTS BOOK
12954489 Brake pipeline and adaptor (2/5)
32-4
Brake pipeline and adaptor
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
23
B230103003858
Hose, rubber
1
24
60000421
Pipe clamp
10
25
B230103005317
Rubber Hose
1
26
B230103008029
Hose,rubber
1
27
60234829
rubber hose
1
28
60016761
Pipe clamp
1
29
A210204000131
Screw
9
30
60234832
rubber hose
1
31
60088695
Hose
1
32
12954351
Steel tube assy.
1
33
12954452
Steel tube assy.
1
34
12954375
Steel tube assy.
1
35
B230103002444
Hydraulic Hose Assembly
1
36
B230103001183
Hose
1
37
12954364
Steel tube assy.
1
38
B230103008185
Hose,rubber
1
40
B210780001048
Connector, pipe
2
12954489 Brake pipeline and adaptor (2/5)
32-5
Brake pipeline and adaptor
SRT95C Off-highway truck
PARTS BOOK
12954489 Brake pipeline and adaptor (3/5)
32-6
Brake pipeline and adaptor
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
12954343
Steel tube assy.
1
2
12954345
Steel tube assy.
1
3
12954401
Steel tube assy.
1
4
12954328
Pipe nip
2
5
A210204000356
Screw
18
6
12954419
Steel tube assy.
1
7
12954417
Steel tube assy.
1
8
12025449
Clamp
10
9
B230103004028
Hose, rubber
1
10
12954327
Pipe nip
6
11
A210204000355
Screw
6
12
12954377
Steel tube assy.
1
13
12877280
Rubber Pad
2
14
B210780001246
Connector, pipe
2
15
A210111000024
Bolt
4
16
12877468
Energy Storage Thimble
2
17
21002823
Pipe connector
2
18
B230103003877
Hose, rubber
1
19
A210204000337
Screw
6
20
24000513
Washer 12GB93 DACROMET
22
21
60211733
Piston type accumulator
2
22
B230103000461
Hose, rubber
1
12954489 Brake pipeline and adaptor (3/5)
32-7
Brake pipeline and adaptor
SRT95C Off-highway truck
PARTS BOOK
12954489 Brake pipeline and adaptor (4/5)
32-8
Brake pipeline and adaptor
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
23
60035748
Rubber Hose
1

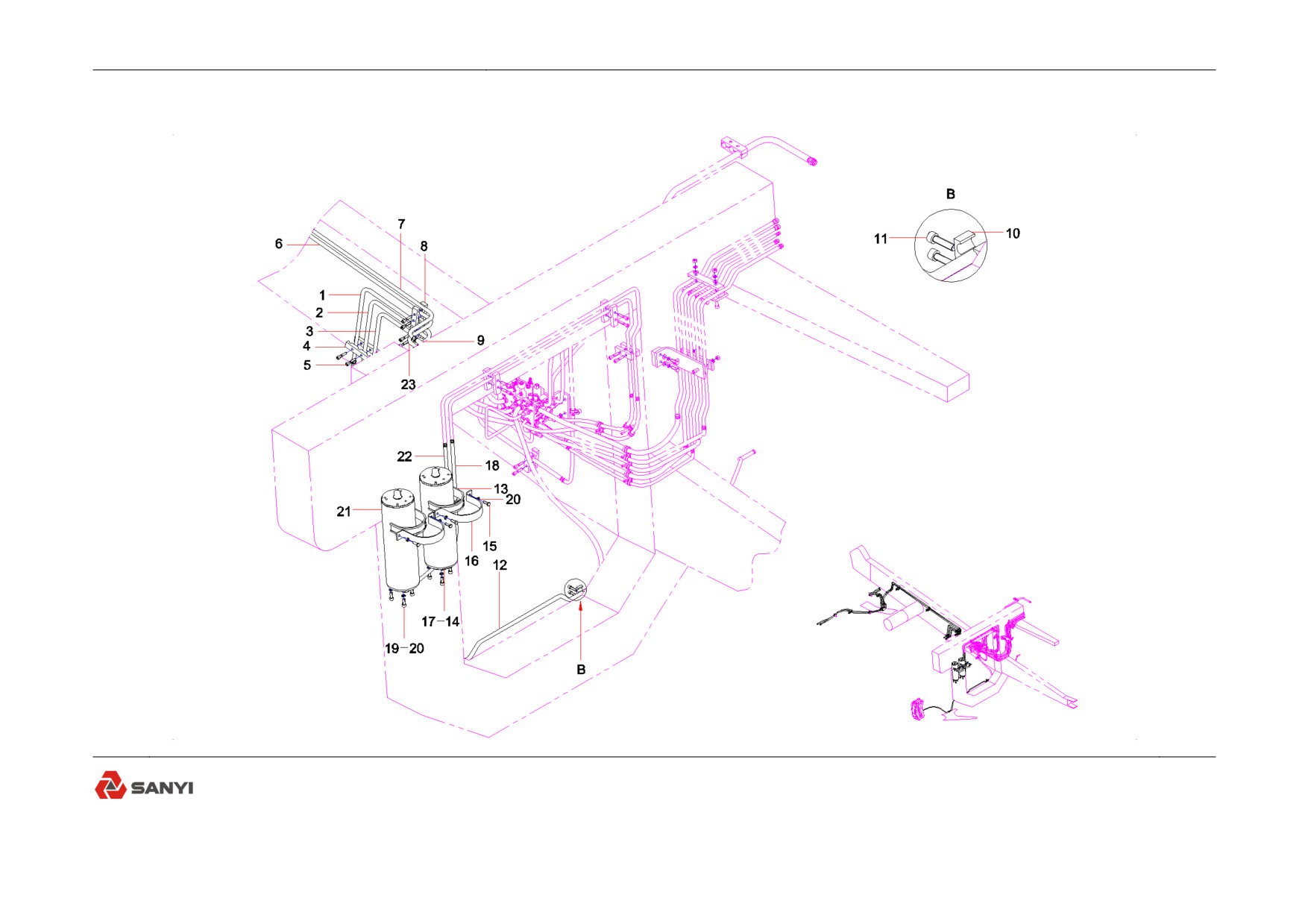

12954489 Brake pipeline and adaptor (4/5)
32-9
Brake pipeline and adaptor
SRT95C Off-highway truck
PARTS BOOK

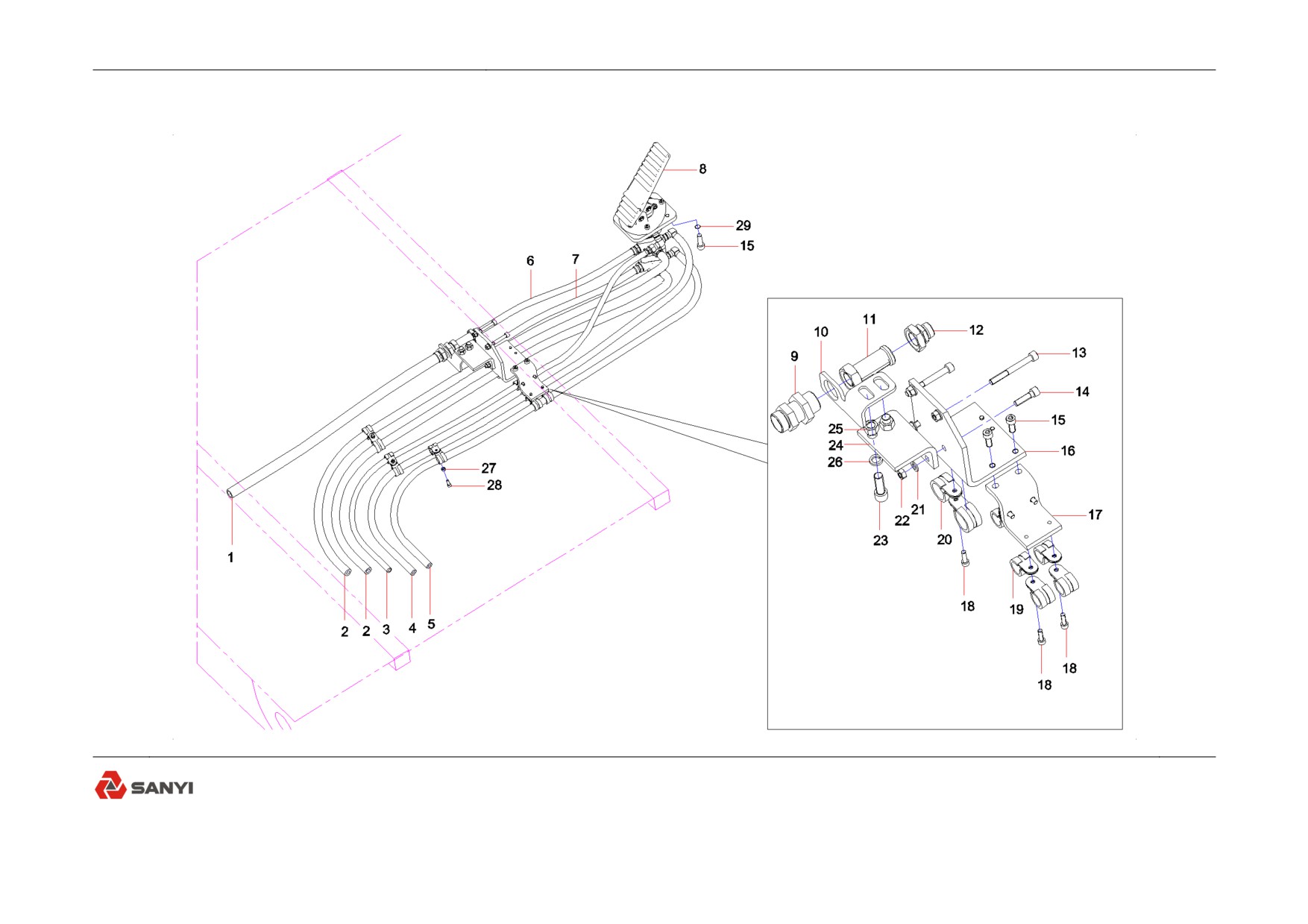

12954489 Brake pipeline and adaptor (5/5)
32-10
Brake pipeline and adaptor
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
B230103007874
Hose,rubber
2
2
13304560
Steel tube assembly SRT95C.613.25
1
3
12954466
Bent plate
1
4
A210204000220
Screw
2
5
60097870
Hose
1
6
21030908
Hose, rubber
1
7
B210780000017
Pipe connector
1
8
12954379
Steel tube assy.
1
9
A210111000197
Bolt
2
10
24000637
Washer
2
11
12954445
Steel tube assy.
1
12
12953836
Pipe clamp seat
1
13
21002827
Pipe connector
1
14
21002822
Pipe connector
3
15
23000800
Hose,rubber
3
16
A210204000151
Screw
2
17
12954450
Assembly of brake distributor block
1
18
B210851000004
Clamp, single pipe
4
19
B230103003970
Hose, rubber
4
20
B210780000684
Connector, pipe
2
21
60008272
U-Clamp
1
12954489 Brake pipeline and adaptor (5/5)
32-11

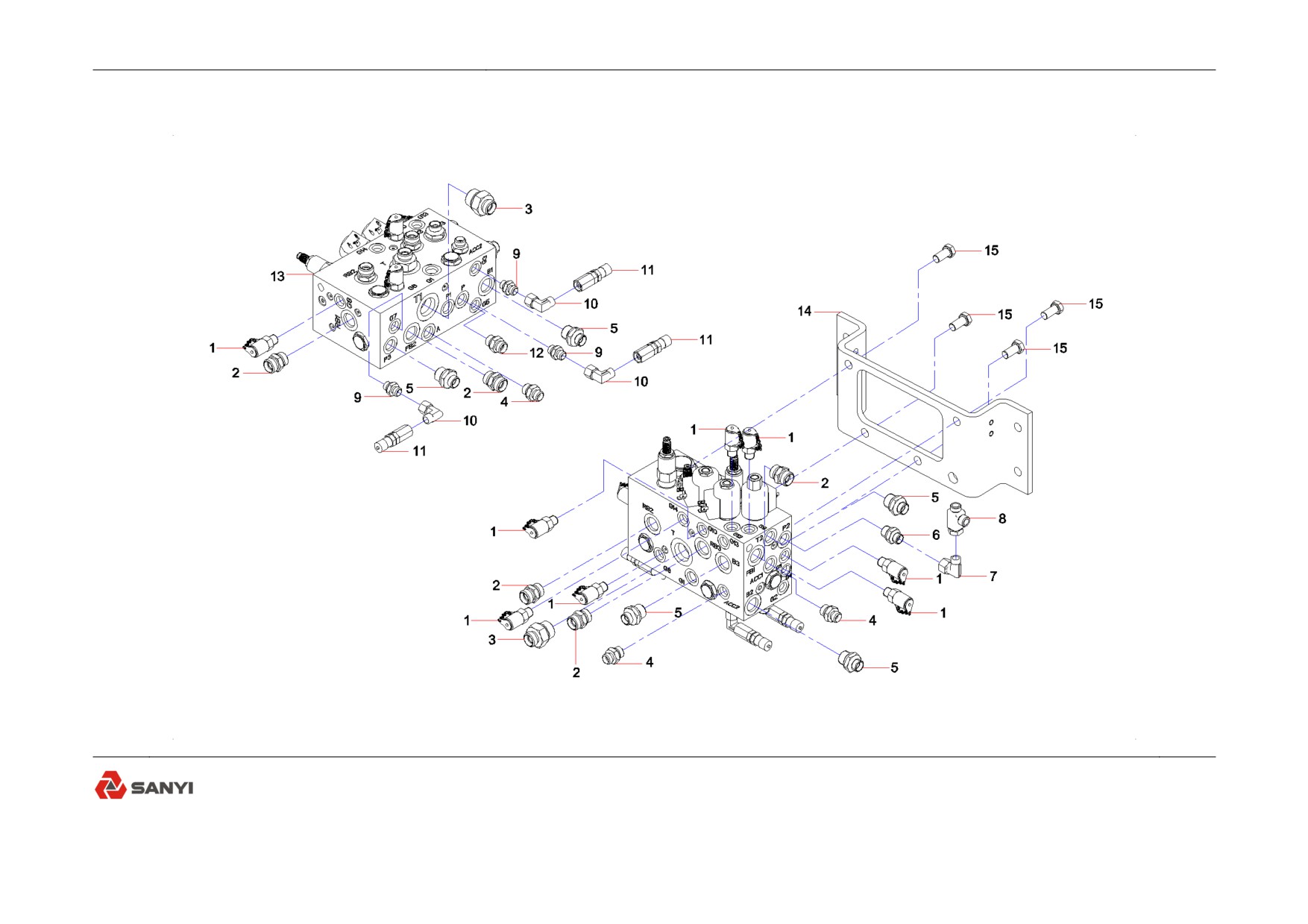

Brake valve group & adaptor installation
SRT95C Off-highway truck
PARTS BOOK
12954468 Brake valve group & adaptor installation
32-12
Brake valve group & adaptor installation
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
B210770000003
Connector, pressure measuring
8
2
21002822
Pipe connector
5
3
21002823
Pipe connector
2
4
21002819
Pipe connector
3
5
21008338
Fitting, pipe
5
6
B210780000177
Connector, pipe
1
7
B210780000636
Pipe connector
1
8
B210780000015
Connector, pipe
1
9
21002815
Pipe connector
3
10
B210780000418
Connector, pipe
3
11
B210770000002
Pressure-measuring Connector
3
12
B210780000180
Connector, pipe
1
13
60189516
Brake valve group
1
14
12954467
Bent plate
1
15
A210111000101
Bolt
4
12954468 Brake valve group & adaptor installation
32-13

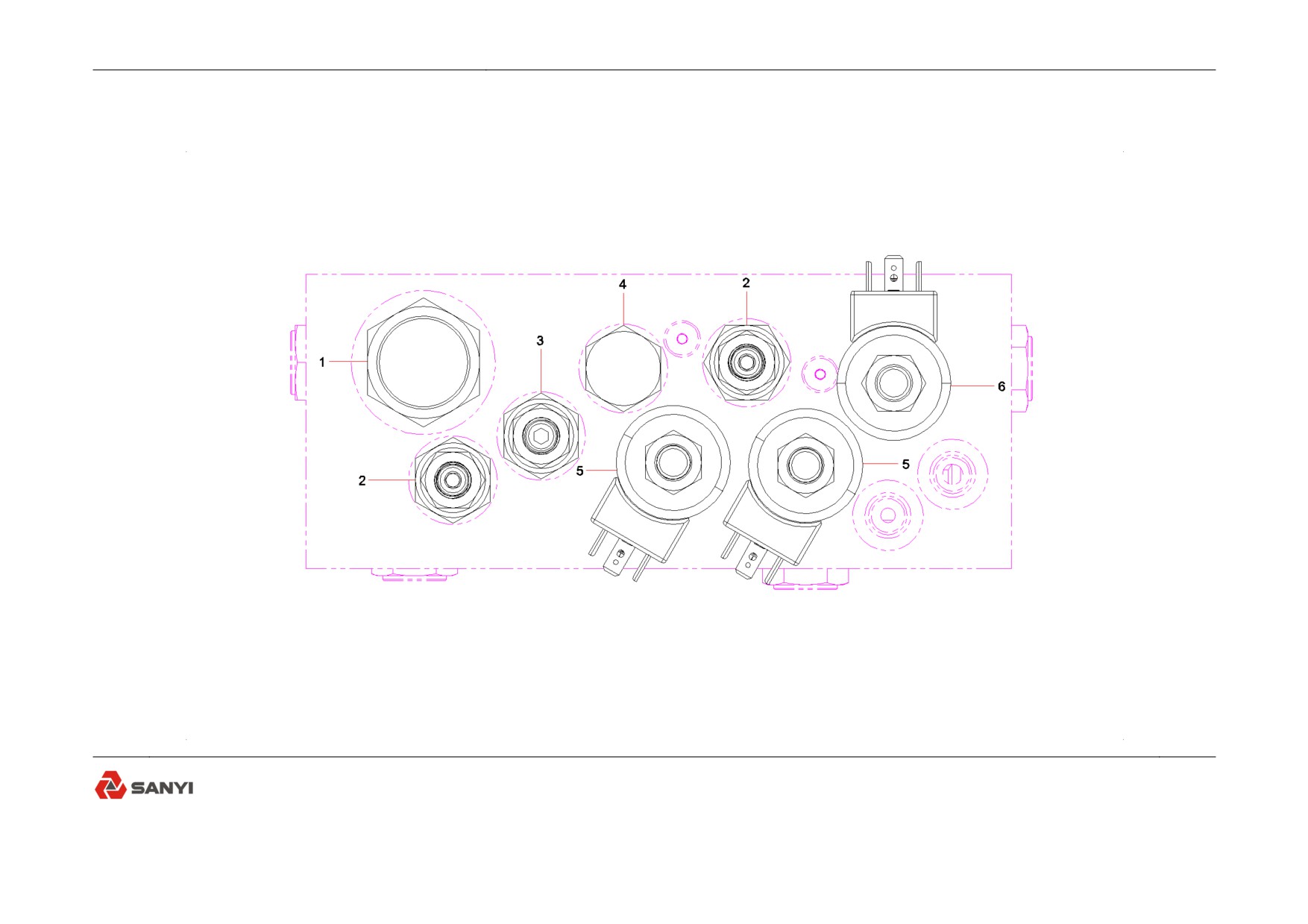

Brake valve group
SRT95C Off-highway truck
PARTS BOOK
60189516 Brake valve group
32-14
Brake valve group
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
60046289
High pressure filter
1
2
B220401000920
Reduce valve
2
3
60072697
Relief valve
1
4
24004232
Valve,cartridge
1
5
B220401000301
Directional valve with solenoid
1
6
60208509
Porprotional reduce valve
1
60189516 Brake valve group
32-15

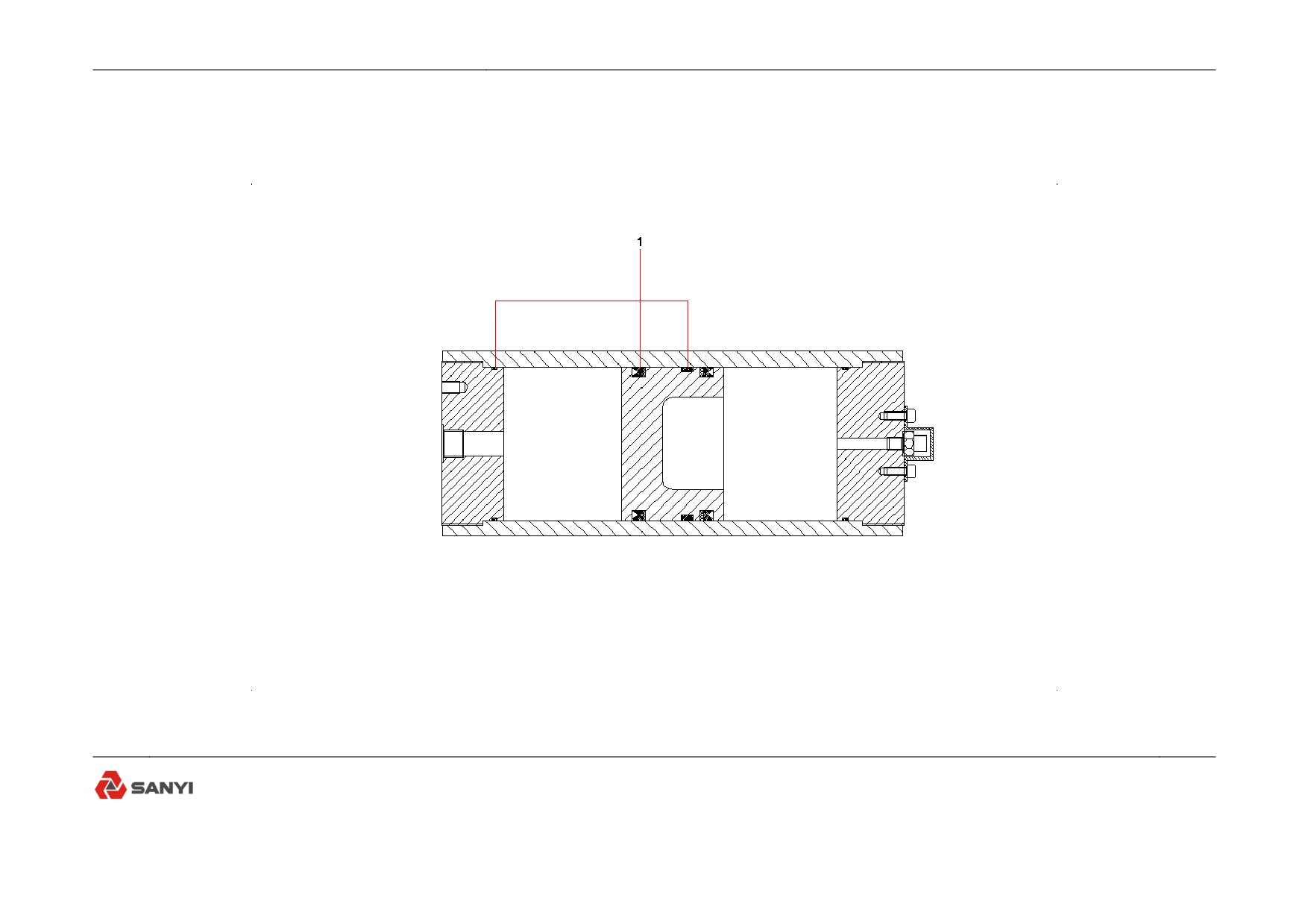

Piston type accumulator
SRT95C Off-highway truck
PARTS BOOK
60211733 Piston type accumulator
32-16
Piston type accumulator
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
60211735
Energy storage repair kit
1
60211733 Piston type accumulator
32-17

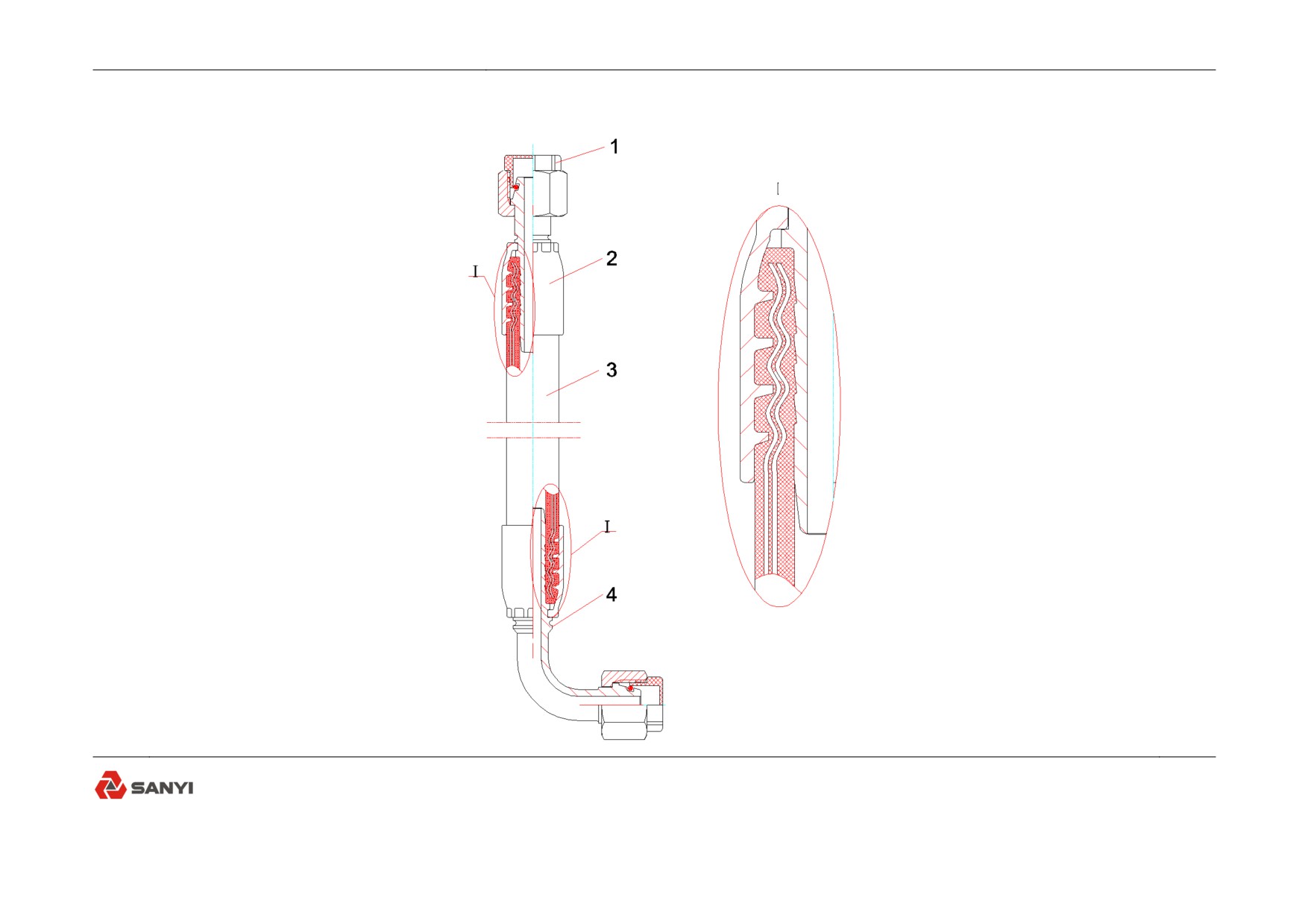

Hose, rubber
SRT95C Off-highway truck
PARTS BOOK
B230103000461 Hose, rubber
32-18
Hose, rubber
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
60218179
Plastic cover
2
2
B229900004145
Connector, rubber hose
1
3
12897825
Hose, rubber
1
4
B229900004147
Connector, rubber hose
1
B230103000461 Hose, rubber
32-19

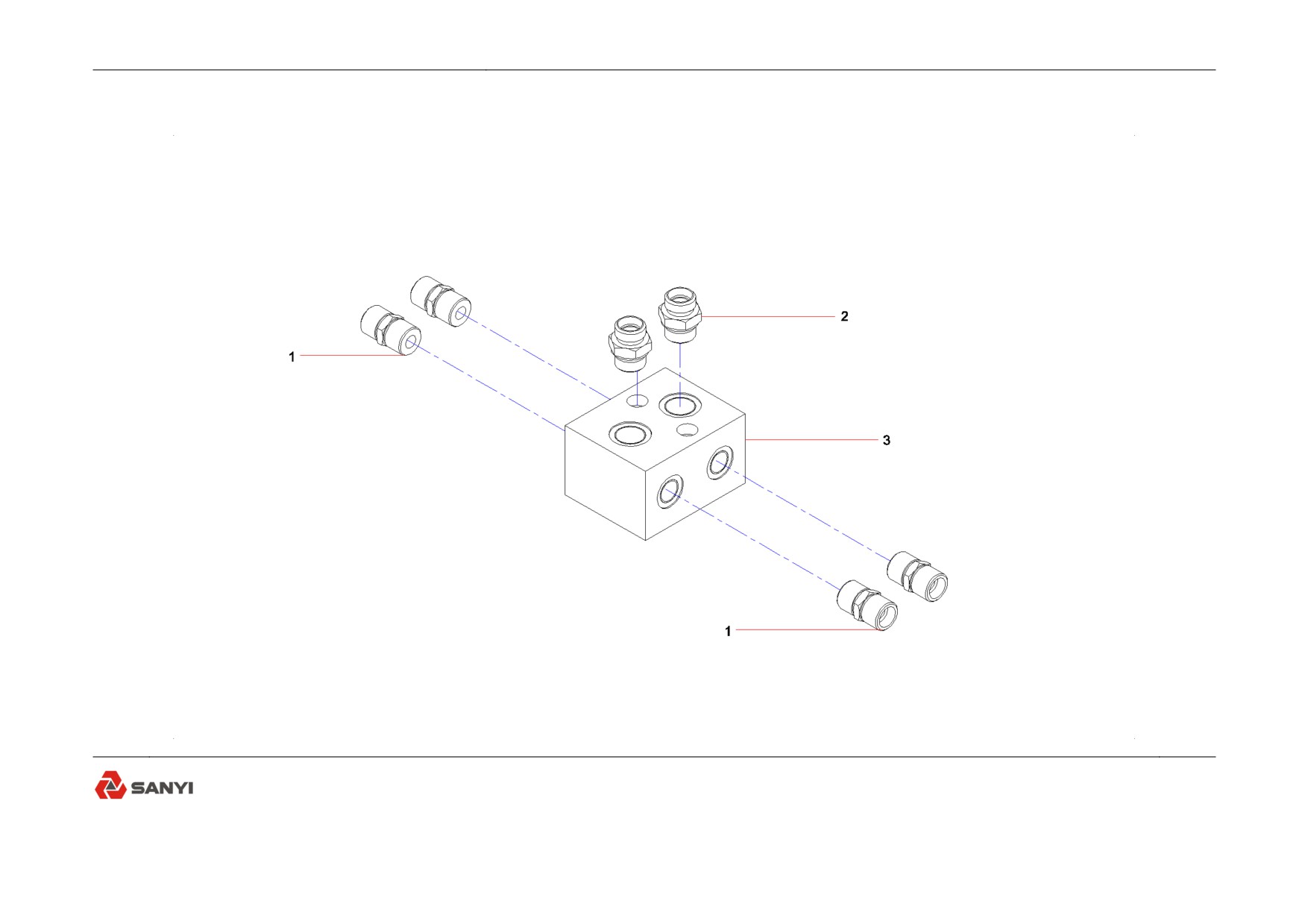

Assembly of brake distributor block
SRT95C Off-highway truck
PARTS BOOK
12954450 Assembly of brake distributor block
32-20
Assembly of brake distributor block
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
21002852
Pipe connector
4
2
21002850
Pipe connector
2
3
10704067
Rear braking Oil-separating block
1
12954450 Assembly of brake distributor block
32-21
PARTS BOOK
Group 33
Brake pipeline and adaptor SRT95C.615A
33-1
Brake pipeline and adaptor SRT95C.615A
SRT95C Off-highway truck
PARTS BOOK
13237984 Brake pipeline and adaptor SRT95C.615A (1/2)
33-2
Brake pipeline and adaptor SRT95C.615A
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
21030908
Hose, rubber
1
2
B230103001399
Hose
2
3
B230103004592
Hose, rubber
1
4
B230103000317
Hose, rubber
1
5
B230103003861
Hose, rubber
1
6
B230103006181
Hose, rubber
1
7
60235608
Rubber hose
1
8
13237985
Foot-operated valve adaptor installation
1
9
21008336
Connector, pipe
1
10
13231478
Fixed plate SRT95C.615A-1
1
11
A229900004359
Connector, pipe
1
12
21028317
Pipe connector
2
13
A210204000151
Screw
2
14
A210204000164
Screw
2
15
A210204000220
Screw
6
16
12951577
Bent plate
1
17
12951578
Bent plate
1
18
21005074
Screw
6
19
A229900006640
Clamp
10
20
A229900006641
Pipe nip
6
21
A210405000007
Washer
4
22
A210307000012
Nut
4
13237984 Brake pipeline and adaptor SRT95C.615A (1/2)
33-3
Brake pipeline and adaptor SRT95C.615A
SRT95C Off-highway truck
PARTS BOOK
13237984 Brake pipeline and adaptor SRT95C.615A (2/2)
33-4
Brake pipeline and adaptor SRT95C.615A
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
23
A210204000206
Screw
2
24
12952834
Bent plate
1
25
A210307000001
Nut
2
26
A210401000002
Washer
2
27
A210307000016
Nut
3
28
A210204000130
Screw
3
29
A210401000017
Washer
4
13237984 Brake pipeline and adaptor SRT95C.615A (2/2)
33-5
