SANY SRT95C Off-highway truck. Parts book (Equipment No.14RT95100040) - page 8
Cable and harness
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
23
12927057
Main switch to fuse cable
1
24
12942629
32 Core Round Plug harness
1
25
12927066
Can bus harness
1
26
12942615
GPS harness
1
27
A229900006640
Clamp
20
28
60016763
Clamp
18
29
A229900006639
Tube clamp
18
12927135 Cable and harness (2/2)
26-5

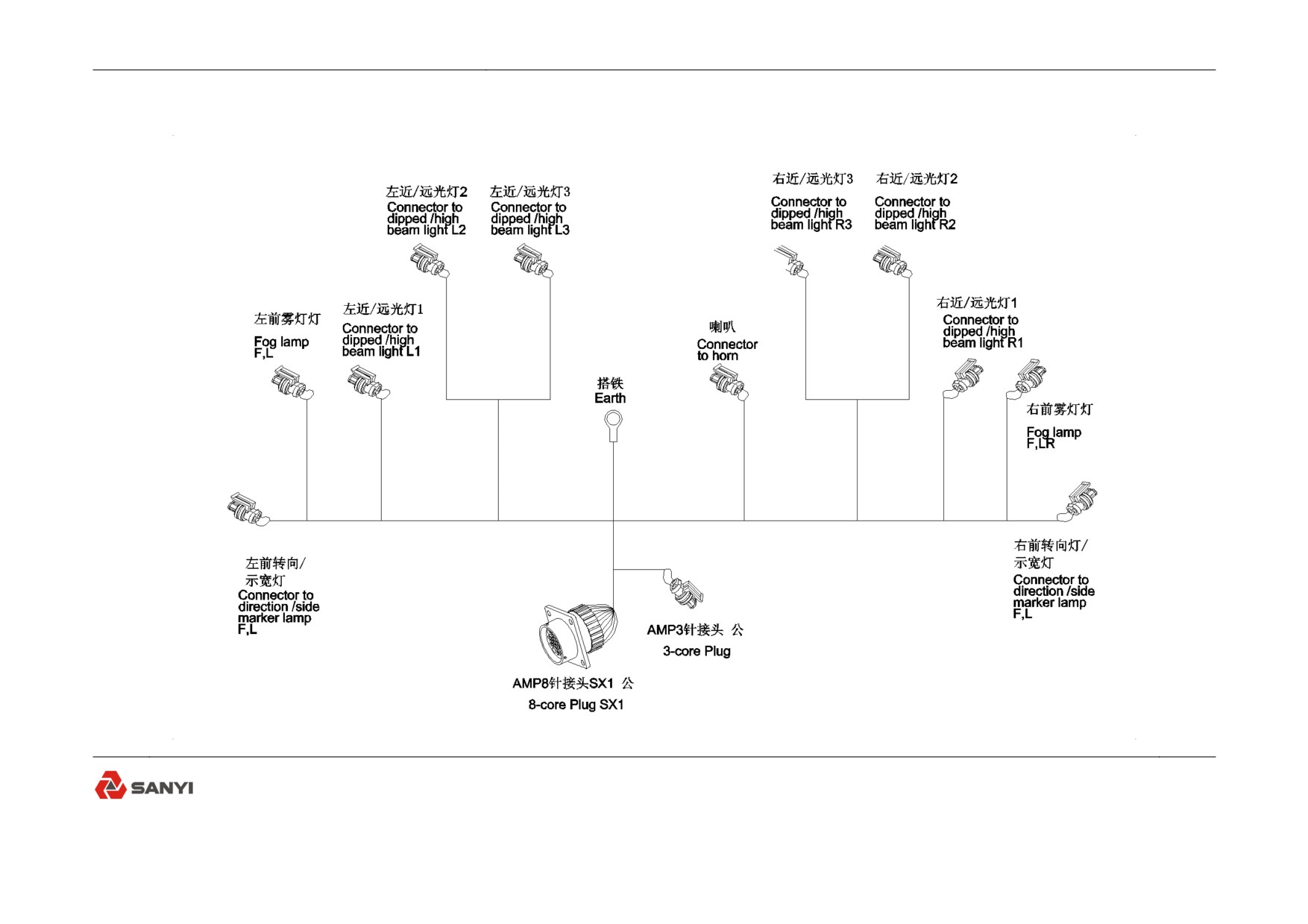

Headlamp harness
SRT95C Off-highway truck
PARTS BOOK
12927060 Headlamp harness
26-6

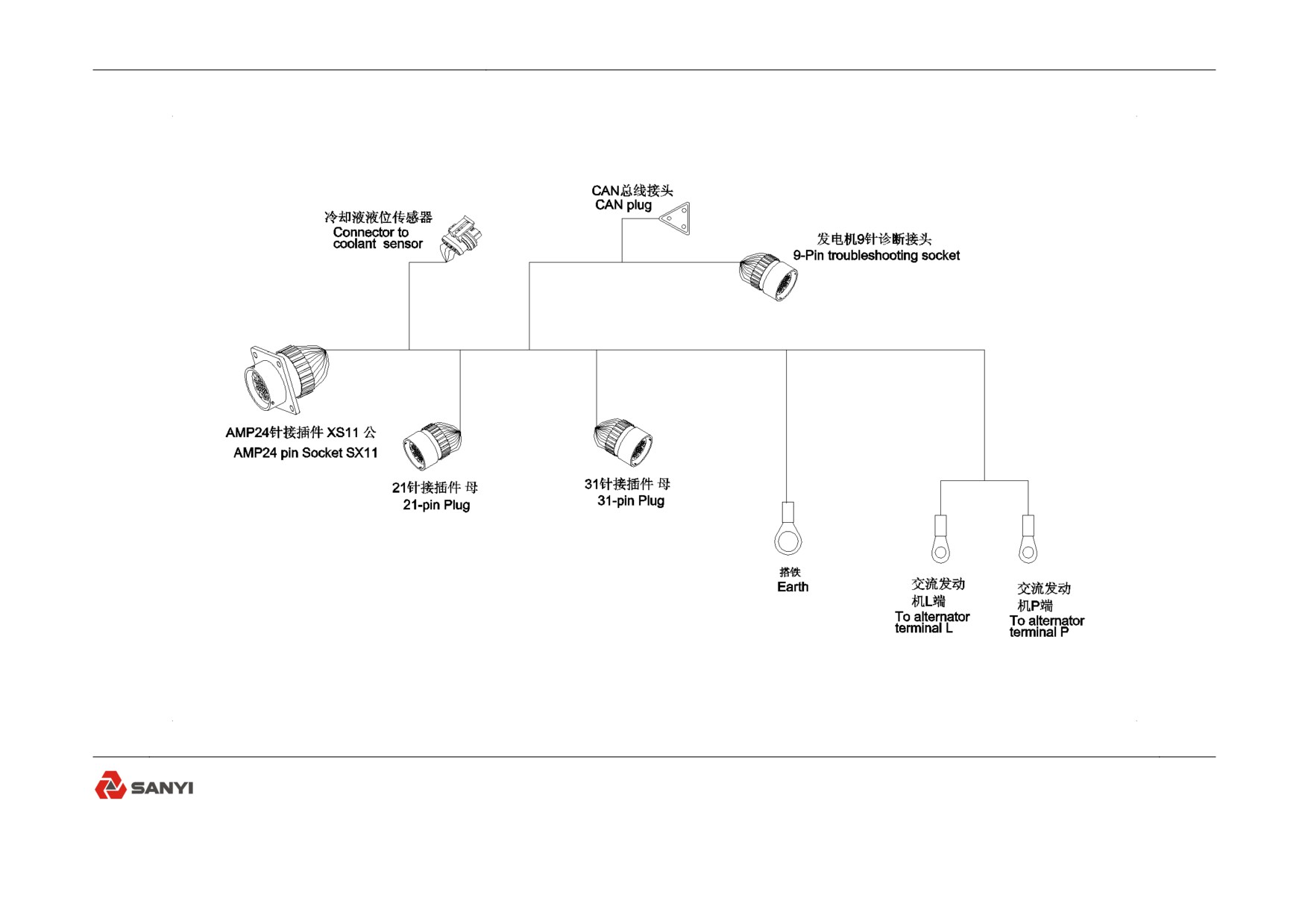

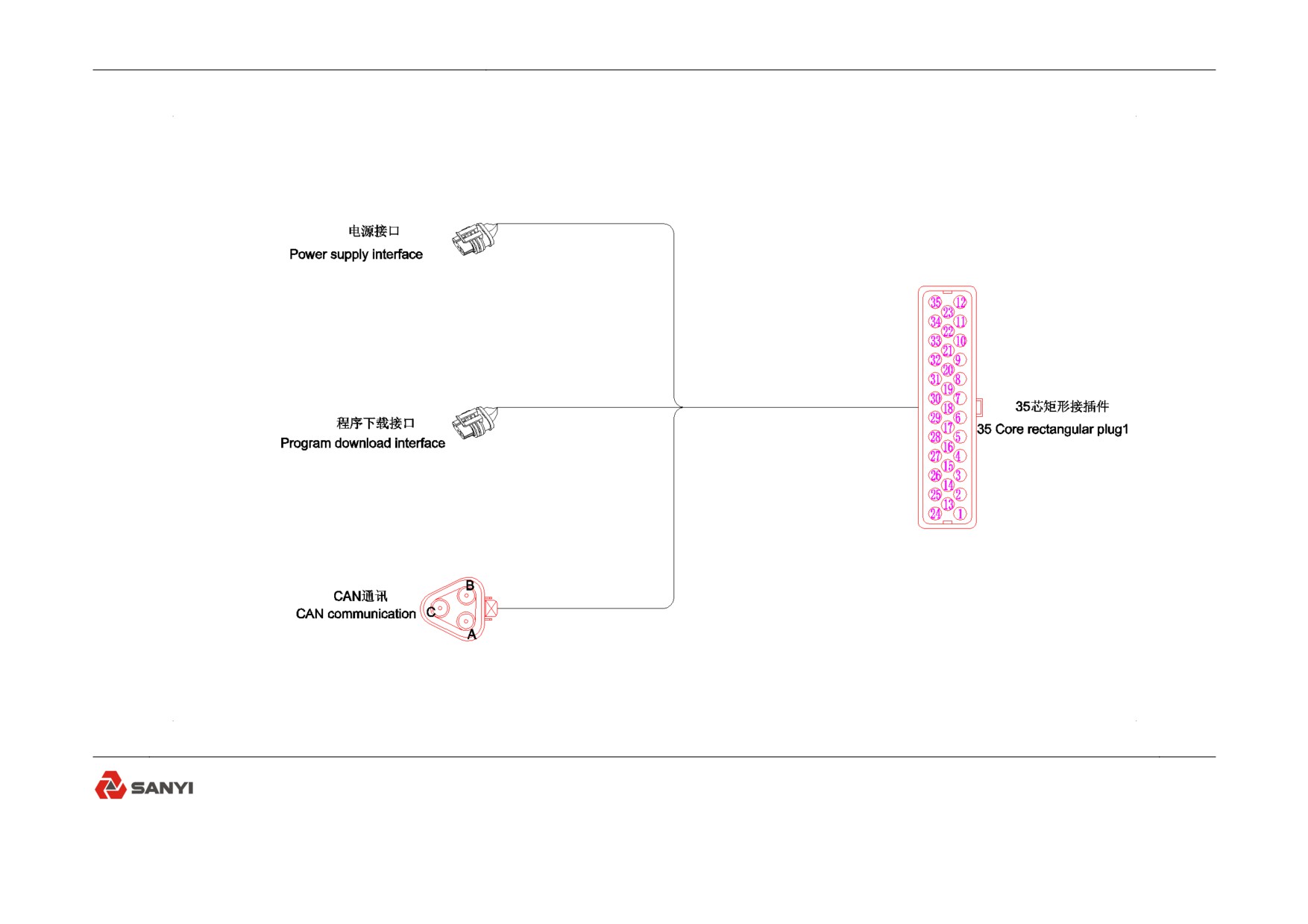

Engine ECU harness
SRT95C Off-highway truck
PARTS BOOK
12927063 Engine ECU harness
26-8
Starter relay power harness
SRT95C Off-highway truck
PARTS BOOK
12927064 Starter relay power harness
26-10

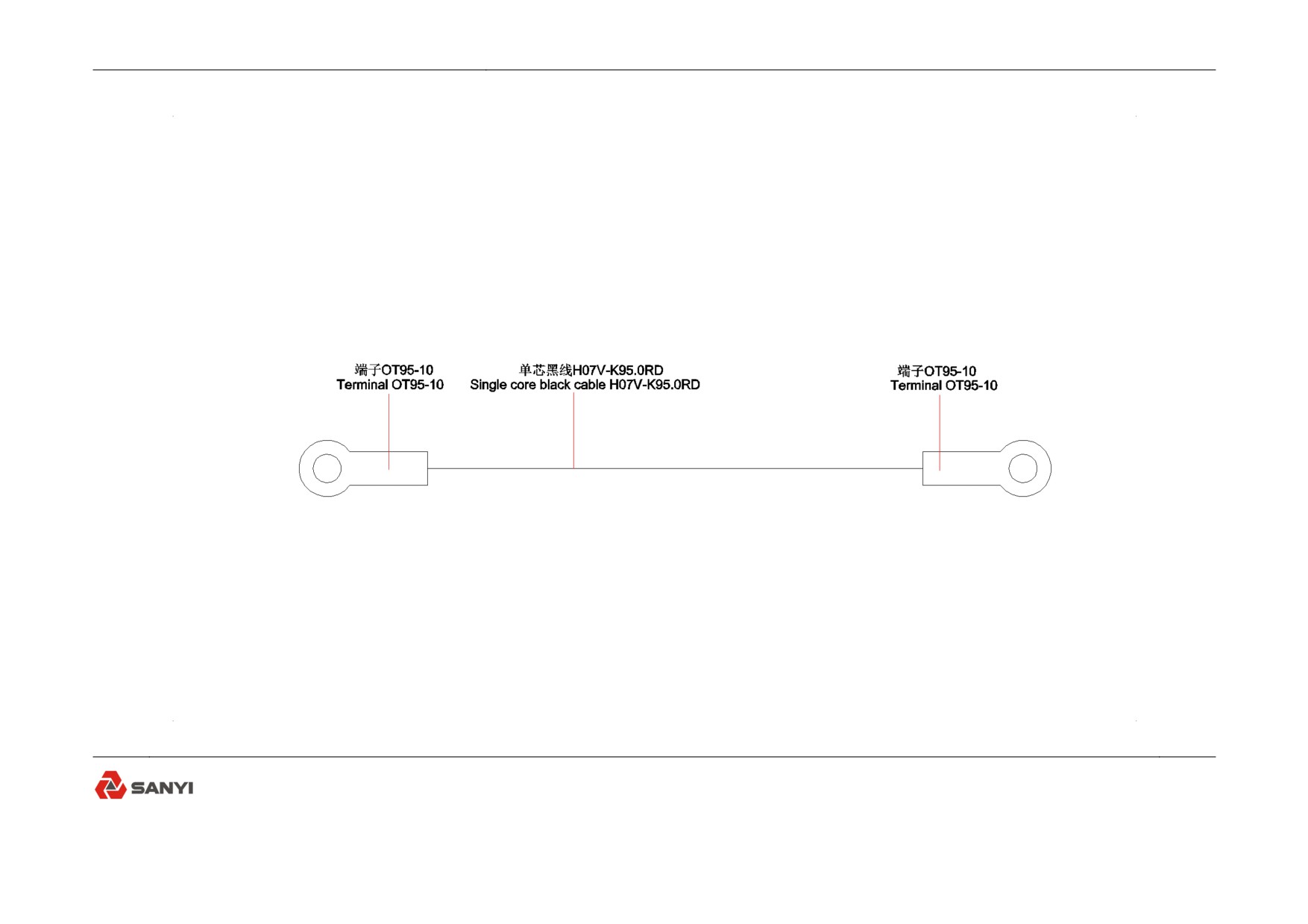

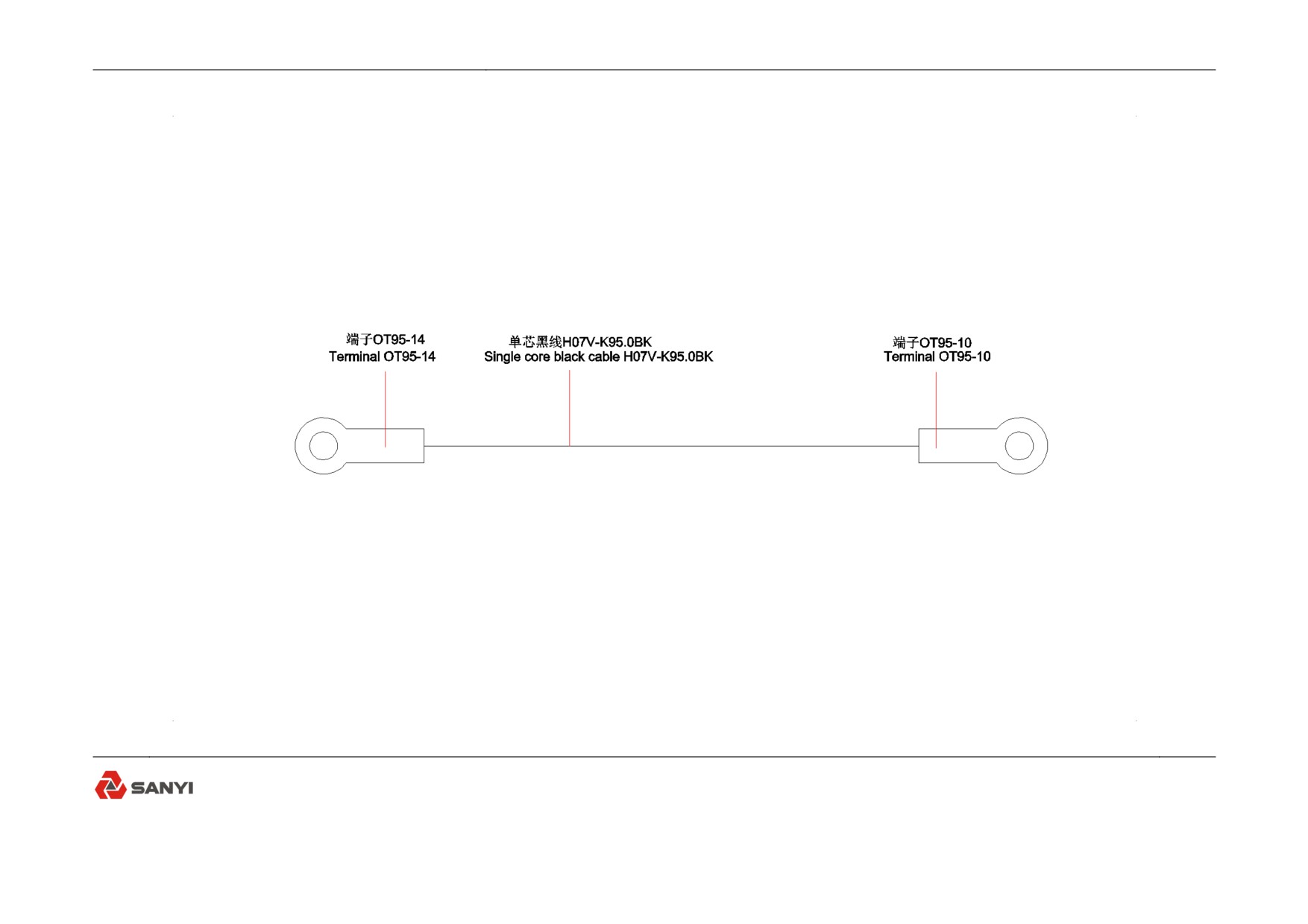

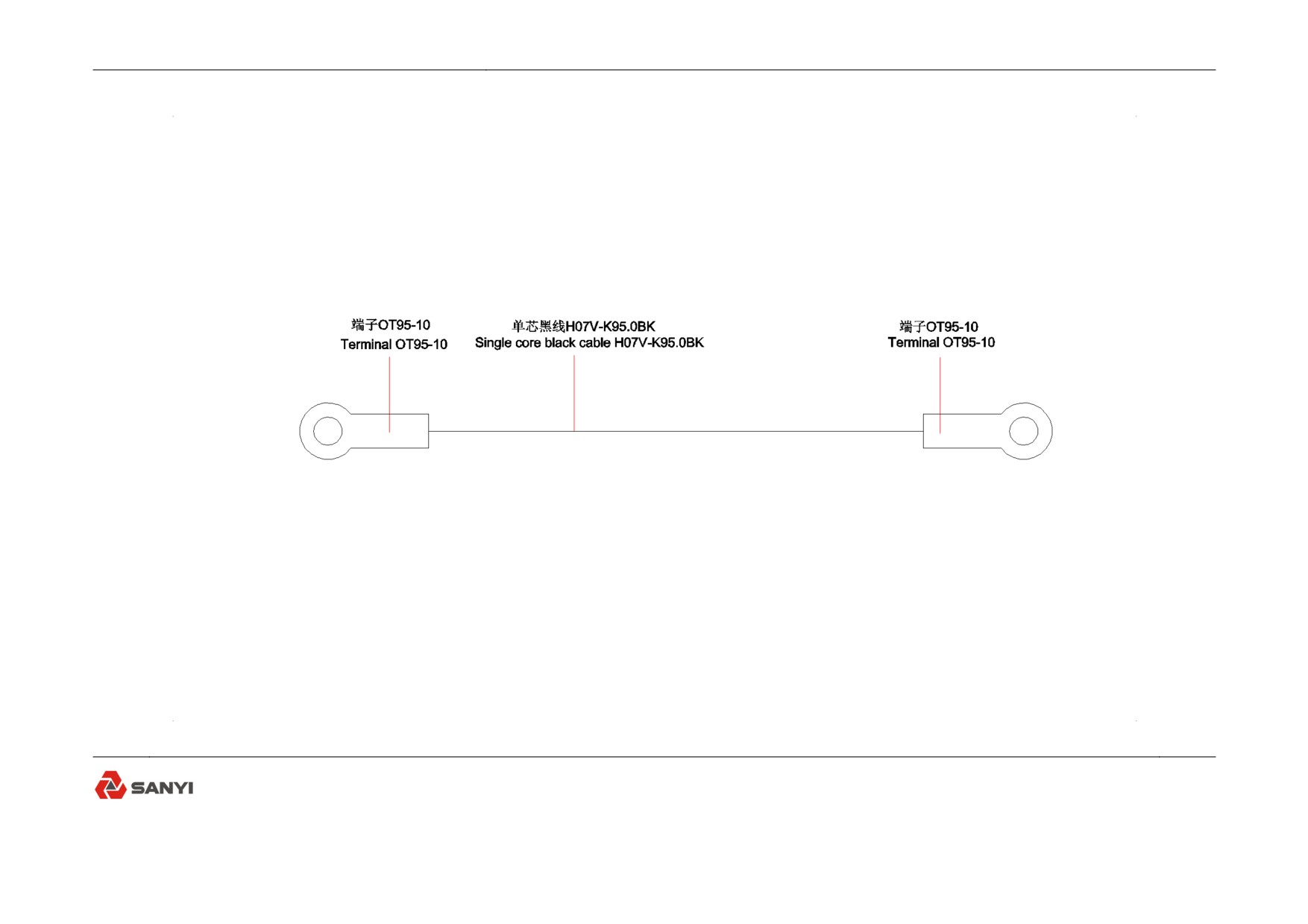

Engine earthing cable
SRT95C Off-highway truck
PARTS BOOK
12927059 Engine earthing cable
26-12

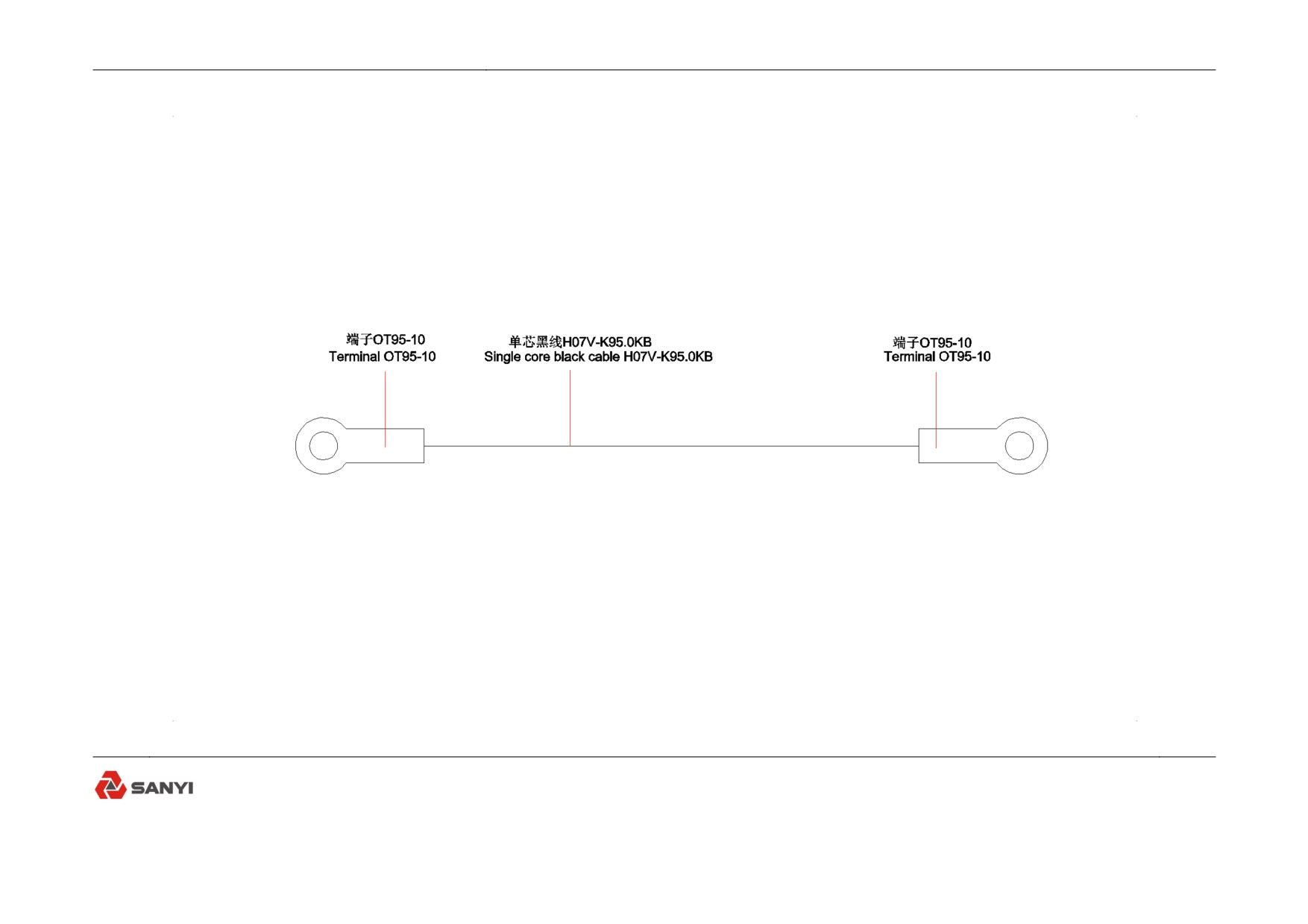

Starter motor earthing cable
SRT95C Off-highway truck
PARTS BOOK
12927054 Starter motor earthing cable

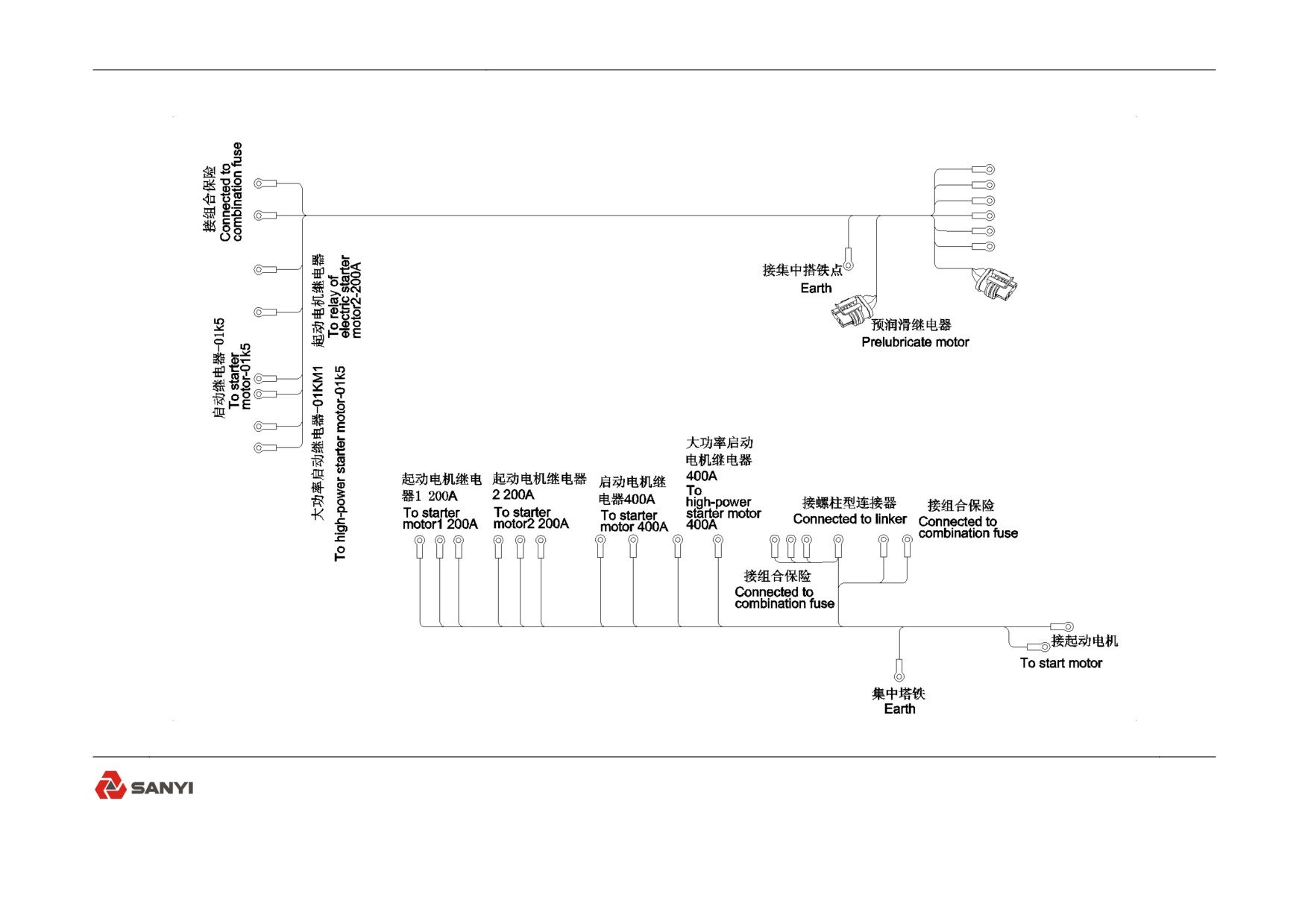

26-14
Starter motor power cable
SRT95C Off-highway truck
PARTS BOOK
12927053 Starter motor power cable
26-16
Generator earthing cable
SRT95C Off-highway truck
PARTS BOOK
12927058 Generator earthing cable
26-18
Fuse to generator cable
SRT95C Off-highway truck
PARTS BOOK
12927062 Fuse to generator cable
26-20
Starter motor parallel earthing cable
SRT95C Off-highway truck
PARTS BOOK
12927056 Starter motor parallel earthing cable
26-22
Starter motor positive parallel cable
SRT95C Off-highway truck
PARTS BOOK
12927055 Starter motor positive parallel cable
26-24
Battery serial cable
SRT95C Off-highway truck
PARTS BOOK
12927050 Battery serial cable
26-26
Battery parallel cable
SRT95C Off-highway truck
PARTS BOOK
12927051 Battery parallel cable
26-28

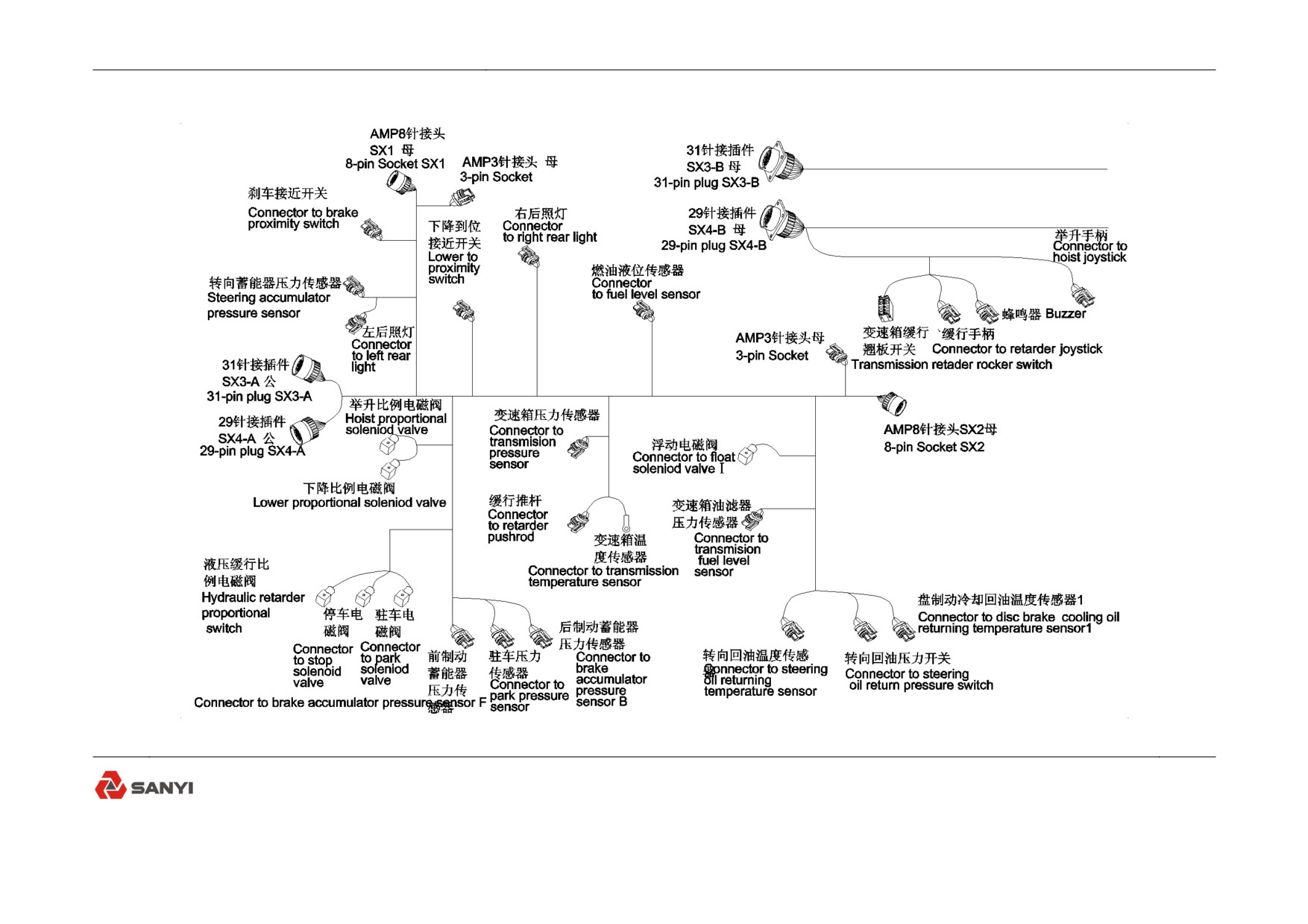

Vehicle body harness
SRT95C Off-highway truck
PARTS BOOK
12927049 Vehicle body harness
26-30

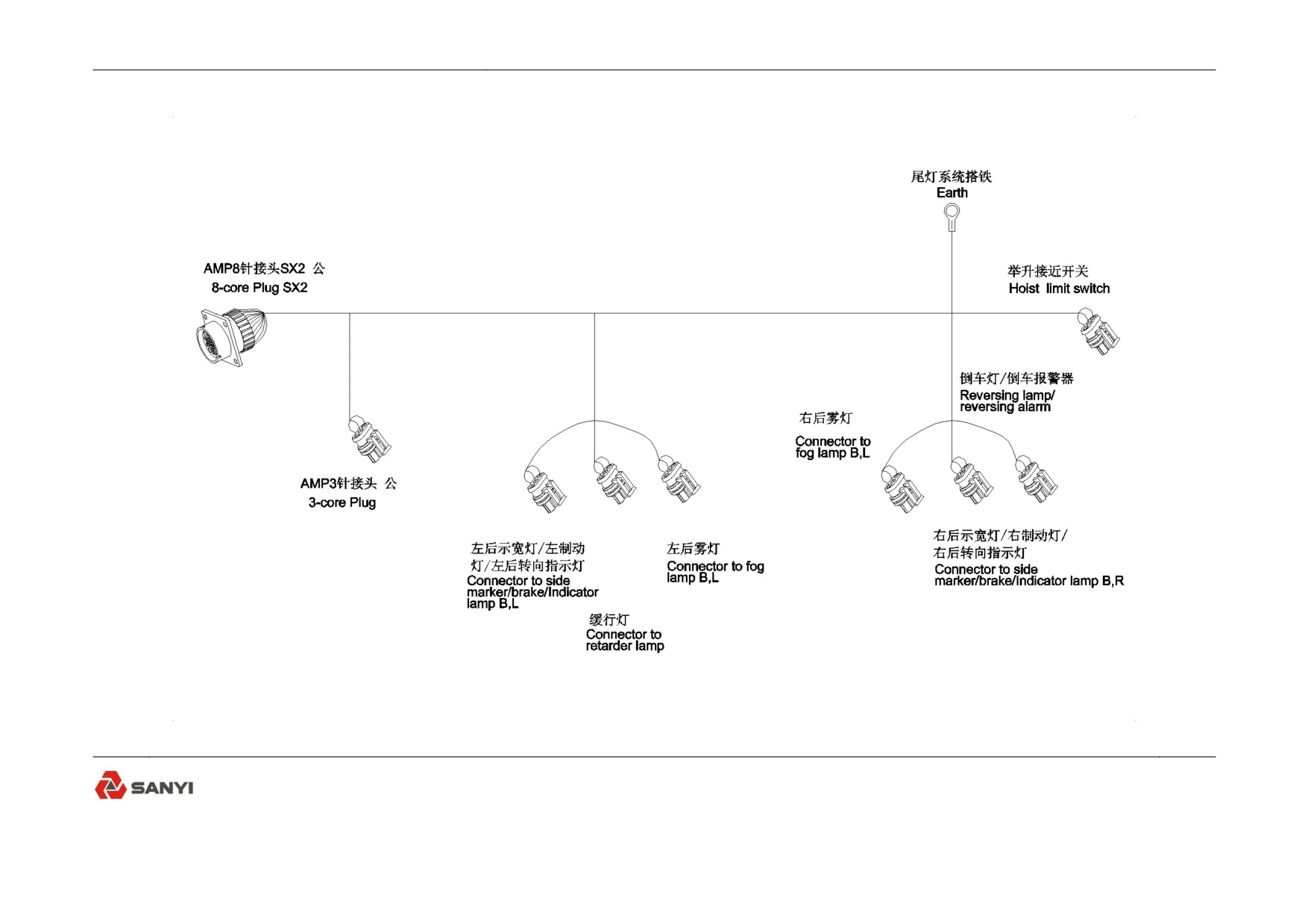

Tail lamp harness
SRT95C Off-highway truck
PARTS BOOK
12927061 Tail lamp harness
26-32
Battery to main switch cable
SRT95C Off-highway truck
PARTS BOOK
12927052 Battery to main switch cable
26-34
Battery negative earthing cable
SRT95C Off-highway truck
PARTS BOOK
12927067 Battery negative earthing cable
26-36
Branch cable
SRT95C Off-highway truck
PARTS BOOK
12927065 Branch cable
26-38

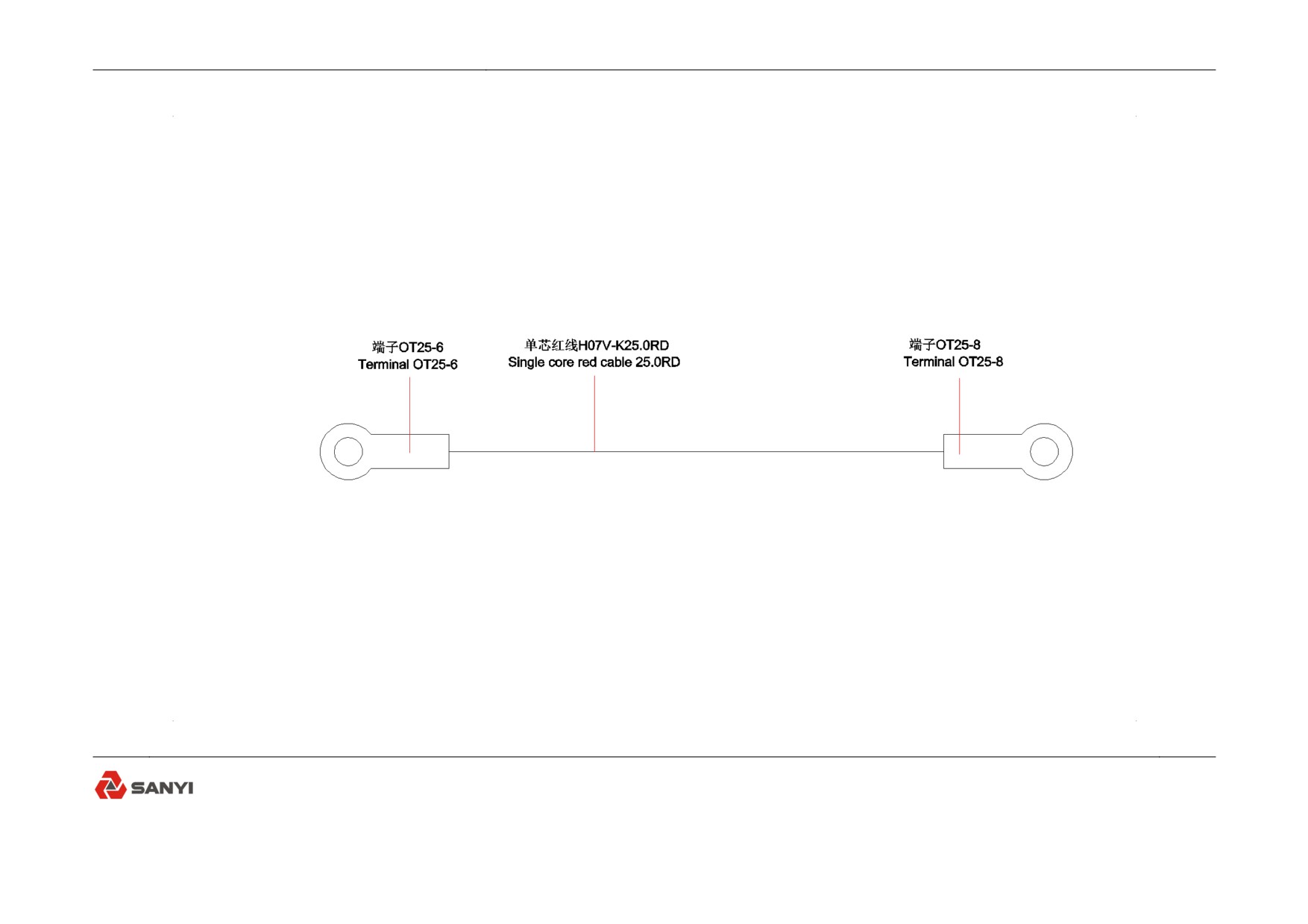

Main switch to fuse cable
SRT95C Off-highway truck
PARTS BOOK
12927057 Main switch to fuse cable
26-40

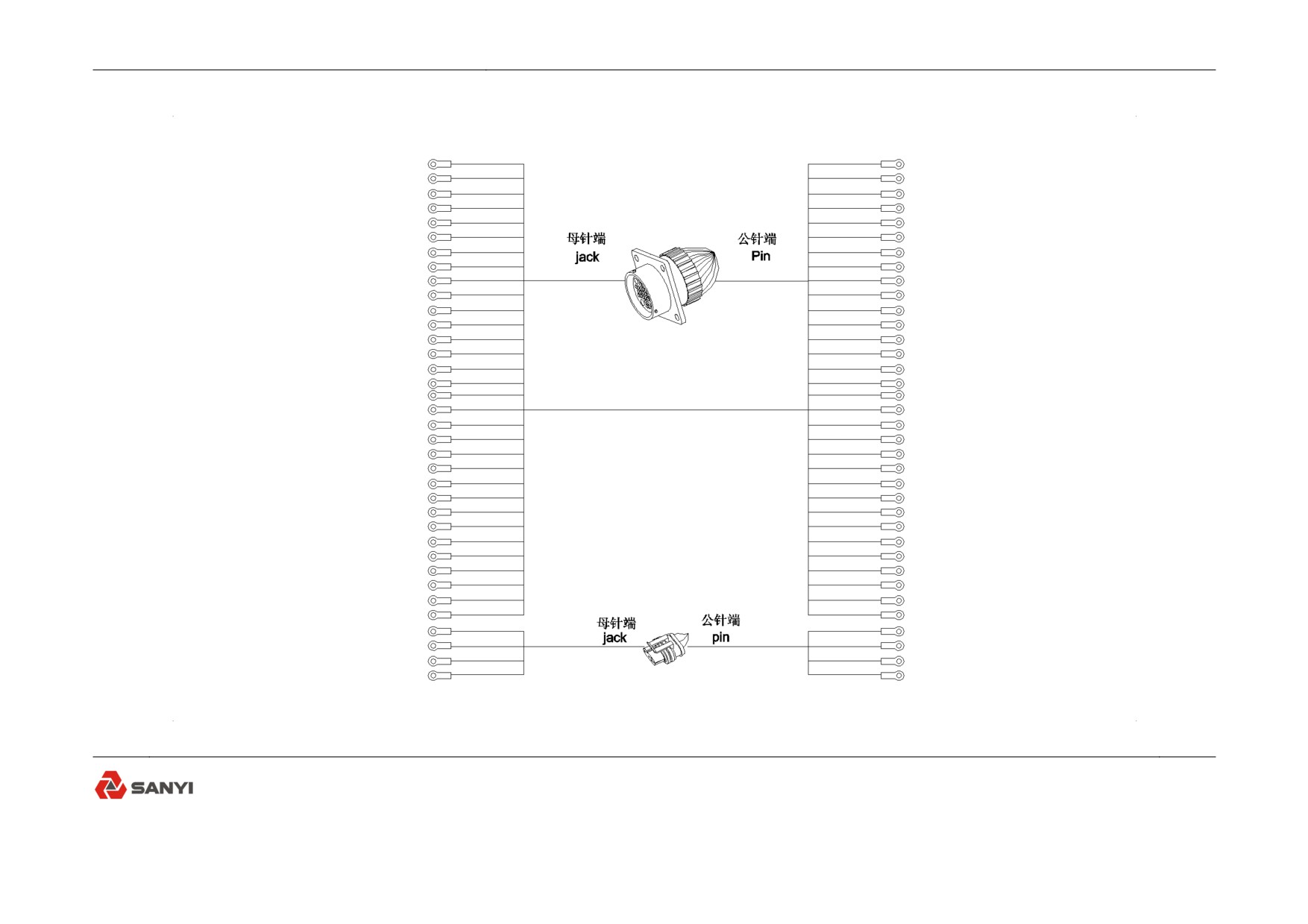

32 Core Round Plug harness
SRT95C Off-highway truck
PARTS BOOK
12942629 32 Core Round Plug harness
26-42

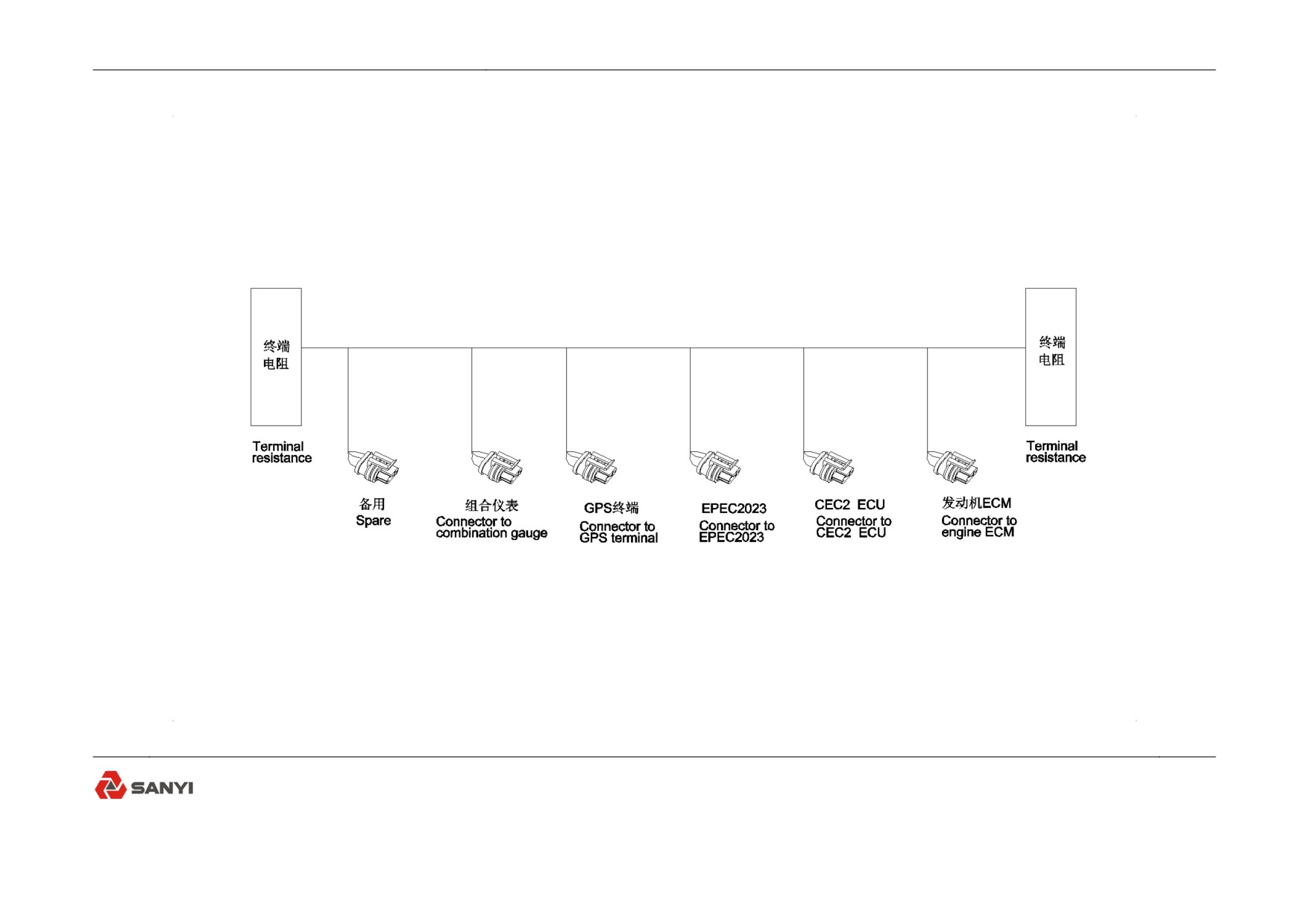

Can bus harness
SRT95C Off-highway truck
PARTS BOOK
12927066 Can bus harness
26-44
GPS harness
SRT95C Off-highway truck
PARTS BOOK
12942615 GPS harness
26-46
PARTS BOOK
Group 27
Vehicle detecting assembly
27-1

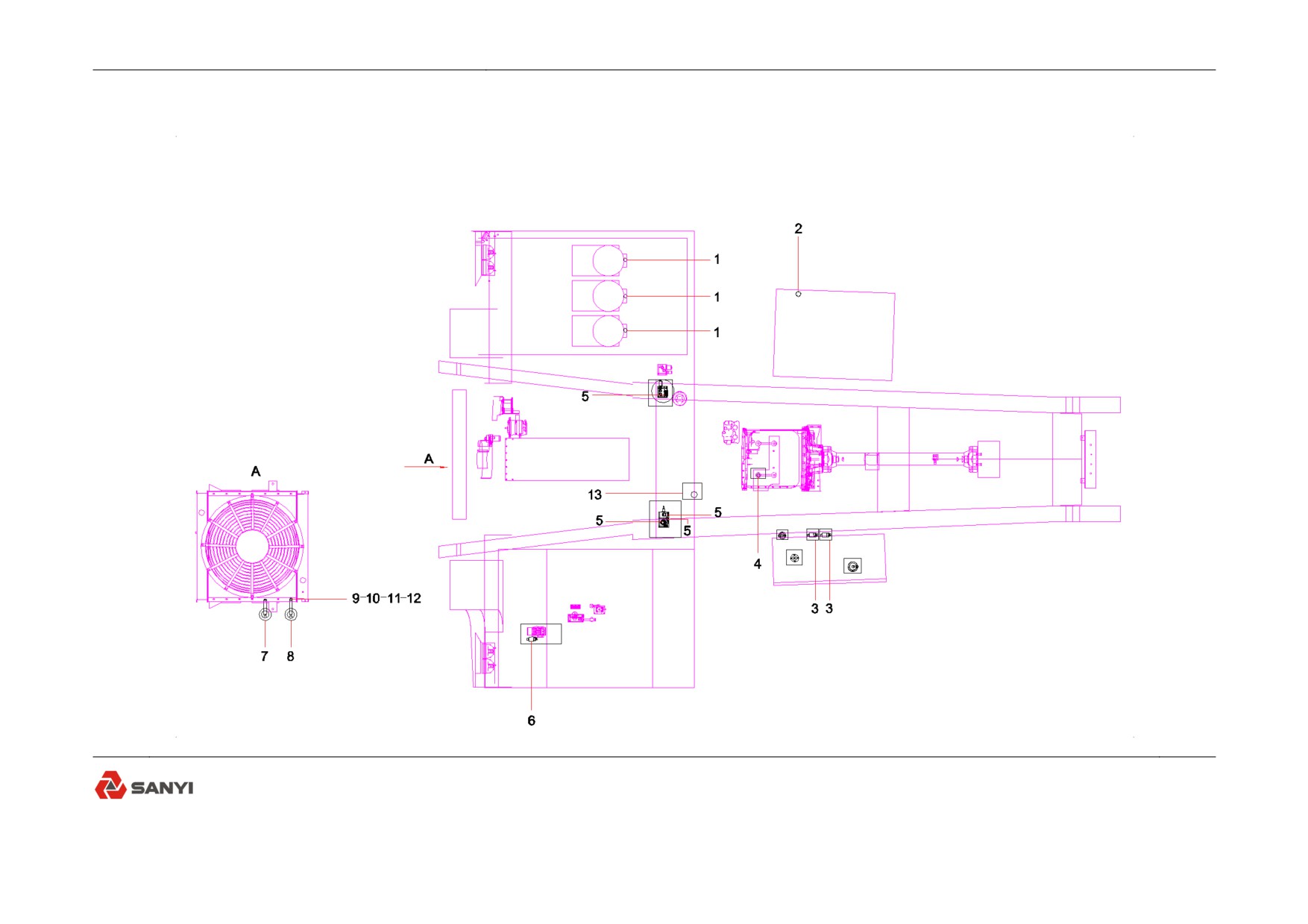

Vehicle detecting assembly
SRT95C Off-highway truck
PARTS BOOK
12926818 Vehicle detecting assembly
27-2
Vehicle detecting assembly
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
B250299000033
Air cleaner indicator
3
2
60224268
Liquid level sensor
1
3
60148917
Temperature sensor
2
4
60227740
Oil temperature sensor
1
5
60190385
Pressure Sensor
4
6
60123367
Pressure senor
1
7
B249900000090
Horn
1
8
21004763
Horn
1
9
A210401000017
Washer
4
10
24000633
Washer
4
11
A210307000055
Nut M8GB6170 Grade 10
2
12
A210111000090
Bolt
2
13
12926879
Body approach switch installation
1
12926818 Vehicle detecting assembly
27-3

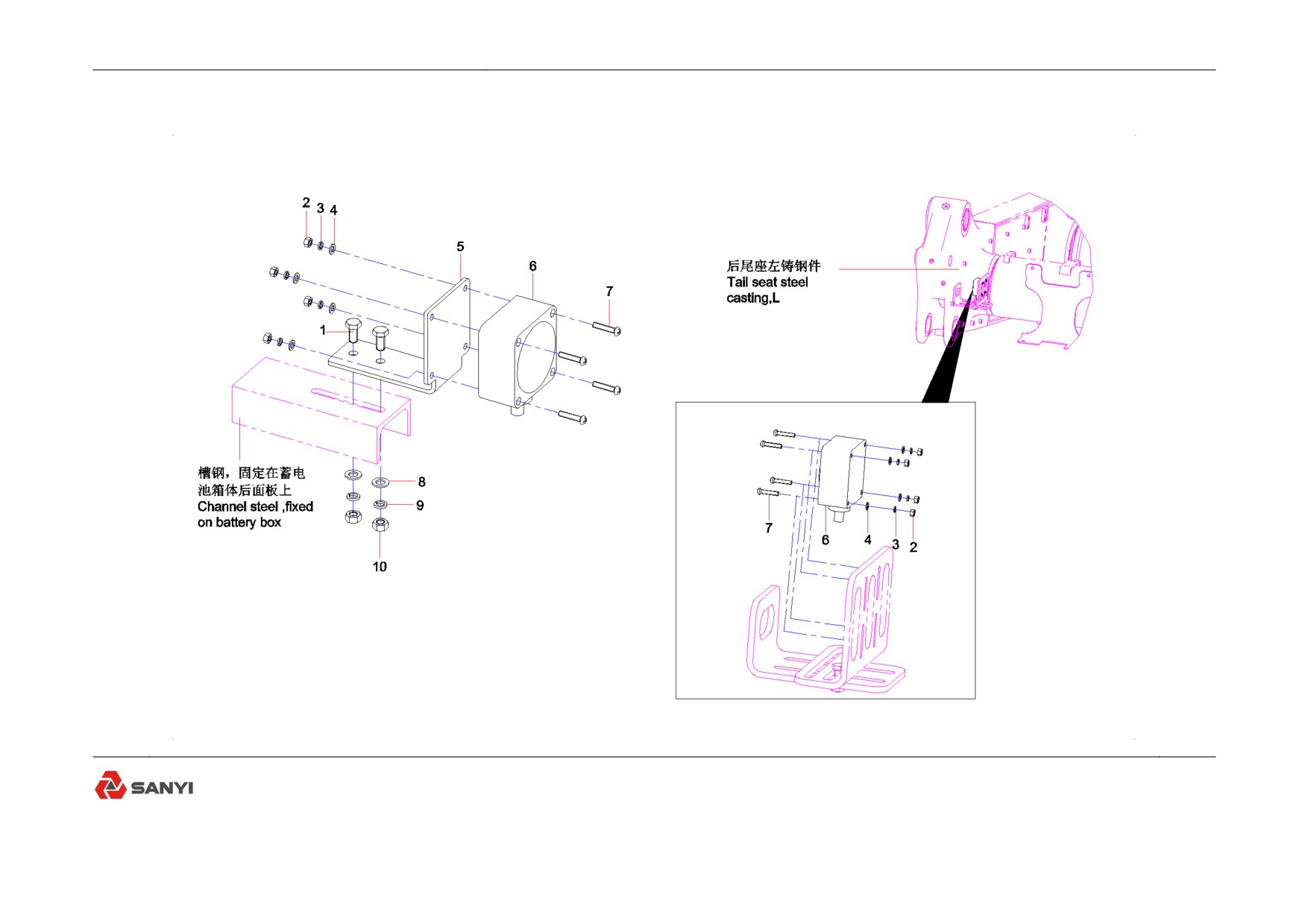

Body approach switch installation
SRT95C Off-highway truck
PARTS BOOK
12926879 Body approach switch installation
27-4
Body approach switch installation
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
A210111000342
Bolt M8×16GB5783 10.9 grade
6
2
A210307000015
Nut
8
3
24000509
Washer
8
4
24000630
Washer
8
5
12924807
Installation plate
1
6
60035978
Proximity switch
2
7
A210210000011
Screw M5×25GB818
8
8
24000633
Washer
6
9
A210401000017
Washer
6
10
A210307000055
Nut M8GB6170 Grade 10
6
12926879 Body approach switch installation
27-5
PARTS BOOK
Group 28
Fuel tank assembly and pipeline installation
28-1

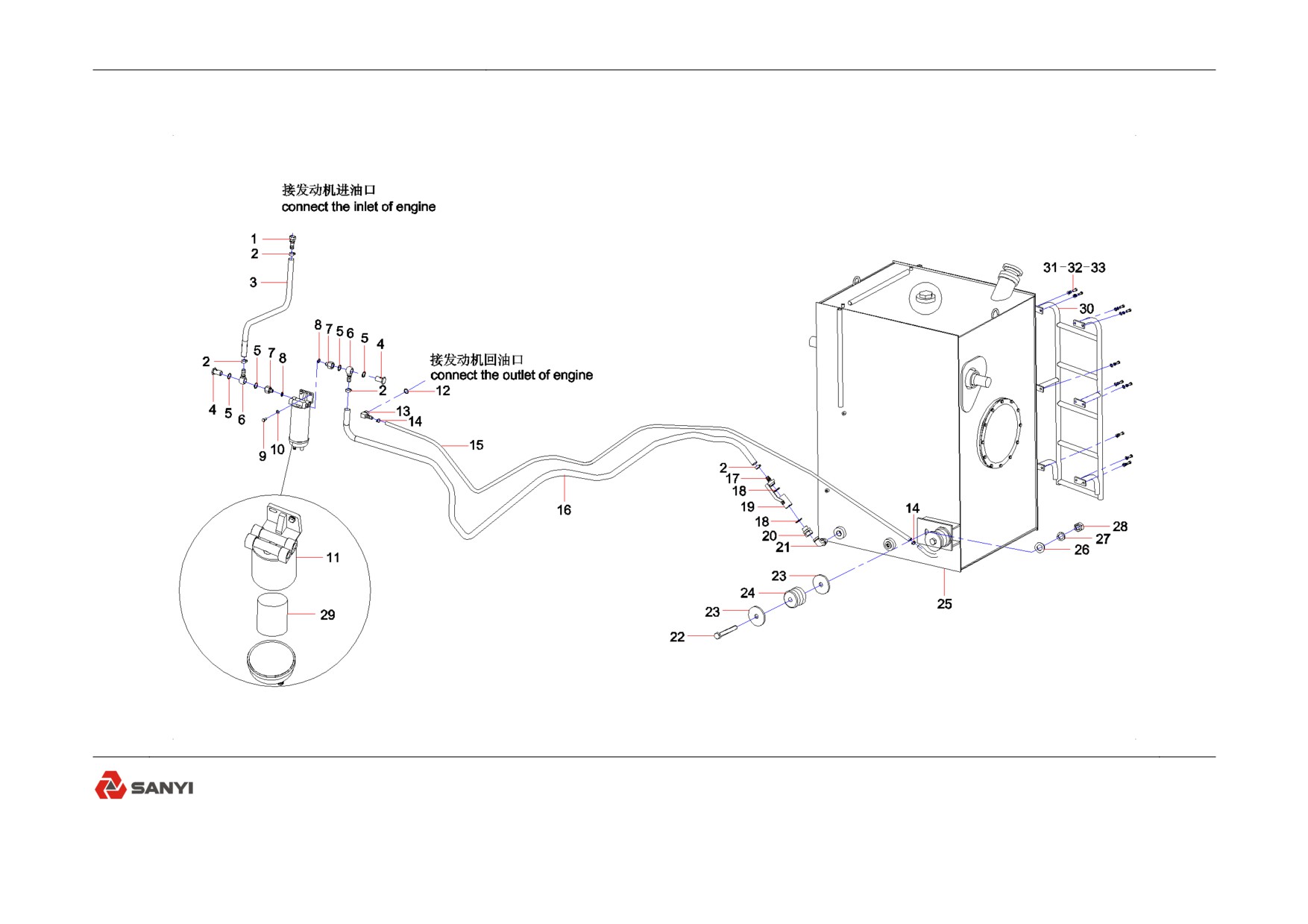

Fuel tank assembly and pipeline installation
SRT95C Off-highway truck
PARTS BOOK
12952808 Fuel tank assembly and pipeline installation (1/2)
28-2
Fuel tank assembly and pipeline installation
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
A229900009509
Connector
1
2
A210855000008
Hoop
4
3
11614287
Fuel supply line
1
4
A229900009505
Bolt
2
5
A210434000013
Washer
4
6
A229900009506
Articulating body
2
7
10704734
Connector
2
8
A210434000009
Washer
2
9
A210111000197
Bolt
2
10
24000637
Washer
2
11
B229900005676
Primary filter
1
12
A210434000011
Washer 22JB982
1
13
60008337
Connector
1
14
A210855000005
Hoop
2
15
11614288
Fuel return line
1
16
11614258
Fuel supply line
1
17
10841304
Connector
1
18
A210434000015
Washer
2
19
A220400000004
Ball valve
1
20
21002965
Connector
1
21
21002837
Connector
1
22
A210110000234
Bolt M20×140GB5782 10.9
2
12952808 Fuel tank assembly and pipeline installation (1/2)
28-3
Fuel tank assembly and pipeline installation
SRT95C Off-highway truck
PARTS BOOK
12952808 Fuel tank assembly and pipeline installation (2/2)
28-4
Fuel tank assembly and pipeline installation
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
23
12171757
Washer
4
24
60001062
Shock mount
2
25
12952398
Fuel tank
1
26
A210491000132
Washer
2
27
24000515
Washer 20GB93 DACROMET
2
28
A210307000029
Nut
2
29
B222100000622
Core,filter,separator,oil-water
1
30
13087370
LadderSRT95C.470.2
1
31
24000513
Washer 12GB93 DACROMET
12
32
24000639
Washer 12GB97.1
12
33
A210111000202
Bolt
12
12952808 Fuel tank assembly and pipeline installation (2/2)
28-5

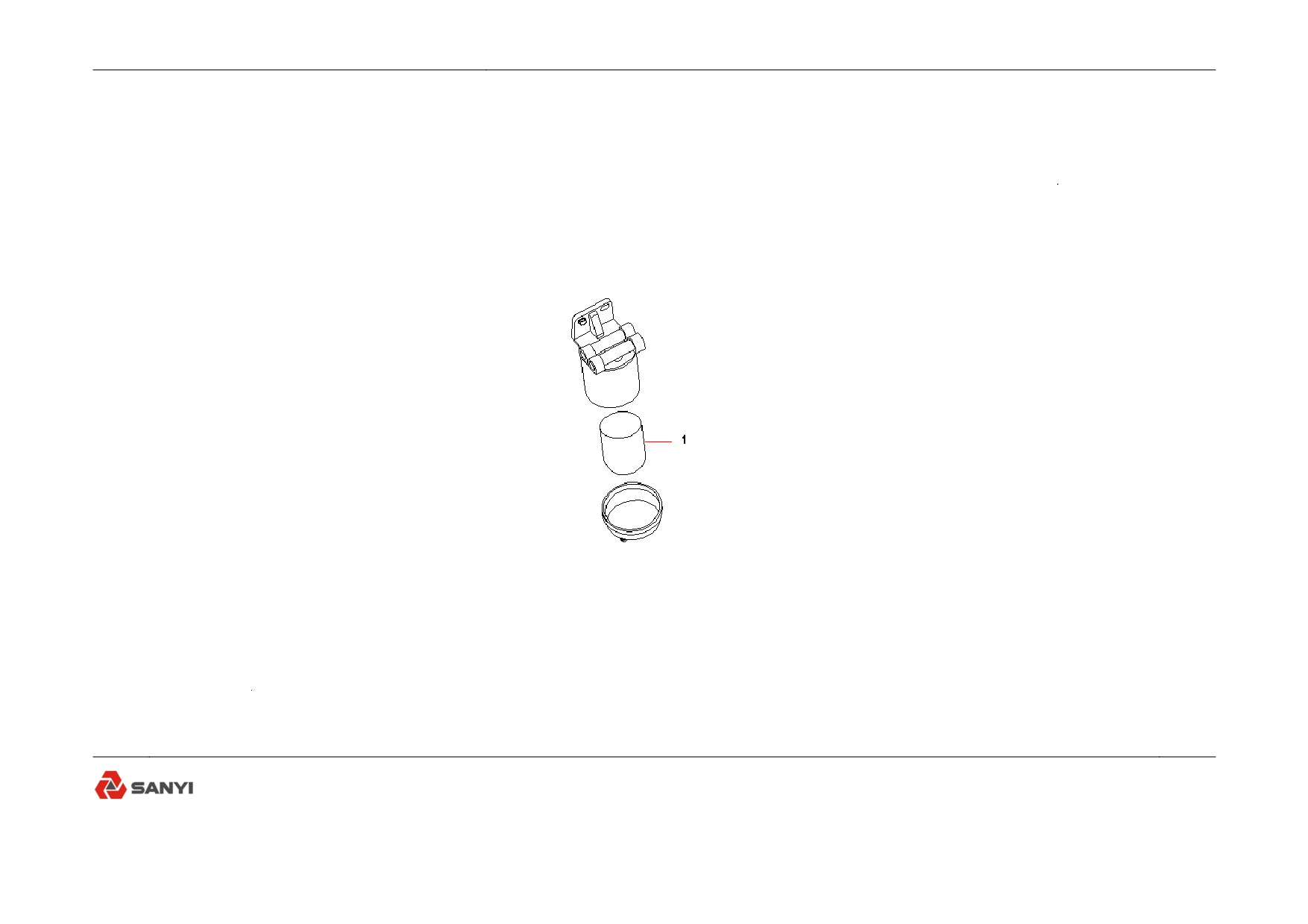

Primary filter
SRT95C Off-highway truck
PARTS BOOK
B229900005676 Primary filter
28-6
Primary filter
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
B222100000622
Core,filter,separator,oil-water
1
B229900005676 Primary filter
28-7

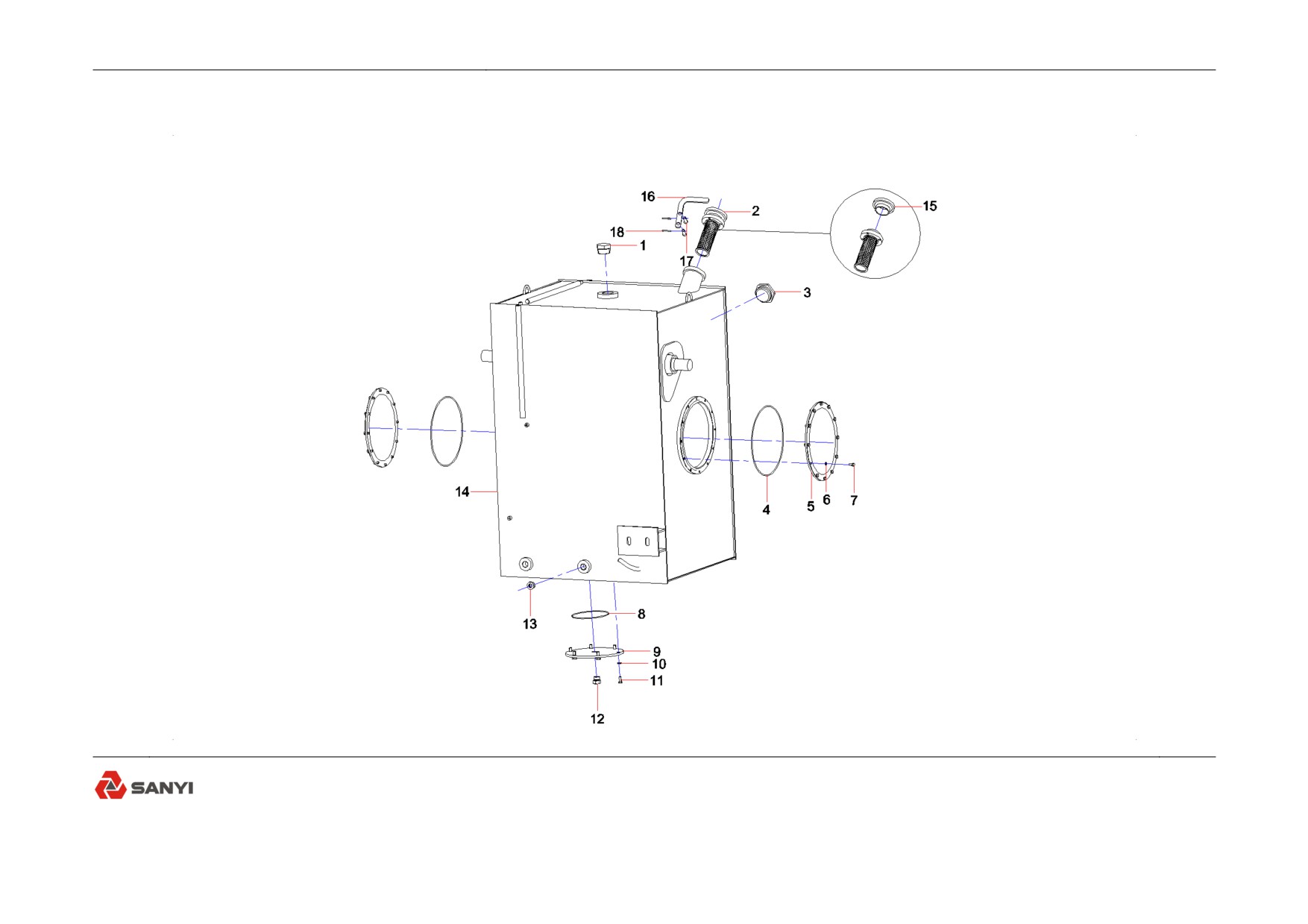

Fuel tank
SRT95C Off-highway truck
PARTS BOOK
12952398 Fuel tank
28-8
Fuel tank
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
60223847
Plug
1
2
A222100000355
Air cleaner
1
3
60240021
Oil sign
1
4
A210609000384
O-ring 365×5.3GB3452.1
2
5
11643404
Cover Plate
2
6
24000512
Washer 10GB93
24
7
A210111000012
Bolt
24
8
A210609000016
O-ring 180×3.55GB3452.1
1
9
10704464
Cover plate
1
10
24000637
Washer
6
11
A210111000197
Bolt
6
12
21012175
Screw plug
1
13
21010723
Plug
1
14
12951835
Fueling tank welding assembly
1
15
60203630
cover
1
16
12964126
Ear plate Ⅱ
1
17
A210508000040
Shaft, pin
2
18
A210501000001
Pin
2
12952398 Fuel tank
28-9
PARTS BOOK
Group 29
Steering pipeline
29-1

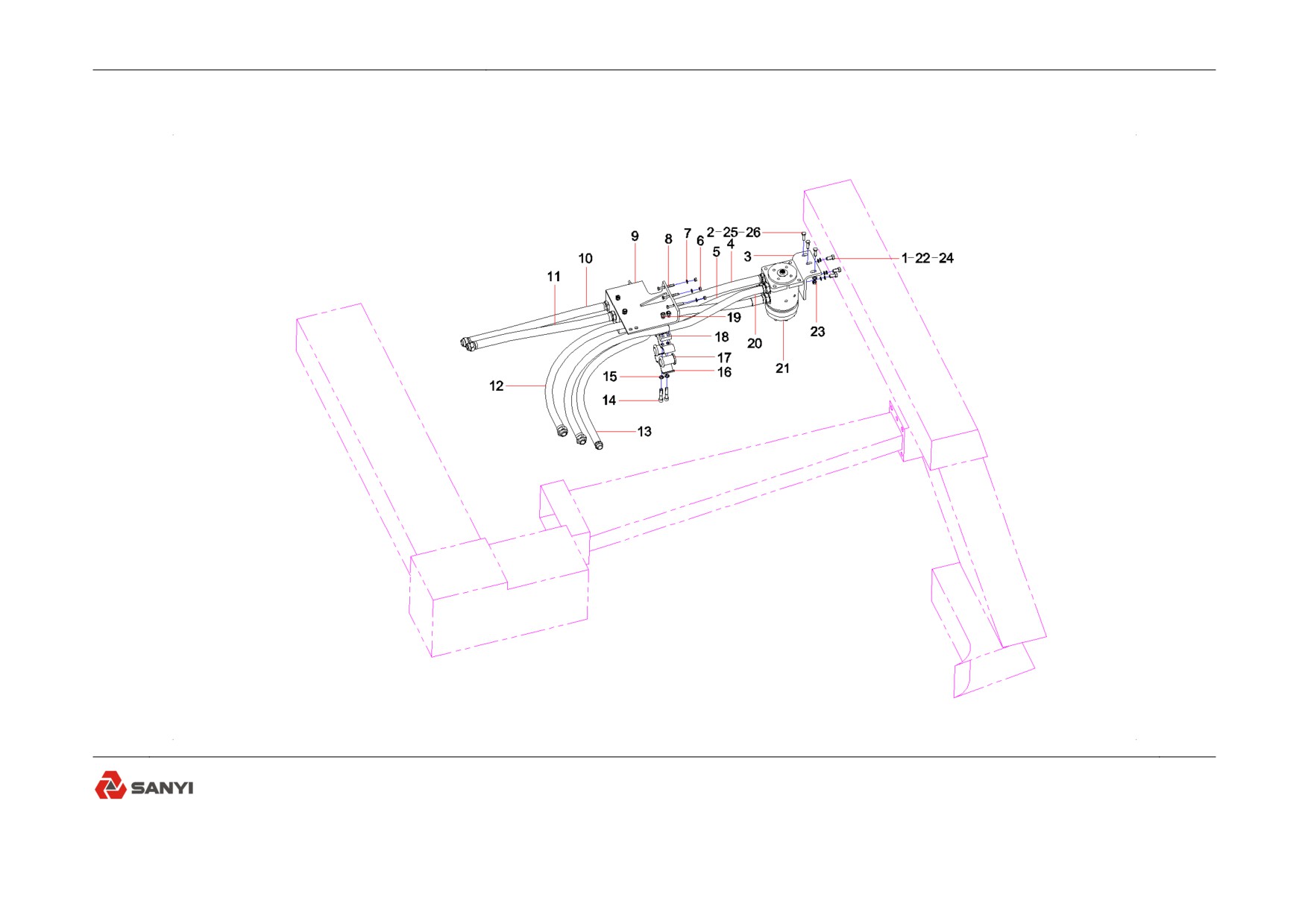

Steering pipeline
SRT95C Off-highway truck
PARTS BOOK
12953022 Steering pipeline (1/2)
29-2
Steering pipeline
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
A229900009500
Bolt
3
2
24002305
Bolt M10×35GB5783 Dacroment
3
3
13069681
Retainer plate
1
4
B230103006392
Rubber hose
1
5
B230103004115
Rubber hose
1
6
24000911
Nut
3
7
A210405000045
Washer
3
8
A210111000096
Bolt
3
9
12952974
Steering valve group and adaptor
1
10
B230103002506
Rubber hose
1
11
60207502
rubber hose
1
12
B230103006939
Hose
1
13
B230103008339
Hose, rubber
1
14
A210204000359
Screw
2
15
A210401000002
Washer
2
16
12951068
Clamp, pipe
2
17
12953021
Tube clamp pad
2
18
12951070
Seat
1
19
A210307000001
Nut
2
20
B230103003808
Hose,rubber
1
21
12952854
Steering gear and adaptor
1
22
A229900009503
Washer
3
12953022 Steering pipeline (1/2)
29-3
Steering pipeline
SRT95C Off-highway truck
PARTS BOOK
12953022 Steering pipeline (2/2)
29-4
