SANY SRT95C Off-highway truck. Parts book (Equipment No.14RT95100040) - page 9
Steering pipeline
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
23
24000868
Nut M10GB6170 Dacroment
3
24
A210401000003
Washer
3
25
24000637
Washer
3
26
24000512
Washer 10GB93
3
12953022 Steering pipeline (2/2)
29-5
Steering valve group and adaptor
SRT95C Off-highway truck
PARTS BOOK

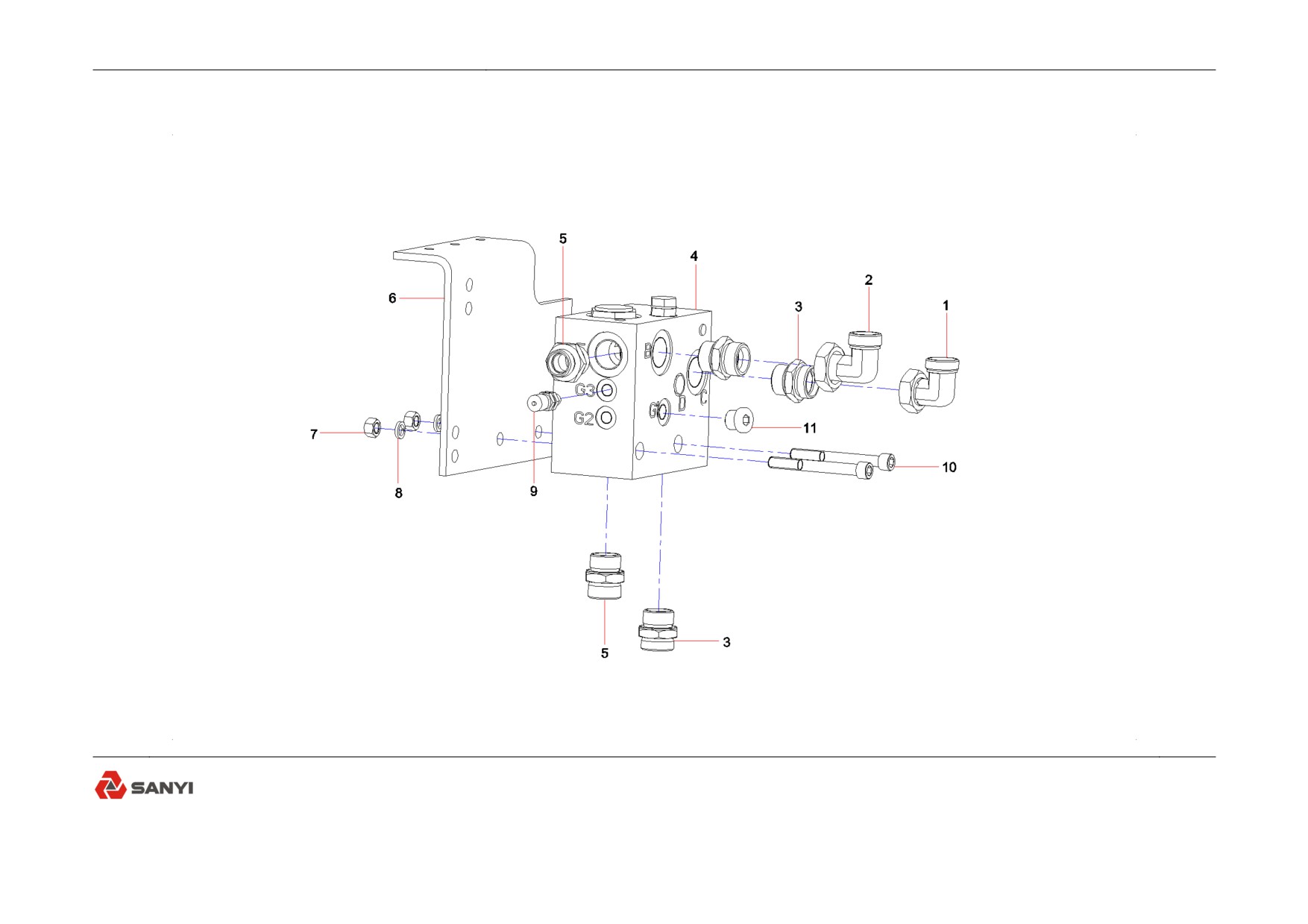

12952974 Steering valve group and adaptor
29-6
Steering valve group and adaptor
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
B210780000838
Pipe connector
1
2
B210780000029
Pipe connector
1
3
B210780001005
Pipe connector
2
4
60000783
Steering valve group
1
5
B210780001389
Pipe connector
3
6
12952950
Installation seat
1
7
A210307000001
Nut
2
8
A210401000002
Washer
2
9
B210770000003
Connector, pressure measuring
1
10
A210204000455
Screw
2
11
21008717
Plug
1
12952974 Steering valve group and adaptor
29-7
Steering valve group
SRT95C Off-highway truck
PARTS BOOK

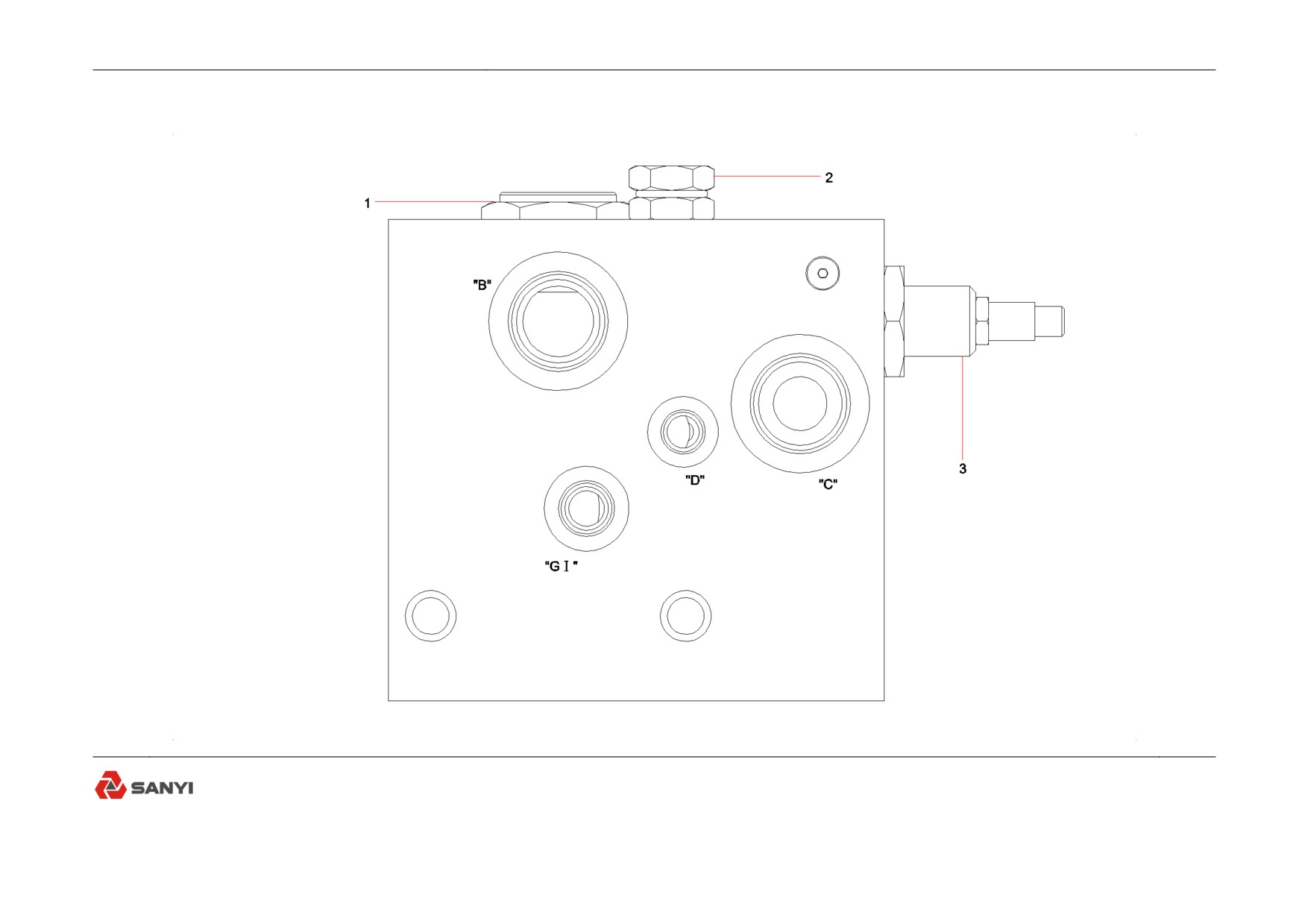

60000783 Steering valve group
29-8
Steering valve group
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
60072692
Valve,check
1
2
60096907
Directional valve with hydraulic actuation
1
3
60072700
Valve,overflow
1
60000783 Steering valve group
29-9
Steering gear and adaptor
SRT95C Off-highway truck
PARTS BOOK

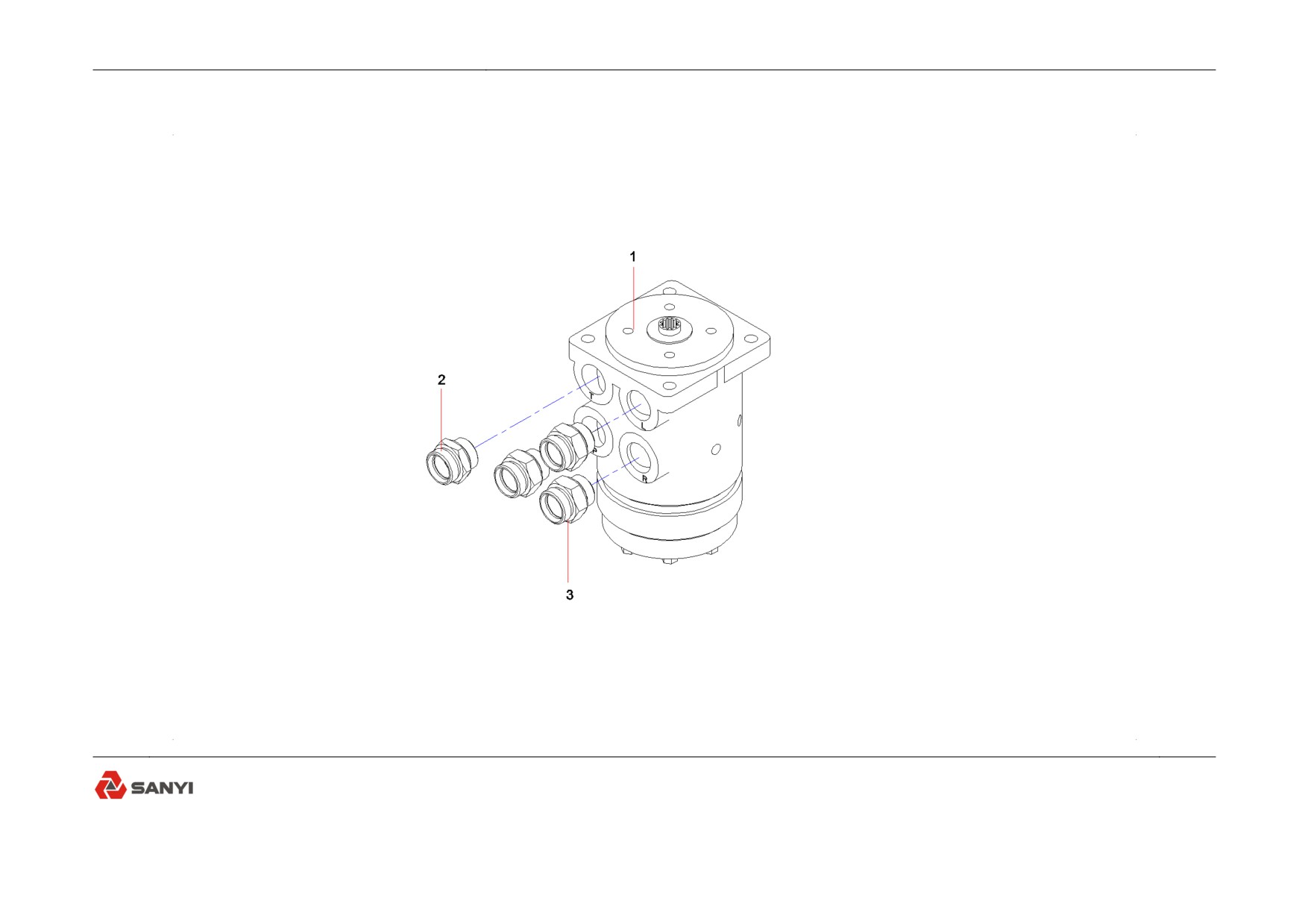

12952854 Steering gear and adaptor
29-10
Steering gear and adaptor
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
60001078
Steering control unit
1
2
21006470
Connector, pipe
1
3
A210770000590
Connector, pipe
3
12952854 Steering gear and adaptor
29-11
PARTS BOOK
Group 30
Lifting pipeline
30-1
Lifting pipeline
SRT95C Off-highway truck
PARTS BOOK

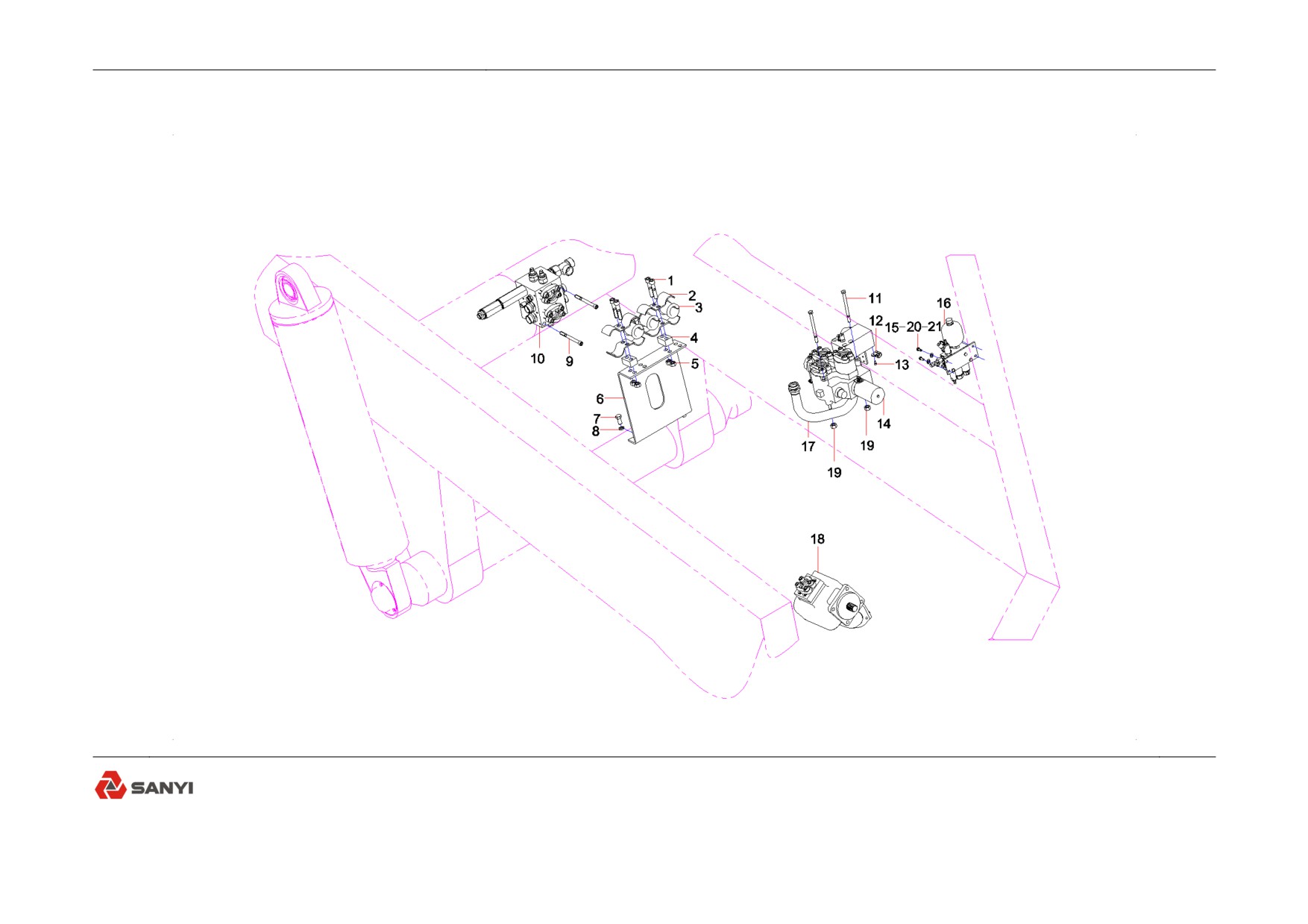

12954513 Lifting pipeline (1/5)
30-2
Lifting pipeline
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
24000779
Screw
4
2
12961726
Clamp
4
3
12961727
Tube clamp pad
3
4
12961728
Clamp bearer
2
5
A210307000028
Nut
4
6
12954484
Fixed plate
1
7
A229900009501
Screw
2
8
A210401000004
Washer
2
9
A210204000272
Screw
2
10
12954500
Balanced valve group group
1
11
A210110000179
Bolt M12×160GB5782
3
12
A229900006640
Clamp
2
13
A210204000129
Screw
2
14
12954498
Lifting valve group
1
15
A210111000343
Bolt
10
16
12954497
Leading oil sources valve group assem
1
17
12954502
Steel pipe assy.
1
18
12954514
Lifting pump assembly
1
19
A210307000031
Nut
3
20
A210404000005
Washer
4
21
A210307000012
Nut
4
12954513 Lifting pipeline (1/5)
30-3
Lifting pipeline
SRT95C Off-highway truck
PARTS BOOK

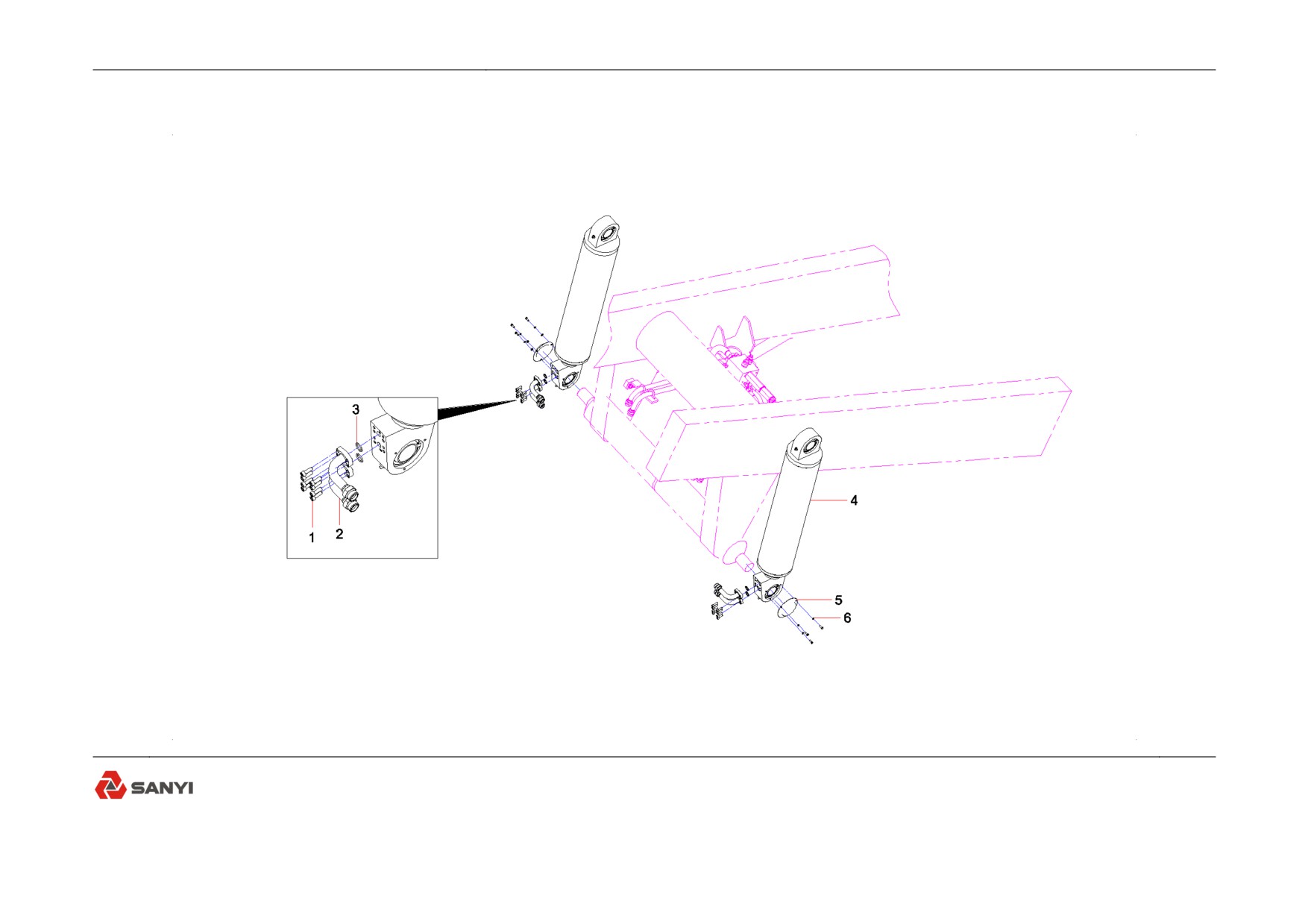

12954513 Lifting pipeline (2/5)
30-4
Lifting pipeline
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
A210204000215
Screw
20
2
12954493
Steel pipe assy.
4
3
A210609000195
O-ring
4
4
60212670
Hoisting cylinder
2
5
12986488
Cover plate
2
6
A210401000017
Washer
10
12954513 Lifting pipeline (2/5)
30-5
Lifting pipeline
SRT95C Off-highway truck
PARTS BOOK

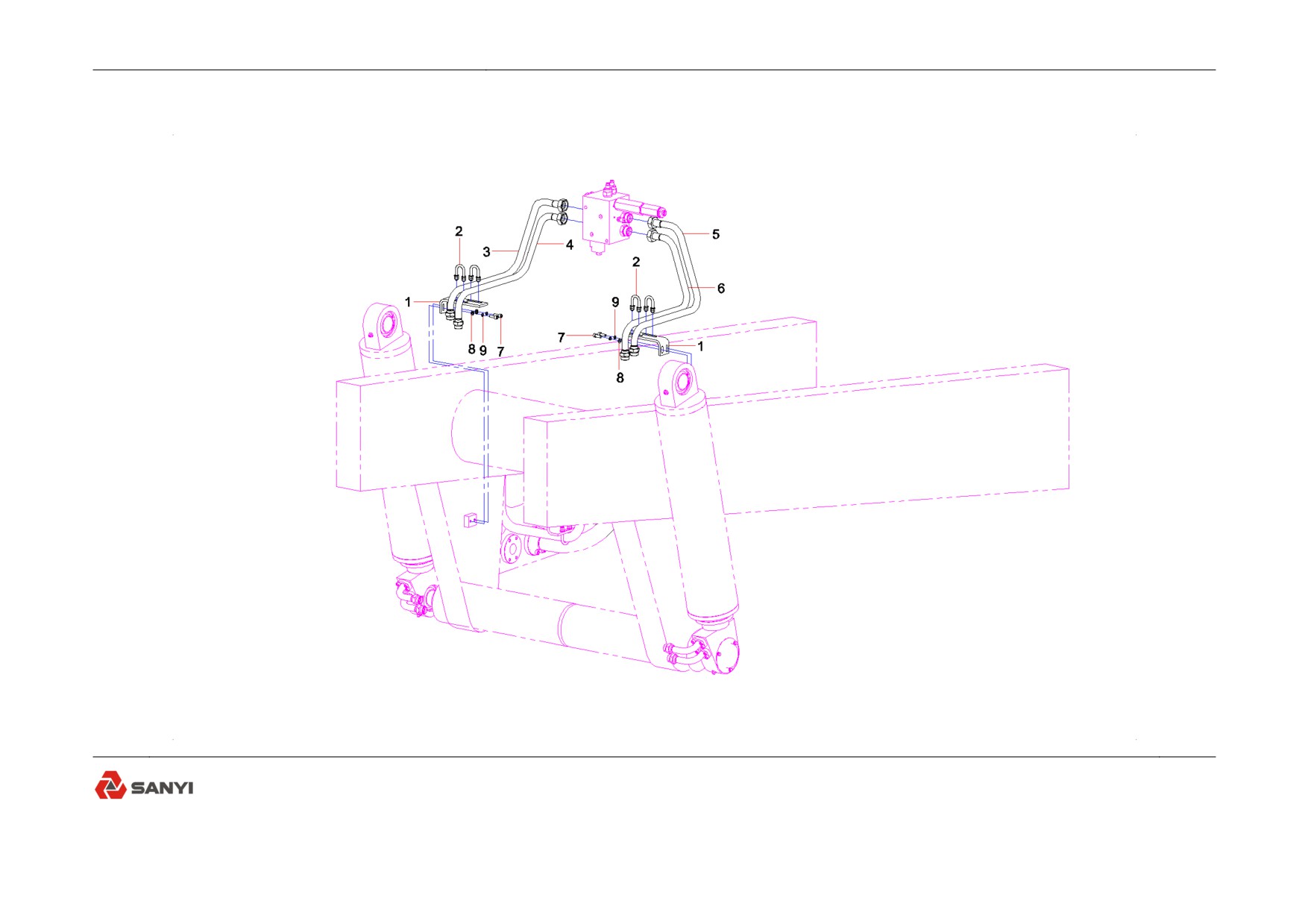

12954513 Lifting pipeline (3/5)
30-6
Lifting pipeline
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
12954485
Fixed seat
2
2
60008273
U-clamp
4
3
12954504
Steel pipe assy.
1
4
12954506
Steel pipe assy.
1
5
12954508
Steel pipe assy.
1
6
12954510
Steel pipe assy.
1
7
A210204000225
Screw
6
8
A210404000004
Washer
6
9
A210401000002
Washer
12
12954513 Lifting pipeline (3/5)
30-7
Lifting pipeline
SRT95C Off-highway truck
PARTS BOOK

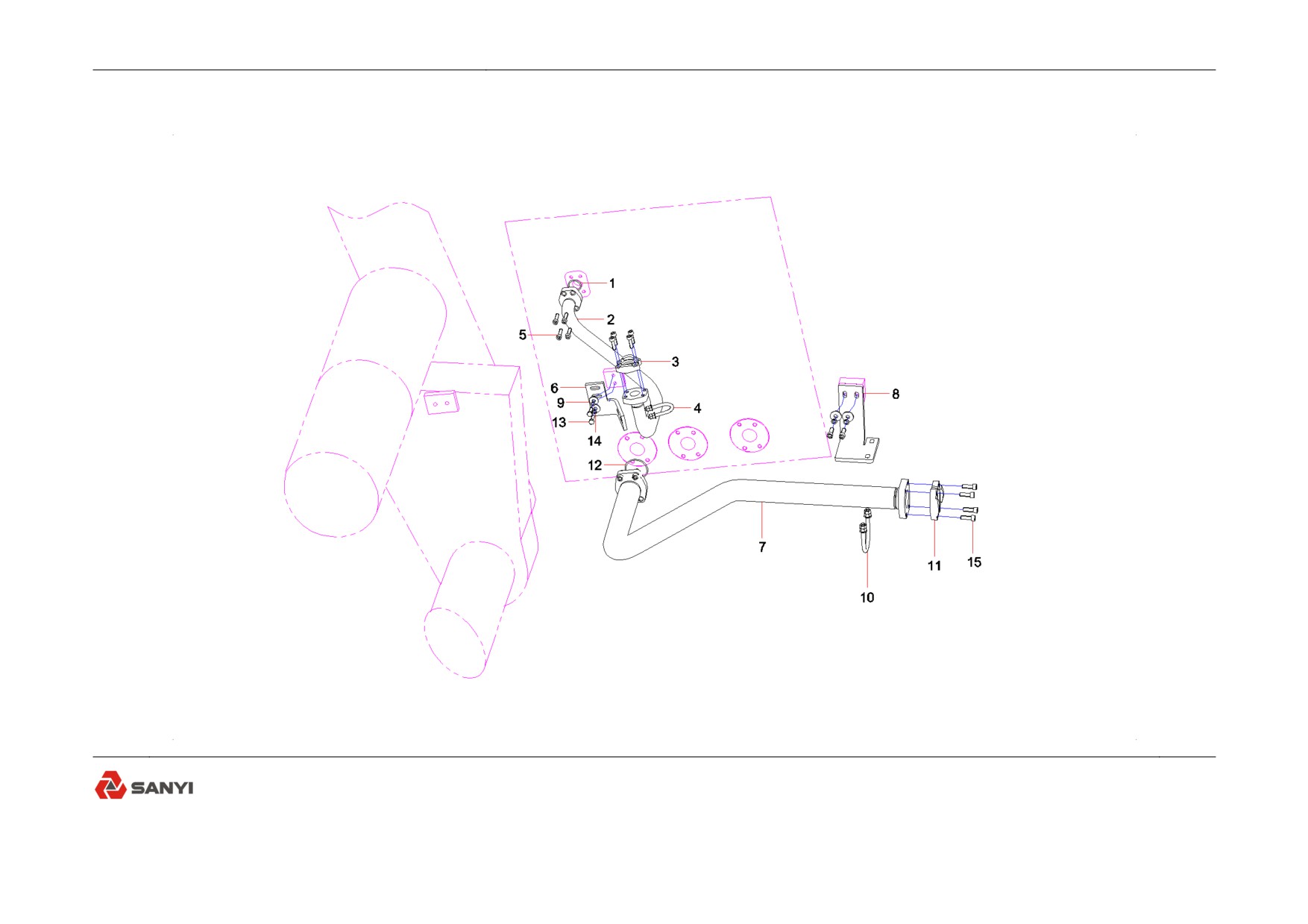

12954513 Lifting pipeline (4/5)
30-8
Lifting pipeline
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
B230101002071
O-ring
1
3
A229900002488
Split flange clamp
2
4
60008274
U-clamp
1
5
A210204000355
Screw
4
6
12954486
Pipe clamp seat
1
7
12954516
Steel pipe assy.
1
8
12954015
Pipe clamp seat
1
9
A210404000003
Washer
2
10
60008277
U-CLAMP
1
11
21018528
Split flange
4
12
B230101002072
O-ring
1
13
24000527
Bolt M10×30GB5783 Dacroment
2
14
A210401000001
Washer
2
15
A210204000206
Screw
12
12954513 Lifting pipeline (4/5)
30-9
Lifting pipeline
SRT95C Off-highway truck
PARTS BOOK

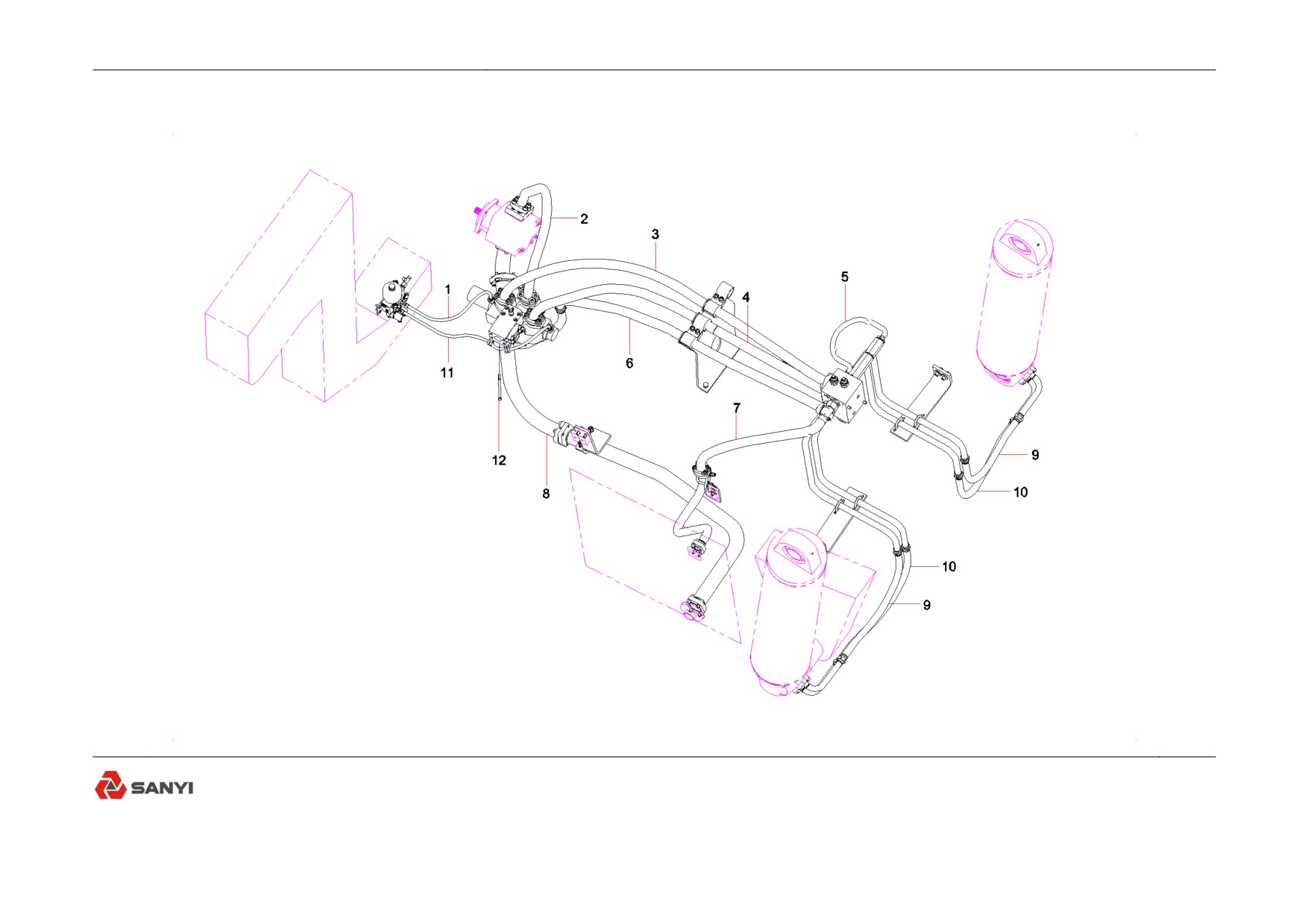

12954513 Lifting pipeline (5/5)
30-10
Lifting pipeline
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
B230103005499
Hose
1
2
60206714
Rubber Hose
1
3
B230103007653
Hose,rubber
1
4
23001434
Hose, rubber
1
5
60234814
rubber hose
1
6
B230103005872
Hose, rubber
1
7
60035669
Hose
1
8
60234813
rubber hose
1
9
60212562
Hose, rubber
2
10
60024615
Hose
2
11
B230103001518
Hose,rubber
1
12
A210204000354
Screw
4
12954513 Lifting pipeline (5/5)
30-11
Balanced valve group group
SRT95C Off-highway truck
PARTS BOOK

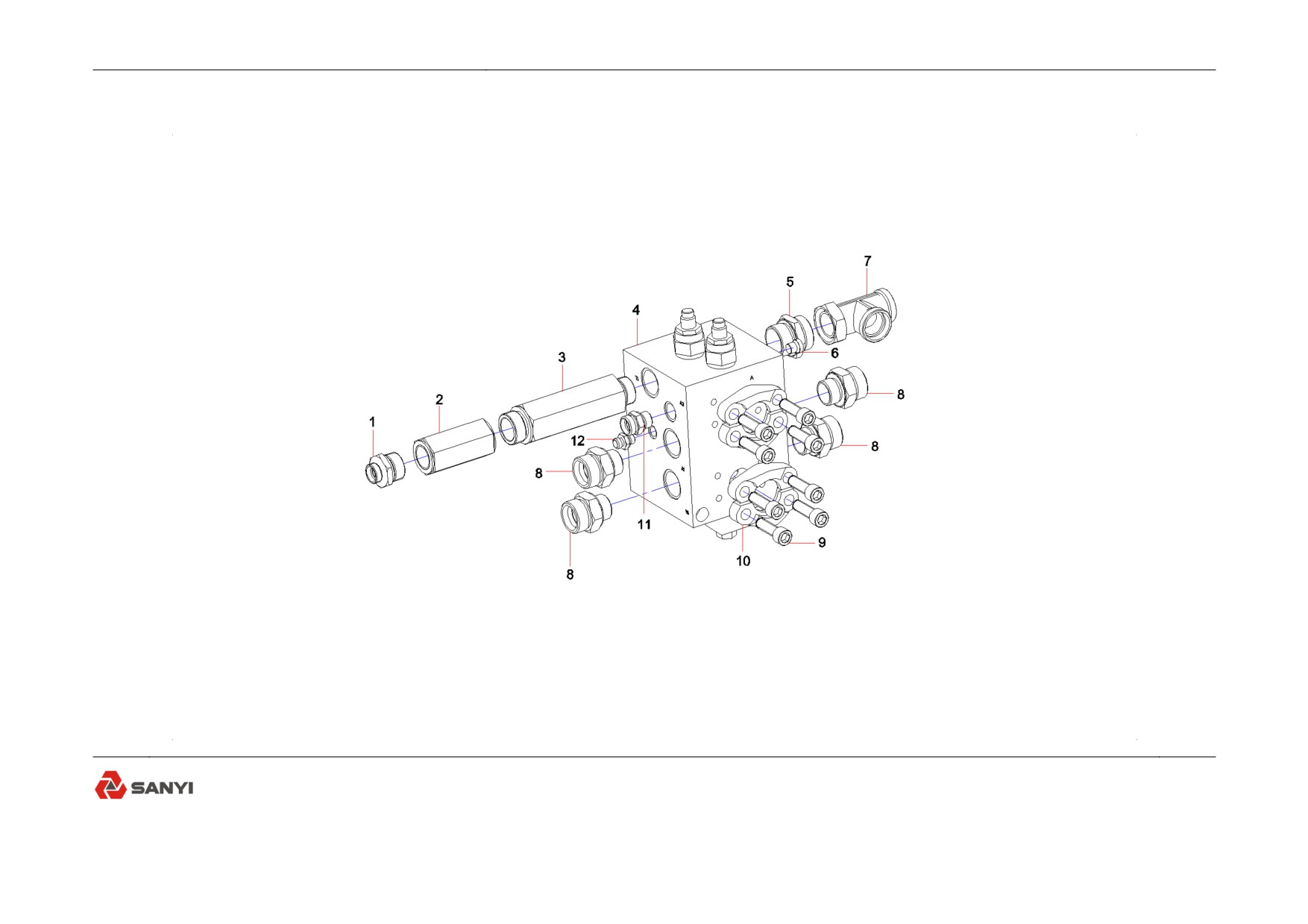

12954500 Balanced valve group group
30-12
Balanced valve group group
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
12871948
Transitional adaptor
1
2
21020347
Check Valve
1
3
12871947
Transitional adaptor
1
4
60000962
Balance valve block unit
1
5
B210780001181
Connector, pipe
1
6
21001441
Plug
1
7
B230780000058
Connector, pipe
1
8
24001376
Pipe connector
4
9
A210204000454
Screw
8
10
A229900005120
Flange, split
4
11
21002824
Pipe connector
1
12
B210770000003
Connector, pressure measuring
1
12954500 Balanced valve group group
30-13
Balance valve block unit
SRT95C Off-highway truck
PARTS BOOK

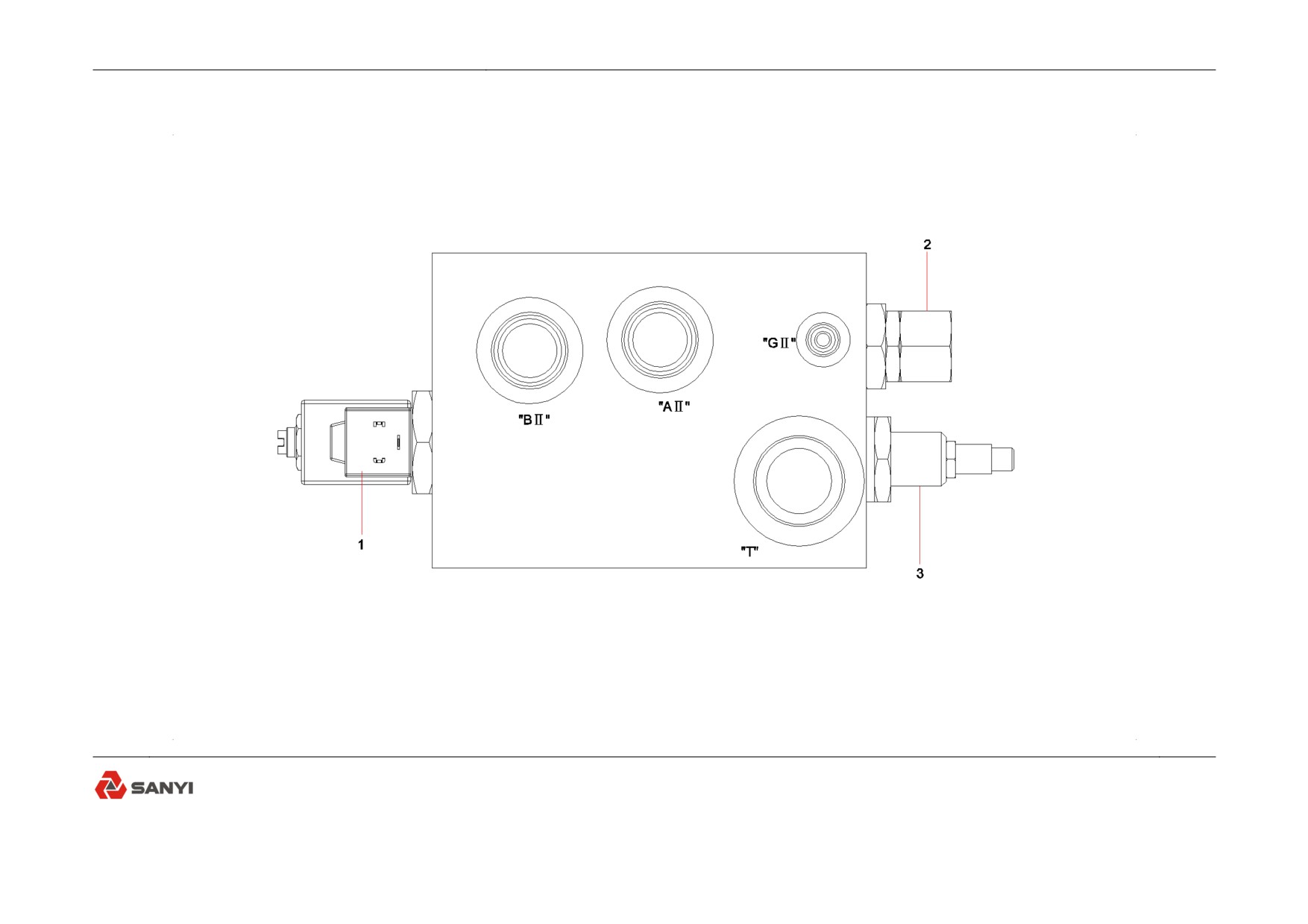

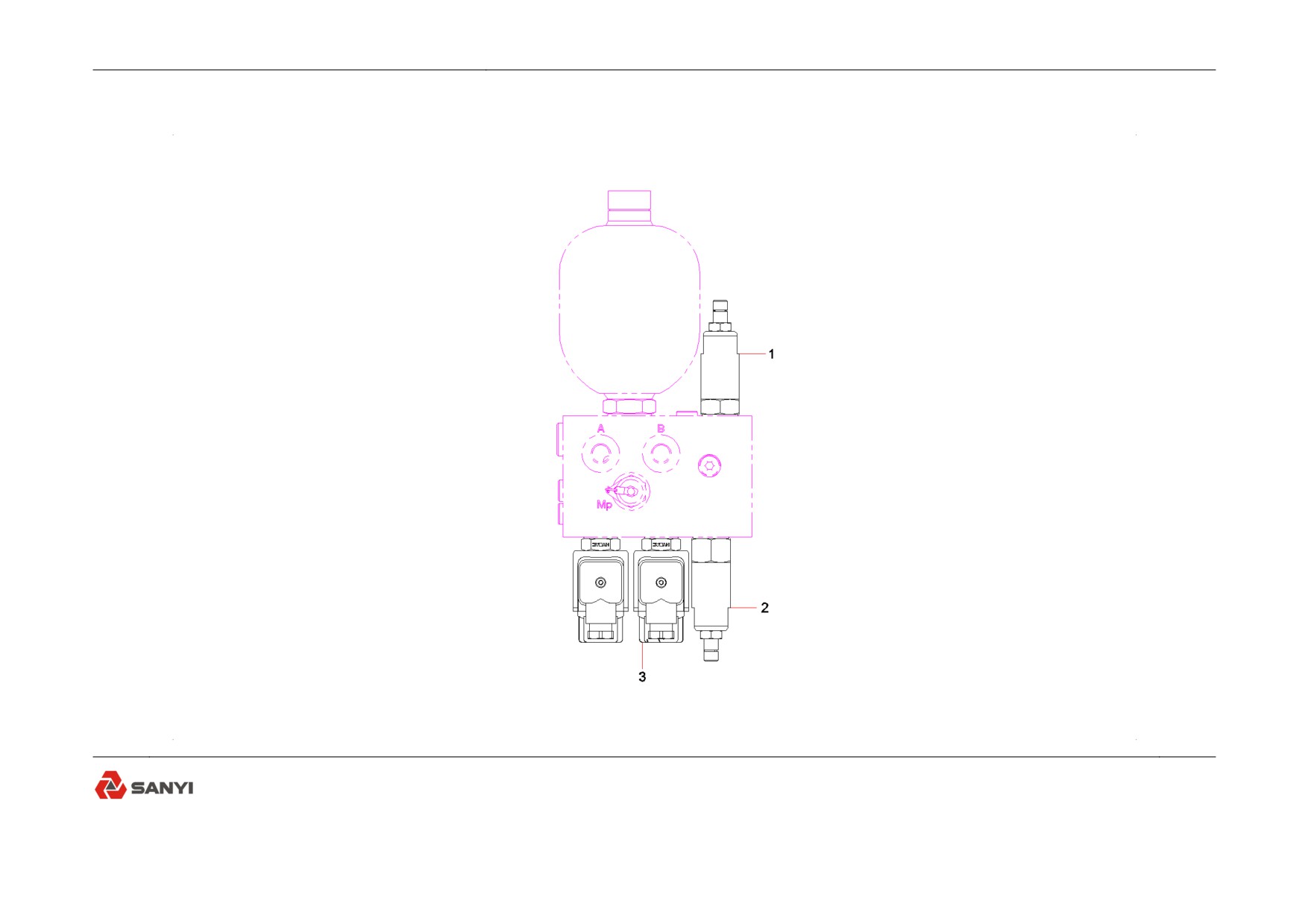

60000962 Balance valve block unit
30-14
Balance valve block unit
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
60072694
Balance valve
1
2
60072699
Valve,overflow
1
3
60072702
Valve,reversal,electromagnetic
1
60000962 Balance valve block unit
30-15
Lifting valve group
SRT95C Off-highway truck
PARTS BOOK

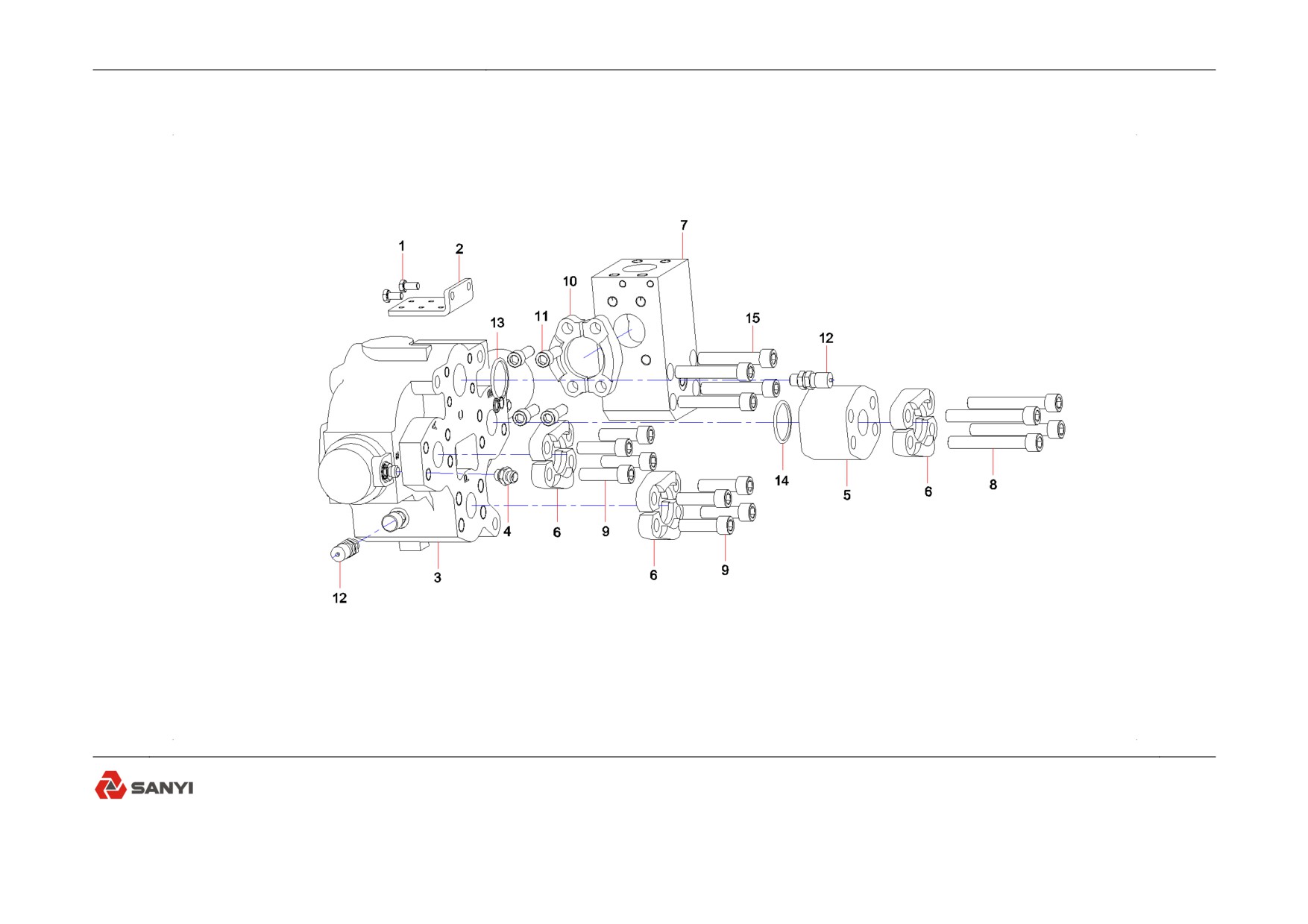

12954498 Lifting valve group
30-16
Lifting valve group
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
A210111000342
Bolt M8×16GB5783 10.9 grade
2
2
12027718
Mounting rack
1
3
60009299
Directional Valve With Hydraulic Actuation
1
4
21002815
Pipe connector
2
5
11641472
Block
1
6
A229900005120
Flange, split
6
7
12021600
Block
1
8
A210204000448
Screw
4
9
A210204000353
Screw
8
10
A229900002509
Flange, split
2
11
A210204000206
Screw
4
12
B210770000003
Connector, pressure measuring
2
13
21007883
O-Ring
1
14
B230101002071
O-ring
1
15
A210204000360
Screw
4
12954498 Lifting valve group
30-17
Leading oil sources valve group assem
SRT95C Off-highway truck
PARTS BOOK

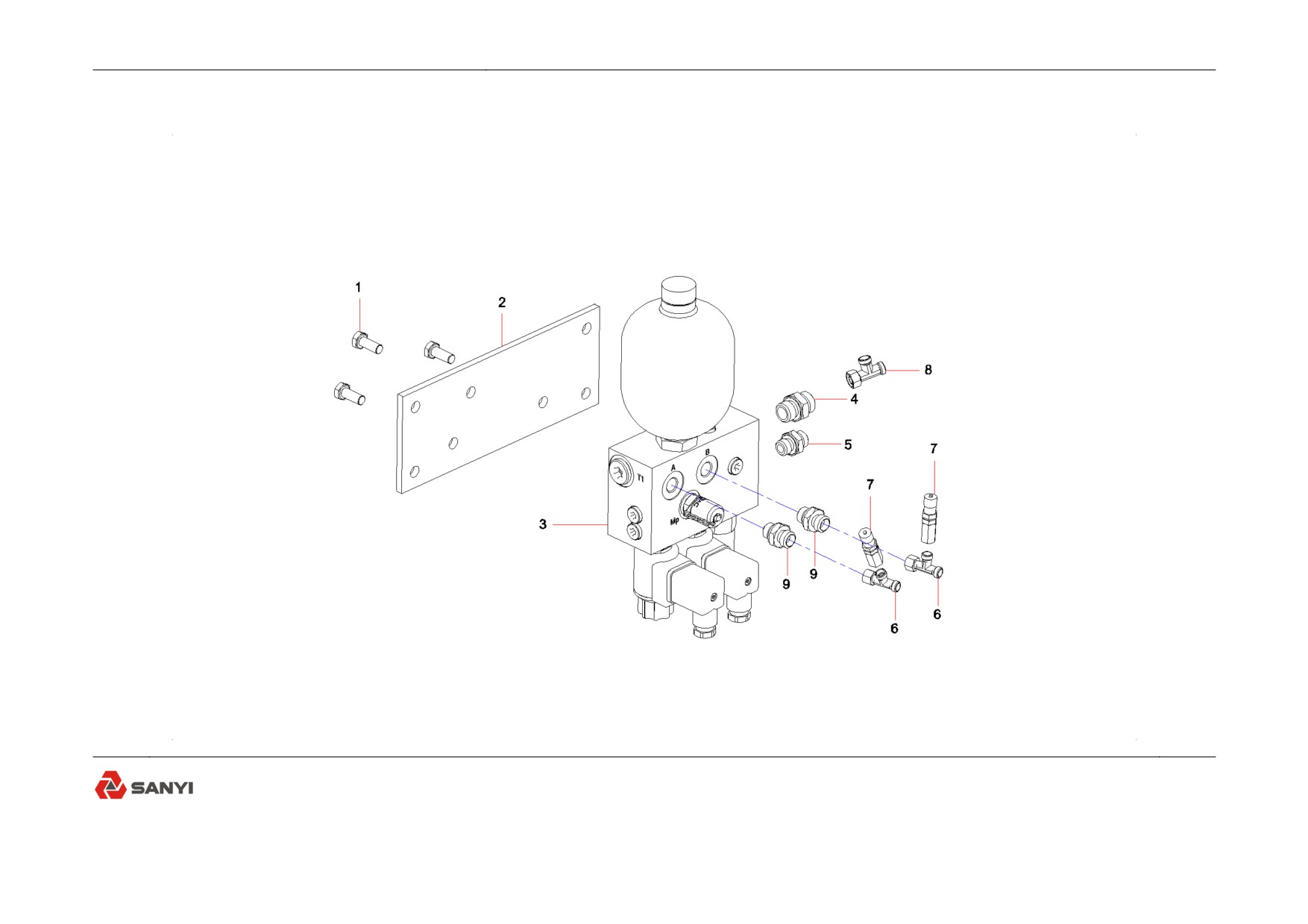

12954497 Leading oil sources valve group assem
30-18
Leading oil sources valve group assem
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
A210111000343
Bolt
3
2
12954496
Fixed plate
1
3
60009300
Pilot valve
1
4
21002820
Pipe connector
1
5
A210770000616
Pipe connector
1
6
B210780000170
Pipe connector
2
7
B210770000002
Pressure-measuring Connector
2
8
B210780000016
Connector, pipe
1
9
21002815
Pipe connector
2
12954497 Leading oil sources valve group assem
30-19
Pilot valve
SRT95C Off-highway truck
PARTS BOOK
60009300 Pilot valve
30-20
Pilot valve
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
60208507
Relief valve
1
2
60208508
Reduce valve
1
3
60208509
Porprotional reduce valve
2
60009300 Pilot valve
30-21
Lifting pump assembly
SRT95C Off-highway truck
PARTS BOOK

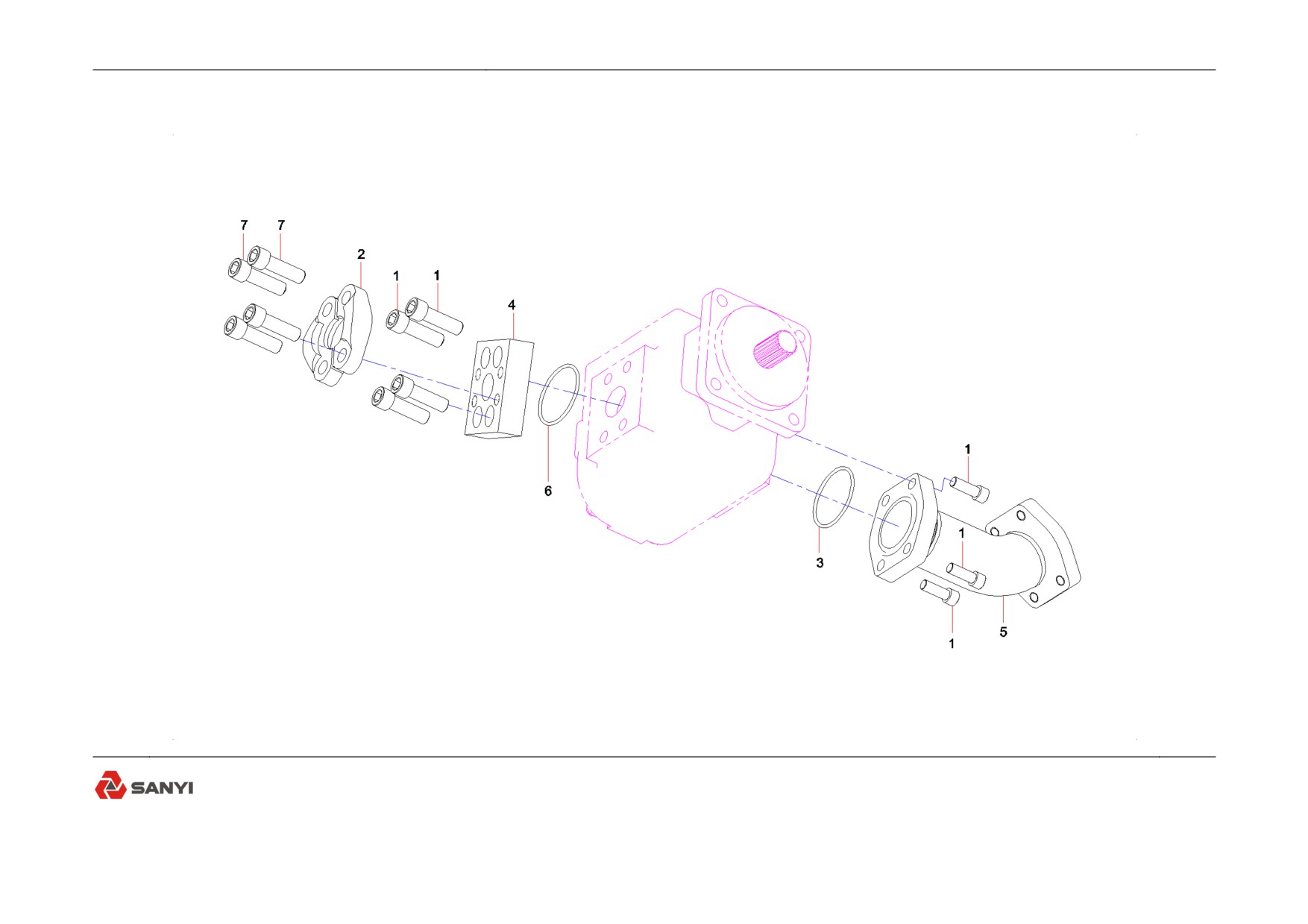

12954514 Lifting pump assembly
30-22
Lifting pump assembly
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
A210204000206
Screw
8
2
A229900005120
Flange, split
2
3
B230101002072
O-ring
1
4
11860746
Flange
1
5
12954512
Steel pipe assy.
1
6
21007883
O-Ring
1
7
A210204000454
Screw
4
12954514 Lifting pump assembly
30-23
Hoisting cylinder
SRT95C Off-highway truck
PARTS BOOK

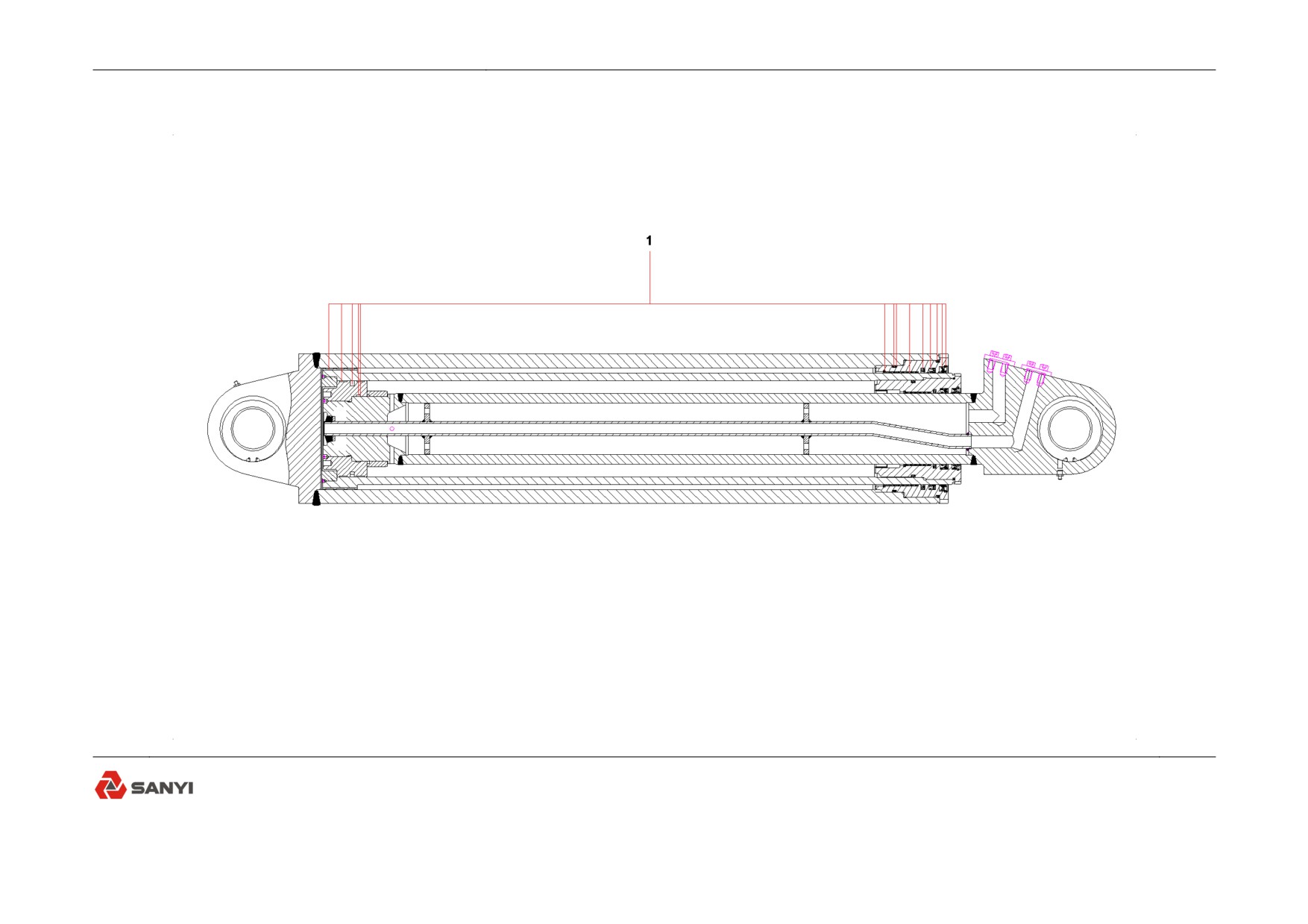

60212670 Hoisting cylinder
30-24
Hoisting cylinder
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
60232234
Repair kit of 95C hoisting cylinder
1
60212670 Hoisting cylinder
30-25
PARTS BOOK
30-26
PARTS BOOK
Group 31
Cooling pipeline for discs braking SRT95
31-1
Cooling pipeline for discs braking SRT95
SRT95C Off-highway truck
PARTS BOOK

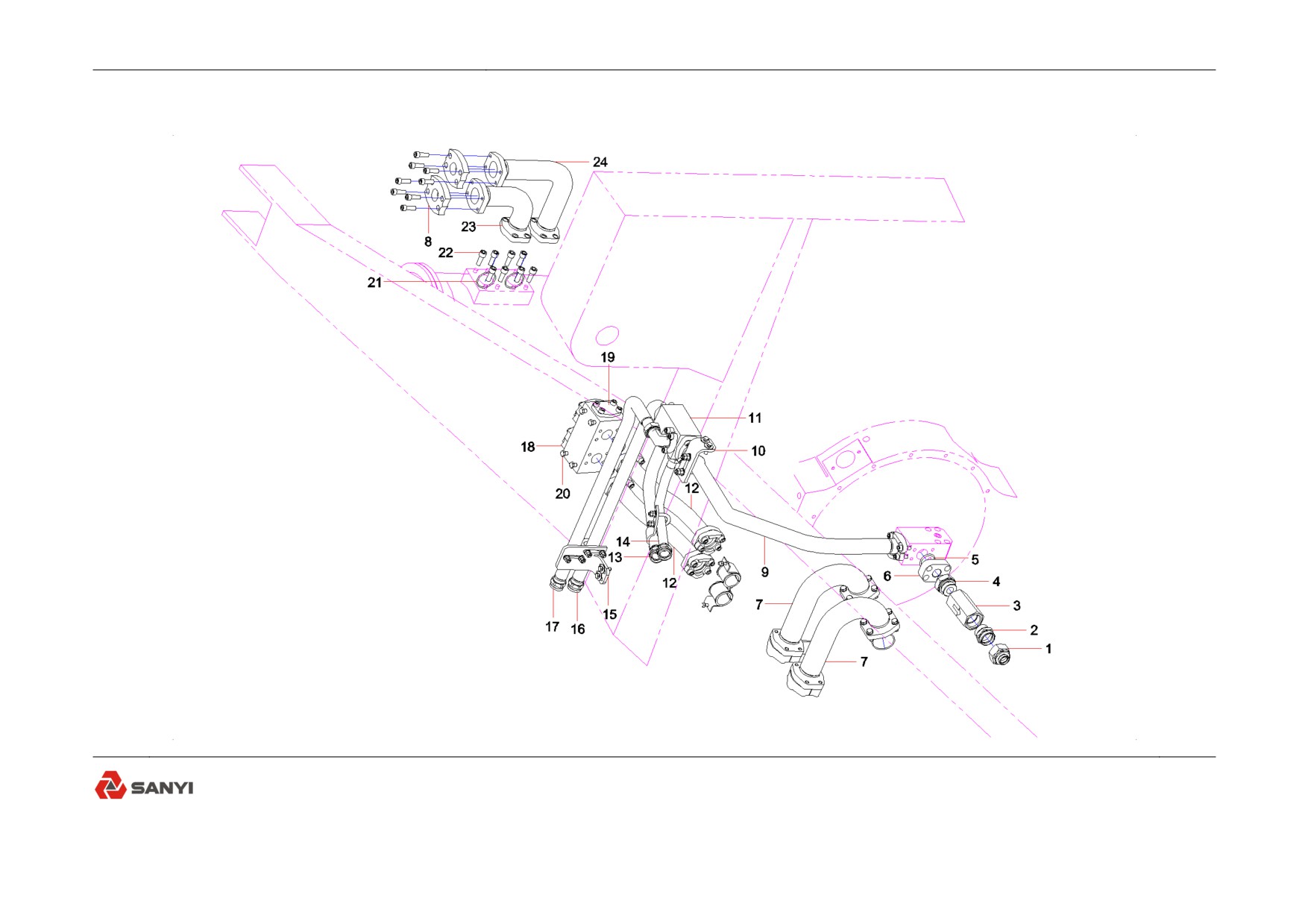

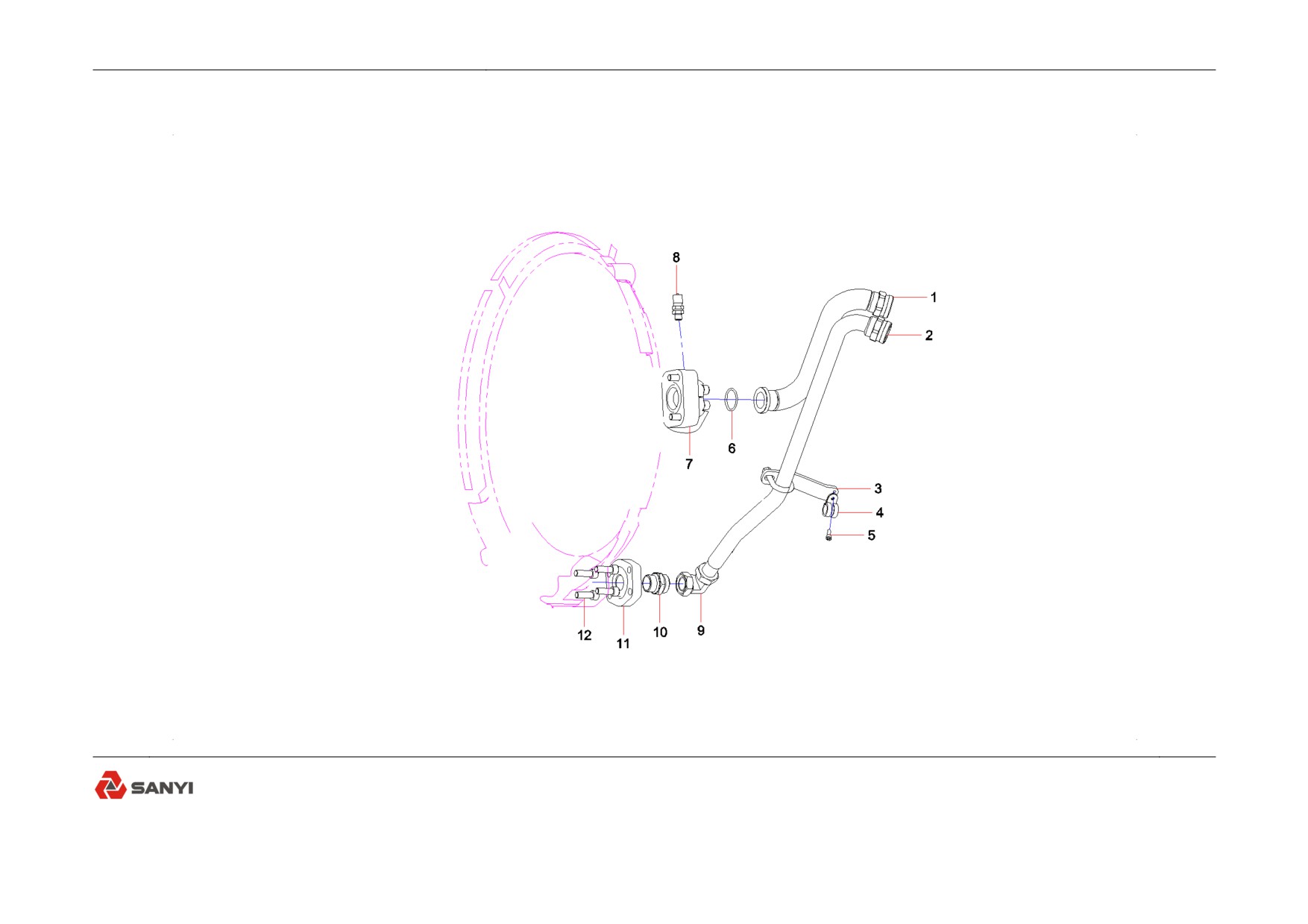

13428981 Cooling pipeline for discs braking SRT95 (1/9)
31-2
Cooling pipeline for discs braking SRT95
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
13427675
Steel pipe assembly SRT95C.613A.2
1
2
13427710
Steel pipe assembly SRT95C.613A.3
1
3
13427393
plate SRT95C.613A-12
1
4
A229900006640
Clamp
2
5
A210204000131
Screw
2
6
B230101000647
O-Ring
6
7
13427390
Flange SRT95C.613A-1
3
8
21000745
Testing connector
5
9
A229900004138
Pipe connector
1
10
21002828
Pipe connector
2
11
13299566
Flange SRT95C.613-6
1
12
A210204000225
Screw
160
13428981 Cooling pipeline for discs braking SRT95 (1/9)
31-3
Cooling pipeline for discs braking SRT95
SRT95C Off-highway truck
PARTS BOOK
13428981 Cooling pipeline for discs braking SRT95 (2/9)
31-4
Cooling pipeline for discs braking SRT95
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
21015735
Fitting, pipe
1
2
A210770000665
Pipe connector
1
3
21022084
Valve, one-way
1
4
13299551
Connector SRT95C.613-16
1
5
13427396
Flange SRT95C.613A-15
1
6
21007883
O-Ring
7
7
13066764
Steel tube assembly
2
8
B210780000741
Flange, split
41
9
13427605
Steel pipe assembly SRT95C.613A.1
1
10
13427401
Fixed seat SRT95C.613A-6
1
11
13427400
Block SRT95C.613A-5
1
12
12025552
Steel tube assembly
2
13
13427687
Steel pipe assembly SRT95C.613A.6
1
14
13427706
Steel pipe assembly SRT95C.613A.9
1
15
13427403
Plate SRT95C.613A-8
1
16
13427610
Steel pipe assembly SRT95C.613A.12
1
17
13427612
Steel pipe assembly SRT95C.613A.13
1
18
12025568
Confluent block unit
1
19
13299439
Flange SRT95C.613-11
1
20
A210111000331
Bolt
4
21
A230101000628
O-ring 56.74×3.53AS568-228
4
22
60011100
American-standard bolt
16
13428981 Cooling pipeline for discs braking SRT95 (2/9)
31-5
Cooling pipeline for discs braking SRT95
SRT95C Off-highway truck
PARTS BOOK
13428981 Cooling pipeline for discs braking SRT95 (3/9)
31-6
Cooling pipeline for discs braking SRT95
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
23
11654782
Steel tube assembly
1
24
11654784
Steel tube assembly
1
13428981 Cooling pipeline for discs braking SRT95 (3/9)
31-7
