SANY SRT95C Off-highway truck. Parts book (Equipment No.14RT95100040) - page 7

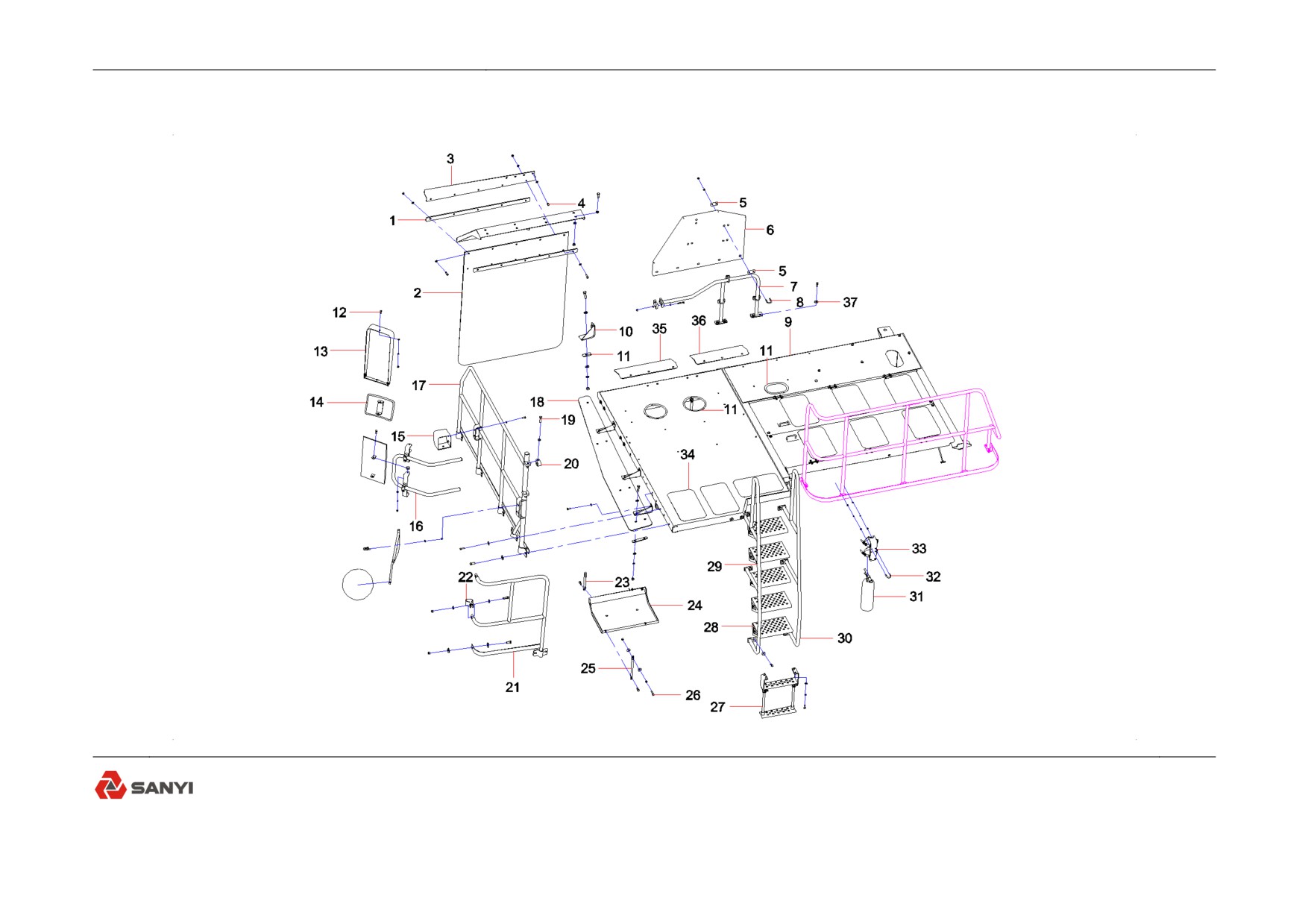

Fender and platform mounting
SRT95C Off-highway truck
PARTS BOOK

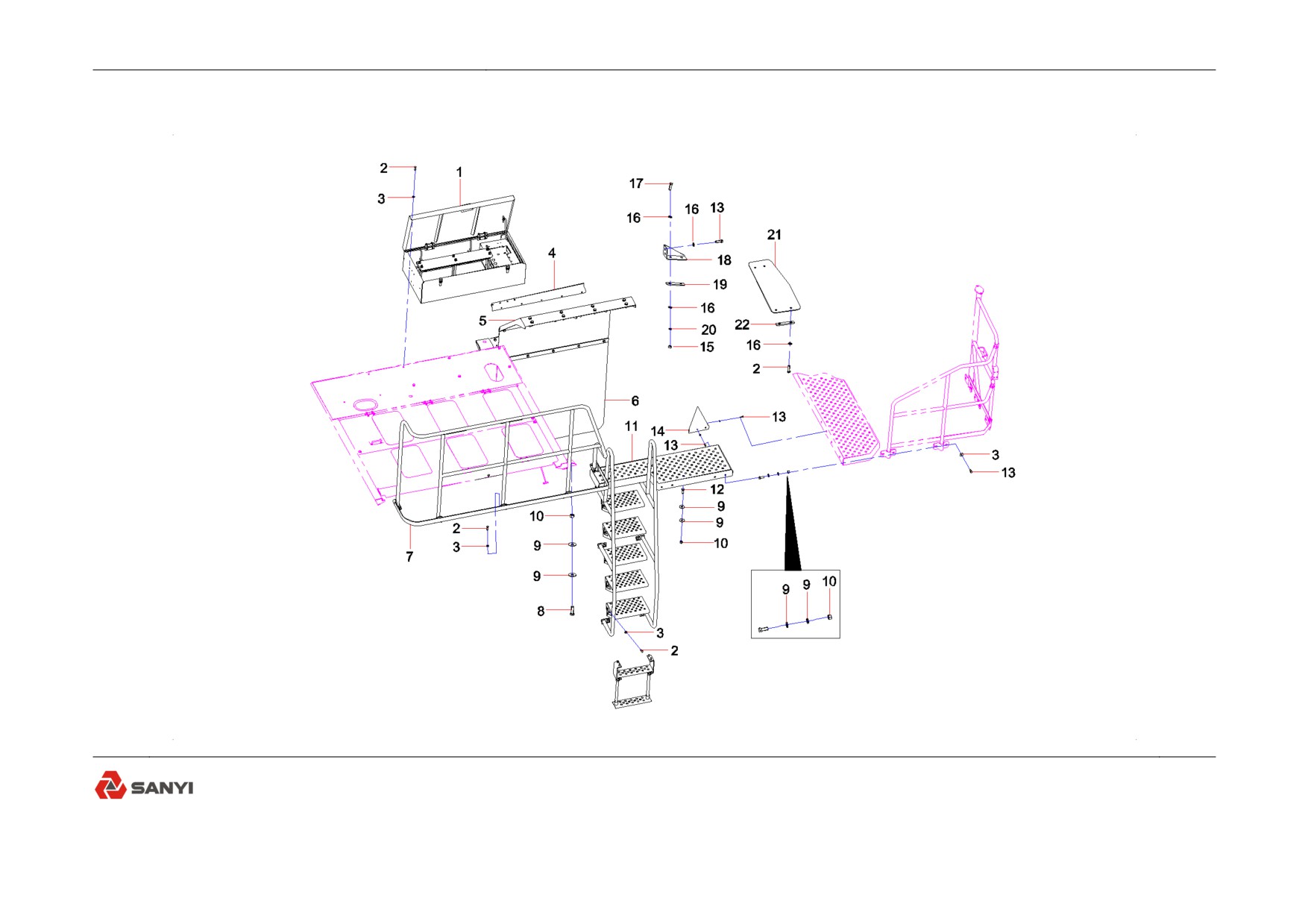

12950946 Fender and platform mounting (1/5)
20-2
Fender and platform mounting
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
12361876
Battery box assembly
1
2
A210111000203
Bolt
52
3
60060548
Washer 12GB96.1
75
4
12950118
Fixed seat
1
5
12949157
Mudguard assembly
2
6
12950125
Mudguard
1
7
12949383
Front guardrail assembly
1
8
A210111000055
Bolt M16×60GB5783 Grade 10.9
8
9
60060553
Washer 16GB96.1
72
10
A210307000028
Nut
34
11
12948938
Front walking board assembly
1
12
A210111000106
Bolt
24
13
A210111000202
Bolt
89
14
12520118
Left-hand buffer Assembly
1
15
A210307000031
Nut
46
16
24000639
Washer 12GB97.1
143
17
A210111000204
Bolt
33
18
13083158
Installation seat
4
19
13083152
Pressure plate
4
20
24000513
Washer 12GB93 DACROMET
9
21
13083150
Left mudguard
1
22
12950117
Plate
1
12950946 Fender and platform mounting (1/5)
20-3
Fender and platform mounting
SRT95C Off-highway truck
PARTS BOOK

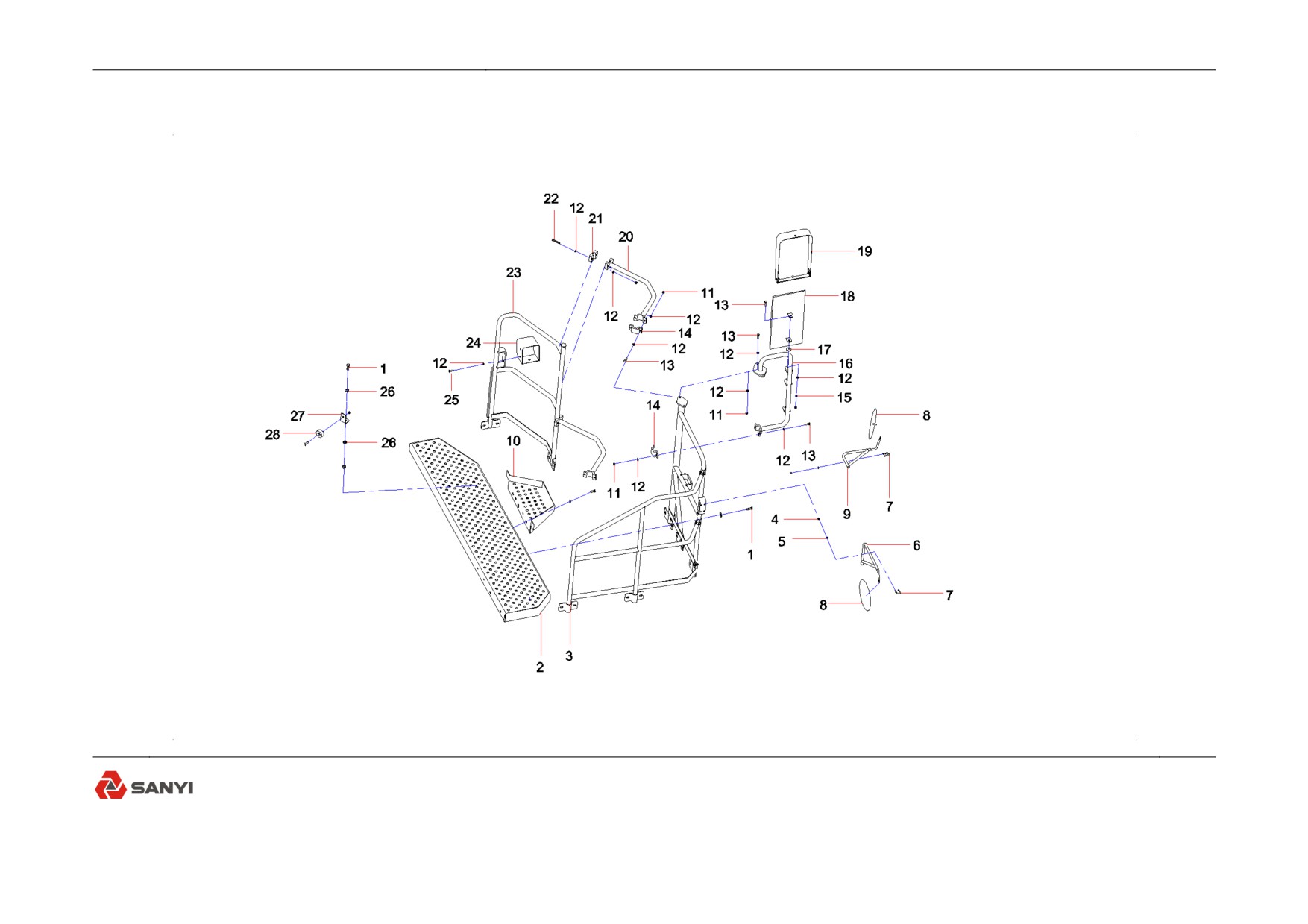

12950946 Fender and platform mounting (2/5)
20-4
Fender and platform mounting
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
A210111000053
Bolt M16×40GB5783 Grade 10.9
6
2
12948811
Left walking board assembly
1
3
13082028
Left guardrail assembly
1
4
A210307000055
Nut M8GB6170 Grade 10
18
5
24000633
Washer
16
6
12969722
Support assembly
1
7
11805420
U-clip
6
8
60216402
Dowm tail Mirror
3
9
12969728
Support assembly
2
10
12969701
Left additive walkway assembly
1
11
A210307000036
Nut
30
12
24000637
Washer
48
13
A210111000026
Bolt
14
14
11403681
Installation seat
3
15
24000512
Washer 10GB93
8
16
12949476
Left rear view mirror rack
1
17
11630953
Shock pad
6
18
60050650
Rearview mirror
2
19
12712414
Rearview mirror cover
1
20
12949251
Pull rod
2
21
11402703
Installation seat
3
22
A210111000294
Bolt
6
12950946 Fender and platform mounting (2/5)
20-5
Fender and platform mounting
SRT95C Off-highway truck
PARTS BOOK
12950946 Fender and platform mounting (3/5)
20-6
Fender and platform mounting
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
23
12948996
Left-hand rear guard rail assembly
1
24
12712020
Left lamp cover
1
25
A210111000024
Bolt
4
26
24000642
washer
2
27
12950124
Limit plate
1
28
11180307
Rubber pad
1
12950946 Fender and platform mounting (3/5)
20-7
Fender and platform mounting
SRT95C Off-highway truck
PARTS BOOK
12950946 Fender and platform mounting (4/5)
20-8
Fender and platform mounting
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
12950126
Plate
4
2
12950111
Mudguard
1
3
12950119
Fixed seat
1
4
A210111000199
Bolt M12×20GB5783 Grade 10.9
8
5
12950121
Cushion
8
6
12950120
Plate
1
7
12948374
Back guardrail assembly
1
8
12950123
U-bolt
4
9
12950098
Platform assembly
1
10
13083161
Installation seat
1
11
13083155
Pressure plate
1
12
A210111000197
Bolt
2
13
12948310
Mirror cover
1
14
60141948
Rearview mirror
1
15
12712022
RH lamp cover
1
16
12948465
Right rear view mirror rack
1
17
13082721
Right handrail assembly
1
18
13083151
Dashboard
1
19
A210110000281
Bolt
2
20
12950122
Mounting band
2
21
13082726
Right handrail assemblySRT95C.290.27
1
22
12969762
Connection sleeve
2
12950946 Fender and platform mounting (4/5)
20-9
Fender and platform mounting
SRT95C Off-highway truck
PARTS BOOK
12950946 Fender and platform mounting (5/5)
20-10
Fender and platform mounting
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
23
12950112
Tie rod
2
24
12948170
Air intake tube guard
1
25
12950113
Tie rods
2
26
A210111000118
Bolt M12×55GB5783 Grade 10.9
2
27
11628499
Step
2
28
12949187
Ladder assembly
10
29
12262166
Handrail assembly
2
30
12262168
Handrail assembly
2
31
A559900000099
Fire extinguisher,powder,BC
1
32
11529937
U-bolt
2
33
11891847
Fire extinguisher bracket
1
34
11953373
Antiskid paste
9
35
13083153
Baffle
1
36
13083154
Baffle
1
37
12951346
Washer
4
12950946 Fender and platform mounting (5/5)
20-11

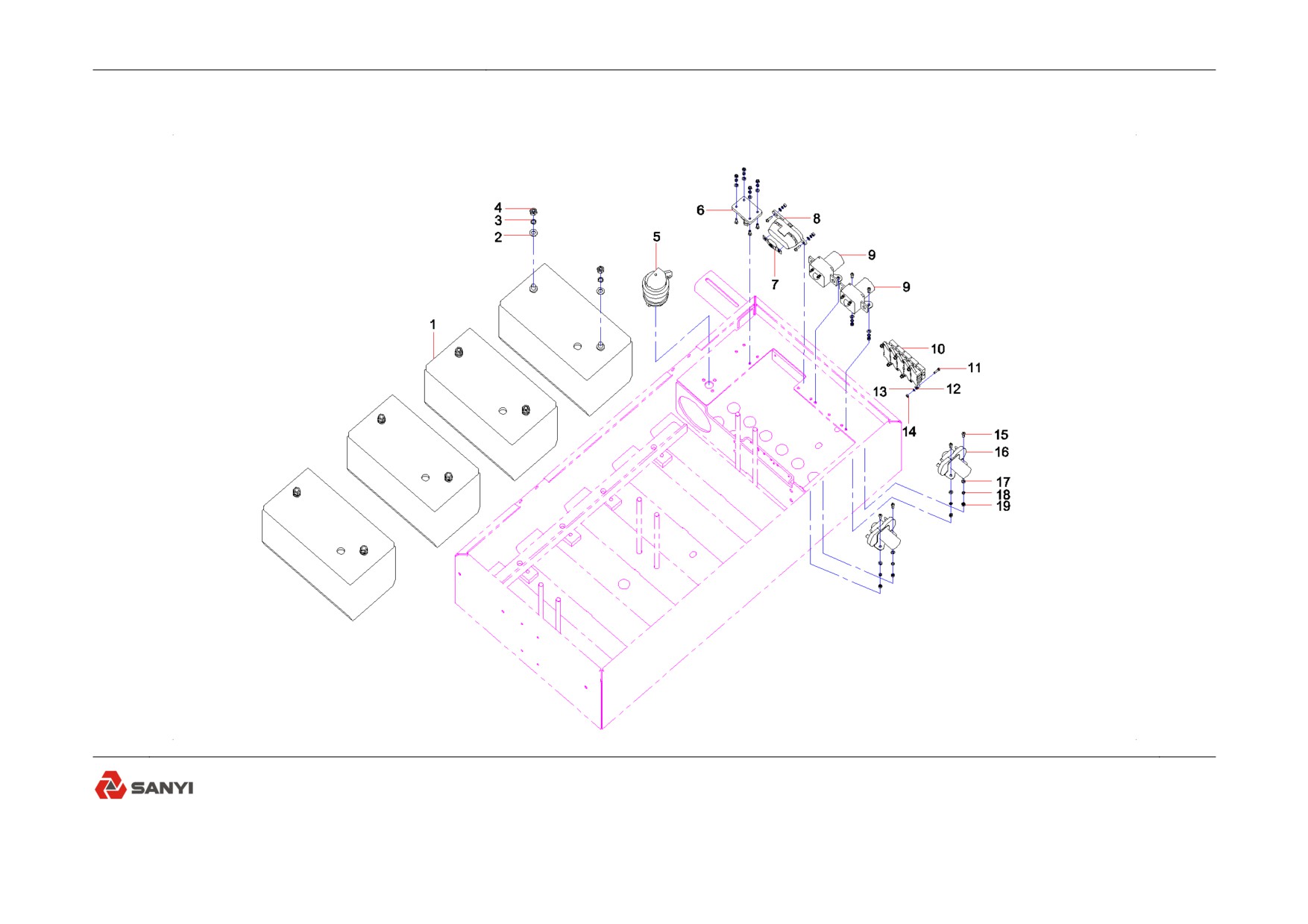

Battery box assembly
SRT95C Off-highway truck
PARTS BOOK

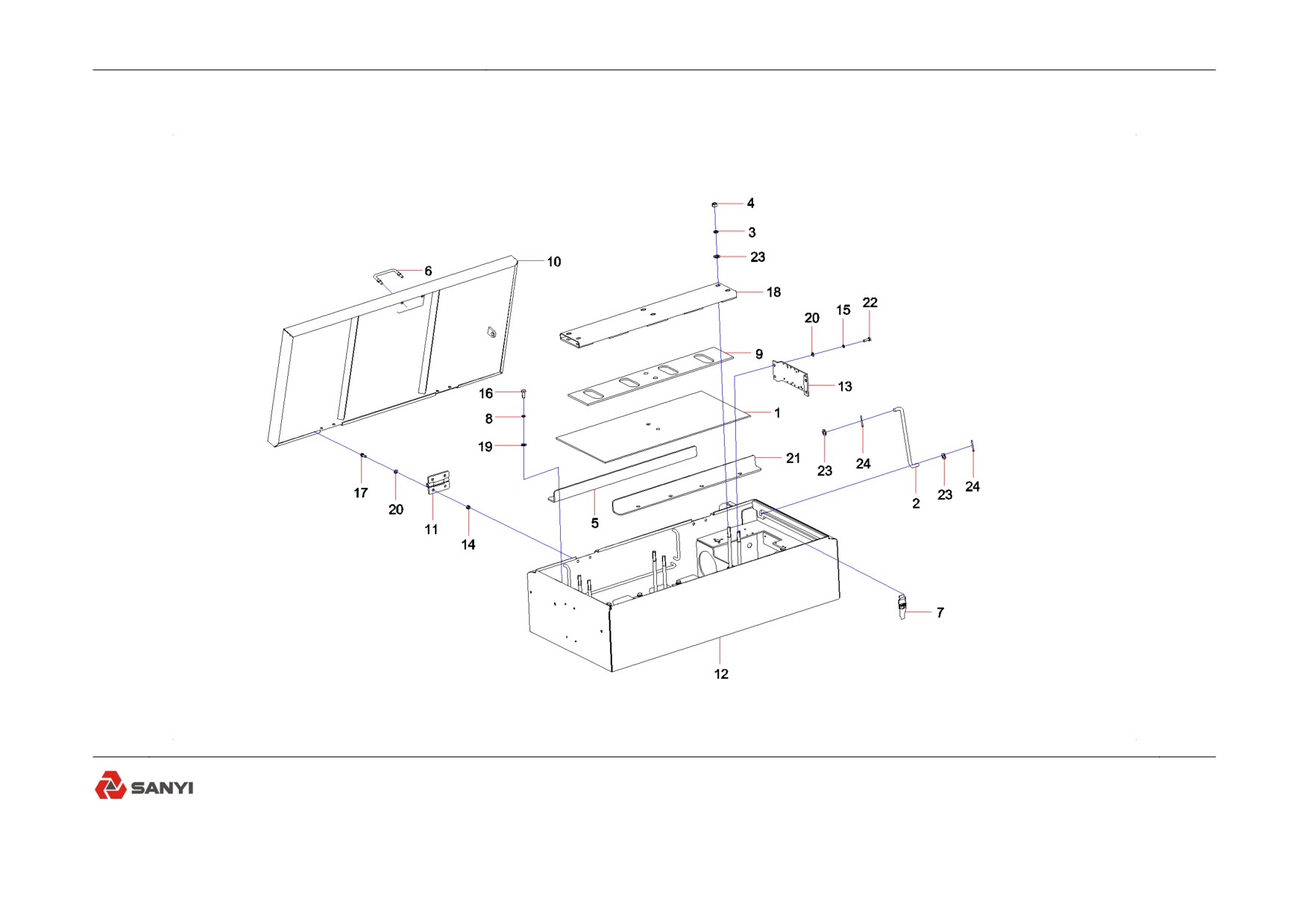

12361876 Battery box assembly (1/2)
20-12
Battery box assembly
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
12361875
Rubber backup plate of battery
1
2
12925038
Bar, supporting
1
3
A210401000002
Washer
6
4
A210307000001
Nut
6
5
12684045
Baffle
1
6
60016013
Handle
1
7
60111951
Buckle,heavy duty
2
8
A210401000001
Washer
8
9
12361874
Rubber backup plate of battery
1
10
12361886
Tank cover
1
11
11696499
Hinge
2
12
12361884
Battery body assy.
1
13
12925039
Mounting seat
1
14
A210307000012
Nut
8
15
A210401000017
Washer
4
16
A210111000197
Bolt
8
17
A210111000343
Bolt
8
18
12361890
Plate assemble
1
19
A210405000011
Washer
8
20
24000633
Washer
12
21
12684048
Baffle
1
22
A210111000323
Bolt
4
12361876 Battery box assembly (1/2)
20-13
Battery box assembly
SRT95C Off-highway truck
PARTS BOOK
12361876 Battery box assembly (2/2)
20-14
Battery box assembly
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
23
A210405000001
Washer
8
24
A210491000016
Pin
2
12361876 Battery box assembly (2/2)
20-15

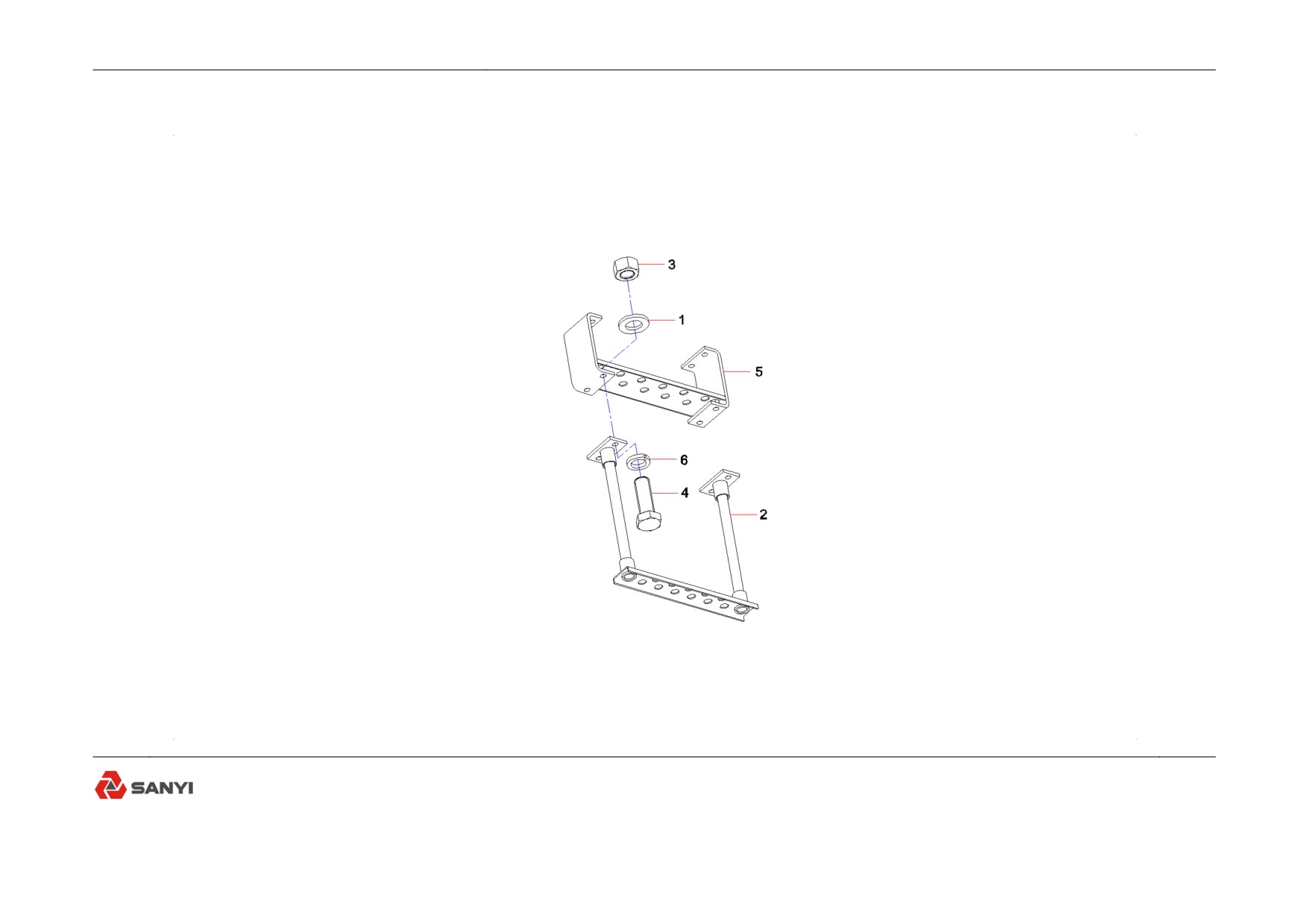

Step
SRT95C Off-highway truck
PARTS BOOK
11628499 Step
20-16
Step
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
A210405000001
Washer
4
2
11628506
Underlayer step
1
3
A210307000001
Nut
4
4
24000300
Bolt
4
5
11628502
Upper step
1
6
A210401000002
Washer
4
11628499 Step
20-17
PARTS BOOK
Group 21

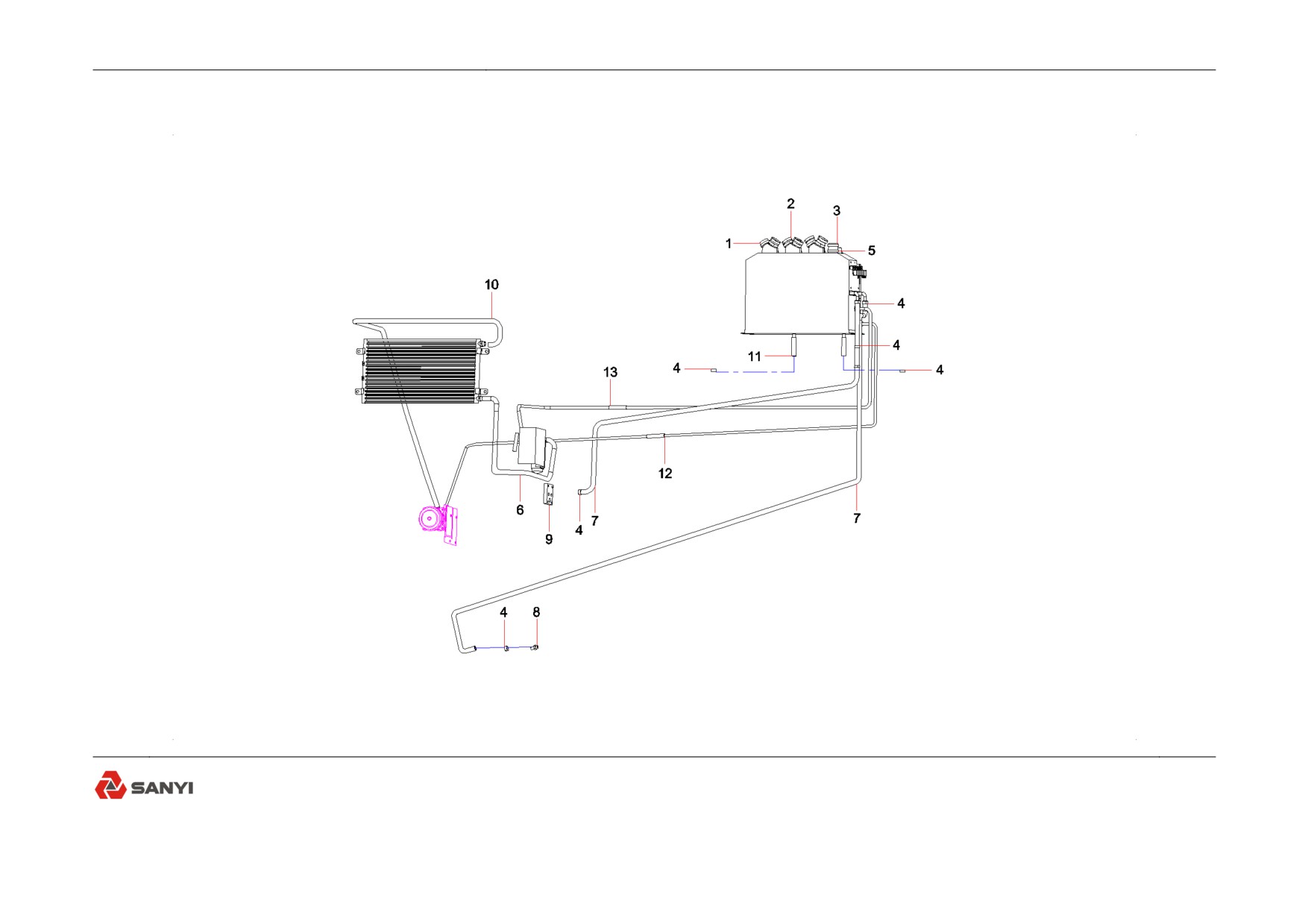

Air-conditioner pipeline installation
21-1
Air-conditioner pipeline installation
SRT95C Off-highway truck
PARTS BOOK
12952088 Air-conditioner pipeline installation
21-2
Air-conditioner pipeline installation
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
A229900009098
Air pipe
2
2
A229900007800
Air pipe
4
3
21022629
Air pipe
1
4
12119862
Thimble
6
5
12119859
Thimble
14
6
60084134
Cold-reserving rubber hose component
1
7
A230103001216
Hot water pipe
2
8
11613578
Connector
1
9
11613579
Connector
1
10
60084136
Pressure-cooling rubber hose component
1
11
A229900009099
Water diversion hose
2
12
60084138
Steam-pressure host component
1
13
60084140
Reserving-steaming hose component
1
12952088 Air-conditioner pipeline installation
21-3
PARTS BOOK
Group 22

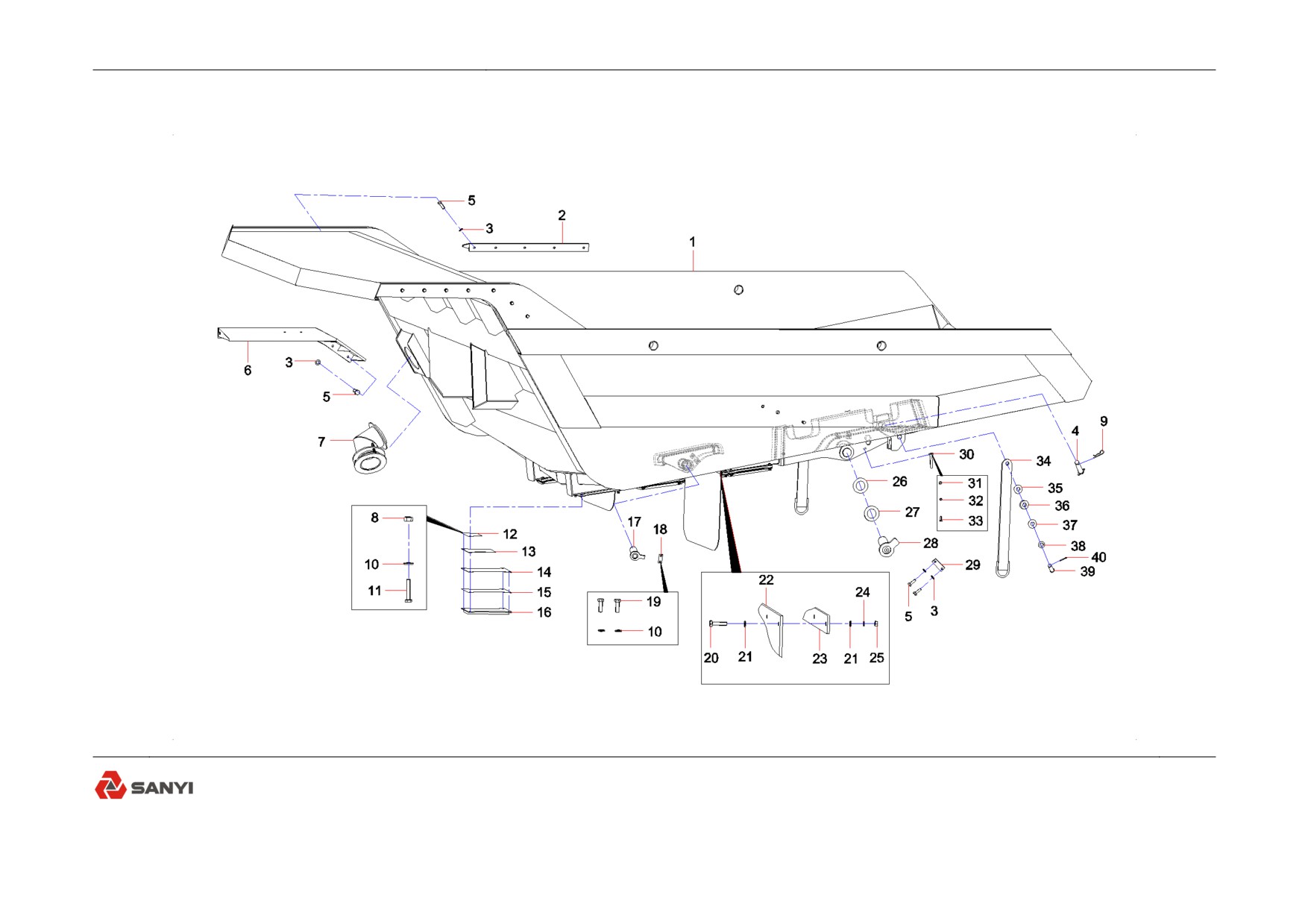

Body and mounting
22-1
Body and mounting
SRT95C Off-highway truck
PARTS BOOK
12953150 Body and mounting (1/2)
22-2
Body and mounting
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
12953081
Body
1
2
12953133
Right front guard
1
3
A210491000132
Washer
16
4
11949185
Safety pin
2
5
A210111000221
Bolt
16
6
12953112
Left front guard
1
7
12953151
Exhaust device
1
8
A210307000028
Nut
32
9
11037300
Cross pin
2
10
A210491000118
Washer
68
11
A210110000324
Bolt
32
12
12953145
Shim
8
13
12953147
Shim
8
16
12953090
Damping pad
8
17
12953126
Brace piece axial pin
2
18
11946741
Plate
2
19
A210111000053
Bolt M16×40GB5783 Grade 10.9
4
20
21005186
Bolt M10×40GB5783 Grade 10.9
12
21
24000637
Washer
12
22
12953140
Rubber splashboard
2
23
12953141
Plate
2
24
24000512
Washer 10GB93
12
12953150 Body and mounting (1/2)
22-3
Body and mounting
SRT95C Off-highway truck
PARTS BOOK
12953150 Body and mounting (2/2)
22-4
Body and mounting
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
25
A210307000036
Nut
12
26
12953144
Shim
4
27
12953146
Shim
24
28
12953139
Brace piece axial pin
2
29
12953143
Plate
2
30
12953142
Mounting plate
1
31
24000633
Washer
2
32
A210401000017
Washer
2
33
A210111000342
Bolt M8×16GB5783 10.9 grade
2
34
12953123
Bar
2
35
11037296
Shim
6
36
11037297
Shim
4
37
11037298
Shim
6
38
A210406000003
Washer 42(GB97.1)
2
39
A210491000027
Pin
2
40
11037304
Shaft
2
12953150 Body and mounting (2/2)
22-5
PARTS BOOK
Group 23
Radiator guard assembly
23-1
Radiator guard assembly
SRT95C Off-highway truck
PARTS BOOK

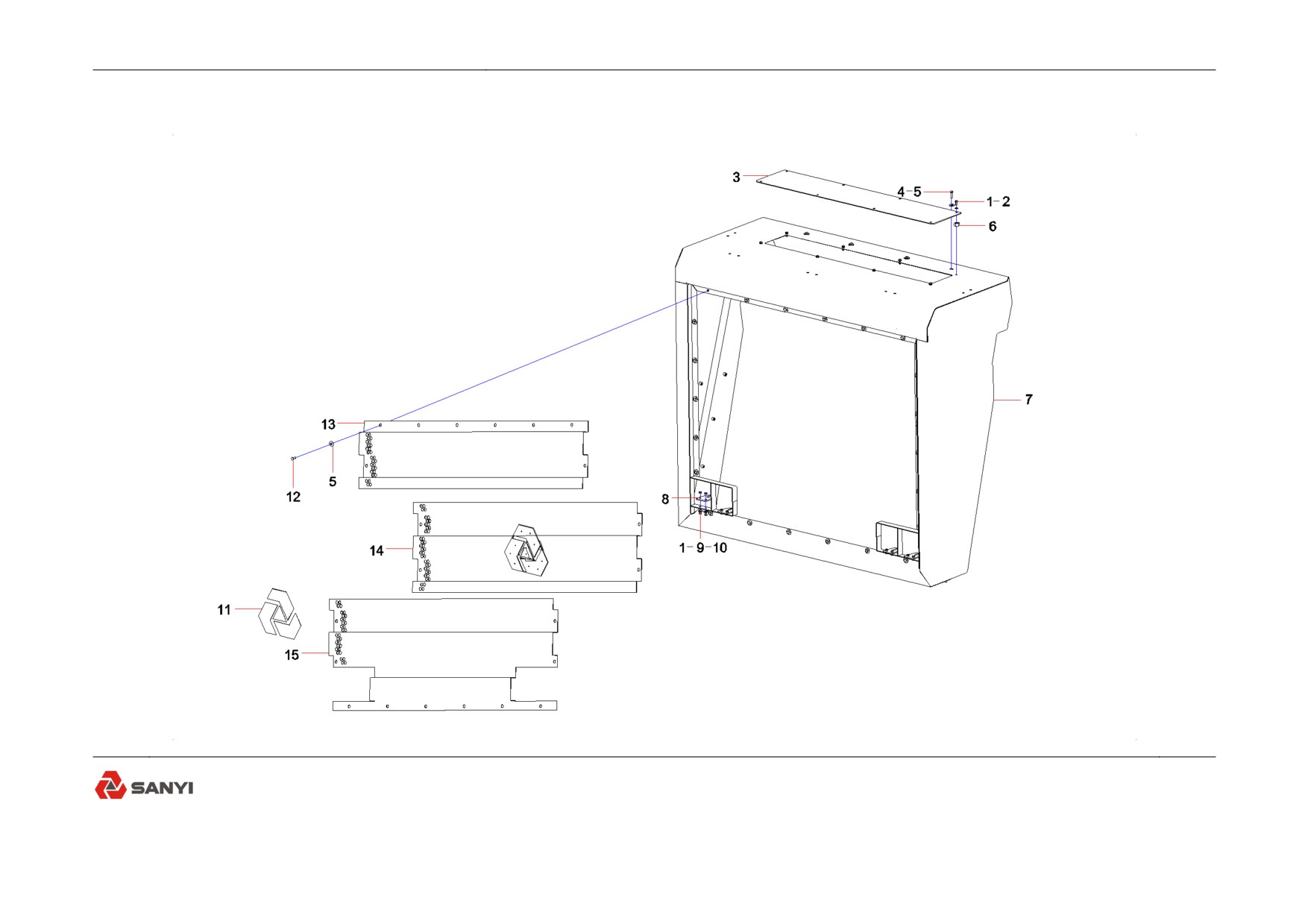

12950841 Radiator guard assembly
23-2
Radiator guard assembly
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
A210111000197
Bolt
16
2
24000637
Washer
8
3
12950840
Sealing plate
1
4
A210111000204
Bolt
4
5
60060548
Washer 12GB96.1
33
6
A210307000031
Nut
4
7
12950850
Hood frame
1
8
13068126
Web plate
4
9
A210307000036
Nut
8
10
60060546
Washer 10GB96.1
8
11
12336895
Company logosrt
1
12
A210111000101
Bolt
29
13
13248530
Radiating mesh SRT95C.360.6
1
14
13248524
Radiating mesh SRT95C.360.4
1
15
13248527
Radiating mesh SRT95C.360.5
1
12950841 Radiator guard assembly
23-3
PARTS BOOK
Group 24
Battery installation
24-1
Battery installation
SRT95C Off-highway truck
PARTS BOOK
12939118 Battery installation
24-2
Battery installation
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
A242200000057
Battery
4
2
24000637
Washer
8
3
24000512
Washer 10GB93
8
4
A210307000036
Nut
8
5
60125384
Push-Button Switch
1
6
60155462
Stud type connecting fitting
1
7
60219873
Fuse
1
8
60120965
Fuse-base
1
9
60190151
DC contactor
2
10
60147575
Fuse-base
1
11
A210210000023
Screw
6
12
A210405000004
Washer
6
13
A210401000013
Washer
6
14
A210307000014
Nut
6
15
A210210000002
Screw
12
16
60190150
DC contactor
2
17
A210405000005
Washer
12
18
A210401000015
Washer
12
19
A210307000015
Nut
12
12939118 Battery installation
24-3
Push-Button Switch
SRT95C Off-highway truck
PARTS BOOK

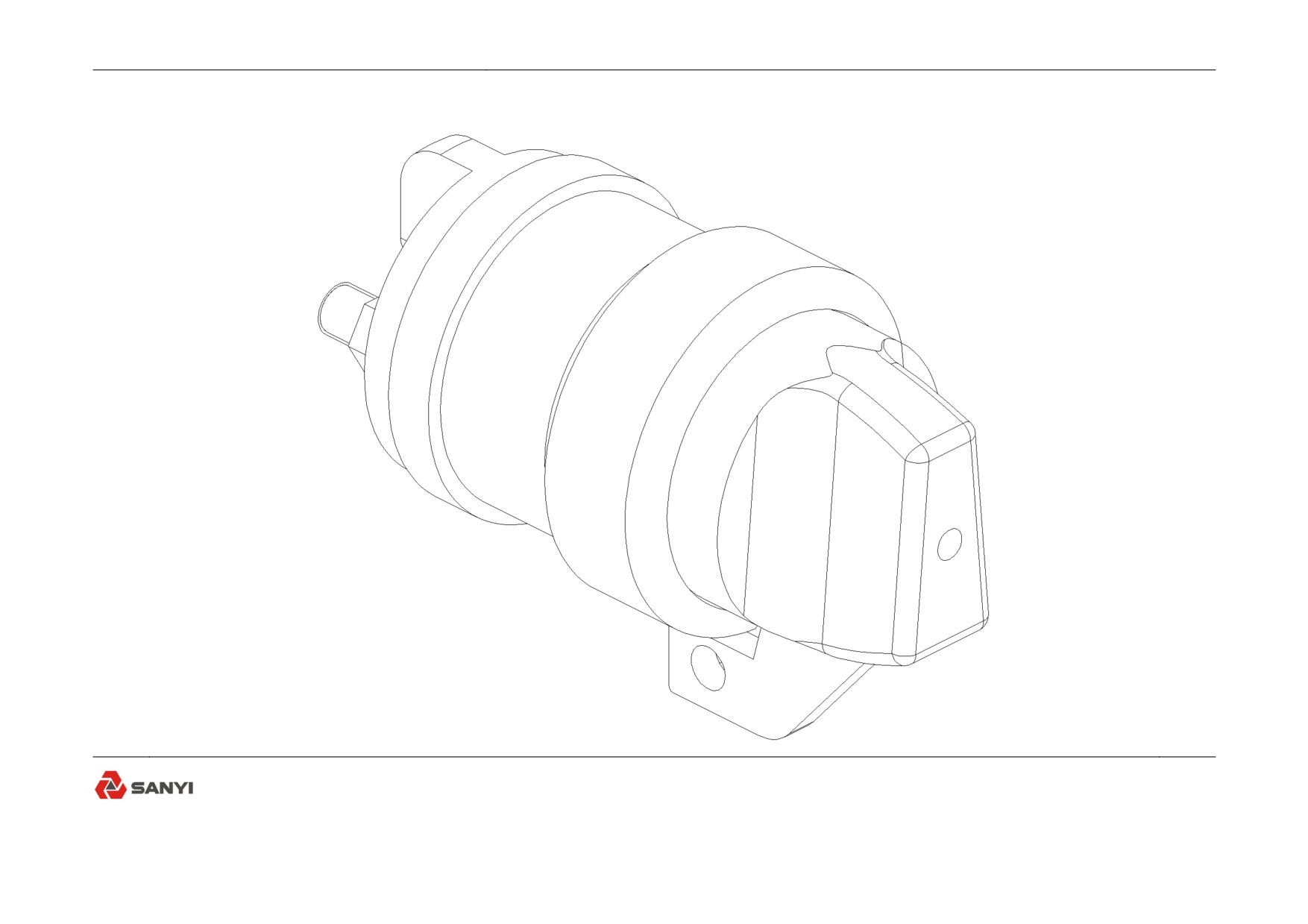

60125384 Push-Button Switch
24-4
PARTS BOOK
Group 25
Illuminating lamp installation
25-1
Illuminating lamp installation
SRT95C Off-highway truck
PARTS BOOK

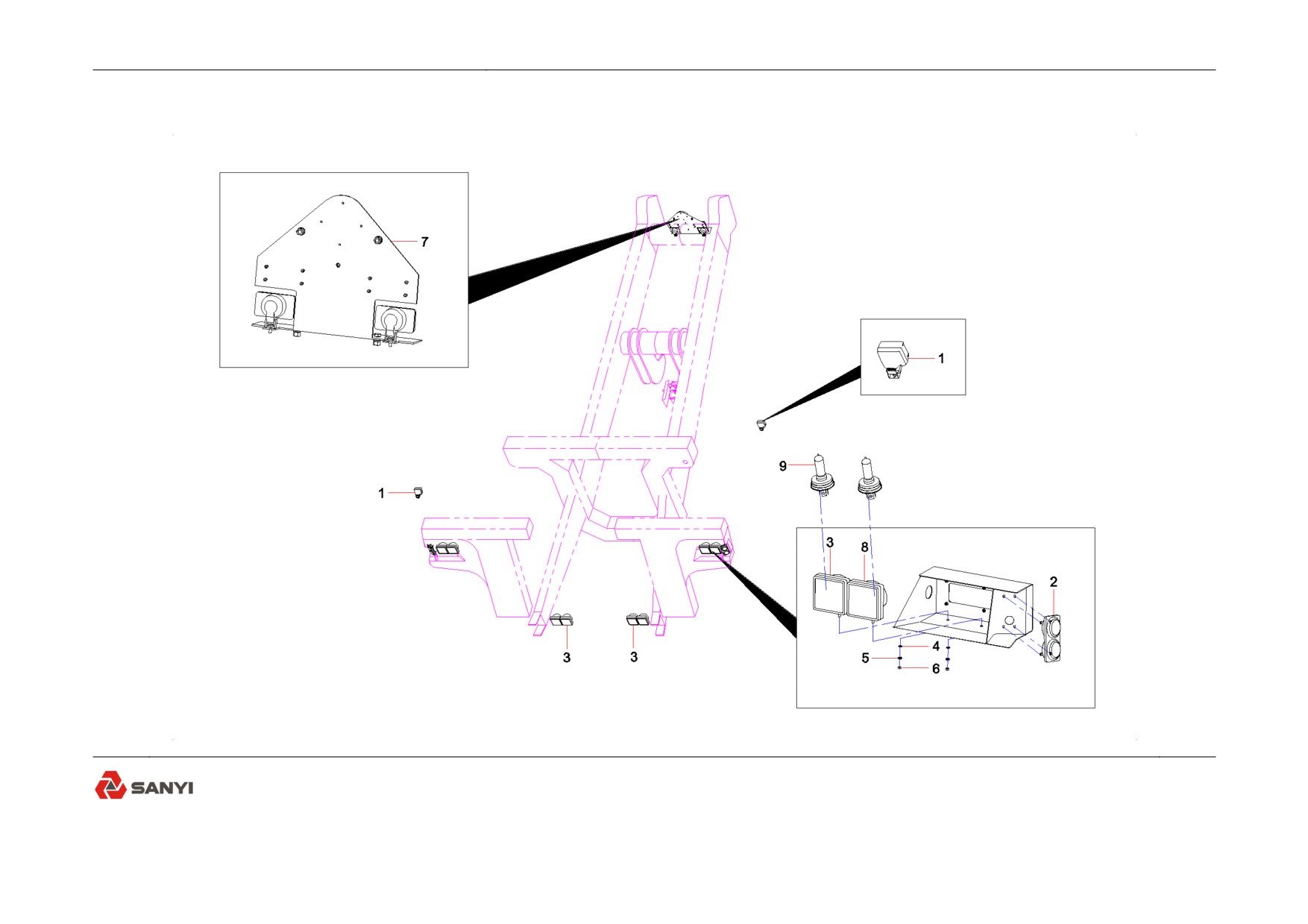

12931513 Illuminating lamp installation
25-2
Illuminating lamp installation
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
B241100000421
Working lamp
2
2
A241100000649
Combination type front steering light assembly
2
3
A241100000648
Front headlight assembly
6
4
24000637
Washer
8
5
24000512
Washer 10GB93
8
6
24000868
Nut M10GB6170 Dacroment
8
7
10252432
alarm system of tail lamp light
1
8
60006212
Foglight
2
9
A241100000053
Bulb
8
12931513 Illuminating lamp installation
25-3
alarm system of tail lamp light
SRT95C Off-highway truck
PARTS BOOK

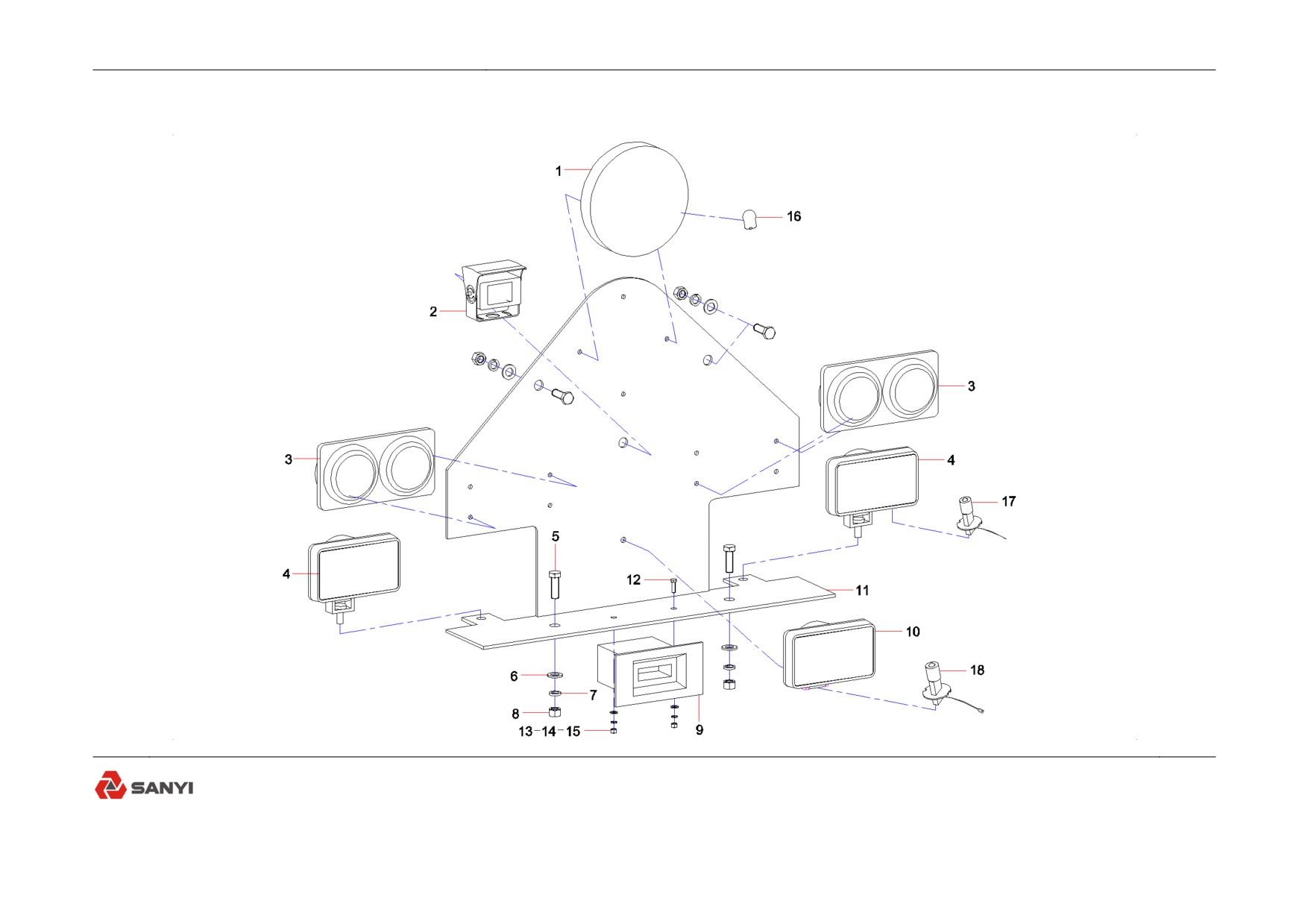

10252432 alarm system of tail lamp light
25-4
alarm system of tail lamp light
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
A241100000647
Retarding lamp
1
2
A249900001543
CameraCM11B
1
3
A241100000650
Combination type rear steering light assembly
2
4
A241100000646
Anti-fogging lamp
2
5
A210111000203
Bolt
4
6
A210405000001
Washer
4
7
24000513
Washer 12GB93 DACROMET
4
8
A210307000031
Nut
4
9
B241100000413
Siren (intelligent)
1
10
A241100000645
Reversing lamp assembly
1
11
A229900009173
Installation assembly of tail light support
1
12
A210111000323
Bolt
4
13
A210401000017
Washer
7
14
A210307000055
Nut M8GB6170 Grade 10
7
15
24000633
Washer
7
16
60013930
Bulb
1
17
21011354
Bulb
1
18
21011354
Bulb
1
10252432 alarm system of tail lamp light
25-5
PARTS BOOK
Group 26
Cable and harness
26-1
Cable and harness
SRT95C Off-highway truck
PARTS BOOK

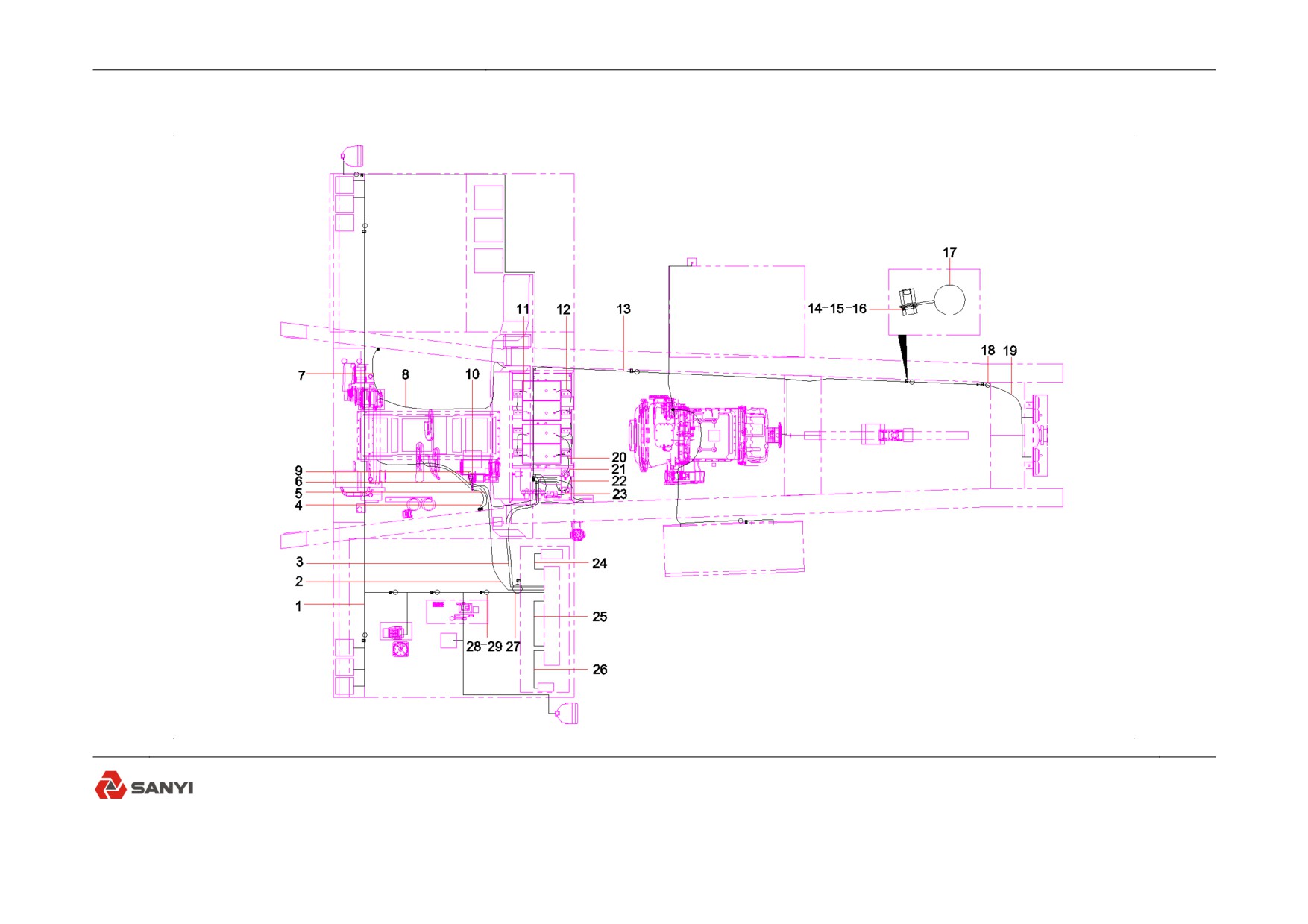

12927135 Cable and harness (1/2)
26-2
Cable and harness
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
12927060
Headlamp harness
1
2
12927063
Engine ECU harness
1
3
12927064
Starter relay power harness
1
4
12927059
Engine earthing cable
1
5
12927054
Starter motor earthing cable
1
6
12927053
Starter motor power cable
1
7
12927058
Generator earthing cable
1
8
12927062
Fuse to generator cable
1
9
12927056
Starter motor parallel earthing cable
1
10
12927055
Starter motor positive parallel cable
1
11
12927050
Battery serial cable
2
12
12927051
Battery parallel cable
2
13
12927049
Vehicle body harness
1
14
24000632
Washer
80
15
60060564
Washer
80
16
A210204000130
Screw
80
17
A229900006641
Pipe nip
20
18
60016761
Pipe clamp
20
19
12927061
Tail lamp harness
1
20
12927052
Battery to main switch cable
1
21
12927067
Battery negative earthing cable
1
22
12927065
Branch cable
1
12927135 Cable and harness (1/2)
26-3
Cable and harness
SRT95C Off-highway truck
PARTS BOOK
12927135 Cable and harness (2/2)
26-4
