SANY SRT95C Off-highway truck. Parts book (Equipment No.14RT95100040) - page 6
Air cleaner and pipeline installation
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
10492435
Elbow
2
2
10492433
Intake tube
1
3
10492434
Intake tube
1
4
12951950
Fixed device
1
5
A222100000601
Air cleaner
3
6
10492437
Mounting band
2
7
10492443
Plenum chamber
1
8
10492436
Tube
3
9
10492438
Mounting band
2
10
10492450
Bracket
2
11
10492454
Bracket
2
12
60250990
T Model Anchor Ear
2
13
A210111000026
Bolt
24
14
A210307000036
Nut
16
15
24000637
Washer
24
16
60250989
T Model Anchor Ear
12
17
10504206
Tube
2
18
60013897
Main cartridge,air filter
3
19
24000513
Washer 12GB93 DACROMET
4
20
24000639
Washer 12GB97.1
16
21
A210111000203
Bolt
4
22
A210307000031
Nut
4
12951956 Air cleaner and pipeline installation
13-3
Air cleaner
SRT95C Off-highway truck
PARTS BOOK

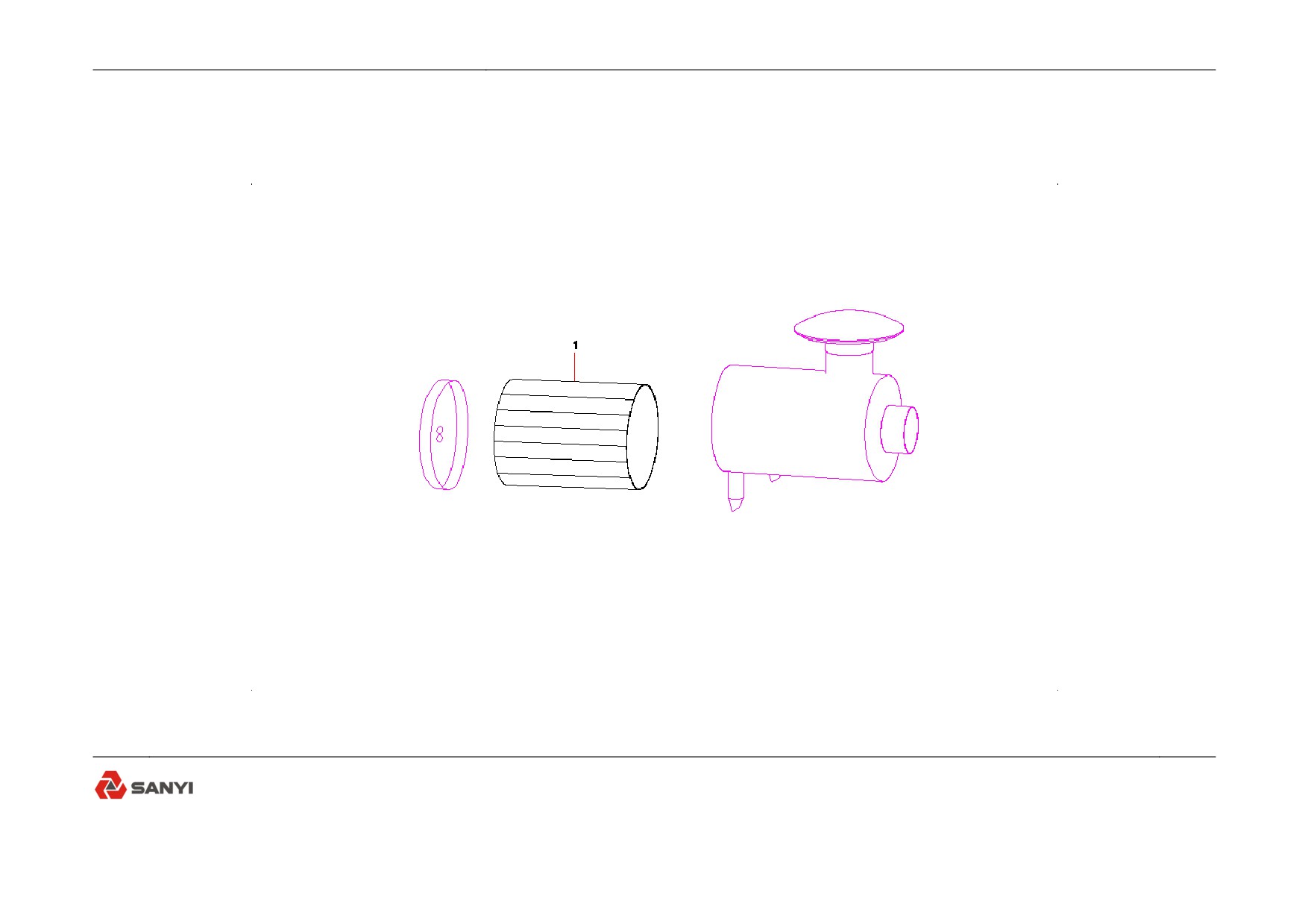

A222100000601 Air cleaner
13-4
Air cleaner
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
60013897
Main cartridge,air filter
2
A222100000601 Air cleaner
13-5
PARTS BOOK
Group 14
Exhaust tube installation srt95c.191
14-1
Exhaust tube installation srt95c.191
SRT95C Off-highway truck
PARTS BOOK

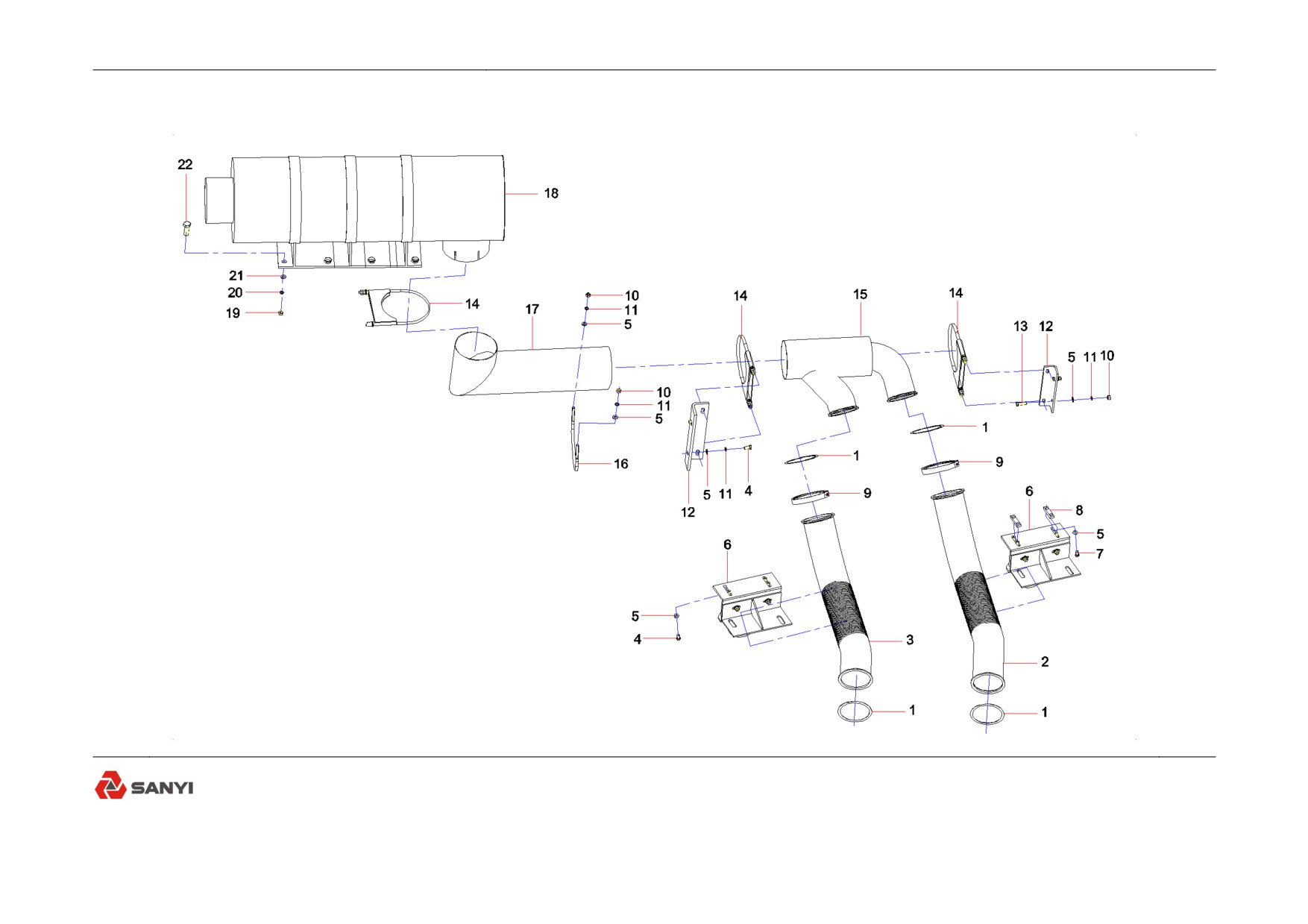

13367057 Exhaust tube installation srt95c.191
14-2
Exhaust tube installation srt95c.191
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
10694157
Gasket
4
2
12946181
Exhaust tube
1
3
12946179
Exhaust tube
1
4
A210111000101
Bolt
6
5
24000639
Washer 12GB97.1
14
6
12946197
Fixed clamp assembly
2
7
A210111000203
Bolt
4
8
13176321
Plate
2
9
60195993
Connector
2
10
A210307000031
Nut
4
11
24000513
Washer 12GB93 DACROMET
14
12
12946189
Plate
2
13
A210111000204
Bolt
2
14
12946192
Fixed clamp
3
15
12946186
Exhaust tube assembly
1
16
12946191
U-bolt
1
17
13367056
Exhaust tube SRT95C.191-1
1
18
60259198
Muffler
1
19
A210307000029
Nut
8
20
24000515
Washer 20GB93 DACROMET
8
21
24000646
Washer
8
22
A210111000061
Bolt
8
13367057 Exhaust tube installation srt95c.191
14-3

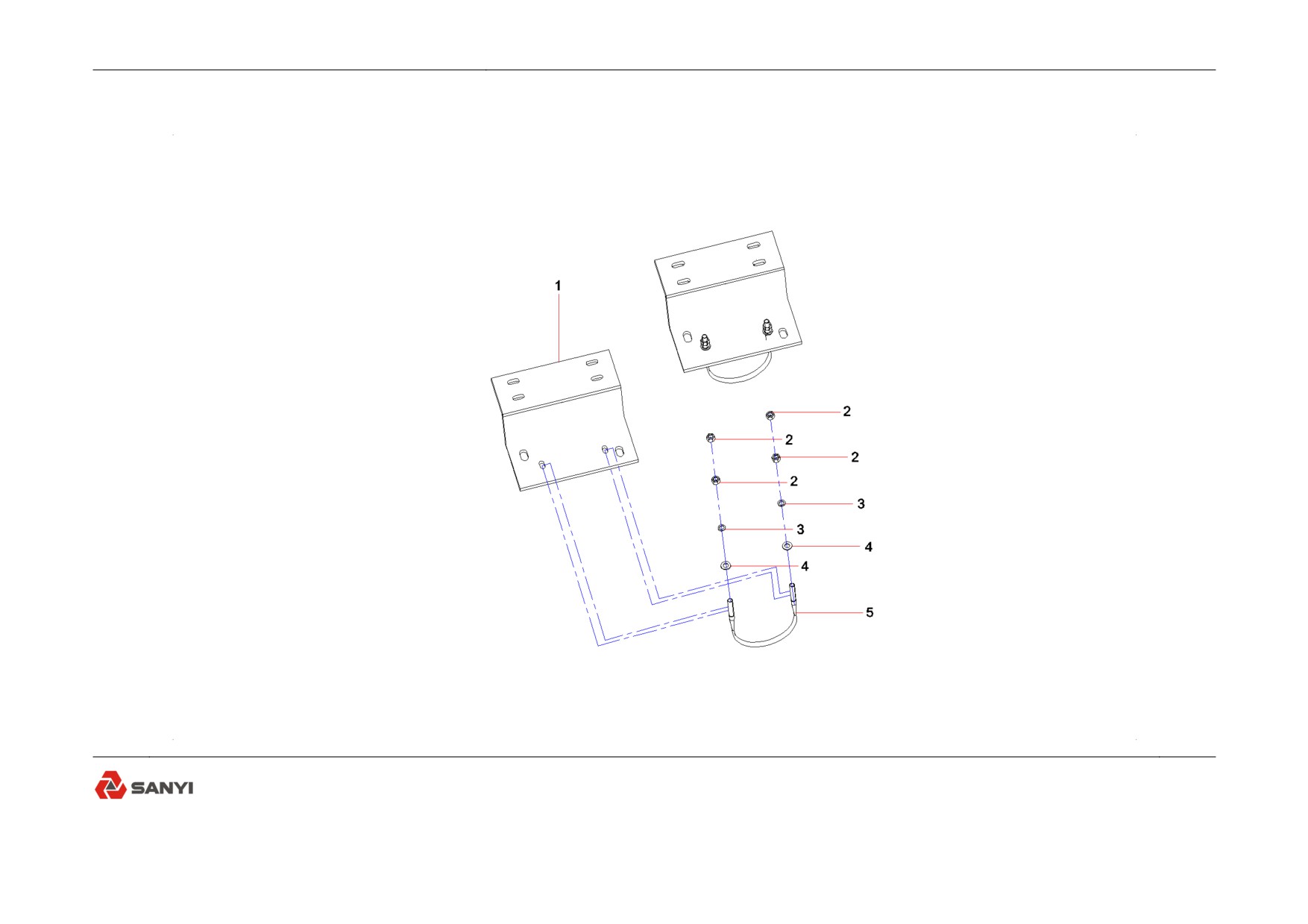

Fixed clamp assembly
SRT95C Off-highway truck
PARTS BOOK
12946197 Fixed clamp assembly
14-4
Fixed clamp assembly
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
12946201
Support
1
2
A210307000031
Nut
6
3
24000513
Washer 12GB93 DACROMET
2
4
24000639
Washer 12GB97.1
6
5
12946196
U-bolt
1
12946197 Fixed clamp assembly
14-5

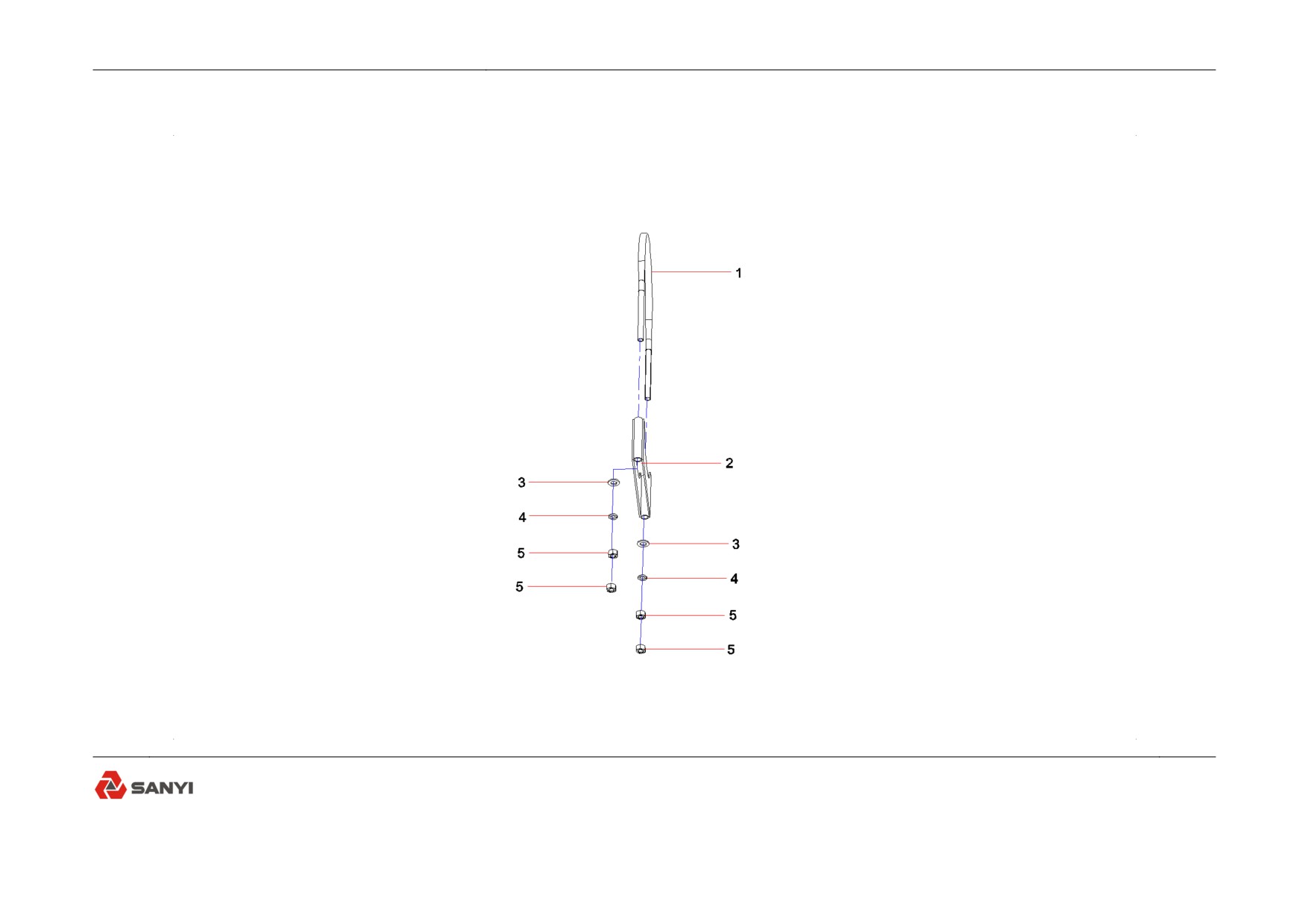

Fixed clamp
SRT95C Off-highway truck
PARTS BOOK
12946192 Fixed clamp
14-6
Fixed clamp
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
12946191
U-bolt
1
2
12946195
Support assembly
1
3
24000639
Washer 12GB97.1
2
4
24000513
Washer 12GB93 DACROMET
2
5
A210307000031
Nut
4
12946192 Fixed clamp
14-7
PARTS BOOK
Group 15

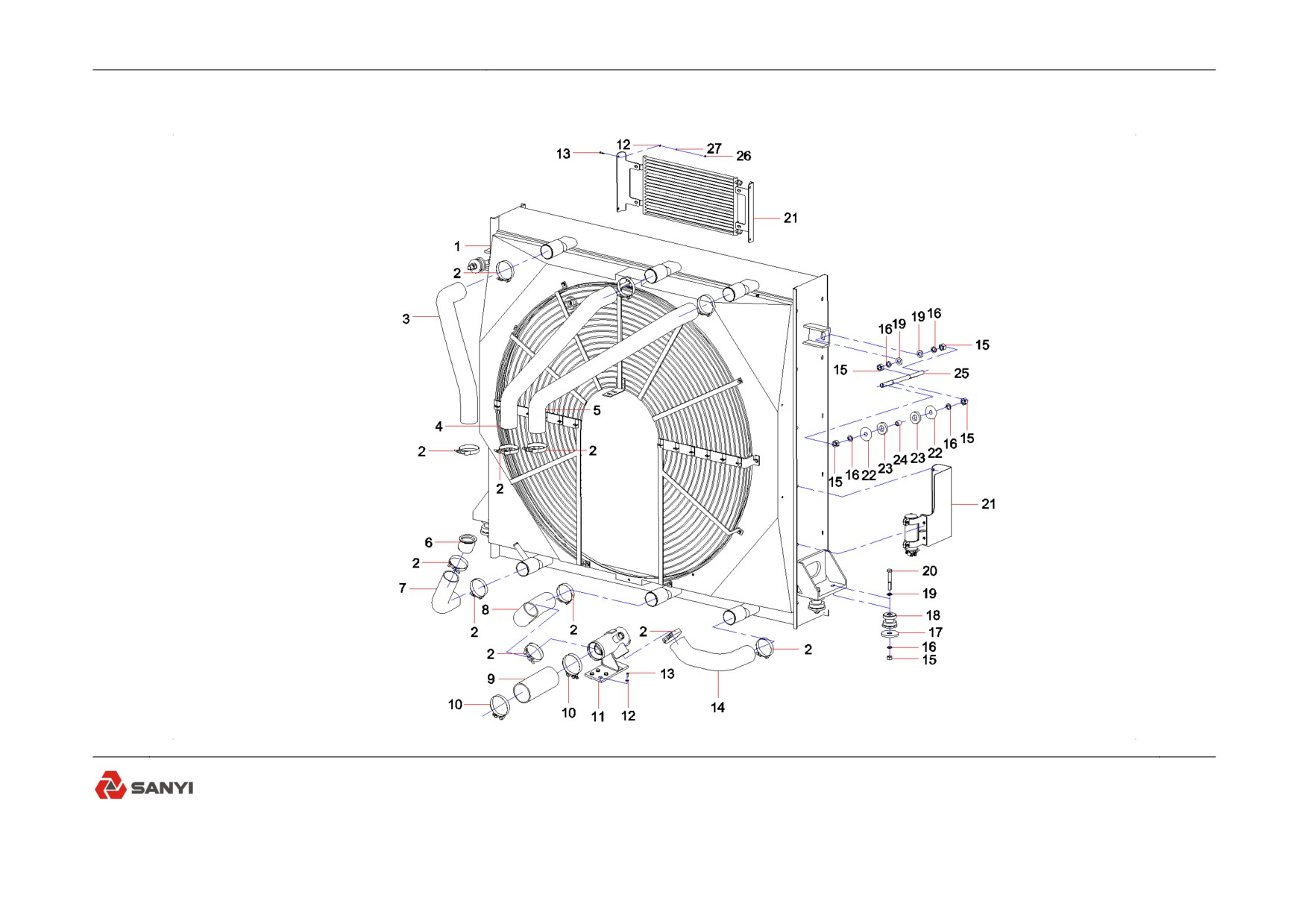

Radiator and pipeline installation
15-1
Radiator and pipeline installation
SRT95C Off-highway truck
PARTS BOOK
12951932 Radiator and pipeline installation (1/2)
15-2
Radiator and pipeline installation
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
60221141
Radiator assembly
1
2
60250995
T Model Anchor Ear
12
3
12951906
Inlet pipe
1
4
12951885
Inlet pipe
1
5
12951884
Inlet pipe
1
6
11076012
Elbow
1
7
12951877
Outlet pipe
1
8
12951878
Outlet pipe
1
9
10499920
Hose
1
10
60250993
T Model Anchor Ear
2
11
10499927
Cross pipe assembly
1
12
24000637
Washer
8
13
A210111000024
Bolt
8
14
12951880
Outlet pipe
1
15
A210307000029
Nut
12
16
24000515
Washer 20GB93 DACROMET
12
17
10239993
Plate
4
18
21003719
Pad, damper
4
19
24000646
Washer
8
20
A210111000446
Bolt
8
21
12952514
Cooler
1
22
10700960
washer
4
12951932 Radiator and pipeline installation (1/2)
15-3
Radiator and pipeline installation
SRT95C Off-highway truck
PARTS BOOK
12951932 Radiator and pipeline installation (2/2)
15-4
Radiator and pipeline installation
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
23
A229900003147
Pad
4
24
10700947
Sleeve
2
25
12951882
Support Rod
2
26
A210307000036
Nut
4
27
24000512
Washer 10GB93
4
12951932 Radiator and pipeline installation (2/2)
15-5

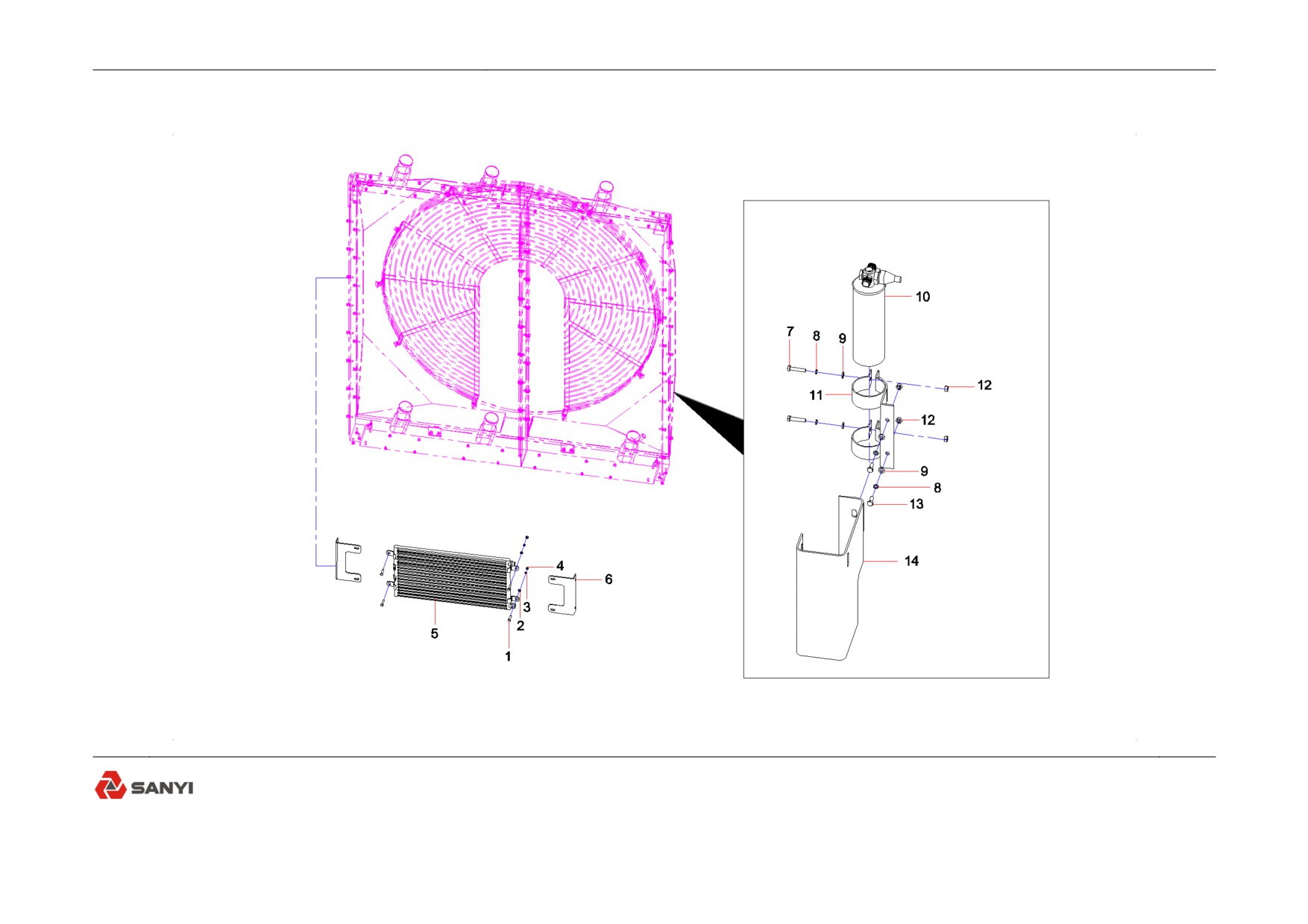

Cooler
SRT95C Off-highway truck
PARTS BOOK
12952514 Cooler
15-6
Cooler
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
A210111000092
Bolt
4
2
A210401000016
Washer
4
3
24000632
Washer
4
4
A210307000055
Nut M8GB6170 Grade 10
4
5
A220700000032
Condenser
1
6
12952496
Bracket
2
7
A210111000082
Bolt
2
8
A210401000017
Washer
4
9
24000633
Washer
4
10
21024881
Assembly, cistern
1
11
11576518
Reciver bracket
1
12
A210307000016
Nut
4
13
A210111000079
Bolt
2
14
12952500
Pinboard
1
12952514 Cooler
15-7
PARTS BOOK
Group 16
Water tank mounting and lines
16-1
Water tank mounting and lines
SRT95C Off-highway truck
PARTS BOOK

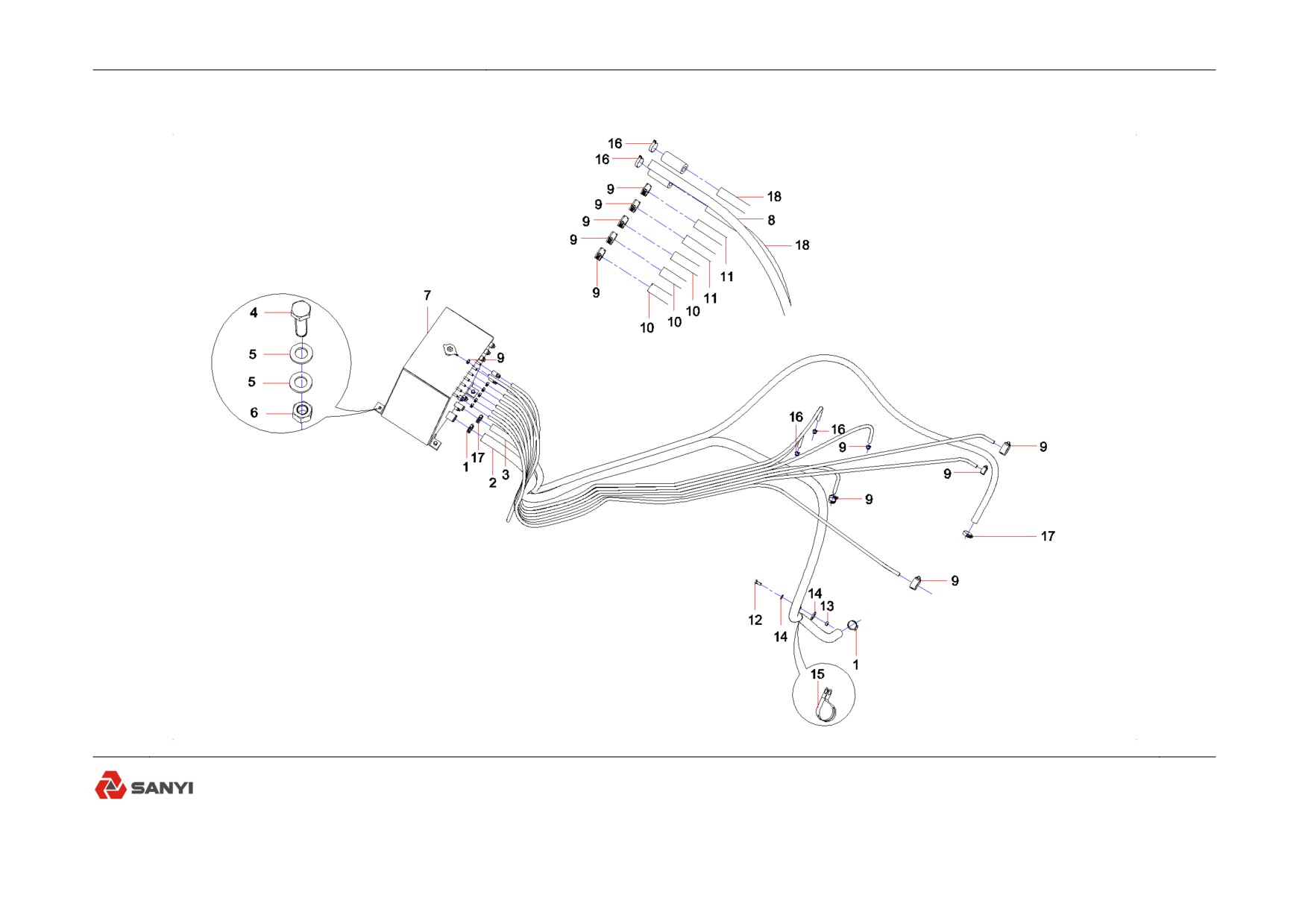

10506336 Water tank mounting and lines
16-2
Water tank mounting and lines
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
A210855000011
Hoop
2
2
10506330
Make-up line
1
3
10506335
Make-up line
1
4
A210111000026
Bolt
4
5
24000637
Washer
8
6
A210307000036
Nut
4
7
60004632
Water tank
1
8
10970312
Overflow tubing
1
9
21053360
Hose ring hoop
11
10
10506334
Deaeration line
3
11
10506331
Deaeration line
2
12
A210111000101
Bolt
1
13
A210307000031
Nut
1
14
A210405000001
Washer
2
15
A230200000178
Clamp
1
16
A210855000005
Hoop
4
17
A210855000020
Hoop
2
18
11858460
Deaeration line
2
10506336 Water tank mounting and lines
16-3
PARTS BOOK
Group 17
Disc brake oil cooler installation assembly
17-1
Disc brake oil cooler installation assembly
SRT95C Off-highway truck
PARTS BOOK

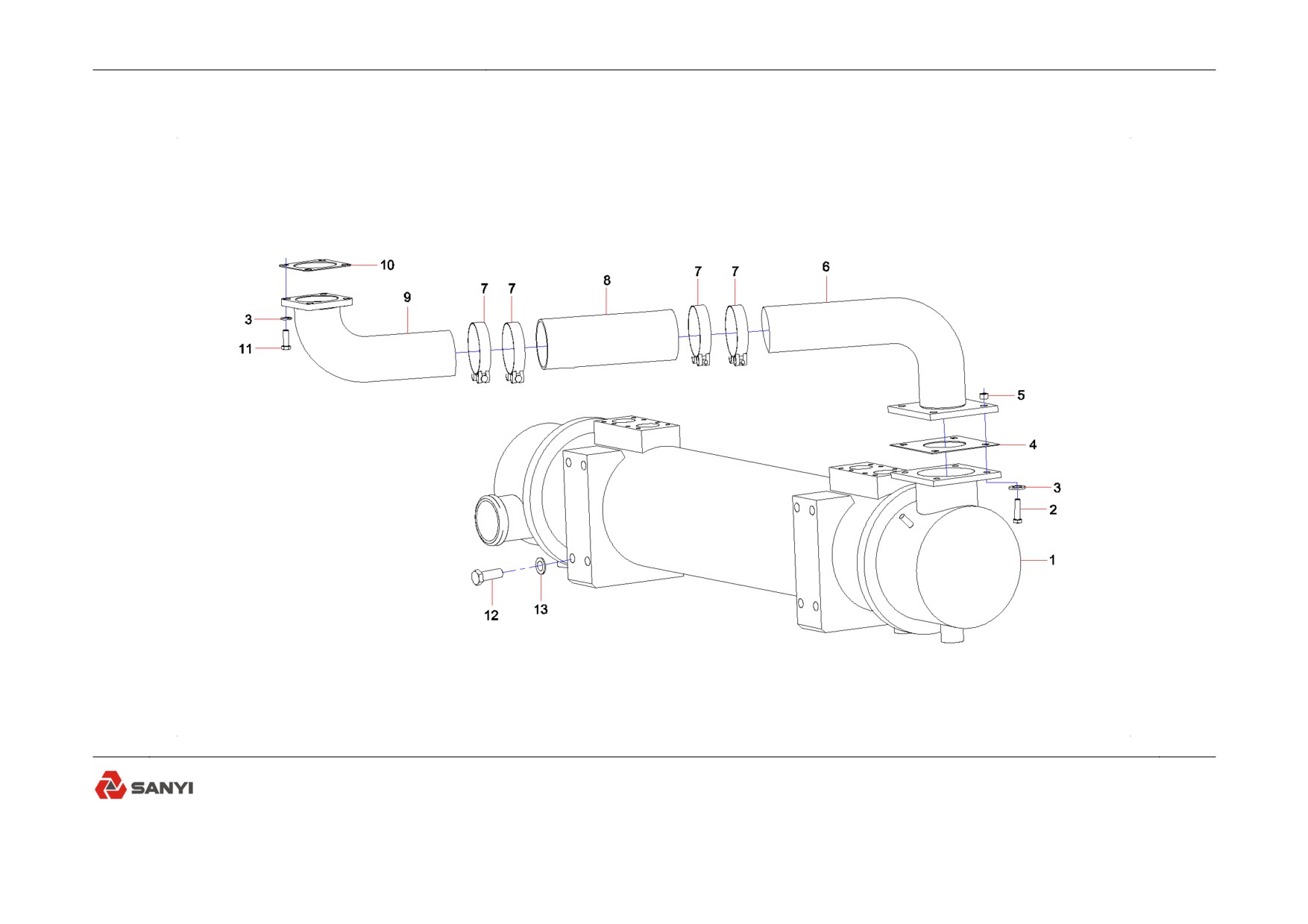

10495190 Disc brake oil cooler installation assembly
17-2
Disc brake oil cooler installation assembly
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
60001270
Disc brake oil cooler
1
2
A210111000119
Bolt
4
3
24000639
Washer 12GB97.1
16
4
10494836
Combined seal pad
1
5
A210307000031
Nut
4
6
10495193
Elbow
1
7
60250992
T Model Anchor Ear
4
8
10494841
Sleeve
1
9
10495197
Elbow
1
10
10494839
Gasket
1
11
A210111000203
Bolt
4
12
A210111000062
Bolt M20×60GB5783 Grade 10.9
8
13
A210491000132
Washer
8
10495190 Disc brake oil cooler installation assembly
17-3
PARTS BOOK
Group 18

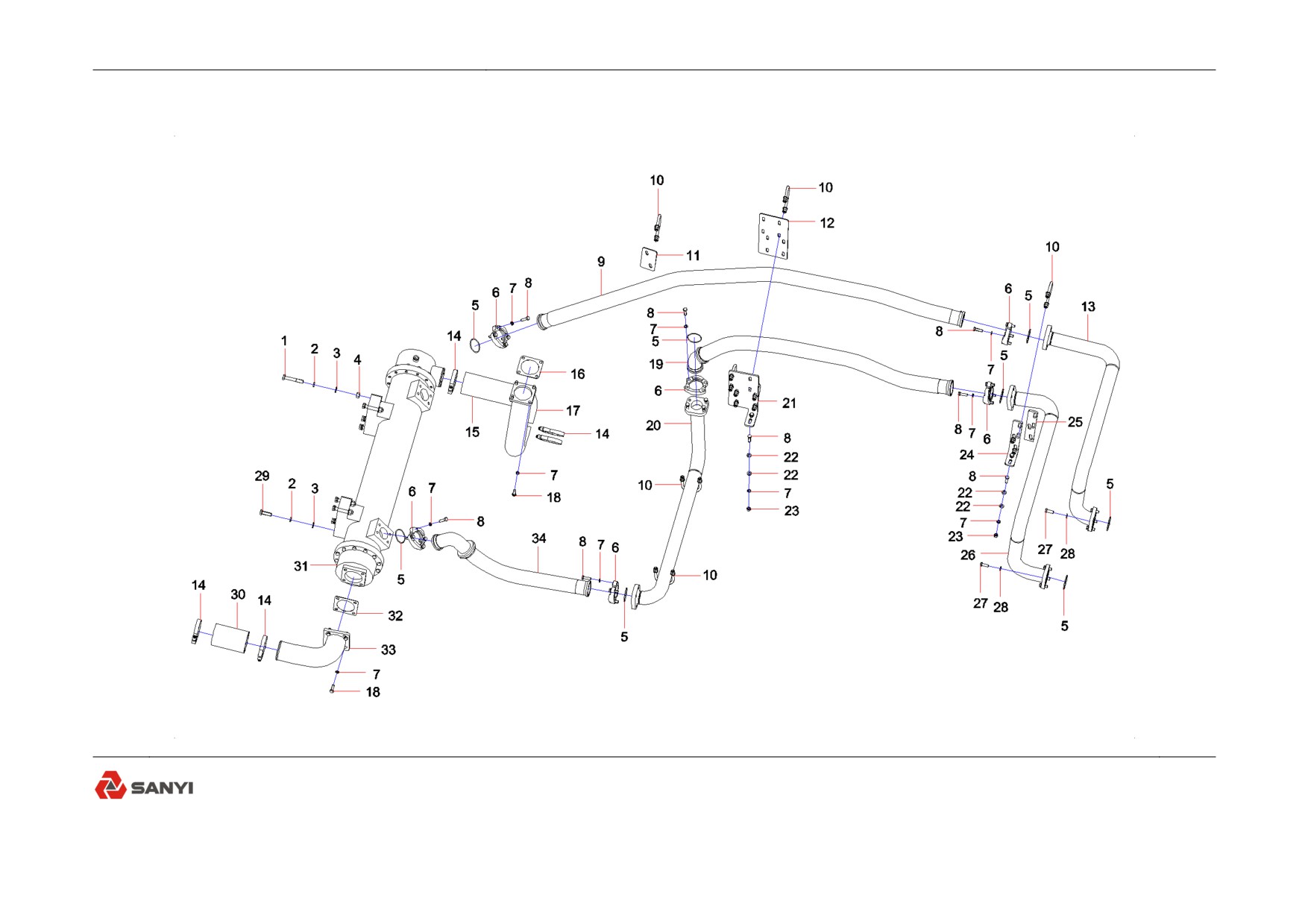

Tranmission cooling piping mounting
18-1
Tranmission cooling piping mounting
SRT95C Off-highway truck
PARTS BOOK
12950173 Tranmission cooling piping mounting (1/2)
18-2
Tranmission cooling piping mounting
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
A210110000033
Bolt
4
2
24000514
Washer 16GB93
12
3
A210491000118
Washer
12
4
A210307000028
Nut
4
5
B230101002072
O-ring
8
6
21018528
Split flange
6
7
24000513
Washer 12GB93 DACROMET
36
8
A210111000204
Bolt
28
9
11992626
Oil inlet pipe assembly
1
10
60008277
U-CLAMP
9
11
12256518
Rubber pad
1
12
12256517
Rubber pad
1
13
11992167
Steel tube assembly
1
14
A229900002263
T-type anchor ear
6
15
12950170
Rubber hose
1
16
10507405
Gasket
1
17
12950175
Tube assembly
1
18
A210111000203
Bolt
8
19
11992628
Oil outlet pipe assembly
1
20
11992378
Steel tube assembly
1
21
11990357
Fixed plate
1
22
A210405000001
Washer
8
12950173 Tranmission cooling piping mounting (1/2)
18-3
Tranmission cooling piping mounting
SRT95C Off-highway truck
PARTS BOOK
12950173 Tranmission cooling piping mounting (2/2)
18-4
Tranmission cooling piping mounting
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
23
A210307000031
Nut
4
24
12950171
Fixed Plate
1
25
12950172
Rupper pad
1
26
11992328
Steel tube assembly
1
27
A229900009970
Bolt
8
28
A229900009582
Washer
8
29
A210111000243
Bolt
4
30
10507398
Hose silicone
1
31
60000231
Oil cooler
1
32
10507392
Gasket
1
33
10508277
Water inlet tube assembly
1
34
11992630
Oil outlet pipe assembly
1
12950173 Tranmission cooling piping mounting (2/2)
18-5
PARTS BOOK
Group 19

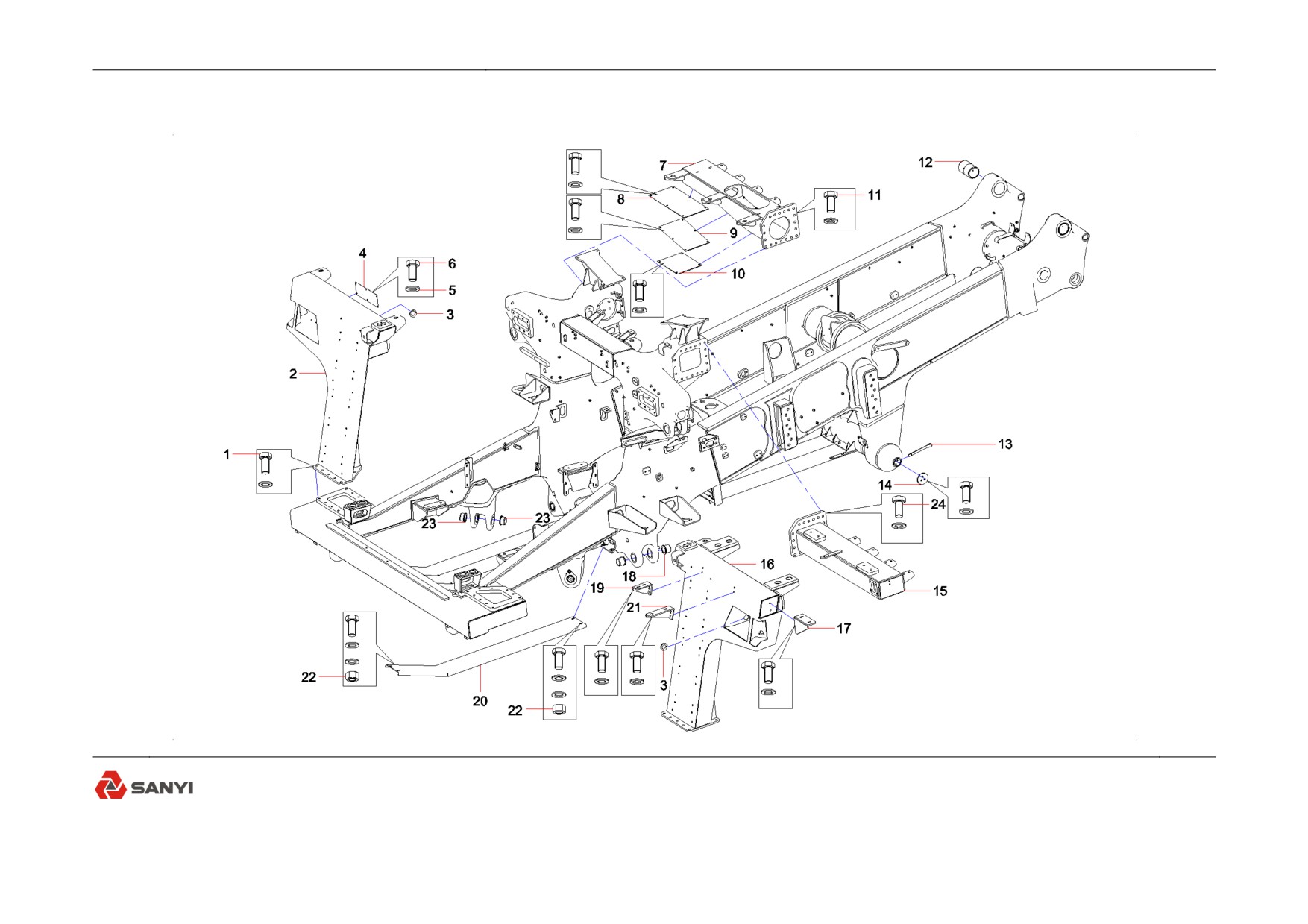

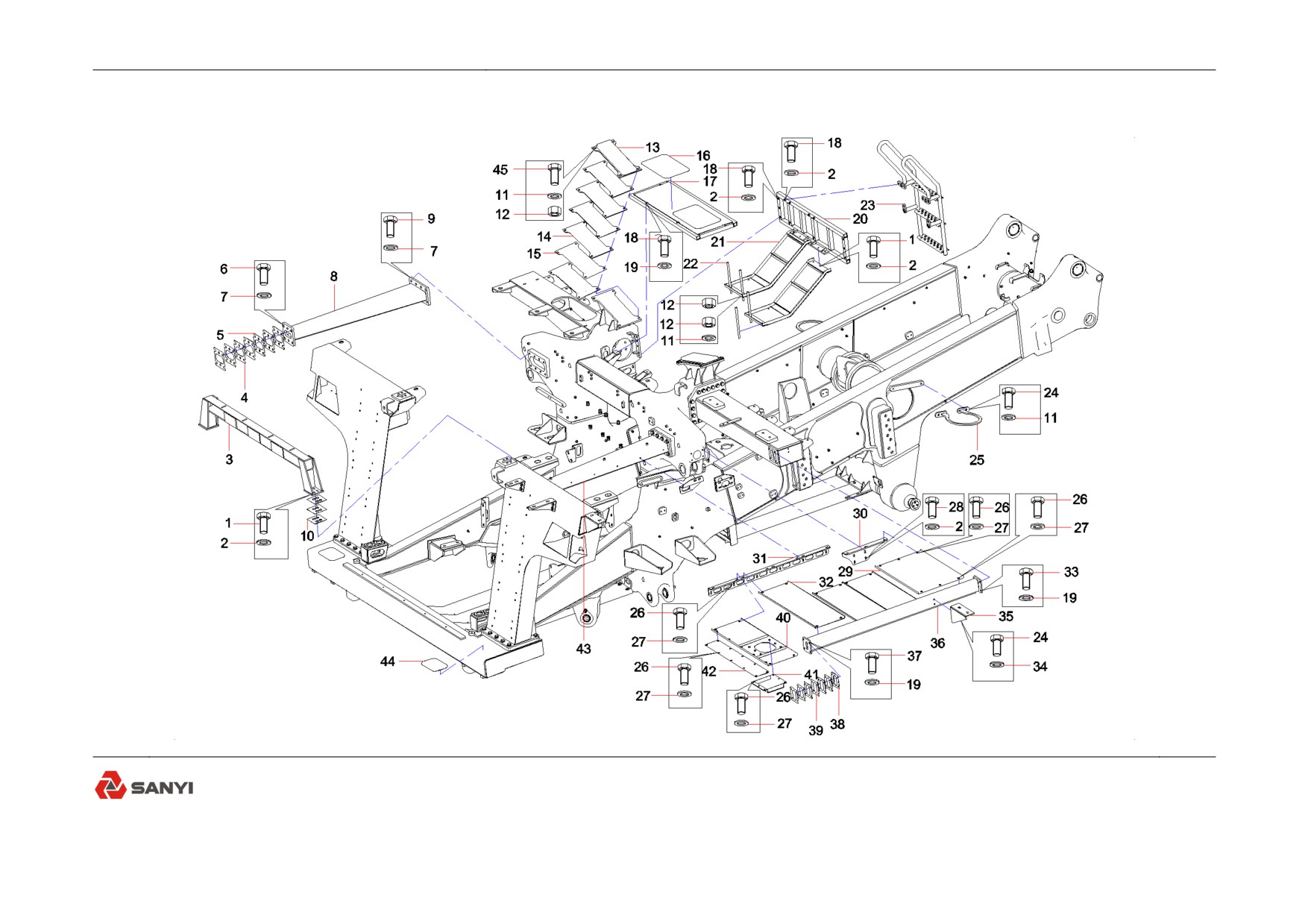

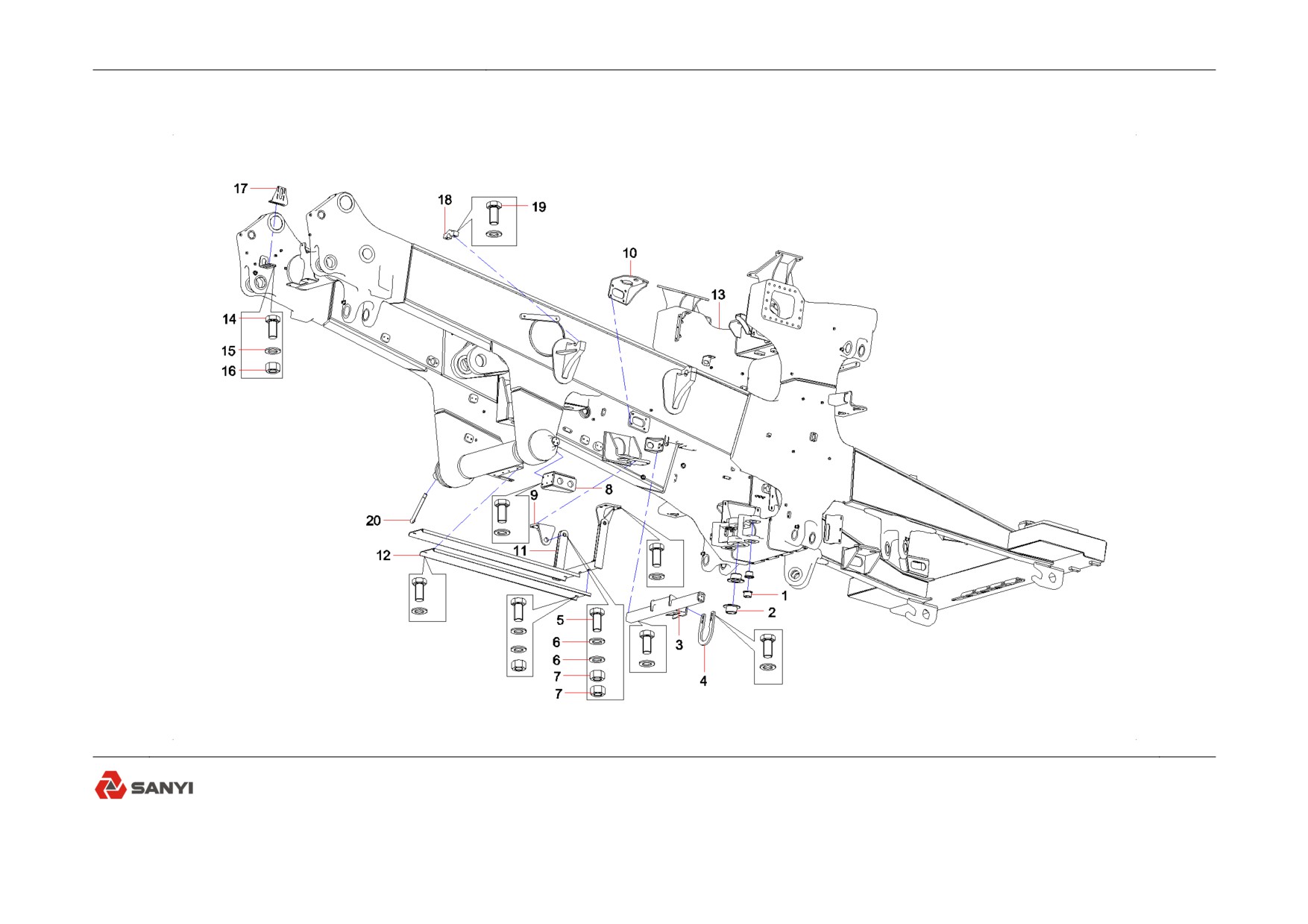

Frame component
19-1
Frame component
SRT95C Off-highway truck
PARTS BOOK
12955995 Frame component (1/5)
19-2
Frame component
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
A210111000204
Bolt
72
2
60060548
Washer 12GB96.1
96
3
13090229
Tie rod units
1
4
12951986
Board
6
5
12951987
Board
22
6
A210110000201
Bolt
12
7
A210491000132
Washer
85
8
12949087
Right-hand longitudinal pull rod
1
9
A210111000061
Bolt
16
10
13090162
Adjusting plate
6
11
A210491000118
Washer
24
12
A210307000028
Nut
24
13
12953090
Damping pad
2
16
11953373
Antiskid paste
2
17
13090257
Rear platform
1
18
A210111000104
Bolt
16
19
24000639
Washer 12GB97.1
34
20
12949778
Rear transverse tie beam
1
21
13090264
Lower guard
2
22
13069632
Screw rod
4
23
12949895
Ladder of platform
1
24
A210111000053
Bolt M16×40GB5783 Grade 10.9
12
12955995 Frame component (1/5)
19-3
Frame component
SRT95C Off-highway truck
PARTS BOOK
12955995 Frame component (2/5)
19-4
Frame component
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
25
12949934
Anchor ear of lifting cylinder
2
26
A210111000197
Bolt
54
27
60060546
Washer 10GB96.1
54
28
A210111000202
Bolt
4
29
13090252
Rear lower cab guard boardSRT95C.270.39
1
30
12951977
Fix board
1
31
12951979
Board
1
32
13090247
Cab rear lower guard board SRT95C.270.37
3
33
A210111000203
Bolt
12
34
60060553
Washer 16GB96.1
8
35
13090266
Mounting seatSRT95C.270.42
1
36
13090239
Outer longitudinal pull rod SRT95C.270.3
1
37
A210111000118
Bolt M12×55GB5783 Grade 10.9
6
38
12951989
Shim
9
39
12951988
Board
2
40
13090250
Front lower cab guard boardSRT95C.270.38
1
41
13090269
Foot pedal valve coverSRT95C.270.43
1
42
13090164
Fixed plate SRT95C.270-28
1
43
12948610
Left-hand longitudinal pull rod
1
44
11696489
Antiskid paste
2
45
A210111000347
Bolt M16×90GB5783 10.9 grade
8
12955995 Frame component (2/5)
19-5
Frame component
SRT95C Off-highway truck
PARTS BOOK
12955995 Frame component (3/5)
19-6
Frame component
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
A210111000289
Bolt M20×45GB5783 Grade 10.9
20
2
13090189
Right front support SRT95C.270.30
1
3
11778087
Rubber bar
2
4
13090161
Cover plateSRT95C.270-25
2
5
24000633
Washer
12
6
A210111000343
Bolt
12
7
13090225
Right lengthening beam SRT95C.270.32
1
8
13090169
Cover plateSRT95C.270-33
1
9
13090168
Cover plateSRT95C.270-32
1
10
13090167
Cover plateSRT95C.270-31
1
11
A210111000062
Bolt M20×60GB5783 Grade 10.9
19
12
12951969
Bush
2
13
A210491000016
Pin
4
14
13090166
Hoisting cylinder pressure plateSRT95C.2
2
15
13090197
Left lengthening beam SRT95C.270.31
1
16
13090179
Left front support SRT95C.270.29
1
17
12949266
Mounting seat of left platform
1
18
12951972
Bush
4
19
12949471
Fixed seat of platform
1
20
13090242
Engine lower guard SRT95C.270.35
4
21
12949762
Fixed seat of platform
1
22
A210307000031
Nut
20
12955995 Frame component (3/5)
19-7
Frame component
SRT95C Off-highway truck
PARTS BOOK
12955995 Frame component (4/5)
19-8
Frame component
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
23
12951970
Bush
4
24
A210111000063
Bolt M20×70GB5783 Grade 10.9
19
12955995 Frame component (4/5)
19-9
Frame component
SRT95C Off-highway truck
PARTS BOOK
12955995 Frame component (5/5)
19-10
Frame component
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
12951973
Bush
4
2
12951974
Bush
2
3
12949770
Protecting rack
1
4
13090165
Transmission shaft upper protective plat
1
5
23002389
Bolt M30×110GB5782 Grade 10.9
2
6
A210444000003
Washer 30GB1230
2
7
A210307000009
Nut M30GB6170 Grade 10
4
8
12949931
Lower fixed seat of fuel tank
1
9
12949082
Fixed seat
2
10
13090245
Mounting plate
1
11
12948660
Back bracket of lower guard of gearbox
1
12
13090163
Bottom board
2
13
12955632
Frame assembly
1
14
A210111000024
Bolt
4
15
A210491000120
Washer
4
16
A210307000036
Nut
4
17
12951985
Board
1
18
12955304
Press board
2
19
23002022
Bolt
4
20
13279619
Fixed pin
2
12955995 Frame component (5/5)
19-11
PARTS BOOK
Group 20
Fender and platform mounting
20-1
