SANY SRT95C Off-highway truck. Parts book (Equipment No.14RT95100040) - page 4
Central distributioncase
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
21019916
Fuse
9
2
21019915
Fuse
5
3
60014829
Fuse
1
4
21019918
Relay
1
5
60015838
Relay,central distribution box
4
60198294 Central distributioncase
5-35
PARTS BOOK
Group 6
Subassembly of rigid dump
6-1
Subassembly of rigid dump
SRT95C Off-highway truck
PARTS BOOK

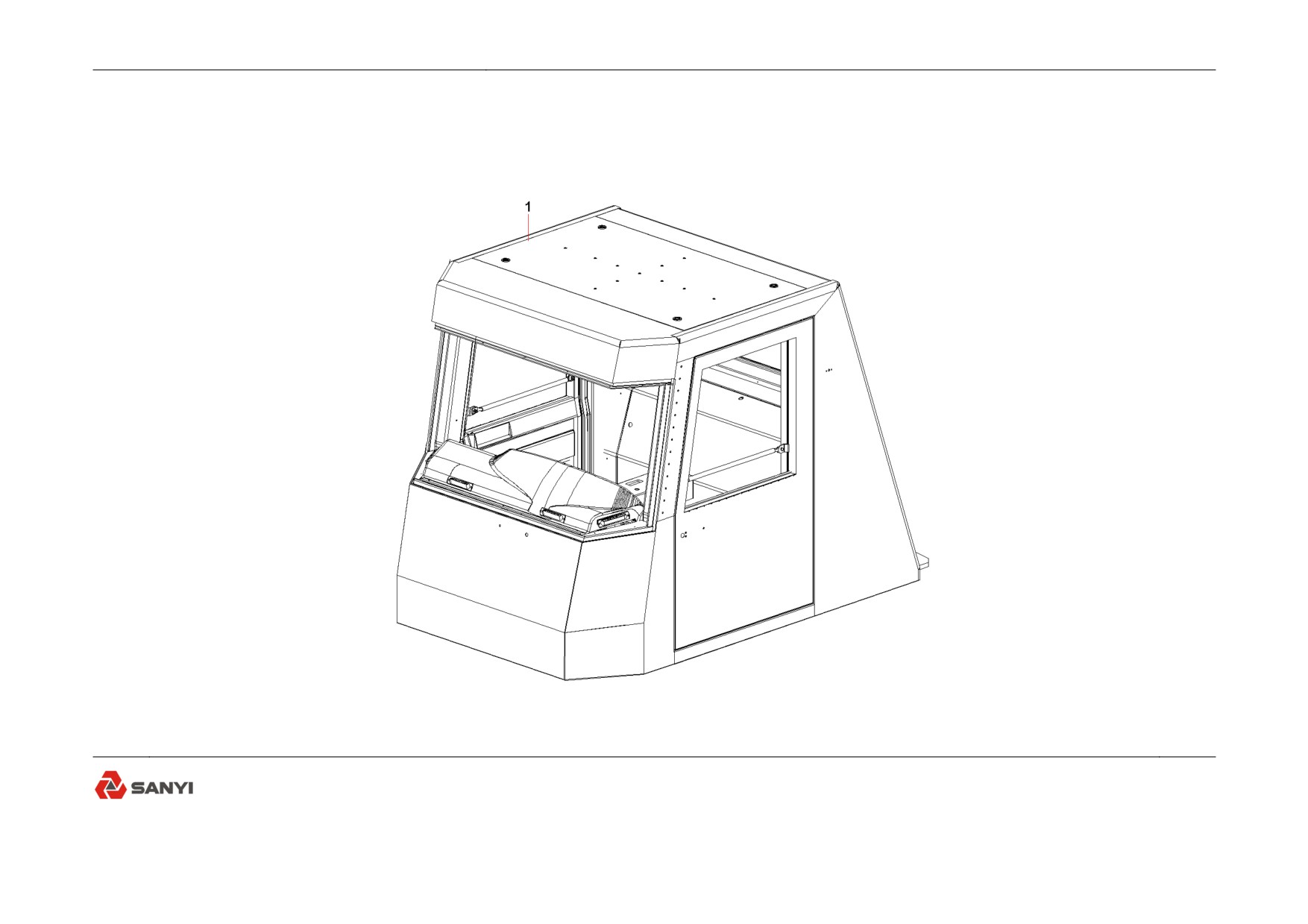

12952315 Subassembly of rigid dump
6-2
Subassembly of rigid dump
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
12952316
Subassembly of rigid dump truck cab
1
12952315 Subassembly of rigid dump
6-3
Subassembly of rigid dump truck cab
SRT95C Off-highway truck
PARTS BOOK

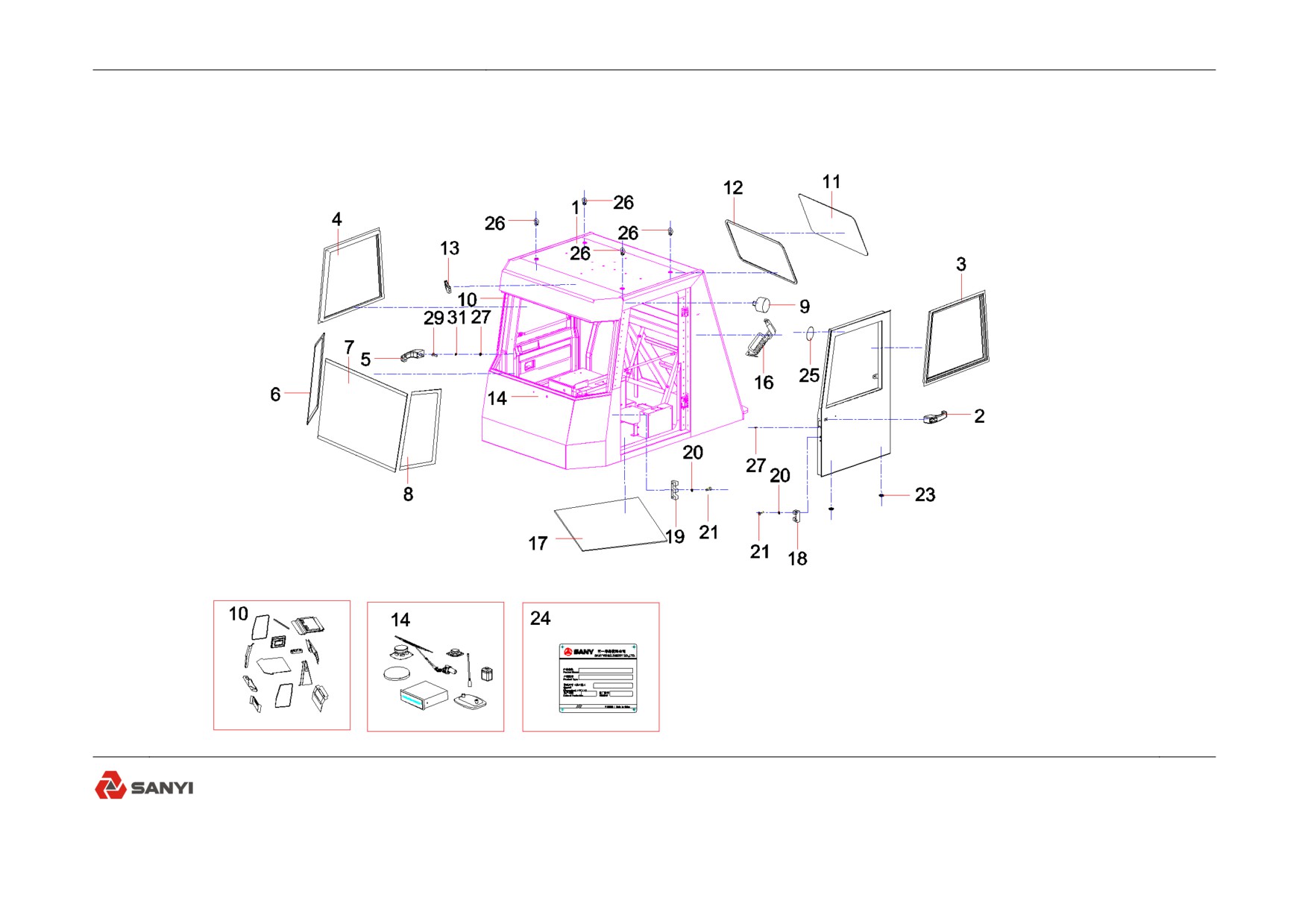

12952316 Subassembly of rigid dump truck cab (1/3)
6-4
Subassembly of rigid dump truck cab
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
12985767
Body, cab JKGX06.1
1
2
60066750
Inner & outer door handle
1
3
11404619
Window, left sliding
1
4
11404618
Right sliding window
1
5
60066749
Inner & outer door handle
1
6
11400593
Right-front window glass
1
7
11400591
Front window glass
1
8
11400592
Left-front window glass
1
9
12685035
Block, rubber limit
4
10
12990476
Assembly, of, SRT95C, decoration JKGX06.
1
11
11400590
rear window glass
1
12
A230105000068
Rubber strip, side window
3
13
A229900005559
Hook, hat & coat
1
14
11550237
Electrical system,cab
1
16
60001291
Emergency hammer
1
17
60014125
Plate, isolation
3
18
12561580
Block, spacing
2
19
12562203
Block, limit
2
20
A210459000005
Washer 8GB956.2
10
21
23002292
Screw
10
23
60042056
Plug
4
24
11270627
Nameplate
1
12952316 Subassembly of rigid dump truck cab (1/3)
6-5
Subassembly of rigid dump truck cab
SRT95C Off-highway truck
PARTS BOOK
12952316 Subassembly of rigid dump truck cab (2/3)
6-6
Subassembly of rigid dump truck cab
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
25
60101155
Stick sheet
4
26
A210491000001
Screw
4
27
A210405000006
Washer
10
29
A210210000005
Screw
6
31
A210401000016
Washer
14
12952316 Subassembly of rigid dump truck cab (2/3)
6-7
Subassembly of rigid dump truck cab
SRT95C Off-highway truck
PARTS BOOK

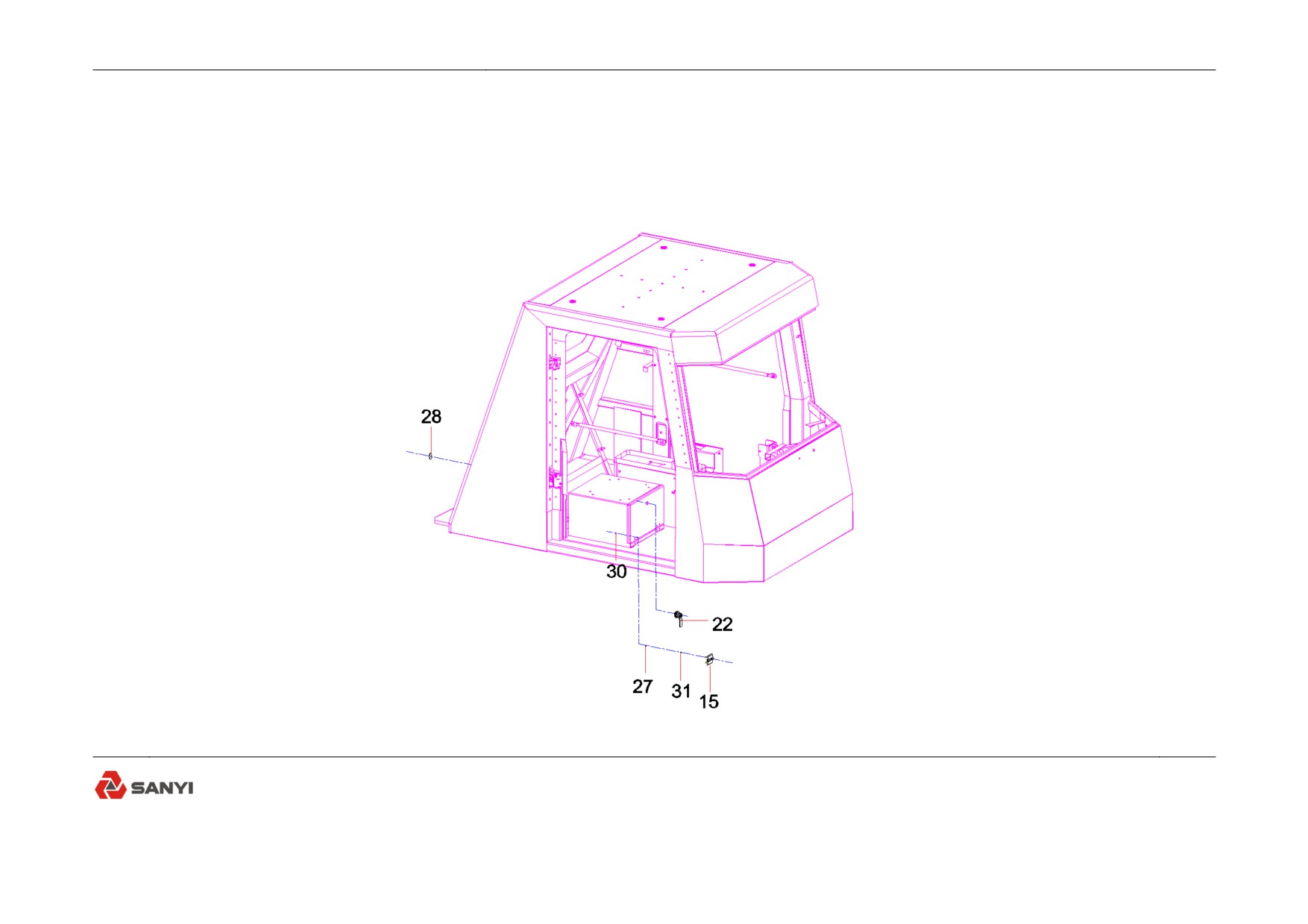

12952316 Subassembly of rigid dump truck cab (3/3)
6-8
Subassembly of rigid dump truck cab
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
15
60013491
Hinge
2
22
60002574
Lock, door
1
27
A210405000006
Washer
10
28
60014124
Pintle, fixed
21
30
A210307000016
Nut
8
31
A210401000016
Washer
14
12952316 Subassembly of rigid dump truck cab (3/3)
6-9
Body, cab JKGX06.1
SRT95C Off-highway truck
PARTS BOOK

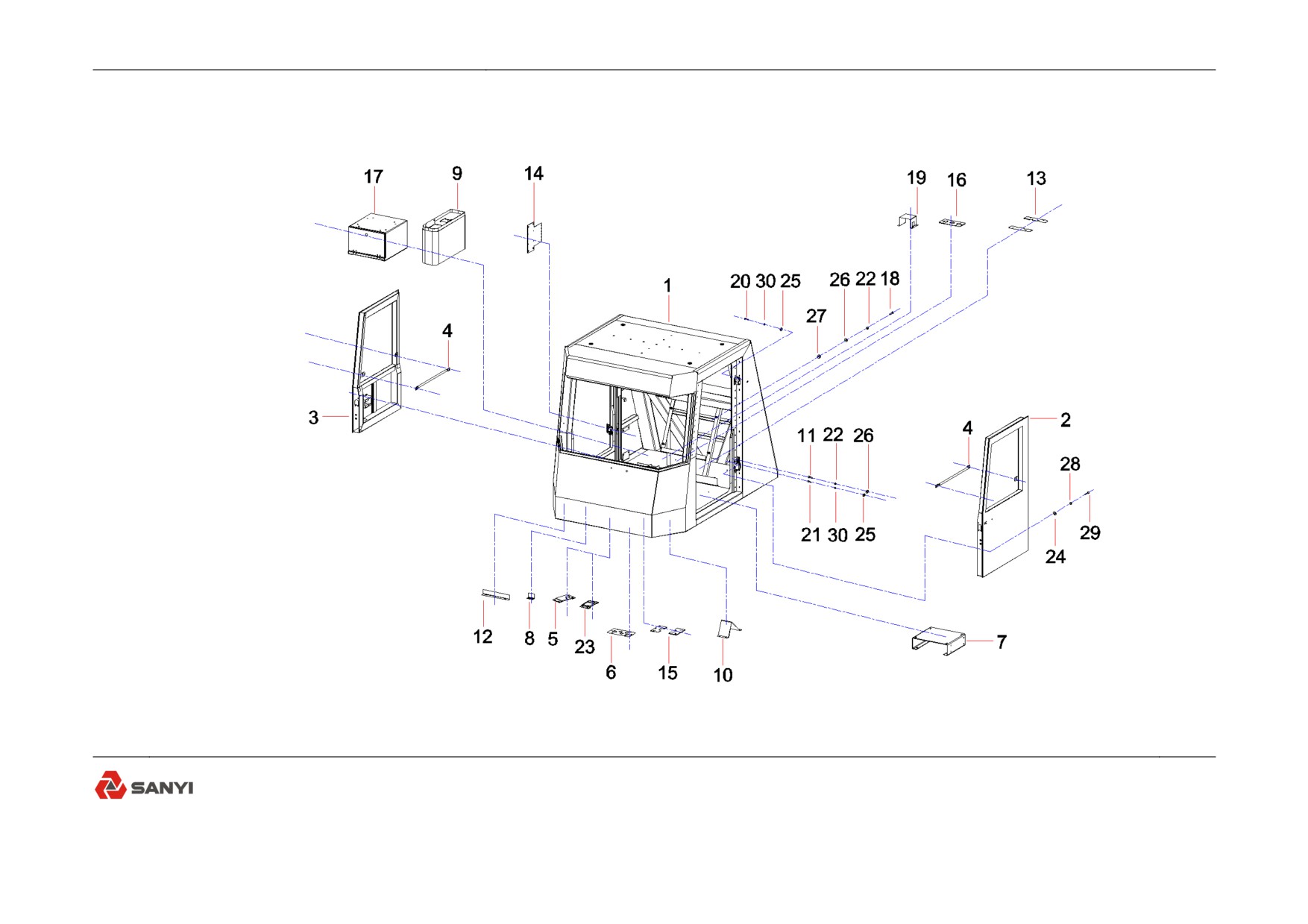

12985767 Body, cab JKGX06.1 (1/2)
6-10
Body, cab JKGX06.1
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
12987519
Assembly, driver's cab welding JKGX06.1.
1
2
12548962
Assembly, door welding left
1
3
12985800
Assembly, door welding right JKGX06.1.2
1
4
12561215
Rod, pull
2
5
11545917
Plate,mounting,throttle
1
6
13280401
Installation plate JKGX06.1-10
1
7
11717212
Main seat bracket
1
8
11908894
Lower baffle left bracket
1
9
11551574
Box, central controlling
1
10
12940586
Pedal SRT55C.330A.1-29
1
11
A210111000204
Bolt
2
12
11908858
Lower baffle right bracket
1
13
13280402
Plate JKGX06.1-11
2
14
12985763
Equipment, installation plate for electr
1
15
12985760
Cover plateJKGX06.1-1
2
16
12742639
Plate, aviation plug fixedSRT45.330A.1.1
1
17
12985807
Toolbox JKGX06.1.3
1
18
A210111000040
Bolt
4
19
11717356
Cluster cover plate
1
20
A210111000024
Bolt
6
21
21005186
Bolt M10×40GB5783 Grade 10.9
4
22
A210401000002
Washer
6
12985767 Body, cab JKGX06.1 (1/2)
6-11
Body, cab JKGX06.1
SRT95C Off-highway truck
PARTS BOOK
12985767 Body, cab JKGX06.1 (2/2)
6-12
Body, cab JKGX06.1
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
23
11545913
Plate,mounting,brake,foot
1
24
A210405000007
Washer
4
25
A210405000011
Washer
10
26
A210405000001
Washer
6
27
A210307000001
Nut
4
28
A210401000017
Washer
4
29
A210111000293
Bolt
4
30
A210401000001
Washer
10
12985767 Body, cab JKGX06.1 (2/2)
6-13
Assembly, of, SRT95C, decoration JKGX06.
SRT95C Off-highway truck
PARTS BOOK

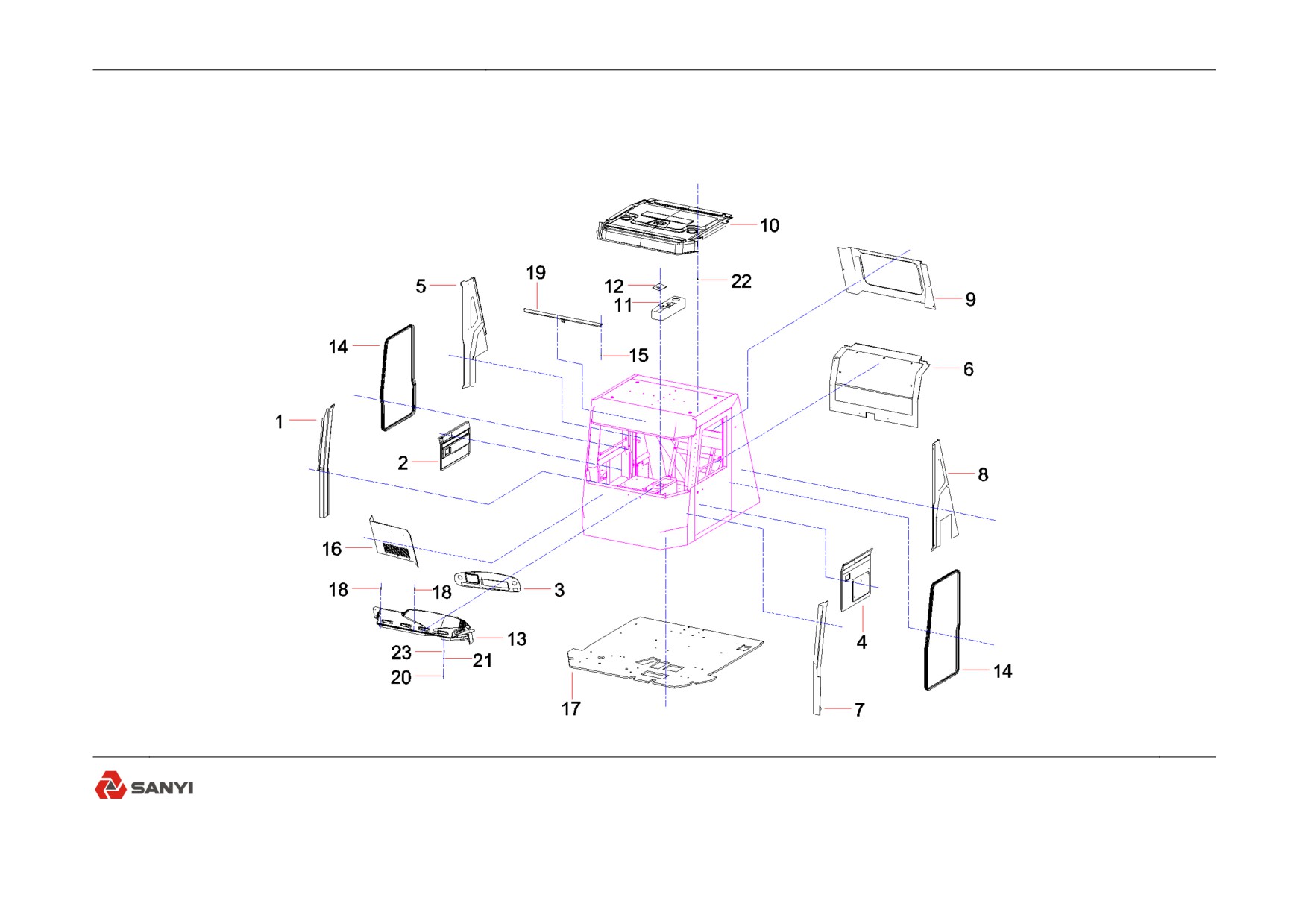

12990476 Assembly, of, SRT95C, decoration JKGX06. (1/2)
6-14
Assembly, of, SRT95C, decoration JKGX06.
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
12961512
Right, upright, column, protective, plat
1
2
11401418
Left door protective plate
1
3
12743970
Panel, of, instrument, panelSRT45.330A.1
1
4
12961519
Right, door, decoration, panelJKGX06.2-2
1
5
12963963
Right-side, protective, panelJKXG06.2-3
1
6
11401432
Rear, cover, plate
1
7
11401444
Left, upright, column, protective, plate
1
8
11401430
Left-hand, decorating, plate
1
9
11401426
Rear coaming plate
1
10
11401447
Top, decorative, parts
1
11
12746831
Panel, of, middle, controlling, consoleS
1
12
12745657
Middle, controlling, platform, transitio
1
13
12758490
Instrument, panelSRT45.330A.1.2-5
1
14
13068700
Seal, door, opening
2
15
11115686
Tapping, bolt
8
16
11487587
Lower baffle
1
17
13124565
Floor, leatherJKXG06.2-5
1
18
11115687
Inner, hexagon screw
19
19
A229900010230
Sun shading
1
20
A210307000016
Nut
6
21
A210404000009
Washer
6
22
12053491
Screw
79
12990476 Assembly, of, SRT95C, decoration JKGX06. (1/2)
6-15
Assembly, of, SRT95C, decoration JKGX06.
SRT95C Off-highway truck
PARTS BOOK
12990476 Assembly, of, SRT95C, decoration JKGX06. (2/2)
6-16
Assembly, of, SRT95C, decoration JKGX06.
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
23
A210111000081
Bolt
3
12990476 Assembly, of, SRT95C, decoration JKGX06. (2/2)
6-17

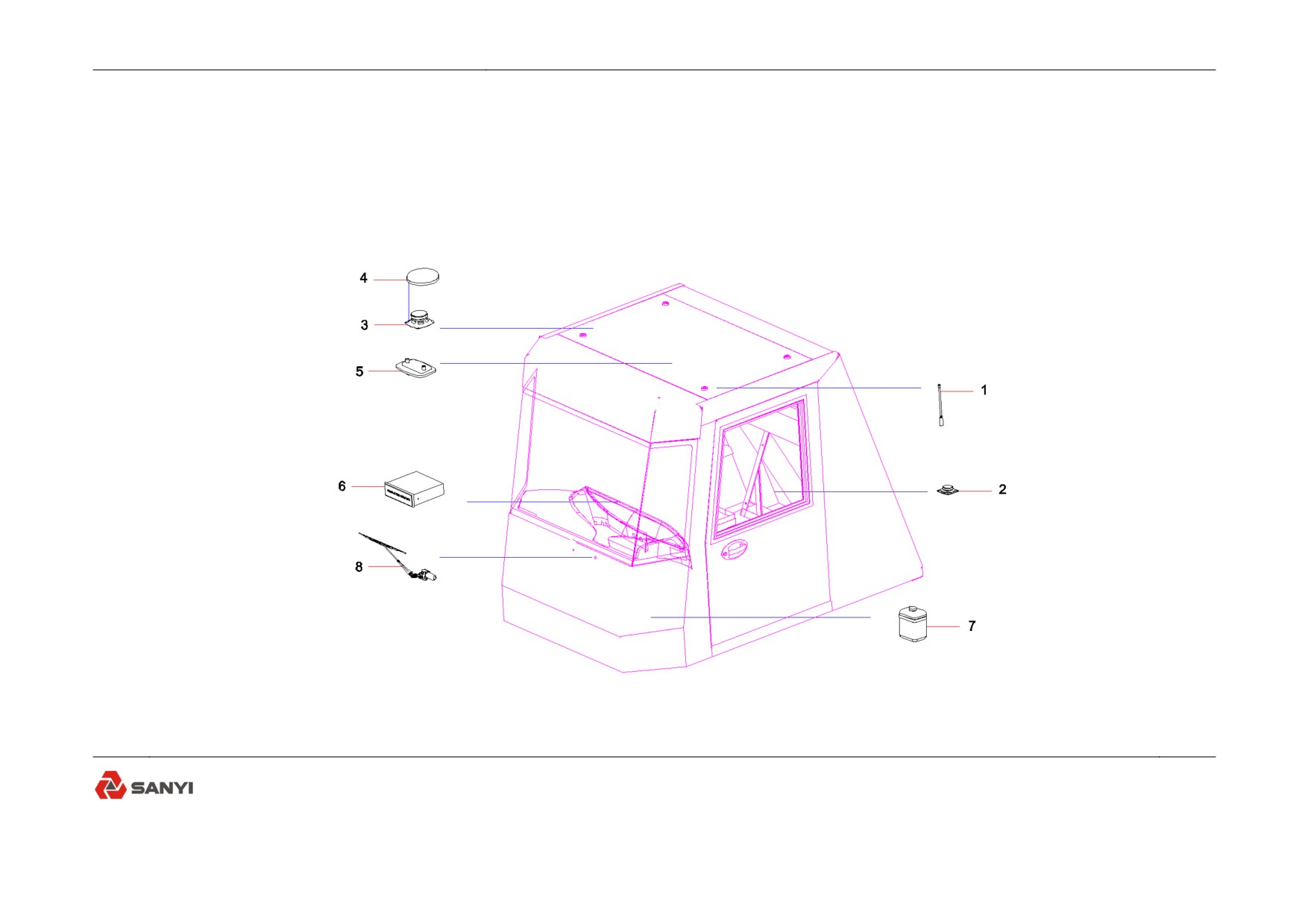

Electrical system,cab
SRT95C Off-highway truck
PARTS BOOK
11550237 Electrical system,cab
6-18
Electrical system,cab
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
60023704
Antenna
1
2
11443728
Harness,cab
1
3
60023703
Horn
1
4
60052997
Horn cover
1
5
A241100000498
Roof lamp, auman
1
6
60197594
Radio
1
7
A229900000113
Washer
1
8
60062132
Front window wiper
1
11550237 Electrical system,cab
6-19
PARTS BOOK
Group 7
Rear wheel assembly
7-1
Rear wheel assembly
SRT95C Off-highway truck
PARTS BOOK

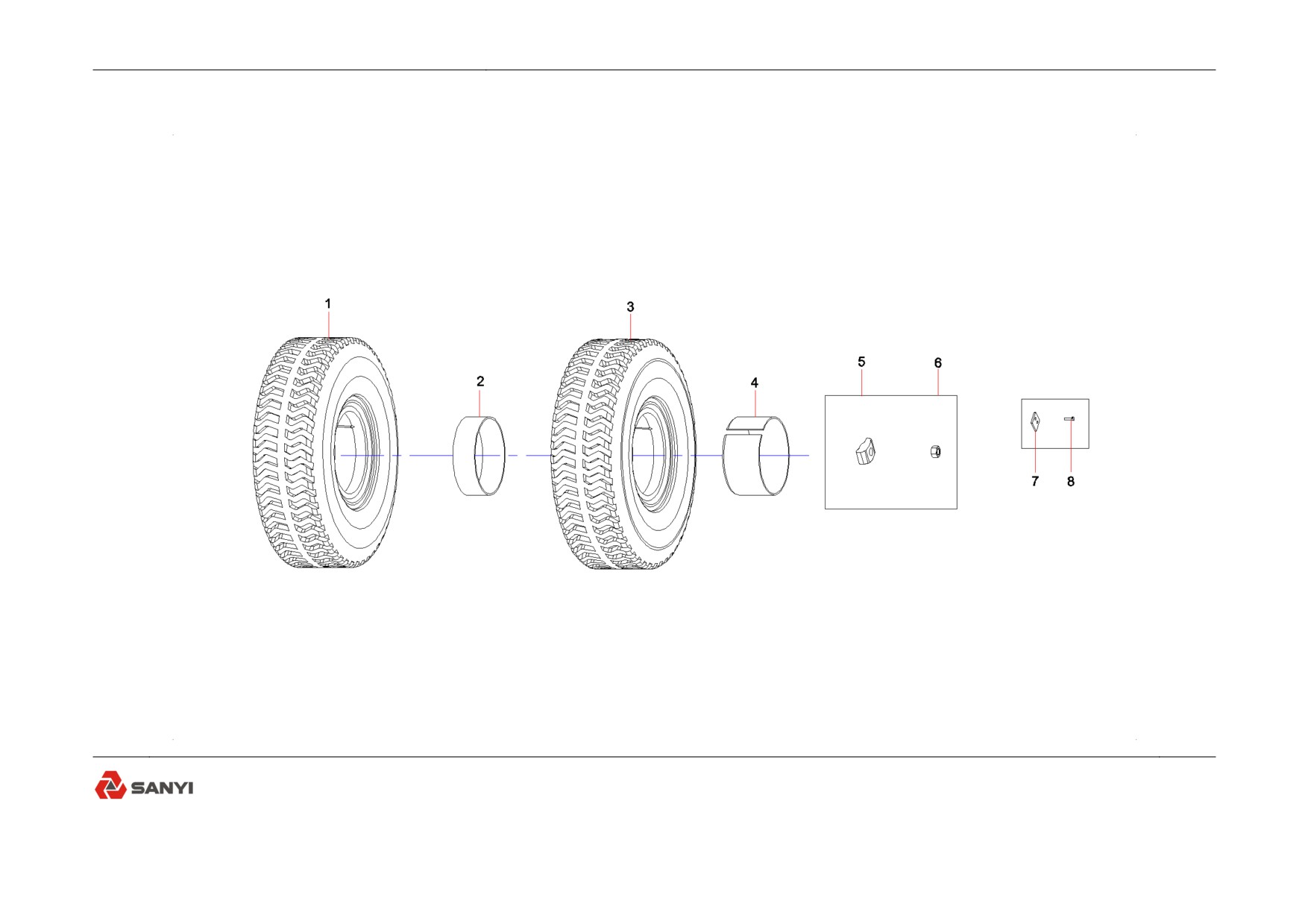

11508133 Rear wheel assembly
7-2
Rear wheel assembly
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
11508135
Rear inner tyre and rim assembly
1
2
60036997
Spacer-Band
1
3
11508134
Rear outer tyre and rim assembly
1
4
60037006
Wedge-Band
1
5
10235251
Clamp
27
6
60010517
Nut M24 10 grade
27
7
11508132
Plate
1
8
A210111000197
Bolt
2
11508133 Rear wheel assembly
7-3
Rear inner tyre and rim assembly
SRT95C Off-highway truck
PARTS BOOK

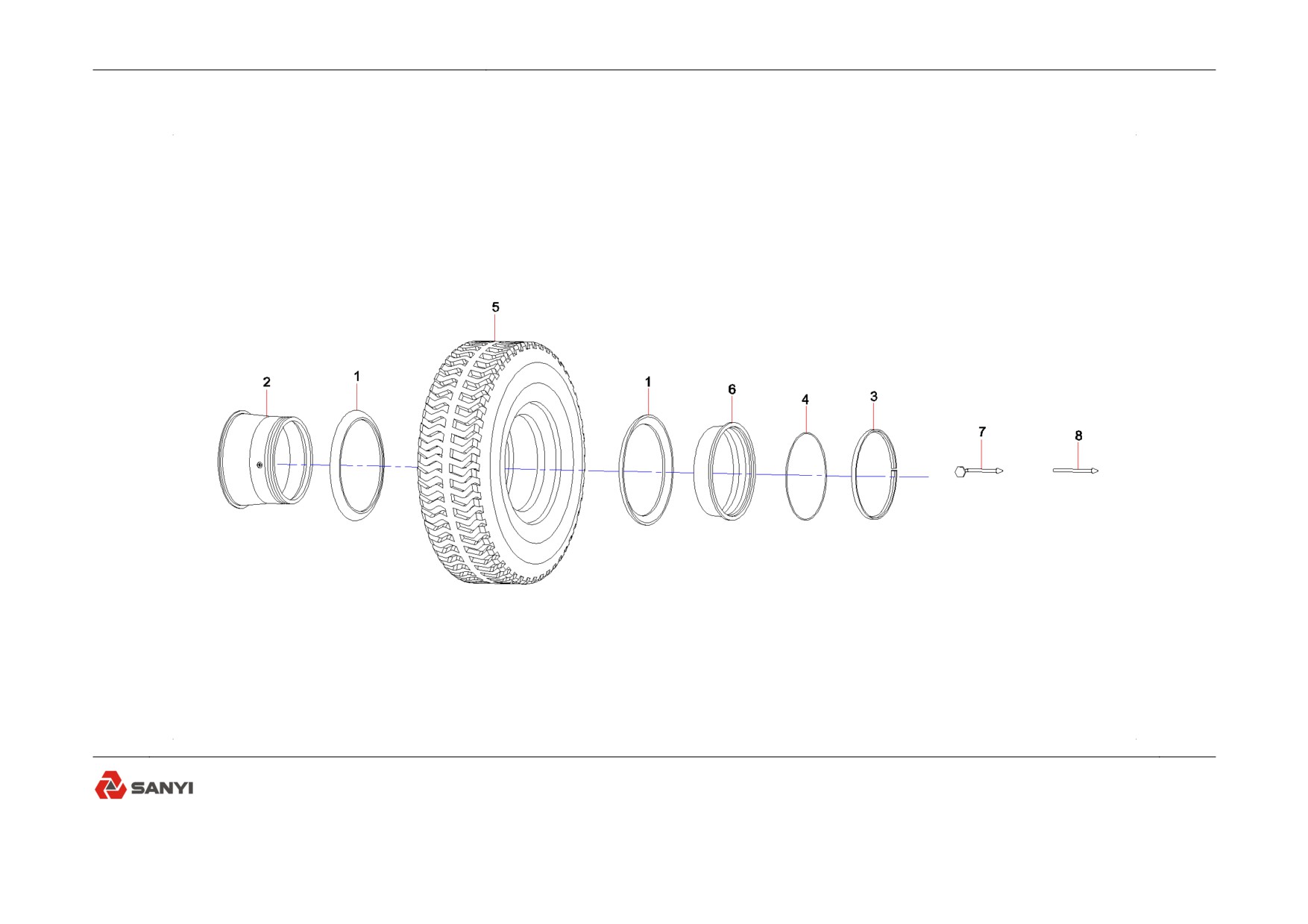

11508135 Rear inner tyre and rim assembly
7-4
Rear inner tyre and rim assembly
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
60036995
Flange
2
2
60036991
Rim
1
3
60036993
Lockring
1
4
60037011
O-ring
1
5
60004579
Tyre
1
6
60037008
Band-bead Seat
1
7
60037002
Valve Stem Assy
1
8
60037012
Valve Extension Bar
1
11508135 Rear inner tyre and rim assembly
7-5
Rear outer tyre and rim assembly
SRT95C Off-highway truck
PARTS BOOK

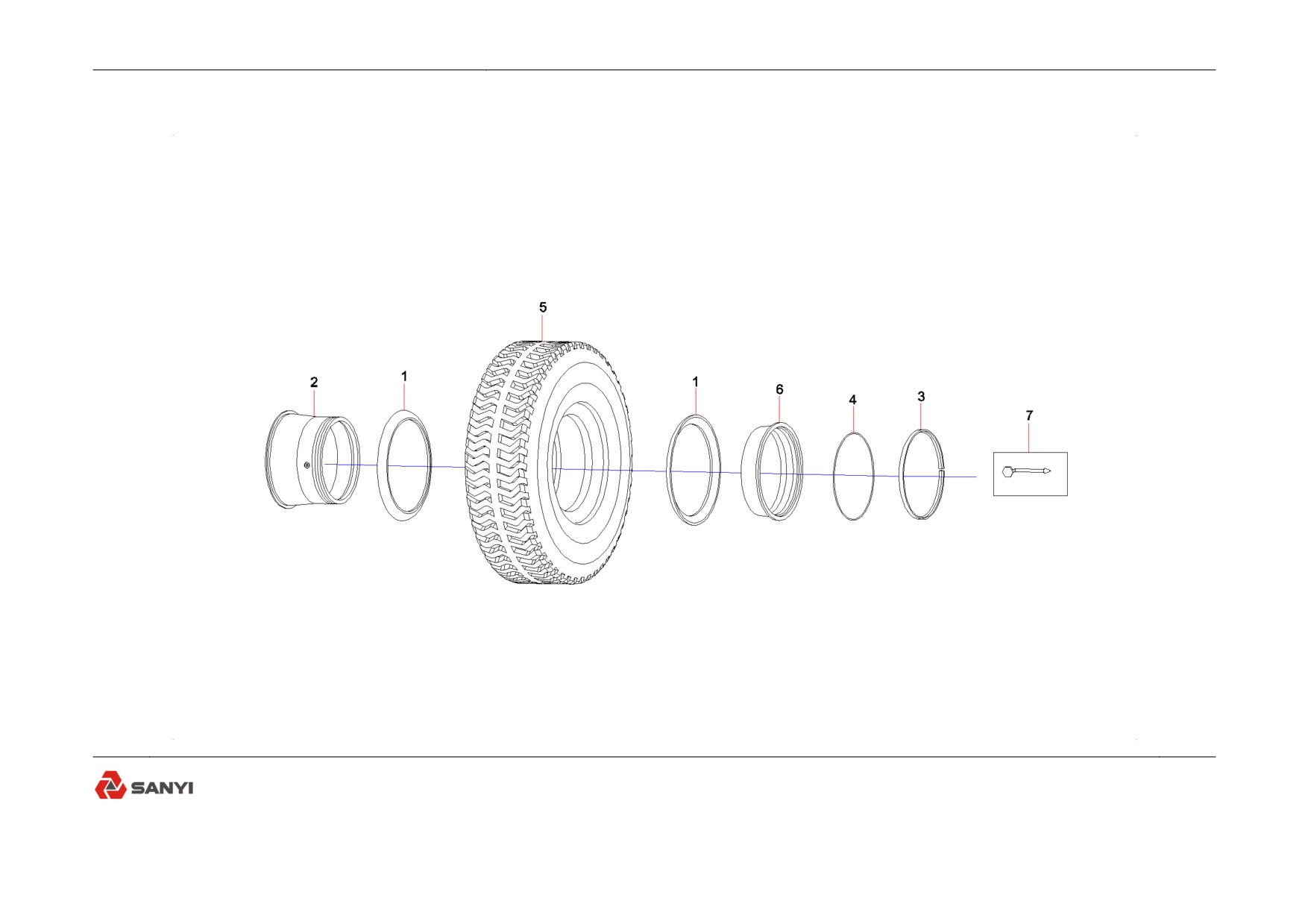

11508134 Rear outer tyre and rim assembly
7-6
Rear outer tyre and rim assembly
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
60036995
Flange
2
2
60036991
Rim
1
3
60036993
Lockring
1
4
60037011
O-ring
1
5
60004579
Tyre
1
6
60037008
Band-bead Seat
1
7
60037003
Valve Stem Assy
1
11508134 Rear outer tyre and rim assembly
7-7
PARTS BOOK
Group 8
Rear Suspension System
8-1
Rear Suspension System
SRT95C Off-highway truck
PARTS BOOK

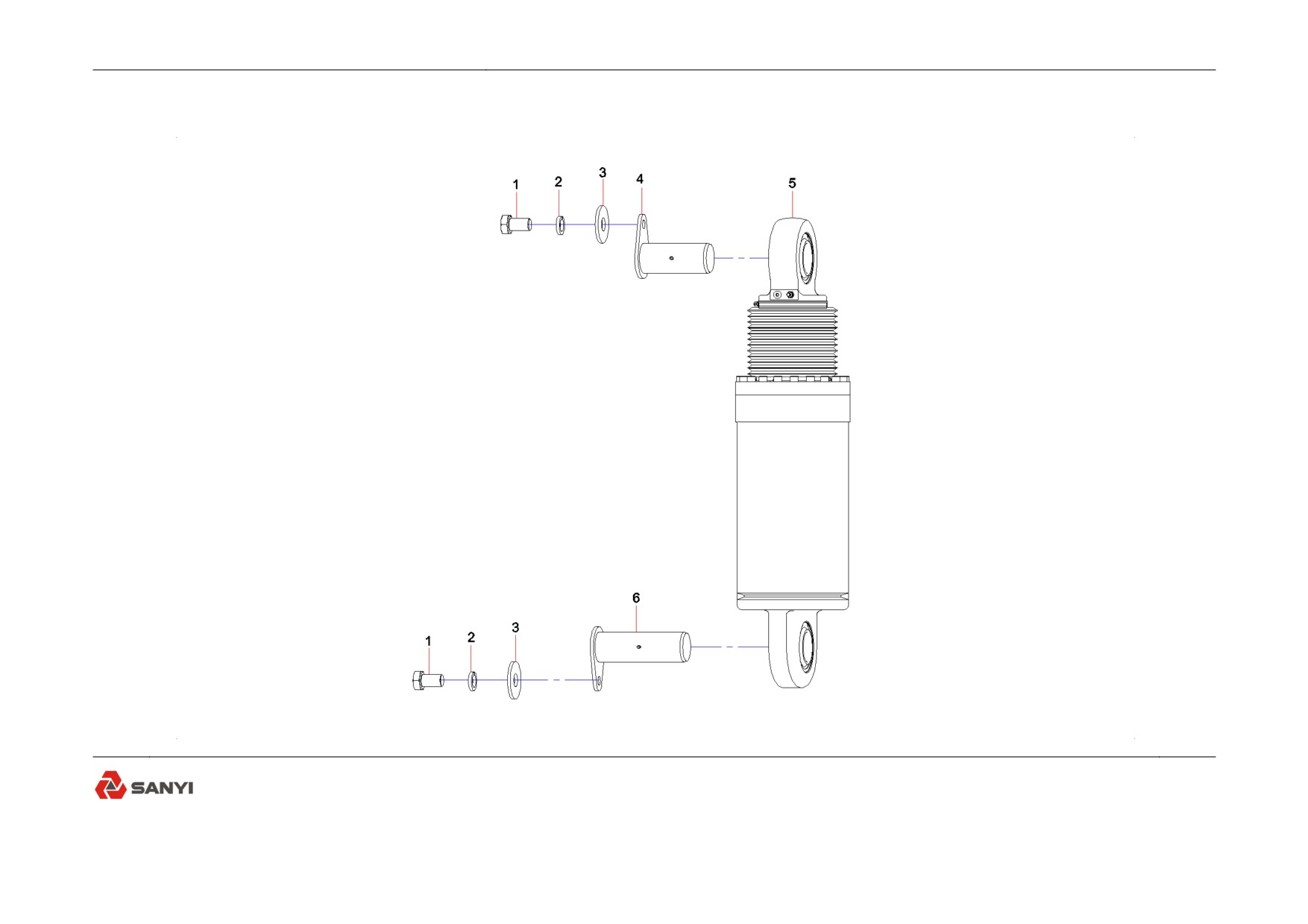

11945738 Rear Suspension System
8-2
Rear Suspension System
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
A210111000199
Bolt M12×20GB5783 Grade 10.9
2
2
24000513
Washer 12GB93 DACROMET
2
3
A210404000004
Washer
2
4
11911540
Pin
1
5
12690092
Rear Suspension Cylinder
1
6
11911542
Pin
1
11945738 Rear Suspension System
8-3
Rear Suspension Cylinder
SRT95C Off-highway truck
PARTS BOOK

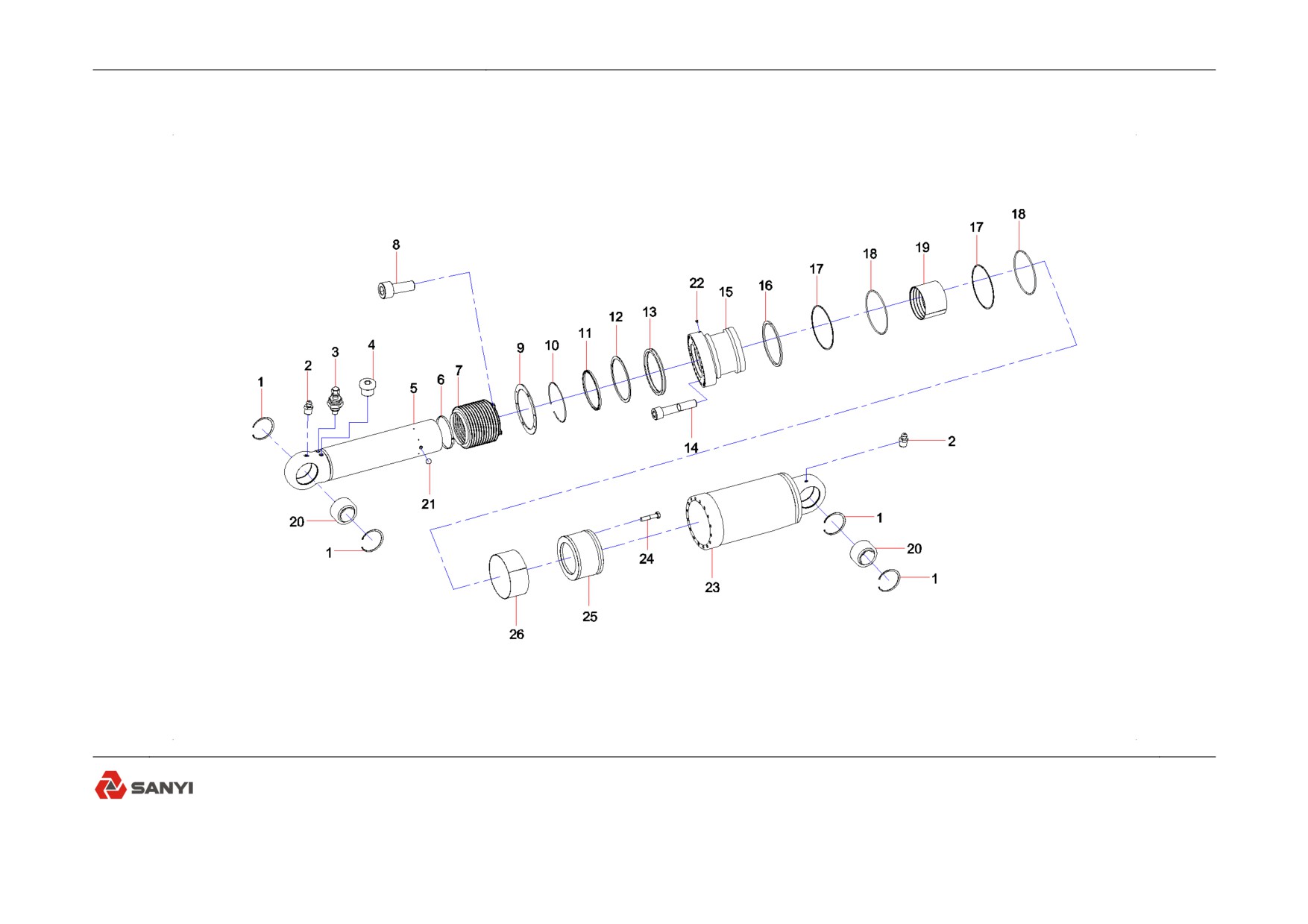

12690092 Rear Suspension Cylinder (1/2)
8-4
Rear Suspension Cylinder
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
A210416000009
Retainer Ring 160GB893.1
4
2
A210804000002
Oil cup
2
3
A220400000599
Charge valve
1
4
21008717
Plug
1
5
12689291
Piston rod
1
6
60006914
Clamp
1
7
10480089
Dust boot
1
8
A210204000130
Screw
6
9
11840368
Plate
1
10
11609348
Retainer ring
1
11
60096932
Seal-wiper
1
12
60199313
Backup ring
1
13
60199311
Seal
1
14
A210204000266
Bolt
28
15
12688780
Guide sleeve
1
16
60199312
Buffer seal
1
17
60004637
Retainer ring
2
18
60004642
O-ring
2
19
60004635
Wear ring
1
20
60141787
Bearing
2
21
A210661000003
Steel ball
2
22
A210777000094
Plug
1
12690092 Rear Suspension Cylinder (1/2)
8-5
Rear Suspension Cylinder
SRT95C Off-highway truck
PARTS BOOK
12690092 Rear Suspension Cylinder (2/2)
8-6
Rear Suspension Cylinder
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
23
12688902
Cylinder tube assy.
1
24
A210204000351
Screw
20
25
12689121
Piston
1
26
60070629
Wear ring
1
12690092 Rear Suspension Cylinder (2/2)
8-7
PARTS BOOK
Group 9
Engine installation
9-1
Engine installation
SRT95C Off-highway truck
PARTS BOOK

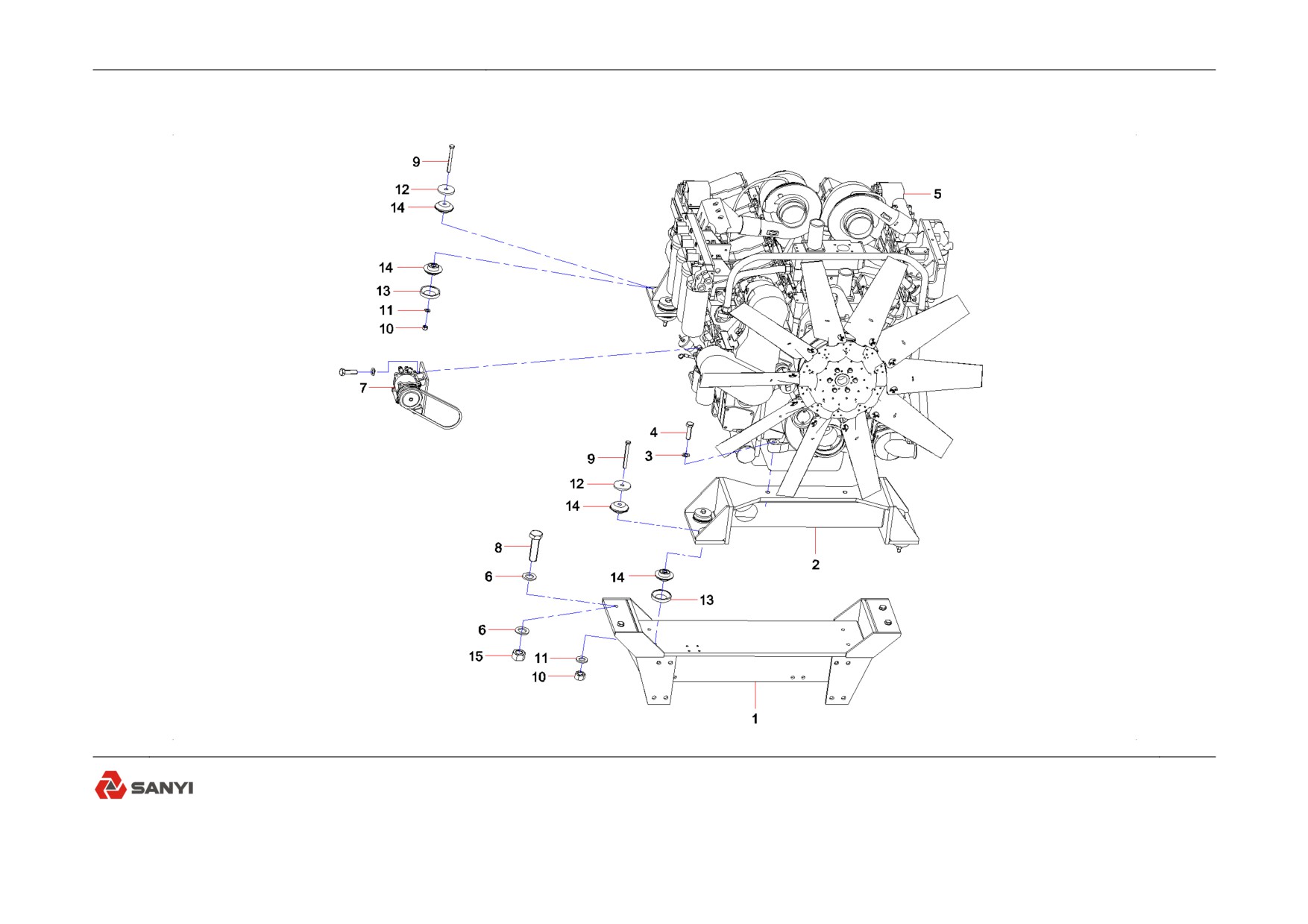

12955811 Engine installation
9-2
Engine installation
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
10499998
Crossbeam
1
2
10499530
Front support
1
3
A210444000002
Washer 22GB1230
2
4
A210110000333
Bolt
2
5
12955665
Engine installation
1
6
A210491000132
Washer
8
7
11576510
Compressor installation
1
8
A210111000063
Bolt M20×70GB5783 Grade 10.9
4
9
A210111000210
Bolt
8
10
A210307000028
Nut
8
11
A210491000118
Washer
8
12
10499508
Washer
8
13
10499509
Washer
8
14
60004630
Shock mount
16
15
A210307000029
Nut
4
12955811 Engine installation
9-3
Engine installation
SRT95C Off-highway truck
PARTS BOOK

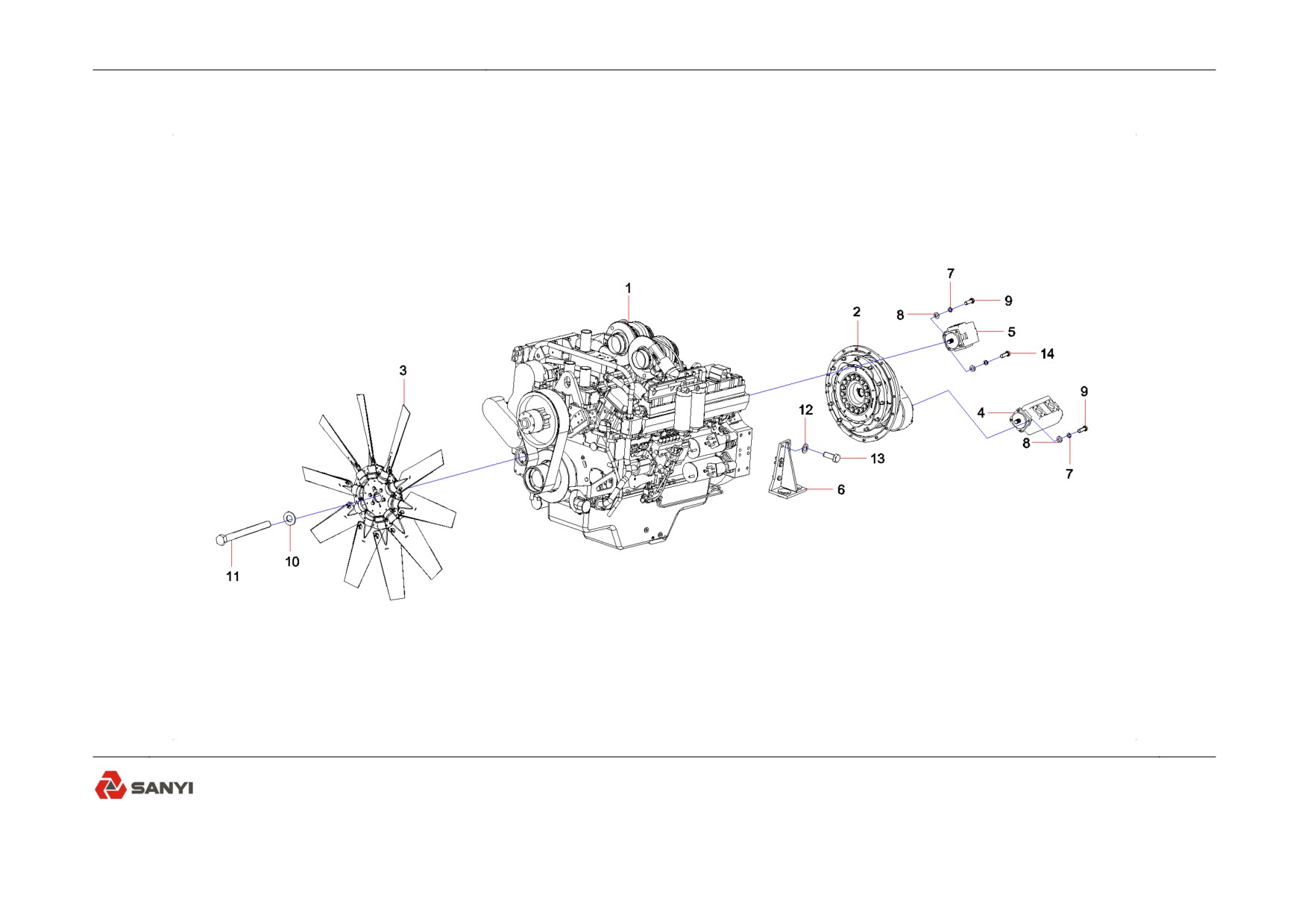

12955665 Engine installation
9-4
Engine installation
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
B220200000163
Engine
1
2
12867945
Engine - power takeoff
1
3
60004631
Fan
1
4
60000875
Double-gear pump
1
5
60156509
Gear Pump
1
6
11617835
Rear Mount
2
7
24000513
Washer 12GB93 DACROMET
8
8
24000639
Washer 12GB97.1
8
9
A210111000204
Bolt
6
10
A229900009503
Washer
6
11
60008339
Bolt
6
12
24000646
Washer
16
13
A210111000221
Bolt
16
14
A210111000202
Bolt
2
12955665 Engine installation
9-5
Engine
SRT95C Off-highway truck
PARTS BOOK

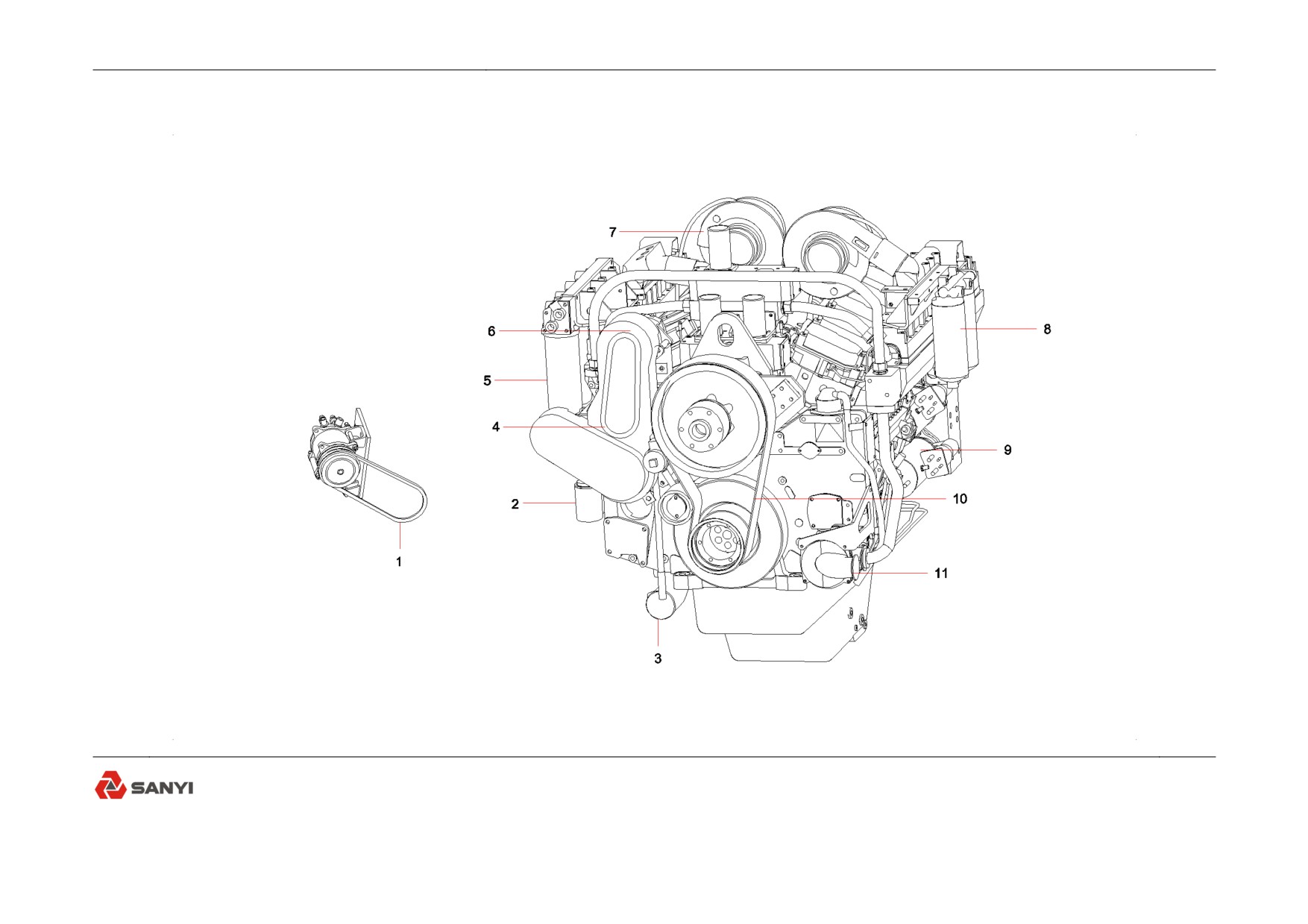

B220200000163 Engine
9-6
