SANY SRT95C Off-highway truck. Parts book (Equipment No.14RT95100040) - page 2
Steering cylinder
SRT95C Off-highway truck
PARTS BOOK

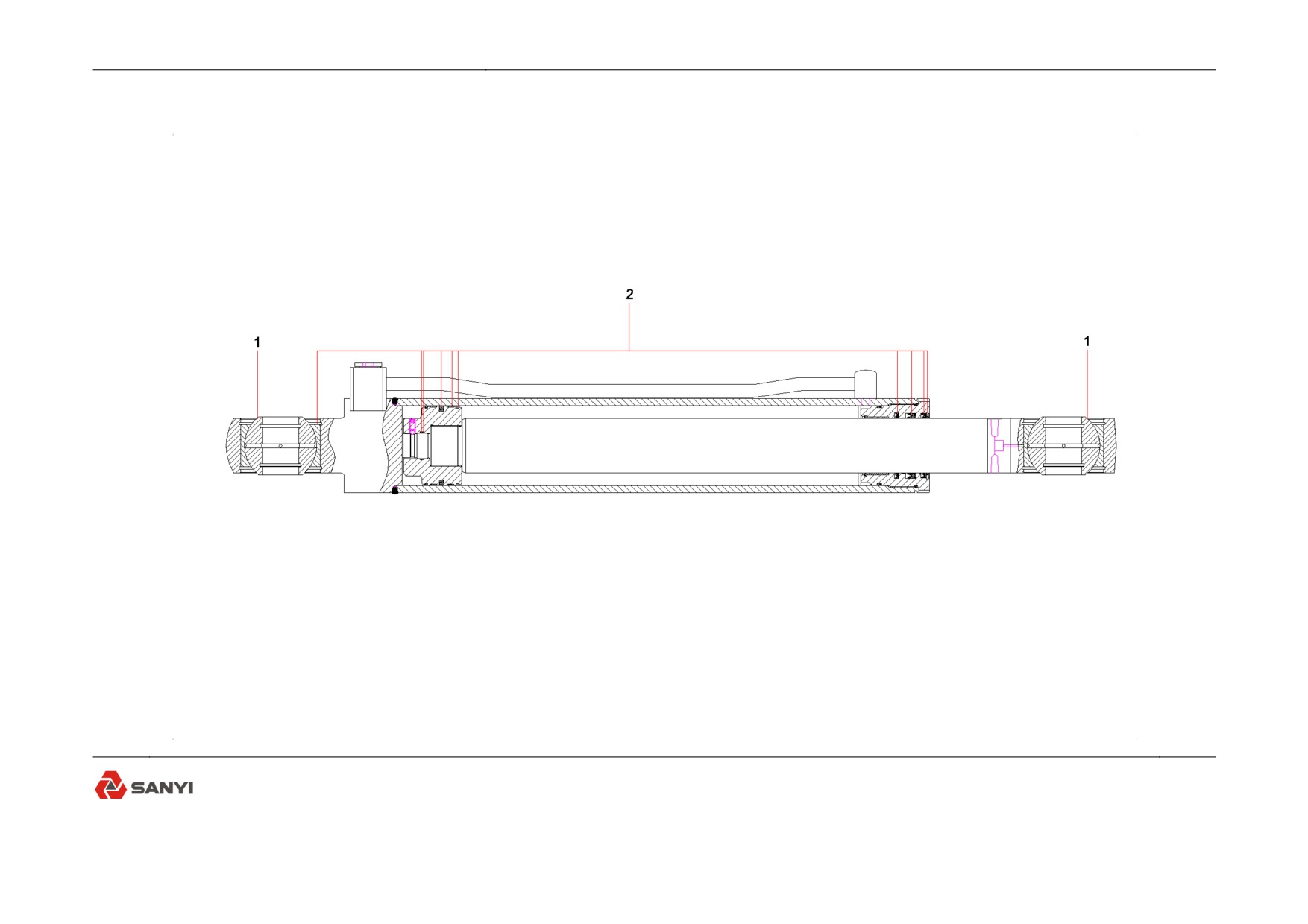

60212671 Steering cylinder
3-18
Steering cylinder
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
60211391
Spherical Plain Bearing
2
2
60231041
Repair kit of SRT95C steering cylinder
1
60212671 Steering cylinder
3-19
Steering crank assembly
SRT95C Off-highway truck
PARTS BOOK

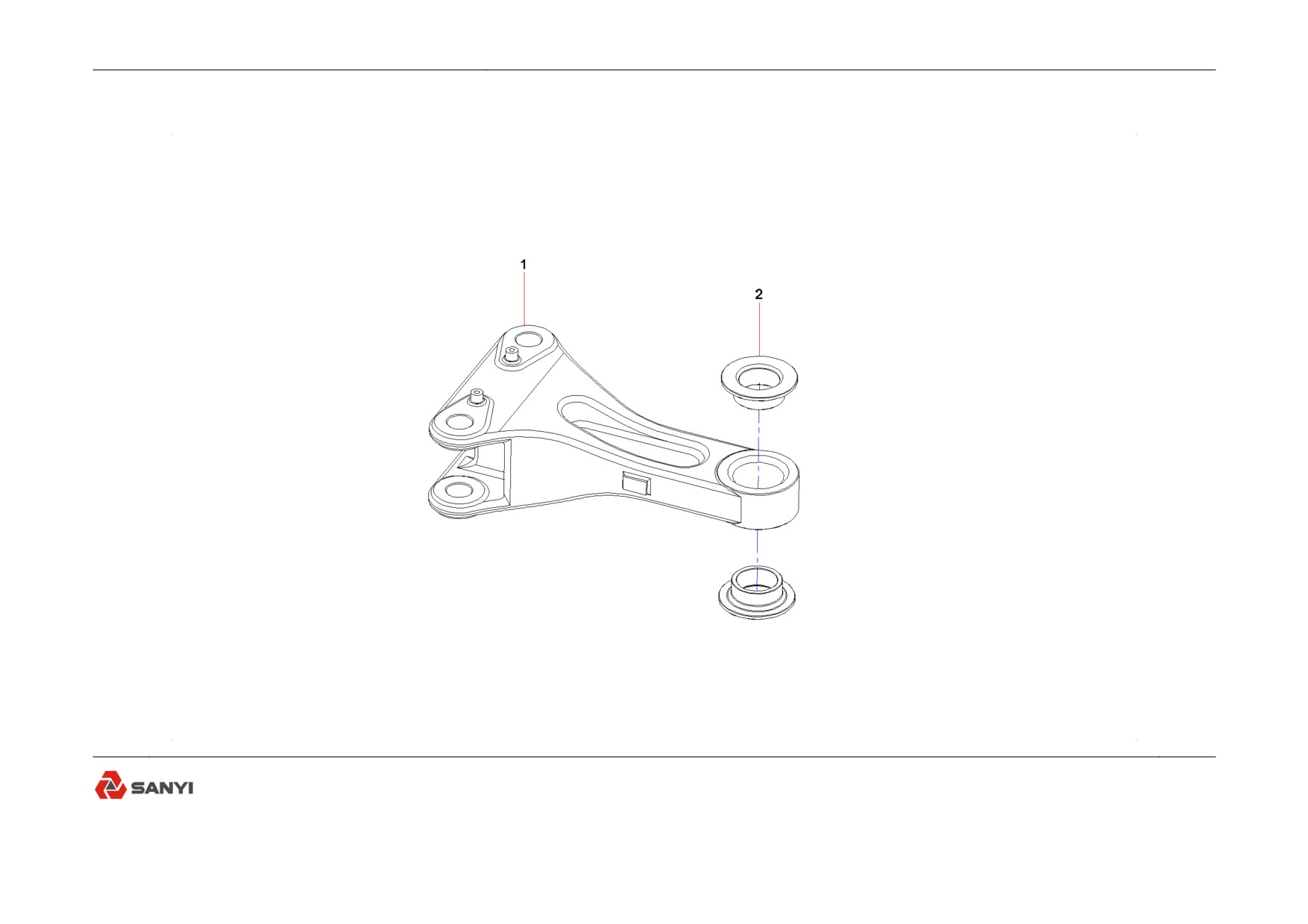

12890691 Steering crank assembly
3-20
Steering crank assembly
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
12888559
Crank welding body
1
2
12890383
Crank spacer
2
12890691 Steering crank assembly
3-21
Left front axle assembly SRT95C.032.1
SRT95C Off-highway truck
PARTS BOOK

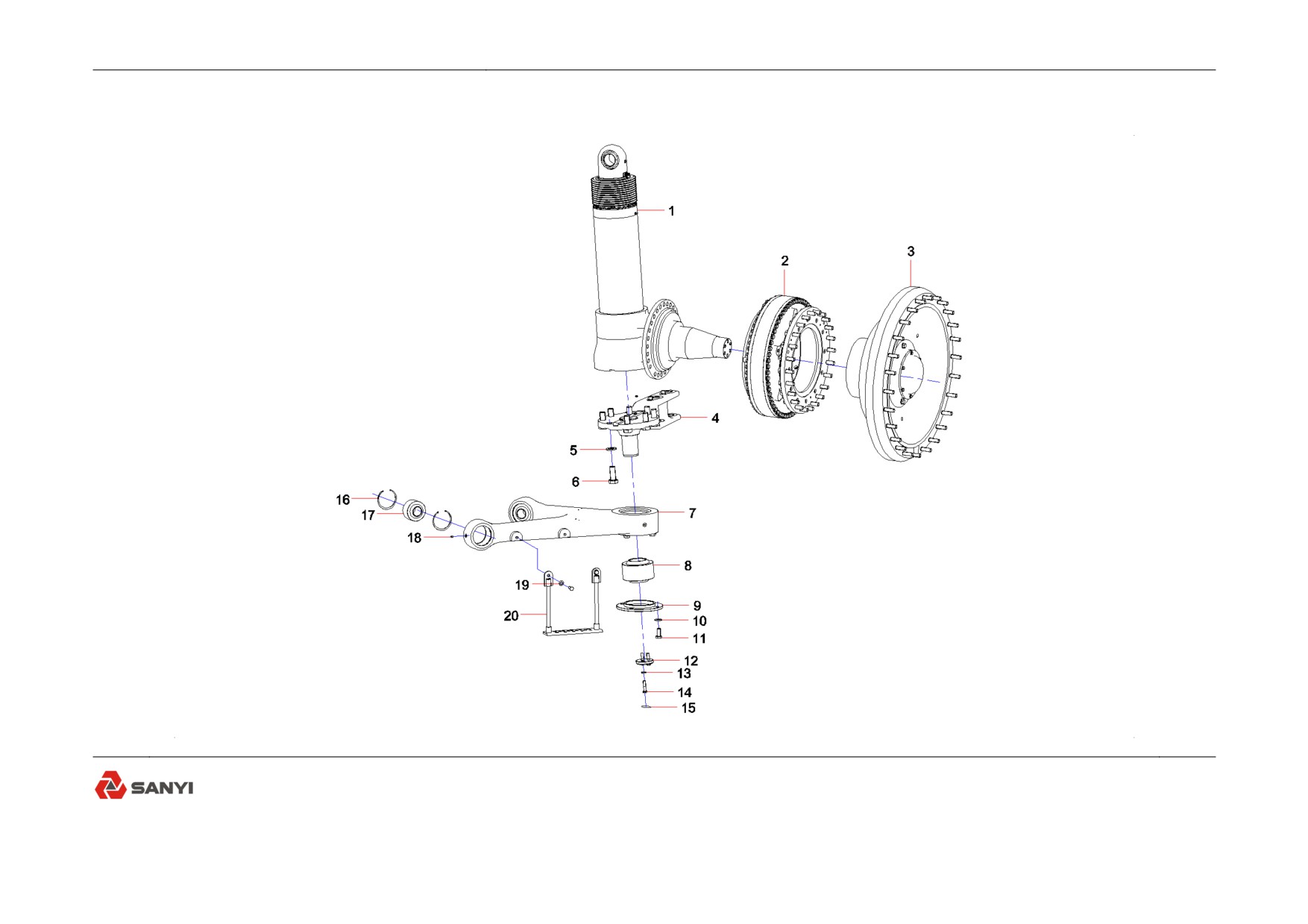

13320599 Left front axle assembly SRT95C.032.1
3-22
Left front axle assembly SRT95C.032.1
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
13274215
Front suspension cylinder SRT95C.032.1.1
1
2
13298846
Assembly of front oil-cooled disc brake
1
3
13295273
Front wheel and installation SRT95C.032.
1
4
12889569
Steering arm assembly
1
5
A229900003095
Spacer
8
6
60225023
Bolt
8
7
13072497
A-shape arm assembly(Right)
1
8
60211393
Spherical Plain Bearing
1
9
12929965
Baffle
1
10
A210491000122
Washer
4
11
21030883
Bolt
4
12
12910244
Steering arm plate
1
13
A210491000118
Washer
5
14
24000015
Bolt
3
15
11620190
Steel wire
1
16
60211392
Spherical Plain Bearing
4
17
A210416000046
Ring,retainer
2
18
A210804000002
Oil cup
2
19
A210111000053
Bolt M16×40GB5783 Grade 10.9
2
20
12969724
Step assembly
1
13320599 Left front axle assembly SRT95C.032.1
3-23
PARTS BOOK
Group 4
Rear axle assembly and installation
4-1
Rear axle assembly and installation
SRT95C Off-highway truck
PARTS BOOK

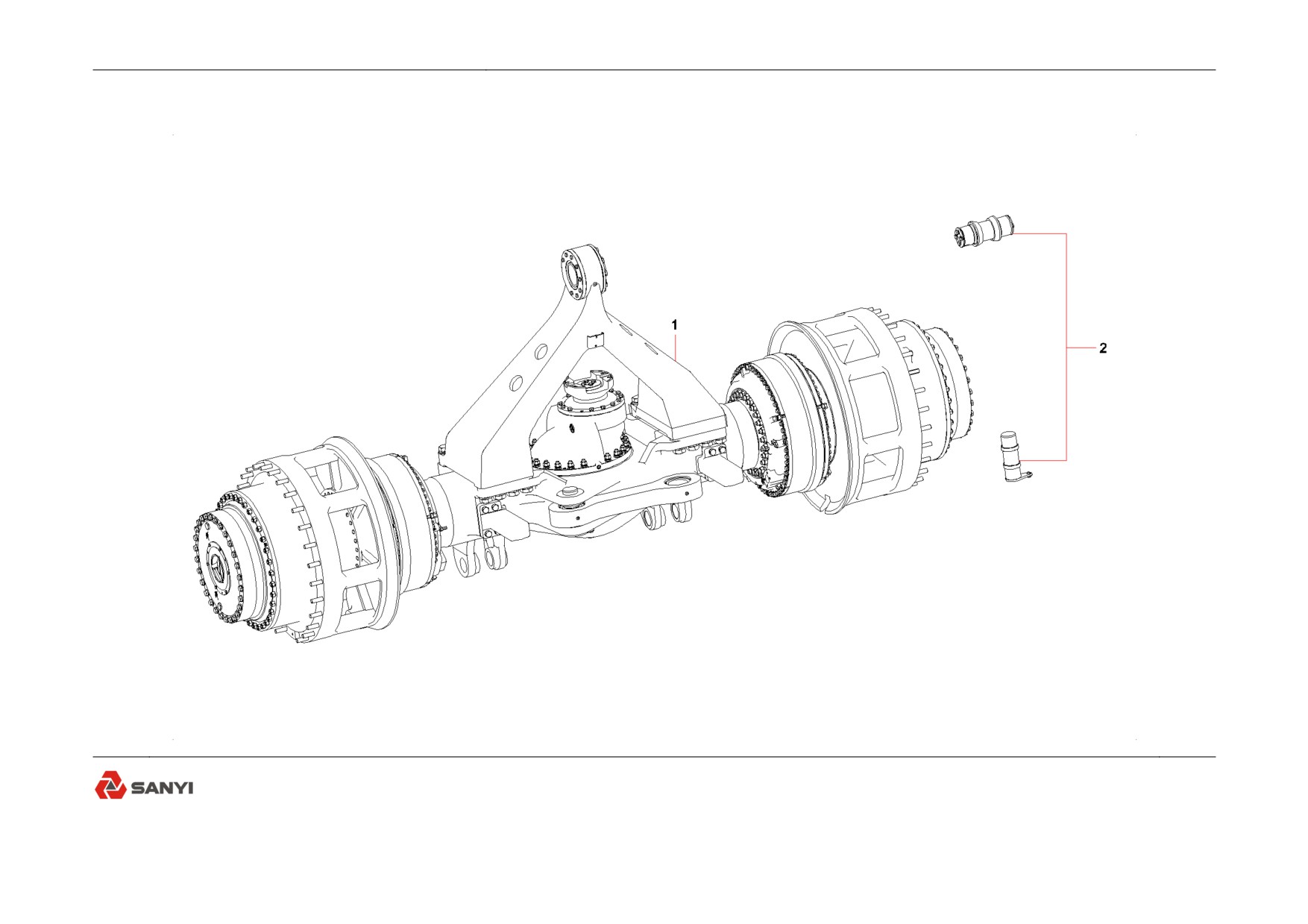

12952346 Rear axle assembly and installation
4-2
Rear axle assembly and installation
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
12952338
Assembly of rear axle
1
2
12951167
Rear axle mounting parts
1
12952346 Rear axle assembly and installation
4-3
Assembly of rear axle
SRT95C Off-highway truck
PARTS BOOK

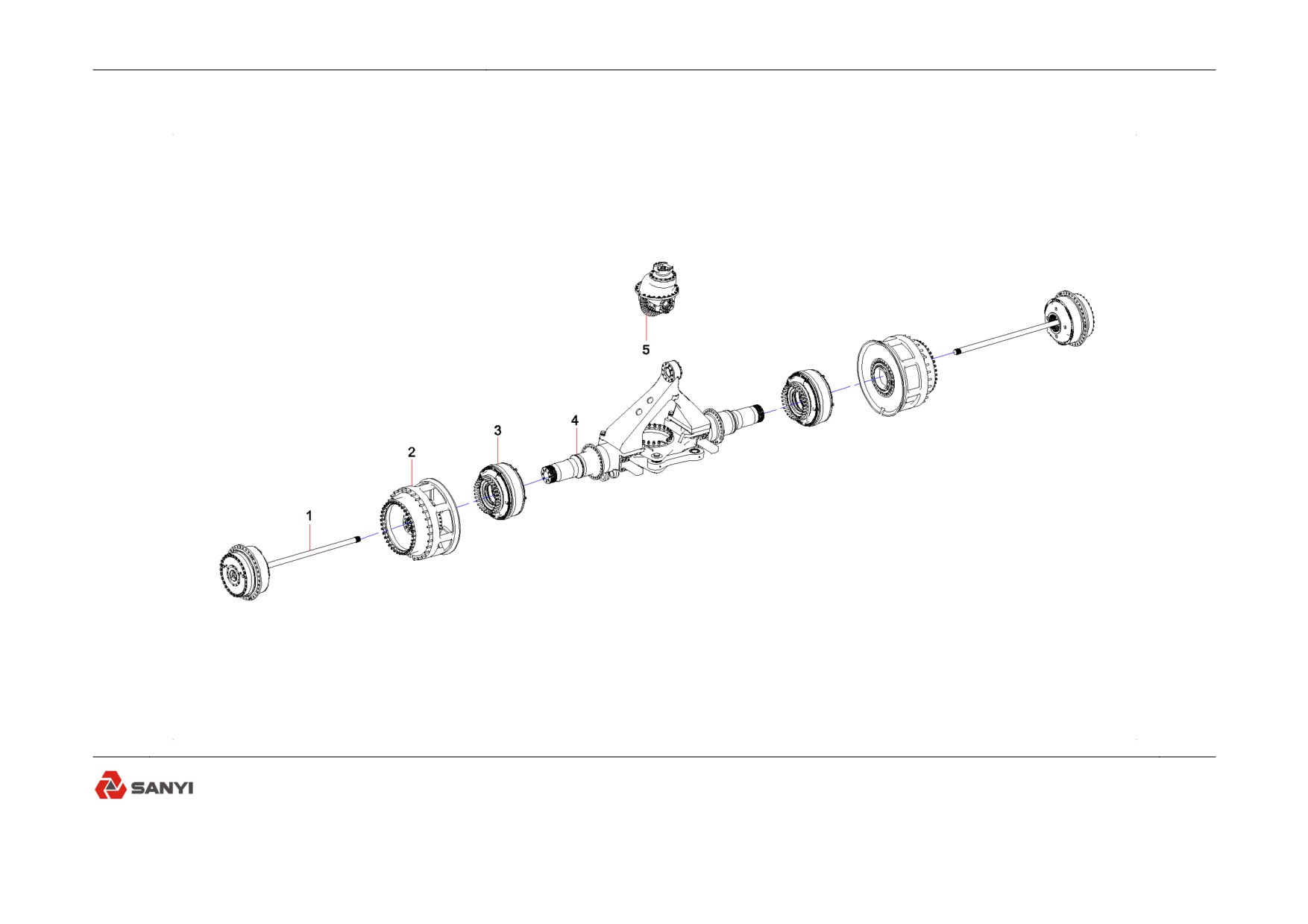

12952338 Assembly of rear axle
4-4
Assembly of rear axle
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
11508484
Planetary assembly and axle shaft
2
2
11460587
Rear hub assembly
2
3
11510897
Rear brake assembly
2
4
12951175
Rear axle housing assembly
1
5
11479985
Main reducer and differential assembly
1
12952338 Assembly of rear axle
4-5
Planetary assembly and axle shaft
SRT95C Off-highway truck
PARTS BOOK

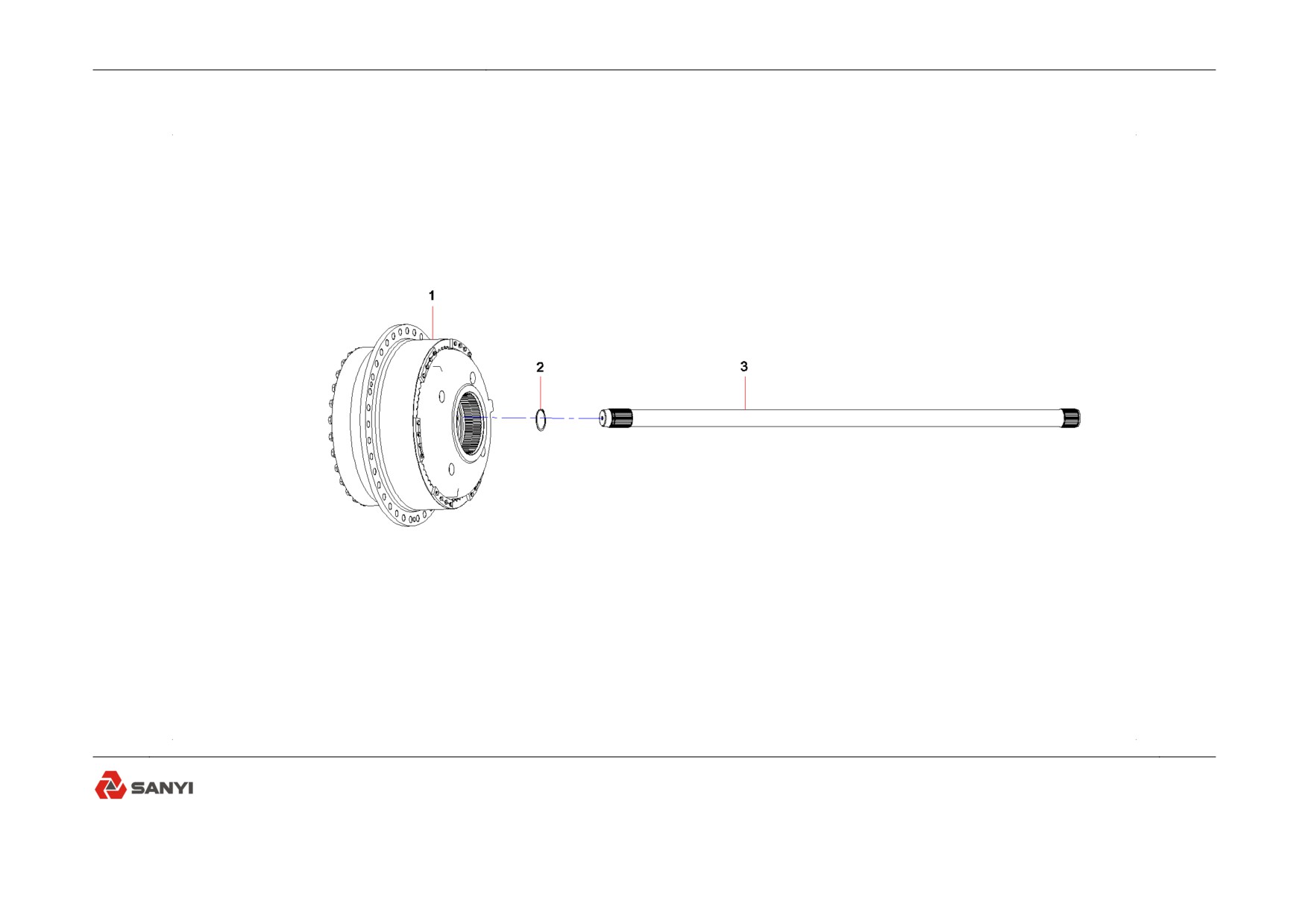

11508484 Planetary assembly and axle shaft
4-6
Planetary assembly and axle shaft
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
11508485
Planetary assembly
1
2
A210419000014
Retainer Ring 85GB894.1
1
3
11508145
Axle shaft
1
11508484 Planetary assembly and axle shaft
4-7
Planetary assembly
SRT95C Off-highway truck
PARTS BOOK

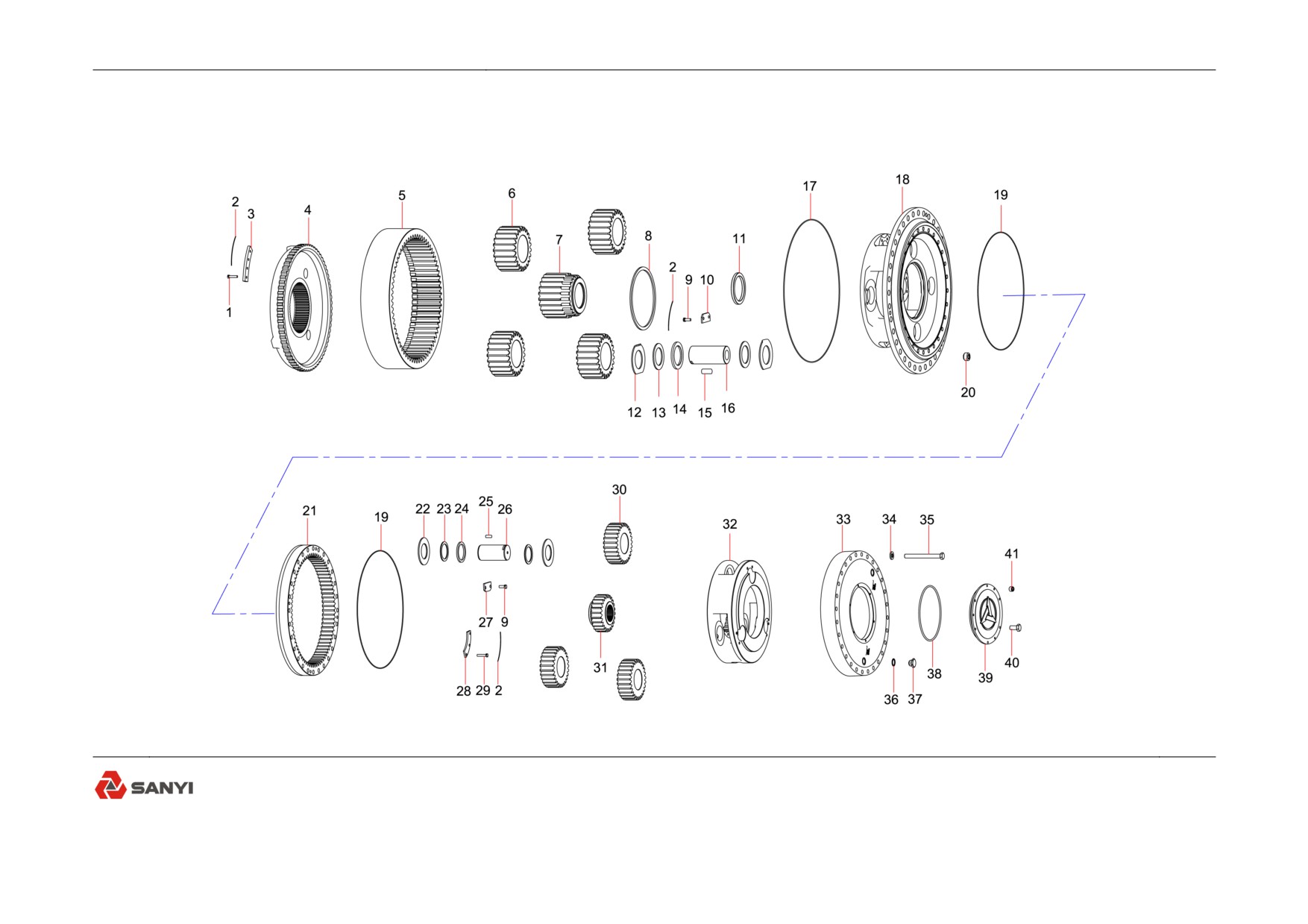

11508485 Planetary assembly (1/2)
4-8
Planetary assembly
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
A210128000031
Bolt
24
2
11508165
lockwire
17
3
11508158
Ring gear retainer
6
4
11508157
Secondary ring gear carrier
1
5
11508159
Secondary ring gear
1
6
11508154
Secondary planetary pinion
4
7
11508164
Secondary sun gear
1
8
11508162
Thrust washer
1
9
A210128000003
Bolt
14
10
11508175
Sun gear retainer
4
11
11508156
Thrust washer
1
12
11508172
Thrust plate
8
13
11508173
Thrust spacer
8
14
11508174
Roller spacer
4
15
60007825
Roller
120
16
11508155
Secondary Pinion pin
4
17
11508148
O-ring
1
18
11508160
Secondary planetary carrier
1
19
11508161
O-ring
2
20
A210206000009
Screw M20×12GB77
3
21
11508150
First ring gear
1
22
11508168
Thrust plate
6
11508485 Planetary assembly (1/2)
4-9
Planetary assembly
SRT95C Off-highway truck
PARTS BOOK
11508485 Planetary assembly (2/2)
4-10
Planetary assembly
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
23
11508169
Thrust Spacer
6
24
11508170
Roller spacer
3
25
60007824
Roller
132
26
11508149
First pinion pin
3
27
11508152
Pin retainer
3
28
11508163
Pin retainer
4
29
60007555
Bolt
12
30
11508147
First planetary pinion
3
31
11508167
First sun gear
1
32
11508171
Frist planetary carrier
1
33
11508151
Carrier cover
1
34
A210491000132
Washer
28
35
A210110000347
Bolt
28
36
A210434000014
Washer 30JB982
2
37
21051814
Plug, screw
2
38
60007556
O-ring
1
39
11508146
Cover
1
40
A210111000012
Bolt
6
41
11508166
Screw
3
11508485 Planetary assembly (2/2)
4-11
Rear hub assembly
SRT95C Off-highway truck
PARTS BOOK

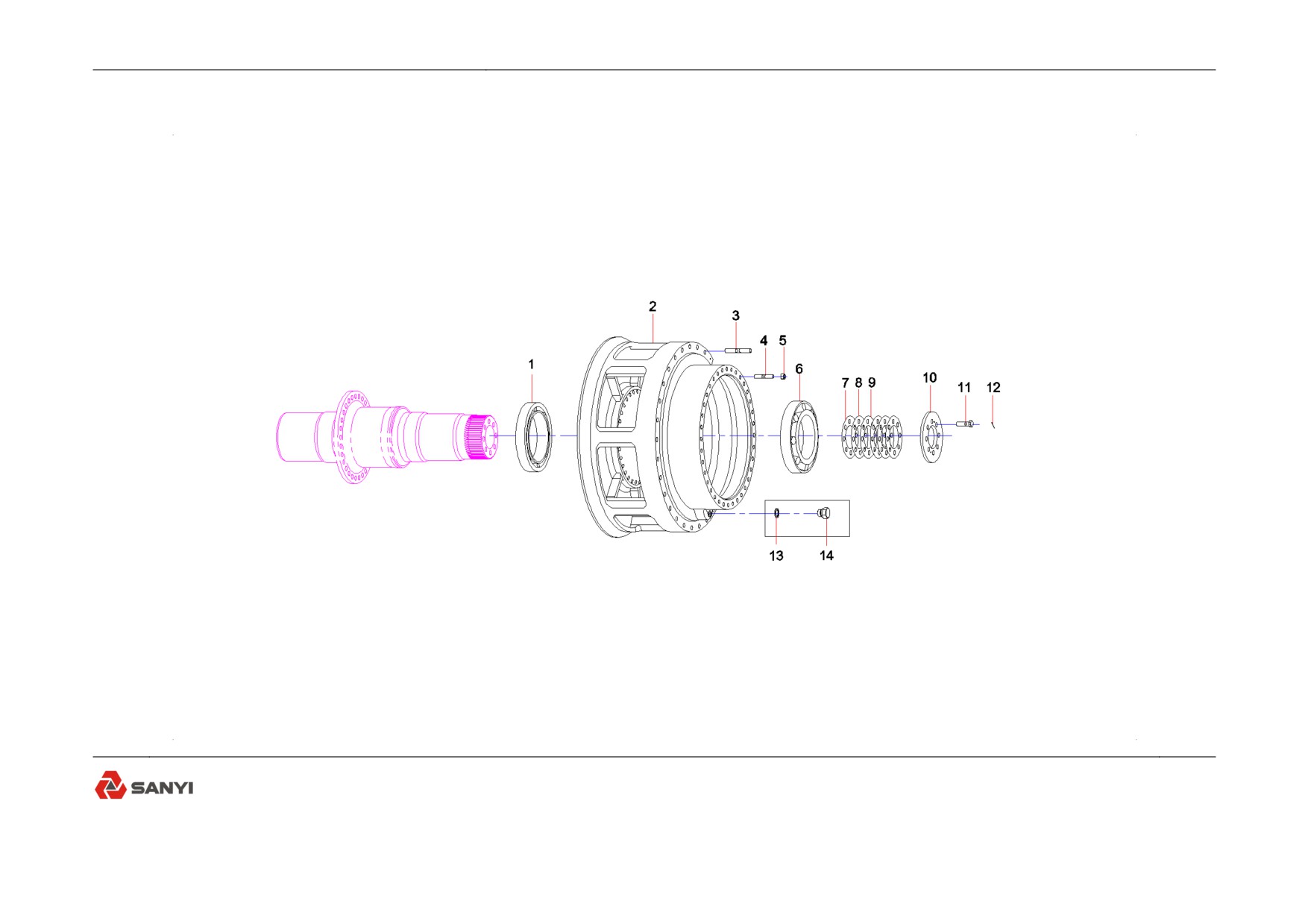

11460587 Rear hub assembly
4-12
Rear hub assembly
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
60004583
Bearing
1
2
11460581
Rear wheel
1
3
10235249
Stud
27
4
11183432
Stud
36
5
60010516
Nut M20 10 grade
36
6
60004582
Bearing
1
7
11460583
Shim
3
8
11460584
Shim
2
9
11460582
Shim
6
10
11460586
Plate
1
11
24000021
Bolt
8
12
11460585
Lockwire
1
13
A210434000010
Washer
1
14
A229900009069
Plug
1
11460587 Rear hub assembly
4-13
Rear brake assembly
SRT95C Off-highway truck
PARTS BOOK

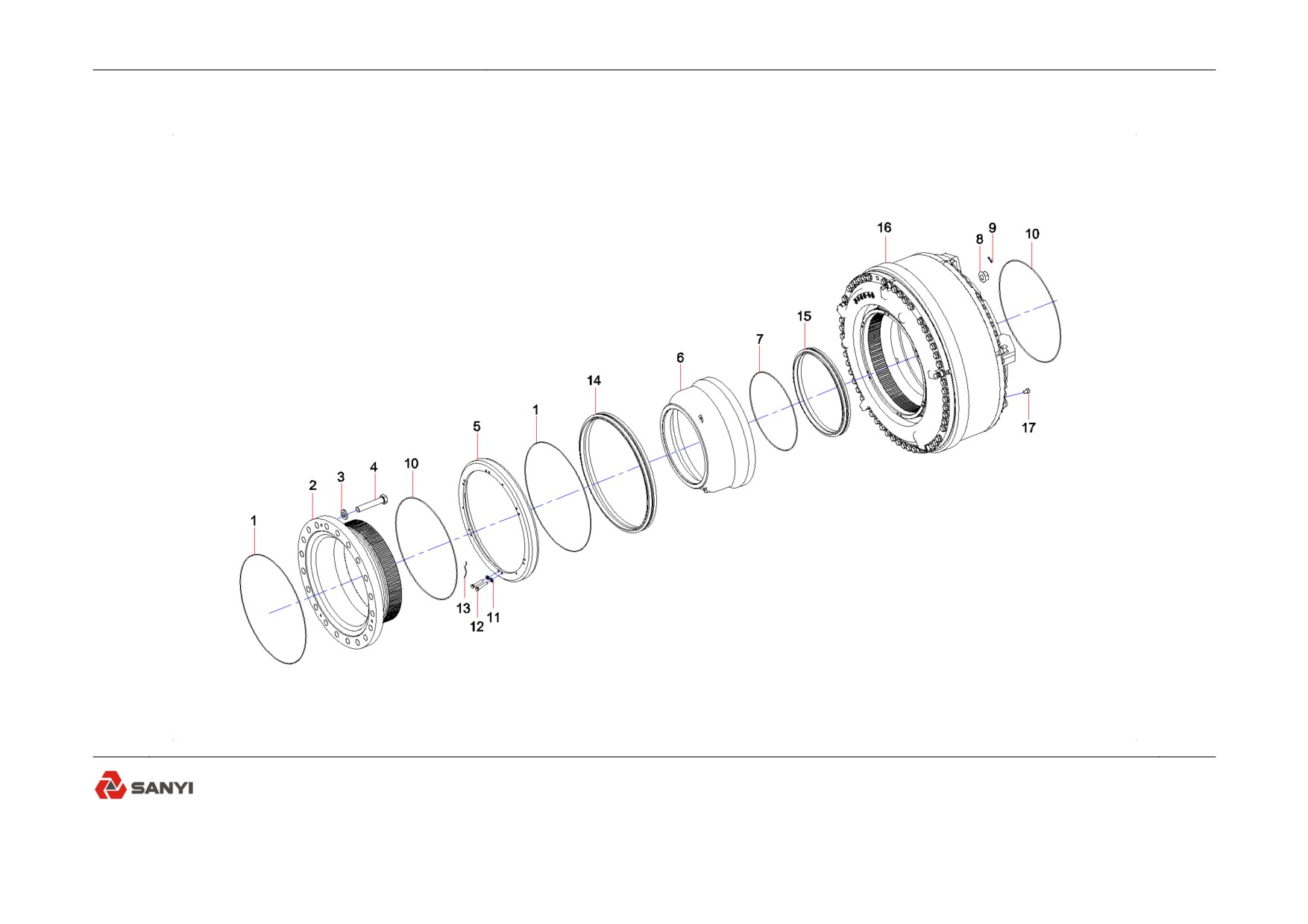

11510897 Rear brake assembly
4-14
Rear brake assembly
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
A230101000661
O-ring
2
2
11510775
Driving wheel SRT95.050.1.2-1
1
3
11189876
Washer
30
4
A229900010222
Bolt
30
5
11189874
Outer seal housing
1
6
11510779
Inner seal housing
1
7
A230101000659
O-ring
1
8
60014452
Nut
28
9
11189886
Dust boot
4
10
A230101000660
O-ring
2
11
A210405000045
Washer
12
12
A229900010458
Bolt
12
13
24003899
Lockwire
1
14
B230101002024
Dynamic seal assembly
1
15
60237512
Floating oil seal
1
16
11510862
Brake assembly
1
17
60000005
Plug
2
11510897 Rear brake assembly
4-15
Dynamic seal assembly
SRT95C Off-highway truck
PARTS BOOK

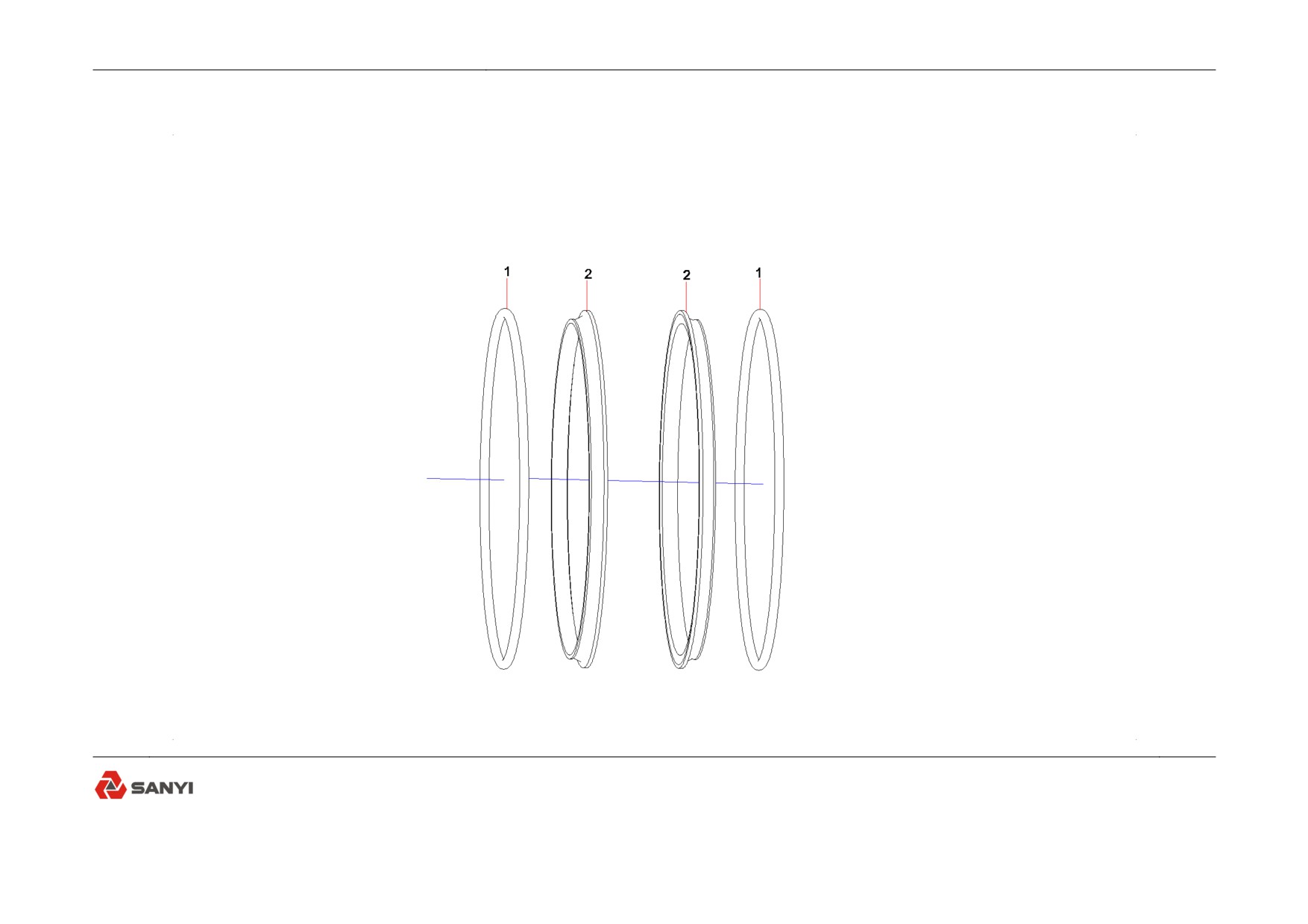

B230101002024 Dynamic seal assembly
4-16
Dynamic seal assembly
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
B230101002193
O-ring
2
2
B230101002195
Seal ring
2
B230101002024 Dynamic seal assembly
4-17
Brake assembly
SRT95C Off-highway truck
PARTS BOOK

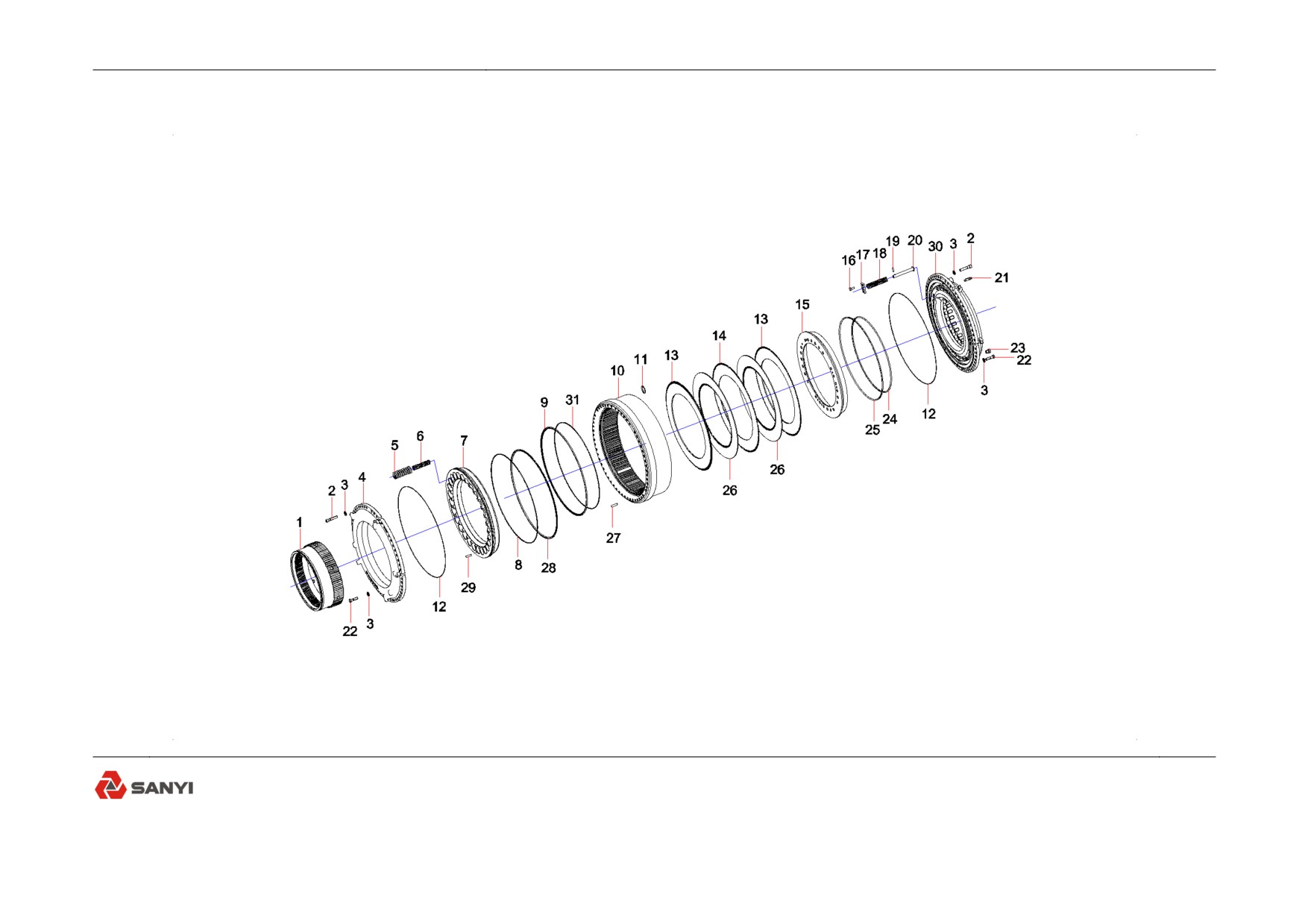

11510862 Brake assembly (1/2)
4-18
Brake assembly
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
11510805
Driving disc
1
2
11189881
Socket head screw
10
3
11189880
Washer
108
4
11189891
Spring housing
1
5
11189878
Spring
27
6
11189887
Spring
27
7
11189890
Parking piston
1
8
13043514
Guiding belt
1
9
A230101000656
Seal, OD-ring
1
10
11510787
Housing
1
11
A230101000658
O-ring
3
12
A230101000662
O-ring
2
13
B229900006164
Dampening plate
2
14
B229900006165
Friction plate
12
15
11189889
Service brake piston
1
16
A210111000342
Bolt M8×16GB5783 10.9 grade
48
17
11189879
Retainer plate
24
18
11189888
Spring
24
19
11189884
Retainer pin
24
20
11189894
Return pin
24
21
11189893
Bleeder screw
4
22
A229900010221
Bolt
98
11510862 Brake assembly (1/2)
4-19
Brake assembly
SRT95C Off-highway truck
PARTS BOOK
11510862 Brake assembly (2/2)
4-20
Brake assembly
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
23
A229900010412
Plug
2
24
A230101000654
D seal ring
1
25
A230101000655
D seal ring
1
26
B229900006166
Friction disc
13
27
11189883
Pin
2
28
A230101000657
Seal, OG-ring
1
29
11189882
Pin
1
30
11189898
Piston housing assembly
1
31
11946371
Spacer ring
1
11510862 Brake assembly (2/2)
4-21
Piston housing assembly
SRT95C Off-highway truck
PARTS BOOK

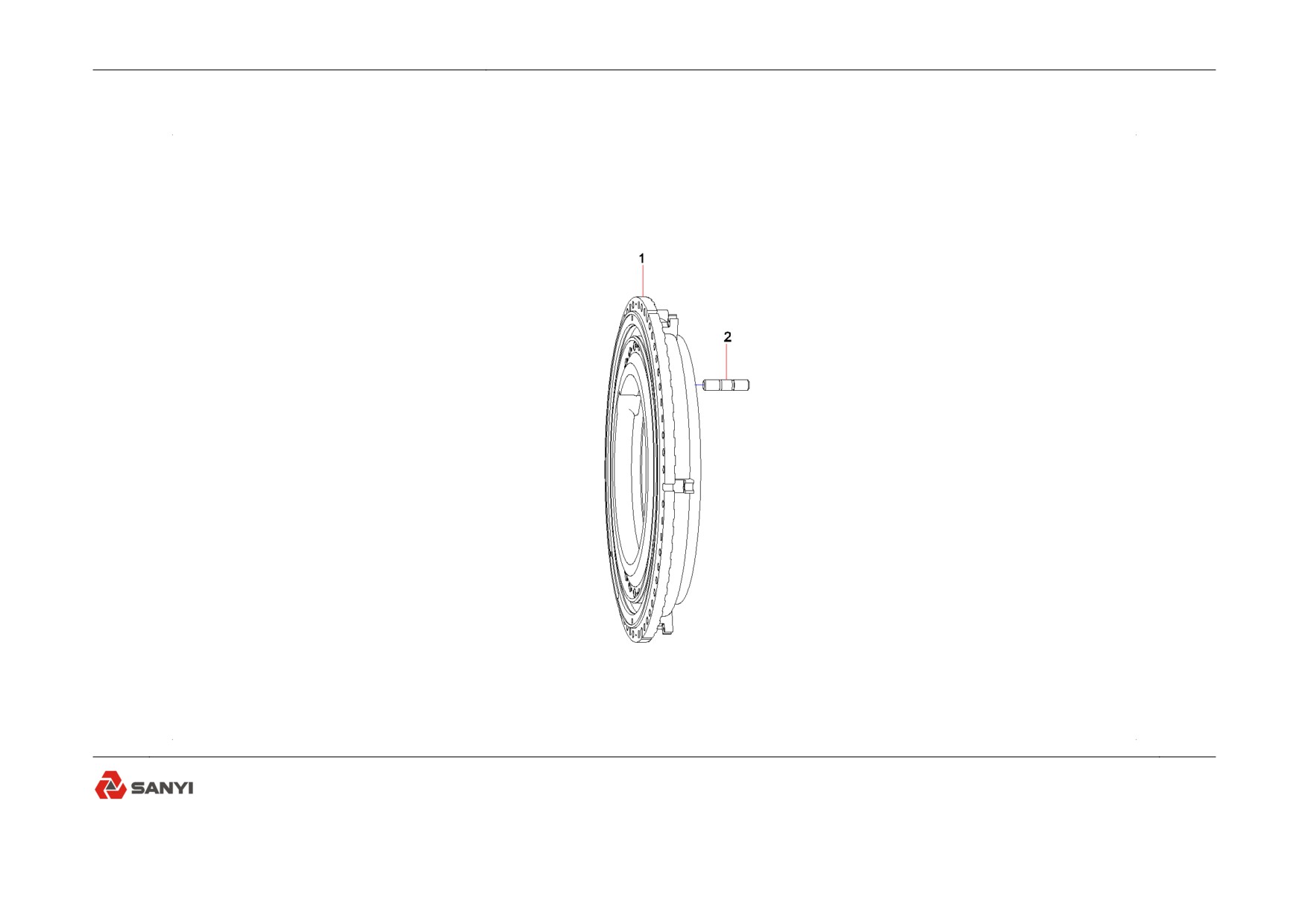

11189898 Piston housing assembly
4-22
Piston housing assembly
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
11189896
Service brake piston housing
1
2
11189897
Stud
28
11189898 Piston housing assembly
4-23
Rear axle housing assembly
SRT95C Off-highway truck
PARTS BOOK

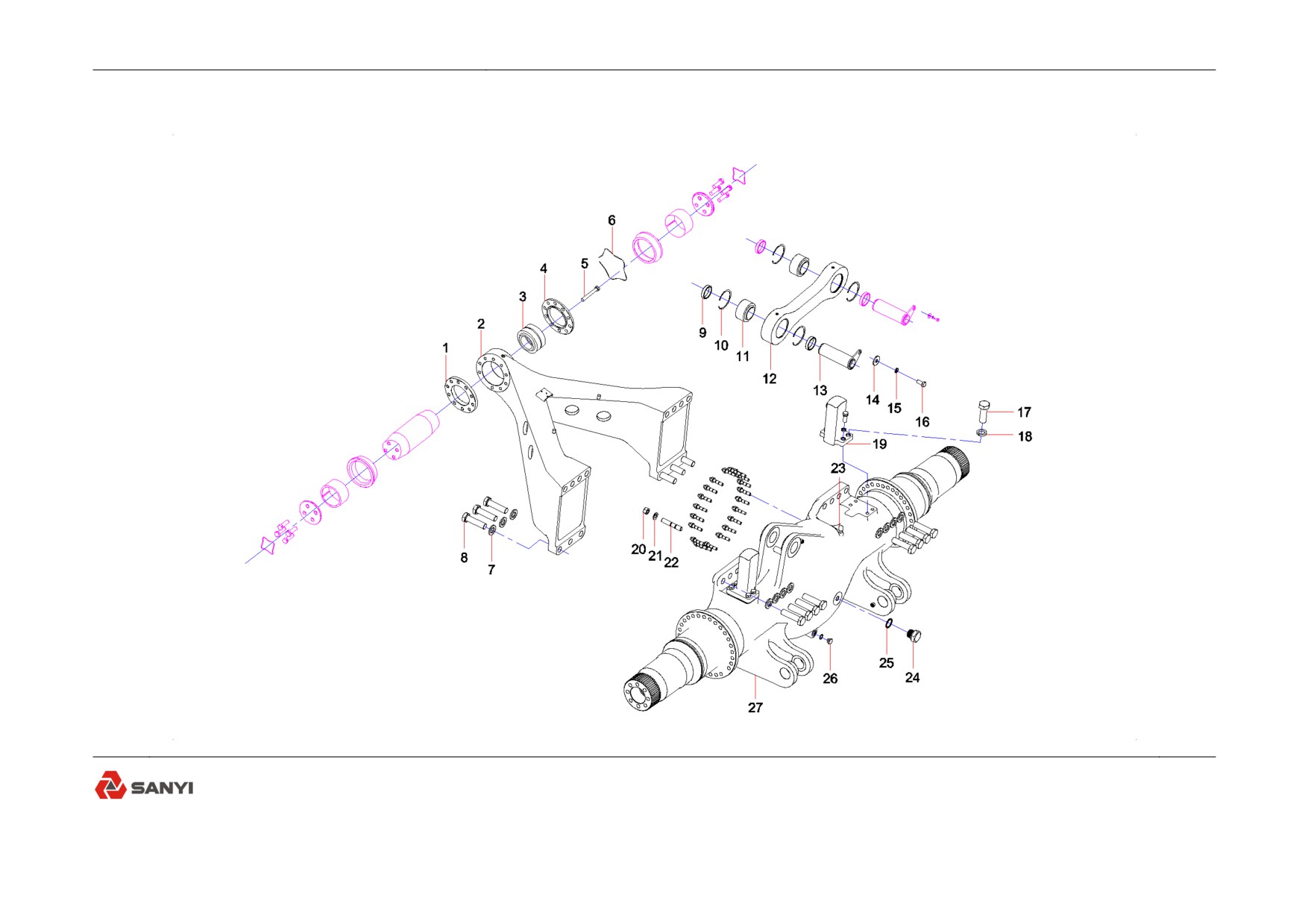

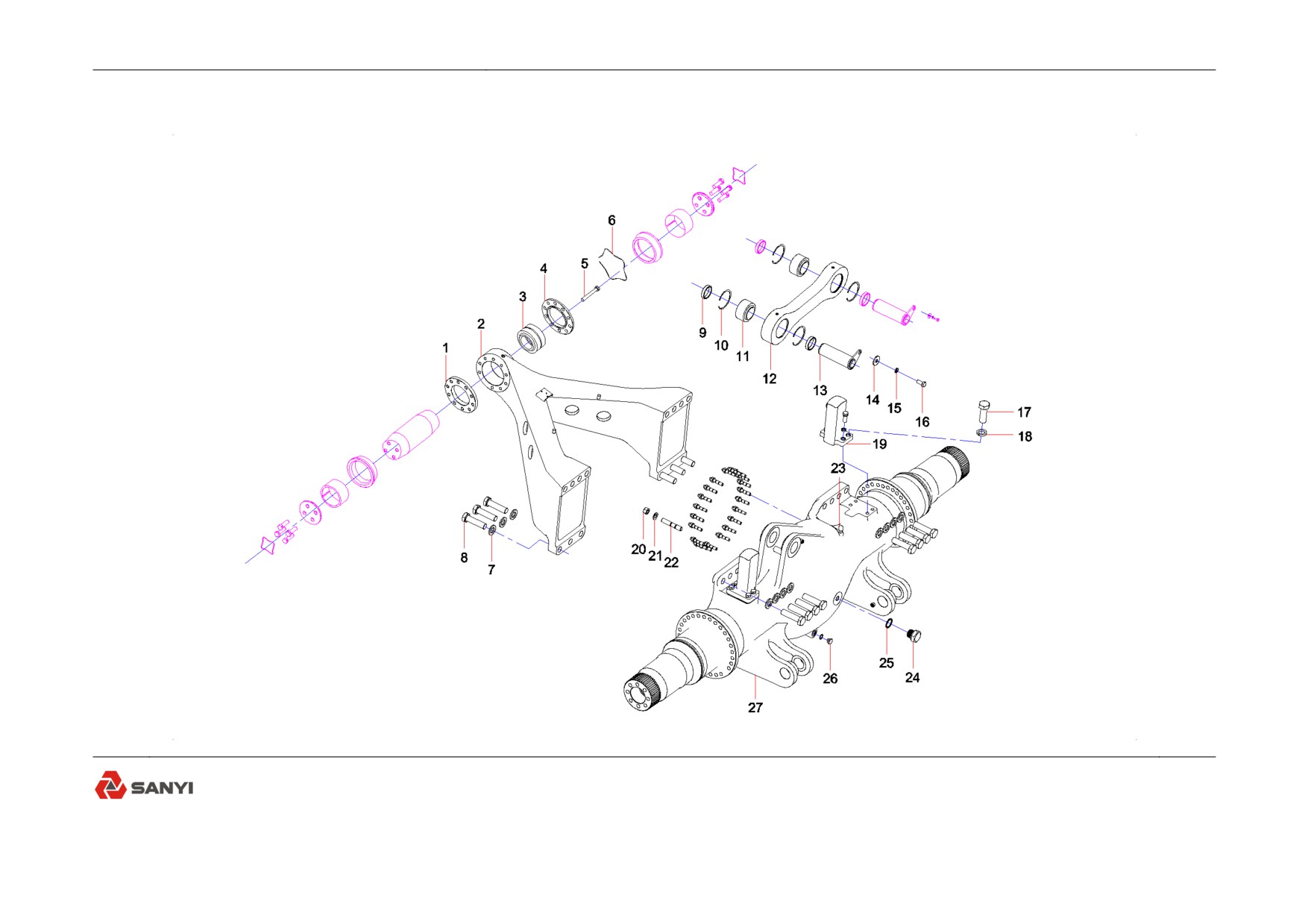

12951175 Rear axle housing assembly (1/2)
4-24
Rear axle housing assembly
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
11507586
Thread gasket
1
2
12951098
A-frame assembly
1
3
60007762
Bearing
1
4
11507585
Washer
1
5
24002665
Bolt M24×160GB32.1 Grade 10.9
10
6
11507773
Steel Wire
1
7
60007828
Washer
14
8
60007827
Bolt
14
9
11507582
Spacer
2
10
A210416000008
Ring, retainer
4
11
60004634
Bearing
2
12
11507772
Link
1
13
11507581
Shaft
1
14
A210404000004
Washer
1
15
24000513
Washer 12GB93 DACROMET
1
16
A210111000101
Bolt
1
17
21051125
Bolt M24×65GB5783 Grade 10.9
8
18
A210401000008
Washer
8
19
11507771
Oscillation stop
2
20
60010516
Nut M20 10 grade
22
21
A210491000132
Washer
22
22
11183260
Stud
22
12951175 Rear axle housing assembly (1/2)
4-25
Rear axle housing assembly
SRT95C Off-highway truck
PARTS BOOK
12951175 Rear axle housing assembly (2/2)
4-26
Rear axle housing assembly
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
23
11183403
Breather
1
24
60004363
Screw plug M30×2JB1760
1
25
A210434000014
Washer 30JB982
2
26
21051814
Plug, screw
1
27
11507578
Axle housing component
1
12951175 Rear axle housing assembly (2/2)
4-27
Breather
SRT95C Off-highway truck
PARTS BOOK
11183403 Breather
4-28
Breather
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
11183392
Base
1
2
11183391
Cover
1
11183403 Breather
4-29
Main reducer and differential assembly
SRT95C Off-highway truck
PARTS BOOK

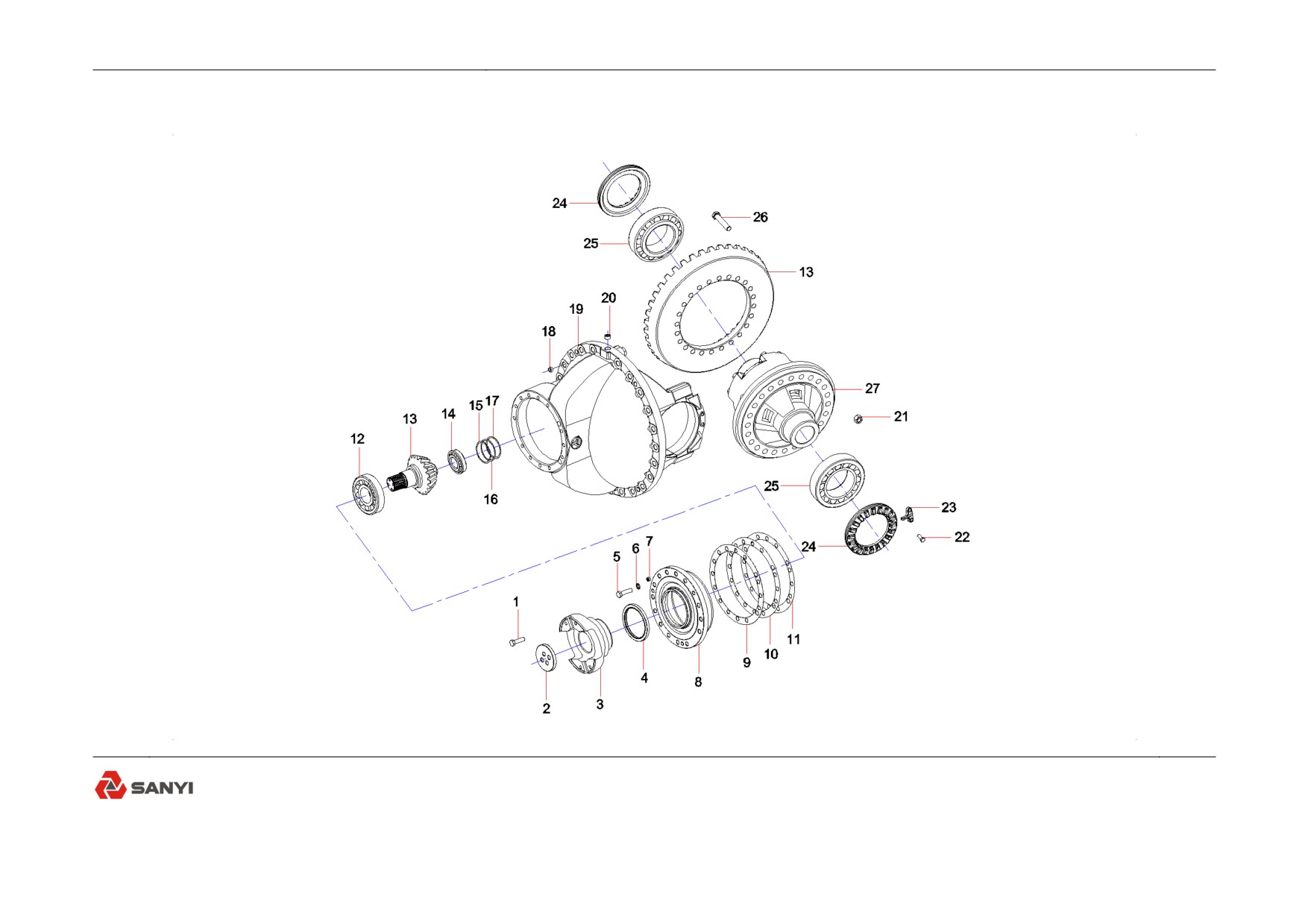

11479985 Main reducer and differential assembly (1/2)
4-30
Main reducer and differential assembly
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
12072336
Socket head screw
4
2
11472260
Plate
1
3
11473323
Yoke assembly
1
4
60141598
Oil Seal
1
5
A210111000055
Bolt M16×60GB5783 Grade 10.9
14
6
24000514
Washer 16GB93
14
7
A210206000026
Screw
3
8
11472304
Seat
1
9
11473100
Shim
1
10
11473114
shim
1
11
11473136
Shim
1
12
60004046
Bearing
1
13
60106154
Main reducer gear pair
1
14
60004045
Bearing
1
15
11473146
Shim
1
16
11473161
Shim
1
17
11473165
Shim
1
18
A210206000009
Screw M20×12GB77
4
19
11474421
Main reducer housing assembly SRT95.050.
1
20
A210206000027
Screw
2
21
60012073
Nut
24
22
A210128000003
Bolt
4
11479985 Main reducer and differential assembly (1/2)
4-31
Main reducer and differential assembly
SRT95C Off-highway truck
PARTS BOOK
11479985 Main reducer and differential assembly (2/2)
4-32
Main reducer and differential assembly
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
23
11181959
Lock
2
24
11181989
Bearing adjuster
2
25
B221500000639
Bearing
2
26
11182034
Bolt
24
27
11182915
Differential assembly
1
11479985 Main reducer and differential assembly (2/2)
4-33
Yoke assembly
SRT95C Off-highway truck
PARTS BOOK

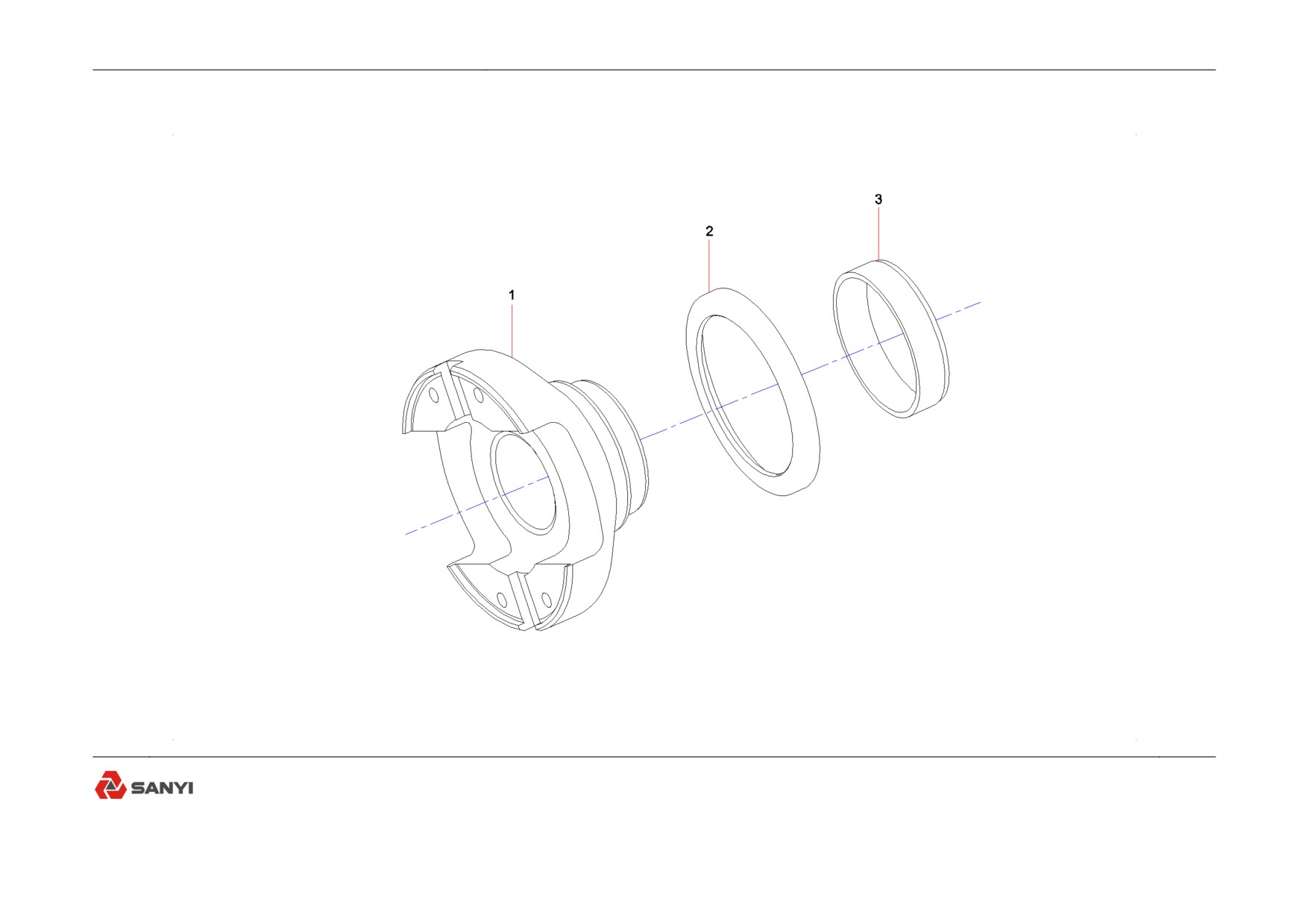

11473323 Yoke assembly
4-34
