SANY SRT95C Off-highway truck. Parts book (Equipment No.14RT95100040) - page 3
Yoke assembly
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
60001258
Fork,flange,input,differential
1
2
11473313
Cover,dustproof
1
3
12439547
Spacer Sleeve
1
11473323 Yoke assembly
4-35
Main reducer housing assembly SRT95.050.
SRT95C Off-highway truck
PARTS BOOK

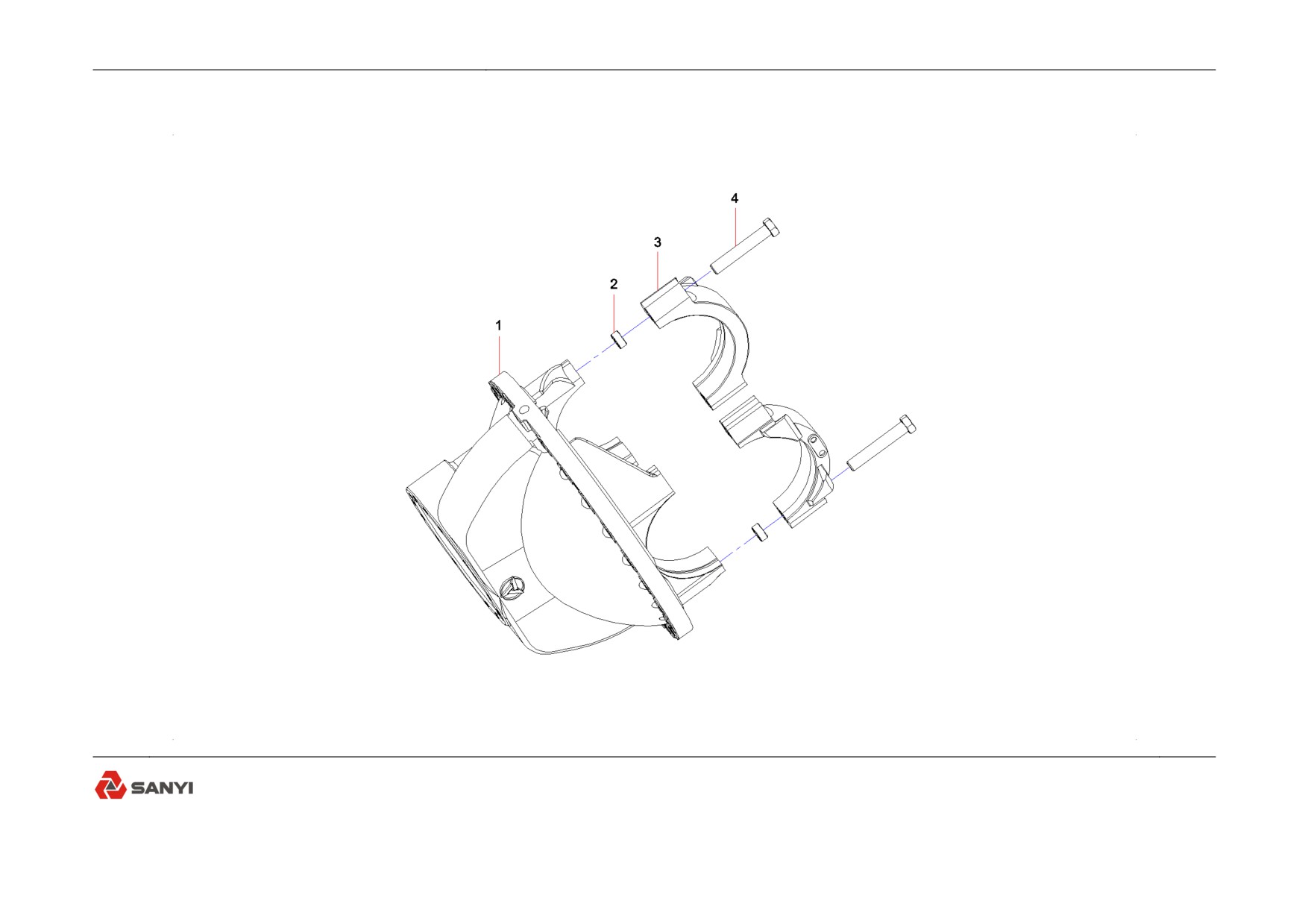

11474421 Main reducer housing assembly SRT95.050.
4-36
Main reducer housing assembly SRT95.050.
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
11473351
Main reducer housing
1
2
11182434
Locating Sleeve
4
3
11182437
Bearing cap
2
4
60006202
Bolt M24×2×140GB32.3 12.9 grade
4
11474421 Main reducer housing assembly SRT95.050.
4-37

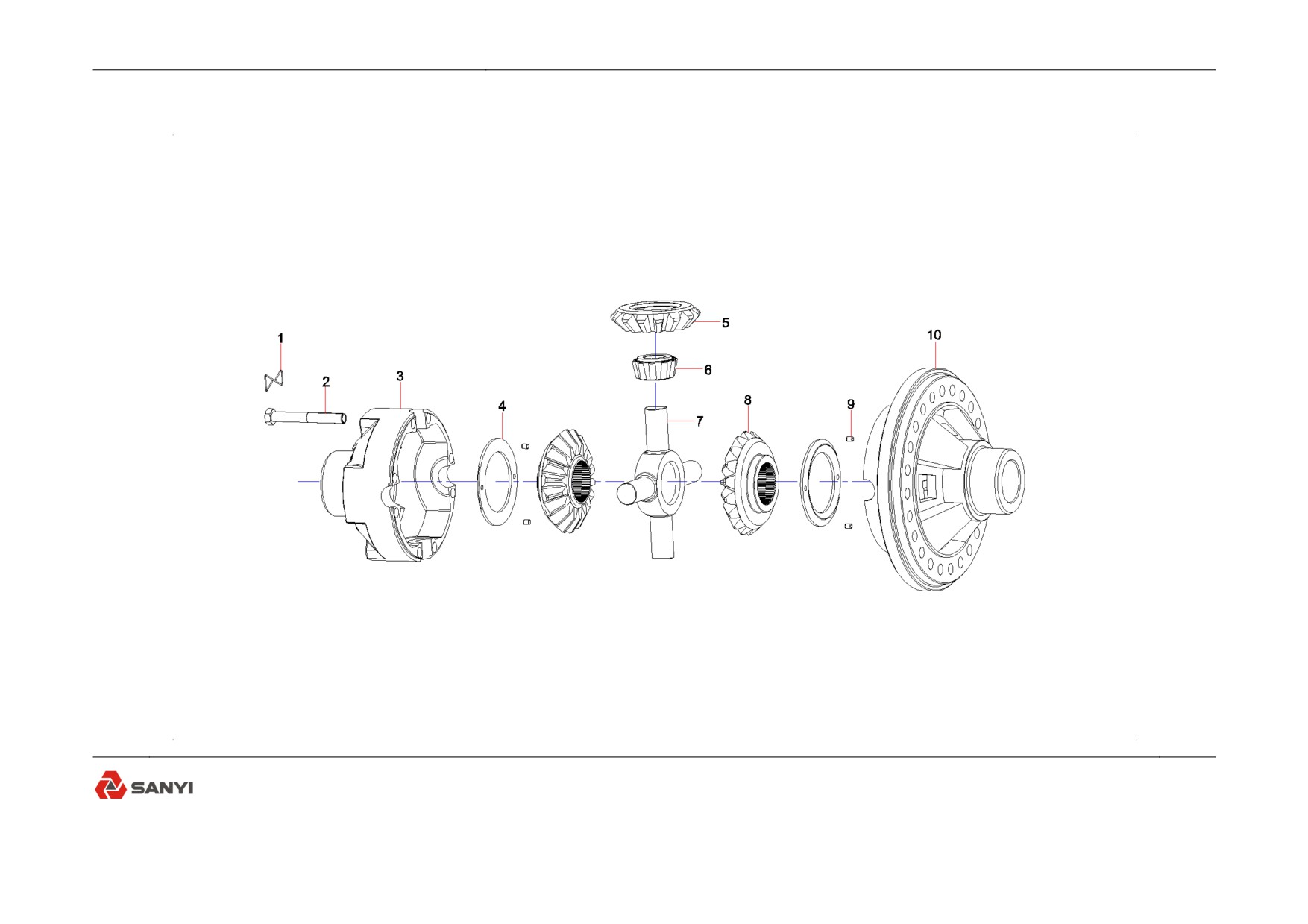

Differential assembly
SRT95C Off-highway truck
PARTS BOOK
11182915 Differential assembly
4-38
Differential assembly
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
11182172
Lockwire
4
2
60006201
Bolt
8
3
11182708
Left differential housing
1
4
11182517
Thrust Washer
2
5
11182624
Planetary bevel gear
4
6
B221500000637
Bearing
4
7
11182622
Spider
1
8
11182600
Axle shaft bevel gear
2
9
11182592
Dowel pin
4
10
11182736
Right differential housing
1
11182915 Differential assembly
4-39

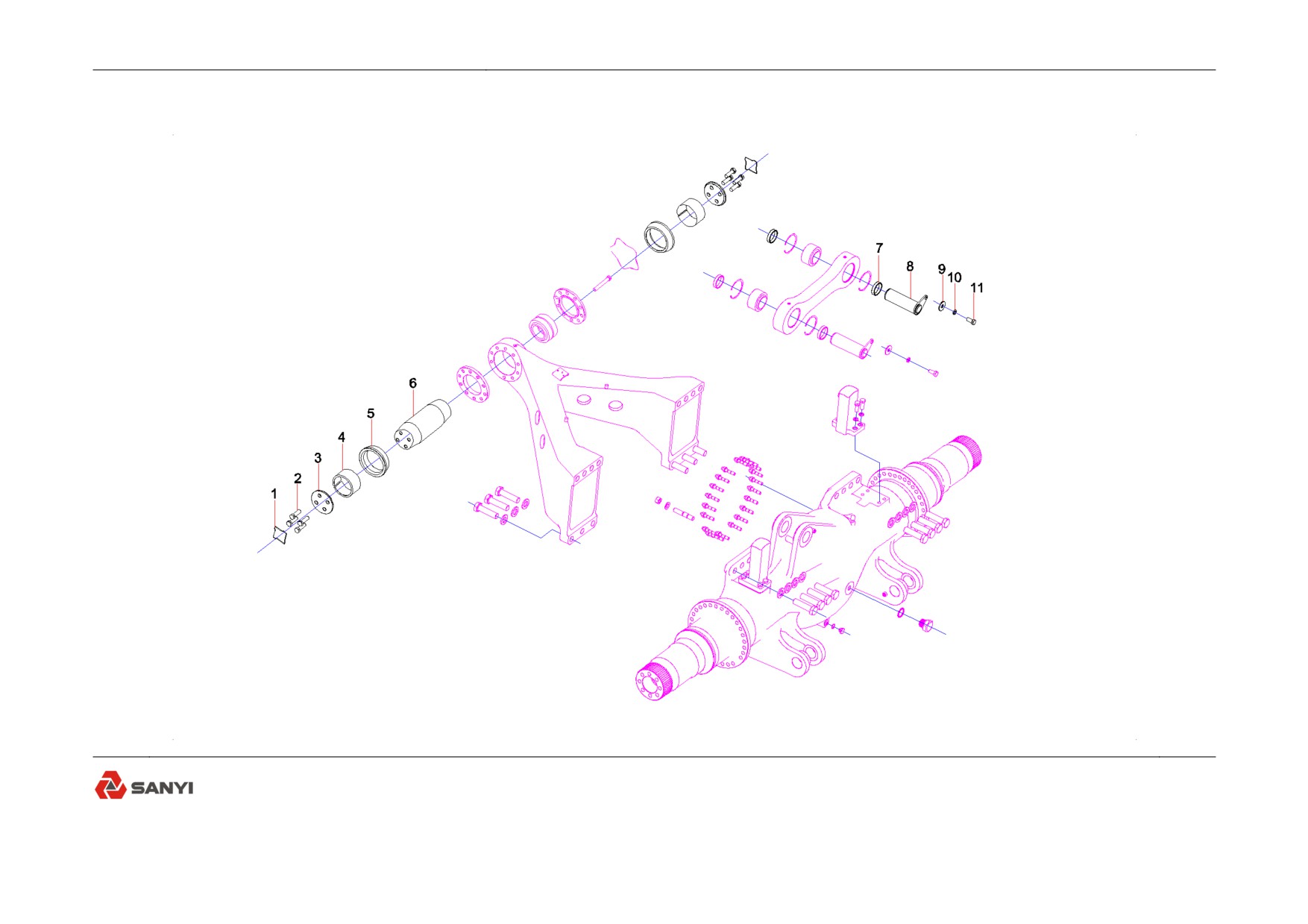

Rear axle mounting parts
SRT95C Off-highway truck
PARTS BOOK
12951167 Rear axle mounting parts
4-40
Rear axle mounting parts
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
11510233
Steel Wire
2
2
23002506
Bolt M16×50GB32.1 Grade 10.9
8
3
11510231
Plate
2
4
11510230
Bush
2
5
11510229
Spacer
2
6
11510232
Tapered Pin
1
7
11507582
Spacer
2
8
12951120
Shaft
1
9
A210404000004
Washer
1
10
24000513
Washer 12GB93 DACROMET
1
11
A210111000199
Bolt M12×20GB5783 Grade 10.9
1
12951167 Rear axle mounting parts
4-41
PARTS BOOK
Group 5

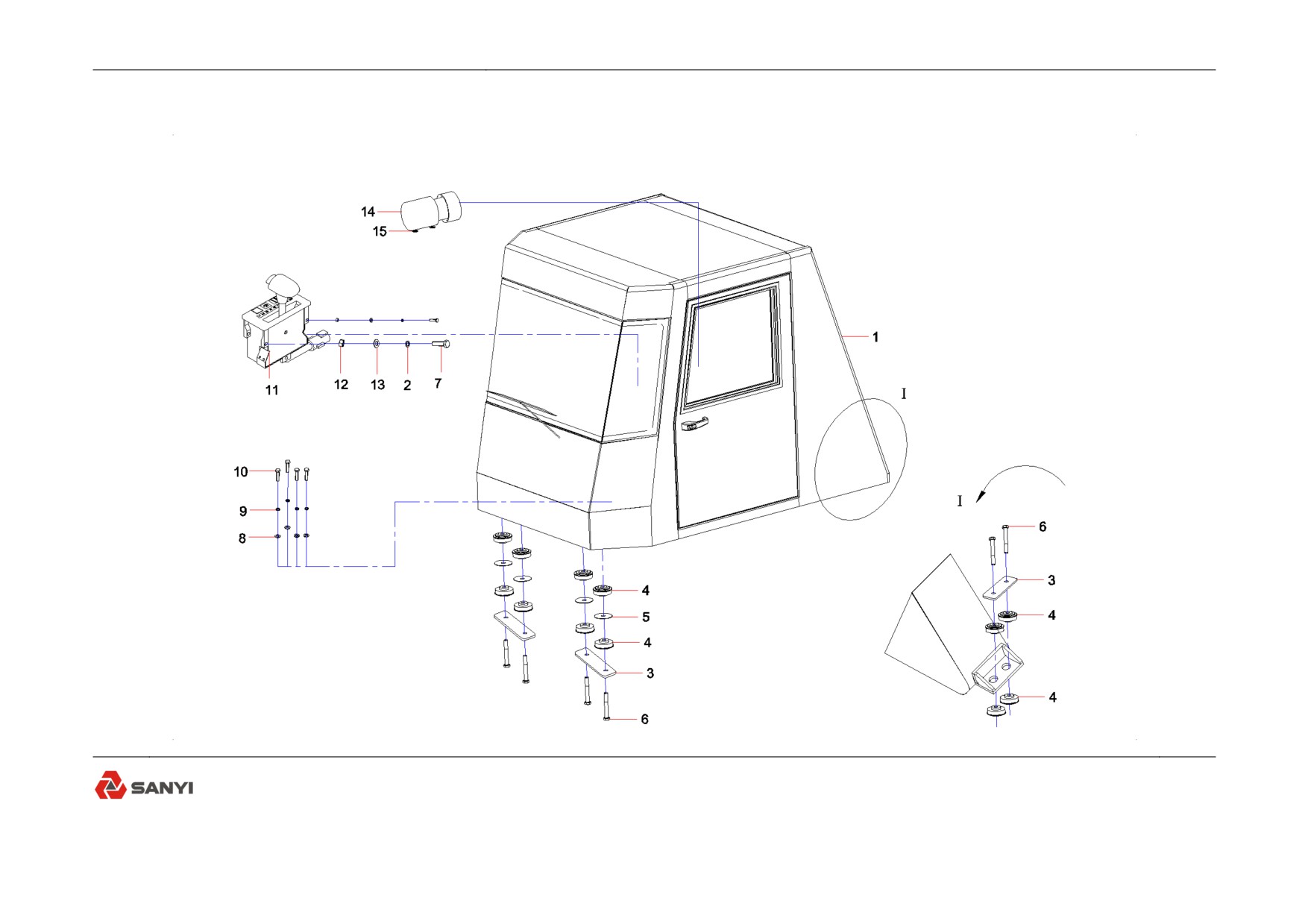

Accessories of cab
5-1
Accessories of cab
SRT95C Off-highway truck
PARTS BOOK
12952471 Accessories of cab
5-2
Accessories of cab
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
12955478
Fixing of cab accessories
1
2
60060564
Washer
2
3
12952443
Cushion
4
4
60023245
Absorber
16
5
12859515
Washer
4
6
A210114000062
Bolt M22×1.5×160GB5785 10.9 grade
4
7
A210111000082
Bolt
2
8
24000637
Washer
8
9
24000512
Washer 10GB93
4
10
A210111000197
Bolt
4
11
60007138
Selector，rod
1
12
23000169
Nut
2
13
24000632
Washer
2
14
60233855
Supercharger assembly
1
15
10667424
Fixed block for Cluster
4
12952471 Accessories of cab
5-3
Fixing of cab accessories
SRT95C Off-highway truck
PARTS BOOK

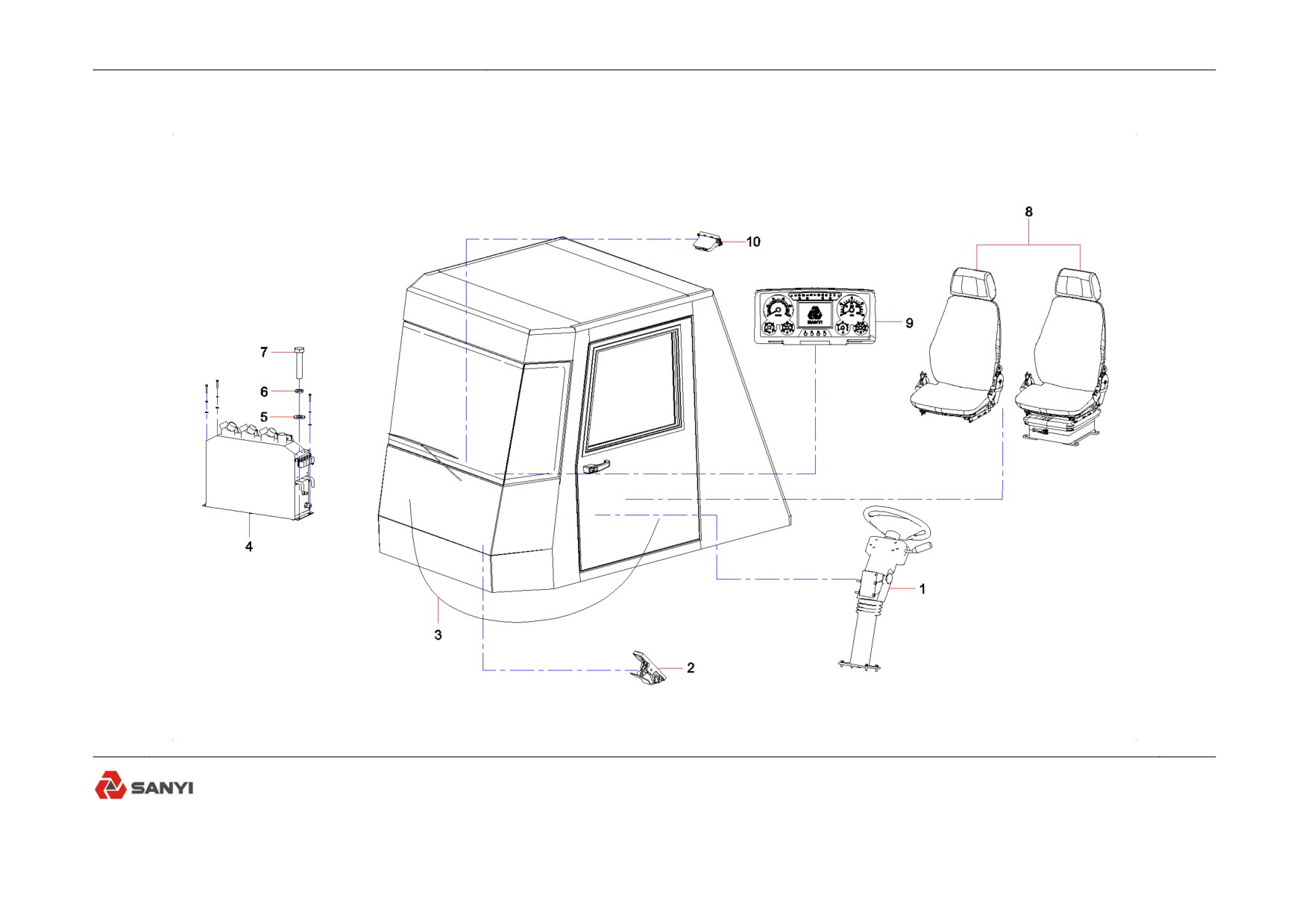

12955478 Fixing of cab accessories
5-4
Fixing of cab accessories
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
11217564
Steering column assembly
1
2
11569436
Accelerograph controller assembly
1
3
12927012
Driver's cab harness
1
4
A229900010580
Evaporator Assy.
1
5
A210401000017
Washer
4
6
24000633
Washer
4
7
A210111000093
Bolt
4
8
11569403
Seat assembly
1
9
12933082
Switch and meter
1
10
60035728
Mounting plate for control panel of air
1
12955478 Fixing of cab accessories
5-5
Steering column assembly
SRT95C Off-highway truck
PARTS BOOK

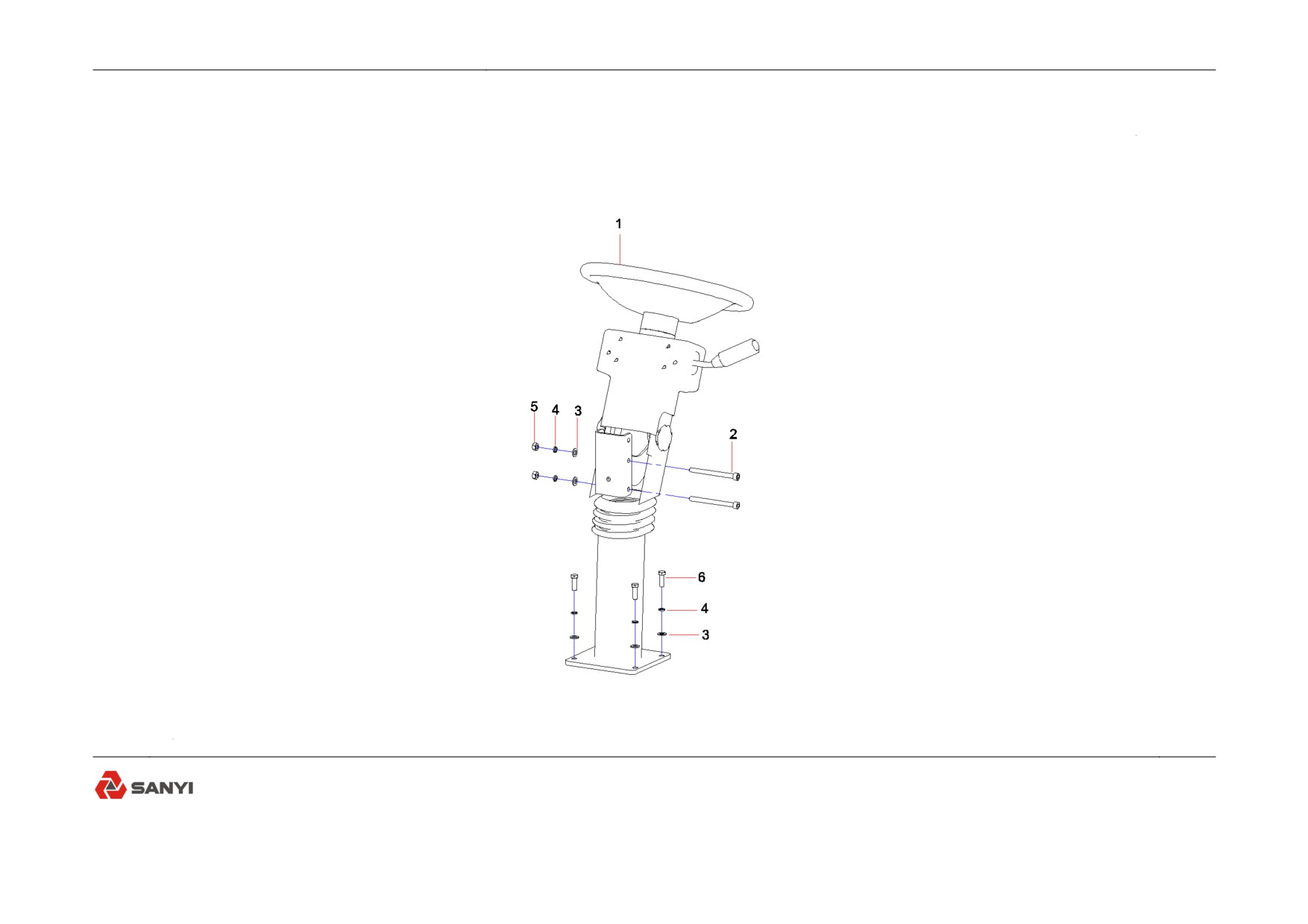

11217564 Steering column assembly
5-6
Steering column assembly
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
60117879
Steering column
1
2
A210204000477
Screw
2
3
24000637
Washer
6
4
24000512
Washer 10GB93
6
5
A210307000036
Nut
2
6
A210111000024
Bolt
4
11217564 Steering column assembly
5-7
Accelerograph controller assembly
SRT95C Off-highway truck
PARTS BOOK

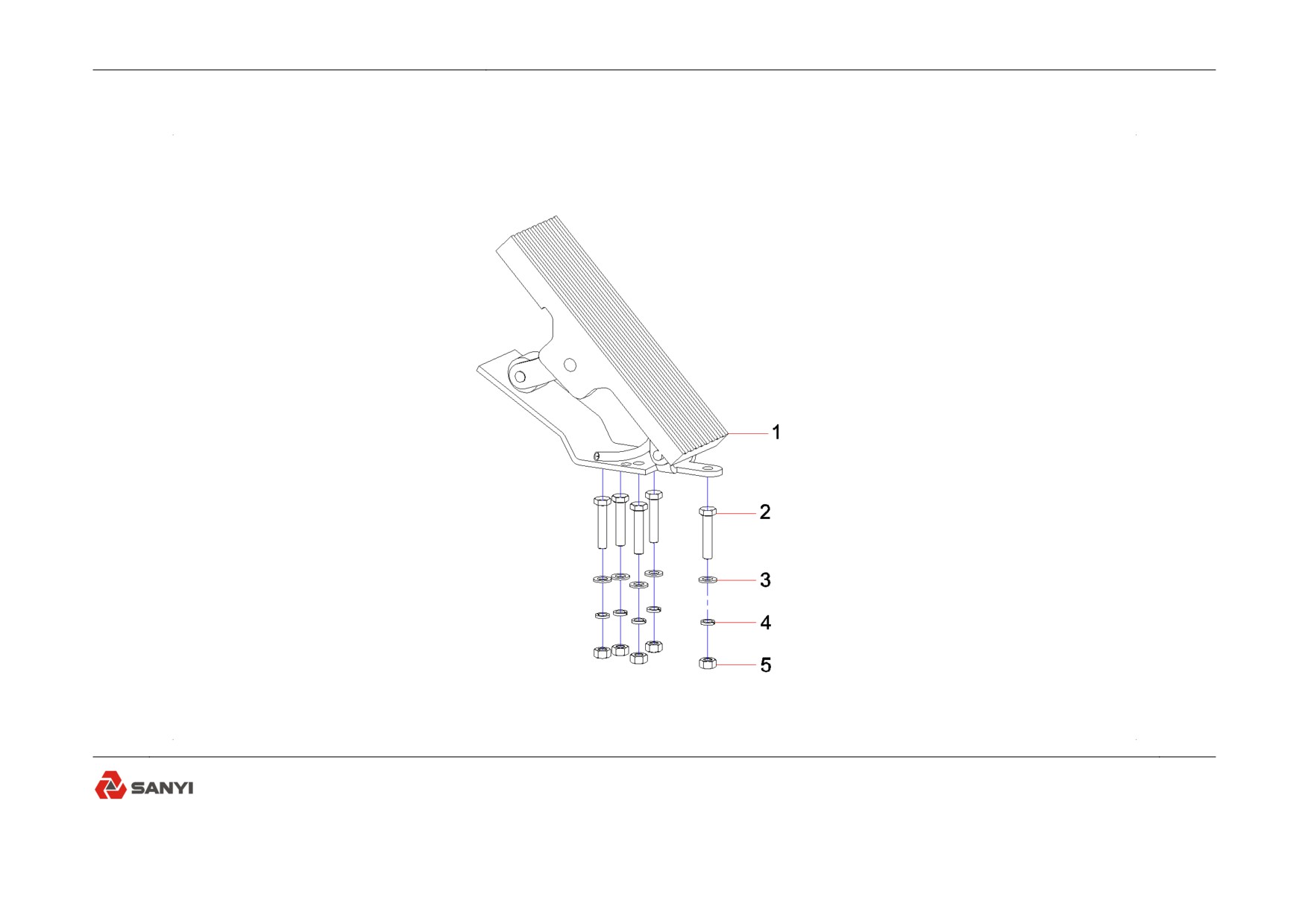

11569436 Accelerograph controller assembly
5-8
Accelerograph controller assembly
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
21016951
Accelerograph controller assembly
1
2
A210111000093
Bolt
5
3
24000633
Washer
5
4
A210401000017
Washer
5
5
A210307000055
Nut M8GB6170 Grade 10
5
11569436 Accelerograph controller assembly
5-9
Driver's cab harness
SRT95C Off-highway truck
PARTS BOOK

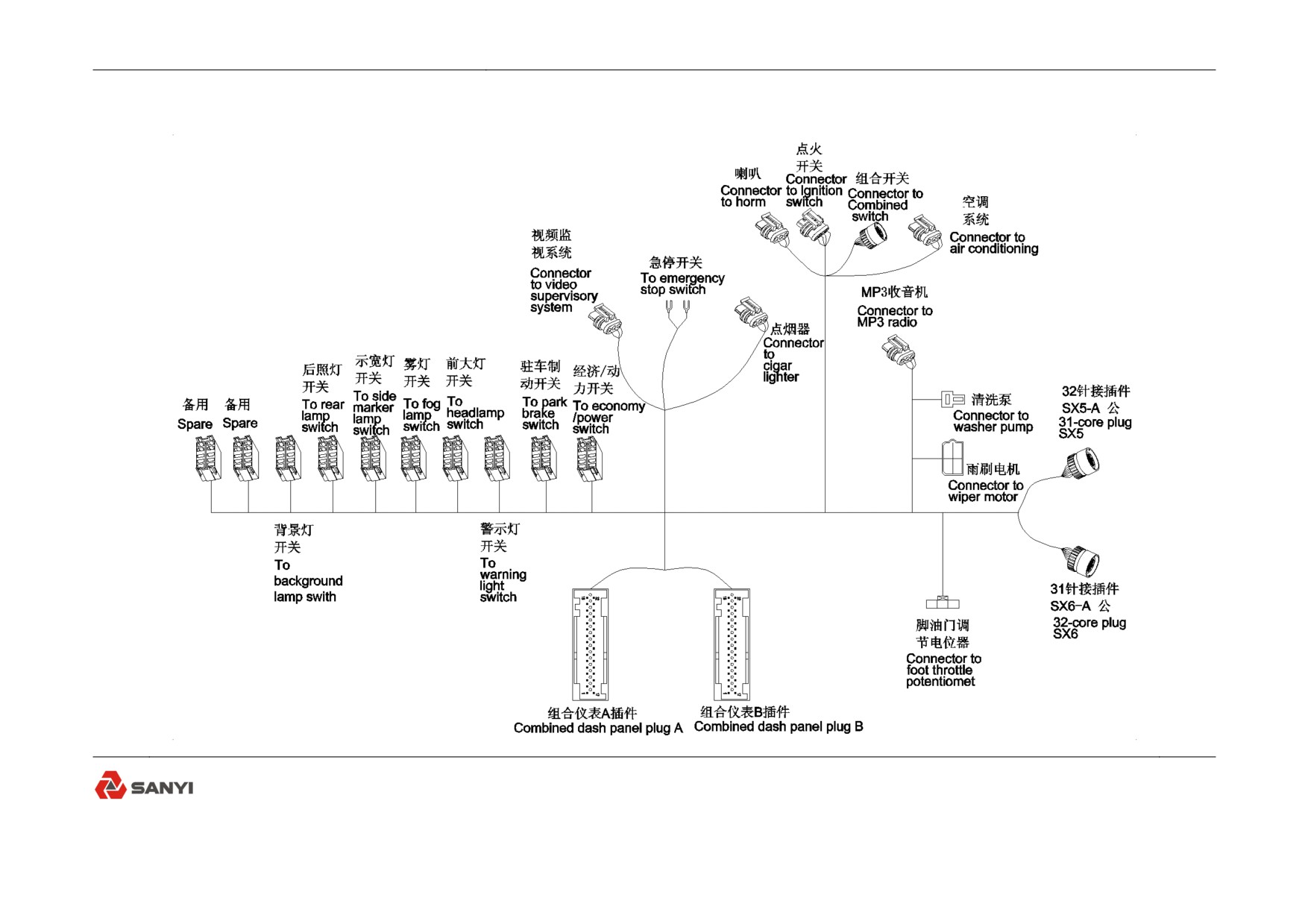

12927012 Driver's cab harness
5-10

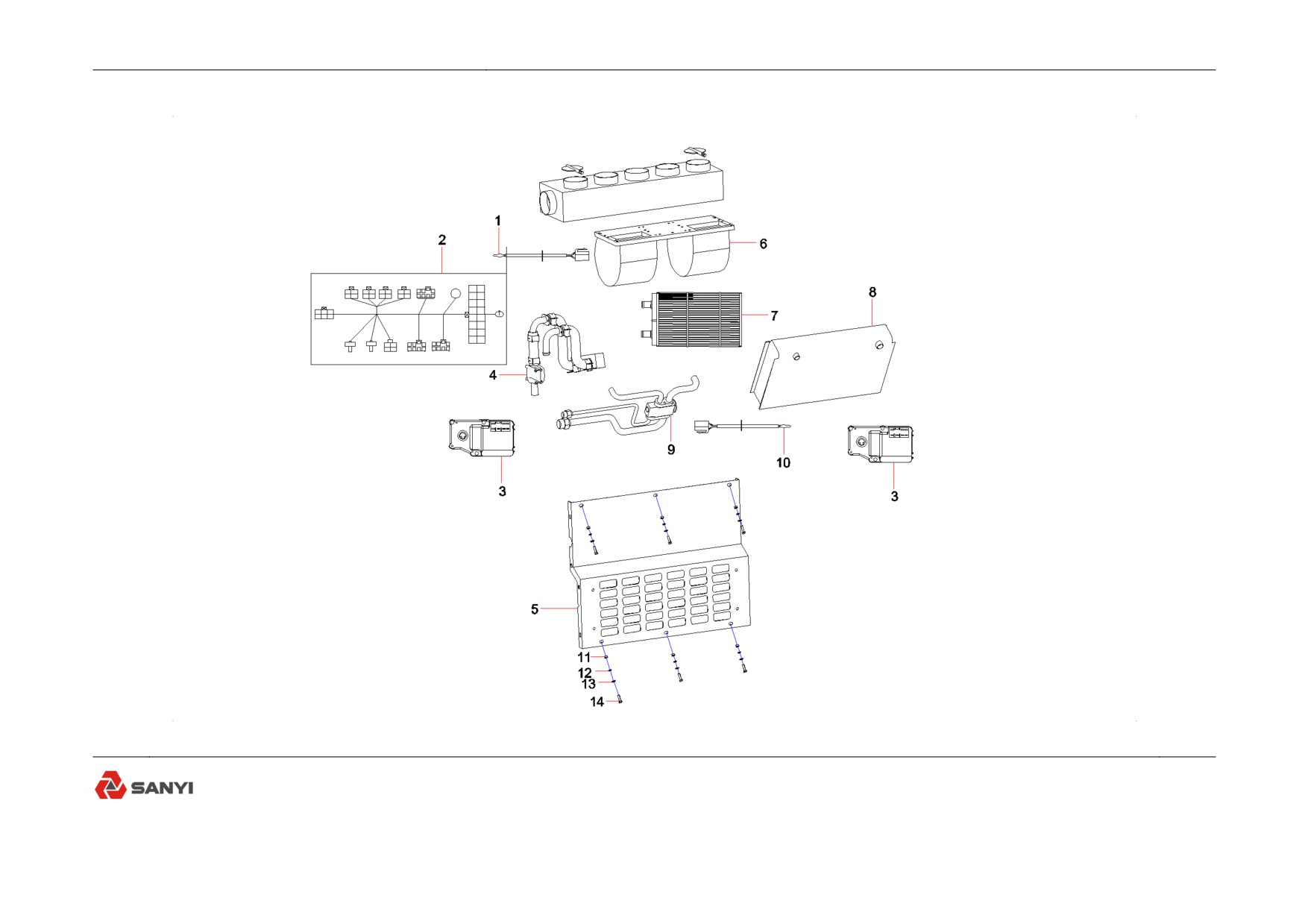

Evaporator Assy.
SRT95C Off-highway truck
PARTS BOOK
A229900010580 Evaporator Assy.
5-12
Evaporator Assy.
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
60236734
Temperature sensor of air filter
1
2
60236735
Air filter harness
1
3
60236736
Servo motor
2
4
60236737
Relay
4
5
60236738
Core
1
6
60164524
Evaporator fan
1
7
60164523
Warmer water tank
1
8
60164525
Evaporator core body assembly
1
9
60164522
Expansion valve
1
10
60236741
Defrost temperature sensor
1
11
A210307000012
Nut
6
12
A210401000017
Washer
6
13
A210405000007
Washer
6
14
A210111000091
Bolt
6
A229900010580 Evaporator Assy.
5-13
Seat assembly
SRT95C Off-highway truck
PARTS BOOK

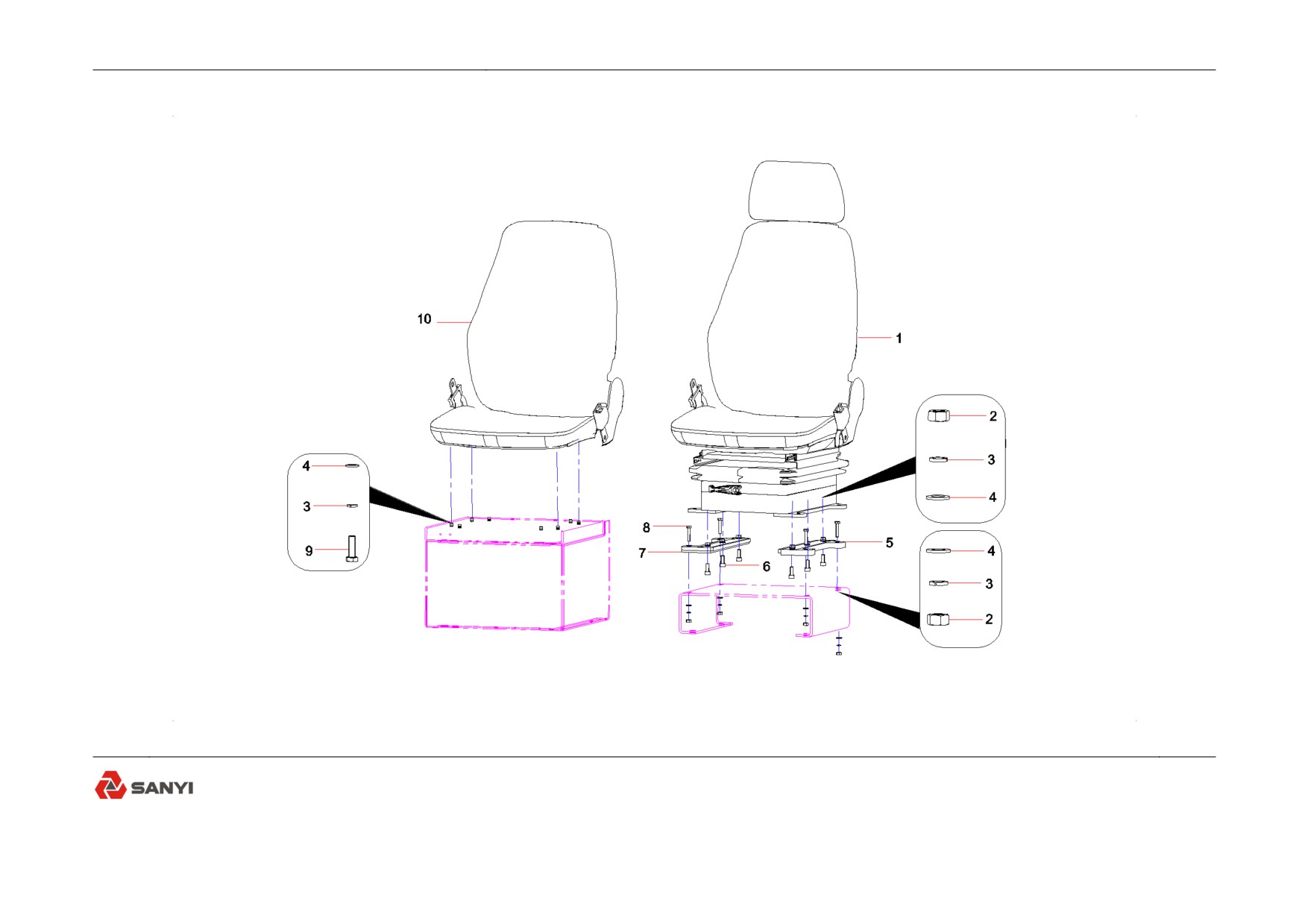

11569403 Seat assembly
5-14
Seat assembly
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
60127236
Mechanical Suspension Driver seat
1
2
A210307000055
Nut M8GB6170 Grade 10
10
3
A210401000017
Washer
14
4
24000633
Washer
14
5
12252616
Right connecting board of main seat
1
6
A210204000220
Screw
6
7
12252613
Left connecting board of main seat
1
8
A210111000293
Bolt
4
9
A210111000323
Bolt
4
10
A229900009850
Mechanic suspension auxiliary driving seat
1
11569403 Seat assembly
5-15

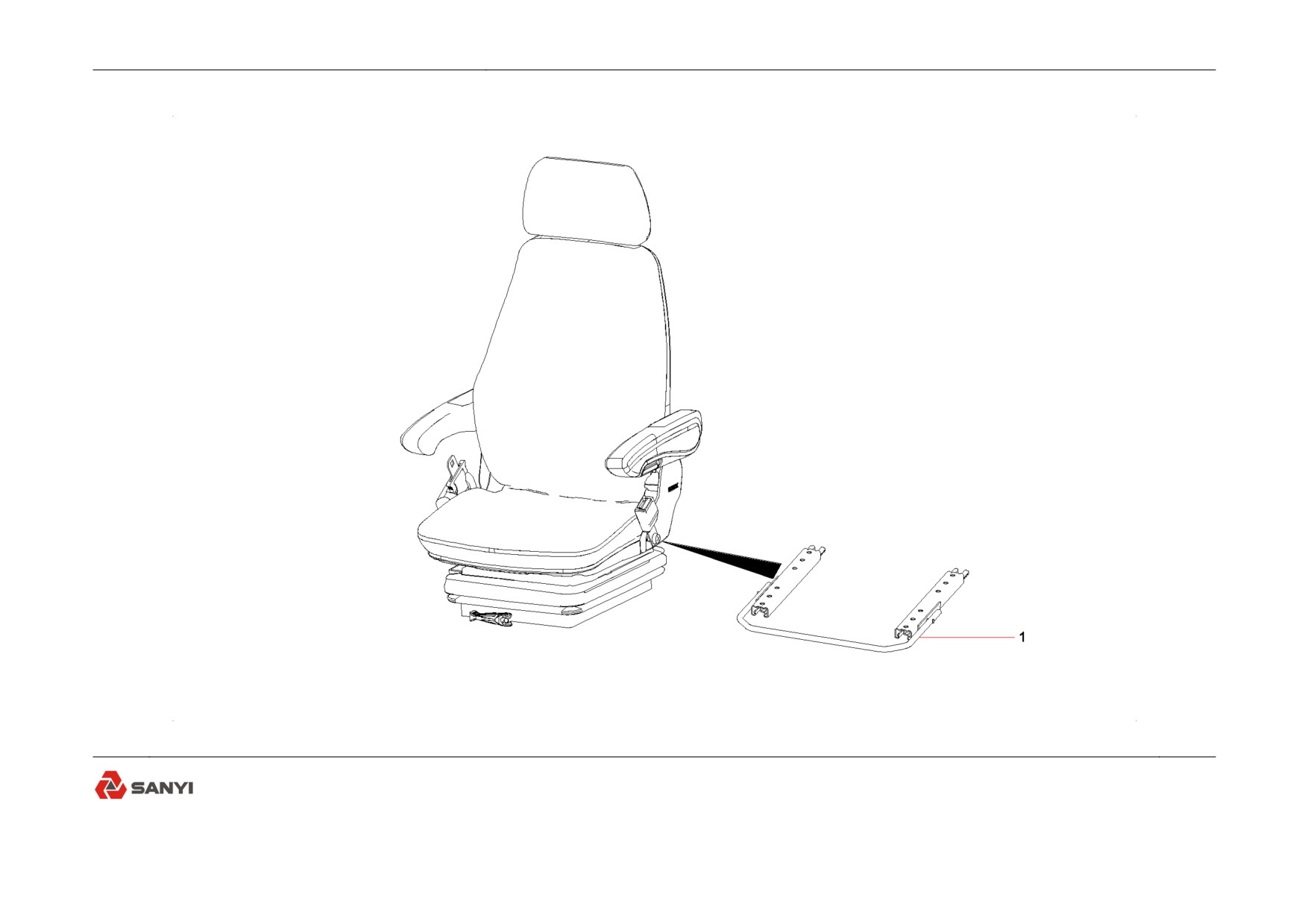

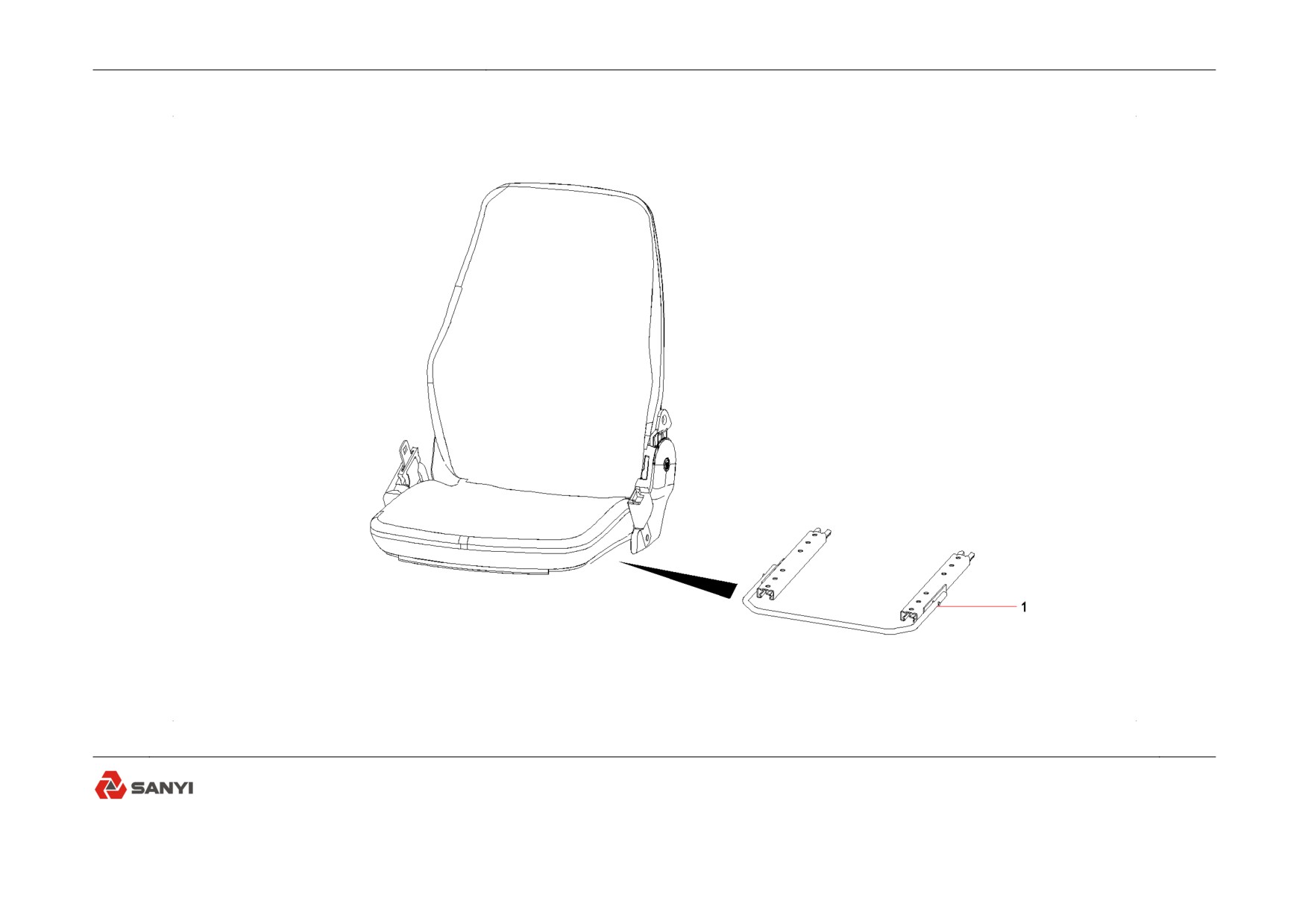

Mechanical Suspension Driver seat
SRT95C Off-highway truck
PARTS BOOK
60127236 Mechanical Suspension Driver seat
5-16
Mechanical Suspension Driver seat
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
60115160
Rail AS,guide,seat,for driver
1
60127236 Mechanical Suspension Driver seat
5-17
Mechanic suspension auxiliary driving seat
SRT95C Off-highway truck
PARTS BOOK
A229900009850 Mechanic suspension auxiliary driving seat
5-18
Mechanic suspension auxiliary driving seat
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
60115160
Rail AS,guide,seat,for driver
1
A229900009850 Mechanic suspension auxiliary driving seat
5-19
Switch and meter
SRT95C Off-highway truck
PARTS BOOK

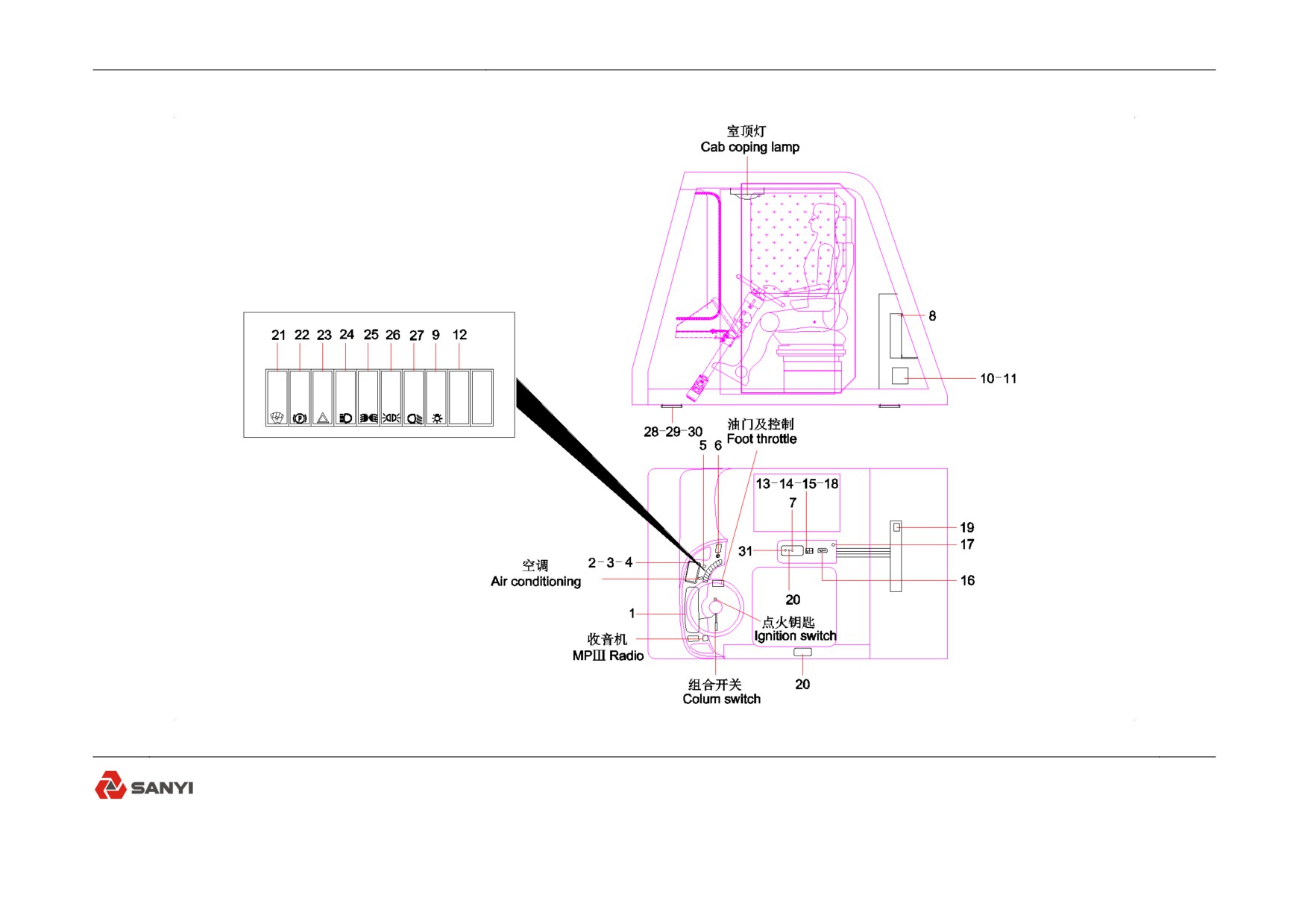

12933082 Switch and meter (1/2)
5-20
Switch and meter
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
60200651
Combination Meter
1
2
A249900001541
Monitor
1
3
A249900000963
Control Box
1
4
A241900000577
20-meter signal-line & accessories
1
5
60026642
Emergency Stop Button
1
6
A229900003764
Lighter, cigarette
1
7
60257105
Button Switch
1
8
12933079
Control board installation
1
9
60150600
Rocker switch
1
10
11620913
Sany Mining truck GPS
1
11
A210210000011
Screw M5×25GB818
2
12
60060816
Mounting panel end
8
13
60060813
Mounting panel end
6
14
60150619
Rocker switch
1
15
60040549
Switch
4
16
60194763
Control Lever
1
17
60082790
Buzzer XB2-BSBC Grey
1
18
60060815
Connector
3
19
A210307000001
Nut
4
20
60257106
Button Switch
1
21
60150618
Rocker switch
1
22
60150599
Rocker switch
1
12933082 Switch and meter (1/2)
5-21
Switch and meter
SRT95C Off-highway truck
PARTS BOOK
12933082 Switch and meter (2/2)
5-22
Switch and meter
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
23
60150603
Rocker switch
1
24
60150601
Rocker switch
1
25
60150604
Rocker switch
1
26
60150611
Rocker switch
1
27
60150605
Rocker switch
1
28
13165931
Installation plateJKGX06_1_1WX-10
1
29
60248593
water-proof nylon cable
4
30
60248594
water-proof nylon cable
1
31
60257107
Button Switch
1
12933082 Switch and meter (2/2)
5-23
Monitor
SRT95C Off-highway truck
PARTS BOOK

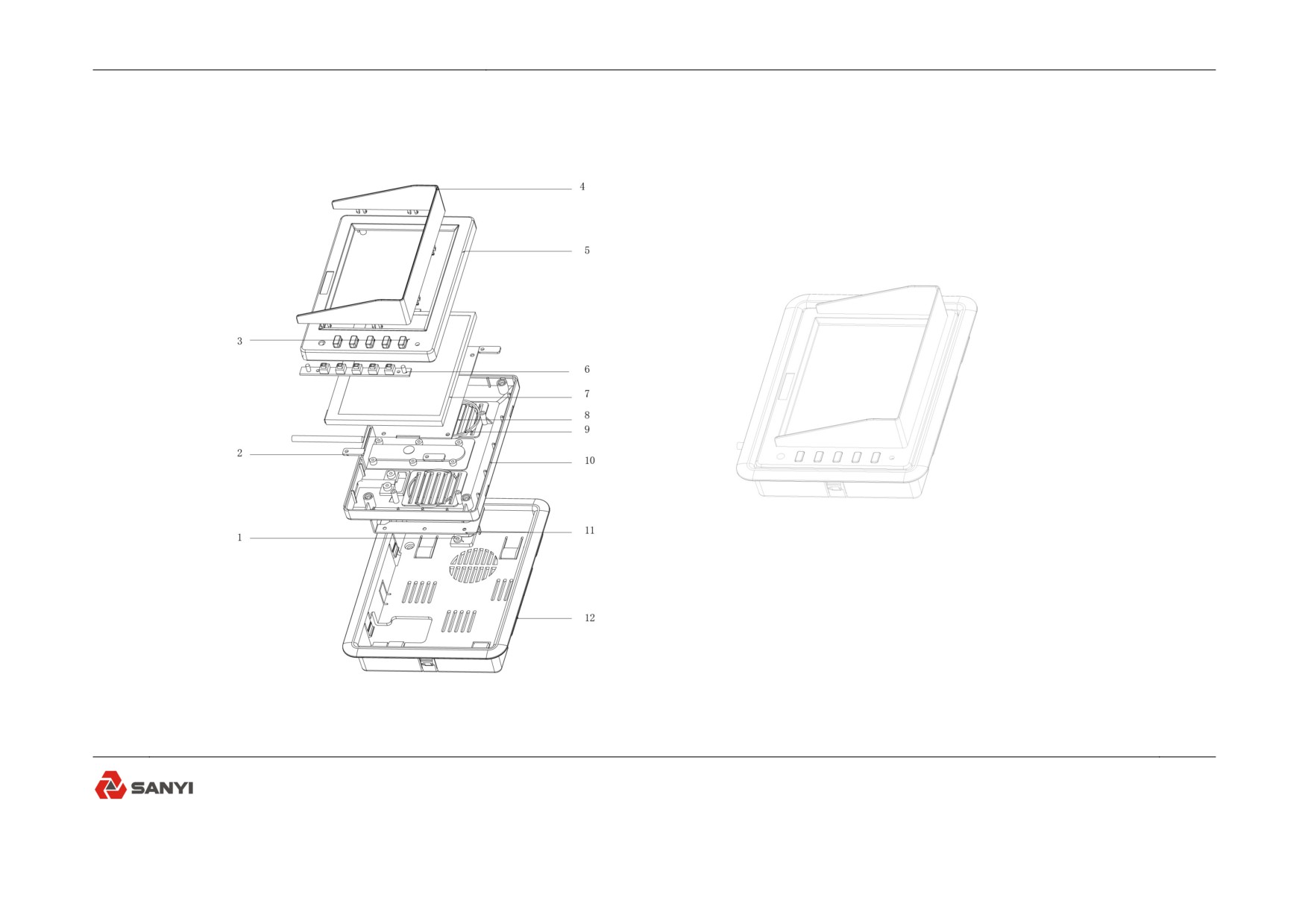

A249900001541 Monitor
5-24
Monitor
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
60158267
Pressure block
1
2
60158268
Pressure sheet
1
3
60158301
Key
5
4
60158269
Sun cover
1
5
60158265
Front cover
1
6
60158302
Key panel
1
7
60158303
Display
1
8
60158266
Drive board
1
9
60158300
Horn
1
10
60158260
Rear cover
1
11
60158259
Back clamp
1
12
60158282
Base
1
A249900001541 Monitor
5-25

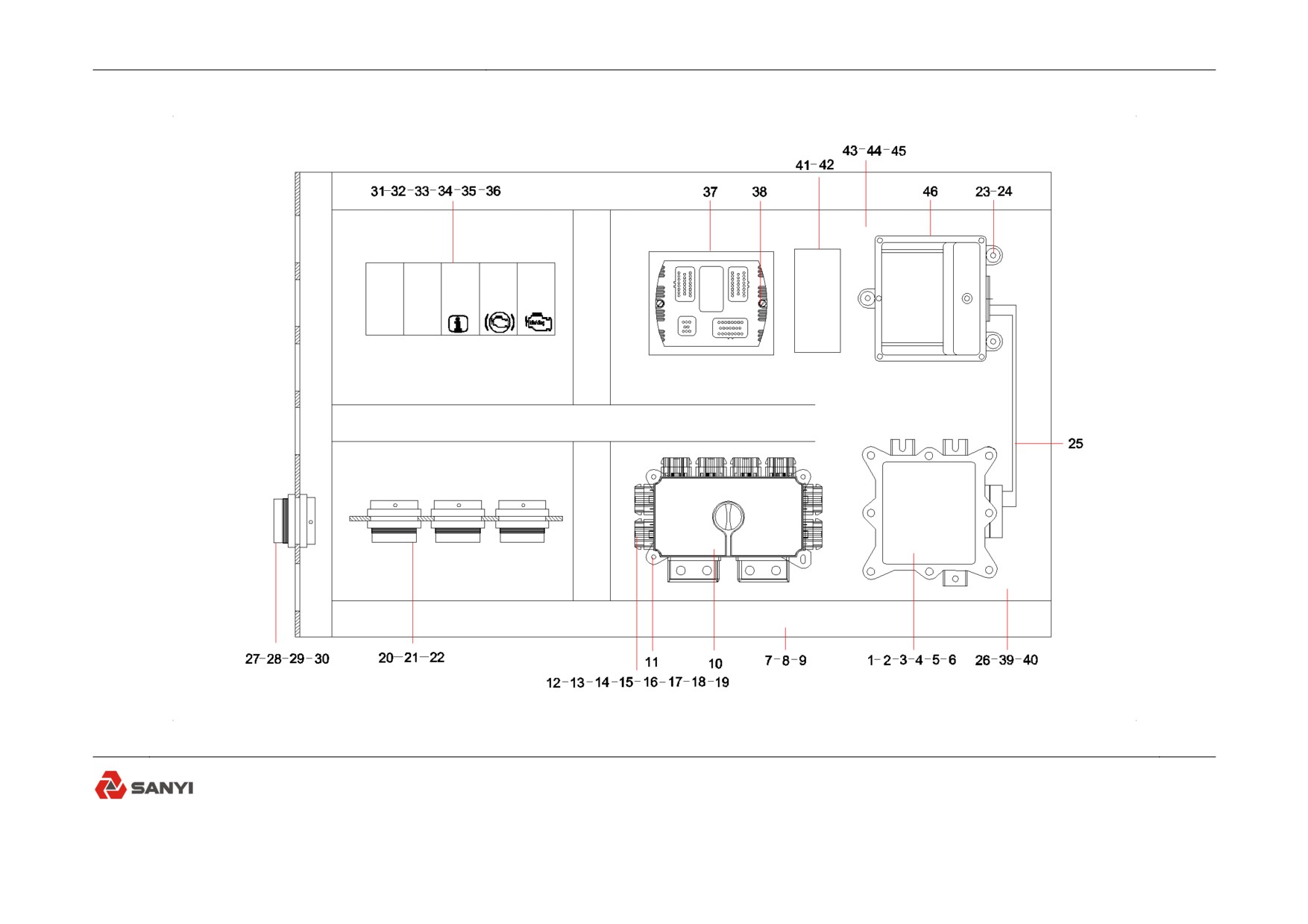

Control board installation
SRT95C Off-highway truck
PARTS BOOK
12933079 Control board installation (1/3)
5-26
Control board installation
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
B249900001468
M6610AR VIM 29516036
1
2
B241900000269
VIM gear shift harness
1
3
B241900000268
Gear shift harness
1
4
60008377
Transmission harness
1
5
B241900000267
Vehicle harness
1
6
B241900000270
VIM harness
1
7
A210210000006
Screw
13
8
24000630
Washer
41
9
24000509
Washer
41
10
60100460
Central distribution case
1
11
60198294
Central distributioncase
1
12
21021560
Plug AS, squre
1
13
21021561
Plug
2
14
21021562
Plug AS, squre
1
15
21021563
Plug
2
16
21021564
Plug AS, squre
1
17
21021565
Plug
2
18
21021566
Plug AS, squre
1
19
21021567
Plug
2
20
A210210000002
Screw
16
21
60028684
48 Pin Round Plug
1
22
60028685
48 Core Round Socket
1
12933079 Control board installation (1/3)
5-27
Control board installation
SRT95C Off-highway truck
PARTS BOOK
12933079 Control board installation (2/3)
5-28
Control board installation
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
23
A210210000017
Screw
3
24
A210210000027
Screw
3
25
60008378
Input_Vehicle harness
1
26
A210204000116
Screw
13
27
11321139
Control board assembly
1
28
A210210000026
Screw M4×20GB818
8
29
24003256
Nut
8
30
24000508
Washer
8
31
60060816
Mounting panel end
3
32
60060813
Mounting panel end
2
33
60040549
Switch
3
34
60150615
Rocker switch
1
35
60150620
Rocker switch
1
36
60150625
Rocker switch
1
37
B249900001183
Programmable Controller
1
38
A210210000011
Screw M5×25GB818
2
39
A210307000015
Nut
6
40
A210204000338
Screw
4
41
B240700000250
Relay, auxiliary
6
42
B240700000007
Protective sleeve, socket, relay
6
43
A210307000031
Nut
4
44
24000513
Washer 12GB93 DACROMET
8
12933079 Control board installation (2/3)
5-29
Control board installation
SRT95C Off-highway truck
PARTS BOOK
12933079 Control board installation (3/3)
5-30
Control board installation
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
45
24000639
Washer 12GB97.1
4
46
60117461
Electronic control unit
1
12933079 Control board installation (3/3)
5-31
Central distribution case
SRT95C Off-highway truck
PARTS BOOK

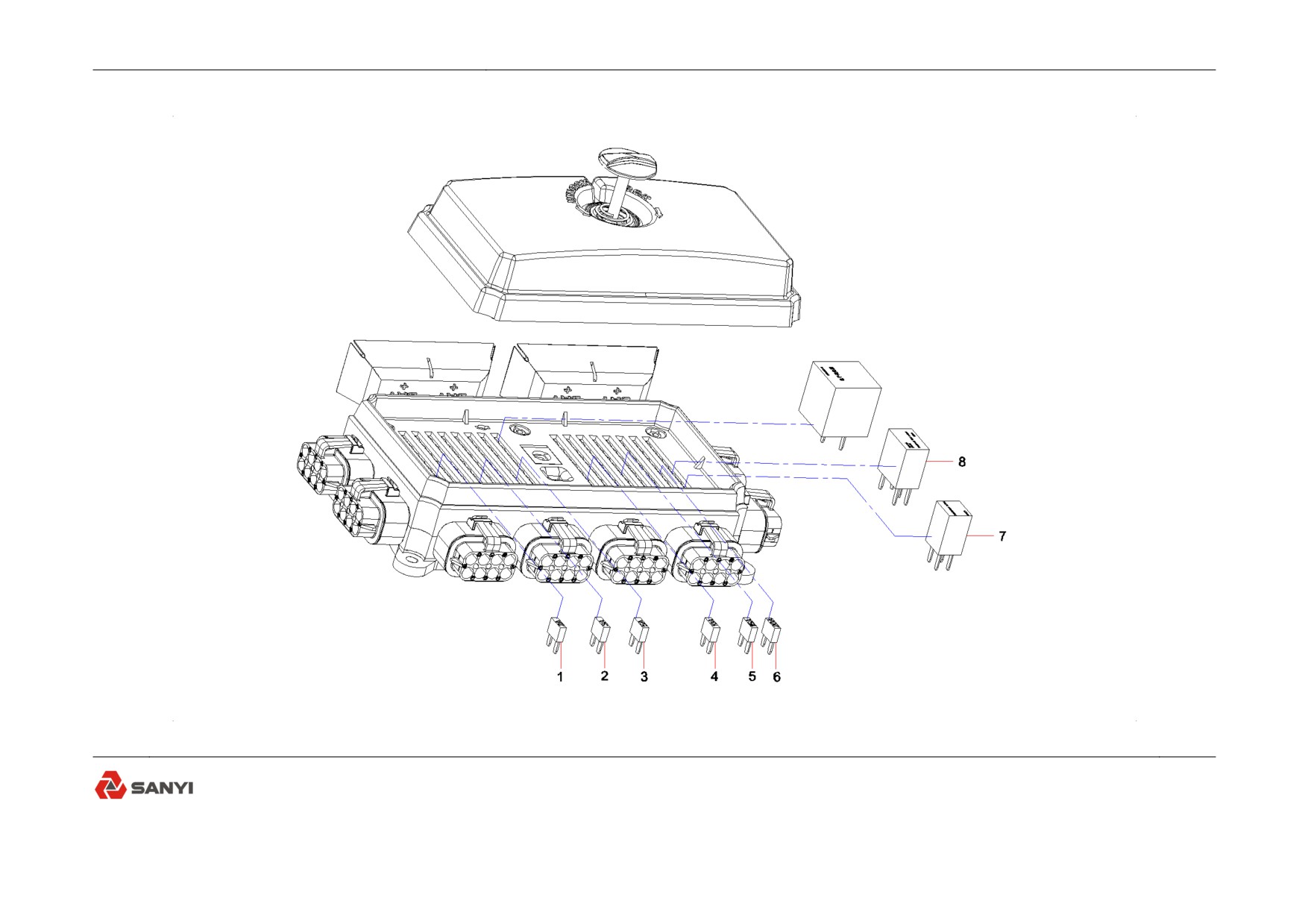

60100460 Central distribution case
5-32
Central distribution case
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
21019917
Fuse
2
2
60014830
Fuse
1
3
21019916
Fuse
1
4
21019915
Fuse
11
5
60014829
Fuse
5
6
21019914
Fuse
7
7
60015838
Relay,central distribution box
10
8
21019918
Relay
3
60100460 Central distribution case
5-33
Central distributioncase
SRT95C Off-highway truck
PARTS BOOK

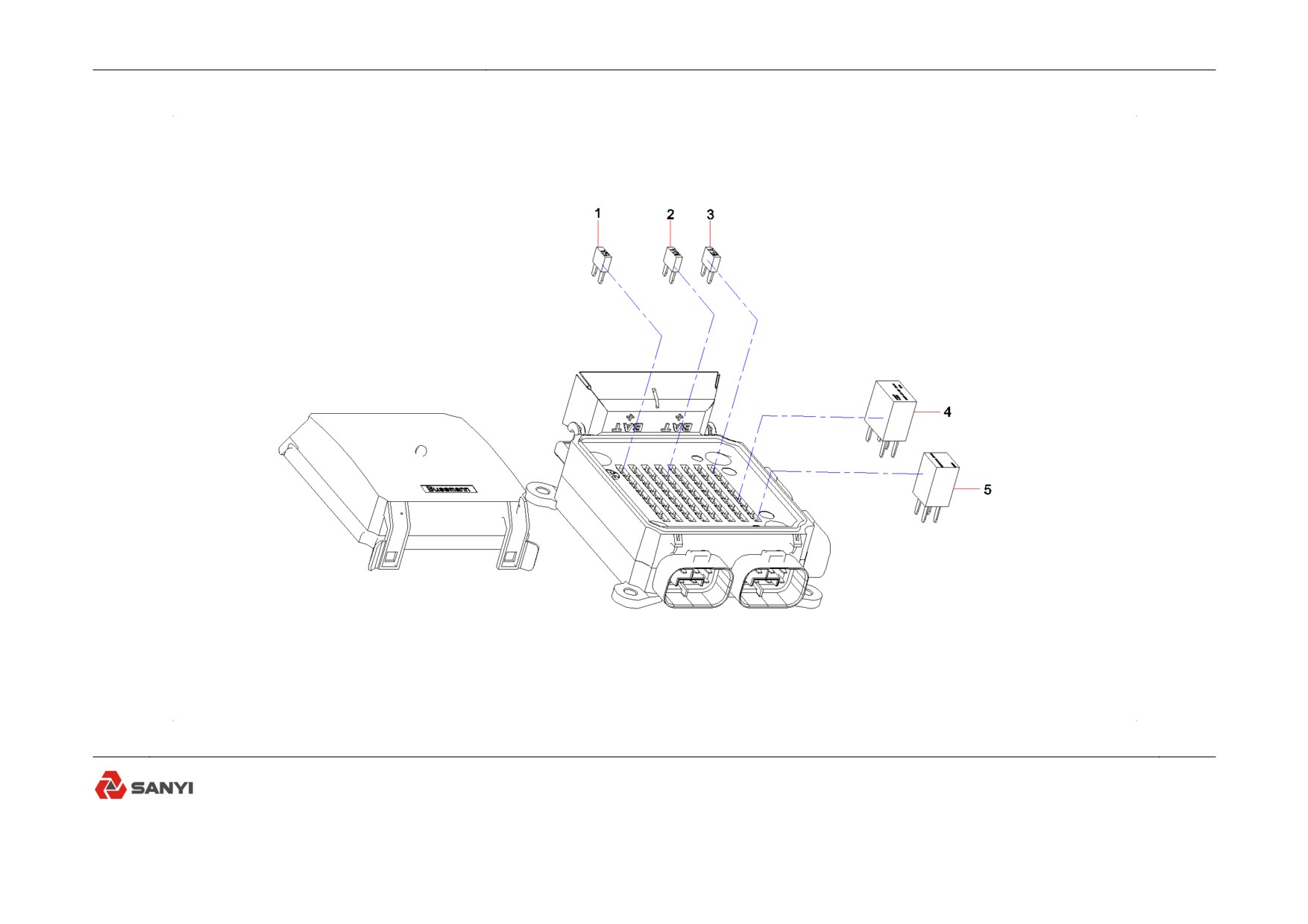

60198294 Central distributioncase
5-34
