SANY SRT95C Off-highway truck. Parts book (Equipment No.14RT95100040) - page 5
Engine
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
11576509
V Belt
1
2
21019723
Filter, water
2
3
60015010
Water pump GP
1
4
60025678
Alternator Belt
1
5
B222100000595
Filter, engine oil
4
6
60030981
Alternator
1
7
60015007
Turbocharger
2
8
A222100000615
Filter, diesel
1
9
60225753
Starting motor
2
10
60009584
Belt, fan
1
11
60225754
Water pump
1
B220200000163 Engine
9-7
Filter, diesel
SRT95C Off-highway truck
PARTS BOOK
A222100000615 Filter, diesel
9-8
Filter, diesel
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
A222100000616
Element, filter, separator, water
1
A222100000615 Filter, diesel
9-9
Engine - power takeoff
SRT95C Off-highway truck
PARTS BOOK
12867945 Engine - power takeoff
9-10
Engine - power takeoff
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
60234833
Flanging coupling
1
2
11605792
Transitional disc
1
3
A210491000121
Washer
16
4
A210111000204
Bolt
16
5
12867826
PTO assembly
1
6
A210491000120
Washer
10
7
A210111000003
Bolt
4
8
60001255
Yoke
1
9
A210111000120
Bolt
6
10
60006416
Pipe connector
1
11
A210770000455
Domestic rubber hose coupling
2
12
A210855000005
Hoop
2
13
12867932
Breathing tube
1
14
A229900006533
Connector, pipe
1
15
21002854
Connector, pipe
1
16
60133933
Breather
1
12867945 Engine - power takeoff
9-11
Flanging coupling
SRT95C Off-highway truck
PARTS BOOK
60234833 Flanging coupling
9-12
Flanging coupling
SRT95C Off-highway truck
PARTS BOOK

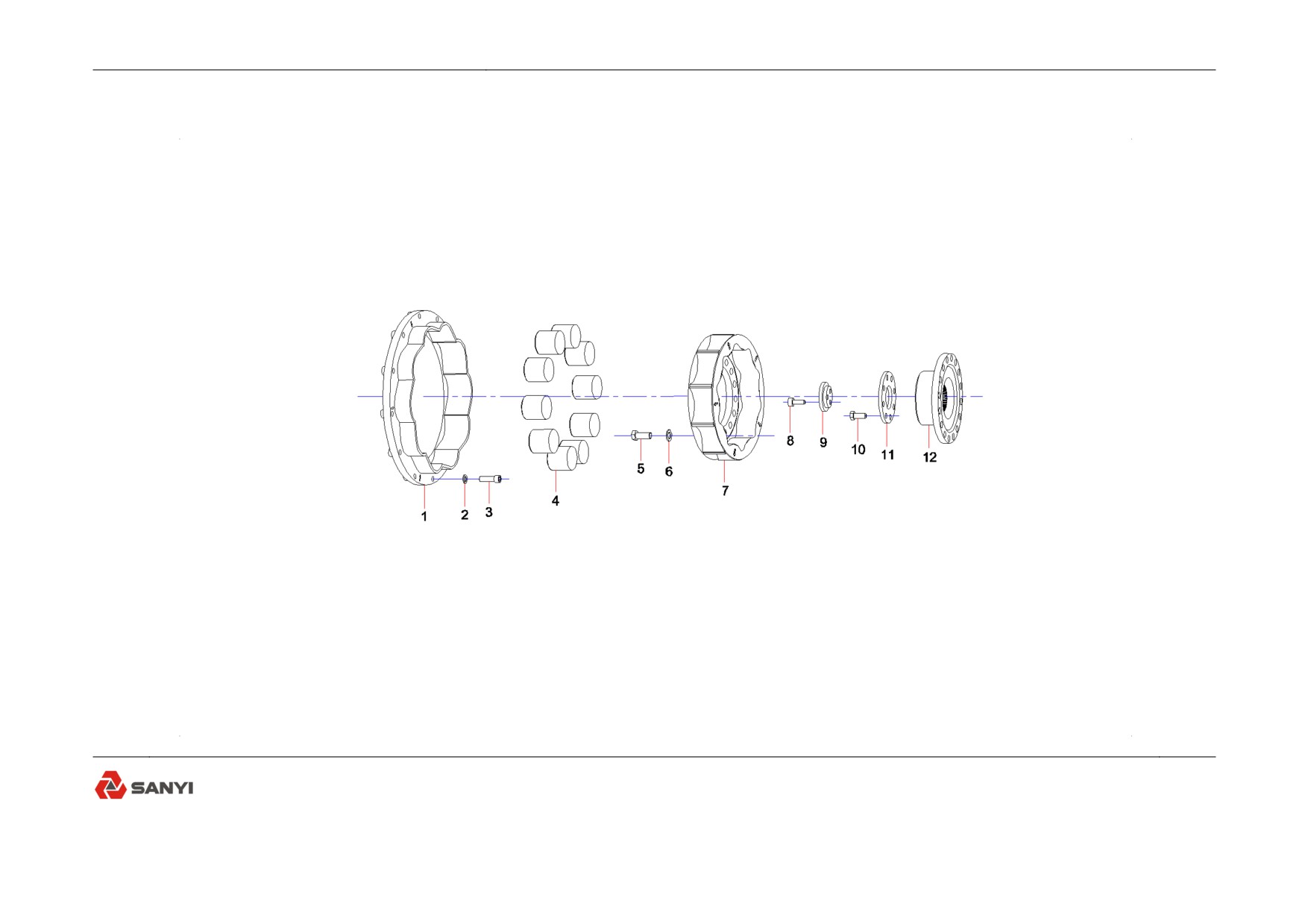

Item No.
Part No.
Description
Qty.
Remark
1
60234613
Outer ring, aluminum
1
2
21029362
Washer
8
3
A210204000183
Screw M16×55GB70.1
8
4
60122936
Elastic body
10
5
24000168
Bolt
16
6
21028776
Washer
16
7
60234612
Inner ring, aluminum
1
8
21010958
Bolt
3
9
60232728
Pressure cover
1
10
A210111000202
Bolt
8
11
60232729
Pressure cover
1
12
60234611
Sleeve, shaft
1
60234833 Flanging coupling
9-13
PTO assembly
SRT95C Off-highway truck
PARTS BOOK

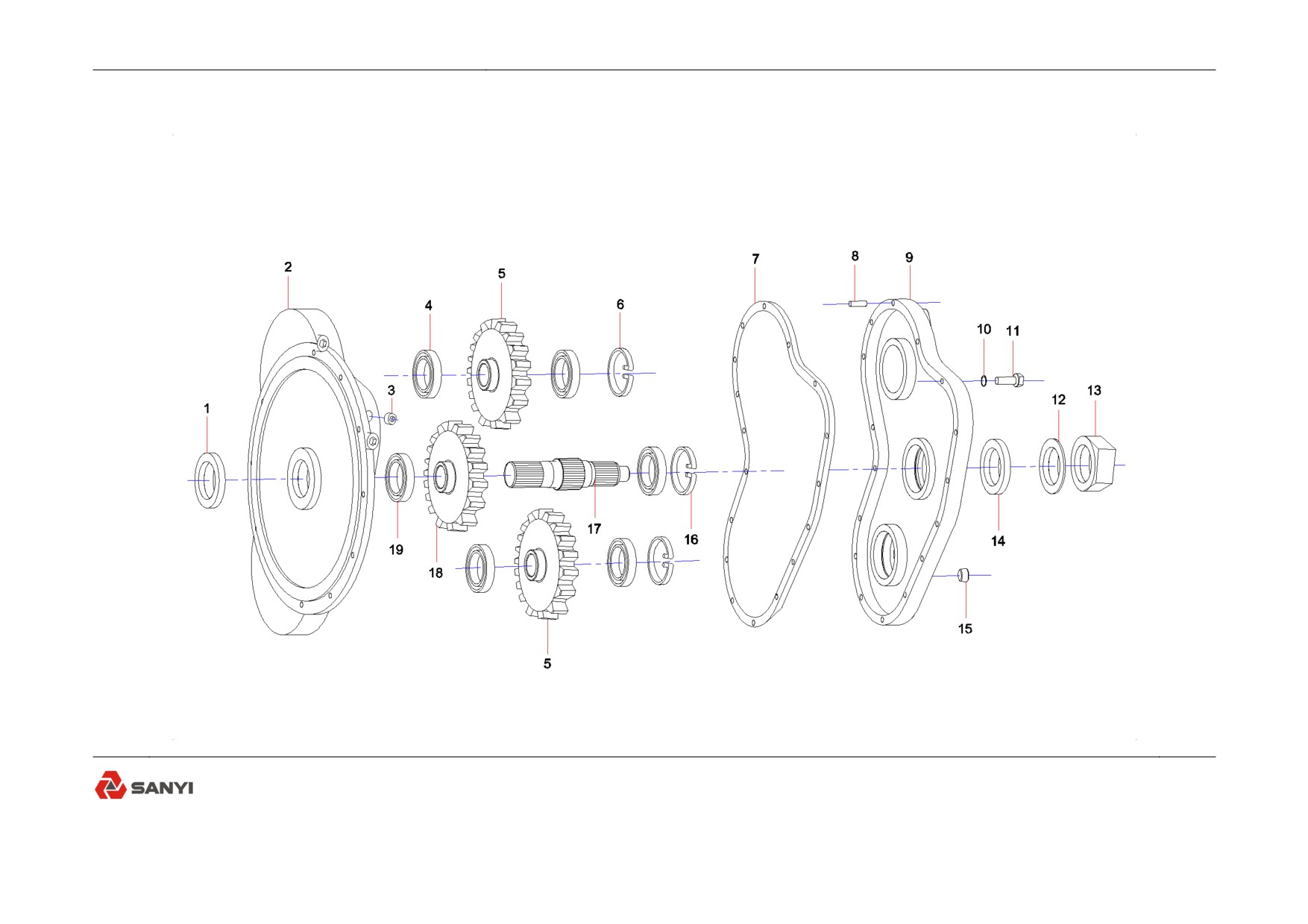

12867826 PTO assembly
9-14
PTO assembly
SRT95C Off-highway truck
PARTS BOOK

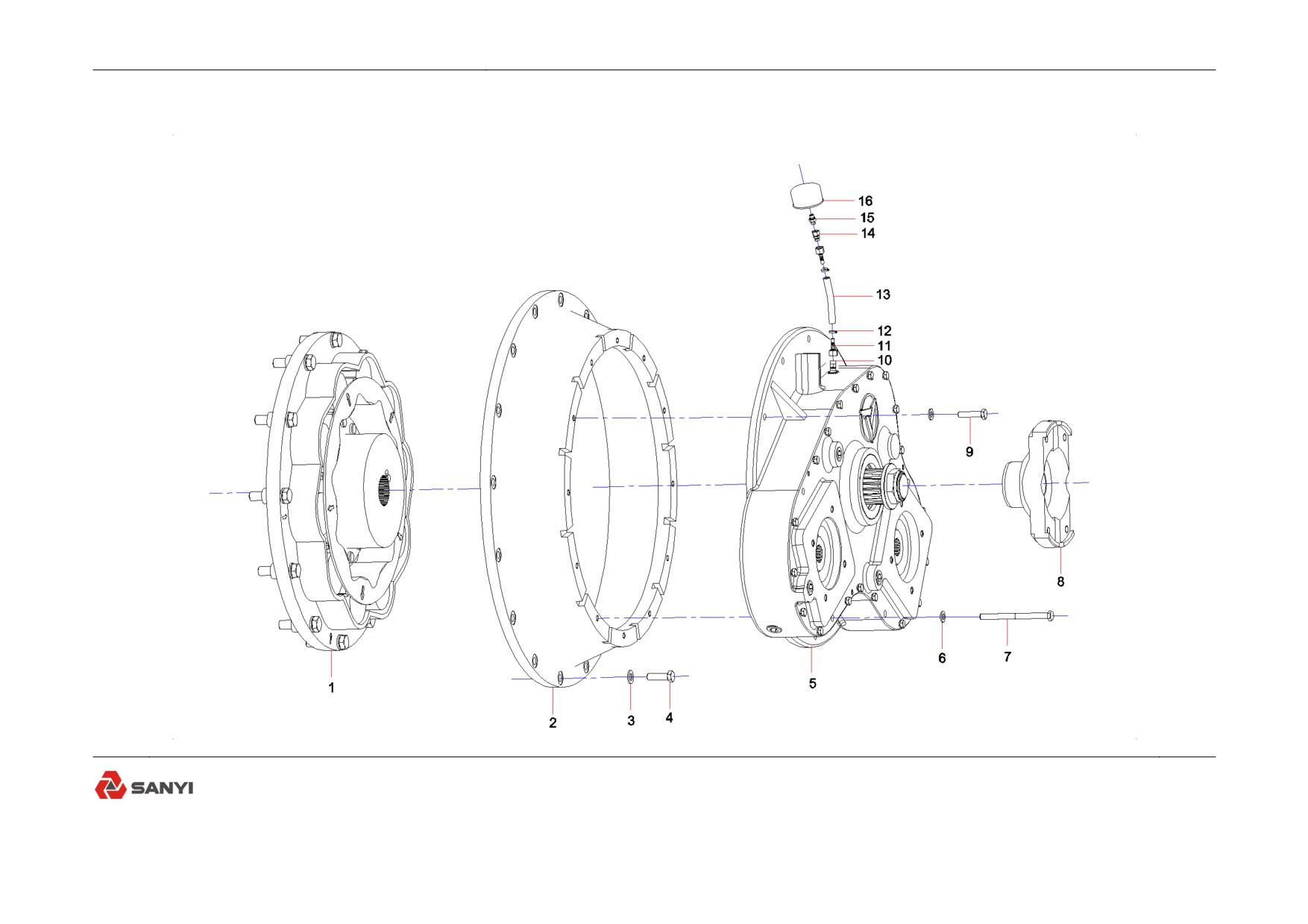

Item No.
Part No.
Description
Qty.
Remark
1
60227257
Oil seal
1
2
12118761
shell seat
1
3
60005843
Plug,screw
3
4
60104956
Bearing
4
5
11122006
Driven gear
2
6
A210416000003
Retainer Ring 100GB893.1
2
7
11122005
Cushion
1
8
A210551000028
Pin
2
9
12865924
Shell cover
1
10
A210401000017
Washer
19
11
A210110000277
Bolt M8×60GB5782
19
12
12124584
Washer
1
13
12126766
Nut
1
14
60227256
Oil seal
1
15
10662925
Inner hex screw plug
6
16
A210416000047
Snap ring
1
17
12118854
Drive shaft
1
18
12122158
Drive gear
1
19
60129016
Bearing
2
12867826 PTO assembly
9-15
Compressor installation
SRT95C Off-highway truck
PARTS BOOK

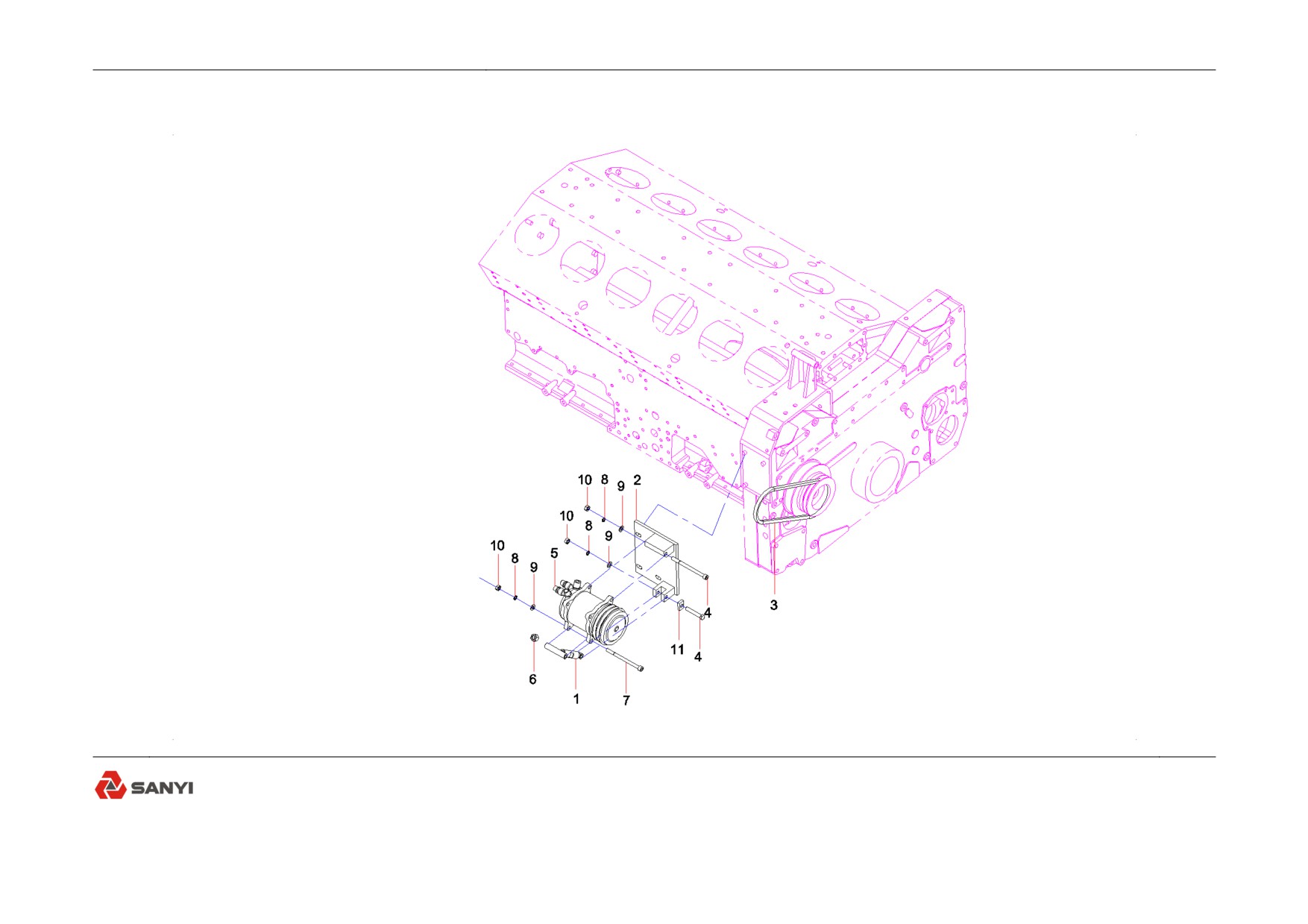

11576510 Compressor installation
9-16
Compressor installation
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
11519994
Adjusting connecting rod
1
2
11576511
Compressor bracket
1
3
11576509
V Belt
1
4
21008534
Screw
2
5
21022626
Compressor TYJ2-100
1
6
A210307000025
Nut M14GB6170
1
7
A210111000294
Bolt
1
8
24000512
Washer 10GB93
3
9
24000637
Washer
3
10
A210307000036
Nut
3
11
12117684
Adjusting gasket
1
11576510 Compressor installation
9-17
PARTS BOOK
Group 10

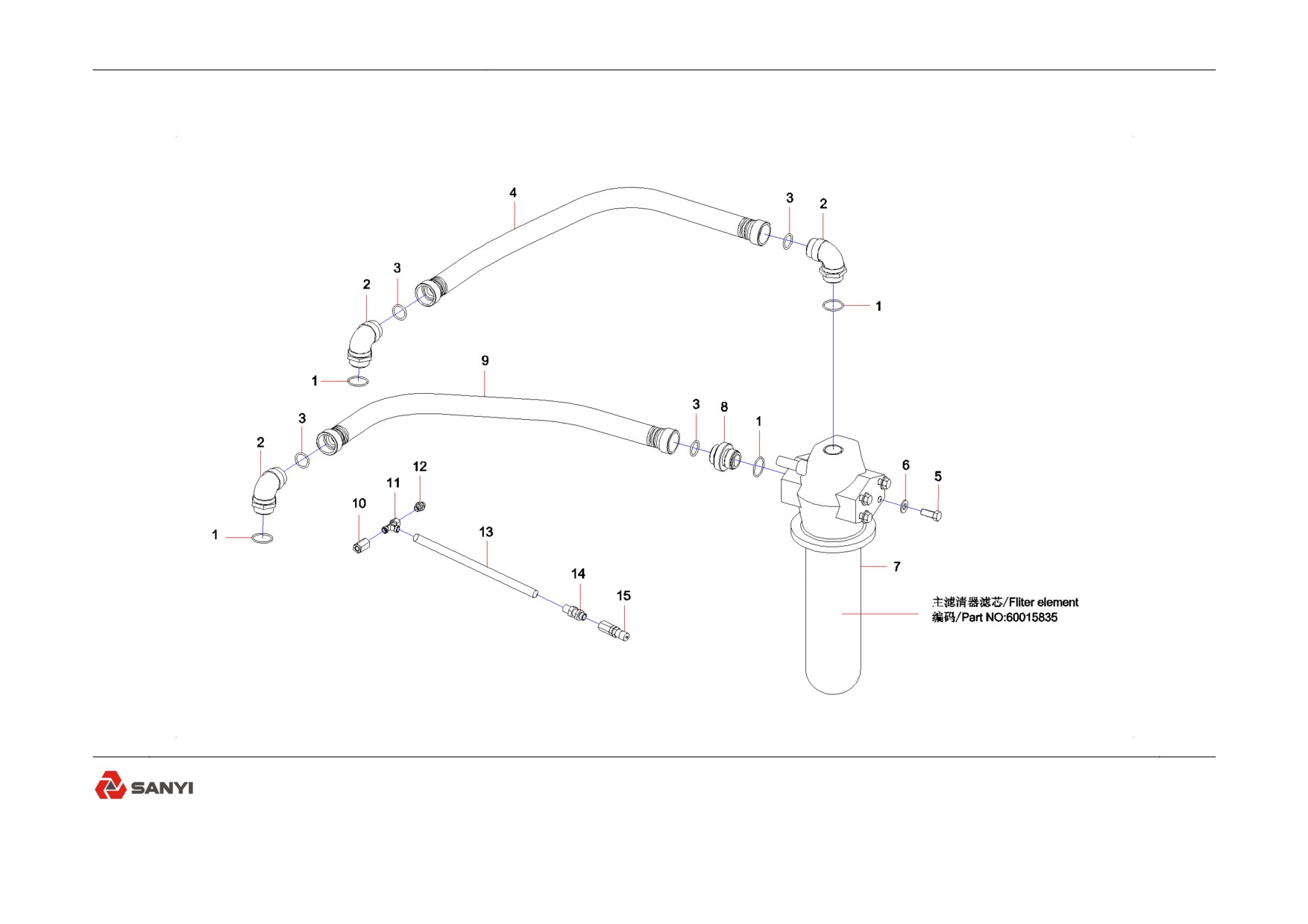

Transmission oil filter assembly
10-1
Transmission oil filter assembly
SRT95C Off-highway truck
PARTS BOOK
10504472 Transmission oil filter assembly
10-2
Transmission oil filter assembly
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
60008434
O-ring
4
2
A229900009496
Elbow
3
3
60008433
O-ring
4
4
10504474
Hose assembly 1
1
5
A229900009500
Bolt
4
6
A229900009503
Washer
4
7
A222100000611
Filter
1
8
A229900009497
Adaptor
1
9
10504476
Hose assembly 2
1
10
11215142
Connector
1
11
21003059
Pipe connector
1
12
A229900009829
Adaptor
1
13
11902262
Hose
1
14
21007672
Pipe connector
1
15
21083668
Testing connector
1
10504472 Transmission oil filter assembly
10-3
Hose assembly 1
SRT95C Off-highway truck
PARTS BOOK
10504474 Hose assembly 1
10-4
Hose assembly 1
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
A229900009498
Adaptor
2
2
10504473
Hose,rubber
4
10504474 Hose assembly 1
10-5
Filter
SRT95C Off-highway truck
PARTS BOOK

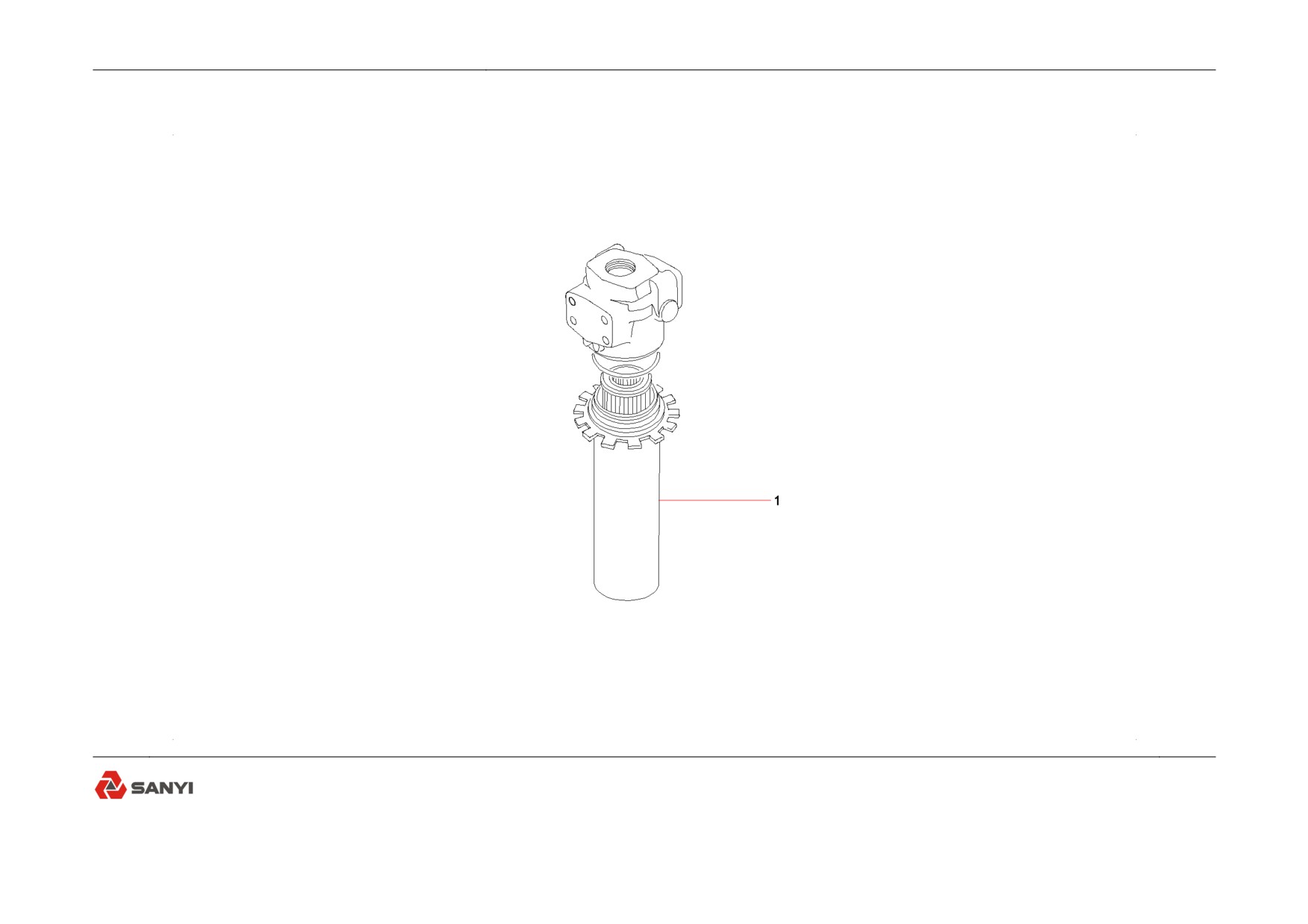

A222100000611 Filter
10-6
Filter
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
60015835
Filter element,transmission
1
A222100000611 Filter
10-7
Hose assembly 2
SRT95C Off-highway truck
PARTS BOOK
10504476 Hose assembly 2
10-8
Hose assembly 2
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
A229900009498
Adaptor
2
2
10504475
Hose,rubber
4
10504476 Hose assembly 2
10-9
PARTS BOOK
Group 11
Transmission and mounting
11-1
Transmission and mounting
SRT95C Off-highway truck
PARTS BOOK
12951889 Transmission and mounting (1/2)
11-2
Transmission and mounting
SRT95C Off-highway truck
PARTS BOOK

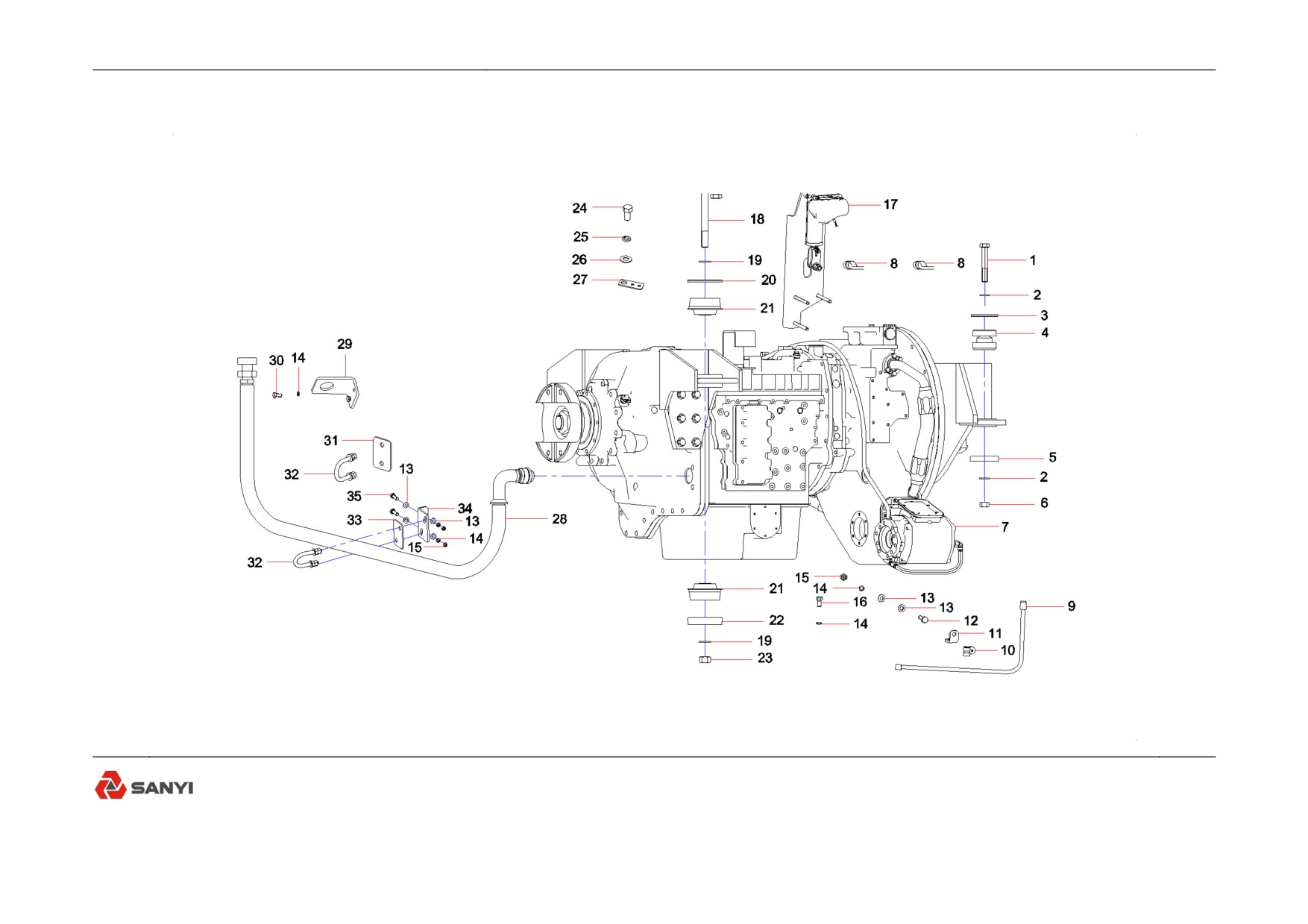

Item No.
Part No.
Description
Qty.
Remark
1
A210111000446
Bolt
2
2
A210491000132
Washer
4
3
11627037
Retainer plate
2
4
60001062
Shock mount
2
5
11627039
Ringer
2
6
A210307000029
Nut
2
7
12951890
Transmission mounting
1
8
A230200000169
Clamp, cord
2
9
60223368
Overflow tubing
1
10
60000419
Clamp, hose
1
12
A210111000197
Bolt
1
13
24000637
Washer
2
14
24000512
Washer 10GB93
4
15
A210307000036
Nut
1
16
A229900009583
Bolt
1
17
11624261
Transmission retarder control
1
18
A210110000213
Bolt
2
19
A210491000122
Washer
4
20
11627040
Retainer plate
2
21
A222000000074
Shock mount
4
22
11627038
Ringer
2
23
A210307000007
Nut M24GB6170 Grade 10
2
12951889 Transmission and mounting (1/2)
11-3
Transmission and mounting
SRT95C Off-highway truck
PARTS BOOK
12951889 Transmission and mounting (2/2)
11-4
Transmission and mounting
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
24
A229900009501
Screw
4
25
A229900009504
Washer
4
26
24000514
Washer 16GB93
4
27
12753728
Fixed Plate
4
28
60007612
Filler hose
1
29
12951887
Fixed Plate
1
30
A210111000012
Bolt
2
31
12701266
Rupper pad
1
32
60008275
U-clamp
2
33
13083324
Rubber padSRT95C.153-4
1
34
13083323
Fixed plateSRT95C.153-3
1
35
A210111000026
Bolt
2
12951889 Transmission and mounting (2/2)
11-5
Transmission mounting
SRT95C Off-highway truck
PARTS BOOK
12951890 Transmission mounting
11-6
Transmission mounting
SRT95C Off-highway truck
PARTS BOOK

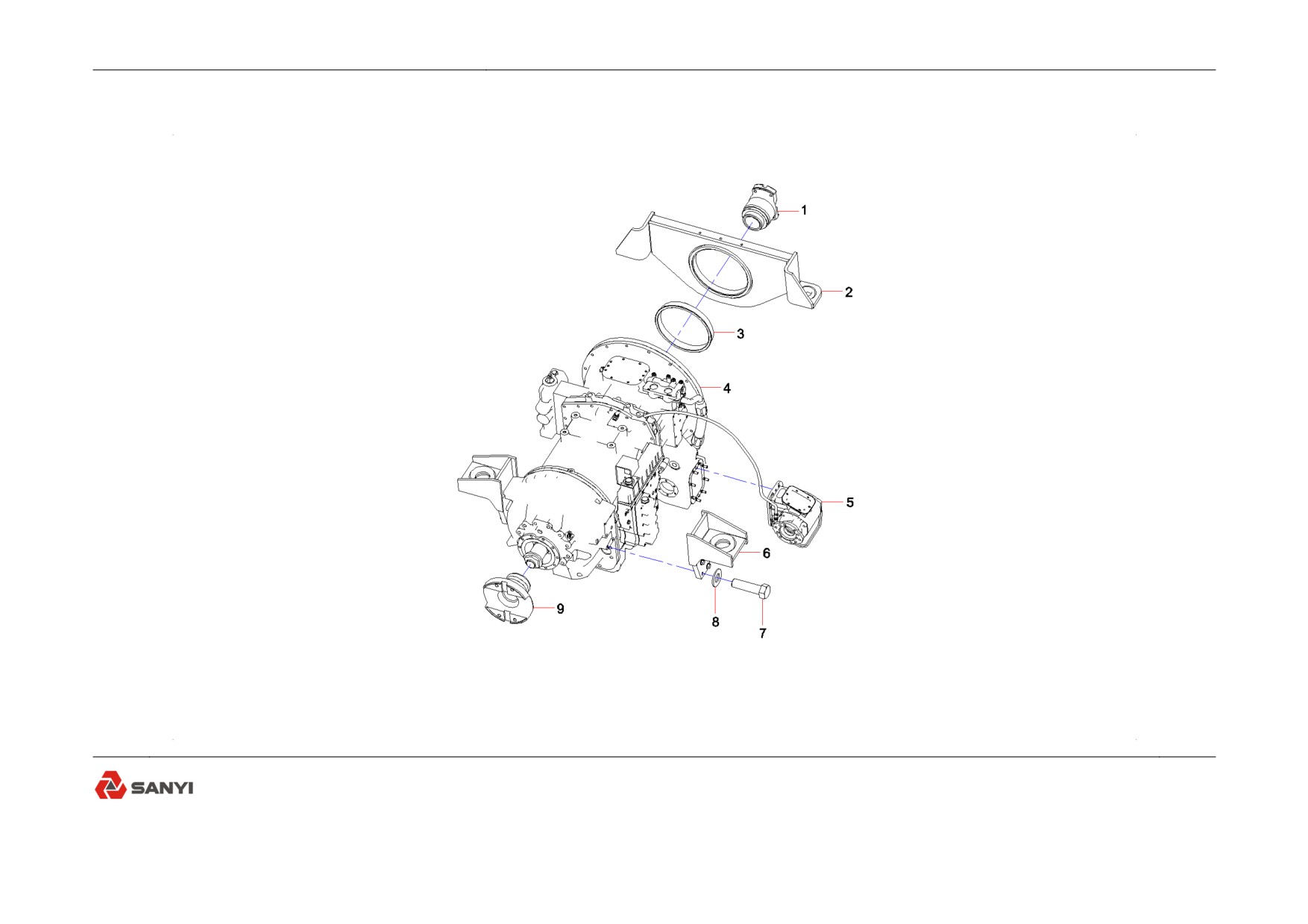

Item No.
Part No.
Description
Qty.
Remark
1
60001257
Input flange
1
2
12951893
Trunnion
1
3
11626929
Sleeve,nylon
1
4
60000233
Transmission
1
5
12951895
Power take-off assembly
1
6
12951894
Bracket
2
7
60044697
Bolt
12
8
A229900009504
Washer
12
9
60001256
Output flange
1
12951890 Transmission mounting
11-7
Power take-off assembly
SRT95C Off-highway truck
PARTS BOOK
12951895 Power take-off assembly
11-8
Power take-off assembly
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
60006906
Lube connector
1
2
60006911
Hose assembly

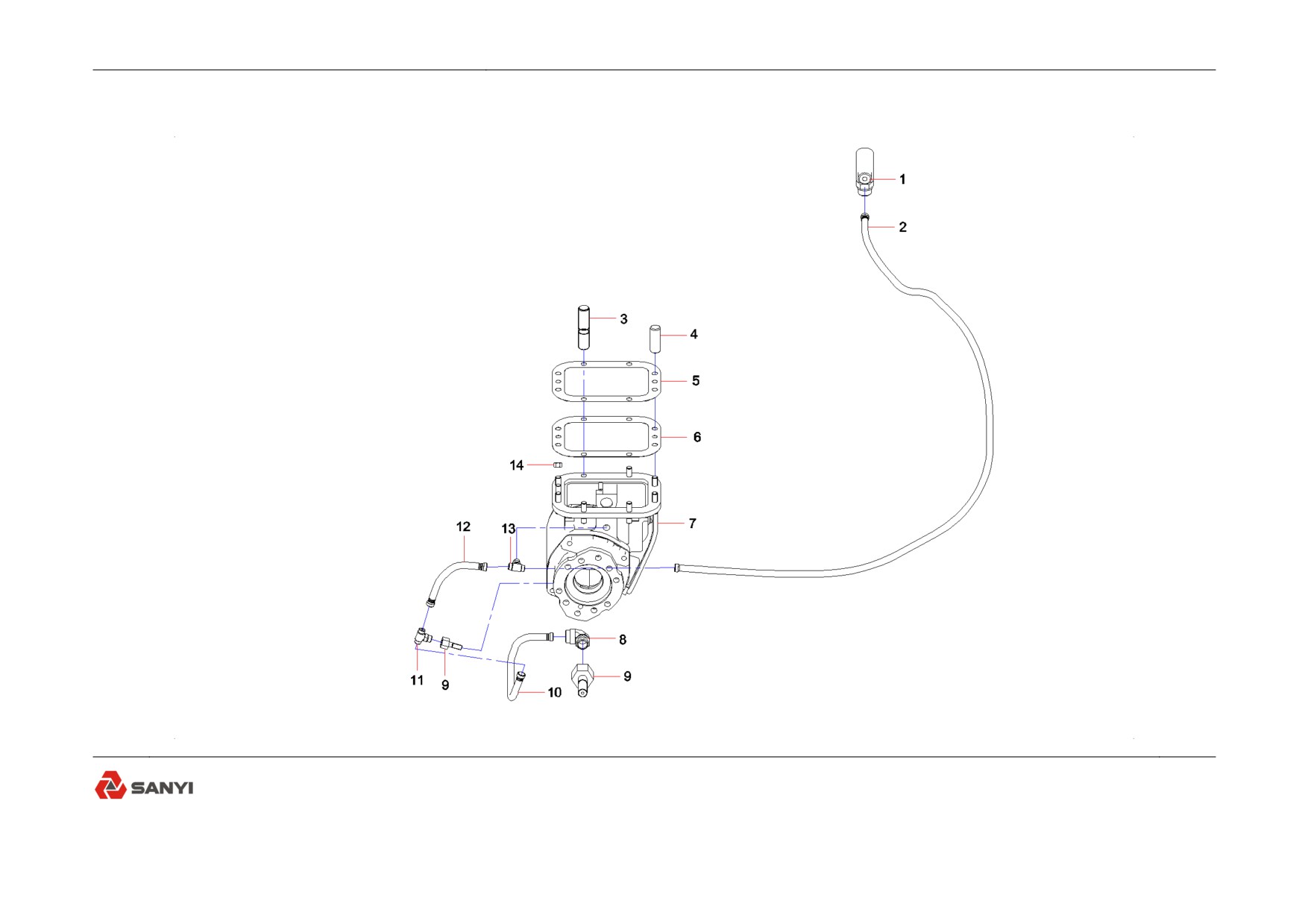

1
3
60006907
Stud
8
4
60007095
Pin
2
5
60006902
Gasket
1
6
60006903
Gasket
1
7
60082337
Power take-off
1
8
60006904
Elbow
1
9
60006908
Adapter
2
10
60006913
Hose assembly
1
11
60006905
Adapter
1
12
60006912
Hose assembly
1
13
60006910
Adapter
1
14
60006909
Nut，self-locking
8
12951895 Power take-off assembly
11-9
Transmission retarder control
SRT95C Off-highway truck
PARTS BOOK

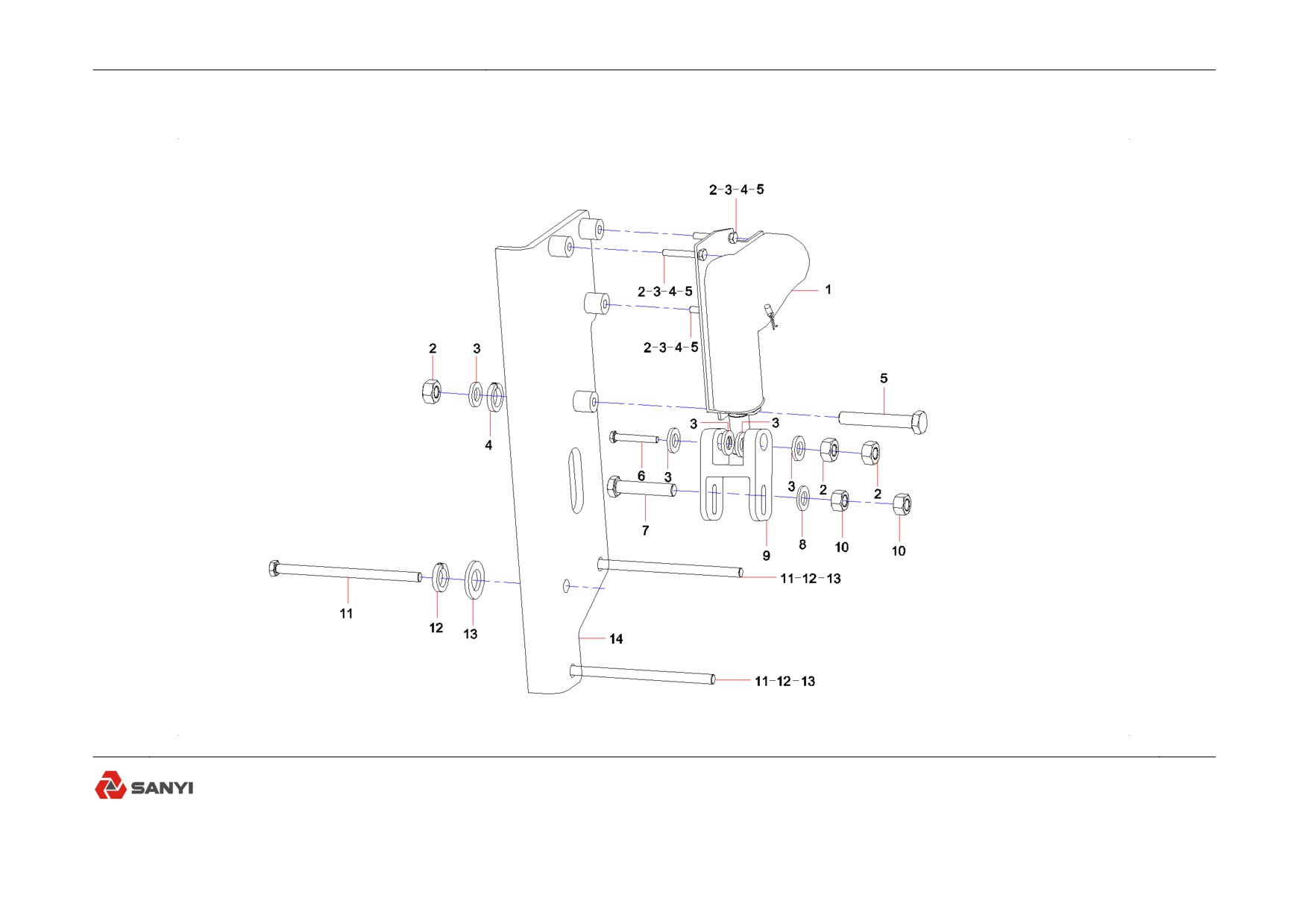

11624261 Transmission retarder control
11-10
Transmission retarder control
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
60067753
Linear actuator
1
2
A210307000016
Nut
6
3
24000632
Washer
8
4
60060564
Washer
4
5
A210111000084
Bolt
4
6
A210110000319
Bolt
1
7
A210110000012
Bolt
1
8
24000639
Washer 12GB97.1
1
9
13255767
Connecting board SRT95.151A-3
1
10
A210307000031
Nut
2
11
60009687
Bolt
3
12
24000512
Washer 10GB93
3
13
A210491000120
Washer
3
14
11624264
Fixed plate
1
11624261 Transmission retarder control
11-11
PARTS BOOK
Group 12
Driveline installation
12-1
Driveline installation
SRT95C Off-highway truck
PARTS BOOK

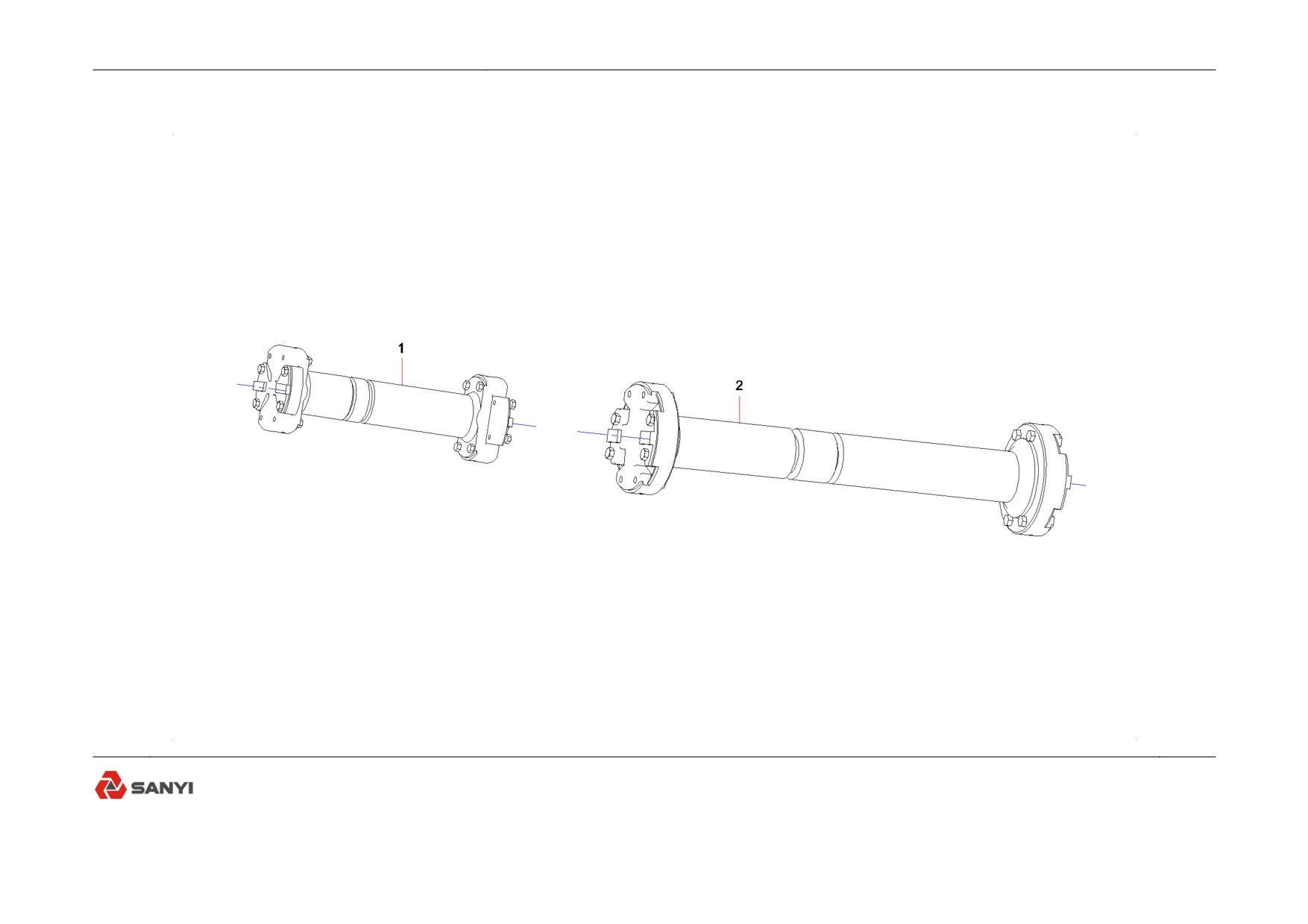

10511218 Driveline installation
12-2
Driveline installation
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
60001267
Front driveline
1
2
60001261
Rear driveline
1
10511218 Driveline installation
12-3
Front driveline
SRT95C Off-highway truck
PARTS BOOK

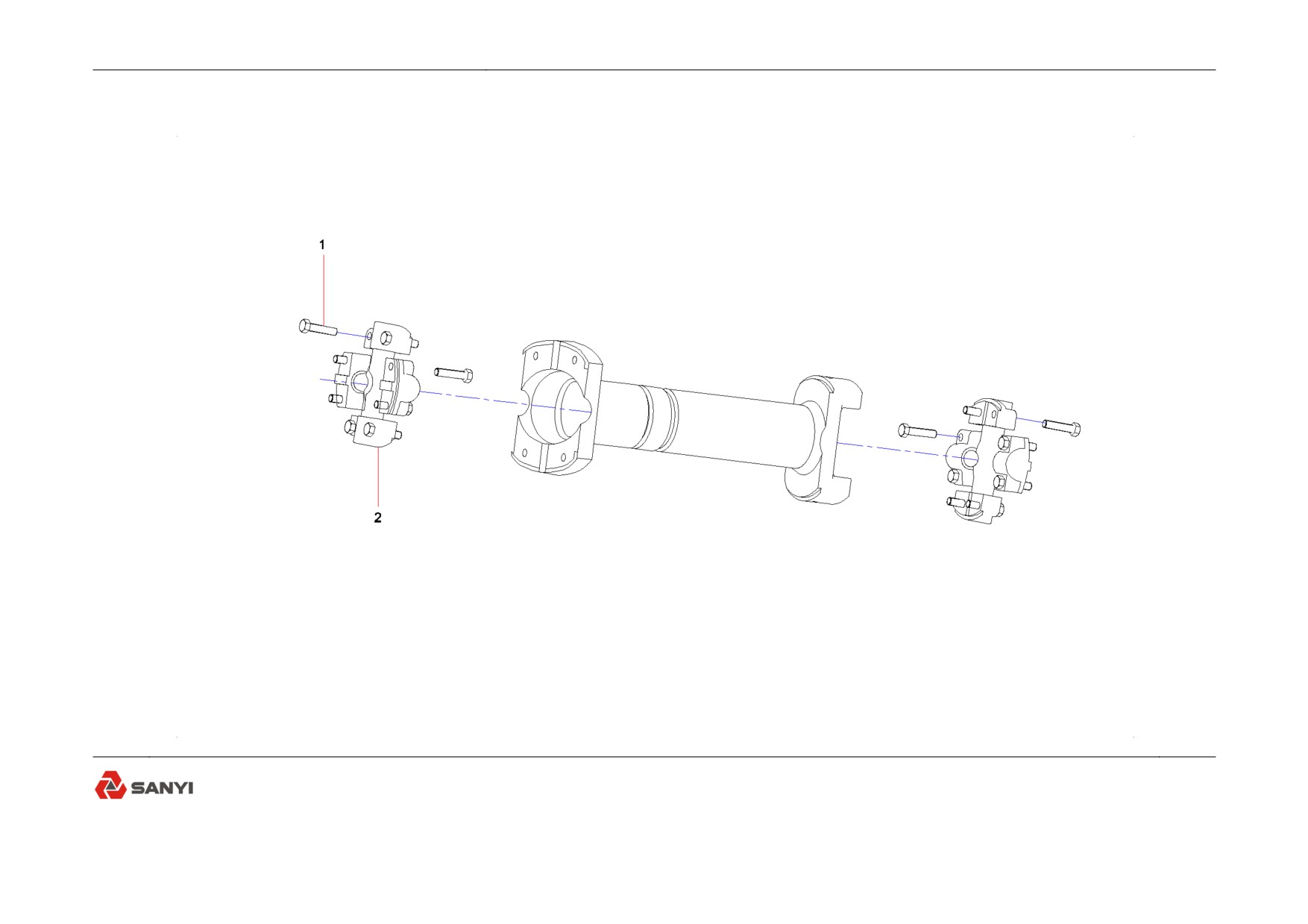

60001267 Front driveline
12-4
Front driveline
SRT95C Off-highway truck
PARTS BOOK

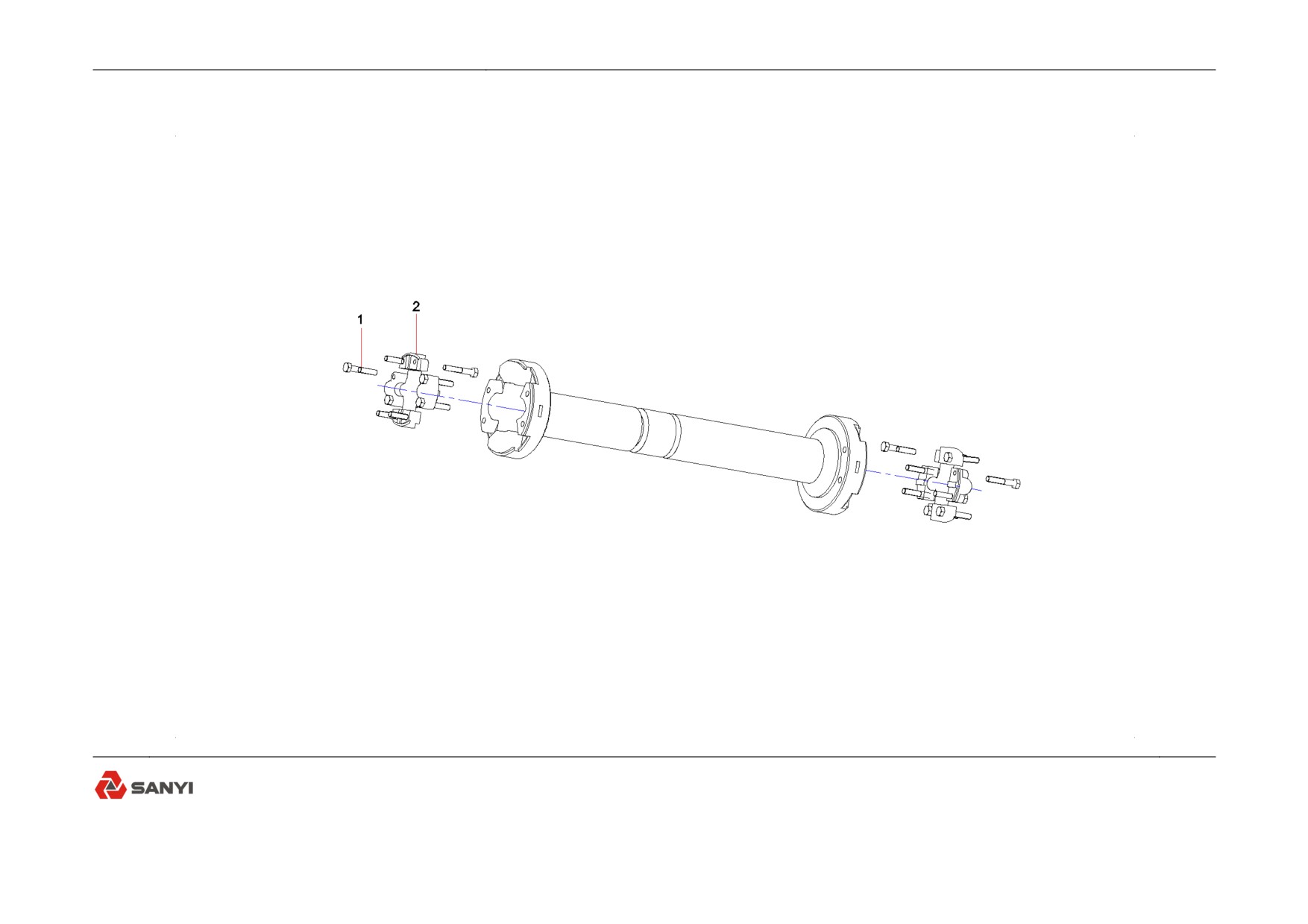

Item No.
Part No.
Description
Qty.
Remark
1
60011099
Front Transmission Shaft Assy bolt
8
2
60027405
Cross shaft,transmission,front
2
60001267 Front driveline
12-5
Rear driveline
SRT95C Off-highway truck
PARTS BOOK
60001261 Rear driveline
12-6
Rear driveline
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
60011098
Rear transmission shaft assem bolt
8
2
60027404
Shaft,cross,transmission shaft,rear
2
60001261 Rear driveline
12-7
PARTS BOOK
Group 13
Air cleaner and pipeline installation
13-1
Air cleaner and pipeline installation
SRT95C Off-highway truck
PARTS BOOK

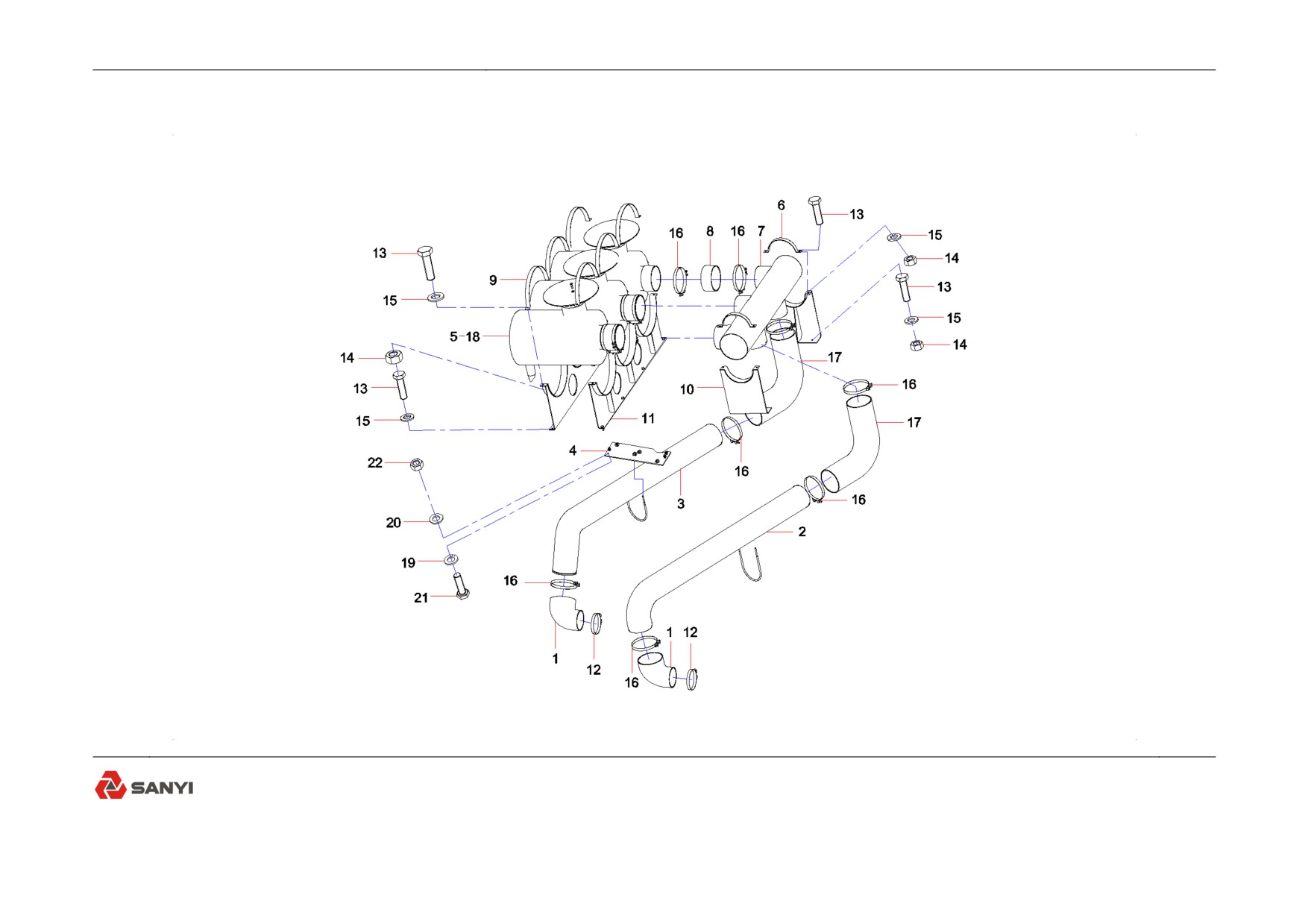

12951956 Air cleaner and pipeline installation
13-2
