SANY SRT95C Off-highway truck. Parts book (Equipment No.14RT95100040) - page 11
Foot-operated valve adaptor installation
SRT95C Off-highway truck
PARTS BOOK

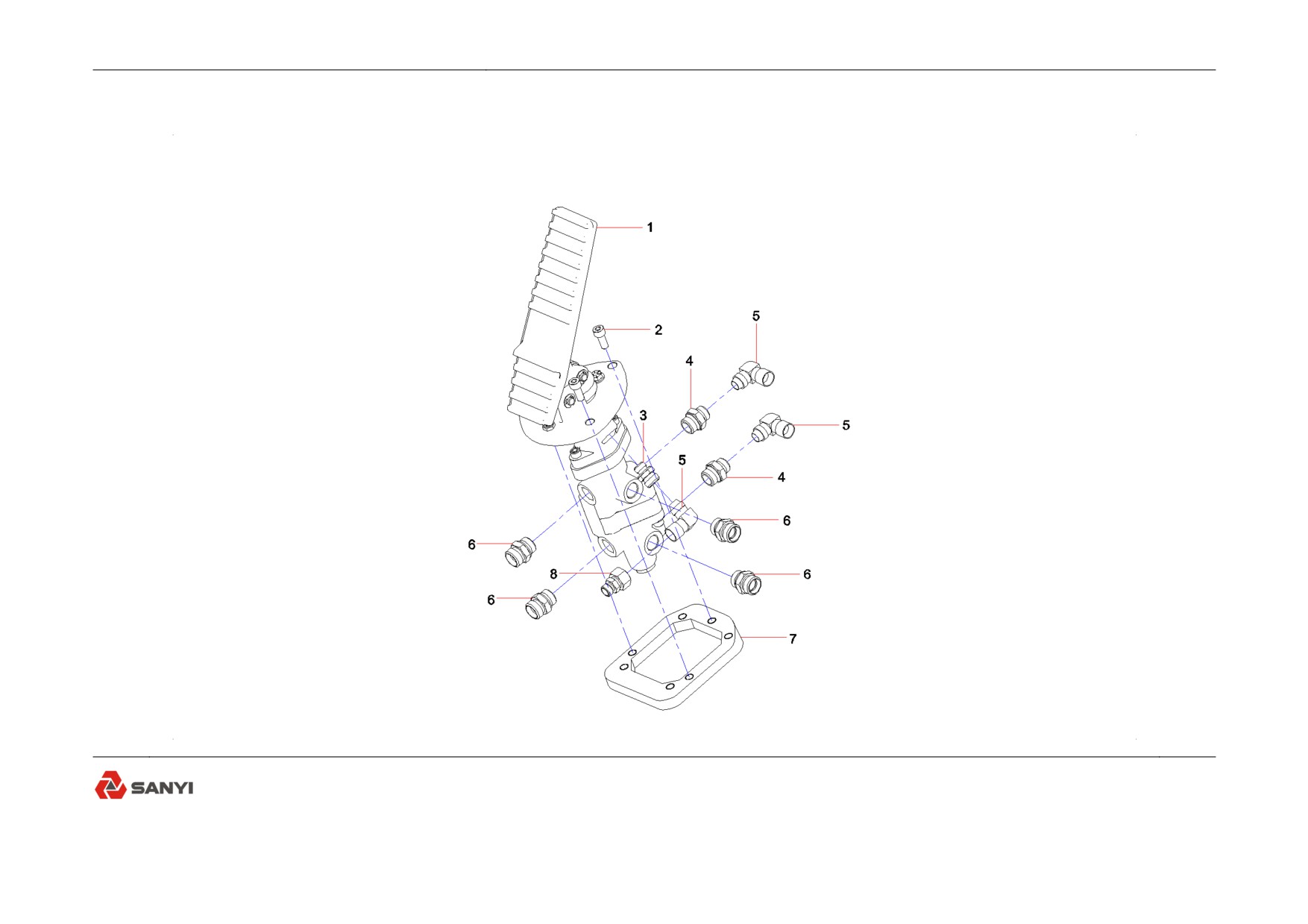

13237985 Foot-operated valve adaptor installation
33-6
Foot-operated valve adaptor installation
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
60197325
pedal valve
1
2
A210204000341
Screw
3
3
21004266
Pipe connector
1
4
21021532
Connector, pipe
2
5
A229900003506
Pipe connector
3
6
21024284
Pipe connector
4
7
13271613
Transition plate SRT95C.615A.1-3
1
8
21027304
Pipe connector
1
13237985 Foot-operated valve adaptor installation
33-7
PARTS BOOK
Group 34
Hydraulic oil tank installation SRT95C.6
34-1
Hydraulic oil tank installation SRT95C.6
SRT95C Off-highway truck
PARTS BOOK

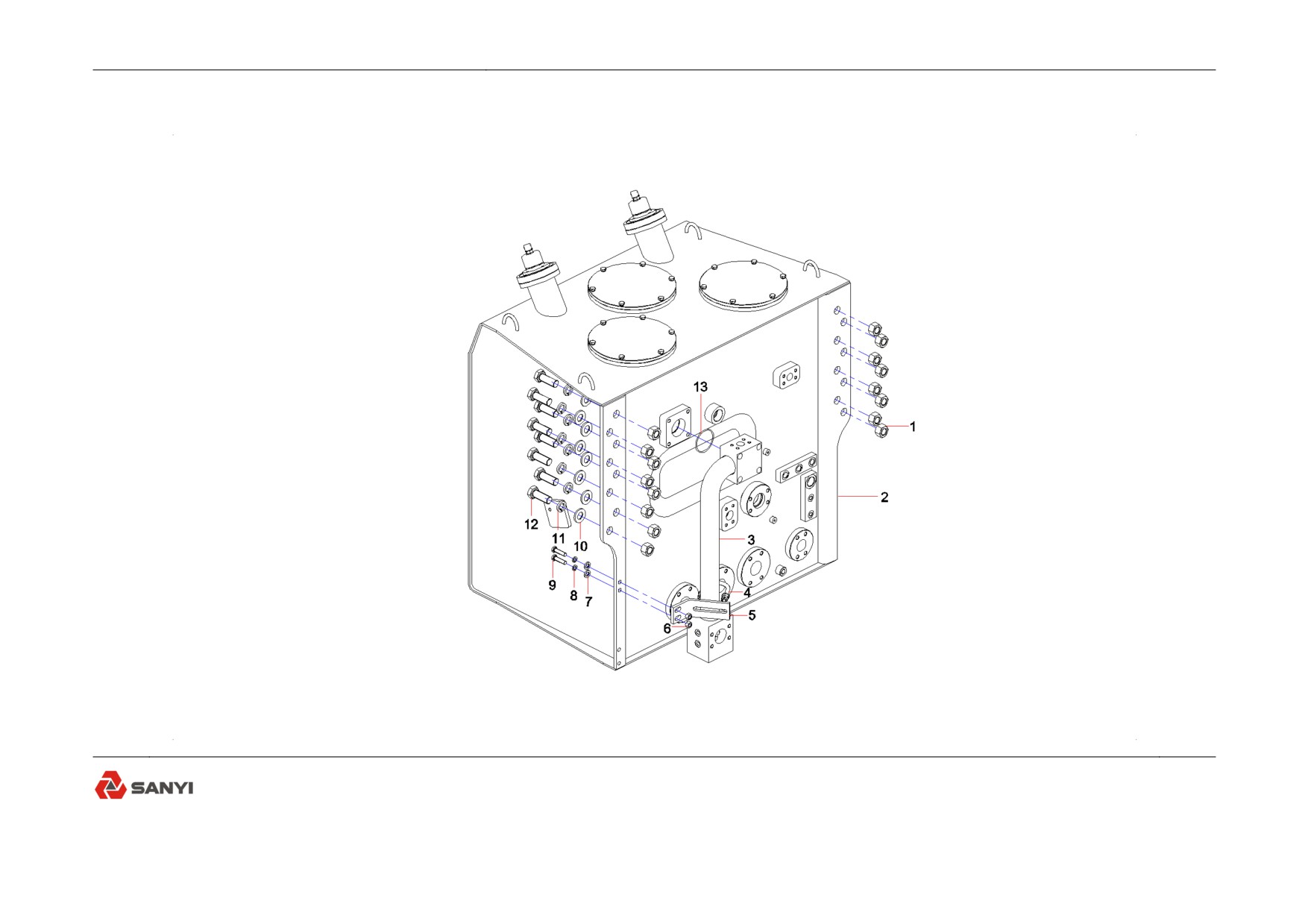

13294563 Hydraulic oil tank installation SRT95C.6
34-2
Hydraulic oil tank installation SRT95C.6
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
A210307000007
Nut M24GB6170 Grade 10
16
2
13294564
Hydraulic fuel tank assy. SRT95C.641.1
1
3
13294588
Steel tube assembly SRT95C.641.2
1
4
60008276
U-CLAMP
1
5
13294562
Bent plate SRT95C.641-1
1
6
A210307000031
Nut
2
7
A210491000121
Washer
2
8
A210401000002
Washer
2
9
A210111000119
Bolt
2
10
A210491000122
Washer
16
11
A210401000008
Washer
16
12
21051125
Bolt M24×65GB5783 Grade 10.9
16
13
A210609000077
O-ring
1
13294563 Hydraulic oil tank installation SRT95C.6
34-3
Hydraulic fuel tank assy. SRT95C.641.1
SRT95C Off-highway truck
PARTS BOOK

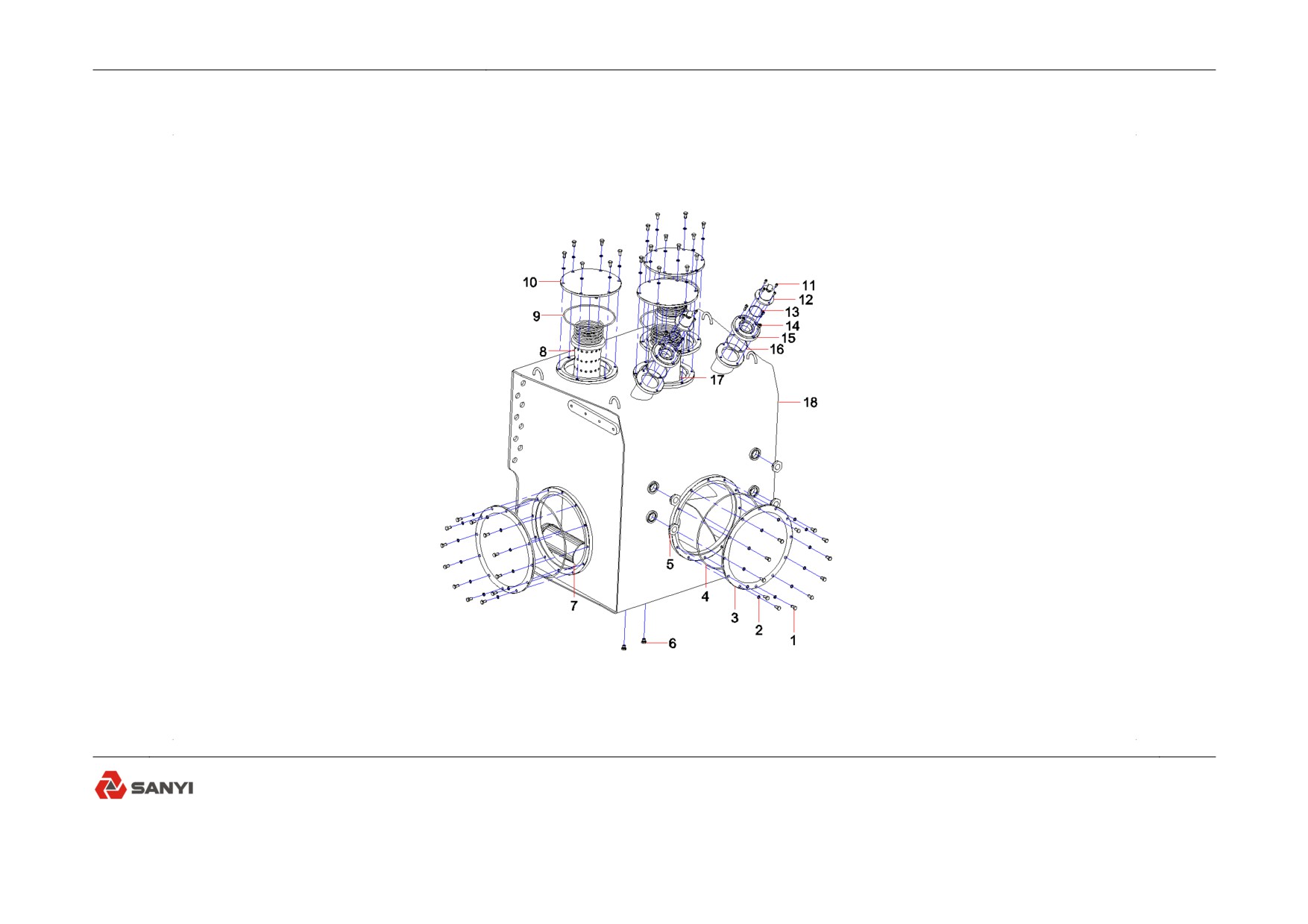

13294564 Hydraulic fuel tank assy. SRT95C.641.1
34-4
Hydraulic fuel tank assy. SRT95C.641.1
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
A210111000012
Bolt
42
2
A210401000001
Washer
42
3
11643404
Cover Plate
2
4
A210609000384
O-ring 365×5.3GB3452.1
2
5
60240021
Oil sign
4
6
A229900002944
Plug
2
7
60209906
Oil suction filter element
4
8
60209907
Oil return filter core
1
9
60013667
O-ring 230×5.3GB3452.1
3
10
11643456
Cover plate
3
11
A210204000130
Screw
8
12
60136332
Breather valve
2
13
A210609000202
O-ring
2
14
A210204000341
Screw
8
15
12951904
Spacer flange
2
16
A210609000209
O-ring
2
17
60101256
Filter, return oil
2
18
13294573
Box body welding assembly SRT95C.641.1.1
1
13294564 Hydraulic fuel tank assy. SRT95C.641.1
34-5
PARTS BOOK
Group 35
Steering pipeline and pipe joint
35-1
Steering pipeline and pipe joint
SRT95C Off-highway truck
PARTS BOOK

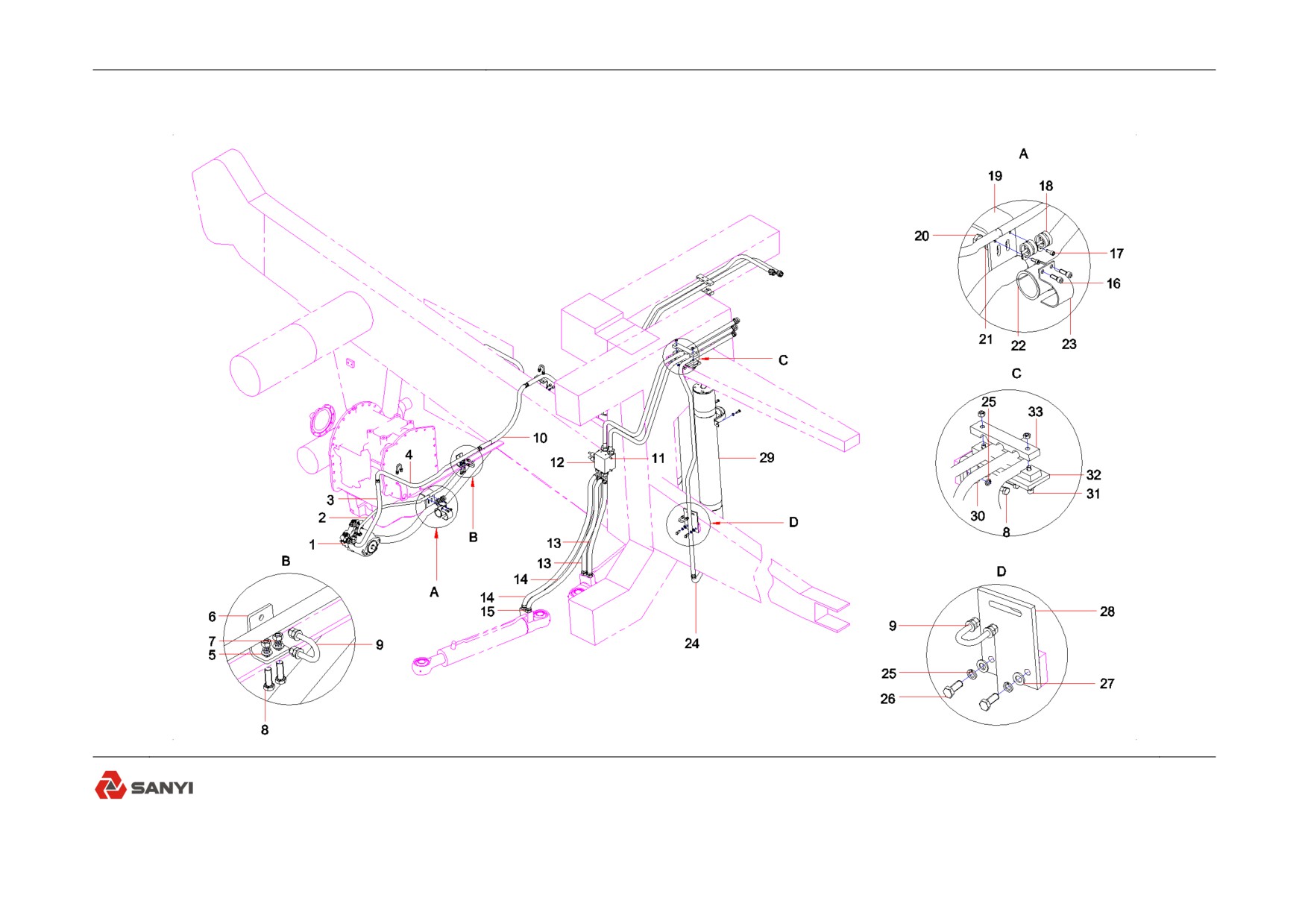

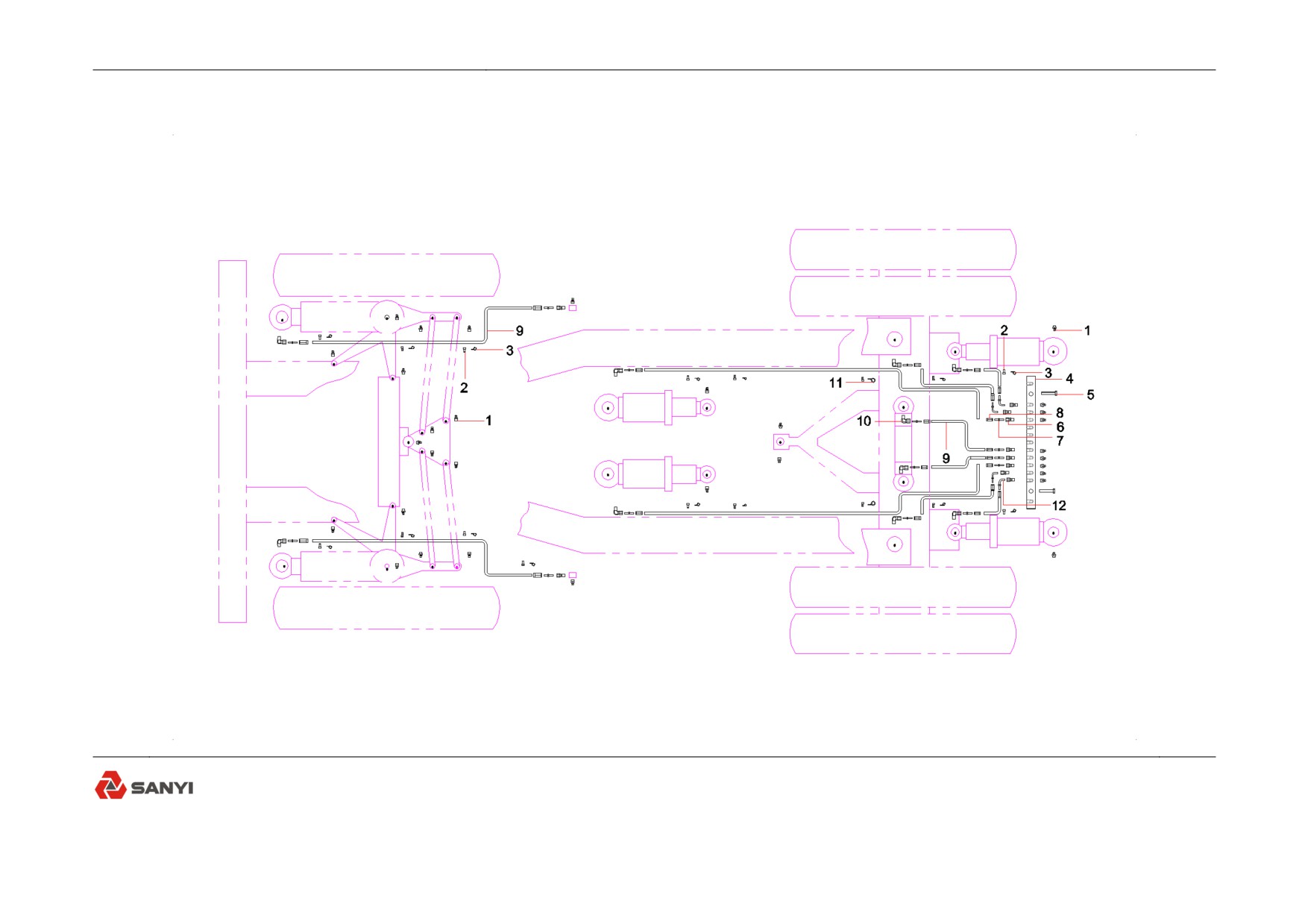

12954463 Steering pipeline and pipe joint (1/4)
35-2
Steering pipeline and pipe joint
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
12954053
Plunger pump installation
1
2
B230103000279
Hose
1
3
60234825
rubber hose
1
4
12954055
steel tube assy.
1
5
24000637
Washer
2
6
12953838
Pipe clamp seat
1
7
24000512
Washer 10GB93
8
8
21005215
Bolt
4
9
60008272
U-Clamp
5
10
60234824
rubber hose
1
11
21052948
Bolt
2
12
12954434
Buffering valve block adaptor installation
1
13
60097989
Hose
2
14
60244148
Rubber hose
2
15
23000611
Connector, pipe
4
16
A210204000341
Screw
2
17
A210204000130
Screw
2
18
A229900006641
Pipe nip
2
19
12953839
Pipe clamp seat
1
20
A210307000055
Nut M8GB6170 Grade 10
2
21
60060565
Washer
2
22
11082254
Rubber ring
1
12954463 Steering pipeline and pipe joint (1/4)
35-3
Steering pipeline and pipe joint
SRT95C Off-highway truck
PARTS BOOK
12954463 Steering pipeline and pipe joint (2/4)
35-4
Steering pipeline and pipe joint
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
23
12953842
Tube clamp
1
24
60034073
Hose,rubber
1
25
24000513
Washer 12GB93 DACROMET
8
26
A210111000331
Bolt
2
27
24000639
Washer 12GB97.1
2
28
12953835
Pipe clamp seat
1
29
60211734
Piston Accumulator
2
30
60060548
Washer 12GB96.1
2
31
A210204000345
Screw
2
32
12953833
Pipe clamp seat
1
33
12953834
Tube clamp
2
12954463 Steering pipeline and pipe joint (2/4)
35-5
Steering pipeline and pipe joint
SRT95C Off-highway truck
PARTS BOOK
12954463 Steering pipeline and pipe joint (3/4)
35-6
Steering pipeline and pipe joint
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
13210491
Steel tube assembly SRT95C.660.16
1
2
13210489
Steel tube assembly SRT95C.660.15
1
3
13210487
Steel tube assemblySRT95C.660.14
1
4
12954388
Steel tube assy.
1
5
13304558
Steel tube assembly SRT95C.613.24
1
6
12953796
Pipe nip
6
7
A210204000357
Screw
6
8
A210111000024
Bolt
4
9
12877280
Rubber Pad
2
10
12877468
Energy Storage Thimble
2
11
B210780000630
Connector, pipe
1
12
21002826
Pipe connector
2
13
A229900004359
Connector, pipe
1
14
B230103000960
Hose, rubber
1
15
A210204000337
Screw
6
16
A229900002509
Flange, split
2
17
A210204000206
Screw
4
18
21002822
Pipe connector
1
19
60234826
rubber hose
1
20
A210204000215
Screw
4
21
12954002
Steel tube assy.
1
22
12953837
Pipe clamp seat
1
12954463 Steering pipeline and pipe joint (3/4)
35-7
Steering pipeline and pipe joint
SRT95C Off-highway truck
PARTS BOOK

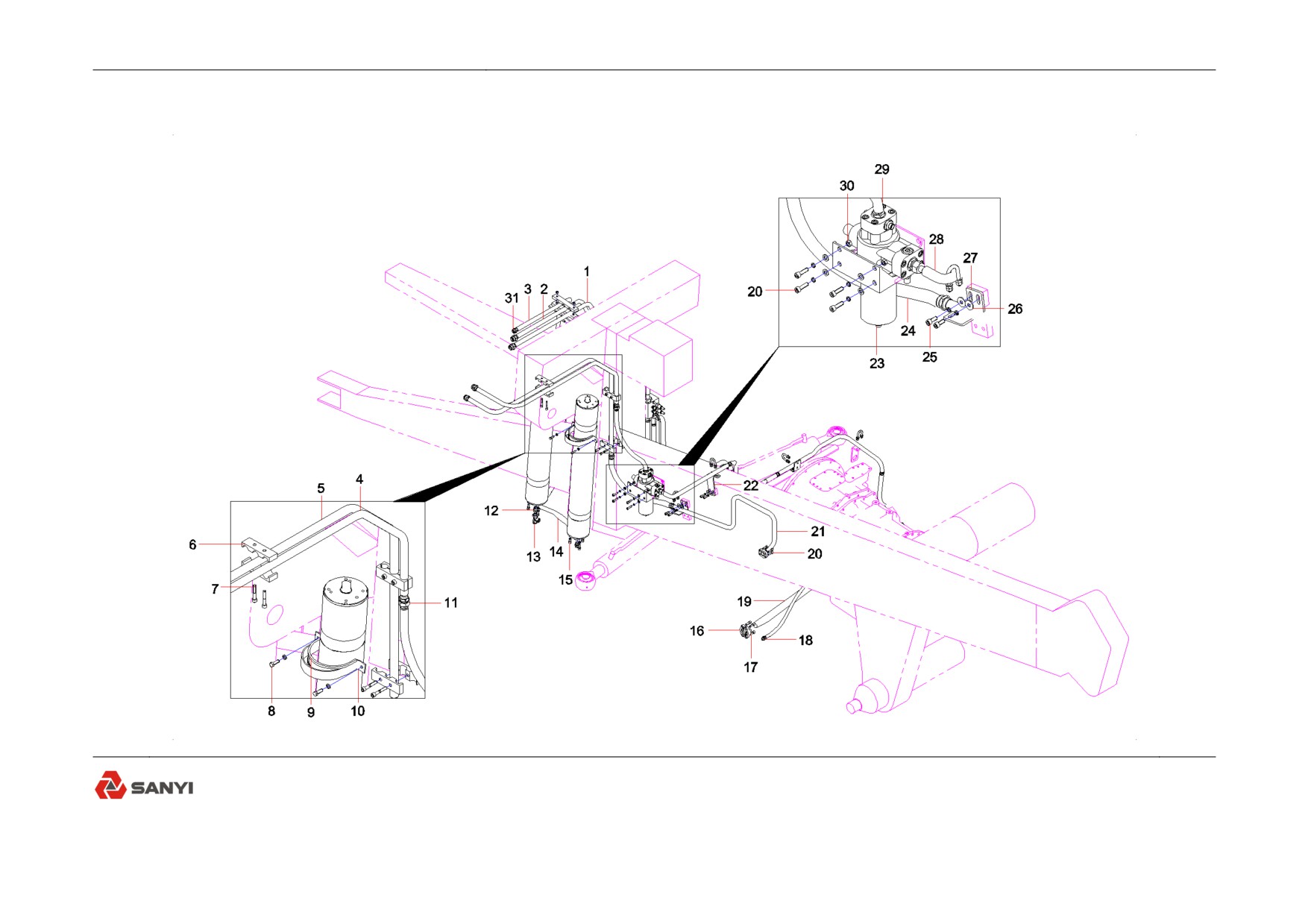

12954463 Steering pipeline and pipe joint (4/4)
35-8
Steering pipeline and pipe joint
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
23
12954443
Adaptor installation of pipeline filter
1
24
B230103003833
Hose
1
25
A210204000262
Screw
4
26
60060546
Washer 10GB96.1
6
27
12953836
Pipe clamp seat
1
28
12954465
Steel tube assy.
1
29
B230103005600
Hose, rubber
1
30
A210307000036
Nut
4
31
21002822
Pipe connector
1
12954463 Steering pipeline and pipe joint (4/4)
35-9
Plunger pump installation
SRT95C Off-highway truck
PARTS BOOK

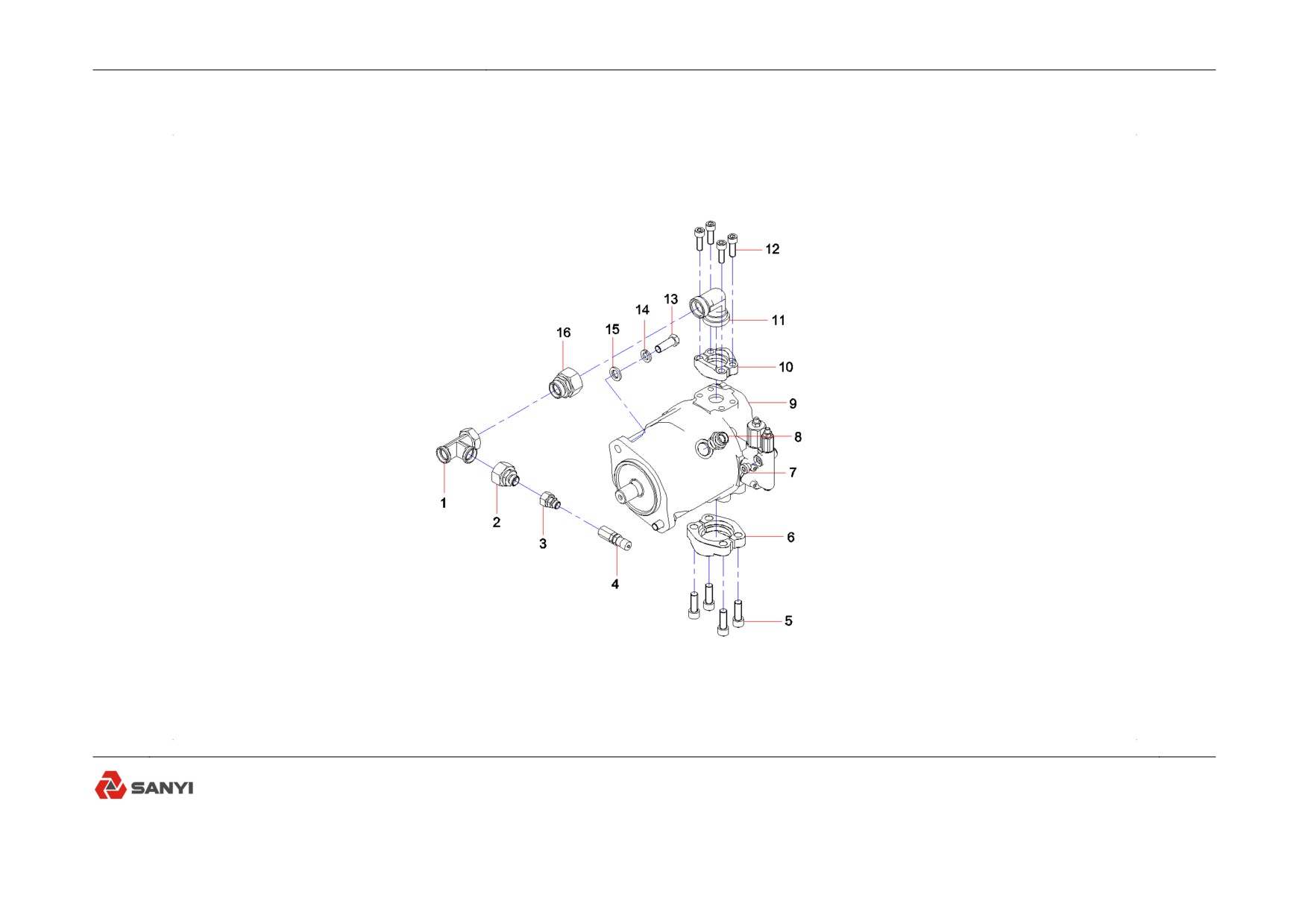

12954053 Plunger pump installation
35-10
Plunger pump installation
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
A229900004359
Connector, pipe
1
2
21027338
Connector, pipe
1
3
21027304
Pipe connector
1
4
21083668
Testing connector
1
5
A210204000206
Screw
4
6
A229900002509
Flange, split
2
7
60069744
Screw Plug
1
8
21004607
Connector, pipe
1
9
23000451
Pump, plunger
1
10
B229900000332
Flange, split
2
11
21002810
Connector, flange
1
12
A210204000354
Screw
4
13
A229900009970
Bolt
2
14
A229900009582
Washer
2
15
A210491000121
Washer
2
16
21020851
Swivel connector
1
12954053 Plunger pump installation
35-11
Buffering valve block adaptor installation
SRT95C Off-highway truck
PARTS BOOK

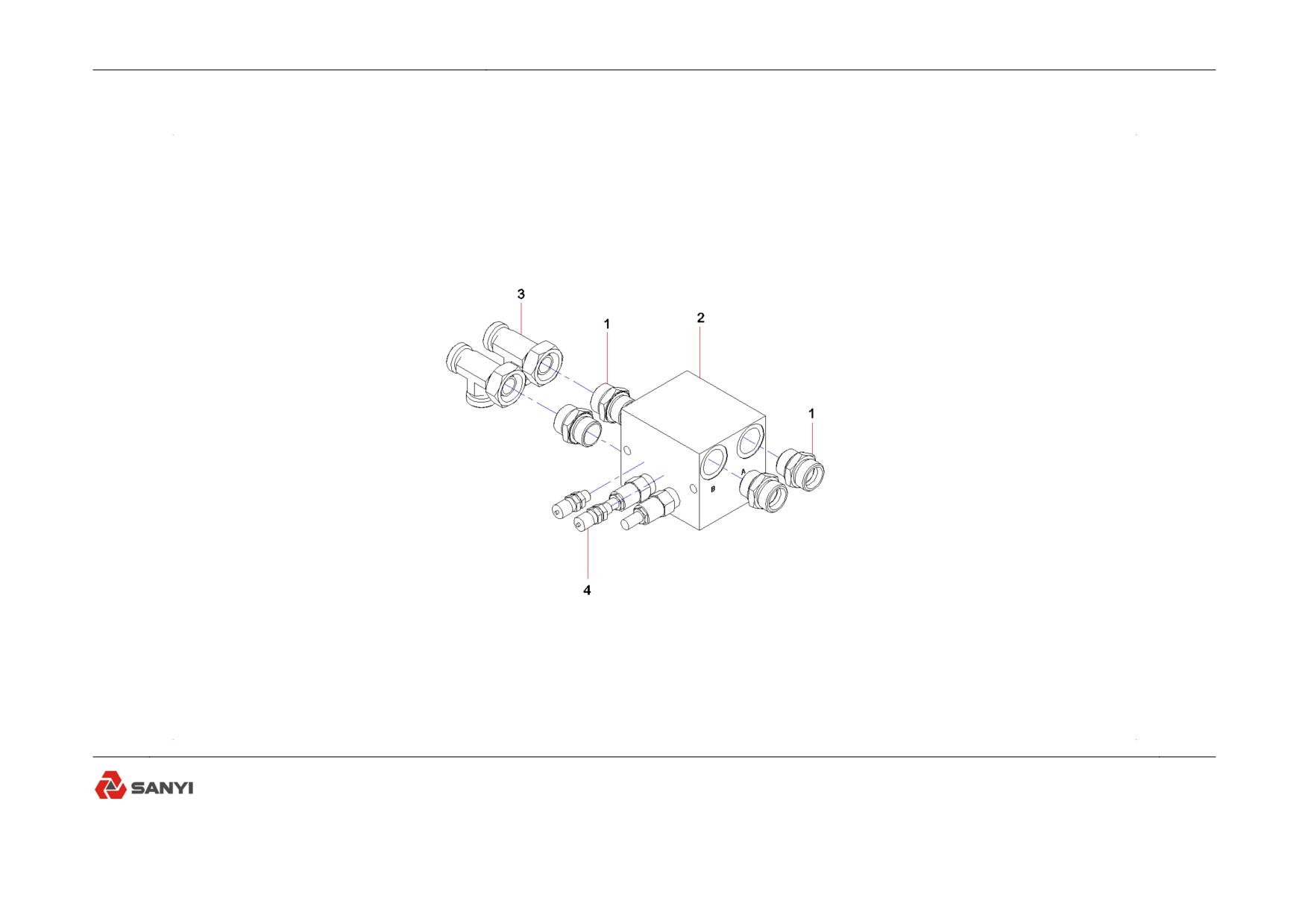

12954434 Buffering valve block adaptor installation
35-12
Buffering valve block adaptor installation
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
21018578
Male straight fitting
4
2
60000781
Buffering valve block unit
1
3
21003066
Union tee
2
4
21000745
Testing connector
2
12954434 Buffering valve block adaptor installation
35-13
Buffering valve block unit
SRT95C Off-highway truck
PARTS BOOK

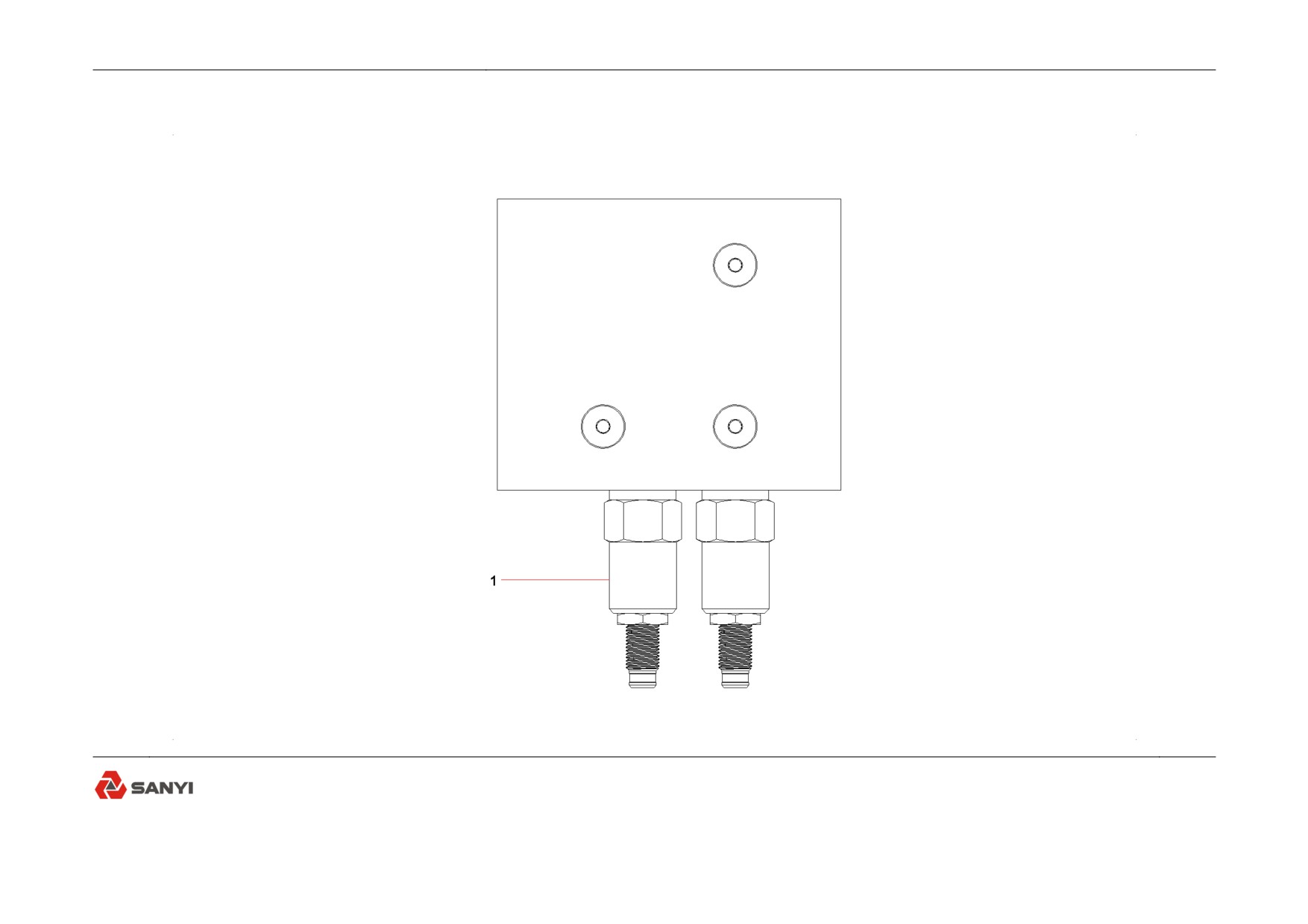

60000781 Buffering valve block unit
35-14
Buffering valve block unit
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
60072701
Valve,overflow
1
60000781 Buffering valve block unit
35-15
Piston Accumulator
SRT95C Off-highway truck
PARTS BOOK

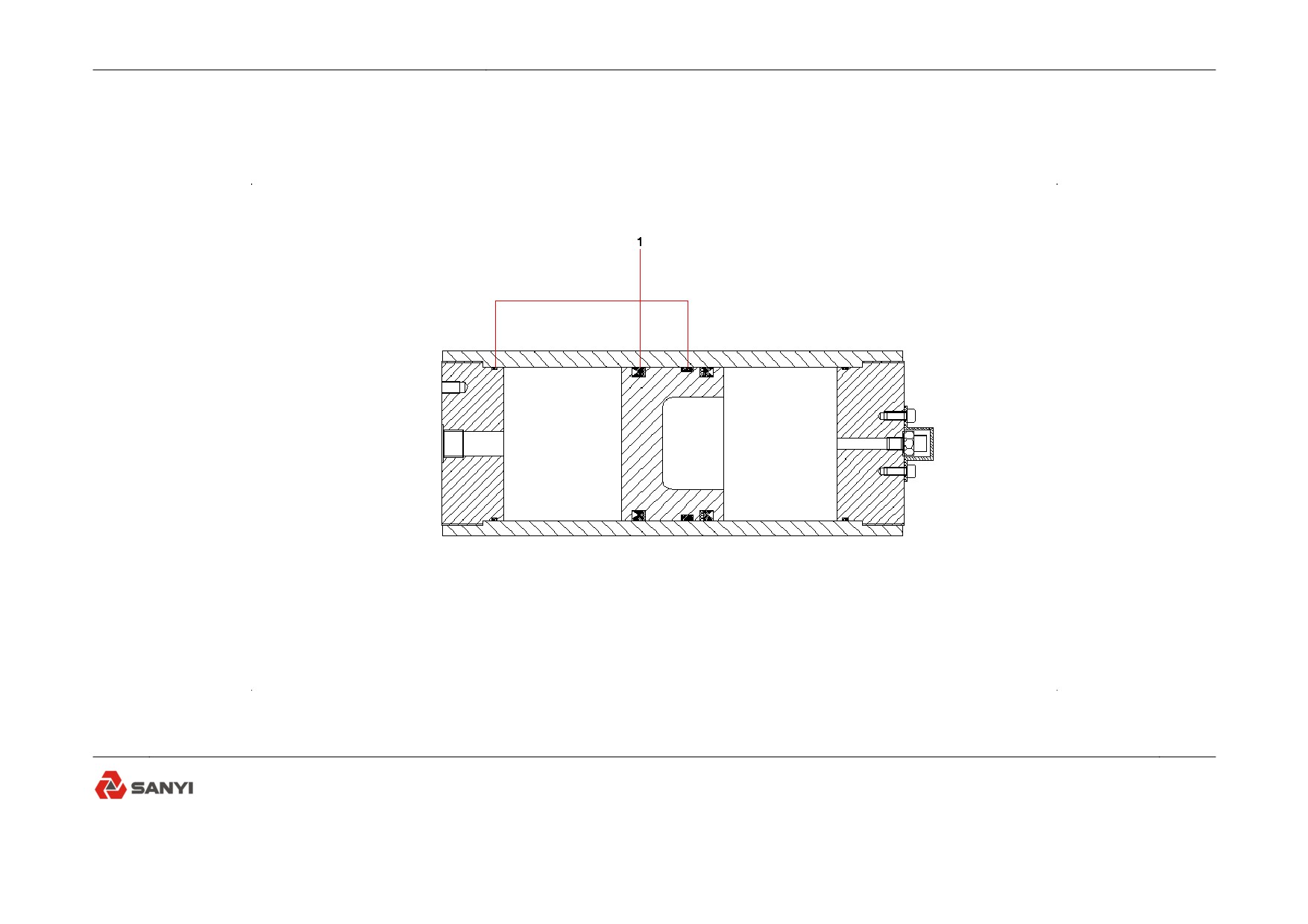

60211734 Piston Accumulator
35-16
Piston Accumulator
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
60211735
Energy storage repair kit
1
60211734 Piston Accumulator
35-17
Adaptor installation of pipeline filter
SRT95C Off-highway truck
PARTS BOOK

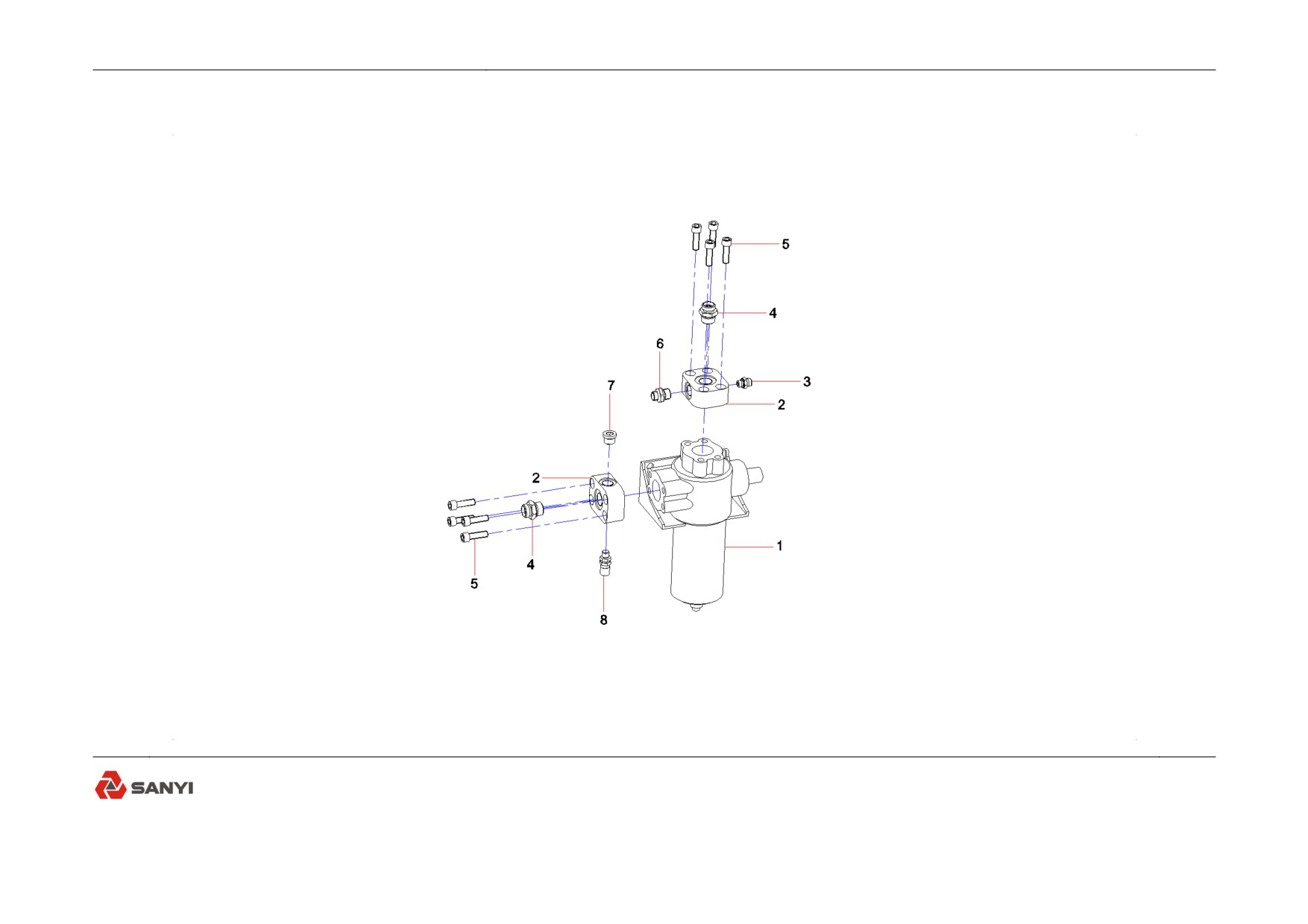

12954443 Adaptor installation of pipeline filter
35-18
Adaptor installation of pipeline filter
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
24005054
Filter
1
2
12953820
Flange
2
3
A210770000616
Pipe connector
1
4
21002825
Pipe connector
2
5
60011100
American-standard bolt
8
6
B210780000179
Connector, pipe
1
7
21001442
Plug
1
8
21000745
Testing connector
1
12954443 Adaptor installation of pipeline filter
35-19
Filter
SRT95C Off-highway truck
PARTS BOOK

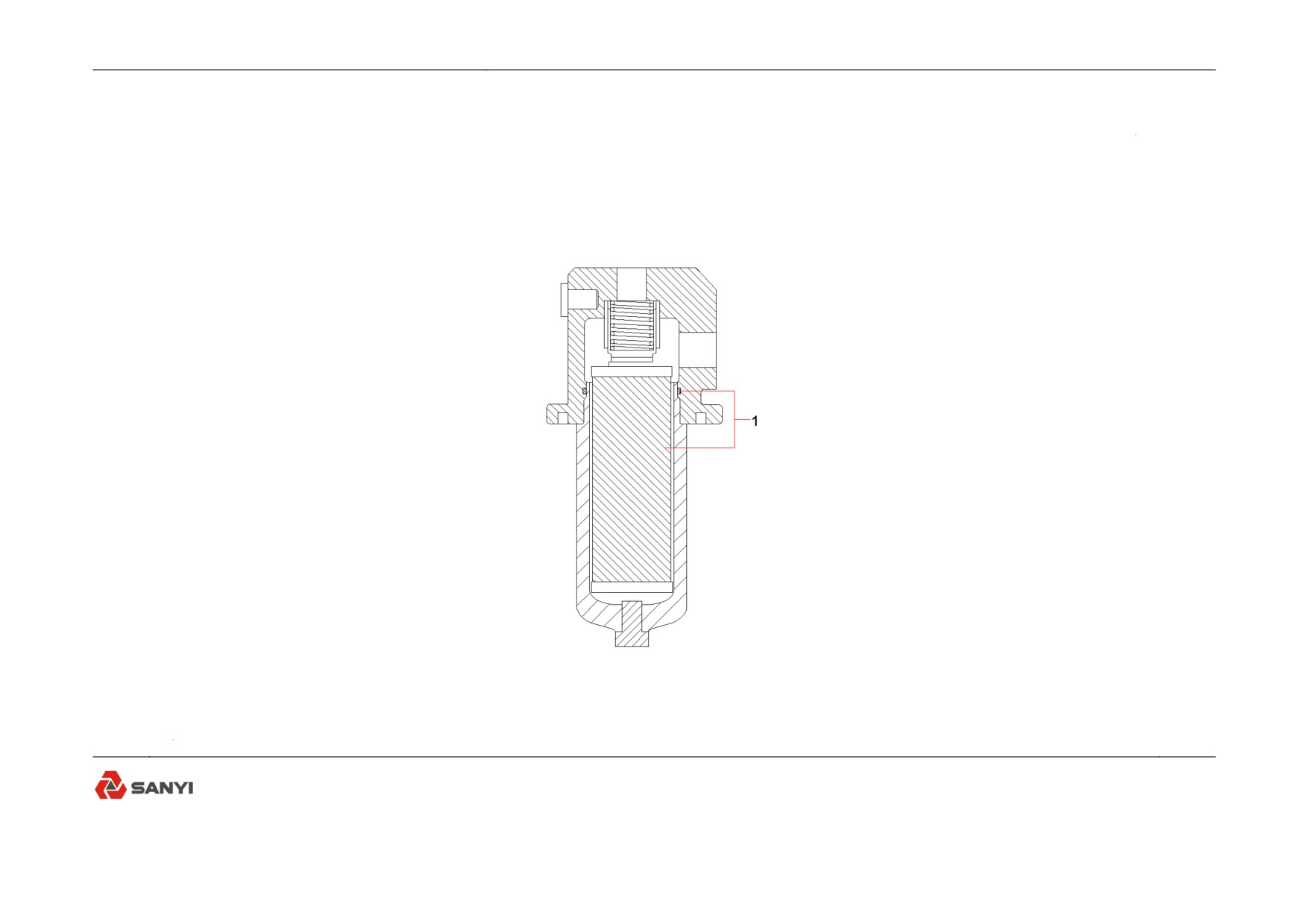

24005054 Filter
35-20
Filter
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
60211735
Energy storage repair kit
1
24005054 Filter
35-21
PARTS BOOK
Group 36
Labeling layout
36-1
Labeling layout
SRT95C Off-highway truck
PARTS BOOK

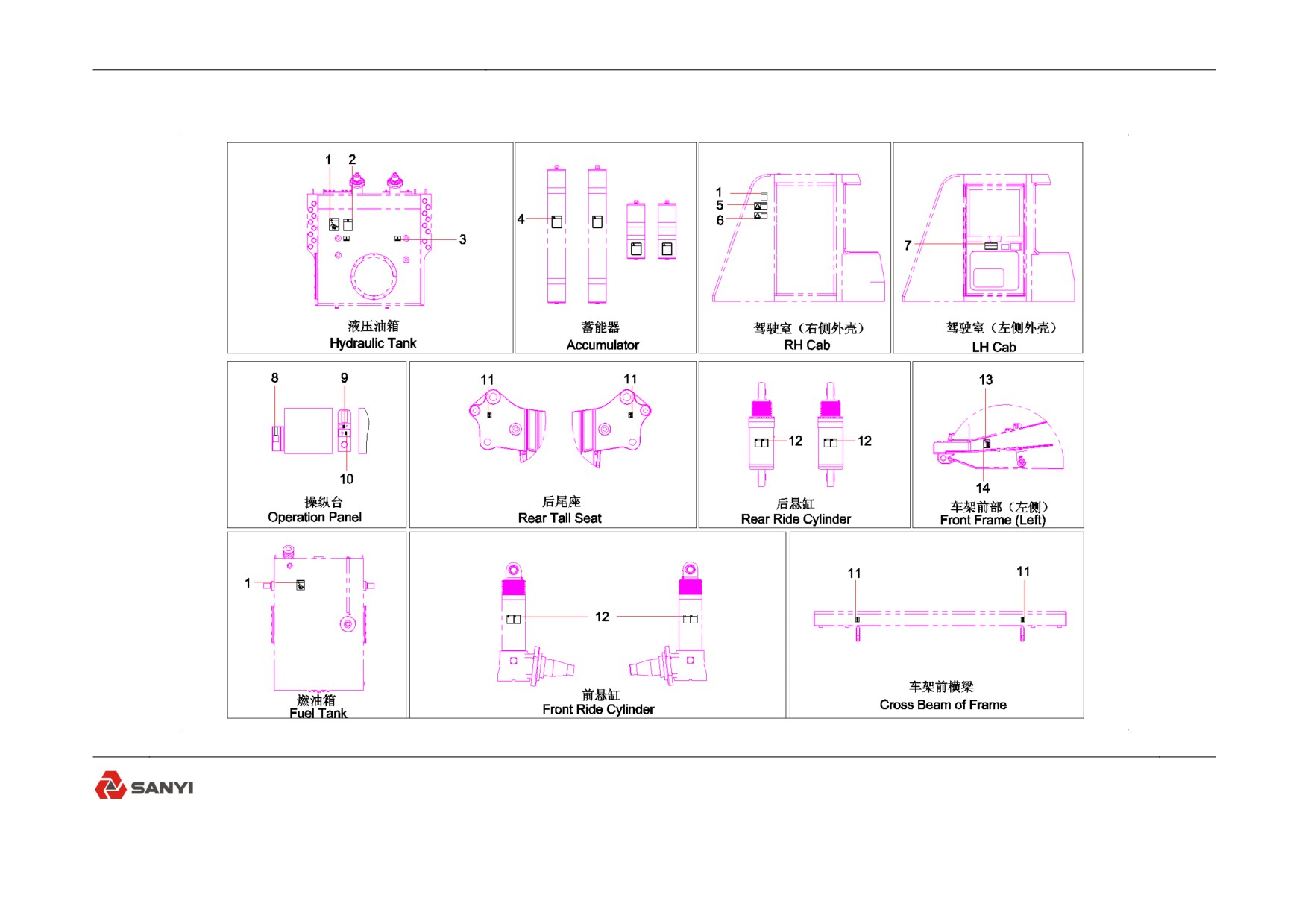

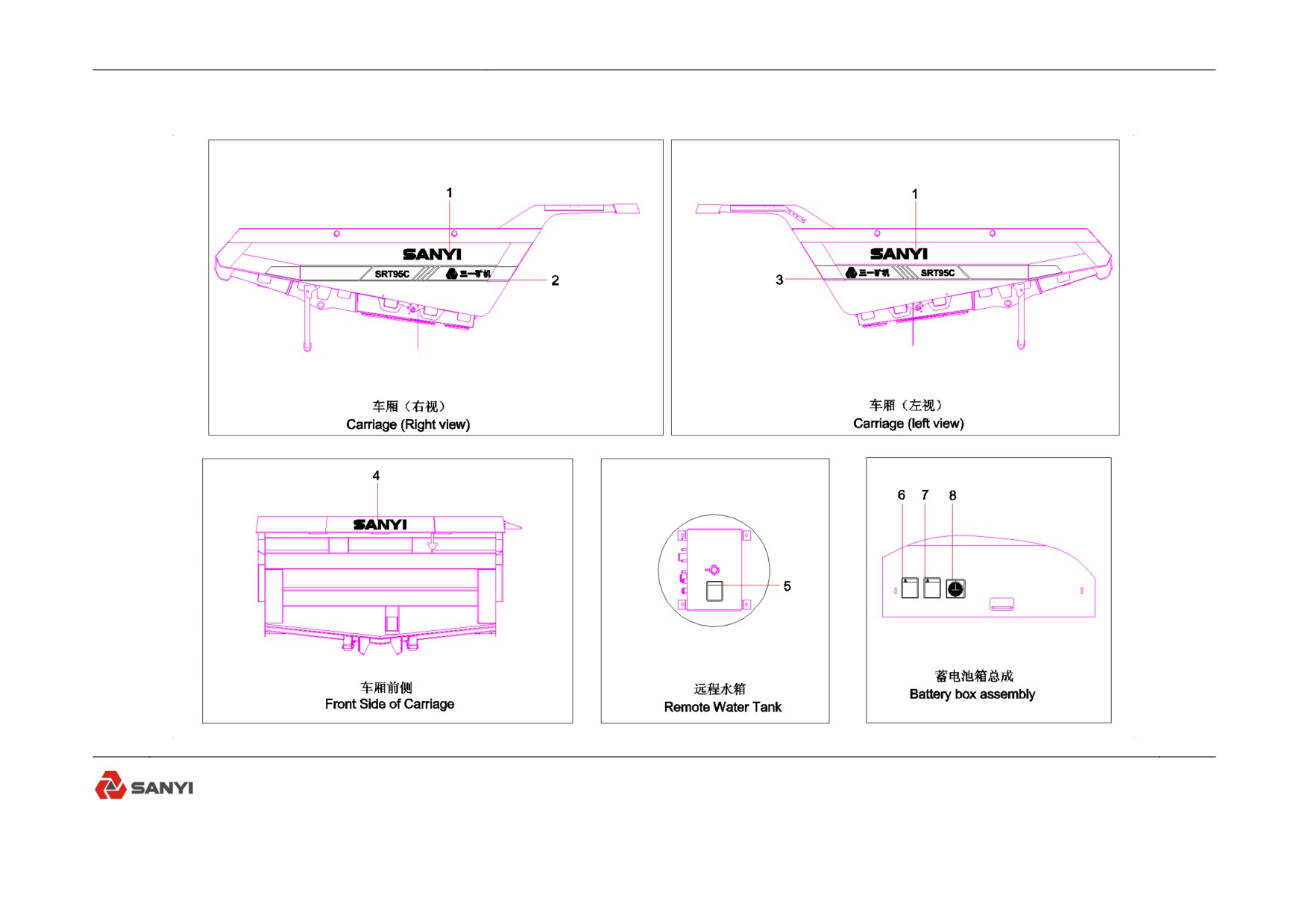

12953547 Labeling layout (1/4)
36-2
Labeling layout
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
10644127
SRT55 warning mark of carriage
3
2
10644123
SRT55 Instruction mark of hydraulic oil
1
3
11858629
SRT95 hydraulic oil level label
2
4
12952685
Decal--accumulator warning
4
5
10644121
SRT55 warning mark of cab weld
1
6
10644132
SRT55 warning mark of "no standing"
1
7
12951351
Decal--driving height warning
1
8
10644129
SRT55 hydraulic control mark
1
9
12734050
Decal--transmission retarding control
1
10
12734812
Decal--brake retarding control
1
11
A820101990552
Mark diagram, hook point
4
12
12734114
Decal--ride cylinder warning
4
13
10644108
SRT55 nameplate
1
14
21005399
Rivet 3×10GB827
4
12953547 Labeling layout (1/4)
36-3
Labeling layout
SRT95C Off-highway truck
PARTS BOOK

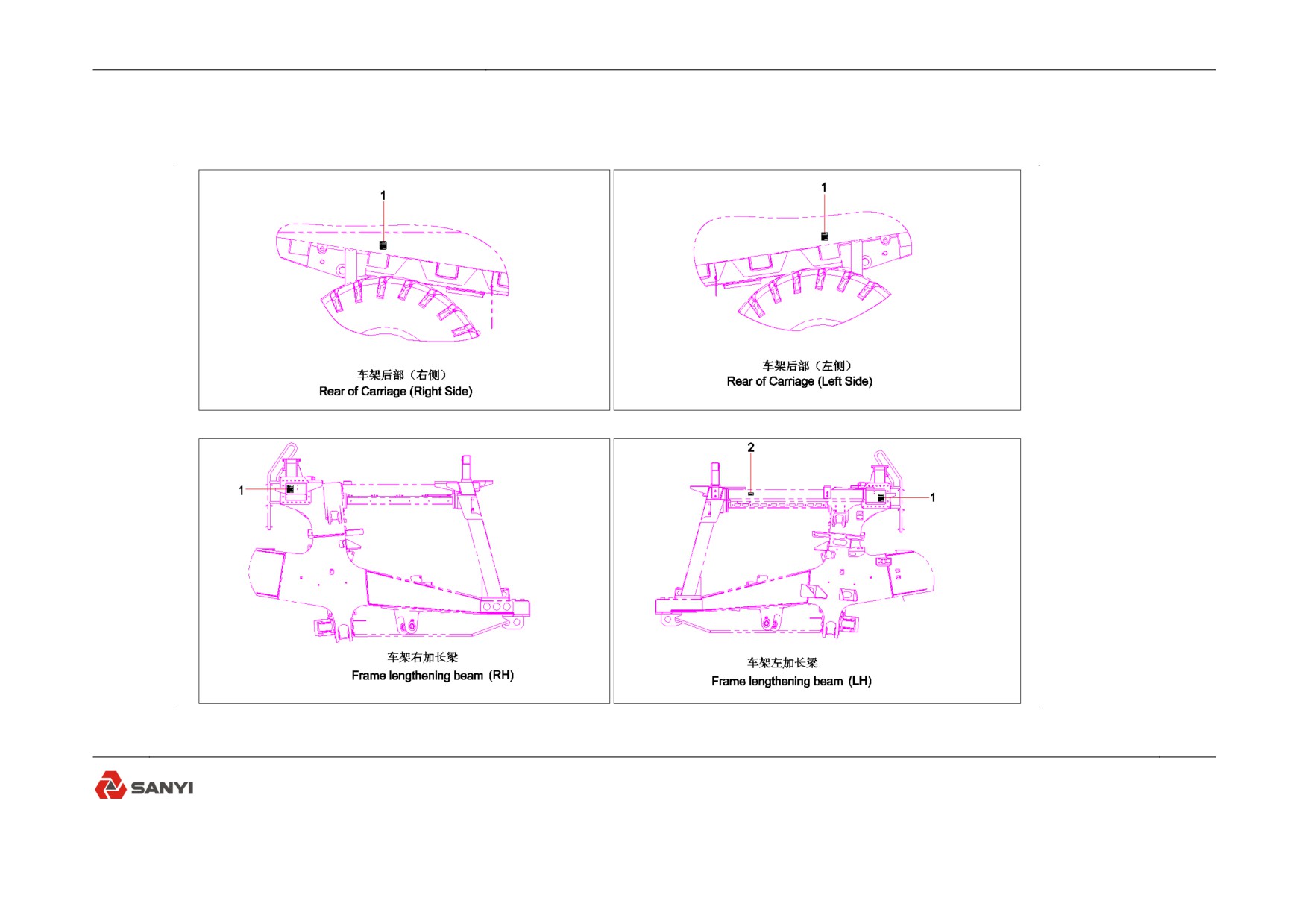

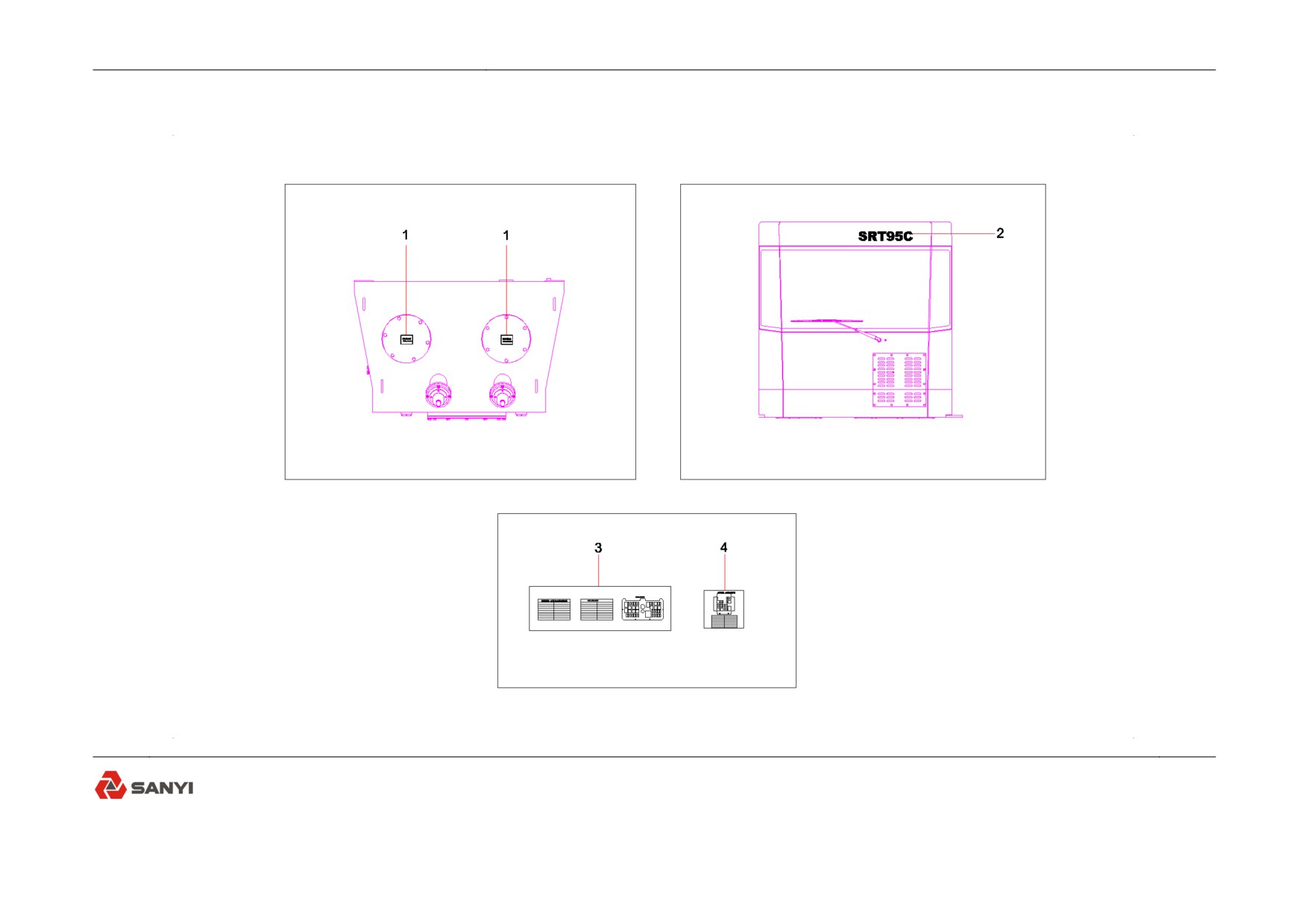

12953547 Labeling layout (2/4)
36-4
Labeling layout
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
10644109
SRT55 warning mark of Tire
4
2
13035399
Decal-service hot-lineSRT95C.740-8
1
12953547 Labeling layout (2/4)
36-5
Labeling layout
SRT95C Off-highway truck
PARTS BOOK
12953547 Labeling layout (3/4)
36-6
Labeling layout
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
12951350
Decal--body
2
2
12951345
Decal--right body
1
3
12951342
Decal--left body
1
4
12951338
Decal--front body
1
5
10644124
SRT55 warning mark of water tank opening
1
6
10644117
SRT55 warning mark of battery cable
1
7
10644120
SRT55 warning mark of alternator
1
8
12033786
Ground brand
1
12953547 Labeling layout (3/4)
36-7
Labeling layout
SRT95C Off-highway truck
PARTS BOOK
12953547 Labeling layout (4/4)
36-8
Labeling layout
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
13035180
Decal-filling position
2
2
13075680
SRT95C symbol film
1
3
13132842
SRT95C distribution box decal
1
4
13132843
SRT95C distribution box decal
1
12953547 Labeling layout (4/4)
36-9
PARTS BOOK
Group 37
Manual lubrication system
37-1
Manual lubrication system
SRT95C Off-highway truck
PARTS BOOK
12943163 Manual lubrication system
37-2
Manual lubrication system
SRT95C Off-highway truck
PARTS BOOK
Item No.
Part No.
Description
Qty.
Remark
1
A210804000002
Oil cup
32
2
A210204000129
Screw
23
3
60000418
Pipe Clamp
20
4
11885969
Rear distributor
1
5
A210111000103
Bolt
2
6
A229900008126
Straight joint
10
7
60067375
Straight joint core
16
8
60067373
Adaptor outer cover
20
9
12628426
liquid pipe
1
10
A229900008124
Bent joint
10
11
60000420
Pipe Clamp
3
12
60067372
Bent joint core
4
12943163 Manual lubrication system
37-3
