Straw chopper
This equipment can be fitted on the machine to cut
and to spread the straw if the straw has to be
ploughed back into the soil.
Different types of straw choppers are available:
• Small grain chopper.
(with 4 rows of straight knives)
• Heavy duty chopper.
(with 4 or 6 rows of bevelled knives)
36
Remote deflectors control
This provides the operator with a dashboard switch to
reposition the chopper chute deflectors while working
and to precisely set the spread pattern behind the
machine, e.g. when changing crops or in windy
conditions.
37
Straw chopper kit for maize
These plates are needed to protect the straw walkers
when harvesting maize.
38
Straw chopper wind knife kit
Special knives can be fitted on both sides of the
chopper rotor to increase the air flow through the
rotor.
39
7-14
SECTION 7 - ACCESSORIES
TRACTION AND TYRES

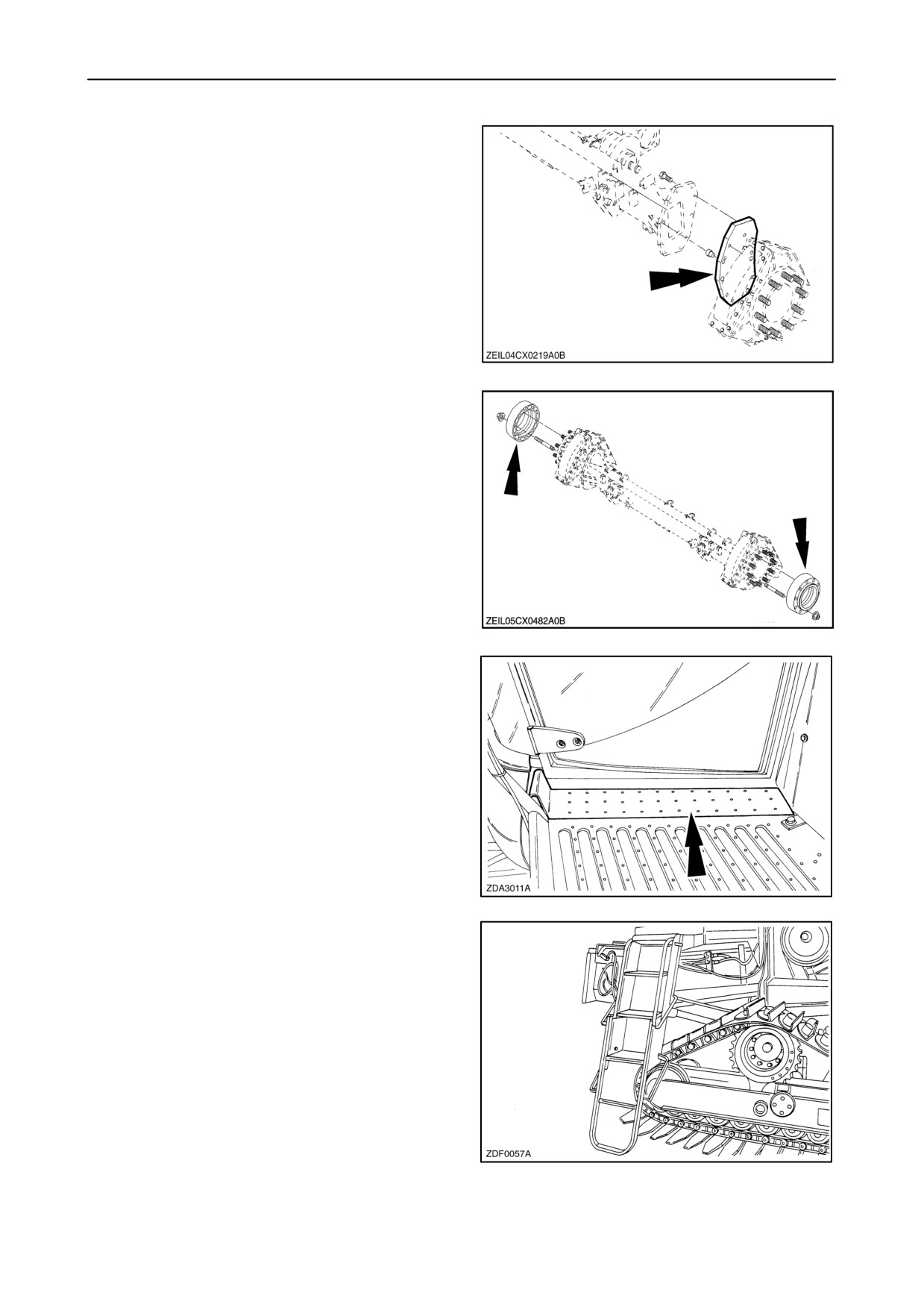

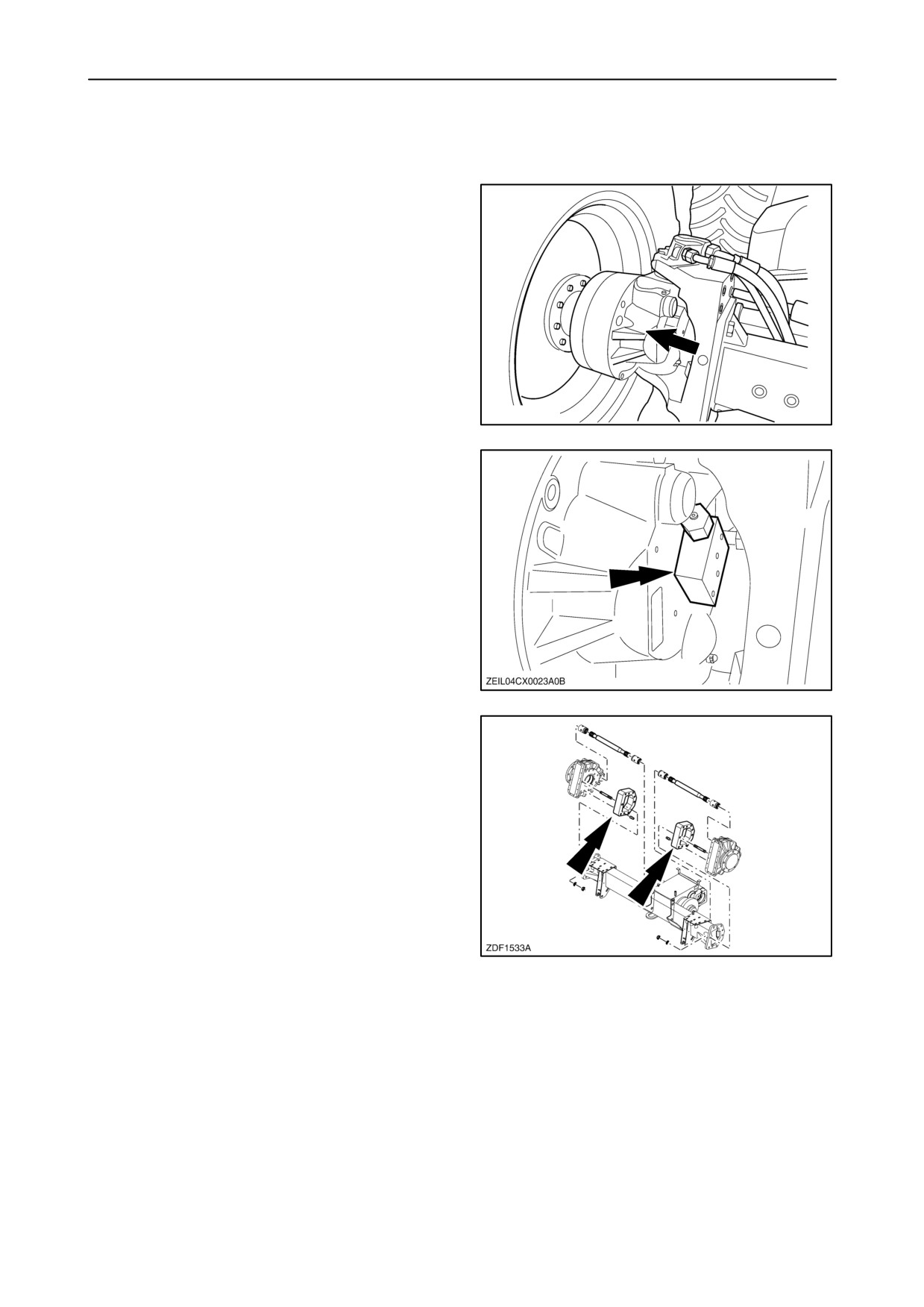

Powered Rear Axle (wheel motors)
A Powered Rear Axle rebuild kit is available, if
additional traction is required in muddy conditions.
20021843
40
Dual speed (Powered Rear Axle II)
This feature will allow the operator to increase the
ground speed in each working gear by approximately
35%.
41
Axle extensions kit
To install traction tyres with a large diameter.
42
7-15
SECTION 7 - ACCESSORIES
Pivot plate 127 mm
Pivot plates can be used when install traction tyres
with large diameter.
43
Wheel spacer
To improve stability or use of specific rims.
44
Steering platform extensions
This extension allows the use of wider traction
wheels.
45
Tracks
Tracks can be fitted when operating in very muddy
conditions, (e.g. rice). Also special lower shieldings
are required when tracks are installed.
Foldable ladder
A foldable ladder is required when tracks are
installed.
46
7-16
SECTION 7 - ACCESSORIES
ENGINE

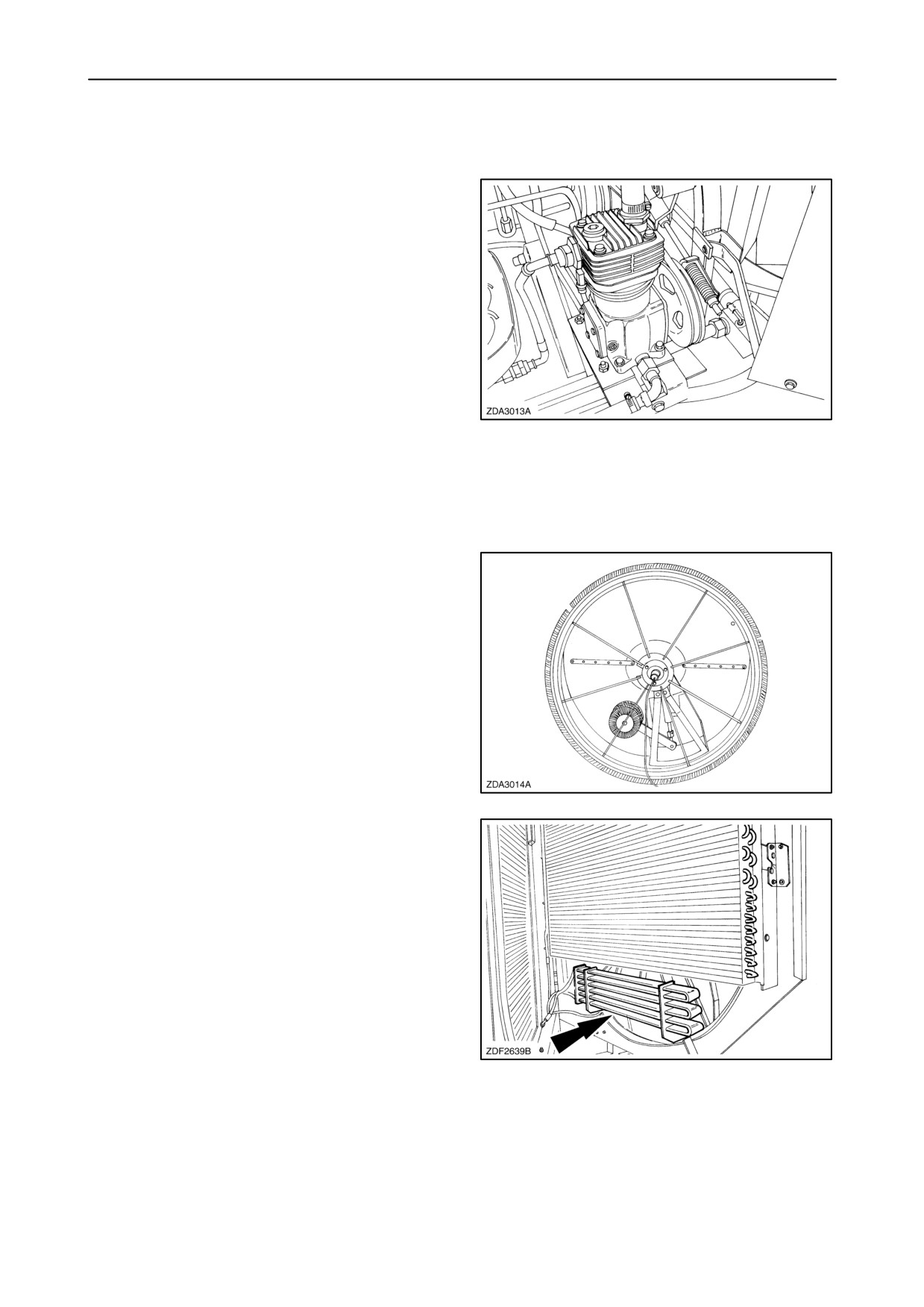

Air compressor kit
An air compressor kit can be installed to clean the
engine compartment.
(fig. 47= CNH engine)
47
Coolant heater
A coolant heater can be installed to aid the engine in
cold weather.
Rotary dust screen brush
This equipment can be fitted to keep the rotary dust
screen clean, e.g. maize.
The brush works for +/- 5 seconds, every time the
unloading system is engaged.
48
Fuel cooler
When working in high temperature conditions or
when the fuel level is low, stabilising the fuel
temperature will assist in stabilising engine power.
49
High fan speed kit
A special high fan speed kit is available for Australia
that will provide additional oil cooling capacity for
machines working with a combination of high ambient
temperatures and high ground speeds.
7-17
SECTION 7 - ACCESSORIES
CAB
Windscreen washer system
A windscreen washer system can be installed to
clean the cab windscreen.
50

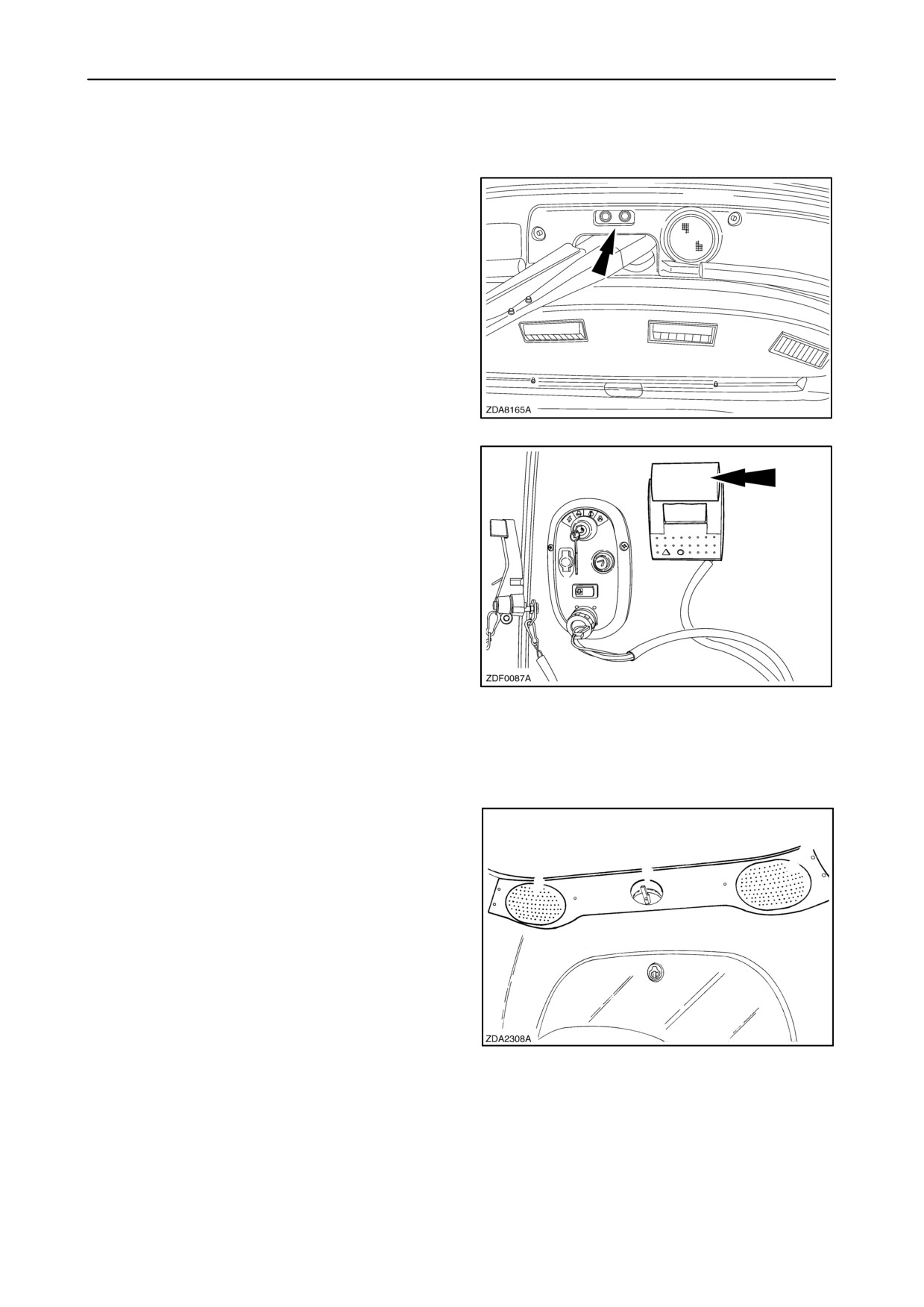

In cab printer
A printer is available and can be used to print
precision farming information.
51
Cab heating
Improved operator comfort when operating in cold
weather.
Premium speakers
Premium speakers can be installed.
52
7-18
SECTION 7 - ACCESSORIES
ELECTRICAL AND ELECTRONIC

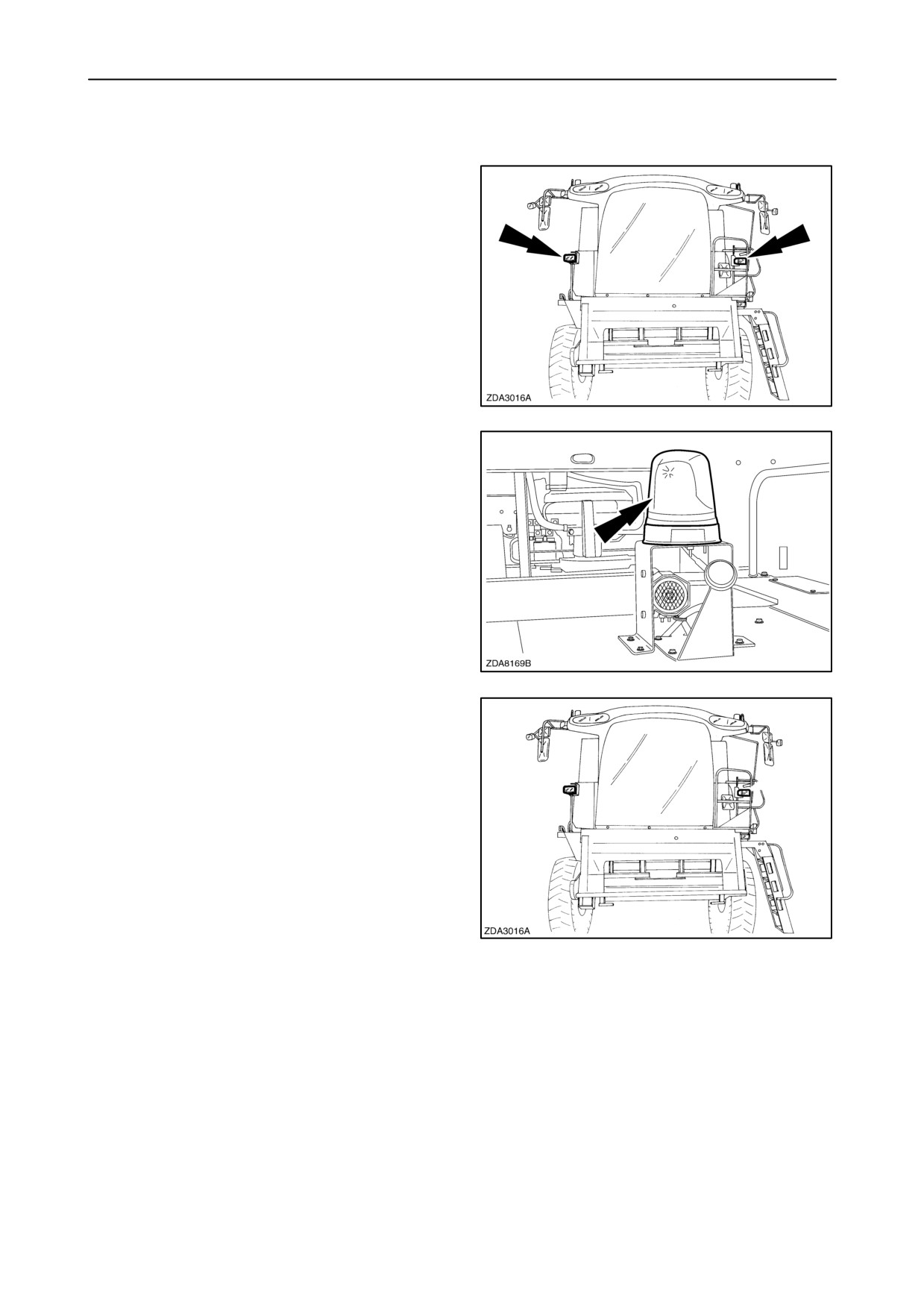

Flip-up light kit
To ensure safe road transport, additional headlights
can be installed on the railing and a brake force
limiting valve when a flip-up maize header is attached
to the combine.
53
Rear revolving flash light
For some countries, a rear revolving flash light can be
installed to provide advanced warning to other road
users, when travelling on public highways, that the
vehicle is wide and slow moving.
54
Revolving flash lights
For some countries revolving flash lights are a legal
requirement. This kits consists three revolving flash
lights, two for the cab roof and one for at the rear of
the combine.
55
7-19
SECTION 7 - ACCESSORIES

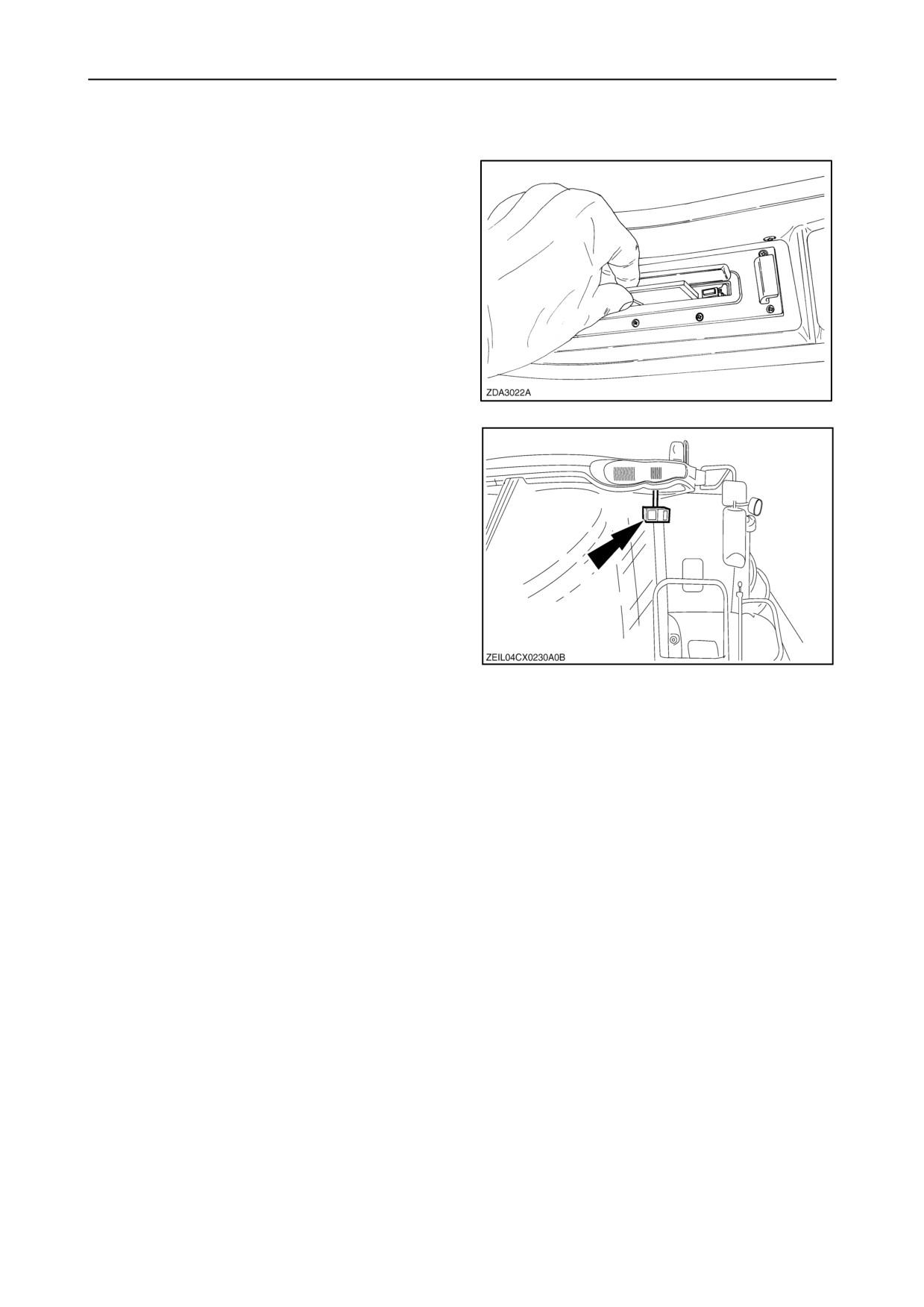

Portable work light
A portable work light is available and can be used to
check some setting during night operation.
56
Light extension kit
A kit is available to install extensions to the rear light
arms, if required.
57
Electronic module (CCM3)
Required for some electronic options.
58
7-20
SECTION 7 - ACCESSORIES
Yield monitoring package
• Moisture sensor
This equipment can be fitted on the grain elevator to
realtime check the grain moisture.
59
• Grain flow sensor
This equipment can be installed on the machine
(with moisture sensor) to realtime check the mass
flow.
60
7-21
SECTION 7 - ACCESSORIES
Yield mapping package

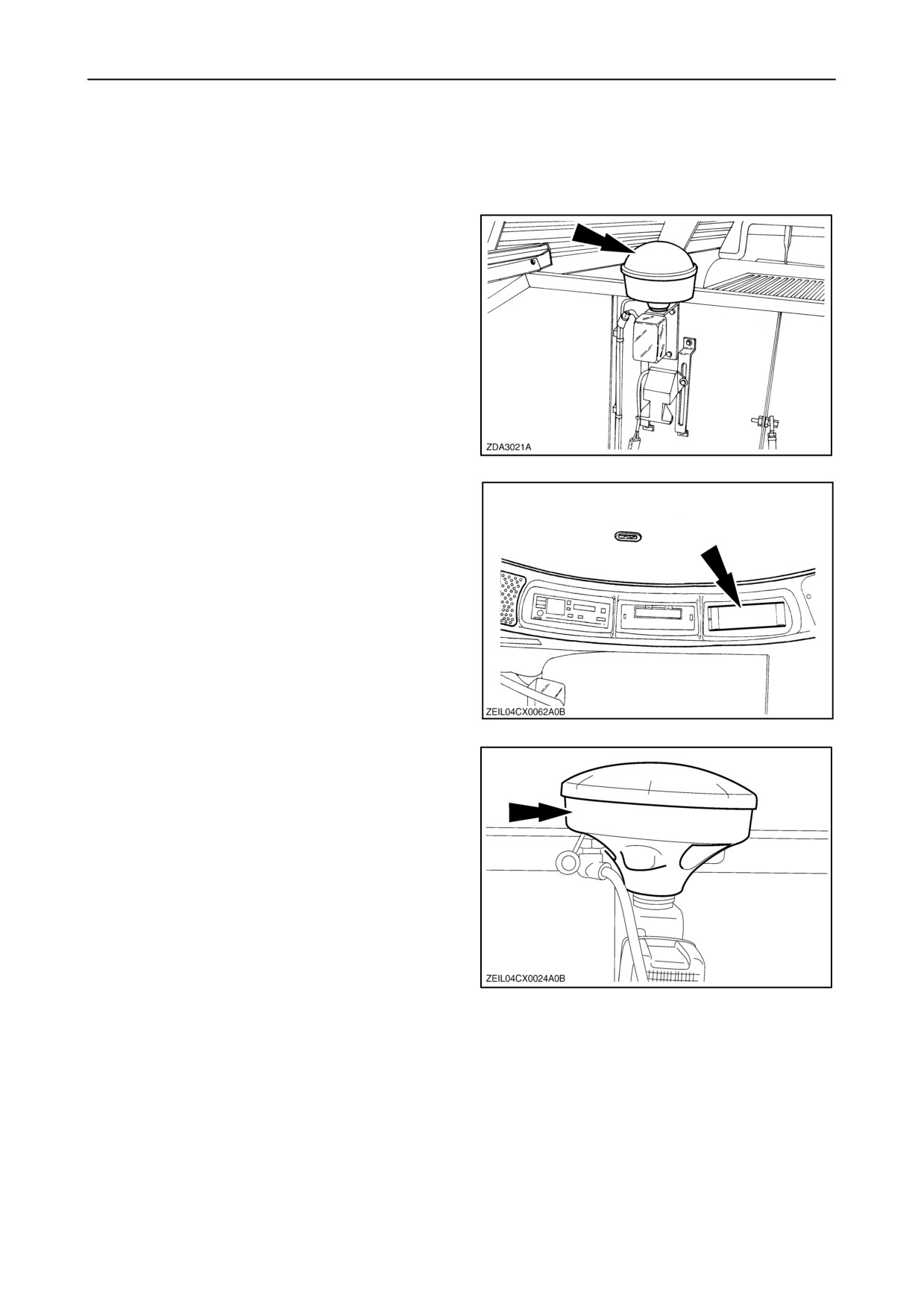

(Differential) Global Positioning System unit
(D)GPS
• NH134
This equipment can be installed on the machine
(included with moisture and grain flow sensor) to
have yield mapping.
The NH134 system consists of a separate antenna
and receiver.
61
The NH134 are capable of receiving the free “WAAS,
EGNOS, L-band and Beacon” DGPS connection
signal.
or
62
• NH 100/NH110
Antenna with integrated receiver.(one piece)
The NH100 are capable of receiving the free “WAAS,
EGNOS” DGPS connection signal.
The NH110 are capable of receiving the free “WAAS,
EGNOS and L-band” DGPS connection signal.
63
7-22
SECTION 7 - ACCESSORIES
Yield logging package
• Data logger
To save all the field information and to transfer it to a
personal computer, a data logger with removable
datacard is available in combination with the (D)GPS
unit.
64
SmartSteert system
This feature will allow automatic steering
(edge
following) in crops as small grains, beans, peas,
canola,... (not suited for maize) The kit contains all
necessary mechanical, hydraulical, electrical and
electronic components.
65
7-23
SECTION 7 - ACCESSORIES
MISCELLANEOUS

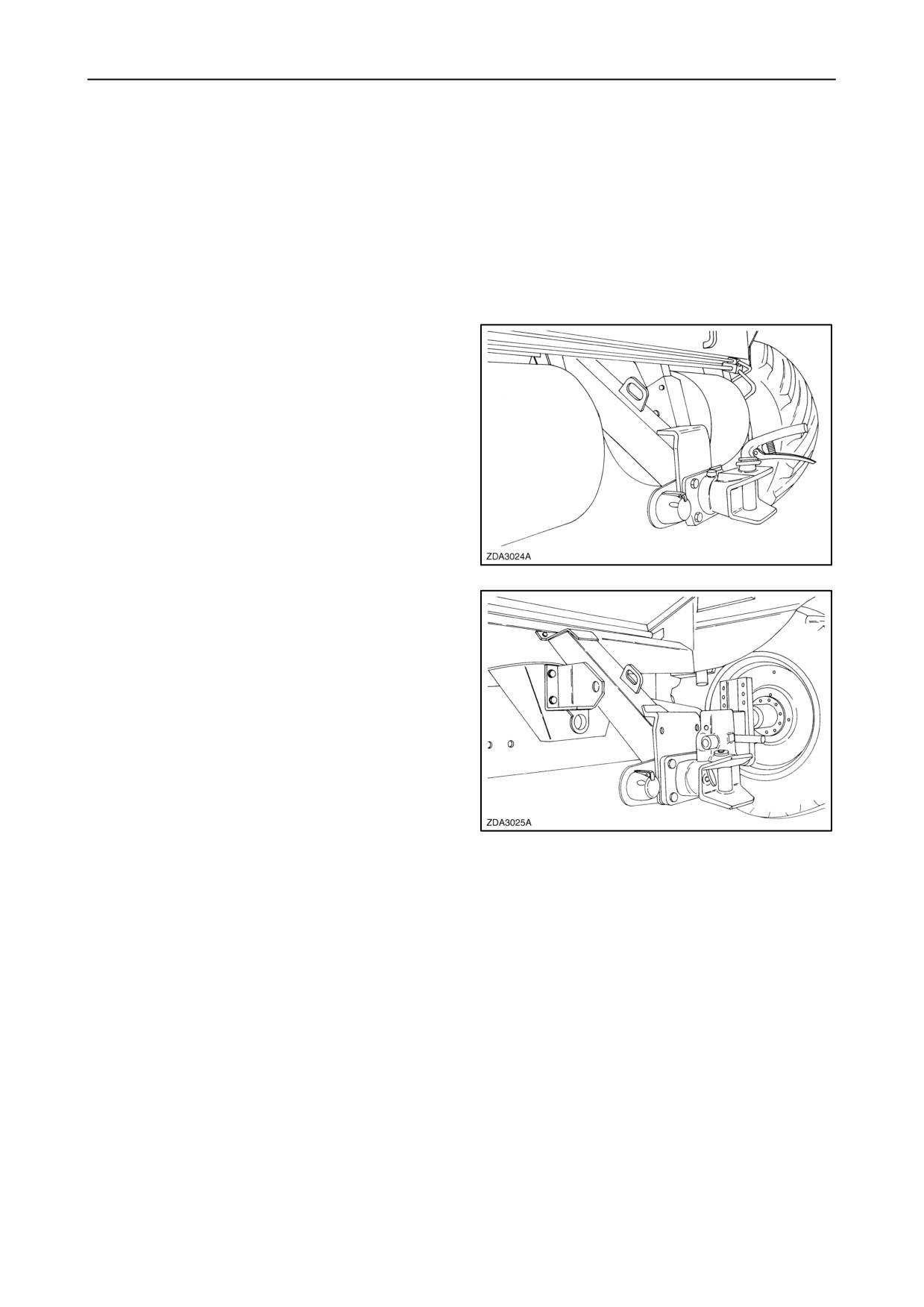

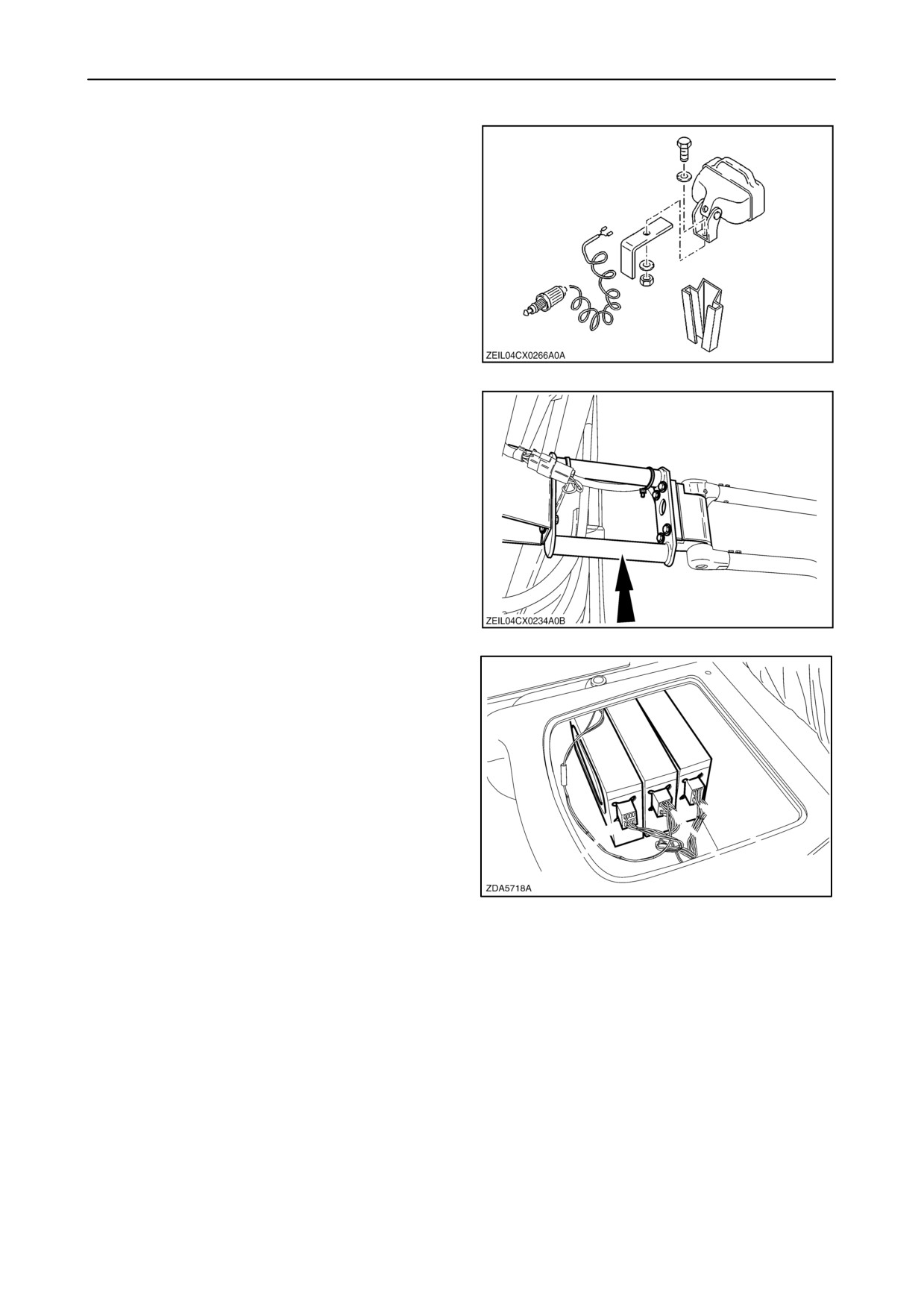

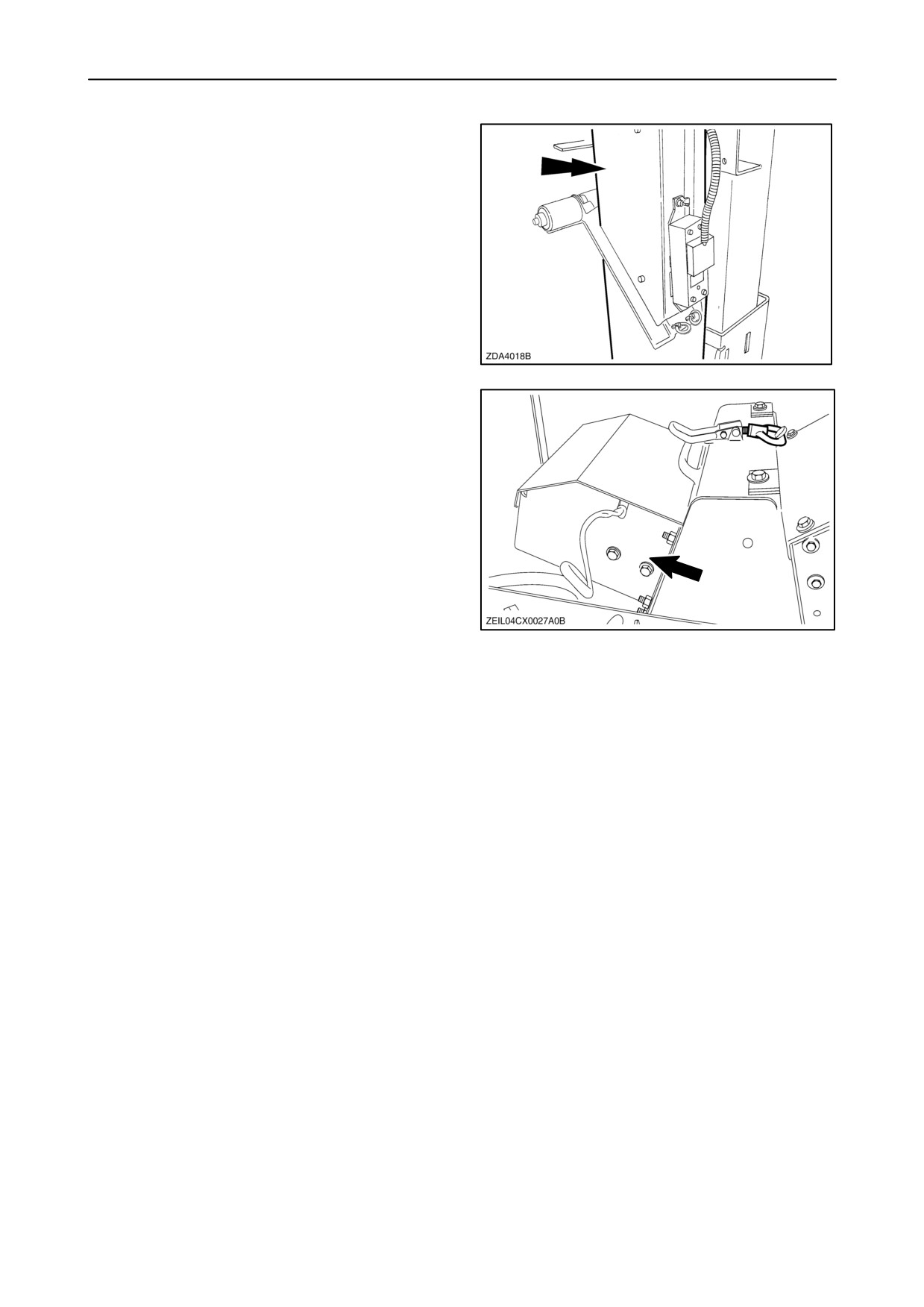

Header trailer hitch
Two types of trailer hitches are available for towing
the header trailer.
Maximum static load on this hitch and the maximum
allowed header trailer weight is mentioned on a plate
located on the hitch support.
• Rotation header trailer hitch
66
• Automatic rotation trailer hitch
67
7-24
SECTION 7 - ACCESSORIES

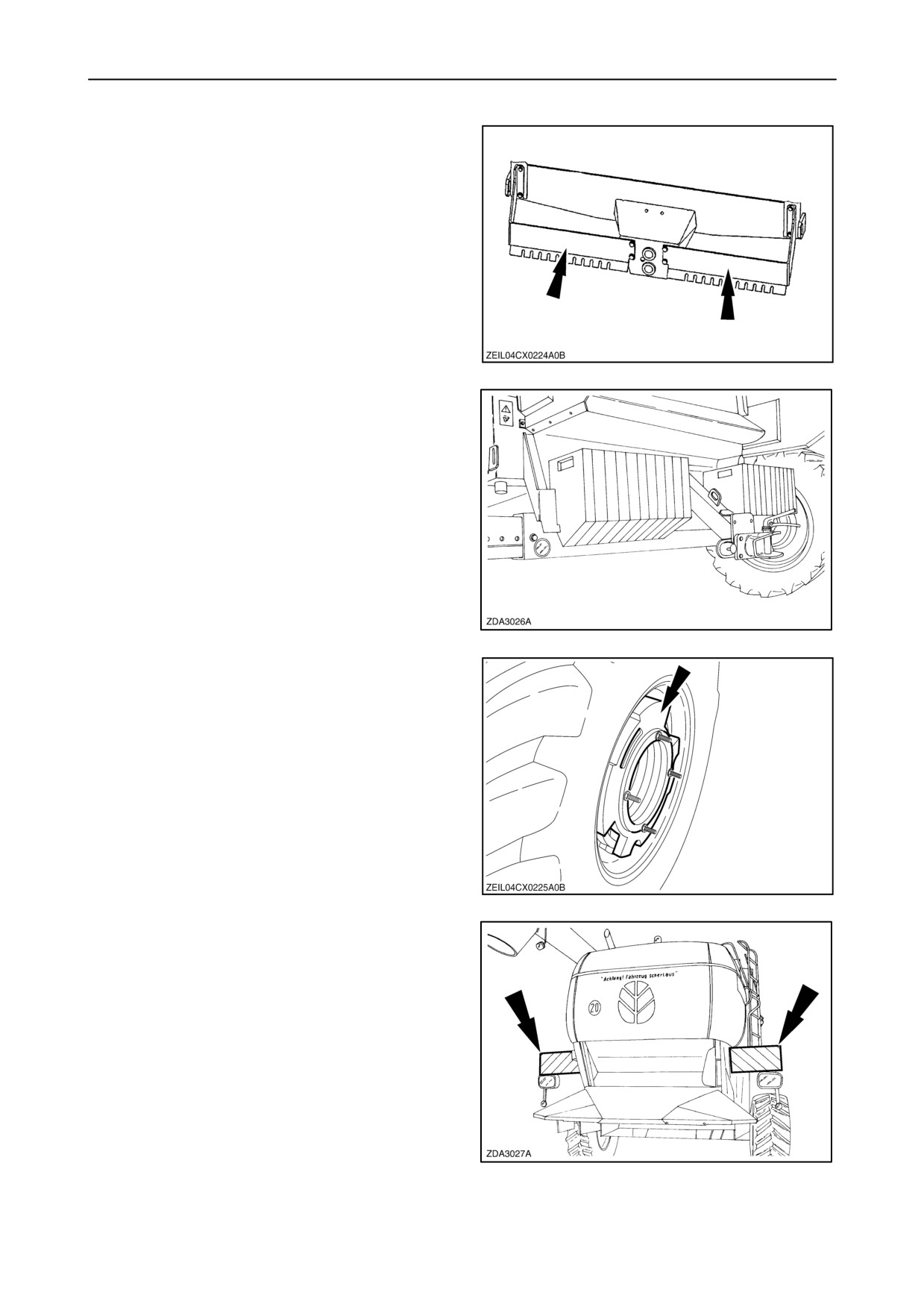

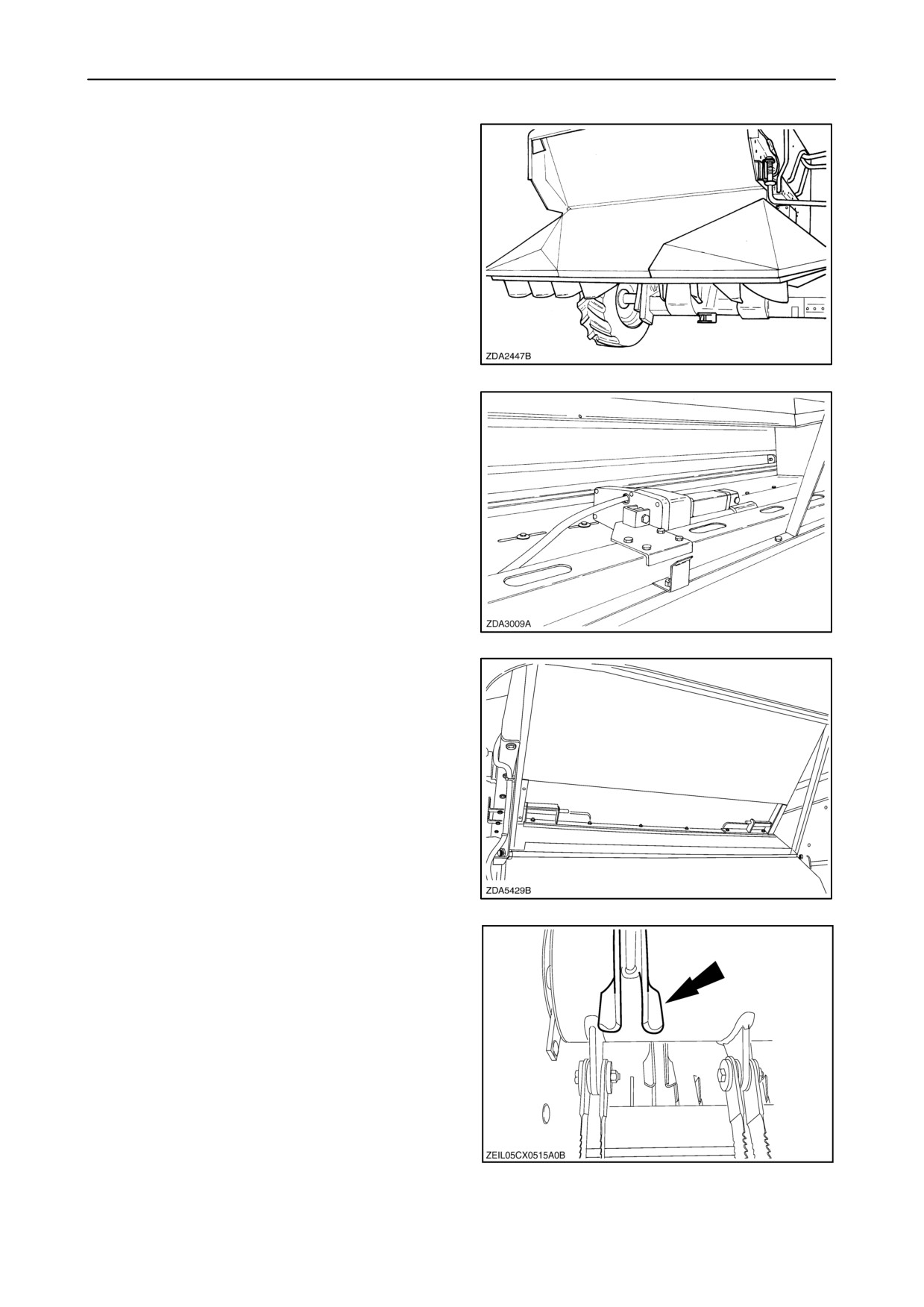

Counterweights support frame
Special supports are available to attach the frame
counterweights.
68
Frame counterweights
Counterweights can be fitted to the rear of the frame
on special supports.
Three sets of counterweights are available:
210 kg (463 lbs) : 6 counterweights
350 kg (772 lbs) : 10 counterweights
420 kg (926 lbs) : 12 counterweights
69
Wheel counterweights
Wheel weights can be fitted to the steering wheel
rims.
Three sets of counterweights are available:
200 kg (441 lbs) : 10 counterweights
400 kg (882 lbs) : 20 counterweights
600 kg (1323 lbs) : 30 counterweights
70
Signal plates
For some countries, the signal plates must be
installed for road transport.
71
7-25
SECTION 7 - ACCESSORIES

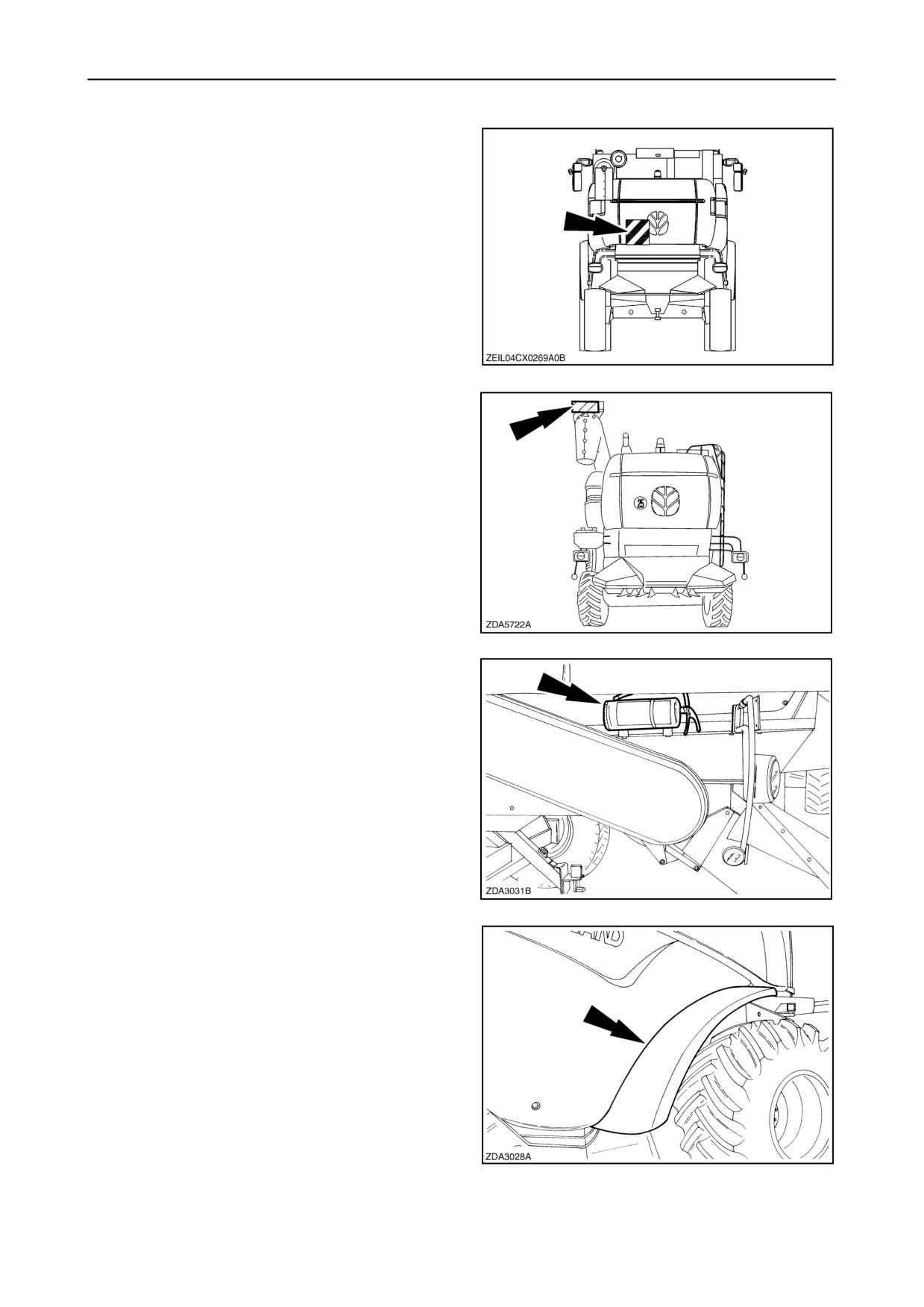

Signal plates for Italy
An additional support can be foreseen at the rear side
of the straw hood to install a signal plate.
72
Unload tube signal plate+light
This plate and a light has to be installed for road
transport in France when the combine is equipped
with an unload tube length of 6.4 m (21ft).
73
Fire extinguisher
A fire extinguisher is available.
74
Wide fender
Wide fenders are available for wider wheels to keep
the shieldings clean.
75
7-26
SECTION 8 - SPECIFICATIONS
SECTION 8 - SPECIFICATIONS
WHEELS AND TYRES
NOTE: The specifications given below are only
approximate and may vary slightly from machine
and/or harvesting conditions.
WARNING
The tyres specified by the manufacturer are the only
tyres approved. If nongenuine or replacement tyres
are used, these must be identical in size and strength
[PR rating for diagonal tyres or Load Capacity for
radial tyres (e.g. 166 A8)] to specified tyres. The
recommended tyre pressure has to be maintained at
all times.
Only original NEW HOLLAND wheel rims should be
used in combination with the tyre sizes indicated.
Only these tyre/wheel combinations have been
homologated in relation to the machine weight, width
and road speed limits. The rims should be fitted in
such a way that the maximum overall machine width
permitted locally on public roads is adhered to.
CAUTION
Road travel in the 4th gear with grain in the tank is not
allowed.
WHEEL NUTS TORQUE
TORQUE
MINIMUM
MAXIMUM
Nm
Ft.lbs
Nm
Ft.lbs
Traction wheel nuts torque
610
450
730
540
Steering wheel nuts torque
410
302
492
363
(Fixed + H.D.A.S.A + P.R.A.)
8-1
SECTION 8 - SPECIFICATIONS

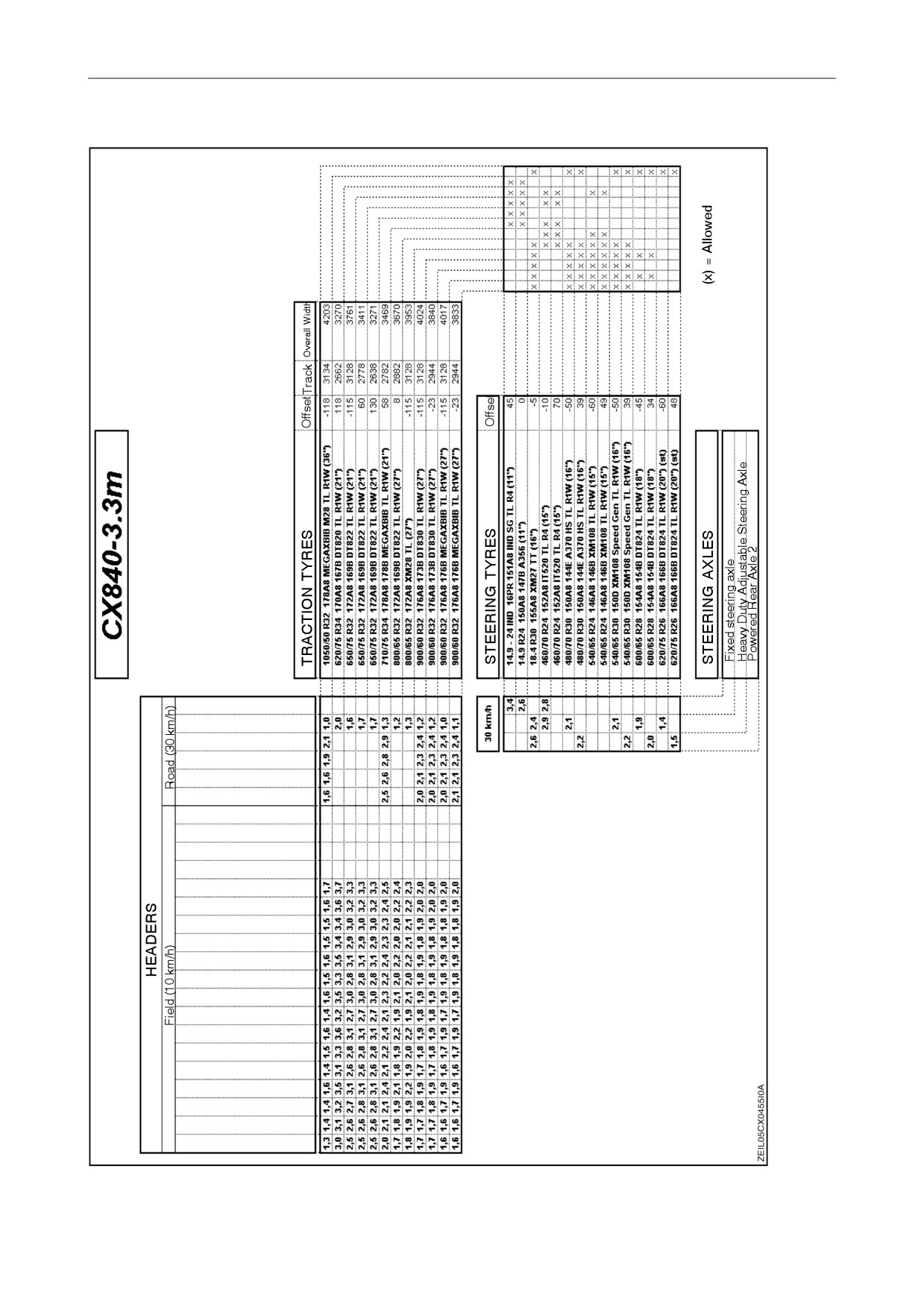

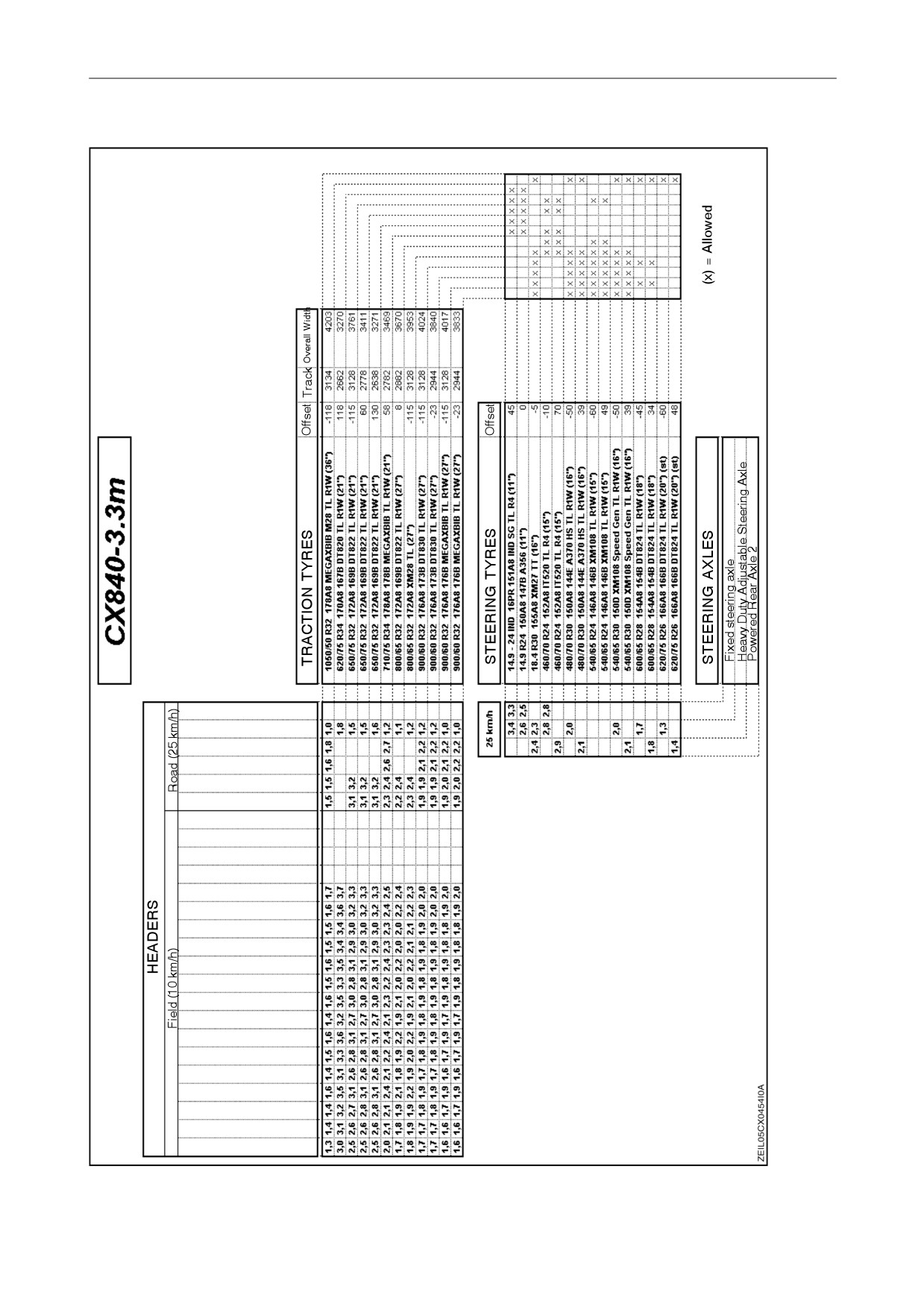

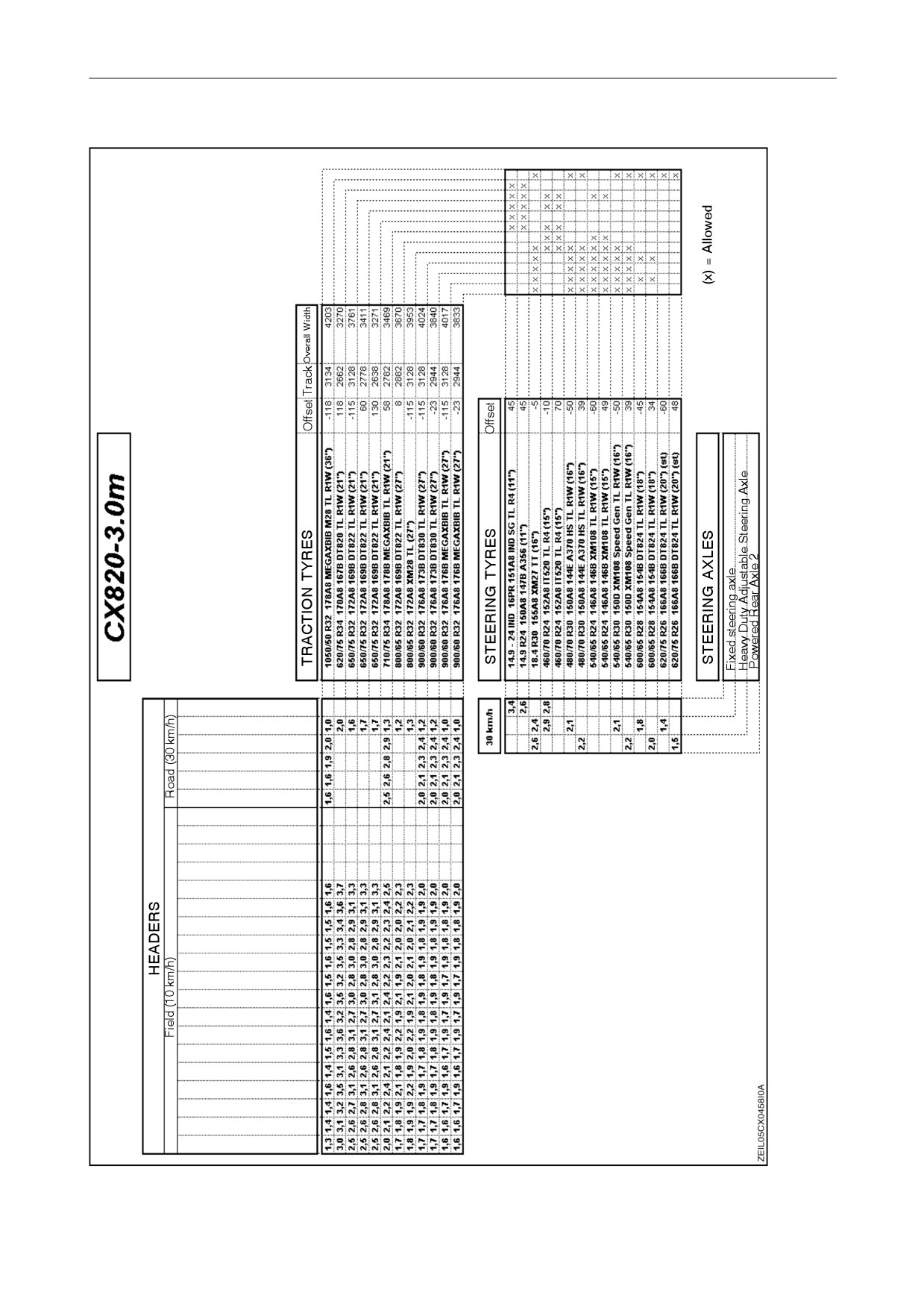

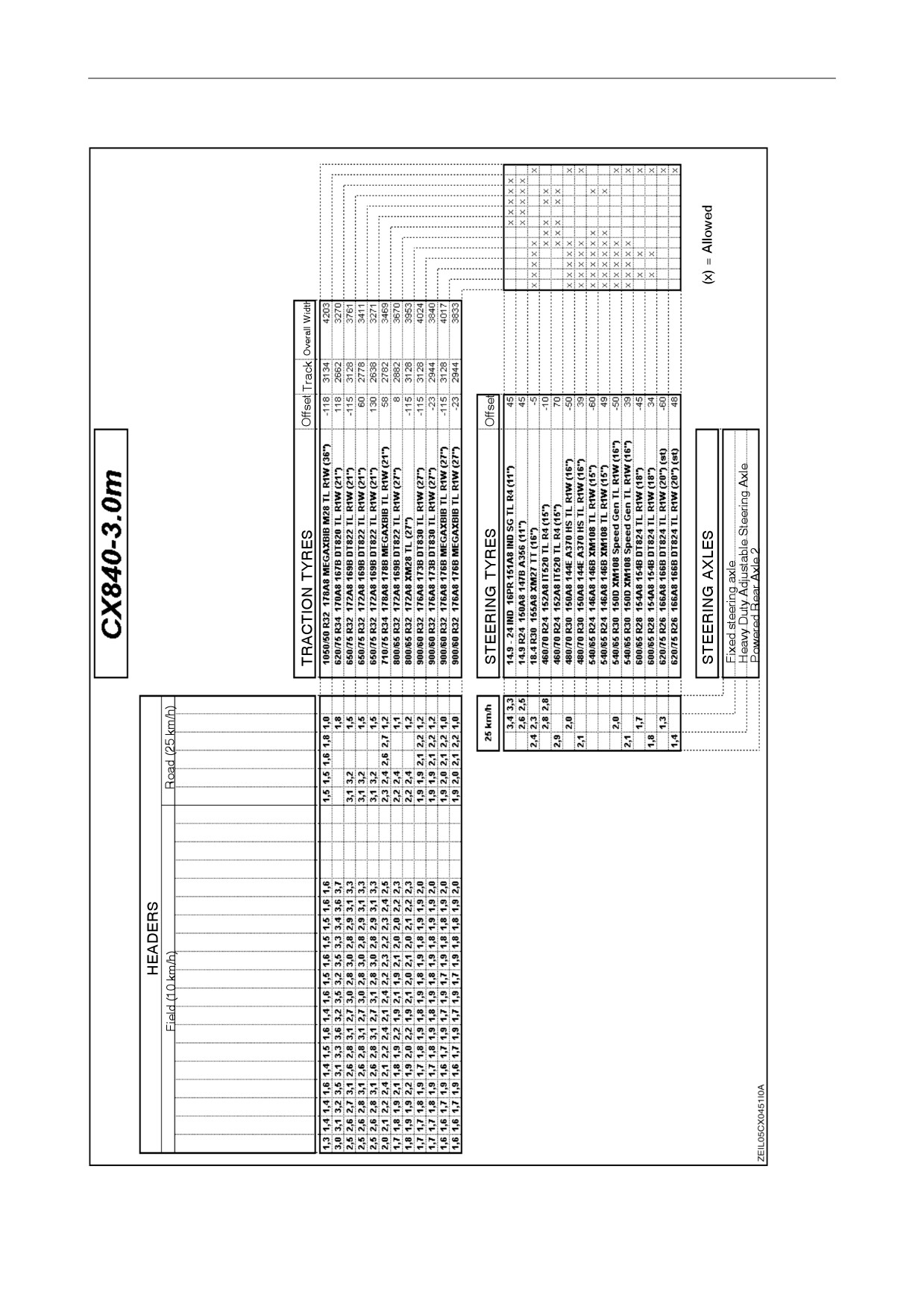

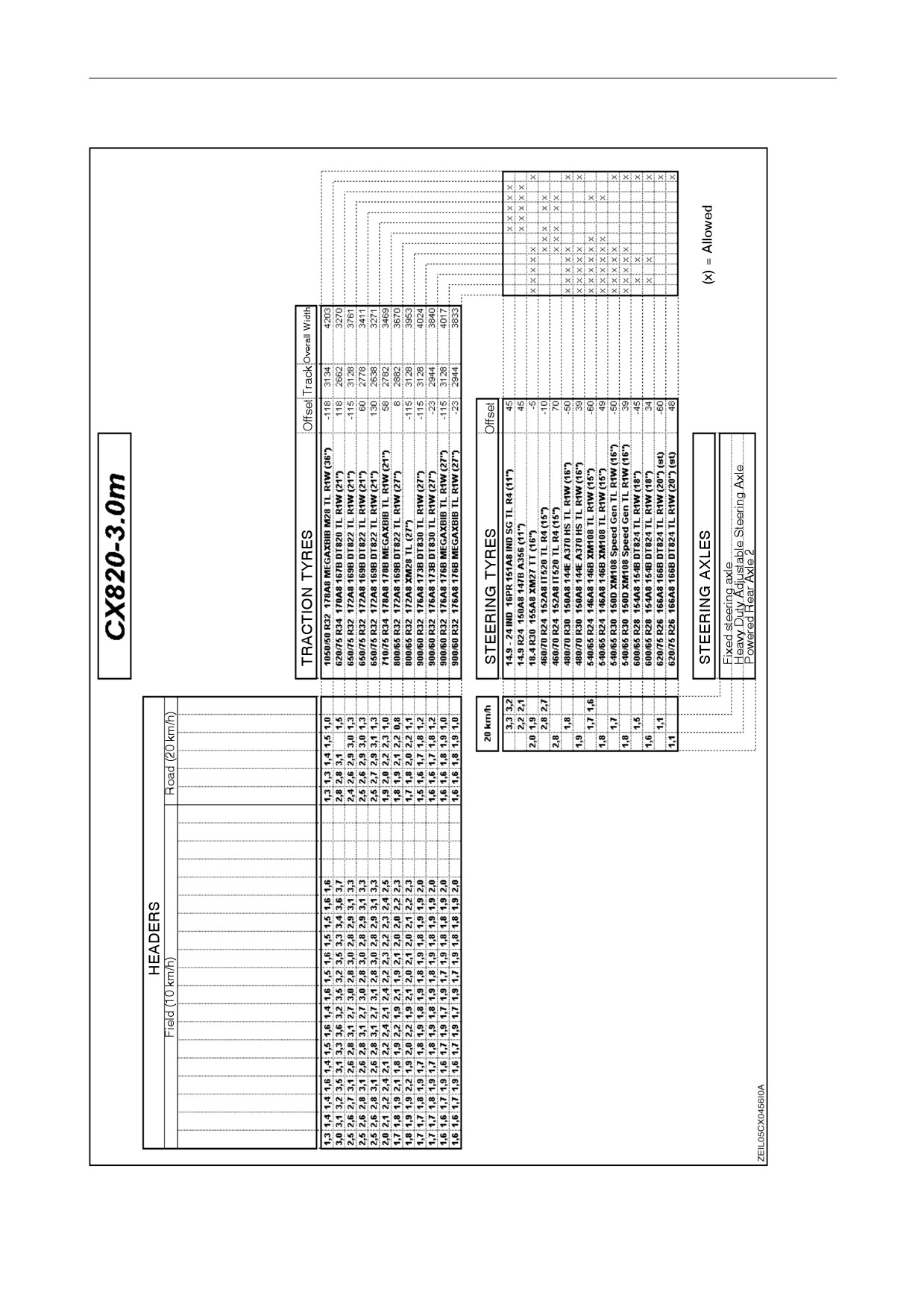

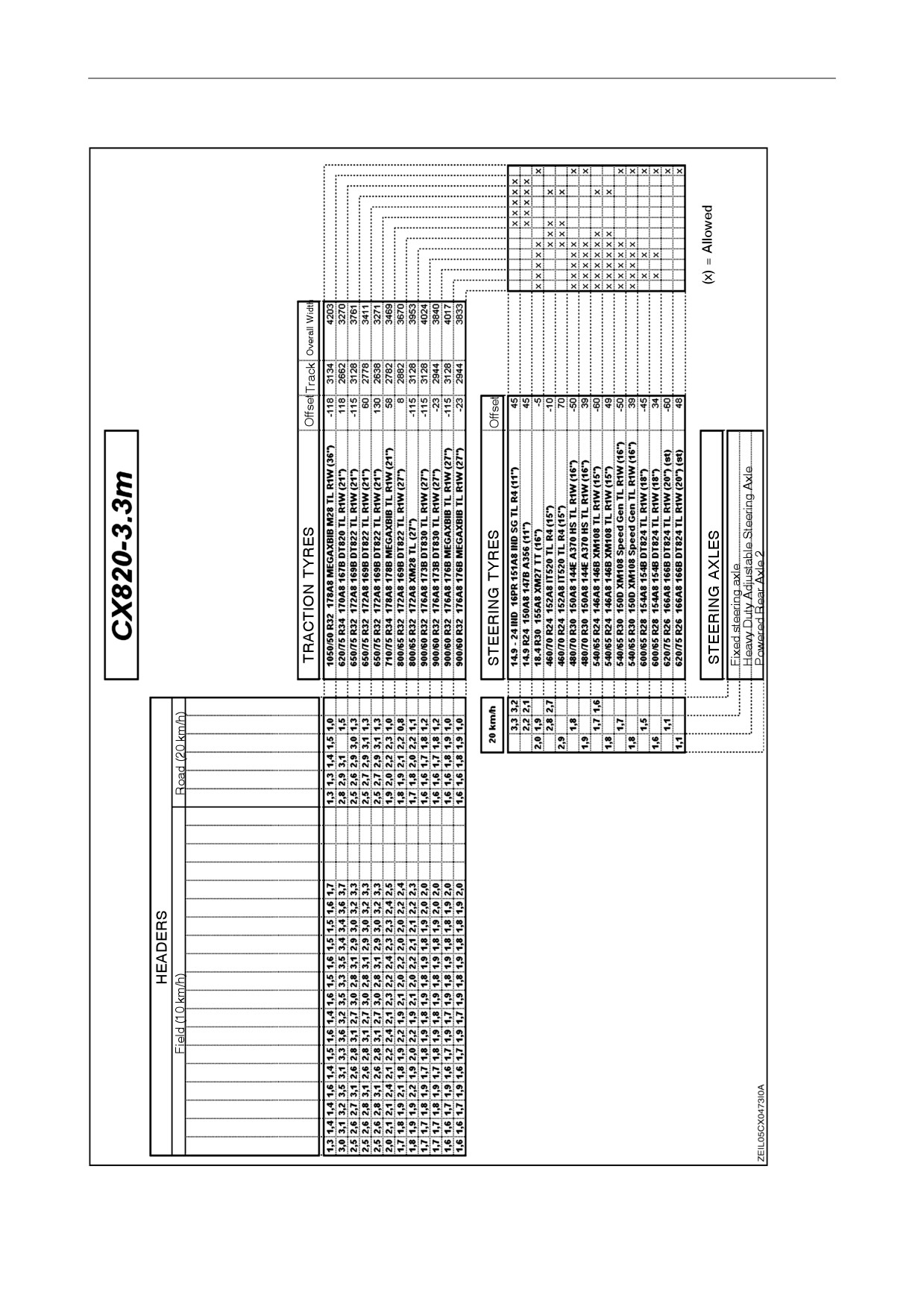

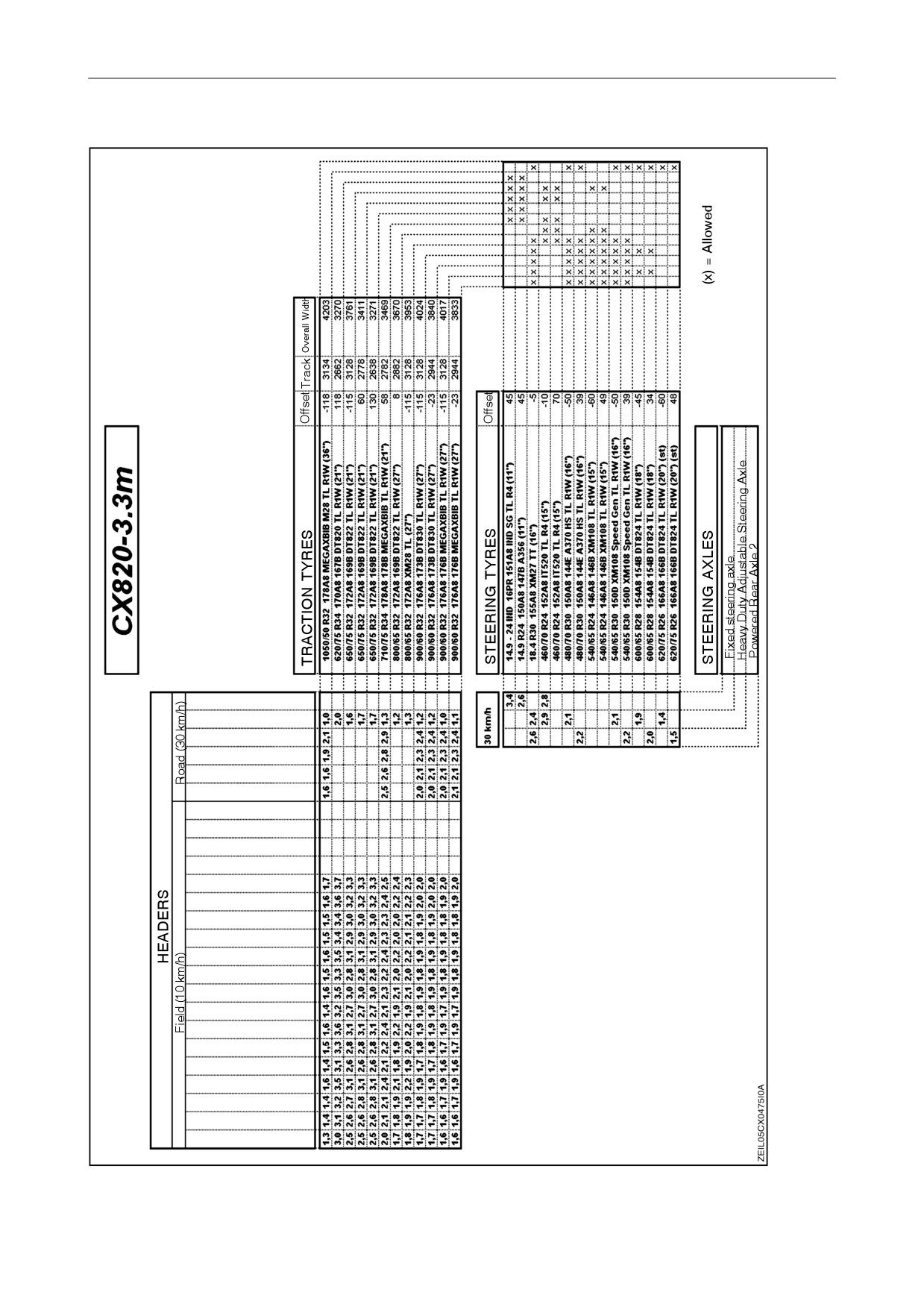

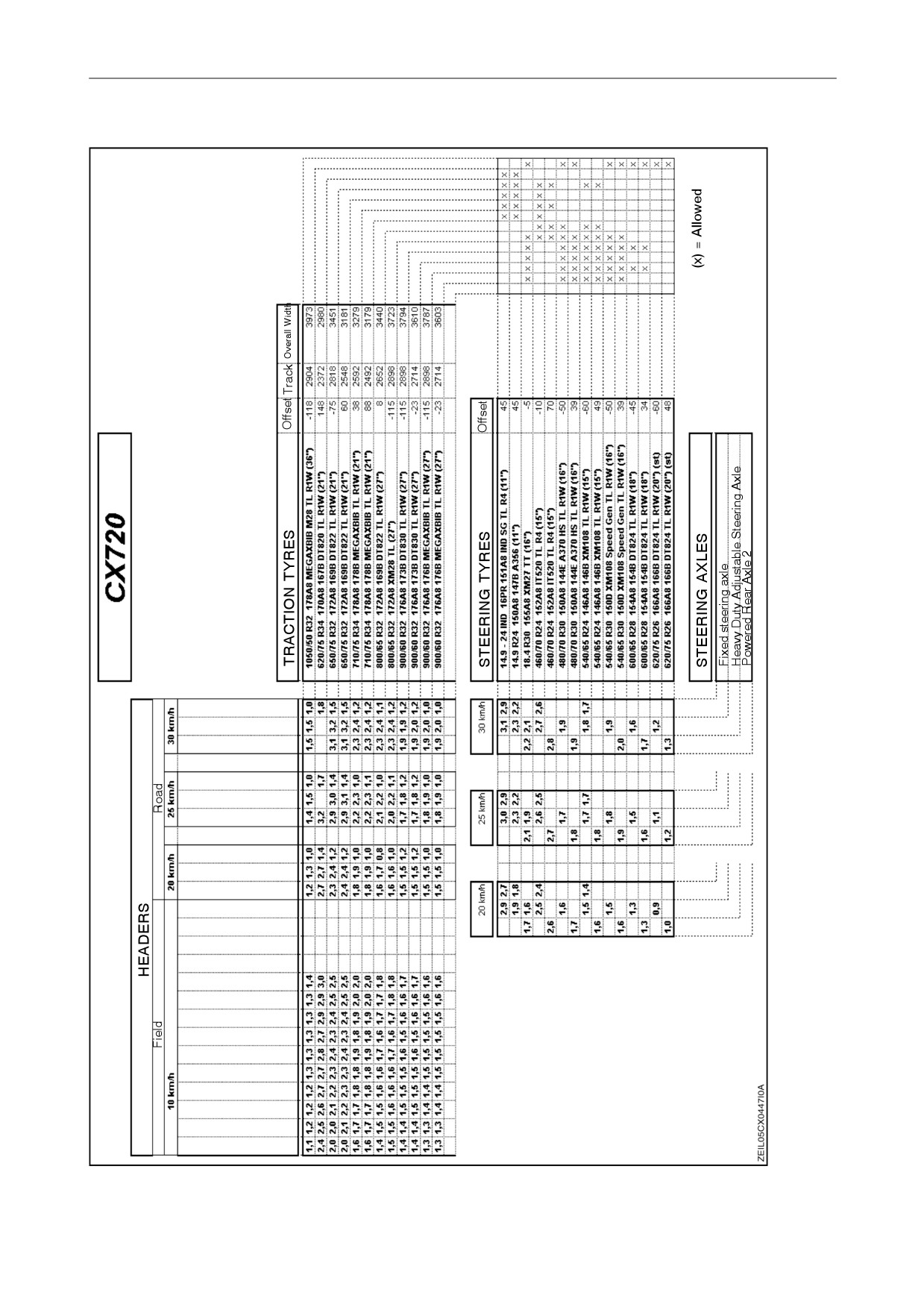

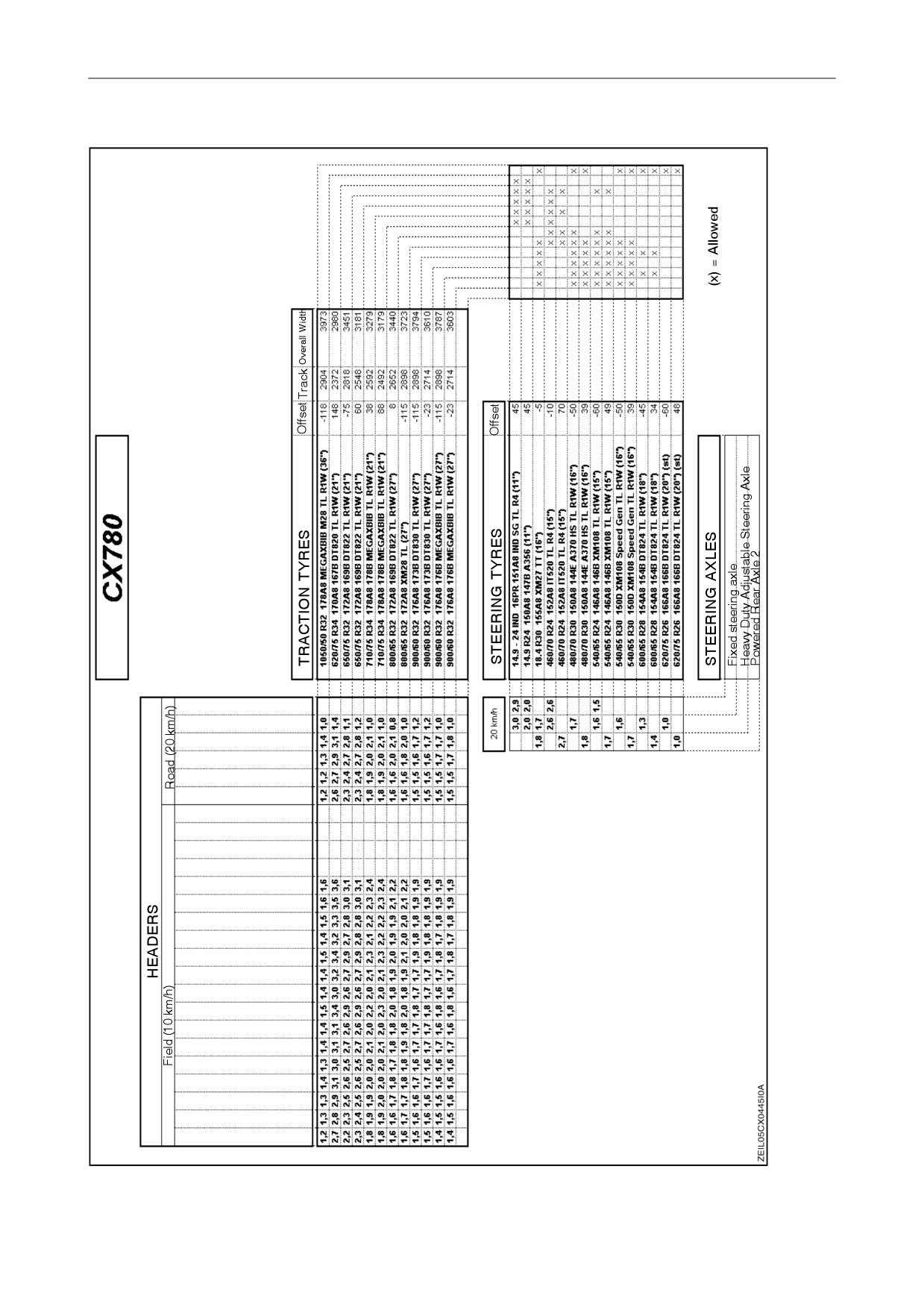

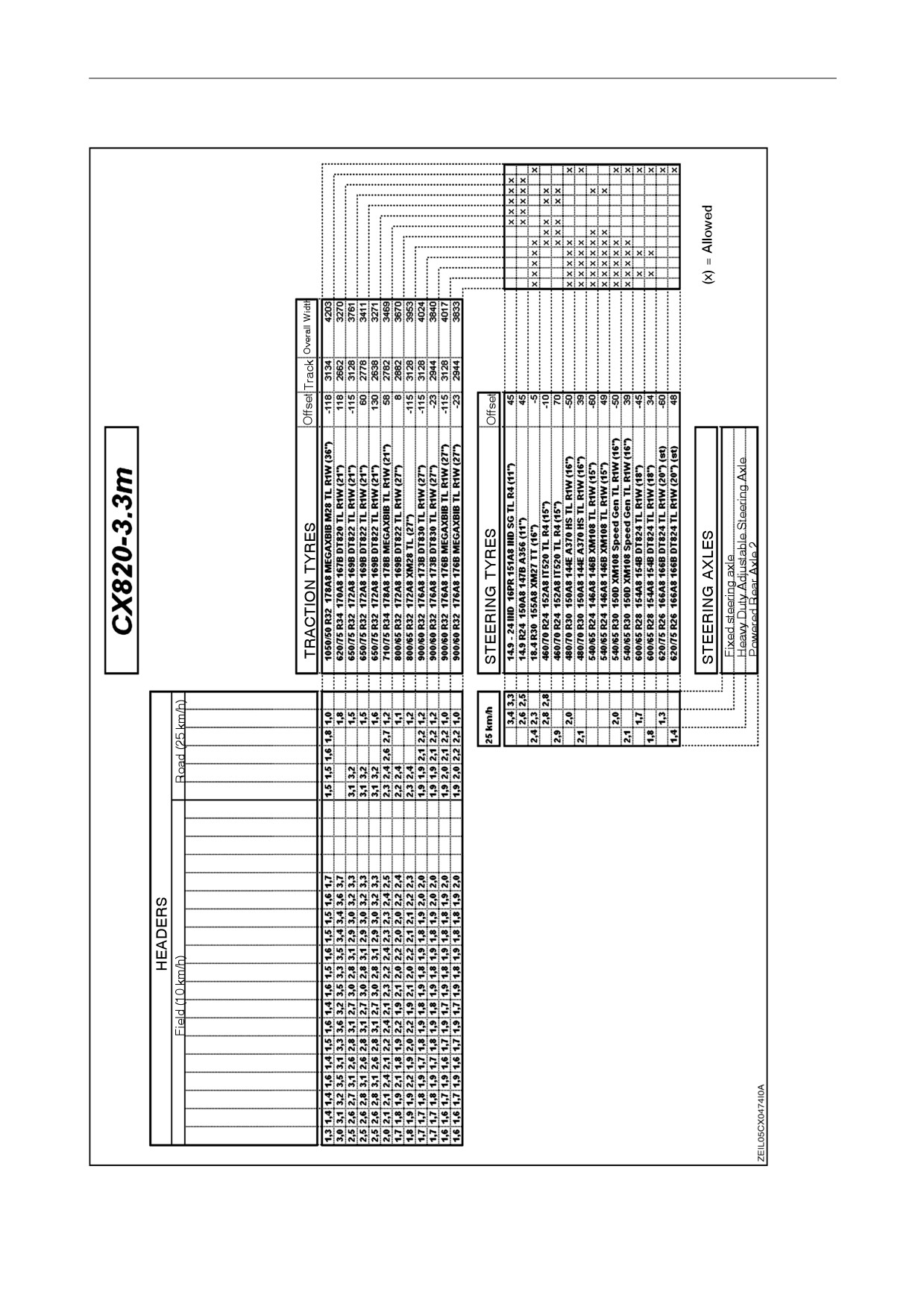

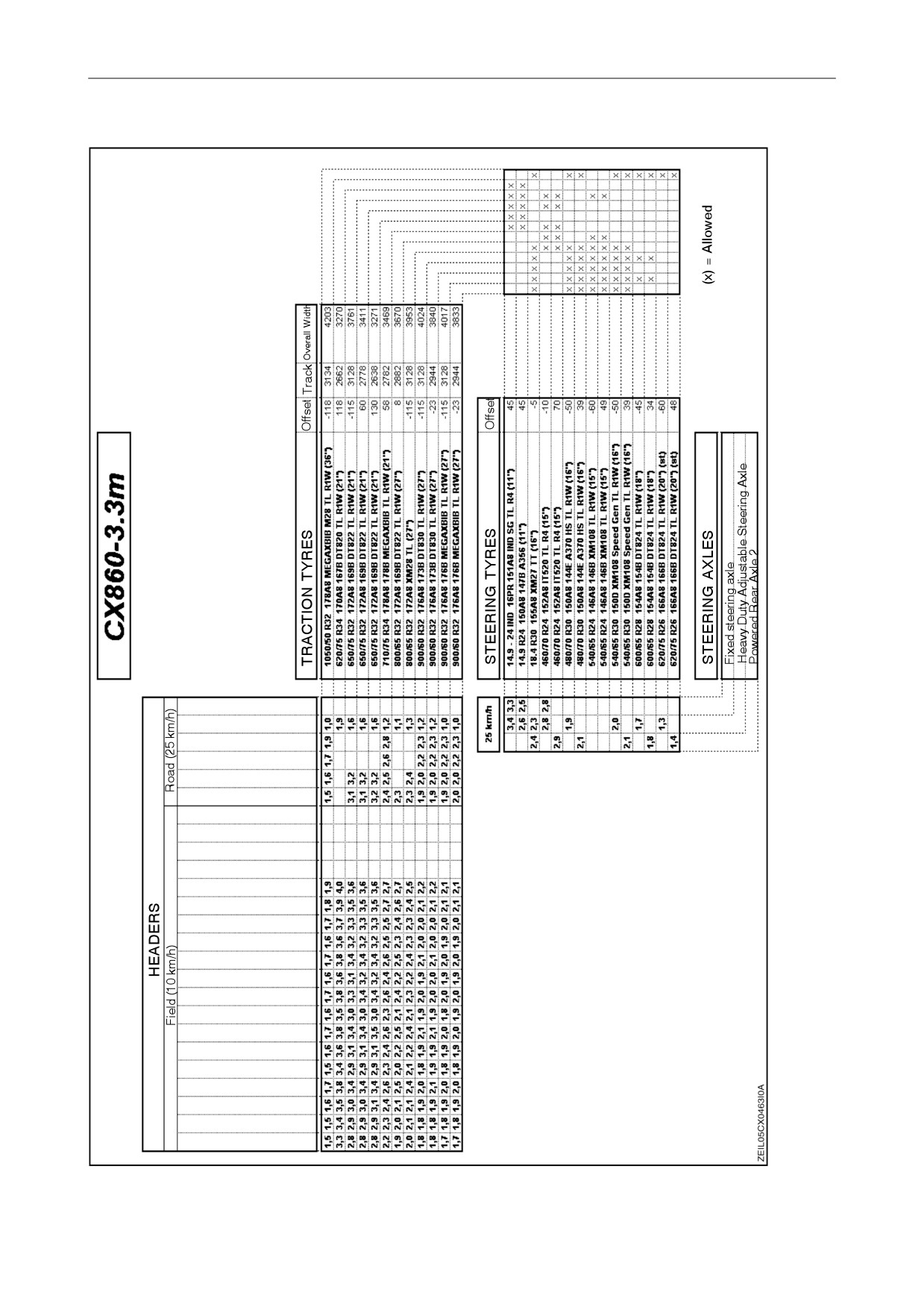

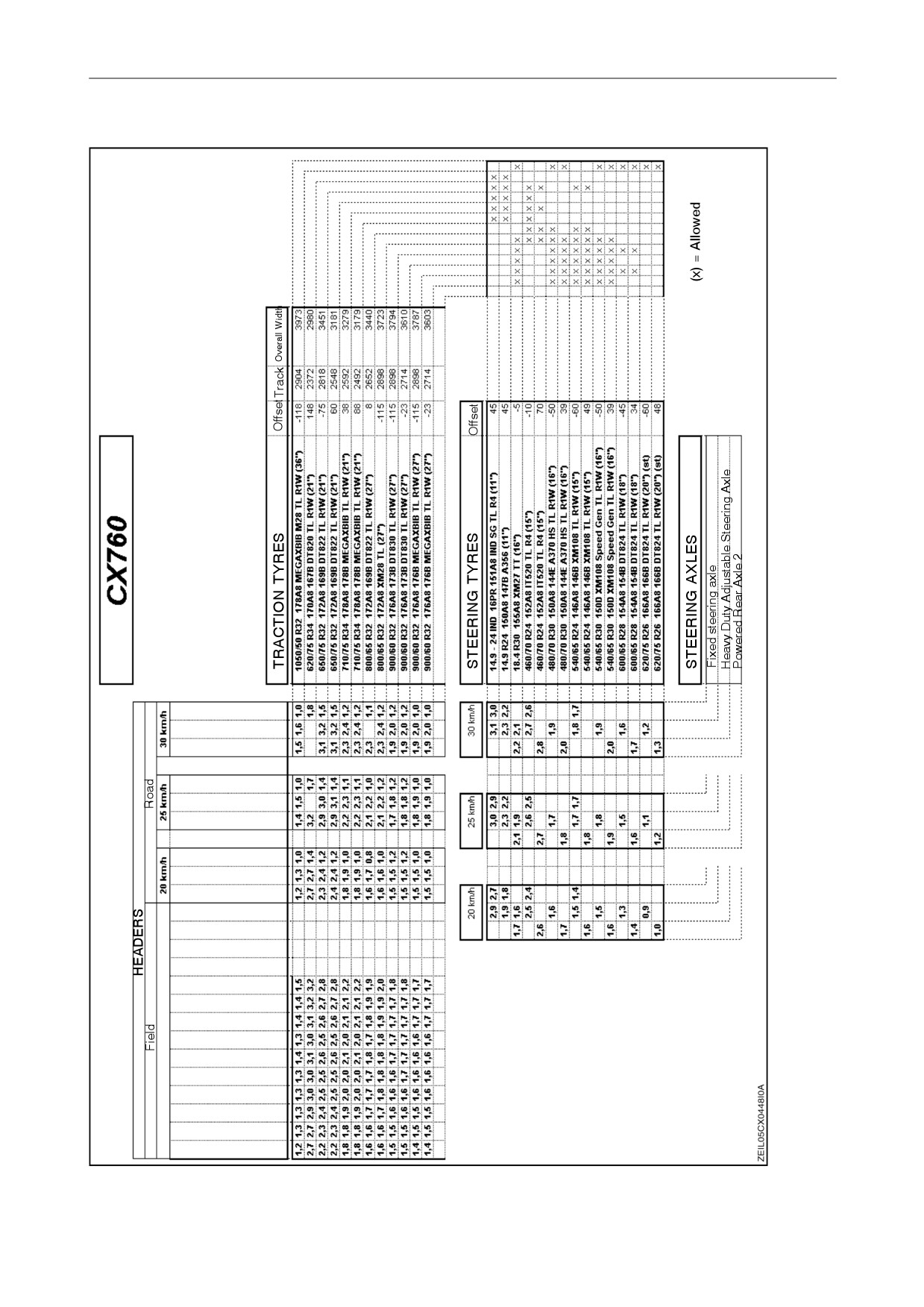

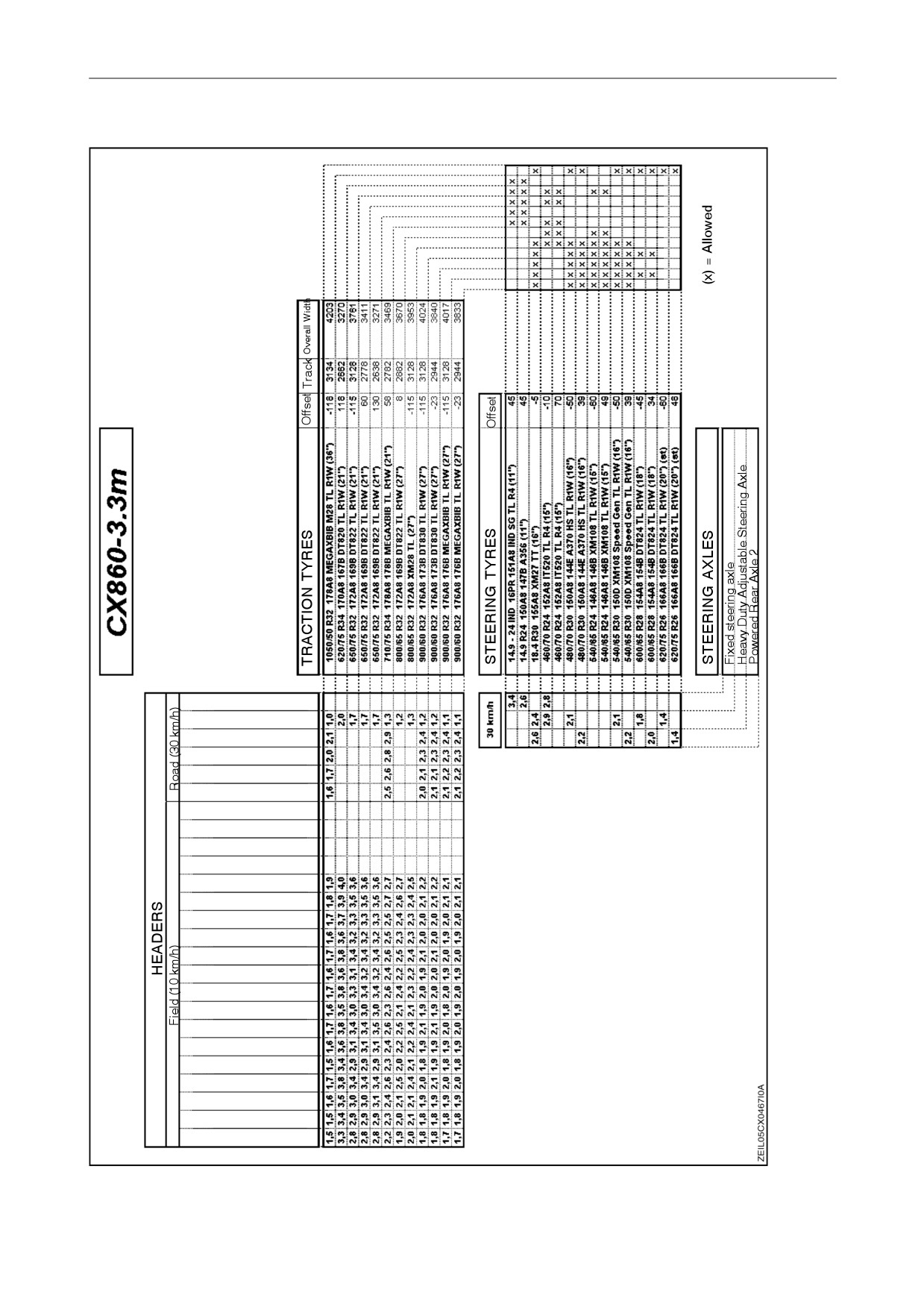

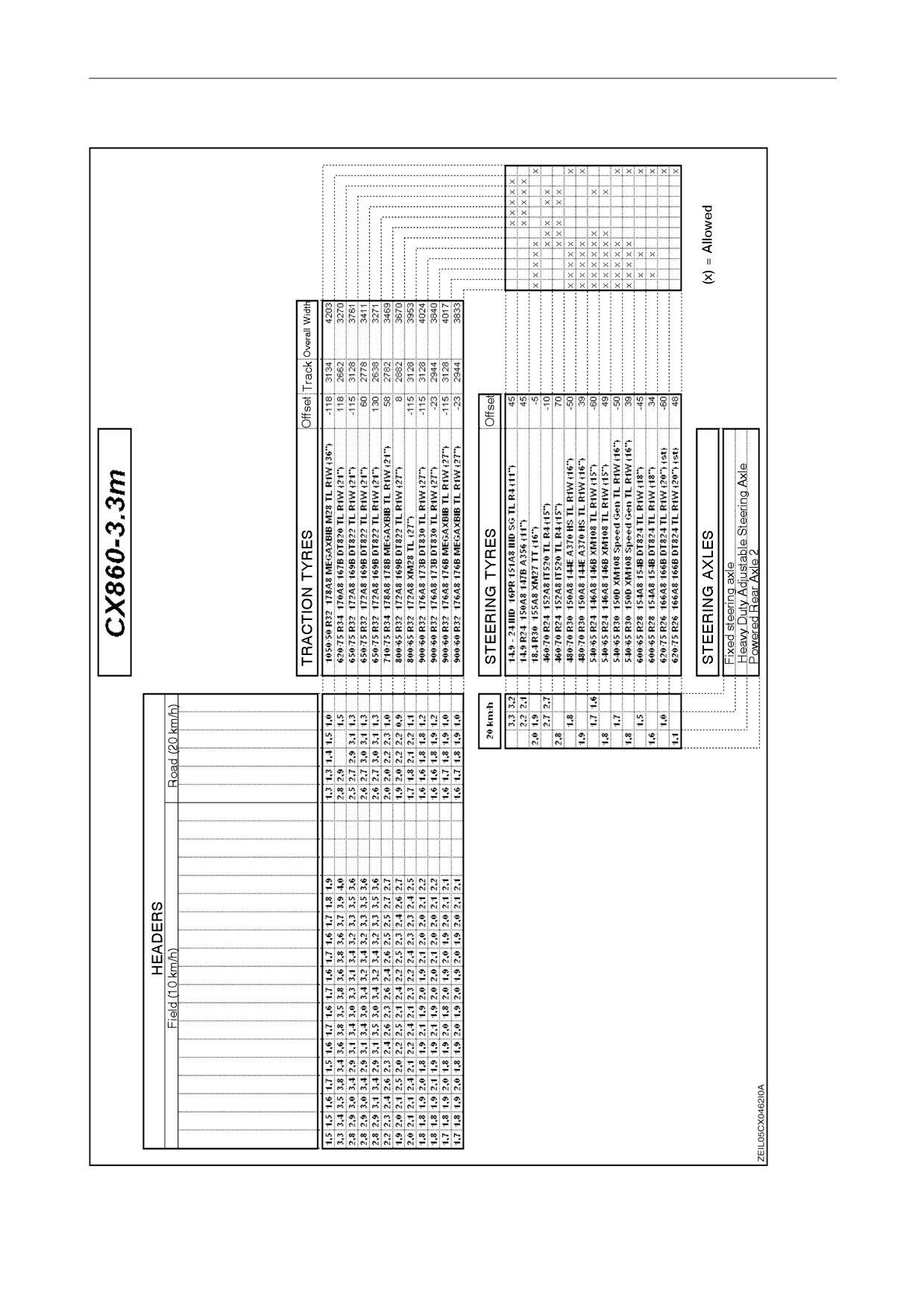

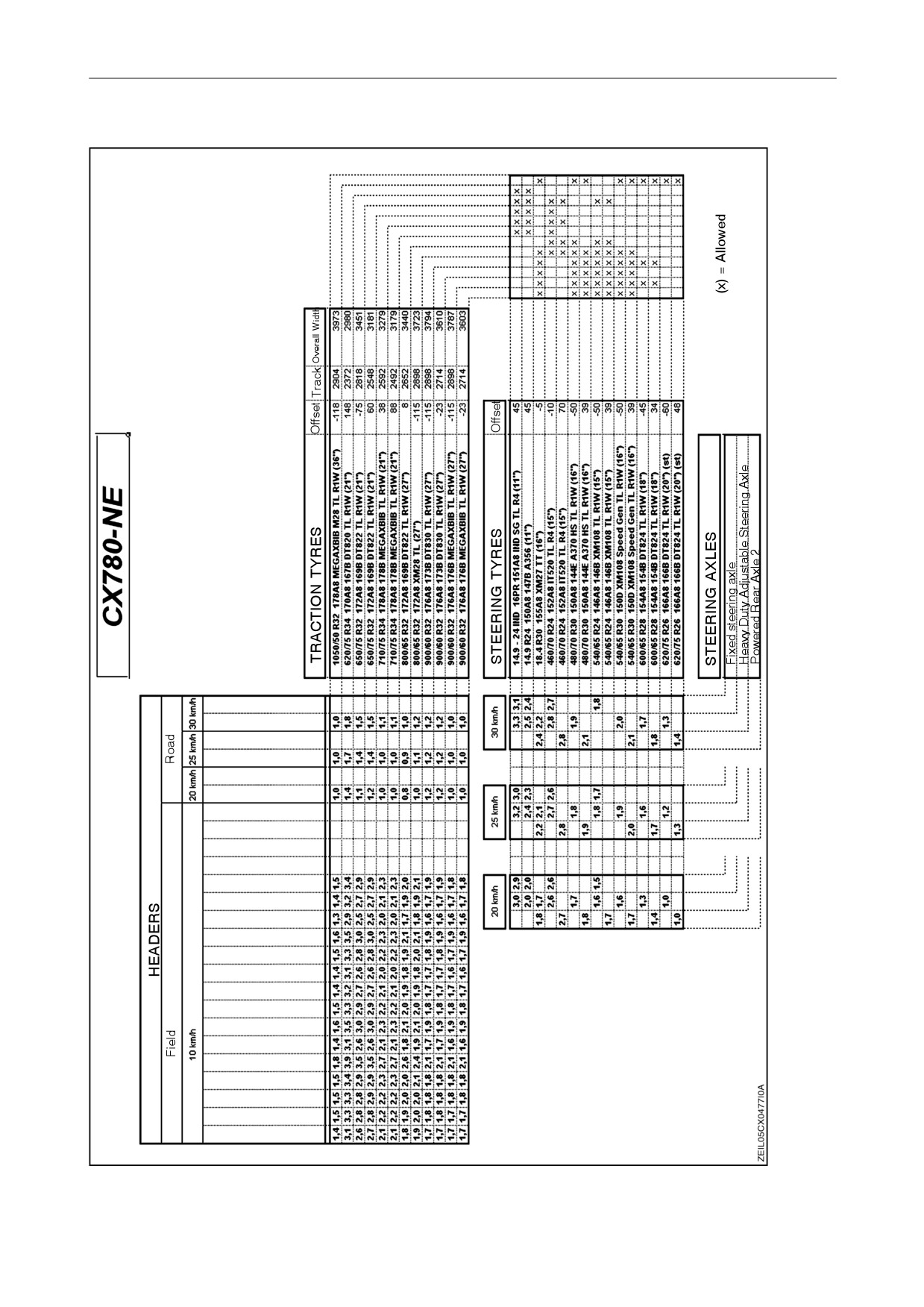

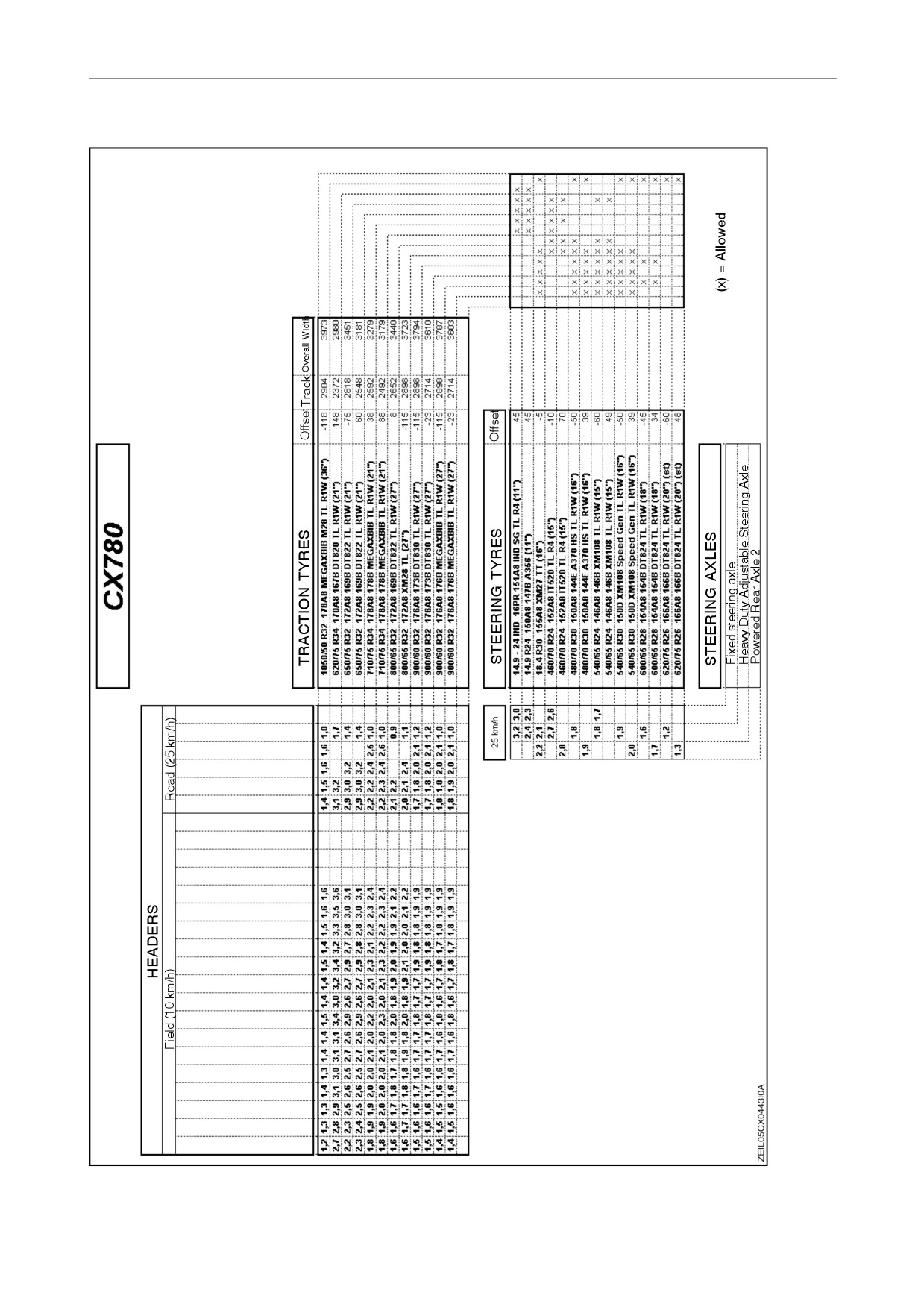

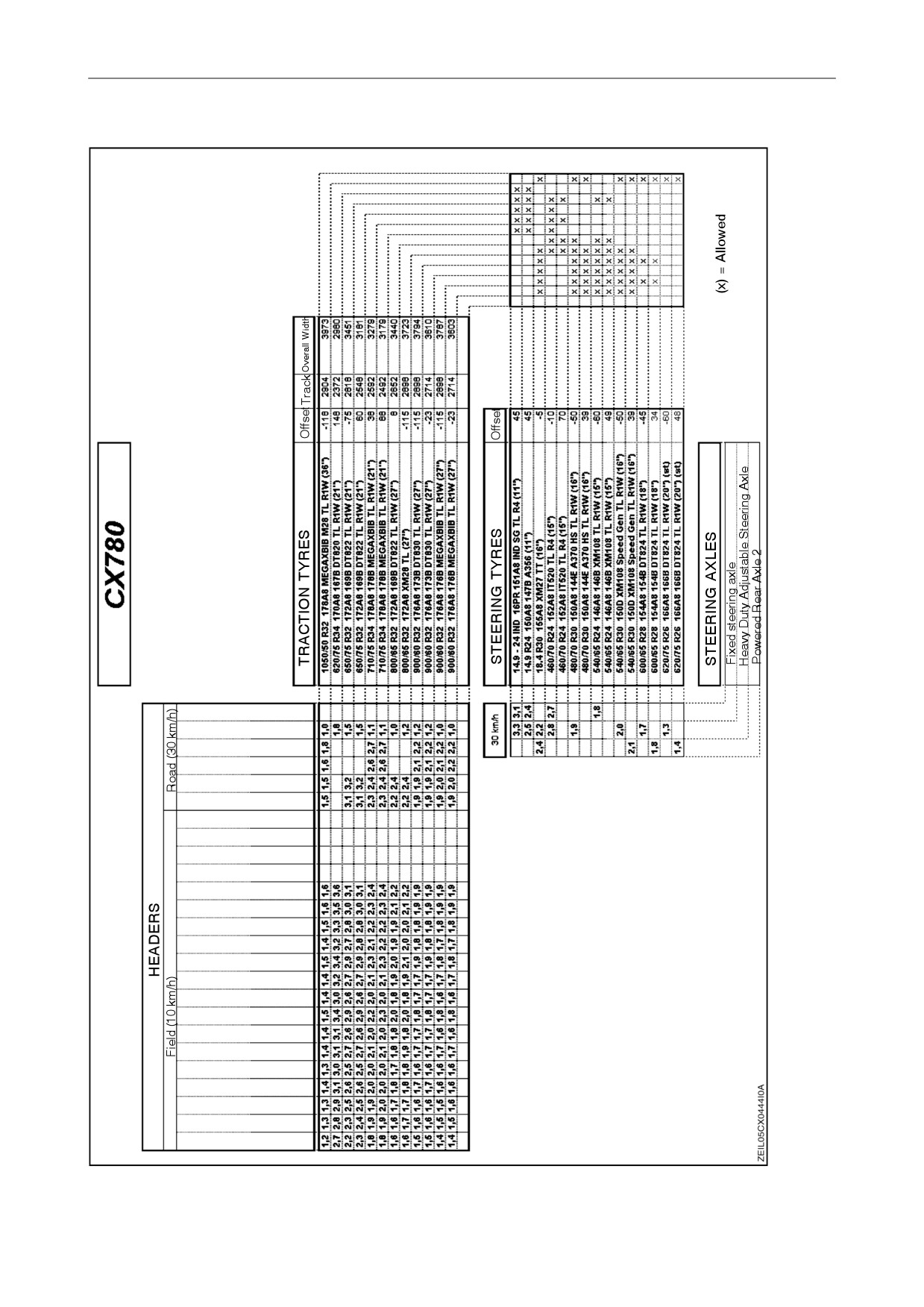

Tables below gives the permitted inflation pressure
(bar):
Field condition:
• Speed = 10 km/h: cycling loading operations,
excepting hillside applications in excess of 20%
grade.
• Full grain tank + header in work position
Road condition:
• Empty grain tank
Traction tyres (pressures): road + field conditions
Steering tyres
(pressures): only road conditions
“Offset”, “Track”, “Overall width” = mm
Traction tyres: road+ field conditions
Steering tyres: only road conditions
8-2
