New Holland T6010, T6020, T6030, T6050, T6070 Delta and Plus Tractors. Operator's Manual

SECTION 4 -- LUBRICATION AND MAINTENANCE

PREVENTING SYSTEM CONTAMINATION

FUELLING THE TRACTOR

To prevent contamination when changing oils, filters,

CAUTION

etc., always clean the area around filler caps, level

When handling diesel fuel, observe the following:

and drain plugs, dipsticks and filters prior to removal.

Before connecting remote cylinders, ensure that oil

Do not smoke around diesel fuel. Under no

contained within them is clean, has not degenerated

circumstances should gasoline, alcohol, gasohol or

due to long storage and is of the correct grade.

dieselhol (a mixture of diesel fuel and alcohol) be

added to diesel fuel because of increased fire or

To prevent dirt entry during greasing, wipe dirt from

explosion risks. In a closed container such as a fuel

the grease fittings before greasing. Wipe excess

tank they are more explosive than pure gasoline. Do

grease from the fitting after greasing.

not use these blends. Additionally, dieselhol is not

approved due to possible inadequate lubrication of

FLEXIBILITY OF MAINTENANCE INTERVALS

the fuel injection system.

• Clean the filler cap area and keep it free of debris.

The intervals listed in the lubrication and

maintenance chart are guidelines to be used when

• Fill the tank at the end of each day to reduce

operating in normal working conditions.

overnight condensation.

Adjust the intervals for environment and working

• Never take the cap off or refuel with the engine

conditions. Intervals should be shortened under

running.

adverse

(wet, muddy, sandy, extremely dusty)

working conditions.

• Keep control of the fuel nozzle while filling the

fuel tank.

LUBRICATION AND MAINTENANCE CHART

• Don’t fill the tank to capacity. Allow room for

expansion. If the original fuel tank cap is lost,

The chart on page 4--7 lists the intervals when routine

replace it with a genuine original equipment

checks, lubrication, service and/or adjustments

cap and tighten securely.

should be performed. Use the chart as a quick

reference guide when servicing the tractor. The

• Wipe up spilled fuel immediately.

operations follow the chart.

4--3

SECTION 4 -- LUBRICATION AND MAINTENANCE

FUEL REQUIREMENTS

The use of diesel fuel with a sulphur content above

1.3% is not recommended.

The quality of fuel used is an important factor for

dependable performance and satisfactory engine

For the best fuel economy, use Number 2--D fuel

life. Fuels must be clean, well-refined, and

whenever temperatures allow.

non-corrosive to fuel system parts. Be sure to use

fuel of a known quality from a reputable supplier.

Do not use Number 2-D fuel at temperatures below

--7° C (20° F). The cold temperatures will cause the

Use Number 2-D in temperatures above --7° C (20° F).

fuel to thicken, which may prevent the engine from

running. (If this happens, contact your dealer.)

Use Number 1-D in temperatures below --7° C (20° F).

To be sure that a fuel meets the required properties,

enlist the aid of a reputable fuel oil supplier. The

To obtain optimum combustion and minimum engine

responsibility for clean fuel lies with the fuel supplier

wear, the fuel selected for use should conform to the

as well as the fuel user.

application and property requirements outlined in the

following chart.

DIESEL FUEL SELECTION CHART

FUEL STORAGE

Take the following precautions to ensure that stored

General Fuel

Final

Cetane

Sulphur

fuel is kept free of dirt, water and other contaminants.

Content

Classification

Boiling

Rating

Point(Max)

(Max)

• Store fuel in black iron tanks, not galvanized

(Min)

tanks, as the zinc coating will react with the fuel

No. 1--D

288° ⊂

40*

0.3%

and form compounds that will contaminate the

(550° F)

injection pump and injectors.

No. 2--D

357°C

0.5%

• Install bulk storage tanks away from direct

(675° F)

sunlight and angle them slightly so sediment in

the tanks will settle away from the outlet pipe.

NOTE: When long periods of idling or cold weather

conditions below 0°C (32°F) are encountered or

• To facilitate moisture and sediment removal,

when continuously operating at an altitude above

provide a drain plug at the lowest point at the end

5,000 ft. (1500 m) use Number 1-D fuel.

opposite the outlet pipe.

• If fuel is not filtered from the storage tank, put a

* When continually operating at low temperatures or

funnel with a fine mesh screen in the fuel tank

high altitude, a minimum cetane rating of 45 is

filler neck when refuelling.

required.

• Arrange fuel purchases so summer grade fuels

Using diesel fuel with sulphur content above 0.5%

are not held over and used in winter.

requires more frequent oil and filter changes as

noted in the maintenance schedule.

4--4

SECTION 4 -- LUBRICATION AND MAINTENANCE

FILLING THE FUEL TANK

1. Clean the area around the fuel filler cap (1) to

prevent dirt from entering tank and

contaminating the fuel .

2. Remove the cap and place in a clean area during

refuelling. The cap is attached to the fuel tank by

a chain to prevent loss.

3. After filling the tank, replace and tighten the fuel

cap.

Fuel filler cap

The fuel filler cap on your tractor is of the vented type,

should it become lost or damaged always replace it

with one of the same type. Consult your authorised

dealer.

Fuel Capacity

T6010, T6020

Standard

180 litres (47.5 U.S. galls)

With SuperSteer

156 litres (41.2 U.S. galls)

T6030 ,T6050, T6070

Standard

254 litres (67.0 U.S. galls)

With SuperSteer

236 litres (62.3 U.S. galls)

GUARDS

ENGINE HOOD

For safety the hood must be closed and correctly

latched before operating the tractor.

Additional guards are provided to prevent the fingers

being trapped by the fan/air conditioner drive belt

when the hood is lowered to the operating position.

The hood is hinged at the rear to provide easy access

to the engine area for routine maintenance. Two gas

struts (located under the hood) assist in raising the

hood to either of two positions. A safety stay holds

the hood in the selected position.

To open the hood, lift the release handle (1), Figure

3. The gas struts will take over and raise the hood

to the first position secured by the nylon retaining

strap located at the front of the hood. All routine

maintenance operations may be performed with the

hood raised to this position.

4--5

SECTION 4 -- LUBRICATION AND MAINTENANCE

Should it become necessary to raise the hood to its

full extent, unclip the retaining strap (1) from its

anchor bracket and, holding firmly onto the strap,

allow the hood to raise fully on the gas struts.

NOTE: Raising the hood to full height is only

necessary for service requirements that are best left

to your dealer.

To close the hood, pull it fully down ensuring the

retaining strap has been re--fitted to the anchor

bracket. An audible click will signal engagement of

the locking catch. Check that the hood is properly

closed.

RIGHT--HAND FOOTSTEPS (Where fitted)

Hinged footsteps may be installed on your tractor.

For improved access to the right-hand brake

adjuster, hydraulic oil filter(s), battery, etc., the

footsteps may be lifted and secured in the raised

position.

To raise the steps, remove the securing pin (1).

Raise the step (1) and replace the securing pin in the

hole provided to retain the step in the horizontal

position.

4--6

SECTION 4 -- LUBRICATION AND MAINTENANCE

LUBRICANTS AND COOLANTS

--30 °C

--25 °C

--15 °C

+20 °C

+40 °C

Lubricants

SAE 5W--30

The correct engine oil viscosity grade is dependent

upon ambient temperature. Refer to the chart on the

right when selecting oil for your tractor engine.

SAE 10W--30

NOTE: In areas where prolonged periods of extreme

temperatures are encountered, local lubricant

SAE 15W--40

practices are acceptable; such as the use of SAE

5W30 in extreme low temperatures or SAE 50 in

extreme high temperatures.

--22^°F

--13 °F

+5 °F

+68 °F

+104 °F

Sulphur in Fuel

The engine oil and filter change period are shown in

section 4. However, locally available fuel may have

a high sulphur content, in which case the engine oil

and filter change period should be adjusted as

follows:--

Sulphur Content %

Oil Change Period

Below 0.5

Normal

From 0.5 -- 1.0

Half the normal

Above 1.0

One quarter normal.

NOTE: Theuseof fuelwithasulphur content above

1.3% is not recommended.

Coolants

To reduce the amount of deposits and corrosion, the

water used in the cooling system must comply with

the following values.

Total Hardness:

Chloride:

Sulphate:

300 ppm

100 ppm

IMPORTANT: See Operation

30, page

4--43,

regarding use of coolant inhibitor where the above

mentioned antifreeze is not available. In those hot

countries where antifreeze is not available, use clean

water only.

NOTE: See Operation 30, page 4--43, for further

details before topping up or changing the engine

coolant.

4--8

SECTION 4 -- LUBRICATION AND MAINTENANCE

LUBRICANT AND COOLANT SPECIFICATION

RECOMMENDED FLUIDS AND

Approximate

New Holland

International

APPLICATIONS

Quantities

Specification

Engine Oil

4 Cyl. engines:

Ambra Mastergold HSP (15W40)

10 Litres (10.6 U.S. qts.)

NH 330 H

API CH--4, ACEA E5,

Ambra Mastergold HSP (10W30)

6 Cyl. engines:

NH 324 H

15Litres(15.9 U.S.qts.)

Transmission, Rear Axle and Hy-

draulic System Oil

Ambra Multi G (10W30)

--Synchro Command with HD rear axle

65 Litres (17.1 U.S. gal)

API GL4, ISO VG 32/46

--Synchro Command with LD rear axle

58 Litres (15.3 U.S. gal)

NH 410 B

M2C 134D

--Dual Command with HD rear axle

65.5Litres (17.3 U.S. gal)

--Dual Command with LD rear axle

58.5Litres (15.4 U.S. gal)

--Electro Command with HD rear axle

62 Litres (16.3 U.S. gal)

--Electro Command with LD rear axle

55 Litres (14.5 U.S. gal)

Front Wheel Drive Oil

Axle -- Ambra Multi G (10W30)

--All Models

9.0 Litres (9.5 U.S. qts.)

API GL4, ISO VG 32/46

NH 410 B

Hubs -- Ambra Multi G (10W30)

M2C 134D

--All Models -- Per Hub

1.5 Litres (1.3 U.S. qts.)

--All Models with Brakes -- Per Hub

3.0 Litres (3.2 U.S. qts.)

Front P.T.O. Gearbox Oil

API GL4, ISO VG 32/46

Ambra Multi G (10W30)

400 ml. (13.5 U.S. oz.)

NH 410B

M2C 134D

Engine Radiator Coolant

System Capacity

--T6030/T6050/T6070 with cab

25 Litres (6.6 U.S. gal.)

--T6010/T6020 with cab

23 Litres (6.0 U.S. gal.)

--T6030/T6050 less cab

23 Litres (6.0 U.S. gal.)

--T6010/T6020 less cab

21 Litres (5.5 U.S. gal.)

Water

50%

Ambra Agriflu

50%

NH 900 A

Ethylene Glycol

Air Conditioning Compressor Oil

Low Viscosity Oil SP10

As Required

n/a

PAG--E13, ISO100 Viscosity

Brake Oil

Ambra LHM Brake

As Required

NH 610 A

ISO 7308

Grease Fittings and Bearings

Ambra GR9

As Required

NH 710 A

NLGI2, Li--Ca

4--9

SECTION 4 -- LUBRICATION AND MAINTENANCE

LUBRICATION AND MAINTENANCE CHART

Service

Operation

Interval

No.

Maintenance Requirement

Engine air cleaner outer element

4--11

When warning

Brake fluid level

4--13

lamp lights

Fuel system water separator

4--13

Engine coolant level

4--14

Every 10 hours

Engine oil level

4--15

or daily

Windscreen washer reservoir (where fitted)

4--15

Air reservoir(s) trailer brakes (where fitted)

4--16

Radiator,oil cooler and air conditioner condenser

4--17

Every 50 hours

Cab air filters

4--18

All grease fittings

4--20

A/C & Brake Compressor drive belts (where

Every 100 hours

4--26

fitted)

Poly V--belt

4--27

*13

Battery electrolyte level (tropical climates)

4--27

4WD suspension cylinder upper bearing

4--28

Every 300 hours

Transmission/rear axle/hydraulics oil level

4--29

Parking brake

4--30

Front P.T.O. gearbox oil level (where fitted)

4--30

#18

Engine oil and filter

4--31

Hydraulic and transmission oil filters

4--33

Air cleaner outer element

4--34

Every 600 hours

Engine air intake connections

4--34

Fuel Pre--filter and fuel filter elements

4--35

Four wheel drive front axle and hubs oil level

4--37

Cab air filters

4--38

Transmission/rear axle/hydraulic oil and filter

4--39

Every1200 hours

Four wheel drive axle differential oil

4--40

or annually

Four wheel drive axle hub oil

4--41

Front P.T.O gearbox oil

4--41

Battery electrolyte level (temperate climates)

4--42

Engine coolant

4--43

Engine air cleaner inner element

4--47

Every 1200 hours

or two years

Check and adjust tappet clearance

4--48

Air brake drier reservoir

4--49

Every 1800 hours

Fuel injectors

4--50

Every Three Years

Air Conditioner System

4--51

Bleeding the fuel injection system

4--52

Footbrakes

4--52

Front and rear wheel nut torque

4--53

Tyre pressures and condition

4--53

Engine idle speed

4--54

General

Automatic pick--up hitch

4--55

Maintenance

Remote control valve drain bottle(s)

4--56

Headlight and worklamp adjustment

4--57

Bulb replacement

4--58

Fuse replacement

4--62

Cleaning the tractor

4--72

* Batteries on tractors operating in temperate climates need only be checked every 1200 hours. See Operation 29.

# Oil and filter change interval will be reduced if the diesel fuel has a high sulphur content or if the tractor is operated in

extremely cold temperatures.

4--10

SECTION 4 -- LUBRICATION AND MAINTENANCE

WHEN THE WARNING LAMP LIGHTS

OPERATION 1

SERVICE THE ENGINE AIR

CLEANER OUTER ELEMENT

Service the outer element when the restriction

indicator light on the instrument console illuminates

or every 600 hours, whichever comes first. If the

indicator lights up, perform the service within one

hour of operation.

IMPORTANT: Service the outer element only when

the restriction indicator light illuminates or at the

recommended service intervals. Cleaning the filter

too frequently will decrease the service life of the

filter.

The dry air cleaner, which is located under the rear,

right-hand side of the hood, consists of an inner and

outer paper element within a metal casing. See

Figure 9.

1. Unlatch the three retaining clips (1) Fig. 9, and lift

off the air cleaner assembly cover.

2. Remove the outer element (1) Fig. 10 from the

air cleaner assembly by gently twisting the end

of the filter clockwise to disengage the seal. Then

pull the filter straight out of the housing ,not at an

angle, ensuring the inner element remains in

place.

IMPORTANT: Do not disturb or remove the inner

element.

3. Examine the inside of the outer element. If dust

is present, the outer element is defective and

must be replaced.The inner element should also

be replaced at this time.

4. Clean the outer element using either method A

or B, depending on the element’s condition.

4--11

SECTION 4 -- LUBRICATION AND MAINTENANCE

Method A

NOTE: An outer element may be dry cleaned

(methods A or B) up to 5 times prior to replacement.

Lightly tap the ends of the element against the palm

of the hand. See Figure 12.

IMPORTANT: Do not tap the element against a hard

surface as this will damage the element.

Method B

Use compressed air, not exceeding 2 bar (30 lbf/in²).

Insert the air line nozzle inside the element. Hold the

nozzle 150 mm (6 in.) from the element and blow the

dust from the inside through the element to the

outside. See Figure 13.

WARNING

Wear eye protection and a face mask when carrying

out this operation.

Before installing a cleaned or replacement filter

check that there is no damage such as cuts ,dents or

punctures. A dent can make a good seal impossible

and a filter with bunched pleats can drain engine

power and increase fuel costs.

Clean the inside and outside of the sealing surface

of the outlet tube before installing the filter.

Apply a thin film of engine or silicone oil to the sealing

surfaces on the inside of the outer element and on

the outside of the inner element.

Locate the outer element into the housing and press

firmly on the outer rim (not the flexible centre) of the

element .

4--12

SECTION 4 -- LUBRICATION AND MAINTENANCE

OPERATION 2

CHECK BRAKE FLUID LEVEL

If the indicator light on the instrument panel signals

low brake fluid, check the level in the reservoir.

The reservoir is located under the rear of the hood on

the right-hand side and supplies fluid to the rear

brakes and front brakes (where fitted).Visually check

the level of fluid in the reservoir. It should never be

allowed to fall below the ’MIN’ line (3) moulded into

the bottle. If necessary, remove the filler cap (1) and

top up with the correct brake/clutch mineral oil to the

’MAX’ line (2). Do not overfill. Tractors with 12 x 12

transmission have a combined brake/clutch

reservoir. The reservoir on all other models is for the

brakes only.

IMPORTANT: Take care not to spill brake fluid on the

tractor as it may damage the paintwork.

WARNING

Use only the correct type of brake/clutch mineral oil.

Mixing different types of fluid may cause damage to

internal hydraulic braking components and result in

brake failure. Adhere to the instrutions on the brake

fluid container. See page 4--9 for correct brake fluid

specification.

OPERATION 3

DRAIN FUEL SYSTEM WATER

SEPARATOR

IMPORTANT: Before loosening or disconnecting

any part of the fuel injection system, thoroughly clean

the area to be worked on to prevent contamination.

If the indicator light on the instrument panel signals

the presence of water in the fuel sedimenter,

immediately drain the fuel filter and sedimenter

assembly as follows:

1. Remove the sensor wire from the drain plug

2. Open the drain plug on the sedimenter by

loosening the knob.

3. Allow contaminated fuel to drain until only clean

fuel runs out. Catch the fuel in a suitable

container and dispose of properly. Close the

drain plug and replace the sensor wire.

4--13

SECTION 4 -- LUBRICATION AND MAINTENANCE

EVERY 10 HOURS OR DAILY

(whichever comes first)

OPERATION 4

CHECK ENGINE COOLANT LEVEL

Check the coolant level in the recovery tank when the

engine is cold. The coolant level should be above the

bottom line on the recovery tank. If coolant is

required, remove the pressure cap and add a 50/50

water and antifreeze mixture as specified on page

4--9 of this manual.

WARNING

The cooling system operates under pressure which

is controlled by the radiator pressure cap (1) Figure

17. The radiator pressure cap should not be used for

top up purposes. It is dangerous to remove the radia-

tor pressure or filler caps while the system is hot.

When cool, use a thick cloth and turn the radiator

pressure cap slowly to the first stop and allow any

pressure to escape. Coolant should be kept off the

skin. Adhere to the precautions outlined on the anti-

freeze and inhibitor containers.

CAUTION

Coolant should be kept off the skin . Adhere to the

precautions outlined on the coolant filter and

antifreeze container.

NOTE: If no coolant is visible in the recovery tank,

the coolant level must be checked in the radiator.

Check the system for leaks and repair as required.

Remove the radiator filler cap when the system is

cold. Add coolant as required to bring the level to just

below the top of the filler neck. Install the cap and add

coolant to the recovery tank as descibed above.

4--14

SECTION 4 -- LUBRICATION AND MAINTENANCE

OPERATION 5

CHECK ENGINE OIL LEVEL

Check the oil level when the tractor is parked on a

level surface and after the engine has been stopped

for a minimum of five minutes.

1. Remove the dipstick, wipe clean and re-insert

fully.

2. Pull the dipstick out again and check the oil level.

The oil level should fall between the ‘MIN‘ and

‘MAX‘ indicators on the dipstick.

3. If more oil is required remove the dipstick and

add fresh oil until the level is between the ‘MIN‘

and

‘MAX‘ indicators on the dipstick. The

quantity of oil represented between the two

indicators is 3.5 litres (3.7 U.S.qts).

NOTE: Do not fill above the ‘MAX indicator on the

dipstick. Excess oil will burn off, creating smoke and

give a false impression of oil consumption. Do not

operate the engine with the oil level below the MIN

indicator.

4. Re--install the dipstick cap.

See page 4--9 for the correct oil specification and

viscosity.

OPERATION 6

CHECK WINDSCREEN

WASHER RESERVOIR

The reservoir for the windscreen washers is located

beneath the rear of the cab on the left-hand side. The

same reservoir is utilised for both front and rear

windscreen washers.

Lift off the cap (1) and fill with washer solvent solution

up to the bend (2) in the filler neck. In cold weather,

use a solvent with anti-freeze properties.

4--15

SECTION 4 -- LUBRICATION AND MAINTENANCE

OPERATION 7

DRAIN THE AIR RESERVOIR(S)

(AIR OPERATED TRAILER BRAKES

(where fitted)

Every 10 hours or daily , whichever comes first, drain

the air reservoir(s).

Firmly apply the tractor handbrake, block all wheels

and switch off the engine.

All pneumatic trailer braking systems have an air

reservoir located beneath the left hand end of the

rear axle.

There is a plunger on the base of each reservoir. To

drain a reservoir , move the plunger

(1) laterally, in

any direction, and allow air to escape. The reservoirs

will recharge with air when the tractor is restarted.

4--16

SECTION 4 -- LUBRICATION AND MAINTENANCE

EVERY 50 HOURS carry out the

preceding checks plus the following:

OPERATION 8

CLEAN THE RADIATOR, OIL COOLER AND

AIR CONDITIONER CONDENSER CORES

Check the cores for chaff accumulation or blockage.

If any is noted , clean as follows:

CAUTION

Wear eye protection and protective clothing during

the cleaning process. Clear the area of bystanders

so they are not struck by flying particles.

1. For cleaning, use compressed air or a pressure

washer not exceeding 7 bar (100 lbf/in²).

2. The air conditioner condensor (1) Figure 22 and

the driveline oil cooler figure 22, located in front

of the engine radiator, have a slide out facility for

ease of service. Turn the two quick-release

fasteners (3) anti-clockwise to release.

3. Slide the oil cooler and the air conditioner

condensor (where fitted) out (to the right) to gain

access to the engine coolant radiator (1) Figure

4. Direct the air or water through each core from the

back to the front. Clean the radiator first, then the

air conditioner condenser and, finally, the

driveline oil cooler. Carefully straighten any bent

fins.

NOTE: If the cores are blocked with any oily

substances, apply a detergent solution and remove

it with a pressure washer.

4--17

SECTION 4 -- LUBRICATION AND MAINTENANCE

OPERATION 9

CLEAN THE CAB AIR FILTERS

Air drawn into the cab by the blower fan passes

through three filters, two externally mounted, and

one recirculation filter located inside the cab.

Before servicing the filters, switch off the blower and

close the roof hatch, all windows and one door.

Forcibly close the other door. The resulting back

pressure will dislodge most of the loose dirt from the

underside of the external filters.

NOTE: In humid conditions, do not switch on the

blower prior to servicing the filter. Damp particles

drawn into the filter may be difficult to remove without

washing.

External Filters

NOTE: The filters are made of specially treated

media with a rubber sealing strip bonded to the upper

surface. Take care not to damage the element during

removal.

Filter Removal -- Deluxe Cab

The filters are located each side of the cab. To

remove the external filter, unscrew the securing clip

(2), from the front end of the filter cover.

Remove the cover and extract the filter element (1).

Filter Removal -- Low Profile Cab

The two filters are located at the rear of the cab.

Unscrew the securing clip (2), and lower the filter

cover. Carefully remove the filter from the housing

taking care not to damage the element.

Clean the elements by blowing with compressed air

not exceeding 30 lbf. in² (2 bar). Blow the dust from

the upper surface through the element to the

underside. Hold the nozzle at least 12 in. (300 mm)

from the element to prevent damage to the filter

media.

Clean all filter chambers with a damp, lint-free cloth.

Re--install the filter elements with the clean side

uppermost and re-install the covers.

4--18

SECTION 4 -- LUBRICATION AND MAINTENANCE

Internal Filter

To remove an internal filter, loosen the retaining

screws (1) anti clockwise and remove the filter cover.

Remove the cover (1) and extract the filter from the

housing.

NOTE: The filter (2) is made of specially treated

media with a rubber sealing strip bonded to the upper

surface. Take care not to damage the element during

removal.

Clean the elements by blowing with compressed air

not exceeding 30 lbf. in² (2 bar). Blow the dust from

the clean surface through the element to the dirty

side. Hold the nozzle at least 12 in. (300 mm) from

the element to prevent damage to the filter media.

4--19

SECTION 4 -- LUBRICATION AND MAINTENANCE

OPERATION 10

ALL GREASE FITTINGS

Oil all pivots and apply a grease gun to the lubrication

fittings as shown in figures 28 to 49 inclusive.

See page 4--9 for correct grease specification.

Right and Left hand Lift Rod (with turnbuckle

adjustment).

Apply a grease gun to the lubrication fittings as

shown.

External Lift Cylinder (Where Fitted)

Apply a grease gun to the lubrication fittings as

shown.

2WD Front Wheel Spindles and right hand

steering arm

Apply a grease gun to the lubrication fittings as

shown.

4--20

SECTION 4 -- LUBRICATION AND MAINTENANCE

2WD Front Trunnion Pin

Apply a grease gun to the lubrication fittings as

shown.

2WD Front Hubs

Remove the centre cap (1) , and pack the cap with

fresh grease and re--install.

Repeat on opposite wheel.

NOTE: Grease the hubs of both front wheels daily

when operating in adverse conditions.

2WD Axle , Outer Steering Components and

Front Hubs

Apply a grease gun to the lubrication fittings as

shown.(Wheel removed for clarity).

Front Trunnion Pin (Standard 4WD axle)

Apply a grease gun to the lubrication fittings as

shown.

4--21

SECTION 4 -- LUBRICATION AND MAINTENANCE

Streering Cylinders and Track Rods (Supersteer

4WD axle)

Apply a grease gun to the lubrication fittings as

shown.

Upper Swivel Bearings, Axle Housing and

Steering Cylinder end (all 4WD axles)

Apply a grease gun to the lubrication fitting as shown.

NOTE: The left hand swivel bearing is shown. There

is a similar grease fitting on the right--hand swivel

bearing.

Lower Swivel Bearings (all 4WD axles)

Apply a grease gun to the lubrication fitting as shown.

NOTE: The left hand swivel bearing is shown. There

is a similar grease fitting on the right--hand swivel

bearing.

TA57

Rear Tow Hitch (with slider frame)

Apply a grease gun to the lubrication fitting as shown.

4--24

SECTION 4 -- LUBRICATION AND MAINTENANCE

Rear Tow Hitch (auto engagement type)

Apply a grease gun to the lubrication fittings as

shown.

Apply a grease gun to the lubrication fittings as

shown.

Heavy Duty Roller Drawbar

Apply a grease gun to the lubrication fitting as shown.

Front Hitch

Apply a grease gun to the lubrication fittings as

shown. To gain access to the fittings on top of the lift

cylinder, the engine hood must be raised and the two

rubber covers removed.

To avoid a build up of dust or debris around the

lubrication points, the rubber covers must be

replaced after greasing.

4--25

SECTION 4 -- LUBRICATION AND MAINTENANCE

EVERY 300 HOURS carry out the

preceding checks plus the following:

OPERATION 12

INSPECT POLY V--BELT

Inspect the belt over it’s entire length, checking for

chafing, cracking, cuts and general wear. If in doubt,

install a new belt.

Ensure that the belt is correctly located on the pulleys

and check that the belt tensioner is operating

correctly.

OPERATION 13

BATTERY

IMPORTANT: This operation applies to the battery

on tractors operating in tropical climates. Tractors

operating in temperate climates should have the

battery electrolyte level checked every 1200 hours or

12 months.

To gain access to the battery, raise the right hand

step as shown earlier in this section, using the

securing pin (1) Figure

54 to retain the step in an

upright position.

Remove the battery cover by rotating the cover

retaining screw (2), 90 degrees anti--clockwise.

4--27

SECTION 4 -- LUBRICATION AND MAINTENANCE

Remove the securing bolt and nut (1), and swing the

battery tray towards the front of the tractor.

Unscrew and remove the six vent plugs from the top

of the battery (tractors with heavy duty battery only).

Check that the electrolyte level is above the top of the

separator plates in each cell.

If necessary, on tractors with heavy duty batteries,

top up with distilled or de-mineralised water until the

level is correct. Do not overfill. Never use tap water

or water from a rain barrel or other source.

IMPORTANT: In the event of the battery being

severely discharged, such that the terminal voltage

is below 7 volts, recovery will require a special

charging procedure. See your authorised dealer.

OPERATION 14

4WD SUSPENSION CYLINDER

UPPER BEARING

Apply a grease gun to the lubrication fitting as shown.

4--28

SECTION 4 -- LUBRICATION AND MAINTENANCE

OPERATION 15

CHECK TRANSMISSION/REAR AXLE

AND HYDRAULIC OIL LEVEL

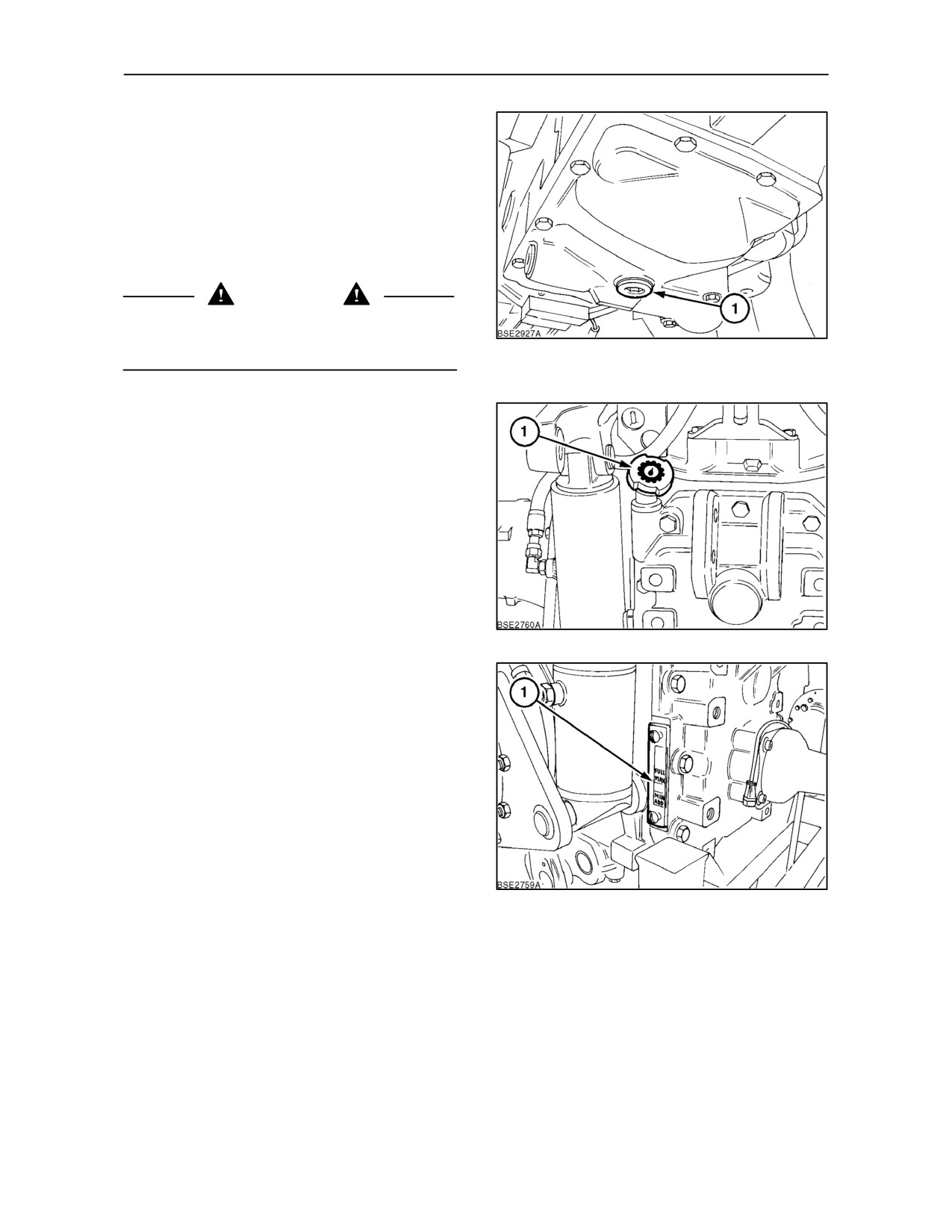

Check the oil level with the tractor parked on a lelvel

surface, with all cylinders extended and the engine

shut off for at least five minutes.

Check the oil level in the sight glass on the left hand

side of the rear axle housing. Ensure that the the oil

level is between the high and low marks, in the sight

glass.

If necessary , remove the filler cap and add oil , as

required.

See page 4--9 for the correct oil specification.

IMPORTANT: Park the tractor on level ground and,

where applicable, extend all cylinders before

checking oil levels. With some front/rear wheel

combinations, it may be necessary to raise the front

or rear of the tractor to ensure it is level before

checking the oil.

4--29

SECTION 4 -- LUBRICATION AND MAINTENANCE

OPERATION 16

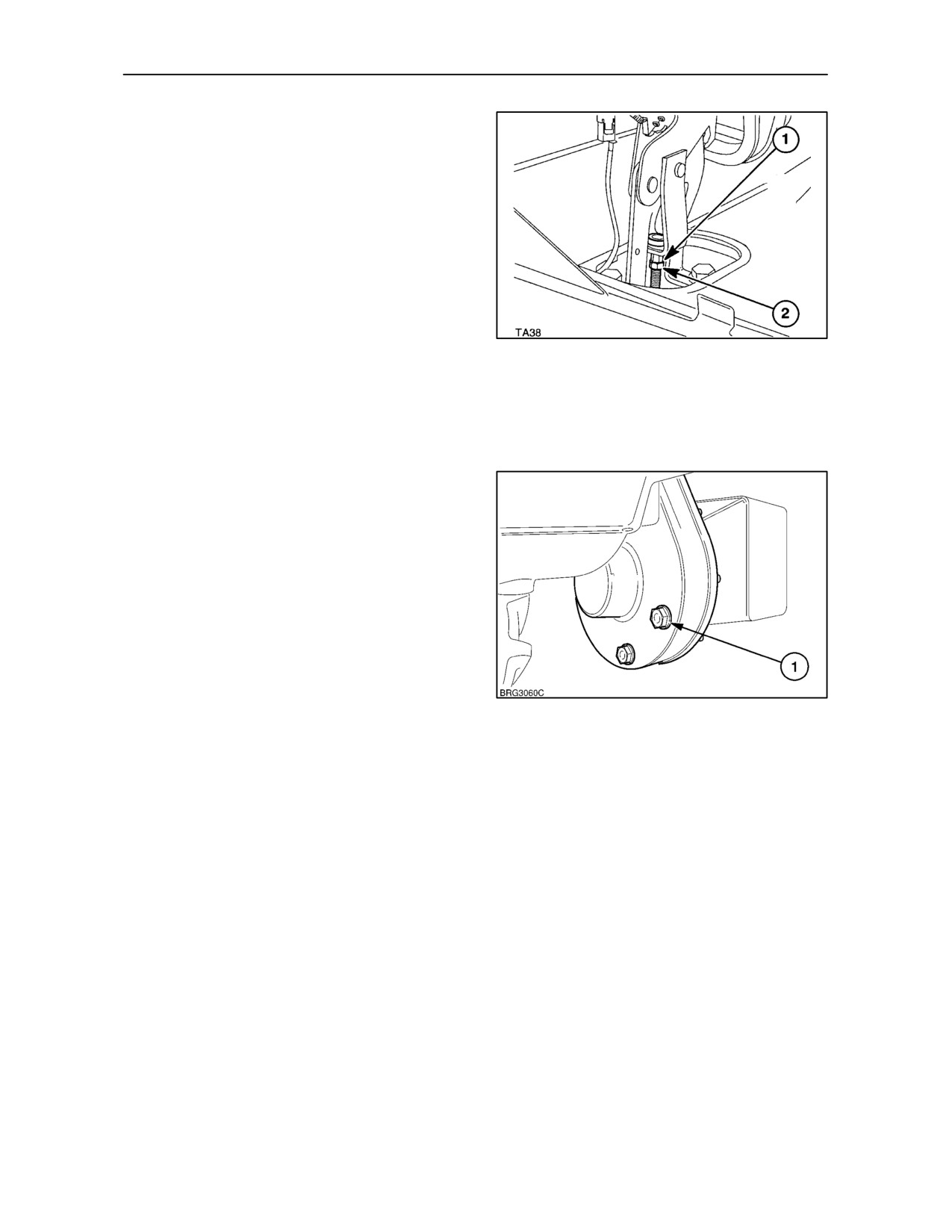

ADJUST PARKING BRAKE

Block the front wheels, jack up the rear of the tractor

and support the rear wheels just clear of the ground.

Unlatch the brake pedals.

Apply the handbrake so that the 4th. notch of the

ratchet is engaged. Remove or ease back the rubber

boot, loosen the locknuts and turn the adjuster nuts

on the operating cables until both wheels start to

lock. Release the handbrake and ensure that both

wheels are free to rotate. Apply the handbrake to

ensure that the system operates freely. Tighten the

locknuts.

Road test, using the handbrake to stop the tractor.

The tractor should stop in a straight line if the cables

have been correctly adjusted.

OPERATION 17

CHECK FRONT P.T.O. GEARBOX OIL LEVEL

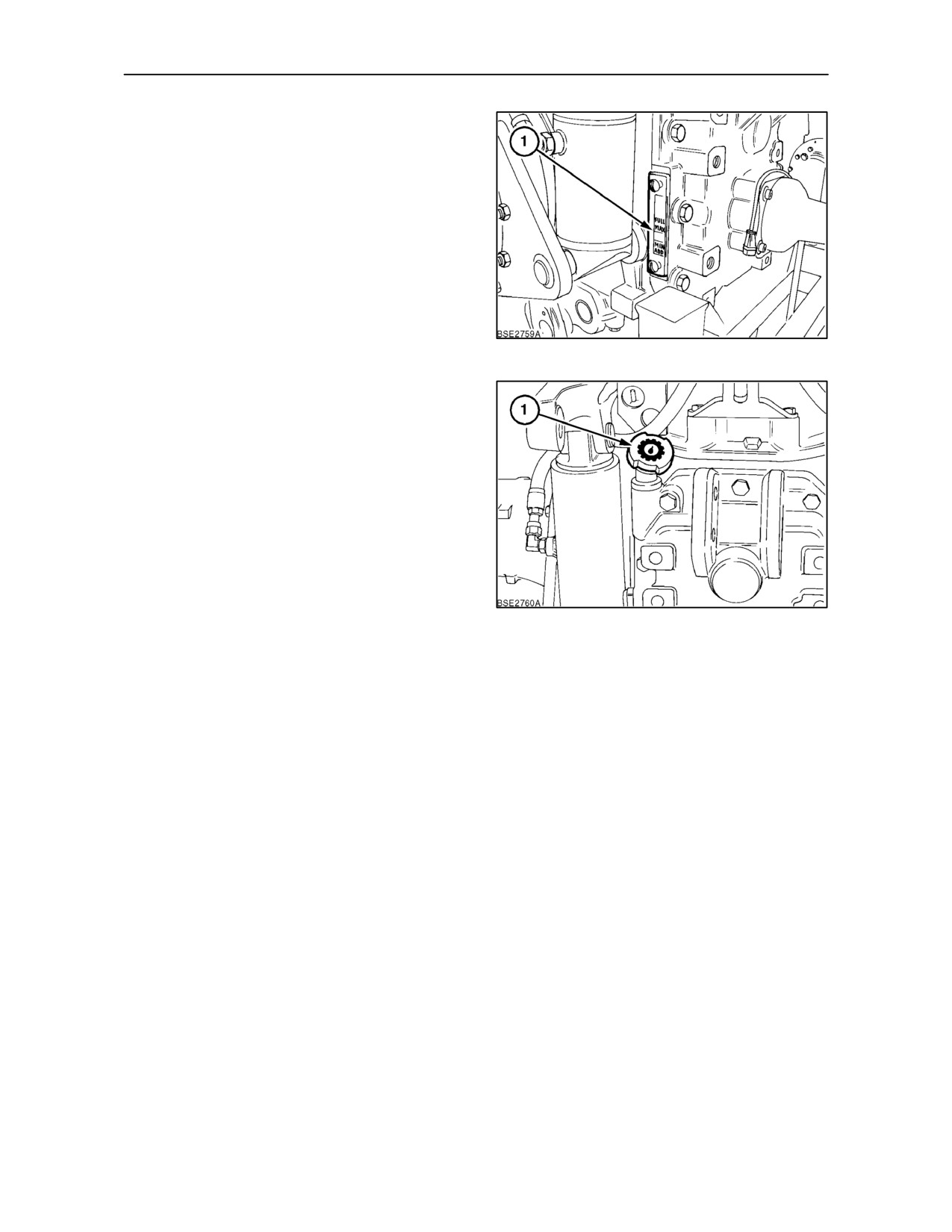

Remove the combined level/filler plug (1) and ensure

that the oil reaches the bottom of the opening. If

necessary, top up through the opening with clean oil

and replace the plug.

See page 4--9 for the correct oil specification.

4--30

SECTION 4 -- LUBRICATION AND MAINTENANCE

EVERY 600 HOURS carry out the

precedeing checks plus the following:

OPERATION 18

ENGINE OIL AND FILTER

IMPORTANT: Operation 18 depicts the normal 600

hour engine oil and filter change period. However,

the oil change period may be affected by other

factors:

Cold Temperature Operation

Engines operating in temperatures below -- 12 ° C

(10 ° F) or in arduous conditions should have the oil

changed every 300 hours of operation. (The oil filter

need only be changed at the normal 600 hour service

interval).

Tractor Usage

In the event your tractor accumulates less than 600

working hours annually, it is recommended the

engine oil and filter be changed every 12 months.

Diesel Fuel Sulphur Content

In some countries, locally available diesel may have

a high sulphur content, in which case the oil and filter

change period should be adjusted, as follows:

• Sulphur content between 0.5 and 1.0%

-- change engine oil every 300 hours.

• Sulphur content between 1.0 and 1.3%

-- change engine oil every 150 hours.

If in doubt, follow the engine oil and filter change

recomendations on the decal affixed to the underside

of the hood.

WARNING

Be very careful to avoid contact with hot engine oil.

If the engine oil is extremely hot, alllow it to cool to a

moerately warm temperature before proceeding.

Oil Capacity (including filter):

4 cylinder engines

10 litres (10.6 U.S qts.)

6 cylinder engines

15 litres (15.9 U.S qts.)

4--31

SECTION 4 -- LUBRICATION AND MAINTENANCE

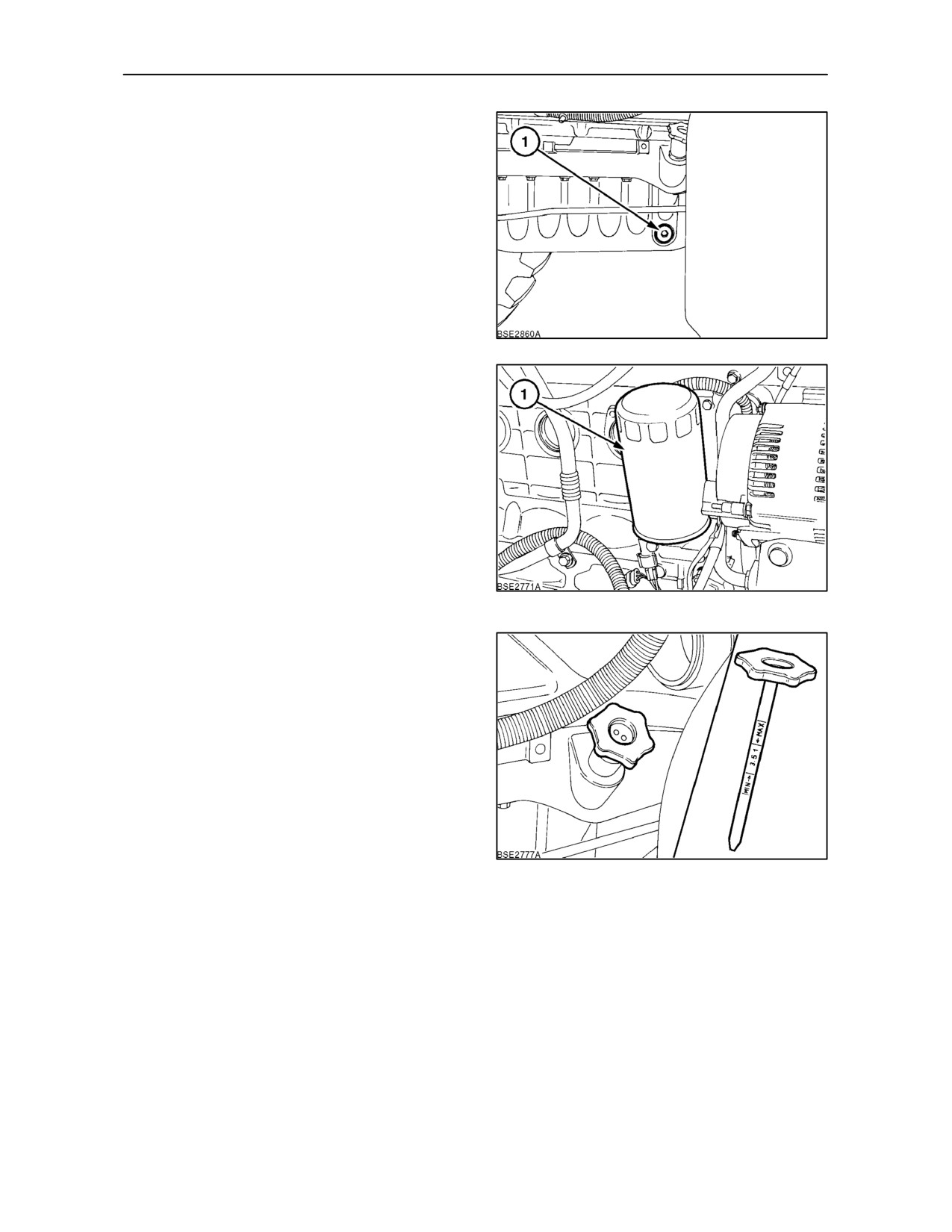

To change the oil and filter:

1. Warm the engine to operating temperature. Stop

the engine, remove the engine oil drain plugs (1)

which are located at the rear of the sump on

either side of the engine. Catch the oil in a

suitable container and dispose properly.

2. Replace the drain plugs after the oil has drained.

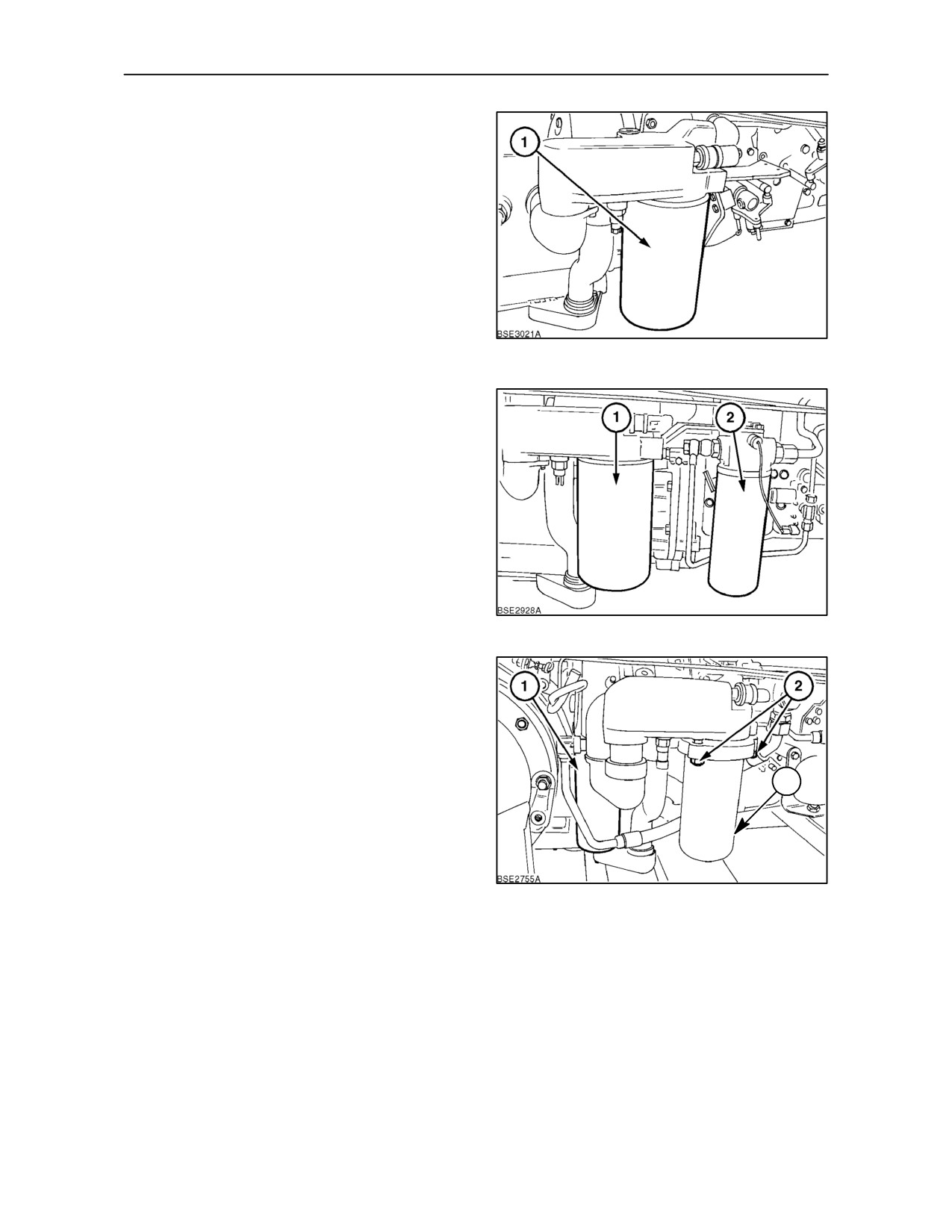

3. Clean the oil filter area. Unscrew the oil filter (1)

and discard. Catch any residual oil and dispose

of properly.

4. Clean the new filter mounting surface and apply

a thin coat of oil on the new filter sealing ring and

install the filter. Turn until the sealing ring

contacts the mounting surface, then tighten an

additional³/₄ to 1 full turn. Do not overtighten..

5. Remove Dipstick/Filler cap, Figure 64, and fill

with the correct amount of fresh oil as indicated

below. Ensure the oil is of the correct grade and

viscosity.

6. Start the engine and run for 3 minutes at idle

speed then stop the engine.

7. Check the drain plugs and oil filter areas for

leaks.

8. Wait 5 minutes to allow the oil to drain into the

crankcase, then check the oil level on the

dipstick. The oil level should fall between the

‘MIN’ and ‘MAX’ on the dipstick. Add more oil as

required.

NOTE: Do not fill above the ‘MAX’indicator on the

dipstick. Excess oil will burn off, creating smoke and

give a false impression of oil consumption. Do not

operate the engine with the oil level below the lower

notch.

9. Re--install the dipstick/filler cap.

See page 4--9 for the correct oil specification.

4--32

SECTION 4 -- LUBRICATION AND MAINTENANCE

OPERATION 19

CHANGE HYDRAULIC AND

TRANSMISSION OIL FILTERS

The type of filter is dependant upon tractor

specification. All the filters are located under the

right--hand side of the floor.

Clean the area around the hydraulic oil filters, then

unscrew and discard the filters.

Figure

65 shows the main hydraulic filter (1) for

tractors fitted with

Transmission with

mechanical draft control.

Figure 66 shows the main hydraulic filter for tractors

with fixed displacement hydraulic pump. this type of

pump is only fitted to tractors with 24 x 24 with

mechanical draft control.

The main filter (3) and the charge filter (1) Figure 67

are only installed on tractors with variable

displacement hydraulic pump.

1. Charge Filter

2. Main Filter Retaining Nuts

3. Main Intake Filter

4--33

SECTION 4 -- LUBRICATION AND MAINTENANCE

OPERATION 20

CHANGE THE ENGINE AIR

CLEANER OUTER ELEMENT

Remove the outer element as described in Operation

1 and discard it.

Clean the inside of the air cleaner housing using a

damp lint--free cloth on a probe, taking care not to

damage the inner element. Install a new outer

element.

OPERATION 21

CHECK ENGINE AIR

INTAKE CONNECTIONS

Working from both sides of the engine, check all

intake system connection clamps for tightness.

From the left--hand side of the engine, check the air

cleaner intake connections at points (1) and (2) and

the turbocharger to intercooler connections at points

(2) and (4). Do not overtighten.

From the right--hand side of the engine, check the

intercooler to inlet manifold connections at points (1)

and (2). Do not overtighten.

It is essential that the clean air side of the filtration

system is sealing correctly at the connections (1) and

(3).

From the right--hand side of the engine, check the

exhaust aspirator connections at points (1) and (2)

for proper sealing and the clamps for tightness.

4--34

SECTION 4 -- LUBRICATION AND MAINTENANCE

OPERATION 22

CHANGE FUEL PRE--FILTER AND

FUEL FILTER ELEMENTS

FUEL PRE--FILTER

IMPORTANT: Before loosening or disconnecting

any part of the fuel injection system, thoroughly clean

the area to be worked on to prevent contamination.

1. Remove the drain plug (1) at the base of the filter.

2. To allow full rotation of the drain plug ,remove the

sensor wire.

3. Open the drain plug on the sedimenter/filter by

loosening the knob . Allow the fuel to drain out.

Catch the fuel in a suitable container and dispose

of properly.

4. Unscrew and remove the filter from the filter head

and dispose of properly.

5. Install a new filter to the head assembly.

6. Before installing the new filter lightly coat the filter

gasket with oil.

7. Rotate the filter until the filter gasket is touching

the filter head. Then give the filter a further³/₄

turn to tighten to correct torque (15Nm). Do not

overtighten.

8. Remove and replace the fuel filter in the same

manner.

Procede to bleed the fuel system as follows:

To Bleed the Fuel System

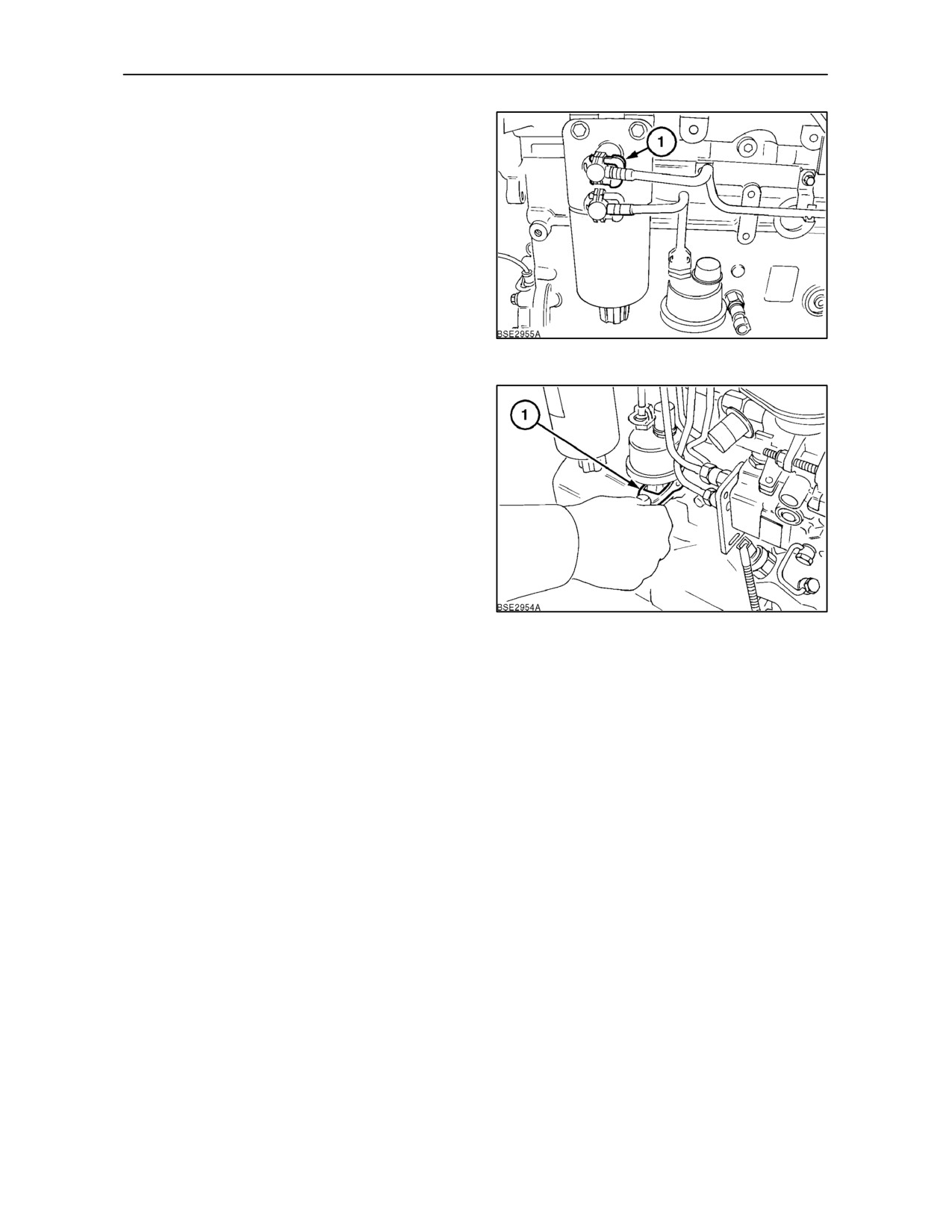

1. Press in the retaining clip (1) to release the pipe

from the filter head (4 cylinder engine shown).

4--35

SECTION 4 -- LUBRICATION AND MAINTENANCE

OPERATION 23

FOUR WHEEL DRIVE LUBRICATION

Front Axle

Remove the combined level/filler plug (1) and ensure

that the oil reaches the bottom of the opening. If

necessary, top up through the opening with clean oil

and replace the plug.

TI/54

Front hub

Position a front wheel with the oil level plug at the

3 o’clock position, as shown.

Remove the combined level/filler plug and ensure

that the oil reaches the bottom of the opening. If

necessary, top up through the opening with clean oil

and replace the plug

Repeat on the other front wheel.

See page 4--9 for correct oil specification.

4--37

SECTION 4 -- LUBRICATION AND MAINTENANCE

EVERY 1200 HOURS OR 12 MONTHS

(whichever occurs first) carry out the

preceding checks plus the following:

OPERATION 24

CHANGE CAB AIR FILTERS

External Filters

To remove an external filter, turn the quick release

fastener⁽²⁾ anti--clockwise to free the filter cover.

Remove the cover and the filter element (1). Dispose

of the filter elements properly.

Clean both filter chambers with a damp, lint--free

cloth.

Install new filter elements. A flow direction arrow is

moulded into the side of the filter. Install the filters

with the arrow pointing upwards. Re--install the

covers.

NOTE: The filters are made of specially treated

media with a rubber sealing strip bonded around the

sides. Take carenot to damage the element during

installation.

Internal Filter

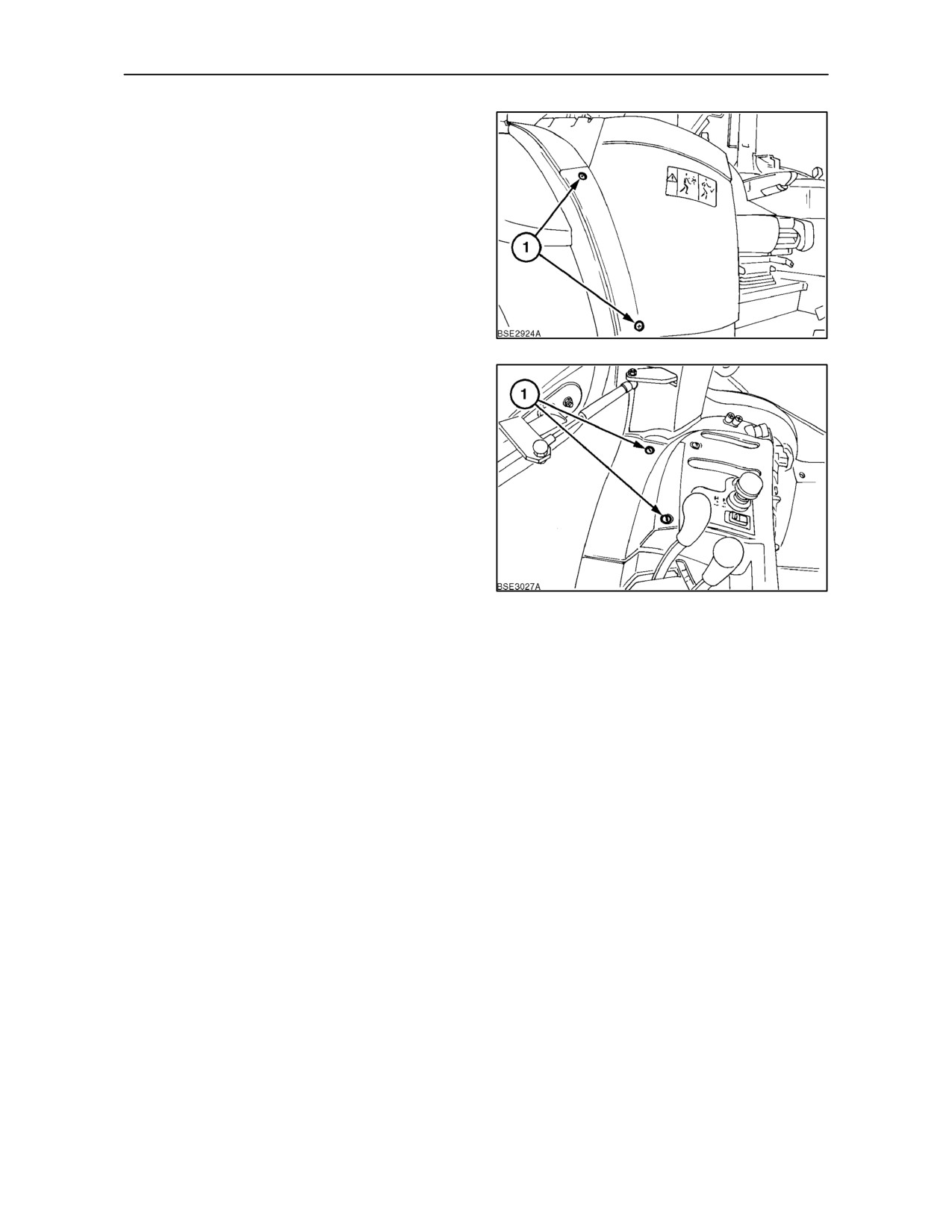

To remove the internal filter turn captive screws (1)

until the cover is loose.

Remove the filter cover and the filter element.

Dispose of the filter element properly.

Clean the filter chamber with a damp lint--free cloth.

Install the new filter element making sure that the

arrow on the filter points to the rear of the tractor.

Re--install the filter cover.

4--38

SECTION 4 -- LUBRICATION AND MAINTENANCE

OPERATION 25

CHANGE TRANSMISSION/REAR AXLE/

HYDRAULIC OIL AND FILTERS

Prior to changing the oil , run the engine and operate

the hydraulic system until the oil is warm. Park the

tractor on level ground, lower the three--point linkage

and stop the engine. Engage the parking brake and

chock the wheels on both sides.

WARNING

Be very careful to avoid contact with hot engine oil.

If the engine oil is extremely hot, alllow it to cool to a

moderately warm temperature before proceeding.

To change the oil:

1. Remove the drain plug

(1) Figure

82 and

completely drain all oil into a suitable container.

Dispose of oil properly.

2. Re--install the drain plug after the oil has drained.

IMPORTANT: Perform operation

(change

hydraulic and transmission filters) before refilling

with oil.

3. Remove the filler plug cap (1) figure 83 and refill

with new oil.

4. Run the engine and operate the hydraulic

system. Fully raise the three--point linkage.

5. Stop the engine and wait five minutes while

checking the system for leaks.

6. Check the oil level by means of the sight glass

(1) figure 84. Add oil as required until the oil level

is between the ‘MIN’ and ‘MAX’ marks.

NOTE: Do not fill above the full mark

See page 4--9 for the correct oil specification.

4--39

SECTION 4 -- LUBRICATION AND MAINTENANCE

Oil Capacity:

12 x 12 Light Duty Axle

58.0 litres

x 12

Heavy Duty Axle

65.0 litres

(15.3 U.S. gals)

(17.2 U.S. gals)

24 x 24 Light Duty Axle

58.5 litres

x 24

Heavy Duty Axle

65.5 litres

(15.4 U.S. gals)

(17.3 U.S. gals)

16 x 16 Light Duty Axle

55.0 litres

x 16

Heavy Duty Axle

62.0 litres

(14.5 U.S. gals)

(16.4

U.S. gals)

OPERATION 26

CHANGE 4WD DIFFERENTIAL OIL

Park the tractor on level ground and engage the park

brake.

To change the oil:

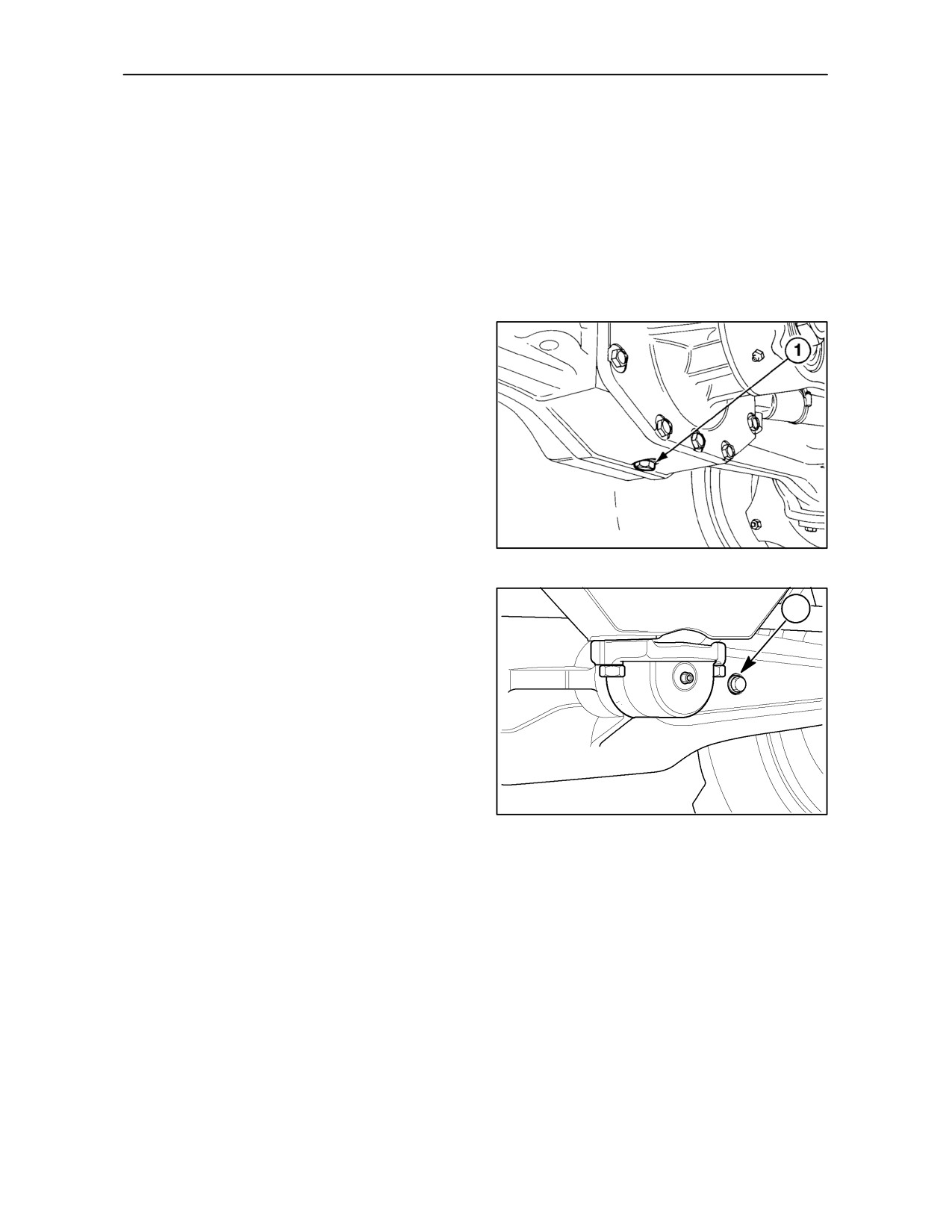

1. Remove the drain plug (1) and completely drain

oil into a suitable container. Dispose of the oil

properly.

2. Re--install the drain plug. Remove the level/filler

plug

3. Fill with new oil until it reaches the bottom of the

level/filler plug hole. Re--install level/filler plug.

See page 4--9 for the correct oil specification.

Oil Capacity:

All Axles

9.0 litres

(9.5 U.S. qts)

TI/54

4--40

SECTION 4 -- LUBRICATION AND MAINTENANCE

OPERATION 27

CHANGE 4WD PLANETARY HUB OIL

Park the tractor on level ground and engage the park

brake.

To change the oil:

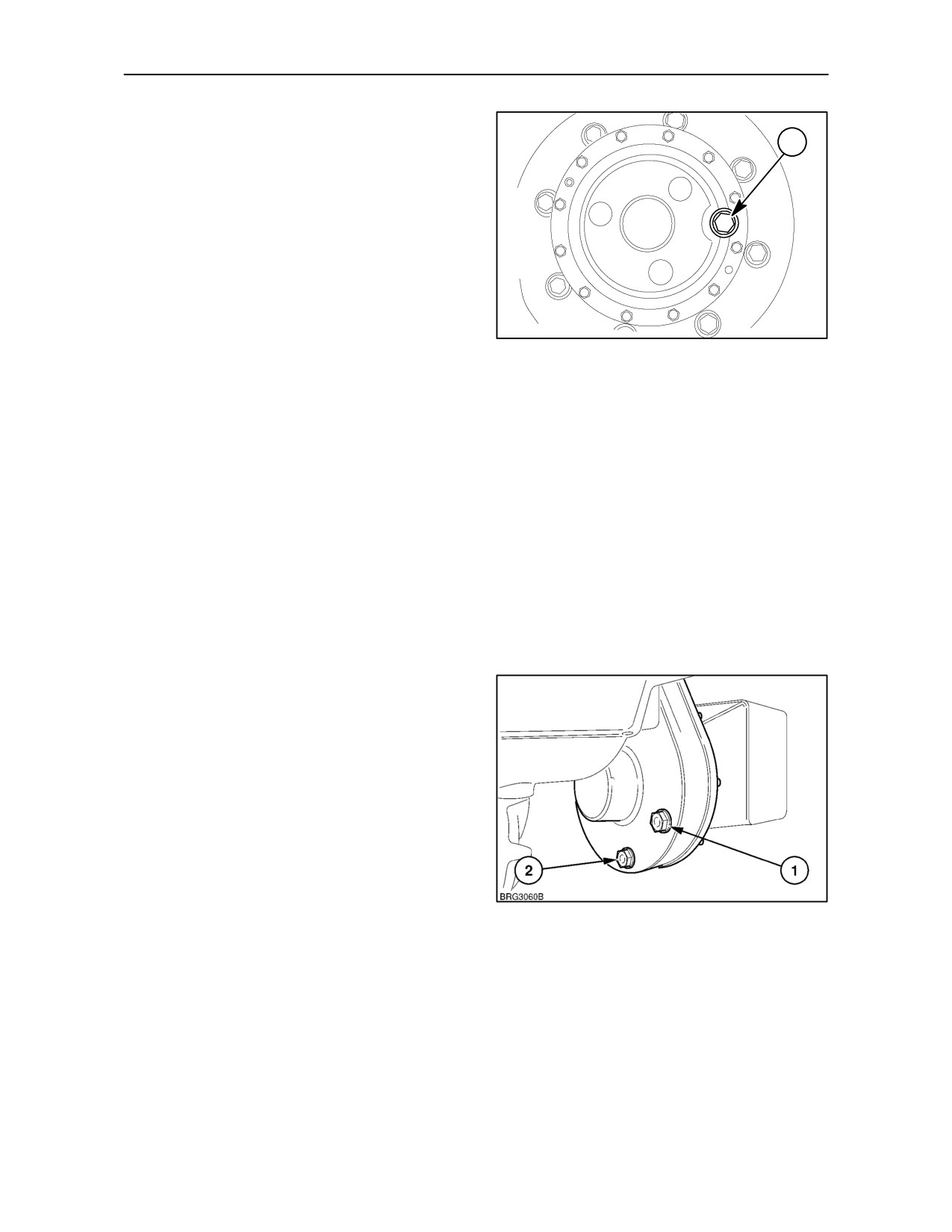

1. Positon the wheel so the filler/drain/level plug (1)

is at the lowest point . Remove the plug and

completely drain all oil into a suitable container.

Dispose of oil properly.

2. Rotate the wheel so that the combined level/filler

plug (1) is at the 3 o’clock position, as shown.

3. Refill the hub with new oil until it reaches the

bottom of the level/filler plug hole . Install the

plug.

4. Repeat the process on the other hub.

See page 4--9 for the correct oil specification.

Oil Capacity (each hub):

All axles without brakes

1.5 litres

(1.3 U.S. qts)

Standard and Suspended axles

3.0 litres

with brakes

(3.2 U.S. qts)

OPERATION 28

CHANGE FRONT P.T.O. GEARBOX OIL

Park the tractor on level ground and engage the park

brake.

1. Place a suitable container below the gearbox and

remove the level plug (1) and drain plug (2). Allow

the oil to completely drain into the container and

replace the plug (2). Dispose of oil properly.

2. Refill the gearbox through the combined

level/filler plug until the oil reaches the bottom of

the opening.

The oil quantity to refill the gearbox is approximately

400 ml. (13.5 U.S. oz.).

See page 4--9 for the correct oil specification.

4--41

SECTION 4 -- LUBRICATION AND MAINTENANCE

OPERATION 29

BATTERY

IMPORTANT: This operation applies only to

batteries on tractors operating in temperate climates.

Tractors operating in tropical climates should have

the battery electrolyte level checked every

300

hours. See operation 13.

To gain access to the battery, raise the right hand

step as shown earlier in this section, using the

securing pin (1) Figure

89 to retain the step in an

upright position.

Remove the battery cover by turning the retaining

screw (2) 90 degrees anti--clockwise.

Remove the securing bolt and nut (1), and swing the

battery tray towards the front of the tractor.

Unscrew and remove the six vent plugs from the top

of the battery (tractors with heavy duty battery only).

Check that the electrolyte level is above the top of the

separator plates in each cell.

If necessary top up with distilled or de-mineralised

water until the level is correct. Do not overfill. Never

use tap water or water from a rain barrel or other

source.

To prevent the formation of verdigris (corrosion) the

terminals should be cleaned and lightly coated with

petroleum jelly (Vaseline or similar).

IMPORTANT: In the event of the battery being

severly discharged, such that the terminal voltage is

below 7 volts, recovery will require a special charging

procedure. See your authorised dealer.

4--42

New Holland T6010, T6020, T6030, T6050, T6070 Delta and Plus Tractors. Operator's Manual - page 8
