New Holland Tractor Workmaster 50 / Workmaster 60 / Workmaster 70 / Tier 4B (final). SERVICE MANUAL - page 15
Electrical systems - Harnesses and connectors
X-019 - SWITCH LAMP H/E [ S-007] (84131048) (Female)
84131048
9
84131048
Pin
From
Wire
Description
Color-Size
Frame
1
SP-059-P-X
134
134
BL/BK - 0.75
SHEET 07
2
SP-006-P-X
005G
005G
BK - 0.75
55.4 [55.100] / 41

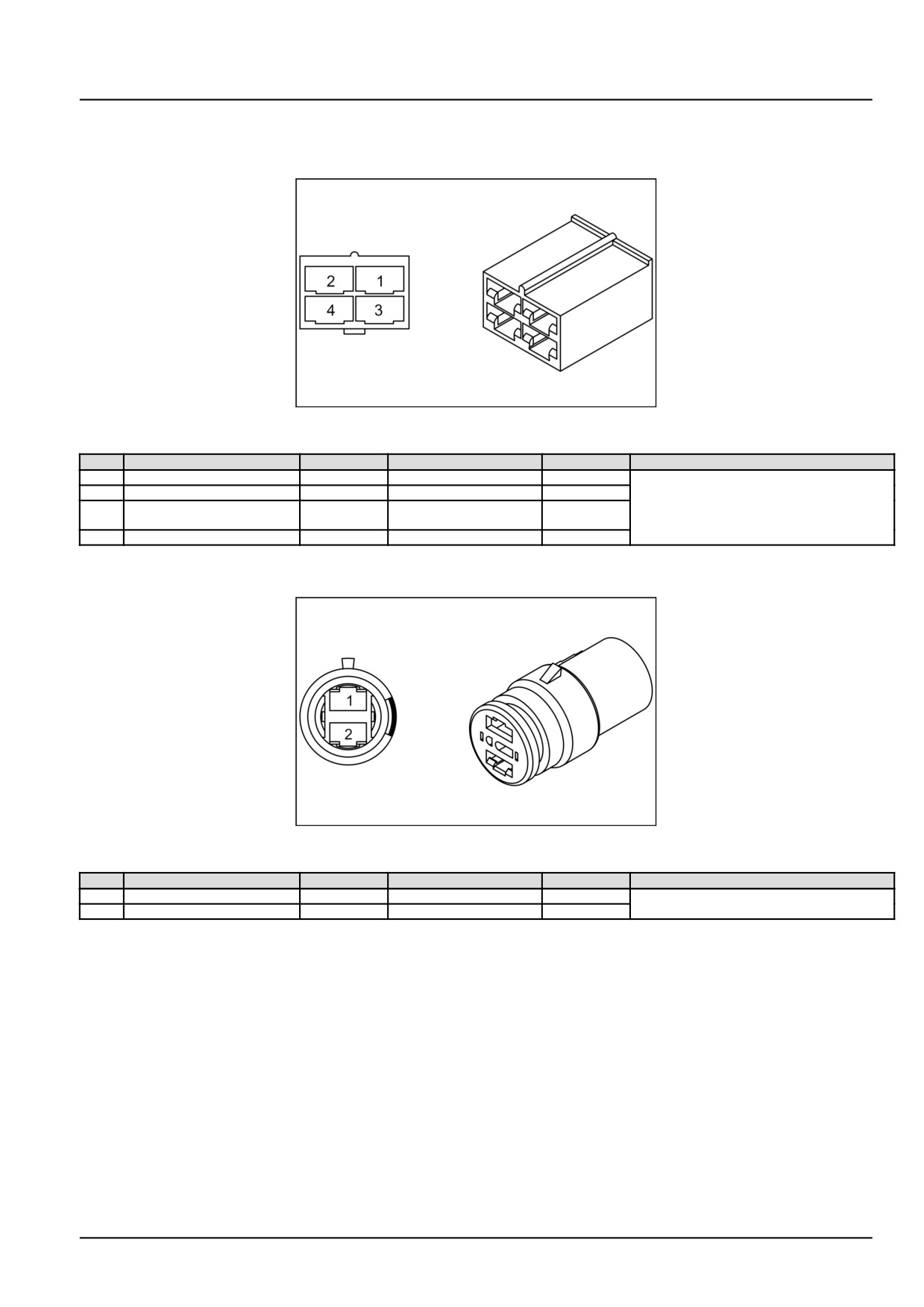

Electrical systems - Harnesses and connectors
Wire connectors - Component diagram 02
X-020 - UP/DOWN SWITCH [ S-008] (87745329) (Female)
87745329
1
87745329
Pin
From
Wire
Description
Color-Size
Frame
1
X-050 (Female) pin 22
040
NAVIGATION SW DWN
PK/BK - 0.75
SHEET 07
INSTRUMENT CLUSTER
CN-1
2
SP-006-P-X
005H
005H
BK - 0.75
3
SP-006-P-X
005K
005K
BK - 0.75
4
X-050 (Female) pin 23
041
NAVIGATION SW UP
BL/BK - 0.75
INSTRUMENT CLUSTER
CN-1

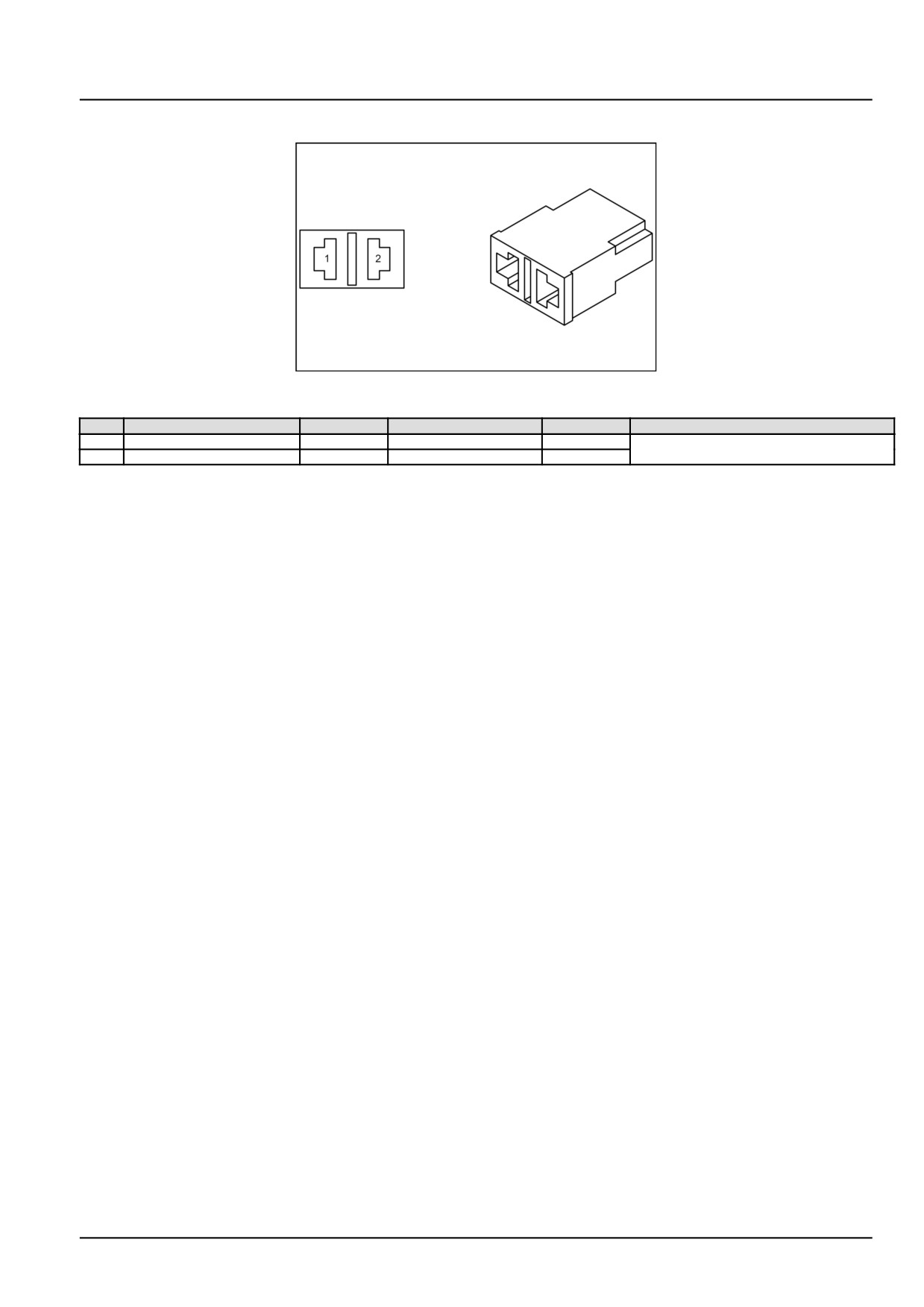

X-021 - SWITCH LAMP U/D [ S-008] (84131048) (Female)
84131048
2
84131048
Pin
From
Wire
Description
Color-Size
Frame
1
SP-059-P-X
133
133
BL/BK - 0.75
SHEET 07
2
SP-006-P-X
005J
005J
BK - 0.75
55.4 [55.100] / 42
Electrical systems - Harnesses and connectors
X-022 - FOOT THROTTLE (87694109) (Female)
87694109
3
87694109
Pin
From
Wire
Description
Color-Size
Frame
1
X-402A-P-8
127
FOOT THROTTLE
PK - 1.0
SHEET 07
2
X-402A-P-7
141
FOOT THROTTLE
BK - 1.0
3
X-402A-P-9
137
FOOT THROTTLE
GY/BL - 1.0
5
X-402A-P-6
143
FOOT THROTTLE
YE/GN - 1.0
6
X-402A-P-5
132
FOOT THROTTLE
YE - 1.0
X-023 - HAND THROTTLE (87694694) (Male)
87694694
4
87694694
Pin
From
Wire
Description
Color-Size
Frame
2
X-050 (Female) pin 8
130
HAND THROTTLE
YE - 0.75
SHEET 07
INSTRUMENT CLUSTER
CN-1
3
X-050 (Female) pin 12
129
HAND THROTTLE SENS
BK - 0.75
INSTRUMENT CLUSTER
GROUND
CN-1
4
X-051 pin 14 INSTRUMENT
128
HAND THROTTLE PWR
PK - 0.75
CLUSTER CN-2
55.4 [55.100] / 43
Electrical systems - Harnesses and connectors
X-025 - CLUTCH SWITCH (84182898) (Female)
84182898
5
84182898
Pin
From
Wire
Description
Color-Size
Frame
1
X-502 (Female) pin 3 PTO
052
052
GN/BK - 0.75
SHEET 09
SWITCH
2
X-402A-P-4
093
093
YE - 0.75
X-026 - SENSOR WATER IN FUEL (87709663) (Female)
87709663
6
87709663
Pin
From
Wire
Description
Color-Size
Frame
1
X-201 (Female) pin 88 ECU
044
044
YE - 0.75
SHEET 08
VEHICLE
3
SP-018-P-X
009H
009H
BK - 0.75
X-027 - PRE HEATER (84146680) (Male)
84146680
7
84146680
55.4 [55.100] / 44
Electrical systems - Harnesses and connectors
X-028 - FRONT LOADER (82012083) (Female)
82012083
8
82012083
Pin
From
Wire
Description
Color-Size
Frame
1
F-002-Female-P-33 GEP -
113
113
OR/GN - 1.0
SHEET 02
FUSE BOX
2
SP-009-P-X
009X
009X
BK - 1.0
55.4 [55.100] / 45
Electrical systems - Harnesses and connectors
Wire connectors - Component diagram 05

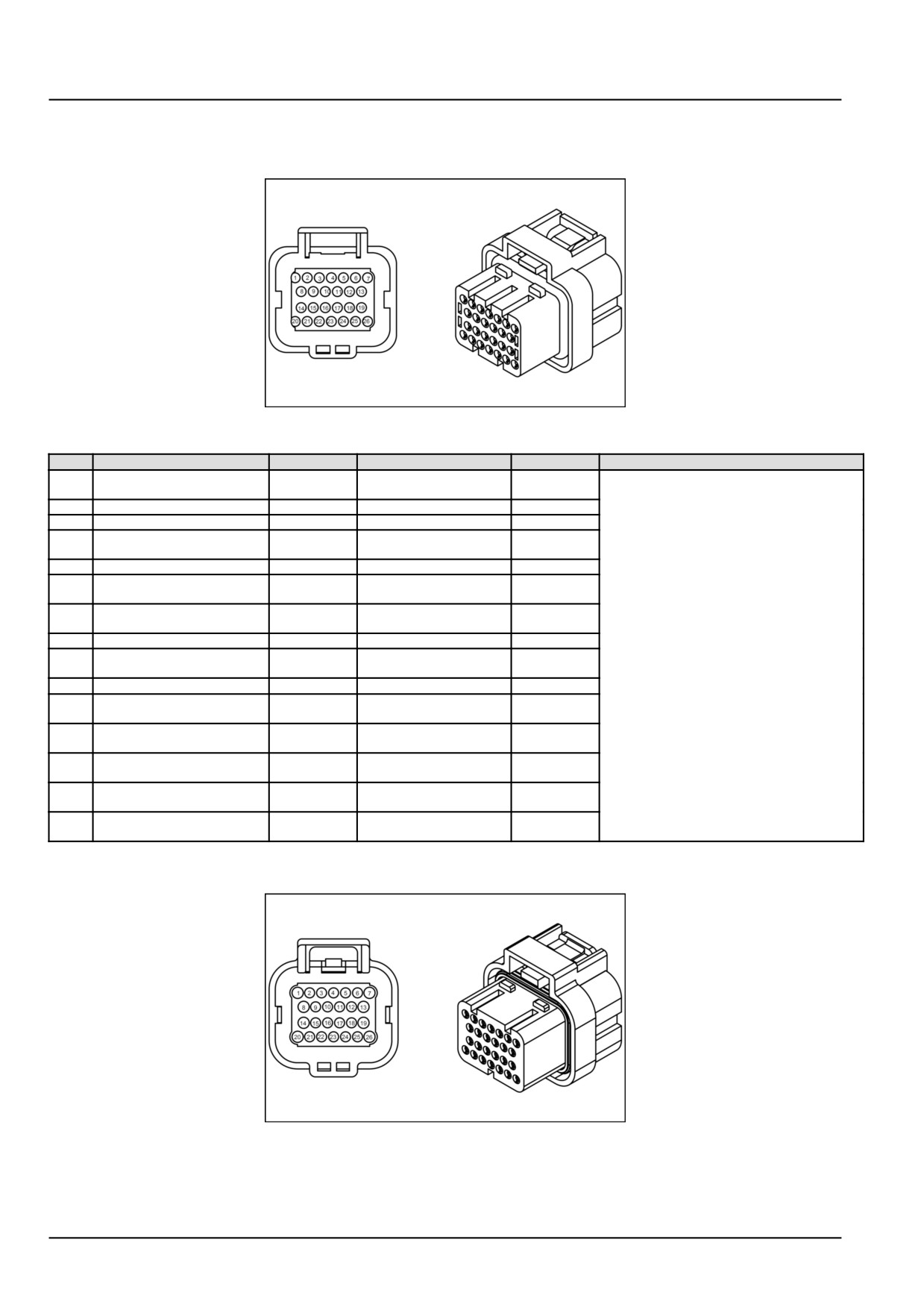

X-050 - INSTRUMENT CLUSTER CN-1 (82028493) (Female)
82028493
1
82028493
Pin
From
Wire
Description
Color-Size
Frame
2
X-507 (Female) pin 2 FUEL
042
FUEL SENDER UNIT
BL - 0.75
SHEET 07
SENDER UNIT
3
SP-015-P-X
015
CAN HIGH
YE - 0.75
4
SP-016-P-X
016
CAN LOW
GN - 0.75
5
X-402B pin 9 MAIN-FENDER
138
138
GY/BL - 1.0
INTERCONNECT
6
SP-140-P-X
140C
SENSOR GND
BK - 1.0
7
X-402B pin 6 MAIN-FENDER
142
142
YE/GN - 1.0
INTERCONNECT
8
X-023 (Male) pin 2 HAND
130
HAND THROTTLE
YE - 0.75
THROTTLE
9
SP-136-P-X
136B
136B
PK/WH - 0.5
12
X-023 (Male) pin 3 HAND
129
HAND THROTTLE SENS
BK - 0.75
THROTTLE
GROUND
17
X-011 pin 5 TURN FLASHER
118
118
LG/BL - 0.5
20
X-018 (Female) pin 1 HOME
038
NAVIGATION SW ENTER
YE/GN - 0.75
ENTER SWITCH
21
X-018 (Female) pin 4 HOME
039
NAVIGATION SW HOME
YE/BL - 0.75
ENTER SWITCH
22
X-020 (Female) pin 1
040
NAVIGATION SW DWN
PK/BK - 0.75
UP/DOWN SWITCH
23
X-020 (Female) pin 4
041
NAVIGATION SW UP
BL/BK - 0.75
UP/DOWN SWITCH
25
X-702A pin 5 TO
020
SERVICE SWITCH
BK/WH - 1.0
DIAGONESTIC SOCKET
X-051 - INSTRUMENT CLUSTER CN-2 (82016219) (Female)
82016219
2
82016219
55.4 [55.100] / 46

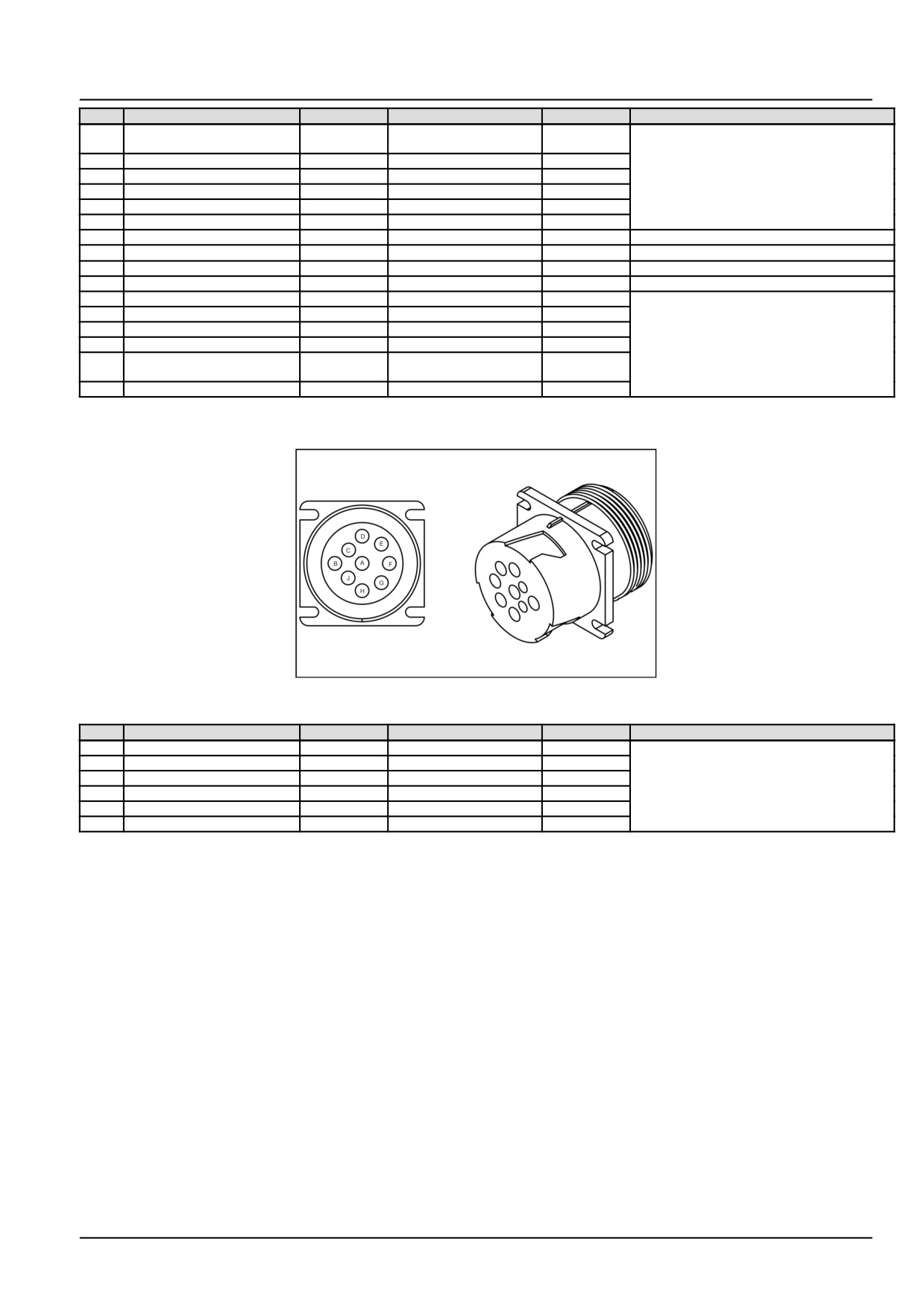

Electrical systems - Harnesses and connectors
Pin
From
Wire
Description
Color-Size
Frame
1
X-402B pin 8 MAIN-FENDER
126
126
PK - 1.0
SHEET 07
INTERCONNECT
3
X-404A-P-18
045
AIR CLOG
BL/RD - 0.5
6
SP-060-P-X
060B
HIGH BEAM
BL/YE - 0.75
8
SP-124-P-X
124
PARKING BRAKE
YE/BK - 0.5
9
SP-119-P-X
119B
INDICATOR TURN LEFT
LG - 0.5
10
SP-121-P-X
121B
INDICATOR TURN RIGHT
YE - 0.5
13
X-404A-P-9
006
D+ BATTERY
BR - 0.5
SHEET 03
14
X-023 pin 4 HAND THROTTLE
128
HAND THROTTLE PWR
PK - 0.75
SHEET 07
15
SP-005-P-X
005C
GND ADIC
BK - 1.0
SHEET 05
17
X-404A-P-10
088
088
PK - 0.75
SHEET 03
19
SP-058-P-X
058B
SIDE LIGHTS
BL/BK - 0.75
SHEET 07
20
SP-027-P-X
027
027
RD/GN - 1.0
21
SP-131-P-X
131B
131B
OR - 1.0
23
SP-090-P-X
090B
WORK LAMP
VT - 0.75
24
X-402B pin 11 MAIN-FENDER
192
PTO SPEED SENSOR
R-B - 1.0
INTERCONNECT
26
SP-049-P-X
049B
NEUTRAL SAFETY ADIC
RD/GN - 0.75
X-053 - DIAGONESTIC SOCKET (87516075) (Male)
87516075
3
87516075
Pin
From
Wire
Description
Color-Size
Frame
A
X-702B-Female-P-1
701
701
BK - 1.0
SHEET 12
B
X-702B-Female-P-2
702
702
RD - 1.0
C
X-702B-Female-P-3
703
703
YE - 0.75
D
X-702B-Female-P-4
704
704
GN - 0.75
G
X-702B-Female-P-5
705
705
BK/WH - 1.0
H
X-702B-Female-P-6
706
706
GY - 0.75
55.4 [55.100] / 47

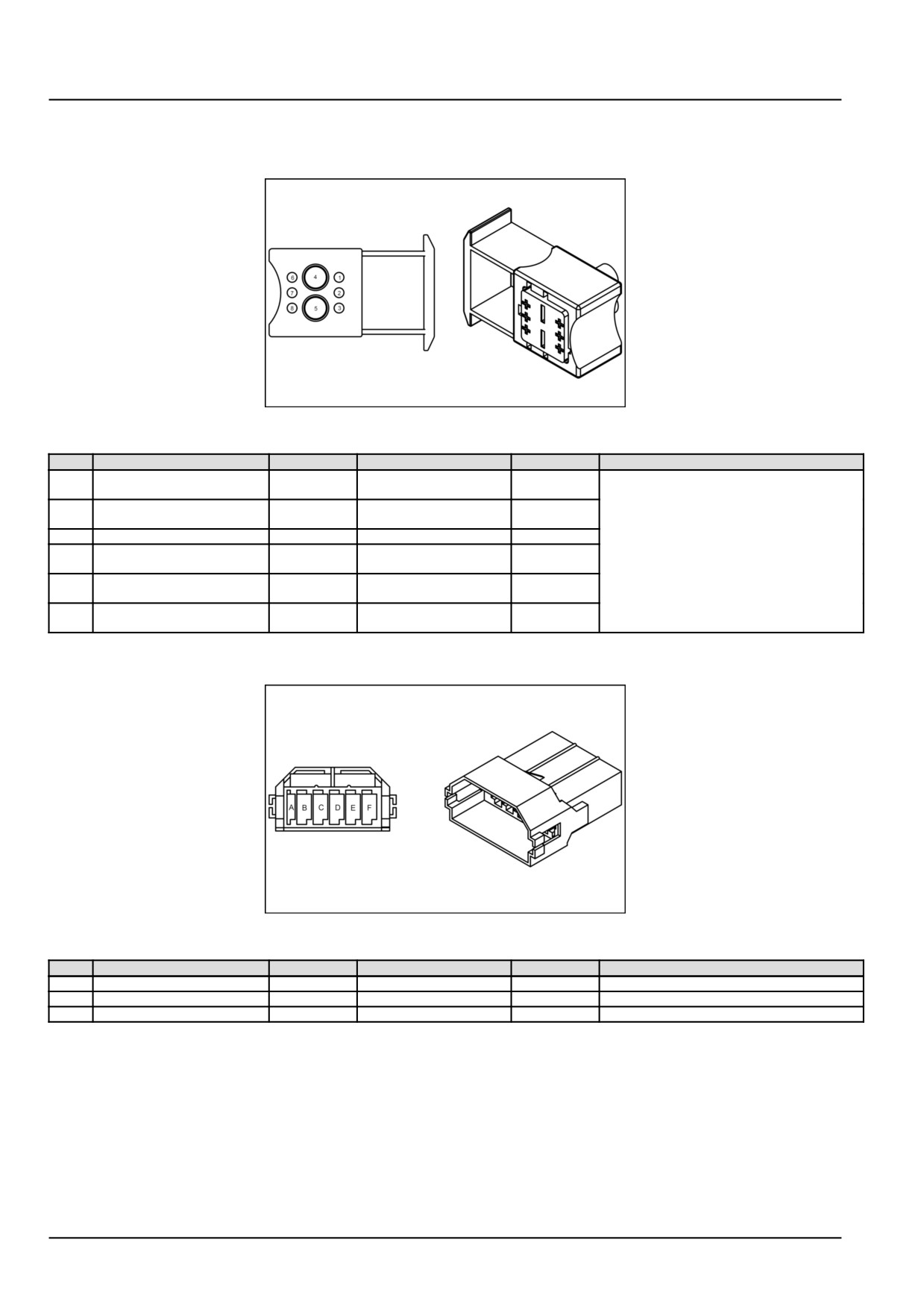

Electrical systems - Harnesses and connectors
Wire connectors - Component diagram 10

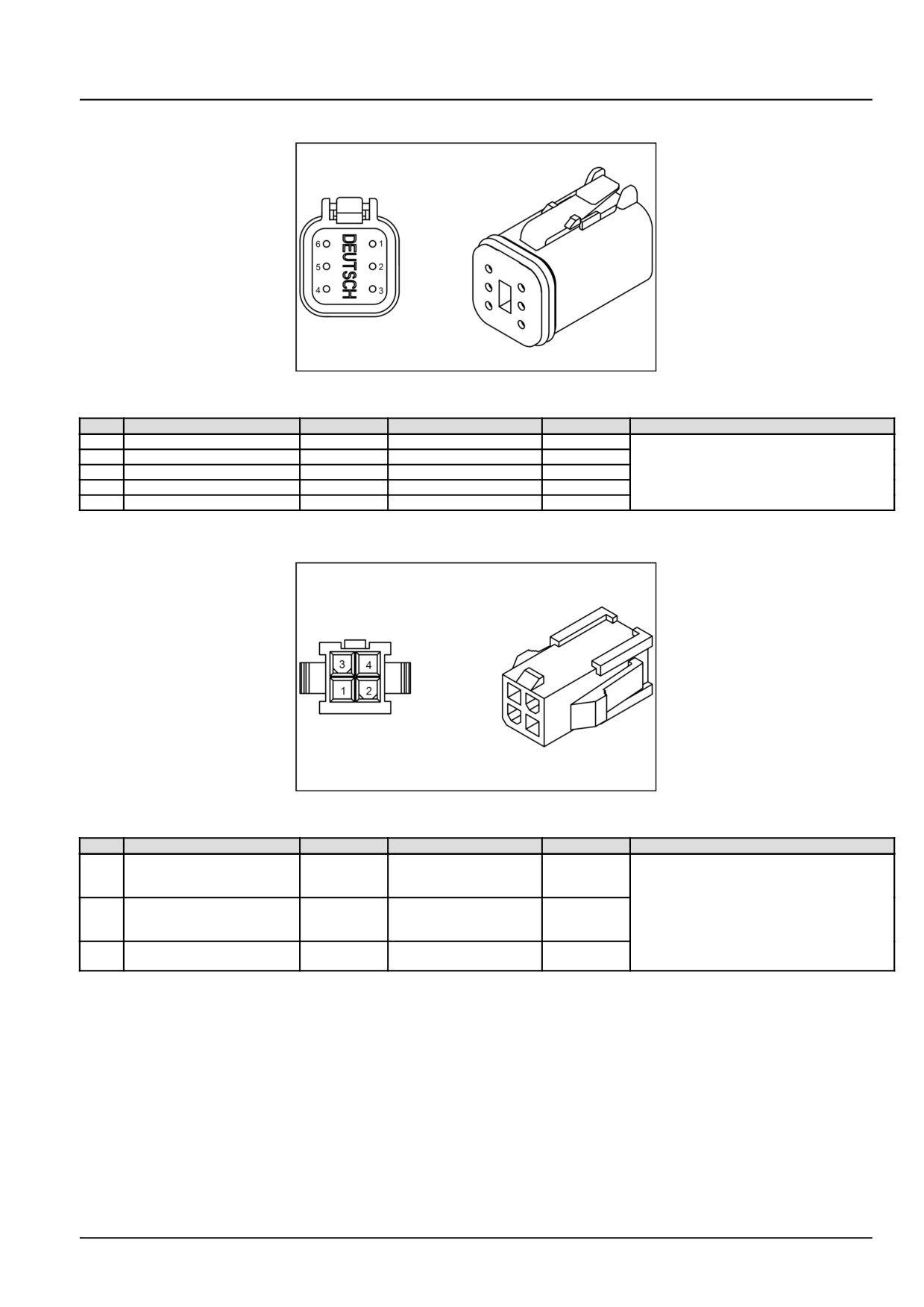

X-101 - GCU (84356962) (Female)
84356962
1
84356962
Pin
From
Wire
Description
Color-Size
Frame
1
X-207 (Female) pin C TO
149
149
RD/GN - 1.5
SHEET 08
ENGINE GLOW PLUGS
3
X-201 (Female) pin 22 ECU
151
151
BR - 0.75
VEHICLE
4
SP-007-P-X
007L
007L
RD - 6.0
5
X-201 (Female) pin 41 ECU
152
152
BK - 3.0
VEHICLE
7
X-207 (Female) pin B TO
153
153
GN - 1.5
ENGINE GLOW PLUGS
8
X-201 (Female) pin 52 ECU
154
154
GN - 0.75
VEHICLE
X-105 - OPRATOR SAFETY MODULE (84479170) (Female)
84479170
2
84479170
Pin
From
Wire
Description
Color-Size
Frame
B
X-406A-P-8
064
064
BL - 0.75
SHEET 07
C
SP-005-P-X
005L
005L
BK - 0.75
SHEET 05
E
SP-124-P-X
124B
124B
YE/BK - 0.75
SHEET 07
55.4 [55.100] / 48
Electrical systems - Harnesses and connectors
Wire connectors - Component diagram 20

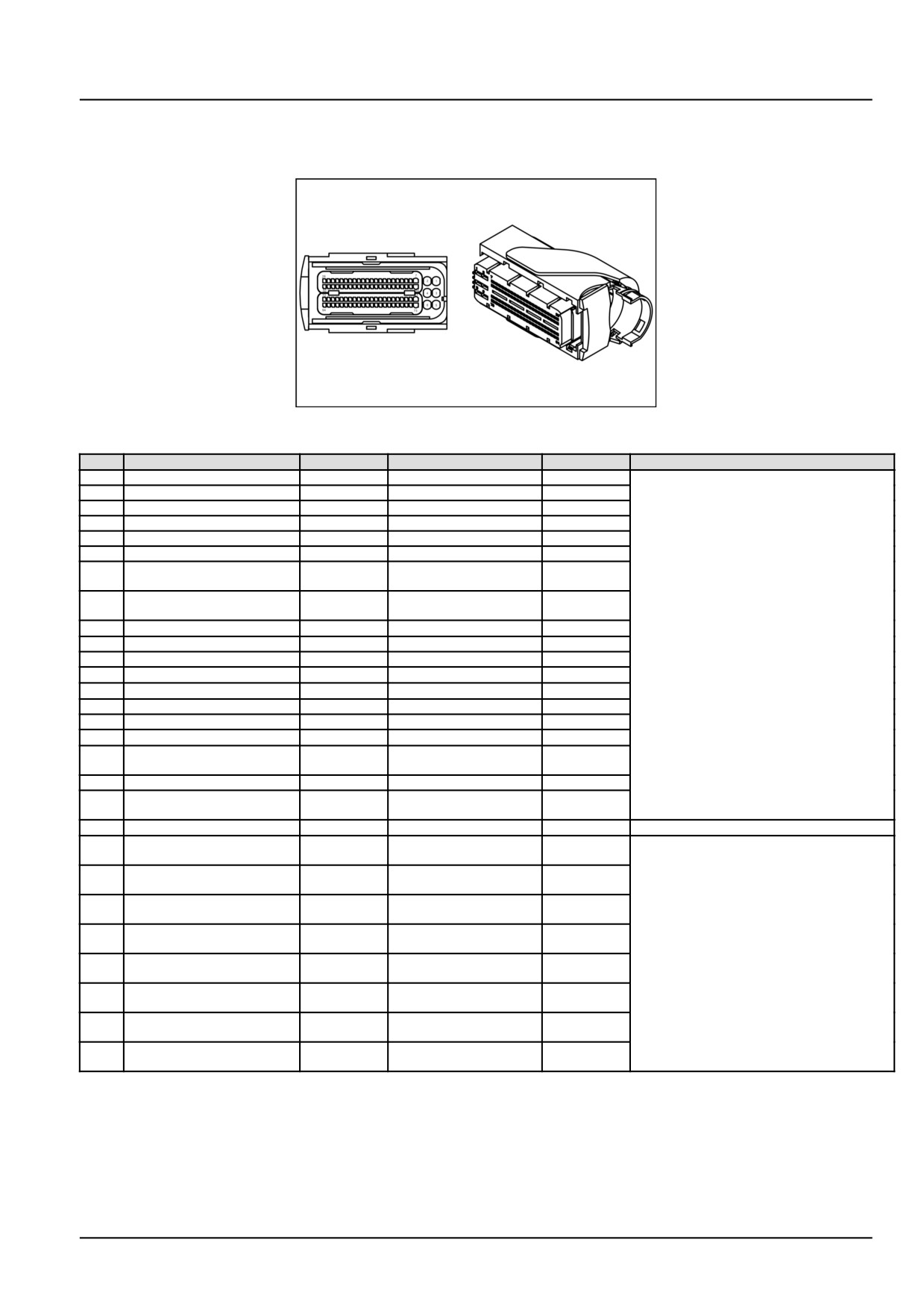

X-201 - ECU VEHICLE (87745798) (Female)
87745798
1
87745798
Pin
From
Wire
Description
Color-Size
Frame
1
F-002-P-6 GEP - FUSE BOX
013
013
OR/BL - 2.5
SHEET 08
2
SP-018-P-X
011
011
BK - 2.5
3
SP-012-P-X
012A
012A
OR/BL - 2.5
4
SP-018-P-X
011A
011A
BK - 2.5
5
SP-012-P-X
012B
012B
OR/BL - 2.5
6
SP-018-P-X
011B
011B
BK - 2.5
7
X-212 (Female) pin 3 LAMBDA
146
146
GN - 1.0
SENSOR
8
X-406B pin 2 TO MAIN
078
078
YE - 0.75
HARNESS
22
X-101 (Female) pin 3 GCU
151
151
BR - 0.75
24
SP-002-P-X
015D
CAN HIGH
YE - 0.75
25
SP-001-P-X
016D
CAN LOW
GN - 0.75
28
X-006 pin 85 ECU RELAY
048
ECU GND SIGNAL
BL - 0.75
41
X-101 (Female) pin 5 GCU
152
152
BK - 3.0
46
SP-002-P-X
015E
CAN HIGH
YE - 0.75
47
SP-001-P-X
016E
CAN LOW
GN - 0.75
52
X-101 (Female) pin 8 GCU
154
154
GN - 0.75
53
F-002-Female-P-48 GEP -
186
STARTER HIGH
YE - 0.75
FUSE BOX
54
SP-085-P-X
085B
085B
YE/RD - 0.75
55
X-406B pin 5 TO MAIN
197
197
YE/RD - 0.75
HARNESS
62
X-001 pin 40
046
046
BL - 0.75
SHEET 04
63
X-212 (Female) pin 6 LAMBDA
148
148
PK - 0.75
SHEET 08
SENSOR
64
X-212 (Female) pin 1 LAMBDA
144
144
OR - 0.75
SENSOR
77
X-406B pin 6 TO MAIN
185
185
YE/GN - 0.75
HARNESS
80
X-214 (Female) pin 1 INLET
173
173
BL/BK - 0.75
DOC TEMP SENSOR
83
X-215 (Female) pin 2 OUTLET
182
182
GN/WH - 0.75
POC TEMP SENSOR
85
X-212 (Female) pin 2 LAMBDA
145
145
GN - 0.75
SENSOR
86
X-212 (Female) pin 5 LAMBDA
147
147
YE - 0.75
SENSOR
88
X-026 (Female) pin 1
044
044
YE - 0.75
SENSOR WATER IN FUEL
55.4 [55.100] / 49

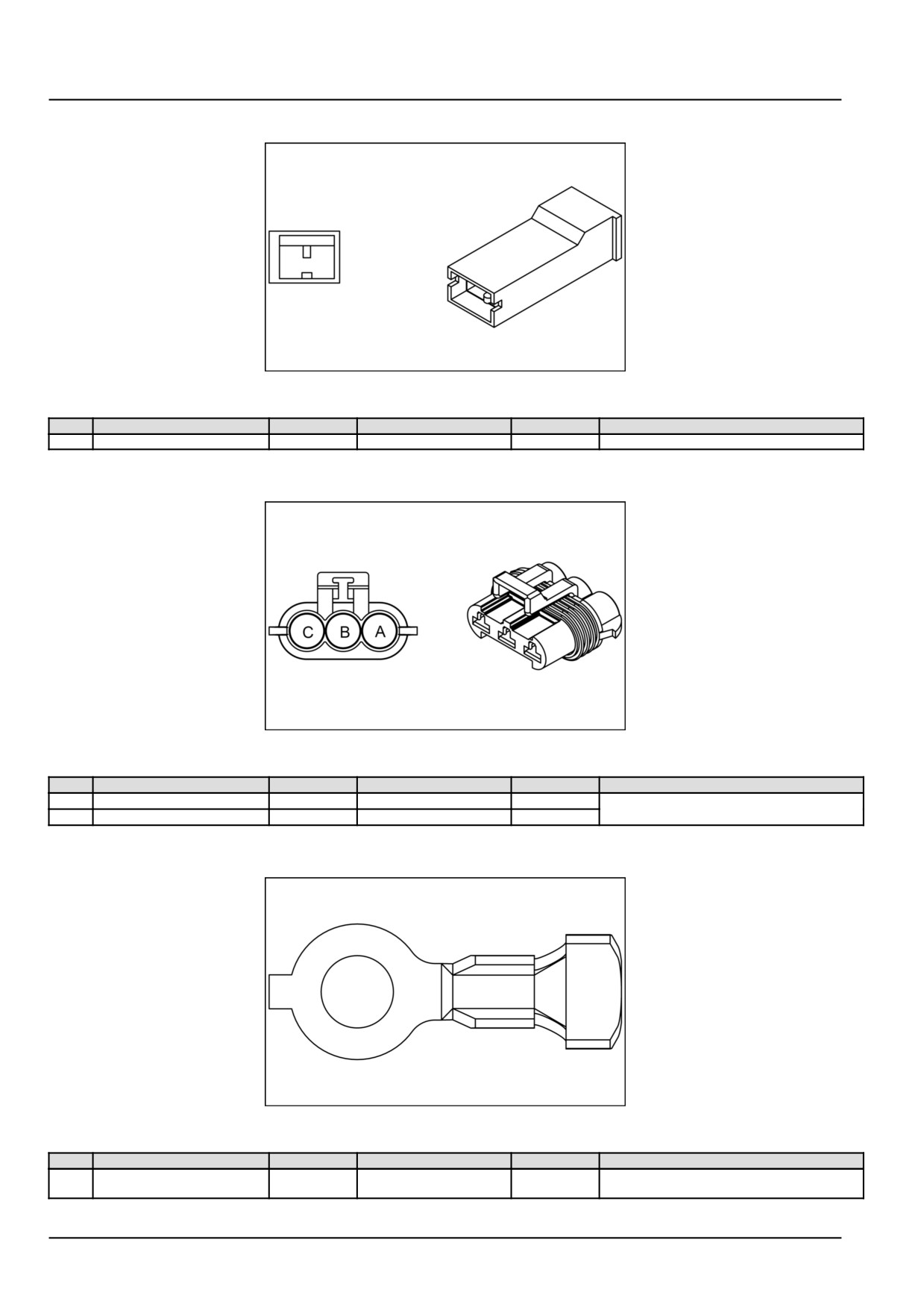

Electrical systems - Harnesses and connectors
X-206 - TO STARTER MOTOR [ M-001] (87581782) (Female)
87581782
2
87581782
Pin
From
Wire
Description
Color-Size
Frame
1
SP-004-P-X
004B
004B
PK - 2.5
SHEET 03
X-207 - TO ENGINE GLOW PLUGS (87693326) (Female)
87693326
3
87693326
Pin
From
Wire
Description
Color-Size
Frame
B
X-101 (Female) pin 7 GCU
153
153
GN - 1.5
SHEET 08
C
X-101 (Female) pin 1 GCU
149
149
RD/GN - 1.5
X-209 - ALTERNATOR D+ [ G-002] (84477008) (Male)
84477008
4
84477008
Pin
From
Wire
Description
Color-Size
Frame
1
X-404B pin 9 MAIN-ENGINE
087
087
BR - 0.5
SHEET 03
INTERCONNECT
55.4 [55.100] / 50
Electrical systems - Harnesses and connectors
Wire connectors - Component diagram 21

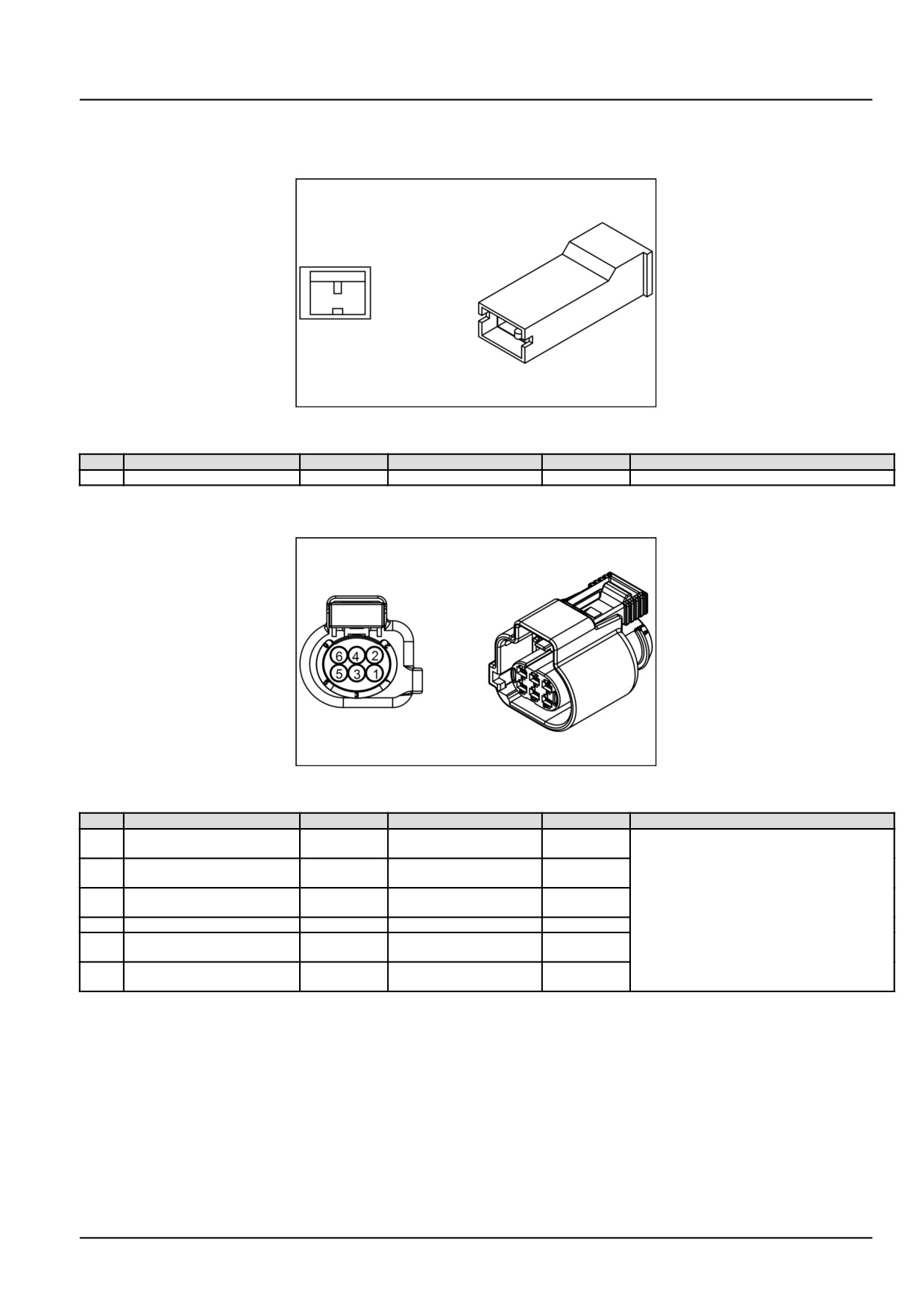

X-211 - AIR CLOG SWITCH (87581782) (Female)
87581782
1
87581782
Pin
From
Wire
Description
Color-Size
Frame
1
SP-009-P-X
009J
009J
BK - 0.5
SHEET 05
X-212 - LAMBDA SENSOR (84301132) (Female)
84301132
2
84301132
Pin
From
Wire
Description
Color-Size
Frame
1
X-201 (Female) pin 64 ECU
144
144
OR - 0.75
SHEET 08
VEHICLE
2
X-201 (Female) pin 85 ECU
145
145
GN - 0.75
VEHICLE
3
X-201 (Female) pin 7 ECU
146
146
GN - 1.0
VEHICLE
4
F-002-P-7 GEP - FUSE BOX
014
014
RD/GN - 1.0
5
X-201 (Female) pin 86 ECU
147
147
YE - 0.75
VEHICLE
6
X-201 (Female) pin 63 ECU
148
148
PK - 0.75
VEHICLE
55.4 [55.100] / 51
Electrical systems - Harnesses and connectors
X-213 - AIR CLOG SWITCH (87581782) (Female)
87581782
3
87581782
Pin
From
Wire
Description
Color-Size
Frame
1
X-404B pin 18 MAIN-ENGINE
123
AIR CLOG SENSOR
BL/RD - 0.5
SHEET 07
INTERCONNECT
X-214 - INLET DOC TEMP SENSOR (87709793) (Female)
87709793
4
87709793
Pin
From
Wire
Description
Color-Size
Frame
1
X-201 (Female) pin 80 ECU
173
173
BL/BK - 0.75
SHEET 08
VEHICLE
X-215 - OUTLET POC TEMP SENSOR (87709793) (Female)
87709793
5
87709793
Pin
From
Wire
Description
Color-Size
Frame
2
X-201 (Female) pin 83 ECU
182
182
GN/WH - 0.75
SHEET 08
VEHICLE
55.4 [55.100] / 52
Electrical systems - Harnesses and connectors

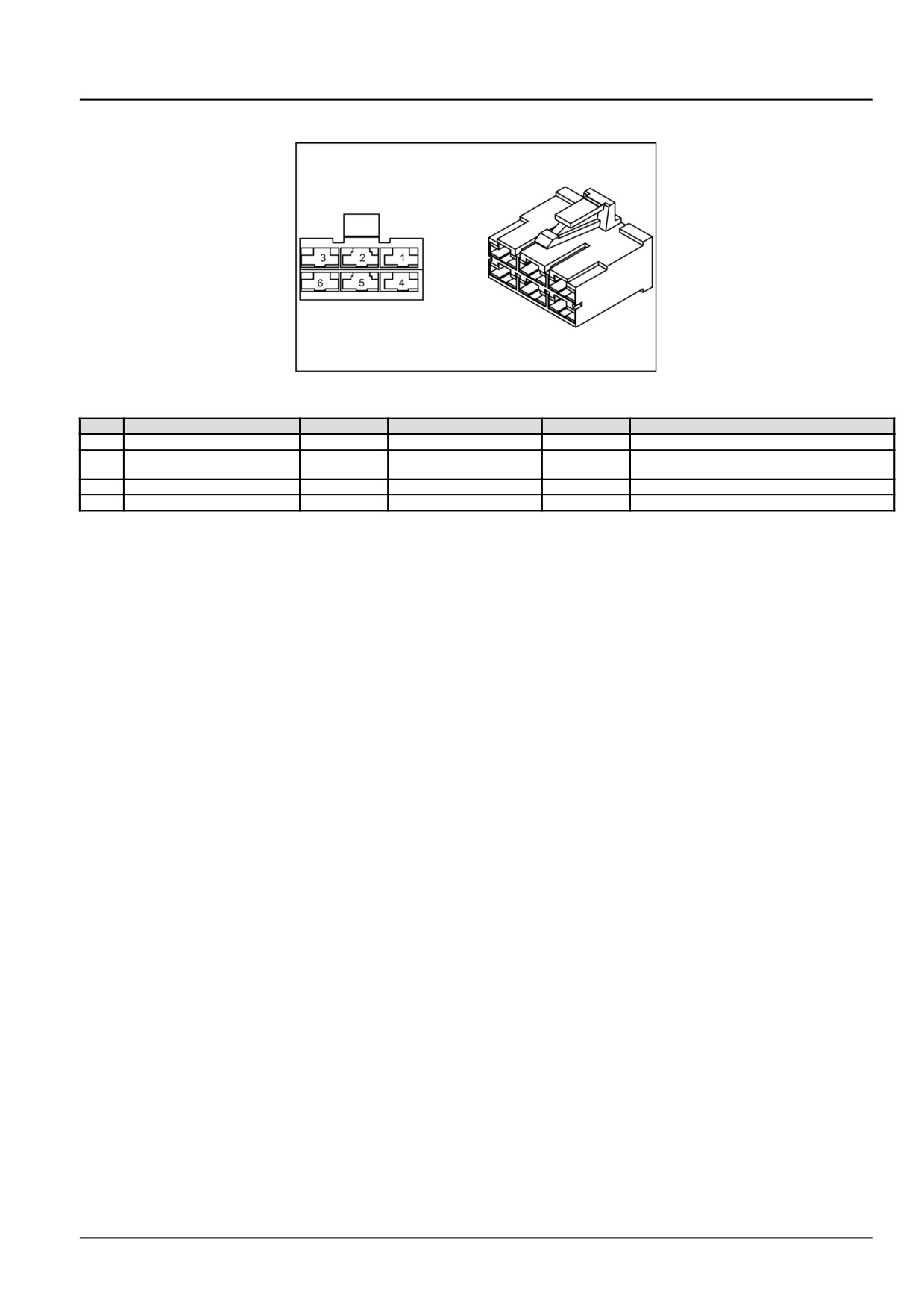

X-216B - HEADLAMP INTERCONNECT (47405381) (Female)
47405381
6
47405381
Pin
From
Wire
Description
Color-Size
Frame
1
X-001 pin 45
100
100
GN/YE - 1.5
SHEET 10
3
X-406B pin 12 TO MAIN
072
072
YE/BL - 1.0
SHEET 06
HARNESS
4
SP-009-P-X
009D
009D
BK - 1.0
SHEET 05
5
X-001 pin 33
032
WORK LAMP
OR - 1.5
SHEET 10
55.4 [55.100] / 53
Electrical systems - Harnesses and connectors
Wire connectors - Component diagram 30
X-301 - HEADLAMP RH (87697641) (Female)
87697641
1
87697641
Pin
From
Wire
Description
Color-Size
Frame
A
SP-102-P-X
102B
102B
GY - 1.0
SHEET 10
B
SP-103-P-X
103D
103D
BK - 1.0
C
SP-104-P-X
104B
104B
GN/YE - 1.5
X-302 - HEADLAMP LH (87697641) (Female)
87697641
2
87697641
Pin
From
Wire
Description
Color-Size
Frame
A
SP-102-P-X
102A
102A
GY - 1.0
SHEET 10
B
SP-103-P-X
103A
103A
BK - 1.0
C
SP-104-P-X
104A
104A
GN/YE - 1.5
X-303 - WORKLAMP RH (82003123) (Female)
82003123
3
82003123
55.4 [55.100] / 54

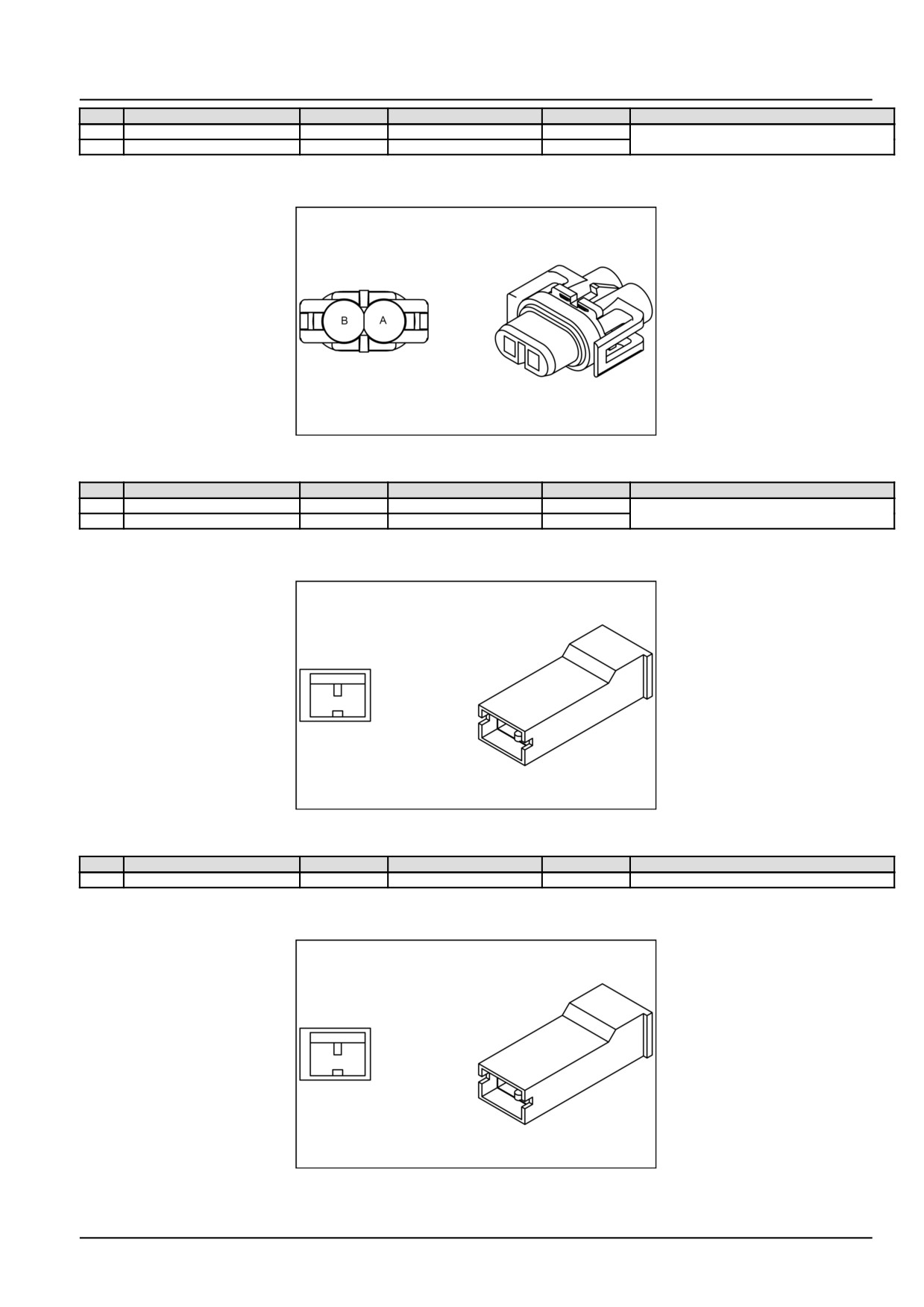

Electrical systems - Harnesses and connectors
Pin
From
Wire
Description
Color-Size
Frame
A
SP-105-P-X
105B
105B
OR - 1.5
SHEET 10
B
SP-103-P-X
103E
103E
BK - 1.0
X-304 - WORKLAMP LH (82003123) (Female)
82003123
4
82003123
Pin
From
Wire
Description
Color-Size
Frame
A
SP-105-P-X
105A
105A
OR - 1.5
SHEET 10
B
SP-103-P-X
103B
103B
BK - 1.0
X-305 - HORN (87581782) (Female)
87581782
5
87581782
Pin
From
Wire
Description
Color-Size
Frame
1
X-216A-Male-P-3
106
106
YE/BL - 1.0
SHEET 10
X-306 - HORN GND (87581782) (Female)
87581782
6
87581782
55.4 [55.100] / 55
Electrical systems - Harnesses and connectors
Pin
From
Wire
Description
Color-Size
Frame
1
SP-103-P-X
103C
103C
BK - 1.0
SHEET 10
55.4 [55.100] / 56

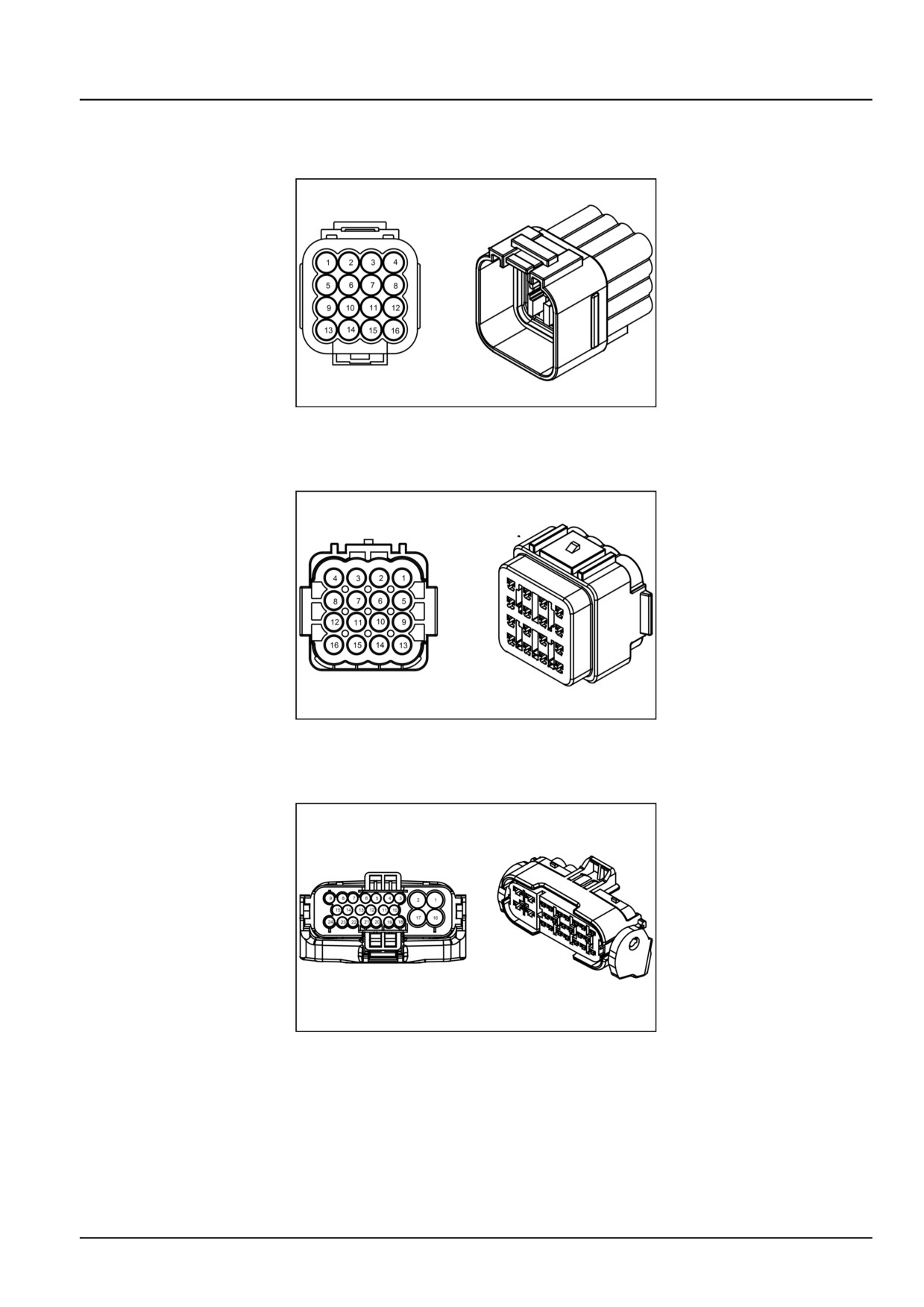

Electrical systems - Harnesses and connectors
Wire connectors - Component diagram 40
X-400A - MAIN-FENDER INTERCONNECT (47731490) (Female)
47731490
1
47731490
X-402B - MAIN-FENDER INTERCONNECT (47731489) (Female)
47731489
2
47731489
X-404B - MAIN-ENGINE INTERCONNECT (47731487) (Female)
47731487
3
47731487
55.4 [55.100] / 57
Electrical systems - Harnesses and connectors
X-406B - TO MAIN HARNESS (47731489) (Female)
47731489
4
47731489
55.4 [55.100] / 58
Electrical systems - Harnesses and connectors
Wire connectors - Component diagram 50
X-502 - PTO SWITCH (84488490) (Female)
84488490
1
84488490
Pin
From
Wire
Description
Color-Size
Frame
1
SP-051-P-X
051B
051B
YE/RD - 0.75
SHEET 09
2
SP-051-P-X
051C
051C
YE/RD - 0.75
3
X-025 (Female) pin 1 CLUTCH
052
052
GN/BK - 0.75
SWITCH
4
X-400B-P-11
155
155
VT - 0.75
X-503 - NEUTRAL SAFETY SWITCH (47413294) (Female)
47413294
2
47413294
Pin
From
Wire
Description
Color-Size
Frame
1
SP-051-P-X
051F
051F
RD/YE - 1.0
SHEET 09
2
X-400B-P-10
097
097
RD/GN - 1.0
55.4 [55.100] / 59

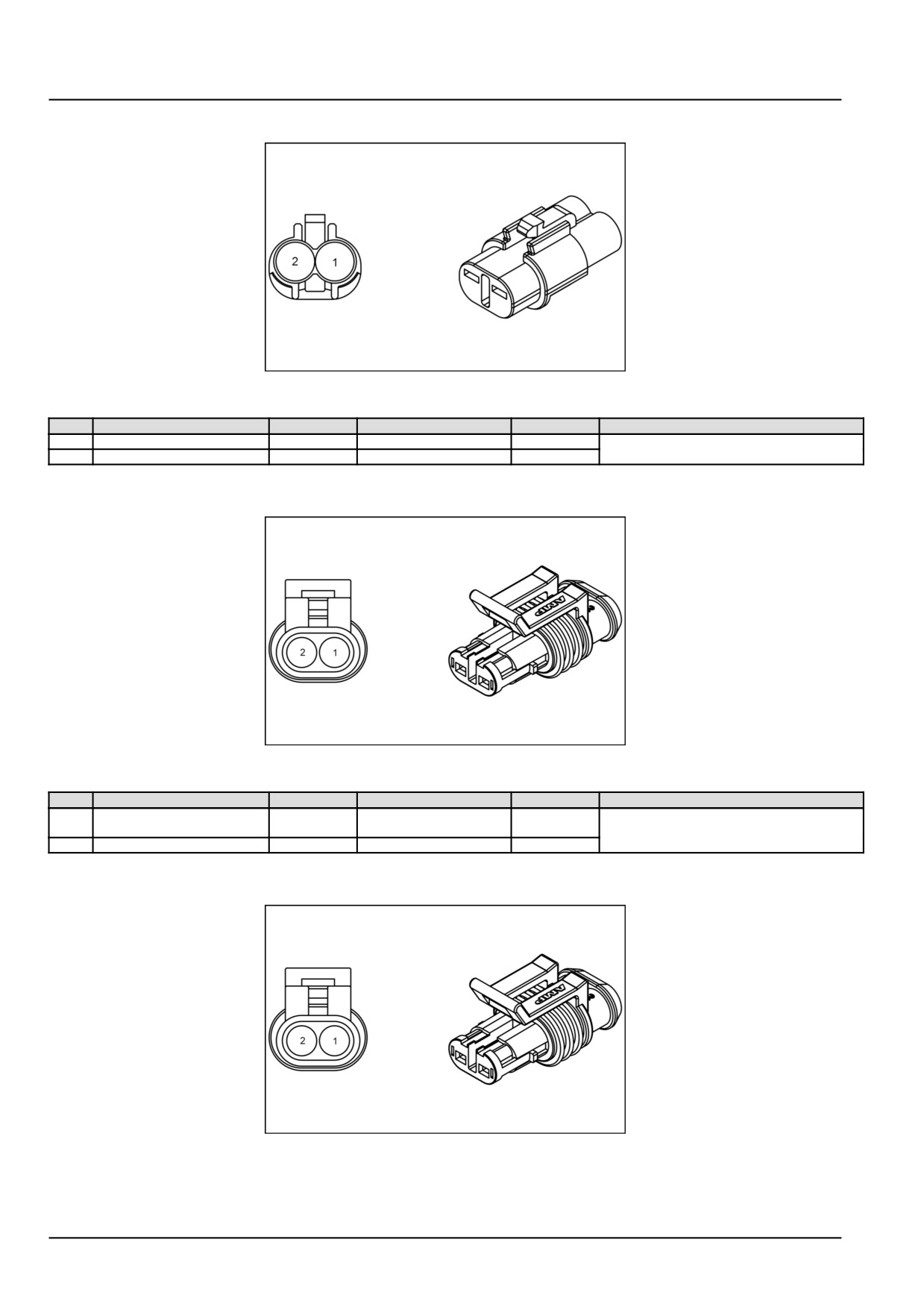

Electrical systems - Harnesses and connectors
X-504 - PARKING BRAKE SWITCH (84182898) (Female)
84182898
3
84182898
Pin
From
Wire
Description
Color-Size
Frame
1
X-402A-P-10
079
079
RD - 0.5
SHEET 09
2
X-402A-P-2
125
125
YE/BK - 0.5
X-505 - HI/LOW SWITCH [ HI-LOW SWITCH] (82012083) (Female)
82012083
4
82012083
Pin
From
Wire
Description
Color-Size
Frame
1
X-506 (Female) pin 1 PTO
190
190
YE/GN - 0.75
SHEET 09
CLUTCH SENSOR
2
X-402A-P-12
199
199
YE/RD - 0.75
X-506 - PTO CLUTCH SENSOR (82012083) (Female)
82012083
5
82012083
55.4 [55.100] / 60

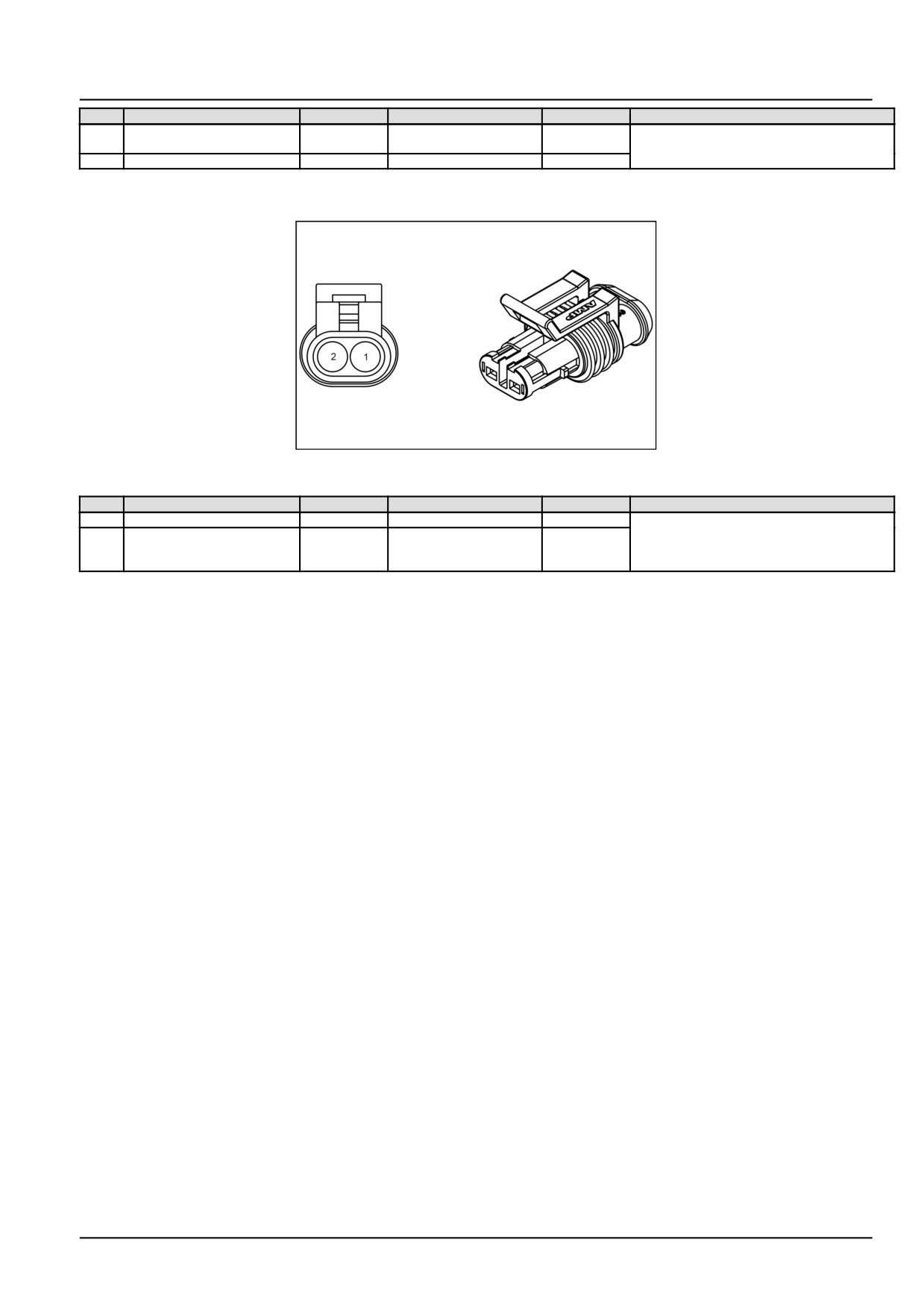

Electrical systems - Harnesses and connectors
Pin
From
Wire
Description
Color-Size
Frame
1
X-505 (Female) pin 1 HI/LOW
190
190
YE/GN - 0.75
SHEET 09
SWITCH
2
X-402A-P-3
196
196
VT - 0.75
X-507 - FUEL SENDER UNIT (82012083) (Female)
82012083
6
82012083
Pin
From
Wire
Description
Color-Size
Frame
1
SP-140-P-X
140B
SENSOR GND
BK - 1.0
SHEET 07
2
X-050 (Female) pin 2
042
FUEL SENDER UNIT
BL - 0.75
INSTRUMENT CLUSTER
CN-1
55.4 [55.100] / 61
Electrical systems - Harnesses and connectors
Wire connectors - Component diagram 51

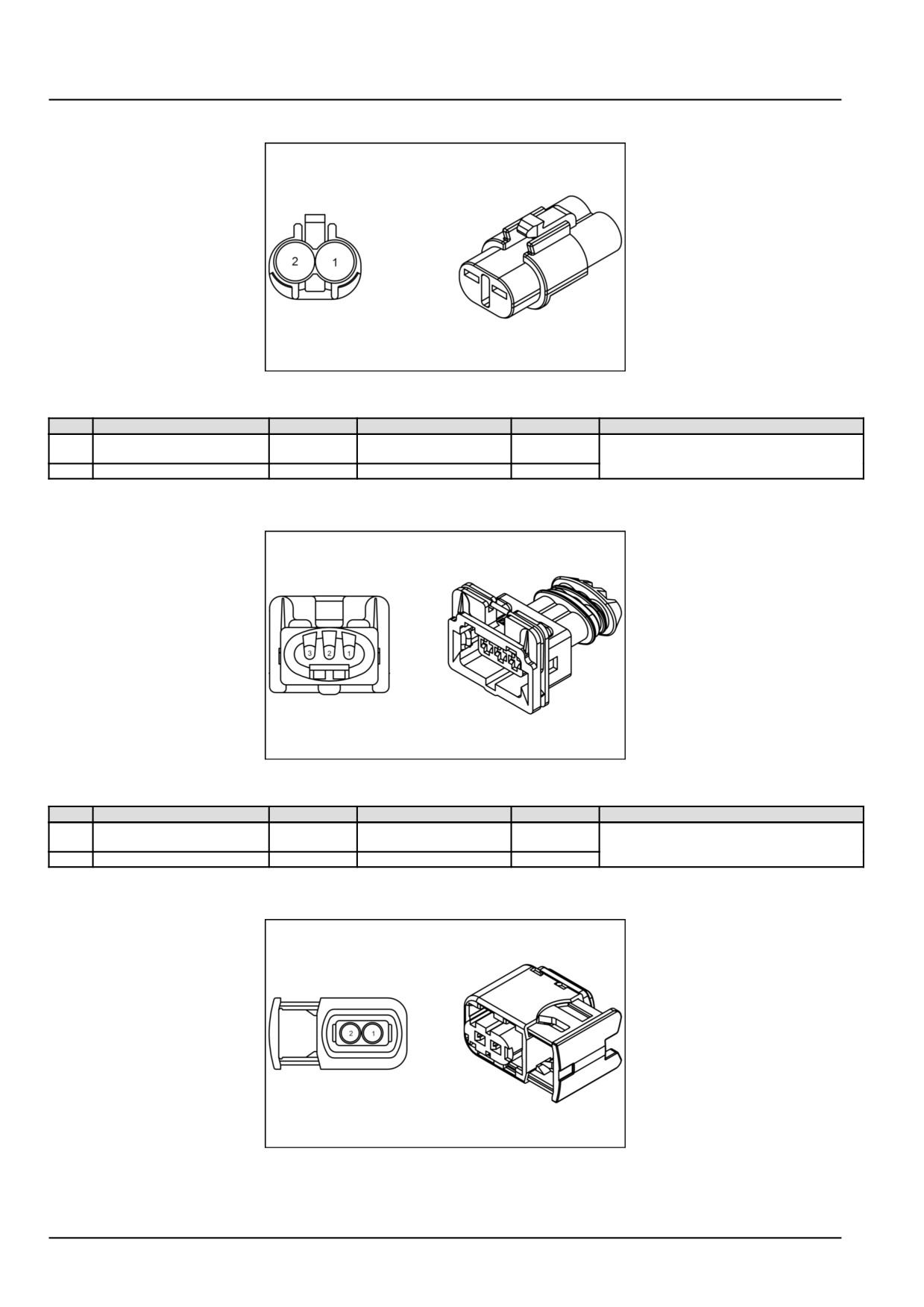

X-515A - TO JOYSTICK PIGTAIL (82012083) (Female)
82012083
1
82012083
Pin
From
Wire
Description
Color-Size
Frame
1
X-400B-P-9
067
067
BL/YE - 0.5
SHEET 06
2
SP-010-P-X
010D
010D
BK - 0.5
X-516 - BECON LAMP (84182898) (Female)
84182898
2
84182898
Pin
From
Wire
Description
Color-Size
Frame
1
SP-024-P-X
025
025
PK - 0.75
SHEET 11
2
SP-014-P-X
164E
164E
BK - 0.75
X-517 - IMPLEMENT LAMP (84477032) (Male)
84477032
3
84477032
55.4 [55.100] / 62
Electrical systems - Harnesses and connectors
Pin
From
Wire
Description
Color-Size
Frame
1
SP-024-P-X
025C
025C
PK - 1.5
SHEET 11
2
SP-014-P-X
164D
164D
BK - 0.75

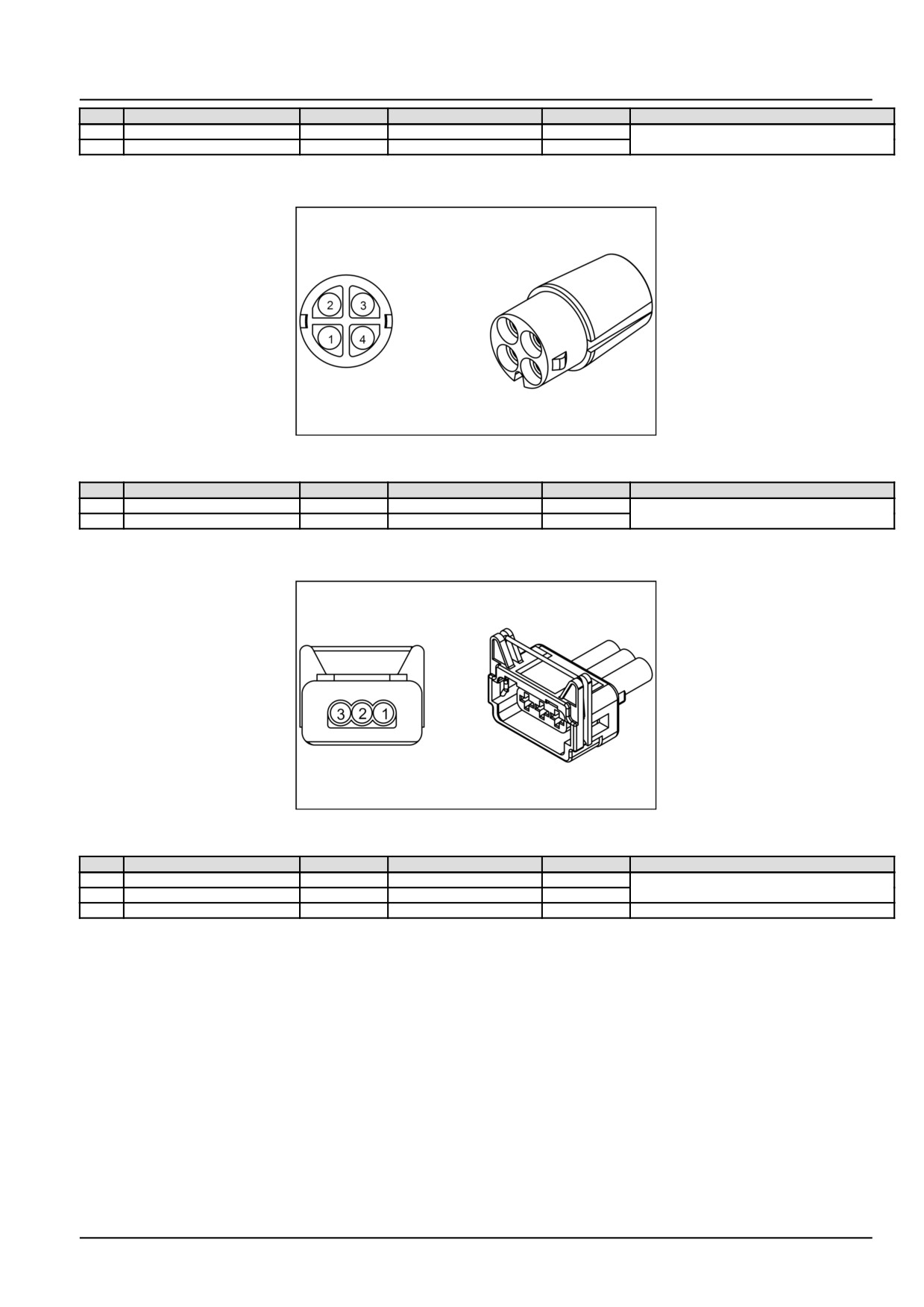

X-518 - LICENCE LAMP (82000579) (Female)
82000579
4
82000579
Pin
From
Wire
Description
Color-Size
Frame
1
SP-020-P-X
169
169
RD/WH - 0.5
SHEET 11
4
SP-014-P-X
164C
164C
BK - 0.75
X-519 - SPEED SENSOR PTO (82865818) (Female)
82865818
5
82865818
Pin
From
Wire
Description
Color-Size
Frame
1
SP-051-P-X
051E
051E
OR - 1.0
SHEET 07
2
X-402A-P-11
194
PTO SPEED SENSOR
R-B - 1.0
3
SP-010-P-X
010C
010C
BK - 1.0
SHEET 05
55.4 [55.100] / 63
Electrical systems - Harnesses and connectors
Wire connectors - Component diagram 52

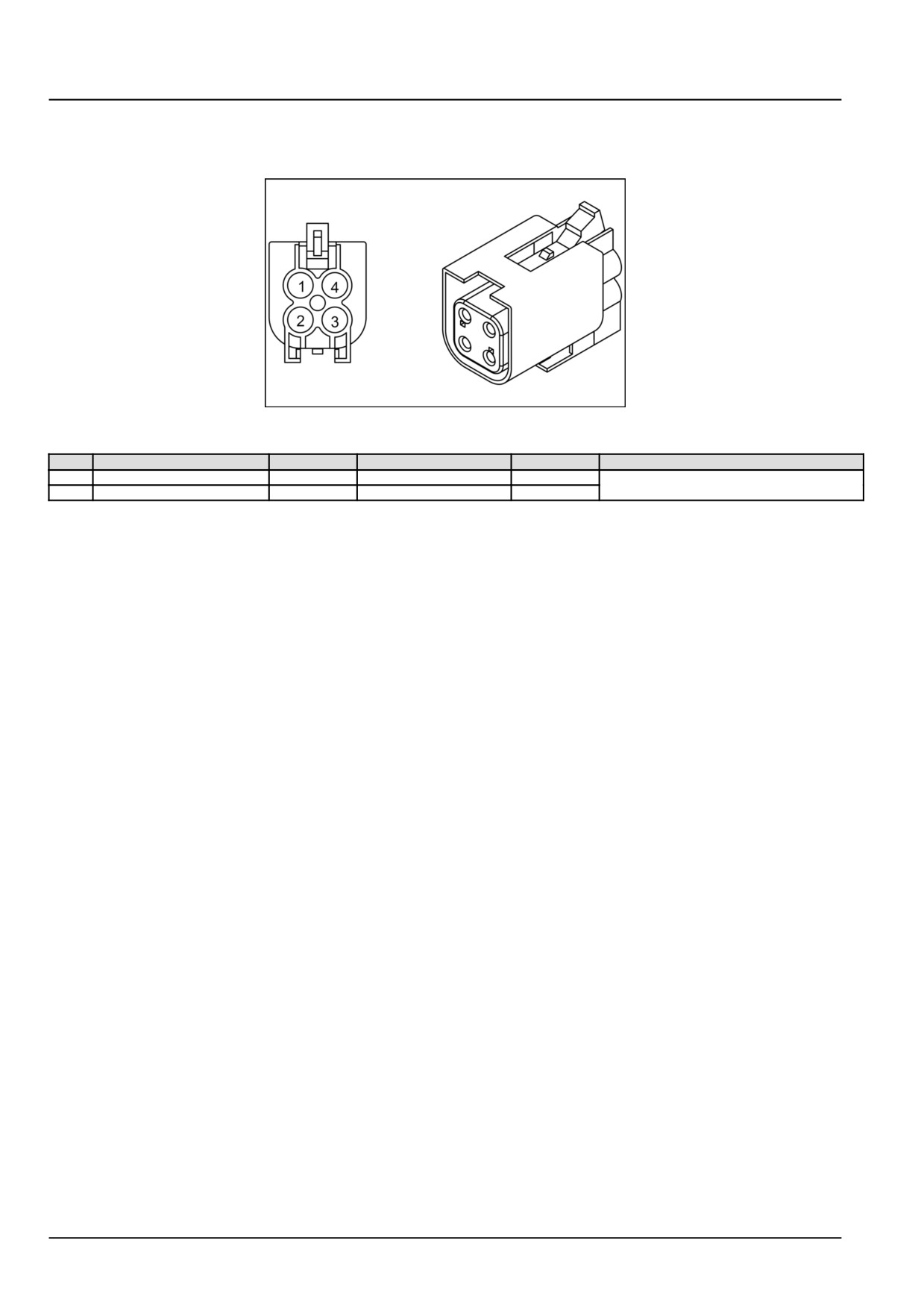

X-520 - LOADER JOYSTICK [ S-009] (87715977) (Female)
87715977
1
87715977
Pin
From
Wire
Description
Color-Size
Frame
3
X-515B-Male-P-2
0002
0002
BK - 0.5
SHEET 06
4
X-515B-Male-P-1
0001
0001
BL/YE - 0.5
55.4 [55.100] / 64

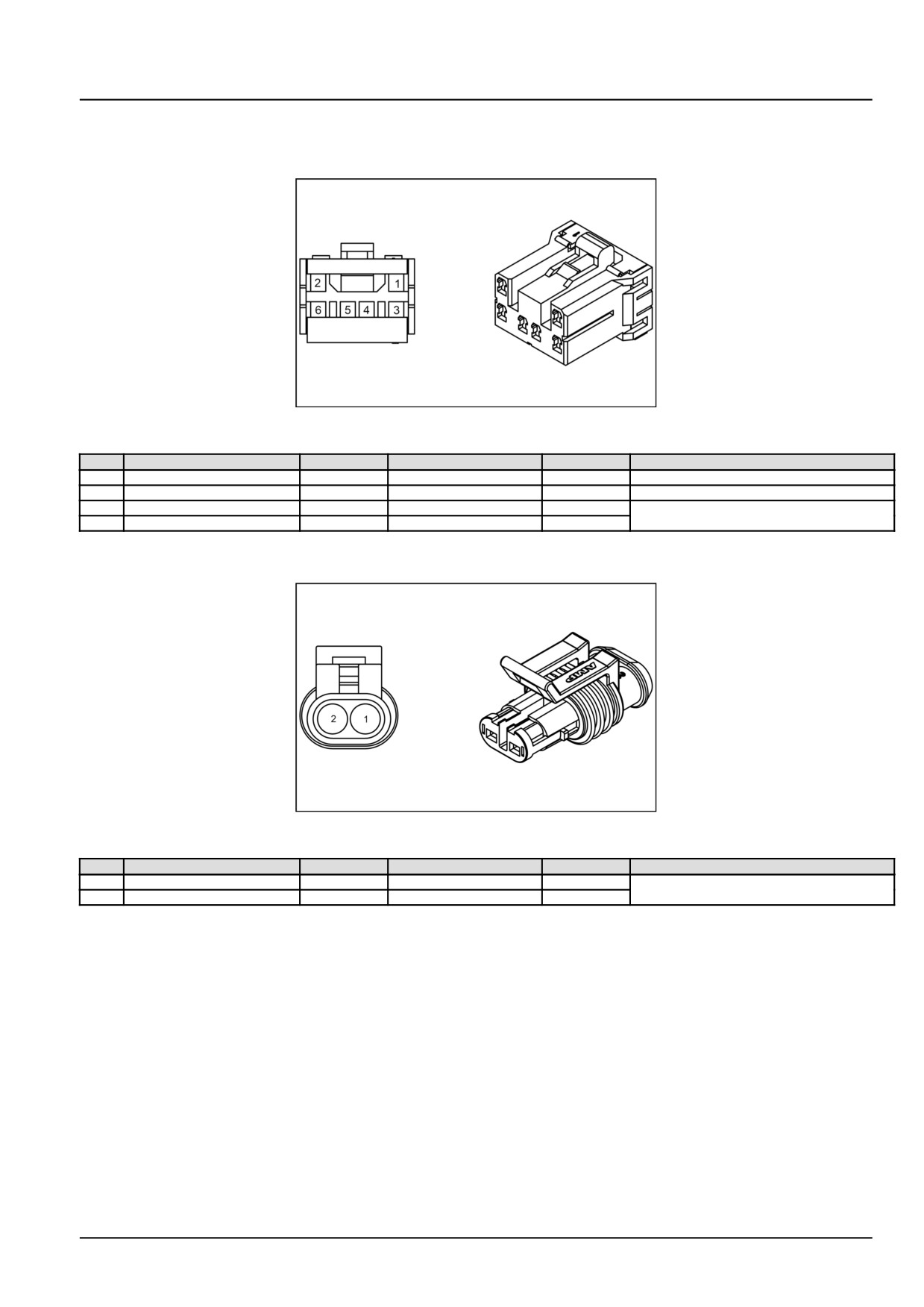

Electrical systems - Harnesses and connectors
Wire connectors - Component diagram 60
X-602A - TO TRAILER HARNESS (84253498) (Female)
84253498
1
84253498
Pin
From
Wire
Description
Color-Size
Frame
1
SP-163-P-X
033
033
YE - 0.75
SHEET 11
2
SP-010-P-X
010A
010A
BK - 1.0
SHEET 05
3
SP-161-P-X
035
035
OR - 0.75
SHEET 11
6
SP-020-P-X
037
037
BR - 0.75
X-605 - SEAT SWITCH (82012083) (Female)
82012083
2
82012083
Pin
From
Wire
Description
Color-Size
Frame
1
SP-051-P-X
051D
051D
YE/RD - 0.75
SHEET 09
2
X-400B-P-12
135
135
PK/WH - 0.5
55.4 [55.100] / 65

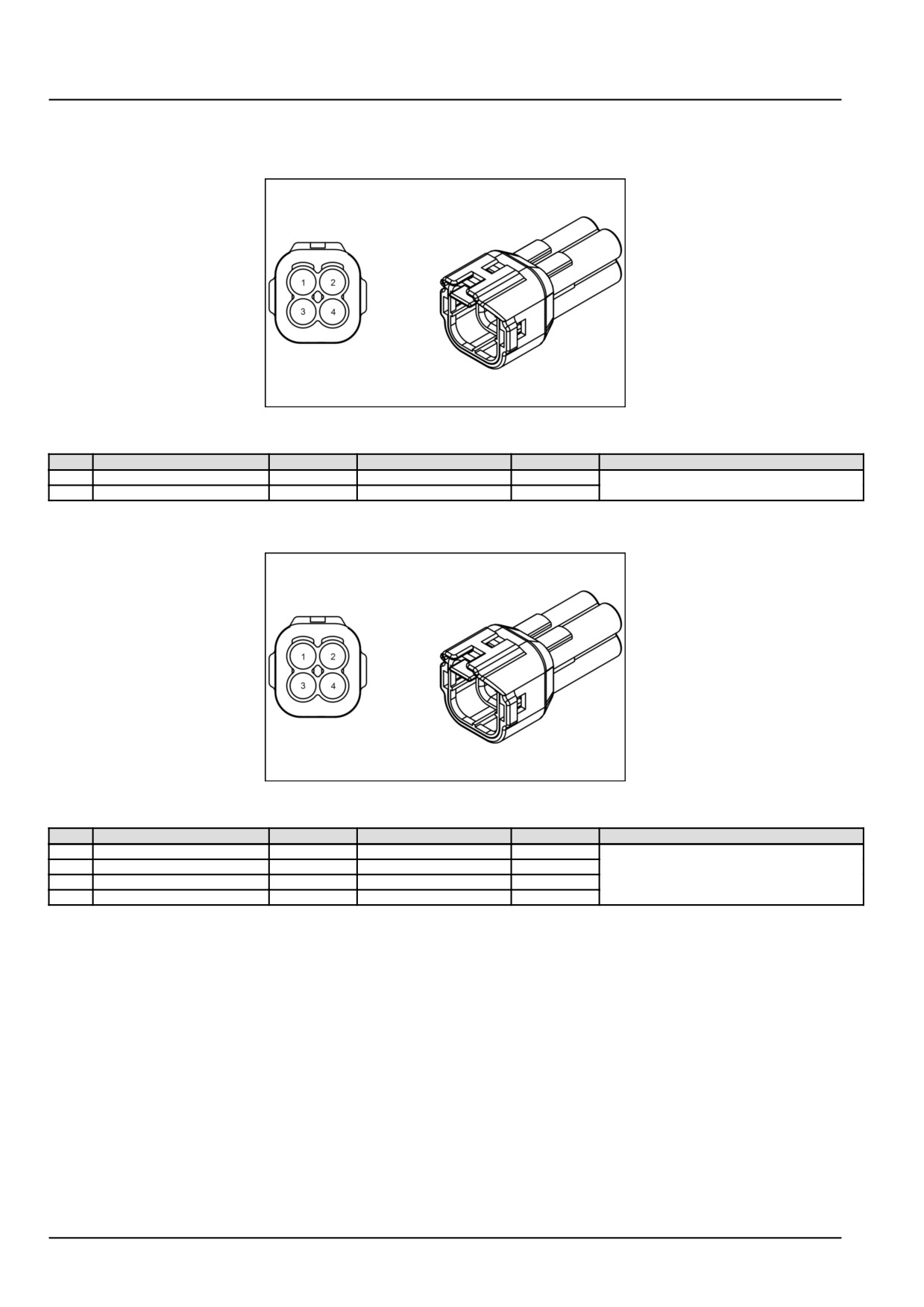

Electrical systems - Harnesses and connectors
Wire connectors - Component diagram 61
X-612 - ROPE LAMP RH (84182907) (Male)
84182907
1
84182907
Pin
From
Wire
Description
Color-Size
Frame
3
SP-014-P-X
164B
164B
BK - 0.75
SHEET 11
4
SP-020-P-X
172
172
BL/BK - 0.75
X-613 - ROPE LAMP LH (84182907) (Male)
84182907
2
84182907
Pin
From
Wire
Description
Color-Size
Frame
1
SP-163-P-X
163
163
LG - 0.5
SHEET 11
2
X-400B-P-7
111
111
GY - 0.75
3
SP-014-P-X
164A
164A
BK - 0.75
4
SP-020-P-X
171
171
BL/BK - 0.75
55.4 [55.100] / 66
Electrical systems - Harnesses and connectors
Wire connectors - Component diagram 70

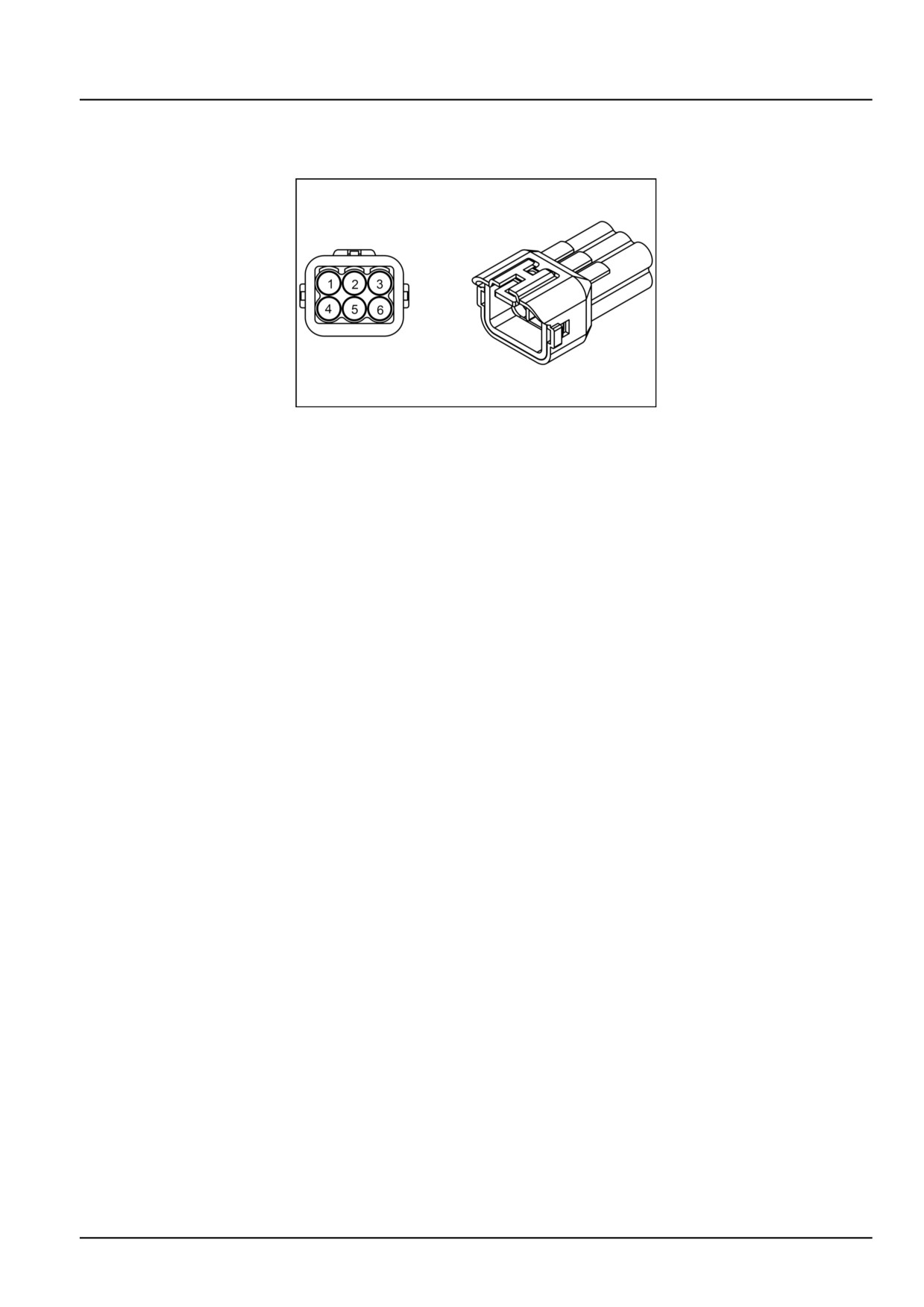

X-702A - TO DIAGONESTIC SOCKET (47511905) (Female)
47511905
1
47511905
55.4 [55.100] / 67
Electrical systems - Harnesses and connectors
Wire connectors - Component diagram 71

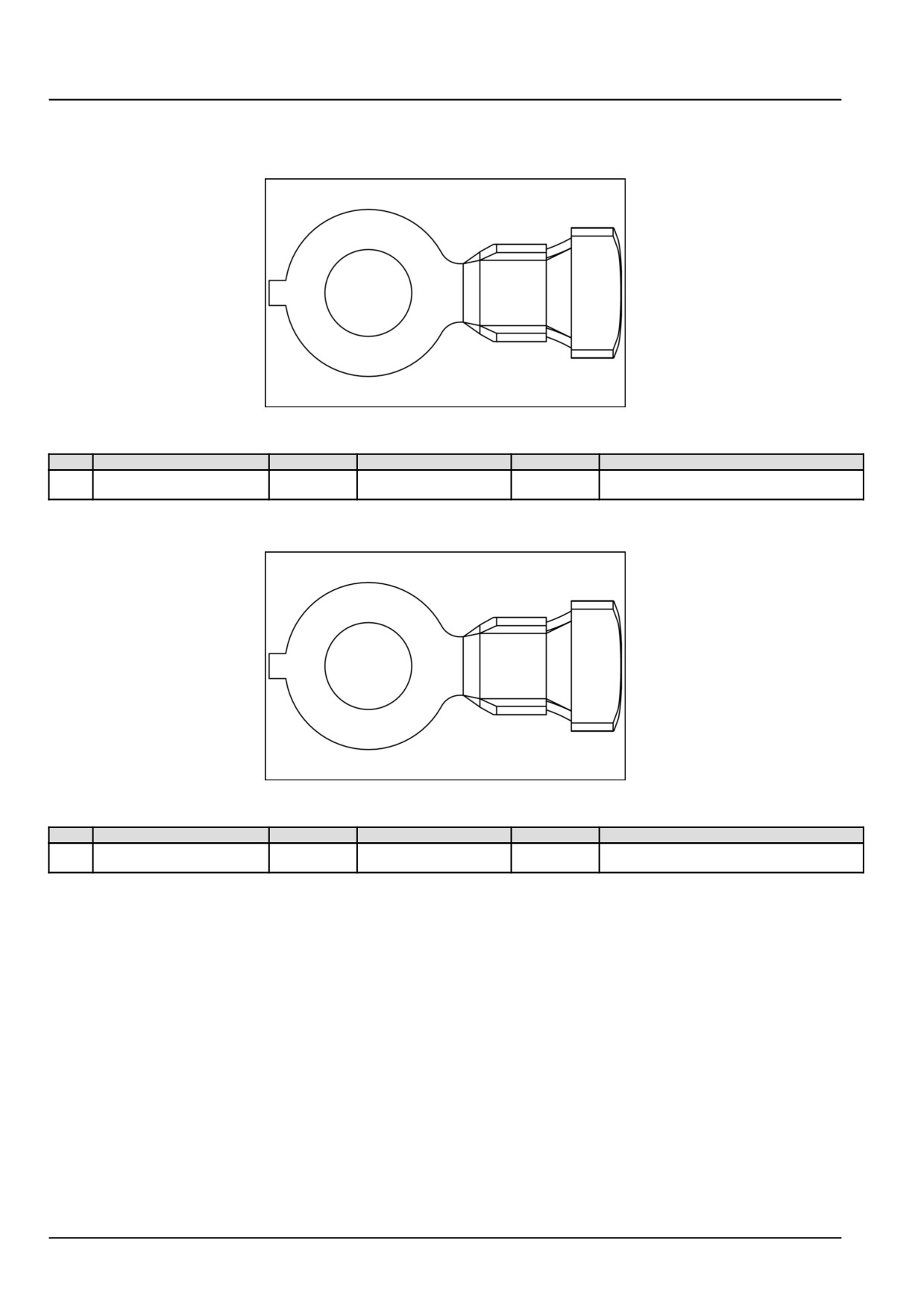

X-712 - ALTERNATOR B+ (84488486) (Male)
84488486
1
84488486
Pin
From
Wire
Description
Color-Size
Frame
1
X-713 (Male) pin 1 TO
003
ALTERNATOR CABLE
RD - 16.0
SHEET 03
STARTER MOTOR
X-713 - TO STARTER MOTOR (84488486) (Male)
84488486
2
84488486
Pin
From
Wire
Description
Color-Size
Frame
1
X-712 (Male) pin 1
003
ALTERNATOR CABLE
RD - 16.0
SHEET 03
ALTERNATOR B+
55.4 [55.100] / 68

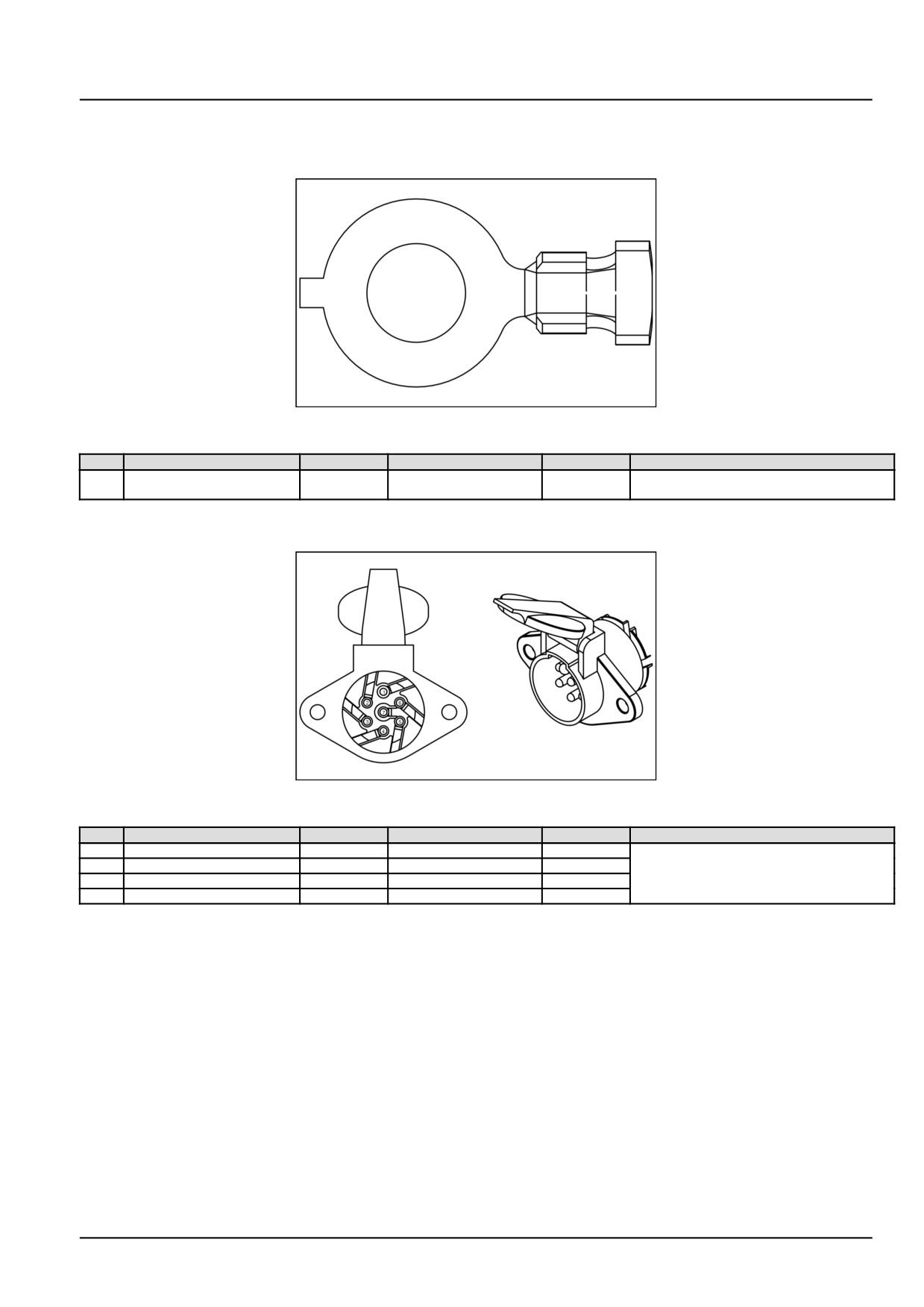

Electrical systems - Harnesses and connectors
Wire connectors - Component diagram 90
X-901 - ALTERNATOR B+ (84488487) (Male)
84488487
1
84488487
Pin
From
Wire
Description
Color-Size
Frame
1
X-015 (Male) pin 1 TO MEGA
008
008
RD - 8.0
SHEET 03
FUSE
X-902 - TRAILER SOCKET (84531642) (Male)
84531642
2
84531642
Pin
From
Wire
Description
Color-Size
Frame
1
X-602B-Male-P-2
201
201
WH - 1.0
SHEET 12
2
SP-011-P-X
202A
202A
BL - 0.75
4
X-602B-Male-P-5
205
205
RD - 0.75
6
SP-011-P-X
202B
202B
BL - 0.75
55.4 [55.100] / 69
Electrical systems - Harnesses and connectors
Wire connectors - Component diagram 00 - Connectors X-9001 to
X-9009

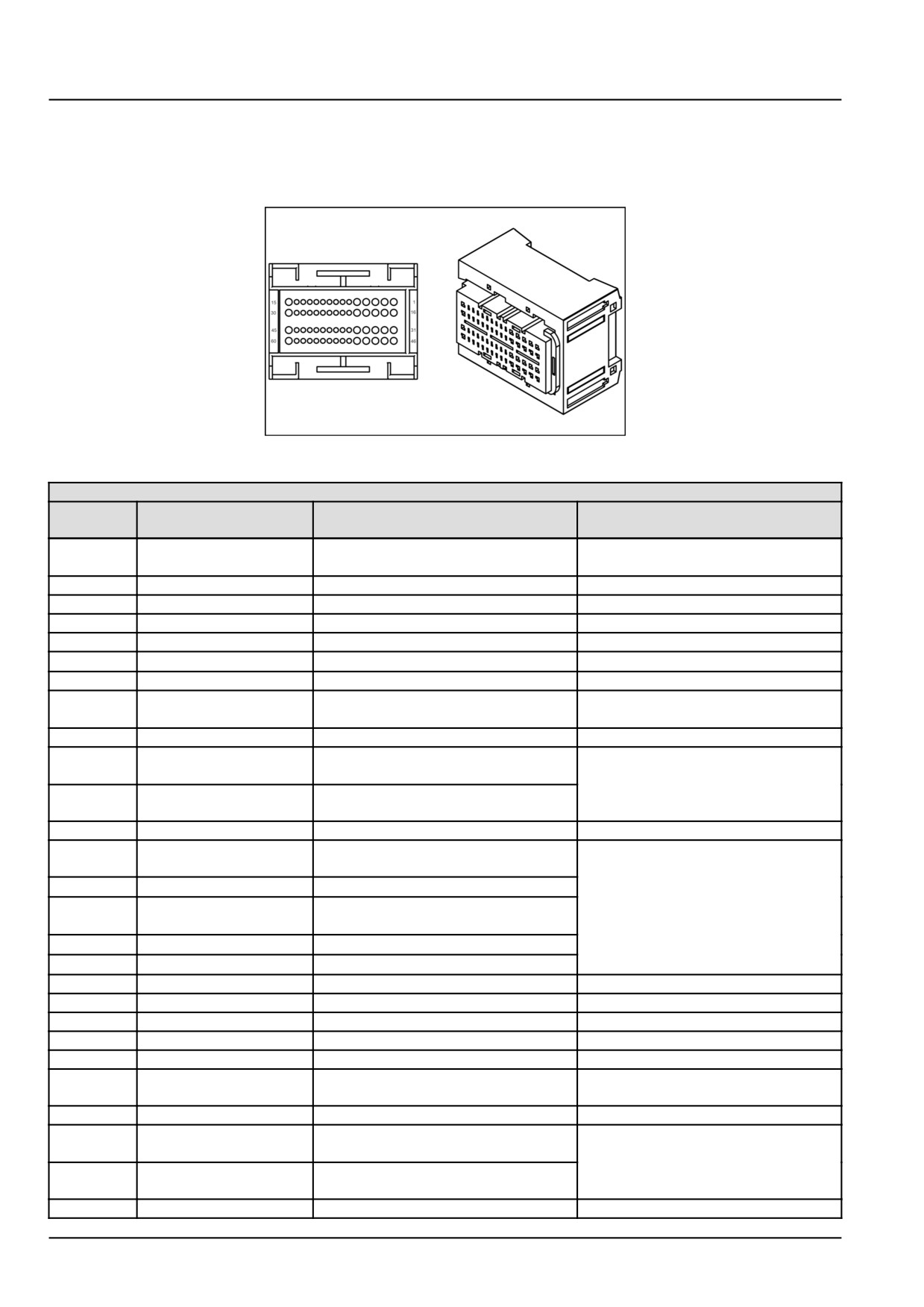

Connector X-9001 - Engine Control Unit (ECU) connector A
84474053
1
84474053

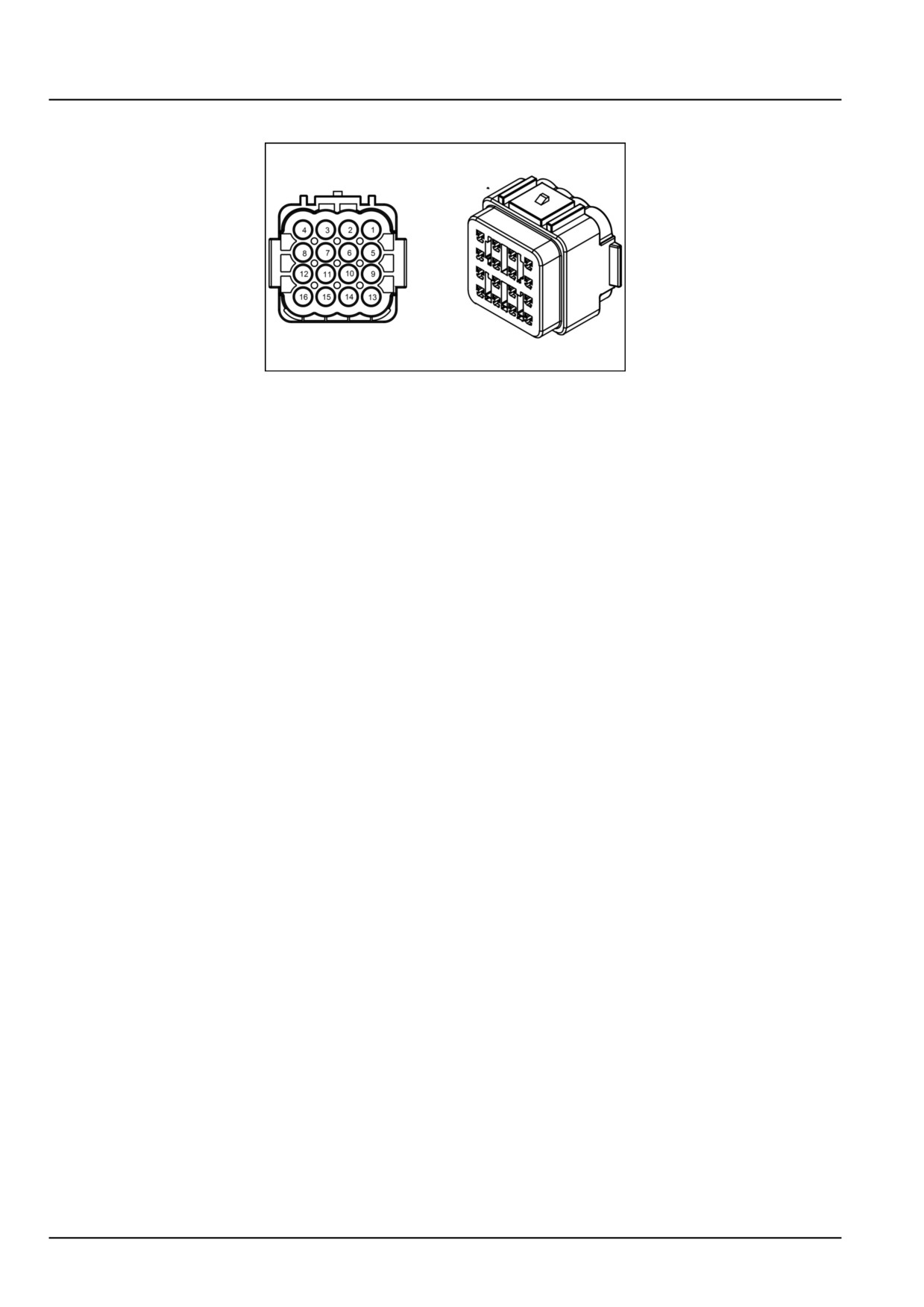

CONNECTOR X-9001 - ECU connector A
PIN
WIRE NUMBER
CIRCUIT REFERENCE
ELECTRICAL SCHEMATIC FRAME
NUMBER
A01
EN-9128
High Side Driver (HSD), Bank 2
SHEET
03
Injector 1 (Cylinder 3)
A02
-
-
A03
-
-
A04
-
-
A05
-
-
A06
EN-9105
Input signal, Oil pressure switch
SHEET
03
A07
-
-
A08
EN-9098
+5 V sensor supply, Throttle Valve
SHEET
03
Actuator (TVA) position sensor
A09
-
-
A10
EN-9101
+5 V sensor supply, Intake manifold
SHEET
03
pressure sensor
A11
EN-9108
+5 V sensor supply, Rail pressure
sensor
A12
-
-
A13
EN-9109
+5 V sensor supply, Camshaft speed
SHEET
03
sensor
A14
EN-9111
Input signal, Camshaft speed sensor
A15
EN-9136
Switched voltage supply, Fuel
metering unit
A16
EN-9125
HSD, Bank 1 Injector 1 (Cylinder 1)
A17
EN-9129
HSD, Bank 1 Injector 2 (Cylinder 2)
A18
-
-
A19
-
-
A20
-
-
A21
-
-
A22
-
-
A23
EN-9116
Reference ground, Fuel temperature
SHEET
03
sensor
A24
-
-
A25
EN-9103
Reference ground, Intake manifold
SHEET
03
pressure sensor
A26
EN-9106
Reference ground, Rail pressure
sensor
A27
-
-
55.4 [55.100] / 70
Electrical systems - Harnesses and connectors
CONNECTOR X-9001 - ECU connector A
PIN
WIRE NUMBER
CIRCUIT REFERENCE
ELECTRICAL SCHEMATIC FRAME
NUMBER
A28
EN-9110
Reference ground, Camshaft speed
SHEET
03
sensor
A29
-
-
A30
-
-
A31
EN-9128
Low Side Driver (LSD), Bank 2
SHEET
03
Injector 1 (Cylinder 3)
A32
EN-9126
LSD, Bank 1 Injector 1 (Cylinder 1)
A33
-
-
A34
EN-9135
H-bridge Pulse-Width Modulated
SHEET
03
supply, TVA motor
A35
-
-
A36
-
-
A37
EN-9100
Reference ground, TVA position
SHEET
03
sensor
A38
EN-9117
Input signal, Fuel temperature sensor
A39
-
-
A40
EN-9102
Input signal, Intake manifold pressure
SHEET
03
sensor
A41
EN-9107
Input signal, Rail pressure sensor
A42
-
-
A43
-
-
A44
EN-9139
Input signal, negative, Crankshaft
SHEET
03
position sensor
A45
-
-
A46
-
-
A47
-
-
A48
EN-9130
LSD, Bank 1 Injector 2 (Cylinder 2)
SHEET
03
A49
EN-9134
H-bridge Pulse-Width Modulated
supply, TVA motor
A50
-
-
A51
-
-
A52
-
-
A53
EN-9099
Input signal, TVA position sensor
SHEET
03
A54
-
-
A55
EN-9104
Input signal, Intake manifold
SHEET
03
temperature sensor
A56
-
-
A57
EN-9115
Input signal, Coolant temperature
SHEET
03
sensor
A58
EN-9141
Reference ground, Coolant
temperature sensor
A59
EN-9138
Input signal, positive, Crankshaft
position sensor
A60
EN-9137
LSD, Fuel metering unit
55.4 [55.100] / 71
Electrical systems - Harnesses and connectors

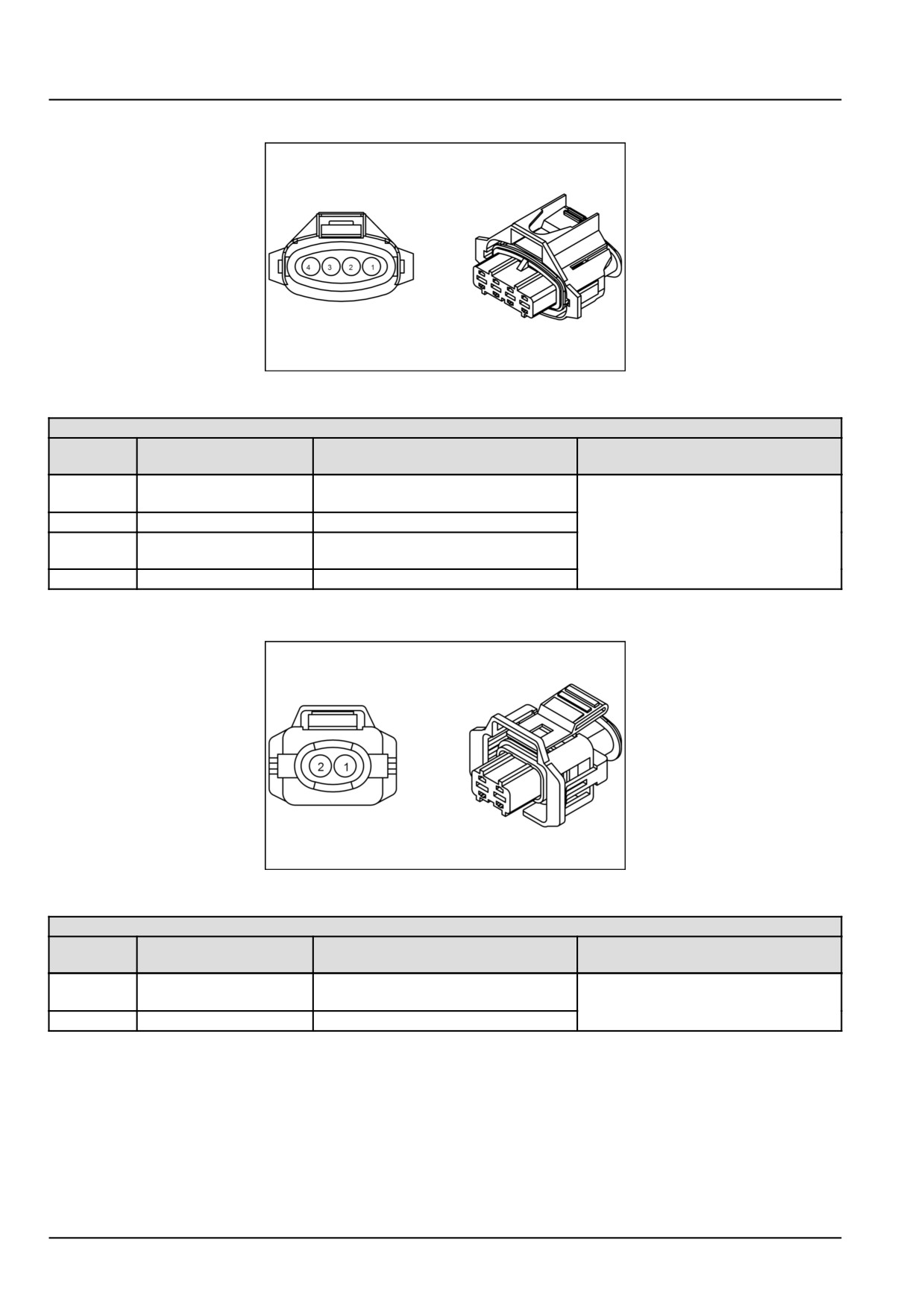

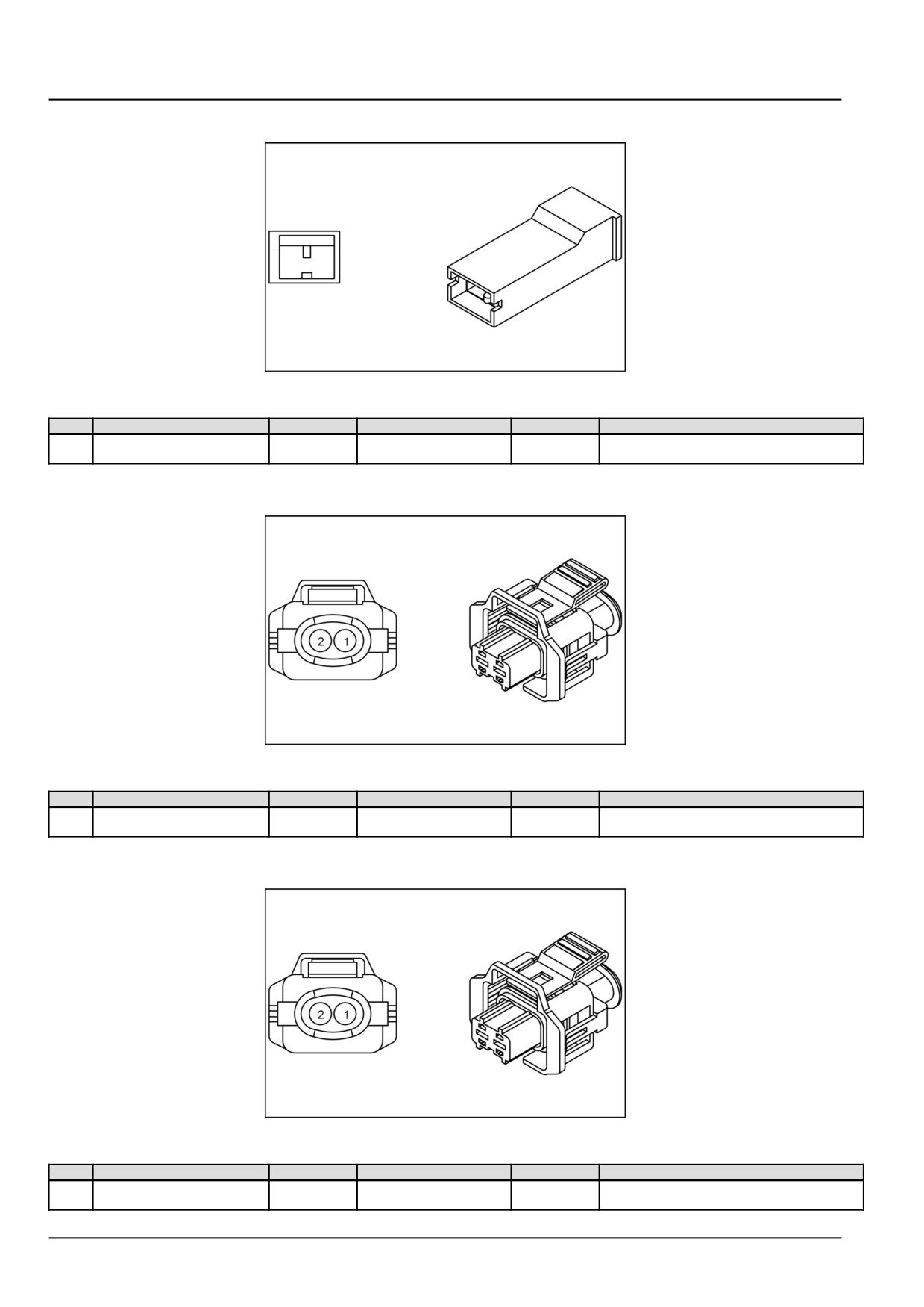

Connector X-9003 - Intake manifold pressure and temperature sensor
87709809
2
87709809
CONNECTOR X-9003 - Intake manifold pressure and temperature sensor
PIN
WIRE NUMBER
CIRCUIT REFERENCE
ELECTRICAL SCHEMATIC FRAME
NUMBER
1
EN-9103
Engine Control Unit (ECU) reference
SHEET 03
ground, pressure and temperature
2
EN-9104
ECU input signal, temperature
3
EN-9101
ECU +5 V sensor supply, pressure
sensor
4
EN-9102
ECU input signal, pressure
Connector X-9005 - Fuel temperature sensor
87709793
3
87709793
CONNECTOR X-9005 - Fuel temperature sensor
PIN
WIRE NUMBER
CIRCUIT REFERENCE
ELECTRICAL SCHEMATIC FRAME
NUMBER
1
EN-9117
Engine Control Unit (ECU) input
SHEET 03
signal, temperature
2
EN-9116
ECU reference ground
55.4 [55.100] / 72
Electrical systems - Harnesses and connectors

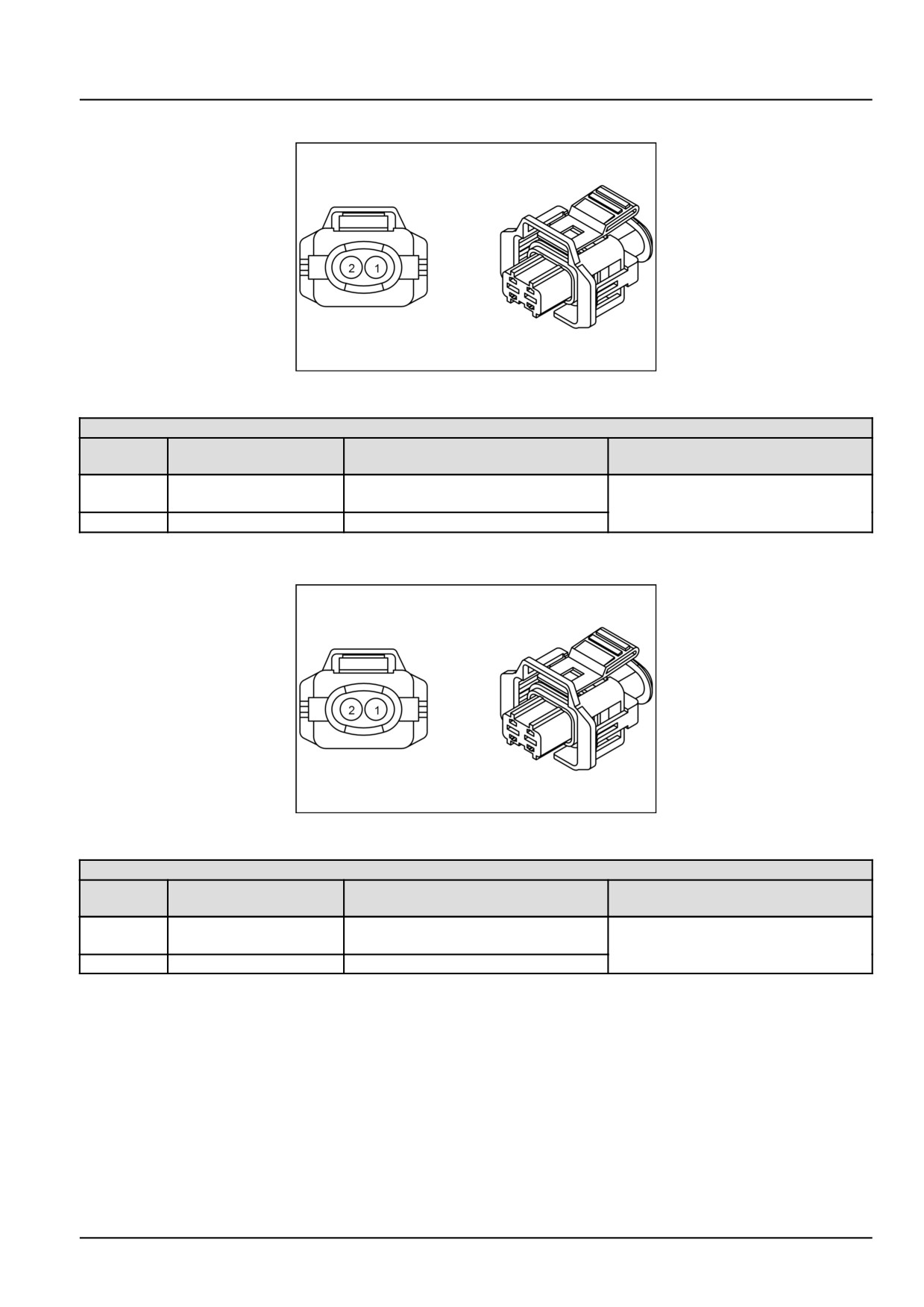

Connector X-9006 - Coolant temperature sensor
87709793
4
87709793
CONNECTOR X-9006 - Coolant temperature sensor
PIN
WIRE NUMBER
CIRCUIT REFERENCE
ELECTRICAL SCHEMATIC FRAME
NUMBER
1
EN-9115
Engine Control Unit (ECU) input
SHEET 03
signal, temperature
2
EN-9114
ECU reference ground
Connector X-9007 - Fuel metering unit
87709793
5
87709793
CONNECTOR X-9007 - Fuel metering unit
PIN
WIRE NUMBER
CIRCUIT REFERENCE
ELECTRICAL SCHEMATIC FRAME
NUMBER
1
EN-9137
Switched 12 V supply voltage, Engine
SHEET 03
Control Unit (ECU)
2
EN-9136
PWM Low side driver, ECU
55.4 [55.100] / 73
Electrical systems - Harnesses and connectors

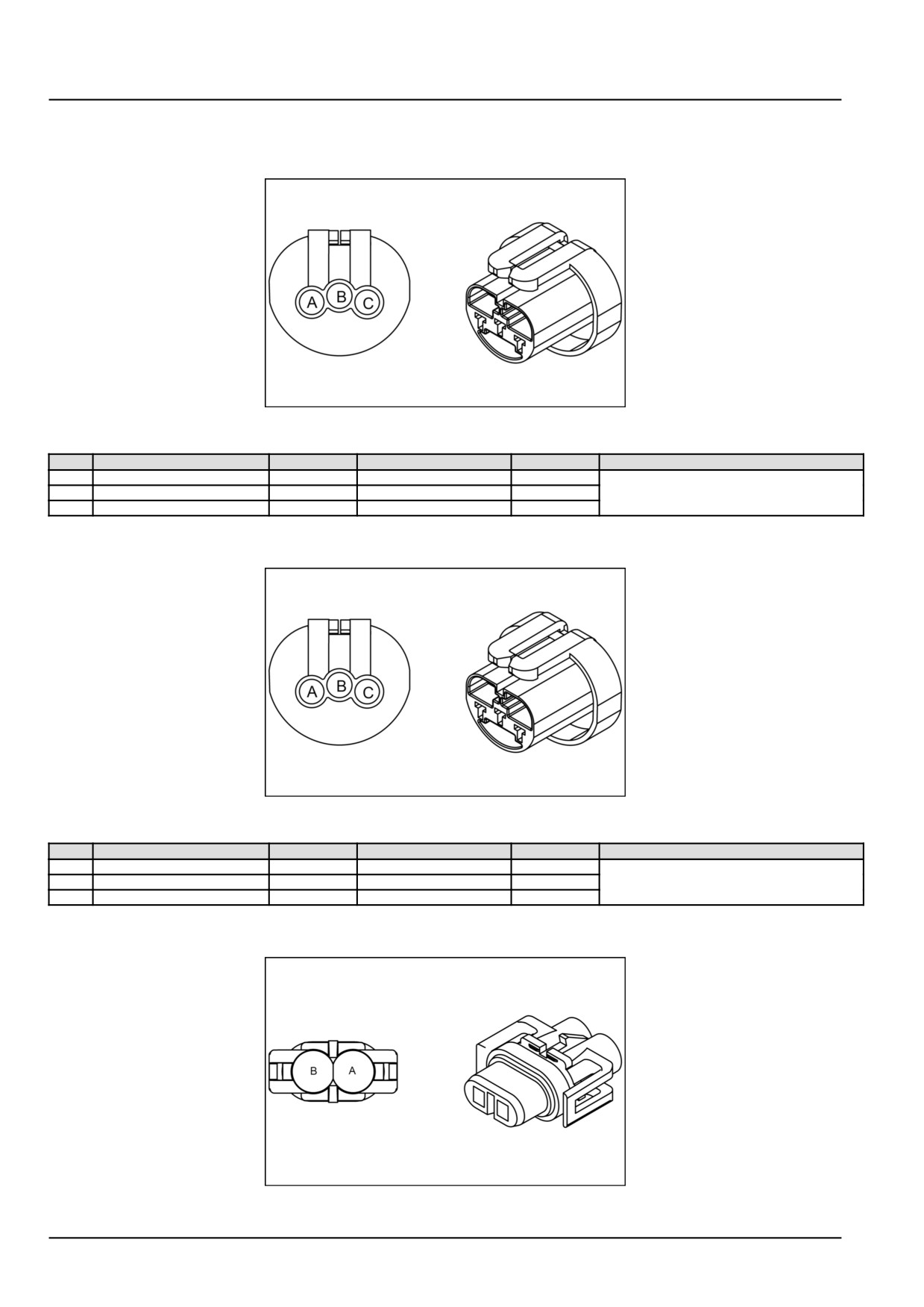

Connector X-9008 - Camshaft phase sensor
87709793
6
87747172
CONNECTOR X-9008 - Camshaft phase sensor
PIN
WIRE NUMBER
CIRCUIT REFERENCE
ELECTRICAL SCHEMATIC FRAME
NUMBER
1
EN-9110
Reference ground, Engine Control
SHEET 03
Unit (ECU)
2
EN-9111
Input signal, ECU
3
EN-9109
+5 V sensor supply, ECU
55.4 [55.100] / 74
Electrical systems - Harnesses and connectors
Wire connectors - Component diagram 01 - Connectors X-9010 to
X-9019

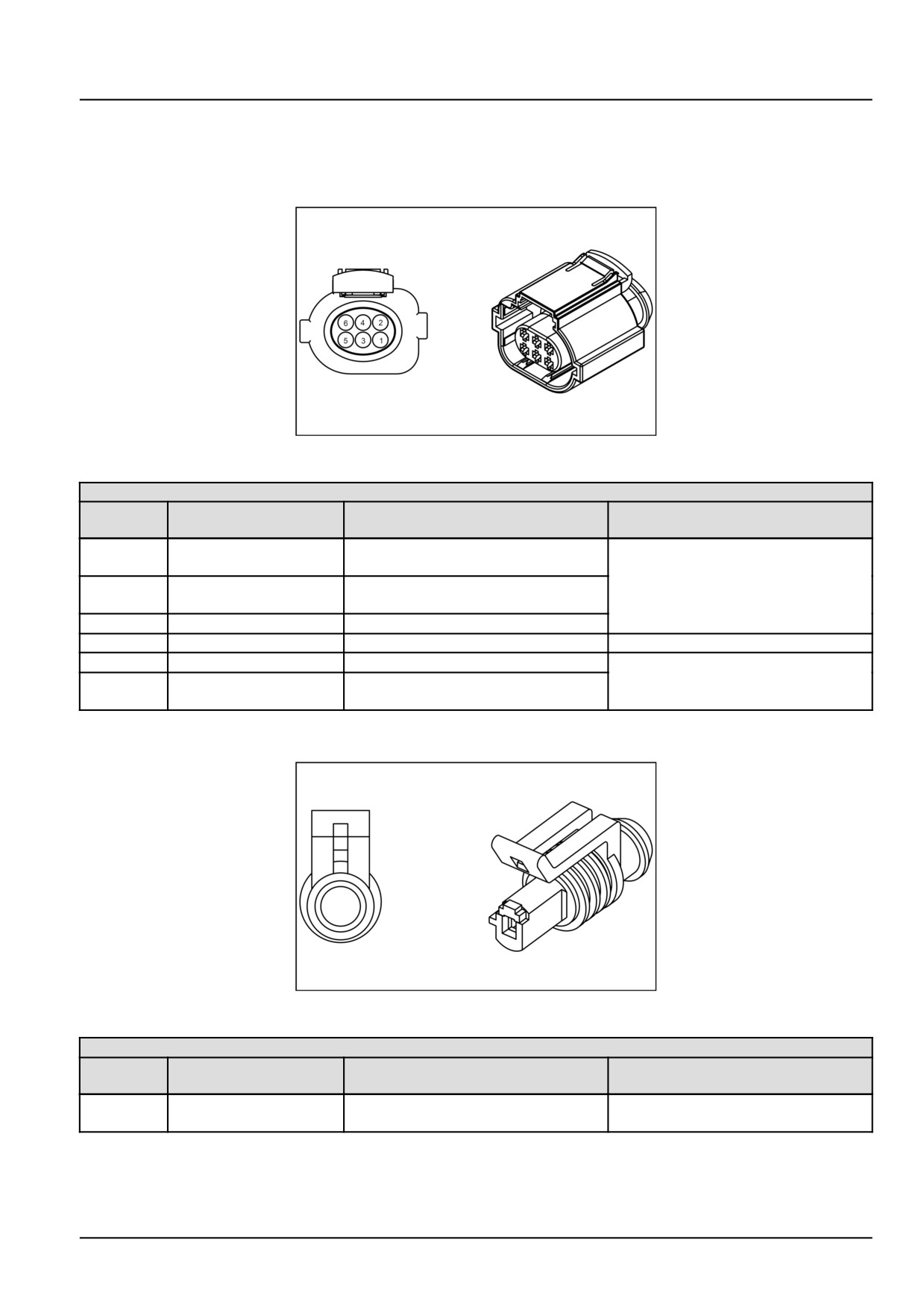

Connector X-9011 - Throttle Valve Actuator (TVA)
84360293
1
84360293
CONNECTOR X-9011 - TVA
PIN
WIRE NUMBER
CIRCUIT REFERENCE
ELECTRICAL SCHEMATIC FRAME
NUMBER
1
EN-9098
+5 V sensor supply, Engine Control
SHEET 03
Unit (ECU)
2
EN-9135
H-bridge Pulse-Width Modulated
(PWM) supply, ECU
3
EN-9100
Reference ground, ECU
4
-
5
EN-9099
Position signal, ECU
SHEET 03
6
EN-9134
H-bridge Pulse-Width Modulated
(PWM) supply, ECU

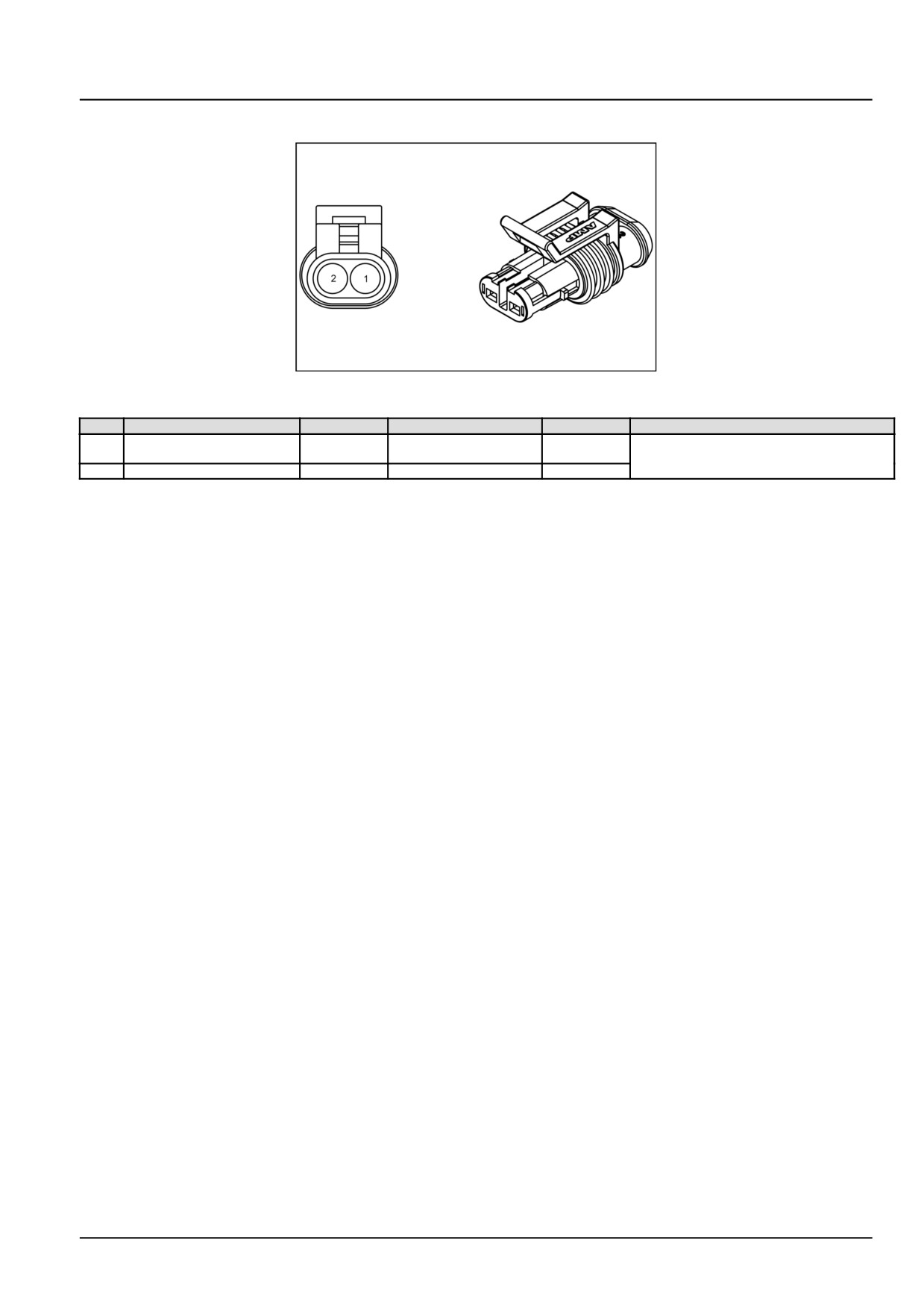

Connector X-9016 - Oil pressure switch
87687239
2
87687239
CONNECTOR X-9016 - Oil pressure switch
PIN
WIRE NUMBER
CIRCUIT REFERENCE
ELECTRICAL SCHEMATIC FRAME
NUMBER
1
EN-9105
Input signal, Engine Control Unit
SHEET 03
(ECU)
55.4 [55.100] / 75

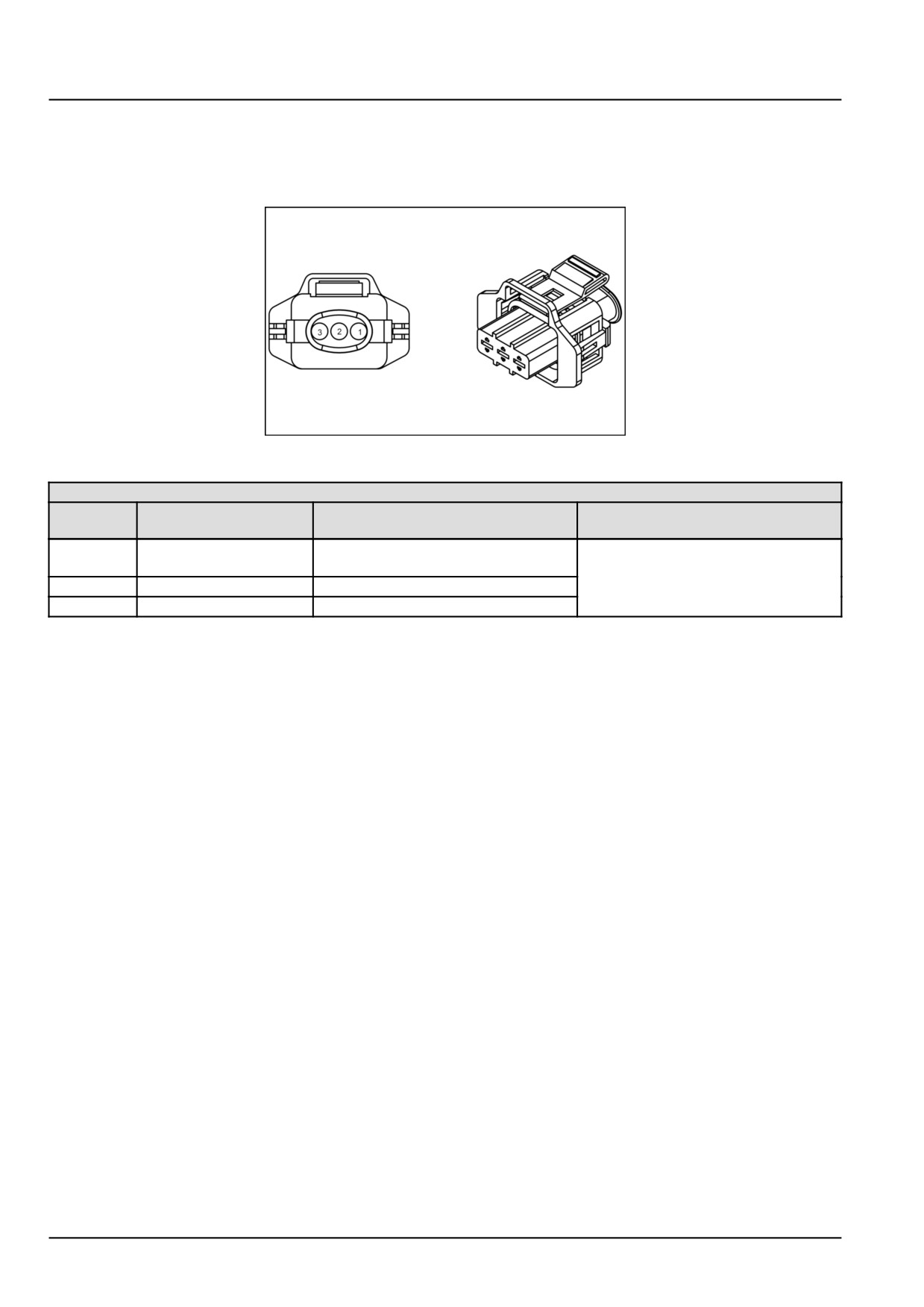

Electrical systems - Harnesses and connectors
Wire connectors - Component diagram 02 - Connectors X-9020 to
X-9029

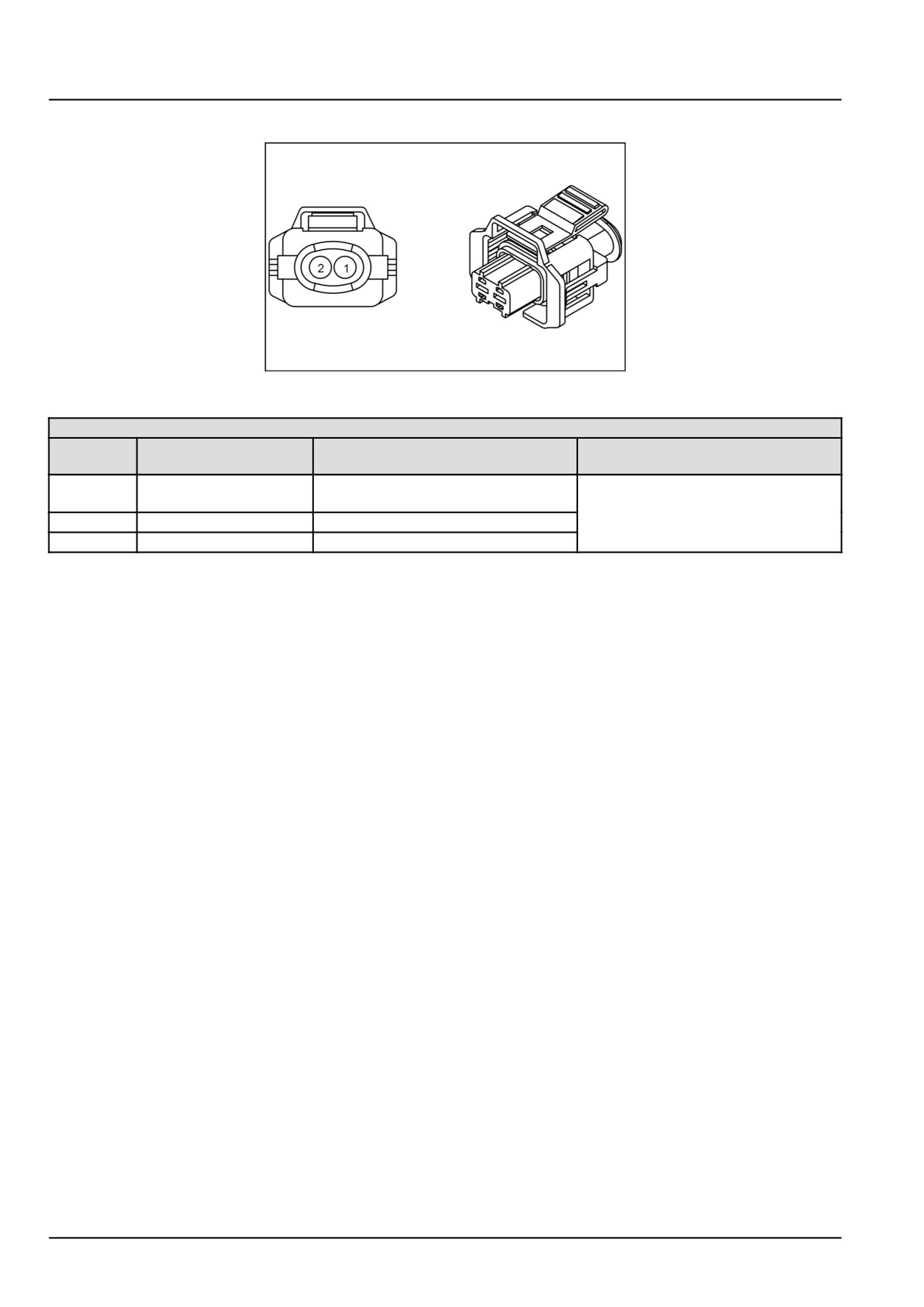

Connector X-9026 - Rail pressure sensor
84130322
1
84146683
CONNECTOR X-9026 - Rail pressure sensor
PIN
WIRE NUMBER
CIRCUIT REFERENCE
ELECTRICAL SCHEMATIC FRAME
NUMBER
1
EN-9106
Reference ground, Engine Control
SHEET 03
Unit (ECU)
2
EN-9107
Input signal, ECU
3
EN-9108
+5 V sensor supply, ECU
55.4 [55.100] / 76

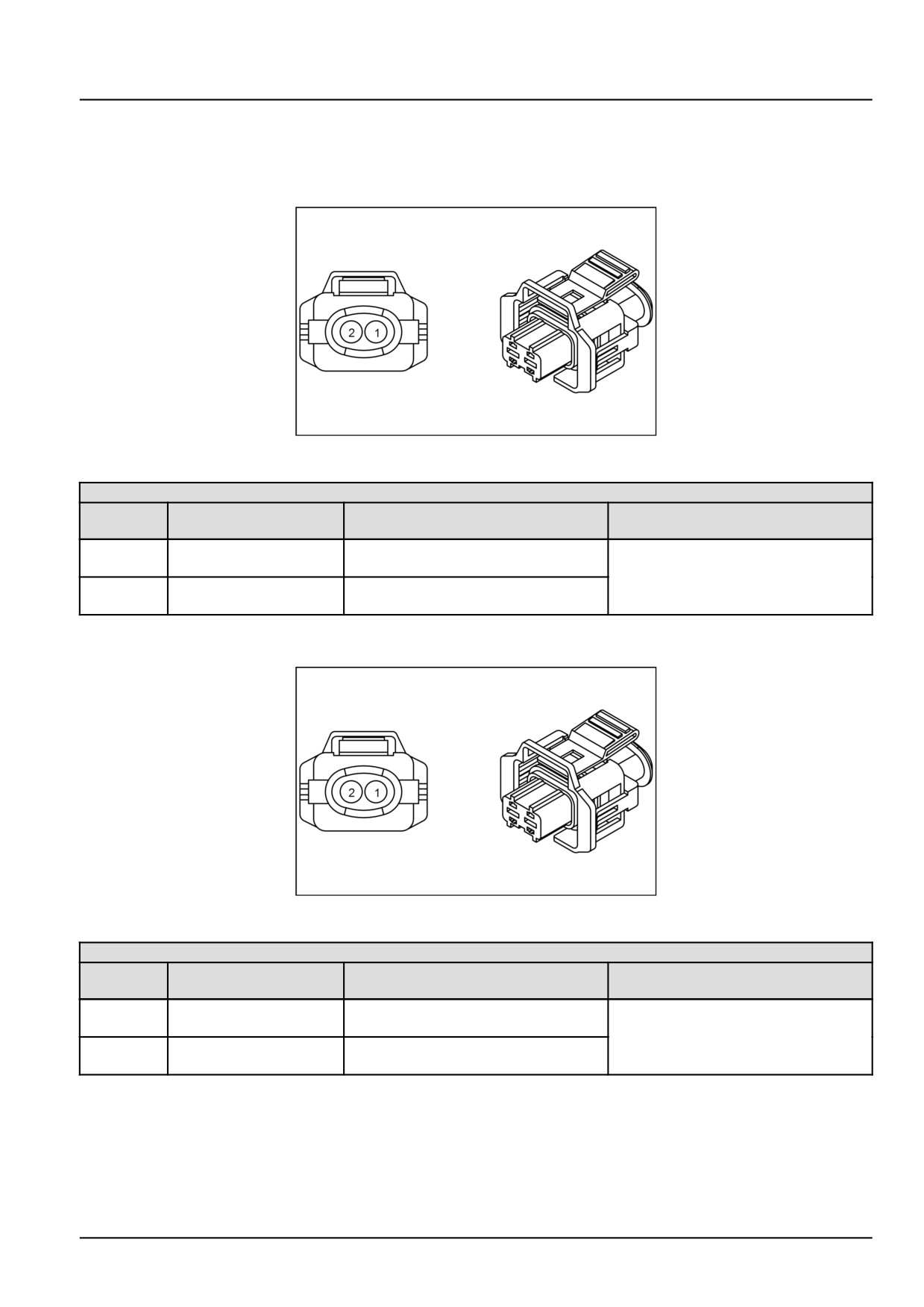

Electrical systems - Harnesses and connectors

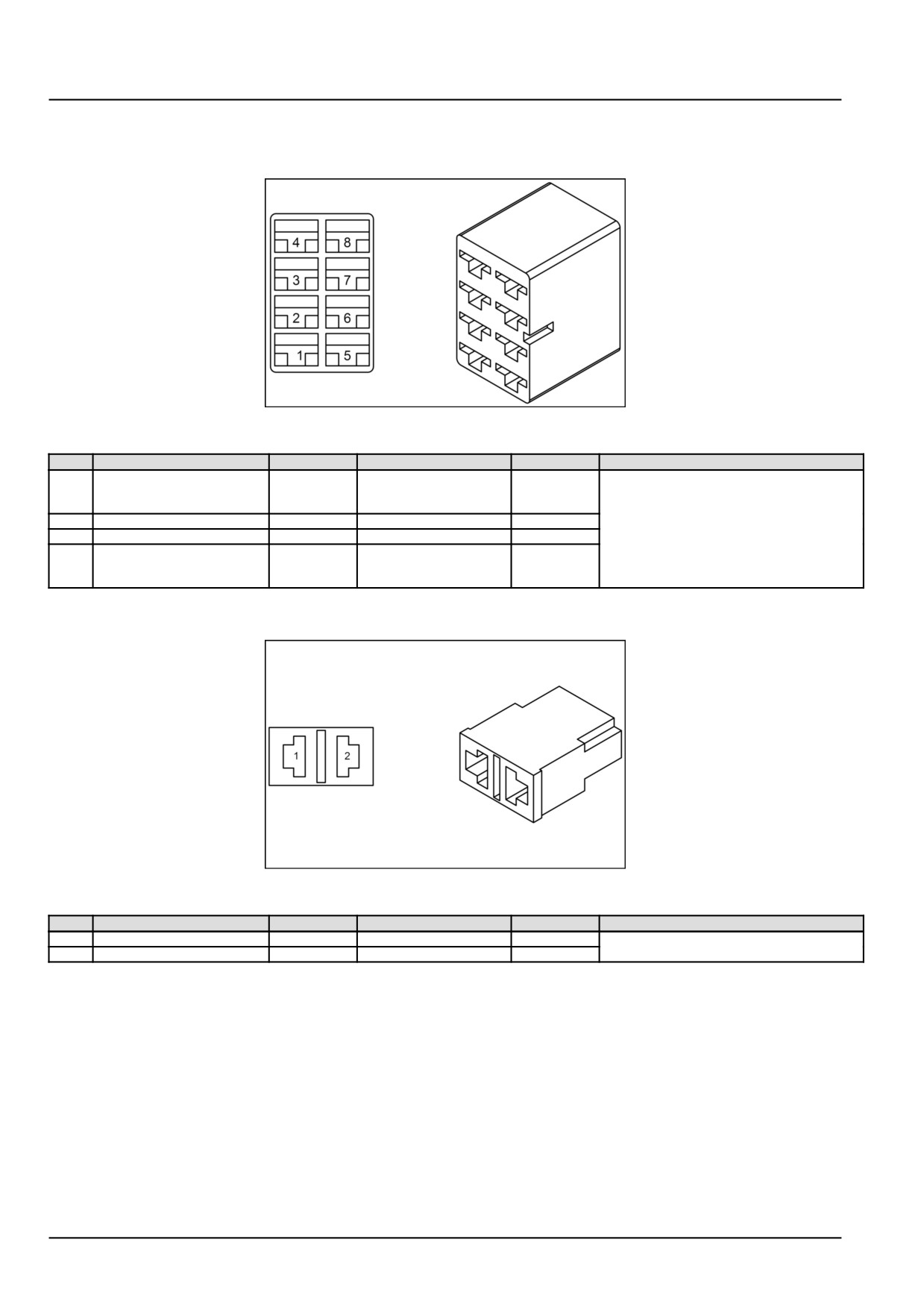

Wire connectors - Component diagram 03 - Connectors X-9030 to
X-9039
Connector X-9030 - Cylinder 1 injector (Bank 1 Injector 1)
87709793
1
87709793
CONNECTOR X-9030 - Cylinder 1 injector
PIN
WIRE NUMBER
CIRCUIT REFERENCE
ELECTRICAL SCHEMATIC FRAME
NUMBER
1
EN-9125
High Side Driver (HSD), Engine
SHEET 03
Control Unit (ECU)
2
EN-9126
Low Side Driver (LSD), Engine
Control Unit (ECU)
Connector X-9031 - Cylinder 3 injector (Bank 2 Injector 1)
87709793
2
87709793
CONNECTOR X-9031 - Cylinder 3 injector
PIN
WIRE NUMBER
CIRCUIT REFERENCE
ELECTRICAL SCHEMATIC FRAME
NUMBER
1
EN-9127
High Side Driver (HSD), Engine
SHEET 03
Control Unit (ECU)
2
EN-9128
Low Side Driver (LSD), Engine
Control Unit (ECU)
55.4 [55.100] / 77

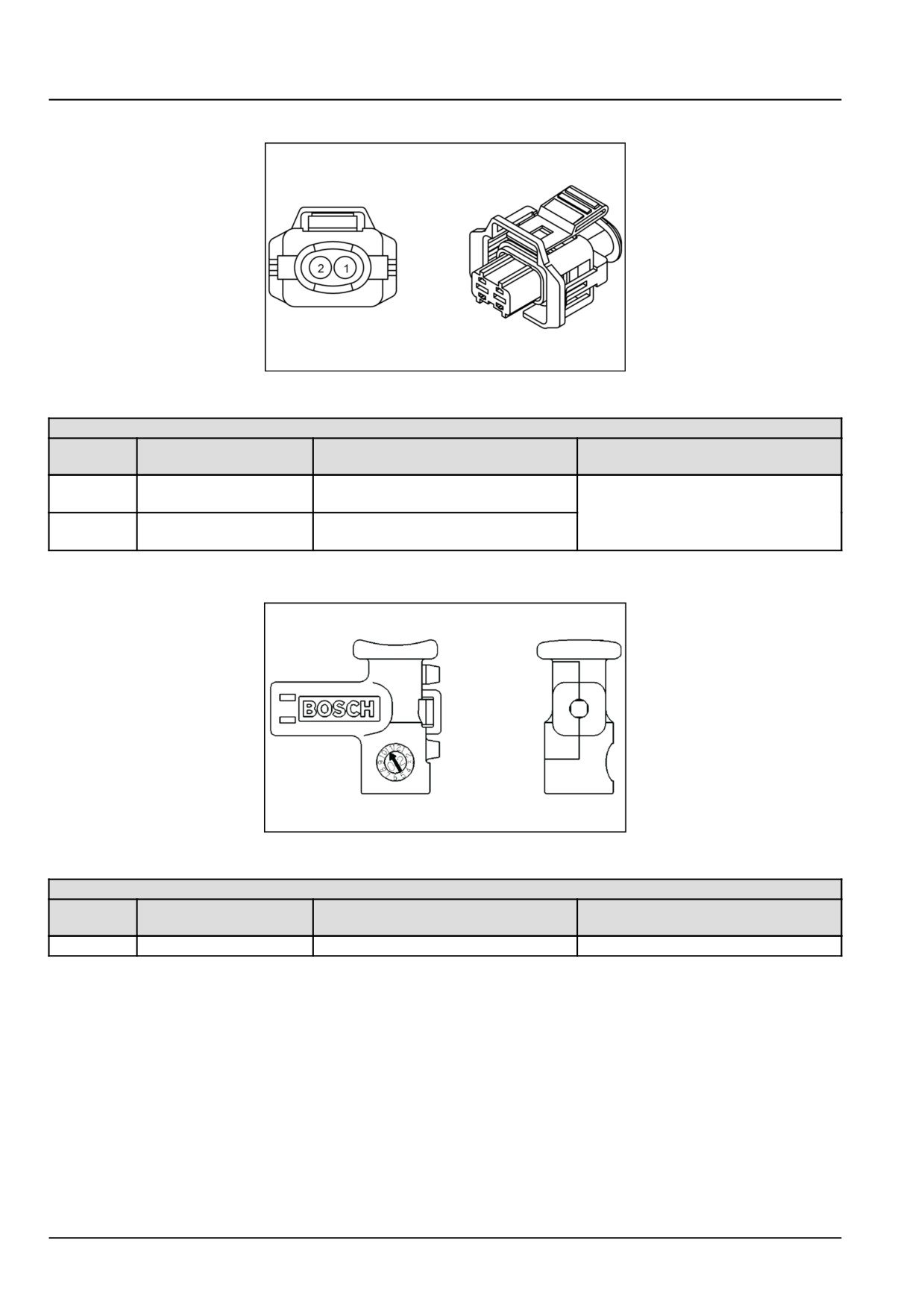

Electrical systems - Harnesses and connectors

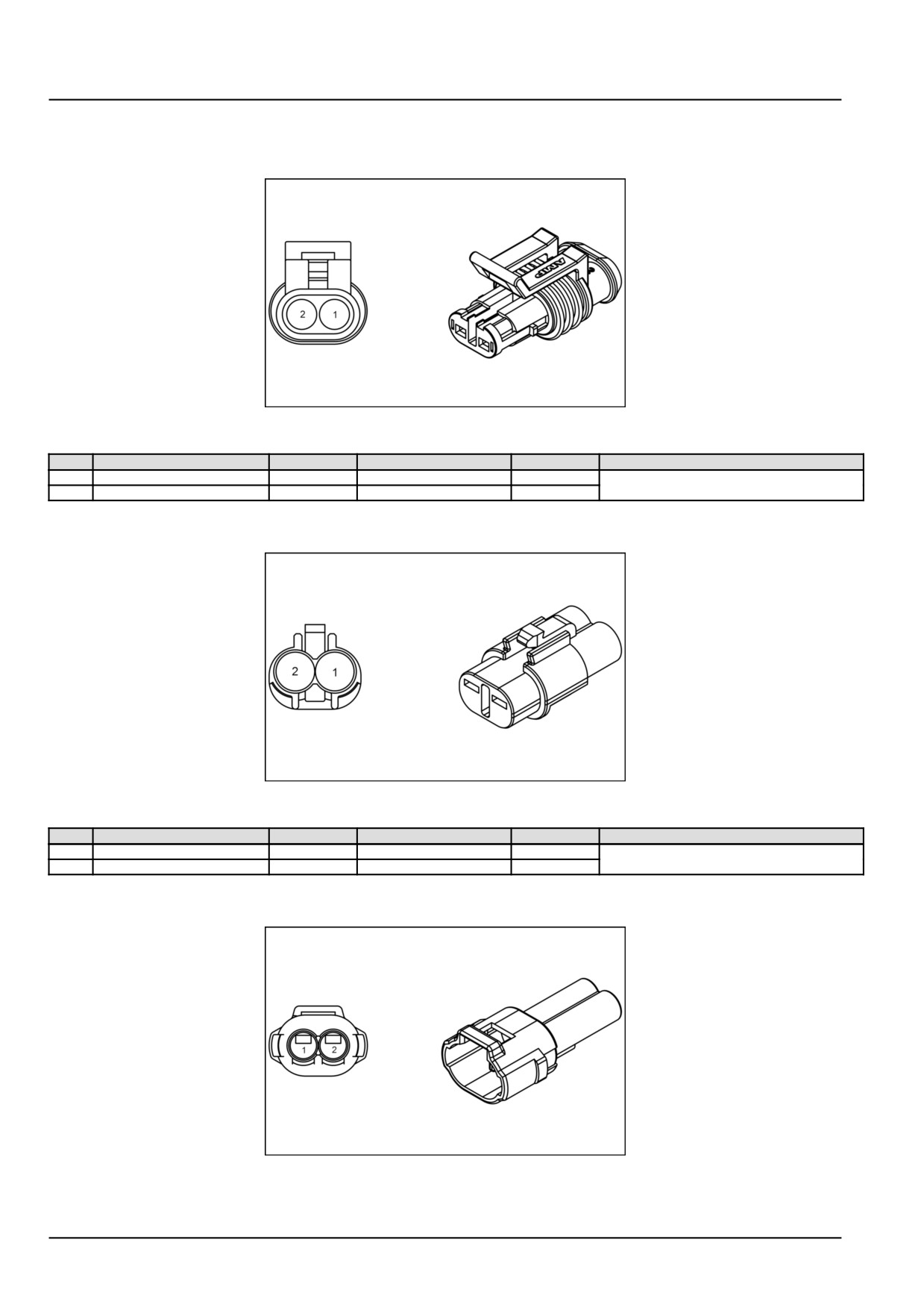

Connector X-9032 - Cylinder 2 injector (Bank 1 injector 2)
87709793
3
87709793
CONNECTOR X-9032 - Cylinder 2 injector
PIN
WIRE NUMBER
CIRCUIT REFERENCE
ELECTRICAL SCHEMATIC FRAME
NUMBER
1
EN-9129
High Side Driver (HSD), Engine
SHEET 03
Control Unit (ECU)
2
EN-9130
Low Side Driver (LSD), Engine
Control Unit (ECU)
Connector X-9034 - Cylinder 1 glow plug
1-928-404-879
4
1-928-404-879
CONNECTOR X-9034 - Cylinder 1 glow plug
PIN
WIRE NUMBER
CIRCUIT REFERENCE
ELECTRICAL SCHEMATIC FRAME
NUMBER
1
GP-1
Glow plug supply
SHEET 01
55.4 [55.100] / 78
Electrical systems - Harnesses and connectors

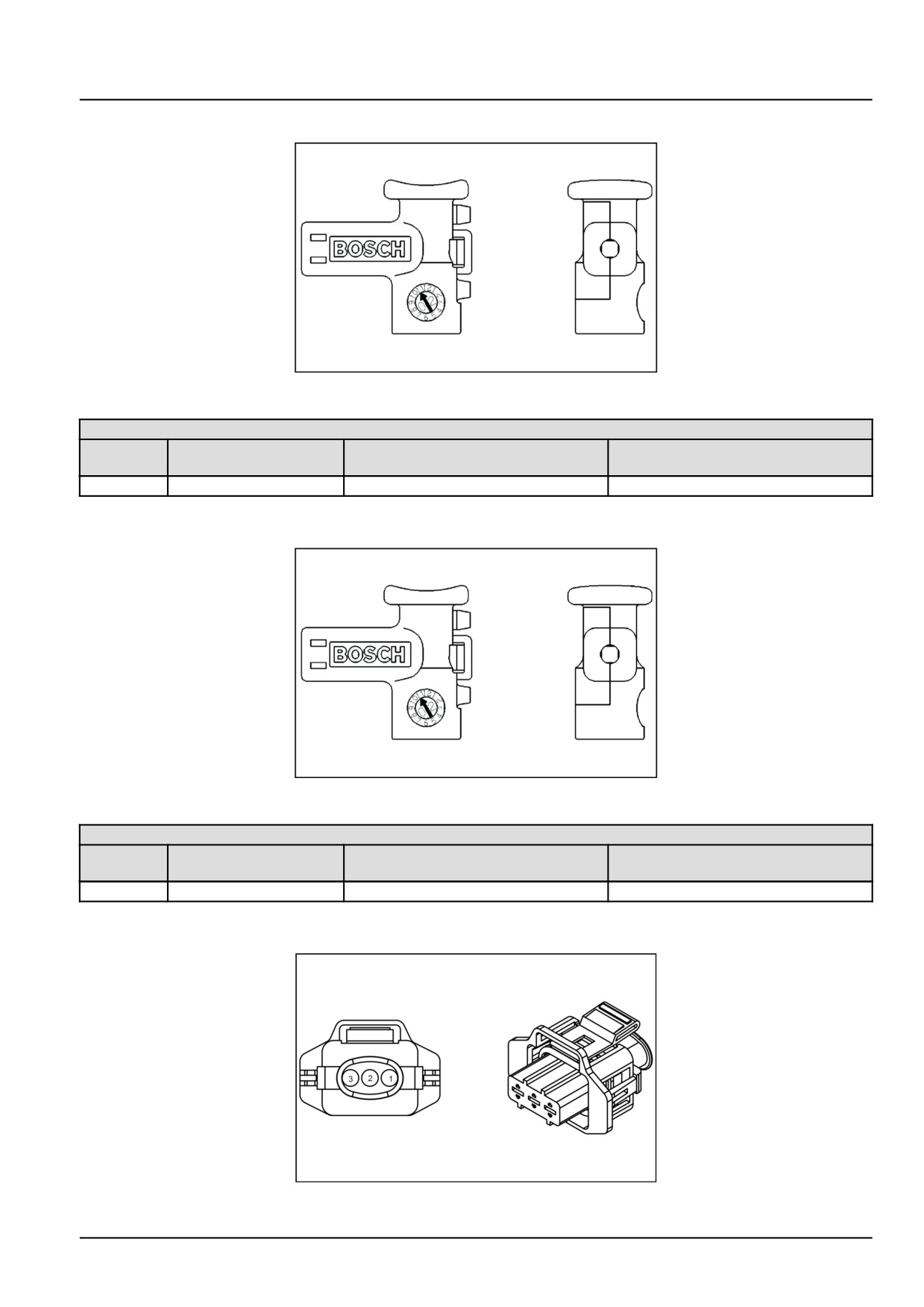

Connector X-9035 - Cylinder 2 glow plug
1-928-404-879
5
1-928-404-879
CONNECTOR X-9035 - Cylinder 2 glow plug
PIN
WIRE NUMBER
CIRCUIT REFERENCE
ELECTRICAL SCHEMATIC FRAME
NUMBER
1
GP-2
Glow plug supply
SHEET 01
Connector X-9036 - Cylinder 3 glow plug
1-928-404-879
6
1-928-404-879
CONNECTOR X-9036 - Cylinder 3 glow plug
PIN
WIRE NUMBER
CIRCUIT REFERENCE
ELECTRICAL SCHEMATIC FRAME
NUMBER
1
GP-3
Glow plug supply
SHEET 01
Connector X-9039 - Crankshaft speed sensor
87747172
7
87747172
55.4 [55.100] / 79
Electrical systems - Harnesses and connectors
CONNECTOR X-9039 - Crankshaft speed sensor
PIN
WIRE NUMBER
CIRCUIT REFERENCE
ELECTRICAL SCHEMATIC FRAME
NUMBER
1
EN-9138
Input signal, positive, Engine Control
SHEET 03
Unit (ECU)
2
EN-9139
Input signal, negative, Engine Control
Unit (ECU)
3
EN-9140
Reference ground, Engine Control
Unit (ECU)
55.4 [55.100] / 80
