New Holland Workmaster 25, Tier 4B (final) Compact Tractor. OPERATOR’S MANUAL (2020)

4 - OPERATING INSTRUCTIONS

Telescoping stabilizers and optional flex end links adjustment

WARNING

Machine damage can cause accidents!

Only operate three-point equipment with both flex ends returned to the latched position.

Failure to comply could result in death or serious injury.

W0467A

Telescoping stabilizers and fixed end links are standard

equipment on the tractor, the flex end links are optional

equipment.

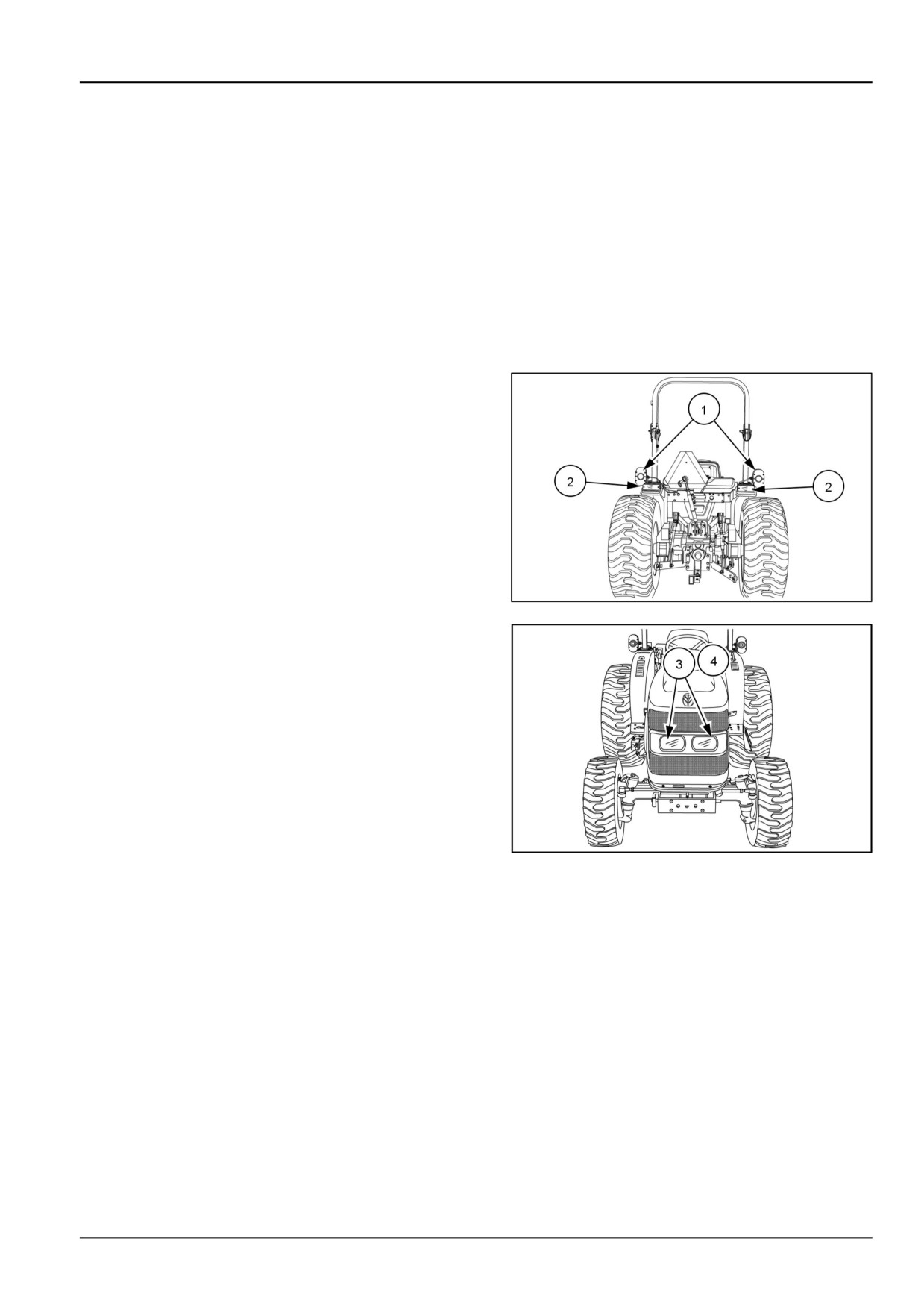

The telescoping stabilizers (1) use a pin and multiple hole

arrangement for easy adjustment, for side to side move-

ment of the three-point linkage.

To adjust the stabilizer, pull the pin (2) and adjust the sta-

bilizer and insert the pin into the desired hole.

NOTE: Cycle the three point linkage through the entire

travel and check for interference with the rear tires. If

interference is present, adjust stabilizers as needed.

The (optional) flex ends (3) on the lower lift arms are ad-

justed by pushing down on the clamp (4) and sliding the

ends to the desired length. Once the implement is at-

NHIL12CT00804AA

tached, push in on the flex ends until the ends are in the

latched position in the arms.

NHIL12CT00837AA

4-7

4 - OPERATING INSTRUCTIONS

Drawbar - Operation

WARNING

Overturning hazard!

Always use the drawbar, pick-up hitch, or lower links in the lowered position for pull-type work. Do

not pull from the lower links if they are above the horizontal position.

Failure to comply could result in death or serious injury.

W0417A

NOTICE: When transporting equipment on highways, a

safety chain with a tensile strength equal to the gross

weight of the implement should be installed between the

tractor and implement hitch.

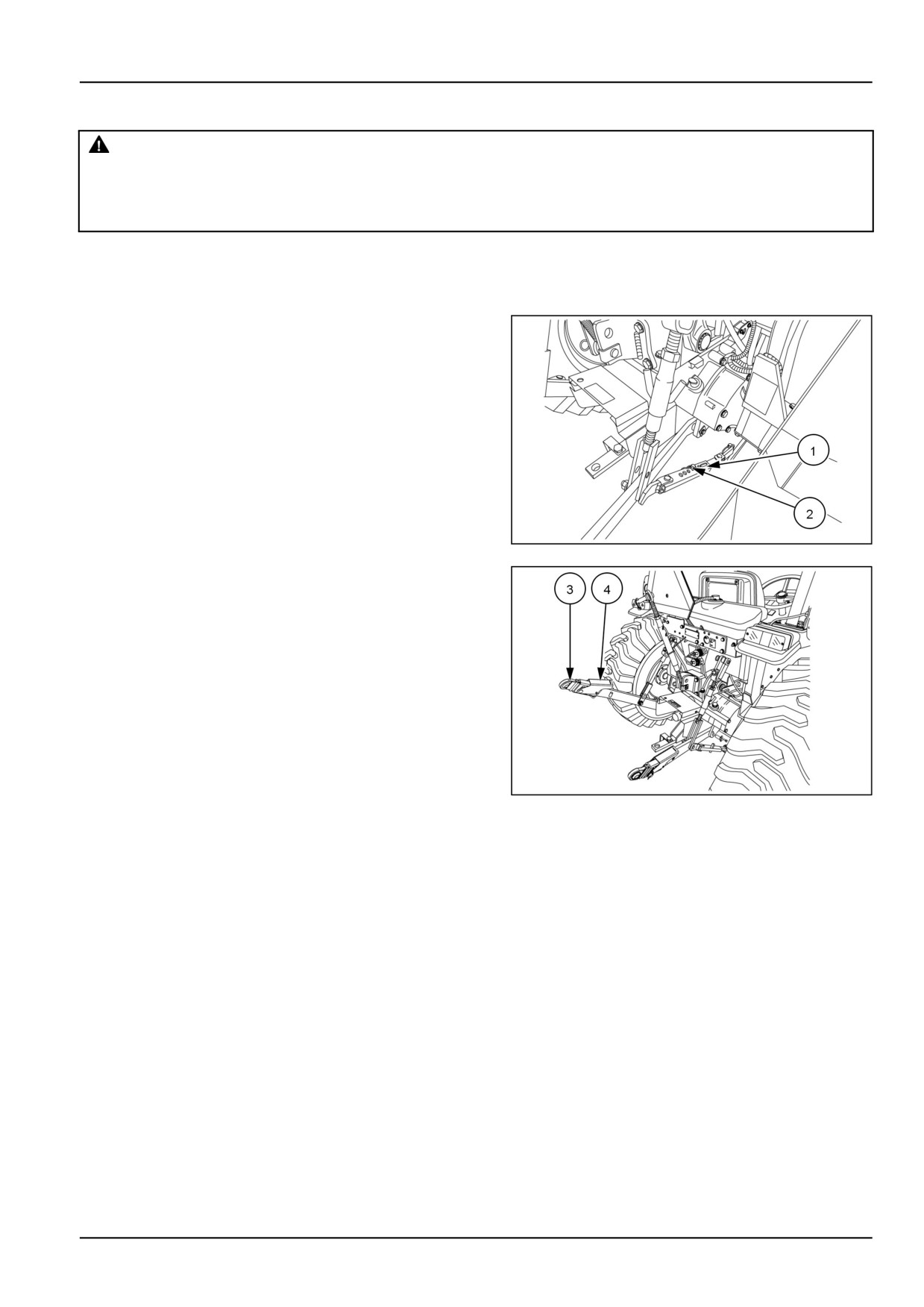

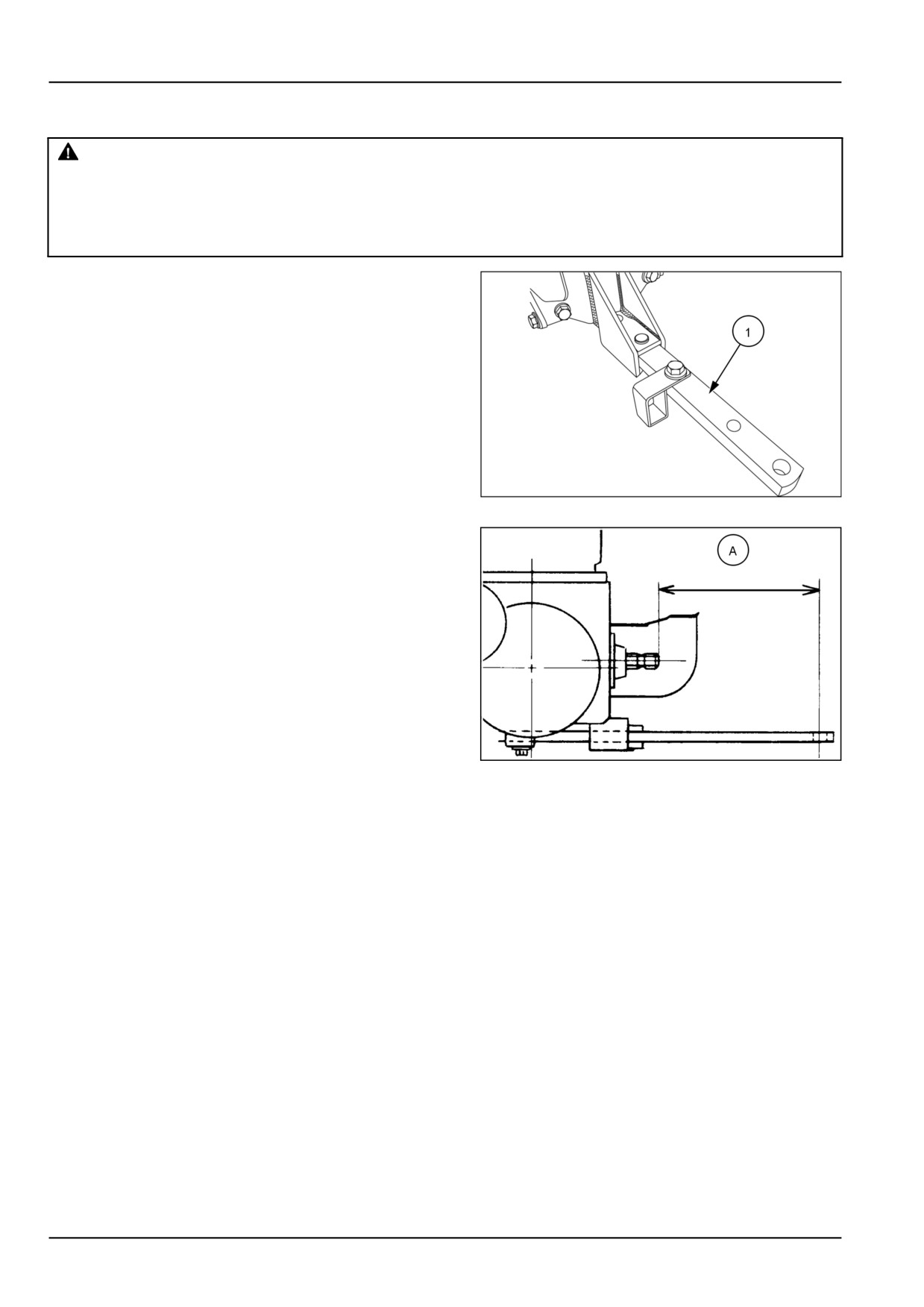

Your tractor is equipped with a fixed/extendible drawbar

(1) for towing equipment behind the tractor.

93100910

NOTICE: The drawbar is required to provide standard rear

PTO drawbar relationship.

20099087

(A)

356 mm (14 in)

4-8

4 - OPERATING INSTRUCTIONS

Hydraulic Power Lift (HPL) drop rate control valve

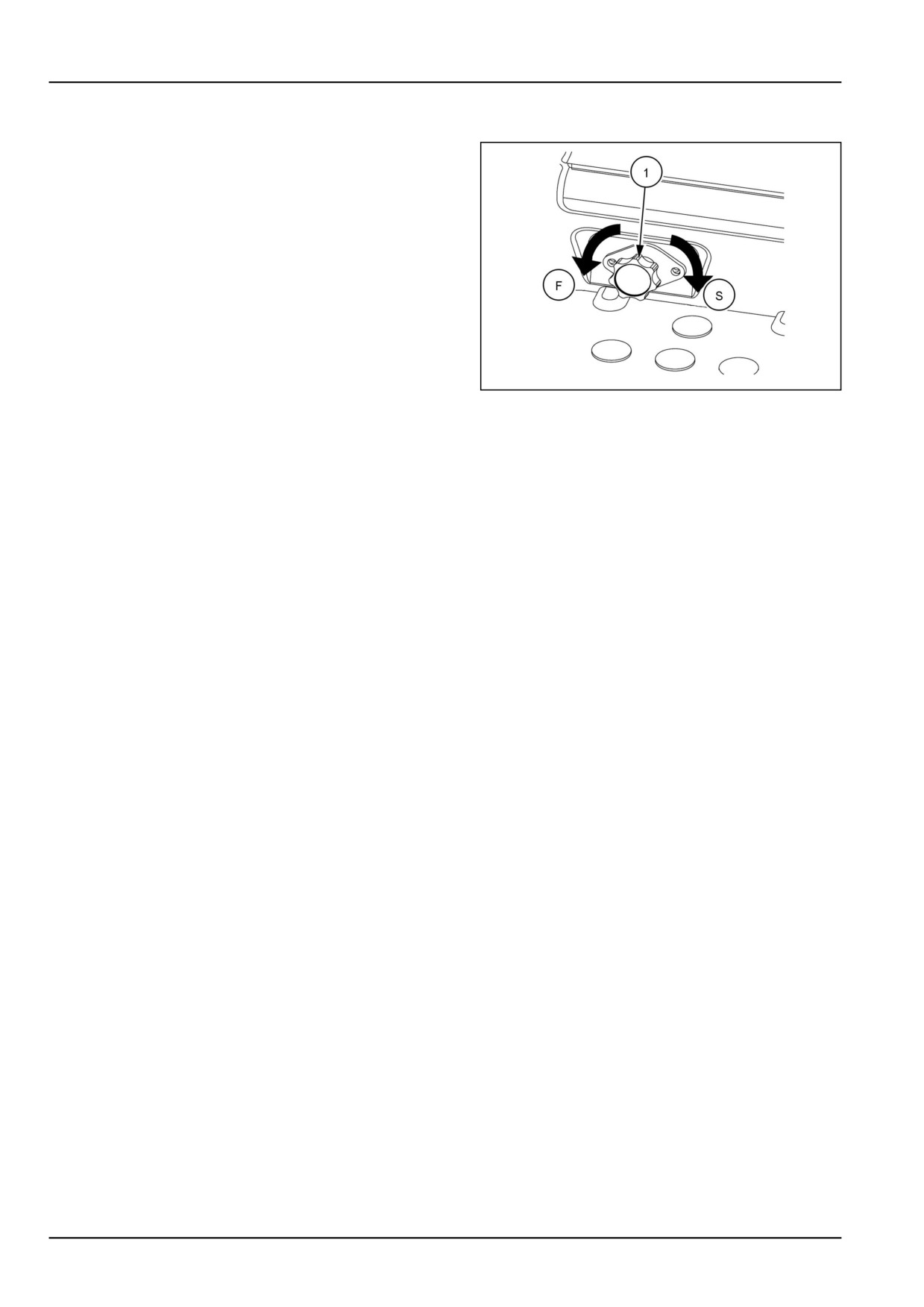

The drop rate control valve (1) provides an adjustment to

regulate the flow of oil from the lift cylinder. This allows the

operator to slow or increase the rate of drop of the lower

links.

Turn the drop rate control valve "IN" (clockwise) to de-

crease the rate of drop. Turn the valve "OUT" (counter-

clockwise) to increase the rate of drop.

The drop rate control valve must be opened before the

hydraulic lift control will lower. If the valve is turned all

the way "IN" (clockwise), the lower links can be raised to

maximum height but cannot be lowered.

NOTE: The drop rate control valve needs to be adjusted

200900060A

accordingly to the amount of weight being carried on the

rear hitch arms.

(F) Fast

(S) Slow

4-10

4 - OPERATING INSTRUCTIONS

Starting the unit

Starting the engine

WARNING

Run-over hazard!

When attempting to start the engine, always sit in the operator´s seat with the parking brake engaged

and all control elements in neutral. Never attempt to start the engine while standing beside the ma-

chine.

Failure to comply could result in death or serious injury.

W0967B

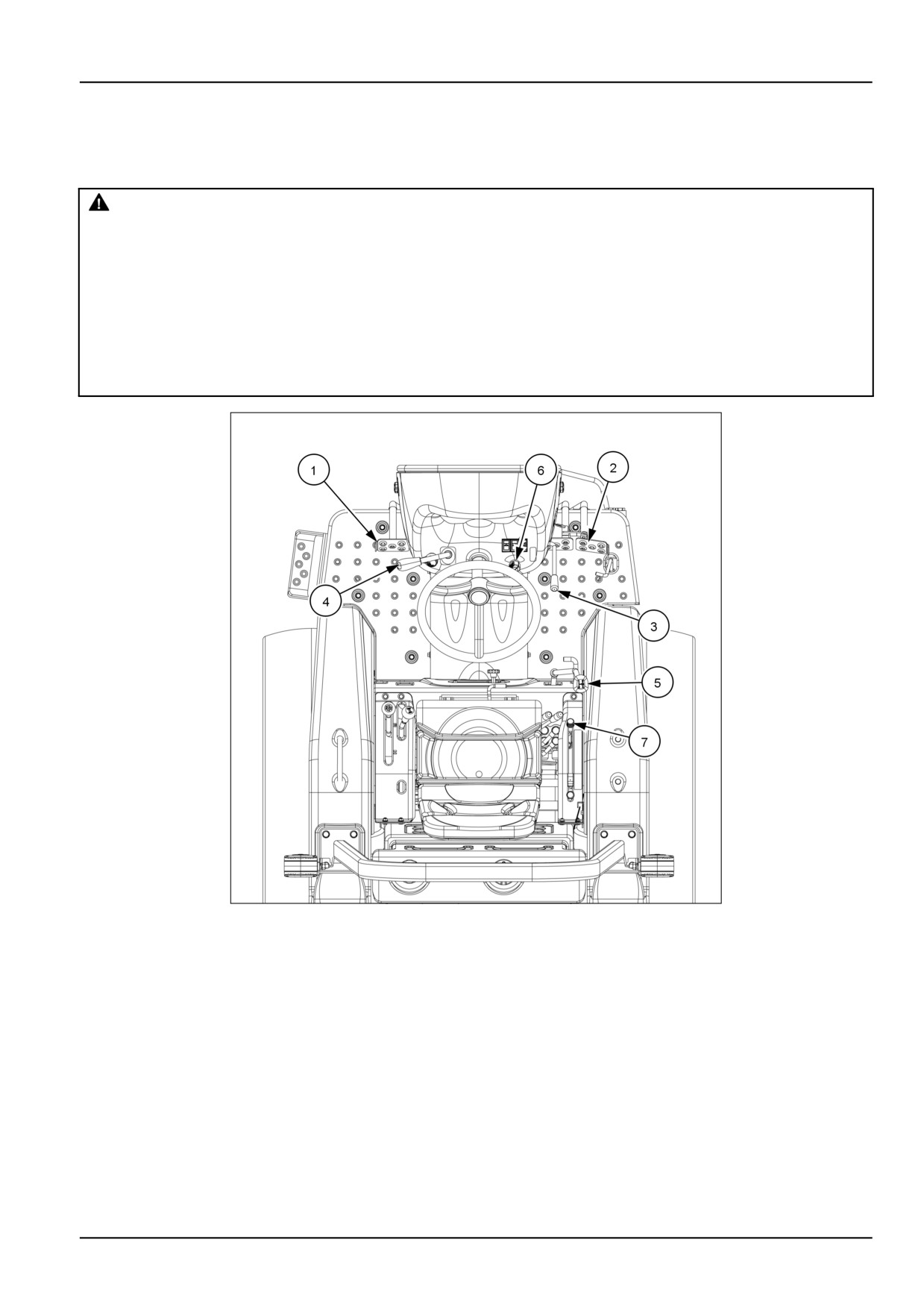

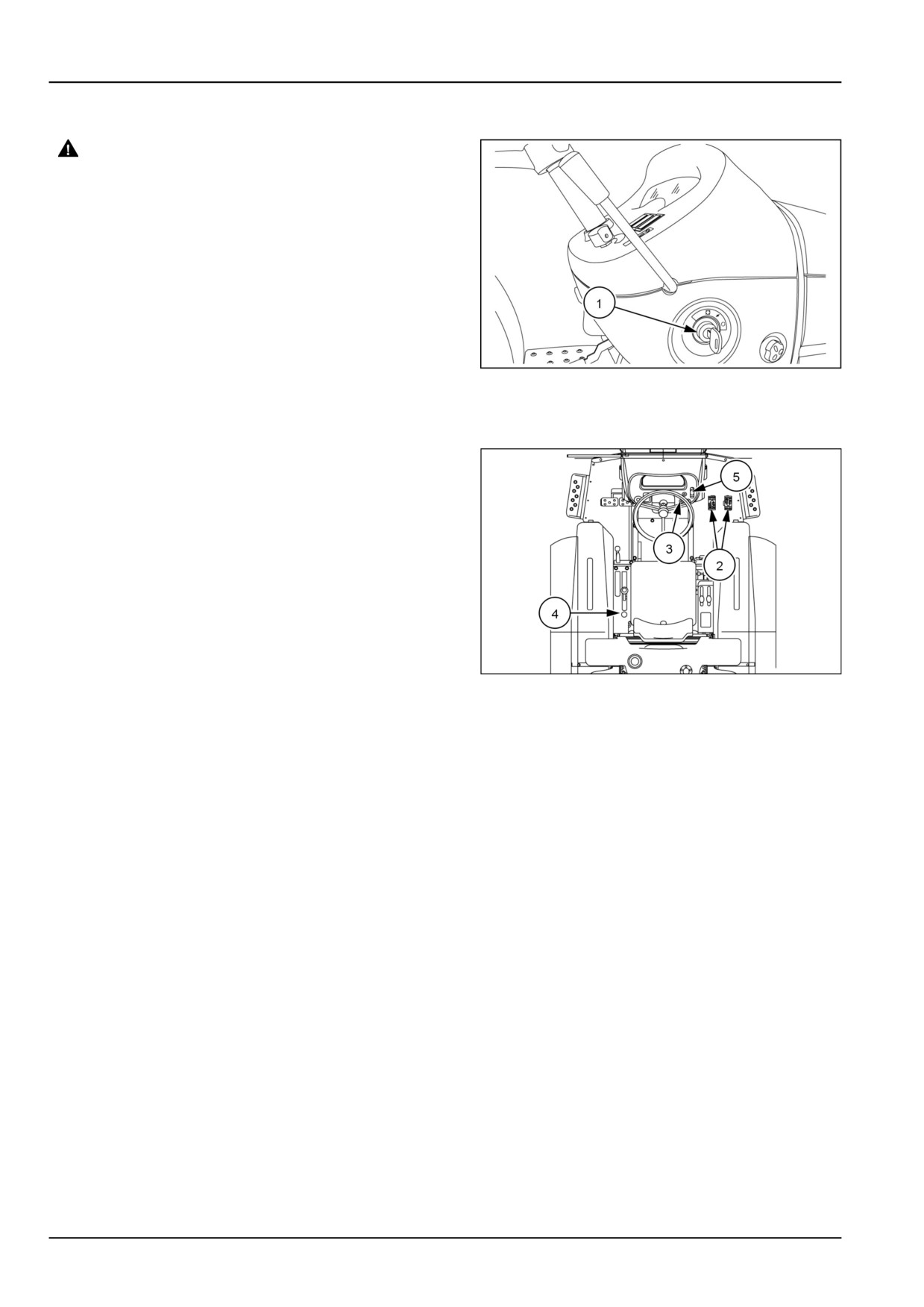

Mechanical transmission tractor

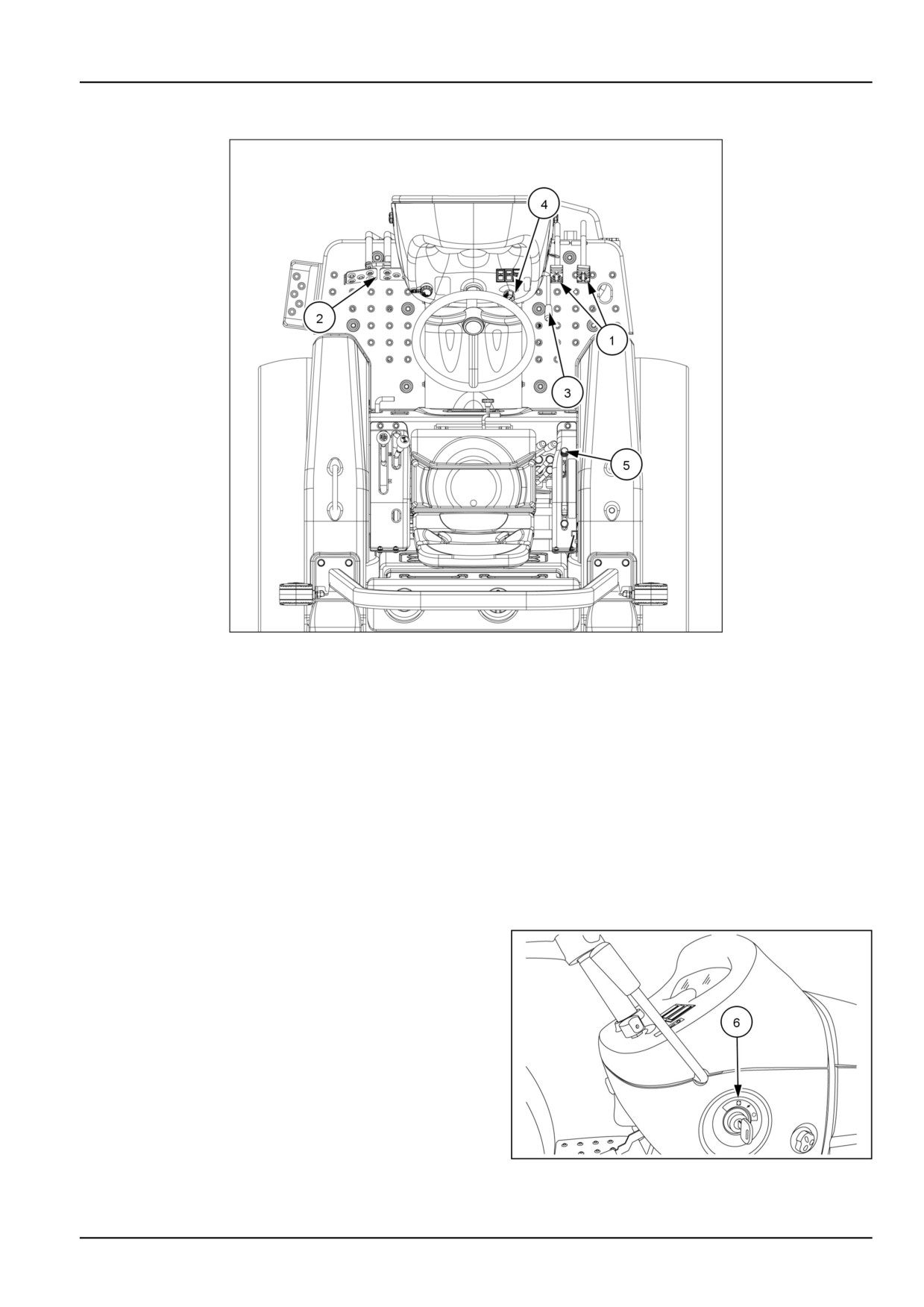

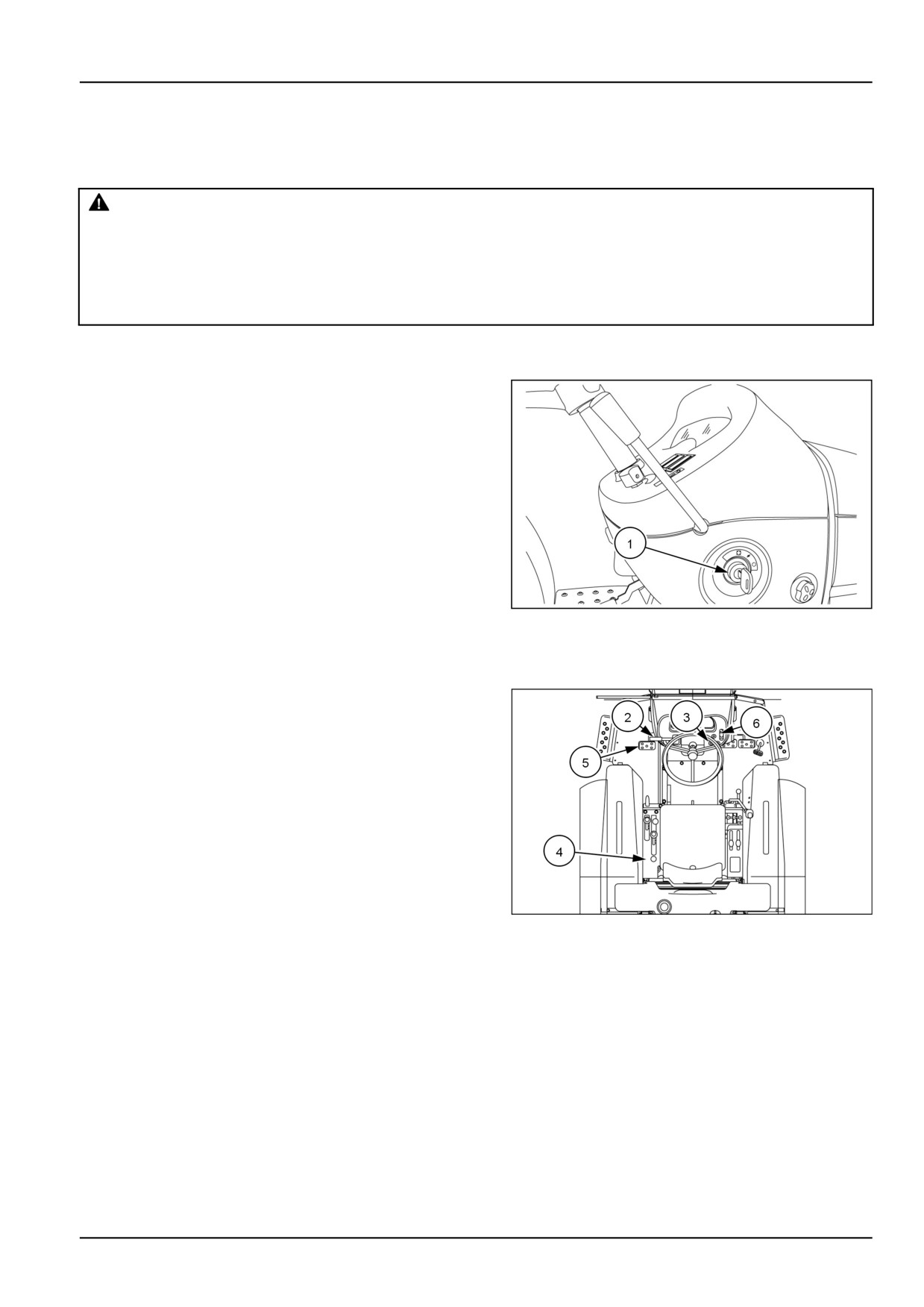

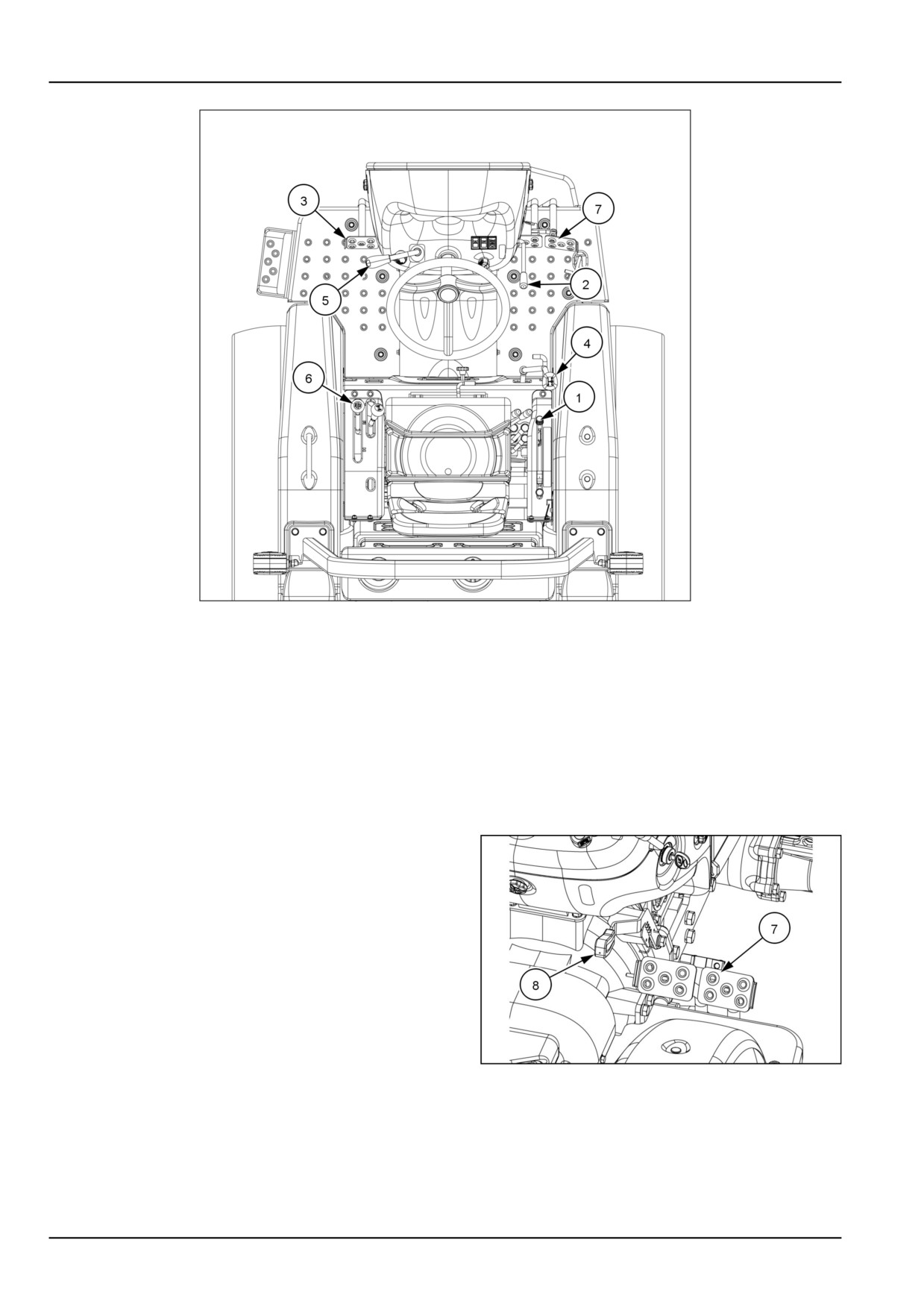

The key switch (1) allows activation of the starter motor

and fuel delivery only when:

· Shuttle lever (2) is in the neutral position.

· PTO switch (3) is in the "OFF" position.

· Mid PTO lever (4) is in the "OFF" position (if equipped)

· Clutch Pedal (5) is depressed.

NOTE: Although the tractor can be started with the op-

erator out of the seat, this practice is not recommended.

However, an alarm will sound if the park brake is not en-

gaged, indicating that the operator needs to engage the

park brake.

NHIL12CT00692AA

1. Push the hand throttle lever (6) forward to about the

middle position.

2. Turn the key switch to the middle "ON" position and

check if the engine oil pressure, battery charge and

cold start indicator lights are illuminated. .

3. Wait until the cold start indicator light goes off (approx-

imately ten seconds).

4. Fully and turn the key to the extreme right to the

"START" position. As soon as the engine starts,

release the key to the middle "ON" position.

NOTICE: Do not engage the starting motor continu-

ously for more than 10 seconds. Doing so may cause

starting motor failure.

93100852

5. Check if the engine oil pressure and battery charge

indicator lights are illuminated, the lights should be off.

If any of these indicator lights are illuminated, shut off

the engine immediately and check engine for possible

problem.

4-11

4 - OPERATING INSTRUCTIONS

Hydrostatic Transmission (HST) tractor

WARNING

Run-over hazard!

Always sit in the operator's seat with the park-

ing brake engaged when attempting to start

the engine. Never attempt to start the engine

while standing beside the machine.

Failure to comply could result in death or se-

rious injury.

W0967A

The key switch (1) allows activation of the starter motor

and fuel delivery only when:

· HST forward/reverse pedals (2) are in the neutral posi-

tion.

NHIL12CT00692AA

· PTO switch (3) is in the "OFF" position.

· Mid PTO lever (4) is in the "OFF" position (if equipped)

NOTE: Although the tractor can be started with the op-

erator out of the seat, this practice is not recommended.

However, an alarm will sound if the park brake is not en-

gaged, indicating that the operator needs to engage the

park brake.

1. Push the hand throttle lever (5) forward to about the

middle position.

2. Turn the key switch to the middle "ON" position and

check if the engine oil pressure, battery charge, and

cold start indicator lights are on.

93100853

3. Wait until the cold start indicator light goes off (approx-

imately ten seconds).

4. Turn the key switch to the extreme right to the "START"

position. As soon as the engine starts, release the key

to the middle "ON" position.

NOTICE: Do not engage the starting motor continu-

ously for more than 10 seconds. Doing so may cause

starting motor failure.

5. Check if the engine oil pressure and battery charge

indicator lights are illuminated, the lights should be off.

If any of these indicator lights are illuminated, shut off

the engine immediately and check engine for possible

problem.

4-12

4 - OPERATING INSTRUCTIONS

Cold starting aids

DANGER

Explosion hazard!

DO NOT use ether starting fluid. Explosion, death, serious personal injury, or serious engine damage

could occur.

Failure to comply will result in death or serious injury.

D0085A

Your tractor requires preheating of the engine combustion chambers prior to start up.

To preheat the engine, turn the key switch clockwise to the “ON” position (1). The cold start indicator light (2) will

illuminate for approximately 10 seconds. The glow plugs heat the precombustion chambers during this time. After

the light goes out the tractor can be started.

If the engine fails to start after 10 seconds of cranking, repeat the preheat cycle.

NOTE: In cold weather below -12 °C (10 °F) multiple heating cycles may be need. After 10 seconds turn the key to

“OFF” and repeat the cycle.

NOTICE: When starting the machine after long periods, avoid immediate use of hydraulics. It is necessary to allow

time for enough lubrication of all moving parts before subjecting the to work loads, particularly if outdoor temperatures

approach 0 °C (32 °F). Run the engine at 1300 to 1500 RPM for approximately fifteen minutes to bring the transmis-

sion oil up to normal operating temperature. Failure to comply could result in damage to the machine.

NOTE: A 120 V electric engine block heater is available as a Dealer Installed Accessory (DIA). This heater allows for

easier starting in temperatures below -12 °C (10 °F) by warming the engine coolant.

NHIL12CT00692AA

NHIL17CT01803FA

4-13

4 - OPERATING INSTRUCTIONS

Starting the tractor with jumper cables

WARNING

Unexpected machine movement!

Always sit in the operator's seat to operate the machine. DO NOT bypass the key start switch. Sudden

and unexpected machine movement or machine runaway could result.

Failure to comply could result in death or serious injury.

W0464A

WARNING

Explosive gas!

Batteries emit explosive hydrogen gas and other fumes while charging. Ventilate the charging area.

Keep the battery away from sparks, open flames, and other ignition sources. Never charge a frozen

battery.

Failure to comply could result in death or serious injury.

W0005A

WARNING

Explosion hazard!

When jump-starting the machine, connect and disconnect the jumper cables exactly as indicated in

this manual. DO NOT connect the jumper cables to the machine battery terminals. Make sure no

persons are near the connecting points before starting the engine. Start the engine from the operator’s

seat.

Failure to comply could result in death or serious injury.

W0342A

NOTICE: When using a auxiliary battery to start the en-

gine ensure that the polarity of the jumper cables are cor-

rect POSITIVE to POSITIVE NEGATIVE to NEGATIVE or

the alternator or battery may be damaged.

If you must use jumper cables to start the tractor:

1. Shield your eyes.

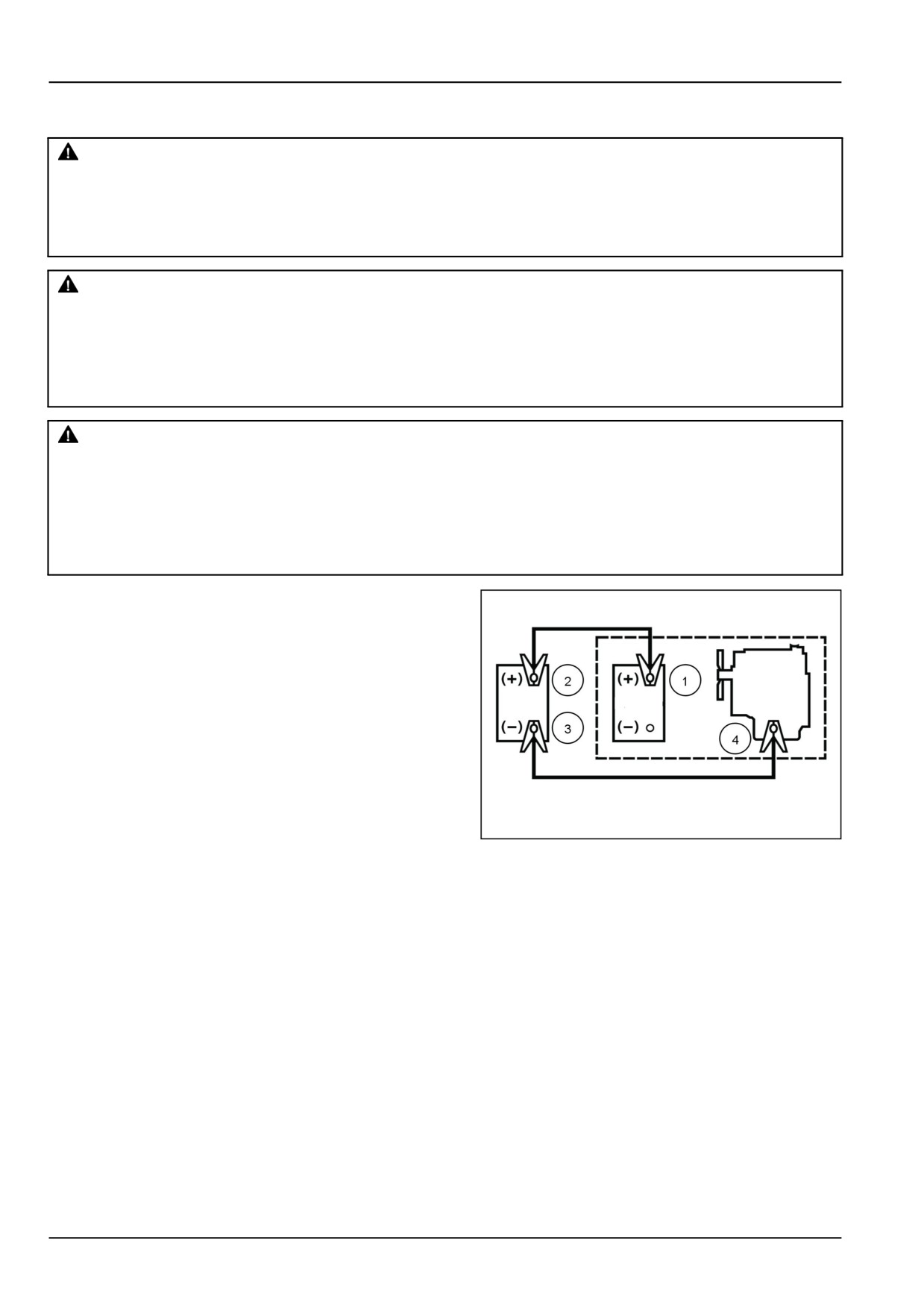

2. Connect the red end of the jumper cable to the positive

(+) battery terminal (1) on the tractor and connect the

other red end to the positive (+) battery terminal (2) on

the auxiliary battery.

3. Connect the black end of the jumper cable to the nega-

tive (-) battery terminal (3) on the auxiliary battery then

connect the other black end to a tractor frame ground

20100878

or engine ground (4). Finally start the tractor by fol-

lowing the safe starting procedures outlined under See

4-11 .

4. When the engine starts allow the engine to idle and

turn on all electrical equipment (lights etc.) This will

help protect the alternator from possible damage due

to changes in load when disconnecting the jumper ca-

bles.

5. Disconnect the jumper cables in reverse order discon-

nect the black end from the tractor frame or engine

ground (4) then disconnect the other black end from

the negative (-) battery terminal (3) on the auxiliary bat-

tery. Disconnect the red end from the positive (+) bat-

tery terminal (2) on the auxiliary battery then remove

the other red end from the positive (+) battery terminal

(1) on the tractor battery.

4-14

4 - OPERATING INSTRUCTIONS

Stopping the unit

Stopping the engine

To stop the engine, carry out the following procedures:

1. Remain in the operator seat.

2. Pull the hand throttle lever rearward to the idle position.

3. Engage the park brake.

4. Ensure all gear shift levers, range levers or shuttle shift lever are in the neutral position and the Power Take Off

(PTO) switch is in the OFF position.

5. Push the Hydraulic Power Lift (HPL) control lever forward to lower implements to the ground.

6. Turn the key to the STOP position to shut the engine off.

NOTE: When the key is turned to the STOP position and the park brake is NOT engaged, an alarm will sound. The

alarm will continue to sound for approximately ten seconds or until the park brake is engaged.

NOTE: If the key is not left in the STOP position after the engine has stopped, the warning lights will remain on and

discharge the battery.

4-15

4 - OPERATING INSTRUCTIONS

Service brakes

WARNING

Loss of control hazard!

Always reduce the traveling speed and use the steering wheel while you make a turn. When you oper-

ate the machine at high speeds, never attempt to make sharp turns by using the turning brake pedals.

If you use the individual brakes at high speeds, the machine could become machine unstable.

Failure to comply could result in death or serious injury.

W1237A

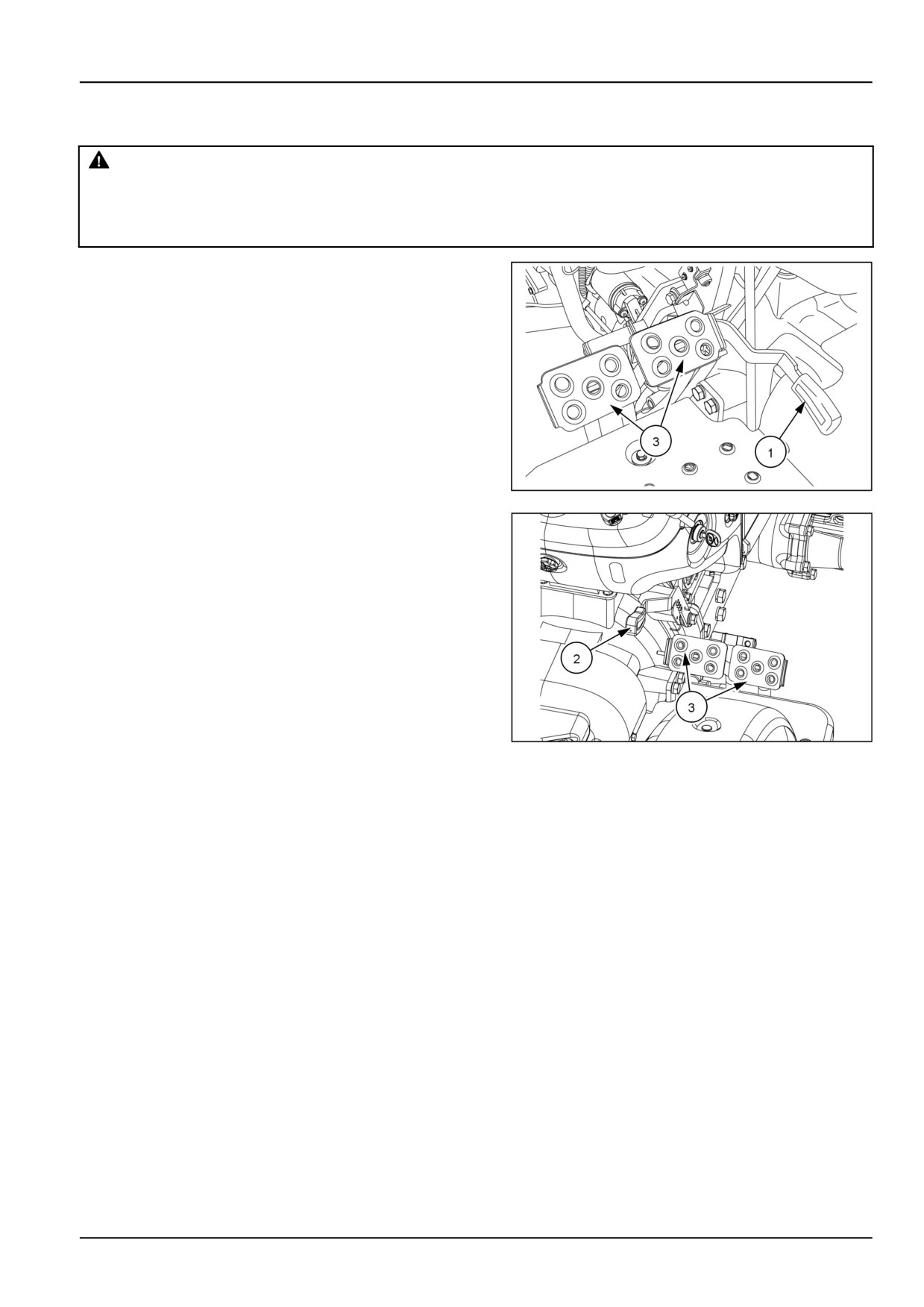

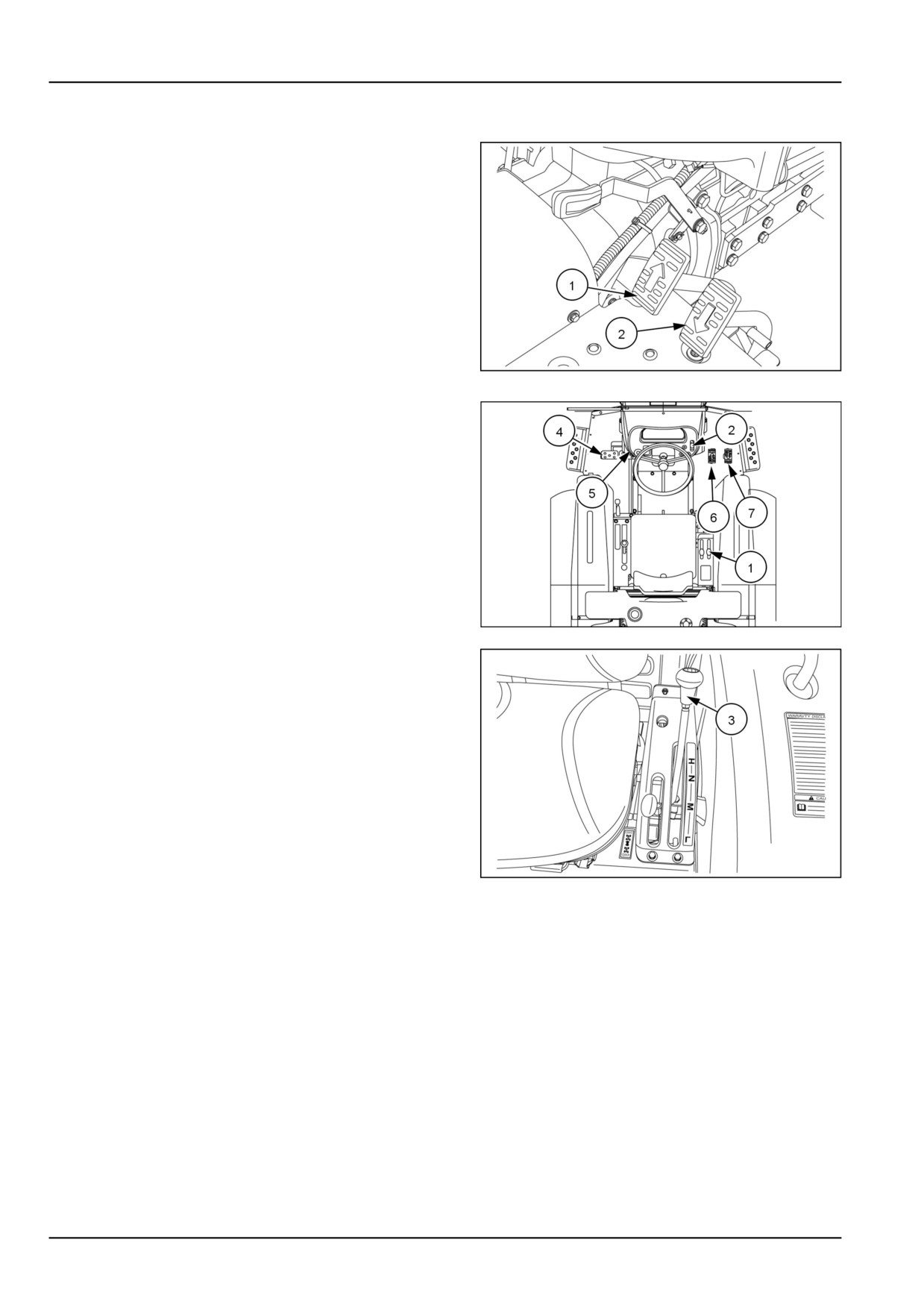

Brake pedals

The right brake pedal controls the braking action of the

right rear wheel. The left brake pedal controls the braking

action of the left rear wheel.

The function of the brake pedals are identical for the Hy-

drostatic Transmission (HST) and mechanical transmis-

sion tractors except for the location of the pedals. The

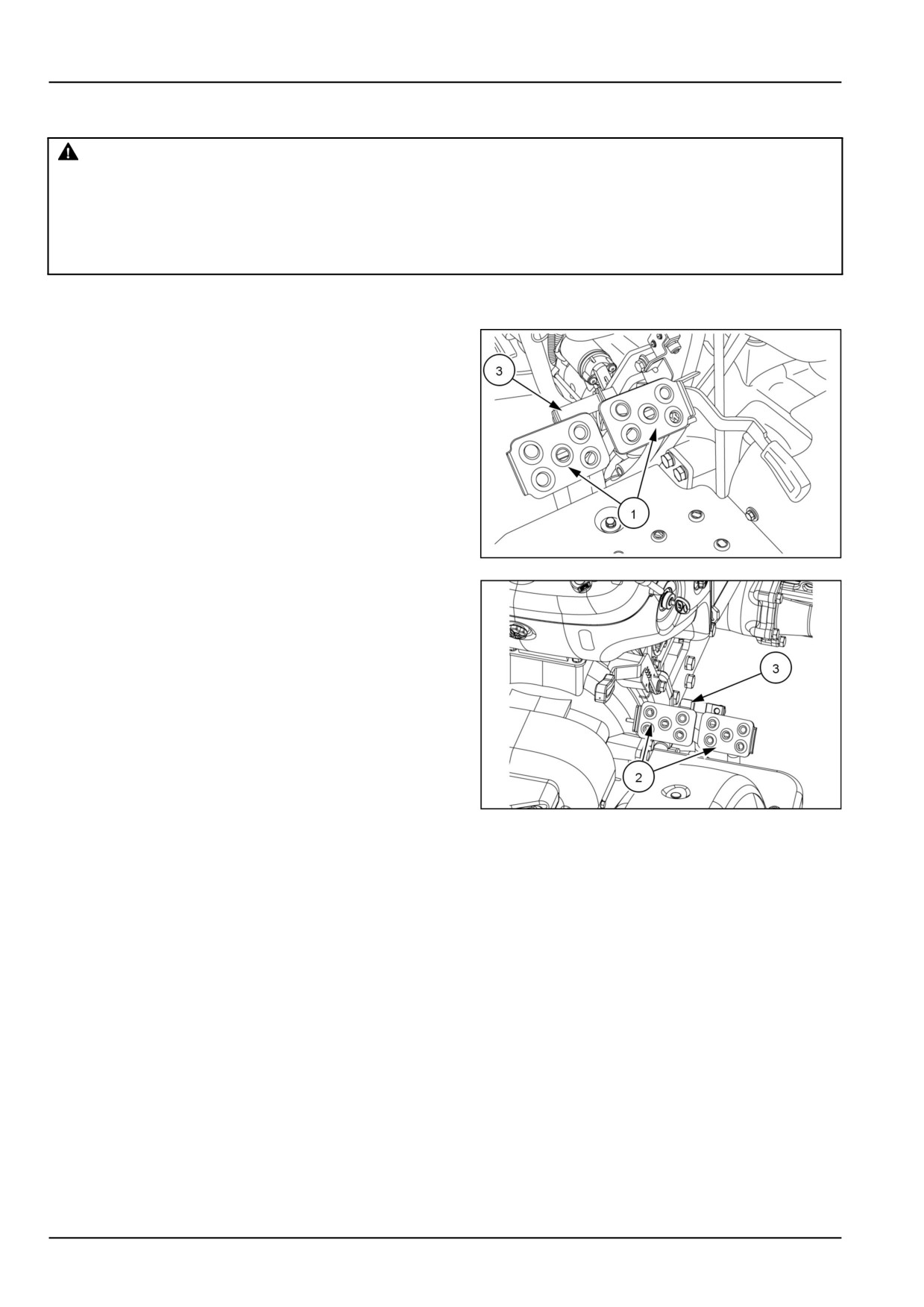

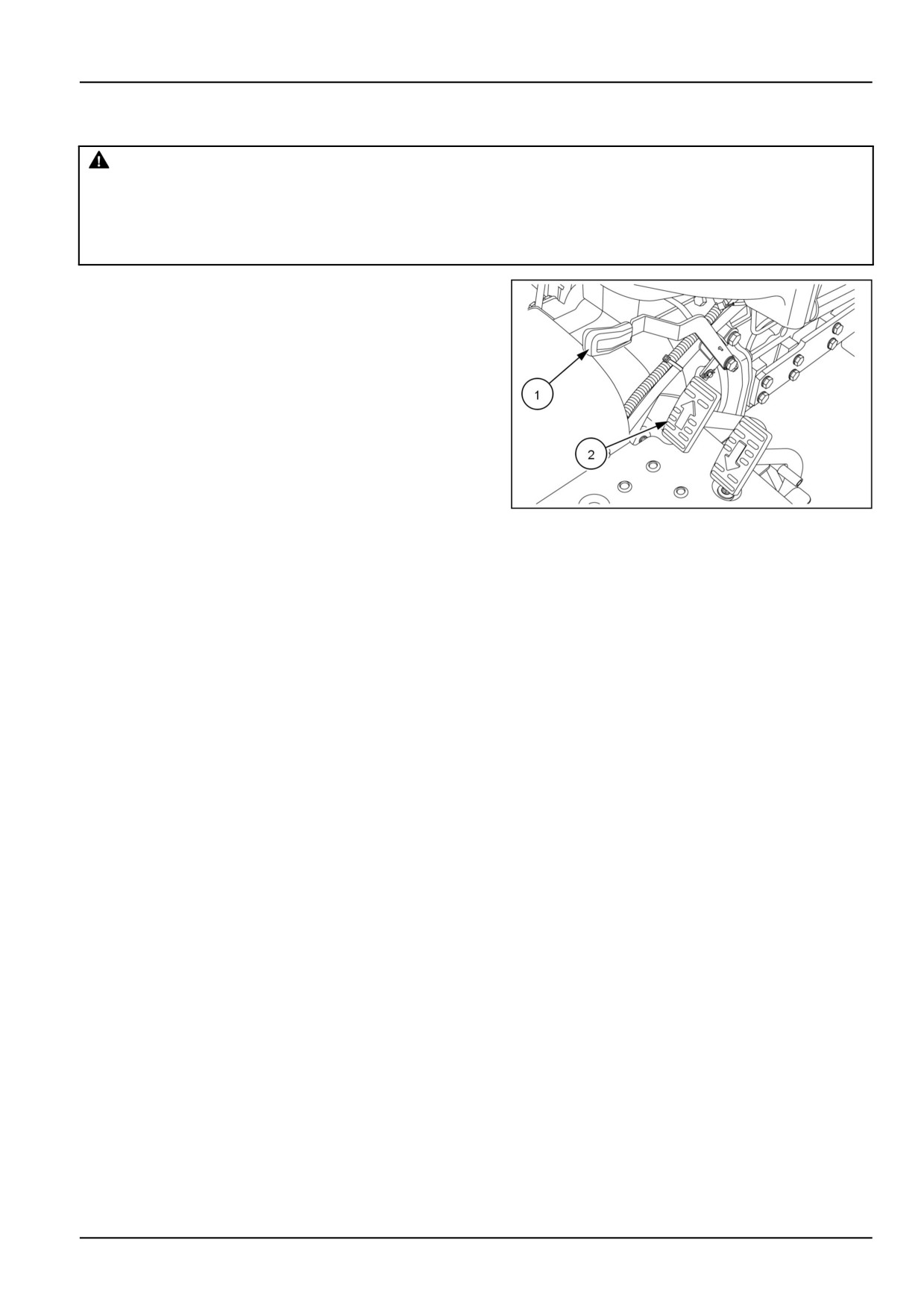

brake pedals (1) on a HST model tractor are located on

the left-hand side of the operators platform and the brake

pedals (2) on a mechanical transmission tractor are lo-

cated on the right-hand side of the operators platform.

Stopping the tractor

NHIL12CT00691AA

To stop a mechanical transmission tractor, depress both

brake pedals and the clutch pedal simultaneously.

To stop a HST model tractor, release the HST forward or

reverse pedal and depress both brake pedals simultane-

ously.

NOTE: To assist in making sharp turns at slow speed,

depress the right or left brake pedal as required.

NOTE: Depressing the brake pedals will disengage the

HST cruise control function.

Brake pedal lock

The brake pedal connecting pin (3) is used to secure the

NHIL12CT00775AA

brake pedals together. Lock the pedals together when-

ever the tractor is operated at high speeds or when the

tractor is used on the highway.

4-16

4 - OPERATING INSTRUCTIONS

Park brake

WARNING

Unexpected movement!

Always engage the parking brake and switch off the engine before exiting the machine.

Failure to comply could result in death or serious injury.

W0209A

NOTICE: Ensure the park brake is fully disengaged before

driving the tractor.

The park brake lever is located on the left-hand side of the

operators platform (1) on HST tractors and on the right-

hand side of the operator’s platform (2) on mechanical

transmission tractors. The park brake is used to secure

the brake pedals to prevent the tractor from moving while

parked.

To engage the park brake, lock the pedals together and

push down on the park brake lever while depressing the

brake pedals (3).

NHIL12CT00691AA

NOTE: Always engage the park brake when getting off the

tractor. If the park brake is not engaged or the operator

leaves the seat without engaging the park brake, a alarm

will sound. The alarm will continue to sound for approxi-

mately ten seconds or until the park brake is engaged.

To disengage the park brake, press the brake pedals

down and release the park brake lever and push the lever

down.

NHIL12CT00775AA

4-17

4 - OPERATING INSTRUCTIONS

Emergency stopping

Mechanical transmission model

To make a emergency stop carry out the following proce-

dures:

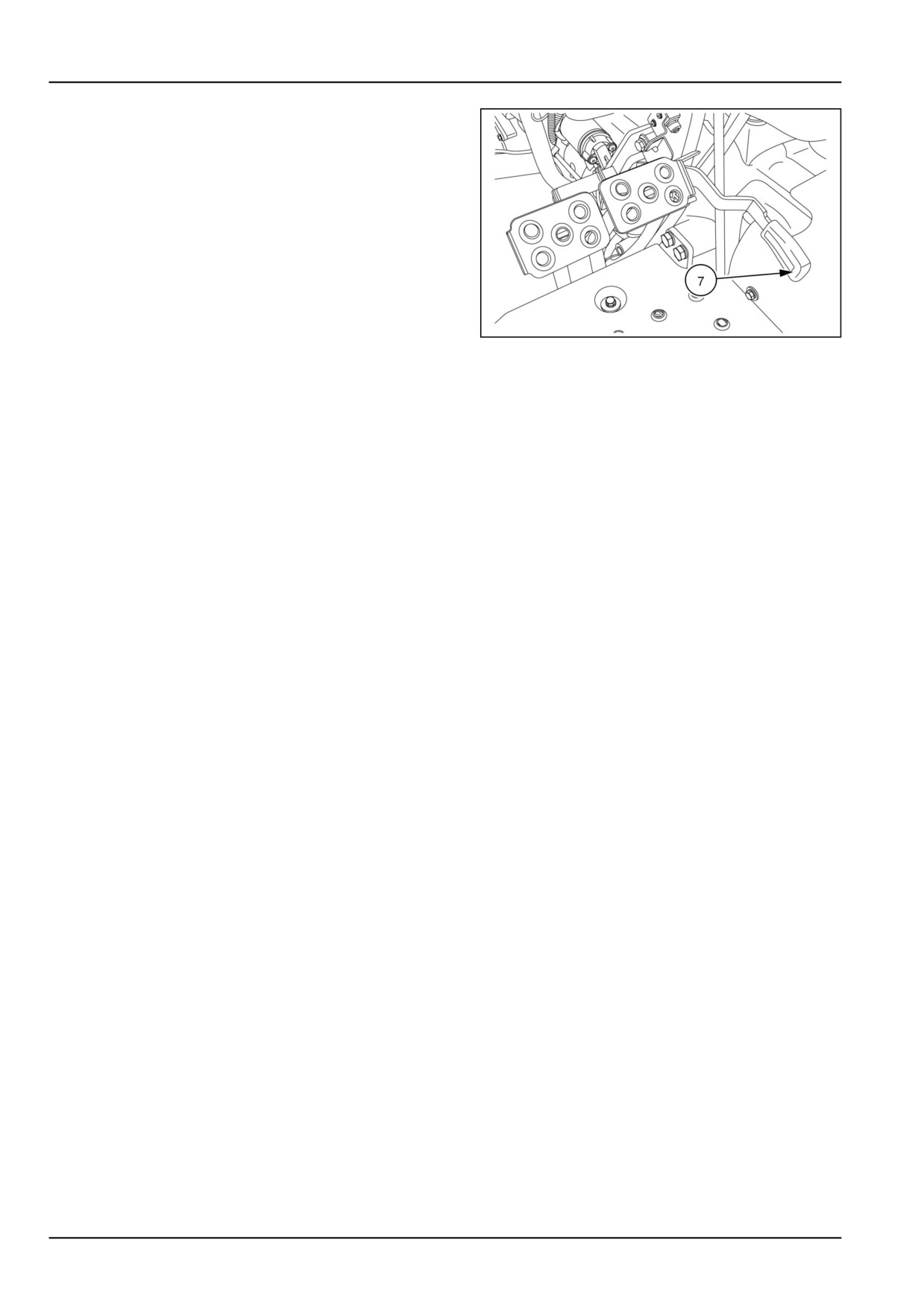

1. Depress the clutch pedal (1) and brake pedals (2) at

the same time.

2. Pull the hand throttle lever (3) rearward to reduce the

engine speed.

93100852

Hydrostatic Transmission (HST) model

To make a emergency stop carry out the following proce-

dures:

1. Release the HST forward or reverse pedal (1) imme-

diately and depress the brake pedals (2).

2. Pull the hand throttle lever (3) rearward to reduce en-

gine speed.

93100853

4-18

4 - OPERATING INSTRUCTIONS

Moving the unit

Steering - Operation

The tractor has a hydraulic steering system which provides convenience when operating the steering wheel. A non-

load reaction system keeps the steering wheel from moving when the impact of the front wheels travel over rough

ground.

Operating notes

• If there is too much of a load in the front bucket, it could be difficult to operate the steering wheel. In this case,

reduce the size of the load or move the tractor slowly forward while turning the steering wheel in the direction of

desired travel.

• After turning the steering wheel fully, do not turn the steering wheel fully to the same direction again. Unnecessary

force is applied, which could damage the steering system.

NOTICE: Do not hold the steering wheel fully to the left or right for more than 10 seconds, it could cause a failure

in the steering system.

• If an abnormal sound is heard while operating the steering wheel, this means that there is some air in the steering

components line. In this case, turn the steering wheel to left and right fully and hold for about 5 seconds. The air

should bleed out and the abnormal noise should go away. If the sound does not go away take your tractor to your

authorized NEW HOLLAND dealer.

• When operating the tractor in cold weather, the abnormal sound may be heard. In this case, warm up the tractor

before using to reduce the oil viscosity.

• If you use the tractor for a long period of time while turning the steering wheel fully, the oil temperature will increase

which may cause the reduction of the product life or the failure of the hydraulic steering system.

NOTE: If the engine stops, the hydraulic power for the steering system will stop. The loss of hydraulic power will

make the steering wheel hard to turn.

4-19

4 - OPERATING INSTRUCTIONS

Hydrostatic Transmission (HST) - Operation

The ground speed of tractors equipped with a hydrostatic

transmission is continuously variable, from zero to full

rated speed in each range. Speed is controlled by the

HST forward (1) and reverse (2) pedals located on the

right-hand operators platform.

NHIL12CT00693AA

To operate the HST transmission, carry out the following:

1. Start the engine and pull the HPL control lever (1) rear-

ward to lift the implement off the ground (if equipped).

2. Move the hand throttle lever (2) forward until the en-

gine speed is above 1500 RPM.

3. Place the range gear shift lever (3) in the desired

range.

4. Depress the brake pedals (4) and disengage the park

brake lever (5).

5. For forward travel, depress the forward pedal (6) un-

til the desired ground speed is reached. For reverse

93100853

travel, depress the rear pedal (7). The transmission

returns to neutral and the tractor stops when the pedal

is released.

NOTE: Depress the HST pedals slowly, fast move-

ment of the pedals will cause the tractor to move sud-

denly.

NOTE: To change the range speed, release the HST

pedals and bring the tractor to a stop and select the

desired range.

NHIL12CT00680AA

4-20

4 - OPERATING INSTRUCTIONS

Cruise control operation

WARNING

Loss of control hazard!

To maintain optimum control of the machine, do not use the cruise control at high speeds or when

roading.

Failure to comply could result in death or serious injury.

W0978A

When the desired travel speed is reached, push down on

cruise control lever (1). The cruise control linkage will me-

chanically engage the HST forward pedal (2) and maintain

the pedal at the desired position. To disengage the cruise

control, (2) depress both brake pedals.

NHIL12CT00693AA

4-21

4 - OPERATING INSTRUCTIONS

Transmission operation at low ambient temperatures

Warm up period

WARNING

Unexpected movement!

During the warm-up operation, do the following: Engage the parking brake, set all shift levers to their

NEUTRAL positions, and place the Power Take-Off (PTO) clutch lever in the OFF position.

Failure to comply could result in death or serious injury.

W1247A

The tractor hydraulic oil also serves as the tractor transmission fluid. During cold weather operation, the hydraulic

oil viscosity increases. This increase in oil viscosity restricts the oil's ability to flow and lubricate in the transmission

and hydraulic circuits. The cold oil can result in abnormal noises and slower operation times due to the increased oil

viscosity.

NOTE: A warm up time at 50% rated engine speed is recommended to assure proper vehicle functionality, transmis-

sion lubrication and operation.

NOTE: Do not operate the tractor under full load condition until the hydraulic oil is sufficiently warmed up.

Ambient Temperature

Recommended Warm-Up Time

Above 0 °C (32 °F)

Minimum of 5 minutes

0 - -10 °C (32 - 14 °F)

5 to 10 minutes

-10 - -20 °C (14 - -4 °F)

10 to 15 minutes

Below -20 °C (-4 °F)

More than 15 minutes

4-22

4 - OPERATING INSTRUCTIONS

12 x 12 transmission - Operation

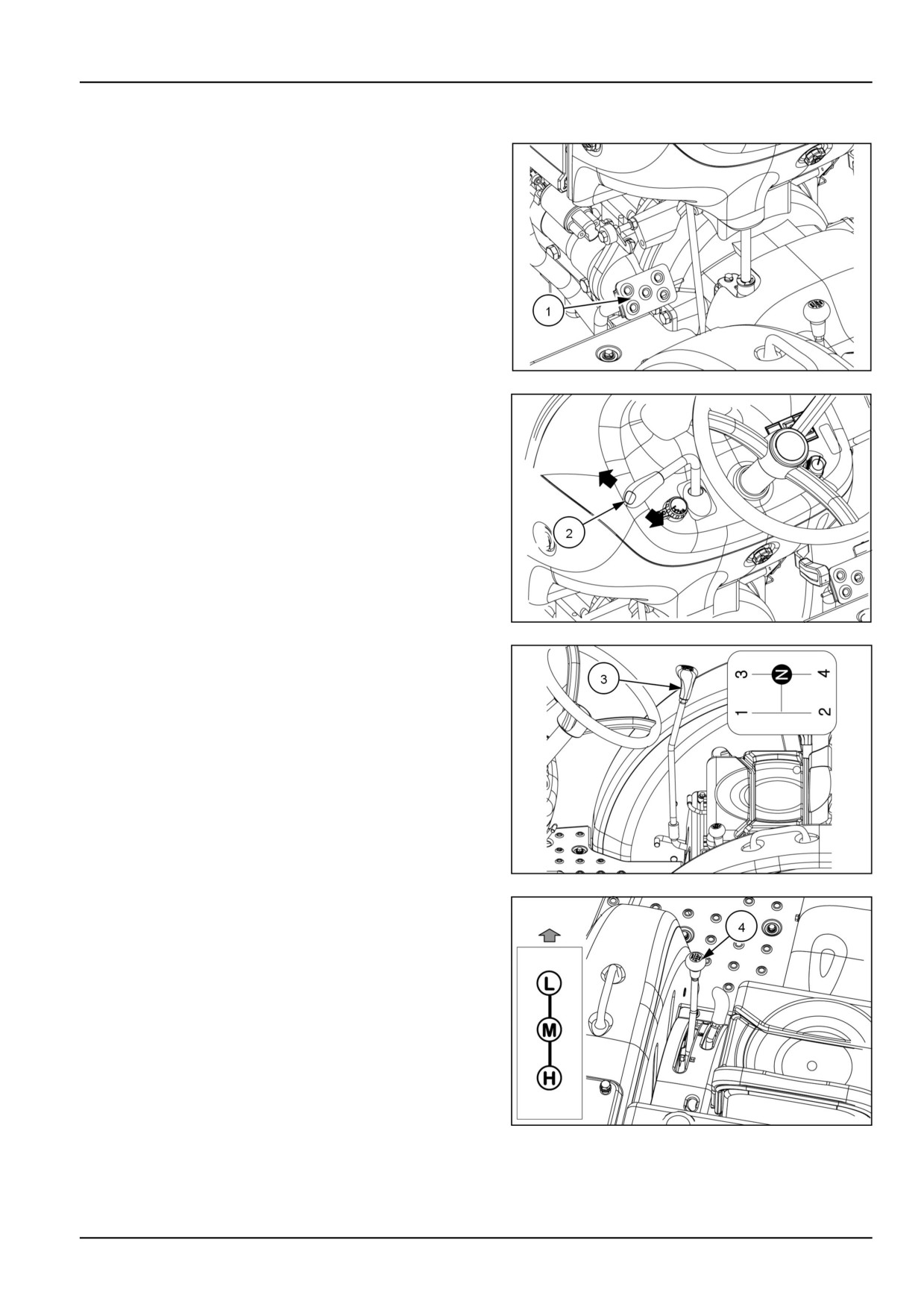

The 12 x 12 mechanical transmission operates through

the use of a clutch pedal (1) a forward/reverse shuttle shift

lever (2) main transmission shift lever (3) and a range se-

lector lever (4).

The combinations of shuttle shift, main shift, and range

selector lever offer the operator a combination of twelve

forward and twelve reverse gears.

NOTE: The shift pattern is shown as sitting in the opera-

tors seat.

NHIL12CT00774AA

NHIL12CT00786AA

NHIL12CT00776AA

NHIL12CT01097AA

4-23

4 - OPERATING INSTRUCTIONS

NHIL12CT00891GA

To operate the 12 x 12 mechanical transmission, carry out the following:

1. Start the engine and pull the Hydraulic Power Lift (HPL) control lever (1) rearward to lift the implement off the

ground (if equipped).

2. Move the hand throttle lever (2) forward until the engine speed is above 1500 RPM.

3. Depress the clutch pedal (3) fully.

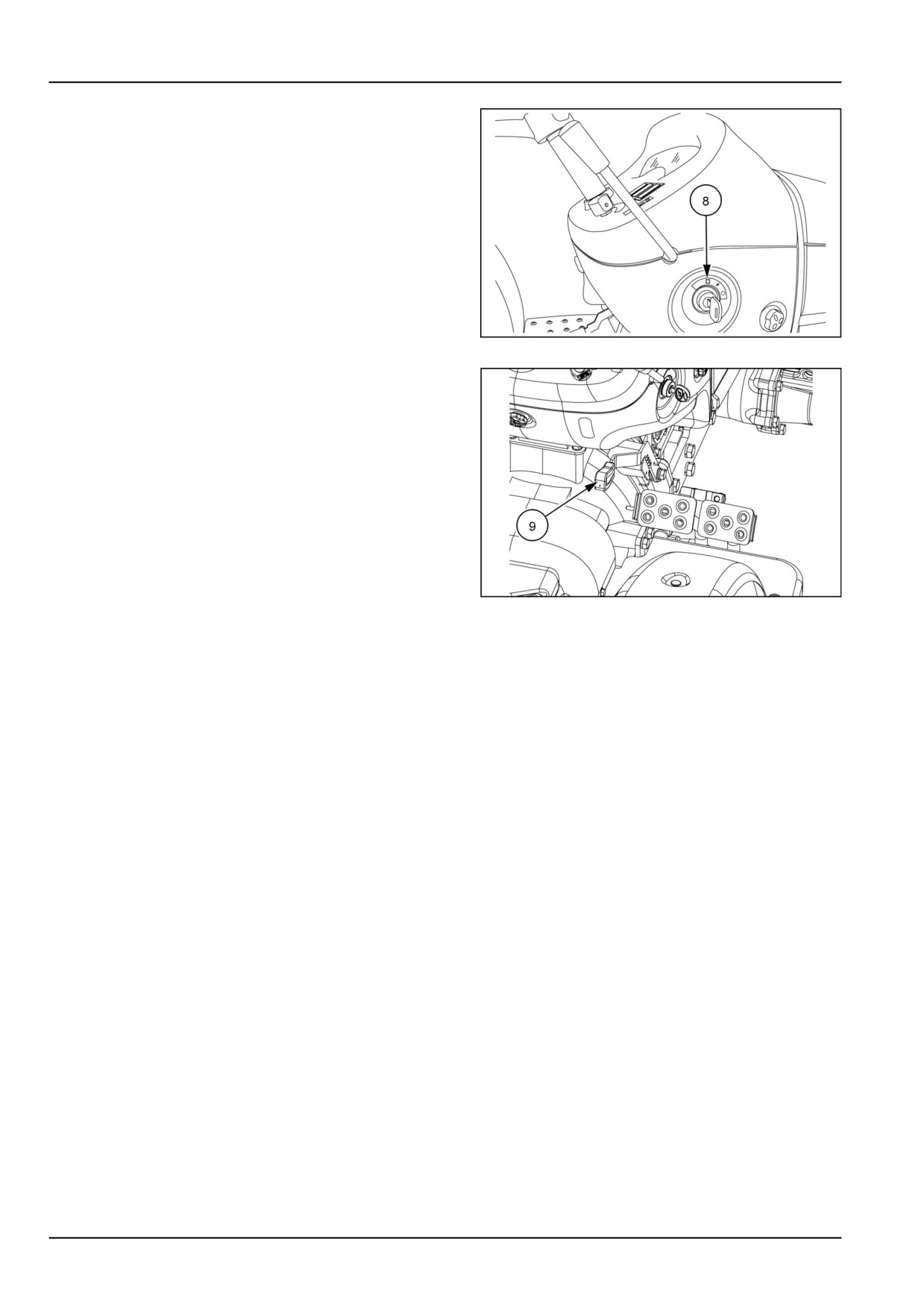

4. Place the main transmission shift lever (4) shuttle shift lever (5) and range lever (6) into the desired position.

5. Depress the brake pedals (7) and disengage the park brake lever (8).

6. Release the clutch pedal (3) slowly, and the tractor will start to move.

NHIL12CT00775AA

NOTICE: To change the gears depress the clutch pedal fully, and have the tractor stopped completely. The main gear

shift lever and range gear shift lever must be operated only AFTER the tractor has stopped completely. Shift the main

gear shift lever by designated “H” pattern. If the main gear shift lever or range gear shift lever is operated when the

tractor is in motion, damage to the transmission gears could occur.

NOTE: Release the clutch pedal slowly, if the clutch pedal is released fast it will cause the tractor to move suddenly.

4-24

4 - OPERATING INSTRUCTIONS

Parking the unit

Park brake - Operation

WARNING

Avoid injury! Always do the following before lubricating, maintaining, or servicing the machine.

1. Disengage all drives.

2. Engage parking brake.

3. Lower all attachments to the ground, or raise and engage all safety locks.

4. Shut off engine.

5. Remove key from key switch.

6. Switch off battery key, if installed.

7. Wait for all machine movement to stop.

Failure to comply could result in death or serious injury.

W0047A

NHIL12CT00891GA

Mechanical transmission model

To park the tractor carry out the following procedures:

or behind the tires depending on the direction of the

slope.

1. Depress the clutch pedal (1) and brake pedals (2).

Pull the hand throttle lever (3) rearward to reduce the

2. Place the shuttle shift lever (4) main gear shift lever

engine speed.

(5) in neutral and make sure the PTO switch (6) is in

the "OFF" position.

NOTE: Park the tractor on a level surface, if it is nec-

essary to park on a slope, place the transmission in

3. Push the HPL control lever (7) forward to lower imple-

the lowest gear and place chocks or blocks in front

ments (if equipped) to the ground.

4-25

4 - OPERATING INSTRUCTIONS

Hydrostatic Transmission (HST) model

NHIL12CT00892GA

To park the tractor carry out the following procedures:

1. Release the HST forward or reverse pedal (1) slowly

and depress the brake pedals (2). Pull the hand throt-

tle lever (3) rearward to reduce the engine speed.

NOTE: Park the tractor on a level surface, if it is nec-

essary to park on a slope, place the range gear shift

lever in the lowest gear and place chocks or blocks in

front or behind the tires depending on the direction of

the slope.

2. Make sure the PTO switch (4) is in the "OFF" position.

3. Push the HPL control lever (5) forward to lower imple-

ments (if equipped) to the ground.

4. Turn the key (6) to the "STOP" position.

NHIL12CT00692AA

4-27

5 - TRANSPORT OPERATIONS

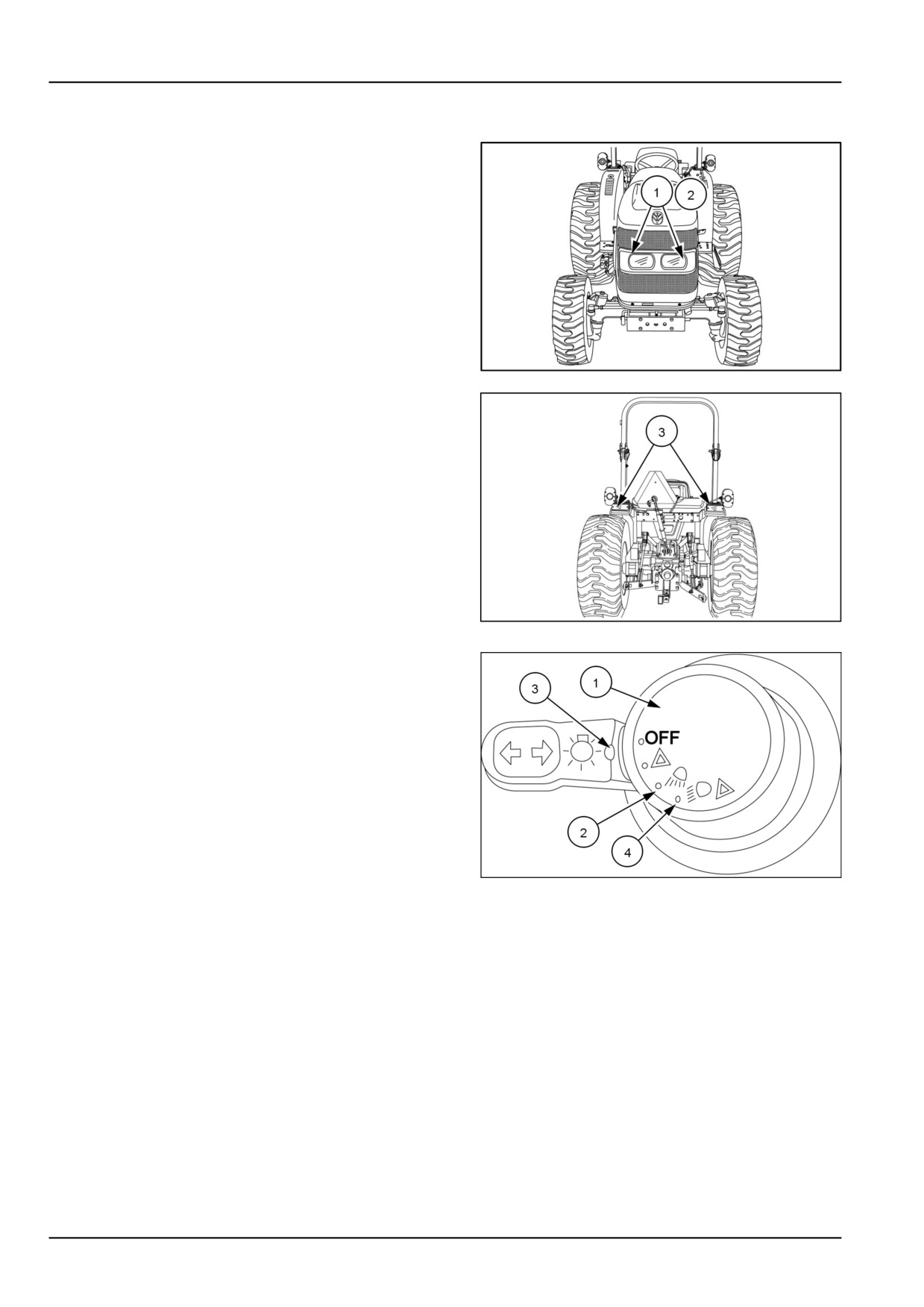

Hazard warning light - Operation

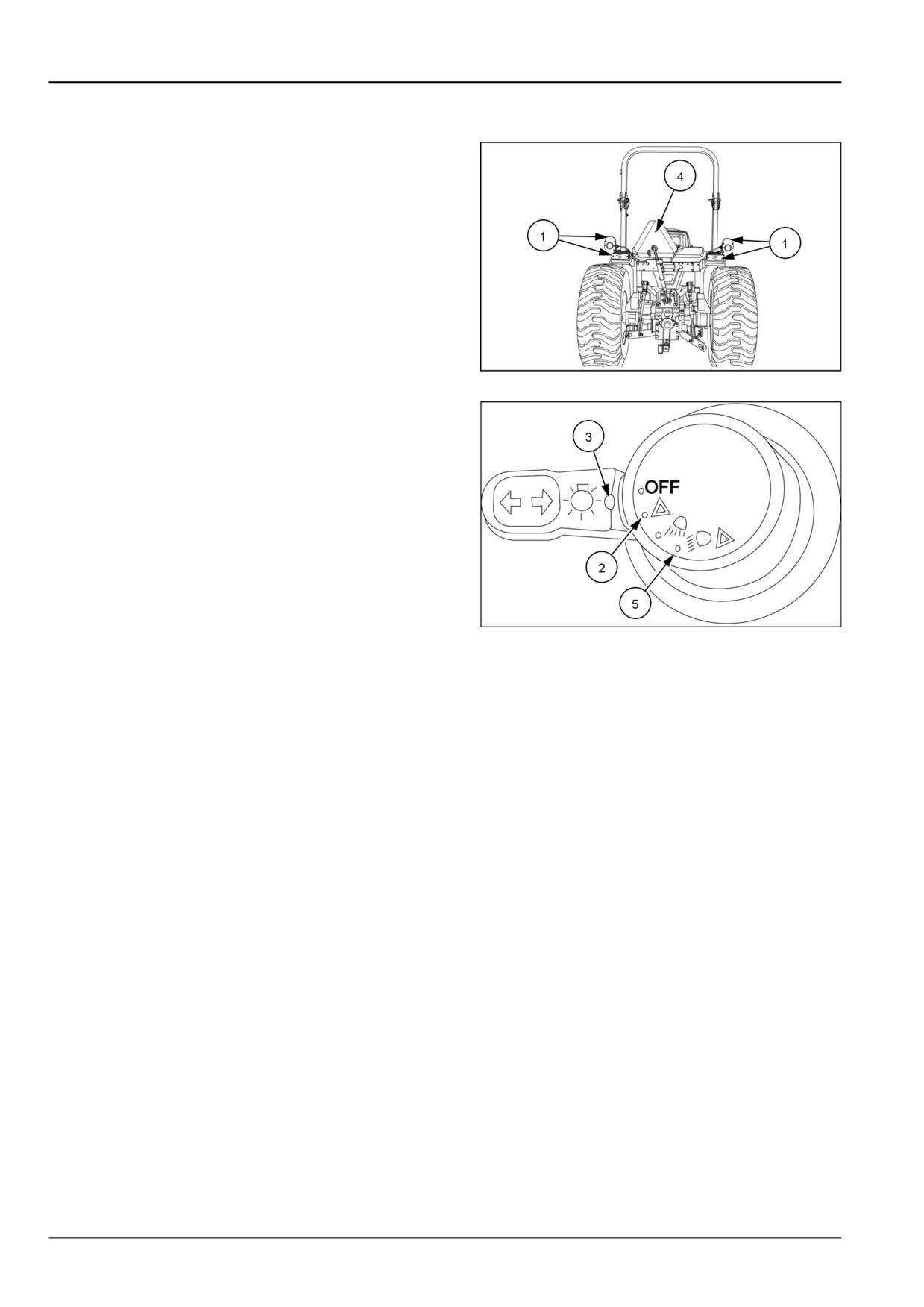

The hazard warning lights (1) are activated by rotating the

multifunction switch located on the left-hand side of the

dash panel.

NOTE: The hazard lights can function with the key in any

position.

NHIL12CT00671AA

To activate the hazard lights rotate the switch until the

"HAZARD" symbol (2) is aligned with the index mark (3)

on the switch lever.

NOTE: For your protection, use the hazard warning lights,

the SMV (Slow Moving Vehicle) sign (4) and road lights

(low beam) when traveling on public roads, day or night.

Rotate the light switch until the "LOW BEAM" and "HAZ-

ARD" symbols (5) are aligned with the index mark (3) on

the switch lever.

93099370

5-2

5 - TRANSPORT OPERATIONS

Turn signal - Operation

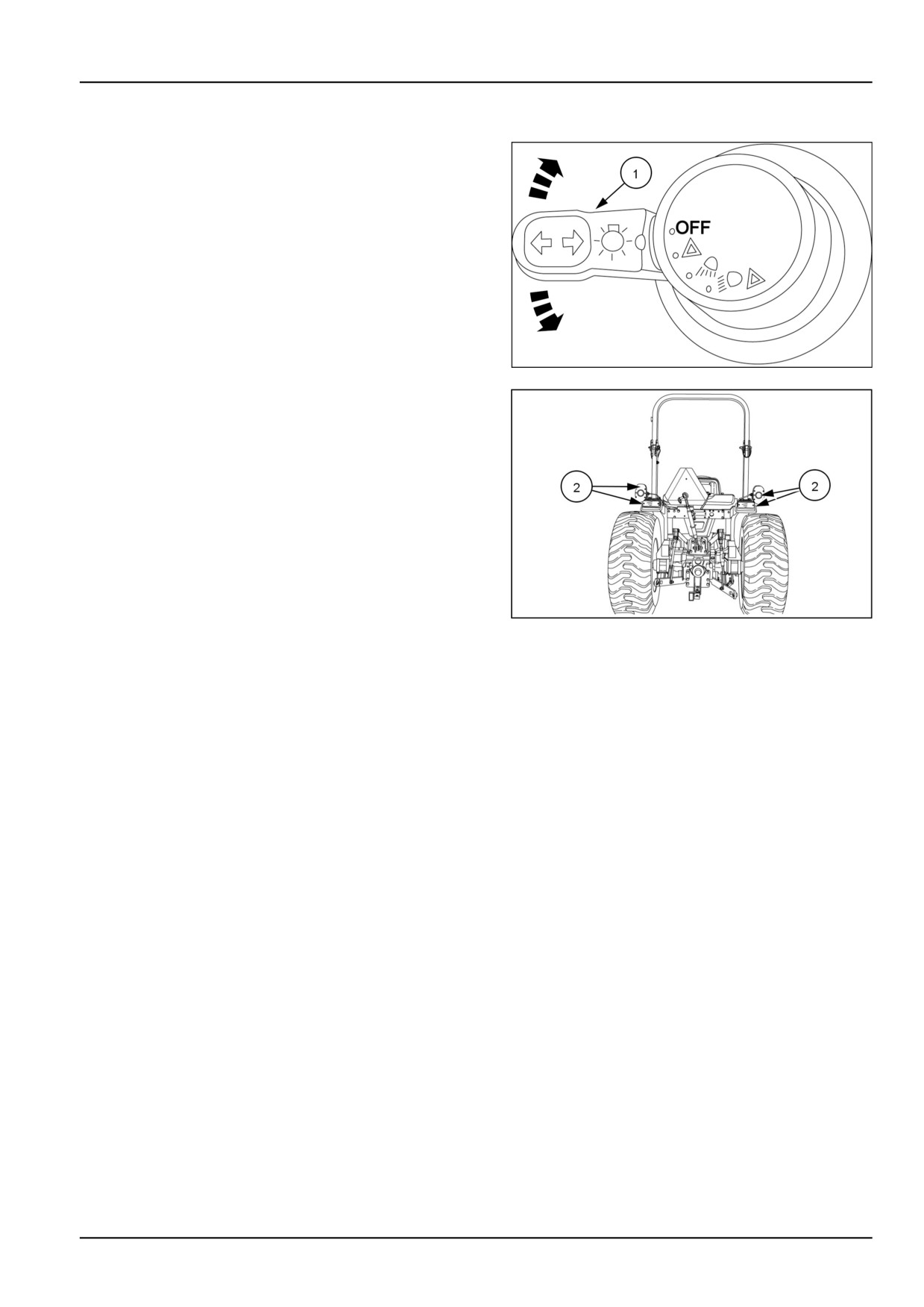

The turn signal lights are activated by moving the multi-

function switch lever (1) forward for right turns and down

for left turns. The key has to be in the "ON" position for

the turn signal to operate.

NOTE: The multifunction switch is located on the left-hand

side of the dash panel.

When signaling a turn, the designated side amber light

and hazard light (2) will flash.

NOTE: If the flashing hazard warning lights are operated

at the same time when the turn signal is activated, the

hazard light for the opposite side of turning direction will

93099370

stop flashing and illuminate continuously.

NHIL12CT00671AA

5-3

5 - TRANSPORT OPERATIONS

Road light/work light - Operation

The road lights (1) work lights (2) and taillights (3) are

turned on and off using the multifunction light switch lo-

cated on the left-hand side of the dash panel. The key

must be in the "ON" position for these lights to operate.

NHAC13CT00138AA

NHIL12CT00671AA

The multifunction light switch (1) is a rotary type switch

that has four positions (rotating clockwise from "OFF"

position), three of these positions control the road lights,

work lights, hazard lights, and taillights.

• To operate the work lights, rotate the multifunction

switch until the "WORK LIGHT" symbol (2) is aligned

with the index mark (3) on the switch lever. The instru-

ment panel, side/taillights, road lights, and work lights

will come ON.

• To operate the road lights and hazard lights, rotate the

multifunction switch until the "LOW BEAM" and "HAZ-

ARD" symbols (4) are aligned with the index mark (3) on

the switch lever. The instrument panel, side/taillights,

93099370

road lights (low beam), and hazard warning lights will

come ON.

NOTE: For your protection, use the hazard warning lights,

road lights (low beam), and (slow moving vehicle) SMV

sign when traveling on public roads, day or night.

5-4

5 - TRANSPORT OPERATIONS

Driving the vehicle

Observe the following precautions when driving the tractor:

• Watch where you are going at all times, especially at row ends, on roads, and around trees.

• Use the hazard warning lights, road lights, and Slow Moving Vehicle (SMV) sign when travelling on public roads,

day or night.

• DO NOT permit anyone but the operator to ride on the tractor.

• Lock the brake pedals together when travelling on public roads.

• Make sure the PTO switch is in the "OFF" position.

• Keep the tractor in gear when going downhill. Use a low gear to maintain control with minimum braking.

• If the tractor becomes stuck, back out to prevent upsetting the unit.

• Always use the drawbar for pull-type work. Do not pull from any other part of the tractor, since it may tip backward.

NOTICE: When transporting on the highway, a safety chain with tensile strength equal to the gross weight of the

implement should be connected between the tractor and the towed implement. This will control the implement in the

event the hitch pin is lost. After attaching the safety chain, check its adjustment by driving the tractor to the right

and to the left for a short distance. Readjust to tighten or loosen the chain as necessary. Safety chains and suitable

hardware are available from your NEW HOLLAND Dealer.

NOTE: Procure attaching hardware locally. Check implement assembly or the Operator's Manual for attaching hard-

ware specifications, such as bolt size and grade, chain strength, washers, lock washers, nuts, etc.

• Engage the clutch slowly when driving out of a ditch, gully, or up a steep hillside. Immediately disengage the clutch

if the front wheels should rise off the ground.

• Reduce speed before turning quickly or applying brakes.

• When making an emergency stop while operating a Hydrostatic Transmission (HST) model tractor depress both

brake pedals and release the forward or reverse HST pedal.

• To make an emergency stop, depress both brake pedals and the clutch pedal (mechanical transmission model only)

simultaneously

• Never apply the differential lock when turning.

• Use extreme caution and avoid hard applications of the tractor brakes when pulling heavy, towed loads at road

speeds.

• Any towed vehicle with a total weight exceeding that of the towing tractor should be equipped with brakes for safe

operation.

• Always sit in the driver's seat while starting or driving the tractor.

• Always check overhead clearance, especially when transporting the tractor.

5-6

5 - TRANSPORT OPERATIONS

Shipping transport

Carrying the tractor on a transporter

NOTICE: Do not hook the chains around the steering cylinders, tie rods or the axles. These components could be

damaged by the chain or by excessive strain.

NOTE: Use suitable equipment or facilities when loading and unloading the tractor.

Transport the tractor with all four wheels on a flatbed trailer or truck. Secure the tractor as follows:

1. Secure the front of the tractor at the front of the frame.

2. Secure the rear of the tractor at the rear drawbar/hitch.

Recovery transport

Towing the tractor for recovery

Towing the tractor

WARNING

Unexpected machine movement!

Never attempt to start the machine by towing. The machine could start unexpectedly.

Failure to comply could result in death or serious injury.

W0941A

WARNING

Transport hazard!

Do not tow the machine on public roads. Towing could cause a safety hazard for other vehicles using

the roadway.

Failure to comply could result in death or serious injury.

W1012A

WARNING

Hazard to bystanders!

Do not use cables or rope to tow the machine. If the cable or rope breaks or slips, it may whip back

with enough force to cause serious injury. When using a chain, attach the chain with the hook's open

side facing UP. If the hook slips, it will drop down instead of flying up.

Failure to comply could result in death or serious injury.

W0441A

NOTICE: If it is necessary to tow the tractor all gear levers must be moved to the neutral position before stopping the

engine otherwise damage to transmission components may occur during towing.

Use a strong chain when towing the tractor. Tow the tractor from the rear using only the drawbar. Tow the tractor

from the front using the tow pin in the front weights or front support. Have an operator steer and brake the tractor. If

possible run the engine to provide lubrication to the transmission and power steering.

Place the transmission gearshift levers in neutral disengaged the 4WD differential lock and park brake to tow the

tractor. Do not exceed 20 km/h (12 mph).

NOTE: The tractor should only be towed a short distance such as out of a building. Do not tow on roadways or as a

method of transport.

5-7

6 - WORKING OPERATIONS

6 - WORKING OPERATIONS###_6_###

General information

Ballasting the tractor

For sufficient traction and maximum performance in heavy draft operations and to counterbalance rear-mounted equip-

ment weight should be added to the tractor in the form of cast iron weights or rear mounted ballast box. Only enough

weight should be added to provide good traction and stability. Adding more weight than is needed results in unnec-

essary soil compaction increased rolling resistance and higher fuel consumption.

NOTE: When adding weight to the tractor tire pressures may need to be increased. See7-23 in this manual.

Front end ballast may be required for stability and steering control when weight is transferred from the front wheels

to the rear wheels as an implement is raised by the tractor three-point hitch.

Use the following as a general guide:

• Ballast the tractor (less implement) so that approximately one-third of the tractor weight is on the front wheels. For

optimum traction tractors equipped with 4WD should be ballasted so that 40 - 45% of machine weight is on the

front wheels.

• When a rear mounted implement is raised to the transport position the front wheel reaction should be at least 20%

of tractor weight.

• Add additional front end ballast as required for stability during operation and transport. Tractor front end ballast may

not always maintain satisfactory stability if the tractor is operated at high speed on rough terrain. Reduce tractor

speed and exercise caution under these conditions.

• When using front-mounted equipment add weight to the rear axle to maintain good traction and stability. Front-

mounted equipment varies in weight. Refer to equipment manual for ballasting.

Weighting limitations

The weighting limitations that follow are limitations only. They do not imply that the tractor should be weighted to attain

the weights given. Use only enough weight to obtain good performance.

Technically maximum permissible mass

The table below is the maximum permissible mass for the tractor and it includes all implements and ballast weight.

Do not exceed these mass ratings.

Technically maximum permissible mass

Mass

Front axle

1163 kg (2564 lb)

Rear axle

1755 kg (3869 lb)

Combined front and rear axle

2508 kg (5529 lb)

6-1

6 - WORKING OPERATIONS

Tire load capacity

The table below is the load capacity of the tires. Do not over the load the tires. The axle rating of the tractor may be

less than the capacity of the tires. Do not exceed the maximum permissible mass of the tractor.

Front tire inflation pressures and load capacity

Tire Type

Maximum load

Recommended air

capacity at

Tire Size

pressure

Minimum inflation

maximum inflation

pressure

Agricultural (R1)

41 - 248 kPa (6 -

7-14, 4PR, R1

160 kg (353 lb)

449 kg (990 lb)

36 psi)

Turf (R3)

34 - 152 kPa (5 -

25 x 8.50-14, 4PR, R3

251 kg (553 lb)

599 kg (1321 lb)

22 psi)

Industrial (R4)

207 - 345 kPa (30 -

25 x 8.50-14, 6PR, R4

716 kg (1579 lb)

966 kg (2130 lb)

50 psi)

Rear tire inflation pressures and load capacity

Tire Type

Maximum load

Recommended air

capacity at

Tire Size

pressure

minimum inflation

maximum inflation

pressure

Agricultural (R1)

83 - 124 kPa (12 -

11.2-24, 4PR, R1

454 kg (1001 lb)

1152 kg (2540 lb)

18 psi)

Turf (R3)

41 x 14.00-20, 4PR,

69 - 172 kPa (10 -

825 kg (1819 lb)

1397 kg (3080 lb)

25 psi)

Industrial (R4)

43 x16-20, 4PR, R4

138 kPa (20 psi)

2059.0 kg (4539.3 lb)

6-2

6 - WORKING OPERATIONS

Tractor ballasting weights

Cast iron weights - Optional

Cast iron weights are available as accessories from your

NEW HOLLAND Dealer. Weights can be mounted on the

front end of the tractor, rear of the tractor and on the rear

wheels.

Front weight carrier bracket - Optional

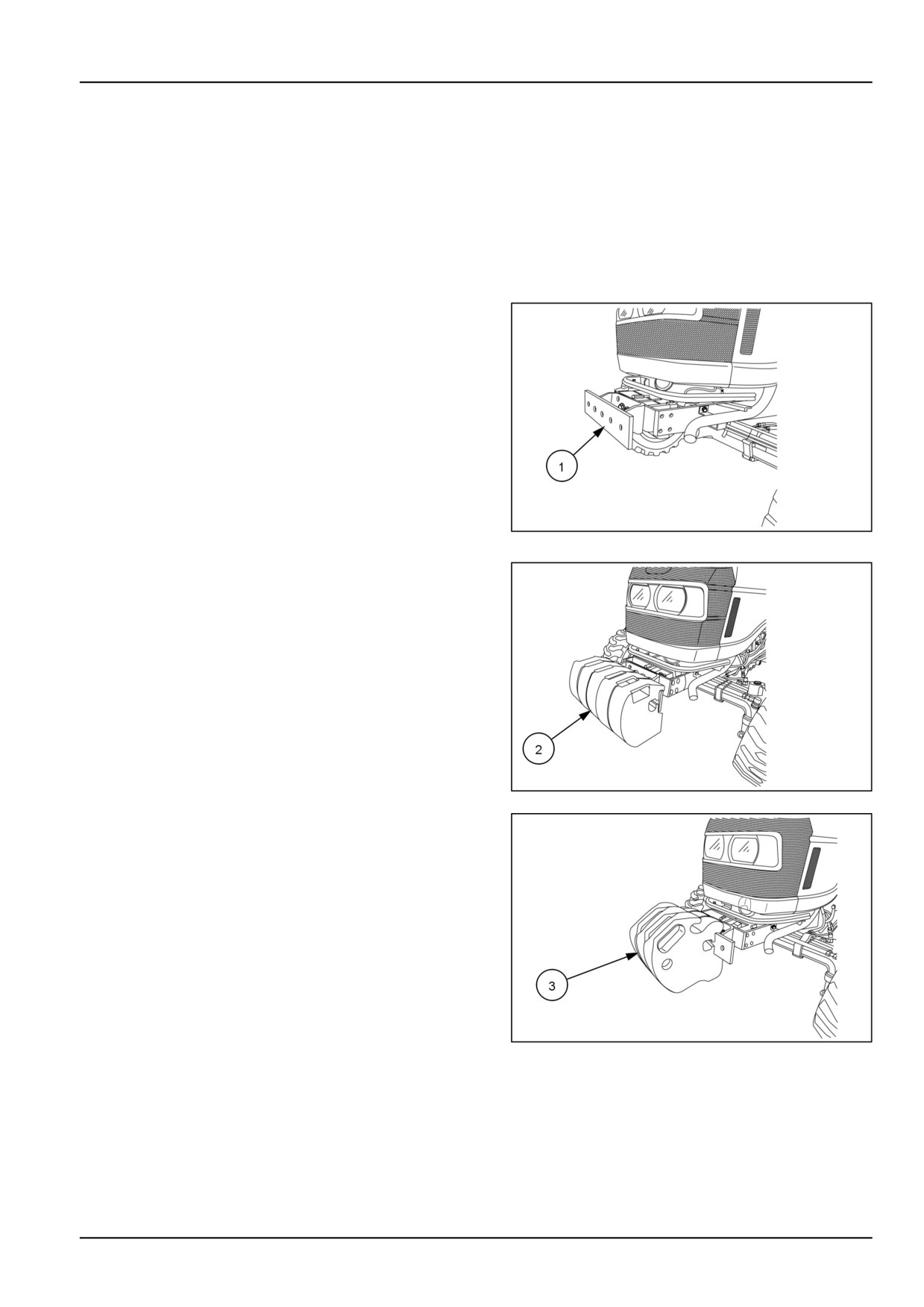

To mount cast iron weights on the front of the tractor an op-

tional extension mounting bracket (1) must be installed on

the front of the tractor frame. When the extension bracket

is installed, a maximum of five front weights can be in-

stalled.

NHIL12CT00832AA

Weight options:

A maximum of five 27 kg (60 lb) weights (2) for a total

weight of 136 kg (300 lb) .

A maximum of three 45 kg (100 lb) weights (3) for a total

weight of 135 kg (300 lb) .

NOTE: The front extension mounting bracket with a maxi-

mum of three 27 kg (60 lb) weights attached is compatible

with a grille guard.

NOTE: The front extension mounting bracket with 45 kg

(100 lb) weights is not compatible with a grille guard.

NHIL12CT00839AA

NOTE: The front extension mounting bracket is not com-

patible with a loader installed.

NHIL12CT00840AA

6-3

6 - WORKING OPERATIONS

Rear wheel weights - Optional

Cast iron rear wheel weights are not available

Rear counter weight bracket - Optional

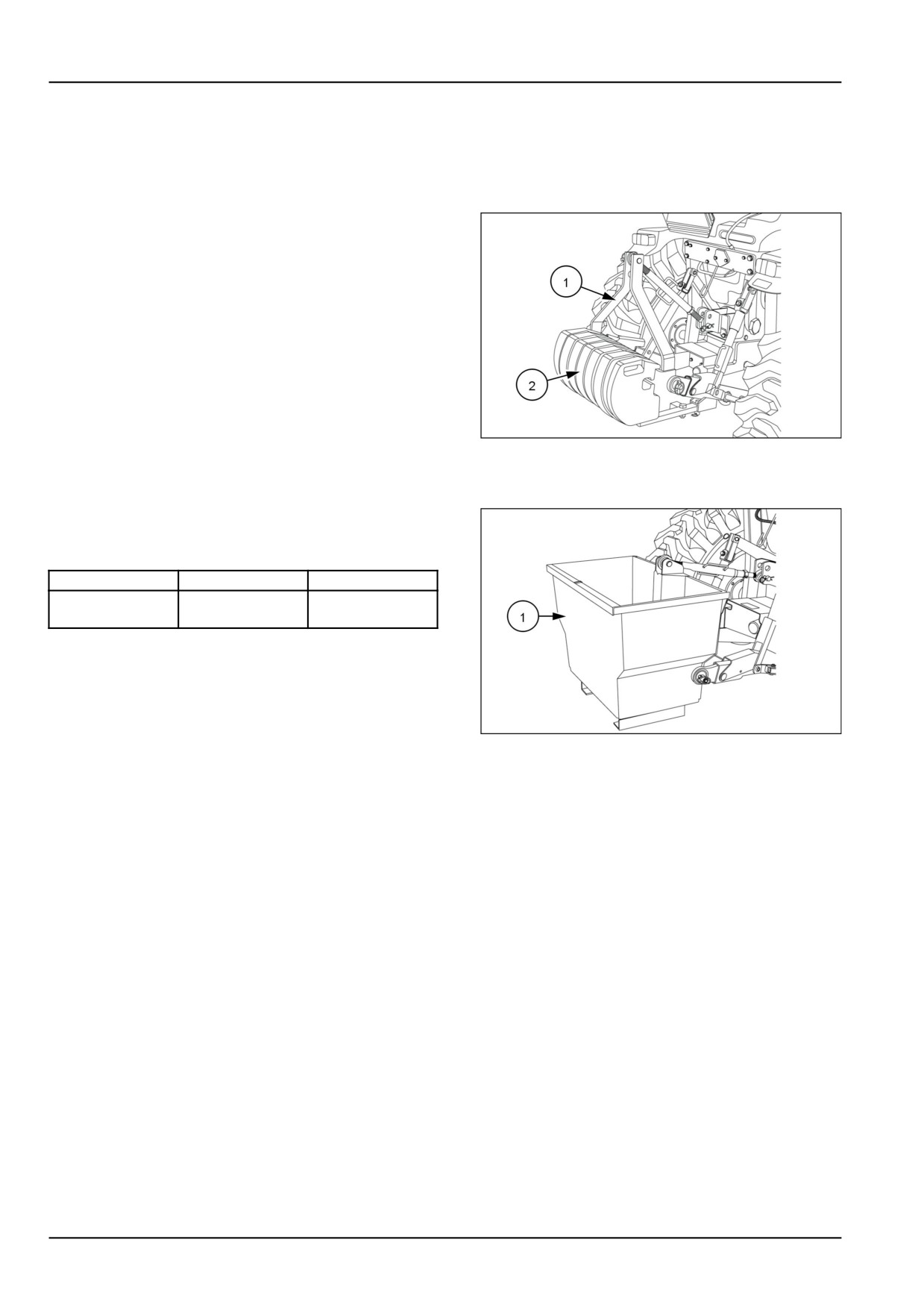

To mount cast iron weights on the rear of the tractor an

optional weight bracket (1) must be installed on the rear

3-point hitch. A maximum of seven suitcase weights (2)

can be fitted to the bracket.

Weight options:

A maximum of seven 27 kg (60 lb) weights for a total

weight of 191 kg (421 lb).

A maximum of two 27 kg (60 lb) weights, and five 45 kg

(100 lb) weights, for a total weight of 282 kg (622 lb).

93100917

Ballasting box - Optional

A category-1, 3-point hitch, 227 kg (500 lb) capacity bal-

lasting box (1) may be purchased as extra equipment.

Load with sand, gravel, or similar loose ballast as needed.

Weight (Empty)

Weight (Loaded)

3-Point Hitch

46 kg (101 lb)

228 kg (503 lb)

Ballasting Box

93100918

6-4

6 - WORKING OPERATIONS

Operator presence system

The following tables will give you an overview of the Operator presence system and how the tractor will react in

different situations.

Operator presence system (start operation)

Transmission

Transmis-

Operator

Rear PTO*

Mid PTO*

Park Brake

Clutch Pedal

Condition

Type

sion

HST pedals

HST**

Out of Seat

Off

Engaged

Start

in Neutral

HST pedals

Start with

HST

Out of Seat

Off

Disengaged

in Neutral

Alarm

HST pedals

HST

In Seat

Off

Engaged

Start

in Neutral

HST pedals

Start with

HST

In Seat

Off

Disengaged

in Neutral

Alarm

Shuttle in

Mechanical

Out of Seat

Off

Engaged

Depressed

Start

Neutral

Shuttle in

Start with

Mechanical

Out of Seat

Off

Disengaged

Depressed

Neutral

Alarm

Shuttle in

Mechanical

In Seat

Off

Engaged

Depressed

Start

Neutral

Shuttle in

Start with

Mechanical

In Seat

Off

Disengaged

Depressed

Neutral

Alarm

NOTE: For starting the engine the PTO switch must be off, the mid PTO must be off, the clutch pedal must be de-

pressed (mechanical transmission) and the Forward / Reverse pedals must be in the neutral position (HST).

Operator presence system (run operation)

NOTE: The following conditions are for when the engine is running and the operator gets out of the seat.

Transmission Type

Rear PTO

Mid PTO

Transmission

Park Brake

Condition

Mechanical/HST

Off

Neutral

Disengaged

Alarm

Mechanical/HST

Off

Neutral

Engaged

Alarm

Mechanical/HST

Off

Neutral

Disengaged

Alarm

In Gear or HST

Mechanical/HST

Off

Either

Shutdown

pedal depressed

In Gear or HST

Mechanical/HST

Off

Either

Shutdown

pedal depressed

In Gear or HST

Mechanical/HST

Either

Shutdown

pedal depressed

Mechanical/HST

OFF

Neutral

Either

Shutdown

* Power Take-Off (PTO)

** Hydrostatic Transmission (HST)

6-5

7 - MAINTENANCE

7 - MAINTENANCE###_7_###

General information

WARNING

Illustrations in this manual may show protective shielding open or removed to better illustrate a par-

ticular feature or adjustment.

Replace all shields before operating the machine.

Failure to comply could result in death or serious injury.

W0012A

WARNING

Entanglement hazard!

Disengage the Power Take-Off (PTO), turn off the engine, and remove the key. Wait for all movement

to stop before you leave the operator's position. Never adjust, lubricate, clean, or remove a blockage

of crop material when the engine is on.

Failure to comply could result in death or serious injury.

W0227B

WARNING

Avoid injury!

1. Disengage all drives.

2. Engage parking brake.

3. Lower all attachments to the ground, or raise and engage all safety locks.

4. Shut off engine.

5. Remove key from key switch.

6. Wait for all machine movement to stop.

Failure to comply could result in death or serious injury.

W1197A

Adequate lubrication and maintenance on a regular schedule is vital to maintaining your equipment. To ensure long

service and efficient operation, follow the lubrication and maintenance schedules outlined in this manual. The use of

proper fuels, oils, grease and filters, as well as keeping the systems clean, will also extend machine and component

life.

NOTICE: While any company can perform necessary maintenance or repairs on your equipment, NEW HOLLAND

strongly recommends that you use only authorized NEW HOLLAND dealers and products that meet the given speci-

fications. Improperly or incorrectly performed maintenance and repair voids the equipment warranty and may affect

service intervals.

NOTICE: Always use genuine NEW HOLLAND replacement parts, oils and filters to ensure proper operation, filtration

of engine and hydraulic systems. See your NEW HOLLAND dealer for additional oil quantities.

Regular lubrication is the best insurance against delays and repairs. Proper lubrication will extend machine life. Refer

to the chart on page 7-8 for lubricants and service intervals.

NOTICE: Failure to complete the required maintenance at the recommended intervals can cause unnecessary down-

time.

The intervals listed in the Lubrication Chart are guidelines to be used when operating in normal conditions. Adjust

the intervals for operating in adverse environmental and working conditions. The intervals should be shortened for

sandy, dusty and extremely hot operating conditions.

Always clean the area around dipsticks, fill caps, and check plugs when checking fluid levels. Failure to clean these

areas may allow contamination to enter the system. Drain, flush and refill the system any time you suspect it is

contaminated.

Grease Fittings

Wipe dirt from fittings before greasing.

7-1

7 - MAINTENANCE

Safety rules

• Use clean, quality No.

1-D or No.

2-D fuel (ASTM

Fuel Usage Safety

D975).

•

UNDER NO CIRCUMSTANCES should gasoline, alco-

• Use No. 1-D fuel if the ambient temperature is expected

hol, or gasohol be added to diesel fuel. These combina-

to be lower than 4 °C (39 °F) or if the tractor is to be

tions can create an increased fire or explosive hazard.

used at an altitude exceeding 1524 m (5000 ft).

•

Never remove the fuel cap or refuel the tractor while the

• Use No.

1-2 diesel fuel with a pour point of at least

engine is running or hot.

-12 °C (10 °F) below the expected ambient temperature

to prevent fuel flow problems in cold weather.

• Never smoke while refueling or anywhere near fuel.

• Keep dirt from entering the fuel tank.

• When filling the tank, maintain control of the nozzle.

• Sulfur content of the fuel should be no more than 0.5%.

• Do not fill the fuel tank to capacity. Allow room for ex-

pansion.

• Sediment and water content should not exceed 0.5%.

•

Wipe up spills immediately.

• Minimum cetane number is 40. Low temperature or

high altitude operation may require use of fuel with a

• Always tighten the fuel cap securely.

higher cetane number.

• If the original fuel tank cap is lost, always replace it with

a New Holland approved cap. A "will-fit" cap may not

• Use properly mixed winter fuel when temperatures are

extremely cold. In most areas, diesel fuel is properly

be safe.

blended for summer and winter grades as ambient tem-

• Keep equipment properly maintained.

peratures change. In winter, use winter grade diesel

fuel only. Otherwise, the fuel may cloud and block the

• Do not drive equipment near open fires.

fuel system.

• Never use gasoline for cleaning parts.

7-3

7 - MAINTENANCE

Biodiesel fuels

The use of biodiesel blends meeting Specification Stan-

Biodiesel fuel has a higher cloud point than conventional

dards ASTM 6751 or EN14214 are approved for your en-

diesel fuels and is not recommended in winter months.

gine up to B5 ( 5% blend ratio). It is highly recommended

Consult your fuel dealer for winter fuel requirements for

to use biodiesel fuel from accredited suppliers to maintain

your area.

quality and consistency of the fuel.

Biodiesel fuel attracts moisture and may contain a higher

Biodiesel does not have a long term stability and should

content of water. It may be necessary to drain the fuel

not be left in engines or stored for more than four months.

filter water trap more frequently.

If your machine is stored for long term, engine should be

flushed, prior to storage, by running for a minimum of 30

minutes with conventional diesel fuel.

7-4

7 - MAINTENANCE

Refueling the tractor

WARNING

Fire hazard!

When handling diesel fuel, observe the follow-

ing precautions:

1. Do not smoke.

2. Never fill the tank when the engine is run-

ning.

3. Wipe up spilled fuel immediately.

Failure to comply could result in death or se-

rious injury.

W0099A

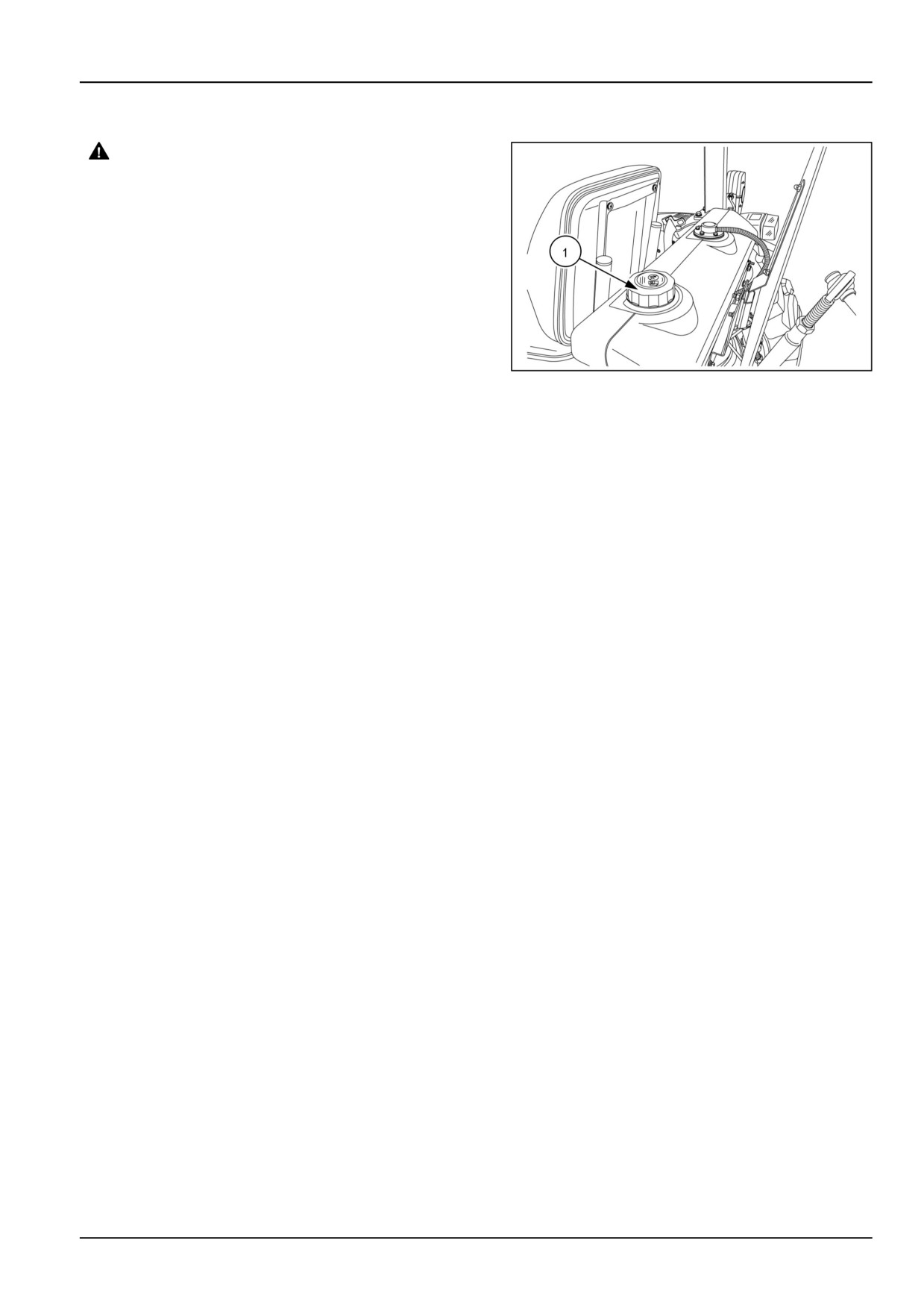

The fuel tank filler cap (1) is located at the left rear corner

of the tractor. Before removing the cap, wipe all dust and

NHIL12CT00683AA

dirt from around the cap to prevent debris from falling into

the tank while filling.

Use an approved fuel container and check the inside of

the container periodically for cleanliness. Fuel tank ca-

pacity is 28.0 l (7.4 US gal).

NOTE: The fuel cap is a vented-type. Use only an ap-

proved New Holland replacement cap to prevent fuel sys-

tem-related problems.

If there is no filter on the storage tank or fuel container,

filter the fuel through a 100-mesh or finer screen when fill-

ing the tractor fuel tank. Keep the tractor tank as full as

possible (without filling to capacity) to minimize conden-

sation.

NOTE: It is a good practice to fill the fuel tank at the end

of each day, as this will reduce overnight condensation.

7-5

New Holland Workmaster 25, Tier 4B (final) Compact Tractor. OPERATOR’S MANUAL (2020) - page 3
