Technical Manual for Drilling Works for Technical Support Plan for the Drillers in DDCA (2013)

compare the contract conditions and work results. It will be installed in the

data entry room as the Client Computer No.3. Figure 4shows the networking of

these four computers.

Figure 4: Computer Network

7. TECHNICAL SUPPORT FOR UPDATE AND MAINTENACE

OF DATABASE

The following technical support for DDCA to acquire the necessary skills on WID is for the

smooth implementation of the preparation of well completion report forms, update,

maintenance and information retrieval of the WID.

(1)

Preparation of the guideline on how to enter the drilling record form

With the support by JICA Expert, DDCA will prepare this guideline. The guideline facilitates

each drilling team to fill up the revised drilling record form.

(2)

Preparation of the operation manual of WID

The operation manual of the WID will be prepared by the Contractor.

The manual shall include the database structure, description of the attributes, folder structure,

data entry operation, modification of attributes, backup, setting and change of password and

information retrieval etc.

(3)

Guidance of the data entry

The Contractor will give guidance on the data entry with using the operation manual for the

staffs in the registry room.

(4)

Guidance of the database maintenance and information retrieval

Index

INTRODUCTION

DATABASE COMPOSITION

DATA ENTRY

DATA SEARCH

(1) Use “Find”

(2) Use “Filter”

REPORT MAKING

(1) Borehole Completion Report

(2) Pumping Test Report

(3) Water Quality Analysis Report

DATA COUNTING AND SUMMARISING

SHEET PROTECTION

(1) Method-1: Use Excel Tab

1) Sheet protection

2) Book protection

(2) Method-2: Use Macro Command button only for Sheet protection

Data Export

MODIFICATION OF REPORT FORM AND EXTRACTION FORM

(1) Basic MS-Excel Function used in a Database of Wells Drilled by DDCA

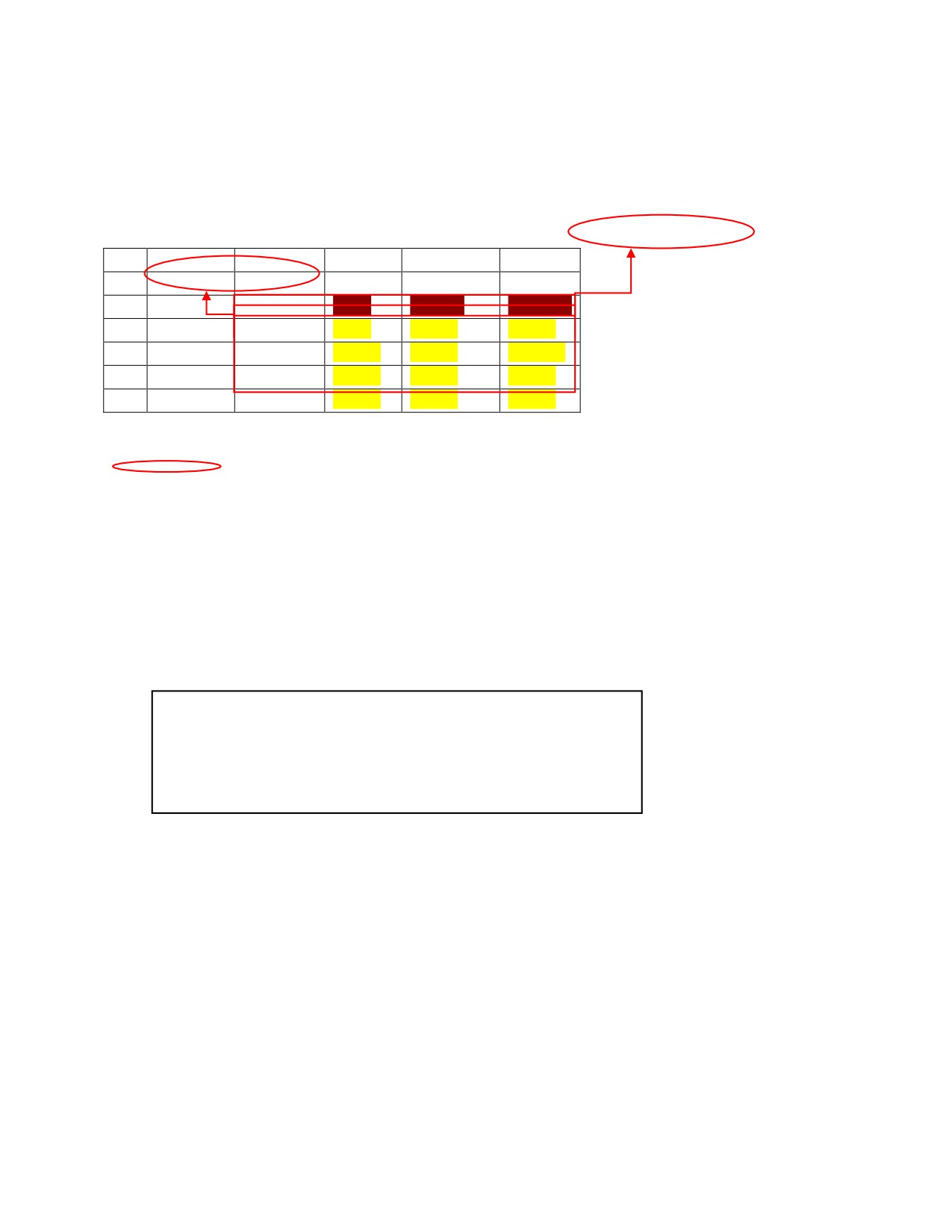

1) LOOKUP (VLOOKUP: Vertical LOOKUP) Function

2) MATCH Function

3) Combination of VLOOKUP&MATCH Function

5) IF Function

6) ISERROR Function

5.4.2 Form of Pumping Test

5.5 Database Repository

GRlist sheet

CT list sheet

AT list sheet

RAT list sheet

 Steps for addition of new attributeto repository and data entry sheet

Table of Contents

5.2 How to Start the DDCADB

5.4 How to Make Report

Tables

Table 2: LOOKUP function

Table 3: MATCH function

Table 4: Combination of VLOOKUP and MATCH function

Table 5: IF function 1

Table 6: IF function 2

Table 7: ISERROR function 1

Table 8: ISERROR function 2

Figures

Figure 1 Folder and file composition of DDCA Well Database

Figure 2: Data entry sheet

Figure 3: Well Completion Report Form

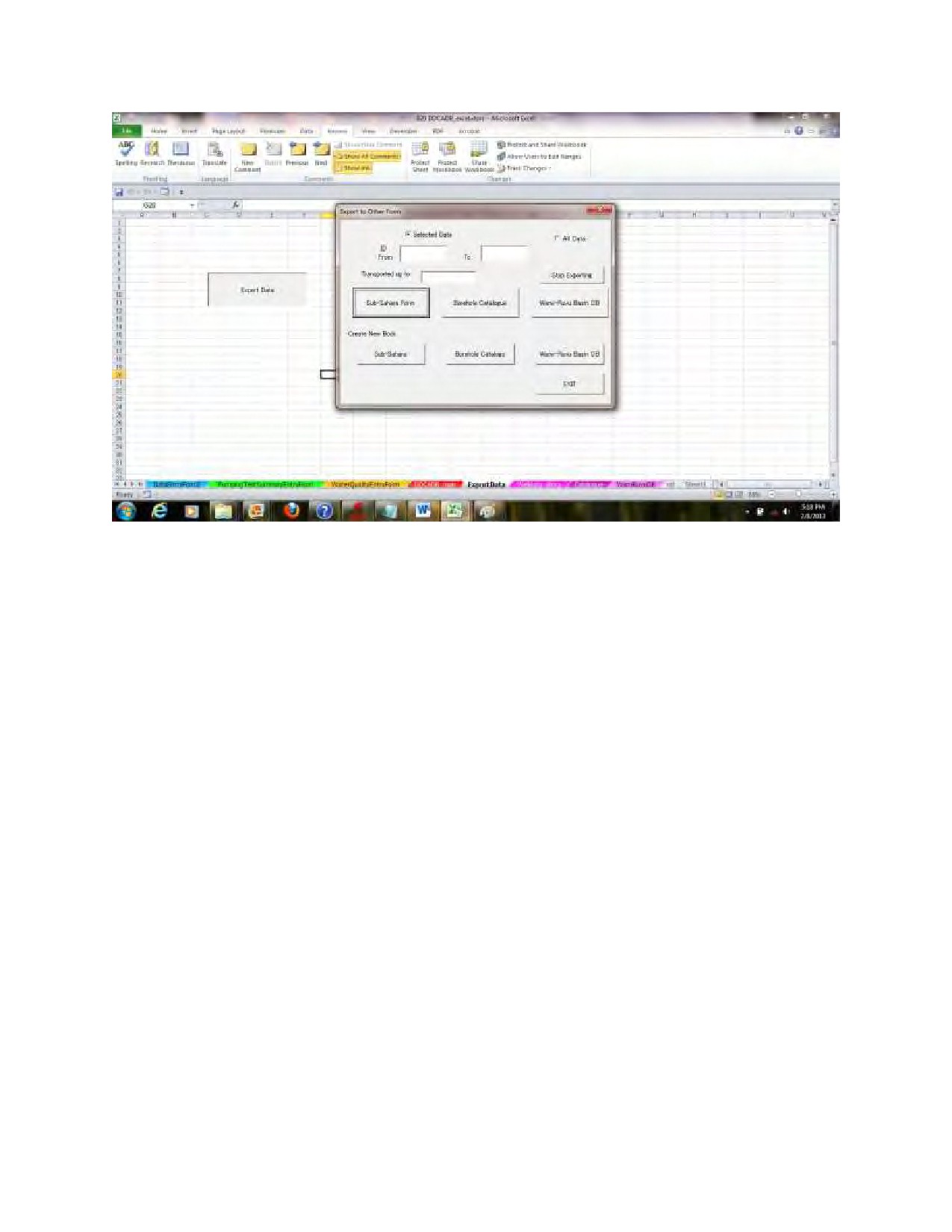

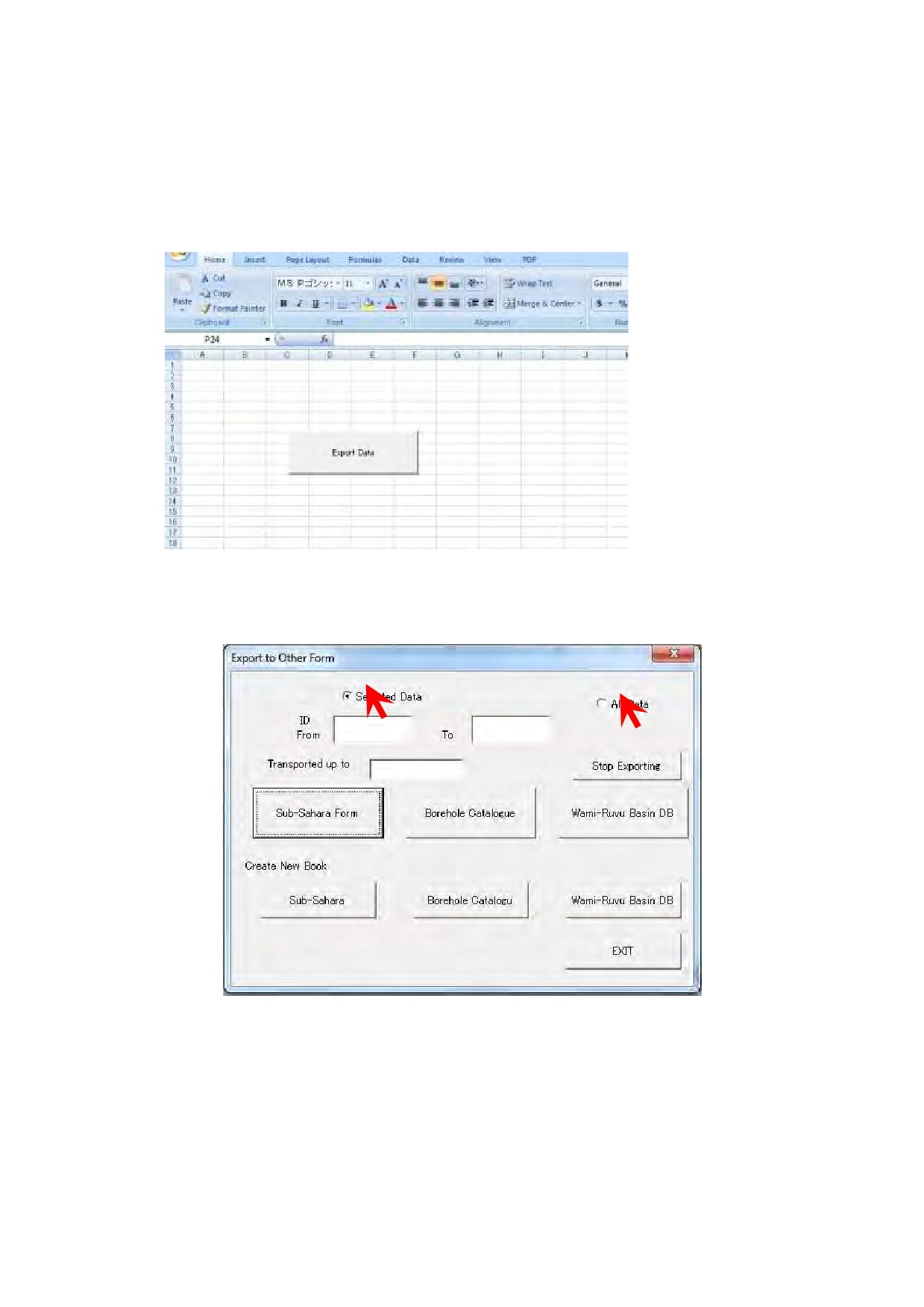

Figure 4: Command button of Export Data at “ExportData” sheet

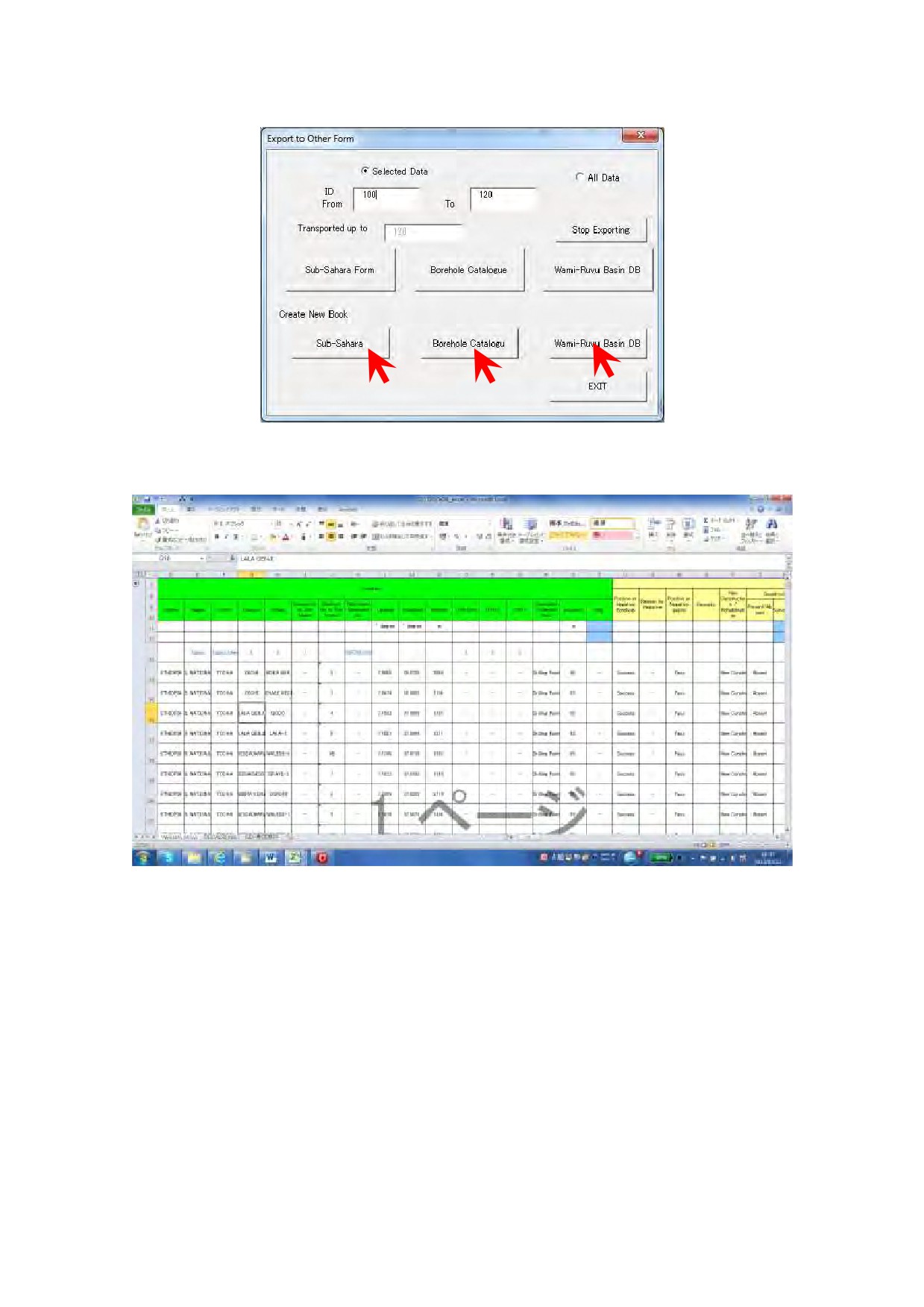

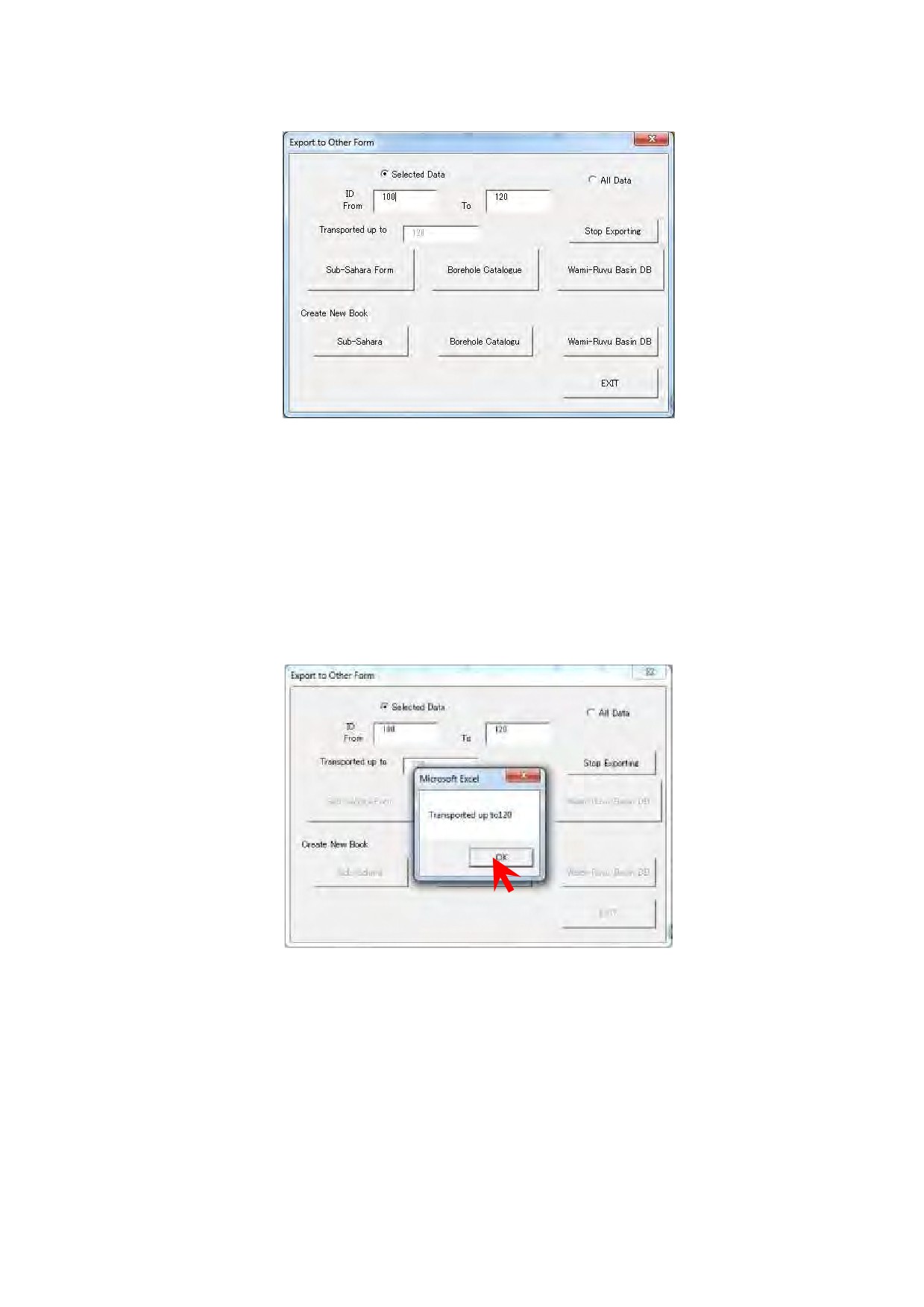

Figure 5: Control panel for export

Figure 6: Enter specific range of Database ID

Figure 7: Completion of data exporting

Figure 8: Exported data for Well Database in African Countries (WDAF)

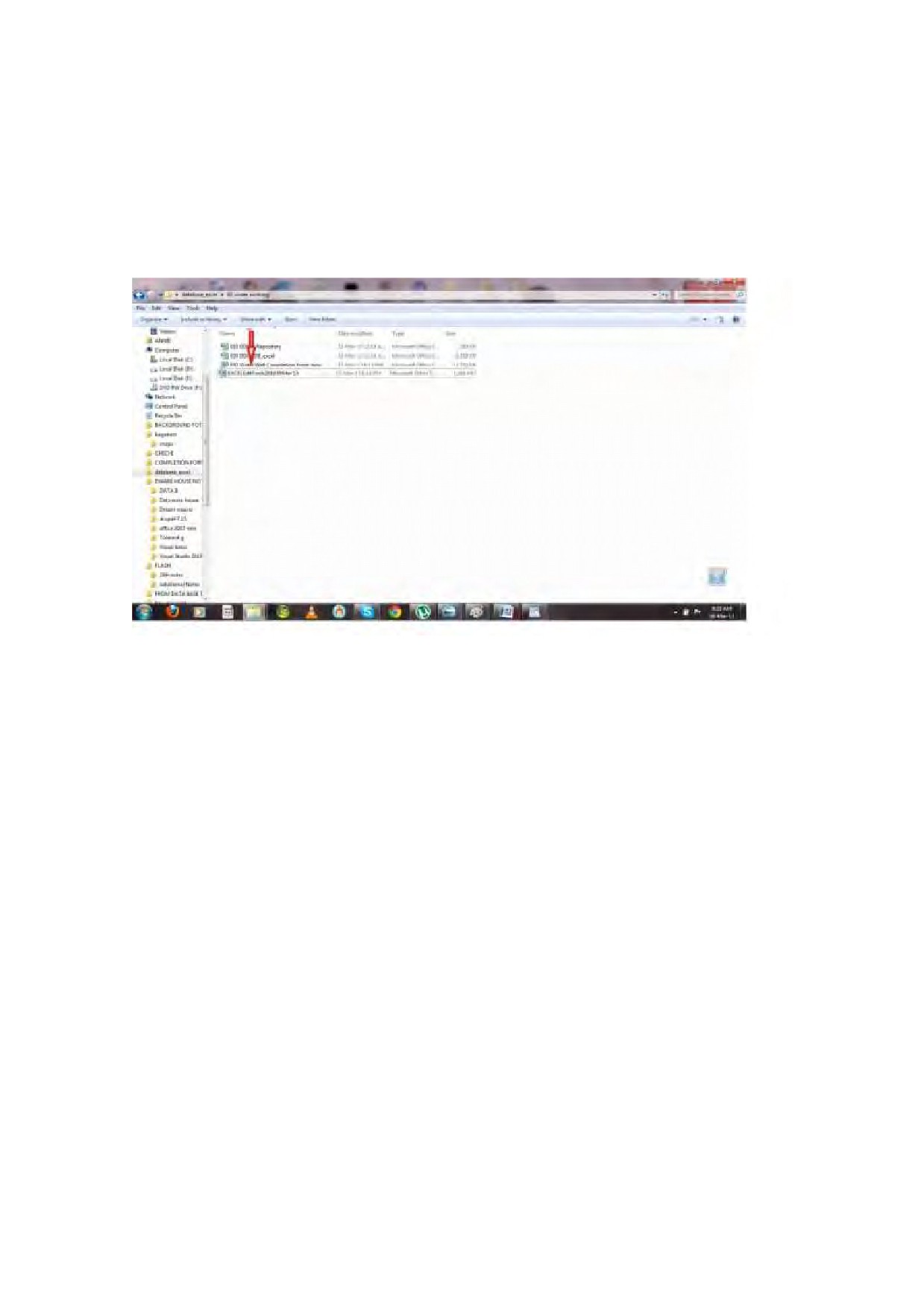

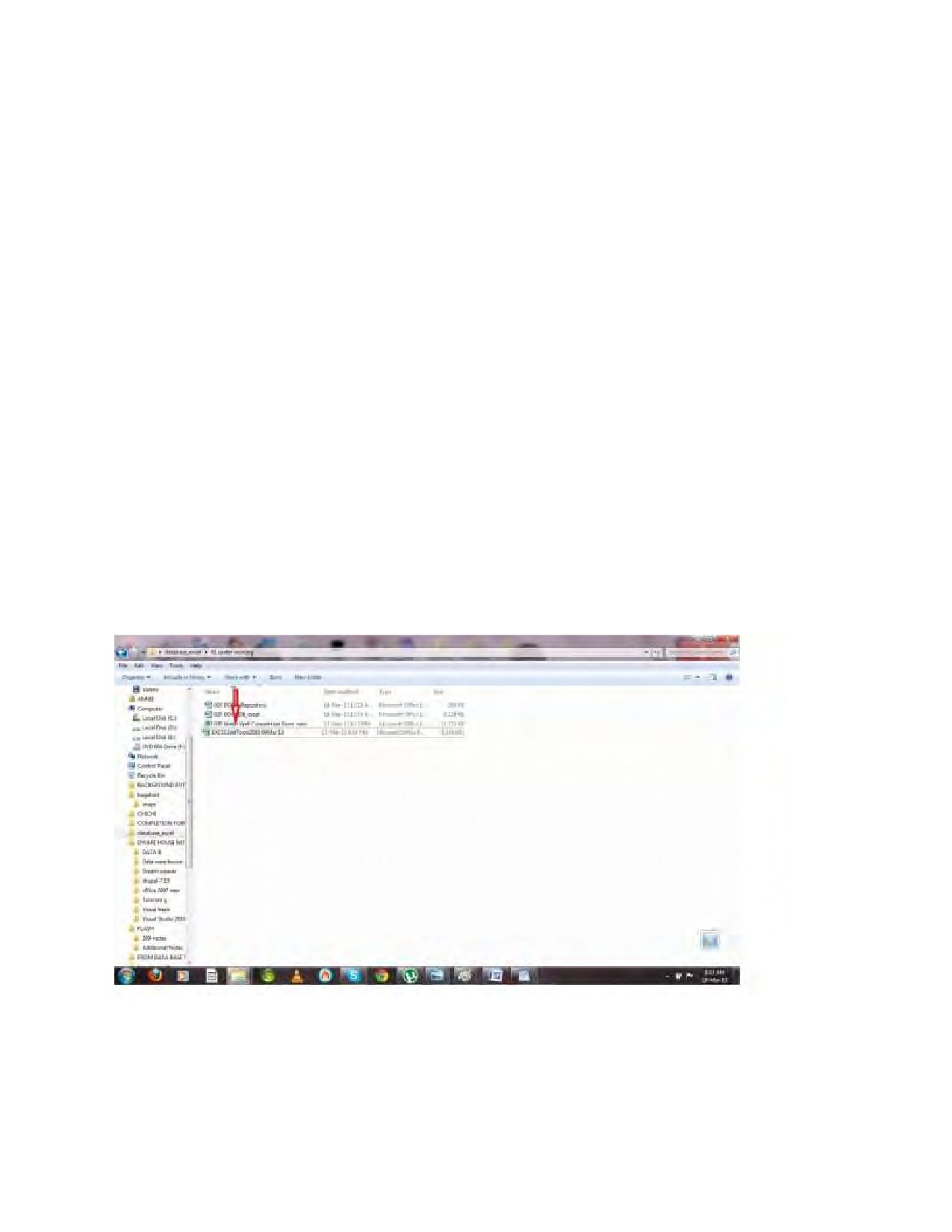

Figure 9: Composition of database files

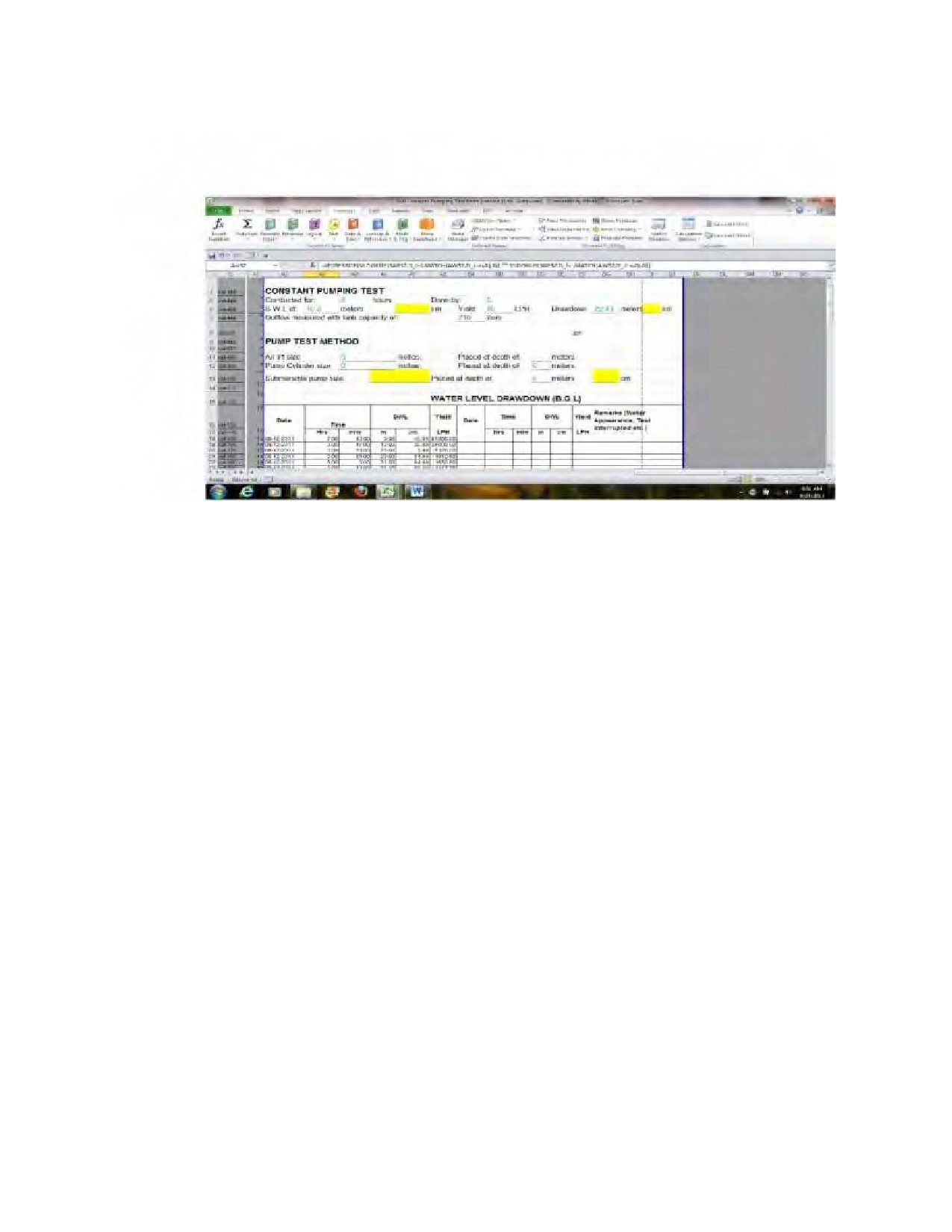

Figure 10: Pumping Test Form

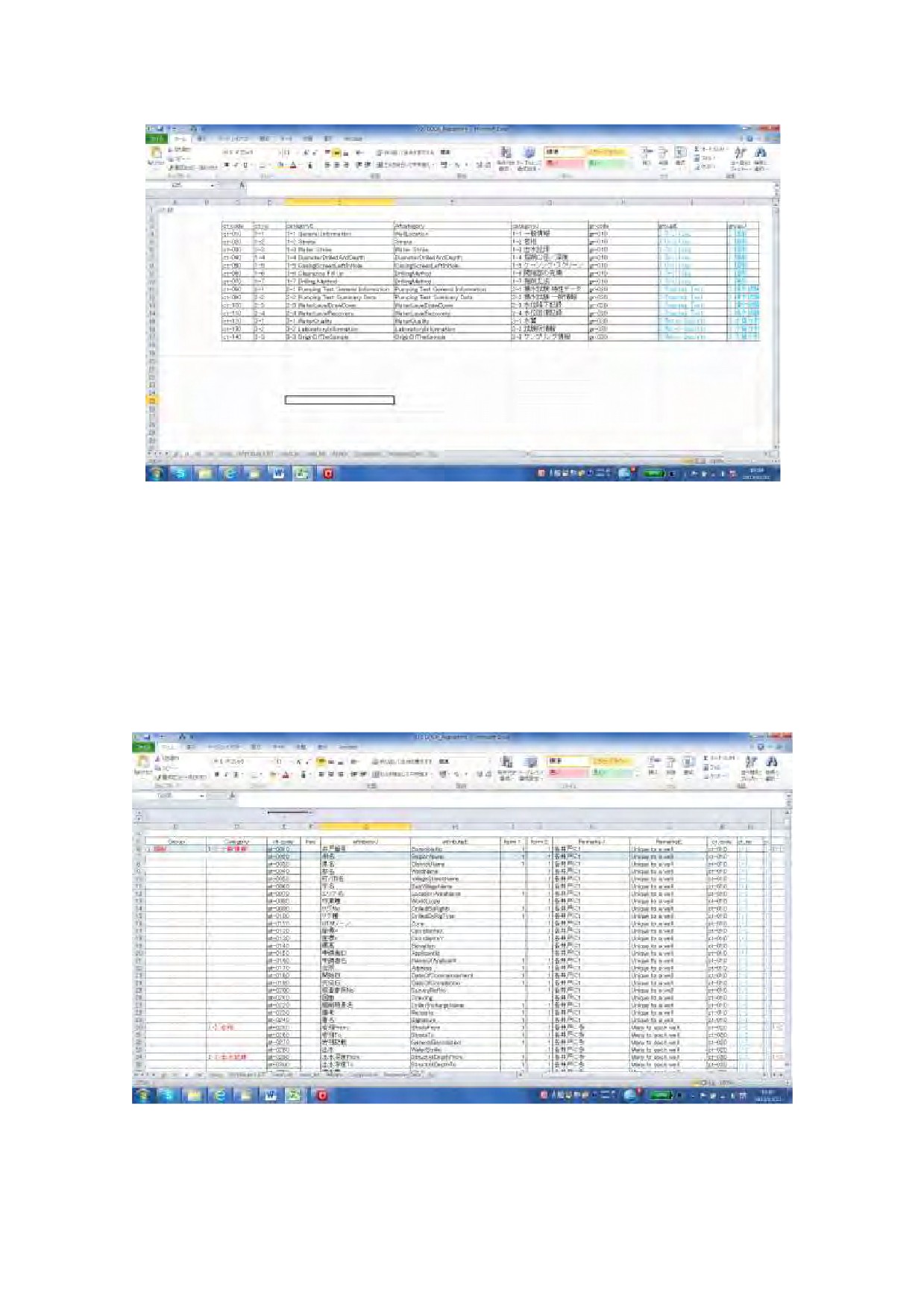

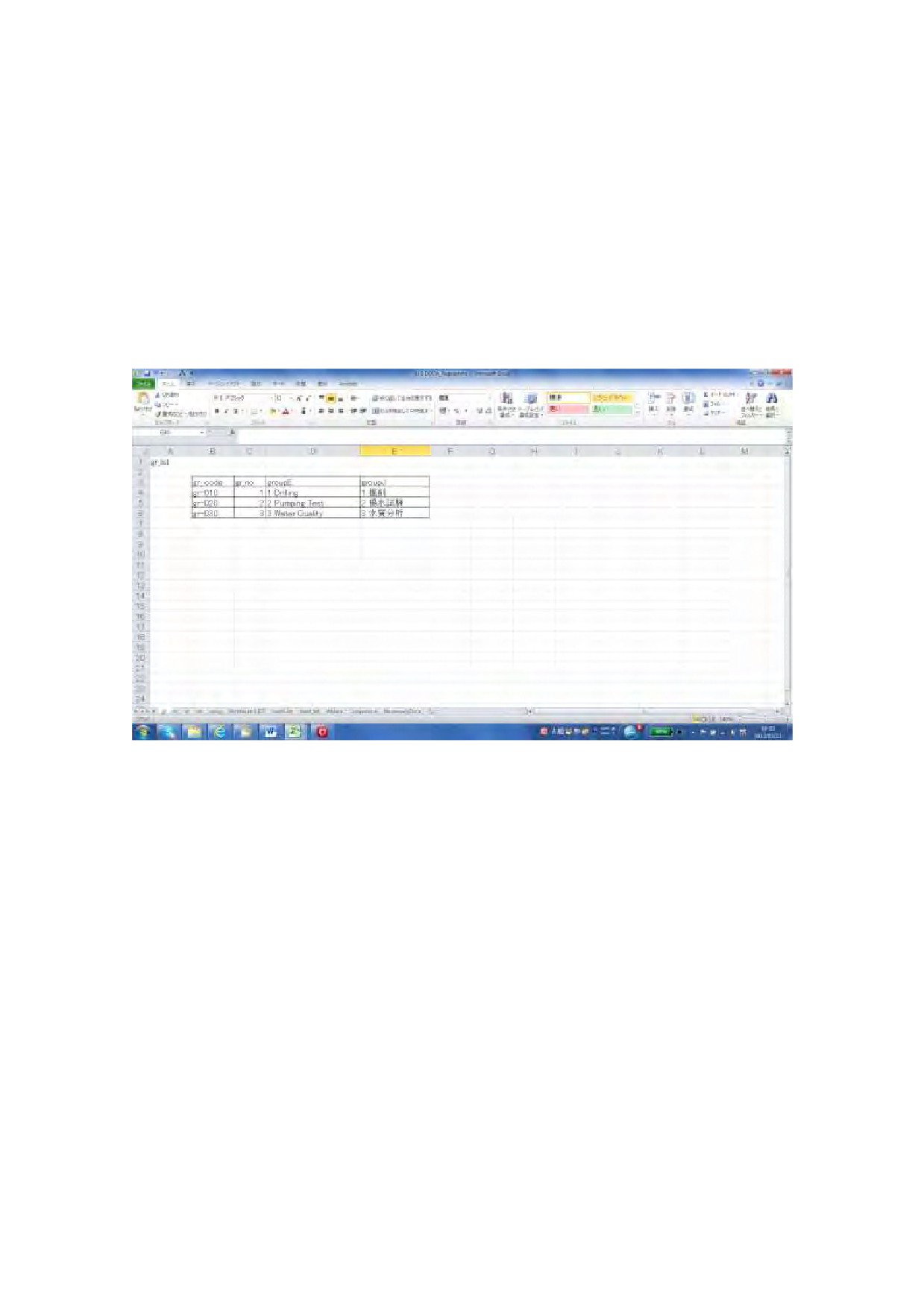

Figure 11: Group List (GR list)

Figure 7: Category List (CT list)

1. INTRODUCTION

The DDCA Well Database was established as a part of DDCAP project. The database is

assumed to be provided to any private drilling company on demand.

This Operation Manual has been prepared to explain how to use the application of DDCA

database. The database has 9997 borehole data and several functions. Users can add new

borehole data and use them, like report making, data search, data counting and summarizing.

The database made by using Microsoft Excel. User can modify the report form and make new

extraction form.

2. DATABASE COMPOSITION

The root folder is “DDCA Well Database” which consists of database main unit and scan data

(see Figure 1). The database main unit is made up of 5 books of Microsoft Excel which are

“010 Well Database.xlsm”, “020 Water Well Completion Form for Print.xls”, “030 Pumping Test

Form for Print.xlsm”, “040 Pumping Test Existing Data.xlsm” and “050 Water Quality for

Print.xlsm”.

Table 1 shows the components of the database main unit.

＜Database Main Unit＞

010 Well Database.xlsm

020 Water Well Completion Form for Print.xls

030 Pumping Test Form for Print.xlsm

＜Root Folder＞

040 Pumping Test Existing Data.xlsm

050 Water Quality for Print.xlsm

DDCA Well Database

＜Scanned Image Data＞

DDCA

1931

BH-4-31

Borehole Report

Scan Data

JPEG image

～

＜Folder of scanned borehole completion report＞

1932

BH-1-32

Borehole Report

JPEG image

～

2013

Borehole Report

LND-98-2013

＜Folder by Financial Yearly＞

JPEG image

＜Folder by Borehole No.＞

Figure 1 Folder and file composition of DDCA Well Database

Table 1 Components of the database main unit

Book Name

Sheet Name

Sheet Contents

010 Well Database.xlsm

DataEntryForm2

Data entry form for borehole completion report

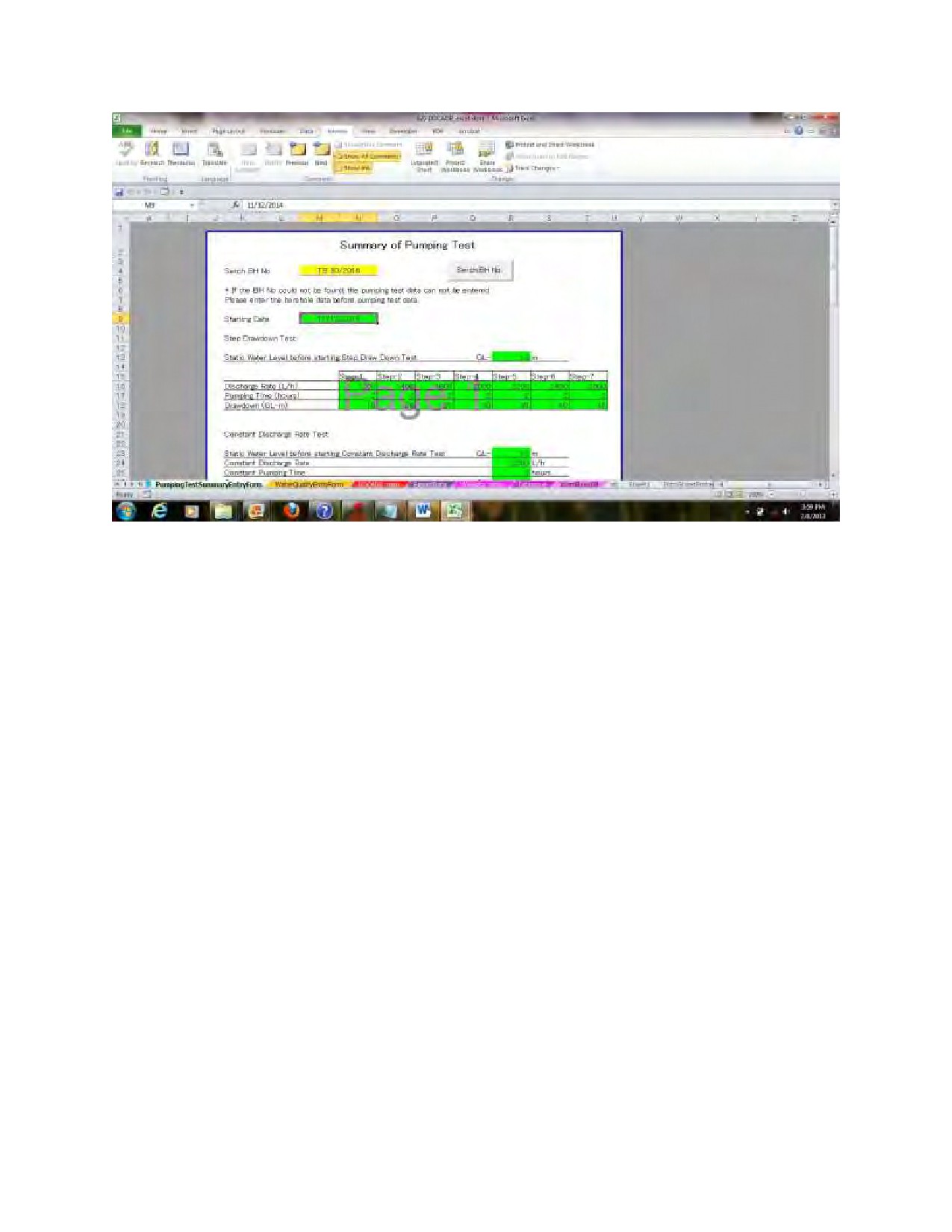

PumpingTestSummaryEntryForm

Data entry form for pumping test summary

WaterQualityEntryForm

Data entry form for Water quality analysis

DDCADB main

Data storage of this database

ExportData

Control form of data exporting function. User can

export stored data to other database form (see xxx)

Welldata_africa

“Well database in African Country” form of JICA

Catalogue

Form of Water Resource Management Office in

Dodoma

WamiRuvuDB

Form of WamiRuvu Basin Water Office

rat

Table of data attribute. Attribute name displayed

in this database is linked to the table. Revision of

the table demands a lot of attention because it

affects to all books and sheets in this database

Unit

Unit list which are used in DDCADB main sheet.

Revision of this sheet affect DDCADB main sheet.

Revision of the unit list demands a lot of attention

because it affects to data storage

EntrySheetProtect

This sheet has a command button to unprotect and

protect sheets

020 Water Well Completion Form for Print.xls

OLD

Well completion report form which had been used

from the 1930s to the 1950s

FORM1

Well completion report form in use at the year 2013.

FORM2

Revised well completion report form

030 Pumping Test Form for Print.xlsm

ConstantDD

Report form of constant discharge rate test

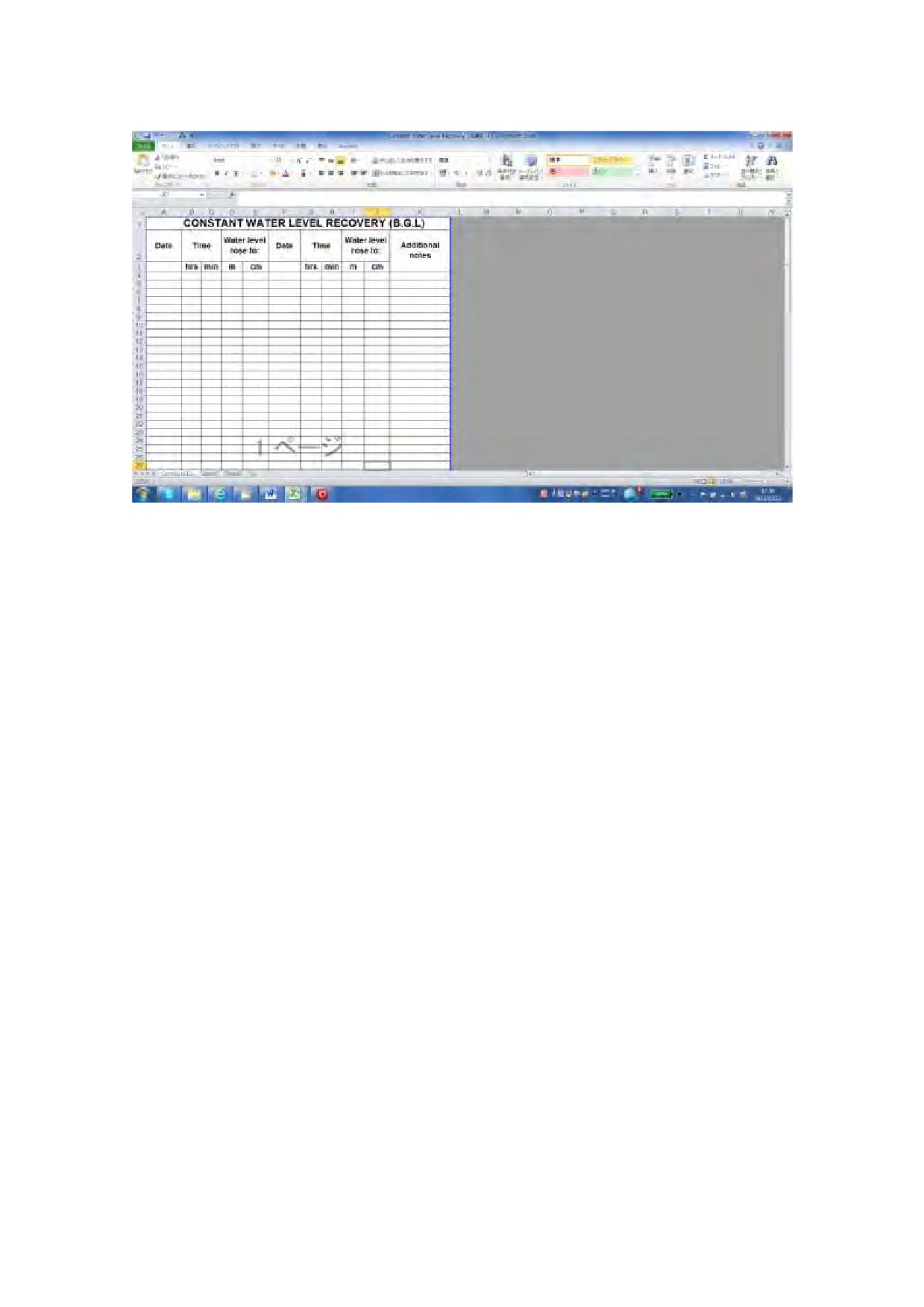

ConstantRecovery

Report form of water level recovery test

040 Pumping Test Existing Data.xlsm

pumptest

Data ID of pumping test etc., necessary data for data

correction and display

waterleveldrowdown

Store of constant discharge test data

waterlevelrecovery

Store of water level recovery test data

050 Water Quality for Print.xlsm

WaterQuality

Report form for water quality data

3. DATA ENTRY

For entering the data into the database, double click to open “010 Well Database.xlsm”. The

book has a main data storing sheet “DDCADB_main”. All data will be entered into this sheet.

The well data submitted by Rig in Charge to the registry will be entered into the

“DDCADB_main” sheet. The attributes in the sheet are ranged based on the order of items in

the completion report form. The borehole No. should be entered first at the left side column.

From the next column, the other data will be entered.

Step-1 Open the Data Entry sheet

Step-2 Enter the borehole number into the left end column under the attributes row.

Step-3 Start entering the data from the left column next to borehole No. horizontally.

Step-4 Cross check the data entered

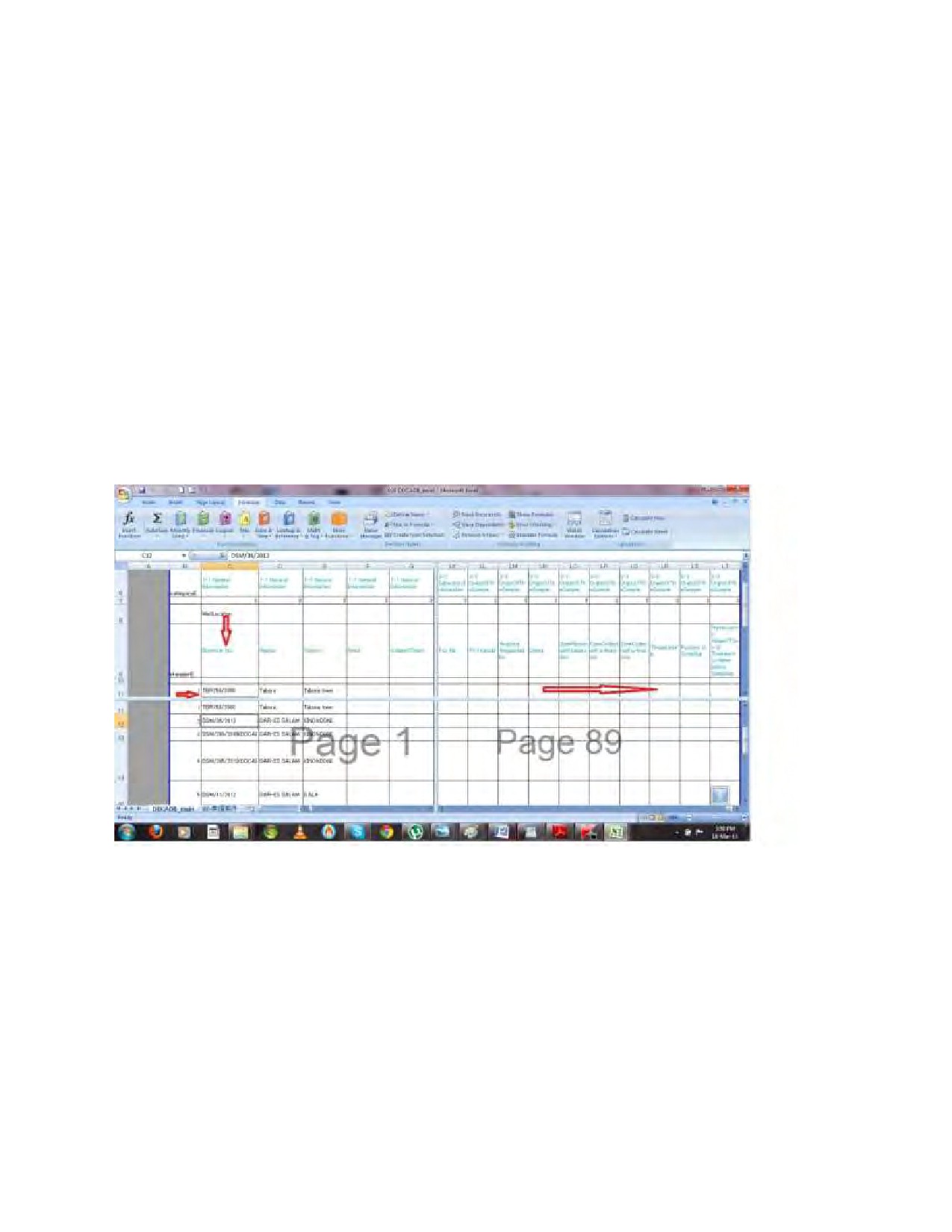

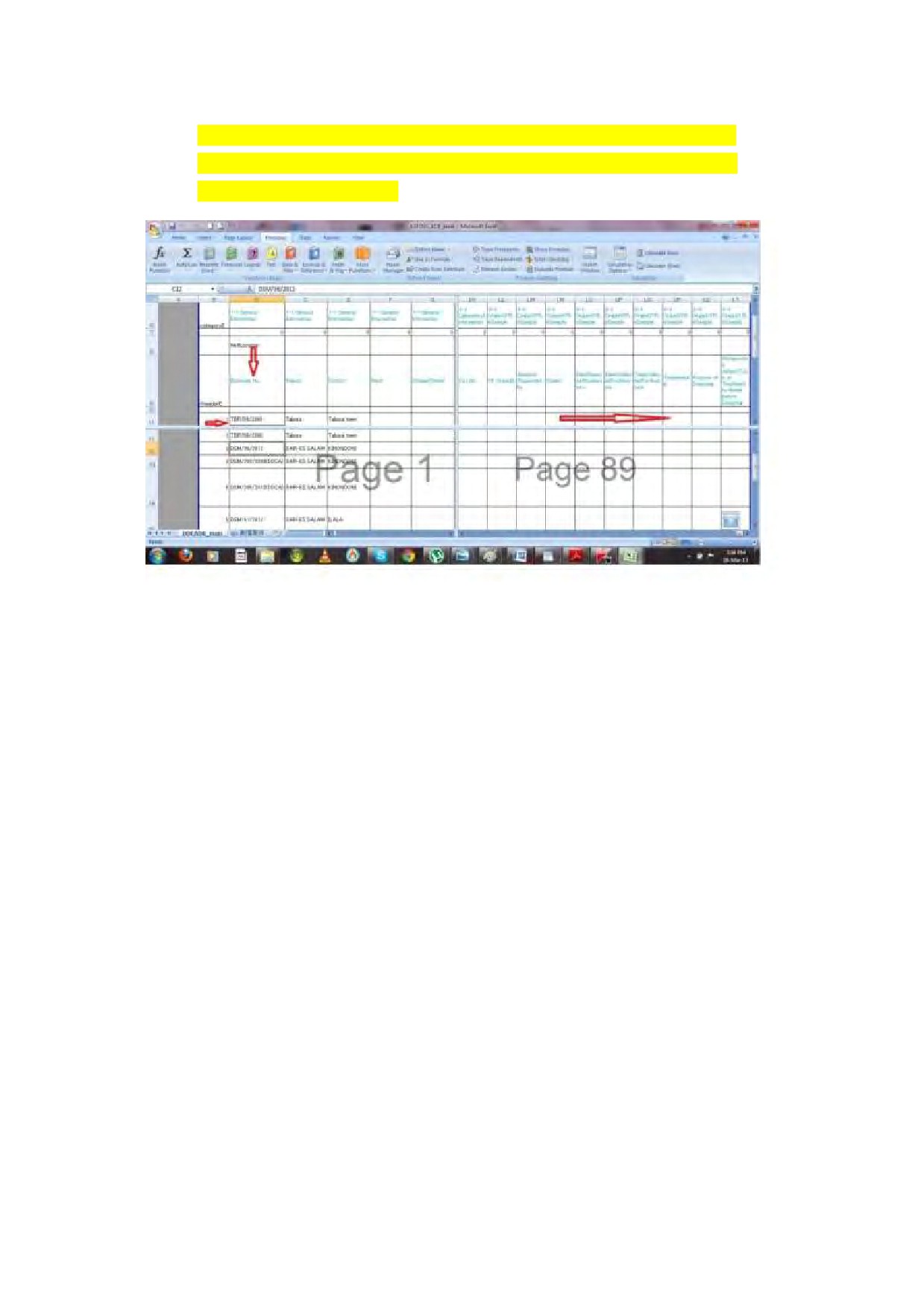

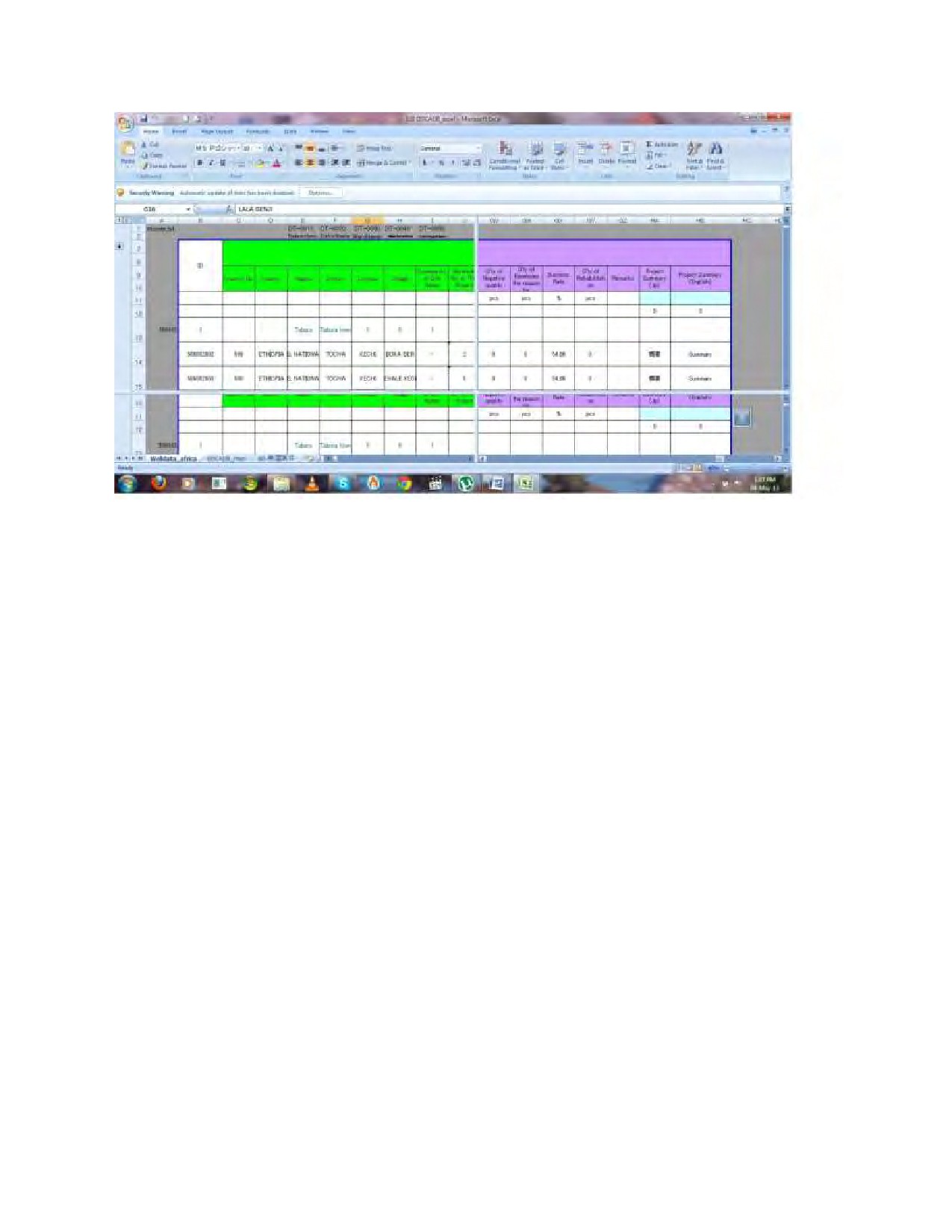

Figure 2: Data entry sheet

4. DATA SEARCH

Data are stored in the sheet of “DDCDB_main” of “010 Well Database.xlsm” book. User can

search a target borehole data by using several search methods of EXCEL. User can select any

method as its convenience. In this manual, two methods are introduced as followings.

(1) Use “Find”

Step-1 Open “DDCADB_main” and select arbitrary a column.

Step-2 Select Home Tab and select function as following.

[Home Tab]

[Find and Select]

[Find]

Step-3 Search box will open. Enter the words into the text box

Step-4 Click the search button. If the word is exists it will be fund.

(2) Use “Filter”

Step-1 Open “DDCADB_main” and Unprotect the sheet as following.

[Review Tab]

[Unprotect sheet]

>> Enter a password “ddcadb” >> Click OK or tap

Enter Key

Step-2 Select the row 10 and use filter function as following.

[Data Tab]

[Filter]

Then an inverted triangle is shown in each cell of the row 10. The inverted triangle is a pull

down menu for filtering.

Step-3 Click pull down menu of necessary attribute column and select necessary data. For

example, if a user wants borehole data of the financial year of 1995, click pull down menu

of “Year BH” column and select only 1995 (selected all in default). Click “OK”. Only the

borehole data of year 1995 are shown.

Step-4 For reset filter function. Click “Filter” of Data Tab.

Step-5 For protecting sheet again. Open “Sheet Protect” and click a command button of

“Unprotected”. The comment “Unprotected” changes to “Sheets are protected” and a

message box “Sheets are protected” is shown. Click “OK” of the message box and sheet

protection is completed properly.

5. REPORT MAKING

(1) Borehole Completion Report

Open “010 Well Database.xlsm” and “020 Water Well Completion Form for Print.xls”.

“020

Water Well Completion Form for Print.xls” includes 3 types of report forms which are “Old

“ form sheet, “Form1” sheet and “Form2” sheet. User can choose as the need.

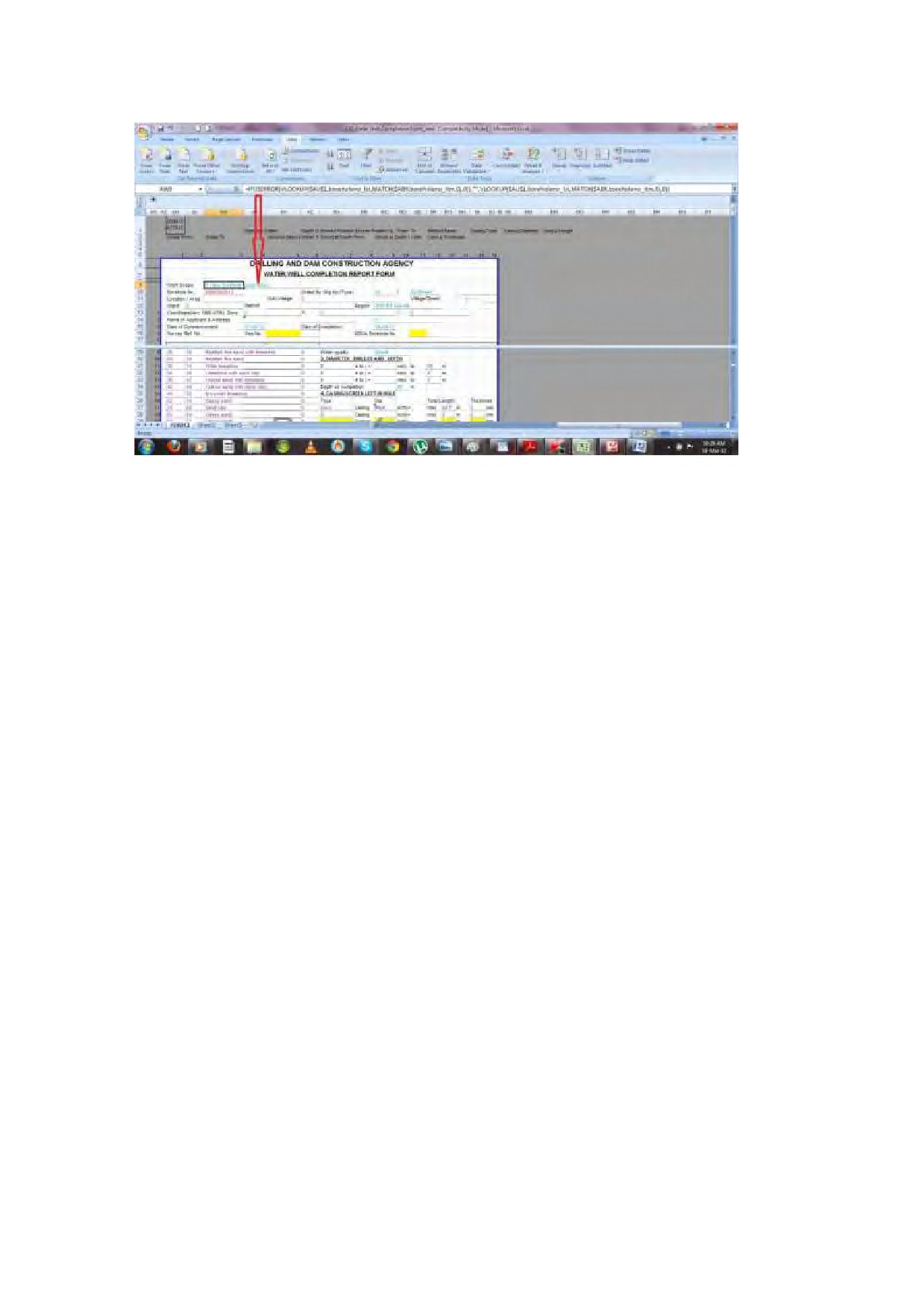

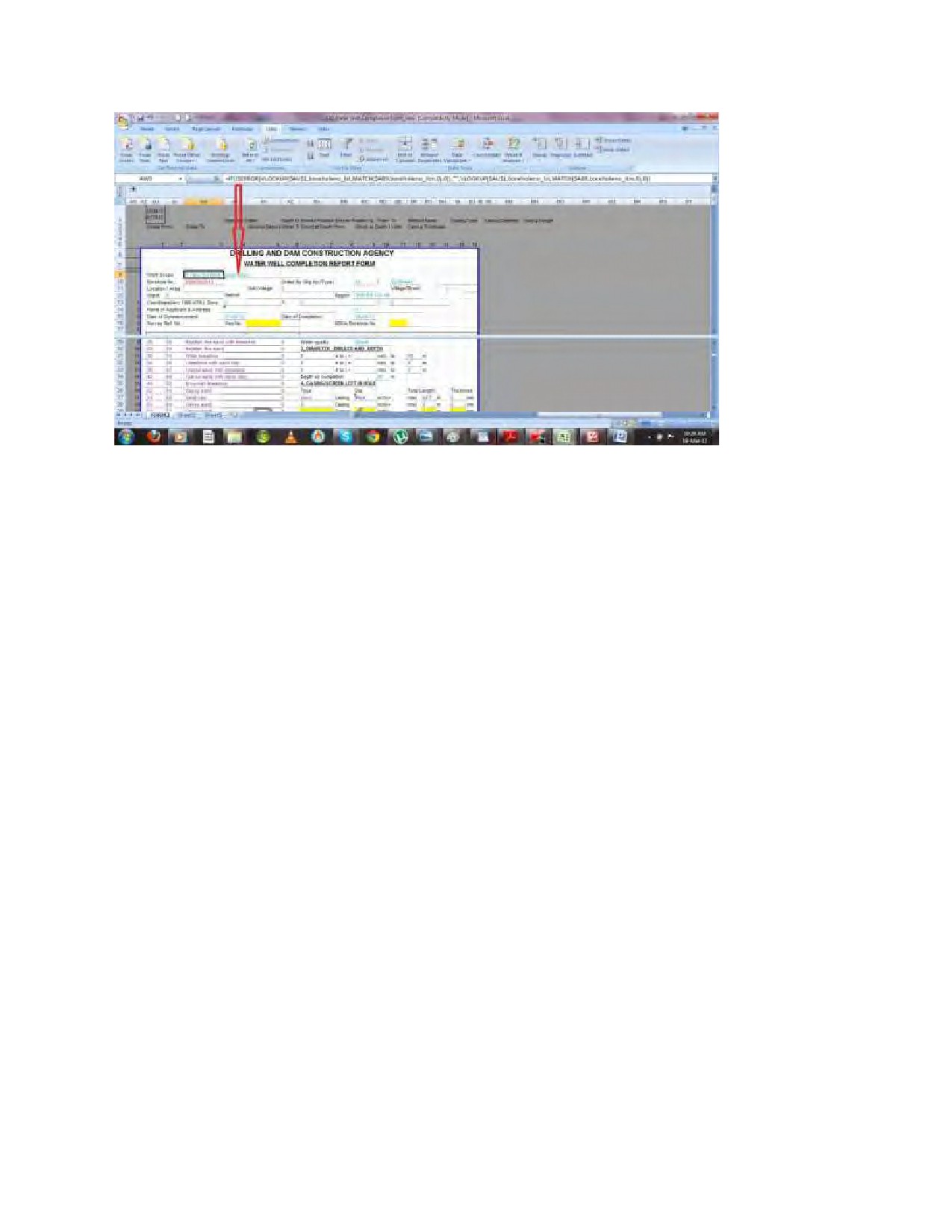

The Figure 3 shows a part of well completion report form. The borehole No. is entered into

the top of the sheet. The data stored in “DDCADB_main” sheet will be shown up in the form

by referring to the borehole No.

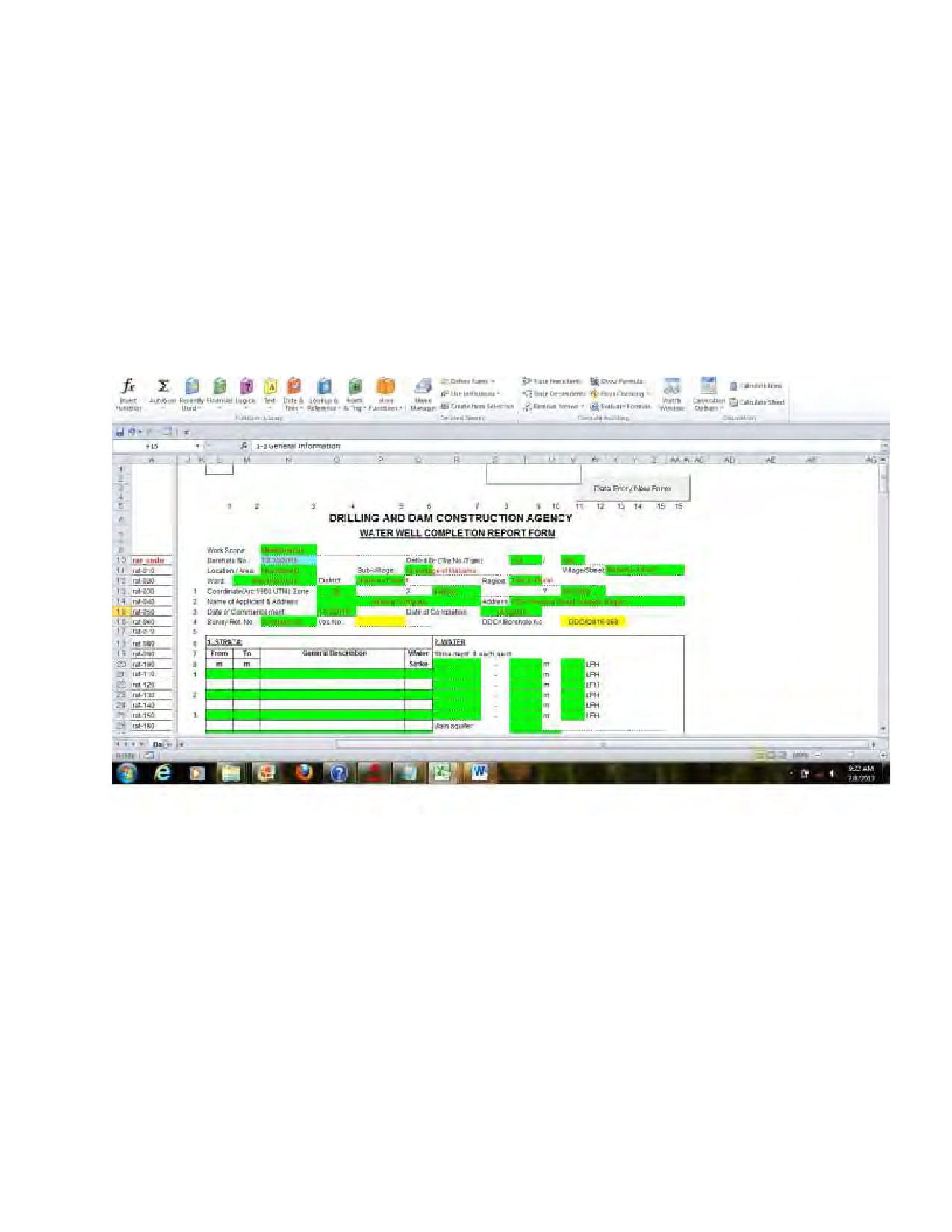

Figure 3: Well Completion Report Form

Step-1 Open “010 Well Database.xlsm” and “020 Water Well Completion Form for Print.xls”.

Step-2 Choose a sheet from Old, Form1 and Form2 which are in the book of “020 Water Well

Completion Form for Print.xls”.

Step-3 Copy borehole No. of the target borehole from “DDCADB_main” and paste to the top

of the form of each sheet.

Step-4 The data which had been entered into the “DDCADB_main” are shown by referring

(LOOKUP function).

Step-5 Print out the form

 If the data are not shown proper, check each formula, borehole No., rat No. and

“DDCADB_main” original data. For correction of the formula, refer to 9 in this manual.

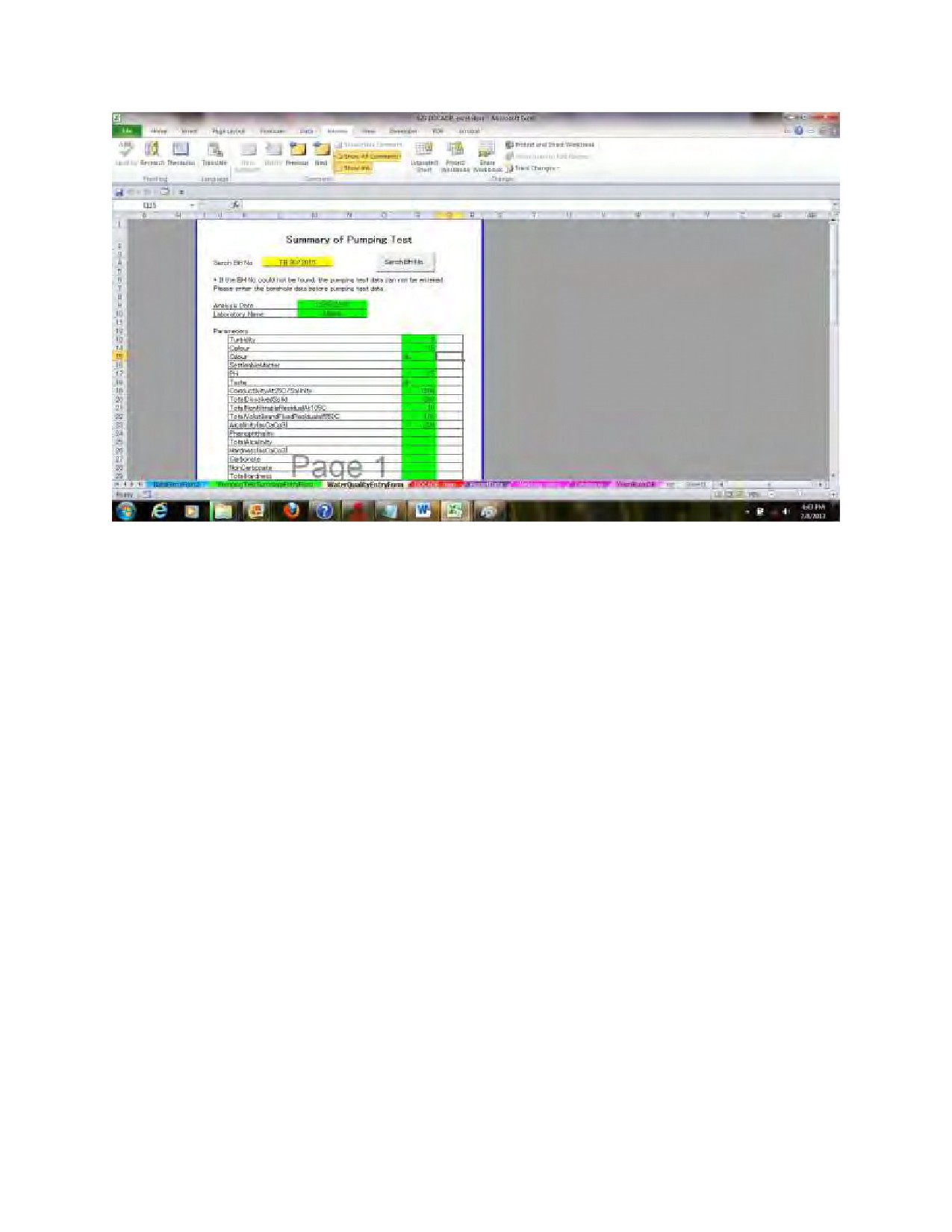

(2) Pumping Test Report

Step-1 Open “010 Well Database.xlsm”, “030 Pumping Test Form for Print.xlsm” and “040

Pumping Test Existing Data.xlsm”.

Step-2 Choose a sheet from ConstantDD and ConstantRecovery.

Step-3 Copy borehole No. of the target borehole from “DDCADB_main” and paste to the top

of the form of the chosen sheet.

Step-4 The data which had been entered into the

“DDCADB_main” and the

“040

PumpingTestExistingData.xlsm” are shown by referring. (Lookup Function)

Step-5 Print out the form

 If the data are not shown proper, check each formula, borehole No., and original data of

related files. For correction of the formula, refer to 9 in this manual.

(3) Water Quality Analysis Report

Step-1 Open “010 Well Database.xlsm” and “050 Water Quality for Print.xlsm”

Step-2 Copy borehole NO. of the target borehole from “DDCADB_main” and paste to the top

of the water quality analysis form

Step-3 The data which a had been entered into the “DDCADB_main” are shown by referring

function (Lookup Function).

Step-4 Print out the form

 If the data are not shown proper, check each formula, borehole No., and original data of

related files. For correction of the formula, refer to 9 in this manual.

6. DATA COUNTING AND SUMMARISING

7. SHEET PROTECTION

In order to avoid modify “010 Well Database.xlsm” by mistake, the sheets and book are

protected by password. Modification and data correction are restricted by this protection.

Table 2 shows the detail of the protection. The protection consists of Sheet protection and

Book protection.

There are two methods to unprotect and re-protect.

(1) Method-1: Use Excel Tab

1) Sheet protection

Step-1 Open “DDCADB_main” sheet

Step-2

[Review Tab]

[Unprotect Sheet]

>> Enter password “ddcadb” and click OK to

unprotect sheet

Step-3 After editing,

[Review Tab]

[Protect Sheet]

>> Enter password “ddcadb” and click OK to

re-protect *Don’t change check boxes

*Unprotect and re-protect should be done for each sheet. If any sheet is unprotected,

export function is disabled.

2) Book protection

Step-1 Open “DDCADB_main” sheet

Step-2

[Review Tab]

[Protect Workbook]

>> Click “Protect Structure and Windows”

>> Enter password “ddcadbbook” and click OK to unprotect this book

Step-3 After editing,

[Review Tab]

[Protect Workbook]

>> Enter password

“ddcadbbook” to

re-protect book.

* Don’t change check box.

(2) Method-2: Use Macro Command button only for Sheet protection

Step-1 Open “Sheet protection” sheet

Step-2 Click a command button named “Protected”.

Step-3 A message box “Unprotect?” appears. Click OK to unprotect.

Step-4 After editing, click the command button to re-protect. If any sheet is not protected,

export function does not work.

Table 2 Detail of sheet and book protection

Protecting Target

Sheet protection

Book protection

Restricting editing Data Entry

Restricting changing Sheet

Interface,

Data

Storage

composition (move, add, delete

( DDCADB_main ) and Attribute

sheet).

sheet

(rat). The cells of the

For changing sheet composition,

Protecting

interfaces and command buttons

this protection should be

contents

are enabled.

disabled.

For correction of registered data

and revision of interfaces, this

protection should be disabled.

Password

ddcadb

ddcadbbook

Restricted

Interfaces for data entry and data export function do not work.

functions while

unprotected

8. Data Export

The storing data in DDCADB_main can be exported to the other database form. This database

is mounted an export function for three types of other database forms. Those forms are

“Well database of Africa”, Dodoma water resource office form and WamiRuvu basin office form.

Export function is build up with VBA Macro. The process of exporting is as following.

Step-1 Open “ExportData” sheet.

Step-2 Click a command button to open a control panel for export.

Figure 4: Command button of Export Data at “ExportData” sheet

Figure 5: Control panel for export

Step-3 Select “Selected Data” or “All Data” as need.

“Selected Data” is for partial exporting.

“All Data” is for exporting all data at once. In the case of “Selected Data”, enter range of

ID, like “from _____ to_____”.

Figure 6: Enter specific range of Database ID

Step-4 Click “Sub-Sahara Form” for JICA form, “Borehole Catalogue” for Dodoma water

resource office or “Wami-Ruvu Basin DB” for WamiRuvu basin office. If user wants to

abort exporting, click a command button of “Stop Exporting”.

Step-5 Upon the completion, a message box appears. Click OK.

Figure 7: Completion of data exporting

Step-6 If user wants to create new book of exported data, click a command button below

“Create New Book” as needed.

Step-7 After completion, click “EXIT” to close the control panel.

Figure 8: Exported data for Well Database in African Countries (WDAF)

9. MODIFICATION OF REPORT FORM AND EXTRACTION FORM

(1) Basic MS-Excel Function used in a Database of Wells Drilled by DDCA

Some useful MS-Excel functions are applied in the database. LOOKUP function is mainly used

for making the well completion report. LOOKUPfunction isto referto the information filled in

othercolumn, sheet or book. Once the formula is set, there is no need to retype up. The

other functions such as MATCH, ISERROR and IF functions are also used in the database. As

the introductory step to handle the database, this Section describes the MS-Excel functions to

be mastered, which are needed for data entry.

1) LOOKUP (VLOOKUP: Vertical LOOKUP) Function

 Purpose

Refer to data from other sell, sheet and book.

 Formula

=Vlookup(lookup_value,table array,Col_index_number, Approximate match)

 How to set VLOOKUP formula in the column

Put equal then write “vlookup”

Put open brackets

Click the lookup value and put comma

Select and put the range of table in which the data to be referred is included, then put

comma

Put number of column in which the data to be referred is located, then put comma

Select Zero, then put close brackets

Press enter

 Example

Table 3: LOOKUP function

Column

$B$2:$E$2→Nauli_itm

Row

$B$3:$E$6

Nauli_lst

Region

DSM

Arusha

Mwanza

Morogoro

5000

30000

65000

Mbeya

40000

80000

100000

Tanga

60000

35000

55000

Kagera

70000

45000

50000

: Naming of table by using “Name Manager”as instructed in *1 Box

Tanga-DSM

=vlookup($B$5, nauli_lst, 2, 0)

=60000

Morogoro-Mwanza

=vlookup($B$3, nauli_lst, 4, 0)

=65000

Kagera-Arusha

=vlookup($B$6, nauli_lst, 3, 0)

=45000

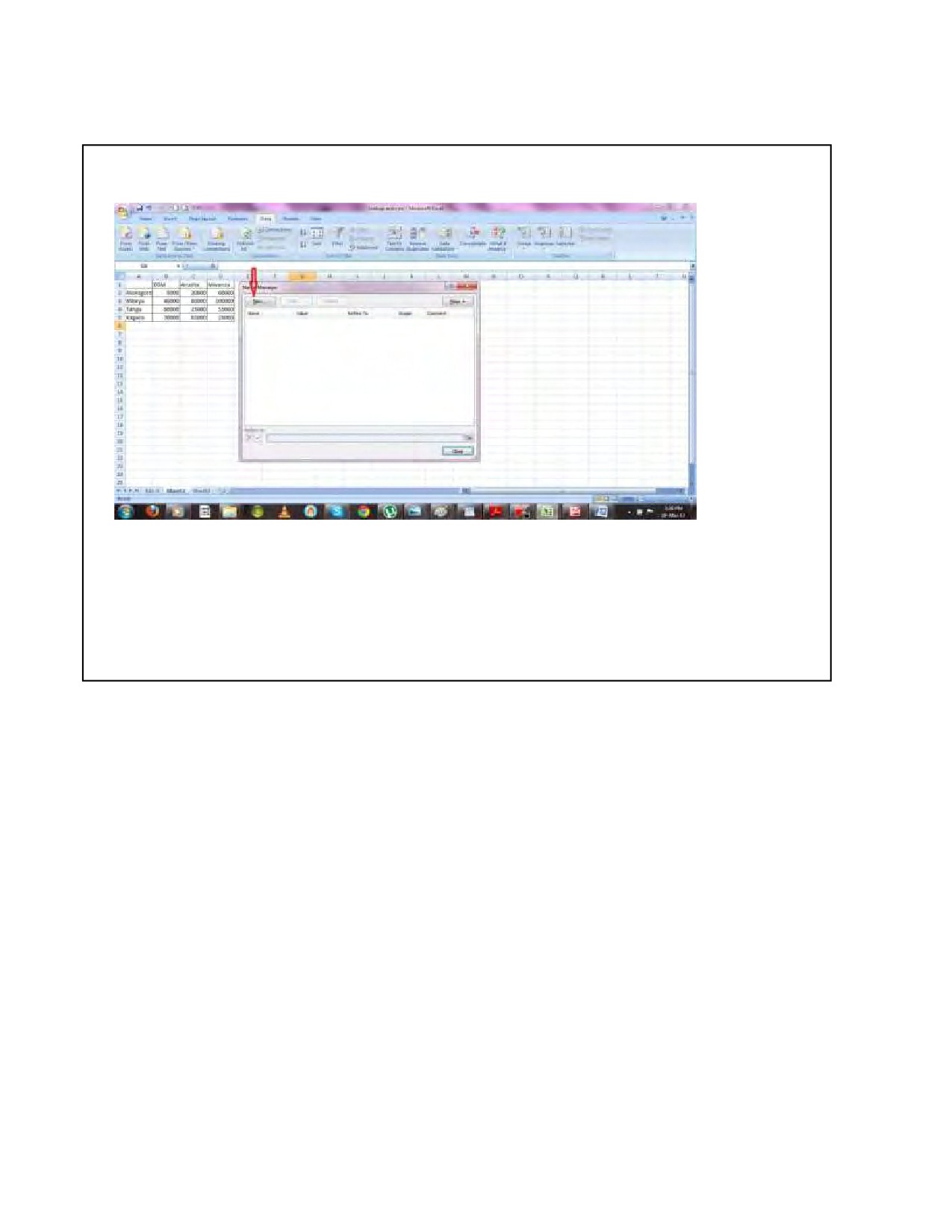

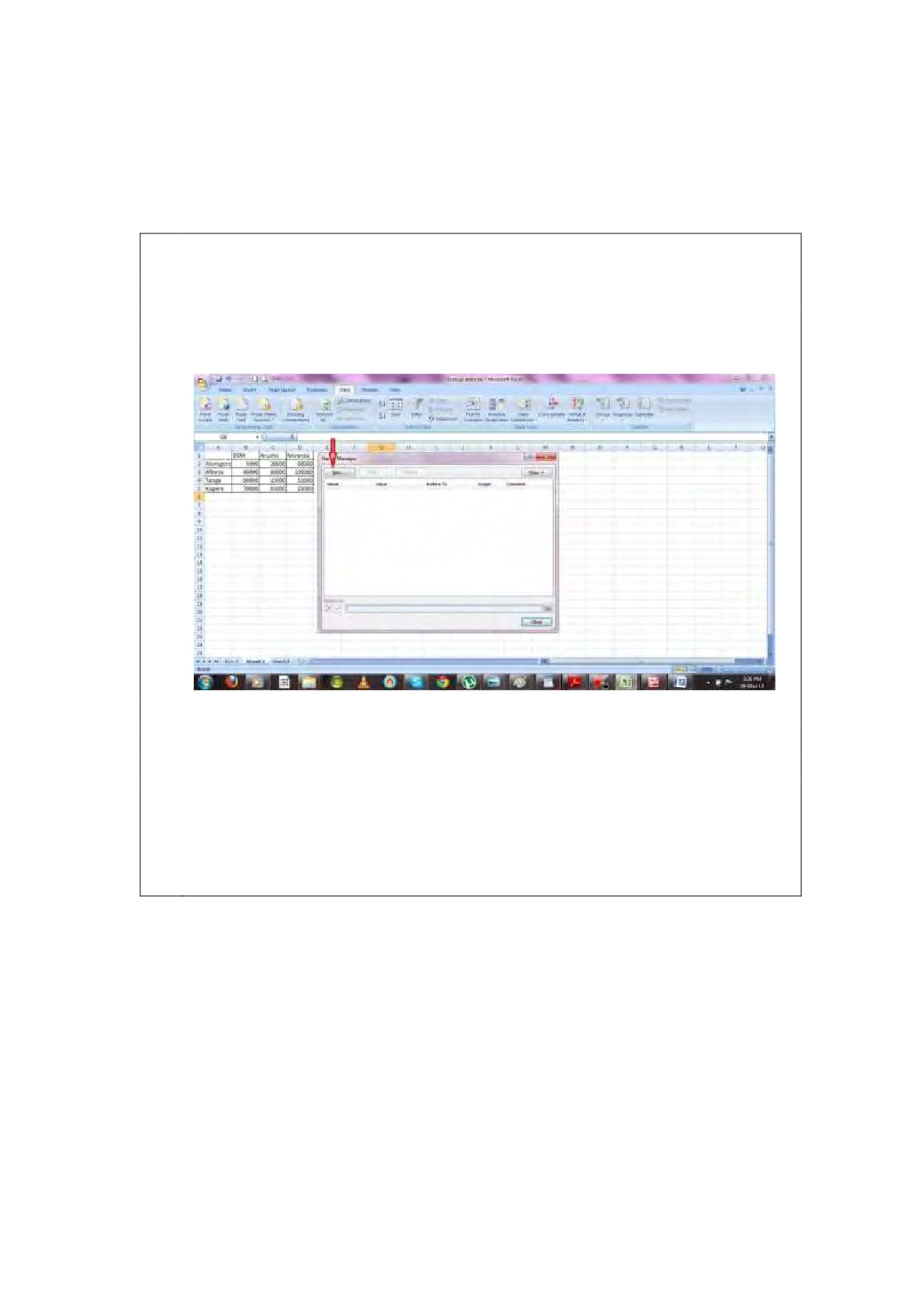

Name Manager

With pressing “ LT”, press “I”, “N”, “D”

Name manager box will be appeared

Click “New” to name

Write the name “ nauli_lst” as example table shows

Select the range “$B$3:$E$6” to refer

Refer to selected nauli list or nauli item then press ok

Close name manager box

Note: $ means fixedrow or column. There are three types of $ usage, which is

either $B$3 (absolute), $B3 (relative column) or B$3 (relative row).

$ Position is

changed with pressing “F4”.

2) MATCH Function

 Purpose

To find the No. of column which the data locates

 Formula

=match(value,table array,approximate match)

 How to set MATCH formula in the column

Put equal then write “match”

Open brackets

Click the value from the data celland put comma

Select and put the range of table in which the data to be referred is included, then put

comma

Select approximate match 0 (complete), then put close brackets

Press enter

 Example

Table 4: MATCH function

Column 1

Column 2 Column 3

Column 4

Column 5

Nauli_lst

Region

DSM

Arusha

Mwanza

Morogoro

5000

30000

65000

Mbeya

40000

80000

100000

Tanga

60000

35000

55000

Kagera

70000

45000

25000

DSM

=match(C2, nauli_lst, 0)

Arusha

=match(D2, nauli_lst, 0)

Mwanza

=match(E2, nauli_lst, 0)

3) Combination of VLOOKUP&MATCH Function

 Formula

=volookup(looup_value,table array, match(value, table_array, approximate match)

 How to set VLOOKUP&MATCH formula in the column

Put equal then write “vlookup”

Open brackets

Click the lookup value and put comma

Select and put the range of table in which the data to be referred is included, then put

comma

As “Col_index_number”put MATCH formulain which the data to be referred is located,

then put comma

Select Zero, then put close brackets

Press enter

 Example

Table 5: Combination of VLOOKUP and MATCH function

Nauli_lst

Region

DSM

Arusha

Mwanza

Morogoro

5000

30000

65000

Mbeya

40000

80000

100000

Tanga

60000

35000

55000

Kagera

70000

45000

25000

Tanga-DSM

=vlookup($B$5, nauli_lst, match(C$2, nauli_itm, 0), 0)

=60000

Morogoro-Mwanza

=vlookup($B$3, nauli_lst, match(E$2, nauli_itm, 0), 0)

=65000

Kagera-Arusha

=vlookup($B$6, nauli_lst, match(D$2, nauli_itm, 0), 0)

=45000

5) IF Function

 Purpose

To return the deduced value as defined in case of TRUE and FALSE

 Formula

=if(value,TRUE,FALSE)

 How to set IF formula in the column

Table 6: IF function 1

Score_lst

Name

Math

Average

Pass/Fail

Ali

Juma

Michel

Maria

Godfrey

Ali

=if(C3>D3,"pass","fail")

=Pass

Juma

=if(C4>D4,"pass","fail")

=Pass

Michel

=if(C5>D5,"pass","fail")

=Fail

Maria

=if(C6>D6,"pass","fail")

=Pass

Godfrey

=if(C7>D7,"pass","fail")

=Fail

Table 7: IF function 2

Score_lst

Name

Math

Average

Pass/Fail

Ali

Pass

Juma

Pass

Michel

Fail

Maria

Pass

Godfrey

Fail

6) ISERROR Function

 Purpose

To check the error such as #NULL!, #DIV/0, #VALUE!,

#REF!, #NAME?, #NUM!, #N/A,

#GETTING_DATA and return TRUE or FALSE.

 Formula

=iserror(value)

 How to set ISERROR formula in the column

The formula to refer to the transport fee Mwanza-Mbeya is as follows;

=VLOOKUP($A4,nauli_lst,MATCH(E$2,nauli_itm,0),0)

Table 8: ISERROR function 1

Nauli_lst

Region

DSM

Arusha

Mwanza

Morogoro

5000

30000

65000

Mbeya

40000

80000

#DIV/0

Tanga

60000

35000

55000

Kagera

70000

45000

25000

In case the error is happened for the cell of E4, the following formula makes the error show as

defined by IF function.

“To show

blank”

Mwanza-Mbeya

=IF(ISERROR(VLOOKUP($A3,nauli_lst,MATCH(D$3,nauli_itm,0),0)),"",VLOOKUP($A3,nauli_lst,

MATCH(D$3,nauli_itm,0),0)

Table 9: ISERROR function 2

Nauli_lst

Region

DSM

Arusha

Mwanza

Morogoro

5000

30000

65000

Mbeya

40000

80000

Tanga

60000

35000

55000

Kagera

70000

45000

25000

5.2 How to Start the DDCADB

As the programme of the database is MS-EXCEL software, ensure that the programme is

installed into your computer.To start the database the user should double click the icon of file.

The application of database consists of the following 4 files.

DDCADB

DDCA Repository

Water Well Completion Form

Constant PumpTest Form

Figure 9: Composition of database files

5.4 How to Make Report

Principally, the Water Well Completion Report is prepared by referring to the data entry sheet

with LOOKUP function. When the data entry is completed, the report is ready for print out

and submission. It means that the form will not be saved but printed out. There are three

types ofwater well completionform which are Old Form, Form1 and Form2 includingthe

general information on drilled place, person in charge and drilled borehole information such as

drilled diameter, depth and yield etc. For another form such as pumping test is filled by

typing up. The data on pumping test entered into the data sheet is referred by the form of

pumping test.

5.4.2 Form of Pumping Test

There are four records of water level drawdown and water recovery for both constant pumping

test and step pumping test. The following window shows the form of constant water recovery

pumping test.

Figure 10: Pumping Test Form

5.5 Database Repository

Database repository is prepared for storing the attributes.In case new attribute addition is

added, the new attribute will be stored into the repository first and then reflected to the data

entry sheet. The attributes stored into the repository are sorted bygroup and category.

Each attribute, group and category has data No. with the item codeas below.

 GROUP→GR

 CATEGORY→CT

 ATTRIBUTE→AT

 ATTRIBUTE→RAT

There are three types of sheet of “GR”, “CT” and “AT”. The followings describe details of each

sheet.

GRlist sheet

GR list sheet shows the groups with GR No. As the following window shows, there are three

groups. In case new group is added, make sure to re-range and rename the table.

Drilling

Pumping Test

Water Quality

Figure 11: Group List (GR list)

CT list sheet

CT list sheet shows the categories under the group. Each category has coded the CT No. and

refers to the group in the GR list sheet with using the LOOKUP function (the cells with blue

color). In case that new category is added, make sure to expand the range of list (re-range

and rename). There are 14 categories as the following window shows.

RAT list sheet

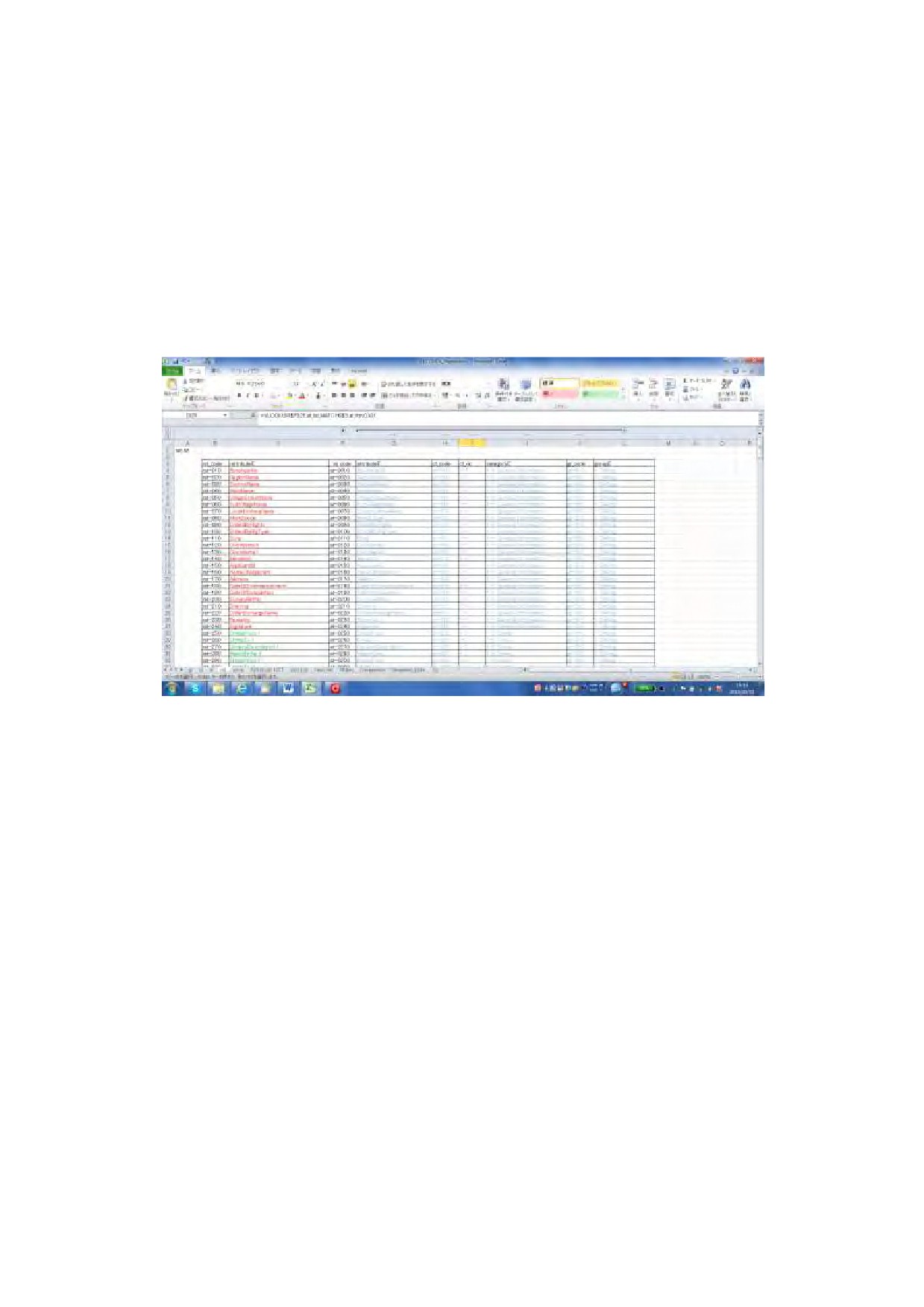

RAT list sheet shows the all attributes unfolding the repeating items. Each data has been

coded the RAT No. The group, category and attribute before unfolding the repeating items

are also shown by referring to the AT list with using the LOOKUP function. Make sure to

re-range and rename the list after addition of the new attribute. RAT No. is stored into the

top row in the data entry sheet so as to store the attributes into the data entry sheet from RAT

list sheet in the repository by referring to the RAT No.

Figure 13: Attribute List (RAT list)

 Steps for addition of new attributeto repository and data entry sheet

In AT list sheet, insert the row where the new attribute will be stored.

Code new AT No and enter the new attribute.

The VLOOKUP formula is set into the category column.

Shift to the RAT list sheet and insert the row where the new attribute will be stored.

Enter the new RAT No.

The VLOOKUP formulas of group and category for new RAT items are set.

The formula for the RAT item is set as set in the cells up and down cells.

In case the new attribute is repeating items, the formula is set like that of green color.

In case of not repeating items, the formula is set as that of red color.

Shift to the data entry sheet and insert the column in which the new attribute is

stored.

10. Set the formula of VLOOKUPso as to quote the attribute from the repository into the

data entry sheet.

Table of Contents

1. DATABASE DESIGN

(1)

Review of existing report

(2)

Collection of Electrical data of village coordinates

(3)

Hardware and software installation

(4)

Equipment preparation

(5)

Requirement analysis of the client

(6)

System Analysis and System Design

2. SYSTEM CONSTRUCTION AND INTEGRAL TASTE

3. REPORT SCANNING AND DATA ENTRY

4. USER MANUAL

5. TRAINING

6. REPORTING

Figure

Figure 1: DDCA MySQL database Interface

1. DATABASE DESIGN

(1)

Review of existing report

Recent borehole reports are stored in the Dar es Salaam DDCA office. Old reports are stored

in the Dodoma DDCA office and Dodoma water resource office. After the reports stored in the

Dodoma DDCA office are brought to Dar es Salaam, LOCAIDES reviewed existing reports.

Important features are observed through the review of existing borehole reports.

For example, the well completion Report includes two types of form. The one is the old form

which had been used from 1931 to 1946 and the other one is existing form current used form

one. The units of length and discharging rate have several description such as feet, meter for

length, gal/h, m3/h, L/h, L/sec for discharging rate.

The information of the number of drilled boreholes per year was supplied by DDCA.

The review of existing report was completed in September, 2012. The result of the review was

reported by the weekly report and “Output (2) List of number of drilled boreholes per year”.

(2)

Collection of Electrical data of village coordinates.

The village coordinates are submitted as a GIS data. The collection of electrical data of village

coordinates was completed in September, 2012.

(3)

Hardware and software installation

The equipment for data base will be procured by the client. LOCAIDES will setup the system

and install the database up to the direction of the client.

(4)

Equipment preparation

LOCAIDES has prepared necessary equipment and system to construct the database and enter

the borehole data. The equipment includes several computer, printer, scanner, photocopy

machine, MS-Office.

(5)

Requirement analysis of the client

LOCAIDES, the client and DDCA had meeting frequently and discussed the requirement for the

database. The client explained details of the borehole reports and their requirement. Mainly

the requirement consists of the attributes to be stored for form one and two, Major components

of the system,DDCA organization and management data entry, form one data entry, form two

data entry.

The client requirement includes some database function such as exporting to other database

form, data entry interface and output form. The data attributes of the other database form

requested by the client were compiled. The requirement analysis of the client was completed

in September, 2012. The result of the requirement analysis of the client was reported as

“Output (4) Requirement completed” and submitted already.

(6)

System Analysis and System Design

The necessary data to be stored in the database and the data for database management such as Id

number and the relationship between entities were analyzed. The E.R.Diagram of the database

for data entry was established. The system analysis was completed in September, 2012.

The database system had been designed based on the system analysis after the discussion among

LOCAIDES, the client and DDCA. System design had been completed in October, 2012, and

data entry was started. The result of system design was reported in October, 2012.

2. SYSTEM CONSTRUCTION AND INTEGRAL TASTE

This database construction shall include data coding, group, attribute and category to complete

the proper database system.

3. REPORT SCANNING AND DATA ENTRY

Scanning all the existing boreholes completion reports and store all the data of them into electric

file.

4. USER MANUAL

The operation manual shall describe how to select the menu ,how to input, the detailed

construction of the system shall be also described in the operation manual for the database

manager to manage ,maintain and modify the database system.

5. TRAINING

Training of the use and the management of the modified database system.

6. REPORTING

All the activities of works shall be described and recorded in the work report.

DDCADB USER MANUAL

INTRODUCTION

This operation manual has been prepared to explain about how to use the application of DDCA

database .The manual consist of five section .From section 1 to section 5describe on the

specification of database agreed among DDCA ,JICA Expert team and contractor while section

5demonstrate on how to use the database including brief explanation on excel function applied

in the database, start and input of database ,making well completion and other forms.

2. REQUIREMENT

3.SYSTEM ANALYSIS

4.SYSTEM DESIGN

5.DATABASE MANUAL

1. How to start the DDCADB

As the program of the database is MS-EXCEL soft ware, ensure that the program is installed

into your computer. Tostart the database the user should click the icon of file.

The application of the database consist of the following 4 files

1.DDCA Repository

2.DDCADB Excel Database

3.Water Well Completion Form

4.Pump Test Form

Figure :.Composition of database file

2. How To Enter Data into Data Entry Sheet

For entering data in the database,Double click data entry sheet file. This file is Main database

The main data base include two sheets”DDCADB_main” and “welldata_africa” Basically, the

data will be entered to the “DDCADB_ main”.

2.1 Data entry into the “DDCADB_main” sheet

The well data submitted by rig incharge to the registry will be entered into the “DDCADB_main”

sheet. The attributes in the sheet area ranged base on the order of items in the completion

report form. The borehole No should be entered first at the left side column, the other data will

be entered

 Steps For Entering Data To Data Entry Sheet

1. Open the data entry sheet

2. Entering the borehole number into the left end column under the attribute row

3. Start entering the data from the left column next to the borehole no horizontally

4. Cross check the data entered

Figure: 2 Data Entry Sheet

2.2.Data Entry into Water Well Completion Report form

The well data submitted by rig incharge to the registry will be entered into the water well

completion report form and data will referred direct to the “DDCADB_main” sheet .

 Steps For Entering Data To Water well Completion Form

5. Open the water well completion report entry sheet

6. Entering the data to each attribute.

7. After entering data click data entry new form

8. Cross check the data entered into “DDCADB_main” sheet

Figure 3: Water Well Completion Entry Sheet.

2.3 Well Database in Africa Countries(WDAF)

Many attributes in WDAF are same as or can be converted from those in the DDCA database.

The data of WDAF will be entered by referring to the data entered in the DDCA database with

using lookup function.

Figure 4: Well Database in Africa Countries

3. How To Make Report

Principally ,The water well completion report is prepared by referring to the data entry sheet with

lookupfunctions. When the data entry is completed, the report is ready for print out and

submission. I means that the form will not be saved but printed out. There are three types of

water well completion form which are old form, form

1and form 2 including the general

information on drilled places, person incharge and drilled borehole information such as drilled

diameter, depth and yield etc.For another form such as pimp test is filled by typing up. The data

of pumping test entered to the data sheet isreferred by the form of pumping test

3.1 Well completion Report Form

The following windows shows one sheet of well completion report form. the borehole no is

entered into the top of the sheet. The data entered into the data entry sheet will be shown up in

the form by referring to the borehole no.

Figure 5: well completion report form

Steps for print out of well completion report form

1. Open well completion form folder

2. Old form, form1 and form 2 are in each sheet

3. Copy borehole no from main database and Paste to the top of the form for each sheet of

the form

4. All data are shown by referring to the data entered to the main database(LOOKUP

functions).

5. Print out the form required to submit

3.2 Form of Pump Test

There are four records of water level drawdown and water recovery for both constant pump test

and step pumping test. The following windows shows the form of constant water recovery

Figure 7.Summary of Water quality Form

4 EXPORT DATA.

These include three forms

1. SUB SAHARAN FORM

2. BOREHOLE CATALOGUE

3. WAMI_RUVU BASIN DB.

 Steps on how to export the data

1. Clickexport data book

2. Select the data either using ID( From-To) or clicking all the data.

3. Select data limit (transported up to) or click stop exporting

4. Select the form you want to export between three above that are sub saharan form,

borehole catalogue and wami_ruvu basin DB.

5. Create new book for exported data

6. Cross check the data in a new book

Figure 8: .Export Data Sheet

5 Basicms-EXCEL Functions used in a Database of Well Drilled by DDCA

Some useful ms-Excel functions are applied in the database .LOOKUP functions is Mainly

usedfor making the well completion report .LOOKUP functions refer to the information filled in

the column, sheet or book. once the formula is set, there is no need to retype up. The other

functions such as MATCH,ISERROR and IF functions are also used in the database. As the

introductory step to handle the database, this section describes the Ms-Excel functions to be

mastered, which are needed for data entry.

5.1 LOOKUP(VLOOKUP; Vertical lookup) Functions

 Purpose

Refer to data from other sell, sheet and book

 Formula

=vlookup(lookup_value,table array,Col_index,Approximate match)

 How to set VLOOKUP formula in the column

1. Put equal then write “vlookup”

2. Put open brackets

3. Click the lookup value and put comma

4. Select and put the range of table in which the data to be referred is included, then put

coma

5. Put number of column in which the data to referred is located, then put comma

6. Select zero, then put close brackets

7. Press enter

 Example

Table 1 LOOKUP function

Column

A2:D2-Nauli_itm

B3:D6

nauli_lst

Region

DSM

Arusha

Mwanza

Morogoro

5000

30000

60000

Mbeya

40000

80000

100000

Tanga

60000

35000

55000

Kagera

70000

65000

25000

:Naming of table by using “Name manager” as instructed in*Box

Tanga-DSM

=vlookup($B$5,nauli_lst,2,0)

=60000

Morogoro-Mwanza

=vlookup($B$3,nauli_lst,4,0)

=65000

Kagera-Arusha

=vlookup($B$6,nauli_lst,3,0)

=45000

*Name Manager

1. With pressing “ LT”,Press”1”,”N”,”D”

2. Name manager box will be appeared

3 Click “New” to name

4.Write the name”Nauli_lst” as example table shows

5.Select the range “$B$3:$E$6” to refer

6.Refer to the selected nauli list or nauli item then press ok

7.Close name manager box

Note:$means fixed roworcolumn.There are three types of $ usage,which is either

Either $B$3(absolute),$B3(relatively column)or B$3(relatively row).

5.2 MATCH functions

 Purpose

To find the no. of column which the data locates

 Formula

=match(value,tablearray,approximate match)

 How to set MATCH formula in the column

1. Put equal then write “match”

2. Open brackets

3. Click the value from the cell and put comma

4. Select and put the rangeof table in which the data to be refffered is

included, then put comma

5. Select approximate match 0(complete), then put close blackets

6. Press enter

 Example

Table 2: MATCH functions

nauli_lst

Region

DSM

Arusha

Mwanza

Morogoro

5000

30000

60000

Mbeya

40000

80000

100000

Tanga

60000

35000

55000

Kagera

70000

65000

25000

DSM=match(C2,nauli_lst,0)

Arusha=match(D2,nauli_lst,0)

Mwanza=match(E2,nauli-lst,0)

5.3 Combination of VLOOKUP&MATCCH Function

 Formula

=vlookup(lookup_value,table array,match(value,table_array,approximate

match)

 How to set VLOOKUP&MATCH formula in the column

1. Put equal then write “vlookup”

2. Open brackets

3. Click the lookup value and put comma

4. Select and put the range of table in which the data to be referred is

included, then put comma

5. As “Col_index_number” put match formula in which the data to be

referred is located. Then put coma

6. Select Zero, then put close brackets

7. Press enter

 Example

Table 3 Combination of VLOOKUP and MATCH function

nauli_lst

Region

DSM

Arusha

Mwanza

Morogoro

5000

30000

60000

Mbeya

40000

80000

100000

Tanga

60000

35000

55000

Kagera

70000

65000

25000

Tanga-DSM

=vlookup($B$5,nauli_lst,match(C$2,nauli_itm,0),0)

=60000

Morogoro-Mwanza=vlookup($B$5,nauli_lst,match(E$2,nauli_itm,0),0)

=65000

Kagera-Arusha =vlookup($B$6,nauli_lst,match(D$2,nauli_itm,0),0)

=45000

5.4 IF Function

 Purpose

To return the deduced as defined in case of TRUE and FALSE

 Formula

=If(value,True,FALSE)

 How To Set IF Formula in the column

Table 4 IF function 1

Score_lst

Name

Math

Average

Pass/fail

Ali

Juma

Michael

Maria

Godfrey

Ali =If(C3>D3,”PASS”,”fail”

=Pass

Juma

=If(C4>,”PASS”,”FAIL”

=PASS

Michael =If(C5>D5,”PASS,”FAIL”)

=FAIL

Maria

=if(C6>D7,”PASS”,FAIL”)

=PASS

Godfrey =if(C7>D7,”PASS”,”FAIL”

=FAIL

Table 5 IF Functions 2

Score_lst

Name

Math

Average

Pass/fail

Ali

pass

Juma

pass

Michael

fail

Maria

pass

Godfrey

fail

5.5 ISERROR Function

 Purpose

To check the error such as

#NULL?,#DIV/0,#VALUE?,#REF?,#NAME?,#NUM?,#N/A,#GETTING_DATA and

return TRUE or FALSE.

 Formula

=iserror(value)

 How To Set ISERROR formula in the column

The formula to refer to to the transport fee Mwanza-Mbeya is as follows;

=VLOOKUP($A4,nauli_lst,MATCH(E$2,nauli_itm,0),0)

Table 6 ISERROR functions 1

nauli_lst

Region

DSM

Arusha

Mwanza

Morogoro

5000

30000

60000

Mbeya

40000

80000

#DIV/0

Tanga

60000

35000

55000

Kagera

70000

65000

25000

In case the isserror is happened for the cell of E4,the following formula makes the error

show as defined by IF function.

Mwanza-Mbeya

=IF(ISERROR(VLOOKUP($A3,nauli_lst,MATCH(D$3,nauli-

ITM,0),0)),””,VLOOKUP($A3,nauli_lst,MATCH(nauli_itm,0),0)

Table 7 ISERROR function 2

nauli_lst

Region

DSM

Arusha

Mwanza

Morogoro

5000

30000

60000

Mbeya

40000

80000

Tanga

60000

35000

55000

Kagera

70000

65000

25000

5.6 DDCA_Repository

Database repository’s prepared for storing the attributes. In case new attribute addition is added,

the new attribute will be stored into the repository first and then reflected to the data entry sheet.

The attribute stored into the repository are sorted by groups and category. Eachattributes, group

and category has data No.With the item code as below.

 GROUP-GR

 CATEGORY-CT

 ATTRIBUTE-AT



?ATTRIBUTE-RAT

There are three types of sheet of “GR”,”CT” and “AT”. The following describe details of each

sheet

GR list sheet

GR list sheet show the groups with Gr NO.As the following window shows, there are three

groups. In case new group is added make sure to re-range rename the table.

1. Drilling

2. Pump test

3. Water quality

Technical Manual for Drilling Works for Technical Support Plan for the Drillers in DDCA (2013) - page 4
