EMERSON PACSystems VersaMax MICRO PLC & NANO PLC. USER MANUAL (2019)

User Manual

Chapter 10

GFK-1645M

Dec 2019

VersaMax Micro PLC 28-Point Expansion Units

194

Item

Description

Rated Input Voltage

12 volts DC

Input Voltage Range

0 to 15 volts DC

Input Current

9.0mA typical

Input Impedance

1.3 kΩ

Input Threshold Voltage

ON : 9.5Vdc minimum, OFF: 2.5Vdc maximum

Input Threshold Current

ON: 6.5mA maximum , OFF: 1.6mA minimum

Response Time

0.5 to 20ms (user configurable)

Isolation Voltage

1500V RMS field side to logic side, 500V RMS between groups

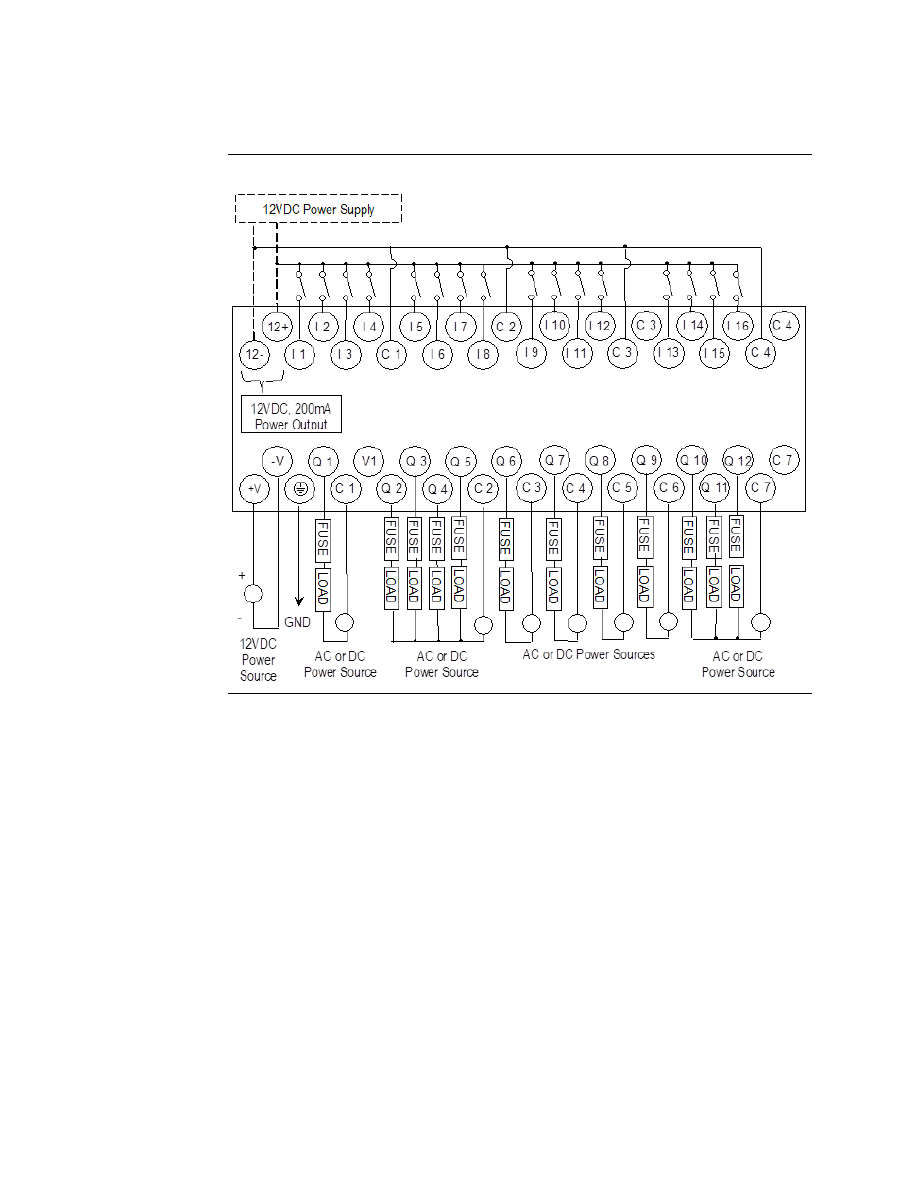

Relay Output Specifications

Operating Voltage

5 to 30Vdc or 5 to 250Vac

Isolation

1500 V RMS between field side and logic side
500 V RMS between groups

Leakage Current

15 mA maximum

Maximum UL Pilot Duty Rating

2 amps at 24Vdc and 240Vac

Maximum Resistive Load Rating

2 amps at 24Vdc and 240Vac

Minimum Load

1 mA

Maximum Inrush

5 amps per half cycle

On Response Time

15 ms maximum

Off Response Time

15 ms maximum

Contact Life: Mechanical

20 x 106 mechanical operations

Contact Life: Electrical Voltage

Current: Resistive
2A

Current: Lamp and
Solenoid 0.6A

Typical Operations
200,000

User Manual

Chapter 10

GFK-1645M

Dec 2019

VersaMax Micro PLC 28-Point Expansion Units

196

10.7

IC200UEX214
28 Point Micro PLC Expansion Unit, (16) 24Vdc
In, (12) 24Vdc Out, 24Vdc Power Supply

VersaMax Micro PLC Expansion Unit IC200UEX214 accepts sixteen DC inputs and provides
four low-current and eight high-current DC transistor outputs. It uses +24Vdc nominal input
power.

10.7.1

DC Power

The 24Vdc power source must have enough transient current capability to support the
inrush current of the power supply and to maintain a 24Vdc voltage level.

10.7.2

DC Inputs

Sixteen configurable DC inputs can be used as positive or negative logic inputs. The inputs
are compatible with a wide range of input devices, such as pushbuttons, limit switches, and
electronic proximity switches.

The 24Vdc supply can be used for input devices and to power the DC input circuits at about
7.5 mA per input. The combination of input circuit current and external device current must
not exceed 200 mA.

10.7.3

Transistor Outputs

Twelve positive-logic transistor output circuits can be used to switch devices like valves,
lamps or contactors. External fusing should be provided to protect the outputs. Otherwise,
a load short could damage the module output transistor, which is not user replaceable. Fast
fuses are recommended.

Outputs are grouped in two groups with separated incoming supply. Each group contains 4
outputs with a maximum load of 0.5A and 2 outputs with a maximum load of 1A.

All outputs are isolated between field and logic and are switching positive voltage. The
outputs have one common incoming supply (VC) and one common ground (COM). The
outputs are able to drive high inrush currents (8 times the rated current) and are protected
against negative voltage pulses. This makes it possible to switch lamps and inductive loads.

User Manual

Chapter 10

GFK-1645M

Dec 2019

VersaMax Micro PLC 28-Point Expansion Units

197

10.7.4

Expansion Unit IC200UEX214 Specifications

Item

Description

Inputs

Sixteen 24Vdc positive logic inputs in four groups of four

Outputs

Twelve transistor outputs, 24Vdc.

DC Power Specifications

Range

24 -20%, +25%Vdc

Hold-up

10ms at 19.2Vdc

+24Vdc Output Power Supply 200mA maximum (for input circuits an user devices)

Inrush Current

1 Amp maximum at 30Vdc

Inrush Time

10ms for 1 Amp

Input Current

0.20 Amp typical at 24Vdc

Input Power Supply Rating

DC Input Specifications

Rated Input Voltage

24 volts DC

Input Voltage Range

0 to 30 volts DC

Input Current

7.5mA typical

Input Resistance

2.8 kΩ

Input Threshold Voltage

ON: 15Vdc minimum, OFF: 5Vdc maximum

Input Threshold Current

ON: 4.5mA maximum, OFF: 1.5mA minimum

Response Time

0.5 to 20ms

Isolation Voltage

1500V RMS field side to logic side, 500V RMS between groups

Transistor Output Specifications

Voltage Range

12Vdc/24Vdc (24Vdc +10% / -43% input at V1,C1)

Maximum Load (See below)

1.0A per point (Q1, Q2, Q11, Q12) at 24Vdc at 100% ON duration
0.75A per point (Q3 - Q10) at 24Vdc at 100 % ON duration
0.5A per point (Q3 - Q10) at 12Vdc at 100 % ON duration

Maximum Inrush Current

Q1,Q2,Q11,Q12: 8A for 20ms, 1 pulse, Q3-Q10: 4A for 20ms, 1
pulse

Output Voltage Drop

0.3V maximum

OFF state leakage

100



A maximum

Response Time

OFF to ON : 0.1ms maximum (24Vdc, 0.2A)
ON to OFF : 0.1ms maximum (24Vdc, 0.2A)

Isolation Voltage

1500V RMS between field side and logic side, 500V RMS between
groups

External Fuse

Recommended

User Manual

Chapter 10

GFK-1645M

Dec 2019

VersaMax Micro PLC 28-Point Expansion Units

198

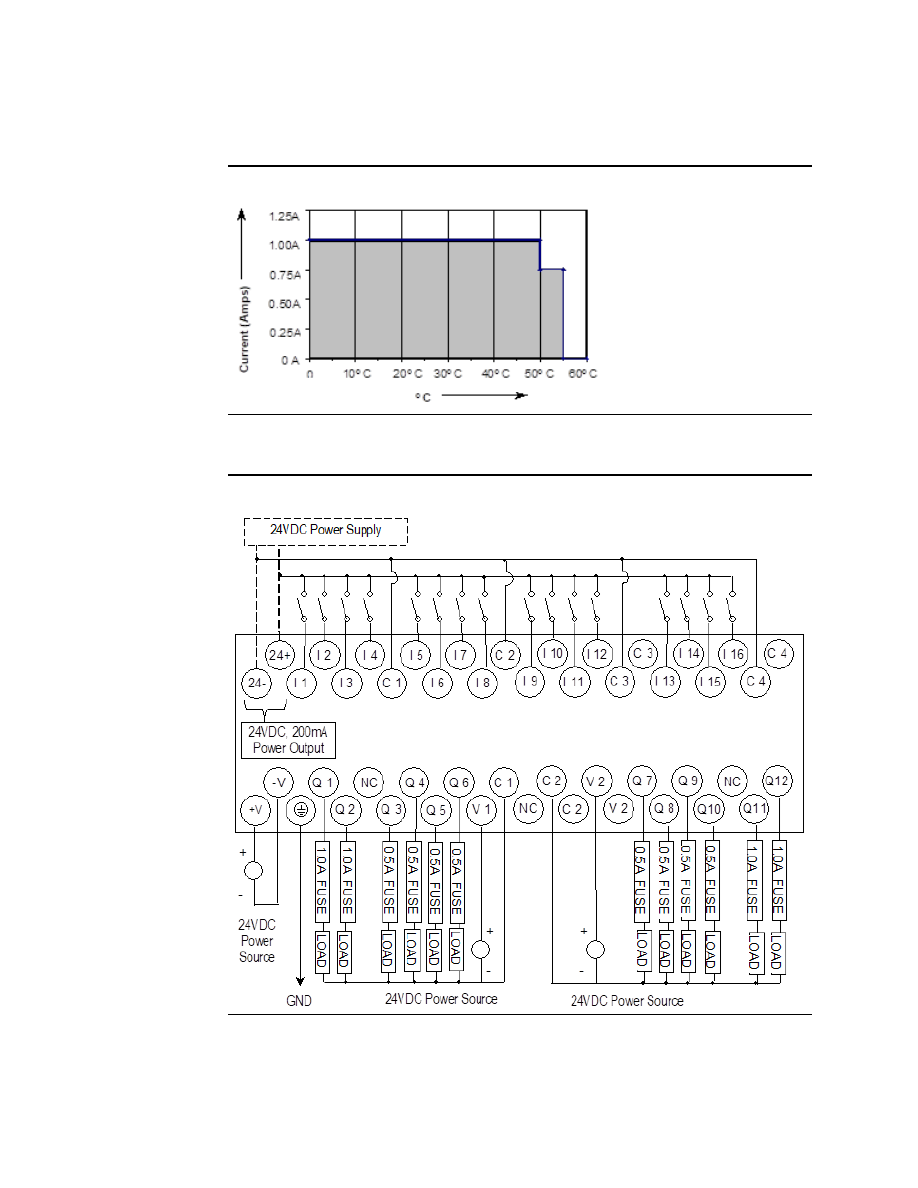

The maximum current that can be used for output points Q1, Q2, Q11 and Q12 is lower for
ambient temperatures above 50°C, as indicated in the following figure:

Figure 84

10.7.5

Wiring Diagram, IC200UEX214

Figure 85

User Manual

Chapter 10

GFK-1645M

Dec 2019

VersaMax Micro PLC 28-Point Expansion Units

199

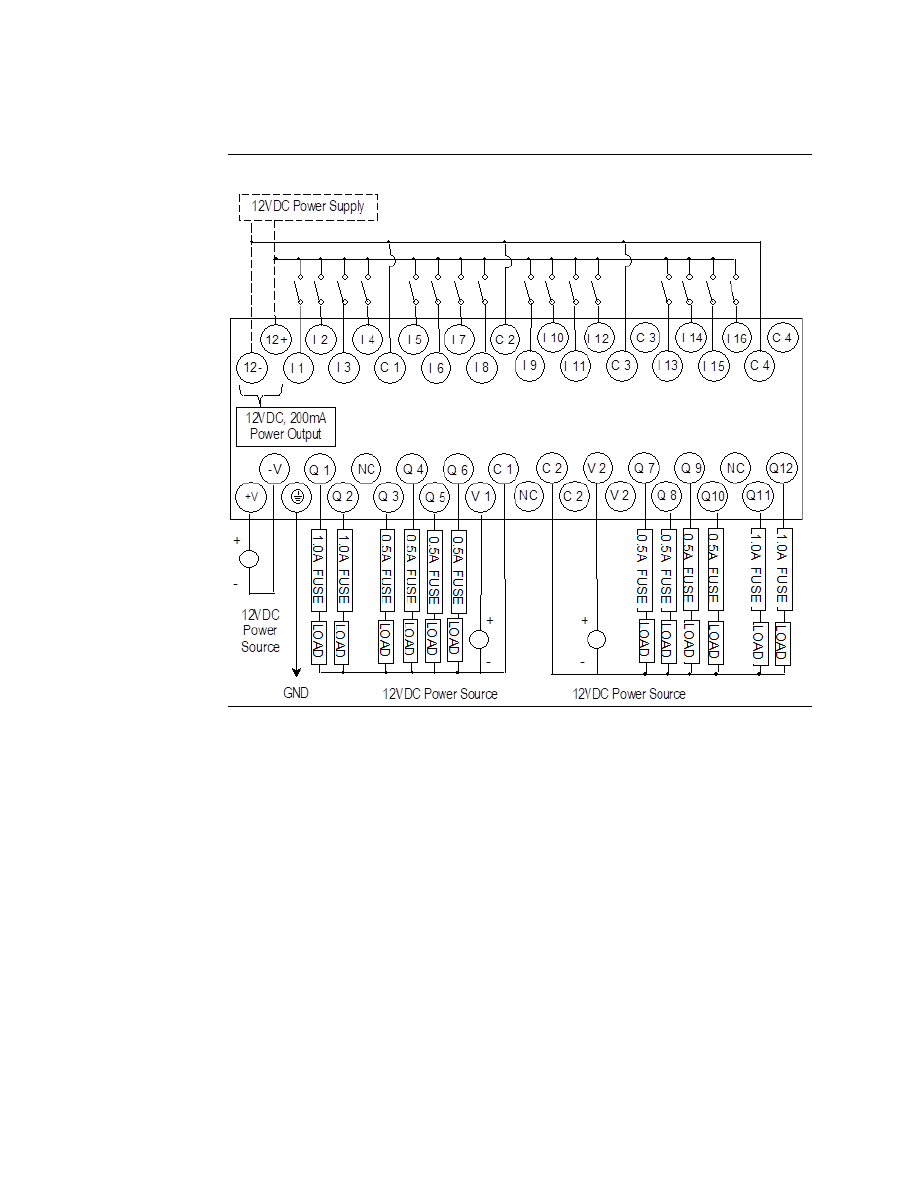

10.8

IC200UEX215
28 Point Micro PLC Expansion Unit, (16) 12Vdc
In, (12) 12Vdc Out, 12Vdc Power Supply

VersaMax Micro PLC Expansion Unit IC200UEX215 accepts sixteen 12Vdc inputs and
provides twelve DC transistor outputs. It requires +12Vdc nominal input power.

10.8.1

DC Power

The 12Vdc power source must have enough transient current capability to support the
inrush current of the power supply and to maintain a 12Vdc voltage level.

10.8.2

DC Inputs

The 12Vdc supply can be used for input devices and to power the DC input circuits at about
7.5 mA per input. The combination of input circuit current and external device current must
not exceed 200 mA.

10.8.3

Transistor Outputs

Expansion Unit IC200UEX215 has four high-current transistor outputs (Q1, Q2, Q11, and
Q12) and eight low-current transistor outputs (Q3 to Q10). All outputs are isolated between
field and logic and are switching positive voltage.

Outputs are grouped in two groups with separated incoming supply. Each group contains 4
outputs with a maximum load of 0.5A and 2 outputs with a maximum load of 1A. Each group
of 6 outputs has one common incoming supply (V1, V2) and one common ground (C1, C2).
The outputs are able to drive high inrush currents (8 times the rated current) and are
protected against negative voltage pulses. This makes it possible to switch lamps and
inductive loads.

Outputs should be fused externally. Otherwise, a load short can damage the module output
transistor, which is not user replaceable. Fast fuses are recommended.

User Manual

Chapter 10

GFK-1645M

Dec 2019

VersaMax Micro PLC 28-Point Expansion Units

200

10.8.4

Expansion Unit IC200UEX215 Specifications

Item

Description

Inputs

Sixteen 12Vdc positive logic inputs in four groups of four

Outputs

Twelve transistor outputs, 12Vdc.

+12Vdc Output Power
Supply

200mA maximum (for input circuits and user devices)

DC Power Specifications

Range

9.6Vdc to 15Vdc

Hold-up

3.0mS

Inrush Current

9.6A typical at 12Vdc

Inrush Time

200ms typical

Input Current

480mA typical at 12Vdc

Input Power Supply Rating 8W

DC Input Specifications

Number of Inputs

Rated Input Voltage

12 volts DC

Input Voltage Range

0 to 15 volts DC

Input Current

9.0mA typical

Input Resistance

1.3 kΩ

Input Threshold Voltage

ON: 9.5Vdc minimum, OFF: 2.5Vdc maximum

Input Threshold Current

ON: 6.5mA maximum , OFF: 1.6mA minimum

Response Time

0.5 to 20ms (user configurable)

Isolation Voltage

1500V RMS field side to logic side, 500V RMS between groups

DC Output Specifications

Voltage Range

12Vdc (+20%, -20%)

Maximum Load

0.7A per point (Q1 - Q12) at 24Vdc at 100 % ON duration, 4A per
common

Maximum Inrush Current

4A for 20mS

Output Voltage Drop

0.3V maximum

OFF state leakage

0.1mA maximum

Response Time

OFF to ON or ON to OFF : 0.1ms maximum (12Vdc)

Isolation Voltage

1500V RMS between field side and logic side, 500V RMS between
groups

Fuse

Outputs should be fused externally.

User Manual

Chapter 10

GFK-1645M

Dec 2019

VersaMax Micro PLC 28-Point Expansion Units

202

10.9

IC200UEX222
28 Point Micro PLC Expansion Unit, (16) 24Vdc
In, (12) 24Vdc Out with ESCP, 24Vdc Power
Supply

VersaMax Micro PLC Expansion Unit IC200UEX222 accepts sixteen DC inputs and provides
twelve 24Vdc outputs. The outputs have electronic short circuit protection. The module
uses +24Vdc nominal input power.

10.9.1

DC Power

The 24Vdc power source must have enough transient current capability to support the
inrush current of the power supply and to maintain a 24Vdc voltage level. 24Vdc output
power is available for field devices, up to 200mA maximum.

10.9.2

DC Inputs

The +24Vdc supply can be used for input devices and to power the DC input circuits at about
7.5 mA per input. The combination of input circuit current and external device current must
not exceed 200 mA.

10.9.3

Transistor Outputs

Twelve positive-logic DC outputs can be used to switch devices like valves, lamps or
contactors. Outputs provide electronic short-circuit protection.

Outputs are grouped in three groups with separated incoming supply. Each group contains
4 outputs with a maximum load of 0.5A and 4 outputs with a maximum load of 1A.

User Manual

Chapter 10

GFK-1645M

Dec 2019

VersaMax Micro PLC 28-Point Expansion Units

203

10.9.4

Expansion Unit IC200UEX222 Specifications

Item

Description

Inputs

Sixteen 24Vdc positive logic inputs in four groups of four

Outputs

Twelve transistor outputs, 24Vdc

DC Power Specifications

Range

19.2Vdc to 30Vdc

Hold-up

10ms at 19.2Vdc

24Vdc Output Power
Supply

200mA maximum (for input circuits and user devices)

Inrush Current

1 Amp maximum at 30Vdc

Inrush Time

10ms for 1 Amp

Input Current

0.20 Amp typical at 24Vdc

Input Power Supply Rating 5W

DC Input Specifications

Rated Input Voltage

24 volts DC

Input Voltage Range

0 to 30 volts DC

Input Current

7.5mA typical

Input Resistance

2.8 kΩ

Input Threshold Voltage

ON: 15Vdc minimum, OFF: 5Vdc maximum

Input Threshold Current

ON: 4.5mA maximum, OFF: 1.5mA minimum

Response Time

0.5 to 20ms.

Isolation Voltage

1500V RMS field side to logic side, 500V RMS between groups

DC Output Specifications

Voltage Range

–

Q12: 12/24Vdc +10%, -15%

External Power Supply (for
supplying power to the V
terminal)

12/24V -10%, +20%

Maximum Load Current

Q1 and Q2: 1A per point, Q3 - Q12: 0.7A per point

Minimum Switching
Current

10mA

Maximum Inrush Current

Q1, Q2,Q11,Q12: 8A for 20ms, 1 pulse, Q3-Q10: 4A for 20ms, 1 pulse

Output Voltage Drop

–

Q12:

0.3V maximum

OFF state leakage current 0.1mA

Response Time

OFF to ON or ON to OFF: 0.05ms maximum @ 24Vdc

Isolation Voltage

1500V RMS between field side and logic side
500V RMS between groups

Fuses

Not required

Under-voltage shutdown

Q1 - Q12: 5V minimum, 8V maximum

DC short circuit current

–

Q12: 0.7A minimum, 2A maximum

User Manual

Chapter 10

GFK-1645M

Dec 2019

VersaMax Micro PLC 28-Point Expansion Units

204

Item

Description

Peak short circuit current

4A maximum

Delay time of peak short
circuit current

100

Delay time of current limit 100

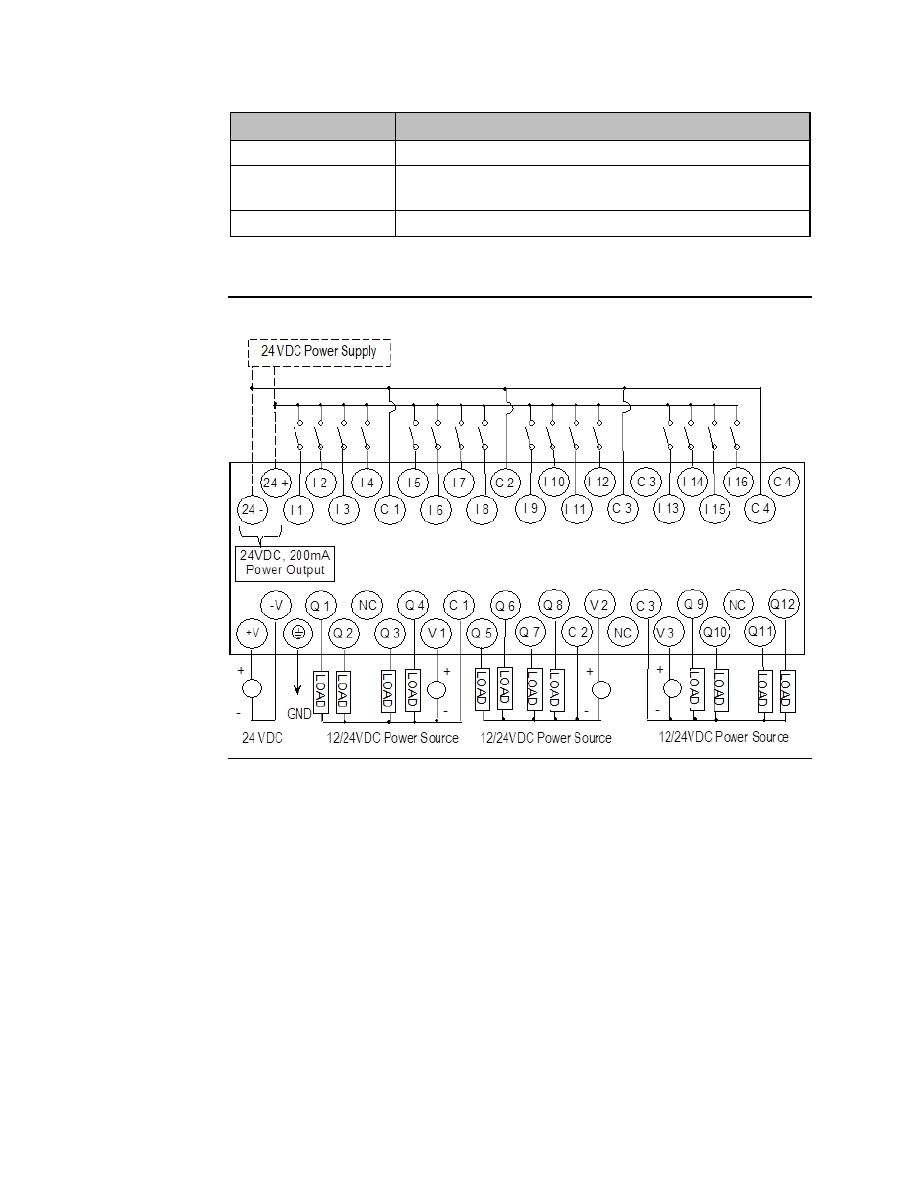

10.9.5

Wiring Diagram, IC200UEX222

Figure 87

User Manual

Chapter 11

GFK-1645M

Dec 2019

VersaMax Micro PLC 64-Point Expansion Units

205

Chapter 11:

VersaMax Micro PLC 64-Point
Expansion Units

This chapter consists of module datasheets for the following VersaMax Micro PLC Expansion
Units:

IC200UEX064 64-point (40) 24Vdc In; (24) Relay Out; 24Vdc Power Supply

IC200UEX164 64-point (40) 24Vdc In; (24) Relay Out; 120/240Vac Power Supply
IC200UEX264 64-point (40) 24Vdc In; (4) LCDC 24Vdc Out; (16) LCDC 24Vdc Out with ESCP; (4)

HCDC 24Vdc with ESCP; 24Vdc Power Supply

IC200UEX364 64-point (40) 24Vdc In; (24) LCDC 24Vdc Out, 24Vdc Power Supply

Note:

The 64-point Expansion Units are supported on Micro PLUS PLCs (20/40/64-point Micro PLCs with
release 4.0 or later firmware).

11.1

Features of VersaMax 64-Point Micro PLC
Expansion Units

Modular 64-point Expansion Units can be used to increase the total I/O count of a Micro PLC.
The 64-point Expansion Units can be used with any 20, 40 or 64-point Micro PLC. Expansion
Units can be located up to 2 meters from the Micro PLC.

Input filtering is not supported for 64-point Expansion Units.

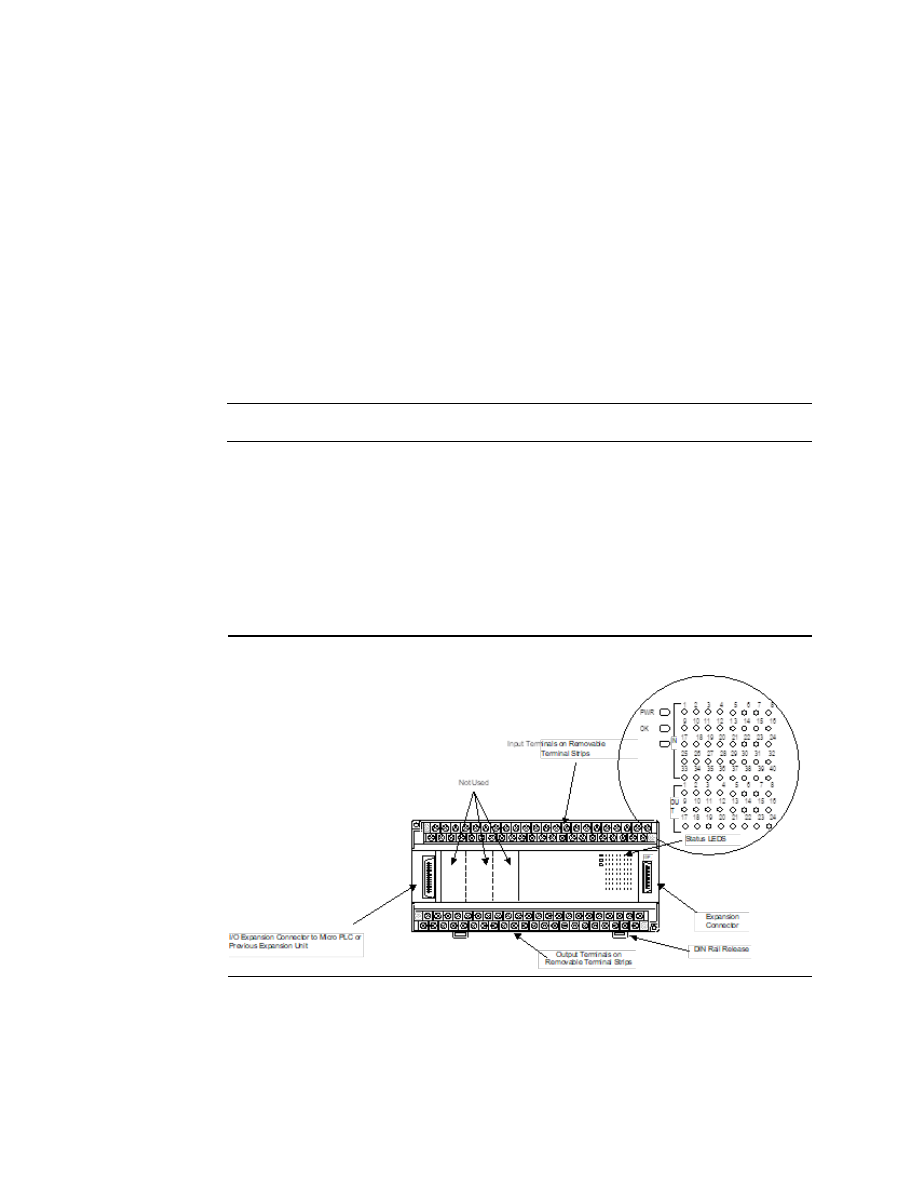

Figure 88

11.1.1

Removable Terminal Strips

The removable terminal assemblies are protected by hinged covers. After turning off power
to the Expansion Unit, a terminal assembly and attached field wiring can be separated from
the Expansion Unit by removing two screws.

User Manual

Chapter 11

GFK-1645M

Dec 2019

VersaMax Micro PLC 64-Point Expansion Units

206

11.1.2

Expansion Connector

The connector on the left side of the Expansion Unit is used to connect to the Micro PLC or
to the outgoing connector on the previous Expansion Unit. The connector on the right side
of the Expansion Unit can be used to attach to the next Expansion Unit.

11.1.3

Status LEDs

LEDs on the Expansion Unit provide quick visual verification of operating status. In addition
to LEDs Expansion Unit local Power and OK mode, there is an LED for each I/O point.

11.1.4

Cables

A 0.1 meter ribbon cable (IC200CBL501) is provided with each Expansion Unit. Cables are
also available in 0.5 meter (IC200CBL505) and 1 meter (IC200CBL510) lengths.

11.2

IC200UEX064
64 Point Micro PLC Expansion Unit, (40) 24Vdc
In, (24) Relay Out, 24Vdc Power Supply

VersaMax Micro PLC Expansion Unit IC200UEX064 accepts forty DC inputs and provides
twenty-four relay outputs. It uses 24Vdc nominal input power.

11.2.1

DC Inputs

The forty configurable DC inputs can be used as positive or negative logic standard inputs.
When used as standard inputs, they are compatible with a wide range of input devices, such
as pushbuttons, limit switches, and electronic proximity switches.

The Micro PLC +24Vdc supply can be used for input devices and to power the DC input
circuits at about 8mA per input. The combination of input circuit current and external device
current must not exceed 435mA.

11.2.2

Relay Outputs

The relay outputs can control many types of load devices such as motor starters, solenoids,
and indicators. The switching capacity of each of these circuits is 2 amps. An external source
of AC or DC power must be supplied to operate field devices.

User Manual

Chapter 11

GFK-1645M

Dec 2019

VersaMax Micro PLC 64-Point Expansion Units

207

11.2.3

Expansion Unit IC200UEX064 Specifications

Item

Description

Inputs

Forty 24Vdc positive or negative logic inputs

Outputs

Twenty-four normally open 2-Amp relay circuits

DC Power Specifications

Range

19.2Vdc to 30Vdc

Hold-up

10mS at 19.2Vdc

Inrush Current

1 Amp maximum at 30Vdc

Inrush Time

10mS for 1 Amp

Input Current

0.20 Amp typical at 24Vdc

Input Power Supply Rating

DC Input Specifications

Rated Input Voltage

24 volts DC

Input Voltage Range

0 to 30 volts DC

Input Current at 24Vdc

I1, I3, I5, I7:

8mA typical

Other inputs:

4.8mA typical

Input Impedance

I1, I3, I5, I7:

2.7 kΩ

Other inputs:

4.7 kΩ

Input Threshold Voltage

ON: 18Vdc minimum, OFF: 5Vdc maximum

Input Threshold Current

I1, I3, I5, I7:

ON: 4.5mA maximum, OFF: 1.8mA minimum

Other inputs:

ON: 3.3mA maximum, OFF: 1.6mA maximum

Response Time (Input Lag)

I1, I3, I5, I7:

1.5ms maximum

Other inputs:

2ms maximum

Isolation Voltage

1500V RMS field side to logic side,
500V RMS between groups

Relay Output Specifications

Operating Voltage

5 to 30Vdc or 5 to 250Vac

Isolation

1500 V RMS between field side and logic side, 500 V RMS between
groups

Leakage Current

15 mA at 240Vac maximum

Maximum UL Pilot Duty
Rating

2 amps at 24Vdc and 240Vac

Maximum Resistive Load
Rating

2 amps at 24Vdc and 240Vac

Minimum Load

10 mA

Maximum Inrush

5 amps per half cycle

Response Time

ON: 15 ms maximum, OFF: 15 ms maximum

Contact Life: Mechanical

20 x 106 mechanical operations

User Manual

Chapter 11

GFK-1645M

Dec 2019

VersaMax Micro PLC 64-Point Expansion Units

208

Item

Description

Contact Life: Electrical
Voltage
240Vac, 120Vac, 24Vdc

Current: Resistive
2.0A

Current: Lamp and
Solenoid
0.6A

Typical
Operations
200,000

11.2.4

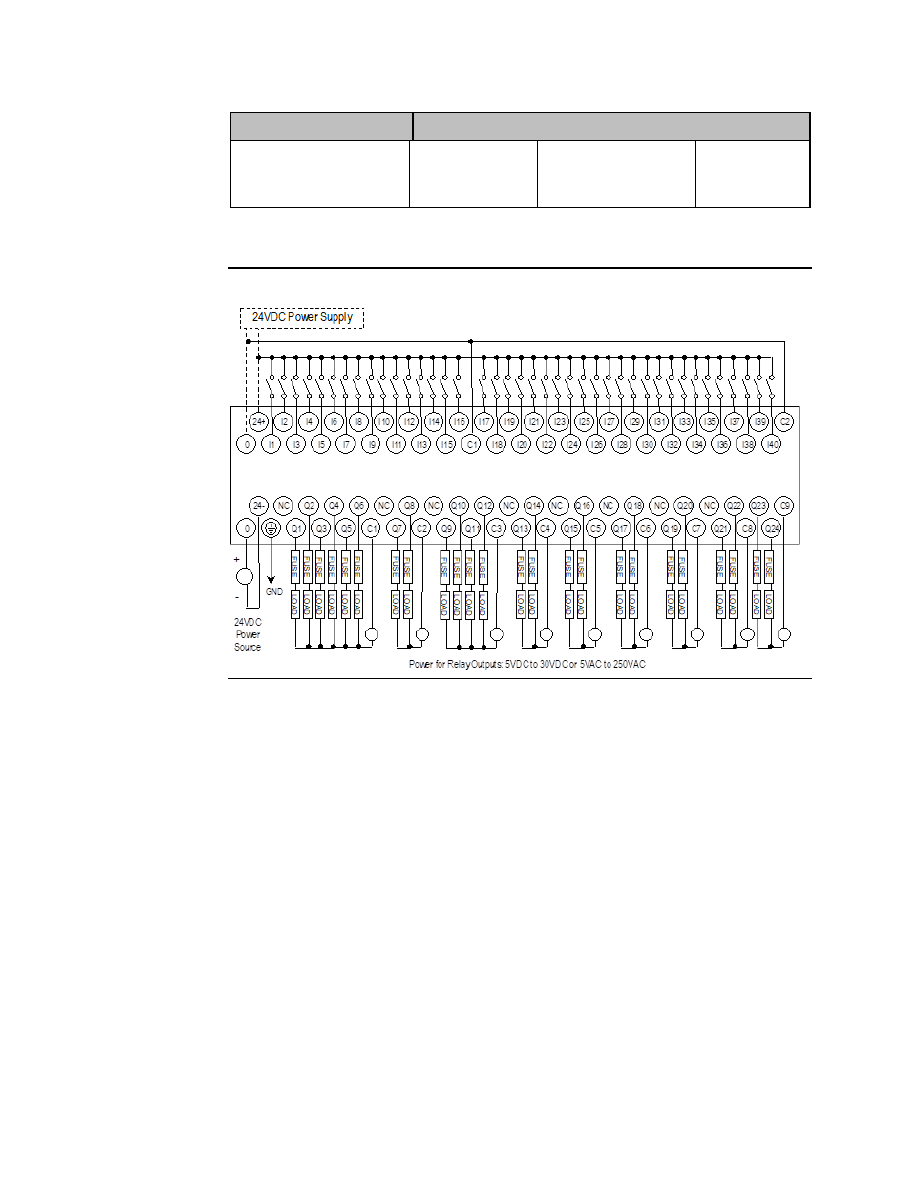

Wiring Diagram, IC200UEX064

Figure 89

11.3

IC200UEX164
64 Point Micro PLC Expansion Unit, (40) 24Vdc
In, (24) Relay Out, 120/240Vac Power Supply

VersaMax Micro PLC Expansion Unit IC200UEX164 accepts forty DC inputs and provides
twenty-four relay outputs. It uses 100Vac to 240Vac nominal input power.

11.3.1

DC Inputs

The forty configurable DC inputs can be used as positive or negative logic standard inputs.
They are compatible with a wide range of input devices, such as pushbuttons, limit switches,
and electronic proximity switches.

User Manual

Chapter 11

GFK-1645M

Dec 2019

VersaMax Micro PLC 64-Point Expansion Units

209

11.3.2

Relay Outputs

The relay outputs can control many types of load devices such as motor starters, solenoids,
and indicators. The switching capacity of each of these circuits is 2 amps. An external
source of AC or DC power must be supplied to operate field devices.

11.3.3

Expansion Unit IC200UEX164 Specifications

Item

Description

Inputs

Forty 24Vdc positive or negative logic inputs

Outputs

Twenty-four relay outputs

AC Power Specifications

Range

100 -15% to 240 +10%Vac

Frequency

50 -5% to 60 +5% Hz

Hold-up

10ms at 85

–

100Vac, 20ms at 100

–

265Vac

Inrush Time

2ms for 40 Amp

Inrush Current

30 Amp maximum at 200Vac, 40 Amp maximum at 265Vac

Input Current

0.10 Amp typical at 100Vac, 0.20 Amp typical at 200Vac

Input Power Supply Rating

26 VA

DC Input Specifications

Rated Input Voltage

24 volts DC

Input Voltage Range

0 to 30 volts DC

Input Current at 24Vdc

I1, I3, I5, I7: 8mA typical
Other inputs: 4.8mA typical

Input Impedance

I1, I3, I5, I7: 2.7 kΩ

Other inputs: 4.7 kΩ

Input Threshold Voltage

ON: 18Vdc minimum, OFF: 5Vdc maximum

Input Threshold Current

I1, I3, I5, I7: ON 4.5mA maximum, OFF: 1.8mA minimum
Other inputs: ON 3.3mA maximum, OFF: 1.6mA maximum

Response Time (Input Lag)

I1, I3, I5, I7: 1.5ms maximum
Other inputs: 2ms maximum

Isolation Voltage

1500V RMS field side to logic side, 500V RMS between groups

Relay Output Specifications

Operating Voltage

5 to 30Vdc or 5 to 250Vac

Isolation

1500 V RMS between field side and logic side, 500 V RMS between
groups

Leakage Current

15 mA at 240Vac maximum

Maximum UL Pilot Duty Rating 2 amps at 24Vdc and 240Vac

Maximum Resistive Load
Rating

2 amps at 24Vdc and 240Vac

Minimum Load

10 mA

Maximum Inrush

5 amps per half cycle

EMERSON PACSystems VersaMax MICRO PLC & NANO PLC. USER MANUAL (2019) - page 15
