EMERSON PACSystems VersaMax MICRO PLC & NANO PLC. USER MANUAL (2019)

User Manual

Chapter 9

GFK-1645M

Dec 2019

VersaMax Micro PLC 8-, 14-, and 16-Point Expansion Units

179

9.16

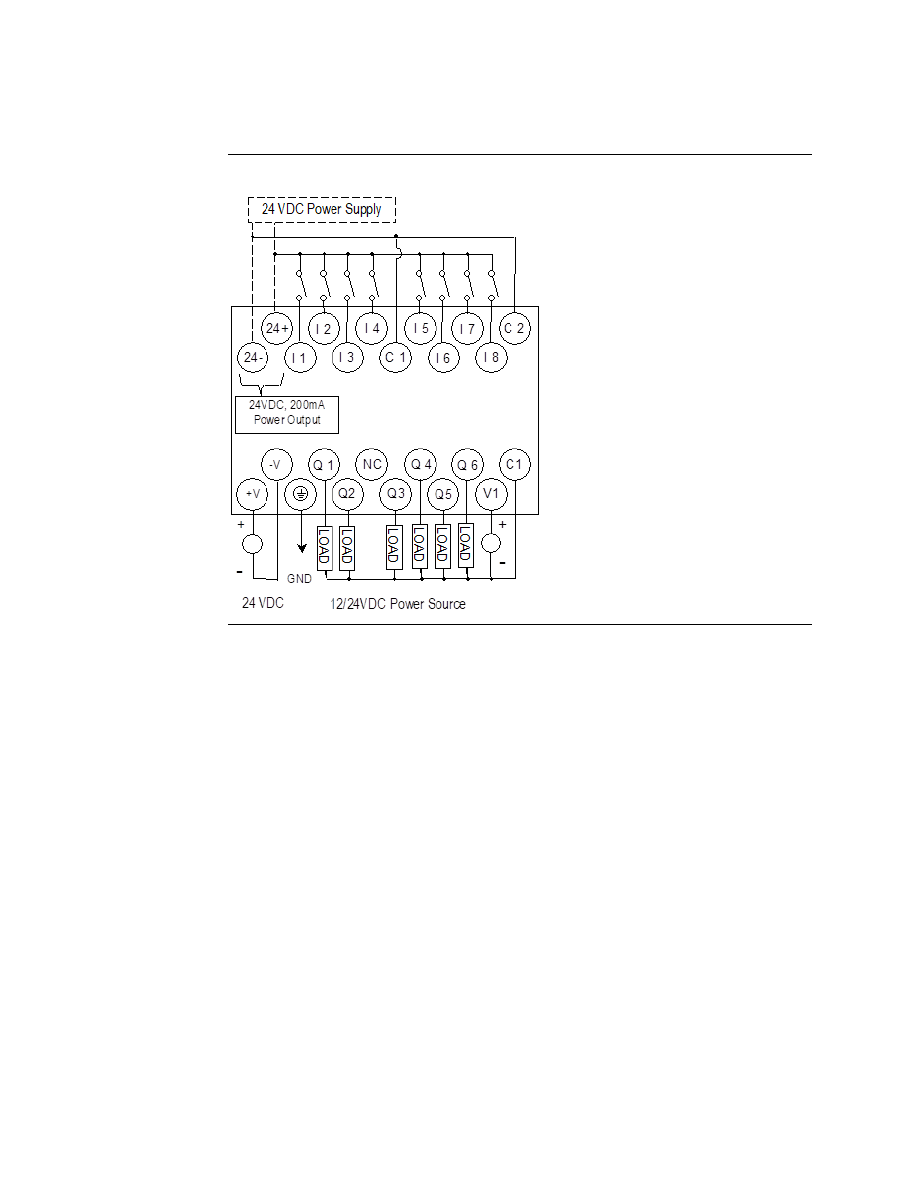

IC200UEX122
14-Point Expansion Unit with 24DC Power, (8)
24DC Inputs, (2) High-Current and (4) Low-
Current Transistor Outputs with ESCP

VersaMax Micro PLC Expansion Unit IC200UEX122 accepts eight DC inputs and provides two
low-current and four high-current DC transistor outputs. The outputs have electronic short
circuit protection. The module requires +24Vdc nominal input power.

9.16.1

DC Inputs

The 24 volt DC input circuits can have positive or negative logic characteristics. Inputs are
compatible with a wide range of devices, such as pushbuttons, limit switches, and electronic
proximity switches.

The built-in isolated +24Vdc supply can be used for input devices and to power the DC input
circuits. The combination of input circuit current and external device current must not
exceed 200 mA.

9.16.2

Outputs

Expansion Unit UEX122 has two high-current transistor outputs (Q1 and Q2) and four low-
current transistor outputs (Q3 to Q6). They can be used as positive or negative logic
standard inputs.

All outputs are isolated between field and logic and are switching positive voltage.

All six outputs have electronic short-circuit protection; no fuses are needed to protect the
outputs.

An external source of 12/24Vdc power must be provided to power the outputs. The outputs
share this common incoming 24Vdc supply and one common ground. The outputs are able
to drive high inrush currents (8 times the rated current) and are protected against negative
voltage pulses. This makes it possible to switch lamps and inductive loads.

User Manual

Chapter 9

GFK-1645M

Dec 2019

VersaMax Micro PLC 8-, 14-, and 16-Point Expansion Units

180

9.16.3

Expansion Unit IC200UEX122 Specifications

Item

Description

Inputs

Eight 24Vdc positive/negative logic input circuits

Outputs

Four low-current and two high-current DC transistor output
circuits with ESCP

+24Vdc Output Power Supply 200mA maximum (for input circuits and user devices)

DC Power Specifications

Range

19.2Vdc to 30Vdc

Hold-up

10ms at 19.2Vdc

Inrush Current

1 A maximum at 30Vdc

Inrush Time

10 ms for 1 Amp

Input Current

0.16 A typical at 24Vdc

Input Power Supply Rating

DC Input Specifications

Input Voltage Range

0 to 30 volts DC

Input Current

7.5mA typical

Input Impedance

2.8 kΩ

Input Threshold Voltage

ON: 15Vdc minimum, OFF: 5Vdc maximum

Input Threshold Current

ON: 4.5mA maximum, OFF: 1.5mA minimum

Response Time

0.5 to 20ms

Isolation Voltage

1500V RMS field side to logic side, 500V RMS between groups

DC Output Specifications

Voltage Range

12/24Vdc +10%/-15% (at VC)

Maximum Load Current

Q1 and Q2: 1A, 3.4A per common, Q3 to Q6: 0.7A per point , 3.4A
per common

Maximum Inrush Current

Q1, Q2: 8A for 20ms, 1 pulse, Q3, Q4, Q5, Q6: 4A for 20ms, 1
pulse

Output Voltage Drop

0.3V

OFF state Leakage Current

0.1mA

Response Time

OFF to ON or ON to OFF: 0.05ms maximum at 24Vdc

Isolation Voltage

1500V RMS field side to logic side, 500Vac between field side and
logic side

External power supply

12/24Vdc

–

10%, +20%

Fuse

Not required

Minimum switching current

10mA

User Manual

Chapter 10

GFK-1645M

Dec 2019

VersaMax Micro PLC 28-Point Expansion Units

182

Chapter 10:

VersaMax Micro PLC 28-Point
Expansion Units

This chapter consists of module datasheets for the following VersaMax Micro PLC Expansion
Units:

IC200UEX209 28 Point Expansion Unit, (16) 120Vac In, (2) Relay Out at 10 Amps, (10) Relay Out

at 2 Amps, 120/240Vac Power Supply

IC200UEX210 28 Point Expansion Unit, (16) 120Vac In, (12) 120Vac Out, 120/240Vac Power

Supply

IC200UEX211  28 Point Expansion Unit, (16) 24Vdc In, (12) Relay Out, 120/240Vac Power Supply
IC200UEX212  28 Point Expansion Unit, (16) 24Vdc In, (12) Relay Out, 24Vdc Power Supply
IC200UEX213  28 Point Expansion Unit, (16) 12Vdc In, (12) Relay Out, 12Vdc Power Supply

IC200UEX214  28 Point Expansion Unit, (16) 24Vdc In, (12) 24Vdc Out, 24Vdc Power Supply
IC200UEX215  28 Point Expansion Unit, (16) 12Vdc In, (12) 12Vdc Out, 12Vdc Power Supply
IC200UEX222  28 Point Expansion Unit, (16) 24Vdc In, (12) 24Vdc Out with ESCP, 24Vdc Power

Supply

10.1

Features of VersaMax 28-Point Micro PLC
Expansion Units

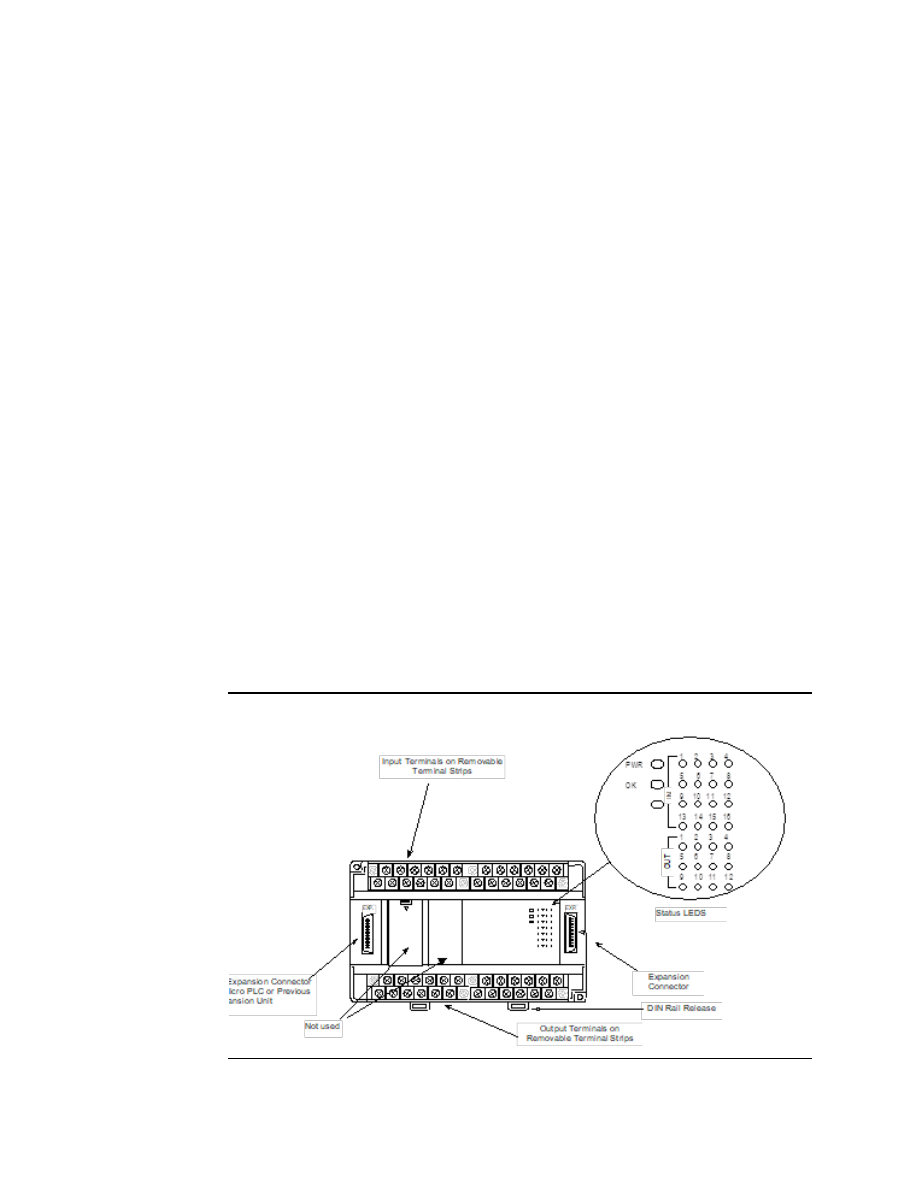

Modular 28-point Expansion Units can be used to increase the total I/O count of a Micro PLC.
Expansion Units can be used with any 14- to 64-point Micro PLC. Expansion Units can be
located up to 2 meters from the Micro PLC.

Figure 78

User Manual

Chapter 10

GFK-1645M

Dec 2019

VersaMax Micro PLC 28-Point Expansion Units

183

10.1.1

Removable Terminal Strips

The removable terminal assemblies are protected by hinged covers. After turning off power
to the Expansion Unit, a terminal assembly and attached field wiring can be separated from
the Expansion Unit by removing two screws.

10.1.2

Expansion Connector

The connector on the left side of the Expansion Unit is used to connect to the Micro PLC or
to the outgoing connector on the previous Expansion Unit. The connector on the right side
of the Expansion Unit can be used to attach to the next Expansion Unit.

10.1.3

Status LEDs

LEDs on the Expansion Unit provide quick visual verification of operating status. In addition
to LEDs Expansion Unit local Power and OK mode, there is an LED for each I/O point.

10.1.4

Cables

A 0.1 meter ribbon cable (IC200CBL501) is provided with each Expansion Unit. Cables are
also available in 0.5 meter (IC200CBL505) and 1 meter (IC200CBL510) lengths.

10.2

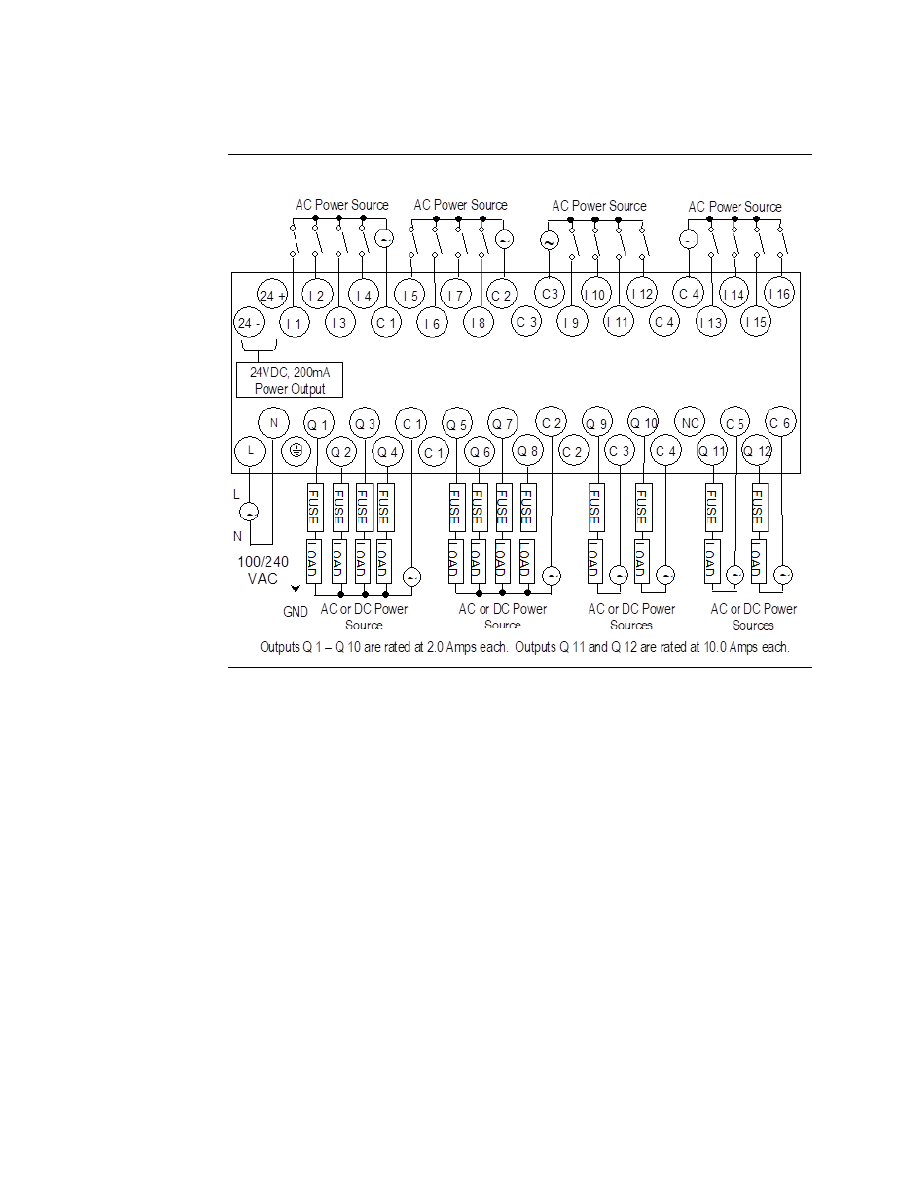

IC200UEX209
28 Point Micro PLC Expansion Unit, (16) 120Vac
In, (2/10) Relay Out, 120/240Vac Power Supply

VersaMax Micro PLC Expansion Unit IC200UEX209 accepts sixteen AC inputs and provides
two relay outputs at 10 Amps and ten relay outputs at 2 Amps. It uses 100Vac to 240Vac
nominal input power.

10.2.1

AC Inputs

The 120Vac input circuits are reactive (resistor/capacitor) inputs. The input circuits require
an AC power source: they cannot be used with a DC power source. Inputs are compatible
with a wide range of input devices, such as pushbuttons, limit switches, and electronic
proximity switches. Power to operate the field devices must be supplied.

10.2.2

Relay Outputs

The relay outputs can control many types of load devices such as motor starters, solenoids,
and indicators. The switching capacity of each of these circuits is 2 amps. An external source
of AC or DC power must be supplied to operate field devices.

User Manual

Chapter 10

GFK-1645M

Dec 2019

VersaMax Micro PLC 28-Point Expansion Units

184

10.2.3

Expansion Unit IC200UEX209 Specifications

Inputs

16 AC inputs

Outputs

2 relay outputs at 10 Amps, 10 relay outputs at 2 Amps

+24Vdc Output Power Supply 200mA maximum (for input circuits and user devices)

AC Power Specifications

Range

100

–

15% to 240 +10%Vac

Frequency

–

5% to 60 +5% Hz

Hold-up

10ms at 85-100Vac, 20ms at 100-264Vac

Inrush Time

2ms for 40 Amp

Inrush Current

30 Amp maximum at 200Vac, 40 Amp maximum at 265Vac

Input Current

0.10 Amp typical at 100Vac, 0.06 Amp typical at 200Vac

Input Power Supply Rating

16 VA

AC Input Specifications

Points/Common

4 (I1

–

I4) and (I5

–

I8)

Rated Load Voltage

–

132Vac, 50 -5% to 60 +5% Hz

Maximum Input Voltage

132V rms, 50/60 Hz

Input Current

8 mA rms (100Vac, 60 Hz)

Voltage

ON: minimum 80V rms, 4.5 mA rms, OFF: maximum 30V rms, 2
mA rms

Response Time

OFF to ON: maximum 25 ms, ON to OFF: maximum 30 ms

Isolation

1500V rms field side to logic side, 500V rms between groups

Relay Output Specifications

Operating Voltage

5 to 30Vdc or 5 to 250Vac

Isolation

1500 V RMS between field side and logic side
500 V RMS between groups

Leakage Current

15 mA at 240Vac maximum

Maximum UL Pilot Duty Rating 2 amps at 24Vdc and 240Vac 10 amps at 24Vdc and 240Vac

Maximum Resistive Load
Rating

2 amps at 24Vdc and 240Vac 10 amps at24Vdc and 240Vac

Minimum Load

10 mA

Maximum Inrush

5 amps per half cycle

14 amps per half cycle

On Response Time

15 ms maximum

Off Response Time

15 ms maximum

Contact Life: Mechanical

20 x 106 mechanical operations

Contact Life: Electrical
Voltage

Current: Resistive
2.0A
10.0A
4.0A

Current: Lamp and Solenoid
0.6A
4.0A
1.0A

Typical
Operations
100,000
100,000
200,000

User Manual

Chapter 10

GFK-1645M

Dec 2019

VersaMax Micro PLC 28-Point Expansion Units

186

10.3

IC200UEX210
28 Point Micro PLC Expansion Unit, (16)
120Vac In, (12) 120Vac Out, 120/240Vac
Power Supply

VersaMax Micro PLC Expansion Unit IC200UEX210 accepts sixteen AC inputs and provides
twelve AC outputs. It uses 100Vac to 240Vac nominal input power.

10.3.1

AC Inputs

10.3.2

AC Outputs

The 120/240Vac, 0.5 Amp triac outputs are provided in isolated groups. The commons are
not tied together inside the module. This allows each group to be used on different phases
of the AC supply or to be powered from the same supply. Each group is protected with a
replaceable 3.15 amp fuse for its common. Also, an RC snubber is provided for each output
to protect against transient electrical noise on the power line.

AC power to operate loads connected to outputs must be supplied from an external
source.

This module provides a high degree of inrush current (10x the rated current) which makes
the outputs suitable for controlling a wide range of inductive and incandescent loads.

User Manual

Chapter 10

GFK-1645M

Dec 2019

VersaMax Micro PLC 28-Point Expansion Units

187

10.3.3

Expansion Unit IC200UEX210 Specifications

Item

Description

Inputs

16 AC inputs

Outputs

12 AC outputs

AC Power Specifications

Range

100 -15% to 240 +10%Vac

Frequency

50 -5% to 60 +5% Hz

Hold-up

10ms at 85-100Vac, 20ms at 100-264Vac

Inrush Time

2ms for 40 Amp

Inrush Current

30 Amp maximum at 200Vac, 40 Amp maximum at 265Vac

Input Current

0.10 Amp typical at 100Vac, 0.06 Amp typical at 200Vac

Input Power Supply Rating

16 VA

AC Input Specifications

Points/Common

4 (I1

–

I4) and (I5

–

I8)

Rated Load Voltage

–

132Vac, 50 -5% to 60 +5% Hz

Maximum Input Voltage

132V rms, 50/60 Hz

Input Current

8 mA rms (100Vac, 60 Hz)

Voltage

ON minimum 80V rms, 4.5 mA rms, OFF: maximum 30V rms, 2
mA rms

Response Time

OFF to ON: maximum 25 ms< ON to OFF: maximum 30 ms

Isolation

1500V rms field side to logic side, 500V rms between groups

AC Output Specifications

Rated Load Voltage

100 -15% to 240 +10%Vac, 50 -5% to 60 +5% Hz

Maximum Resistive Load
Current

0.5 Amp per point

Maximum UL Pilot Duty Rating

0.5 Amp per point at 240Vac
0.6 Amp maximum on C1 and C3
1.2 Amps maximum on C2 and C4

Maximum Inrush Current

5A (1 period)/point, 10A (1 period)/common

Maximum voltage drop when
ON

1.5 V RMS

Maximum leak current when
OFF

1.8 mA RMS (115Vac), 3.5 mA RMS (230Vac)

Response Time (Maximum)

OFF to ON: 1 mS, ON to OFF: 1/2 cycle + 1 ms

Isolation

1500V RMS field side to logic side, 500V RMS between groups

User Manual

Chapter 10

GFK-1645M

Dec 2019

VersaMax Micro PLC 28-Point Expansion Units

188

10.3.4

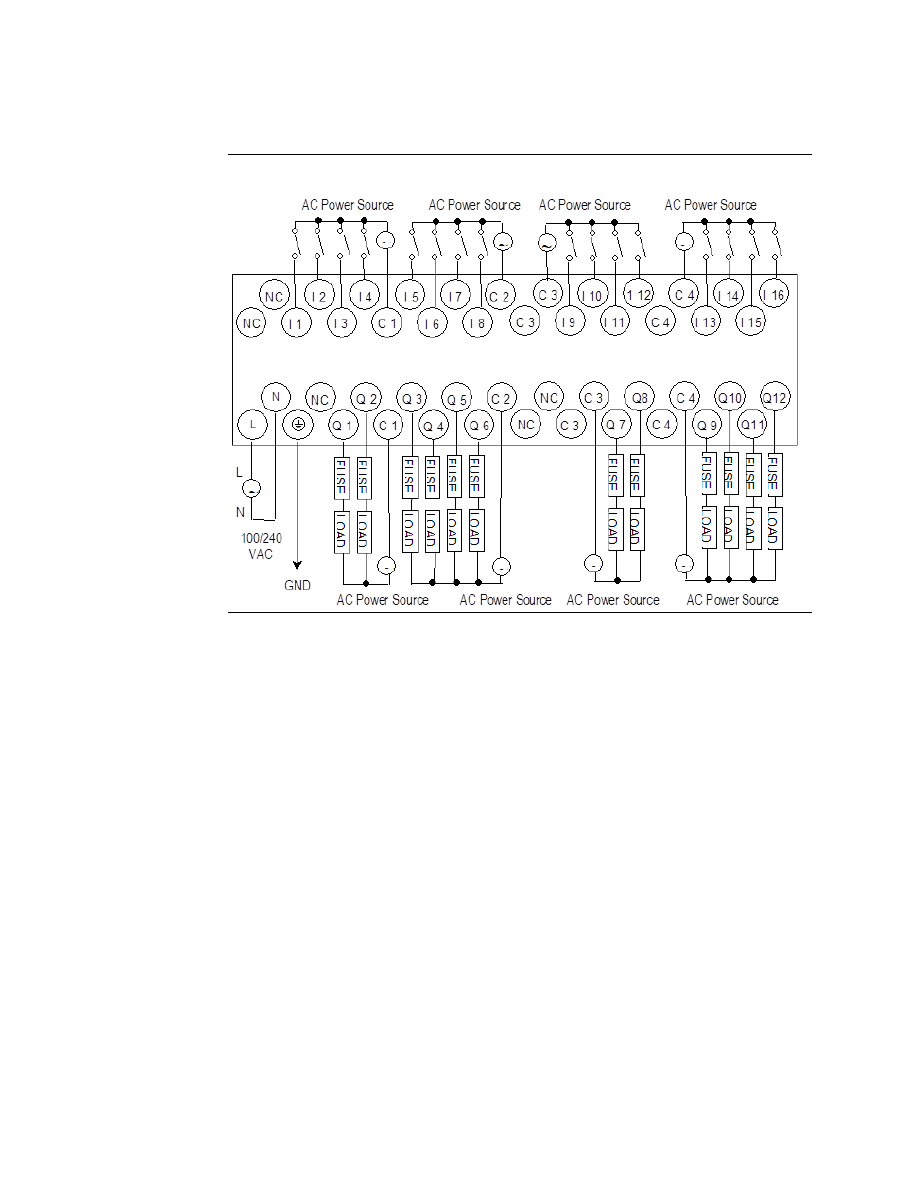

Wiring Diagram, IC200UEX210

Figure 80

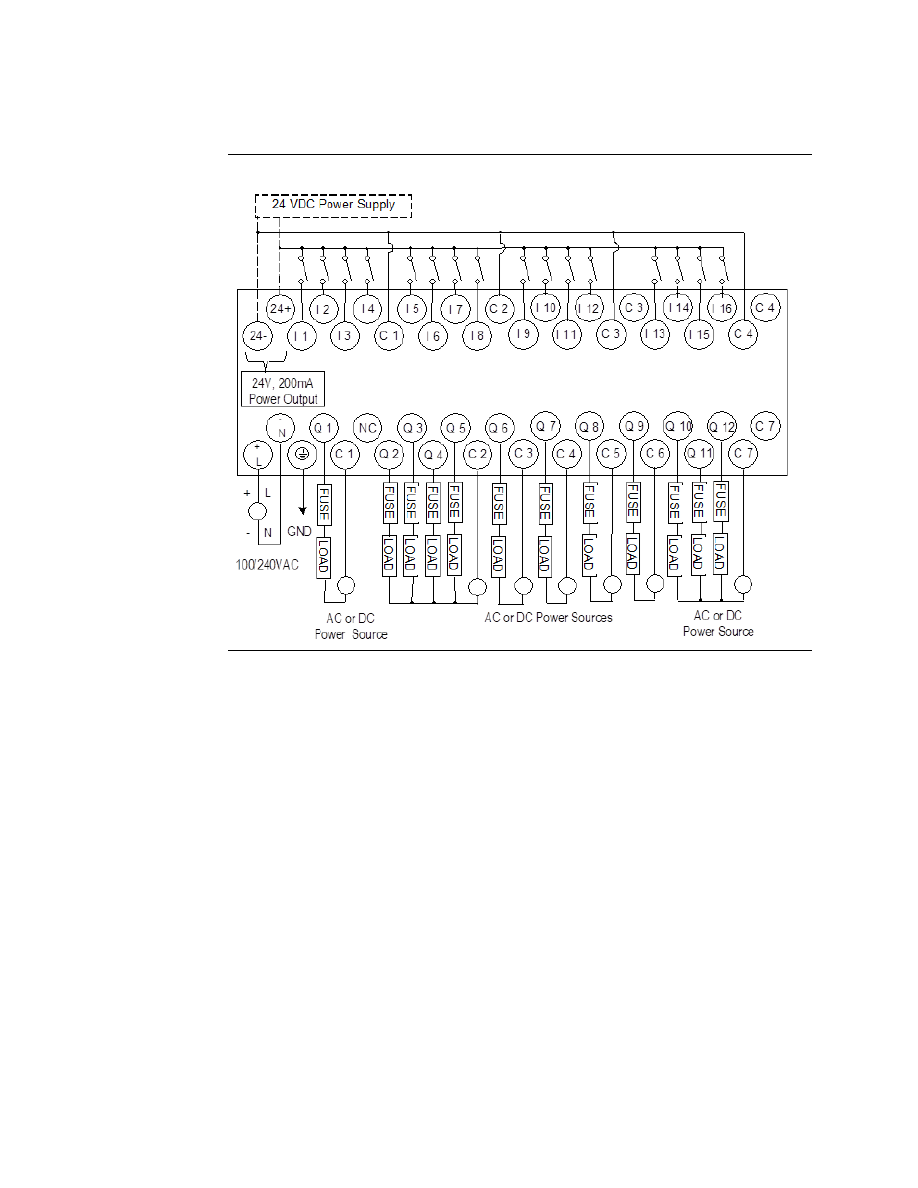

10.4

IC200UEX211
28 Point Micro PLC Expansion Unit, (16) 24Vdc
In, (12) Relay Out, 120/240Vac Power Supply

VersaMax Micro PLC Expansion Unit IC200UEX211 accepts sixteen DC inputs and provides
twelve normally-open 2 Amp relay outputs. It uses 100Vac to 240Vac nominal input power.

10.4.1

DC Inputs

The sixteen configurable DC inputs can be used as positive or negative logic inputs. Inputs
are compatible with a wide range of input devices, such as pushbuttons, limit switches, and
electronic proximity switches. The +24Vdc supply can be used for input devices and to
power the DC input circuits. The combination of input circuit current and external device
current must not exceed 200 mA.

10.4.2

Relay Outputs (Q1

–

Q12)

The twelve Form A (SPST-single pole single throw) normally open relay outputs can control
many types of load devices such as motor starters, solenoids, and indicators. The switching
capacity of each of these circuits is 2 amps. An external source of AC or DC power must be
supplied to operate field devices.

User Manual

Chapter 10

GFK-1645M

Dec 2019

VersaMax Micro PLC 28-Point Expansion Units

189

10.4.3

Expansion Unit IC200UEX211 Specifications

Item

Description

Inputs

Sixteen 24Vdc positive/negative logic input circuits

Outputs

Twelve normally open 2 amp relay circuits

+24Vdc Output Power Supply

200mA maximum (for input circuits and user devices)

AC Power Specifications

Range

100 -15% to 240 +10%Vac

Frequency

50 -5% to 60 +5% Hz

Hold-up

10ms at 85 to 100Vac, 20ms at 100 to 265Vac

Inrush Current

30 Amp maximum at 200Vac, 40 Amp maximum at 265Vac

Inrush Time

2 ms for 40Amp

Input Current

0.20 Amp typical at 200Vac, 0.10 Amp typical at 100Vac

Input Power Supply Rating

26 VA

DC Input Specifications

Number of Inputs

Rated Input Voltage

24 volts DC

Input Voltage Range

0 to 30 volts DC

Input Current

7.5mA typical

Input Resistance

2.8 kΩ

Input Threshold Voltage

ON: 15Vdc minimum, OFF: 5Vdc maximum

Input Threshold Current

ON: 4.5mA maximum, OFF: 1.5mA minimum

Response Time

0.5 to 20ms configurable

Isolation Voltage

1500V RMS field side to logic side, 500V RMS between groups

Relay Output Specifications

Operating Voltage

5 to 30Vdc or 5 to 250Vac

Isolation

1500 V RMS between field side and logic side, 500 V RMS
between groups

Leakage Current

15 mA at 240Vac maximum

Maximum UL Pilot Duty Rating

2 amps at 24Vdc and 240Vac

Maximum Resistive Load Rating 2 amps at 24Vdc and 240Vac

Minimum Load

10 mA

Maximum Inrush

5 amps per half cycle

Response Time

ON, OFF: 15 ms maximum

Contact Life: Mechanical

20 x 106 mechanical operations

Contact Life: Electrical Voltage
240Vac, 120Vac, 24Vdc

Current: Resistive
2.0A

Current: Lamp and Solenoid
0.6A

Typical
Operations
200,000

User Manual

Chapter 10

GFK-1645M

Dec 2019

VersaMax Micro PLC 28-Point Expansion Units

191

10.5

IC200UEX212
28 Point Micro PLC Expansion Unit, (16) 24Vdc
In, (12) Relay Out, 24Vdc Power Supply

VersaMax Micro PLC Expansion Unit IC200UEX212 accepts sixteen DC inputs and provides
twelve normally-open 2 Amp relay outputs. It uses +24Vdc nominal input power.

10.5.1

DC Power

The 24Vdc power source must have enough transient current capability to support the
inrush current of the power supply and to maintain a 24Vdc voltage. The +24Vdc supply can
be used for input devices and to power the DC input circuits at about 7.5 mA per input. The
combination of input circuit current and external device current must not exceed 200 mA.

10.5.2

DC Inputs

Sixteen configurable DC inputs can be used as positive or negative logic inputs. Inputs are
compatible with a wide range of input devices, such as pushbuttons, limit switches, and
electronic proximity switches.

10.5.3

Relay Outputs (Q1

–

Q12)

Twelve Form A (SPST-single pole single throw) normally-open relay outputs can control
many types of load devices such as motor starters, solenoids, and indicators. The switching
capacity of each of these circuits is 2A. An external source of AC or DC power must be
supplied to operate field devices.

10.5.4

Expansion Unit IC200UEX212 Specifications

Item

Description

Inputs

Sixteen 24Vdc positive/negative logic input circuits

Outputs

Twelve normally open 2 amp relay circuits

DC Power Specifications

Range

24 -20%, +25%Vdc

Hold-up

10ms at 19.2Vdc

Inrush Current

1 Amp maximum at 30Vdc

Inrush Time

10ms for 1 A

Input Current

0.30 Amp typical at 24Vdc

Input Power Supply Rating

+24Vdc Output Power Supply

200mA maximum (for input circuits and user devices)

DC Input Specifications

Number of Inputs

Rated Input Voltage

24 volts DC

User Manual

Chapter 10

GFK-1645M

Dec 2019

VersaMax Micro PLC 28-Point Expansion Units

192

Item

Description

Input Voltage Range

0 to 30 volts DC

Input Current

7.5mA typical

Input Resistance

2.8 kΩ

Input Threshold Voltage

ON: 15Vdc minimum, OFF: 5Vdc maximum

Input Threshold Current

ON: 4.5mA maximum, OFF: 1.5mA minimum

Response Time

0.5 to 20ms configurable

Isolation Voltage

1500V RMS field side to logic side, 500V RMS between groups

Relay Output Specifications

Operating Voltage

5 to 30Vdc or 5 to 250Vac

Isolation

1500 V RMS between field side and logic side
500 V RMS between groups

Leakage Current

15 mA at 240Vac maximum

Maximum UL Pilot Duty Rating

2 amps at 24Vdc and 240Vac

Maximum Resistive Load Rating 2 amps at 24Vdc and 240Vac

Minimum Load

1 mA

Maximum Inrush

5 amps per half cycle

Response Time

ON, OFF: 15 ms maximum

Contact Life: Mechanical

20 x 106 mechanical operations

Contact Life: Electrical Voltage
240Vac, 120Vac, 24Vdc

Current: Resistive
2A

Current: Lamp and
Solenoid 0.6A

Typical Operations
200,000

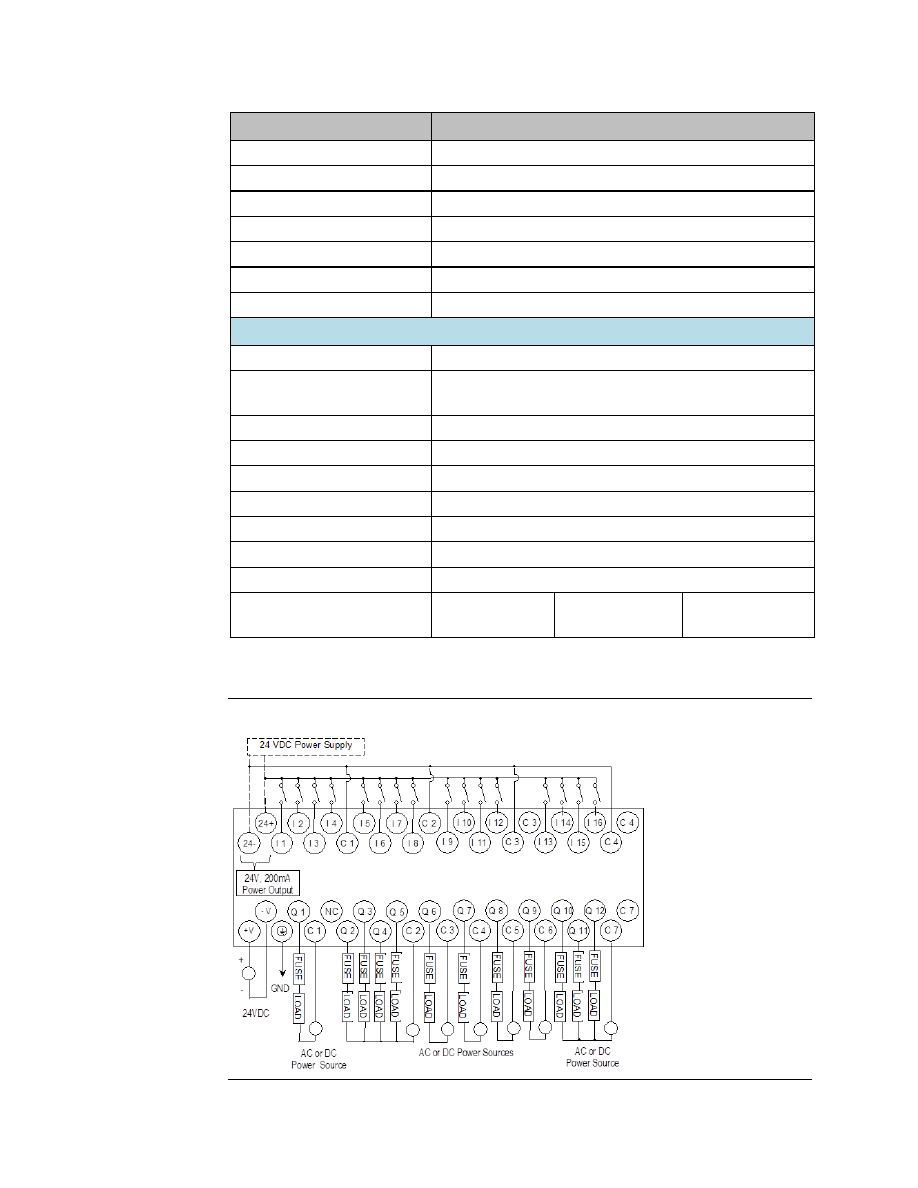

10.5.5

Wiring Diagram, IC200UEX212

Figure 82

User Manual

Chapter 10

GFK-1645M

Dec 2019

VersaMax Micro PLC 28-Point Expansion Units

193

10.6

IC200UEX213
28 Point Micro PLC Expansion Unit, (16) 12Vdc
In, (12) Relay Out, 12Vdc Power Supply

VersaMax Micro PLC Expansion Unit IC200UEX213 accepts sixteen 12Vdc inputs and
provides twelve normally open 2 Amp relay outputs. It uses +12Vdc nominal input power.

10.6.1

DC Power

The 12Vdc power source must have enough transient current capability to support the
inrush current of the power supply and to maintain a 12Vdc voltage level.

10.6.2

DC Inputs

Sixteen configurable 12Vdc inputs can be used as positive or negative logic standard inputs.
Inputs are compatible with a wide range of input devices, such as pushbuttons, limit
switches, and electronic proximity switches.

The 12Vdc supply can be used for input devices and to power the DC input circuits at about
7.5 mA per input. The combination of input circuit current and external device current must
not exceed 200 mA.

10.6.3

Relay Outputs (Q1

–

Q12)

Twelve Form A (SPST-single pole single throw) normally open relay outputs can control
many types of load devices such as motor starters, solenoids, and indicators. The switching
capacity of each of these circuits is 2 amps. An external source of AC or DC power must be
supplied to operate field devices.

10.6.4

Expansion Unit IC200UEX213 Specifications

Item

Description

Inputs

Sixteen 12Vdc positive/negative logic input circuits

Outputs

Twelve normally open 2 amp relay circuits

DC Power Specifications

Range

9.6Vdc - 15Vdc

+12Vdc Output Power Supply

200mA maximum (for input circuits and user devices)

Hold-up

3.0mS

Inrush Current

9.6A typical at 12Vdc

Inrush Time

200ms typical

Input Current

480mA typical at 12Vdc

Input Power Supply Rating

DC Input Specifications

Number of Inputs

EMERSON PACSystems VersaMax MICRO PLC & NANO PLC. USER MANUAL (2019) - page 14
