4.60

9927618 R03 - 2017 Indian Motorcycle (Full-Size) Service Manual

9.

Go to

www. polarisdealers. com

and click on

“ReFlash Authorization” from the “Service and
Warranty” drop-down menu.

10. Enter or paste (CTRL +V) the Request Code into

the box.

11. Select the same file type from the list that you

selected previously while in Digital Wrench. Enter
the VIN along with the customer’s name and
address. When completed, click the Authorize
button

once

to proceed.

12. An “Authorization Key” will appear in the upper

left corner of the screen. Copy (CTRL+C) this key
exactly as it appears.

13. Enter or paste (CTRL +V) the Authorization Key in

the box located on the Digital Wrench screen.
Click the ‘Continue’ button and follow instructions
provided

on

the

screen

to

complete

reprogramming procedure.

14. At this point the reflash process will begin. Do not

touch the vehicle or PC during the process.

15. Once the ECU reprogramming procedure is

complete, click the ‘Finish’ button on the screen.
Verify the reflash was a success by starting the
vehicle.

FUEL DELIVERY / EFI

4

4.61

TTRROOUUBBLLEESSHHOOOOTTIINNGG

FFUUEELL SSYYSSTTEEM

M TTRROOUUBBLLEESSHHOOOOTTIINNGG,, PPAARRTT 11

PROBLEM

POSSIBLE CAUSE

AFFECTED PART(S)

REPAIR RECOMMENDED

Engine turns over with
electric starter, but won’t
start

Compression too low

See engine section

No spark at spark
plugs

See ignition system

No fuel reaching intake
tract

Out of fuel
Blown Fuse
Plugged fuel filters /
lines
Fuel pump not working
Fuel pressure regulator

Faulty fuel pump relay

Open wiring / connector
Faulty connection at ECM

Add Fuel
Replace
Clean/Replace
Test / Replace
Test / Replace
Test / Replace
Inspect / Repair
Inspect / Repair

Excessively rich or
lean fuel mixture

Fuel pump
Fuel pressure regulator
Crank Position Sensor
Low Battery
TMAP sensor
CHT sensor
Fuel Injector

Test / Replace
Test / Replace
Test / Replace
Test / Replace
Test / Replace
Test / Replace
Test / Replace

Spark at wrong time or
no spark.

Fuel delivery timing

incorrect.

Timing Wheel or CPS
installed incorrectly,
damaged, or dirty; faulty
CPS

Install correctly, inspect for
proper air gap (gap is preset
but cover, sensor, and timing
wheel must be clean and in
good condition).

Poor idle

Excessively rich or
lean fuel mixture

Air Leaks
Fuel Pump
Fuel injector or fuel rail
obstructed or leaking
Air Filter
Wrong Fuel / Old Fuel
Crank Position Sensor

Inspect throttle body and
stepper motors
Inspect fuel pressure
Replace
Replace
Inspect / Replace
Inspect / Replace

Poor Running in Higher
RPM Range

Air intake restriction
Oil Overfilled
Ignition problemsLow
Battery Voltage
Loose, corroded, or
wet connector(s)
Valve train problems

Air filter
Ignition Coil(s) / plug
wires
Battery
ECM and wiring harness
Valve springs, valve,
head

Inspect
Refer to ignition section.
Charge or replace
Unplug connections - inspect
Inspect cylinder head &
valves

FUEL DELIVERY / EFI

4.62

9927618 R03 - 2017 Indian Motorcycle (Full-Size) Service Manual

FFUUEELL SSYYSSTTEEM

M TTRROOUUBBLLEESSHHOOOOTTIINNGG,, PPAARRTT 22

PROBLEM

POSSIBLE CAUSE

AFFECTED PART(S)

REPAIR RECOMMENDED

Engine Stalls

Fuel Pump Problem

Low battery voltage
Faulty fuel pump
No signal from ECM
Wiring problem

Battery/Charging system
Check fuel pressure
Repair Wiring
Repair/Chk Pump Relay

Excessive rich or lean
fuel/air mixture

TMAP Sensor
Plugged fuel filter
Fuel pump (pressure)
Fuel pressure regulator
Vacuum leak
Wiring problem
Air Filter
Low battery voltage

Repair / Replace
Test / Replace Pump Assembly
Test / Replace
Test / Replace Pump Assembly
Repair / Replace hoses
Repair
Replace
Ck battery & charging system

Control Circuit/
Sensors not
functioning correctly

Fuel pressure regulator
TPS
Engine speed sensor
Fuel pump relay
Rotor
Fuse
ECM Relay
Low battery voltage ECM

Test Pressure / Replace
Test / Replace
Test / Replace
Test / Replace
Inspect / Install correctly
Replace
Replace
Inspect Charging system

Valve train problems
or Compression low

Refer to Engine chapter

Backfiring

Low Battery Voltage
Ignition Problem
Air leaks
Restricted air intake or
throttle body

Battery, spark plug
fouled, poor wire
connection for ignition or
fuel injection, loose pin in
multi-pin connector for
ECM or wiring harness

Inlet and Exhaust
Intake tract / Throttle
body

Refer to battery section
Replace plugs / diagnose
Inspect wiring connections
Disconnect and check pin
connections
Seal intake or exhaust leaks
Clean air inlet tract and throttle
body

FUEL DELIVERY / EFI

4

4.63

FFUUEELL SSYYSSTTEEM

M TTRROOUUBBLLEESSHHOOOOTTIINNGG,, PPAARRTT 33

PROBLEM

POSSIBLE CAUSE

AFFECTED PART(S)

REPAIR RECOMMENDED

Poor Running in upper
rpm ranges

Control Circuit/
Sensors not
functioning correctly

CPS
ETC
Air temperature sensor
Manifold Absolute
Pressure sensor
Intermittent wiring
/connector problem ECM

Test / Replace
Test / Replace
Test / Replace
Test / Replace
Repair/Replace
Test / Replace

Fuel delivery incorrect

Plugged or kinked fuel
and/or vent hoses
Fuel pump
Fuel regulator
Fuel filter
Battery/Charging System
Fuel Injector plugged
Contaminated fuel (water,
additives, etc.)
Inadequate octane
Defective ETC
Low battery voltage

Repair/Replace
Test / Replace
Test Pressure / Replace
Test / Replace Pump
Assembly
Charge/Replace (if
applicable)
Clean/Replace
Clean/Replace
Use correct fuel
Test / Replace
Charging system

Air intake restriction

Dirty Air Cleaner
Intake restriction

Clean
Repair

Air Leak

ETC gasket surfaces
Intake manifold
ETC

Repair/Replace
Repair/Replace
Repair/Replace

Engine lacks power

Engine component
problems
Ignition problems
Overfilled with oil

See Engine / Cooling /
Exhaust chapter
See Electrical chapter
See Maintenance chapter

Improper fuel delivery

Plugged fuel injector
Dirty air cleaner
Vacuum leaks
Fuel pump
Fuel pressure regulator
Air temperature sensor
TMAP sensor
Plugged vent hose
Low battery voltage ECM

Repair / Replace
Replace
Repair
Test / Replace
Test / Replace
Test / Replace
Test / Replace
Clear
Test batt./Charging system

FUEL DELIVERY / EFI

4.64

9927618 R03 - 2017 Indian Motorcycle (Full-Size) Service Manual

FFUUEELL SSYYSSTTEEM

M TTRROOUUBBLLEESSHHOOOOTTIINNGG,, PPAARRTT 44

PROBLEM

POSSIBLE CAUSE

AFFECTED PART(S)

REPAIR RECOMMENDED

Engine overheats

Internal Engine Parts
Lubrication & Cooling
system
Low or incorrect oil
Brakes dragging
Drive belt too tight
Ignition timing
incorrect
Spark plug(s)
Low battery voltage

Cooling System
Engine Oil
Brake systems
Drive Belt
Ignition Coils
Faulty ECM
Charging System
Faulty Battery
Faulty Wiring

Refer to Engine / Cooling /
Exhaust chapter
Refer to Engine / Cooling /
Exhaust chapter
Refer to Brakes chapter
Refer to Steering / Suspension
chapter
Refer to Electrical chapter
Replace
Test / Repair
Replace
Repair

Lean Air/Fuel mixture

Fuel pressure regulator
Air leak
Fuel injector plugged
CHT
Vent hose plugged / kinked
Air leak at throttle body to
manifold seal

Repair / Replace
Repair
Clean / Replace
Test / Replace
Repair
Test / Repair

Won’t Accept
New Calibration

Non-Current
Calibration File Set
Low Battery Voltage
Attempting Re-Flash
Without Proper VIN,
Calibration I.D.
number, or calibration
authorization code

Go to Dealer website and
download the most current
Indian Motorcycle Calibration
File Set

Attach Battery Charger
During Re-Flash, and Re-
Charge Battery When Re-
Flash Is Completed

Enter Authorization Code Sent
With Accessory Kit

FUEL DELIVERY / EFI

5

5.1

CLUTCH / PRIMARY / SHIFT

CHAPTER 5

CLUTCH / PRIMARY / SHIFT

GENERAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.2

SERVICE INFORMATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.2

SPECIAL TOOLS

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.2

TORQUE SPECIFICATIONS

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.2

SERVICE SPECIFICATIONS

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.2

ASSEMBLY VIEWS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.3

PRIMARY COVER

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.3

CLUTCH PINION SHAFT

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.4

TORQUE COMPENSATOR

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.5

CLUTCH

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.6

SERVICE PROCEDURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.7

PRIMARY COVER REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.7

CLUTCH PINION SHAFT REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.8

CLUTCH PINION SHAFT BEARING INSPECTION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.8

CLUTCH PINION SHAFT SEAL REMOVAL & INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.8

CLUTCH PINION SHAFT INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.9

SHIFT RATCHET REMOVAL & INSPECTION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.9

SHIFT RATCHET INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.11

SHIFT SHAFT BEARING & SEAL REPLACEMENT

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.12

PRIMARY COVER INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.12

CLUTCH SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.14

CLUTCH RACK, REMOVAL / INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.14

CLUTCH REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.14

CLUTCH DISASSEMBLY

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.14

CLUTCH INSPECTION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.16

CLUTCH ASSEMBLY

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.18

CLUTCH INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.19

TORQUE COMPENSATOR SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.20

TORQUE COMPENSATOR REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.20

TORQUE COMPENSATOR INSPECTION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.20

TORQUE COMPENSATOR INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.21

FLYWHEEL REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.22

FLYWHEEL INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.22

TROUBLESHOOTING, CLUTCH / PRIMARY / SHIFT

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.23

5.2

9927618 R03 - 2017 Indian Motorcycle (Full-Size) Service Manual

GGEENNEERRAALL IINNFFOORRM

MAATTIIOONN

SSEERRVVIICCEE IINNFFOORRM

MAATTIIOONN

• Clutch and external transmission shift linkage

service can be accomplished with the engine in the
frame.

• Internal transmission or internal shifting mechanism

service requires engine removal and crankcase
separation.

• Oil additives of any kind are not recommended by

Indian Motorcycle. Using oil additives or oil of the
wrong viscosity can have a detrimental affect on
clutch performance, operation, and service life.

• Burnt clutch plates are not an indication of defective

clutch plates. Burnt clutch plates indicate that a
problem exists within the clutch system, the clutch
has been used improperly, or plates were
contaminated by improper oil or additives.

• Indian Motorcycle 20W/40 motorcycle oil is

recommended for all operating temperatures. If
Indian Motorcycle 20W/40 oil is not available, a high
quality 20W/40 motorcycle oil suitable for use in wet
clutch transmissions can be used.

• Lubricate parts during assembly as described in the

procedures.

• Corroded or sticking shift linkage pivot points can

cause abnormal shifting. Replace any linkage
components that are damaged or do not move
freely, and lubricate at regular intervals.

SSPPEECCIIAALL TTOOOOLLSS

TOOL DESCRIPTION

PART NUMBER

Case Splitting / Assembly
Tool

PF-51234

Clutch Shaft Holder

PF-51232

Crankshaft Locking Pin

PF-52135

Crankshaft Rotation Socket

PF-51239

Engine Stand Adapter

PF-51240

Moly Assembly Paste

2871460

Bosch Automotive Service Solutions:

1– 800– 328–

6657 or https://polaris.service-solutions.com/

TTOORRQQUUEE SSPPEECCIIFFIICCAATTIIOONNSS

PART DESCRIPTION

TORQUE

SPECIFICATION

Clutch Pinion Shaft Lever
Fastener

88 in-lbs (10 Nm)

Clutch Stake Nut

125 ft-lbs (170 Nm)

Pressure Plate Fasteners

88 in-lbs (10 Nm)

Primary Cover Fasteners

15 ft-lbs (20 Nm)

Stator Fasteners

88 in-lbs (10 Nm)

Torque Compensator
Fastener

83 ft-lbs (112 Nm)

Torque Compensator
Locking Plate Fastener

88 in-lbs (10 Nm)

SSEERRVVIICCEE SSPPEECCIIFFIICCAATTIIOONNSS

ITEM

SPECIFICATIONS

Clutch / Gear Shift / Linkage

Clutch Type

Wet, Multi-Disk

Clutch Operating Mechanism

Manual / Cable Operated

Torque Compensator

Belleville Spring Loaded Cam
Assembly

Primary Reduction Ratio

1.56 : 1

Transmission Shift Mechanism

Manually Operated, Spring
Centered

Gearshift Pattern

1-N-2-3-4-5-6

Clutch Spring (Coil Type, QTY.5)

32.8 lbf @ Installed Height

Clutch Lever Free Play (Cable)

.50-1.50 mm (.020-.060")

CLUTCH / PRIMARY / SHIFT

5

5.3

AASSSSEEM

MBBLLYY VVIIEEW

WSS

PPRRIIM

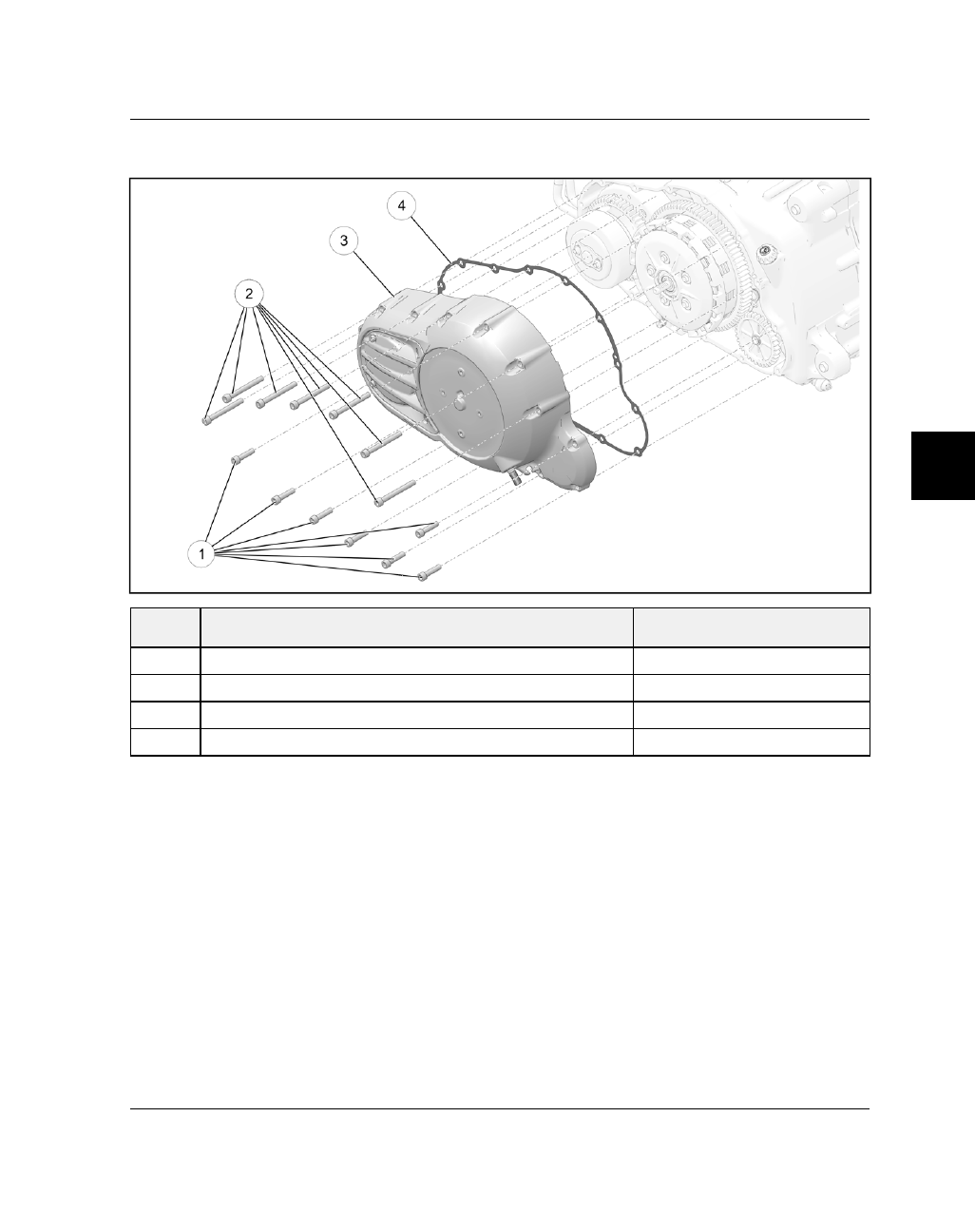

MAARRYY CCOOVVEERR

NUM-

BER

PART DESCRIPTION

TORQUE (IF APPLICABLE)

q

Fastener, Primary Cover - M8 x 1.25 x 35 (QTY.7)

15 ft-lbs (20 Nm)

w

Fastener, Primary Cover - M8 x 1.25 x 75 (QTY.7)

15 ft-lbs (20 Nm)

e

Primary Cover

-

r

Gasket, Primary Cover

-

CLUTCH / PRIMARY / SHIFT

5.4

9927618 R03 - 2017 Indian Motorcycle (Full-Size) Service Manual

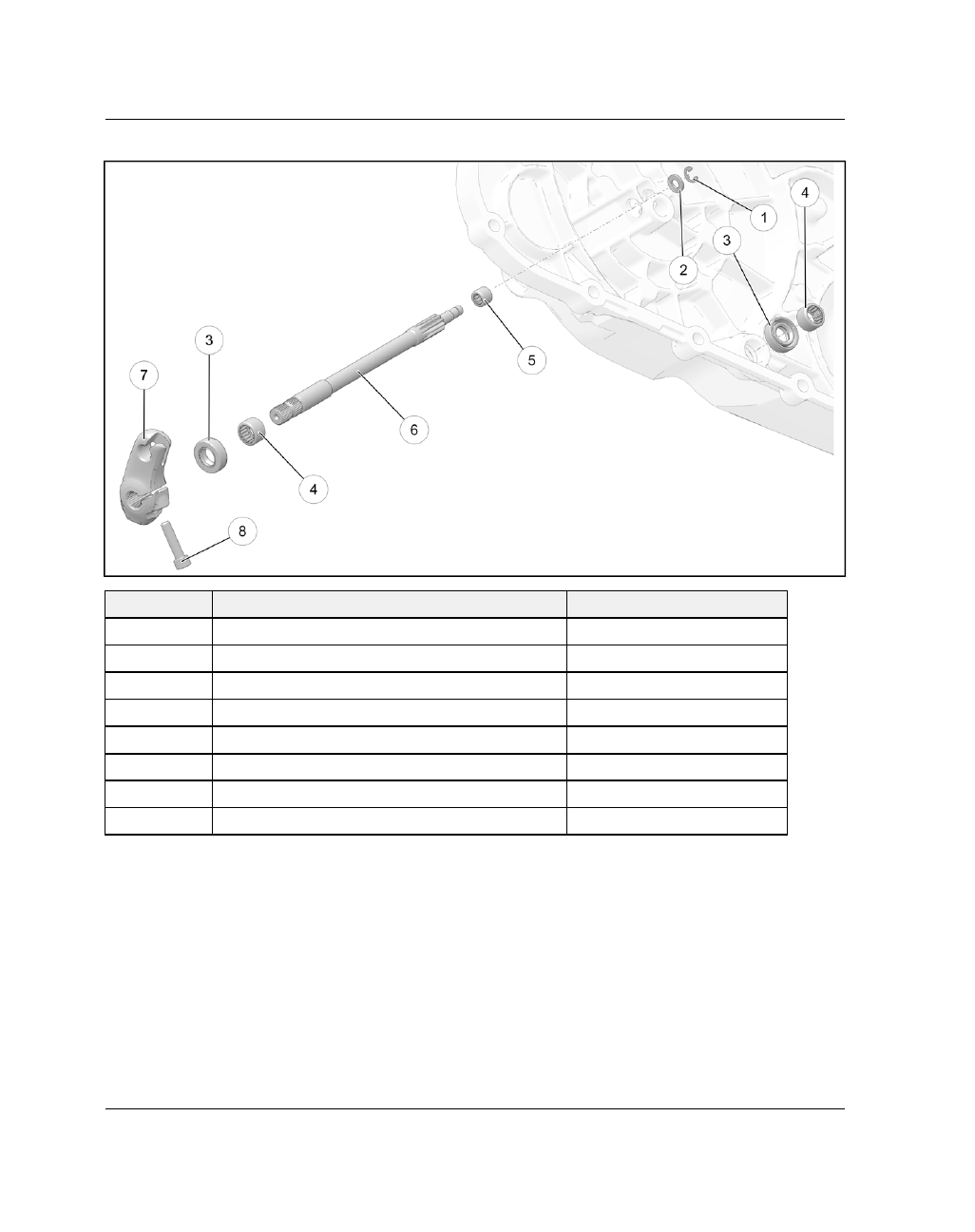

CCLLUUTTCCHH PPIINNIIOONN SSHHAAFFTT

NUMBER

PART DESCRIPTION

TORQUE (IF APPLICABLE)

q

E-Clip, External

-

w

Washer

-

e

Seal, Shaft (Shift Shaft / Clutch Pinion Shaft)

-

r

Bearing, Shaft (Shift Shaft / Clutch Pinion Shaft)

-

t

End Bearing, Pinion Shaft

-

y

Pinion Shaft, Clutch

-

u

Lever, Clutch

-

i

Fastener, Clutch Lever - M6 x 1.0 x 25 (QTY.1)

88 in-lbs (10 Nm)

CLUTCH / PRIMARY / SHIFT

5

5.5

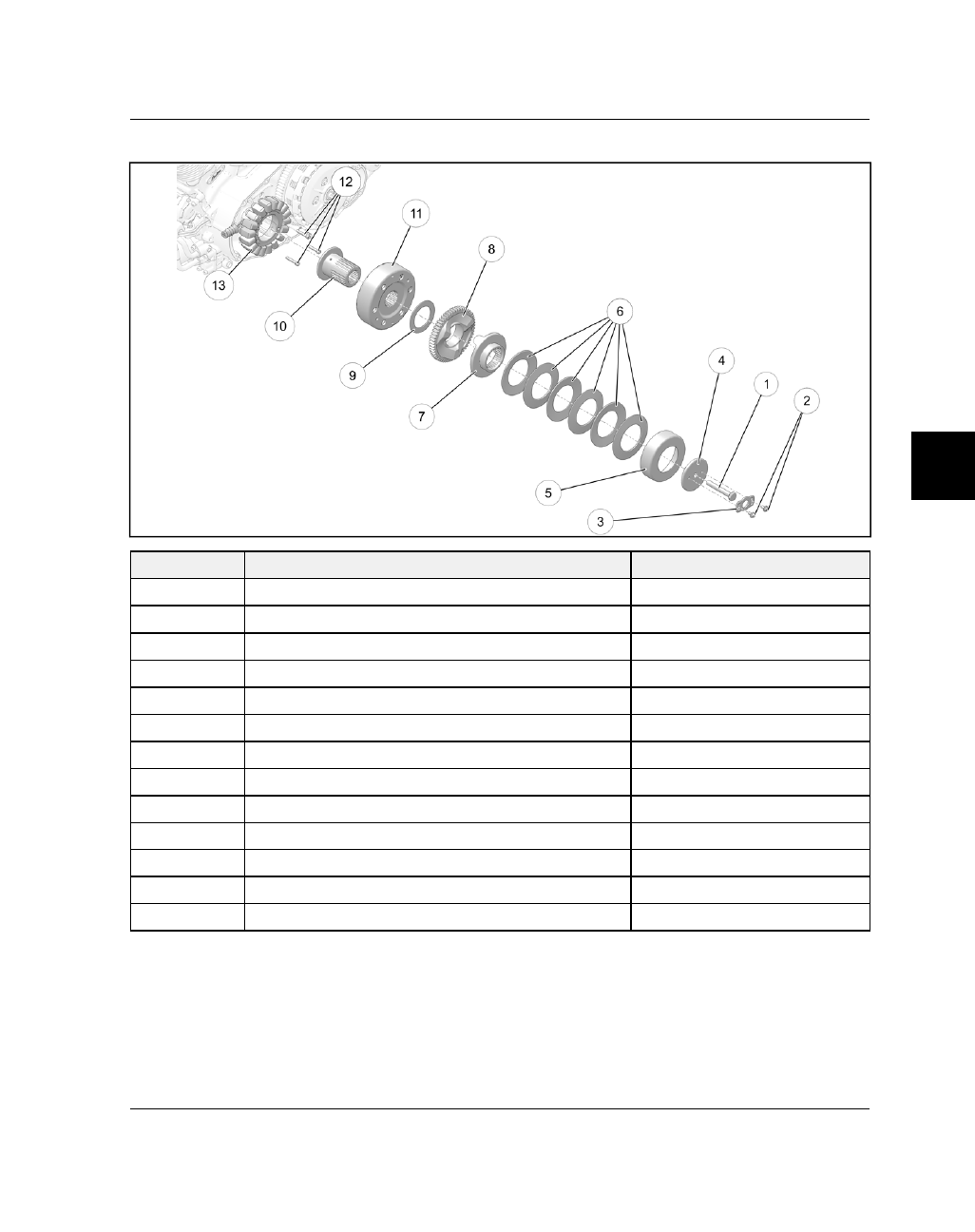

TTOORRQQUUEE CCOOM

MPPEENNSSAATTOORR

NUMBER

PART DESCRIPTION

TORQUE (IF APPLICABLE)

q

Fastener, Compensator — M12 x 80 (QTY.1)

83 ft-lbs (112 Nm)

w

Fastener, Locking Plate — M6 x 1.0 x 12 (QTY.2)

88 in-lbs (10 Nm)

e

Locking Plate

-

r

Spring Retainer, Compensator

-

t

Spring Cup, Compensator

-

y

Spring, Compensator

-

u

Slider, Compensator

-

i

Gear, Compensator

-

o

Washer

-

a

Sleeve, Compensator

-

s

Rotor, Stator

-

d

Fastener, Stator — M6 x 1.0 x 35 (QTY.3)

88 in-lbs (10 Nm)

f

Stator

-

CLUTCH / PRIMARY / SHIFT

5.6

9927618 R03 - 2017 Indian Motorcycle (Full-Size) Service Manual

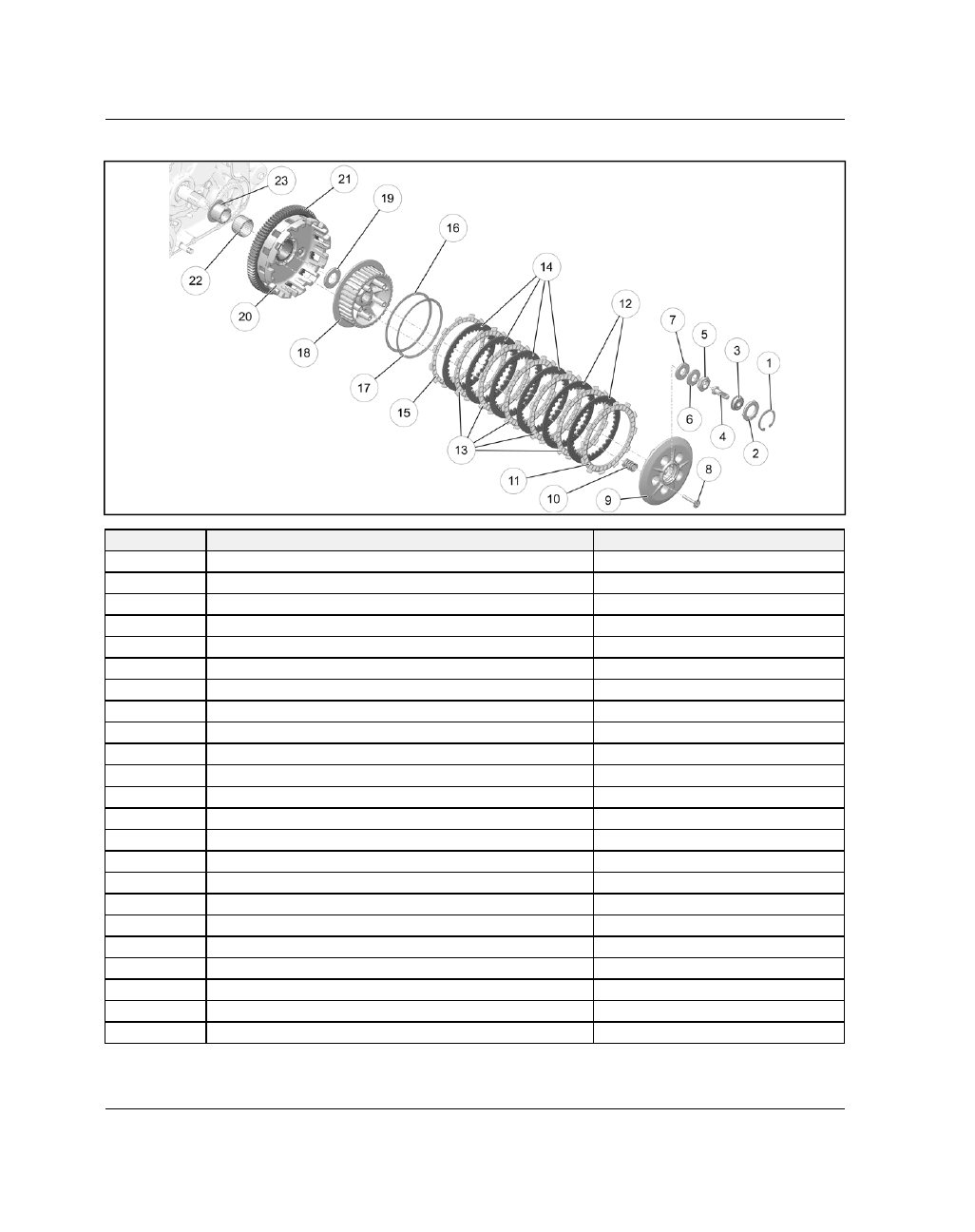

CCLLUUTTCCHH

NUMBER

PART DESCRIPTION

TORQUE (IF APPLICABLE)

q

Retaining Ring, Clutch Rack

-

w

Plate, Clutch Lifter

-

e

Bearing, Clutch Rack

-

r

Clutch Rack

-

t

Stake Nut, Clutch - M20 x 1.5

125 ft-lbs (170 Nm)

y

Belleville Spring (QTY.1)

-

u

Washer, Flat (QTY.1)

-

i

Fastener, Pressure Plate - M6 x 1.0 x 45 (QTY.5)

88 in-lbs (10 Nm)

o

Pressure Plate, Clutch

-

a

Spring, Clutch (QTY.5)

-

s

Plate, Friction (A)

-

d

Plate, Seperator (A)

-

f

Plate, Friction (B)

-

g

Plate, Seperator (B)

-

h

Plate, Friction (C)

-

j

Seat, Judder Spring

-

k

Spring, Judder

-

l

Clutch Hub

-

1(

Thrust Washer

-

2)

Clutch Basket

-

2!

Gear

-

2@

Bearing, Needle

-

2#

Collar, Clutch Bearing

-

CLUTCH / PRIMARY / SHIFT

5

5.7

SSEERRVVIICCEE PPRROOCCEEDDUURREESS

PPRRIIM

MAARRYY CCOOVVEERR RREEM

MOOVVAALL

1.

Place motorcycle in an upright position with the
front wheel clamped in a wheel vise.

2.

Drain oil from engine. See Engine Oil / Filter
Change, page 2.9.

3.

Remove LH floorboard and shift linkage as an
assembly. See Floorboard (Driver), Removal, page
7.18

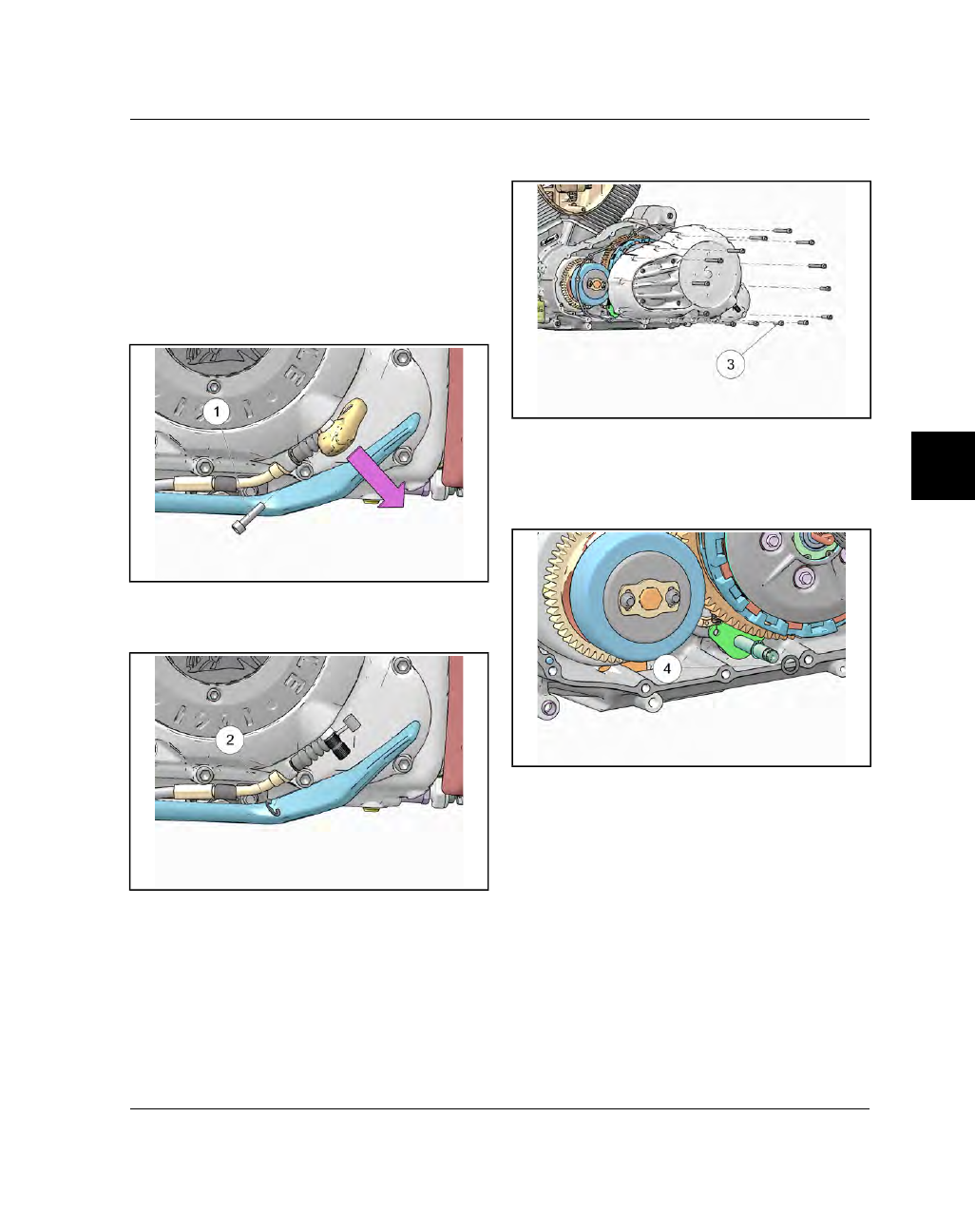

4.

Remove clutch arm fastener

q

and remove clutch

arm from shaft.

5.

Release the clutch cable end from the clutch arm.

6.

Remove the external snap ring

w

from the clutch

cable and withdraw from the mounting boss.

7.

Remove primary cover fasteners

e

.

8.

Tap cover with a soft face mallet to loosen.

9.

Pull primary cover outward evenly at front and
rear of cover to remove.

10. Remove the shim

r

from the end of the shift shaft

noting position for reassembly.

CLUTCH / PRIMARY / SHIFT

5.8

9927618 R03 - 2017 Indian Motorcycle (Full-Size) Service Manual

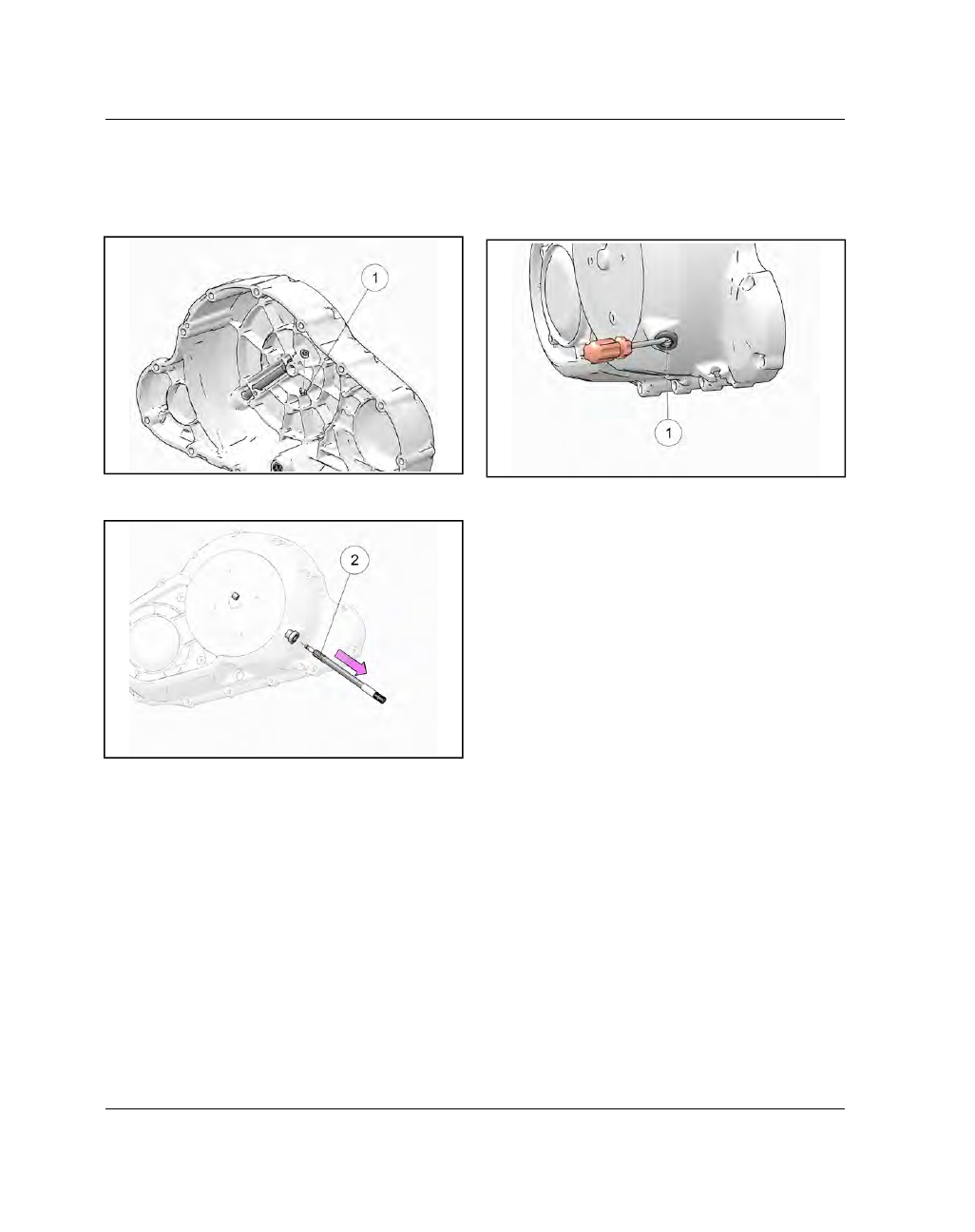

CCLLUUTTCCHH PPIINNIIOONN SSHHAAFFTT RREEM

MOOVVAALL

1.

Remove the Primary Cover. See Primary Cover
Removal, page 5.7.

2.

Remove the E-clip

q

and washer from the end of

the clutch pinion shaft as shown.

3.

Slide the pinion shaft

w

out through the bottom of

the primary cover.

CCLLUUTTCCHH PPIINNIIOONN SSHHAAFFTT BBEEAARRIINNGG IINNSSPPEECCTTIIOONN

1.

Apply engine oil to the bearings.

2.

Temporarily install pinion shaft into primary cover.

3.

Turn shaft by hand. Replace bearings that feel
rough, notched, or loose.

CCLLUUTTCCHH PPIINNIIOONN SSHHAAFFTT SSEEAALL RREEM

MOOVVAALL &

&

IINNSSTTAALLLLAATTIIOONN

1.

Remove clutch pinion shaft. See Clutch Pinion
Shaft Removal, page 5.8.

2.

Carefully pry seal

q

out of primary cover.

3.

Lubricate outer edge of new seal with engine oil
and sealing lip with grease.

4.

Drive seal into place with a suitable driver.

CLUTCH / PRIMARY / SHIFT

5

5.9

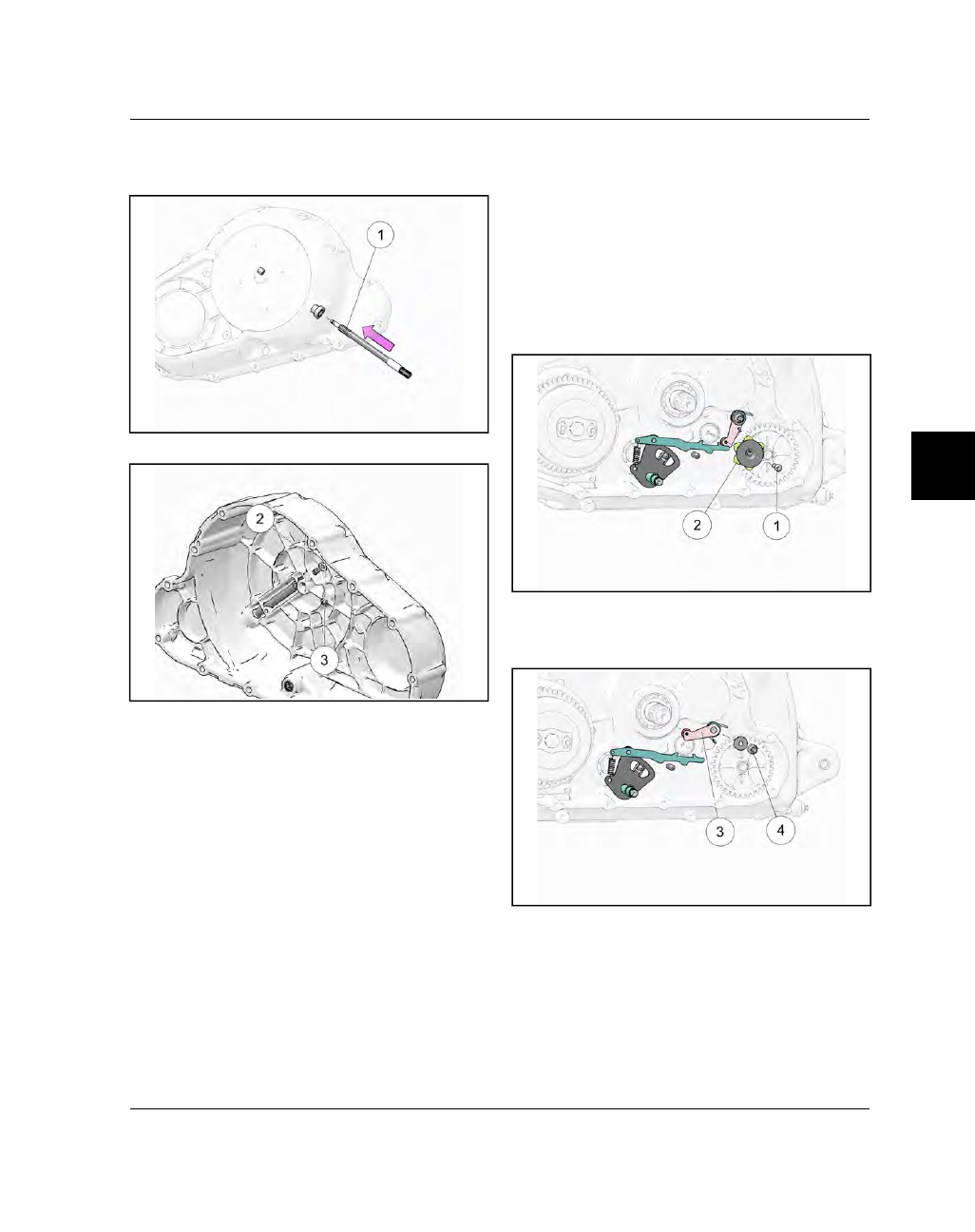

CCLLUUTTCCHH PPIINNIIOONN SSHHAAFFTT IINNSSTTAALLLLAATTIIOONN

1.

Lubricate and install clutch pinion shaft

q

until

fully seated in bearings.

2.

Install washer

w

and E-clip

e

.

SSHHIIFFTT RRAATTCCHHEETT RREEM

MOOVVAALL &

& IINNSSPPEECCTTIIOONN

1.

Place motorcycle in an upright position with the
front wheel clamped in a wheel vise.

2.

Shift transmission into neutral.

3.

Remove

primary

cover.

See

Primary

Cover

Removal, page 5.7.

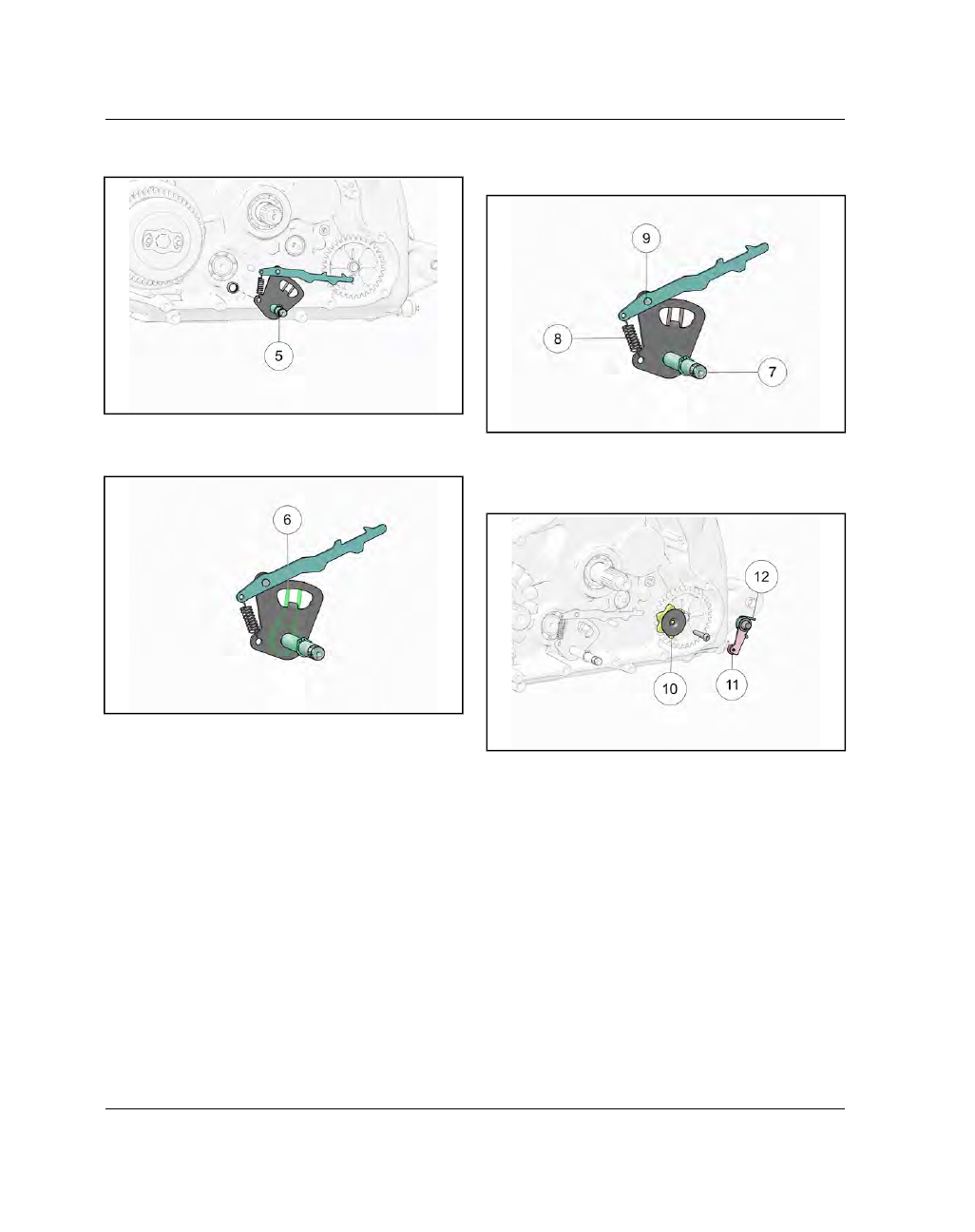

4.

Remove clutch assembly. See Clutch Removal,
page 5.14.

5.

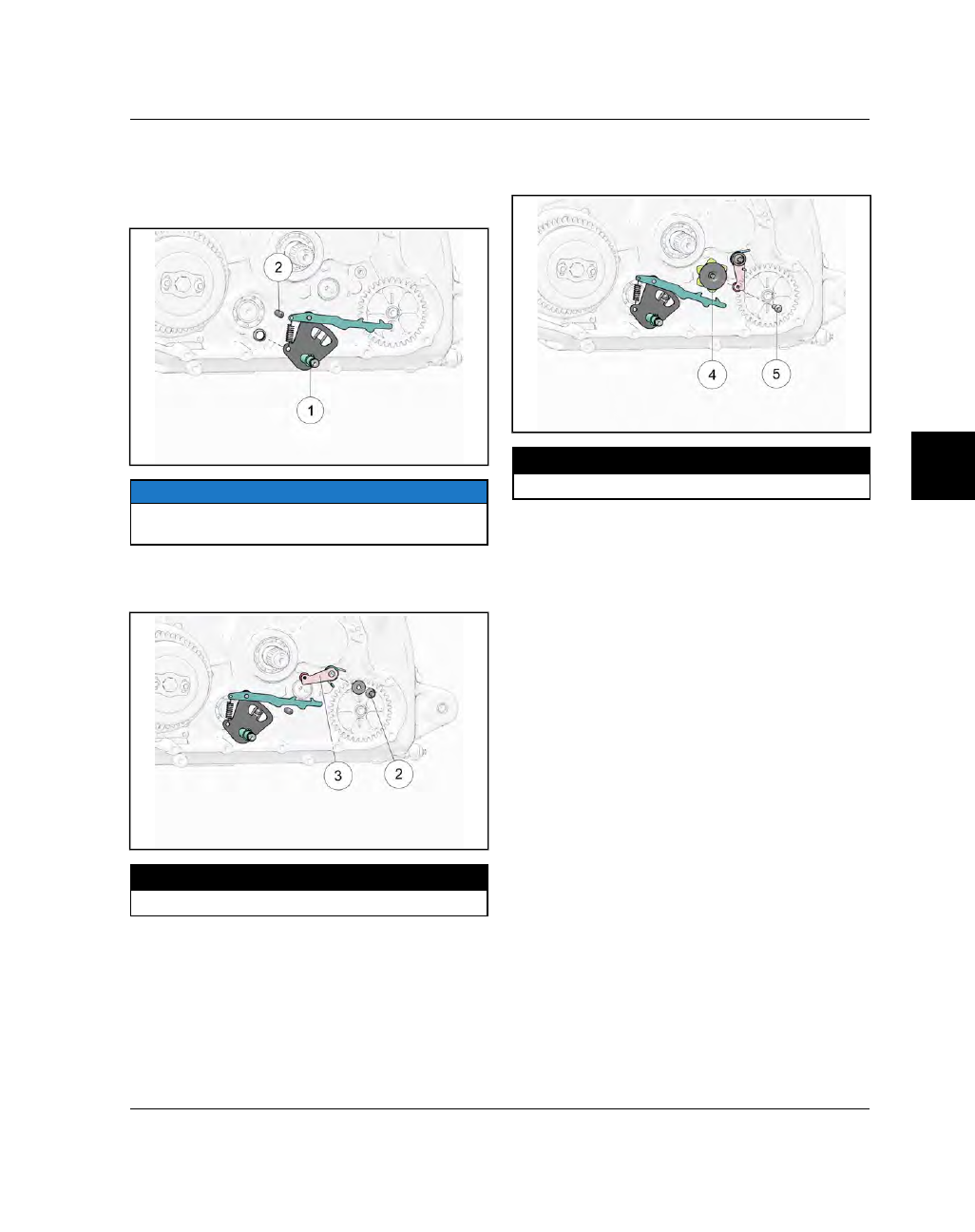

Using a 4 mm hex wrench, remove the fastener

q

securing the shift star

w

to the shift drum and

remove shift star.

6.

Rotate the detent lever

e

so the spring is relaxed.

Using a 10 mm socket, remove the fastener

r

securing the detent lever to the engine case and
remove lever.

CLUTCH / PRIMARY / SHIFT

5.10

9927618 R03 - 2017 Indian Motorcycle (Full-Size) Service Manual

7.

Pull the shift lever and spring assembly

t

out of

the bore.

8.

Inspect shift shaft return spring

y

for cracks or

loss of tension. The spring should have enough
tension to keep the shift shaft centered.

9.

Inspect shift shaft

u

for wear or damage.

10. Inspect coil spring

i

for tension. The spring

should apply enough tension on the shift ratchet
mechanism to keep it engaged with the shift star.

11. Inspect fit of rivet

o

on shift ratchet assembly. It

should allow for free movement, but not be
excessively loose.

12. Inspect shift star

a

.

13. Inspect detent roller arm

s

for wear or damage.

14. Inspect spring

d

for cracks or fatigue.

CLUTCH / PRIMARY / SHIFT

5

5.11

SSHHIIFFTT RRAATTCCHHEETT IINNSSTTAALLLLAATTIIOONN

1.

Lubricate shift shaft assembly

q

with engine oil

and slide into bearing until fully seated. Make sure
that the spring pin

w

is located between the return

spring arms.

NOTE

Be sure the washer is in place between the shift

ratchet and the crankcase upon installation.

2.

Apply Loctite 242 (Blue) to clean threads of detent
roller fastener

w

. Install detent roller arm

e

with

spring. Torque fastener to specification.

TORQUE

Detent Roller Fastener:

89 in-lbs (10 Nm)

3.

Rotate the detent arm and ratchet arm out of the
way and install the shift star

r

and shift star

fastener

t

. Torque fastener to specification.

TORQUE

Shift Star Fastener:

88.5 in-lbs (10.0 Nm)

4.

Install clutch assembly. See Clutch Installation,
page 5.19.

5.

Install the primary cover. See Primary Cover
Installation, page 5.12.

CLUTCH / PRIMARY / SHIFT















Content      ..     15      16      17      18     ..
