12. Low-voltage alarming light while braking

13.   Hydraulic oil return    blockage alarming light

14.  Gear change alarming light-Indicating the oil pressure of working; the normal value is

1.6~1.8Mpa; alarms 1.6 Mpa below.

15. Air filter blockage alarming light

16. Concentrated lubrication indicator

17. Level alarming indicator

18. Left steering signal light

19. Right steering signal light

20. Engine water thermometer -- indicating the temperature of the engine’s coolant. The normal

value is 80 ~92 ;

℃

℃



21. Engine tachometer

22. Oil-temperature gauge of torque converter-- indicating the working oil temperature of the torque

converter. The normal value is ≤120 ;

℃



23. Engine oil pressure gauge-- indicating engine oil. The normal value is 0.25~0.45Mpa;

24. Concentrated indication area- indicating the working hours, speed and mileage, gear change

pressure;

25. Fuel gauge

26. Blowing rate switch of air-conditioning

27. Air-conditioning mode switch

28. Front working light switch

29. Rear working light switch

30. Emergency warning switch

31. Working rotary switch

32. Instrument pageup/down button

33. Failure diagnosis switch

34. Idle regulation switch

35. Switch of washer pump

36. Front wiper switch

37. Rear wiper switch

38. Temperature knob of air-conditioning

-  -

79

39. Parking button

40. Cigarette lighter

41.  Key switch

42.  Repairing socket

43.  Joystick lock switch

44.  Absorber switch

45.   Power shutoff selector switch

Caution

It is suggested to use the emergency turning system under the circumstance that urgent

turning to avoid obstruction is required as the paroxysmal normal turning system fails or

engine shuts down.

Warning

If the emergency turning system is started frequently, the emergency turning unit will be

damaged possibly.

The electrical control system of this loader mainly is composed of two parts including

electronic spray engine control system and control system for accessories including lighting, signal

and alarm indicators, wiper, emergency shifter, air conditioning, lifting control and leveling control

etc.





Warning

Improper external power connection will result in personal injuries and death due to

explosion. Accumulators connected in series shall be installed in a separate accumulator box.

As the external power source is used, the cable joint (+) shall be connected with the

accumulator’s joint (+) connected with the starter coil. The cable cathode (-) of the external

power source shall be connected with the one of the

starter. In case the cathode of the starter is not

available, the cable cathode (-) of the external power

source shall be connected with the body of the engine.



3) Fuse box

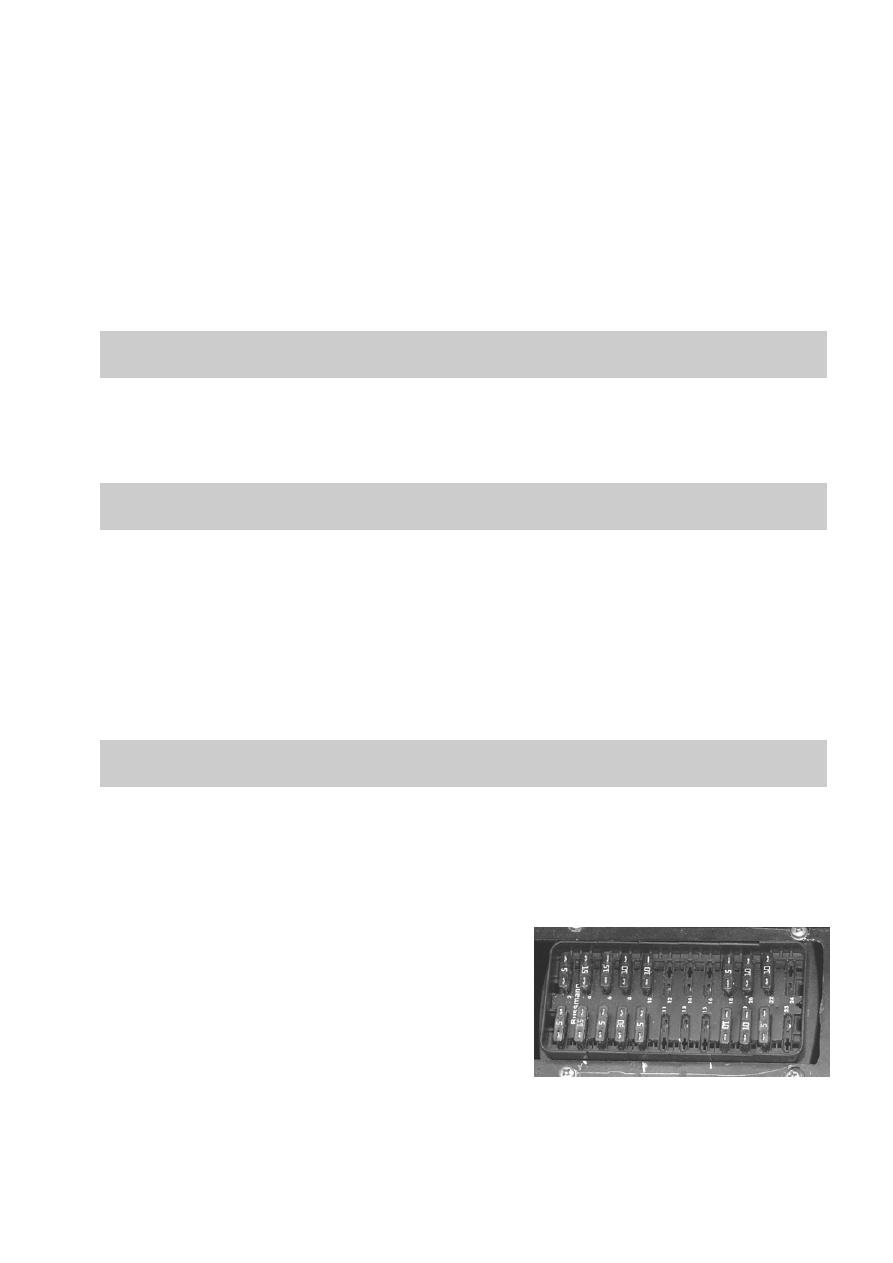

  Fuse box-- Installed at the right rear of the chair in the cab.

-  -

80

Fuse--protecting the electrical system from the damage due to circuit overloading. The damaged

fuse shall be replaced; in case the same new fuse is blew upon replacement, the circuit shall be

examined and repaired.

Caution

In replacement, the fuse of same model and specification is required, or not the circuit will

be damaged possibly. In case frequently replacement of the fuse is required, the circuit is

involved in failure possibly. The circuit shall be examined.

2.2 Air conditioning System

2.2.1 Basic operating method

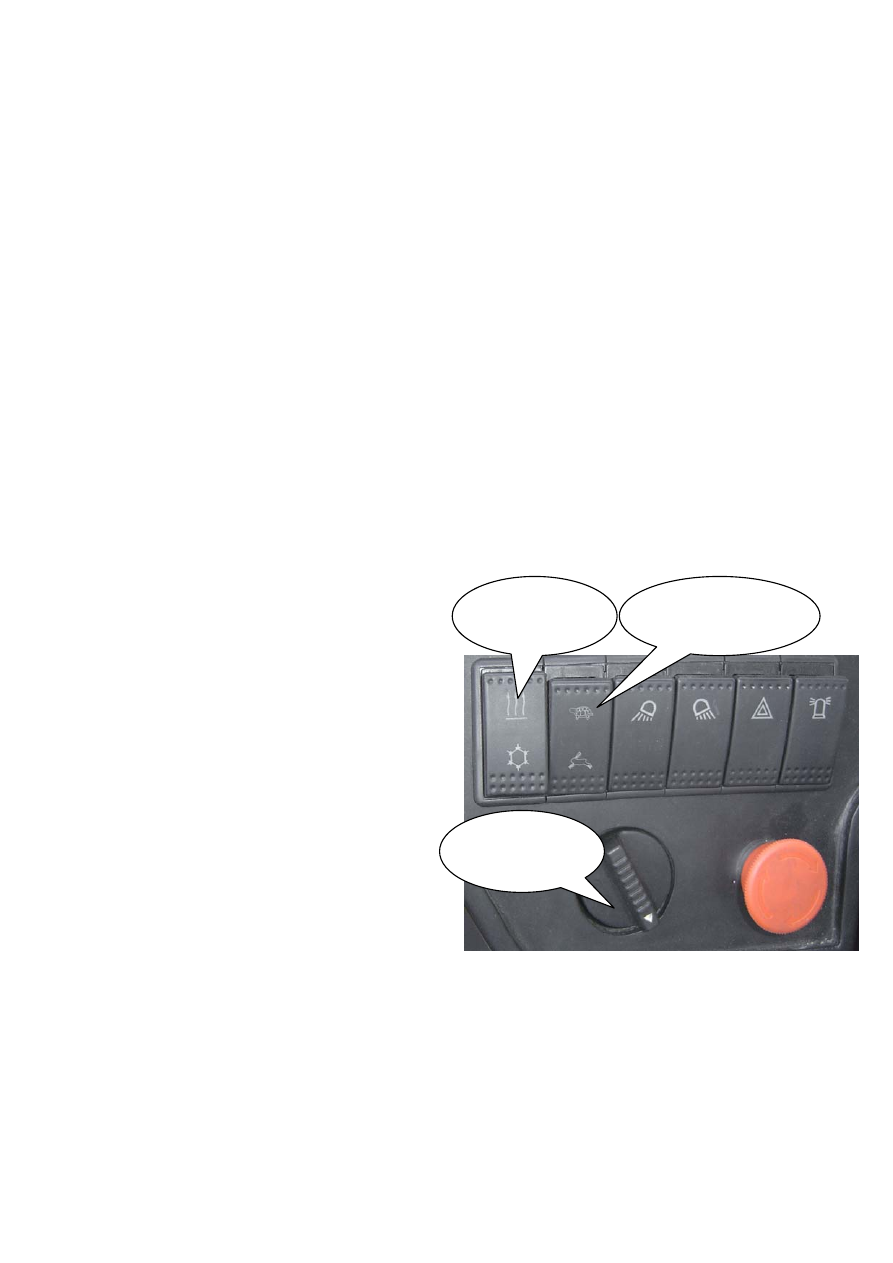

The air-conditioning system has three operation switches and knobs, temperature knob of

air-conditioning, air-conditioning mode switch and blowing rate switch of air-conditioning, designed

on the fore panel, as shown in the following figure:

Temperature knob of air-conditioning:: It may be rotated anticlockwise or clockwise. If

anticlockwise, the temperature is reduced,

vice versa

Air-conditioning mode switch: It has three

positions. Press the upper position of the

switch for heat supply, lower position for

refrigeration, and central position, both heat

supply and refrigeration are not available.

Blowing rate switch of air-conditioning:

The air-conditioning system’s rate has three

levels. When the blowing rate switch is at

the upper position, the rate is at a lower

level, and central position middle level, and

at the lower position, the wind amount will be increased gradually.

  Refrigeration (1) for the first time the cooling system is used, blowing rate switch of air

conditioning shall be rotated to the high speed after the engine is started (Air-conditioning

mode switch is at a lower position), and run for five minutes.



    (2) Rotate the temperature knob of the air conditioning anticlockwise at full. At this time, the

Air-conditioning

mode switch

Blowing rate switch of

air-conditioning

Temperature knob

of

-  -

81

cooling system starts work.

        (3) When the temperature is decreased to the required one, rotate the temperature knob of the

air conditioning clockwise slowly until up to the required temperature.

(4) As the cold air is used in high temperature seasons, windows and doors shall be closed, or

not the refrigeration effect will be weakened.

z  Note: In refrigeration, please shut off the heat water valve (Make the handle of water valve

and heat water pipe at 90°)

Heat supply (1) Air-conditioning mode switch is at a upper position. Turn off the temperature knob

of the air conditioning clockwise at full, turn on the heat water valve and regulate the blowing

rate switch.

    (2) Appropriate temperature may be attained by regulating the heat water valve.

z  As the engine fails to work for ambient temperature less than 0 , the engine radiator shall be

℃

emptied or filled with anti-icing fluid so as to avoid the breakage of the pipe of the radiator of

the heat supply system.

z  The whole air conditioning system shall not be dismantled without authorization. The repairing

shall be conducted a professional person.

z  The belt shall be examined frequently for proper tightness.

z  The dirt on the surface of condensator shall be cleaned in time so as to avoid weakening the

refrigeration effect.

z  After discharging secondary refrigerant or repairing, the proper refrigeration oil shall be added

depending on the amount of the one

discharged. The secondary refrigerant

discharged shall be recovered with the

special equipment.

z  The air conditioning shall be started for

refrigeration one time biweekly during

the season of winter so as to ensure the

smooth operation of the system.

Use of air vent and defrosting function

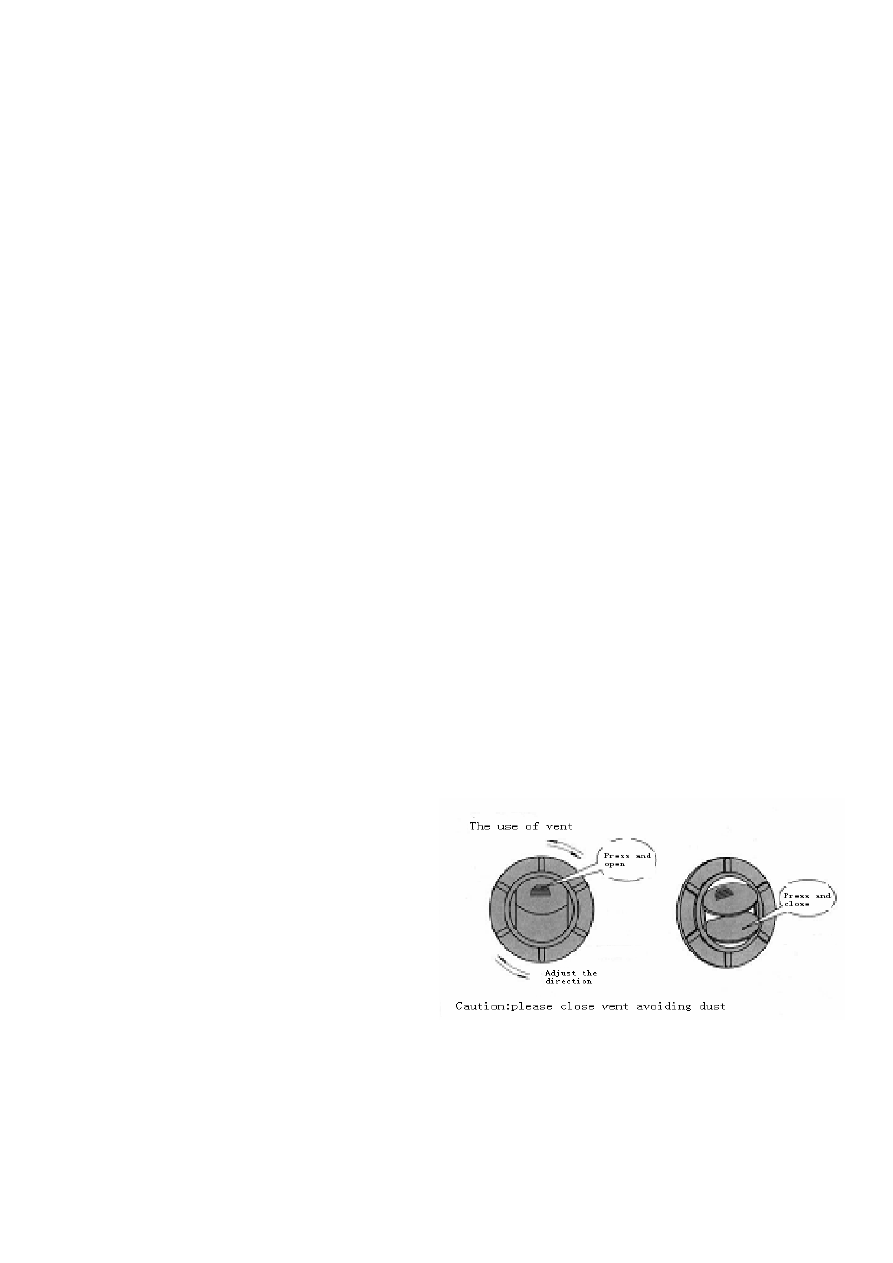

Air vent--If necessary, the air direction may be changed by regulating the air guide sheet of the air

vent.
