82

z  As the air conditioning is not used, the air vent shall be closed to avoid the access of the foreign

substances.

z  As the cold air is used in high temperature seasons, the window and door shall be closed, or not

the refrigeration effect will be weakened.

z  As the engine is turned off, the air conditioning device shall not be used, or not the energy of the

accumulator shall be wasted and difficult starting of the loader will be occurred.

z  Please examine and maintain the air conditioning regularly for a long service life.

Maintenance of filter element of air conditioner

  The filter element of the air conditioner adopts highly effective air filter. When the air quantity

changes or the filter element is dirty, the filter shall be replaced. The filter should be in compliance

with ISO 10263-2.

2.3 Accumulator

Two accumulators connected in series are located at the same accumulator box. As the cross

strapping is adopted, the anode cable (+) shall be connected with the accumulator’s joint (+)

connected with the starter coil. The cable cathode (-) of the external power source shall be

connected with the one of the starter. In case the cathode of the starter is not available, the cable

cathode (-) of the external power source shall be connected with the body of the engine.

The accumulator of this loader is free from maintenance, which is located at the right side of the

rear end of the rear frame. For maintenance-free accumulator, the electrolyte may not be examined

and water may not be added. It is safe in use and propitious to environmental protection.

Examination over charging state

The charging-state indication densimeter is attached on the cap. It may indicate the charging state:

Green--Power over 65%, indicating that the accumulator is normal.

Black--Power less than 65%, indicating that charging is required.

White--The accumulator is bad and shall be replaced.

Note: In order to ensure enough power of this loader for starting, please examine the charging

state of the accumulator. The accumulator will discharge a kind of flammable fog that will

cause explosion possibly. The electrolyte is a kind of acid substance and will harm skin and

eyes.

Use of external power source

Make a primary diagnosis for the loader that fails to start.

-  -

83

1.  Turn the joy stick of the transmission box of the choke to neutral position. Put all working

devices down. All joy sticks are placed at the holding position. Turn off the lock switch of the

joy stick

2.  Turn the starting pre-heating switch of the choke to the central position and turn off all

instruments and air conditioning etc.

3.  Help the started loader close the choke so as to facilitate wire connection. But two loaders shall

not contact each other.

4.  Help to turn off the engine of the started loader. If the auxiliary power source is used, the

charging system shall be turned off.

5.  Give attention to whether the wire connection of the accumulator is correct and tightened.

6.  Connect the anode (+) of the external power source to the anode (+) terminal of the discharged

accumulator or the accumulator of choke.

7.  Connect another anode of the external power source (+) to the anode helping the starting of the

accumulator. Identify the correct connector lug with the method of Step 6.

8.  Connect cathode of the external power source (-) to the cathode helping the starting of the

accumulator.

9.  Lastly, connect another cathode of the cable to the frame (not the cathode column of the

accumulator). The connection position shall be kept away from the accumulator, fuel, hydraulic

pipe or moving elements.

10.  Start the engine that helps starting of the loader or close the charging system assisting in starting.

Two minutes at least are required to shut down partial charging of the loader.

11.  After starting the flameout engine, the external power source shall be shut down immediately in

the reverse order.

12.  Summarize the causes for starting or charging failure of the choke. Now, the engine works and

the charging system works normally.

z  The accumulators connected in series are installed in the same accumulator box. Use the

terminal connected with the starting motor. The accumulator and starting motor are situated at

the same side of the loader. Any metal shall not contact the anode wire clip.

2.4 Cab

  The cab is full closed, in which anti-roll and anti-falling structures are available. It is spacious

and comfortable, and easy to be operated.

-  -

84

1

2

3

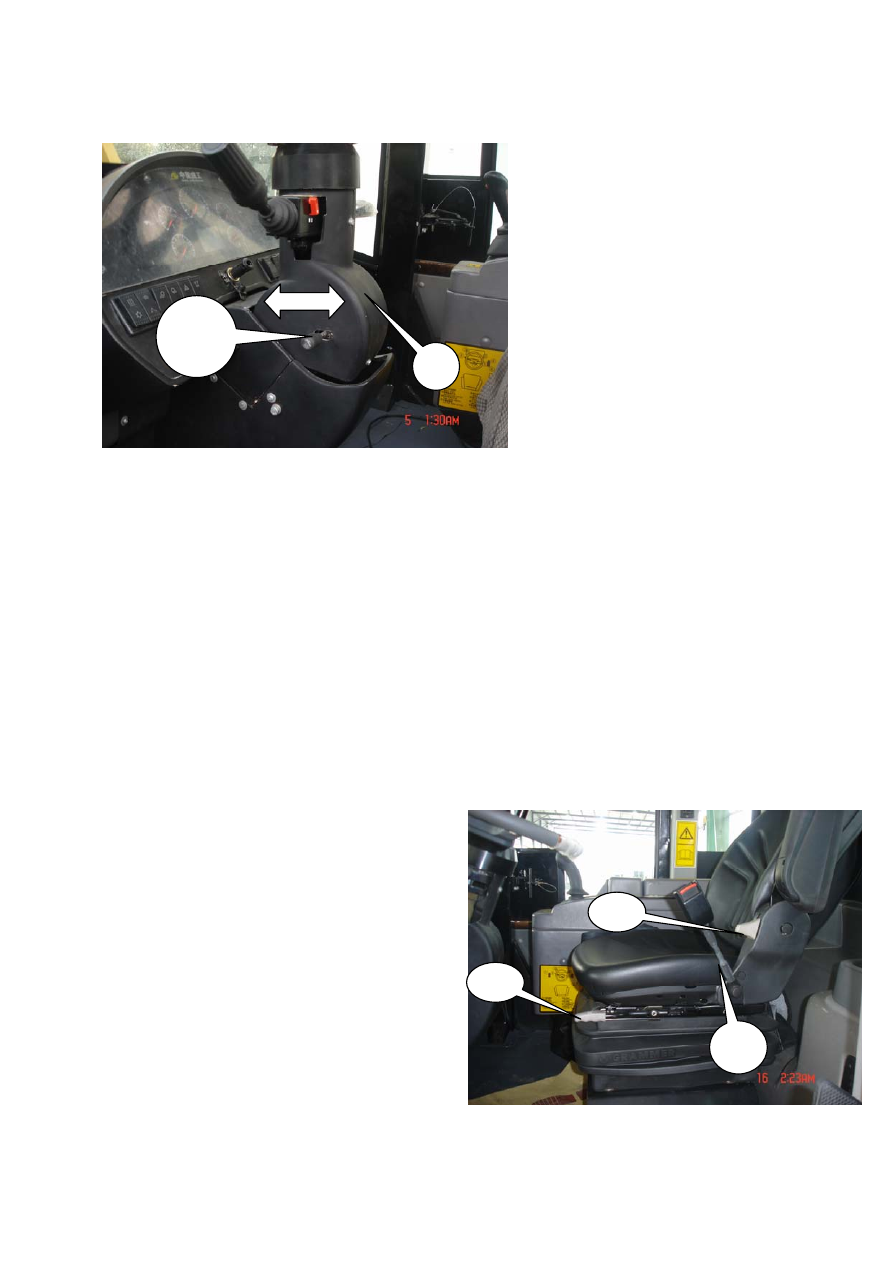

Inclination adjustment of steering gear





















The steering gear may be regulated upwards and downwards depending on the different

drivers.

To regulate the steering gear, the steering gear (2) shall be pulled upwards or downwards to the

appropriate position according to needs as the adjusting locking rod (1) of the steering gear is pulled

upwards, and loosen the adjusting locking rod (1) to lock the position of the steering gear.

Chair

MSG85/722 is the mechanical suspending driver chair with a hydraulic damper. The upper part

of the whole chair is arc and has various functions. The suspending unit on the chair chassis is

protected by rubber sleeve so as to avoid external sewage and dirt.

Cushion and backrest are made with

vacuum foam one-step molding technology

Adjusting range:

z  The backrest may be adjusted for 150mm

forwards and backwards.

z  The adjusting distance of the backrest’s

elevation is 60mm.

z  The adjusting of the backrest forwards is

12°, backwards 10°.

z  The journey of the suspending device is 100mm.

z  The adjustment between 50-130kg may be conducted according to the driver’s weight.

2

1

1

-  -

85

Optional accessories:

z  Backing block

z  Armrest

z  Safety belt

As the fore and rear control locking rod (1) of the chair is pulled upwards, the chair may be

moved to the wanted position forwards or backwards, and then release the locking rod to lock the

chair.

While pull upwards the backrest angle control rod of the chair (2), adjust the backrest to the

required angle, and lay down the control rod to lock the backrest.

Pull out (3) and adjust the elevation by means of rotation.

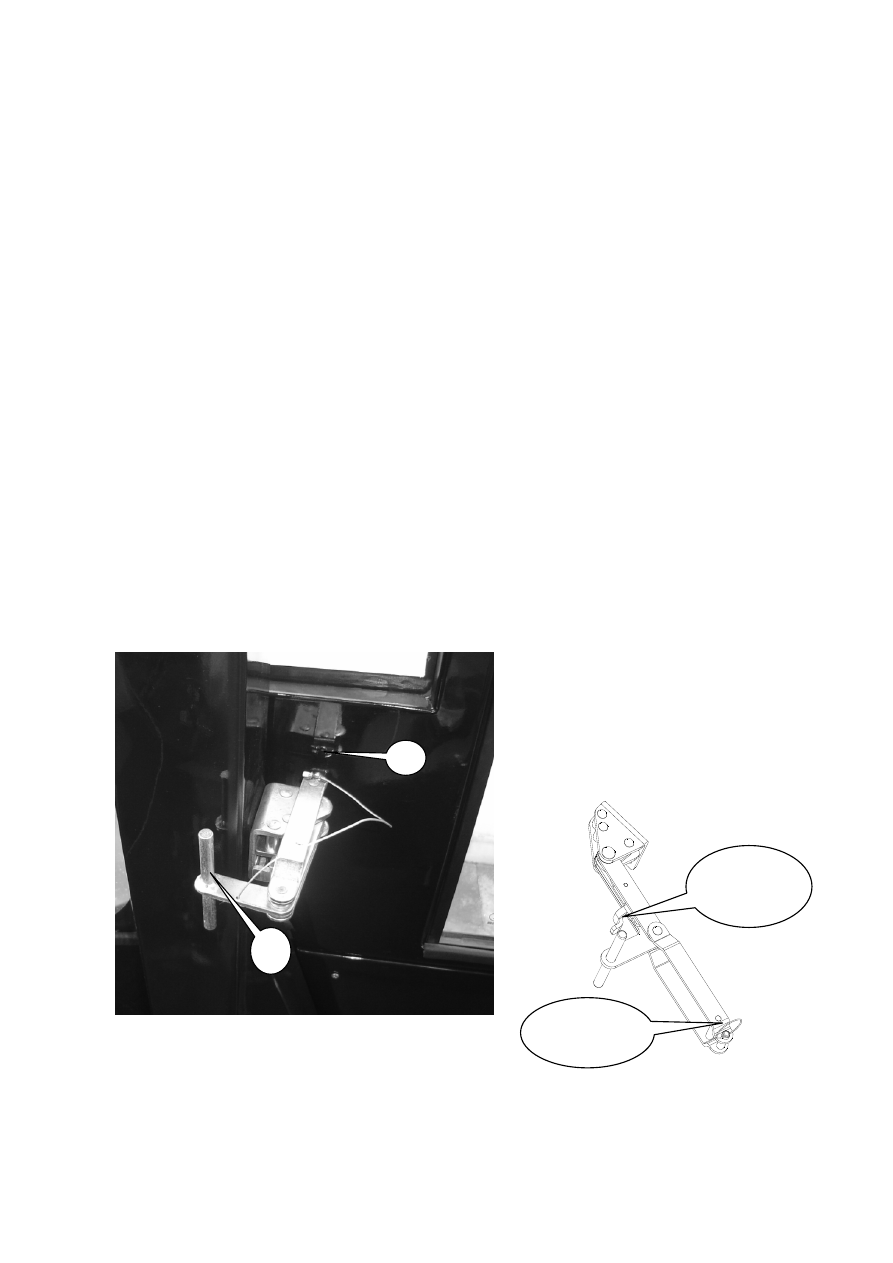

Right door

The right door is used as the exit, which may be opened only from the internal cab. Loosen the

pin (1) to open window. When the right door is used for ventilation, the door may not be opened at

full. By pressing (2), the glass of the sliding window may be moved up and down. Loosen (2) to fix

the glass at a position. Also by pressing the pusher (3) and then pulling the handle (4), the door may

be opened only at a certain angle.



1 Pin of
sliding lock

3 Pusher of

sliding lock

1

4
