CG958H Wheel Loader. Manual - part 17

-  -

70

3. Dismounting and servicing of steering gear by untrained maintenance staff is strictly

prohibited.

4. Simultaneous hard steering by two people is strictly prohibited.



CAUTION

When replacing rubber tube assembly in steering gear, loader engine should be shut off first to

release pressure and cool down hydraulic oil (to a safe degree) before the replacement is made.

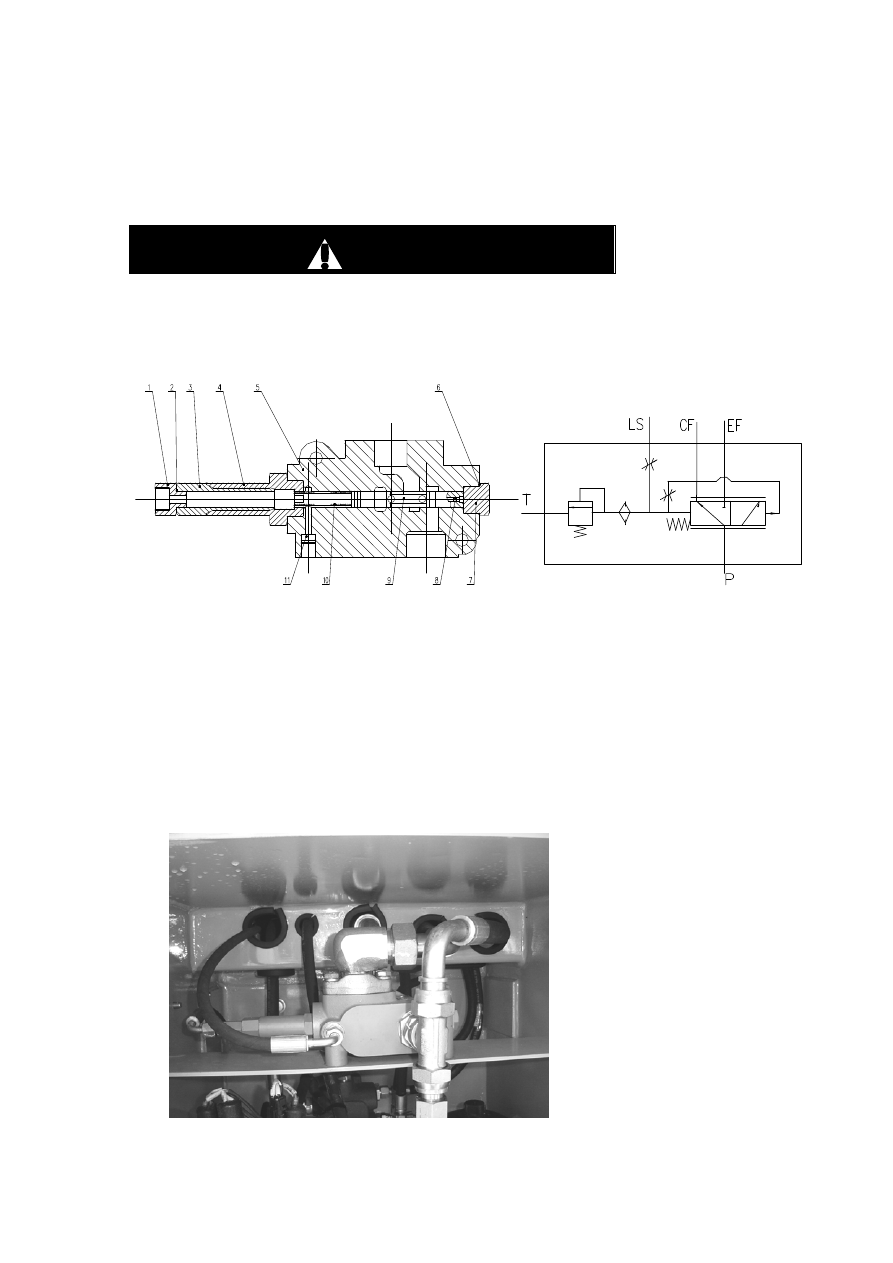

1.  Priority valve (Eaton VLE-150)









a Structure and principle



b Position of priority steering control valv



























1 Excess joint, 2 O-ring, 3 Safety pressure controlled
valve, 4 Nut, 5 Valve body, 6 O-ring,, 7 Screw cap, 8
Pipe plug, 9 Valve core, 10 Pressure spring, 11 Oil plug

,



Hydraulic schematic diagram

-  -

71

IMPORTANT



Dismounting and servicing of priority steering control valve by untrained maintenance staff is

strictly prohibited.





CAUTION



When replacing rubber tube assembly in priority steering control valve, loader engine should

be shut off first to release pressure and cool down hydraulic oil (to a safe degree) before the

replacement is made.



IMPORTANT

Dismounting and servicing of steering cylinder by untrained maintenance staff is strictly

prohibited.

CAUTION

When replacing rubber tube assembly in steering cylinder, loader engine should be shut off

first to release pressure and cool down hydraulic oil (to a safe degree) before the replacement is

made.

5.

 Emergency steering

:

Steering system features emergency steering function. When a sudden failure occurs to

steering pump, etc., pressure in steering system drops quickly and the emergency steering is

automatically started when the pressure drops to 0.6 Mpa (6kg).





T

T

h

h

e

e





a

a

c

c

t

t

i

i

o

o

n

n





t

t

i

i

m

m

e

e





o

o

f

f





t

t

h

h

e

e





e

e

m

m

e

e

r

r

g

g

e

e

n

n

c

c

y

y





s

s

t

t

e

e

e

e

r

r

i

i

n

n

g

g





p

p

o

o

w

w

e

e

r

r





u

u

n

n

i

i

t

t





i

i

s

s



 60s

Emergency steering power unit: model number: 11551-00.



The ascending flow curve allows emergency steering system to have adequate steering power

and velocity. Steering control components is able to turn from neutral position to the position of

steering angle measured in B.3.2 (i.e. 38º/2=19º) in 6 seconds after the operation begins. Forward

velocity should be kept at (10±2) km/h, and steering control force should not exceed 350N.

-  -

72

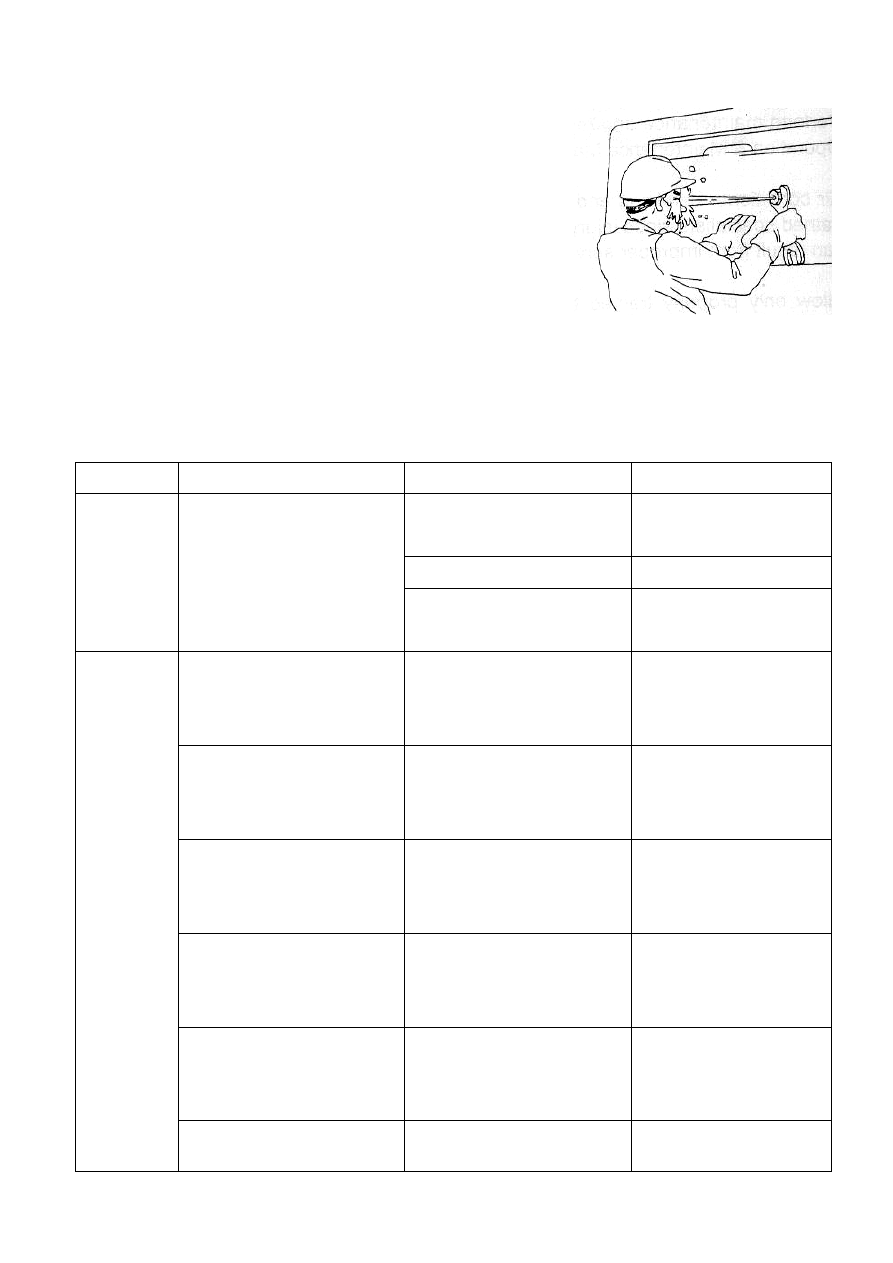

IV. Pressure relief of system:

Turn off engine and then turn steering wheel leftward and

rightward for several times to eliminate internal pressure of

pipeline system.

Hydraulic oil leakage in pipelines may cause accident and

leads to personal injury or death. Leaking pipeline is damaged

and should be replaced. When replacing pipeline, first

eliminate (release) pressure and cool down hydraulic oil (to a

safe degree) before the replacement is made.

V. Lubrication of oil cylinder pin:

Adopt BAKE automatic concentrated lubrication.

VI. Troubleshooting of hydraulic steering system

Failure Symptoms

Causes

Solutions

Dirt on joint faces

Check and clean joint

faces

Shaft sealer ring damaged

Replace sealer ring

Oil leakage

Leakage on joint faces of

parts

Leakage at front cover

Leakage at screws

Insufficient tightening

torque of screw

Tighten screw

Steering is heavy in fast

turning and light in slow

turning

Insufficient oil supply

Check pump and priority

steering control valve

Oil cylinder crawls with

irregular noise and bubbles

in oil

Air in steering system

Eliminate air in steering

system and check pump

inlet for leakage

Heavy steering, and no

steering cylinders do not

work

Manual steering check valve

failure

Check for existence of

steel ball and jam by dirt

Oil cylinders do not work

Leakage at FK overload

valve or in cylinder

Replace FK combination

valve and check cylinder

for internal leakage

Light steering with zero load

and heavy steering with

heavy load

FK safety valve leakage or

safety valve spring failure

Replace FK combination

valve

Heavy

steering

Heavy steering

High hydraulic oil viscosity



-  -

73

No opposite rotation

Spring leaf failure

Replace spring leaf

Marked increase of pressure

runout, and even steering

failure

Bent or broken key, crack in

universal driving shaft

keyway

Replace key or universal

driving shaft

Steering

malfunction

Opposite rotation or

wagging of steering wheel

immediately after steering

Misplacement of universal

driving shaft and rotor

Reassemble

No manual

steering

Cylinder piston reaches limit

and no sense of steering

dead end in power steering,

steering cylinders do not

work in manual steering

Large radial or axial

clearance in stator and rotor

Replace stator and rotor

Steering is
normal in
slow
turning and
heavy in
fast turning

Steering is normal in slow
turning and heavy in fast
turning

(1). Insufficient oil supply
from oil pump
(2). Large pressure loss
between priority valve and
steering gear
(3). Priority valve plug
blocked
(4). Air in control oil circuit
between priority valve and
steering gear

(1). Repair or replace oil
pump
(2). Use a priority
control spring with larger
control pressure, or
redesign pipeline with an
externally controlled
priority valve
(3). Turn steering wheel
to reach dead end and
then keep turning to
open steering safety
valve for air elimination

Irregular
noise and
bubbles in
oil

Irregular noise and bubbles
in oil, intermittent working
of cylinder in steering

Air in steering system

(1). Check oil level and
add oil to oil tank
(2). Check air intake
pipeline for air leakage
and repair
(3). Eliminate air in
steering system
