CG958H Wheel Loader. Manual - part 15

-  -

62

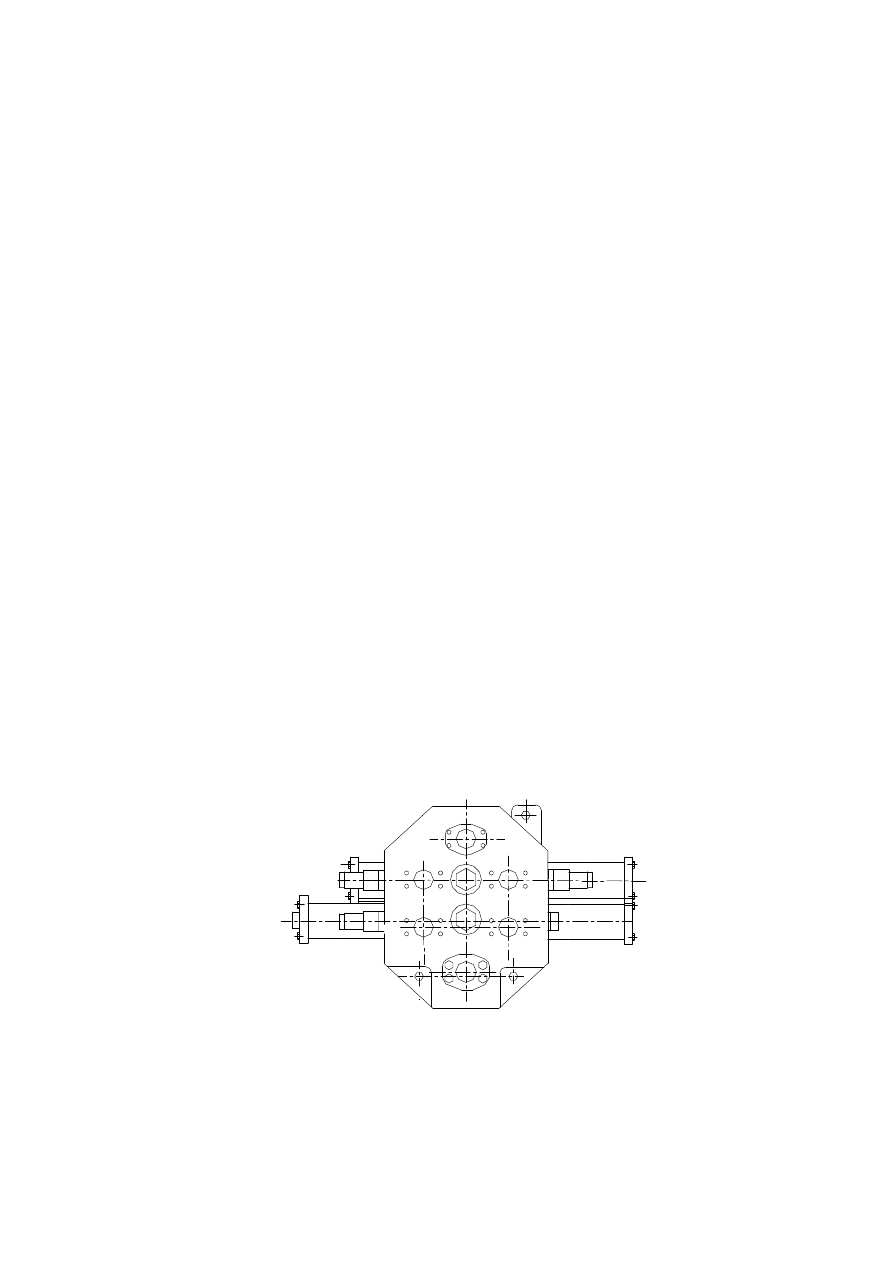

2. Pilot-controlled delivery valve  Structure and operating principle of pilot-controlled

delivery pump are shown in the figure above. Ports P1 and P2 are connected to pump source, port

PR is connected to oil inlet of pilot-controlled valve while port PV serves as the pressure tap of pilot

system. As the locking electromagnetic valve for pilot handle, when electromagnetic valve is

powered off, there is no hydraulic oil pass through pilot system to prevent misoperation of handle

from causing safety problems.

3.

Pilot-controlled valve

 7470 (2)

Pilot-controlled valve is a monolevered true motion relief valve integrating oil inlet, oil outlet,

tipping port, retracting port, lifting port and lowering/floating port, etc. The position of pilot handle

controls the travel of pilot-controlled valve plug, which is in proportion to the pressure at

corresponding port to realize proportional hydraulic control over selector valve. Oil inlet of

pilot-controlled valve is connected to port PR of pilot-controlled delivery valve for oil source.

When the handle is turned to a certain angle, oil from port P enters corresponding valve plug end in

selector valve and push the valve plug to achieve retracting, tipping, lifting and lowering operations.

Electromagnet positioning is installed on pilot-controlled valve at lifting, retracting and floating

positions.

Note: in case of long-time shutdown, slight steering may be necessary after restarting to

provide adequate supply pressure for pilot system before operating pilot handle to do lifting,

retracting, tipping, lowering, etc.

4.

Selector valve

 7130-B



The selector valve adopted for the loader is pilot-controlled hydraulic multi-path change valve,

mainly consisting of tipping couplet, are moving couplet, main overflow valve, overload valves,

inlet check valve, oil filling valve for movable arm chamber, etc. System pressure is adjusted via

overflow cock at the inlet. Tipping couplet is equipped with two overload valves to protect tipping

-  -

63

cylinder and pipelines.

When the selector valve plug is in neutral position, oil inlet and outlet are connected, so there is

no operation of working unit.

Turn the tipping handle, pressure oil in proportion to travel is output by pilot-controlled valve

to apply a force on one end of selector valve plug to slowing reverse the plug. As pressure gradually

accumulates at oil inlet of selector valve, oil inlet check valve is opened, and pressure oil enters

working port to activate working unit.

5. Driving control block RSM25



Lift the oil cylinder (7) to place the pressure on the piston side, the pressure also wi















ll be placed on the one-way valve of the valve element (2) and accumulator (6).

Lift the oil cylinder (7) to the oil circuit of the accumulator (6), and close by the valve element

(2) (switch to the position 2). In the valve element (2), an internal accumulator (6) has the function

of pressure reduction (switch to the position 3). The opening pressure is higher than the shutoff

pressure about 30bar (switch to the position 2).

The two-position three-way reversal valve may be switched to the position 2 according to the

driving speed of the vehicle (>8km/h). The valve element (2) is switched to the position 4 to collect

the piston side of oil cylinder (7) with the accumulator (6), and rod

side of lifting oil cylinder (7) with the oil tank.

Overflow valve (4) is designed to prevent impermissible pressure

in the accumulator (the opening pressure <allowed pressure of

accumulator). This overflow valve is selective upon the user’s

willing.

Pressure relief of this module:

-  -

64

Prior to maintenance of this system, the pressure of this module shall be relieved. In pressure

relief, the loader shall be parked at a safe place, and the protective device of lifting oil cylinder shall

be installed well (see the chapter on safety). And then relieve the pressure of the accumulator

through the emergency oil discharging screw (5). The position of the oil discharging screen is the

position the serial number 1 indicates in the right figure. In the schematic diagram, it is a

two-position two-way mechanical solenoid valve.

No. Symptoms

Causes

Solutions

A Insufficient

lifting force of

movable arms

or insufficient

bucket turning

force

1．Cylinder oils seal is damaged

2．Clearance between selector

valve rod and valve body

exceeds limits due to

overwearing

3．Oil leakage in piping system

4．Severe internal leakage of

working pump

5．Low pressure at safety valve

6．Oil intake line or oil filter is

jammed

7．Low pilot pressure causes

insufficient reversing of selector

valve

8．Severe internal leakage of the

pump delivering oil to

pilot-controlled valve

1．Replace oil seal

2．Replace selector valve or

check and repair valve plug

3．Check for cause of leakage

and eliminate it

4．Replace working pump

5．Adjust system to nominal

value

6．Replace oil and clean oil filter

7．Adjust pilot pressure to

nominal value

B Slow  bucket

turning or slow

lifting of movable

arms at high rpm

1． See causes in A

2． Overload valve is blocked

1． See solutions in A

2． Replace or check and repair

overload valve

-  -

65

V. Troubleshooting of working hydraulic system

1.3.2 Brake system

The loader adopts original pedal brake valve (06-466-240) and refill valve (06-463-230)

manufactured by MICO USA. Refer to Installation and Service Manual of MICO Products –

Two-way Refill Valve and Installation and Service Manual of MICO Products – Two-way Serial

Pedal Valve for details.

Accumulator manufactured by HYDAC is adopted.
