CG958H Wheel Loader. Manual - part 14

-  -

58

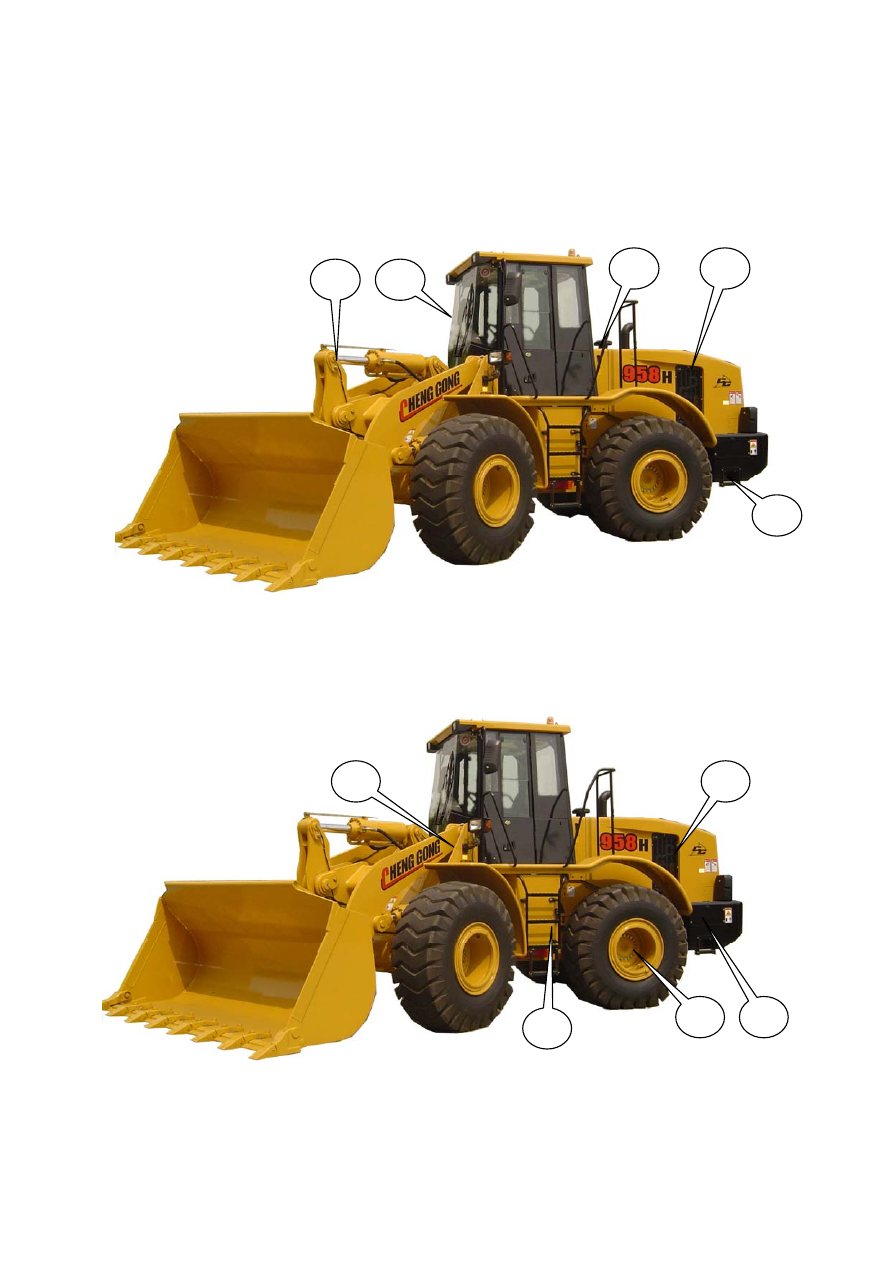

1.2 Profile and Major Parameters





























Engine (1), Fuel tank (2), Hydraulic oil tank (3), Working unit (4), Cab (5),



























Heat radiator (6), Driving axle (7), Master switch (8), fore frame (9) and box (10)



1

2

3

4

5

6

7

9

8

10

-  -

59

Major Parameters and Dimensions

Rated

engine

power:

           164kW

Rated

engine

speed:







          2200r/min

Rated

bucket

capacity:





          3.1m

3



Rated

loading

capacity:



          5t

Dump height:   (bucket blade /tip)                          3132 mm/3022mm

Unloading distance at maximum dump height from (bucket blade/tip): 1060mm/1162mm

Lift time of movable arms:                                                            ＜6.5s

Total of “three time” of working unit:                                                ＜12s

Steering angle:                                                                      ±35°

Turning radius:                                    6400mm

Maximum traveling speed:                                  36km/h

Length:                                        8180mm

Width:                                        3000mm

Height:                                        3540mm

Operating Mass:                                      18.4t

Oil pressure in working hydraulic system:                        17.5MPa

Oil pressure in steering hydraulic system:                        15.5MPa

All the above parameters are measured on a loader horizontally parked on hard supporting ground.

The operator should pay attention in operation to limits of various operating conditions, such as soft

ground, slope or unbalanced carrying, and correspondingly adopt proper operating mode.

1.3 Scope of Work and Configuration

As one of major construction machines, loader is widely used in bucketing, conveying, unloading

and leveling operation of loose materials in addition to light-duty cutting.

The working unit of the loader is independently designed and developed by Chenggong with a

self-made standard bucket. Loading weight of the loader should not exceed 5 tons.

The loader is equipped with QSB6.7 engine manufactured by Cummins Engine Company, Ltd.

Torque-converting gearbox is ZF4WG200 manufactured by ZF Liuzhou Company.

Front and rear driving axles are manufactured by Chenggong.

1.3.1 Description of working hydraulic system

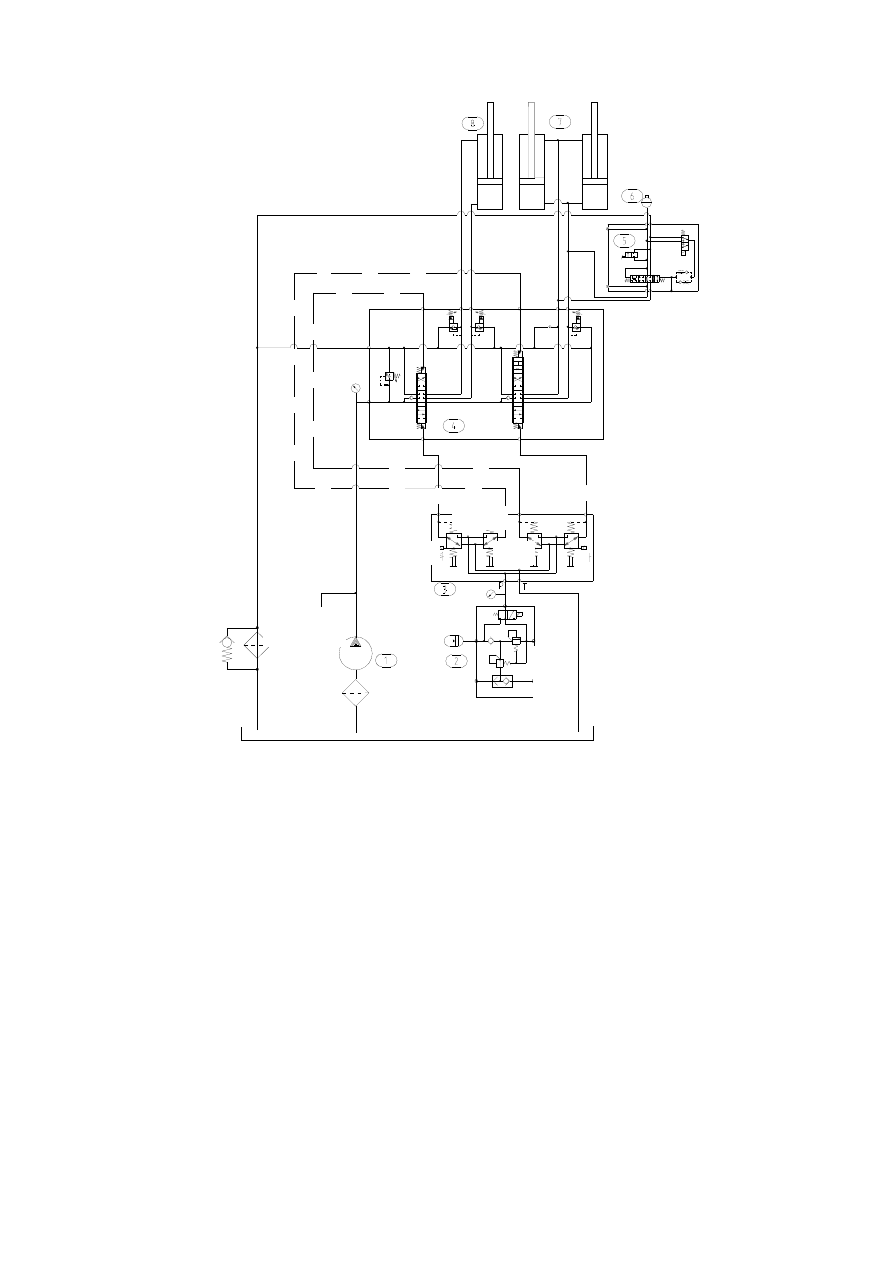

I. System principle:

-  -

60



II. System components

1. Working pump: T6DM-B35-3L03-C1

Manufacturer: Denison USA

2.

Pilot-controlled delivery valve

: DKF1-00

Manufacturer:

Zhejiang Linhai Haihong Group



3.

Pilot-controlled valve

: model 7470(2)

Manufacturer: HUSCO USA

4.

 Selector valve

: model 7130-B

Manufacturer: HUSCO USA

5. Driving control block: RSM25

   Manufacturer: Rexroth Germany

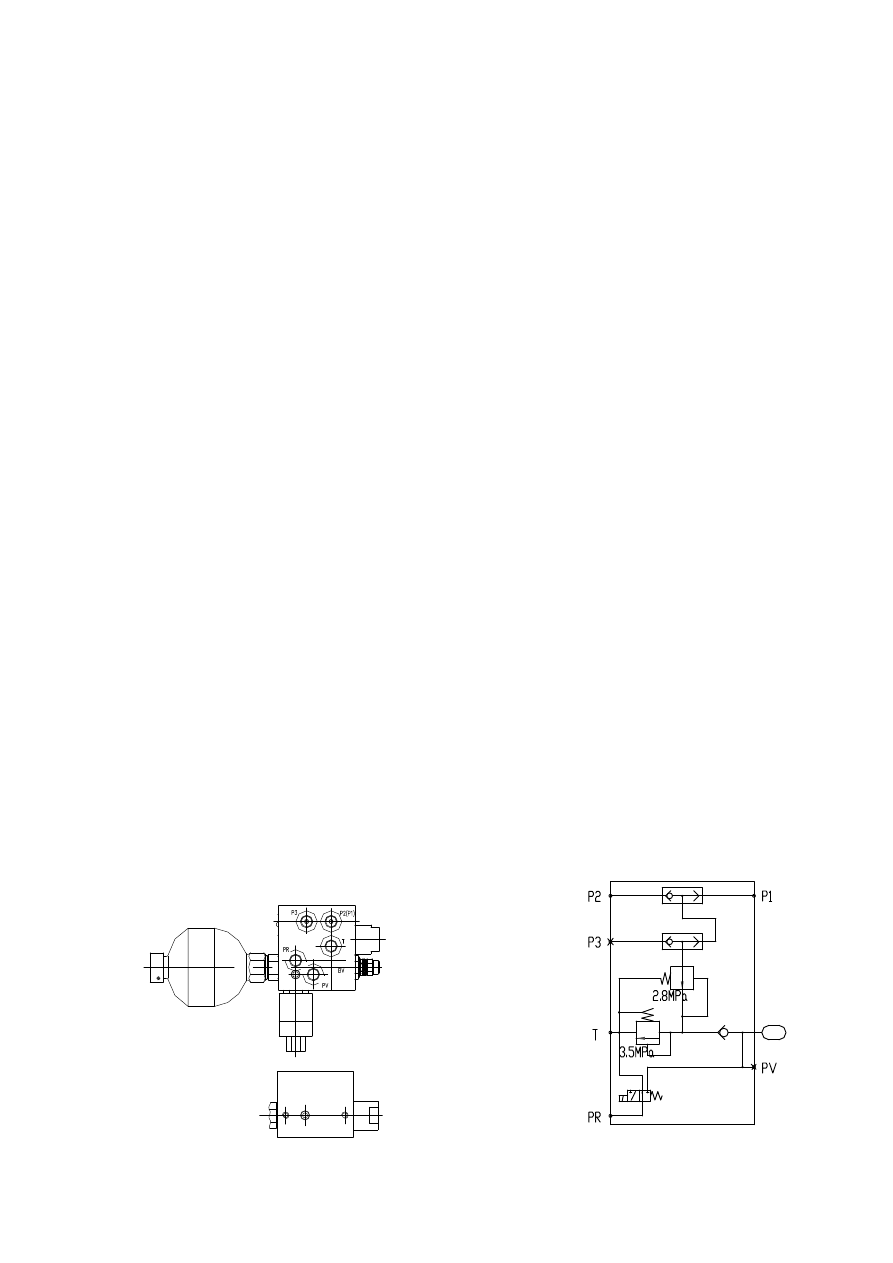

6. Driving control accumulator:

Take back the bucket

Descent/floating

 Unloading

Lift

Priority valve EF

Power

steering

valve

-  -

61

   Manufacturer: HYDAC Germany

7. Arm moving cylinder: quantity – inner diameter x travel 2-Φ180x80

   Manufacturer: Chengdu Hailingda Hydraulic Technology Co., Ltd.

8. Bucket turning cylinder: quantity – inner diameter x travel 2-Φ200x90

   Manufacturer: Chengdu Hailingda Hydraulic Technology Co., Ltd.

III. System description:

The loader adopts pilot-controlled working hydraulic system with pilot oil coming from

delivery side of steering pump. A locking electromagnetic valve is installed on pilot-controlled

delivery valve which is powered off when not working. In this case, operation of pilot handle will

not activate working unit for safety purpose. Under working status, the locking electromagnetic

valve is powered on and the operation of pilot handle will activate the reversing of selector valve

plug to realize lifting, lowering of working unit and bucket retracting and tipping, etc.

Pilot system accumulator keeps the pressure at a certain level. In case of sudden breakdown of

engine, place pilot handle to lowering position so that the hydraulic oil in accumulator applies a

force on valve plug through pilot-controlled valve to lower the movable arms.

In the system, a driving control block, also called as vibration reduction module, is designed.

This module leads the oil circuit of the lift cylinder to the accumulator through a switch valve and

absorbs the load due to dump during driving so as to enable the loader to have a better performance,

higher speed, rapid transportation, better shifting performance and shorter braking distance etc.

IV. Features of Components

1. Working pump T6DM-B35-3L03-C1

Working pump is a vane pump; refer to introduction in steering hydraulic system for its

structure and operating principle.
