- 88 -

CAUTION



When replacing rubber tube assembly in motor, loader engine should be shut off first to release

pressure and cool down hydraulic oil (to a safe degree) before the replacement is made.



IV. Safety marks
All safety marks and meanings thereof for cooling fan control units will be described here. Operators must
read carefully and understand completely these descriptions, which should be complied with in operation and
maintenance. If any mark is damaged, lost or illegible, replace it with a new one.




































- 89 -

II  Cab Facilities

2.1

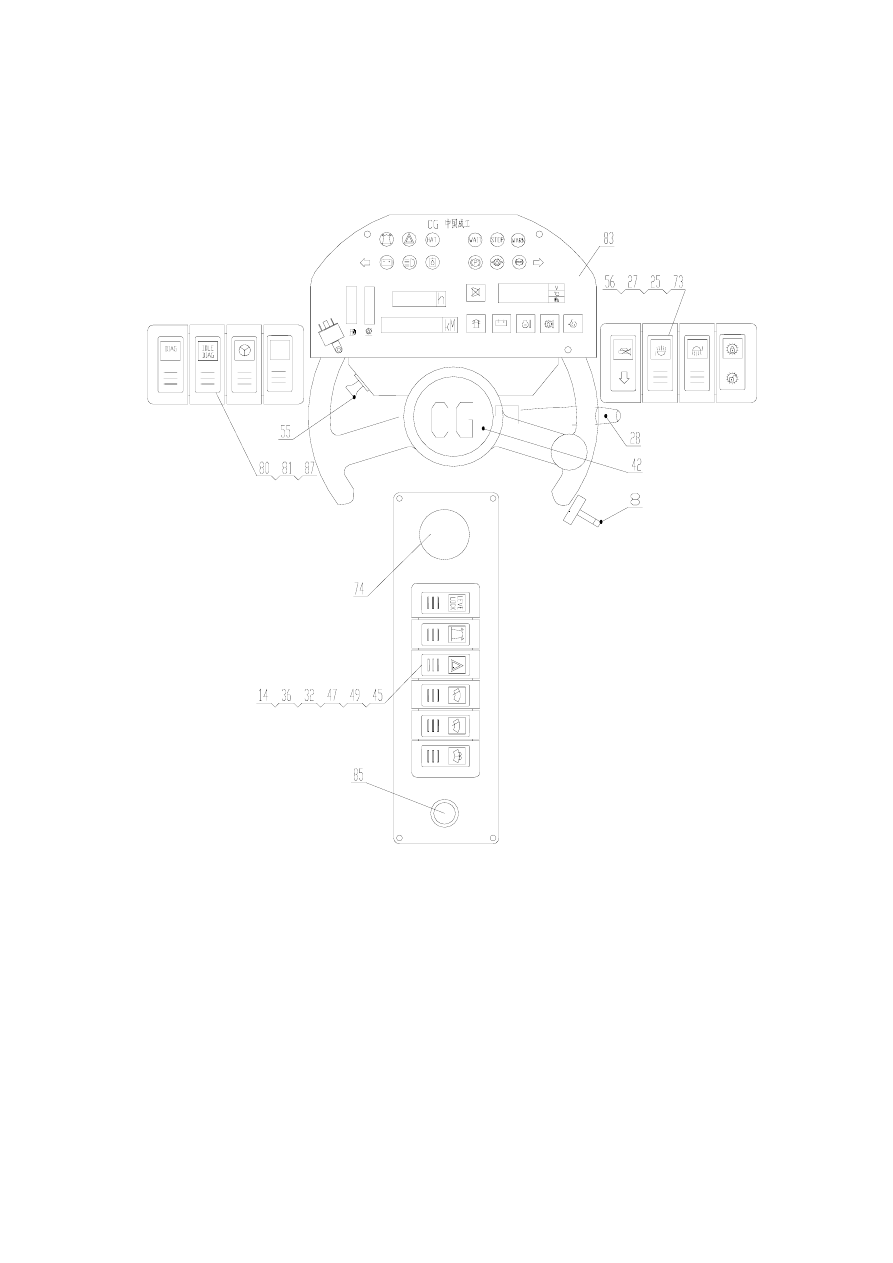

Instrument Desk and Accessories



- 90 -

Start key switch and accessories (8)

Rotary switch (28)--including foglight switch (far near light) and turn signal switch

Cigarette lighter (55)--Facilitating lighting cigarette;

Horn button (42)

Stop button (74);

2.2 Instruments, Control Switch and Indicator Light

1) Electronic monitoring:

Engine oil pressure gauge-- indicating engine oil. The normal value is 0.1~1.0Mpa.

Engine water thermometer -- indicating the temperature of the engine’s coolant. The normal value is

80℃~92℃.

Engine tachometer-- indicating the working rotation speed of the engine. The normal value is

0~2000rpm. In addition, it indicates the magnitude of voltage of the circuit. The normal value is

8~32V.

Oil-temperature gauge of torque converter-- indicating the working oil temperature of the torque

converter. The normal value is ≤120℃.

Voltmeter -- indicating the voltage of the circuit and power supply. The rated value is 24V;

Signal lamp (Top row left to right):

Work rotation; emergency alarm; emergency turning; wait indicator; stop indicator and failure

indicator.

Signal lamp (Bottom row left to right):

Left turn indicator; charging indicator; far light indicator; hydraulic block; parking brake;

Transmission fluid pressure; brake pressure; right turn indicator; and engine failure indicator.

2) Panel switch:

Power shutoff selector switch (73)--Choice of power shutoff or not in service brake;

Rear working light switch (25). The rear working light can be turned on as the front/rear position

lamp is turned on;

Front working light switch (27). The front working light can be turned on as the front/rear position

lamp is turned on;

Instrument pageup/down button (56). The intelligent instrument may indicate by pageup and

pagedown;

Working rotary switch (36);

- 91 -

Emergency warning switch (24);

Front wiper switch (47);

Rear wiper switch (49);

Failure diagnosis switch (80);

Failure pageup/down switch (81);

Joystick lock switch (14)--Only as the switch closes, the lifting of hydraulic oil circuit by the

moving arm and of bucket is allowed;

Cigarette lighter (26);

Standby socket (85);

Fuel gauge (38)--Indicating the oil level of the fuel box;

Transmission fluid pressure gauge (39)--indicating the working oil pressure of the transmission case.

The normal value is 1.6~1.8Mpa.

Emergency turning switch (87)--Press this button to start the emergency turning system.

Caution

It is suggested to use the emergency turning system under the circumstance that urgent

turning to avoid obstruction is required as the paroxysmal normal turning system fails or

engine shuts down.

Warning

If the emergency turning system is started frequently, the emergency turning unit will be

damaged possibly.

The electrical control system of this loader mainly is composed of two parts including

electronic spray engine control system by CAN bus control and control system for accessories

including lighting, signal and alarm indicators, air conditioning, lifting control and leveling control

etc.





Warning

Improper external power connection will result in personal injuries and death due to

explosion. Accumulators connected in series shall be installed in a separate accumulator box.

As the external power source is used, the cable joint (+) shall be connected with the

accumulator’s joint (+) connected with the starter coil. The cable cathode (-) of the external

power source shall be connected with the one of the starter. In case the cathode of the starter
