CG935G Wheel Loader. Manual - part 13

- 56 -

Major Parameters and Dimensions

Rated engine power:

                                           116kW

Rated engine speed:

                                      2200r/min

Rated bucket capacity:

                                        2.0m

P

3

P

Rated loading capacity:

                                      3.5t

Dump height:

：

                      2770mm

Unloading distance at maximum dump height from (bucket blade):

          1014mm

Lift time of movable arms:

                                                  ＜6.5s

Total of “three time” of working unit:

                                                  ＜12s

Steering angle:

                                                        ±35°

Turning radius:

5500mm

Maximum traveling speed:

                                      ＞33km/h

Length

                                                   7250mm

Width

                                                      2395mm

Height

                                                   3225mm

Weight

                          11.6t

Oil pressure in working hydraulic system:

                                                      17MPa

Oil pressure in steering hydraulic system:

                                                      14MPa

All the above parameters are measured on a loader horizontally parked on hard supporting ground. The

operator should pay attention in operation to limits of various operating conditions, such as soft ground, slope

or unbalanced carrying, and correspondingly adopt proper operating mode.

1.3 Scope of Work and Configuration

As one of major construction machines, loader is widely used in bucketing, conveying, unloading and

leveling operation of loose materials in addition to light-duty cutting.

The working unit of the loader is independently designed and developed by Chenggong with a self-made

standard bucket. Loading weight of the loader should not exceed 3.5 tons.

The loader is equipped with QSB series engine manufactured by Cummins Engine Company, Ltd.

Torque-converting gearbox is

 ZF4WG-158

 manufactured by ZF Liuzhou Company.



Front and rear driving axles are manufactured by Chenggong.

- 57 -

II Cab Facilities

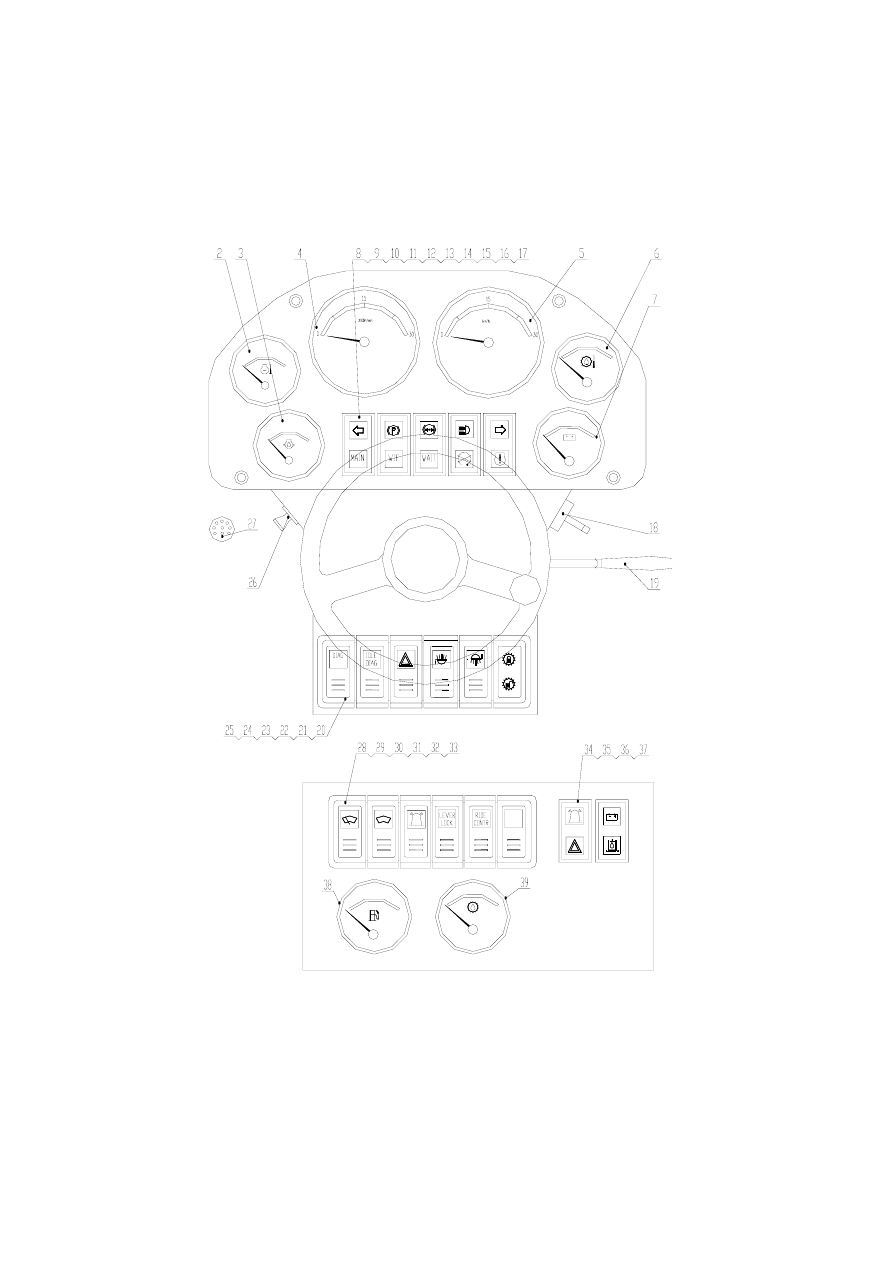

2.1 Instruments, Control Switch and Indicator Light



Engine oil pressure meter (2) – indicating pressure of engine oil; the standard value is 0.1 – 1.0

Mpa.

Engine water temperature meter (3)

– indicating the temperature of engine coolant;

the standard value is

80℃~92℃.

Engine speed meter (4) – indicating the work speed of engine; the standard value is 0~2000rpm.

- 58 -

Also indicates the voltage value of circuit; the standard value is 8~32V.

Speedometer (5) – indicates traveling speed of the loader, normal value 0- 40km/h. It also

displays combustion time of engine.

Torque converter oil temperature meter (6)

– indicating working oil temperature

of torque converter; the standard value is ≤

120℃.

Voltage meter (7)

– indicating power voltage of circuit; the rated value is 24V;

Left turn signal (8), service indicator light (9), parking brake light (10), water content in fuel

indicator light (11), low brake pressure indicator light (12), warming-up indicator light (13),

high beam indicator (14), engine halt indicator light (15), right turn signal (16), engine failure

indicator light (17), preheat starting switch (18), left/right turn signal switch (19), power

interruption selector switch (20) - select whether to shut power when applying brake.

Rear working light switch (21), front working light switch (22), caution light switch (23)

Idle adjustment switch (24), diagnose switch (25), cigarette lighter (26), diagnostic connector

(27)Front window wiper switch (28), rear window wiper switch (29), hazard warning light

switch (30)Vehicle shock absorber switch overtop (31) - to be activated when the loader is

traveling at a speed higher than or equal to 8km/h to reduce the impact on machine by

over-speed.Control lever lock switch (32) – hydraulic oil loop for movable arm hoisting and

bucket lifting is allowed to work only when this switch is set to lock.

Reserved switch (33), caution light indicator (34), hazard warning light indicator (35)

Hydraulic oil loop jam indicator light (36), charging indicator light (37)

Fuel gauge (38) – indicates fuel level in fuel tank

Gearbox oil gauge (39) – indicates working oil pressure in gearbox, normal value 1.6-1.8Mpa.

   The electrical control system of this wheel loader is comprised of two parts: one is

electronic fuel ejection control system, controlled by CAN bus; another one is control system

for accessories, including components for lighting, signal and alarm indication, air conditioning,

hoist control, leveling control, etc.

2.2 Fuse

 Fuse is installed under the left side of dashboard in cab.

 Fuse – protects electrical system against damages caused by loop overload. If fuse is

damaged, replace it. In case the new fuse is blown out again, check and repair the circuit.

- 89 -

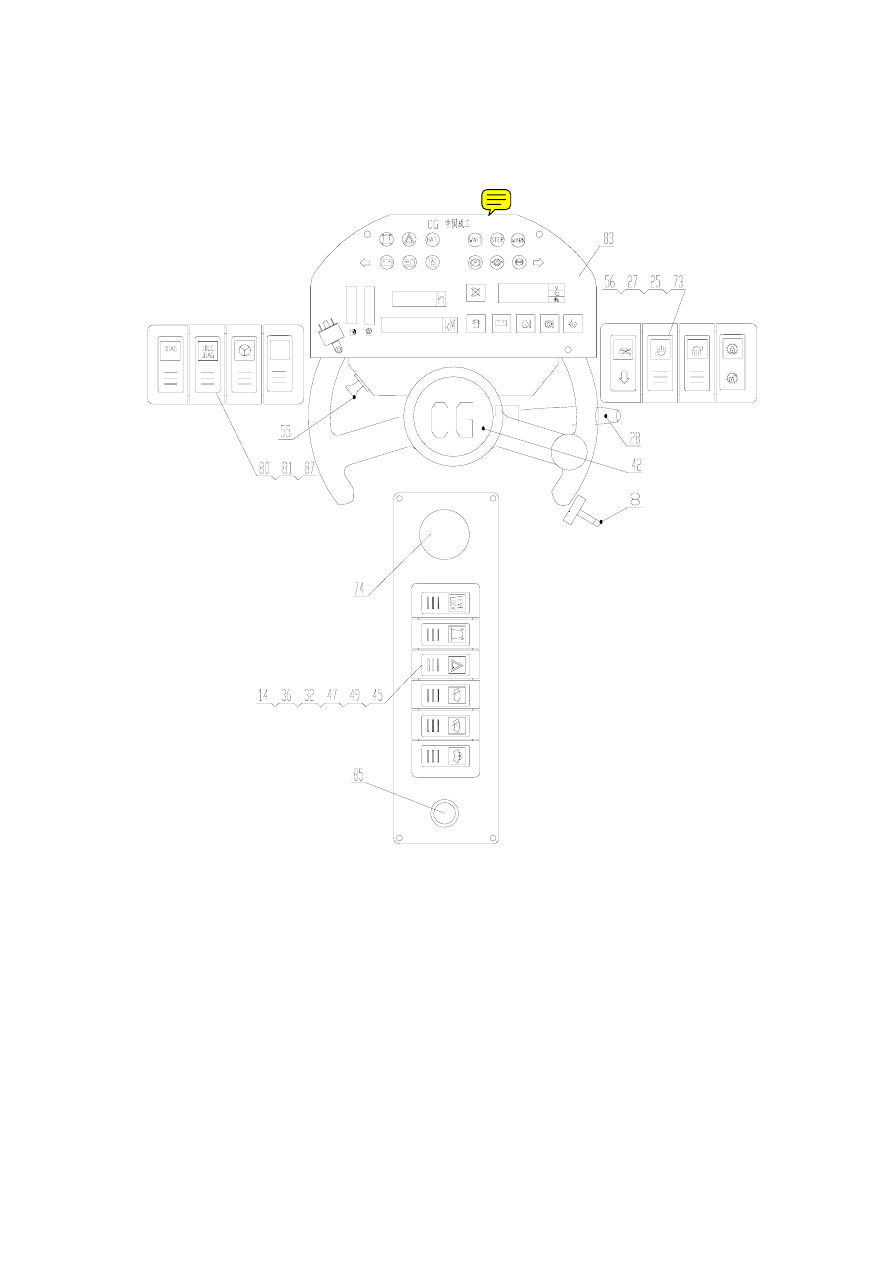

II  Cab Facilities

2.1

Instrument Desk and Accessories
