CG935G Wheel Loader. Manual - part 14

- 90 -

Start key switch and accessories (8)

Rotary switch (28)--including foglight switch (far near light) and turn signal switch

Cigarette lighter (55)--Facilitating lighting cigarette;

Horn button (42)

Stop button (74);

2.2 Instruments, Control Switch and Indicator Light

1) Electronic monitoring:

Engine oil pressure gauge-- indicating engine oil. The normal value is 0.1~1.0Mpa.

Engine water thermometer -- indicating the temperature of the engine’s coolant. The normal value is

80℃~92℃.

Engine tachometer-- indicating the working rotation speed of the engine. The normal value is

0~2000rpm. In addition, it indicates the magnitude of voltage of the circuit. The normal value is

8~32V.

Oil-temperature gauge of torque converter-- indicating the working oil temperature of the torque

converter. The normal value is ≤120℃.

Voltmeter -- indicating the voltage of the circuit and power supply. The rated value is 24V;

Signal lamp (Top row left to right):

Work rotation; emergency alarm; emergency turning; wait indicator; stop indicator and failure

indicator.

Signal lamp (Bottom row left to right):

Left turn indicator; charging indicator; far light indicator; hydraulic block; parking brake;

Transmission fluid pressure; brake pressure; right turn indicator; and engine failure indicator.

2) Panel switch:

Power shutoff selector switch (73)--Choice of power shutoff or not in service brake;

Rear working light switch (25). The rear working light can be turned on as the front/rear position

lamp is turned on;

Front working light switch (27). The front working light can be turned on as the front/rear position

lamp is turned on;

Instrument pageup/down button (56). The intelligent instrument may indicate by pageup and

pagedown;

Working rotary switch (36);

- 91 -

Emergency warning switch (24);

Front wiper switch (47);

Rear wiper switch (49);

Failure diagnosis switch (80);

Failure pageup/down switch (81);

Joystick lock switch (14)--Only as the switch closes, the lifting of hydraulic oil circuit by the

moving arm and of bucket is allowed;

Cigarette lighter (26);

Standby socket (85);

Fuel gauge (38)--Indicating the oil level of the fuel box;

Transmission fluid pressure gauge (39)--indicating the working oil pressure of the transmission case.

The normal value is 1.6~1.8Mpa.

Emergency turning switch (87)--Press this button to start the emergency turning system.

Caution

It is suggested to use the emergency turning system under the circumstance that urgent

turning to avoid obstruction is required as the paroxysmal normal turning system fails or

engine shuts down.

Warning

If the emergency turning system is started frequently, the emergency turning unit will be

damaged possibly.

The electrical control system of this loader mainly is composed of two parts including

electronic spray engine control system by CAN bus control and control system for accessories

including lighting, signal and alarm indicators, air conditioning, lifting control and leveling control

etc.





Warning

Improper external power connection will result in personal injuries and death due to

explosion. Accumulators connected in series shall be installed in a separate accumulator box.

As the external power source is used, the cable joint (+) shall be connected with the

accumulator’s joint (+) connected with the starter coil. The cable cathode (-) of the external

power source shall be connected with the one of the starter. In case the cathode of the starter

- 59 -

 Fuse with the same model number and specification must be used for replacement,

otherwise the circuit may be damaged. If the fuse needs frequent replacement, there may be

a failure in circuit which should be checked.

2.3 Air Conditioning System

   Basic operating method

  Refrigeration  (1) For the first time the cooling

system is used, blowing rate switch shall be

rotated to the high speed after the engine is

started (at this time, the indicator lights), and run

for five minutes.

        (2) Rotate the temperature control switch clockwise to “COLD”. At this time, the cooling

system starts work.

    (3) When the temperature is decreased to the required one, rotate the temperature control

switch anticlockwise slowly until the indicator off. (At this time, the temperature is the

one set. The air conditioning system will regulate the temperature automatically).

(4) As the cold air is used in high temperature seasons, windows and doors shall be closed,

or not the refrigeration effect will be weakened.

 Note: In refrigeration, please shut off the heat water valve

Heat supply (1) Turn off the temperature control switch to OFF, turn on the heat water valve

and start the blowing rate switch.

        (2) Appropriate temperature may be attained by regulating the heat water valve.

 As the engine fails to work for ambient temperature less than 0℃, the engine radiator shall

be emptied or filled with anti-icing fluid so as to avoid the breakage of the pipe of the

radiator of the heat supply system.

 The whole air conditioning system shall not be dismantled without authorization. The

repairing shall be conducted a professional person.

 The belt shall be examined daily for proper tightness.

 The dirt on the surface of condensator shall be cleaned in time so as to avoid weakening the

refrigeration effect.

 After discharging secondary refrigerant or repairing, the proper refrigeration oil shall be

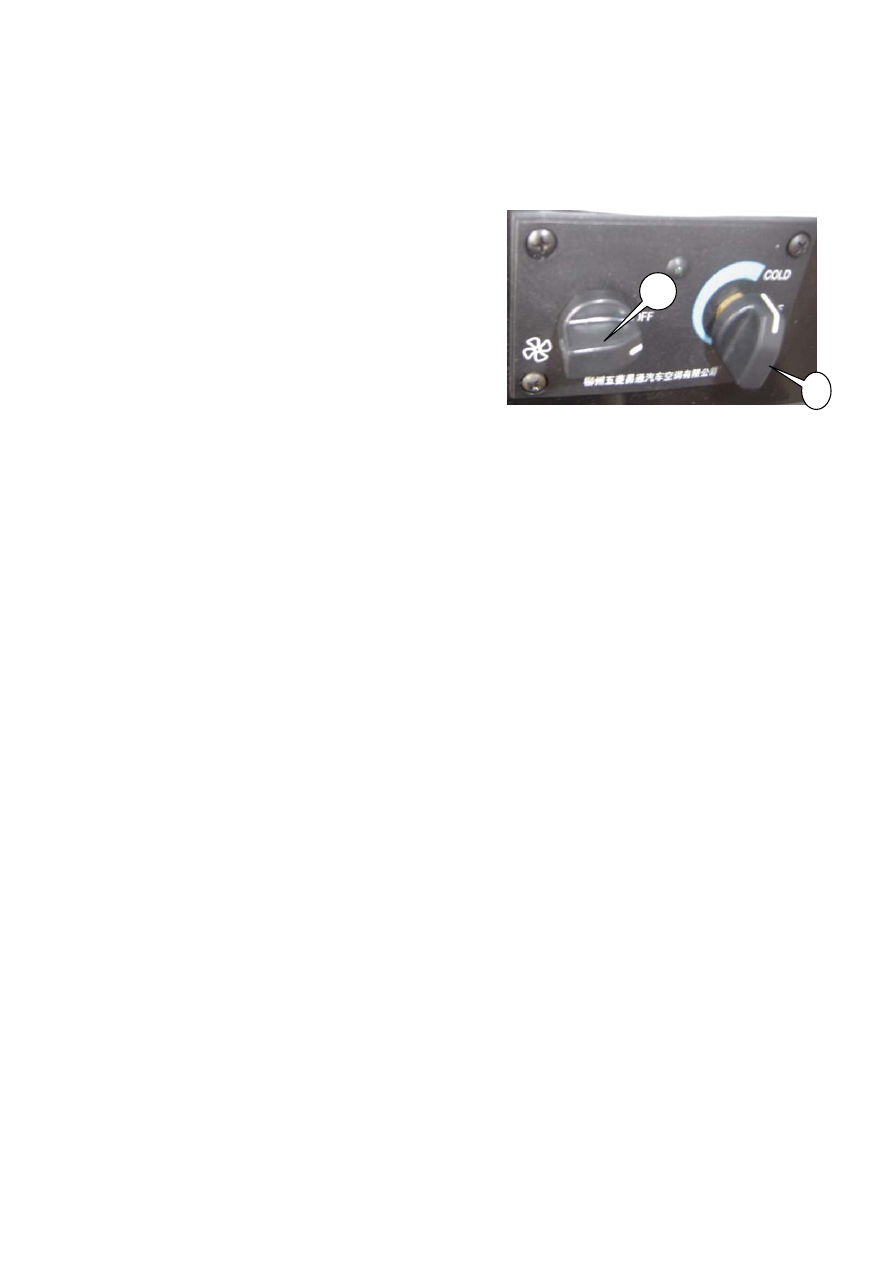

1 Blowing rate switch 2 Temperature control switch

1

2

- 60 -

added depending on the amount of the one discharged. The secondary refrigerant

discharged shall be recovered with the special equipment.

 The air conditioning shall be started for refrigeration one time biweekly during the season

of winter so as to ensure the smooth operation of the system.

Use of air vent and defrosting

function

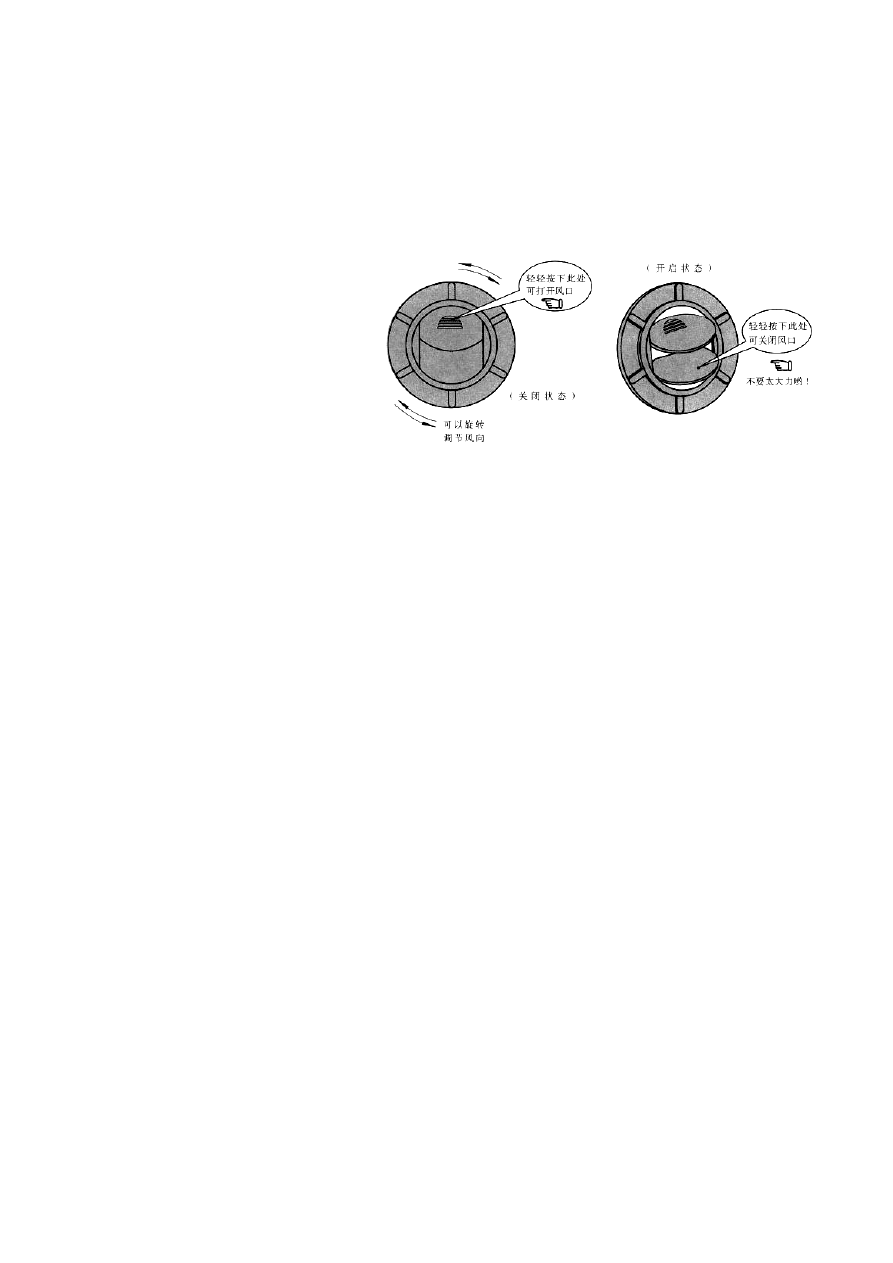

Air vent--If necessary, the air

direction may be changed by

regulating the air guide sheet of the

air vent.

 As the air conditioning is not used, the air vent shall be closed to avoid the access of the

foreign substances.

 As the cold air is used in high temperature seasons, the window and door shall be closed, or

not the refrigeration effect will be weakened.

 As the engine is turned off, the air conditioning device shall not be used, or not the energy

of the accumulator shall be wasted and difficult starting of the loader will be occurred.

 Please examine and maintain the air conditioning regularly for a long service life.

2.4 Accumulator

Two accumulators connected in series are located at the same accumulator box. As the

cross strapping is adopted, the anode cable (+) shall be connected with the accumulator’s joint

(+) connected with the starter coil. The cable cathode (-) of the external power source shall be

connected with the one of the starter. In case the cathode of the starter is not available, the

cable cathode (-) of the external power source shall be connected with the body of the engine.

The accumulator of this loader is free from maintenance, which is located at the left side of

the rear end of the rear frame. For maintenance-free accumulator, the electrolyte may not be

examined and water may not be added. It is safe in use and propitious to environmental

protection.

Examination over charging state

The charging-state indication densimeter is attached on the cap. It may indicate the charging

state:
