CG935G Wheel Loader. Manual - part 12

- 52 -

8.14 Notices on Tire Storage

 As a basic rule, tires shall be stored in a warehouse where any one can not enter into

without permission. If storaging tires outdoors, set up fences around the tires and hang a

label of “No entrance”.

 Since moisture can quicken oxidation of rubber and dirt or oil can corrode tires, the storage

place of tires shall be dry and clean. When storing tires, light, heat and air circulation shall

be avoided and the tires shall be covered by canvas, plastic clothing or other duster.

Incorrect storage practice will adversely affect quality and service lifes of tires.

 The tires shall be placed on level ground vertically and be chocked firmly by wedge blocks

so that unapproved touch will not make them fall down. If they are placed horizontally, the

tires will be pressed flattened and their quality deteriorated. At least once of rotation (of 90°)

shall be made for each tire.



When tires are falling down, get away quickly. Tires of construction machinery are very

heavy, severe injuries may be caused if attempting to hold it.



































- 53 -

IX. Safe Transportation



9.1 Loading and Unloading of Loader

  Danger always exitsts in loading and unloading of

loader, which should be conducted very carefully.

When loading and unloading, loader engine

should be running at a low rpm, and loader should

be traveling at a low speed.

  Loading and unloading must be conducted on firm and level ground with safe distance from roadsides

being properly kept.

  Tires of carrying vehicle must be fixed during loading and unloading of loader to ensure that carrying

vehicle will not move. Cushion blocks should be placed under gangboards.

  Gangboards used must have adequate strength with sufficient width and length to provide a safe slope

for loading and unloading. The angle between gangboards and the ground should not exceed 15º, while

spacing between gangboards should be adapted to wheel track of loader.

  Make sure that gangboards are firmly positioned with the same height on both sides.

  Make sure that gangboard surfaces are clean and free of lubricant, oil stain, ice and loose materials.

Clean loader tires to remove dirt if any.

  Never steer a loader on gangboards. If necessary, reverse the loader to get off gangboards, and then

adjust direction before driving onto gangboards.



After the loader gets onboard, lock its steering mechanism and wedge the tires, then tie down the loader

with ropes.

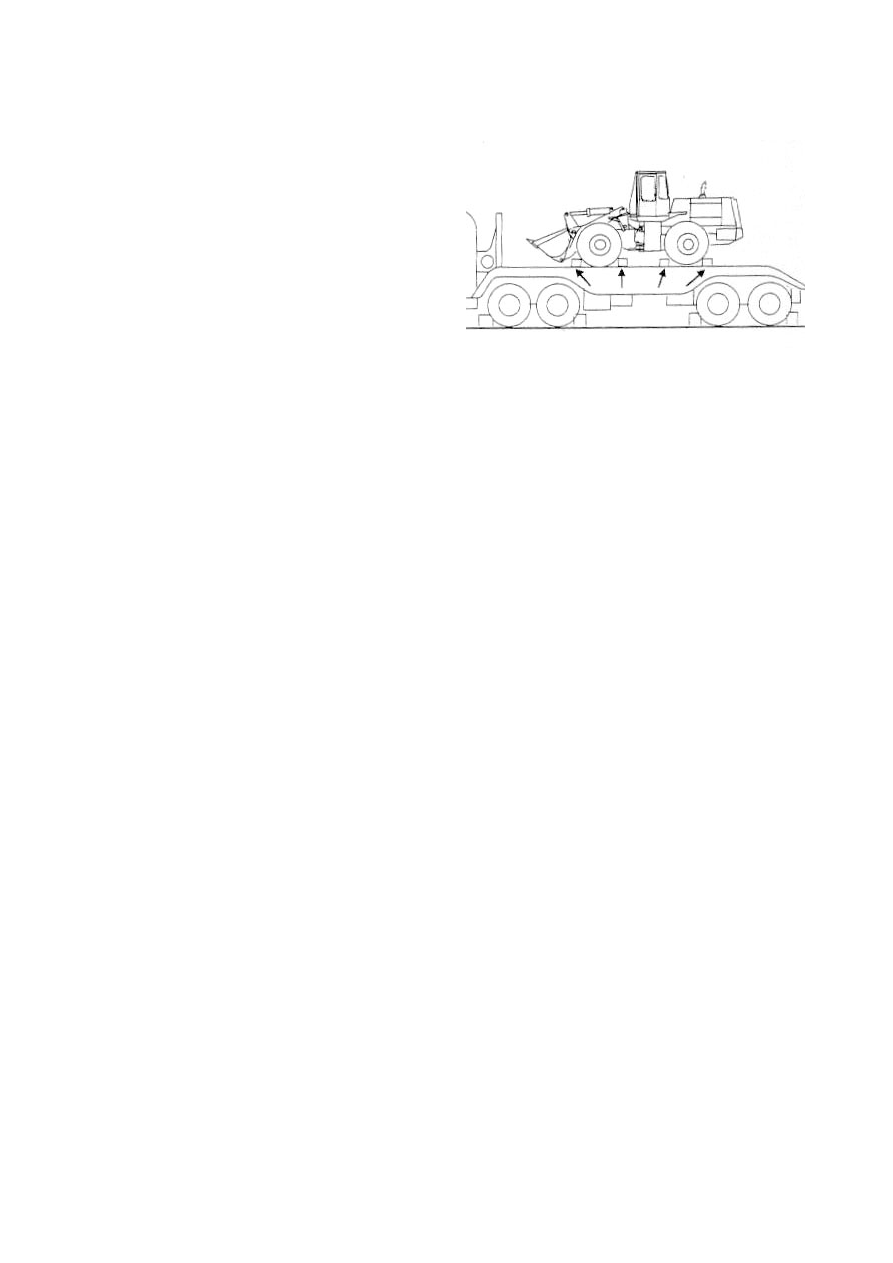

9.2 Road Transportation

  In case the loader is towed by a trailer, provisions in national and local laws on weight, height, width and

length must be observed. All related traffic regulations should be observed as well.



Weight, height, width and length of loader should be taken into consideration when deciding

transportation route.





When passing bridges or constructions on a private premise, first check to see if whether such bridge or

construction has an adequate strength to carry the weight of loader. When running on public roads, all

related provisions must be understood and observed.



- 54 -



When other means of transportation are to be used, the loader may need to be disassembled.

 Please

contact Shandong Foton Heavy-Duty Machinery Co., Ltd. or authorized dealers.

9.3 Lifting

Lifting instruction is only applicable to short-time lifting of loader in short distance during the shipment of

loader. Do not lift the loader for a long time when maintaining or servicing the loader, otherwise accident may

occur to cause personal injury and death.

Correct lifting:

  Make sure that fixing rods on both front and rear frames are set to “Fixed” position to avoid relative

turning of frames when lifting.

  All control levers should be placed in neutral position. No person is allowed to stay in the cab.



Shut down engine and lock all equipment with keys before taking off keys.



  Make sure that there is no obstacles or persons in the range of lifting operation.

  Make sure that wire ropes and hooks have adequate strength. A crane must be used for horizontal lifting

of the loader.

  Firmly connect wire ropes or hooks with ears marked for lifting on front and rear frames.

  Personal entry into areas under the loader or within the range of lifting operation is strictly prohibited.

  When lifting a loader onto a transportation vehicle or vessel, the loader must be properly fixed with wire

ropes with all tires firmly wedged by wood blocks to avoid unexpected movement of loader during

transportation.

  After the lifting is complete, always remember to retract fixing rods before steering the loader.





- 55 -

Product Information



I. General Information on Loader

1.1 Applicability

Loader is applicable to bucketing, stacking and towing operations in mines, roads, water conservancies and

constructions, as well as conveying earth, sands, gravels and other loose materials in stock yard in factories,

railway stations and ports.

1.2 Profile and Major Parameters

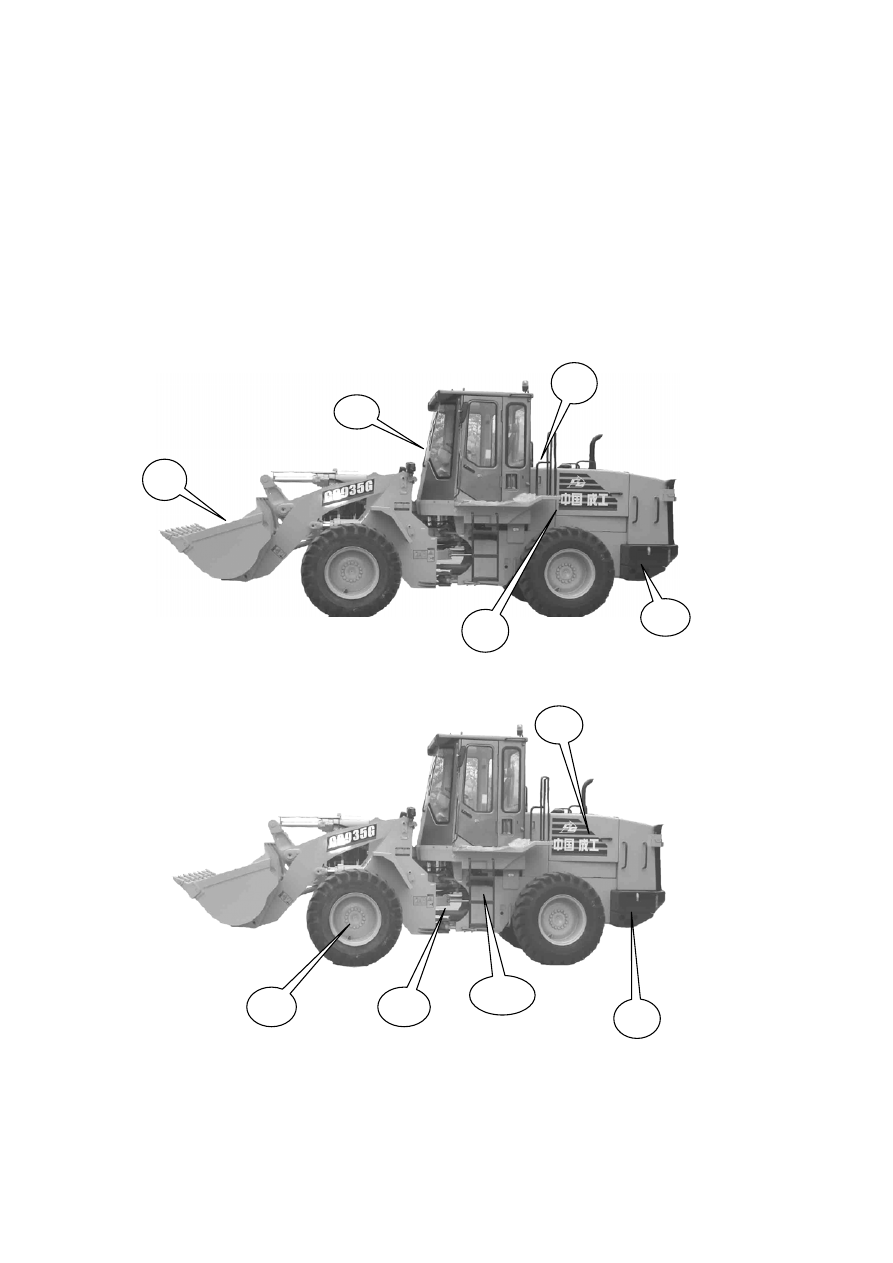

Engine (1), Fuel tank (2), Hydraulic oil tank (3), Working unit (4), Cab (5), Heat radiator (6), Gearbox (7),

Driving axle (8), Batteries (9), Gas tank (10)
