ENGINE OPERATION

46

LV Operation Manual

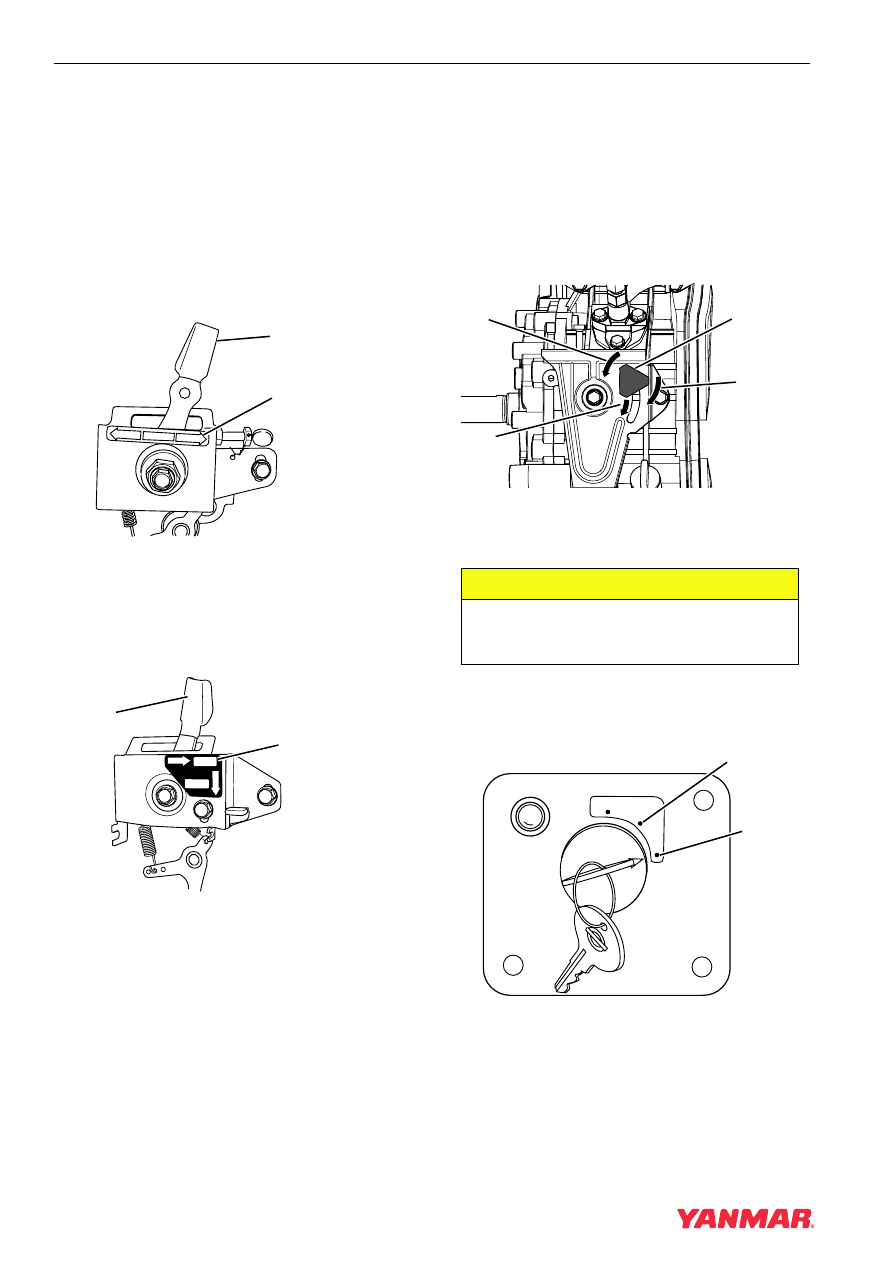

Set Engine Speed Control to START

Several types of engine speed controls
are used in LV engine applications. The
following procedures are for three typical
applications. Refer to the operating
instructions for the driven machine.

1. If your engine speed control is similar to

Figure 10 slide the engine speed control
lever (Figure 10, (1)) to the RUN position
(Figure 10, (2)).

Figure 10

2. If your engine speed control is similar to

Figure 11 slide the engine speed control
lever (Figure 11, (1)) to the RUN position or
(Figure 11, (2)).

Figure 11

3. If your engine speed control is similar to

Figure 12:

(a) Turn the engine speed control knob

(Figure 12, (1)) to the left (Figure 12, (2)).

(b) Slide the engine speed control knob to the

START position (Figure 12, (3)).

(c) Turn the engine speed control knob to the

right (Figure 12, (4)) to tighten it.

Figure 12

Start The Engine

Use the following procedure to start the engine.

1. Insert the key into the key switch.

Figure 13

STOP

SLOW

RUN

(1)

(2)

0001354A

RUN

STOP

(2)

(1)

0001355A

CAUTION

NEVER use an engine starting aid such
as ether. Engine damage will result.

0000009en

(1)

(4)

(3)

(2)

0001356A

OFF

ON

S

TA
R

T

0001549C

(2)

(1)

ENGINE OPERATION

LV Operation Manual

47

2. Turn the key clockwise to the START position

(Figure 13, (1)). Release the key as soon as
the engine starts. It will return to the ON
position (Figure 13, (2)).

3. If the engine fails to start:

(a) Wait until the engine comes to a complete

stop before you attempt to start it again.
Engaging the starter while the engine is
still rotating will result in damage to the
starter motor and flywheel.

(b) Wait at least 30 seconds before you

attempt to start the engine again. This
pause will allow the battery voltage to
recover to prevent damage to the starter
motor due to the low battery voltage.

CHECK THE ENGINE DURING
OPERATION

CAUTION

Make sure the engine is installed on a
level surface. If a continuously running
engine is installed at an angle greater
than 20° (in any direction) or if an engine
runs for short periods of time (less than
3 minutes) at an angle greater than 25°
in any direction, engine oil may enter the
combustion chamber causing exessive
engine speed and generate white
smoke. This may cause serious engine
damage.

0000010enTNE

CAUTION

New Engine Break In:

• On the initial engine start-up, allow the

engine to idle for approximately 15
minutes while you check for proper
engine oil pressure, diesel fuel leaks,
engine oil leaks, coolant leaks, and for
proper operation of the indicators
and / or gauges.

• During the first hour of operation, vary

the engine speed and the load on the
engine. Short periods of maximum
engine speed and load are desirable.
Avoid prolonged operation at
minimum or maximum engine speeds
and loads for the next 4 to 5 hours.

• During the break-in period, carefully

observe the engine oil pressure and
engine temperature.

• During the break-in period, check the

engine oil and coolant levels
frequently.

0000011en

ENGINE OPERATION

48

LV Operation Manual

1. After the engine has reached operating

temperature, all of the indicators (if equipped)
should be Off. If any of the indicators are On,
shut down the engine and have the necessary
repairs performed.

2. Check for any fuel or engine oil leaks. If any

leaks are found shut down the engine and
have the necessary repairs performed.

3. Check for abnormal sounds or vibration. In

some applications the engine and its
mounting may start to resonate and cause
unusual vibrations at certain engine speeds.
Avoid running the engine at these speeds. If
the abnormal sounds or vibration cannot be
resolved, shut down the engine and have the
necessary repairs performed.

4. Check for white or black smoke from the

exhaust system. A small amount of white
exhaust smoke is normal on start-up of a cold
engine. Black exhaust smoke could mean the
engine is overloaded or being over-fueled. If
either of these conditions persists, contact
your authorized Yanmar industrial engine
dealer or distributor.

5. Check the fuel level during operation. If the

fuel level runs low, stop the engine and refuel.

A

 WARNING

HIGH PRESSURE HAZARD!

• Avoid skin contact with the high

pressure diesel fuel spray caused by a
fuel system leak such as a broken fuel
injection line. High pressure fuel can
penetrate your skin and result in
serious injury. If you are exposed to
high pressure fuel spray, obtain
prompt medical treatment.

• NEVER check for a fuel leak with your

hands. ALWAYS use a piece of wood
or cardboard. Have your authorized
Yanmar industrial engine dealer or
distributor repair the damage.

• Failure to comply could result in death

or serious injury.

0000008en

ENGINE OPERATION

LV Operation Manual

49

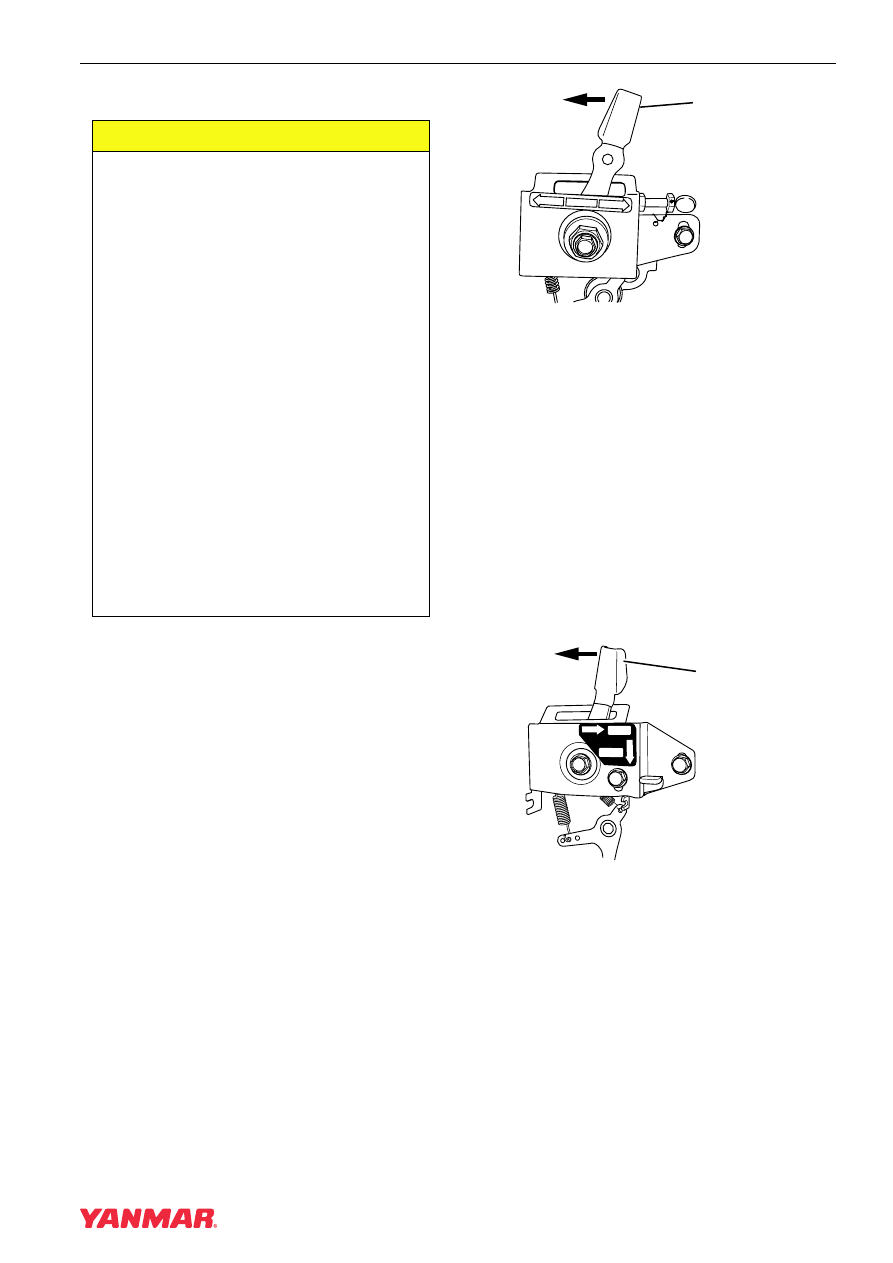

ADJUST ENGINE SPEED

Use the engine speed control to adjust the engine
speed for the task that will be performed.

Several types of engine speed controls are used
in LV engine applications. The following
procedures are for three typical applications.
Refer to the operating instructions for the driven
machine.

1. If your engine speed control is similar to

Figure 14 slide the engine speed control
lever (Figure 14, (1)) in the direction shown to
adjust the engine speed.

Note: This is a friction adjustment. If the

speed control will not maintain a given
speed, tightening the nut will increase
the friction on the speed control lever.

Figure 14

2. If your engine speed control is similar to

Figure 15 slide the engine speed control
lever (Figure 15, (1)) in the direction shown to
adjust the engine speed.

Note: This type of speed control, typically

used on a generator set, has only one
speed setting. When you move the
lever to the right, it clicks into the RUN
position. The speed control lever is
spring-loaded so when you push down
on the STOP button, the speed control
lever moves back to the shut-off
position. There is no idle position or
intermediate speeds.

Figure 15

CAUTION

New Engine Break In:

• On the initial engine start-up, allow the

engine to idle for approximately 15
minutes while you check for proper
engine oil pressure, diesel fuel leaks,
engine oil leaks, coolant leaks, and for
proper operation of the indicators
and / or gauges.

• During the first hour of operation, vary

the engine speed and the load on the
engine. Short periods of maximum
engine speed and load are desirable.
Avoid prolonged operation at
minimum or maximum engine speeds
and loads for the next 4 to 5 hours.

• During the break-in period, carefully

observe the engine oil pressure and
engine temperature.

• During the break-in period, check the

engine oil and coolant levels
frequently.

0000011en

STOP

SLOW

RUN

0001354B

(1)

RUN

STOP

(1)

0001355B
