ENGINE OPERATION

50

LV Operation Manual

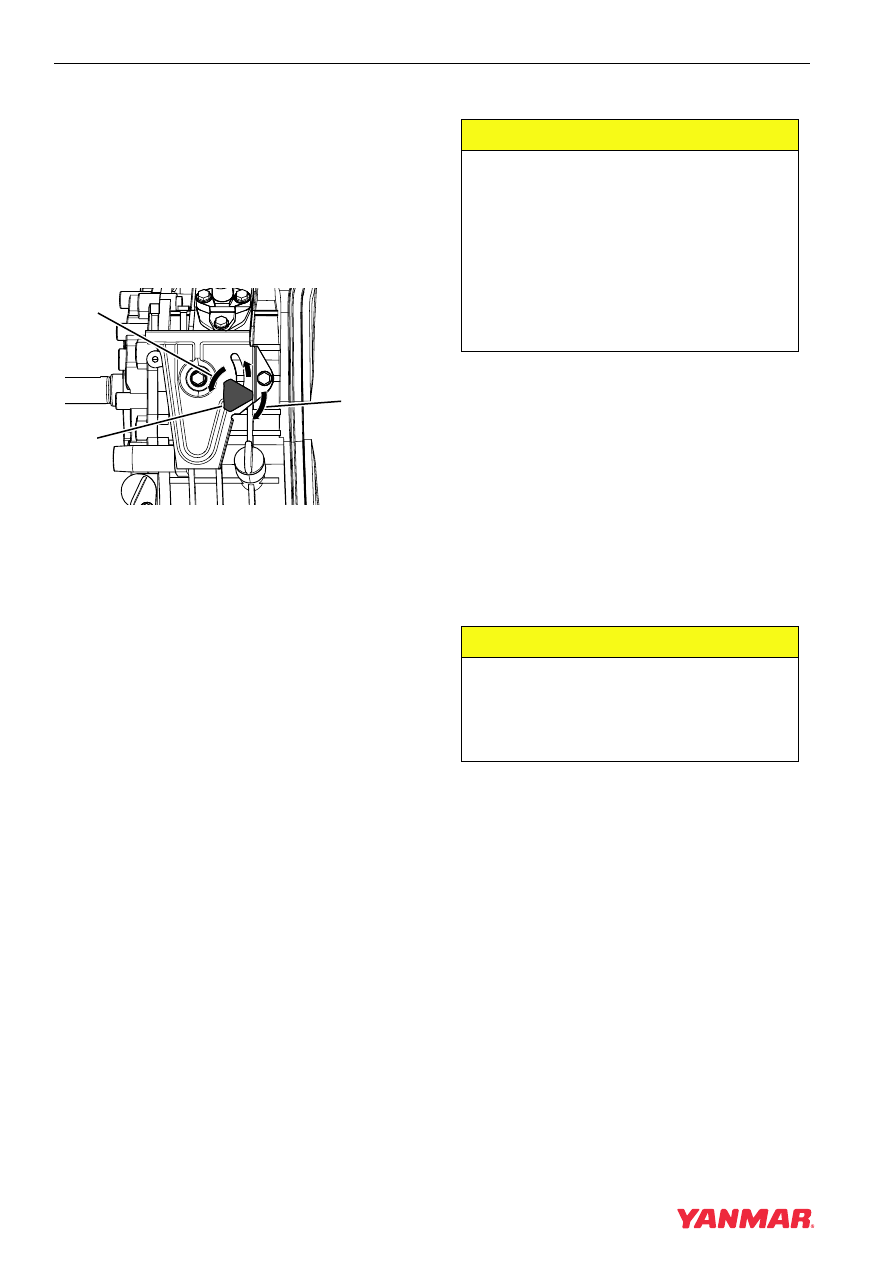

3. If your engine speed control is similar to

Figure 16:

(a) Turn the engine speed control knob

(Figure 16, (1)) to the left (Figure 16, (2)).

(b) Slide the engine speed control knob in the

direction shown to adjust the engine
speed.

(c) Turn the engine speed control knob to the

right (Figure 16, (3)) to tighten it.

Figure 16

SHUTTING DOWN THE ENGINE

Preparing To Stop Engine

Follow these steps to shut down the engine:

1. Disengage the PTO.

2. Set the engine speed control to its lowest

setting.

3. Run the engine at low idle speed or run

without load for at least five minutes before
you shut it down.

Set Engine Speed Control to STOP

Several types of engine speed controls are
used in LV engine applications. The following
procedures are for three typical applications.
Refer to the operating instructions for the
driven machine.

1. If your engine speed control is similar to

Figure 17 slide the engine speed control
lever (Figure 17, (1)) to the STOP position
(Figure 17, (2)).

(1)

(3)

(2)

0001363C

CAUTION

For maximum engine life, Yanmar



recommends that when shutting the
engine down, you allow the engine to
idle, without load, for 5 minutes. This
will allow the engine components that
operate at high temperatures, such as
the turbocharger (if equipped) and
exhaust system, to cool slightly before
the engine itself is shut down.

0000008en

CAUTION

If the engine continues to run after you
position the engine speed control to the
STOP position, turn the fuel cock to the
CLOSED position.

0000069en

ENGINE OPERATION

LV Operation Manual

51

Figure 17

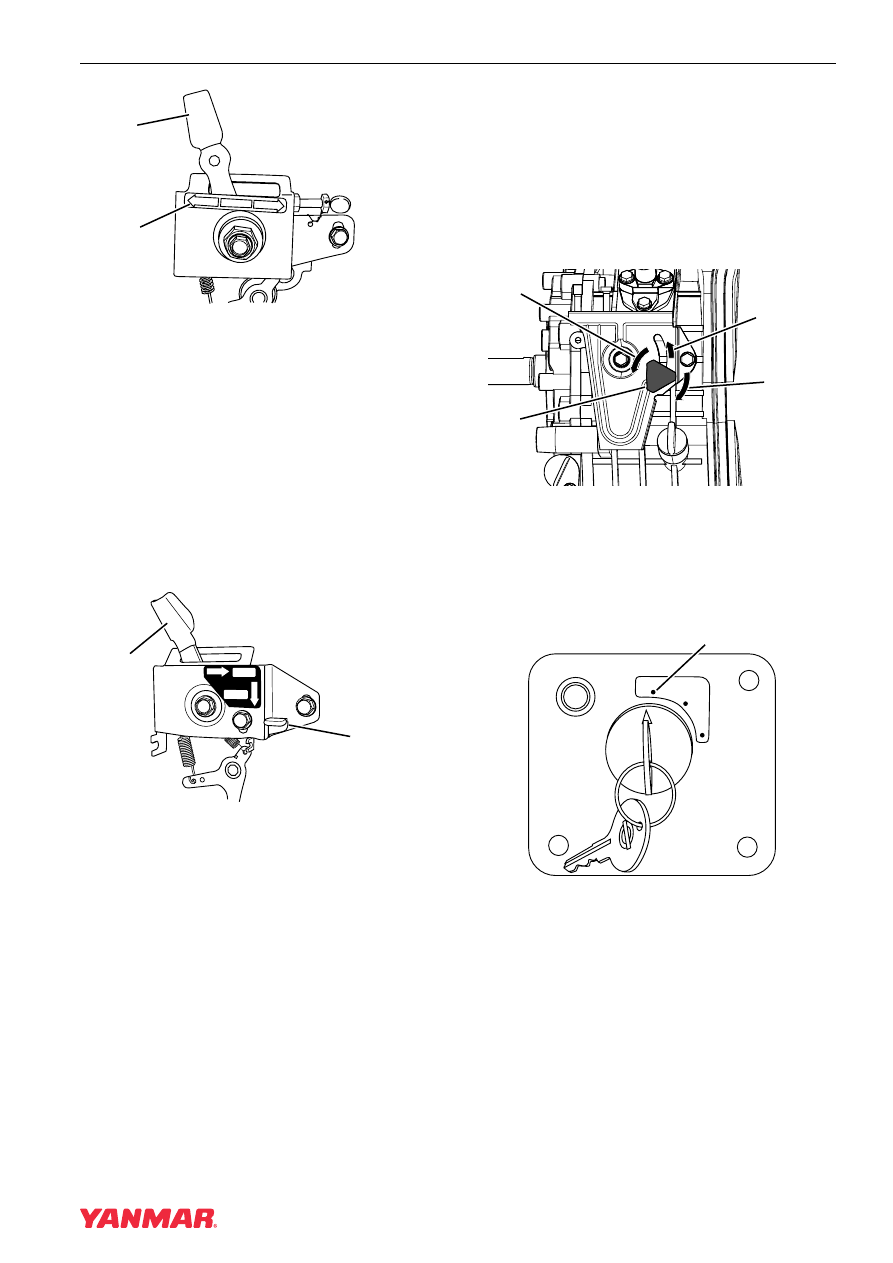

2. If your engine speed control is similar to

Figure 18 press the STOP button
(Figure 18, (1)) and the engine speed control
lever (Figure 18, (2)) will automatically return
to the STOP position.

Note: The speed control lever is spring-

loaded so when you push down on the
STOP button, the speed control lever
moves back to the shut-off position.
There is no idle position or
intermediate speeds.

Figure 18

3. If your engine speed control is similar to

Figure 19:

(a) Turn the engine speed control knob

(Figure 19, (1)) to the left (Figure 19, (2)).

(b) Slide the engine speed control knob to the

STOP position (Figure 19, (3)).

(c) Turn the engine speed control knob to the

right (Figure 19, (4)) to tighten it.

Figure 19

Electric Start Models

Turn the key to the OFF position (Figure 20, (1))
and remove it from the key switch.

Figure 20

STOP

SLOW

RUN

(1)

(2)

0001361A

RUN

STOP

(1)

(2)

0001362A

(1)

(4)

(3)

(2)

0001363A

OFF

ON

S

TA
R

T

(1)

0001549D

ENGINE OPERATION

52

LV Operation Manual

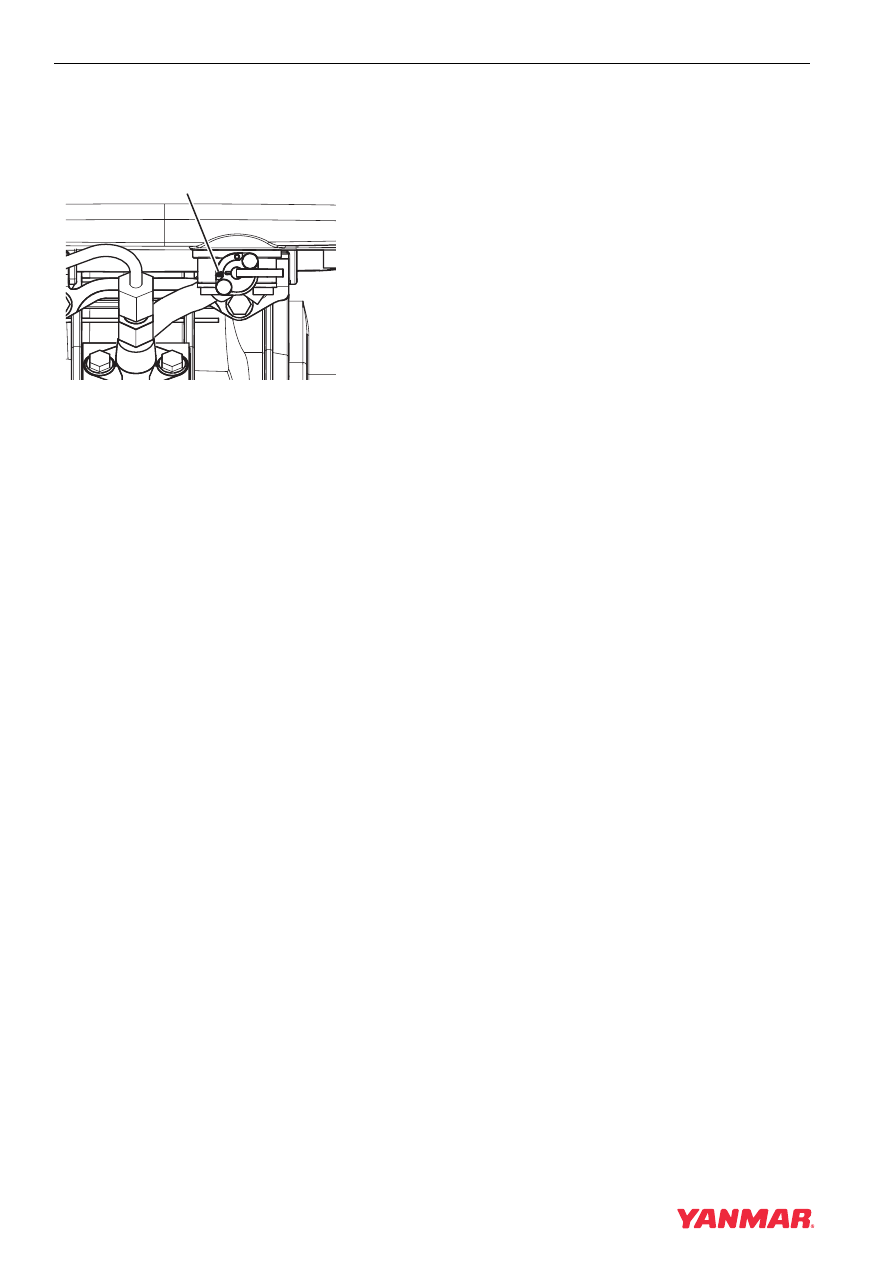

After The Engine Stops

1. Move the fuel cock lever to the closed position

(Figure 21, (1)).

Figure 21

2. Slowly pull the recoil starter handle out to the

point of resistance (the point in the
compression stroke where the intake and
exhaust valves are closed). This helps to
prevent rust while the engine is not in use.

3. If the engine will not be used for six months or

longer, follow the additional instructions in
Long Term Storage on page 89.

0001124B

(1)

LV Operation Manual

53

PERIODIC

MAINTENANCE

LV Operation Manual

This section of the Operation Manual describes
the procedures for proper care and maintenance
of the engine.

CAUTION

NEVER permit anyone to operate the
engine or driven machine without proper
training.

• Read and understand this Operation

Manual before you operate the
machine to ensure that you follow safe
operating practices and maintenance
procedures.

• Machine safety signs and labels are

additional reminders for safe operating
and maintenance techniques.

• See your authorized Yanmar industrial

engine dealer or distributor for
additional training.

0000002en

A

 DANGER

EXPLOSION HAZARD!

• NEVER check the remaining battery

charge by shorting out the terminals.
This will result in a spark and may
cause an explosion or fire. Use a
hydrometer to check the remaining
battery charge.

• If the electrolyte is frozen, slowly warm

the battery before you recharge it.

• Failure to comply will result in death or

serious injury.

0000007en
