ENGINE OPERATION

42

LV Operation Manual

CAUTION

Observe the following environmental
operating conditions to maintain engine
performance and avoid premature
engine wear:

• Avoid operating in extremely dusty

conditions.

• Avoid operating in the presence of

chemical gases or fumes.

• Avoid operating in a corrosive

atmosphere such as salt water spray.

• NEVER install the engine in a

floodplain unless proper precautions
are taken to avoid being subject to a
flood.

• NEVER expose the engine to the rain.

0000003en

CAUTION

Observe the following environmental
operating conditions to maintain engine
performance and avoid premature
engine wear:

• NEVER run the engine if the ambient

temperature is above +104°F (+40°C)
or below +14°F (-10°C)

◆

If the ambient temperature exceeds
+104°F (+40°C) the engine may
overheat and cause the engine oil to
break down.

◆

If the ambient temperature falls
below +14°F (-10°C) rubber
components such as gaskets and
seals will harden causing premature
engine wear and damage.

◆

Contact your authorized Yanmar
industrial engine dealer or
distributor if the engine will be
operated in either temperature
extreme.

• Contact your authorized Yanmar

industrial engine dealer or distributor
if you need to operate the engine at
high altitudes. At high altitudes the
engine will lose power, run rough, and
produce exhaust gases that exceed
the design specifications.

0000065enLV

CAUTION

NEVER engage the starter motor while
the engine is running. This may damage
the starter motor pinion and / or ring
gear.

0000012en

ENGINE OPERATION

LV Operation Manual

43

STARTING THE ENGINE

Recoil Start

Use the following procedure to start the engine.

Daily Checks

1. Make sure you follow the procedures stated in

Daily Checks on page 34.

2. Make sure the fuel cock is in the ON position

(Figure 1, (1)).

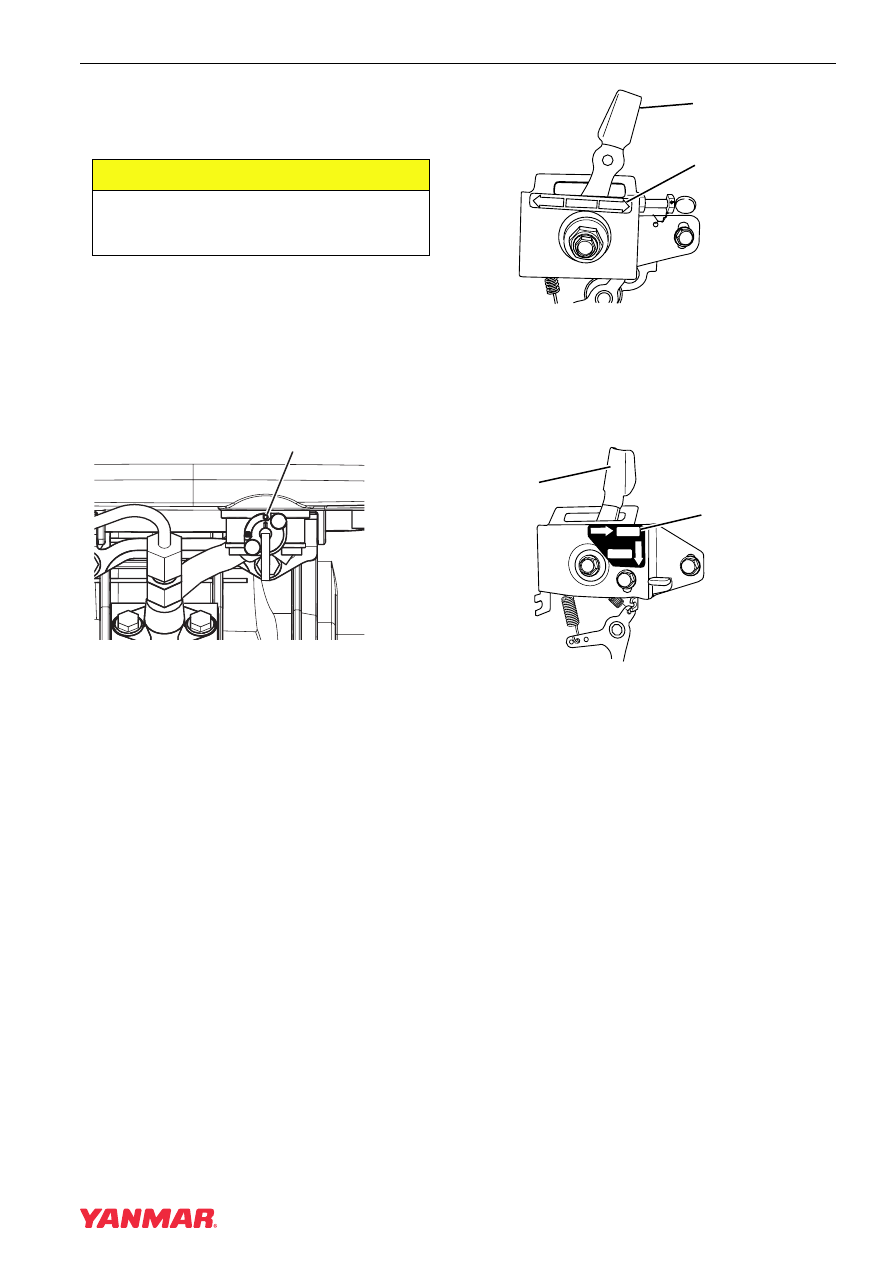

Figure 1

Set Engine Speed Control to START

Several types of engine speed controls are
used in LV engine applications. The following
procedures are for three typical applications.
Refer to the operating instructions for the
driven machine.

1. If your engine speed control is similar to

Figure 2 slide the engine speed control lever
(Figure 2, (1)) to the RUN position
(Figure 2, (2)).

Figure 2

2. If your engine speed control is similar to

Figure 3 slide the engine speed control lever
(Figure 3, (1)) to the RUN position
(Figure 3, (2)).

Figure 3

3. If your engine speed control is similar to

Figure 4:

(a) Turn the engine speed control knob

(Figure 4, (1)) to the left (Figure 4, (2)).

(b) Slide the engine speed control knob to the

START position (Figure 4, (3)).

(c) Turn the engine speed control knob to the

right (Figure 4, (4)) to tighten it.

CAUTION

NEVER use an engine starting aid such
as ether. Engine damage will result.

0000009en

0001124A

(1)

STOP

SLOW

RUN

(1)

(2)

0001354A

RUN

STOP

(2)

(1)

0001355A

ENGINE OPERATION

44

LV Operation Manual

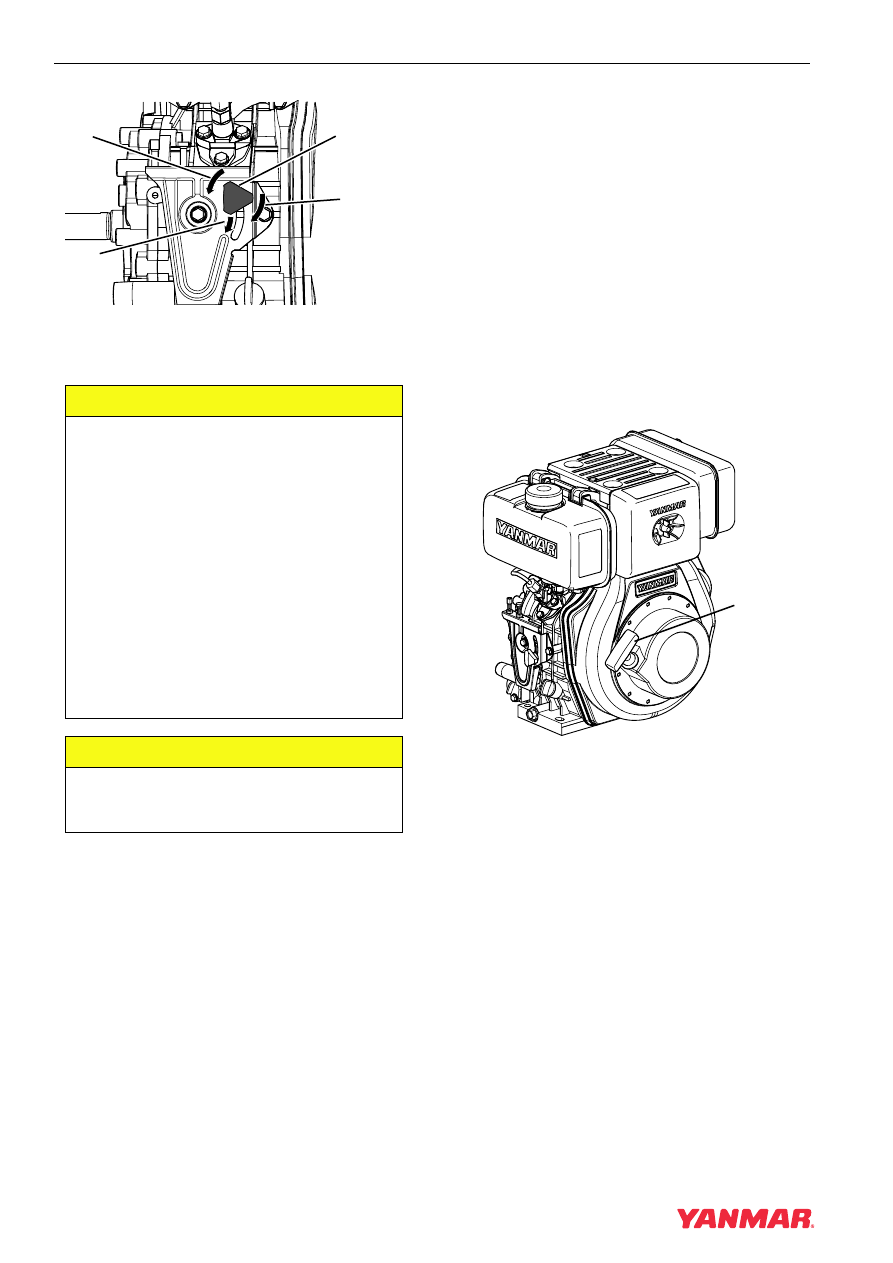

Figure 4

Start The Engine

1. Grasp the recoil starter handle (Figure, (1)).

2. Pull the handle out slowly until you feel strong

resistance.

3. Slowly return the recoil starter handle to the

initial position.

4. Push the decompression lever (Figure 8, (1))

down and release it. The decompression
lever will automatically return to the original
position when the engine starts. Some LV
model engines have an automatic, internal
compression release mechanism and do not
have the external compression release lever.
Refer to the specific instructions for your
driven machine.

5. Grasp the recoil starter handle (Figure, (1)).

6. Pull the handle all the way out with a strong

and even motion. Use two hands if necessary.

7. Slowly return the recoil starter handle to the

initial position.

8. If the engine does not start, repeat the Start

The Engine procedure from Step 1.

Figure 5

CAUTION

Tips while starting engine with recoil
starter (See Start The Engine on
page 46.):

• Pulling out the recoil starter handle

too hard or fast will damage the
equipment.

• ALWAYS pull recoil starter handle all

the way out or the engine will not start.

• NEVER allow the recoil starter handle

to snap back against the engine.
Return the handle to the starting
position gently to prevent damage to
the recoil starter.

0000068enLVOM

CAUTION

NEVER use an engine starting aid such
as ether. Engine damage will result.

0000009en

(1)

(4)

(3)

(2)

0001356A

(1)

0001126B

ENGINE OPERATION

LV Operation Manual

45

In Cold Weather - L48V Only

If you have trouble pulling the recoil handle on an
L48V engine in cold weather follow this
procedure:

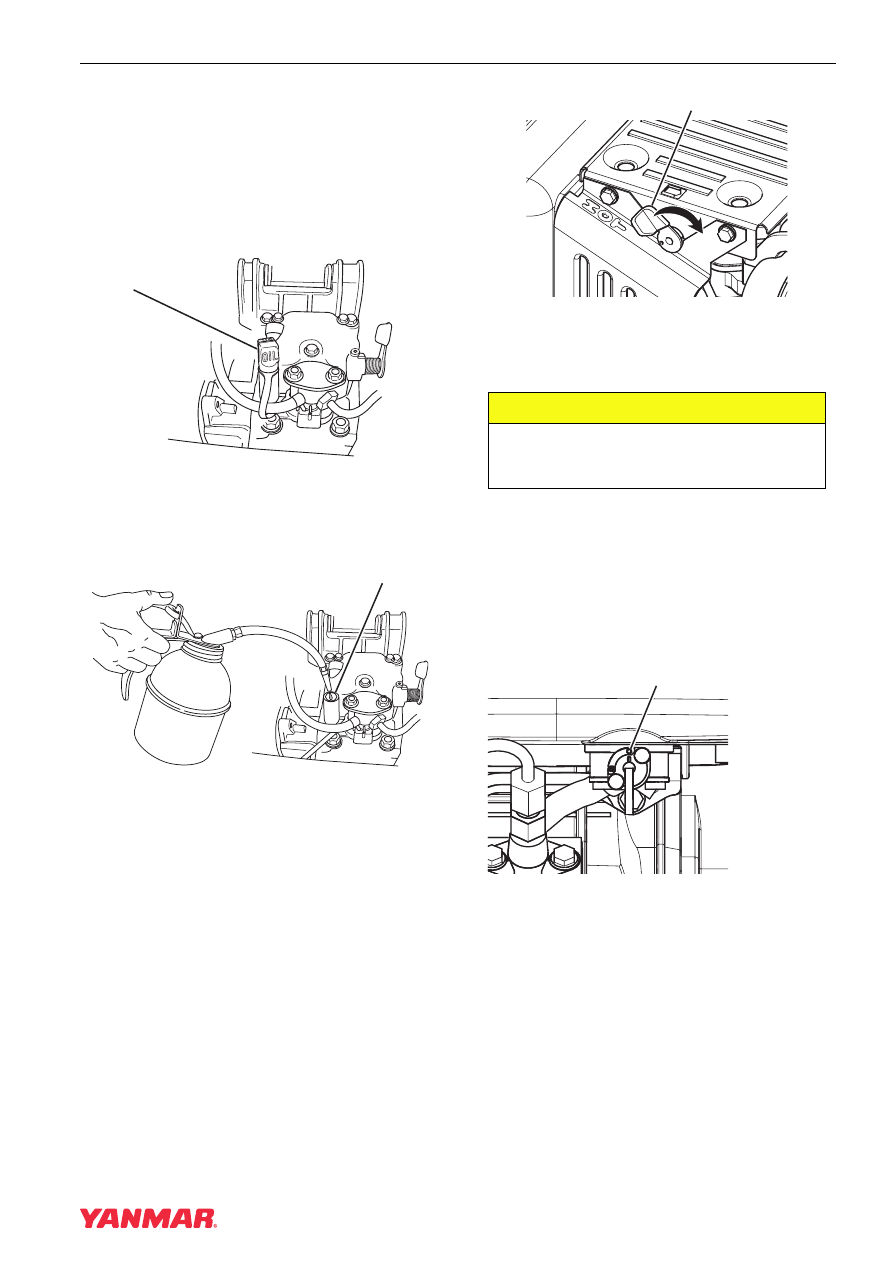

1. Remove the oil plug (Figure 6, (1)).

2. Add 2 cc of engine oil to the oil port

(Figure 7, (1)).

Figure 6

3. Reinsert the oil plug (Figure 6, (1)).

Figure 7

Figure 8

Electric Start

Use the following procedure to start the engine.

Daily Checks

1. Make sure you follow the procedures stated in

Daily Checks on page 34.

2. Make sure the fuel cock is in the ON position

(Figure 9, (1)).

Figure 9

(1)

0001581

(1)

0001580

CAUTION

NEVER use an engine starting aid such
as ether. Engine damage will result.

0000009en

0001347A

(1)

0001124A

(1)
