Perkins 402D, 403D, 404D Industrial Engine. Manual - part 19





SEBU8311-01

75

Maintenance Section

Fuel Injector - Test/Change

Ensure that the engine can not be started while

this maintenance is being performed. To help pre-

vent possible injury, do not use the starting motor

to turn the flywheel.

Hot engine components can cause burns. Allow

additional time for the engine to cool before mea-

suring/adjusting valve lash clearance.

Ensure that the engine is stopped before measuring

the valve lash. The engine valve lash can be

inspected and adjusted when the temperature of the

engine is hot or cold.

Refer to Systems Operation, Testing and Adjusting,

“Engine Valve Lash - Inspect/Adjust” for more

information.

i02154268

Fuel Injector - Test/Change



Fuel leaked or spilled onto hot surfaces or electri-

cal components can cause a fire.

Make sure that you wear eye protection at all

times during testing. When fuel injection nozzles

are tested, test fluids travel through the orifices

of the nozzle tip with high pressure. Under this

amount of pressure, the test fluid can pierce the

skin and cause serious injury to the operator.

Always keep the tip of the fuel injection nozzle

pointed away from the operator and into the fuel

collector and extension.

NOTICE

Do not allow dirt to enter the fuel system. Thoroughly

clean the area around a fuel system component that

will be disconnected. Fit a suitable cover over discon-

nected fuel system component.

Regular maintenance of the fuel injectors is

recommended by Perkins. The fuel injectors must

be removed and tested by an authorized agent. The

fuel injectors should not be cleaned as cleaning with

incorrect tools can damage the nozzle. The fuel

injectors should be renewed only if a fault with the

fuel injectors occurs. Some of the problems that may

indicate that new fuel injectors are needed are listed

below:

The engine will not start or the engine is difficult

to start.

Not enough power

The engine misfires or the engine runs erratically.

High fuel consumption

Black exhaust smoke

The engine knocks or there is vibration in the

engine.

Excessive engine temperature

For further information on the removal and the

installation of the fuel injectors, refer to the

Disassembly and Assembly manual.

For further information on the testing of fuel injectors,

refer to the Testing and Adjusting manual.

Identification of a suspect Fuel
Injector

Work carefully around an engine that is running.

Engine parts that are hot, or parts that are moving,

can cause personal injury.

NOTICE

If your skin comes into contact with high pressure fuel,

obtain medical assistence immediately.

NOTICE

If a fuel injector is suspected of operating outside of

normal parameters it should be removed by a qualified

technician. The suspect fuel injector should be taken

to an authorised agent for inspection.

76

SEBU8311-01

Maintenance Section

Fuel System - Prime

Operate the engine at a fast idle speed in order to

identify the faulty fuel injector. Individually loosen

and tighten the union nut for the high pressure pipe

to each fuel injector. Do not loosen the union nut

more than half a turn. There will be little effect on the

engine speed when the union nut to the faulty fuel

injector is loosened.

Consult your authorized Perkins dealer or your

Perkins distributor for further assistance.

i02596360

Fuel System - Prime



NOTICE

Care must be taken to ensure that fluids are contained

during performance of inspection, maintenance, test-

ing, adjusting, and repair of the product. Be prepared

to collect the fluid with suitable containers before

opening any compartment or disassembling any com-

ponent containing fluids.

Dispose of all fluids according to local regulations and

mandates.

Use the following procedure in order to prime the fuel

system:

If air enters the fuel system, the air must be purged

from the fuel system before the engine can be

started. Air can enter the fuel system when the

following events occur:

The fuel tank is empty or the fuel tank has been

partially drained.

The low pressure fuel lines are disconnected.

A leak exists in the low pressure fuel system.

The fuel filter is replaced.

NOTICE

Care must be taken to ensure that fluids are contained

during performance of inspection, maintenance, test-

ing, adjusting, and repair of the product. Be prepared

to collect the fluid with suitable containers before

opening any compartment or disassembling any com-

ponent containing fluids.

Dispose of all fluids according to local regulations and

mandates.

Primary filter

Ensure that the air is removed from the primary filter

before you prime the fuel filters. Refer to illustration

48.

g01316878

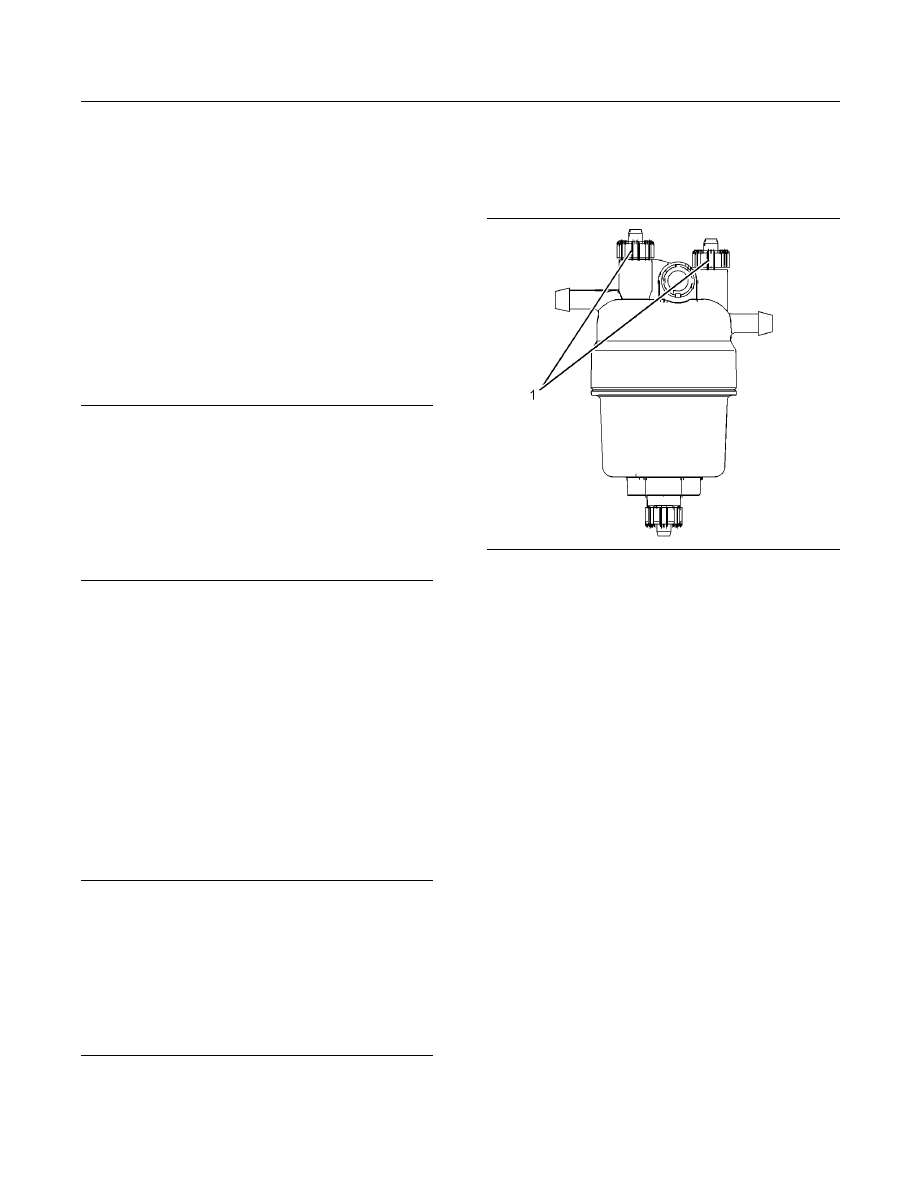

Illustration 48
This filter may not be installed on the engine.

(1) Vent screws

Fuel filters

There are three types of fuel filter that may be

installed on the engine.

Element

Canister

Spin-on filter with fuel priming pump

SEBU8311-01

77

Maintenance Section

Fuel System - Prime

g01327360

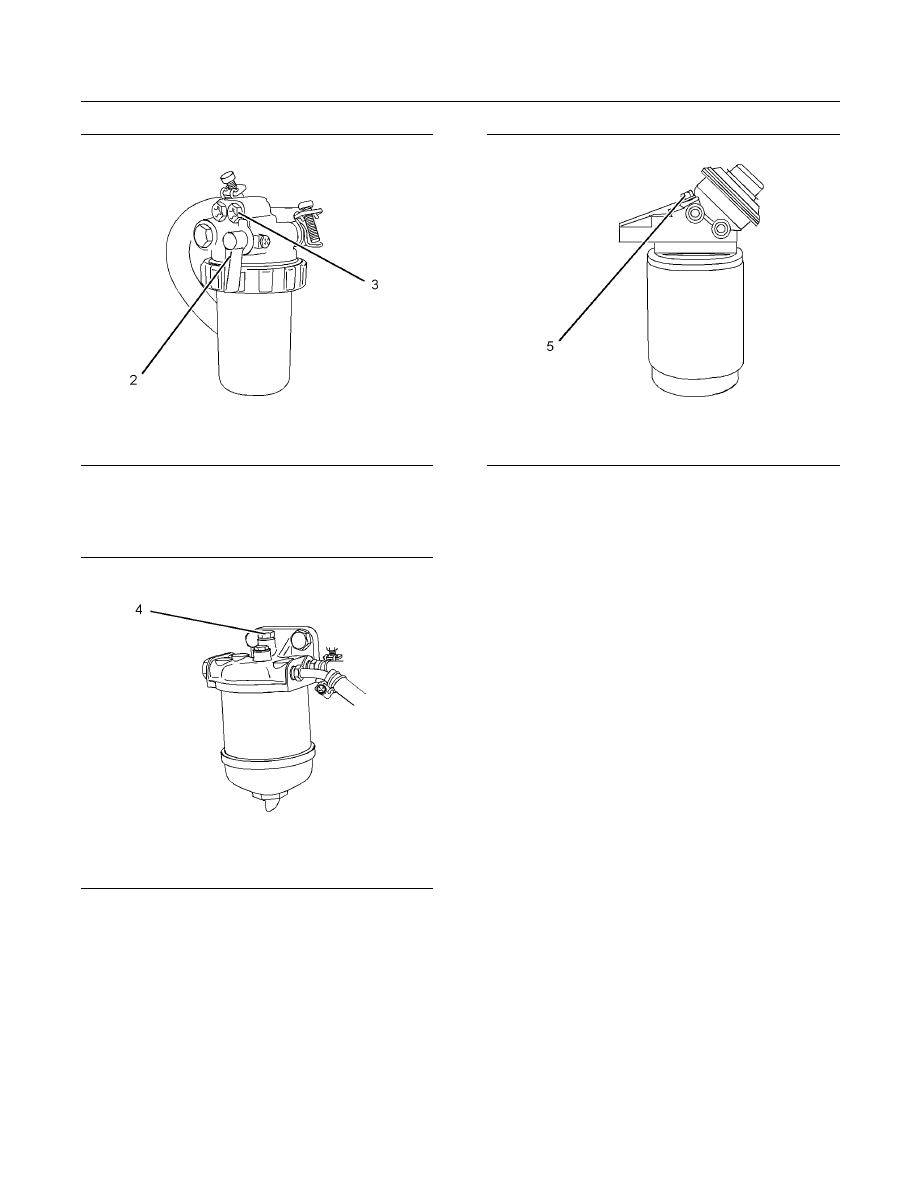

Illustration 49
Element

(2) Fuel valve
(3) Vent screw

g01327361

Illustration 50
Canister

(4) Vent screw

g01327363

Illustration 51
Spin-on filter with fuel priming pump

(5) Vent screw

Vent screw (3) is installed on the filter that has an

element. Vent screw (4) is installed on the fuel filter

that has a canister. Vent screw (5) is installed on the

spin-on filter.

Priming the system

Ensure that the air is removed from the primary filter.

Loosen vent screws (1). Refer to illustration 48.

Operate the priming pump. When fuel free from air

flows from the vent screw tighten the vent screw.

Note: Some fuel system will use gravity in order to

prime the primary fuel filter. If gravity is used ensure

that the fuel tank is full and that all stop valves in the

fuel line are open.

There is four different types of systems that can be

installed on the engine in order to prime the fuel

system. Refer to illustration 52.

Hand priming pump

In-line hand priming pump

Electrical priming pump

Transfer pump that is operated by the starting

motor

78

SEBU8311-01

Maintenance Section

Fuel System - Prime

g01301853

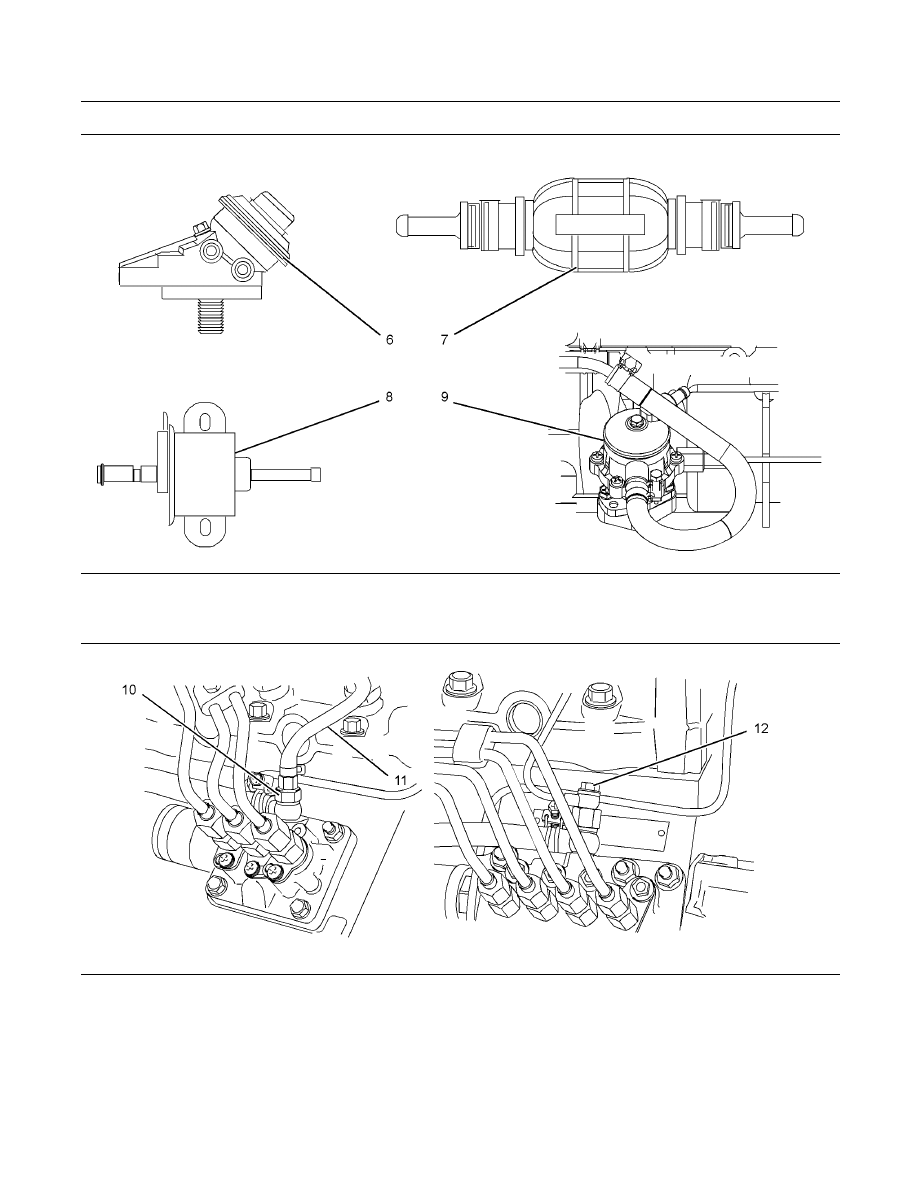

Illustration 52

(6) Hand priming pump
(7) In-line priming pump

(8) Electrical priming pump
(9) Fuel transfer pump

g01304597

Illustration 53
(10) Connector bolt

(11) Fuel return line

(12) Connector bolt

Hand Priming Pump 6

In order to identify the hand priming pump, refer to

illustration 52.

1. Ensure that fuel valve (2) for the fuel filter that

has an element is in the ON position. Refer to

illustration 49.

2. Loosen vent screw (3 4 or 5) on the fuel filter.
