Diesel engines D-260.1S3А, D-260.2S3А, D-260.4S3А. Manual - part 39

Annex “

Б” (reference)

Spare Parts & Accessories Kit

Table

Б.1 – Spare parts to diesel engines D-260.1S3A, D-260.2S3A, D-260.4 S3A

Part designation

Product code

Spare part description

Location in
the package

Application

Quantity in a
product, pcs

Quantity in a
set, pcs

Notes

50-1404059-

Б1 47 5341 8601

Cap gasket

260-1028010

50 5000 2832

Belt SPA-1182

Alternator mount-
ing

50 5000 2969

Belt SPA-1307

After pump mount-
ing

Table

Б.2 –Tools and accessories

Tool/ accessory designation

Product code

Tool/ accessory description

Quantity in a set, pcs

Notes

50-3901034

47 5341 2815

Plate

0,25х100

Location –

ТК-10А

60-3901034

47 5341 3054

Plate

0,45х100

Annex “

В” (reference)

Cylinder liner and piston size groups
Table

В.1

Group labelling

Liner diameter, mm

Piston skirt diameter, mm

110

−

110

−

110

+0,02

110

−

One engine set contains pistons, connecting rods and piston pins of the same weight
group, the weight difference of the connection rods-pistons groups must not exceed 30 g.

Nominal crankshaft main end and big end necks sizes
Table

В.2

Bearing shells nominals

Crankshaft neck diameter, mm

main end

big end

1Н

85,25

085

104

−

73,00

100

119

−

2Н

85,00

085

104

−

72,75

100

119

−

The crankshaft main end and big end necks and bearing shells are made in two nominal
sizes.

Crankshafts, the main end and big end necks of which are made of the second nominal
size, have additional marking on the first cheek:

«2

К» - second nominal main end necks;

«2

Ш» - second nominal big end necks,

«2

КШ» - second nominal main and big end necks.

Annex “

Г” (reference)

Diesel engine adjustment parameters
Table

Г.1

Description

Measurement

unit

Values

Oil pressure in a hot engine oiling system at the
engine crankshaft rated speed.

MPa

0,28-0,45

Cooling system temperature in the cooling system.

80-95

Drive belts deflection

See item 3.2.18

Gap between the rocker striker and the valve stem
end for the valves in a cold engine:

intake;

0,25

−

exhaust:

0,45

−

Main threaded connections torque:

cylinder head bolts

190-210

main end bearings bolts

220-240

big end bearings bolt nuts

100-120

flywheel bolts

160-180

counter balance bolts

120-140

injector bolts

20-25*

crankshaft pulley bolts

160-200

Centrifugal oil filetr cap nuts

35-50

air cleaner wing-nuts

8-10

damper bolts

80-100

injector staples and strap bolts

20-25

injectors drainage pipeline connector bolts

15-20

low pressure pipeline turn-elbow bolts

25-40

high pressure nuts on the side of:
- injectors
- rail

20-30
40-70

Annex “

Д” (reference)

Synchronization of the crankshaft and the HPFIP camshaft angle position
The necessity of synchronization of the crankshaft (torsional vibration damper with pulse
rim) and the HPFIP camshaft (fuel priming pump drive gear with pulse rim) angle posi-
tion may arise as a result of the HPFIP dismantling with its subsequent putting back in
place after current diesel engine repair.
Installation of a silicon damper with a pulse rim and a fuel priming pump drive gear with
a pulse rim maintains synchronization of the crankshaft and the HPFIP camshaft speed
sensors signals with linking the sensors signals to the common initial point of the shafts
positioning at the moment of the 1

cylinder piston coming through its TDC at the com-

pression stroke.
To install the pulse wheels correctly, it is necessary to make a device for fixing the fuel
priming pump drive gear with pulse rim as shown on Fig.1)

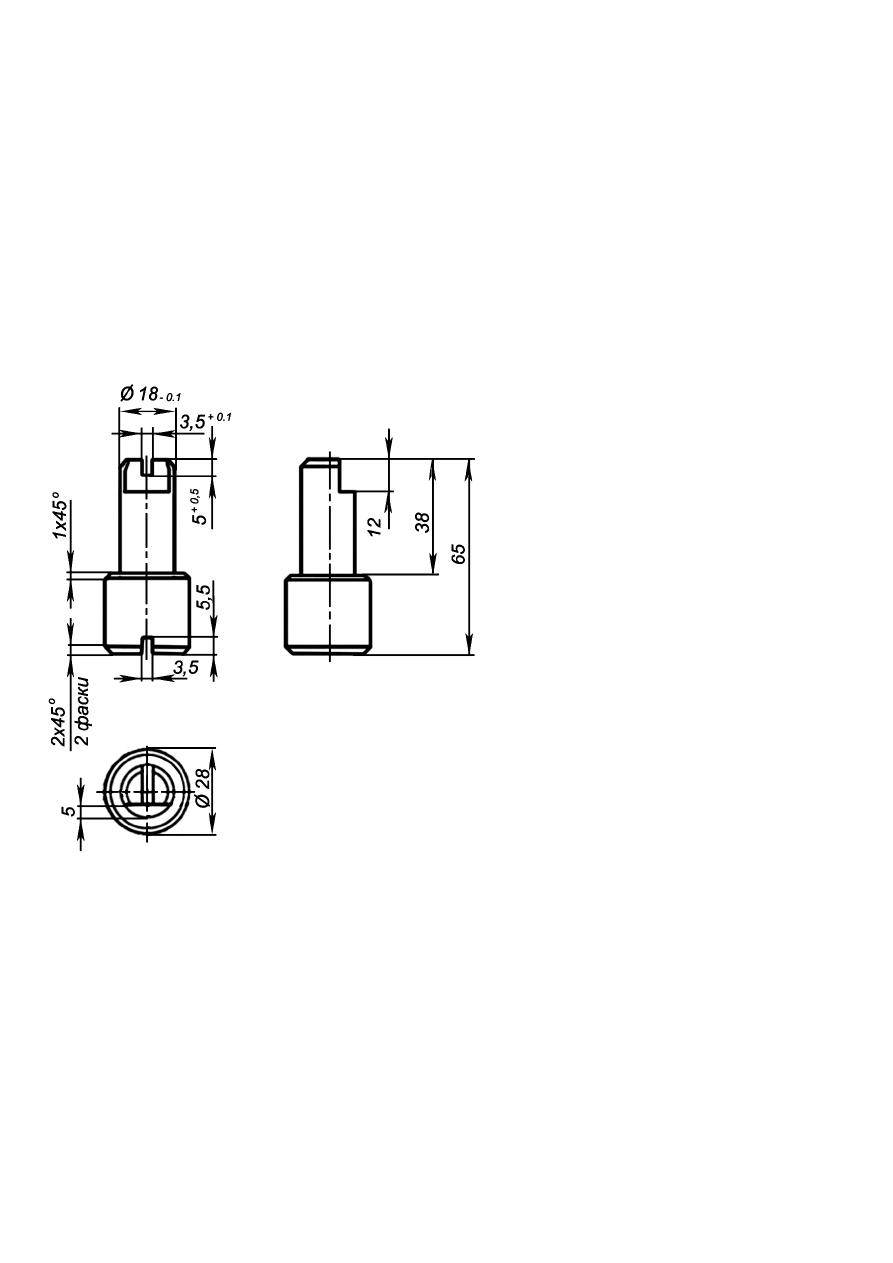

Fig. 1 – Device for fixing the fuel priming pump drive gear pulse rim
Remove the cylinder cover cap.
Place the 1

cylinder piston to the TDC position turning the crankshaft clockwise, using

the crankshaft pulley mounting bolt, till the axis of the 16

tooth of the pulse rim “crown”,

located on the torsional vibration damper housing, coincides (counting against the clock
from the pulse rim “crown” breaking segment) with the axis of sensor 2 (Fig.2).
At that, mounting 3 must be coincided with the “TDC” mark on the damper housing.
Make sure the 1

cylinder intake and exhaust valves are closed (there must be a small in-

take and exhaust valves rockers backlash). If the exhaust valve is open, rotate the crank-
shaft by a full turn and check the valves condition once again.
