ELECTRICAL SYSTEM 17-3

This page intentionally left blank.

17-4 ELECTRICAL SYSTEM

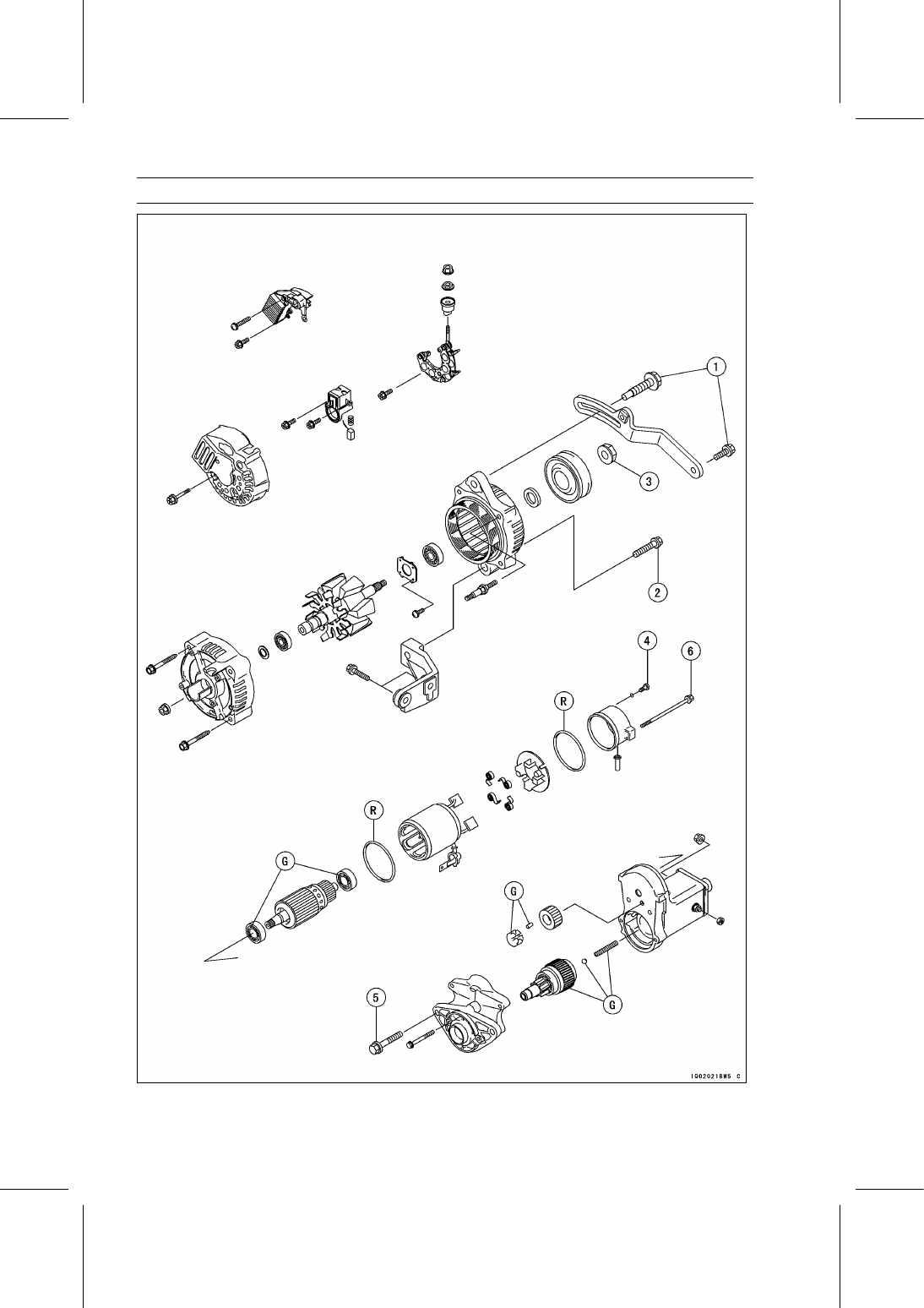

Exploded View

ELECTRICAL SYSTEM 17-5

Exploded View

Torque

No.

Fastener

N·m

kgf·m

ft·lb

Remarks

1

Alternator Adjusting Bracket Bolts

20

2.0

15

2

Alternator Mounting Bolt

39

4.0

29

3

Alternator Pulley Locknut

11

1.1

97 in·lb

4

Starter Motor End Cover Screws

1.5

0.15

13 in·lb

5

Starter Motor Mounting Bolts

39

4.0

29

6

Starter Motor Through Bolts

9.3

0.95

82 in·lb

G: Apply grease.

R: Replacement Parts
