7-12 ENGINE LUBRICATION SYSTEM
Oil Pressure Measurement
Oil Pressure Measurement
•
Remove the oil pressure switch (see Oil Pressure Switch
Removal).
•

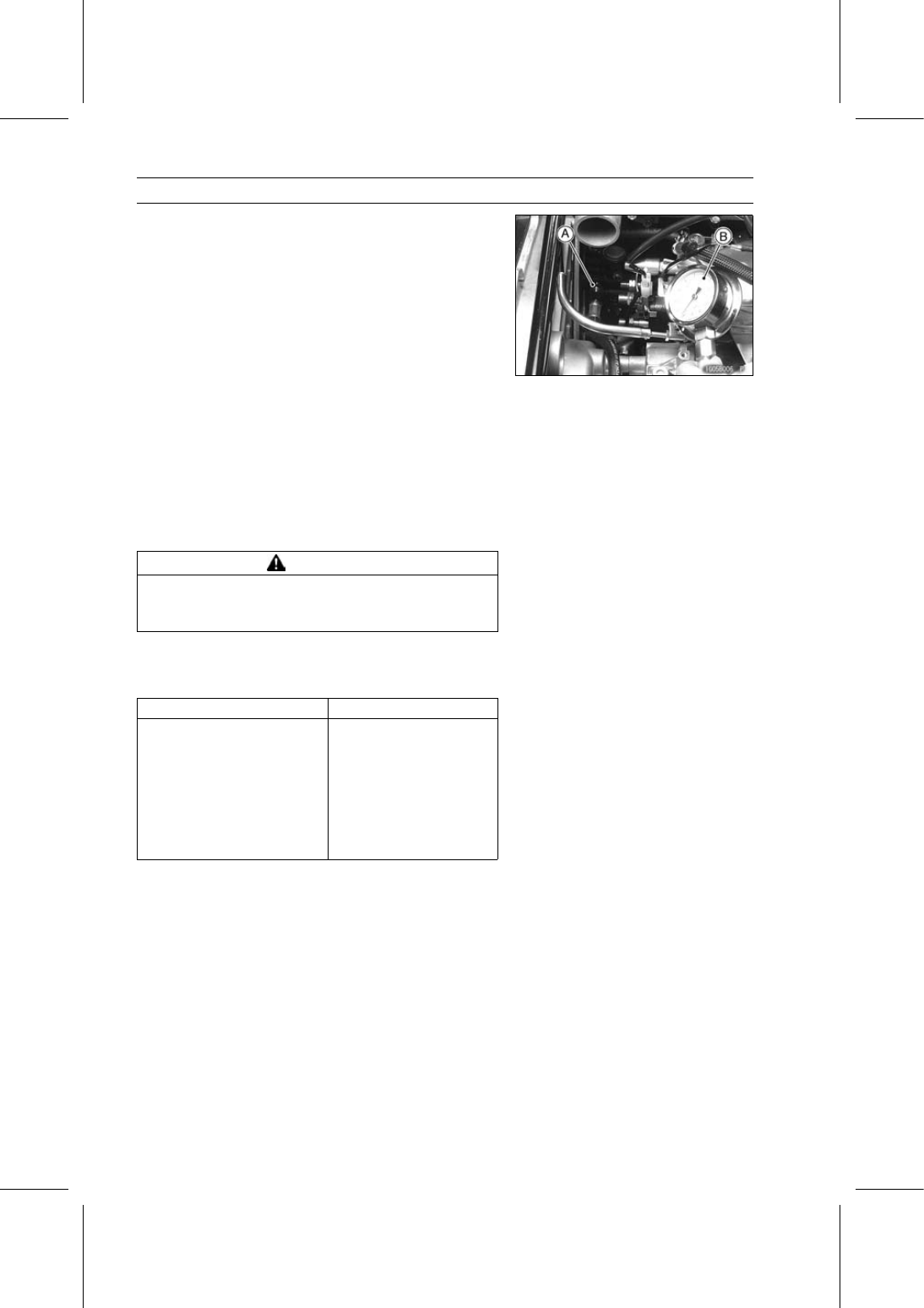

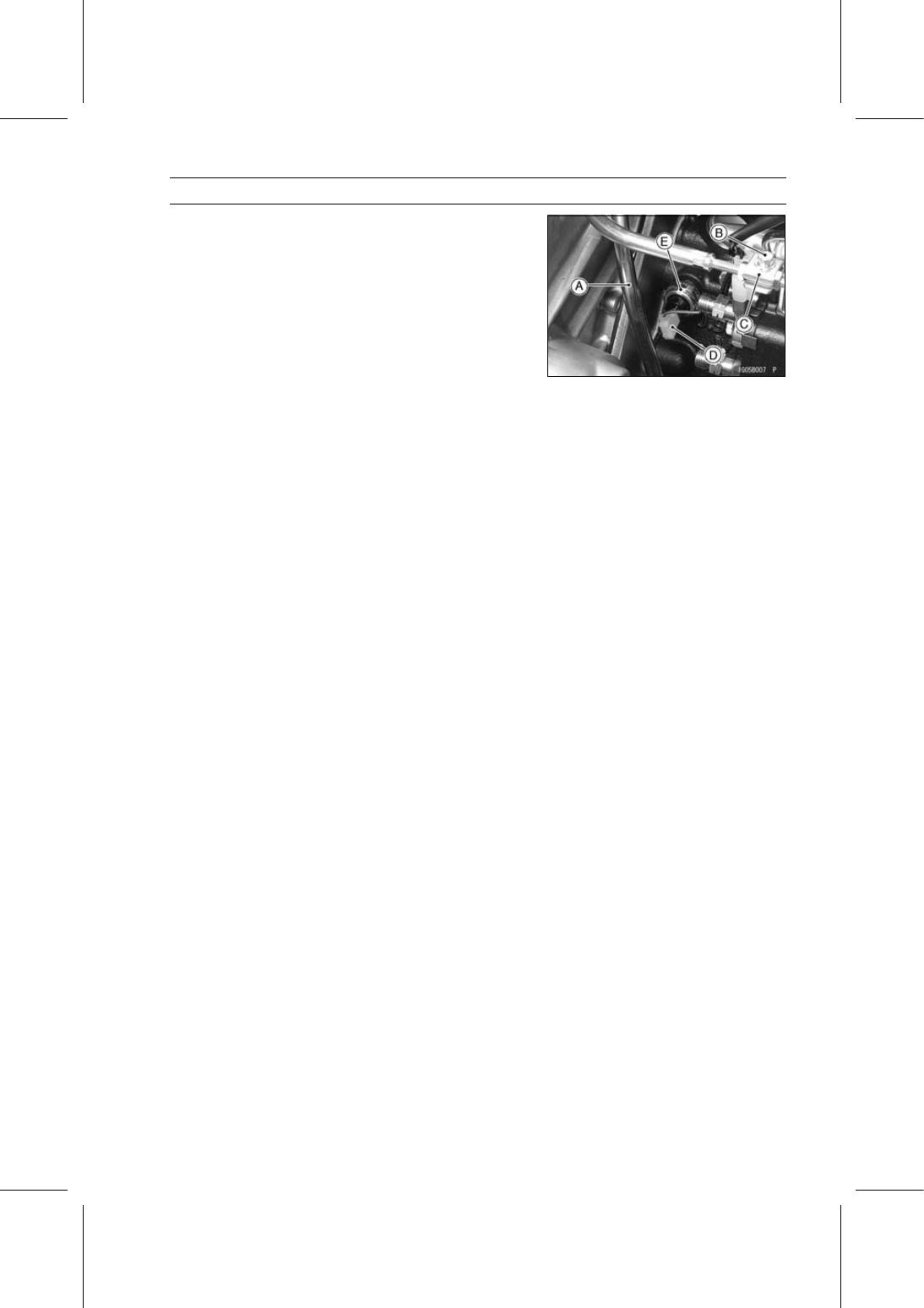

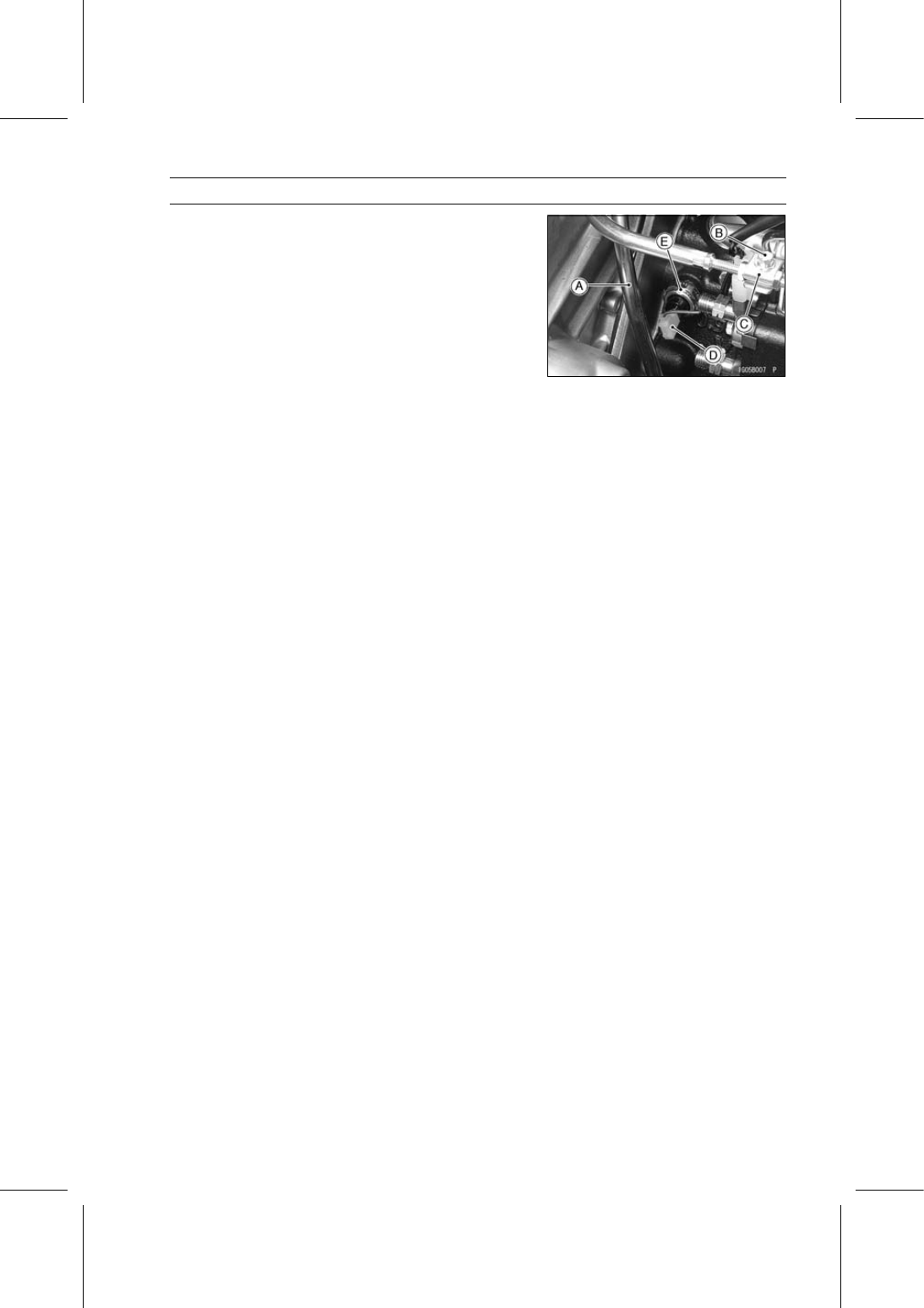

Attach the adapter [A] and gauge [B] to the hole.
Special Tools - Oil Pressure Gauge,10kgf/cm²: 57001-164
Oil Pressure Gauge Adapter, PT 1/8: 57001
-1033
•
Install the removed parts (see appropriate chapters).
•
Start the engine and warm up the engine.
•
Run the engine at the specified speed, and read the oil
pressure gauge.
Oil Pressure
Standard:
196
∼ 490 kPa (2.0 ∼ 5.0 kgf/cm², 28
∼ 71 psi) at 3 000 r/min (rpm), oil
temperature 55
∼ 65°C (131 ∼ 149°F)
•
Stop the engine.
•
Remove the oil pressure gauge and adapter.
WARNING
Hot oil can cause severe burns. Beware of hot en-
gine oil that will drain through the oil passage when
the gauge adapter is removed.
•
Install the oil pressure switch (see Oil Pressure Switch
Installation).
Troubleshooting Guide
Low Oil Pressure
High Oil Pressure
Engine RPM too low
Wrong viscosity oil
Wrong viscosity or diluted oil
Plugged oil galleries
Low oil level
Broken relief valve spring
Missing relief valve plunger
Worn bearings
Damaged or defective oil pump
