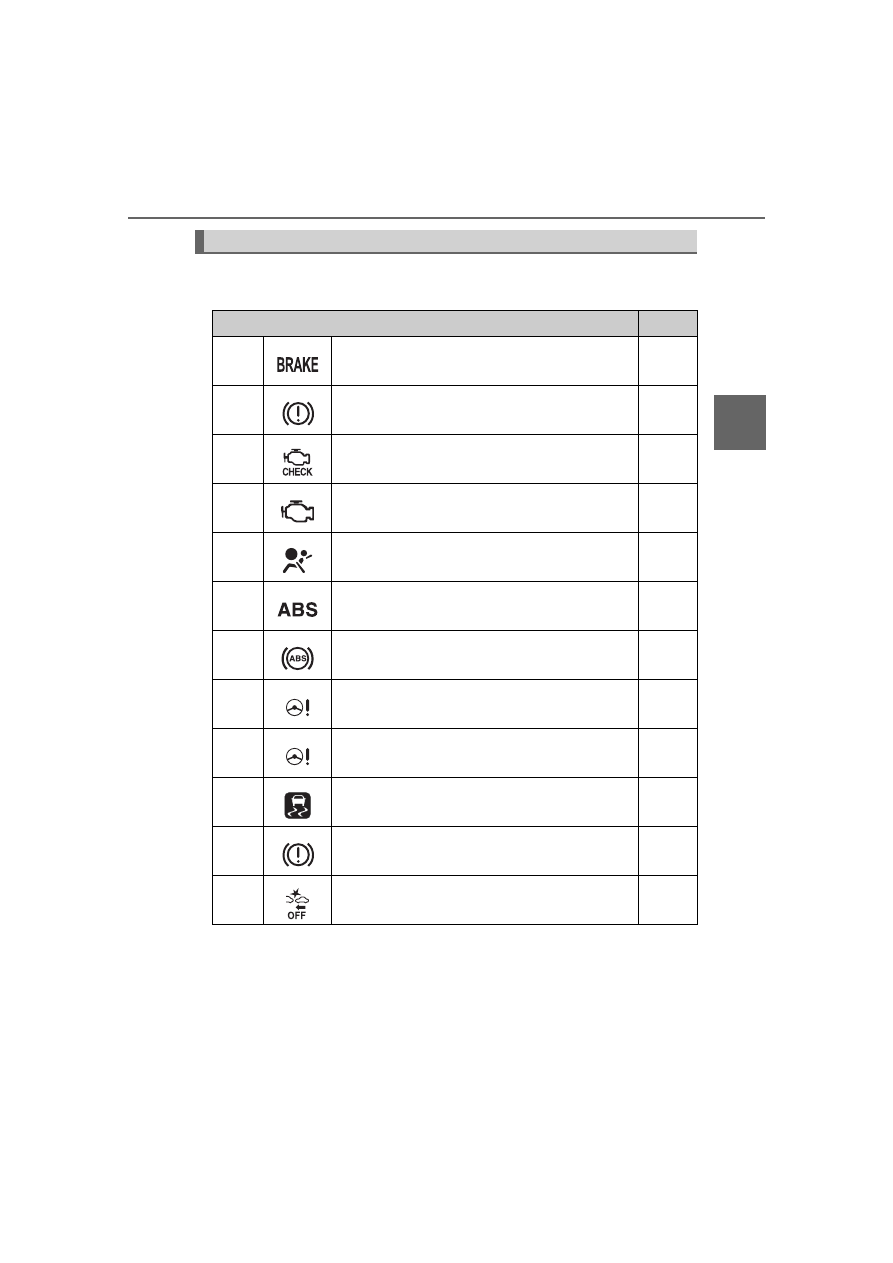

(vehicles without a smart key system) or IGNITION ON mode (vehicles
with a smart key system) to indicate that a system check is being per-
formed. They will turn off after the engine is started, or after a few seconds.
There may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by your Toyota dealer.

: The light comes on to indicate a malfunction.

: The light flashes to indicate a malfunction.

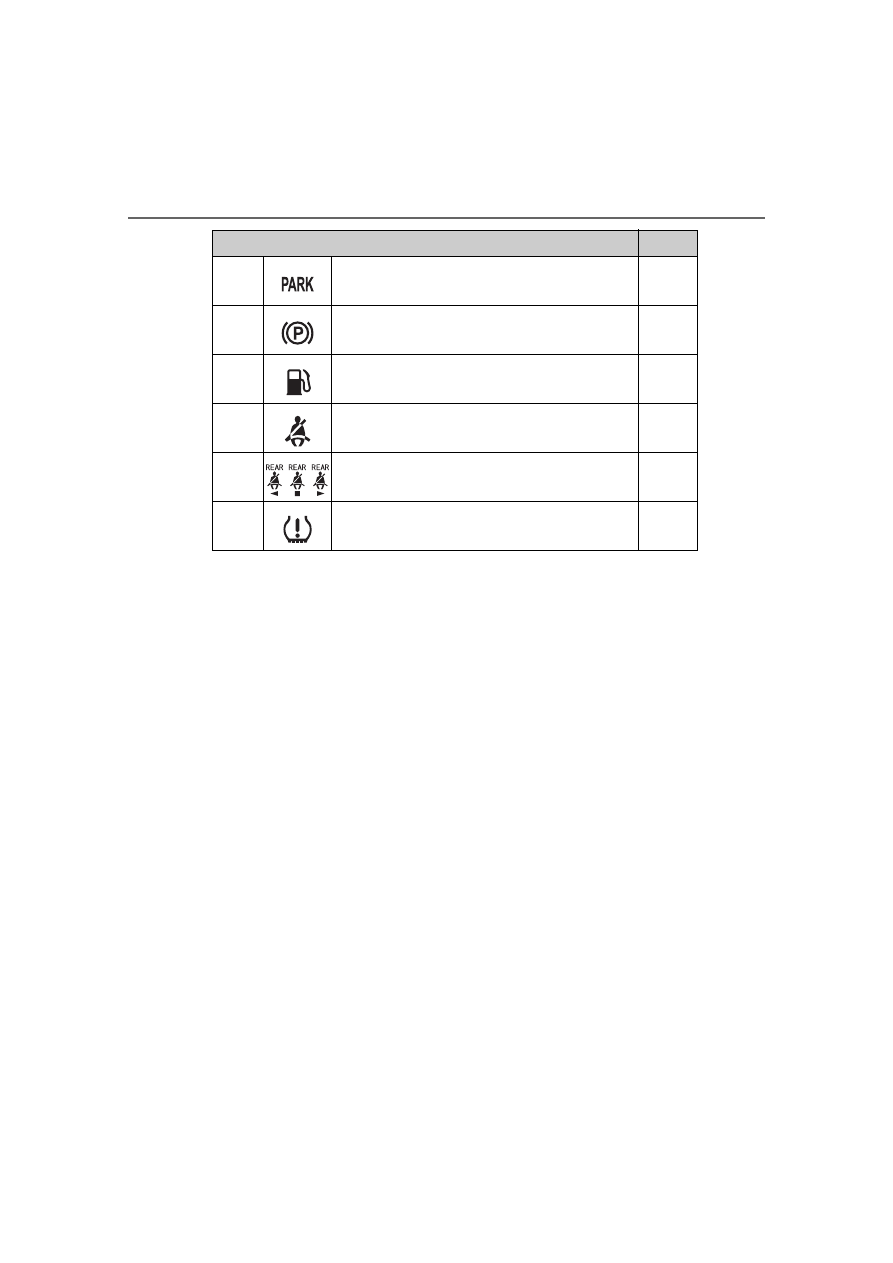

Parking brake indicator (U.S.A.)

P. 422

Parking brake indicator (Canada)

P. 422

Low fuel level warning light

P. 422

Driver’s and front passenger’s seat belt
reminder light

P. 423

Rear passengers’ seat belt reminder lights (on
the center panel)

P. 423

Tire pressure warning light

P. 423

Warning lights

Pages

2. Instrument cluster

Instru

me
nt clu

ster

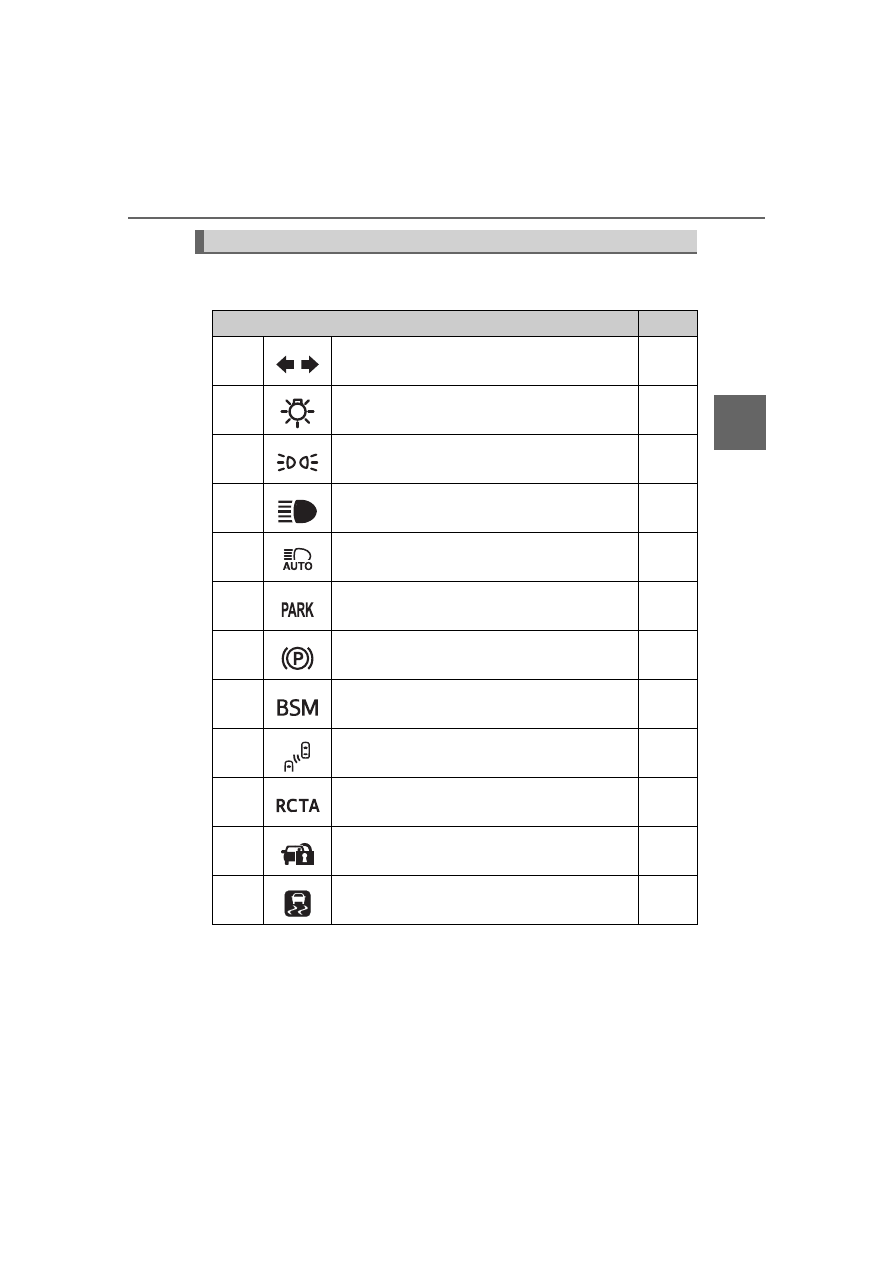

The indicators inform the driver of the operating state of the vehicle’s
various systems.

Indicators

Indicators

Pages

Turn signal indicator

P. 186

Headlight indicator (U.S.A.)

P. 195

Tail light indicator (Canada)

P. 195

Headlight high beam indicator

P. 196

Automatic High Beam indicator

P. 200

Parking brake indicator (U.S.A.)

P. 187

Parking brake indicator (Canada)

P. 187

“BSM” indicator (if equipped)

P. 265

BSM outside rear view mirror indicator
(on the outside rear view mirrors) (if equipped)

P. 265

“RCTA” indicator (if equipped)

P. 265

Security indicator (on the center panel)

P. 74

2, 3

Slip indicator light

P. 281

2. Instrument cluster

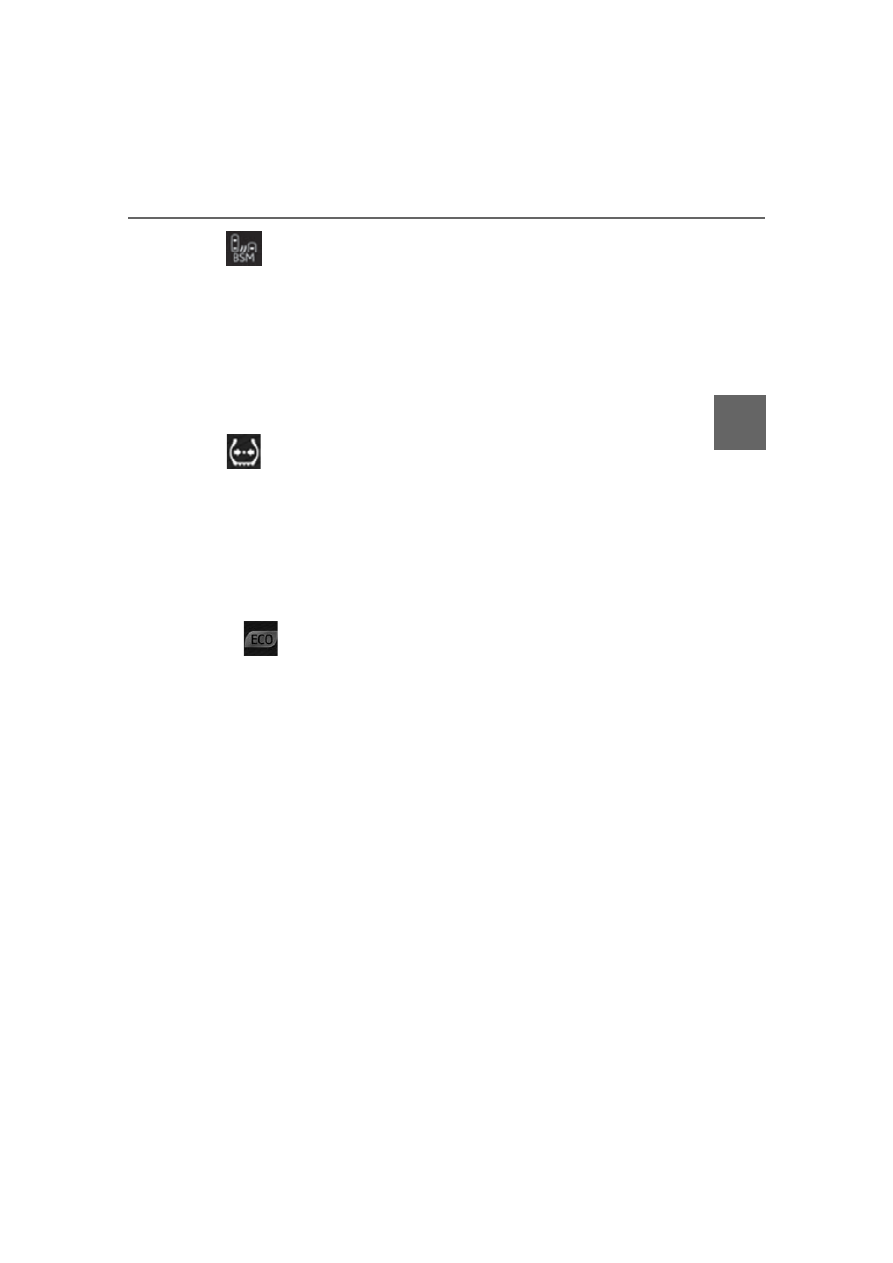

: In order to confirm operation, the BSM outside rear view mirror indicators

illuminate in the following situations:

• When the engine switch is turned to the “ON” position (vehicles without

a smart key system) or IGNITION ON mode (vehicles with a smart key

system), the BSM function is enabled on the

screen of the multi-

information display.

• When the BSM function is enabled on the

screen of the multi-infor-

mation display, the engine switch is turned to the “ON” position (vehicles
without a smart key system) or IGNITION ON mode (vehicles with a
smart key system).

If the system is functioning correctly, the BSM outside rear view mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not
turn off, there may be a malfunction in the system.
If this occurs, have the vehicle inspected by your Toyota dealer.

: These lights turn on when the engine switch is turned to the “ON” position

: The light flashes to indicate that the system is operating.

: The light turns on when the system is off.

2, 4

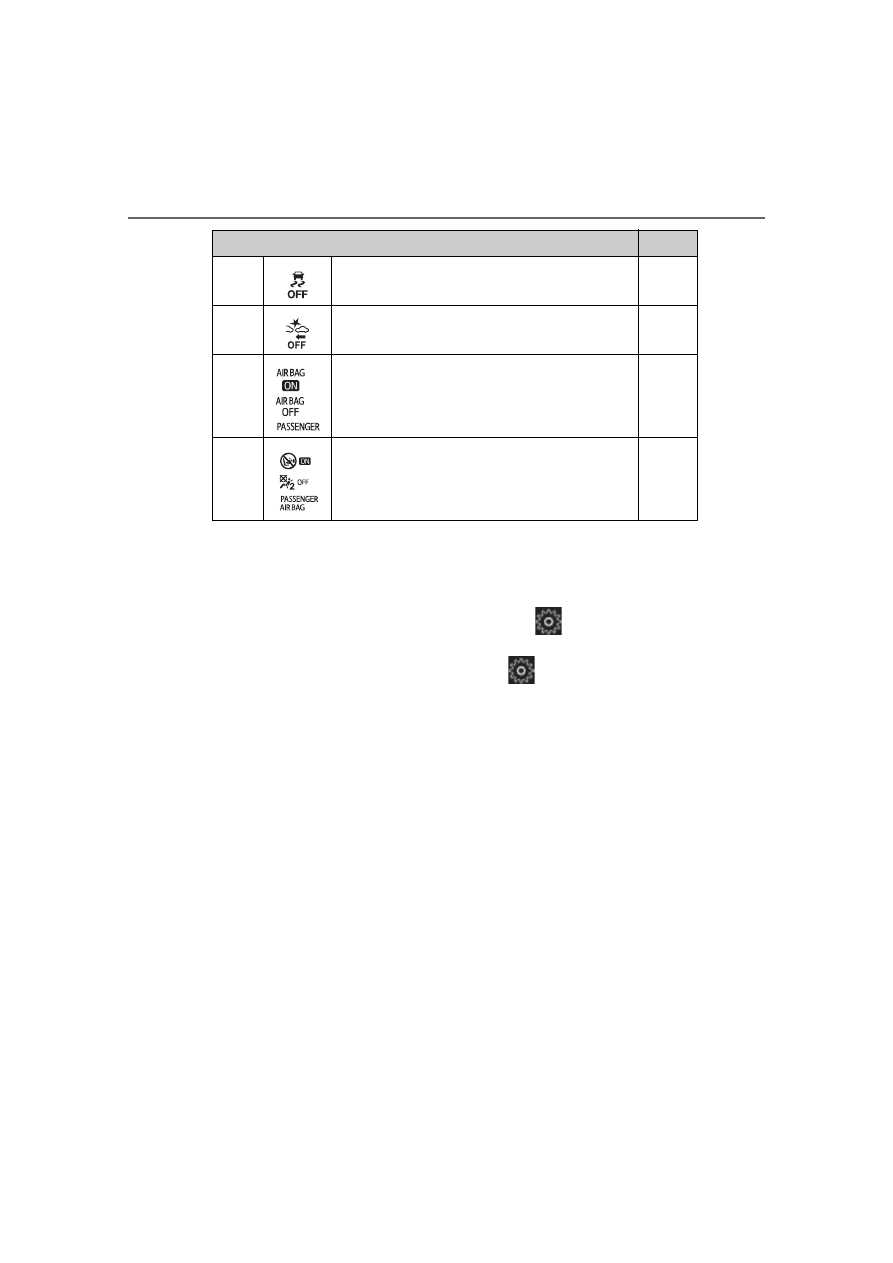

VSC off indicator

P. 281

2, 4

PCS warning light

P. 228

“AIR BAG ON/OFF” indicator (U.S.A.)
(on the center panel)

P. 46

“AIR BAG ON/OFF” indicator (Canada)
(on the center panel)

P. 46

Indicators

Pages

2. Instrument cluster

Instru

me
nt clu

ster

: These lights turn on when the engine switch is turned to the “ON” position

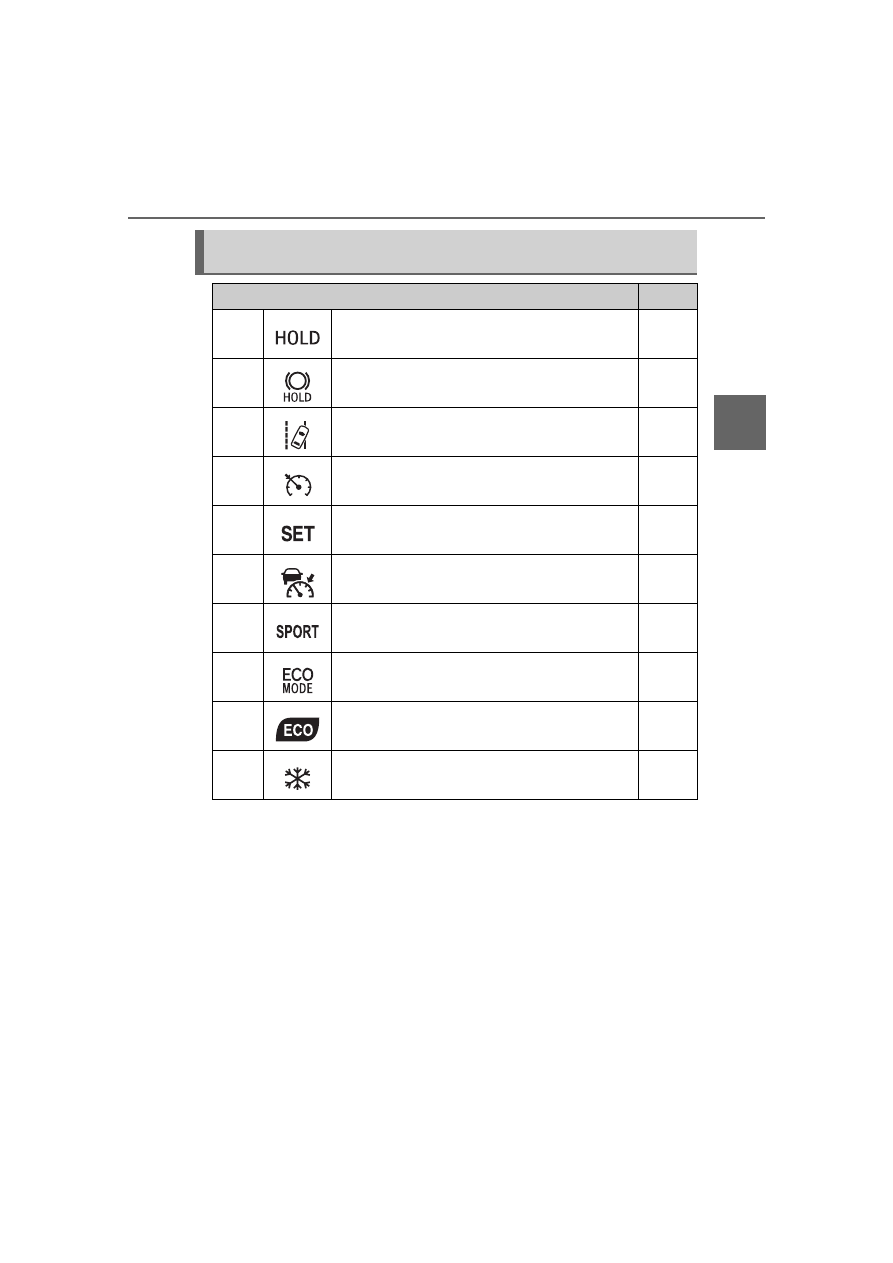

Indicators and symbols displayed on the multi-information dis-
play

Indicators

Pages

Brake hold operated indicator

P. 192

Brake hold standby indicator

P. 192

LDA indicator

P. 241

Cruise control indicator

P. 248

Cruise control “SET” indicator

P. 248

Radar cruise control indicator

P. 248

“SPORT” indicator

P. 263

“ECO MODE” indicator

P. 263

Eco Driving Indicator Light

P. 87

Low outside temperature indicator

P. 88

2. Instrument cluster

Symbols on multi-information display

Pages

Charging system warning light

P. 420

Low engine oil pressure warning light

P. 420

High engine coolant temperature warning light

P. 423

Smart key system (if equipped)

P. 175

Brake Override System/Drive-Start Control

P. 424

2. Instrument cluster

Instru

me
nt clu

ster

■

Eco Driving Indicator Light

Eco Driving Indicator Light will not operate in the following conditions:

●

The shift lever is in anything other than D.

●

The vehicle is being driven in “SPORT” mode (

P. 263)

●

The vehicle speed is approximately 80 mph (130 km/h) or higher.

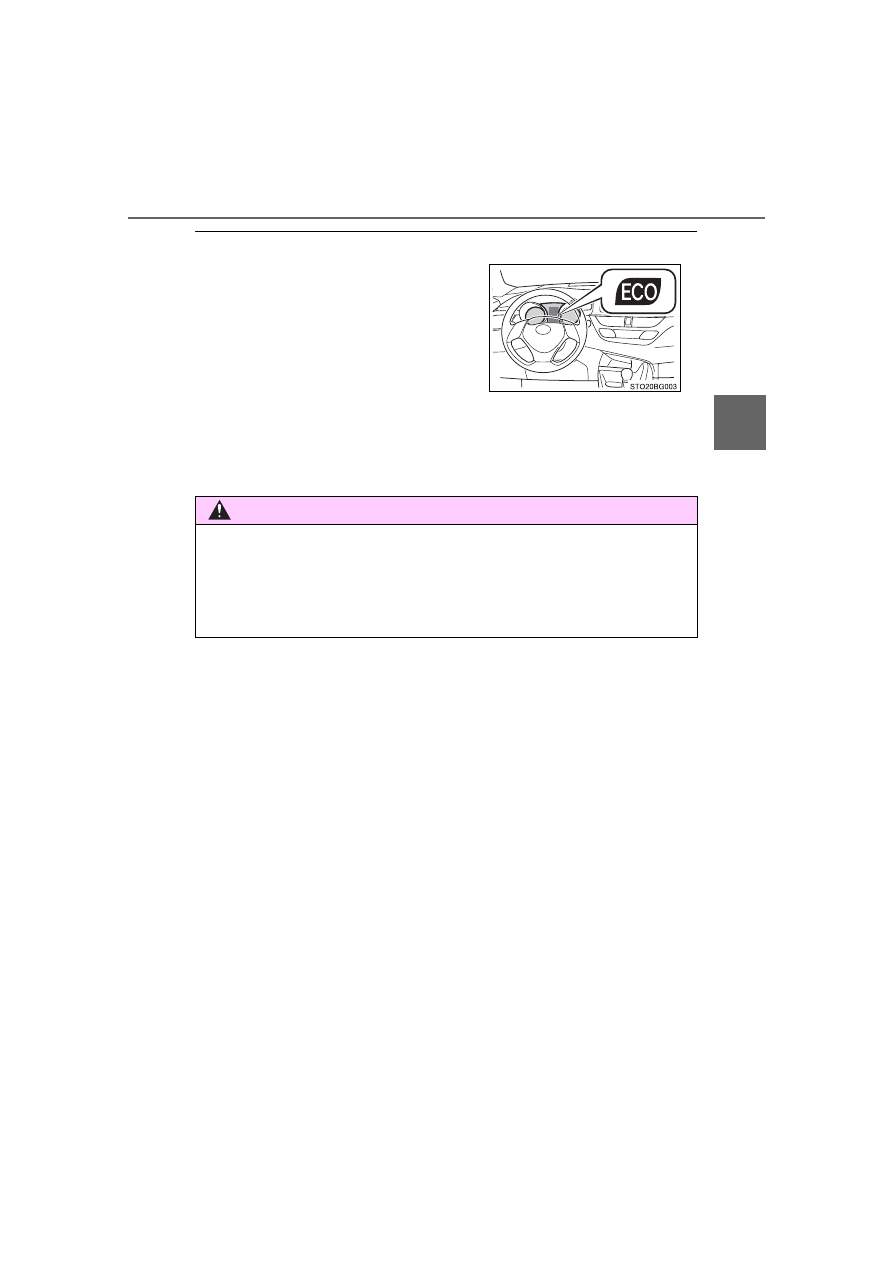

During  Eco-Friendly  acceleration  (Eco
driving),  Eco  Driving  Indicator  Light  will
turn  on.  When  the  acceleration  exceeds
Zone of Eco driving, and when the vehicle
is stopped, the light turns off.
Eco Driving Indicator Light availability can
be customized. The default setting is on.
(

P. 488)

WARNING

■

If a safety system warning light does not come on
Should a safety system light such as ABS and SRS airbag warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Toyota dealer.

2. Instrument cluster

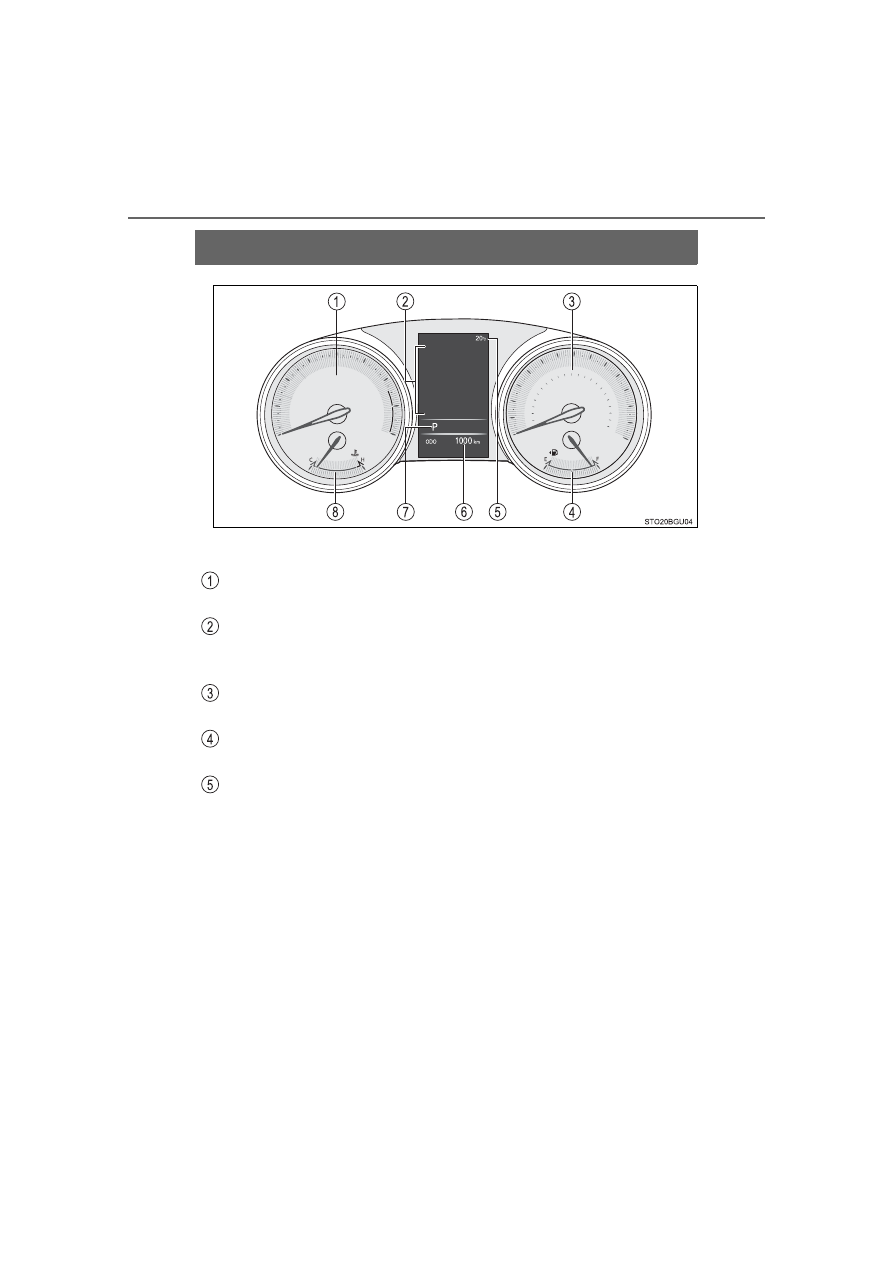

Gauges and meters

The units used on the speedometer may differ depending on the tar-
get region.

Tachometer

Displays the engine speed in revolutions per minute.

Multi-information display

Presents the driver with a variety of driving-related data. (

P. 91)

Displays warning messages in case of a malfunction. (

P. 430)

Speedometer

Displays the vehicle speed.

Fuel gauge

Displays the quantity of fuel remaining in the tank.

Outside temperature display

Displays the outside temperature within the range of -40°F (-40°C) to
122°F (50°C). Low outside temperature indicator comes on when the
ambient temperature is 37°F (3°C) or lower.

2. Instrument cluster

Instru

me
nt clu

ster

Odometer and trip meter display

Displays the following items.
Odometer:
Displays the total distance the vehicle has been driven.
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters A and B can be used to record and display different dis-
tances independently.
Maintenance required information (U.S.A. only):
Displays the remaining distance until the engine oil should be changed. If
“-” is displayed before distance, it means oil maintenance is overdue. Have
the engine oil changed by your Toyota dealer.

• Displays the maintenance required information when the engine switch

is turned to the “ON” position (vehicles without smart key system) or in
IGNITION ON mode (vehicles with smart key system).

• Maintenance required information reset method (

P. 337)

Shift position and shift range display

Displays the selected shift position or selected shift range. (

P. 181)

Engine coolant temperature gauge

Displays the engine coolant temperature.

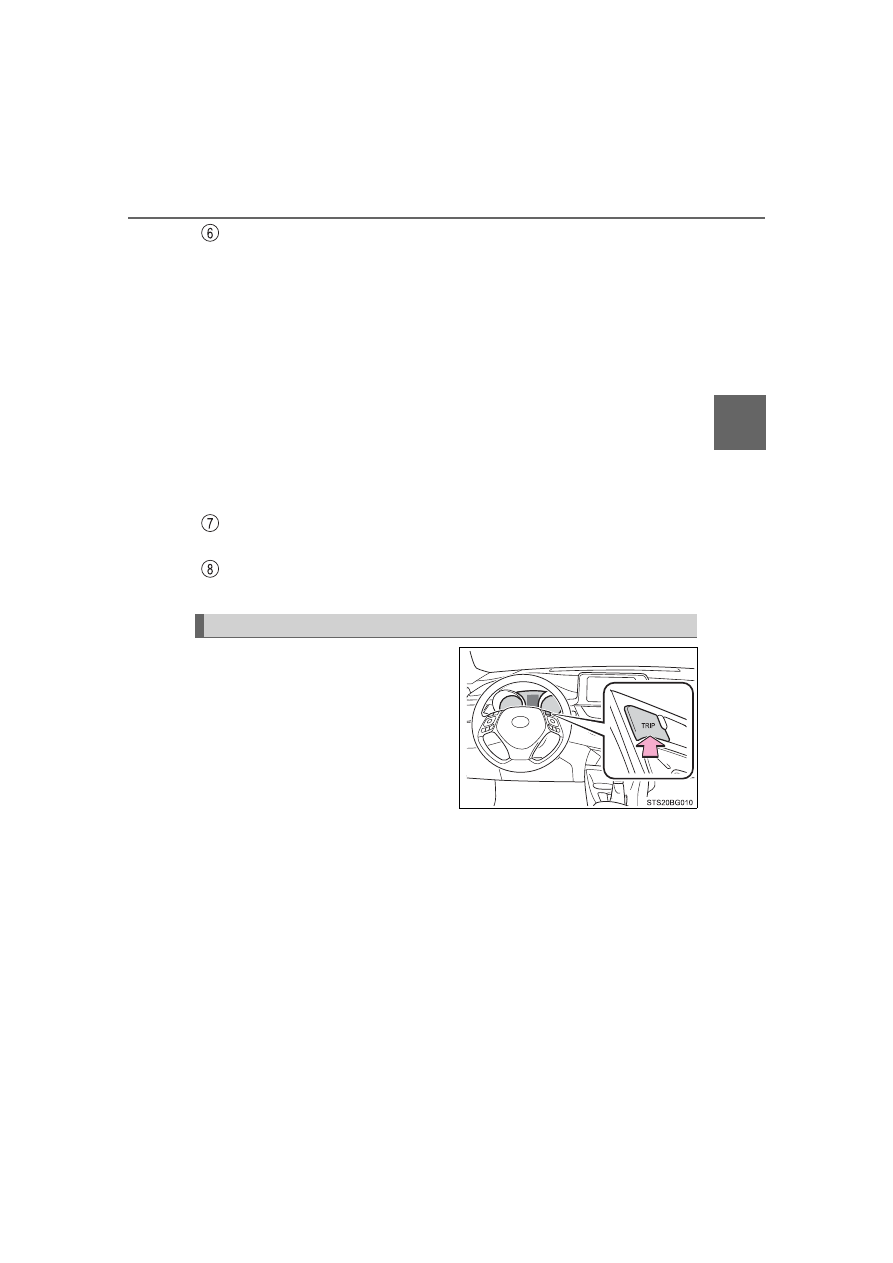

Switches the items of the odome-
ter and trip meter display by
pressing the “TRIP” switch.

When the trip meter is displayed,
pressing and holding the “TRIP”
switch will reset the trip meter.

Changing the display

2. Instrument cluster

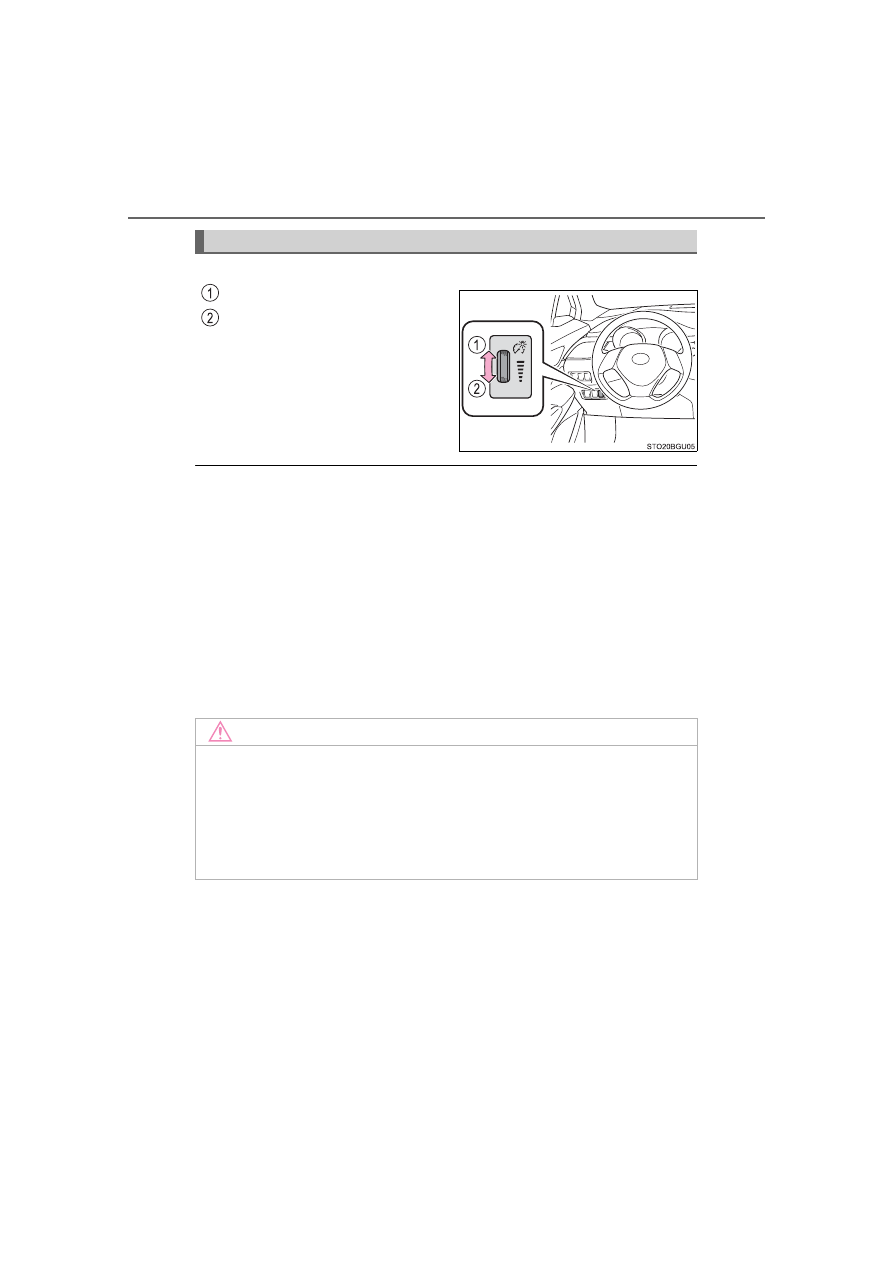

The brightness of the instrument panel lights can be adjusted.

Brighter
Darker

■

The meters and display illuminate when
Vehicles without a smart key system:
The engine switch is in the “ON” position.
Vehicles with a smart key system:
The engine switch is in IGNITION ON mode.

■

Outside temperature display

●

In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 16 mph [25 km/h])
• When the outside temperature has changed suddenly (at the entrance/

exit of a garage, tunnel, etc.)

●

If “

” is displayed continuously, the system may be malfunctioning. Take

your vehicle to your Toyota dealer.

Instrument panel light control

NOTICE

■

To prevent damage to the engine and its components

●

Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.

●

The engine may be overheating if the engine coolant temperature gauge
enters the red zone (“H”). In this case, immediately stop the vehicle in a
safe place, and check the engine after it has cooled completely. (

P. 455)

2. Instrument cluster

Instru

me
nt clu

ster

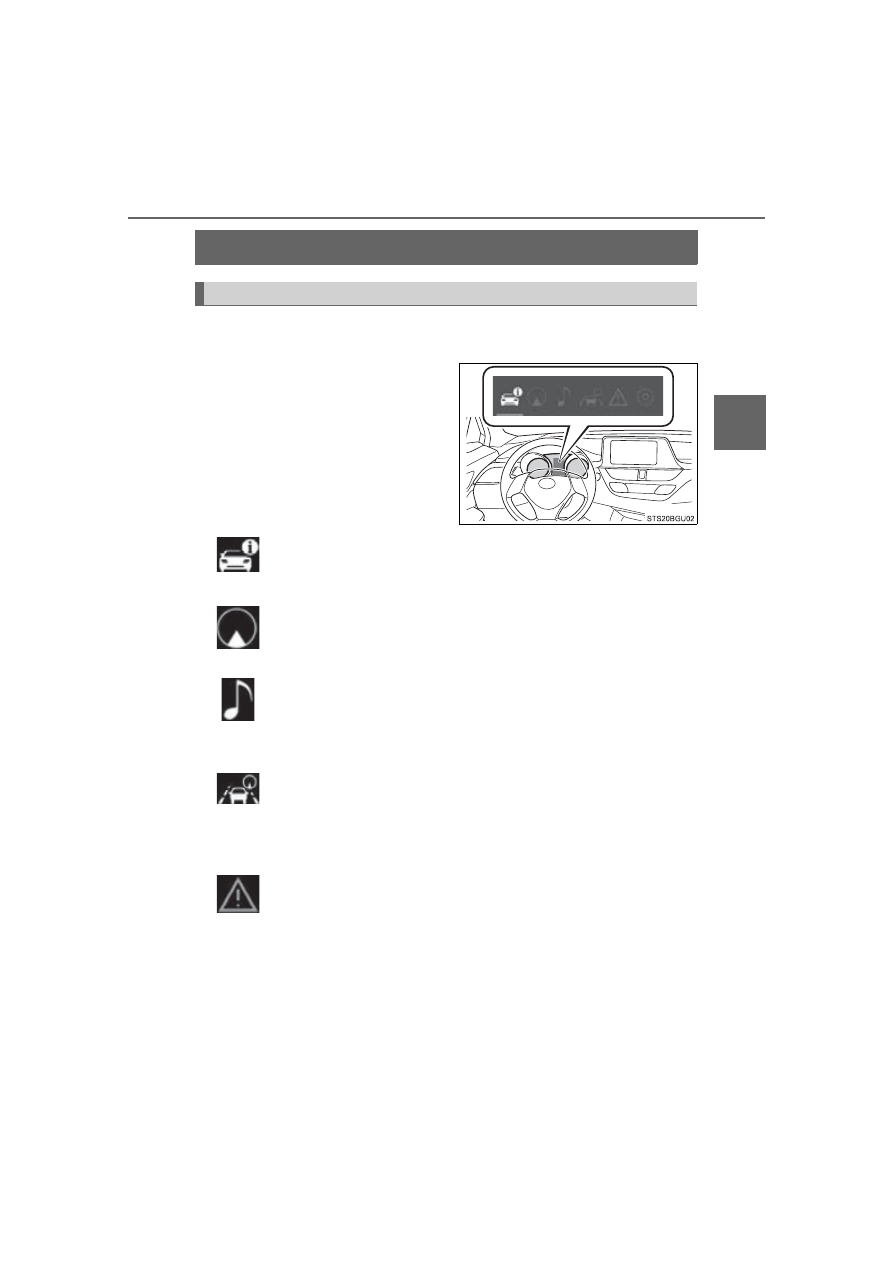

Multi-information display

The multi-information display presents the driver with a variety of vehi-
cle data.
● Menu icons

Displays the following informa-
tion when an icon is selected.
(

P. 92)

Some of the information may be
displayed

automatically

depending on the situation.

Drive information

Select to display various drive data. (

P. 92)

Navigation system-linked display (if equipped)

P. 94

Audio system-linked display

Select to enable selection of an audio source or track on the meter
using the meter control switches.

Driving assist system information

Select to display the operational status of the following systems:

• LDA (Lane Departure Alert) (

P. 238)

• Dynamic radar cruise control with full-speed range (

P. 248)

Warning message display

Select to display warning messages and measures to be taken if a
malfunction is detected. (

P. 430)

Display contents

2. Instrument cluster

Settings display

Select to change the meter display settings and the operation set-
tings of some vehicle functions. (

P. 94)

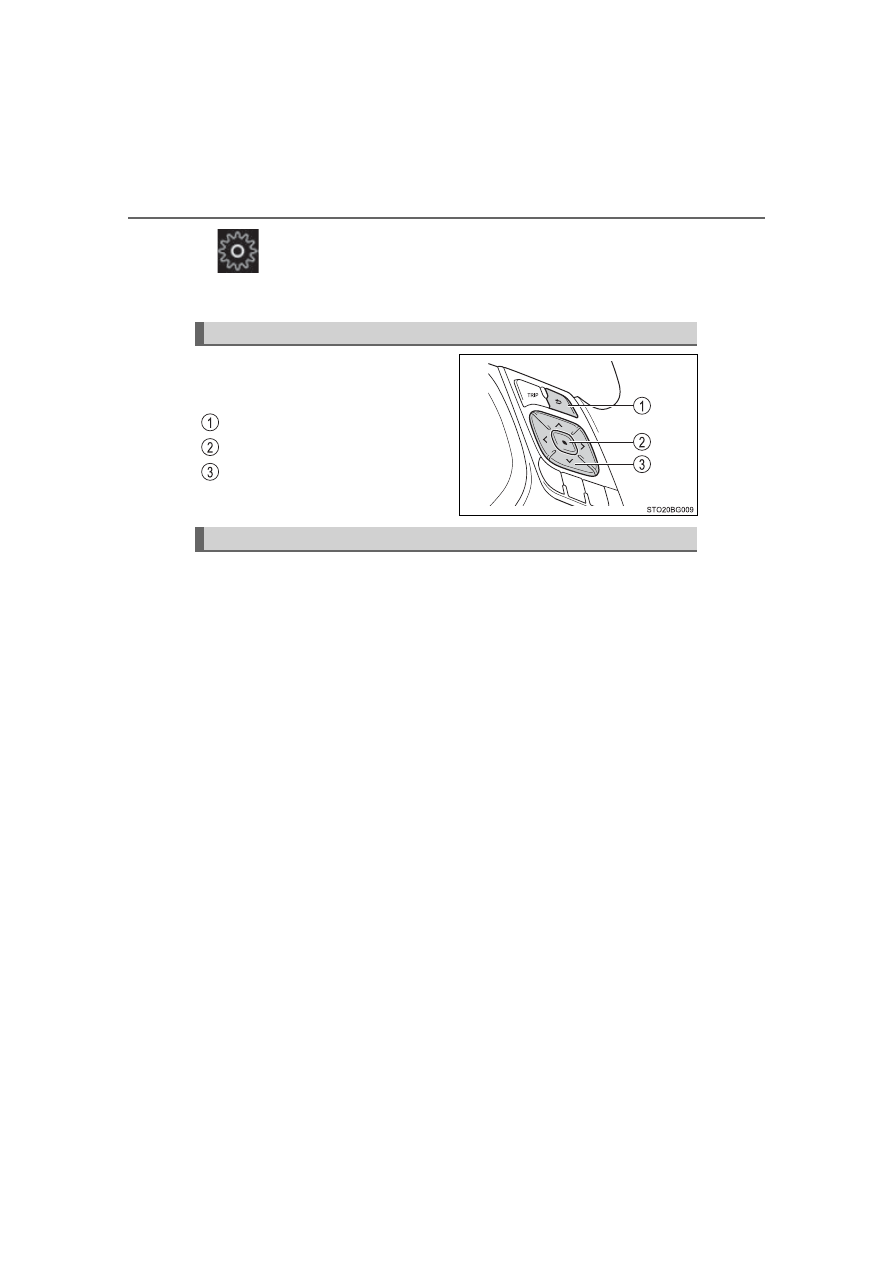

The multi-information display is
operated using the meter control
switches.

Return to the previous screen
Enter/set
Select an item/change pages

● Current fuel consumption (zone display/numerical display)

Displays the current rate of fuel consumption.

● Average fuel consumption (after reset

/after start/after refuel)

Displays the average fuel consumption since the function was reset, the
engine was started, and the vehicle was refueled, respectively
Use the displayed average fuel consumption as a reference.

● Average vehicle speed (after reset

/after start)

Displays the average vehicle speed since the function was reset and the
engine was started, respectively

● Elapsed time (after reset

/after start)

Displays the elapsed time since the function was reset and the engine was
started, respectively

Operating the meter control switches

Drive information

2. Instrument cluster

Instru

me
nt clu

ster

● Distance (driving range/after start)

Displays the estimated maximum distance that can be driven with the
quantity of fuel remaining and the distance driven after the engine was
started, respectively

• This distance is computed based on your average fuel consumption. As

a result, the actual distance that can be driven may differ from that dis-
played.

• When only a small amount of fuel is added to the tank, the display may

not be updated.
When refueling, turn the engine switch off. If the vehicle is refueled with-
out turning the engine switch off, the display may not be updated.

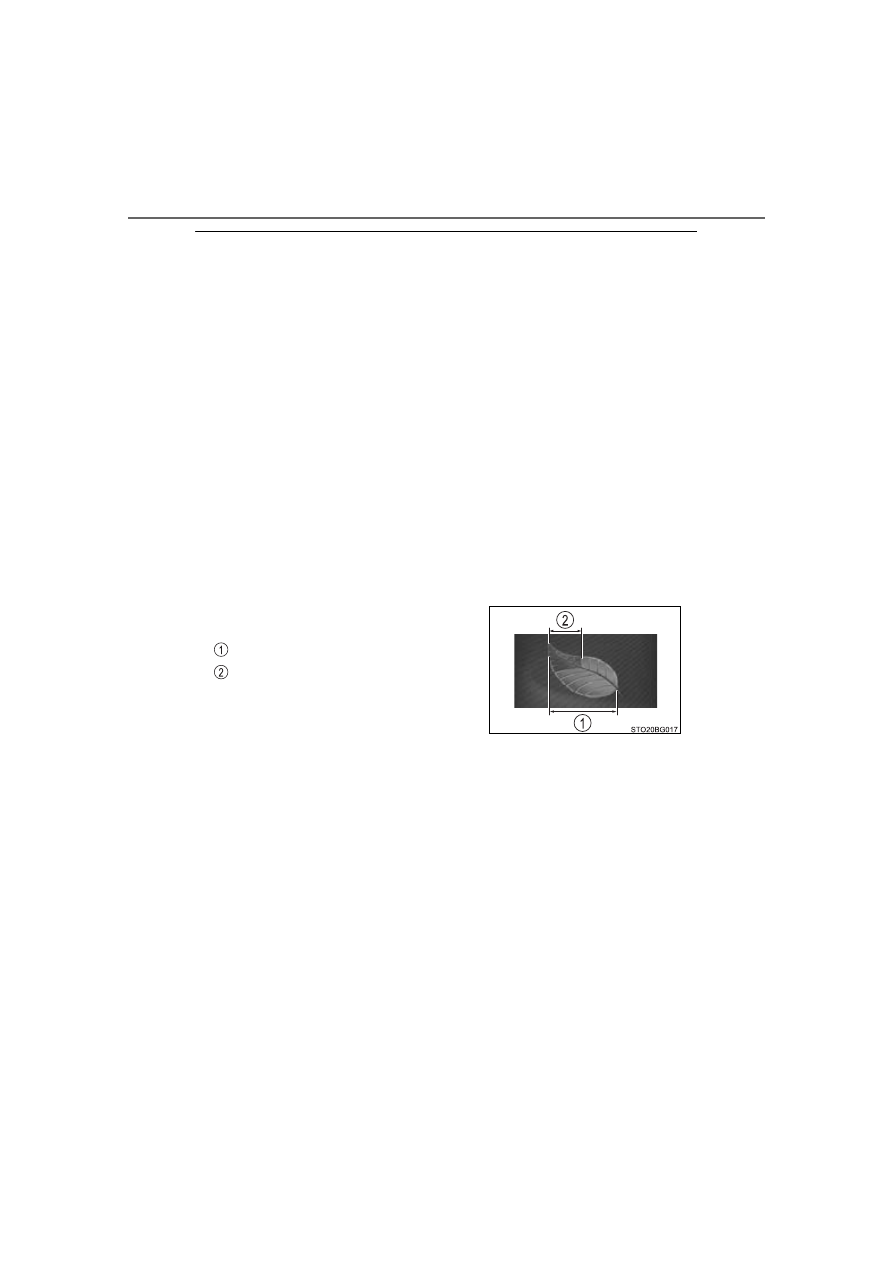

● Eco Driving Indicator Zone Display

P. 96

● Speedometer

Displays the vehicle speed.

● G Monitor

P. 97

● Sway warning

Detects the sway of the vehicle within a lane, which is often associated
with a decrease in the driver’s attention level, and displays the decrease in
attention using a bar display.
The shorter the bar length, the more the driver may need to rest.
This display is a part of the LDA (Lane Departure Alert with steering con-
trol). The display is enabled when the operating conditions of the vehicle
sway warning are met. (

P. 238)

● Display off

A blank screen is displayed.

: Can be registered to Drive information 1 and 2. (

P. 94)

: Resetting procedures:

• Select a function to be reset using the meter control switches and then

press and hold

to reset.

• If there is more than one function that can be reset, check boxes will be

displayed next to those functions.

2. Instrument cluster

Displays the following items, which are linked to the navigation sys-
tem:

■

Street name
When the navigation system is performing route guidance, the
name of the next street will be displayed on the top of the display
area.

■

Route guidance to destination
Displayed when the navigation system is performing route guid-
ance. When approaching an intersection, an arrow will be displayed
to indicate the suggested direction of travel.

■

Compass
Displays the direction of travel.

The settings of the following items can be changed, refer to P. 486.

For functions that can be enabled or disabled, the function switches
between on and off each time

is pressed.

●

LDA (Lane Departure Alert) (

P. 238)

Select to set up the following items.

• Steering Assist on/off
• Alert sensitivity
• Sway Alert on/off
• Sway sensitivity

●

PCS (Pre-Collision System) (

P. 224)

Select to set up the following items.

• PCS on/off
• PCS sensitivity

Navigation system-linked display (if equipped)

Settings display

2. Instrument cluster

Instru

me
nt clu

ster

●

BSM (Blind Spot Monitor) (if equipped) (

P. 265)

Select to set up the following items.

• BSM function on/off
• RCTA function on/off

: The RCTA function can be enabled/disabled only when the BSM func-

tion is enabled.

● Driving mode select (P. 263)
● Vehicle Settings

(Tire pressure warning system) setup (

P. 367)

Select to initialize the tire pressure warning system.

● Meter settings

Select the menu to set up the following items.

• Language

Select to change the language on the display.

• Units

Select to change the unit of measure for fuel consumption.

•

(Eco Driving Indicator Light) setup

Select to activate/deactivate the Eco Driving Indicator Light

• Drive information 1 and 2

Select to select up to 2 items that will be displayed on a Drive informa-
tion screen, up to 2 Drive information screens can be set.

• Pop-up display

Select to set the pop-up displays

, which may appear in some situa-

tions, on/off.

• Speed limit

Select to setup speed limit indicated based on navigation system
(U.S.A. only)

• Default settings

Registered or changed meter settings will be deleted or returned to their
default setting.

: Route guidance display of the navigation system-linked system (if

equipped) and incoming call display of the hands-free phone system.

2. Instrument cluster

■

Setting items

●

“Meter Settings” and “Vehicle Settings” setting items are not selectable
during driving and cannot be operated.
Also, the settings screen is temporarily canceled in the following situations.
• A warning message is displayed.
• The vehicle starts off.

●

Settings for functions not equipped to the vehicle are not displayed.

●

When a function is turned off, the related settings for that function are not
selectable.

■

Pop-up display
In some situations, such as when a switch operation is performed, a pop-up
display will be temporarily displayed on the multi-information display.

■

Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.

■

When disconnecting and reconnecting battery terminals
The drive information will be reset.

■

Eco Driving Indicator Zone Display
Suggests Zone of Eco driving and Eco
driving ratio based on acceleration.

Zone of Eco driving
Eco  driving  ratio  based  on  accelera-
tion
If  the  vehicle  exceeds  Zone  of  Eco
driving,  the  green  area  disappears
and  Eco  Driving  Indicator  Light  will
turn off. (

P. 87)

Content .. 4 5 6 7 ..
