6C-7 Power Assisted Steering System:

5) Check relief pressure.

a) Increase engine speed to about 600 r/min. (rpm).

Close gauge valve gradually while watching
pressure increase indicated by gauge and take
reading of relief pressure (maximum hydraulic
pressure).
If it is higher than specified values, possible
cause is malfunction of relief valve.
If it is lower than specified values, possible
cause is either failure of P/S pump or settling of
relief valve spring.

Relief pressure when gauge value is closed
M16A Engine model: 6170 – 6870 kPa (61.7 –
68.7 kg/cm

, 877 – 977 psi)

J20A Engine model: 6560 – 7360 kPa (65.6 –
73.6 kg/cm

, 933 – 1047 psi)

F9Q Engine model: 7650 – 8340 kPa (77.3 –
84.2 kg/cm

, 1099 – 1197 psi)

CAUTION

Be sure not to close gauge valve for longer
than 10 seconds.

b) Open gauge valve fully and increase engine

speed to about 1500 r/min. (rpm). Then turn
steering wheel to the left or right fully and take
reading of relief pressure.
If it is higher than specified values, possible
cause is malfunction of relief valve.
If it is lower than specified values, possible
cause is failure in steering gear case. Replace
gear case.

Relief pressure when gauge value is opened
M16A Engine model: 6170 – 6870 kPa (61.7 –
68.7 kg/cm

, 877 – 977 psi)

J20A Engine model: 6560 – 7360 kPa (65.6 –
73.6 kg/cm

, 933 – 1047 psi)

F9Q Engine model: 7650 – 8340 kPa (77.3 –
84.2 kg/cm

, 1099 – 1197 psi)

CAUTION

Be sure not to hold steering wheel at fully
turned position for longer than 10 seconds.

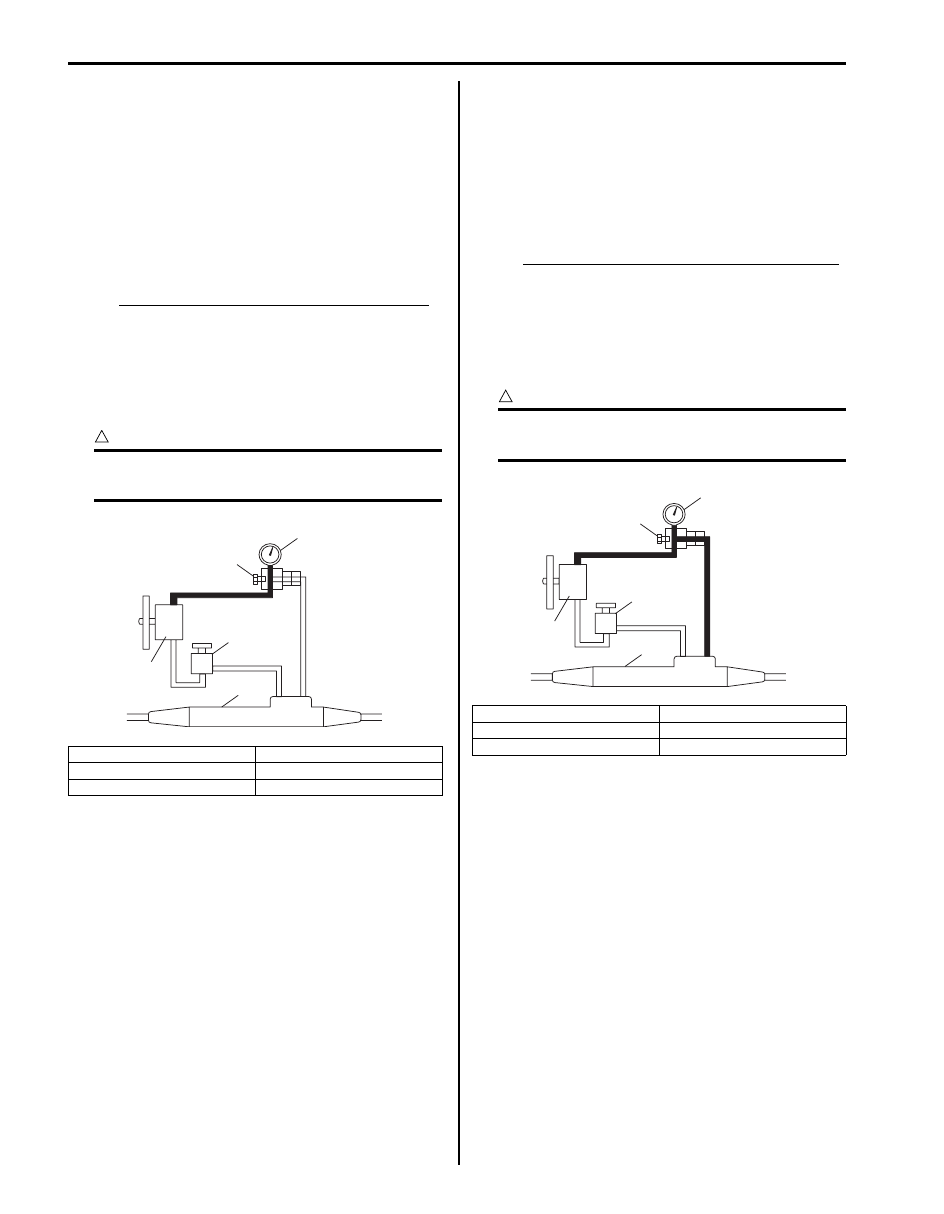

1. P/S fluid reservoir

4. P/S pump

2. Gauge valve (shut)

5. P/S gear case

3. Oil pressure gauge

I5JB0A630009-04

1. P/S fluid reservoir

4. P/S pump

2. Gauge valve (open)

5. P/S gear case

3. Oil pressure gauge

I5JB0A630010-01

Power Assisted Steering System: 6C-8

Repair Instructions

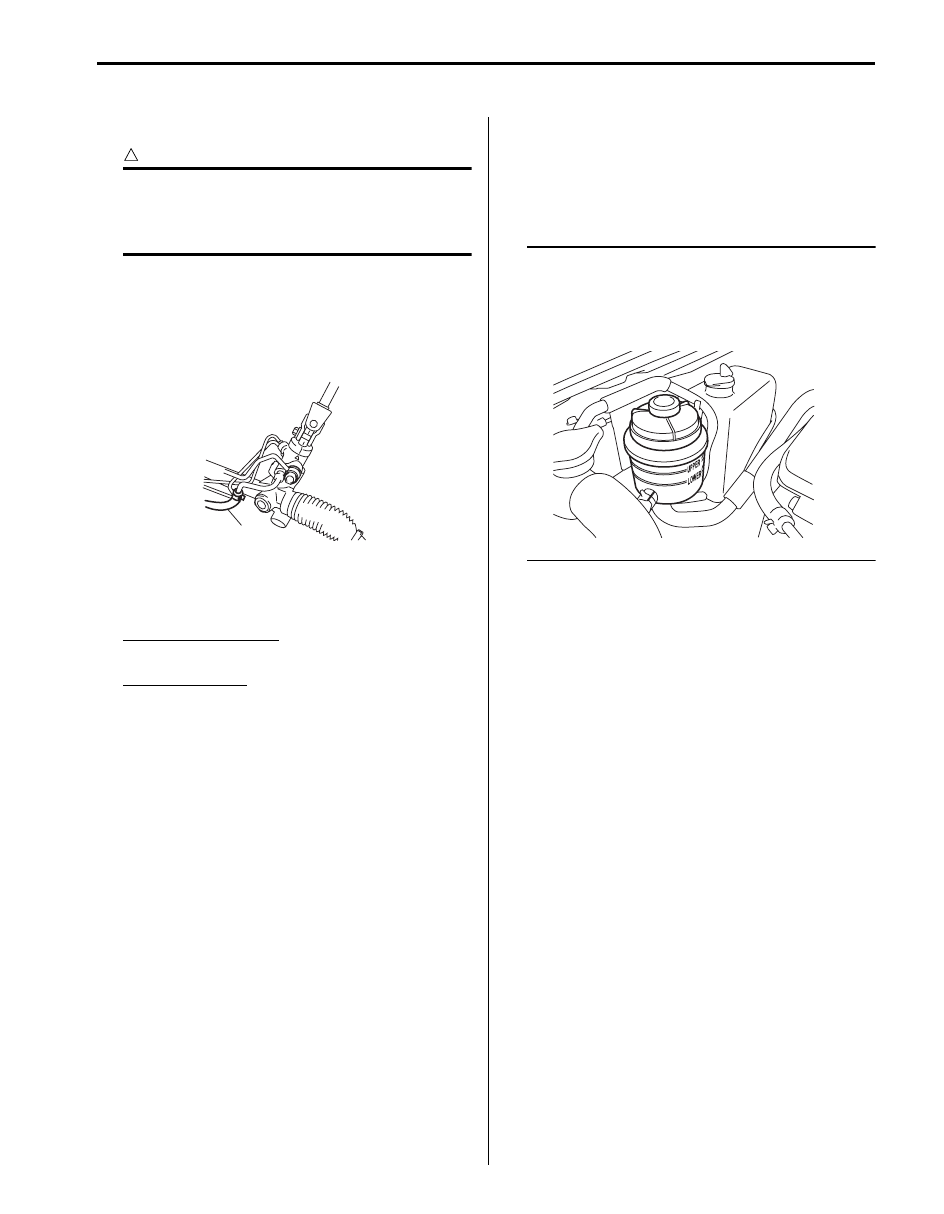

P/S Fluid Change

S6JB0A6306001

CAUTION

Do not use any fluid other than the specified
P/S fluid. Use of any fluid other than the
specified P/S fluid may cause juddering or
some other faulty condition to occur.

1) Lift up vehicle.
2) Remove front under cover.
3) When engine is cool, remove P/S gear low pressure

hose (1) from pipe and drain P/S fluid from low
pressure hose.

4) Install low pressure hose to pipe.
5) Fill specified P/S fluid and bleed air referring to “P/S

System Air Bleeding Procedure”.

P/S fluid specification
: Equivalent of DEXRON

-II

P/S fluid capacity
Reference: 0.7 – 0.8 liters (1.48/1.23 – 1.69/1.41
US/Imp.pt)

P/S Fluid Level Check

S6JB0A6306002

With engine stopped, check fluid level indicated on P/S
fluid reservoir, which should be between “UPPER” and
“LOWER” marks. If it is lower than “LOWER” mark, fill
fluid up to “UPPER” mark.

NOTE

• Be sure to use an specified power steering

fluid.

• Fluid level should be checked when fluid is

cool.

I5JB0A630011-01

I5JB0A630012-01

6C-9 Power Assisted Steering System:

P/S Fluid Leakage Check

S6JB0A6306003

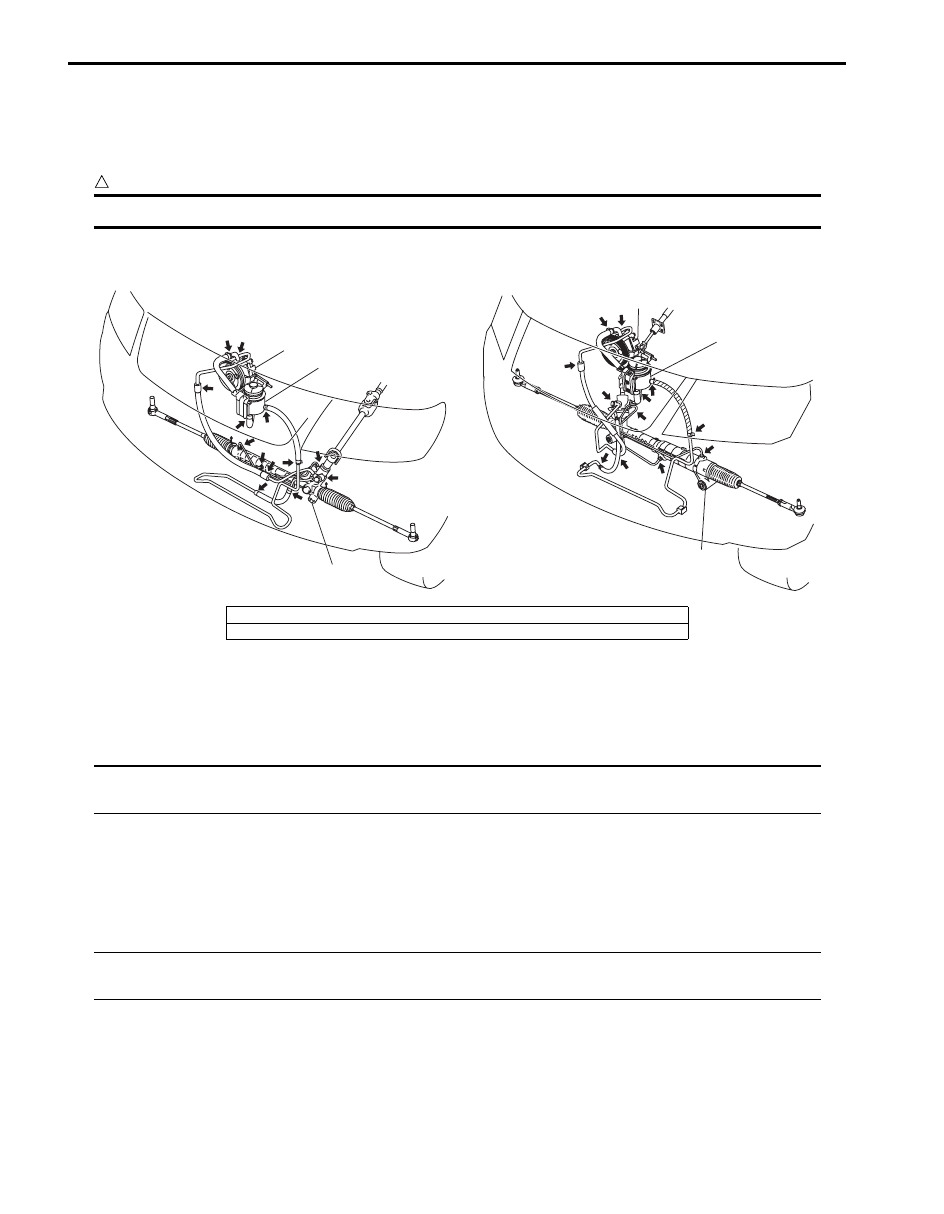

Start engine and turn steering wheel fully to the right and left so that maximum hydraulic pressure is provided.
Then visually check P/S gear case assembly (1), P/S pump (2) and P/S fluid reservoir (3) themselves and each joint of
their connecting pipes for leakage.

CAUTION

Never keep steering wheel turned fully for longer than 10 seconds.

P/S System Air Bleeding Procedure

S6JB0A6306004

1) Hoist the front end of vehicle and apply safety stands.
2) Fill P/S fluid reservoir with fluid up to specified level.

NOTE
Before starting engine, place transmission gear shift lever in “Neutral” (shift selector lever to “P”
range for A/T model), and set parking brake.

3) After running engine at idling speed for 3 to 5 seconds, stop it and add fluid to satisfy specification.
4) With engine stopped, turn steering wheel to the right and left as far as it stops, repeat it a few times and fill fluid to

specified level.

5) With engine running at idling speed, repeat stop-to-stop turn of steering wheel till all foams in P/S fluid reservoir

are gone.

NOTE
Make sure to bleed air completely. If air remains in fluid, P/S pump may make humming noise or
steering wheel may feel heavy.

6) Finally check to make sure that fluid is filled to specified level.

[A]

[B]

I6JB0A630003-02

[A]: LH steering vehicle for J20A engine model
[B]: RH steering vehicle for J20A engine model

Power Assisted Steering System: 6C-10

P/S Pump and A/C Compressor (If Equipped)
Drive Belt Inspection and Adjustment (M16A
Engine Model)

S6JB0A6306005

Inspection
• Check that belt is free from any damage and properly

fitted in pulley groove.

• Check belt tension by measuring how much it deflects

when pushed at intermediate point between pulleys
with about 10 kg (22 lb) force.

Deflection of P/S belt with A/C (a)
: 9 – 10 mm (0.35 – 0.39 in.)

Deflection of P/S belt without A/C (b)
: 4 – 9 mm (0.16 – 0.35 in.)

Adjustment

1) To adjust P/S belt tension, loosen tension pulley bolt

(2) and nut (1) and turn tension pulley (3) using
hexagon wrench (4).

2) Adjust belt tension to specification, and then tighten

tension pulley bolt (2) and nut (1) to specified torque.

Tightening torque
P/S belt tension pulley bolt (a): 25 N·m (2.5 kgf-
m, 18.5 lb-ft)
P/S belt tension pulley nut (b): 25 N·m (2.5 kgf-
m, 18.5 lb-ft)

P/S Pump and A/C Compressor (If Equipped)
Drive Belt Inspection and Adjustment (J20A
Engine Model)

S6JB0A6306006

Refer to “Water Pump and Generator Drive Belt On-
Vehicle Inspection (For J20 Engine): For Petrol Engine
Model in Section 1J”.

P/S Pump and A/C Compressor (If Equipped)
Drive Belt Inspection (F9Q Engine Model)

S6JB0A6306026

Refer to “Accessory Drive Belt Inspection: For Diesel
Engine Model in Section 1J”.

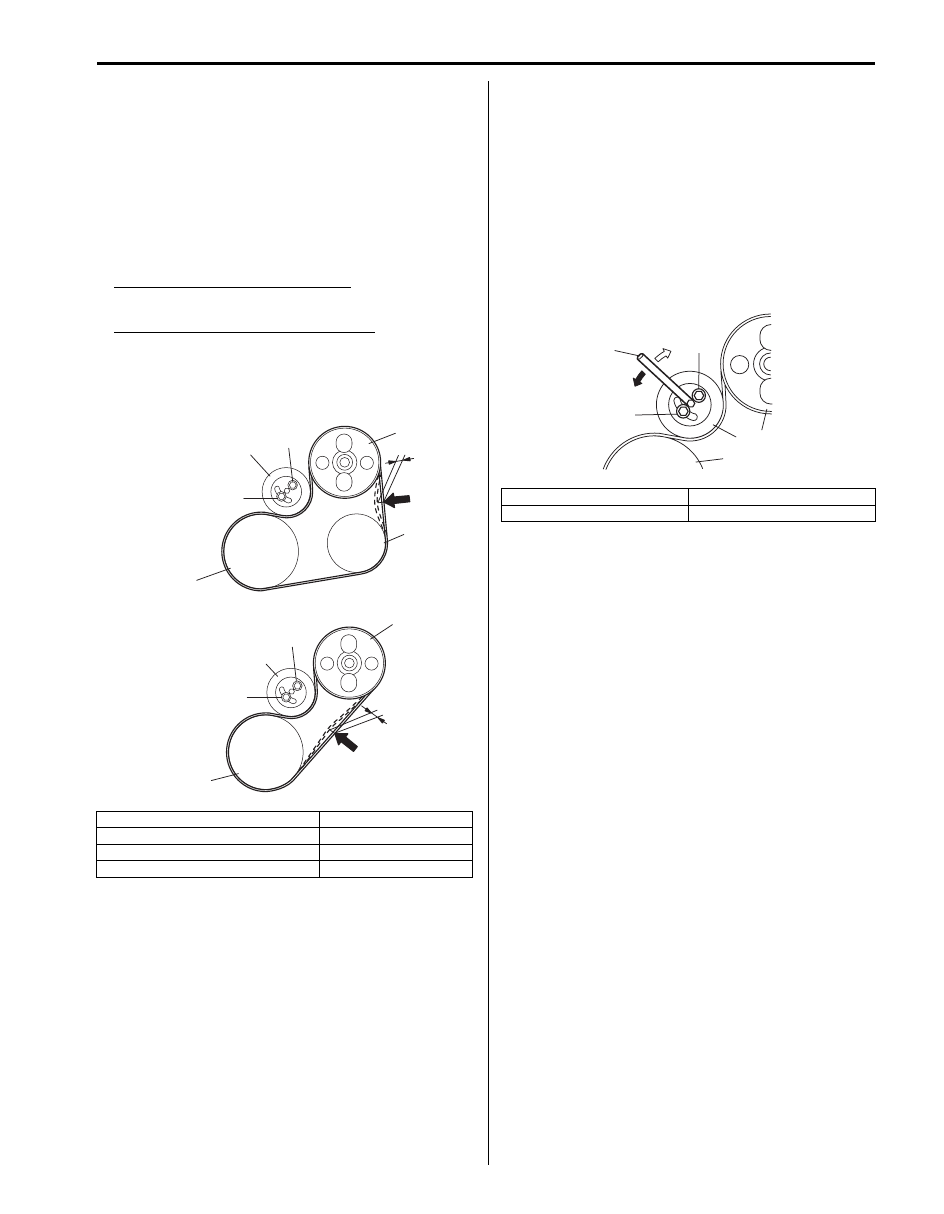

1. P/S pump pulley

5. Tension pulley bolt

2. A/C compressor pulley (A/C model)

6. Tension pulley nut

3. Crankshaft pulley

[A]: A/C model

4. Tension pulley

[B]: Non A/C model

[A]

[B]

“a”

“b”

I5JB0A630013-01

5. Loose

7. P/S pump pulley

6. Tight

8. Crank shaft pulley

1, (b)

2, (a)

I5JB0A630014-01
