6C-3 Power Assisted Steering System:

Schematic and Routing Diagram

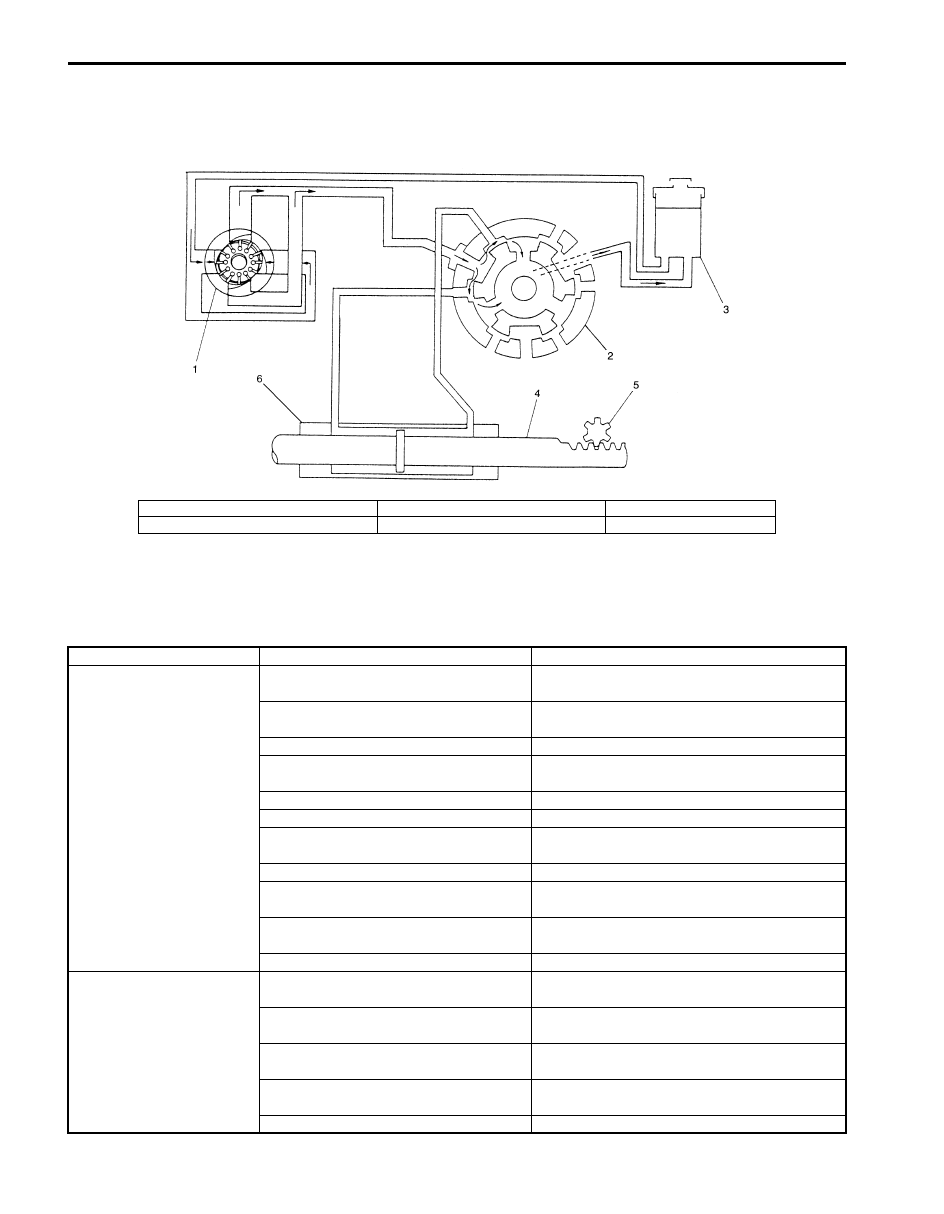

P/S Fluid Flow Diagram

S6JB0A6302001

Diagnostic Information and Procedures

P/S System Symptom Diagnosis

S6JB0A6304001

IYSQ01630002-01

1. Power steering pump

3. P/S fluid reservoir

5. Pinion

2. Valve section

4. Rack

6. Cylinder

Condition

Possible cause

Correction / Reference Item

Steering wheel feels
heavy (at low speed)

Fluid deteriorated, low viscosity,
different type of fluid mixed

Replace fluid.

Pipes or hoses deformed, air entering
through joint

Replace defective part.

Insufficient air purging from P/S circuit

Purge air.

P/S belt worn, lacking in tension

Adjust belt tension or replace belt as
necessary.

Tire inflation pressure excessively low

Inflate tire.

Front end alignment out of order

Check and adjust front end alignment.

Steering wheel installed improperly
(twisted)

Install steering wheel correctly.

Bind in tie-rod or tie-rod end ball joint

Replace defective part.

P/S pump hydraulic pressure fails to
increase

Check pressure and repair or replace defective
part.

P/S pump hydraulic pressure increases
but slowly

Check pressure and repair or replace defective
part.

Steering gear case malfunction

Replace gear case.

Steering wheel feels
heavy momentarily when
turning it to the left or
right

Air drawn in due to insufficient amount of
fluid

Add fluid and purge air.

Slipping P/S belt

Adjust belt tension or replace belt as
necessary.

P/S pump hydraulic pressure fails to
increase

Check pressure and repair or replace defective
part.

P/S pump hydraulic pressure increases
but slowly

Check pressure and repair or replace defective
part.

Steering gear case malfunction

Replace gear case.

Power Assisted Steering System:  6C-4

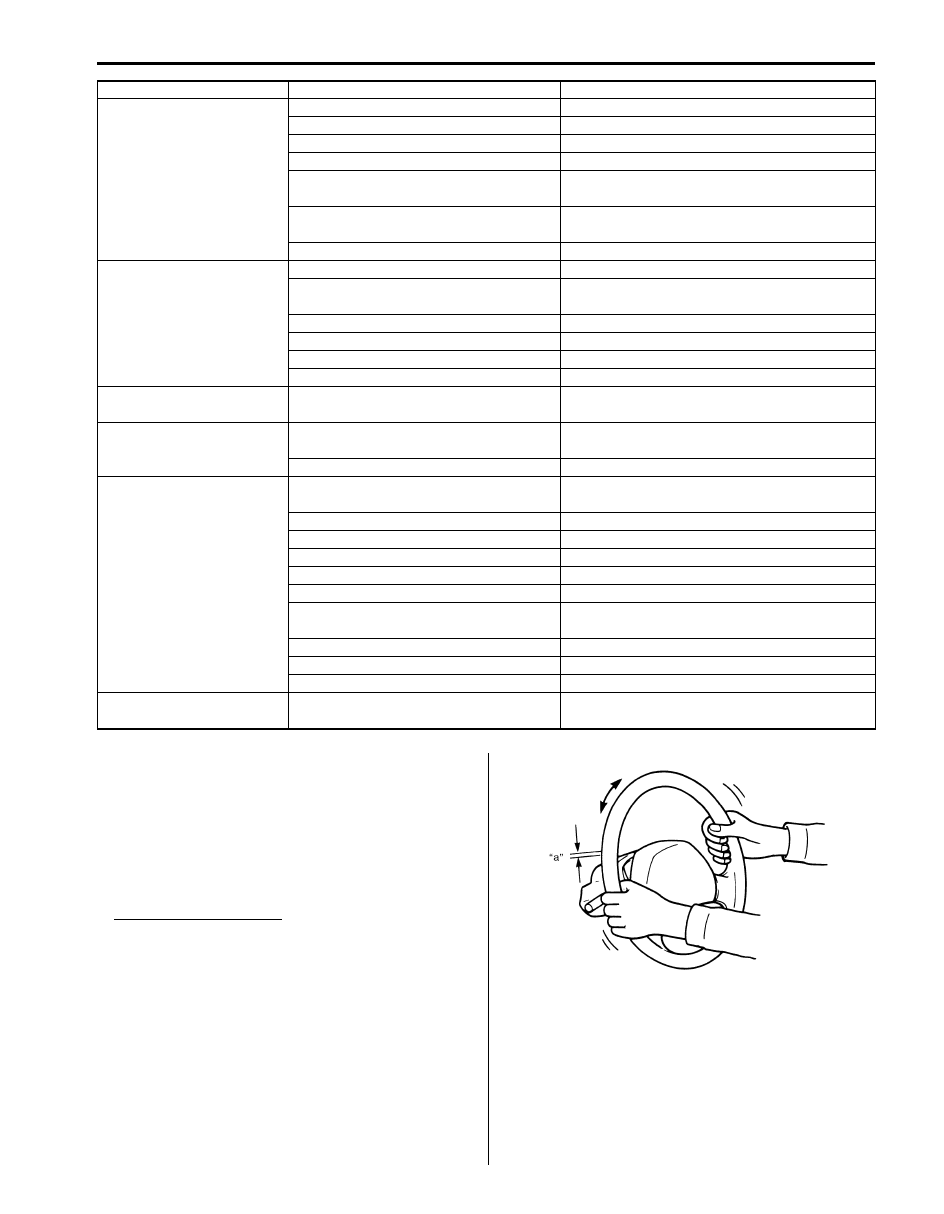

Steering Wheel Check

S6JB0A6304002

• Check steering wheel for looseness or rattle by trying

to move it in its shaft direction and lateral direction.
If found defective, repair or replace.

• Check steering wheel for play, holding car in straight

forward condition on the ground and with engine
stopped.

Steering wheel play “a”
: 0 – 30 mm (0 – 1.2 in.)

If steering wheel play is not within specification,
inspect as follows and replace if found defective.
– Tie-rod end ball stud for wear
– Lower ball joint for wear
– Steering shaft joint for wear
– Steering pinion or rack gear for wear or breakage
– Each part for looseness

Poor recovery from turns Deformed pipes or hoses

Replace defective part.

Steering column installed improperly

Install steering column correctly.

Front end alignment out of order

Check and adjust front end alignment.

Ball joints binding

Replace defective part.

P/S pump hydraulic pressure fails to
increase

Check pressure and repair or replace defective
part.

P/S pump hydraulic pressure increases
but slowly

Check pressure and repair or replace defective
part.

Steering gear case malfunction

Replace gear case.

Vehicle pulls to one side
during straight driving

Mismatched or uneven tire

Replace tire.

Low or uneven tire inflation pressure

Inflate tires to proper pressure or adjust right
and left tires inflation pressure.

Brake dragging in one wheel

Repair.

Front end alignment out of order

Check and adjust front end alignment.

Rear end alignment out of order

Check and adjust rear end alignment.

Malfunction of control valve in gear case Replace gear case.

Steering wheel play is
large and vehicle wanders

Refer to “Steering Symptom Diagnosis
in Section 6A”.

Fluid leakage

Loose joints of (hydraulic pressure)
pipes and hoses

Retighten.

Deformed or damaged pipes or hoses

Replace defective part.

Abnormal noise

Air drawn in due to insufficient amount of
fluid

Add fluid and purge air.

Air mixed into fluid from pipes or hoses Replace pipes or hoses.
Slipping (loose) P/S belt

Adjust belt tension.

Worn P/S belt

Replace belt.

Loose gear case fastening bolt

Retighten bolts.

Loose linkage or joints

Retighten.

Pipes or hoses in contact with part of
vehicle body

Install pipes and hoses correctly.

Vanes of P/S pump defective

Replace defective part.

Malfunction of control valve in gear case Replace gear case.
Bearing of P/S pump shaft defective

Replace bearing.

No idle up (petrol engine
model)

Power steering pressure switch
defective

Replace power steering pressure switch.

Condition

Possible cause

Correction / Reference Item

I5JB0A630004-02

6C-5 Power Assisted Steering System:

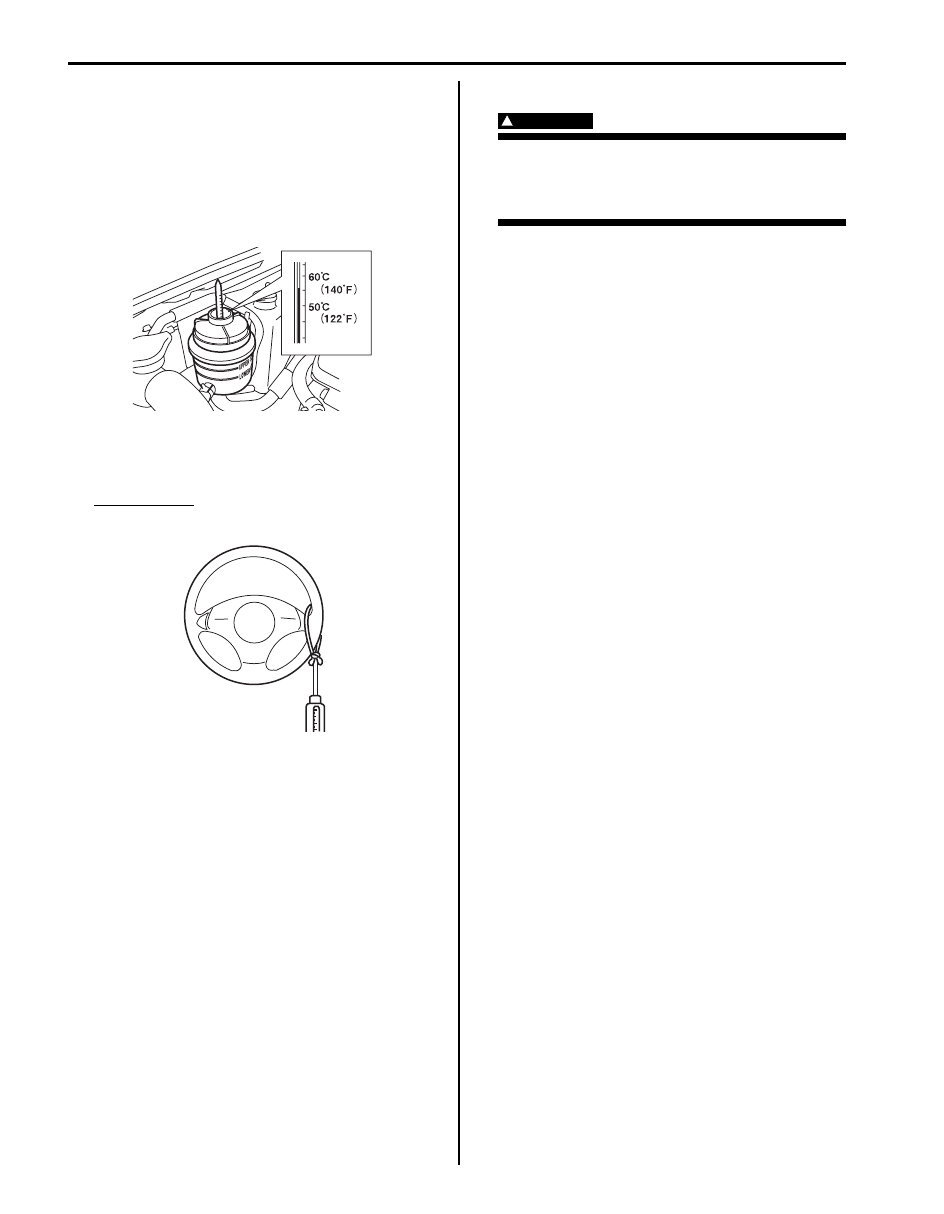

Steering Force Check

S6JB0A6304003

1) Place vehicle on level road and set steering wheel at

straight-ahead position.

2) Check that tire inflation pressure is as specified.

(Refer to tire placard.)

3) Start engine and keep it running till power steering

fluid is warmed to 50 to 60

°C (122 to 140 °F).

4) With engine idling, measure steering force by pulling

spring balancer hooked on steering wheel in
tangential direction.

Steering force
: Less than 30 N (3.0 kg, 6.6 lb)

Steering Wheel Recovery Check

S6JB0A6304004

WARNING

!



When performing a check, select a place
where there is no traffic or possibility of a
traffic accident and be very careful during
testing to avoid occurrence of an accident.



Check steering wheel for recovery as follows.

1) Rotate it to either right or left end.
2) Keep it at the end, and start the vehicle slowly.
3) Accelerate vehicle slowly.

If steering wheel begins to return at the vehicle speed
less than 10 km/h (6.3 mph), it is normal condition.
If the check result is abnormal, diagnose the fault part
referring to “Poor recovery from turns” in “P/S System
Symptom Diagnosis”.

Idle Up System Check

S6JB0A6304005

1) Warm up engine to normal operating temperature.
2) Turn A/C switch OFF, if equipped.
3) Turn steering wheel fully and check idle speed.

Engine idle speed drops a little momentarily when
steering wheel is turned fully but returns to its
specified level immediately.
If power steering pressure switch connector is
connected, check the same with that connector
disconnected.
Momentary drop of engine idle speed should be less
when it is connected than when disconnected.

I5JB0A630005-01

I5JB0A630057-01

Power Assisted Steering System:  6C-6

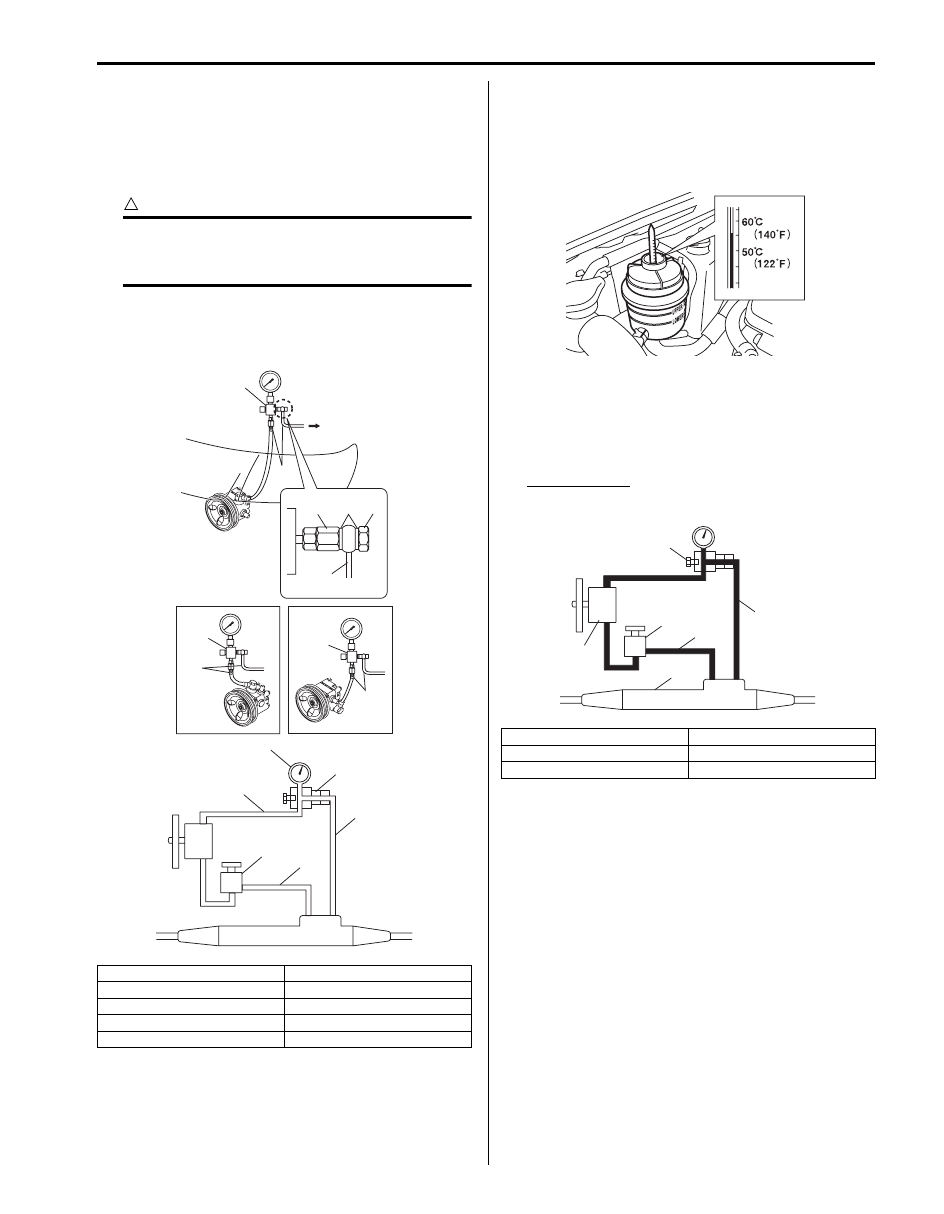

Hydraulic Pressure in P/S Circuit Check

S6JB0A6304006

1) After cleaning joint of high pressure hose and P/S

pump thoroughly, disconnect hose from pump and
install special tool (oil pressure gauge, attachment
and hose).

CAUTION

!



Take care not to cause damage to A/C
condenser during service operation, if
equipped.



Special tool
(A):  09915–77412
(B):  09915–77420

2) Check each connection for fluid leakage and bleed

air. Refer to “P/S System Air Bleeding Procedure”.

3) With engine idling, turn steering wheel and warm up

engine till temperature of fluid in tank rises to 50 – 60

°C (122 – 140 °F).

4) Check back pressure by measuring hydraulic

pressure with engine idling and hands off steering
wheel.
When back pressure is higher than specified values,
check control valve and piping for clogging.

Back pressure
Lower than 1000 kPa (10 kg/cm

2

, 142 psi)

[A]: M16A engine model

3. Gasket

[B]: J20A engine model

4. Union bolt

[C]: F9Q engine model

5. High pressure side

1. P/S fluid reservoir

6. Low pressure side

2. Attachment

(A)

(B)

(B)

5

1

6

(A)

(B)

2

5

4

3

(A)

(B)

(A)

(B)

[A]

[B]

[C]

I6JB0A630002-02

1. P/S fluid reservoir

4. P/S gear case

2. Gauge valve (open)

5. High pressure side

3. P/S pump

6. Low pressure side

I5JB0A630005-01

2

3

5

1

6

4

I5JB0A630008-01
