SsangYong Rexton. Service manual - part 210

SSANGYONG  REXTON XDi(RHD)

5-144  ELECTRICAL WIRING DIAGRAMS

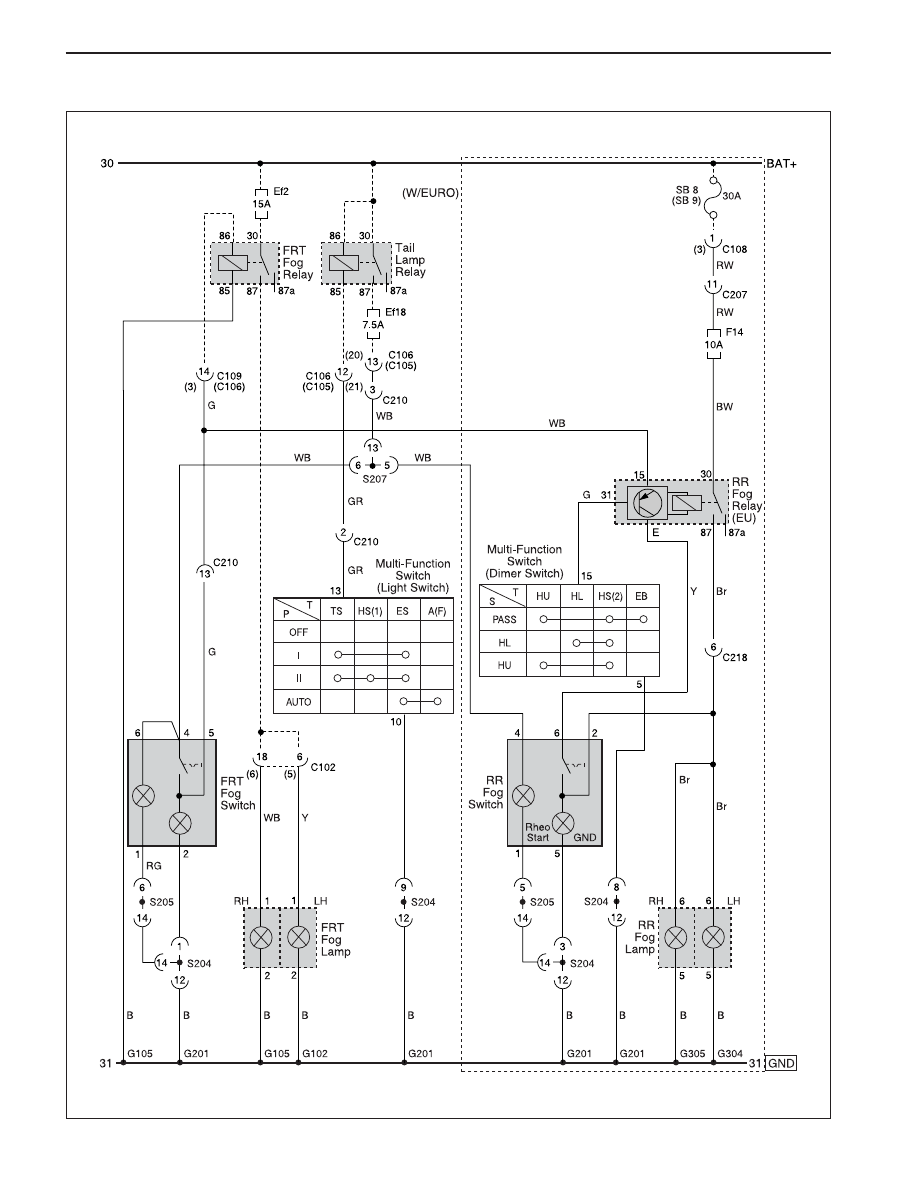

39. FOG LAMP CIRCUIT

(   ): 2003 Model ~

ELECTRICAL WIRING DIAGRAMS  5-145

SSANGYONG  REXTON XDi(RHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(B) - Engine

Engine Room Fuse Box(E) - Engine

Engine Room Fuse Box(F) - Engine

Engine Room Fuse Box(K) - Engine

Engine Room Fuse Box(M) - Engine

Main - Floor(LH)

Engine - Main(LH)

Main - Floor(RH)

W/H Main

W/H Main

W/H Main

W/H Engine

W/H Engine

W/H Main

W/H Floor

W/H Floor

C102(20Pin, White)

C105(22Pin, White)

C106(18Pin, White)

C108(4Pin, Colorless)

C109(14Pin, White)

C207(15Pin, Blue)

C210(13Pin, Green)

C218(22Pin, Yellow)

S204(14Pin, Black)

S205(14Pin, Black)

S207(14Pin, Black)

G102

G105

G201

G304

G305

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Behind the Left FATC

Behind the Left FATC

Behind the Right FATC

Center BATT

Behine the Right Head Lamp

Inside Driver Side Cowl PNL

Behind the Quarter Grass #1

Behind the Quarter Grass #1

GND

GND

Tail Lamp

Remark

Connector Position

SSANGYONG  REXTON XDi(RHD)

5-146  ELECTRICAL WIRING DIAGRAMS

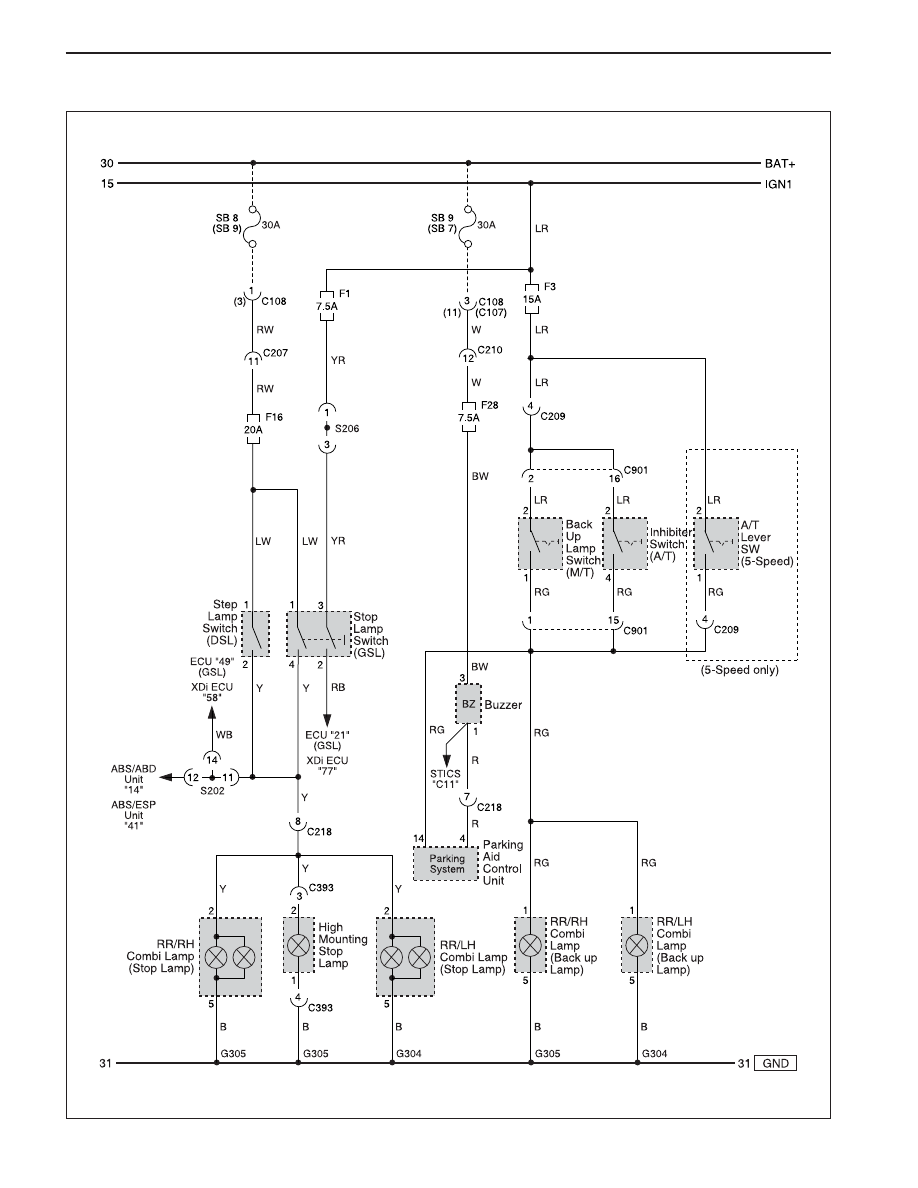

40. STOP & BACK UP LAMP CIRCUIT

(   ): 2003 Model ~

ELECTRICAL WIRING DIAGRAMS  5-147

SSANGYONG  REXTON XDi(RHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(J) - Engine

Engine Room Fuse Box(K) - Engine

Main - Floor(LH)

Main - Floor(LH)

Main - Floor(LH)

Main - Floor(RH)

Floor - T/M

Floor - T/M

Floor - RR Defogger

W/H Main

W/H Main

W/H Floor

W/H Floor

C107(14Pin, White)

C108(4Pin, Colorless)

C207(15Pin, Blue)

C209(22Pin, Yellow)

C210(13Pin, Green)

C218(22Pin, Yellow)

C307(16Pin, Black)

C307(2Pin, Black)

C393(4Pin, White)

S202(14Pin, Black)

S206(14Pin, Black)

G304

G305

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Left the T/C(Under the Floor)

Left the T/C(Under the Floor)

Inside the Upper the Tail Gate

Upper the I/P Relay Box

Behind the Left the FATC

Behind the Quarter Grass #1

Behind the Quarter Grass #1

A/T

A/T

M/T

Remark

Connector Position
