SSANGYONG  REXTON XDi(RHD)

5-136  ELECTRICAL WIRING DIAGRAMS

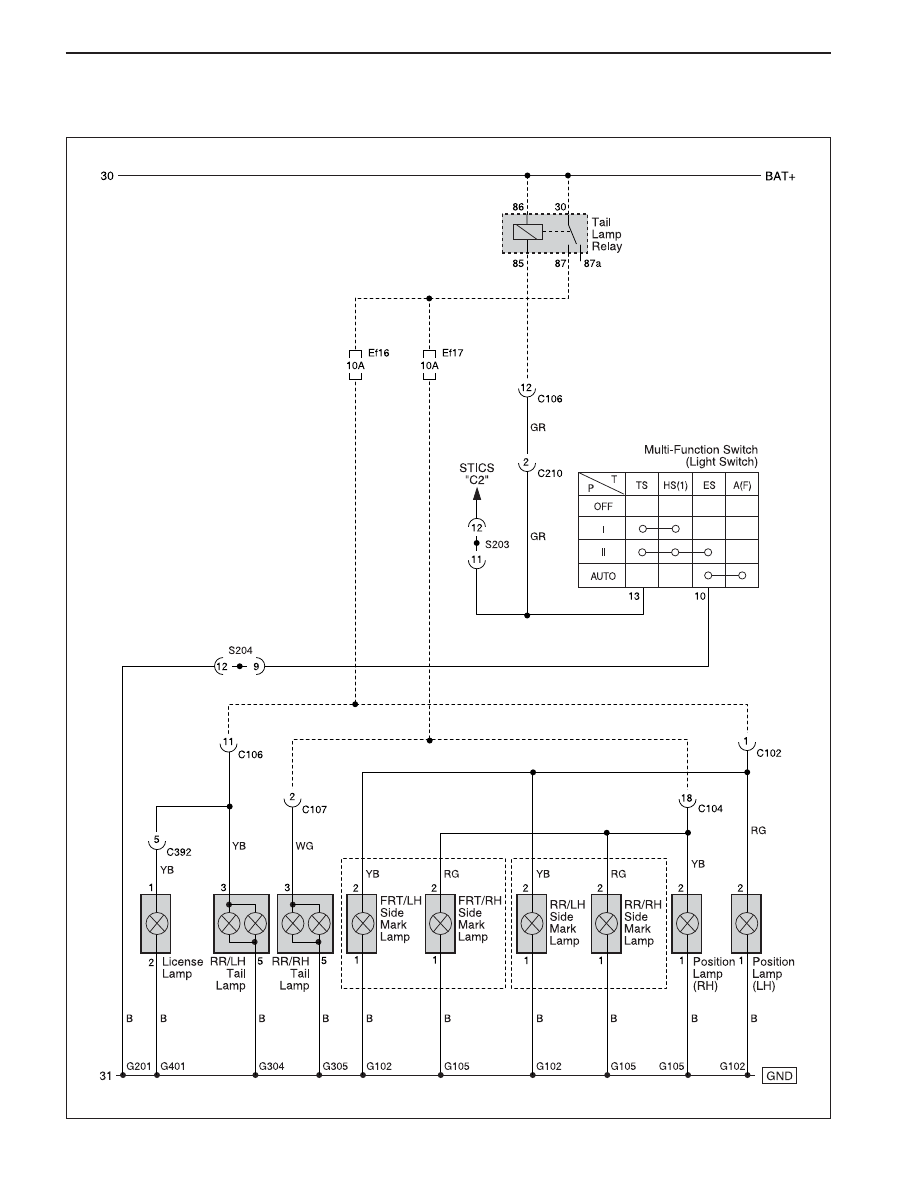

37. TAIL LAMP CIRCUIT

1) ~ 2002 MODEL

ELECTRICAL WIRING DIAGRAMS  5-137

SSANGYONG  REXTON XDi(RHD)

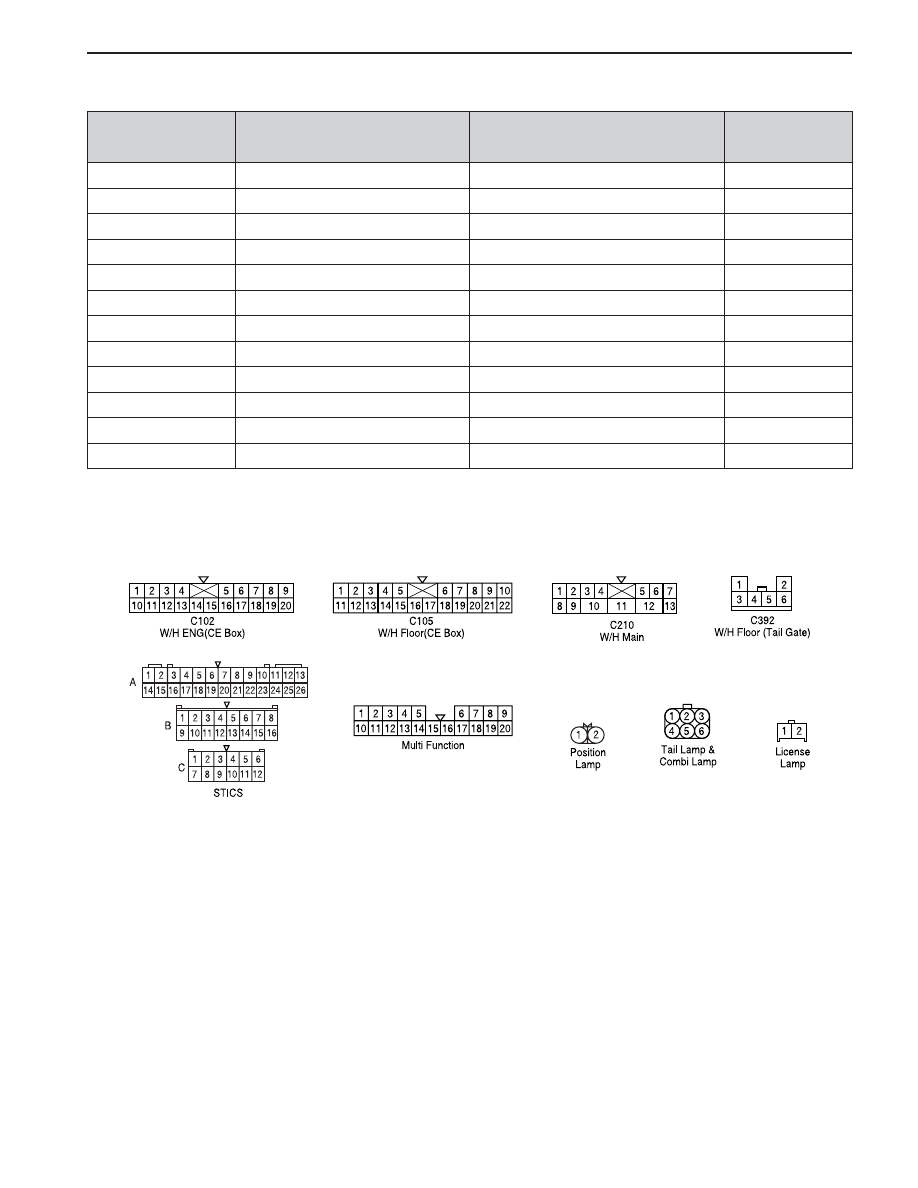

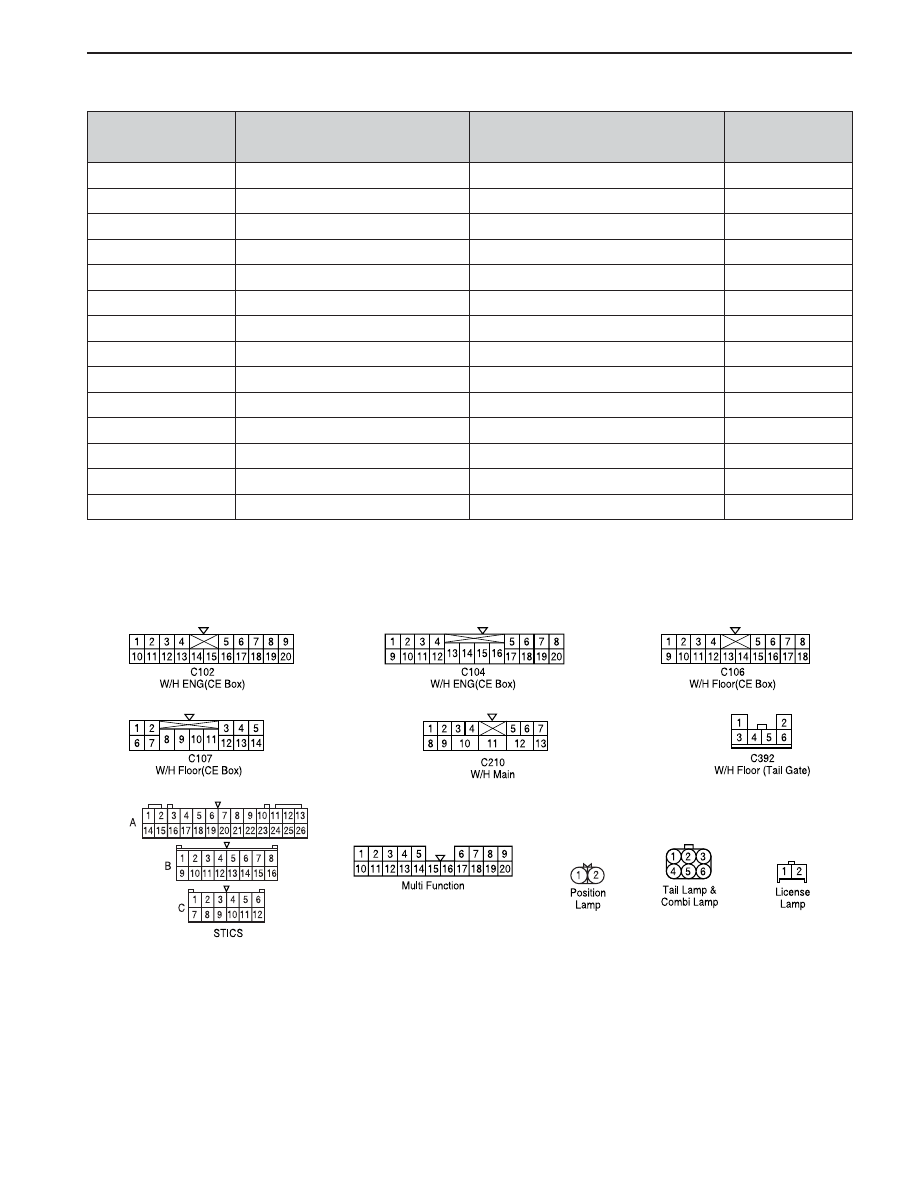

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(B) - Engine

Engine Room Fuse Box(D) - Engine

Engine Room Fuse Box(F) - Engine

Engine Room Fuse Box(J) - Engine

Engine - Main(LH)

Floor - Tail Gate

W/H Main

W/H Main

W/H Engine

W/H Engine

W/H Main

W/H Floor

W/H Floor

W/H Floor

C102(20Pin, White)

C104(20Pin, White)

C106(18Pin, White)

C107(14Pin, White)

C210(13Pin, Green)

C392(6Pin, White)

S203(14Pin, Black)

S204(14Pin, Black)

G102

G105

G201

G304

G305

G401

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Inside Co-Driver Side Cowl PNL

Inside the Left Side Cover the Tail Gate

Upper the I/P Relay Box

Behind the Left the FATC

Center BATT

Behine the Right Gead Lamp

Inside Driver Side Cowl PNL

Behind the Quarter Grass #1

Behind the Quarter Grass #1

Center the Tail Gate

GND

Remark

Connector Position

SSANGYONG  REXTON XDi(RHD)

5-138  ELECTRICAL WIRING DIAGRAMS

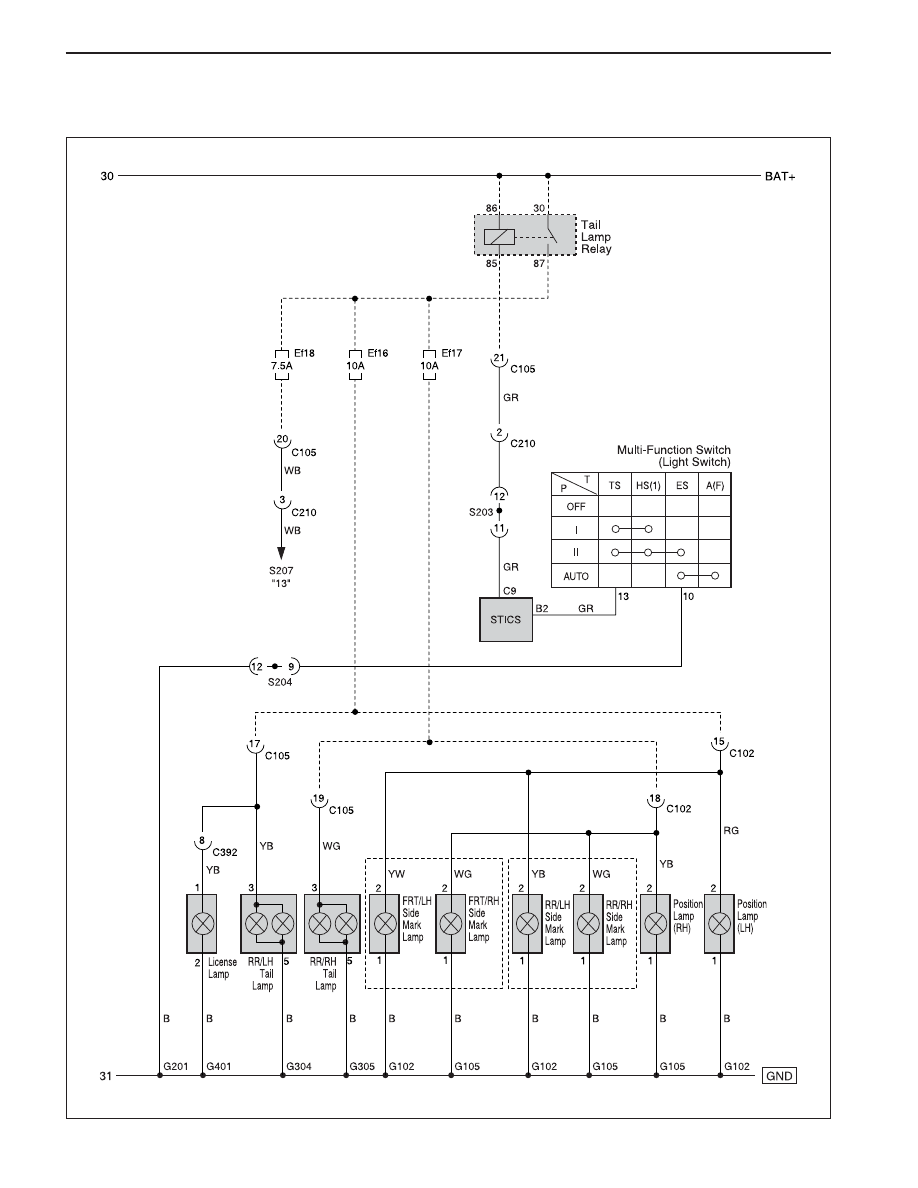

2) 2003 MODEL ~

ELECTRICAL WIRING DIAGRAMS  5-139

SSANGYONG  REXTON XDi(RHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(B) - Engine

Engine Room Fuse Box(E) - Engine

Engine - Main(LH)

Floor - Tail Gate

W/H Main

W/H Main

W/H Engine

W/H Engine

W/H Main

W/H Floor

W/H Floor

W/H Floor

C102(20Pin, White)

C105(22Pin, White)

C210(13Pin, Green)

C392(6Pin, White)

S203(14Pin, Black)

S204(14Pin, Black)

G102

G105

G201

G304

G305

G401

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Inside Co-Driver Side Cowl PNL

Inside the Left Side Cover the Tail Gate

Upper the I/P Relay Box

Behind the Left the FATC

Center BATT

Behine the Right Gead Lamp

Inside Driver Side Cowl PNL

Behind the Quarter Grass #1

Behind the Quarter Grass #1

Center the Tail Gate

GND

Remark

Connector Position
