SsangYong Rexton. Service manual - part 209

SSANGYONG  REXTON XDi(RHD)

5-140  ELECTRICAL WIRING DIAGRAMS

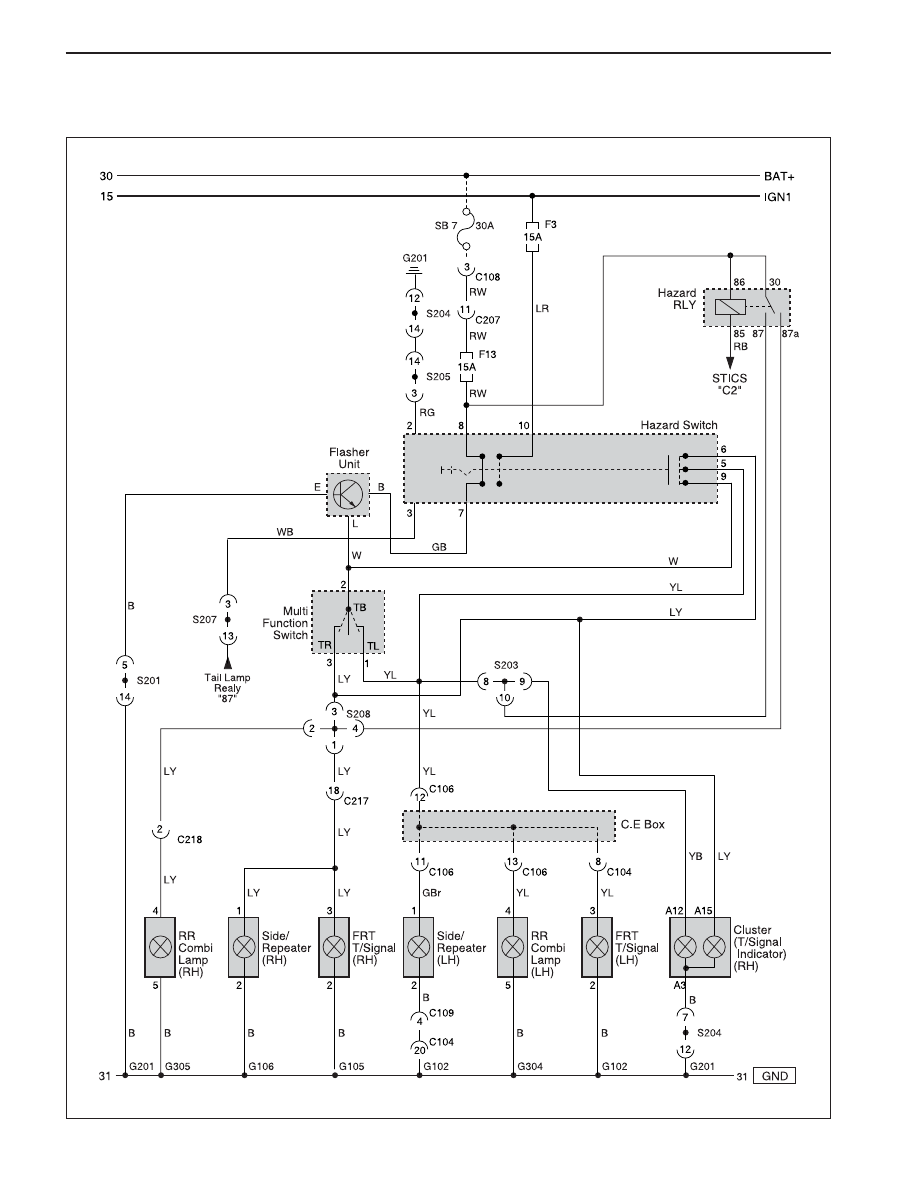

38. TURN SIGNAL & HAZARD LAMP CIRCUIT

1) ~ 2002 MODEL

ELECTRICAL WIRING DIAGRAMS  5-141

SSANGYONG  REXTON XDi(RHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(D) - Engine

Engine Room Fuse Box(E) - Engine

Engine Room Fuse Box(K) - Engine

Engine Room Fuse Box(M) - Engine

Main - Floor(LH)

Main - Floor(LH)

Engine - Main(RH)

W/H Main

W/H Main

W/H Main

W/H Main

W/H Main

W/H Main

W/H Engine

W/H Engine

W/H Engine

W/H Main

W/H Floor

W/H Floor

C104(20Pin, White)

C105(22Pin, White)

C108(4Pin, Colorless)

C109(16Pin, White)

C207(15Pin, Blue)

C210(13Pin, Green)

C217(20Pin, Black)

S201(14Pin, Black)

S203(14Pin, Black)

S204(14Pin, Black)

S205(14Pin, Black)

S207(14Pin, Black)

S208(14Pin, Black)

G102

G105

G106

G201

G304

G305

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Upper the I/P Relay Box

Upper the I/P Relay Box

Behind the Left the FATC

Behind the Left the FATC

Behind the Right the FATC

Behind the Right the FATC

Center BATT

Behine the Right Gead Lamp

Beside the Engine Coolant Reserve Tank

Inside Driver Side Cowl PNL

Behind the Quarter Grass #1

Behind the Quarter Grass #1

GND

GND

GND

Tail Lamp

ABS, ABD

Remark

Connector Position

SSANGYONG  REXTON XDi(RHD)

5-142  ELECTRICAL WIRING DIAGRAMS

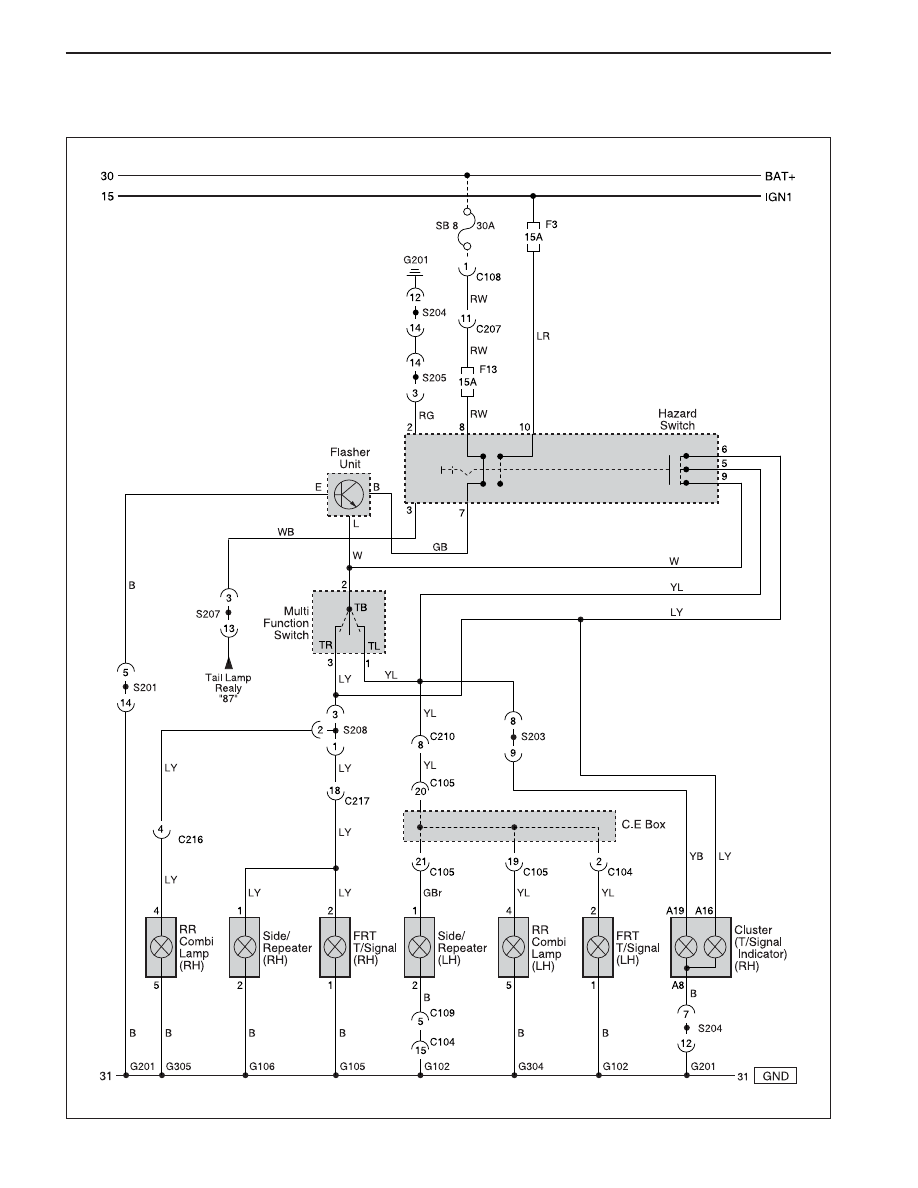

2) 2003 MODEL~

ELECTRICAL WIRING DIAGRAMS  5-143

SSANGYONG  REXTON XDi(RHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(D) - Engine

Engine Room Fuse Box(E) - Engine

Engine Room Fuse Box(K) - Engine

Engine Room Fuse Box(M) - Engine

Main - Floor(LH)

Main - Floor(LH)

Engine - Main(RH)

Main - Floor(RH)

W/H Main

W/H Main

W/H Main

W/H Main

W/H Main

W/H Main

W/H Engine

W/H Engine

W/H Engine

W/H Main

W/H Floor

W/H Floor

C104(20Pin, White)

C105(22Pin, White)

C108(4Pin, Colorless)

C109(16Pin, White)

C207(15Pin, Blue)

C210(13Pin, Green)

C217(20Pin, Black)

C218(22Pin, Yellow)

S201(14Pin, Black)

S203(14Pin, Black)

S204(14Pin, Black)

S205(14Pin, Black)

S207(14Pin, Black)

S208(14Pin, Black)

G102

G105

G106

G201

G304

G305

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Upper the I/P Relay Box

Upper the I/P Relay Box

Behind the Left the FATC

Behind the Left the FATC

Behind the Right the FATC

Behind the Right the FATC

Center BATT

Behine the Right Gead Lamp

Beside the Engine Coolant Reserve Tank

Inside Driver Side Cowl PNL

Behind the Quarter Grass #1

Behind the Quarter Grass #1

GND

GND

GND

Tail Lamp

ABS, ABD

Remark

Connector Position
