Skoda Superb (2019 year). Instruction - part 7





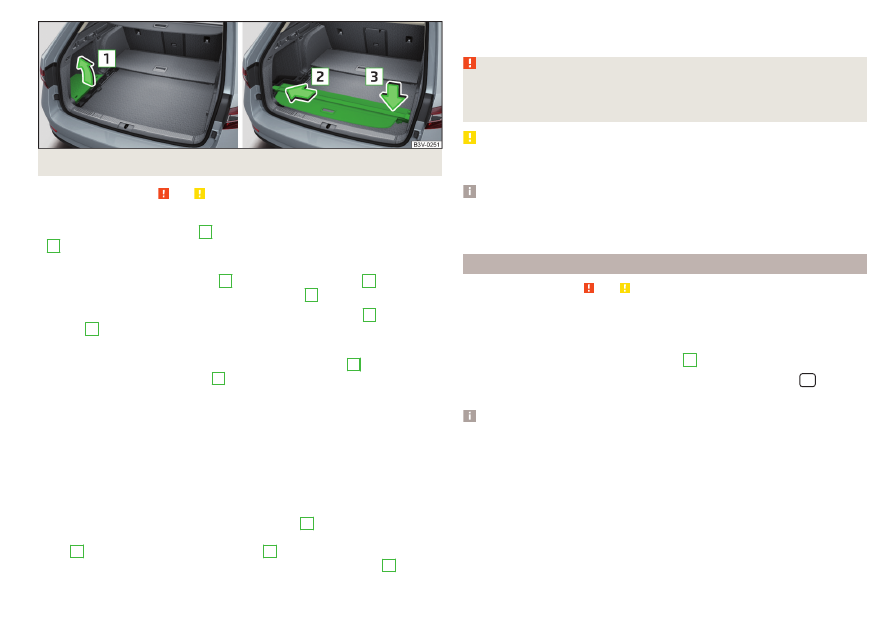

Fig. 149  Remove the left side cover / store roll-up cover

Read and observe   and   on page 105 first.

Extending

Grasp the cover at grip-point

A

 and pull it out in the direction of the arrow

1

 until it audibly clicks into place

» Fig. 148

.

Retracting

Push the cover in the handle area

A

 in the direction of arrow

2

. The cover

rolls up automatically to the intermediate position

B



» Fig. 148

.

The cover rolls up fully by pressing the cover in the handle area

A

 in direction

of arrow

3

. The rolled-up cover can now be removed.

Removing/inserting

Press on the side of the cross bar in the direction of arrow

4

 and remove

the cover in the arrow direction

5



» Fig. 148

.

Insertion takes place in reverse order.

Stowage

If the vehicle is equipped with the variable loading floor, then the removable

roll-up luggage compartment cover can be stowed in the recesses of the lug-

gage compartment side trim.

Fold the variable loading floor into the upper position

» page 114

.

Open the side trays on both sides of the luggage compartment and remove

» Fig. 150

 on page 110 - .

Remove the left side cover in the arrow direction

1



» Fig. 149

.

Insert the roll-up cover in the recesses of the side trim in the direction of ar-

row

2

 and stow in the direction of arrow

3

.

Reinsert the left side cover in the opposite direction to the arrow

1

.

Close the side compartments on both sides of the luggage compartment.

Fold out the variable loading floor to the upper position.

WARNING

No objects should be placed on the roll-up cover - there is a risk of damage

to the cover and a risk of injury in the event of a sudden stop or a vehicle

collision!

CAUTION

It is possible that the roll-up luggage compartment cover rolls more slowly

during winter weather conditions. This is not a defect.

Note

If you want to stow the roll-up luggage compartment cover and the multifunc-

tion pocket at the same time, then it is necessary that the rear part of the roll-

up luggage compartment covers the multifunction pocket.

Roll-up cover - automatic rolling-up

Read and observe   and   on page 105 first.

The automatic rolling up of the roll-up cover (hereafter as function) eases ac-

cess to the luggage compartment.
When opening the boot lid with the function activated, the roll-up cover auto-

matic rolls-up of the intermediate position

B



» Fig. 148

 on page 108.

Deactivating/activating can be carried out in Infotainment in the



/  →

Opening and closing in progress.

Note

The setting (activation/deactivation) of the automatic rolling up is stored (de-

pending on the Infotainment type) in the active user account personalisation

» page 55

.

109

Transport of cargo

-------------------------------------------------------------------------------------------------------------------------------------------------------------

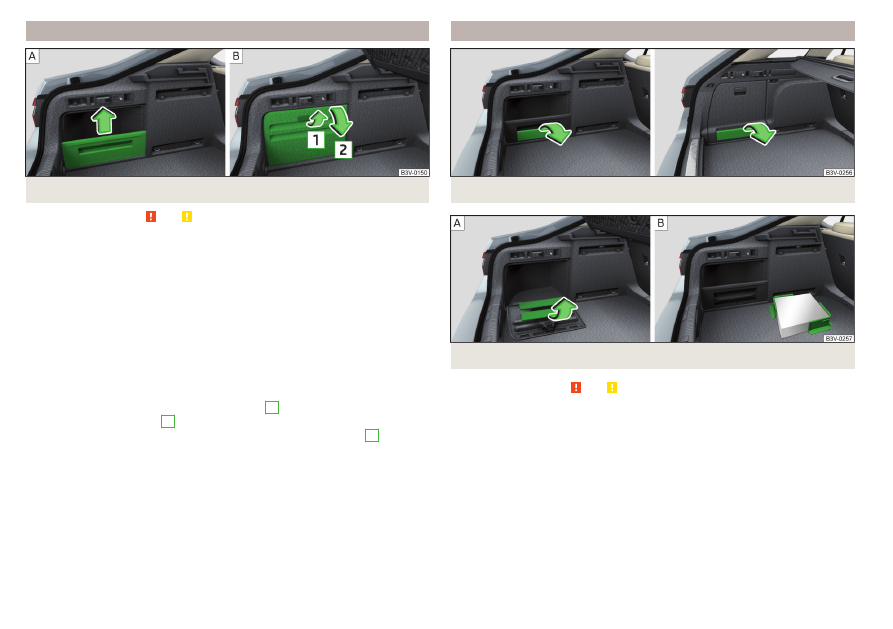

Side storage compartment and trays

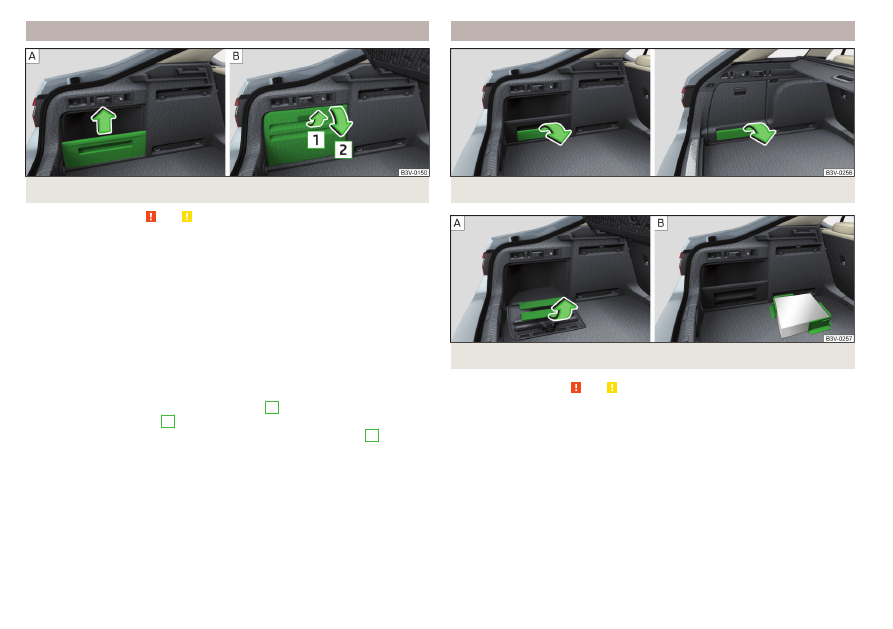

Fig. 150  Side shelf removal / open side pocket

Read and observe   and   on page 105 first.

Located at the two sides of the luggage compartment, depending on vehicle

equipment are side trays

» Fig. 150

 -  or lockable side compartments

» Fig. 150

 - .

The space behind the tray and in the tray is provided for storing small objects

up to a total weight of 2.5 kg.

Side compartment

Remove the storage compartment cover in the direction of the ar-

row

» Fig. 150

 - .

To insert, proceed in reverse order.

Side compartment

To open, pull the handle in direction of arrow

1

 and open the compartment

in the direction of arrow

2



» Fig. 150

 . The tray can be removed.

To close, swivel the compartment against the direction of arrow

2

.

Cargo element

Fig. 151  Taking out cargo elements: Version 1/version 2

Fig. 152  Taking out cargo elements: Variant 3/load fastening example

Read and observe   and   on page 105 first.

The cargo elements are designed for mounting and securing loads with a maxi-

mum gross weight of 8 kg.

Before use, remove the Cargo elements in the direction of the arrows

» Fig. 151

 and

» Fig. 152

 - .

Use the cargo elements to secure the load as close as possible to the rear

seats

» Fig. 152

 .

After use, stow the Cargoelements in their original position.

110

Using the system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Storage compartments under the floor covering

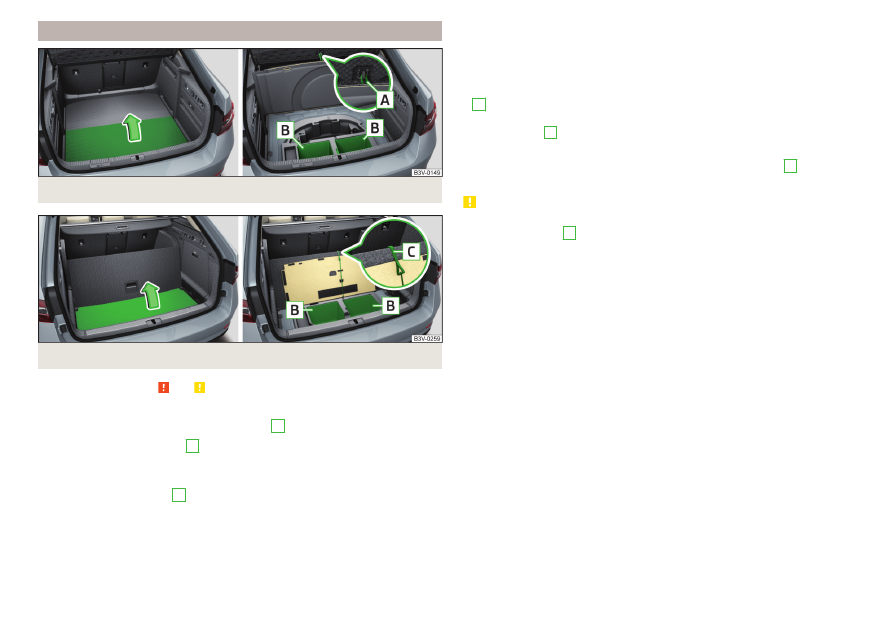

Fig. 153  Variant 1: Lifting floor covering/storage compartments

Fig. 154  Variant 2: Lifting floor covering/storage compartments

Read and observe   and   on page 105 first.

For vehicles that are not equipped with an emergency spare wheel located un-

der the flooring of the luggage compartment

B



» Fig. 153

 or

» Fig. 154

.

Every storage compartment

B

 is designed for storing small objects of up to

15 kg. in weight in total.

Using the storage compartments - variant 1

Lift the flooring via loop

A

 in the direction of arrow

» Fig. 153

 and complete-

ly fold back or fasten using the loop on the hook on the luggage compart-

ment cover.

Stow the cargo in the storage compartments.

Fold back the flooring against the direction of the arrow or remove it from

the hook.

When transporting tall objects in the compartments, the flooring must be fol-

ded forward.

Using the storage compartments - variant 2

Dividing the luggage compartment with variable loading floor

» page 114

.

Lift the floor covering in the direction of arrow

» Fig. 154

 and hook into hook

C

 on the upper edge of the variable loading floor.

Stow the cargo in the storage compartments.

Unhook hook

C

 and fold back the flooring against the direction of the arrow

(fold back the variable loading floor to the initial position if necessary).

When transporting tall objects in the compartments, the hook

C

 must be

hooked onto the upper edge of the variable loading floor.

CAUTION

Before closing the boot lid check that the flooring is not attached to the

hook with the loop

A



» Fig. 153

 - there is a risk of damaging the hook.

Before closing the boot lid, check that the cargo transported in the storage

compartments does not strike against the luggage compartment cover - there

is a risk of damage to the lid.

111

Transport of cargo

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Multi-function pocket

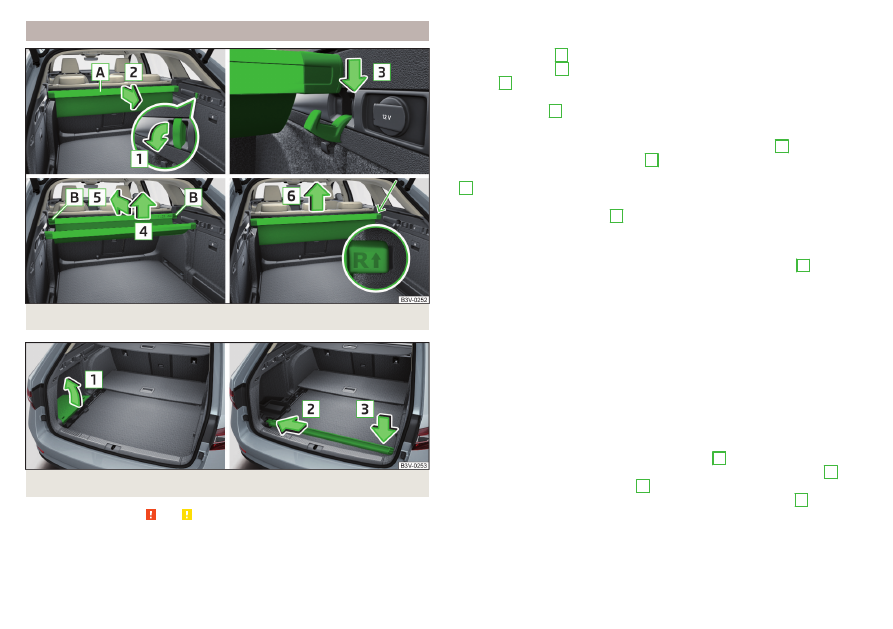

Fig. 155  Multifunction pocket: Pull out/insert/push in/remove

Fig. 156  Remove the left side cover / store multifunction tray

Read and observe   and   on page 105 first.

The multifunction pocket (following as pocket) is provided for the storage of

clothing and light objects with no sharp edges.
The maximum permissible load of the multifunction box is 3 kg.

Removal and fitting

Fold down the front hooks on both sides of the luggage compartment in the

direction of arrow

1



» Fig. 155

.

Grasp the rear bar

A

 with both hands and withdraw the pocket in arrow di-

rection

2

.

Place the rear bar onto the two hooks that are folded forward in the direc-

tion of the arrow

3

 all the way to the stop.

Pushing in

Remove the rear bar from the hooks in the direction of arrow

4

 and push in

the pocket in the direction of arrow

5



» Fig. 155

.

Place the rear bar against the front bar and press them together at both ends

B

.

The front hooks on both sides of the luggage compartment fold back oppo-

site to the direction of arrow

1

.

Removing/inserting

Remove the roll-up luggage compartment cover

» page 108

.

Remove the pocket from the fittings in the direction of the arrow

6

» Fig. 155

.

Insertion takes place in reverse order.

Insert the end of the bar marked   in the right-hand mounting, and the end

marked   in the left-hand mounting. The arrows should be pointing forward.

Stowage

If the vehicle is equipped with the variable loading floor, then the removable

pocket cover can be stowed in the recesses of the luggage compartment side

trim.

Fold the variable loading floor into the upper position

» page 114

.

Open the side trays on both sides of the luggage compartment

» Fig. 150

 on

page 110 - .

Remove the left side cover in the arrow direction

1



» Fig. 156

.

Insert the pocket in the recesses of the side trim in the arrow direction

2

and stow in the direction of arrow

3

.

Reinsert the left side cover in the opposite direction to the arrow

1

.

Close the side compartments on both sides of the luggage compartment.

Fold out the variable loading floor to the upper position.

112

Using the system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Note

If you want to stow the roll-up luggage compartment cover and the multifunc-

tion pocket at the same time, then it is necessary that the rear part of the roll-

up luggage compartment covers the multifunction pocket.

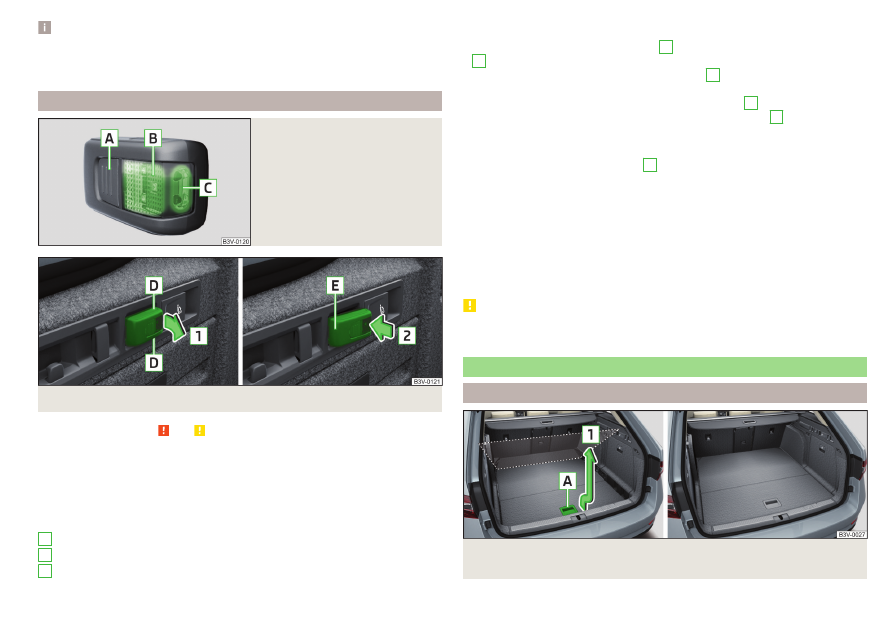

Removable light

Fig. 157

Removable light

Fig. 158  Removing light/inserting light

Read and observe   and   on page 105 first.

The lamp is for the illumination of the luggage compartment or it can be used

as a portable lamp.
The lamp is equipped with a magnet. As a result, this can, for example, be fitted

to the vehicle body.
Description of the light

» Fig. 157

Button to turn the light that has been removed on / off
Part that lights up when the lamp is in the mount
Part that lights up when the lamp is not in the mount

A
B
C

If the light is in the mount, this will illuminate when the boot lid is opened.

To remove, hold the light in the area

D

 and swivel in the direction of arrow

1

» Fig. 158

.

To switch on the removed light, press button

A

» Fig. 157

. Pressing the light

again will switch it off.

To insert, first of all insert the light with the rear part

E

 into the mount

» Fig. 158

 and then push the light in the direction of arrow

2

 until it audibly

clicks into place.

If the light is not switched off and is correctly inserted in the mount, the LED

diodes in the front part of the light

C

» Fig. 157

 are automatically switched off.

If the lamp is not correctly inserted into the holder, this does not light up when

the boot lid is opened and the rechargeable batteries are not charged.

Lamp charges

The lamp is supplied by three rechargeable type NiMH AAA batteries (voltage

1.2 V). The batteries are charged continuously with the engine running (to fully

charge the battery takes approximately 3 hours).
Replace batteries

» page 292

.

CAUTION

The light is not waterproof, so it must be protected from humidity - otherwise

there is risk of damage.

Variable loading floor in the luggage compartment (Estate)

Positions of the variable loading floor

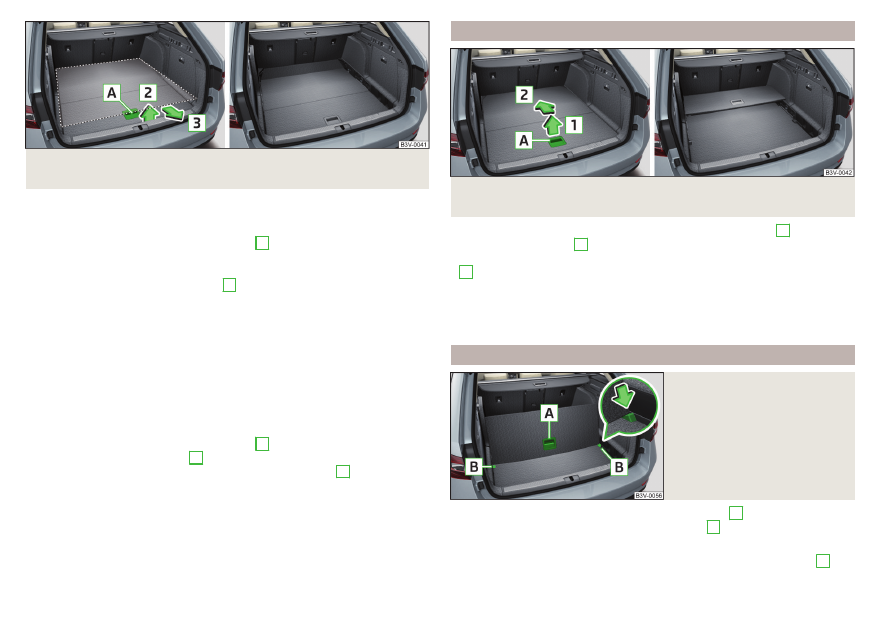

Fig. 159  Set variable loading floor to the upper position / variable load-

ing floor in the upper position

113

Transport of cargo

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Fig. 160  Set variable loading floor to the lower position / variable load-

ing floor in the lower position

The variable loading floor can be set to the upper or lower position.

Set to the upper position

Lift the variable loading floor by the handle

A



» Fig. 159

 by about 20 cm and

pull towards you.

Lift the variable loading floor to the height of the roll-up luggage compart-

ment cover in the direction of arrow

1

 until you hear the clicking sound and

press forward.

The space below the variable loading floor can be used for stowing objects

such as the removed roll-up luggage compartment cover

» page 108

, the mul-

ti-function pocket

» page 112

 etc.

The maximum permissible load of the variable loading floor is 75 kg. For the

transport of heavy loads, adjust the variable loading floor in the lower position

» Fig. 160

.

Set into the lower position

Check that the area below the variable loading floor is empty.

Lift the variable loading floor by the handle

A



» Fig. 160

 above the loading

edge in the direction of arrow

2

.

Pull the loading floor towards you in the direction of arrow

3

 until it sinks to

the bottom position, and push forward.

Fold together / fold out the variable loading floor

Fig. 161  Fold up variable loading floor / folded variable cargo floor in the

upper position

To fold together, hold the variable loading floor by the handle

A

 and lift in

the direction of arrow

1



» Fig. 161

.

Fold up the variable loading floor by moving it in the direction of the arrow

2

.

Folding out takes place in reverse order.
The variable loading floor is folded together / out in the same way in the upper

and lower position.

Dividing the luggage compartment

Fig. 162

Dividing the boot with variable

loading floor

To divide, lift the variable loading floor by the handle

A

 and push in the rear

edge of the variable loading floor in the grooves

B

 in the direction of the ar-

row

» Fig. 162

.

The variable loading floor is secured against movements in the grooves

B

.

114

Using the system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Folding out takes place in reverse order.
The variable loading floor is divided in the same way in the upper and lower po-

sition.

Net partition

Using the net partition

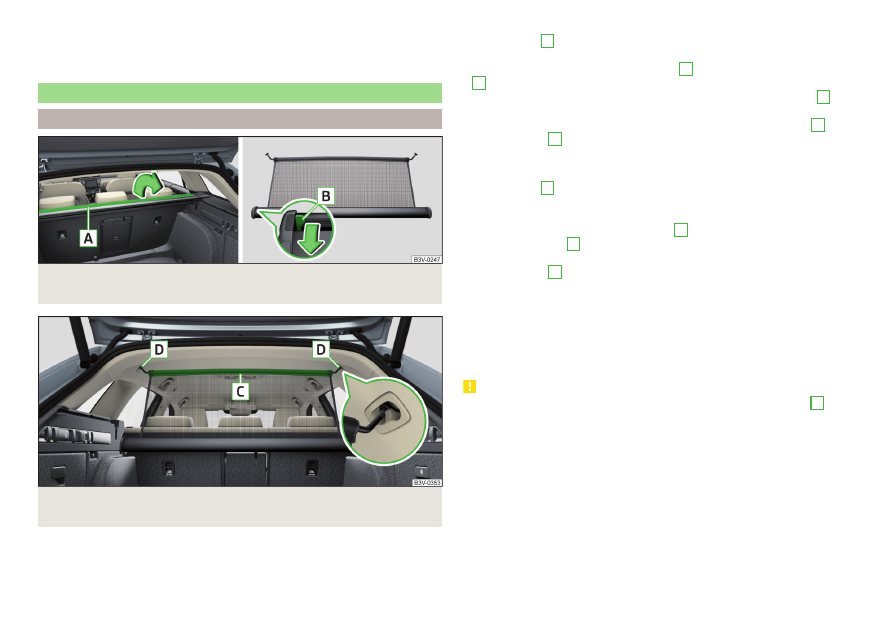

Fig. 163  Open part of the roll-up luggage compartment cover / release

lever

Fig. 164  Correctly secure net partition behind the front seats in the

pulled-out state

The net partition can either be pulled out and secured from behind the rear

seats or behind the front seats.

Pull out and secure the net partition behind the rear seats

Fold out part

A

 of the roll-up luggage compartment cover in the direction of

arrow

» Fig. 163

.

Pull out the net partition at the crossbar

C

, insert in one of the mountings

D

 and push forwards

» Fig. 164

.

Insert the crossbar on the other side of the vehicle in the mounting

D

 in the

same way.

Make sure that the crossbar is firmly seated in the two mountings

D

.

Fold back part

A

 of the roll-up luggage compartment cover in the opposite

direction of the arrow

» Fig. 163

.

Using the net partition behind the rear seats

Fold out part

A

 of the roll-up luggage compartment cover in the direction of

arrow

» Fig. 163

.

First pull the crossbar back slightly on the one side and then on the other

side and remove it from the mountings

D

» Fig. 164

.

Hold the crossbar

C

 in such a way that the net partition can slowly roll up

without being damaged.

Fold back part

A

 of the roll-up luggage compartment cover in the opposite

direction of the arrow

» Fig. 163

.

Pull out and secure the net partition behind the front seats

The process is analogous to that for behind the rear seats. Before removing

the net partition, the rear seat backrests should be folded forwards. After roll-

ing up the net partition in the housing, the rear seat backrests should then be

folded back

» page 87

.

CAUTION

If the net partition blocks when pulling it out, push the release lever

B

 in the

direction of the arrow

» Fig. 163

.

115

Transport of cargo

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Removing and installing the net partition housing

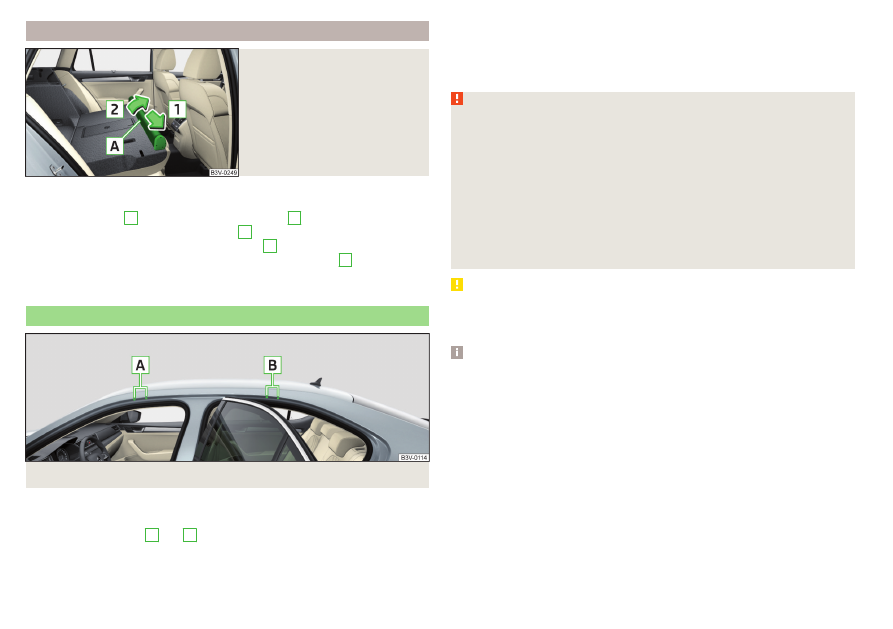

Fig. 165

Removing the net partition

housing

To remove, fold forwarded the rear seat backrests and open the rear right

door.

Push the housing

A

 in the direction of the arrow

1

 and remove it from the

mountings in the direction of the arrow

2



» Fig. 165

.

To install, insert the recesses on the housing

A

 into the mountings on the

rear seat backrests and push the housing against the arrow

1

 up to the

stop.

Fold the rear seat backrests to their original position.

Transportation on the roof rack

Fig. 166  Attachment points

Depending on the equipment, the roof bars can be attached at the attachment

points

» Fig. 166

 or to the roof rail.

The attachment points

A

 and

B

 are located on both sides of the vehicle

» Fig. 166

.

Mounting and dismounting of the roof bars is carried out according to the in-

structions provided.

Roof load

The maximum permitted weight of the load incl. the carrier is 100 kg.

WARNING

For road safety when transporting cargo on the roof rack, observe the fol-

lowing instructions.

Always distribute the load on the roof rack evenly and secure properly us-

ing suitable lashing straps or tensioning straps.

When transporting heavy objects or objects which take up a large area on

the roof rack system, the handling of the car may change as a result of the

displacement of the centre of gravity. The style of driving and speed must

therefore be adapted to the current circumstances.

The permissible roof load, permissible axle loads and permissible total ve-

hicle weight must not be exceeded under any circumstances – risk of acci-

dent!

CAUTION

Make sure that the sliding / tilting roof or the boot lid does not collide with

the roof load when opened.

Ensure the roof aerial is not impaired by the load being transported.

Note

We recommend that you use a roof rack from ŠKODA Original Accessories.

116

Using the system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Heating and ventilation

Heating, manual air conditioning system, Climatronic

Introduction

The heating heats and ventilates the vehicle interior. The air conditioning sys-

tem also cools and dehumidifies the vehicle interior.
The heating effect is dependent upon the coolant temperature, thus full heat

output only occurs when the engine has reached its operating temperature.
The cooling system works under the following conditions.

The cooling system is switched on.
The engine is running.
The outside temperature is below 2 ° C.
The blower is switched on.

Fogging is prevented when the cooling system is switched on.
It is possible to boost the effectiveness of the cooling system by briefly acti-

vating the air recirculation system

» page 120

.

Health protection

To reduce health risks (e.g. common colds), the following instructions for the

use of the cooling system are to be observed.

The difference between the indoor temperature and the outdoor air temper-

ature should not be greater than about 5 ° C.

The cooling system should be turned off about 10 minutes before the end of

the journey.

Once a year, the air conditioning should be disinfected by a specialist garage.

WARNING

The blower should always be on to prevent the windows from misting.

Otherwise there could be an accident.

Under certain circumstances, air at a temperature of about 5 °C can flow

out of the vents when the cooling system is switched on.

Note

The air inlet in front of the windscreen must be free of e.g. ice, snow or

leaves to ensure that the heating and cooling system operates properly.

After switching on the cooling Condensation from the evaporator of the air

conditioning may drip down and form a puddle below the vehicle. This is not a

leak!

If the coolant temperature is too high, the cooling system is switched off to

ensure that the engine cools down.

Heating and manual air conditioning

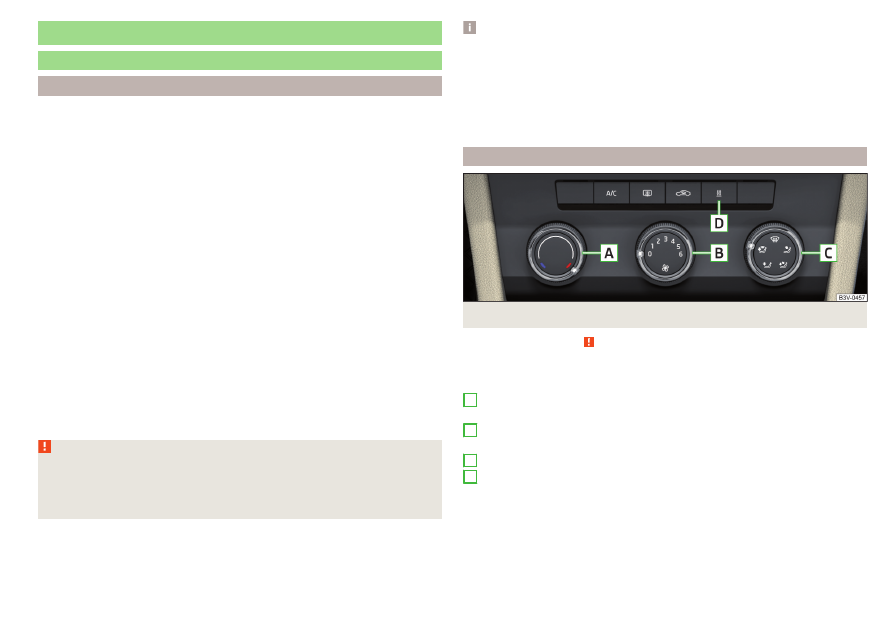

Fig. 167  Controls of the heating / air conditioning

Read and observe   on page 117 first.

Individual functions can be set or switched on by turning the dial or pressing

the corresponding button

» Fig. 167

.

Setting temperature

 Reduce the temperature/

 Increase the temperature

Set the blower speed (Level 0: Adjust the fan speed (level 0: fan off; level

6: highest speed)
Set the direction of the air outlet

» page 121

Depending on equipment fitted:

 Auxiliary heating and ventilation on / switch off

» page 122

 Switching the windscreen heater on/off

» page 77

Switch the cooling system on/off
Switch on/off the rear window heating

» page 77

Switch recirculation on/off

» page 120

A

B

C
D



117

Heating and ventilation

-------------------------------------------------------------------------------------------------------------------------------------------------------------

When the function is switched on, the indicator lamp below the button lights

up.

Information on the cooling system

After pressing the button , the warning light underneath the button illumi-

nates even if not all conditions are met for the cooling system. The cooling

system starts to work as soon as the following conditions have been met

» page 117

.

When the air distribution control is turned to position  the cooling system is

activated.

Note

To ensure adequate thermal comfort, during operation of the manual air condi-

tioning there could be an increase in the engine idle speed in some circumstan-

ces.

Climatronic (automatic air conditioning)

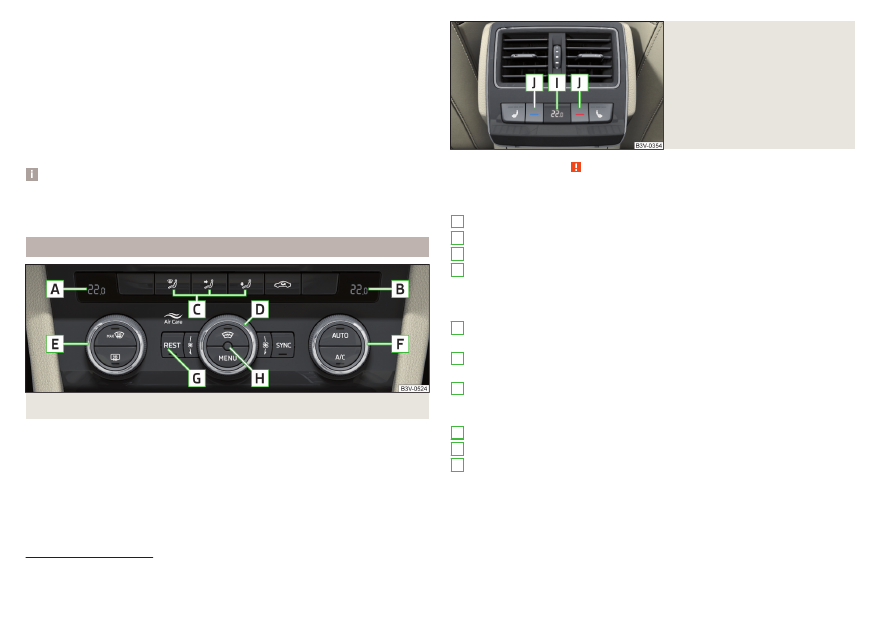

Fig. 168  Front operating elements

Fig. 169

Rear operating elements

Read and observe   on page 117 first.

Individual functions can be set or switched on by turning the dial or pressing

the corresponding button

» Fig. 168

.

Display the temperature setting for the left side
Display the temperature setting for the right side
Set the direction of the air outlet

» page 121

Adjust fan speed (the setting is indicated by the number of illuminated

control lamps shown in the knob)

Turn to the left: Reduce speed up to turning off the Climatronic

Turn to the right: Increase speed

Adjust the temperature for the left side (or for both sides)

1)

 Reduce the temperature/

 Increase the temperature

Adjust the temperature for the right side (or for both sides)

2)

 Reduce the temperature/

 Increase the temperature

Depending on equipment fitted:

 Auxiliary heating and ventilation on / switch off

» page 122



 Residual heat function on / off

» page 119

Interior temperature sensor
Display of the temperature set in the rear

» Fig. 169

Set the rear temperature- deactivation/activation of the keys can be car-

ried out by pressing the button  on the Climatronic → by tapping the

function surfaces  on the Infotainment screen.

 Reduce the temperature/

 Increase the temperature

Switch recirculation on/off

» page 120

A
B
C
D

E

F

G

H

I

J

1)

Applies to left-hand drive vehicles.

2)

Applies to right-hand drive vehicles.

118

Using the system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Intense air flow to the windscreen on / off (when switching on, the air

flow to the windows  and  is also switched on)
Switch on/off the rear window heating

» page 77

Switching the windscreen heater on/off

» page 77

Setting Climatronic in Infotainment ( can also be operated with some

functions)

Synchronize the temperature inside the entire vehicle according to the

temperature setting on the driver's side

Switching automatic mode on

» page 120

Switch the cooling system on/off

When the function is switched on, an indicator lamp lights up inside or below

the button.

Setting temperature

The temperature can be set on the Climatronic control unit or in Infotain-

ment

» page 119

. In the range between 16 ° C to 29.5 ° C, an automatic tem-

perature control takes place.
At a temperature setting below 16 ° C,  lights up in the temperature display,

the Climatronic functions with maximum cooling performance.
At a temperature setting over 29.5 ° C,  lights up in the temperature display,

the Climatronic functions with maximum heating output.

Residual heat function 

After switching off the ignition, the engine residual heat is used for heat reten-

tion in the vehicle interior. The function can only be switched on with the igni-

tion off within 30 minutes after stopping the engine. The residual heat func-

tion turns off after about 30 minutes, or when the battery has a low charge

state.

CAUTION

Do not cover the interior temperature sensor

H



» Fig. 168

 - the function of

the Climatronic could be affected.

Note

In order to ensure adequate thermal comfort, there may be an increase in en-

gine idle speed during operation of the Climatronic in some circumstances.

The setting of the Climatronic is stored in the active user account personali-

sation

» page 55

.









Operate Climatronic in Infotainment

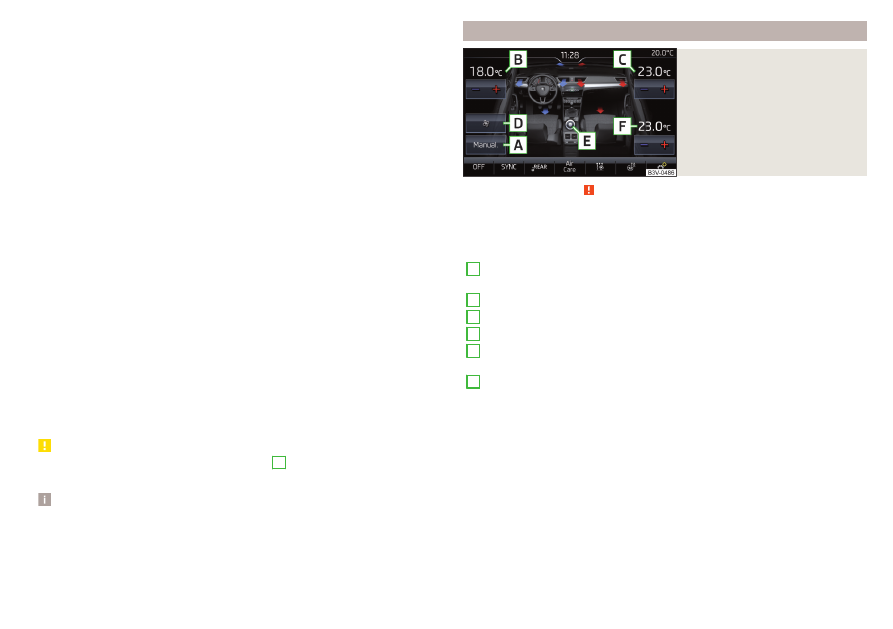

Fig. 170

Infotainment: example display of

the main Climatronic menu

Read and observe   on page 117 first.

To display the main menu press the button  on the Climatronic control

unit.

Function surfaces and screen display

» Fig. 170

A

Displays the current operation mode (or set the operation mode) of

the Climatronic

B

Set the desired temperature (front - left side)

C

Set the desired temperature (front - right side)

D

Setting the power in  operation

E

Switching on/off and adjusting the fan speed, cooling system, air dis-

tribution and air recirculation

a)

F

Set the desired temperature (rear)

Colour representation of the air flow from the air vents at the front

(Blue colour - temperature reduction / red colour - temperature in-

crease)



Switching on/off the Climatronic



Switch the temperature synchronisation on/off throughout the entire

interior of the vehicle according to the temperature setting on the

driver's side

a)



Locking/unlocking of the temperature setting and heating of the rear

seats using the rear buttons

a)



  Switch Air Care function on/off

Set the auxiliary heater and ventilation

Switch the windscreen heating on/off

a)

119

Heating and ventilation

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Turn the steering wheel heating on/off

a)

Other Climatronic settings

a)

When function is switched on, the symbol in the function surface is green.

Other Climatronic settings

Press the  button on the Climatronic control panel → Tap the function sur-

face  on the Infotainment screen.

Air con. profile - Setting the operating performance  during operation (ap-

plies to Infotainment Swing)

Automatic air recirculation - Automatic re-circulated air mode on/off

Automatic auxiliary heater - Quick interior heating on/off

Automatic windscreen heating - Activates/deactivates the automatic windscreen

heating

Climatronic - automatic operation

Read and observe   on page 117 first.

The automatic mode is used in order to maintain a constant temperature and

to demist the windows in the interior of the car.

To turn on, press 

» Fig. 168

 on page 118 .

To turn off, press any button for the air distribution or change the blower

speed. The temperature regulation is continued.

Operating modes

Automatic mode works in three modes - moderate, medium, and intensive.

Setting the different modes is carried out via the function surface

D



» Fig. 170

on page 119.
After the automatic mode is switched on, Climatronic works in the last selec-

ted mode. The currently selected mode is displayed in the Infotainment dis-

play.

Air distribution control

Read and observe   on page 117 first.

The recirculation mode prevents contaminated outside air getting into the In-

terior of the vehicle. In recirculated air mode air is sucked out of the interior of

the vehicle and then fed back into the interior.

To switch on, press the  button. The warning light below the button lights

up.

To switch off, press the  button again. The warning light below the button

goes out.

Heating and manual air conditioning system

If the air distribution control is set to position  when the recirculation modes

is switched on, the recirculated-air mode is switched off. By pressing the 

button, the air recirculation also in this position can be switched on again.
When the cooling system ( button) is switched on and the temperature reg-

ulator is “turned” to the left, the recirculated-air mode is switched on.

Climatronic

The Climatronic can have a sensor that measures the air recirculation mode

and automatically turns on if there is an increased concentration of pollutants

in the incoming air.
When the pollutant concentration decreases to the normal level, the recircula-

ted air mode is automatically switched off.
Automatic switch-on/switch-off of the air recirculation function can be set in

the Infotainment screen, by pressing the  button on the Climatronic and by

then pressing the function surface  → Automatic air recirculation.
A shut-off of the air recirculation function takes place automatically by press-

ing the button, possibly depending on the moisture conditions in the vehi-

cle interior.

WARNING

The air recirculation cannot be switched on for a longer period of time be-

cause there is no supply of fresh air from the outside. “Stale air” may result

in fatigue in the driver and occupants, reduce attention levels and also

cause the windows to mist up. As soon as the windows mist up, turn the air

recirculation mode off immediately - there is a risk of accident!

CAUTION

We recommend not smoking in the vehicle when the recirculating air opera-

tion is switched on. The smoke sucked from inside the vehicle is deposited on

the evaporator of the air conditioner. This produces a permanent odour when

the air conditioning system is operating which can only be eliminated through

considerable effort and expense (replacement of compressor).

120

Using the system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Climatronic - Air Care function

Fig. 171

Example display of the Air Care

function

Read and observe   on page 117 first.

The Air CareFunction reduces pollutant penetration contained in the outside

air into the vehicle.
When the function is activated, the air in the vehicle is circulated and cleaned

at the same time. The cleaning process is displayed by the zones displayed in

the Infotainment screen.

To switch on/off, press the  button on the Climatronic control panel, and

then tap on the function surface   → Active on the Infotainment

screen

» Fig. 171

.

To ensure correct Air Care functioning, all doors and windows including the

panoramic sliding/tilting roof must be closed.
When opening a door or a window, the corresponding message is displayed in

the Infotainment screen.

Air outlet vents

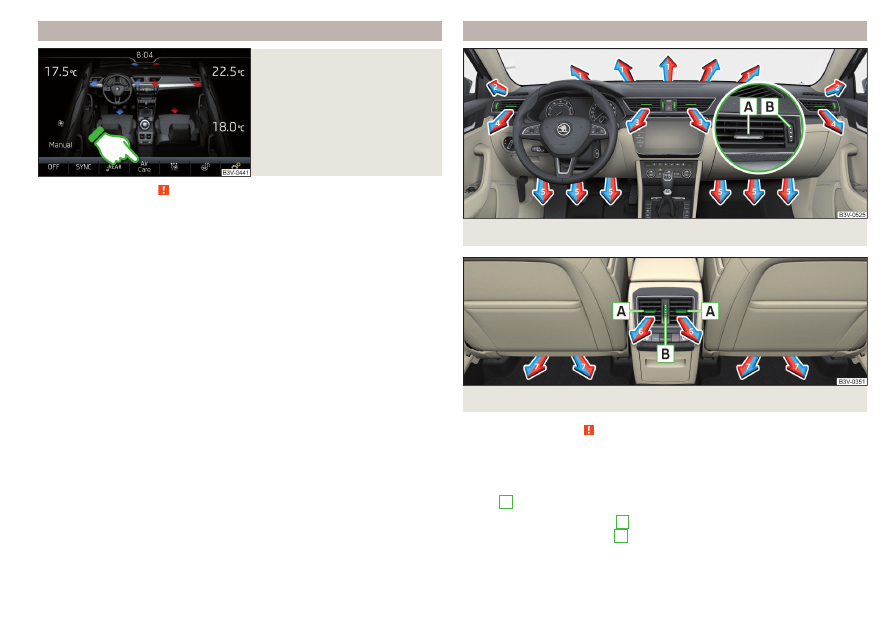

Fig. 172  Air vents at the front

Fig. 173  Air vents at the rear

Read and observe   on page 117 first.

The direction of airflow can be adjusted using the air outlet vents 34

» Fig. 172

 and 6

» Fig. 173

, and the vents can be opened and closed individually.

The setting of the airflow direction is carried out by moving the adjustment el-

ement

A



» Fig. 172

 or

» Fig. 173

 in the desired direction.

To open, turn the controller

B

» Fig. 172

 or

» Fig. 173

 upwards.

Toclose, turn the controller

B

» Fig. 172

 or

» Fig. 173

 downwards.

Depending on the setting of the air distribution, the air stream comes out of

the following air vents.

121

Heating and ventilation

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Set the direction of the air

outlet

Air vents

» Fig. 172

 and

» Fig. 173



124

12457

346

457

34567

CAUTION

Do not cover the air vents - the air distribution could be compromised.

Auxiliary heating (auxiliary heating and ventilation)

Introduction

The auxiliary heating heats the vehicle interior as well as the engine. For heat-

ing, fuel is consumed from the fuel tank.
The auxiliary ventilation enables fresh air to flow into the vehicle interior with

the engine switched off, whereby the interior temperature is effectively de-

creased (e.g. with the vehicle parked in the sun).
The auxiliary heating (auxiliary heating and ventilation) (referred to just as auxil-

iary heating in the following) ensures the heating / ventilation depending on

the setting of the air conditioning and the air outlet vents before switching off

the ignition.

WARNING

The auxiliary heating must never be operated in closed rooms (e.g. garag-

es) – risk of poisoning!

The auxiliary heating must not be allowed to run during refuelling – risk of

fire.

The exhaust pipe of the auxiliary heating is located on the underside of

the vehicle. If you want to use the auxiliary heating, do not park the car in

places where the exhaust fumes can come into contact with flammable

materials such as dry grass, undergrowth, leaves, spilled fuel etc. - risk of

fire.

CAUTION

The air inlet in front of the windscreen must be free (e.g. of ice, snow or

leaves) to ensure that the auxiliary heating operates properly.

Note

The auxiliary heating switches the blower on, if it has achieved a coolant tem-

perature of approx. 50 °C.

In the engine compartment, water vapour may form during the operation of

the heater.

Power on/off

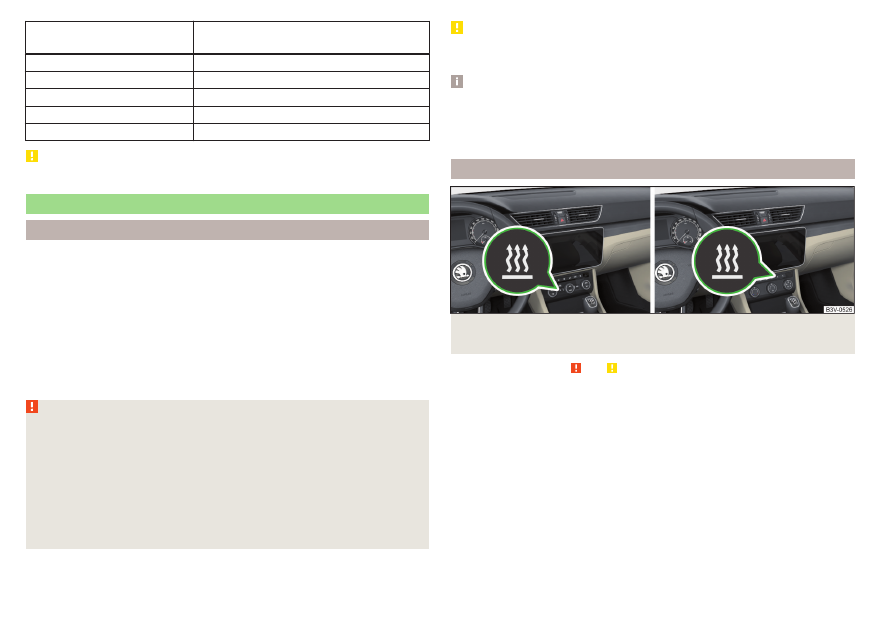

Fig. 174  Button for switching on / off (Climatronic / manual air condi-

tioning)

Read and observe   and   on page 122 first.

Functional requirements of the auxiliary heating.

The charge state of the vehicle battery is sufficient.
The fuel supply is adequate (the warning light

 is not illuminated in the

instrument cluster).

Manual on / off

Using the  button on the control panel of the air conditioner

» Fig. 174

.

Using the  (switch on) /  (switch off) button on the remote control opera-

tion.

Automatic on / off

Via an enabled pre-selection time in Infotainment.

According to the environmental conditions.

122

Using the system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

After switching off the system, the coolant pump and the auxiliary heating will

continue running a little while longer in order to burn the remaining fuel in the

heating.

Setting automatic on / off

Climatronic: On the Climatronic, press the  button → tap the  function

surface on the Infotainment screen. There will be a display of the last set oper-

ating mode with the option to change this.
Individually controlled air conditioning: In the Infotainment system, in menu



/  tap the  function surface.

Then follow the instructions in the Infotainment screen.
When automatic switching on is activated, the warning light in the  symbol

button lights up for about 10 seconds after the ignition is turned off

» Fig. 174

.

Operation in Infotainment

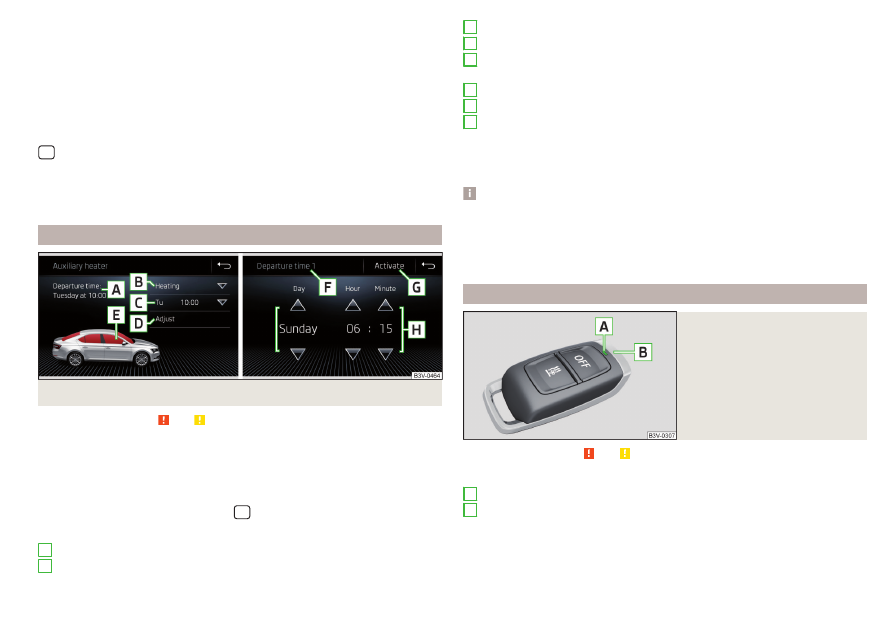

Fig. 175  Auxiliary heater: Main menu/set preset time

Read and observe   and   on page 122 first.

Call up the main menu

On the Climatronic, press the  button → Tap on the function surface  in

the Infotainment screen.

Or vehicles with manual air conditioning:

In the Infotainment system, in menu



/  tap the  function surface.

Function surfaces and screen display

» Fig. 175

Departure time - Day and time when the vehicle is to be ready for use
Setting the operating mode (heating / ventilation)

A
B

List of pre-selected times, activation / deactivation of the preset time
Set the preset times 1-3 and the duration (10-60 minutes)
When heating the windows are shown in red / with continuous aeration,

the windows are shown in blue
Currently displayed preset time
Activation of the currently displayed preset time
Setting the departure time: Day, hour, minute

Only one preset time can be active. The activated preset time will be deactiva-

ted again after it has started automatically. For the next start, activate one of

the preset times.

Note

When selecting the day in the preset time, there is an option between Sun-

day and Monday without the specified day. If this setting is selected, the vehi-

cle will be ready for use at the selected time, regardless of the current day.

If a different time is set, the activated preset time is automatically deactiva-

ted. The preset time must be reactivated.

Radio remote control

Fig. 176

Radio remote control

Read and observe   and   on page 122 first.

Description of the remote control

» Fig. 176

Warning light
Aerial
Switch on the auxiliary heating
Switch off the auxiliary heating

C
D

E

F

G
H

A
B



123

Heating and ventilation

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The auxiliary heating is switched on/off by pressing the button. To switch the

remote control on or off, hold the remote control vertically, with the aerial

B

» Fig. 176

 pointing upwards. Do not cover the antenna with the fingers or the

palm of the hand.

Display warning light

A

Meaning

Lights up green for 2 seconds.

The auxiliary heating has been switch-

ed on.

Lights up red for 2 seconds.

The auxiliary heating has been switch-

ed off.

Slowly flashes green for 2 seconds.

The ignition signal was not received.

Quickly flashes green for 2 seconds.

The auxiliary heating is blocked, e.g.

because the tank is nearly empty or

there is a fault in the auxiliary heating.

Flashes red for 2 seconds.

The switch off signal was not re-

ceived.

Lights up orange for 2 seconds, then

green or red.

The battery is weak, however the

switching on or off signal was re-

ceived.

Lights up orange for 2 seconds, then

flashes green or red.

The battery is weak, however the

switching on or off signal was not re-

ceived.

Flashes orange for 5 seconds.

The battery is discharged, however

the switching on or off signal was not

received.

Replace the battery

» page 292

.

CAUTION

The remote control must be protected against moisture, severe shocks and

direct sunlight - otherwise, there is a risk of damage to the remote control.

The range of the remote control with a charged battery is a few hundred me-

tres (depending on obstructions between the remote control and the vehicle,

weather conditions, the battery condition etc.).

124

Using the system

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     5      6      7      8     ..
