Skoda Superb (2019 year). Instruction - part 6

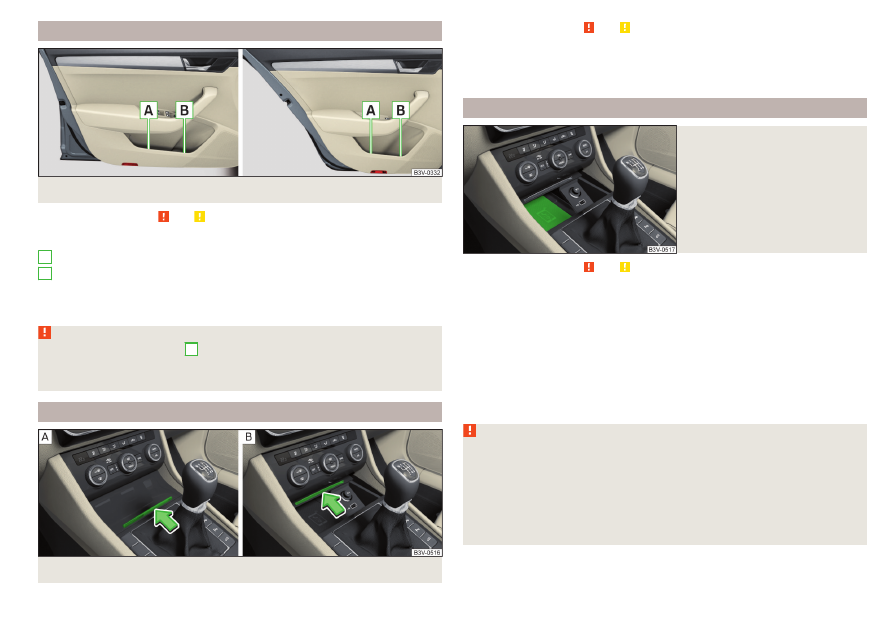

Storage compartments in the doors

Fig. 107  Storage compartments: in the front door/in the rear door



Read and observe   and   on page 92 first.

Storage compartments

» Fig. 107

Storage compartment
Bottle holder with a capacity of max. 1.5 l

The reflective vest can be stowed in the storage compartments in the door

» page 281

.

WARNING

The storage compartment

A



» Fig. 107

n the front door is to be used exclu-

sively for storing objects which do not protrude - there is the danger of

limiting the operating range of the side airbags.

Storage compartment in the front centre console

Fig. 108  Storage compartment: Open/close

A
B



Read and observe   and   on page 92 first.

›

To open, press the ridge in the direction of arrow

» Fig. 108

 - .

›

To close, press the ridge in the direction of arrow

» Fig. 108

 - . The lid

closes automatically.

Phonebox

Fig. 109

Phonebox



Read and observe   and   on page 92 first.

The storage compartment in the front centre console can be equipped with

the Phonebox function.
If a phone is placed face up on the pad in the storage compartment

» Fig. 109

,

the phone signal is amplified by the roof antenna.
Telephones that support the standard for wireless Qi charging can be charged

wirelessly in the storage compartment.
While wireless charging is taking place, no objects may be between the pad

and the telephone being charged.

WARNING

■

The telephone may become warm during wireless charging, so this should

be removed carefully from the tray.

■

Metal objects between the pad and the telephone to be charged can get

hot due to the action of the induction field - There is a risk of injury. If there

is a metal object in the storage compartment that has become hot, then

take out the telephone and let the object cook in the storage compart-

ment!



93

Practical features

CAUTION

■

Metal objects between the pad and the telephone to be charged can get hot

due to the action of the induction field - There is a risk damage to the tele-

phone.

■

With some telephones, the charging process may be interrupted or the tele-

phone may switch off due to getting hot.

■

No electronic or magnetic storage media (e.g. SD cards, USB sticks, cards

with magnetic strips or chip) may be placed between the support and tele-

phone to be charged - there is a risk of data loss and damage to this data carri-

er.

■

If a message appears in Infotainment that the telephone can not be charged,

then proceed as follows.

■

Check that no objects are between the pad and the telephone being charg-

ed. If this is the case, then take out the object and the telephone. Place the

telephone on the pad centrally on the telephone symbol.

■

Check if the position of the telephone to be charged has not changed dur-

ing the journey. If this is the case, then take out the telephone and place it

back on the pad centrally on the telephone symbol.

Note

■

At the start of the wireless charging process, the appropriate message ap-

pears on the Infotainment screen.

■

For the optimum telephone signal strength and uninterrupted wireless

charging, we recommend position the telephone in the storage compartment

without the protective sleeve, if possible.

■

Place a max. 146x80 telephone in the storage compartment.

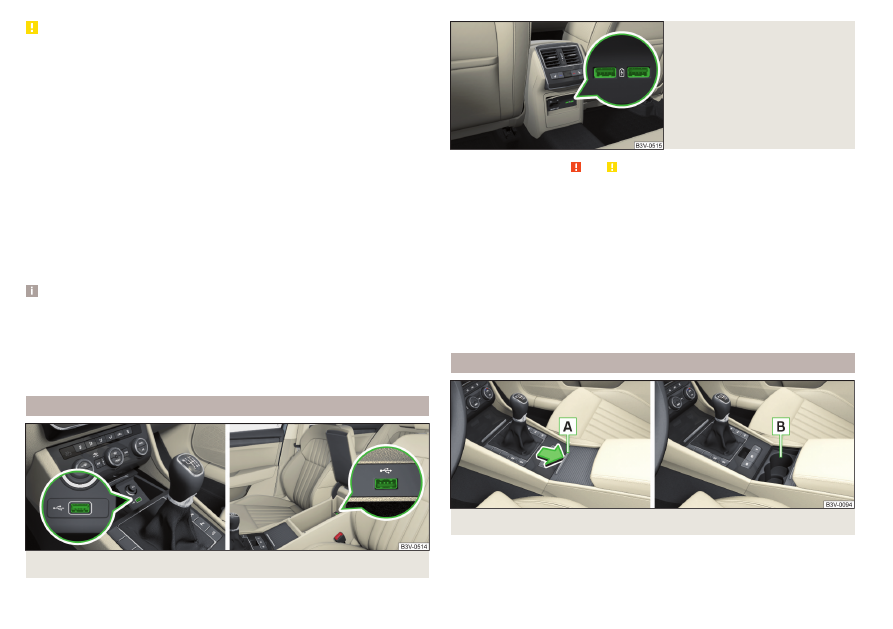

USB inputs

Fig. 110  Front USB input / USB input under the armrest

Fig. 111

Rear USB inputs



Read and observe   and   on page 92 first.

The USB input is located in the storage compartment in the center console

and also depending on the equipment fitted, in the storage compartment un-

der the front armrest

» Fig. 110

.

The USB inputs are also in the rear centre console depending on the equip-

ment fitted

» Fig. 111

.

The USB input in the storage compartment in the front centre console and in

the storage compartment under the front armrest can be used for charging

and data transfer. The USB inputs in the rear centre console can be used only

for charging.
Information for use

» page 153

, USB input.

Cup holders

Fig. 112  Open front cup holders/ front cup holders



94

Using the system

Fig. 113  Open rear cup holders/ rear cup holders



Read and observe   and   on page 92 first.

Front cup holder

The cup holder

B

 is located in the front centre console

» Fig. 112

.

›

To open, push on the ridge

A

 in the direction of the arrow.

›

To close, pull on the ridge

A

 against the direction of the arrow.

In the centre area of the holder

B

, a beverage container can be opened with

one hand by pushing the container into the holder and turning the lid.

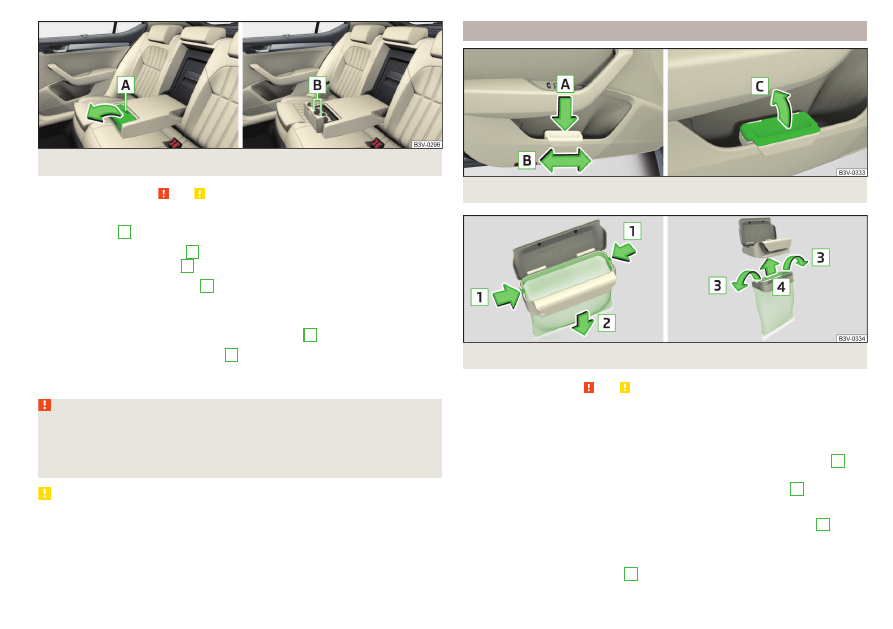

Rear cup holder

Two cup containers can be placed in the cup holder

B

» Fig. 113

.

›

To open, hold the lid on the recess

A

 and fold in the direction of arrow until

the stop.

›

To close, push the cover against the direction of the arrow.

WARNING

■

Do not use any cups or beakers which are made of brittle material (e.g.

glass, porcelain). This could lead to injuries in the event of an accident.

■

Never put hot beverage containers in the cup holder. If the vehicle moves,

they may spill – risk of scalding!

CAUTION

Do not leave open beverage containers in the cup holder during the journey.

There is a risk of spilling e.g. when braking which may cause damage to the

electrical components or seat upholstery.

Waste container

Fig. 114  Waste container: inserting and moving/opening

Fig. 115  Replace bags



Read and observe   and   on page 92 first.

The waste container can be inserted into the slot in the door.

Insert waste container

›

Position the waste container at the front edge of the slot.

›

Push the waste container in the rear area in the direction of the arrow

A

» Fig. 114

.

›

If required, push the waste container in the direction of arrow

B

.

Remove the waste container

›

Remove the waste container in the opposite direction to the arrow

A

» Fig. 114

.

Open/close waste container

›

Lift the cover in the direction

C

» Fig. 114

.



95

Practical features

Closing takes place in reverse order.

Replace bags

›

Remove the waste container from the slot.

›

Press the two locking lugs on the frame in the direction of arrow

1

» Fig. 115

.

›

Pull the bag together with the frame downwards in the direction of arrow

2

.

›

Remove the bag from the frame.

›

Pull the new bag through the frame and pull it over the bag frame in the di-

rection of arrow

3

.

›

Insert the bag containing the frame in the direction of arrow

4

 into the con-

tainer body, so that the two lugs engage audibly with the frame.

Note

We recommend that you use 20 x 30 cm bags.

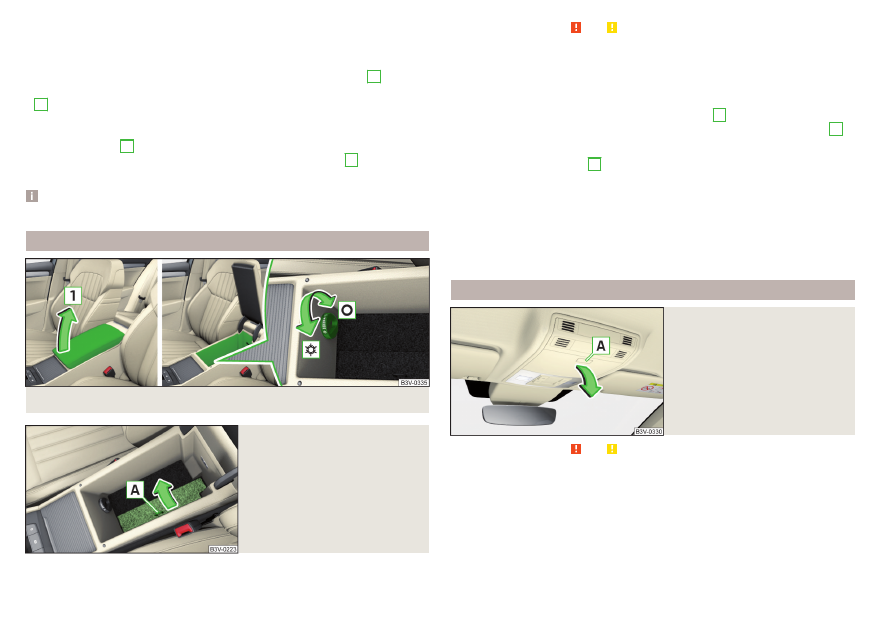

Storage compartment underneath the front armrest

Fig. 116  Open tray / control air supply

Fig. 117

Open storage compartment for

the tablet



Read and observe   and   on page 92 first.

The storage compartment is equipped with an interior light (this is illuminated

when the parking lights / low beam are switched on), a stowage compartment

for the tablet and an air outlet.

Storage compartment

›

To open, lift the armrest in the direction of arrow

1

» Fig. 116

until it stops.

›

To close, fold the armrest down again against the direction of the arrow

1

.

Storage compartment for the tablet

›

To open, pull on the loop

A

 in the direction of arrow

» Fig. 117

.

›

Place the tablet carefully to avoid damage to any connected cables.

Air supply

›

To open, turn the rotary switch until it stops in the position 

» Fig. 116

.

›

To close, turn the rotary switch until it stops in the position .

The temperature of the storage compartment supplied with air is dependent

on the setting in the air conditioning.

Glasses storage box

Fig. 118

Opening the glasses storage box



Read and observe   and   on page 92 first.

›

To open, press the -- button. The compartment folds in the direction of the

arrow

» Fig. 118

.

›

To close, swivel the compartment against the direction of the arrow until it

audibly clicks into place.

The maximum permissible load of the glasses compartment is 250 g.



96

Using the system

CAUTION

■

Do not put any heat-sensitive objects in the glasses storage box - with high

temperatures there is risk of damage.

■

The box must be closed before leaving and locking the vehicle – risk of im-

pairment to the functions of the anti-theft alarm system.

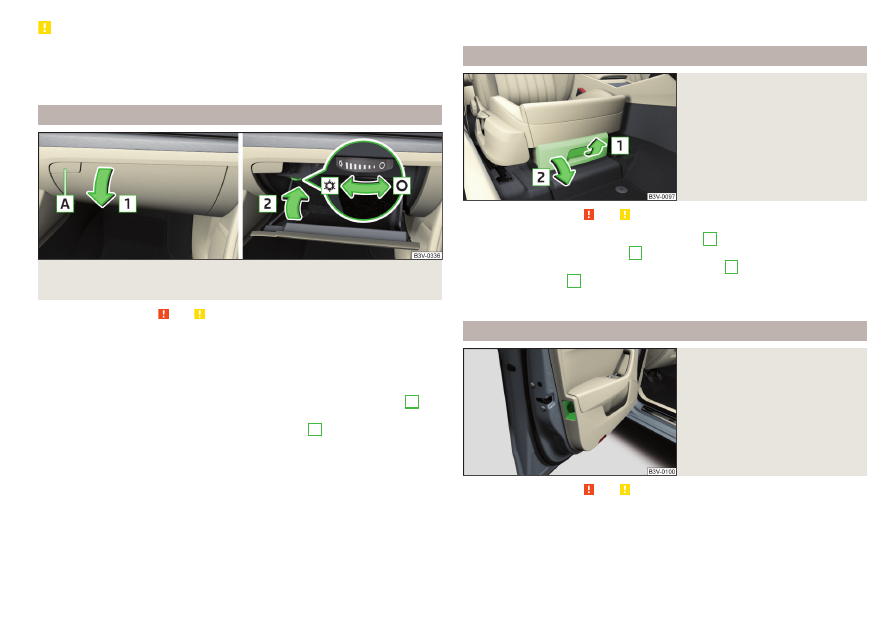

Storage compartment on the front passenger side

Fig. 119  Open storage compartment / close storage compartment and

open air supply



Read and observe   and   on page 92 first.

The storage compartment is equipped with an interior light (this is illuminated

when the parking lights / low beam are switched on), a pen holder and an air

outlet.

Storage compartment

›

To open, press the -- button. The cover folds in the direction of arrow

1

» Fig. 119

.

›

To close, swivel the cover in the direction of arrow

2

 until it audibly clicks

into place.

Air supply

›

To open, turn the rotary switch until it stops in the position 

» Fig. 119

.

›

To close, turn the rotary switch until it stops in the position .

Opening the air supply when the air conditioning system is switched on allows

cooled air to flow into the storage compartment.
Opening the air inlet when the air conditioning system is on causes fresh or in-

terior air to flow into the storage compartment.

The maximum permissible load of the storage compartment is 3 kg.

Storage compartment under the front passenger’s seat

Fig. 120

Opening the storage compart-

ment



Read and observe   and   on page 92 first.

›

To open, pull the handle in direction of arrow

1

 pull and open the compart-

ment in the direction of arrow

2

» Fig. 120

.

›

To close, pull the handle in the direction of arrow

1

 and hold this against the

direction of arrow

2

 until the storage compartment closes.

The maximum permissible load of the storage compartment is 1.5 kg.

Storage compartments for umbrellas

Fig. 121

Storage compartment for an

umbrella - view example in the

left door



Read and observe   and   on page 92 first.

The storage compartments in the front doors

» Fig. 121

 can be used to store an

umbrella.

97

Practical features

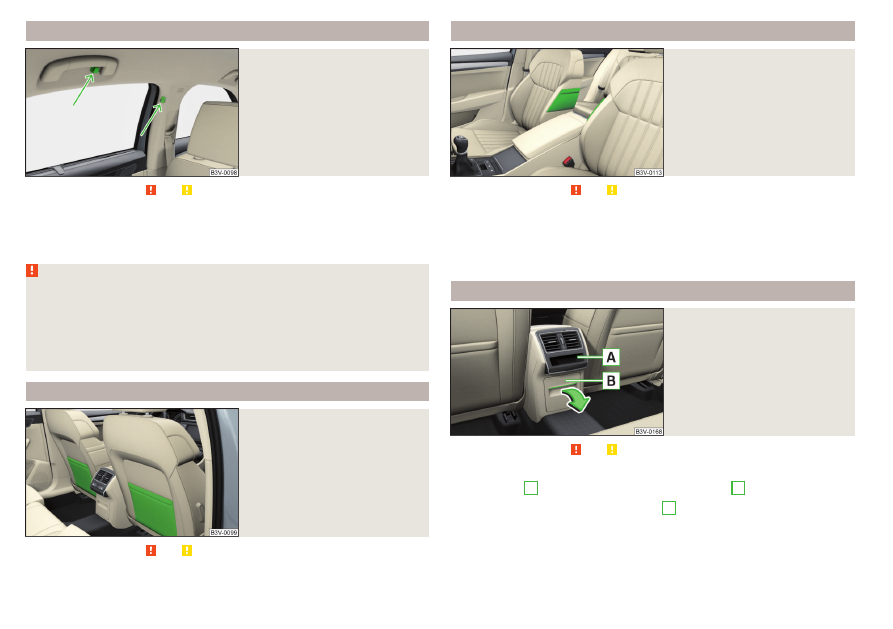

Clothes hook

Fig. 122

Clothes hooks



Read and observe   and   on page 92 first.

The clothes hooks are located on the middle door pillars of the vehicle and on

the handle of the headliner above each of the rear doors

» Fig. 122

.

The maximum permissible load of each of the hooks is 2 kg.

WARNING

■

Never leave any heavy or sharp-edged objects in the pockets of the items

of clothing hung up.

■

To hang the clothes do not use hangers - there is a risk of limiting the ef-

fectiveness of head airbags.

■

Ensure that any clothes hanging from the hooks do not impair your vision

to the outside.

Storage pockets on the backs of the front seats

Fig. 123

Map pockets



Read and observe   and   on page 92 first.

The map pockets are intended for storage of maps, magazines, etc.

Storage pockets at the inner sides of the front seats

Fig. 124

Storage pocket



Read and observe   and   on page 92 first.

The storage pockets are located on the inside of the driver, if necessary, also

the front passenger seat

» Fig. 124

 and are used to store small and light objects

(e.g. mobile telephones).
The maximum permissible load of each of the pockets is 200 g.

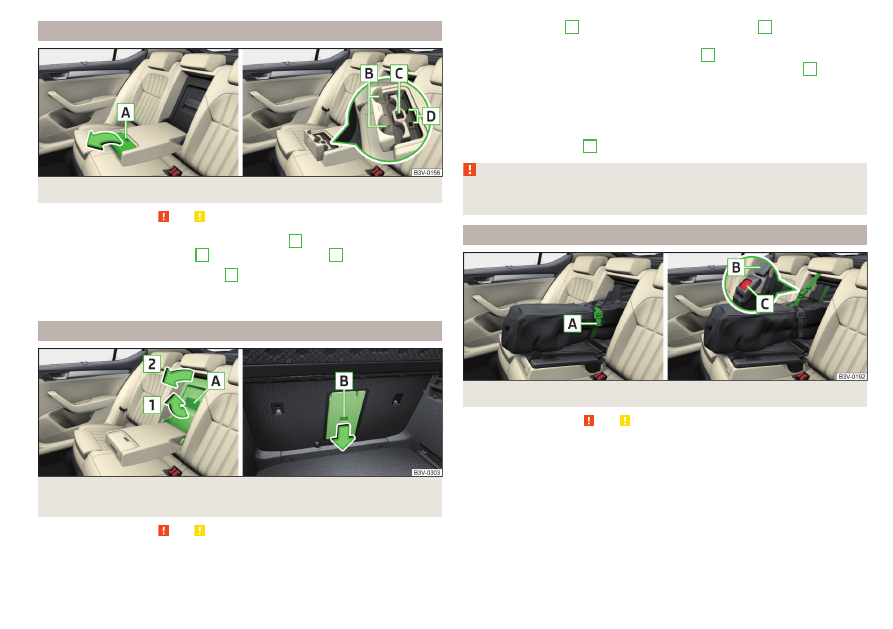

Storage compartment in rear centre console

Fig. 125

Open storage compartment,

open lockable storage compart-

ments



Read and observe   and   on page 92 first.

In the rear centre console there is an equipment-dependent open storage

compartment

A

 and a lockable storage compartment

B

» Fig. 125

.

›

To open, pull the storage compartment

B

 on the upper part of the recess

and fold down the compartment in the direction of arrow

» Fig. 125

.

›

To close, swivel the compartment against the direction of the arrow.

There is a cushioned insert in the storage compartment. This can be removed

if the storage compartment is opened to the stop.

98

Using the system

Storage compartment in the rear armrest

Fig. 126  Open storage compartment / interior of the compartment



Read and observe   and   on page 92 first.

The storage compartment provides a cup holder

B

, a stowage compartment

for attaching the tablet holder

C

 as well as a pen holder

D



» Fig. 126

.

›

To open, hold the lid on the recess

A

 and fold in the direction of arrow until

the stop.

›

To close, push the cover against the direction of the arrow.

Long cargo channel

Fig. 127  Open lid: from the passenger compartment / from the luggage

compartment



Read and observe   and   on page 92 first.

›

To open from the passenger compartment, fold down the rear armrest

slightly

» page 87

.

›

Pull opening lever

A



» Fig. 127

 in the direction of arrow

1

 until it stops. The

catches on the cover must engage completely in the lid and click into place.

›

Open the cover in the direction of the arrow

2

.

›

To open from the luggage compartment, push the securing tab

B

 in the di-

rection of the arrow and fold the cover with the armrest forwards.

›

To close, fold the cover and the rear armrest upwards until the stop. This

should audibly click into place.

The cover must be secured after the closing process. Ensure that the red field

above the securing tab

B

 is not visible.

WARNING

The through-loading channel is only intended for transporting skis in a

properly secured, through-loading bag.

Removable through-loading bag

Fig. 128  Tighten ribbon / secure bag



Read and observe   and   on page 92 first.

The removable through-loading bag (hereinafter referred to as bag) is used ex-

clusively for transporting skis and poles (max. 4 pairs).

Stowing bag and skis

›

Fold the rear armrest and the cover in the seat backrest downwards

» Fig. 127

 on page 99.

›

Place the empty bag in the opening in such a way that the end of the bag

with the zip is in the boot.

›

Place the skis with the tips facing to the front and the sticks with the tips

facing to the rear into the bag and close the bag.



99

Practical features

Securing bag and skis

›

Tighten the strap

A

 around the skis in front of the bindings

» Fig. 128

. The

strap must hold the skis tight.

›

Partially fold the middle seat backrest forward

» page 87

.

›

Guide the securing strap

B

 through the opening in the seat backrest around

the upper part of the seat backrest.

›

Then, fold the seat backrests back until the locking button clicks into place.

Check this by pulling on the seat backrest.

›

Insert the securing strap

B

 into the lock

C

 until it clicks into place.

WARNING

■

The total weight of the skis which are transported must not exceed 17 kg.

■

Always stow and secure the skis and the bag securely - otherwise there is

a risk of injury or accident!

Blanket



Read and observe   and   on page 92 first.

To increase comfort for the occupants, the vehicle may be equipped with a

blanket.
The blanket is in a bag that can be attached to one of the following locations.

▶

On the guide rods of the front headrests.

▶

In the storage pockets on the backs of the front seats.

Electrical sockets



Introduction

WARNING

■

Do not place anything on the dashboard. These objects might slide or fall

down when driving and may distract you from concentrating on the traffic

– risk of accident!

■

Make sure that while driving no objects can enter the driver's footwell -

cause an accident!

■

Safely stow all devices during the journey to prevent them from being

thrown around the interior in the event of a sudden braking manoeuvre or

an accident – risk of death!

■

The devices may warm up during operation – risk of injury or fire!

WARNING (Continued)

■

Improper use of the power sockets and the electrical accessories can

cause fires, burns and other serious injuries.

■

The 12-Volt sockets also work if the ignition is switched off. When leaving

the vehicle, never leave persons who are not completely independent, such

as children, unattended in the vehicle.

CAUTION

When using the 12 volt power outlets the following notes are to be observed.

■

The sockets can only be used for the connection of approved electrical ac-

cessories with a total power consumption of up to 120 watts, otherwise the

electrical system of the vehicle may be damaged.

■

Connecting appliances when the engine is not running will drain the battery

of the vehicle!

■

Before switching the ignition on / off or before starting the engine, switch

off the devices which are connected to the sockets - there is a risk of damage

to the equipment due to voltage fluctuations.

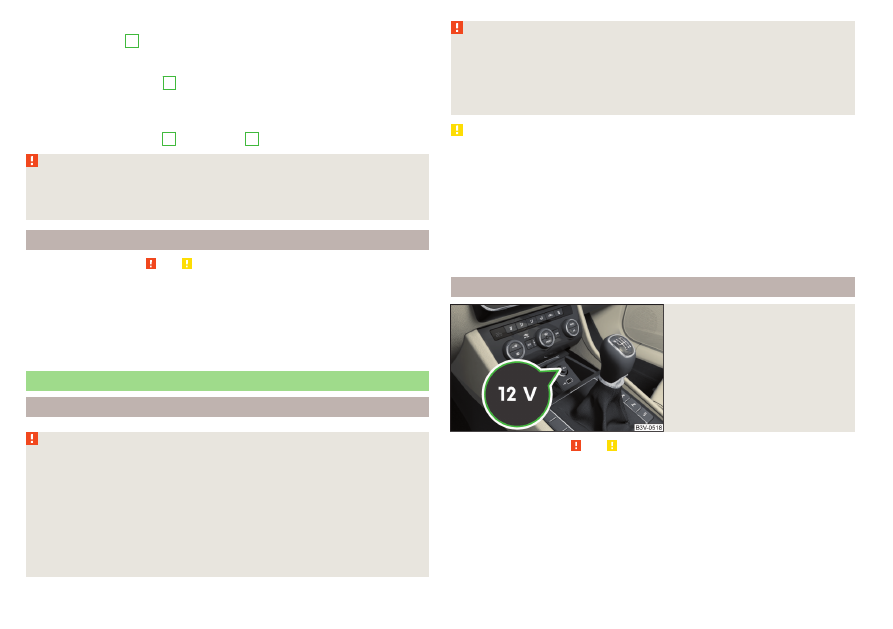

12-volt socket in the front centre console

Fig. 129

Cover of the 12 volt power out-

let



Read and observe   and   on page 100 first.

›

To use, open the storage compartment, remove the cover of the socket

» Fig. 129

 and plug the electrical appliance plug into the socket.

100

Using the system

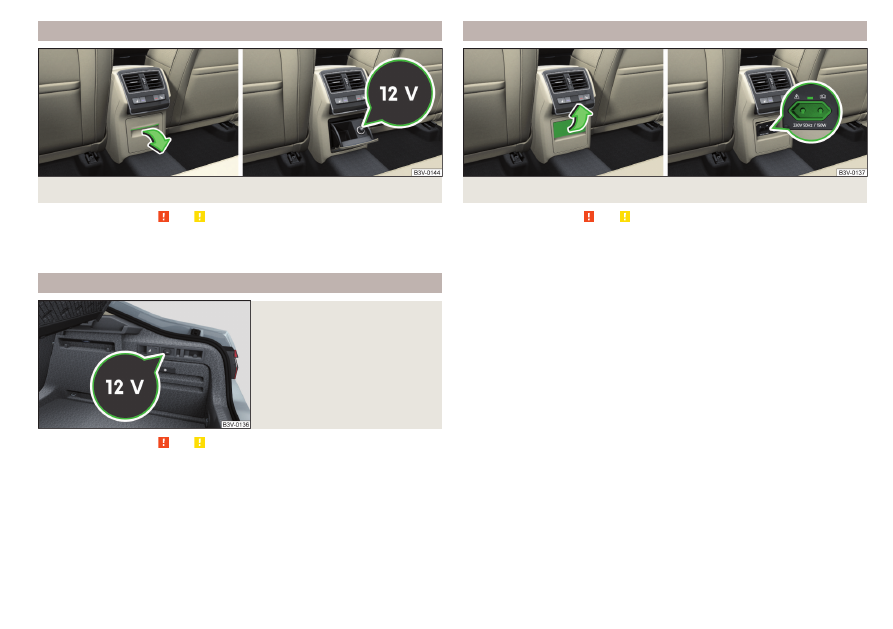

12 volt socket in the rear centre console

Fig. 130  Open storage compartment / cover of the 12 volt power outlet



Read and observe   and   on page 100 first.

›

To use, open the storage compartment, remove the cover of the socket

» Fig. 130

 and plug the electrical appliance plug into the socket.

12 volt socket in luggage compartment

Fig. 131

Cover of the 12 volt power out-

let



Read and observe   and   on page 100 first.

›

To use, open the cover of the socket

» Fig. 131

 and plug the electrical appli-

ance plug into the socket.

230-volt socket in the rear centre console

Fig. 132  Open the cover of the 230 volt outlet / 230 volt outlet



Read and observe   and   on page 100 first.

The 230-volt socket has a child safety lock. When inserting the plug, the fuse

is released, the socket is activated and the warning light above the socket is

illuminates green (if this flashes red, then the socket is deactivated).
The socket works with the engine running (in STOP mode in vehicles with the

START-STOP system) and for about 10 minutes after the engine is switched

off, provided an appliance was still connected prior to switching off the engine

(the warning light flashes green)).

›

To use, fold up the cover of the socket in the direction of arrow

» Fig. 132

and plug the electrical appliance plug into the socket.

An automatic deactivation of the socket can take place, for example, for

the following reasons.

▶

Excessive current.

▶

Low state of charge of the battery.

▶

High outlet temperature.

If disabling reasons no longer exist, the automatic activation of the socket can

be done.
Should no automatic activation of the socket take place, the connected devi-

ces must be disconnected from the power outlet and reconnect after a short

time.



101

Practical features

WARNING

■

Make sure that no liquid or moisture enters into the socket - it can be fa-

tal! If fluid does manage to get into the power socket, completely dry out

the socket before reuse.

■

The child lock on the power socket is unlocked when using adapters and

extension cables which carry volts – risk of injury!

■

Do no insert any objects (e.g. knitting needles) into the contacts of the

power socket – risk of death!

CAUTION

■

The power socket can only be used for connecting approved electrical ac-

cessories with a two-pin 230V plug, with a total power uptake of up to

150 watt.

■

The plug of the electrical appliance must be plugged in up to the stop, other-

wise the child safety lock can be unlocked and the socket may be activated

but the electric appliance is still not receiving power.

■

Do not connect bulbs with neon tubes in the socket - there is a risk of dam-

aging the lamp.

■

For appliances with an independent power source (e.g. such as notebooks),

first connect the power source itself and only after that connect the appliance.

Ashtray and cigarette lighter



Introduction

The ashtray can be used for ash, cigarettes, cigars and the like.

WARNING

Never place hot or flammable objects in the ashtray – risk of fire!

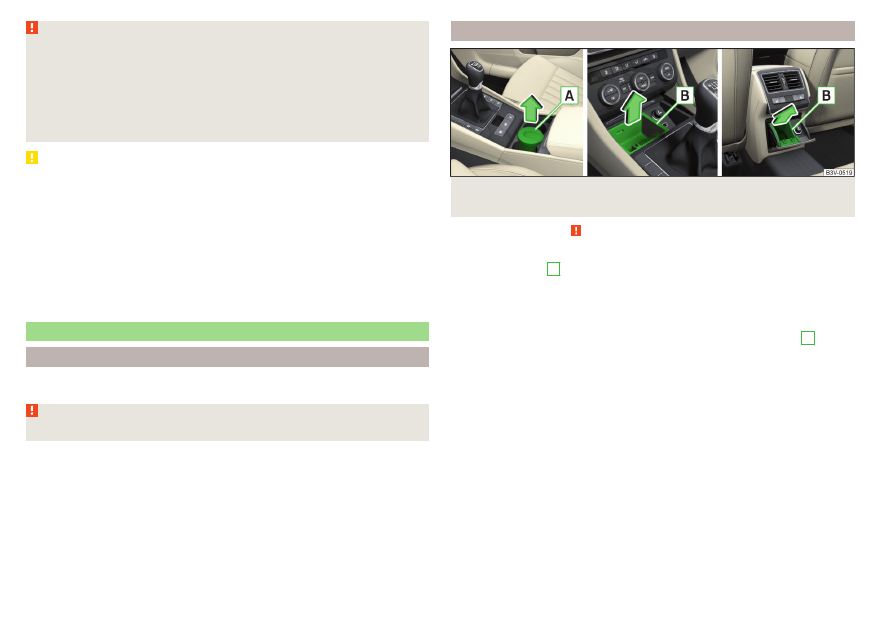

Ashtray

Fig. 133  Remove front ashtray / remove front ashtray insert / remove

rear ashtray insert



Read and observe   on page 102 first.

Removable ashtray

›

Hold the ashtray

A

 (not by the lid) remove it in the direction of the arrow

» Fig. 133

.

To insert, proceed in reverse order.

Ashtray with removable insert

›

To remove the insert, open the ashtray fully, hold the insert in area

B

 and

remove in the direction of the arrow

» Fig. 133

.

To insert, proceed in reverse order.

102

Using the system

Cigarette lighter

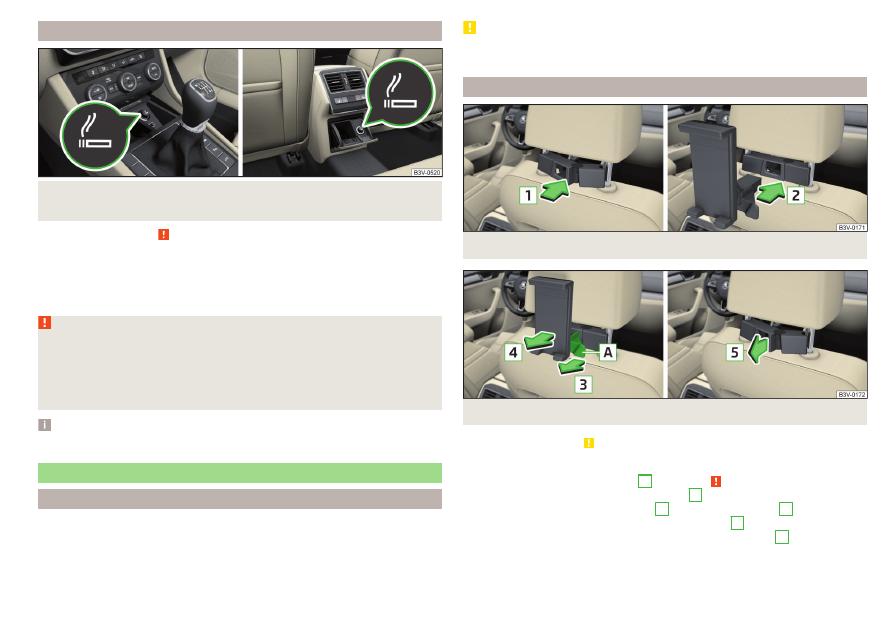

Fig. 134  Cigarette lighter: in the front centre console/in the rear centre

console



Read and observe   on page 102 first.

›

To use, open the respective storage compartment and push in the lighter un-

til it stops

» Fig. 134

.

›

Wait until the glowing lighter protrudes, remove it immediately and use.

›

Put the lighter back in the socket and close the storage compartment.

WARNING

■

The cigarette lighter also works if the ignition is switched off. When leav-

ing the vehicle, never leave people who are not completely independent,

such as children, unattended in the vehicle - there is a risk of burning, fire or

damage to the vehicle interior.

■

Be careful when using the cigarette lighter - it can cause burns.

Note

The cigarette lighter socket can also be used as a 12 volt socket.

Tablet holder



Introduction

External devices (e.g. tablet, smartphone etc.) measuring min. 122 mm and

max. 195 mm can be secured in the holder.
The maximum permissible load of the compartment is 750 g.

CAUTION

Never exceed the maximum permissible load of the holder - there is a risk of

damage or functional impairment.

Attaching the rear headrests

Fig. 135  Inserting: Adapter/Holder

Fig. 136  Removal: Holder/Adapter



Read and observe   on page 103 first.

›

Toinsert, attach the opened adapter to the guide rods of the front headrest

and clip in the direction of arrow

1

» Fig. 135



»

.

›

Clip in the holder in the direction of arrow

2

 into the adapter.

›

To remove, pull on the securing tab

A

 in direction of arrow

3

 and take the

holder out of the adapter in the direction of arrow

4



» Fig. 136

.

›

Press the adapter and remove in the direction of the arrow

5

 from the

guide rods of the headrest.



103

Practical features

WARNING

Be care with the adapter - otherwise there is a risk of finger injury.

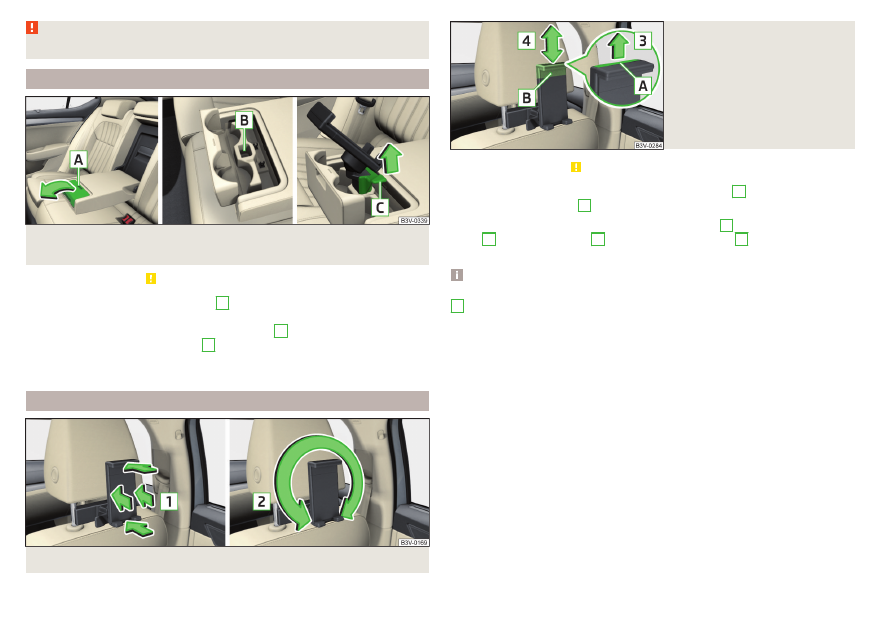

Attach to the storage compartment in the rear armrest

Fig. 137  Open storage compartment / stowage compartment for hold-

er / remove holder



Read and observe   on page 103 first.

›

To insert, hold the lid on the recess

A

 and fold open in the direction of arrow

» Fig. 137

.

›

Insert the holder in the stowage compartment

B

 until it stops.

›

To remove, pull the securing tab

C

 in direction of arrow and take the holder

in direction of arrow out of the adapter.

›

Fold the cover closed against the direction of the arrow.

Handling the holder

Fig. 138  Tilting and rotating the holder

Fig. 139

Adjusting the holder size



Read and observe   on page 103 first.

The holder may be by 30° in the direction of the arrow

1

 tipped and by 360°

in the direction of arrow

2

 turned

» Fig. 138

.

›

To adjust the holder size, pull out the securing tab

A

 in the direction of ar-

row

3

 and push the part

B

 in the direction of arrow

4

 to the desired posi-

tion

» Fig. 139

.

Note

If there is no external device in the holder, then we recommend that the part

B

 is moved fully down. Otherwise, irritating noises may occur at certain

speeds.

104

Using the system

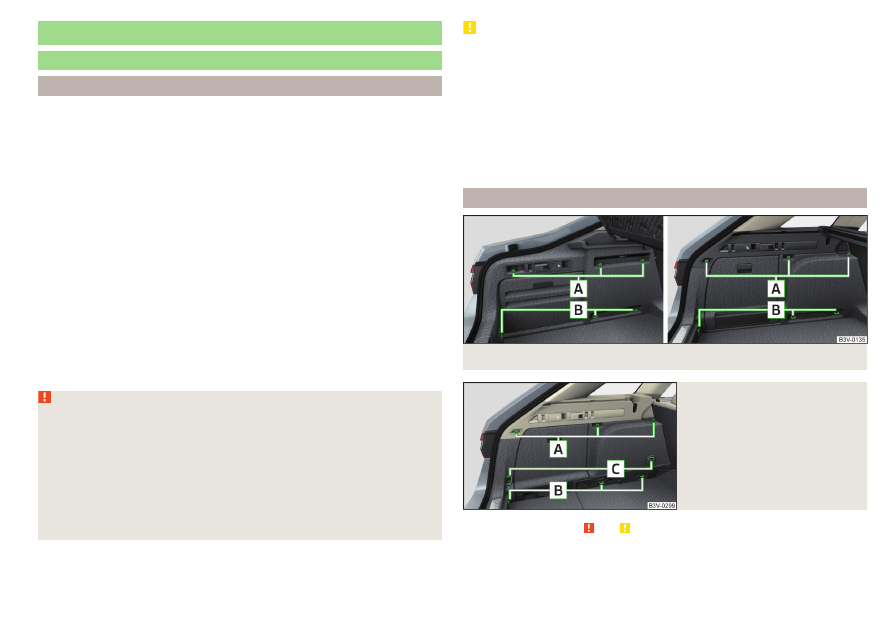

Transport of cargo

Luggage compartment



Introduction

When transporting heavy objects, the driving characteristics change due to

the shift in centre-of-gravity. Therefore, adjust the speed and driving mode ac-

cordingly.

When transporting cargo the following the instructions must be adhered to

▶

Distribute the load evenly in the luggage compartment and secure it with

suitable lashing straps to the lashing eyes or securing nets so that they can-

not slip.

▶

Place heavy objects as far forward in the luggage compartment as possible.

▶

Tyre pressure is to match the load.

In the event of an accident, even small and light objects gain so much kinetic

energy that they can cause severe injuries.
The magnitude of the kinetic energy is dependent on the speed at which the

vehicle is travelling and the weight of the object.

Luggage compartment light

The light switches on/off when the boot lid is opened or closed.
If the boot lid is open and the ignition switched off, the light will extinguish au-

tomatically after around 10 minutes.

WARNING

■

Never exceed the maximum permissible load of the respective fasteners,

nets, hooks etc. Heavy objects were not secured sufficiently – risk of injury!

■

An unfixed or improperly fixed load can slip during a sudden manoeuvre or

an accident - danger of injury!

■

Loose cargo could hit a deployed airbag and injure occupants – danger of

death!

■

When transporting loads in the luggage compartment that has been en-

larged by folding the rear seats forward, ensure the safety of the passen-

gers transported on the other rear seats .

CAUTION

■

Never exceed the maximum permissible load of the respective fasteners,

nets, hooks etc. - these could be damaged.

■

Make sure that the heating elements of the rear window heater, the ele-

ments of the integrated aerial in the rear window or in the rear side windows

are not damaged by abrasive items.

■

Do not place sharp objects in the nets and storage compartments in the lug-

gage compartment - there is a risk of damage to the net as well as the com-

partments.

■

Put the items in the storage compartments carefully and not load these

punctiform - there is a risk of damage to the compartments.

Fastening elements

Fig. 140  Fastening elements: Version 1/version 2

Fig. 141

Fastening elements: Variant 3



Read and observe   and   on page 105 first.

The fasteners are located on both sides of the luggage compartment.



105

Transport of cargo

Overview of the fastening elements

» Fig. 140

and

» Fig. 141

Fastening elements only for fastening fixing nets
Lashing eyes for fastening cargo and securing nets
Lashing eyes for fastening cargo and securing nets

The maximum permissible static load for the individual lashing eyes

B

 and

C

is 350 kg.

Fixing nets

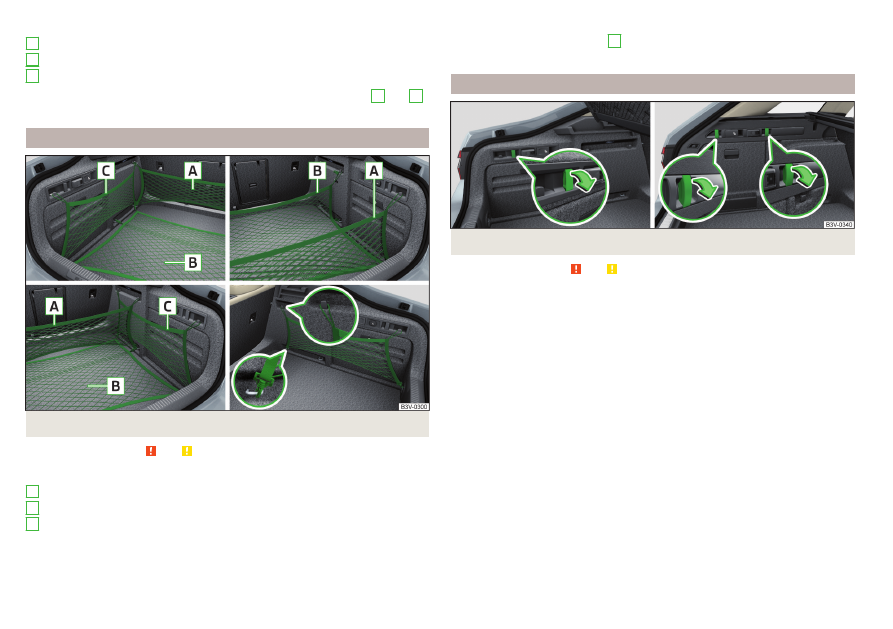

Fig. 142  Fastening examples for nets / side pocket fastening



Read and observe   and   on page 105 first.

Fastening examples for nets

» Fig. 142

Horizontal pocket
Floor net
Vertical pocket

The maximum permissible load of each of the nets is 1.5 kg.

A
B
C

A
B
C

If the vehicle is equipped with the variable loading floor and this is in the upper

position, then the lashing eyes

C

» Fig. 141

 on page 105 can be used to attach

the nets.

Foldable hook

Fig. 143  Fold down the hook: Version 1/version 2



Read and observe   and   on page 105 first.

Foldable hooks for hanging small items of luggage, such as bags, etc., are pro-

vided on both sides of the luggage compartment.

›

To use it, pull down the hook in the direction of the arrow

» Fig. 143

.

The maximum permissible load of the hook is 7.5 kg.

106

Using the system

Fasten the flooring

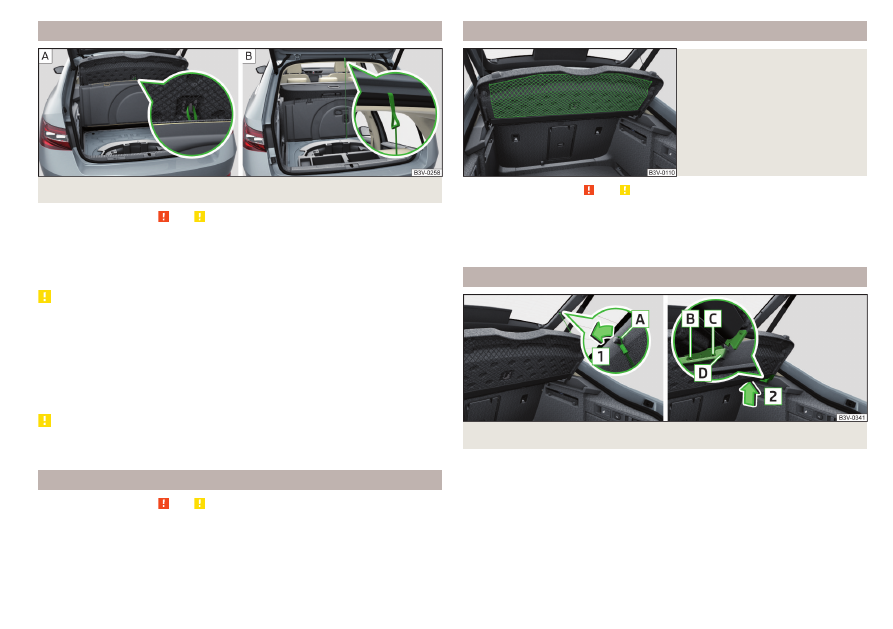

Fig. 144  Fixing the floor covering: Version 1/version 2



Read and observe   and   on page 105 first.

Fastening options for the flooring

» Fig. 144

With the loop on a hook on the luggage compartment cover
With the hook on the frame of the luggage compartment lid

CAUTION

For version 1, the following information applies.

■

The hook on the luggage compartment cover is only provided for the fixing

of the floor covering, do not hang objects on it - there is a risk of damage to

hook.

■

The flooring covering can be fixed to the hook only with the boot open. Be-

fore closing the lid, check that the flooring is not attached to the hook - there

is a risk of damage to the hook.

CAUTION

The floor covering can be fixed with Version 2 only if the variable loading floor

is folded in the upper position

» Fig. 161

 on page 114.

Floor covering on both sides



Read and observe   and   on page 105 first.

A double-sided floor covering can be fitted in the luggage compartment. One

side is made of fabric, the other side is washable (suitable for transporting wet

or dirty items ).





Net on the luggage compartment cover

Fig. 145

Net on the luggage compart-

ment cover



Read and observe   and   on page 105 first.

The net at the bottom of the luggage compartment cover

» Fig. 145

 is provi-

ded for transporting light and soft items.
The maximum permissible load of the net is 1.5 kg.

Luggage compartment cover

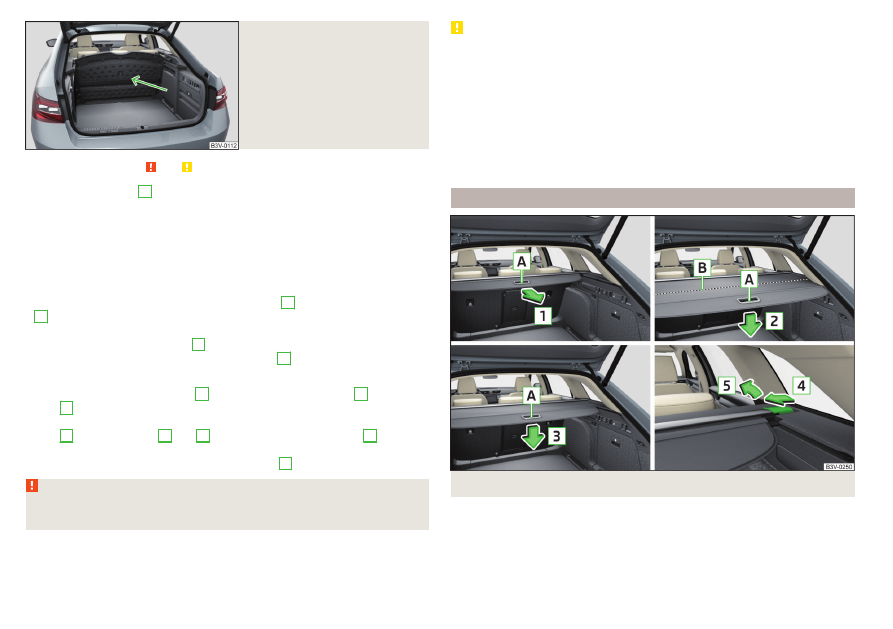

Fig. 146  Remove the luggage compartment cover



107

Transport of cargo

Fig. 147

Luggage compartment cover

stowed behind the rear seats



Read and observe   and   on page 105 first.

If the retaining straps

A



» Fig. 146

 are attached to the boot lid, then opening

the lid will also raise the luggage compartment cover (hereafter only referred

to as "cover").
The cover can be removed from the vehicle and stowed behind the rear seat

backrests if required

» Fig. 147

. Before removing the cover, the sunshade at

the back must be rolled up

» page 78

.

Removing

›

On both sides of the boot lid, unhook the straps

A

 in the direction of arrow

1



» Fig. 146

.

›

Hold the raised cover and press on the two sides on the underside of the

cover in the area of the recess

C

.

›

Remove the cover in the direction of the arrow

2

.

Fitting

›

First, insert the front mounting

B

 and then the rear mounting

C

 in the re-

cess

D

» Fig. 146

.

›

Press on the two sides on the upper side of the cover in the area of the re-

cess

D

. The mountings

B

 and

C

 must engage with the recess

D

 on both

sides of the luggage compartment.

›

On both sides of the boot lid unhook the straps

A

.

WARNING

During the trip there must be no objects on the cover - risk of injury in the

event of sudden braking or a vehicle collision!

CAUTION

■

Observe the following instructions to avoid canting and the subsequent

damage to the cover or the side trim.

■

The cover must be inserted properly and the load must not exceed the

height of the cover.

■

The cover must not be jammed in the surrounding seal of the luggage com-

partment lid when it is in the raised position.

■

There must be no object in the gap between the cover in the raise position

and the rear backrest.

■

Never fold the raised cover forwards to the rear seats - there is a risk of

damaging the cover and the boot lid.

Roll-up cover

Fig. 148  Roll-up cover: pull out/roll up/intermediate position/remove



108

Using the system
