Storing objects

299

Trailer mode

Trailer mode

Introduction

Take into account country-specific regulations
about driving with a trailer and the use of a
towing bracket.
The vehicle has been developed primarily for
carrying people, although it can also be used
to tow a trailer if fitted with the corresponding
technical equipment. This additional load has
an effect on the useful life, fuel consumption
and vehicle performance and in some cases
can reduce the service intervals.
Driving with a trailer requires more force from
the vehicle, and thus more concentration from
the driver.
In winter, winter tyres should be fitted on both
the vehicle

and

 the trailer.

Maximum vertical load technically permit-
ted on the coupling device

The

maximum

 vertical load technically permit-

ted from the trailer draw bar on the towing
bracket's tow ball is

100 kg

.

Vehicles with the Start-Stop system

If the vehicle has a factory-fitted towing
bracket or one that is retrofitted by SEAT, the
Start-Stop system operates as normal. No spe-
cial characteristics need to be taken into ac-
count.

If the system does not recognise the trailer or
the trailer bracket has not been retrofitted by
SEAT, the Start-Stop system must be discon-
nected by pressing the corresponding button
in the lower part of the centre console before
driving with the trailer, and it should remain off
for the rest of the journey

›››

.

Vehicles with driving profile selection

If you are going to be towing a trailer, the use of
the

Eco

 driving profile is not recommended. You

are advised to select another of the available
driving profiles before beginning to drive with a
trailer.

Trailer weight/drawbar load

Never exceed the authorised trailer weight. If
you do not load the trailer up to the maximum
permitted trailer weight, you can then climb
correspondingly steeper slopes.
The maximum trailer weights listed are only ap-
plicable for

altitudes

 up to 1000 m above sea

level. Since higher altitude decreases engine
performance and the ability to climb slopes, the
tow load decreases proportionally. The weight
of the vehicle and trailer combination must be
reduced by 10% for every 1000 m of altitude.
When possible, operate the trailer with the max-
imum

authorised drawbar load

 on the ball

joint of the towing bracket, but

do not exceed

the specified limit.

WARNING

Never use the trailer to transport people,
since it would put their life in danger and is
also prohibited.

WARNING

Undue use of the towing bracket may cause
injury and accidents.

Only use the towing bracket if it is in a per-

fect state of repair and is properly secured.

Never modify or repair the towing bracket

in any way.

In order to reduce the danger of injury in

the event of rear-end collisions and to avoid
injury to pedestrians and cyclists when park-
ing the vehicle, cover or remove the tow hook
when you are not using a trailer.

According to EU regulation 2021_535 it is

not permitted to install a towing device that
completely or partially covers the rear num-
ber plate.

Never fit a towing bracket “with weight dis-

tribution” or “load compensation”. The vehi-
cle has not been designed for this type of
towing bracket. The towing bracket could fail
and the trailer could be released from the
vehicle.

CarManuals2.com

300

Storing objects

WARNING

Driving with a trailer and transporting heavy
or large objects can affect driving properties
and even cause an accident.

Always secure the load properly using

belts or straps that are suitable and in good
condition.

Adapt your speed and driving style at all

times to suit visibility, weather, road and
traffic conditions.

Trailers with a high centre of gravity are

more likely to overturn than those with a low
one.

Avoid sudden braking and manoeuvres.

Take great care when overtaking.

Reduce speed immediately if you notice

that the trailer is swaying, however slightly.

Never drive at more than 80 km/h (50 mph)

when towing a trailer (or at more than
100 km/h (60 mph) in exceptional circum-
stances). This also applies in countries where
driving at higher speeds is permitted. Take
into account the speed limit for vehicles with
trailers in the corresponding country, as it
could be less than the speed limit for vehi-
cles without a trailer.

Never attempt to “straighten” the towing

vehicle and trailer while accelerating.

WARNING

If the towing bracket has been retrofitted by
a non-SEAT workshop, the Start-Stop system
must be disconnected manually whenever
driving with a trailer. Otherwise the brake
system could be damaged and could conse-
quently cause a serious accident or injury.

 Always disconnect the Start-Stop system

manually when using a towing bracket that
has not been fitted by a SEAT workshop.

Note

 Before hitching or unhitching a trailer,

always deactivate the anti-theft alarm

›››

page 91

. Otherwise, the tilt sensor could

cause the alarm to go off.

Do not drive with a trailer for the engine's

first 1000 km

›››

page 151

.

Some retrofitted towing brackets cover the

rear towing eye. In these cases, the towing
eye should not be used for tow-starting or
for towing other vehicles. For this reason, if
the vehicle has been retrofitted with a towing
bracket, always keep the tow hook in the ve-
hicle when you remove it.

Technical requirements

Vehicles that are

 factory

-equipped with a tow-

ing bracket fulfil all the technical and legal re-
quirements for driving with a trailer.

If the

vehicle is retrofitted with a tow bracket

,

only a bracket that is authorised for the max-
imum authorised load of the trailer that is to
be towed may be fitted. The towing bracket
must be suitable for the vehicle and the trailer
and must be properly secured to the vehicle's
chassis. Only use a towing bracket that has
been authorised by SEAT for this vehicle. Al-
ways check and take into account the towing
bracket manufacturer's instructions.

Towing bracket fitted on the bumper

Never fit a towing bracket to the bumper or to
the area where the bumper is mounted. The
towing bracket should not impair the bumper's
function. Do not make modifications or repairs
to the exhaust system or the brake system.
Make regular checks to ensure that the towing
bracket is secure.

Engine cooling system

Driving with a trailer increases the load on the
engine and cooling system. The cooling system
should have sufficient coolant and be prepared
for the additional effort involved in driving with
a trailer.

Trailer brakes

If the trailer has its own brake system, please
take the relevant legal requirements into ac-
count. Never connect the trailer's brake system
to the vehicle's brake system.

CarManuals2.com

Storing objects

301

Trailer mode

Tow cable

Always use a cable between the vehicle and
the trailer

›››

page 301

.

Trailer tail lights

The trailer's rear lights should comply with the
statutory safety regulations

›››

page 301

.

Never connect the trailer's rear lights directly
to the vehicle's electric system. If you are not
sure that the trailer's electrical connection is
correct, have it checked by a specialised work-
shop. SEAT recommends visiting a SEAT dealer-
ship for this.

Exterior mirrors

If you cannot see the area behind the trailer
with the exterior mirrors of the towing vehicle,
additional mirrors will have to be installed in
accordance with the regulations of the country
in question. The exterior mirrors should be ad-
justed before you start driving and must provide
a sufficient field of vision at the rear.

Trailer maximum electricity consumption

Never exceed the values indicated!

Europe, Asia, Africa, South America and Cen-
tral America

Brake lights (total)

84 Watts

Turn signal (on each side)

42 Watts

Side lights (on each side)

50 Watts

Europe, Asia, Africa, South America and Cen-
tral America

Reverse lights (in total)

42 Watts

Rear fog light

42 Watts

Australia

Brake lights (total)

108 Watts

Turn signal (on each side)

54 Watts

Side lights (on each side)

100 Watts

Reverse lights (in total)

54 Watts

Rear fog light

54 Watts

WARNING

If the towing bracket is wrongly fitted or is
not the right one, the trailer could become
detached from the vehicle and cause serious
injury.

NOTICE

 If the rear lights of the trailer are not

correctly connected, the vehicle's electronic
system may be damaged.

If the trailer absorbs excessive electric cur-

rent, the vehicle's electronic system may be
damaged.

Never connect the trailer's electric system

directly to the electrical connections of the
tail lights or any other power sources. Only
use the connections intended for providing
electric current to the trailer.

Hitching and connecting a trailer

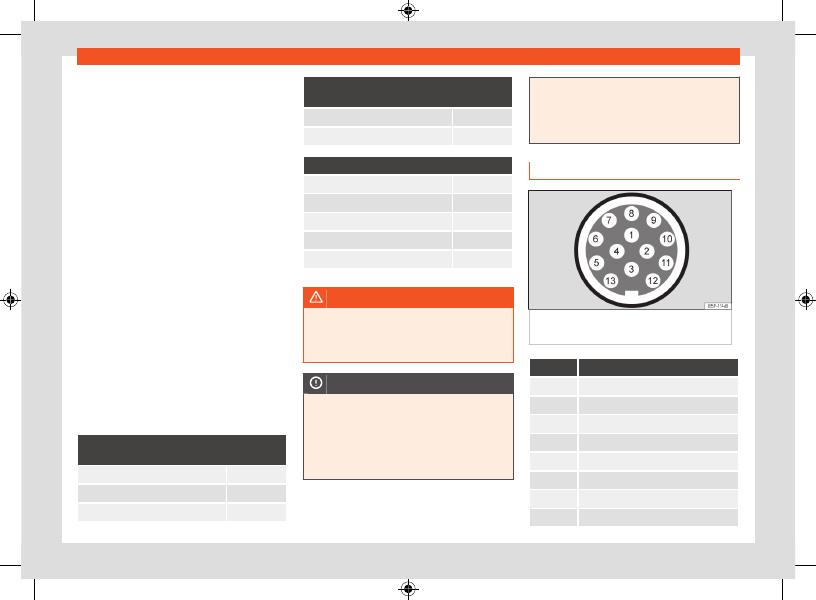

Fig. 209

Diagram: assignment of the pins of

the trailer's electrical socket.

Pin

Meaning

1

Left turn signal

2

Rear fog light

3

Earth for pins 1, 2, 4, 5, 6, 7 and 8

4

Right turn signal

5

Rear light, right

6

Brake lights

7

Rear light, left

8

Reverse lights

CarManuals2.com

302

Storing objects

Pin

Meaning

9

Permanent live

10

Live charge cable

11

Earth for pin 10

12

Unassigned

13

Earth for pin 9

Power socket for trailer

The vehicle is fitted with a 13-pole power socket
for the connection between the trailer and the
vehicle. With the engine running, electrical devi-
ces on the trailer receive power from the elec-
trical connection (pin 9 and pin 10 of the trailer
power socket).
If the system detects that a trailer has been
connected, the consumers on the trailer will re-
ceive electricity through this connection (pins 9
and 10). Pin 9 has a permanent live. This pow-
ers, for example, the trailer's interior lighting.
Electrical devices such as a fridge in a caravan

only

 receive electrical power if the engine is

running (through pin 10).
To avoid overloading the electrical system, you
cannot connect the ground wires of pin 3, pin 11
or pin 13.
If the trailer has a

7-contact connector

, you

will need to use an adapter cable. In this case
the function corresponding to pin 10 will not be
available.

Tow cable

The tow rope must always be securely fixed to
the towing vehicle and loose enough so that the
vehicle can handle turns smoothly. However,
make sure that the cable does not rub on the
ground while driving.

Trailer tail lights

Always check the trailer's rear lights to ensure
they are working correctly and that they com-
ply with the relevant safety regulations. Make
sure that the maximum permissible power that
can be absorbed by the trailer is not exceeded

›››

page 300

.

Include in the anti-theft alarm

The trailer is included in the anti-theft system if
the following conditions are met:

 If the vehicle is factory-equipped with an

anti-theft alarm.

If the vehicle is factory-equipped with a tow

bracket.

If the trailer is electrically connected to the

towing vehicle through the trailer power socket.

If the electrical systems of the vehicle and

trailer are in perfect condition and have no
faults or damage.

If the vehicle is locked with the key and the

anti-theft alarm is activated.

When the vehicle is locked, the alarm is trig-
gered if the electrical connection with the
trailer is cut off.
Before hitching or unhitching a trailer, always
turn off the anti-theft alarm. Otherwise, the tilt
sensor could cause the alarm to go off.

Trailers with LED tail lights

For technical reasons, trailers fitted with LED
rear lights cannot be connected to the anti-
theft alarm system.
When the vehicle is locked, the alarm does not
go off when the electrical connection with the
trailer is cut if it has rear lights with light-emit-
ting diodes.

If the

Eco

 driving profile was selected when

hitching the trailer, this will automatically switch
to the

Normal

 profile. If the system cannot de-

tect the attached trailer or if the towing bracket
has been retrofitted by an auto repair shop
other than SEAT, you must manually select the

Normal

 profile before you start driving with a

trailer attached. To reconnect the

Eco

 profile

once the trailer has been unhitched, switch the
ignition off and back on once.

CarManuals2.com

Storing objects

303

Trailer mode

WARNING

If the cables are improperly or incorrectly
connected, it may lead to an excessive
amount of current supplied to the trailer,
which can cause abnormalities in the entire
vehicle electronic system, as well as acci-
dents and serious injuries.

 Ensure that any repairs that need to be

carried out on the electrical system are car-
ried out by a specialised workshop.

Never connect the trailer's electric system

directly to the electrical connections of the
tail lights or any other power sources.

WARNING

Contact between the pins of the trailer
power socket can cause short circuits, over-
loading of the electrical system or failure of
the lighting system, and consequently can
cause accidents and serious injuries.

 Never connect the pins of the trailer power

socket to each other.

Make sure any work on bent pins is carried

out by a specialised workshop.

NOTICE

Do not leave the trailer connected to the ve-
hicle when parked; place it on its support
wheel or its supports. If the vehicle rises or
falls due, for example, to a variation of the
load or a burst tyre, increased pressure will
be placed on the towing bracket and the
trailer, and both the vehicle and the trailer
can be damaged.

Note

In case of anomalies in the electrical sys-

tems of the vehicle or trailer, as well as in the
anti-theft alarm system, have them inspec-
ted by a specialised workshop.

If the trailer accessories consume energy

through the power socket to the trailer and
the engine is turned off, the battery will dis-
charge.

If the vehicle battery is running low, the

electrical connection with the trailer will be
automatically cut.

Trailer loading

Technically permissible maximum trailer
weight and vertical load on the coupling de-
vice

The technically permissible maximum trailer
weight is the weight that the vehicle can tow

›››

. The vertical load on the coupling is ex-

erted vertically from above on the hook of the
towing bracket.
The information on the maximum trailer weight
and vertical load on the coupling device con-
tained in the type plate of the towing bracket
are experimental values only. The correct fig-
ures for your specific model, which may be
lower than these figures, are given in the vehicle
documentation. The information in the vehicle
documentation takes precedence at all times.
To promote safety while driving, SEAT recom-
mends making the most of the maximum ver-
tical load technically permissible on the cou-
pling device

›››

page 299

. An insufficient ver-

tical load has a negative influence on the be-
haviour of both the vehicle and trailer.
The vertical load increases the weight on the
rear axle, reducing the vehicle's carrying ca-
pacity.

CarManuals2.com

304

Storing objects

Gross combination weight of the towing ve-
hicle and trailer

The gross combination weight is the actual
weight of the loaded vehicle plus the actual
weight of the loaded trailer.
In some countries trailers are classified into
distinct categories. SEAT recommends obtain-
ing information from a specialised workshop re-
garding which type of trailer is most suitable for
your vehicle.

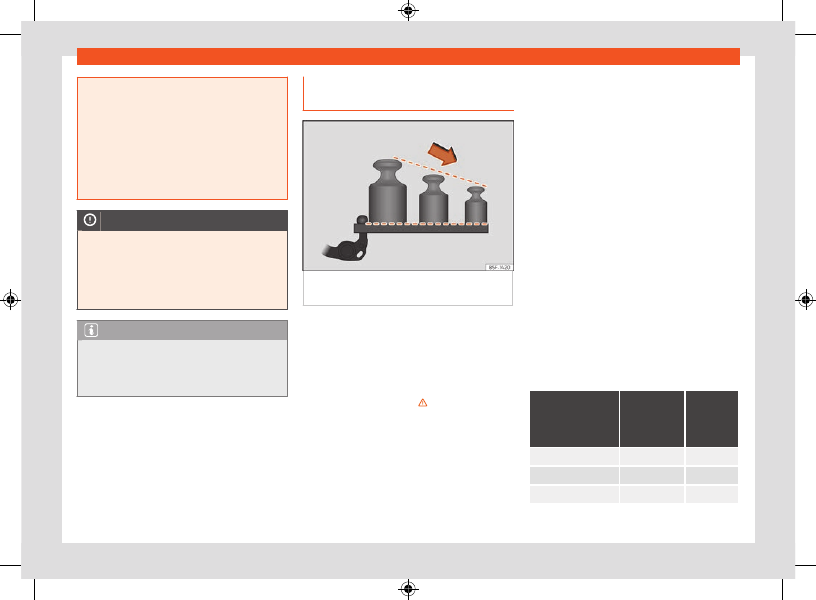

Trailer loading

The weight of the towing vehicle and trailer
must be balanced. In order to do this, the load
must be as close as possible to the maximum
vertical load technically permissible on the
coupling point, and it must be evenly distributed
between the back and front of the trailer:

 Distribute loads in the trailer so that heavy

objects are as near to the axle as possible or
above it.

Secure the trailer load properly.

Tyre pressure

Set the tyre pressure of the trailer tyres in ac-
cordance with the trailer manufacturer's rec-
ommendations.
When towing a trailer, inflate the tyres of the
towing vehicle with the maximum allowable
pressure

›››

page 352

.

WARNING

If the maximum permissible axle weight, the
maximum load technically permissible on the
coupling point, the maximum authorised ve-
hicle weight or the gross combination weight
of the towing vehicle and trailer are excee-
ded, accidents and serious injuries may oc-
cur.

Never exceed the indicated values.

The actual weight on the front and rear

axles must never exceed the maximum per-
missible axle weight. The weight on the front
and rear axles must never exceed the maxi-
mum permissible weight.

WARNING

A shift in weight could jeopardize the stability
and security of the towing vehicle and trailer,
which could lead to accidents and serious
injuries.

Always load the trailer correctly.

Always secure the load properly using

belts or straps that are suitable and in good
condition.

Driving with a trailer

Adjusting the headlights

The front part of the vehicle may be raised
when the trailer is connected and the light may
dazzle the rest of the traffic.

Specific features of driving with a trailer

 If your trailer has an

overrun brake

, brake

gently at first

 and then rapidly. This will prevent

the jerking that can be caused by the locking of
trailer wheels.

Due to the gross combination weight of the

towing vehicle and trailer, the braking distance
increases.

When going down a slope, engage a lower

gear (with a manual gearbox, or use the auto-
matic gearbox's tiptronic mode) to use engine
braking. Otherwise, the brake system could
overheat and even fail.

The trailer weight, as well as the gross combi-

nation weight of the towing vehicle and trailer,
change the centre of gravity and the properties
of the vehicle.

If the towing vehicle is empty and the trailer

is loaded, then the load distribution is incorrect.
Under these conditions, drive slowly and with
extra caution.

Hill starts with a trailer

Depending on the slope of the hill and the
combination weight of the towing vehicle and
trailer, the vehicle might start rolling backwards
slightly when you first start up.
For hill starts with a trailer hitched:

 Press and hold the brake pedal.

Press the   button to disconnect the elec-

tronic parking brak

›››

page 210

.

CarManuals2.com

Storing objects

305

Trailer mode

Manual gearbox:

 Depress the clutch pedal

fully and engage 1st gear.

Automatic gearbox:

 Move the selector lever to

the

D/S

 position.

Pull out the   button and hold it in that posi-

tion to stop the towing vehicle and trailer with
the electronic parking brake.

Release the brake pedal.

Move off slowly.

Manual transmission:

 release the clutch pedal

slowly.

Do not release the   button until the engine

has sufficient power to start driving.

WARNING

If a trailer is pulled incorrectly, this may lead
to loss of control of the vehicle and serious
injury.

Driving with a trailer and transporting

heavy or large objects will change the vehi-
cle handling and braking distances.

Always drive cautiously and carefully.

Brake earlier than usual.

Adapt your speed and driving style at all

times to suit visibility, weather, road and
traffic conditions. Slow down, especially
when driving down hills or slopes.

Accelerate with particular care and cau-

tion. Avoid sudden braking and manoeuvres.

Take great care when overtaking. Reduce

speed immediately if you notice that the
trailer is swaying, however slightly.

Never attempt to “straighten” the towing

vehicle and trailer while accelerating.

Take into account the speed limit for vehi-

cles with a trailer, as it could be lower than
for vehicles without a trailer.

Stabilisation of the towing vehicle
and trailer combination

The stabilisation of the vehicle and trailer com-
bination is an additional function of the elec-
tronic stability control (ESC).
If the system detects that the trailer is weaving,
it intervenes to reduce the swaying of the trailer.

Vehicle and trailer combination stabilisation
requirements

 The vehicle is factory-equipped with a tow-

ing bracket or has been retro-fitted with a com-
patible towing bracket.

The ESC and TCS are active. The control

lamp   or   is not lit up on the instrument clus-
ter.

The trailer is connected to the towing vehicle

through the trailer power socket.

The vehicle is travelling at over 60 km/h (ap-

prox. 37 mph).

The maximum vertical load technically per-

missible is not being exceeded on the coupling
device.

The trailer has a rigid draw bar.

If the trailer has brakes, it must be equipped

with a mechanical overrun brake.

WARNING

The enhanced safety provided by the elec-
tric stability control of the vehicle and trailer
should not lead you to take any risks that
could compromise your safety.

Adapt your speed and driving style at all

times to suit visibility, weather, road and
traffic conditions.

Accelerate with caution when the road is

slippery.

When adjusting any settings, stop acceler-

ating.

WARNING

The electric stability control for the vehicle
and trailer may not correctly detect all driv-
ing conditions.

 When the ESC is switched off, the stabili-

sation of the towing vehicle and trailer is also
switched off.

The stability system does not always de-

tect light trailers, so it may not stabilise
these correctly.

CarManuals2.com

306

Storing objects

When driving on surfaces with poor grip,

the trailer can even interfere with the stabil-
ity system.

Trailers with a high centre of gravity can tip

over without having previously weaved.

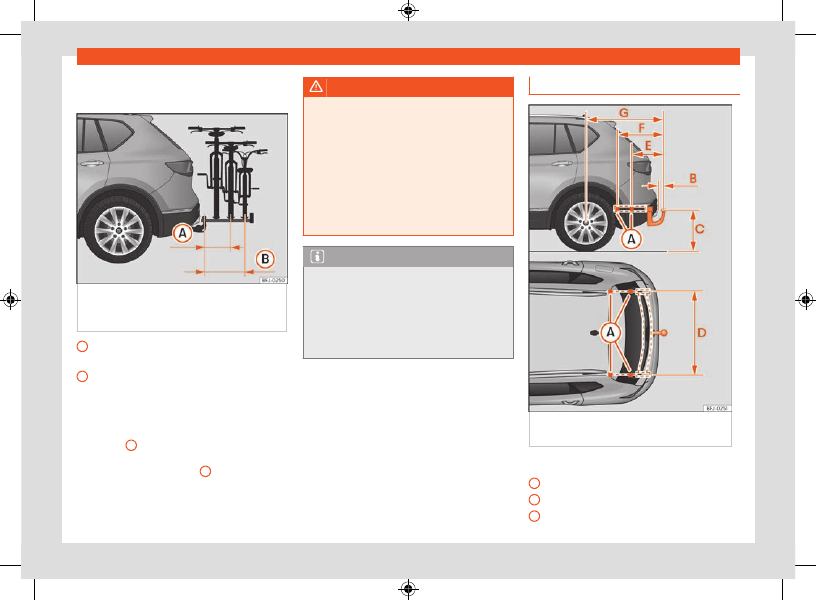

If a trailer is not attached, but a connector

is plugged into the power socket (e.g. instal-
lation of a bicycle rack with lights), repea-
ted automatic braking may occur in extreme
driving conditions.

Electrically unlocking trailer hook

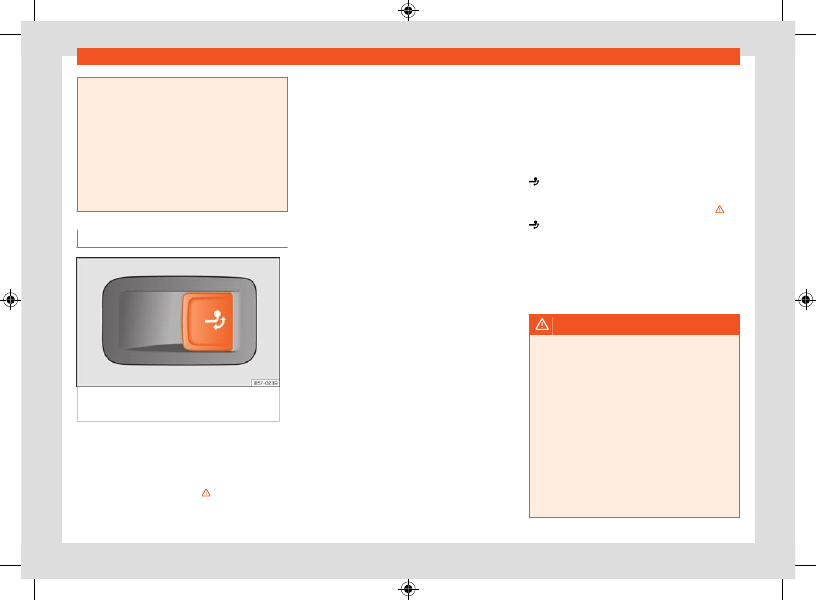

Fig. 210

Right side of the luggage

compartment: button to unlock the tow hitch.

The towing bracket’s hook is located in the
bumper. Tow hooks for electrical unlocking
cannot be removed.
There should be no person, animal or object in
the path of the tow hook

›››

.

Unlocking the tow hook and removing it

 Stop the vehicle and connect the electronic

parking brake

›››

page 210

.

Switch off the engine.

 Open the rear lid.

Pull the

›››

Fig. 210

 button briefly. The

tow hook unlocks electrically and automati-
cally turns outwards. The button's control lamp
flashes.

Finish remove the tow hook by hand until you

feel and hear that it has engaged and the con-
trol lamp on the button stays on.

Close the rear lid.

Hitching and connecting a trailer

›››

page 301

.

Retracting the tow hook

Stop the vehicle and apply the electronic

parking brake.

Switch off the engine.

Unhook the trailer and interrupt the electrical

connection between it and the vehicle. If you
are using an adapter, remove it from the trailer's
power socket.

Open the rear lid.

Pull the

›››

Fig. 210

 button briefly. The tow

hook unlocks electrically.

Turn the tow hook under the bumper with your

hand until you feel and hear that it engages
and the control lamp on the button remains on
continuously.

Close the rear lid.

The button's control lamp

Flashing:

This means that the tow hook has not yet
engaged correctly or is damaged

›››

.

Remains on:

If it remains on while the rear lid is open, the
tow hook is correctly in place both when
extracted and when covered.

The button's indicator lamp switches off ap-
proximately 1 minute after closing the rear lid.

WARNING

Undue use of the towing bracket may cause
injury and accidents.

 Only use the tow hook if it is properly en-

gaged.

Always ensure that no person, animal or

object is to be found in the path of the tow
hook.

Never use a tool or instrument while the

tow hook is moving.

Never press the button

›››

Fig. 210

 when

there is a trailer hooked to the vehicle or
when a carrier system or other accessories
are mounted on the tow hook.

CarManuals2.com

Storing objects

307

Trailer mode

If the tow hook is not attached properly, do

not use it. Instead, go to a specialised work-
shop and have the towing bracket checked.

If you detect any fault in the electrical sys-

tem or in the towing bracket, contact a speci-
alised workshop and ask them to check it.

If the ball has a diameter of less than

49 mm at any one point, do not use the tow-
ing bracket under any circumstances.

NOTICE

If you clean the vehicle with high-pressure
or steam devices, do not point the jet di-
rectly towards the retractable tow hook or
the trailer power socket, as this may damage
the joints or remove the grease necessary for
lubrication.

Note

At extremely low temperatures, the tow hook
may be impossible to operate. In this case,
place the vehicle in a warmer location (for
example, a garage).

Installing a rear carrier system or a
bicycle rack on the trailer hitch

Fig. 211

Recommended weight distribution on

the rear support system.

Examples of rear carrier systems are bicycle
racks or multi-purpose boxes that are installed
on the trailer hitch.
Only use rear carrier systems that have been
specified by the respective manufacturer for
the vehicle model, model year and version of
the vehicle in question

›››

.

SEAT recommends the use of genuine SEAT
spare parts and accessories, which can be pur-
chased from the brand’s dealers. Install the rear
carrier system according to the manufacturer’s
installation instructions.
The load capacity results from the weight of the
rear carrier system and the weight of the load
carried on it.

The recommended maximum load capacity of
the rear carrier system installed on the trailer
hitch may be different from the maximum verti-
cal load on the specific vehicle coupling.
However, it is not permitted to exceed the max-
imum permitted vertical load on the tow hitch
(which depends on the model).
The load capacity is reduced due to the lever
effect that occurs the further the carrier system
is from the ball head.
Place heavy objects as close as possible to the
trailer hitch

›››

Fig. 211

.

Maximum load capacity depending on the
vehicle

To find out the recommended load capacity for
your vehicle, check the maximum vertical load
on its coupling

›››

page 384

. Please refer to the

following table for the load capacity.
In accordance with the UN-R-55 guideline,
SEAT recommends not carrying more bicycles
than recommended on the rear rack system.

Maximum vertical

load on the vehi-

cle's specific cou-

pling

Maximum

load ca-

pacity

Number of

bicycles

50 kg

50 kg

2

55 kg

55 kg

2

From 75 kg

75 kg

3

CarManuals2.com

308

Storing objects

A

B

Maximum load overhang of the rear carrier
system

Fig. 212

Schematic representation of the

maximum load overhang of a bicycle rack for two
or three bicycles.

With up to 55 kg load capacity: 500 mm
(approx. 19.7 in)
With 75 kg load capacity: 700 mm (approx.
27.6 in)

The maximum overhang shall not exceed
500 mm from the centre of the ball head to
the to the centre of the rail of the last support

›››

Fig. 212



A

 for two-bicycle racks. In the case

of three-bicycle racks, the overhang must not
exceed 700 mm

›››

Fig. 212



B

.

WARNING

The incorrect use of a rear carrier system in-
stalled on the tow hook can cause accidents
and injury.

Make sure that the carrier system is suita-

ble for your vehicle.

Read and observe the installation instruc-

tions of the rear carrier system manufacturer.

Never attach a rear carrier system below

the ball head of the trailer hitch. The system
could slip due to the shape of the hitch.

Note

Before setting off, SEAT recommends remov-
ing, to the extent possible, all accessories
from the load attached to the carrier system.
Examples of these accessories are baskets
and panniers, child seats or batteries. This
improves the aerodynamics and centre of
gravity of the rear carrier system.

Retrofitting a towing bracket

Fig. 213

Limits and attachment points for

retrofitting a towing bracket.

Distance measurements:

A

Mounting points on the vehicle

B

75 mm (minimum)

C

365 mm

CarManuals2.com

Storing objects

309

Trailer mode

D

1,050 mm

E

353 mm

F

600 mm

G

1,095 mm

SEAT recommends that towing brackets be ret-
rofitted at a specialised workshop. For exam-
ple, it may very well be necessary to adjust
the cooling system or mount thermal protection
plates. SEAT recommends visiting a SEAT deal-
ership for this.
If a towing bracket is retrofitted, the distance
specifications should always be kept in mind.
The distance between the centre of the ball
head and the road

›››

Fig. 213



C

 must never

be less than that indicated. This also applies
when the vehicle is fully loaded, including the
technically permissible maximum vertical load
on the coupling device.

WARNING

If the cables are improperly or incorrectly
connected, this may lead to malfunctions in
the entire vehicle electronic system, as well
as to accidents and serious injuries.

Never connect the trailer's electric sys-

tem to the electrical connections of the tail
lights or any other unsuitable power sources.
Only use suitable connectors to connect the
trailer.

The towing bracket should be retrofitted

only at a specialised workshop.

WARNING

If the towing bracket is badly fitted or unsuit-
able, the trailer may separate from the ve-
hicle while driving. This could cause serious
accidents and fatal injuries.

Note

According to regulation EU2021_535 it is

not permitted to install a towing device that
cannot be removed or retracted.

Only use towing brackets that have been

approved by SEAT for the model in question.

In some versions, the fitting of a conven-

tional towing hook solution is not recommen-
ded. Please consult your Technical Service.

CarManuals2.com

310

Fuel and exhaust gas cleaning

1)

Depending upon country.

Fuel and exhaust gas
cleaning

Refuelling

Safety warnings regarding fuel han-
dling

WARNING

Fuel is highly flammable and can cause seri-
ous burns and other injuries.

When refuelling, turn off the engine and

turn off the ignition for safety reasons.

The fuel system of PHEV models is pressur-

ized to prevent petrol vapours from escaping
into the atmosphere.

Do not smoke when filling the fuel tank or

a canister. Naked flames are forbidden in the
vicinity due to the risk of explosion.

Observe legislation governing the use,

storage and carrying of a spare fuel canister
in the vehicle.

For safety reasons we do not recommend

carrying a spare fuel canister in the vehicle.
In an accident the canister could be dam-
aged and could leak.

If, in exceptional circumstances, you have

to carry a spare fuel canister, please observe
the following points:

Never fill fuel into the spare fuel canister

if it is inside or on top of the vehicle. This
could cause an explosion. Always place
the canister on the ground to fill it.

Insert the filling nozzle as far as possible

into the spare fuel canister.

If the spare fuel canister is made of

metal, the filling nozzle must be in contact
with the canister during filling. This helps
prevent an electrostatic charge building
up.

Never spill fuel in the vehicle or in the

luggage compartment. Fuel vapour is ex-
plosive. Risk of fatal accident!

NOTICE

If any fuel is spilt onto the vehicle, it should

be removed immediately. It could otherwise
damage the paintwork.

 Never run the tank completely dry. The

catalytic converter can be damaged.

When filling the fuel tank after having run

it completely dry on a vehicle with a diesel
engine, the ignition must be switched on for
at least 30 seconds before starting the en-
gine. When you then start the engine it may
take longer than normal (up to one minute) to
start firing.

For the sake of the environment

Do not overfill the fuel tank, it may cause the
fuel to overflow if it becomes warm.

Note

There is no emergency mechanism for the
manual release of the fuel tank flap. If nec-
essary, request assistance from specialised
personnel.

Note

Diesel vehicles are fitted with a protective
device that prevents the insertion of the
wrong fuel hose

1)

. It is only possible to refuel

with Diesel nozzles.

If the pump nozzle is worn, damaged, or if

it is very small, it is possible that it will not
be able to open the protective device. Before
trying to insert the pump nozzle by turning
it, try a different pump or request specialist
help.

If you fill the tank from a reserve fuel canis-

ter, the protective device will not open. One
way to resolve this is to pour the fuel in very
slowly.

CarManuals2.com

Fuel and exhaust gas cleaning

311

Refuelling

Refuelling

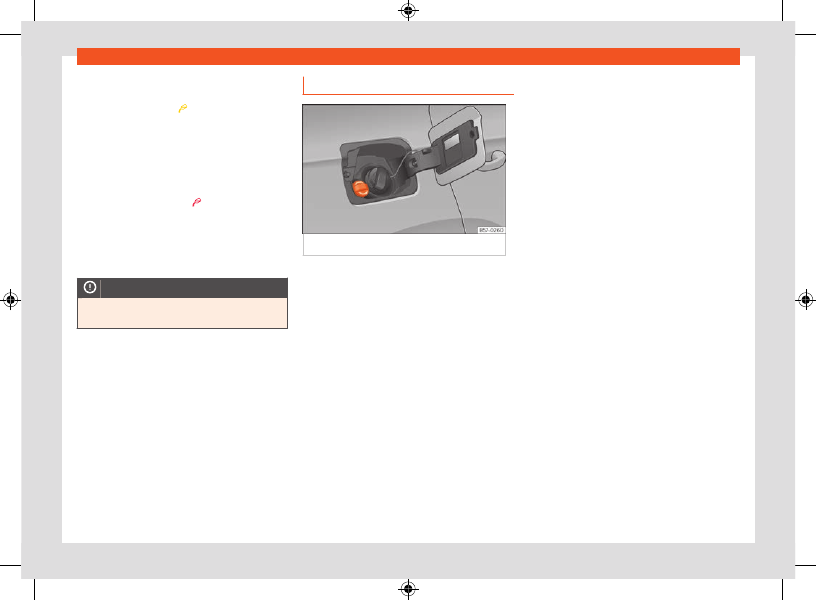

Fig. 214

Fuel tank flap with tank cap attached.

The fuel tank flap is on the rear right of the
vehicle.

 The tank flap is unlocked when the car is un-

locked using the central locking remote control

›››

page 87

.

Hybrid vehicles:

 Use the   button on the driver’s

door to release the tank flap

›››

page 311

.

Open the fuel tank flap by pressing on the

retainer zone.

Unscrew the cap by turning it to the left.

Place it in the space on the hinge of the open

flap

›››

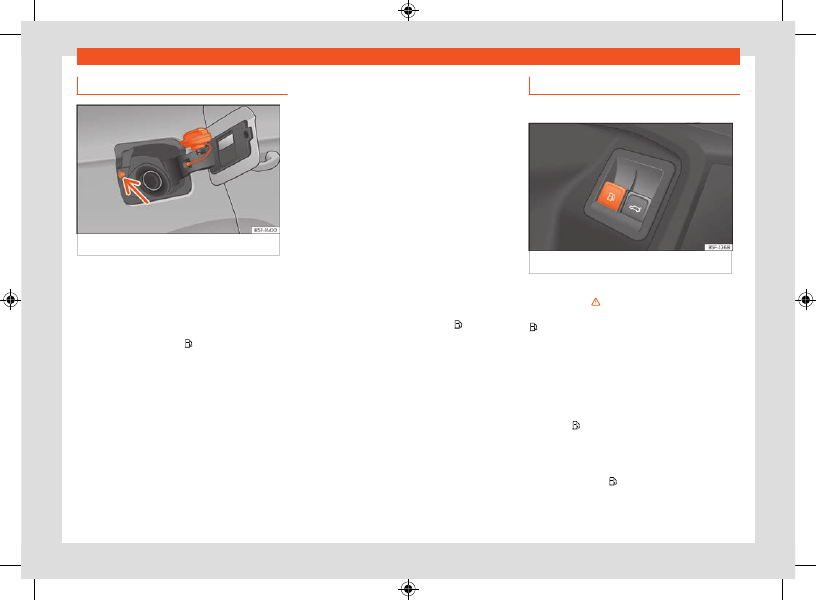

Fig. 214

.

Start refuelling. The tank is full as soon as

the pump’s automatic nozzle cuts off the fuel
supply. Do not try to put in more fuel after the
nozzle cuts out, as this will fill the expansion
chamber in the fuel tank.

Unscrew the cap by turning it to the right as

far as it will go.

Close the lid.

The correct fuel grade for your vehicle is given
on a sticker on the inside of the fuel tank
flap. Further notes on fuel can be found at

›››

page 312

.

The capacity of your vehicle's fuel tank is given
in

›››

page 384

.

Hybrid vehicles

Every 6 months it is necessary to run on petrol
until the control lamp switches off   and then
the tank must be refilled. This is necessary to
ensure that the system works properly, as well
as the fuel quality required for driving with pet-
rol.

Purging the fuel tank

 Valid for: hybrid vehicles.

Fig. 215

Driver’s door: tank cover release.

Before refuelling the fuel system must be dep-
ressurised

›››

 in

Safety warnings regarding

fuel handling

 on page 310

. To do this, press the

 button on the driver’s door.

An audible sound will be played and a warning
will be displayed on the instrument cluster dis-
play.
After a few seconds the fuel tank flap will un-
lock and remain unlocked for a few minutes. If
you have not refuelled after this time, you must
press the   button again before refuelling.
Avoid touching the fuel tank flap lock button

›››

Fig. 214

 (arrow). The system will interpret

that you have finished and cannot continue re-
fuelling. Press the   button on the driver’s door
again to continue.

CarManuals2.com

312

Fuel and exhaust gas cleaning

1)

Depending upon country.

2)

Follow the regulations of the country you are driving in.

1

2

3

4

Fuel types

Identification of fuels

1)

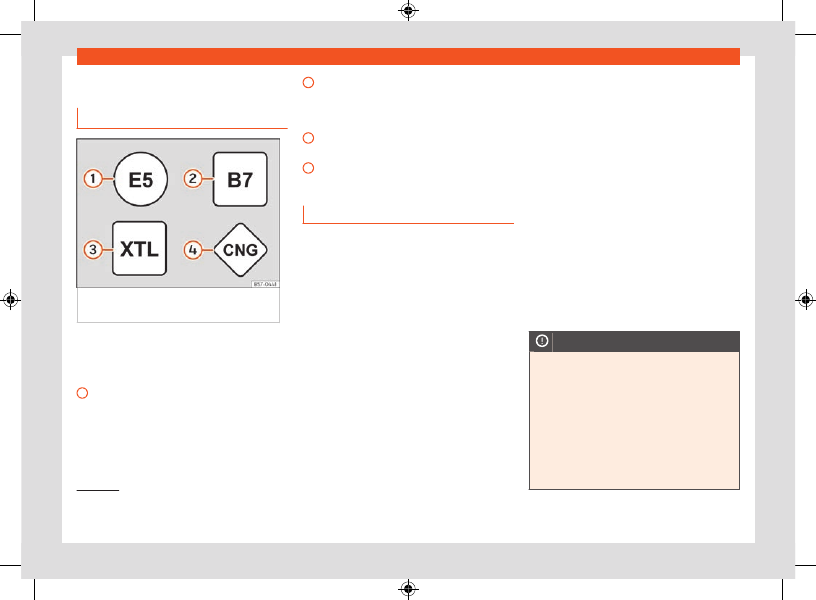

Fig. 216

Identification of fuels according to

European Union (EU) Directive 2014/94/

Fuels are identified by different symbols on
the pump and on your vehicle's tank flap. The
identification serves to prevent confusion when
choosing the fuel.

Petrol

 with ethanol (“E” stands for

E

thanol).

The number indicates the percentage of
ethanol in the petrol. “E5” means, for exam-
ple, an ethanol ratio of 5% max.

Diesel

 according to EN590 standard. The

number indicates the maximum percent-
age of Biodiesel in the fuel. “B7” means a
maximum of 7% Biodiesel.
Synthetic

diesel

 according to EN15940

standard.

Natural gas

: “CNG” means

C

ompressed

N

atural

G

as

Type of petrol

The correct grade of petrol is listed inside the
fuel tank flap.
The vehicle is equipped with a catalytic con-
verter and must only be run on

unleaded pet-

rol

. The petrol must comply with the standard

EN 228 and be

sulphur-free

. Fuels with a 10%

ethanol ratio can be refuelled (E10)

2)

. The types

of petrol are differentiated by using the

octane

numbers (RON)

 or via the

anti-knock index

(AKI)

.

Super unleaded petrol 95 octane petrol or
normal 91 octane petrol at least

We recommend refuelling with super 95 octane
petrol (91 AKI). If not available, normal 91 oc-
tane petrol (87 AKI) (with a slight power loss)
may be used.

Super unleaded petrol, 95 octanes at least

You should use super 95 octane petrol (91 AKI)
at least.
If super petrol is not available, if necessary, use
normal 91 octane petrol (87 AKI). In this case
only use moderate engine speeds and a light
throttle. Refuel with super as soon as possible.

Unleaded super plus 98 octane petrol or su-
per 95 octane petrol at least

We recommend refuelling with super plus 98
octane petrol (93 AKI). If not available: super 95
octane petrol (91 AKI) (with a slight power loss).
If super petrol is not available, if necessary, use
normal 91 octane petrol (87 AKI). In this case
only use moderate engine speeds and a light
throttle. Refuel with super as soon as possible.

NOTICE

 Fuels with a high percentage of ethanol,

e.g. E30 - E100 button must not be used. The
fuel system would be damaged.

A single refuelling with leaded fuel or other

metal additives entails a permanent deterio-
ration of the effectiveness of the catalytic
converter.

Only use fuel additives that have been ap-

proved by SEAT. The products that contain
substances to increase the octane rating or

CarManuals2.com

Fuel and exhaust gas cleaning

313

AdBlue®

1)

This motor is only available in some markets.

2)

Depending upon country.

decrease knocking may contain metal addi-
tives that damage the engine and catalytic
converter. This type of products must not be
used.

Do not use fuels shown in the pump as

containing metals. LRP (

lead replacement

petrol

) fuels contain high concentrations of

metal additives. Risk of engine damage!

High engine speed and full throttle can

damage the engine when using petrol with
an octane rating lower than the correct
grade for the engine.

Note

 Fuel with an octane rating higher than the

one required by the engine can be used.

In countries in which there is no sulphur-

free fuel, it is also allowed to use low sulphur
content fuel.

Ethanol fuel

 Valid for: vehicles with Totalflex engines

You can recognise vehicles with Totalflex en-
gines

1)

 by label on the fuel tank lid with the

marking “Petrol/ethanol”.

Vehicles with Totalflex engine can run with un-
leaded petrol (95 octane / 91 AKI) according
to ANP No. 57 and with fuels with any high per-
centage of ethanol. The vehicle is refuelled in
the same way as petrol refuelling.

Also consider that

›››

page 312,

Type of petrol

.

Note

SEAT recommends filling the tank exclusively
with petrol every 10,000 km to decrease im-
purities that using E100 ethanol fuel might
have left in the engine.

Diesel

 Valid for: vehicles with diesel engines

Please note the information on the inside of the
fuel tank flap.
The diesel can thicken at very low tempera-
tures, thus affecting the start or operation of
the engine. Ask your service station attendant if
their diesel is suitable for winter use.

Water in the fuel filter

2)

If your vehicle has a diesel engine and is equip-
ped with a

fuel filter with a water separator

,

the instrument panel may display the following
warning:

 Water in the fuel filter.

If this is the case, take the vehicle to a special-
ised workshop so that they can drain the fuel
filter.

NOTICE

 Never use of FAME (biodiesel that does not

meet the EN590 standard), petrol, heating
oil, other fuels or thinning agents as they can
cause severely damage the fuel system and
the engine.

If the wrong fuel has been filled, do not

start the engine under any circumstances.
Risk of damaging the fuel system and the en-
gine! Seek professional assistance.

AdBlue®

Information about AdBlue®

AdBlue® consumption depends on your per-
sonal driving style, the temperature of the sys-
tem and the outdoor temperature when the ve-
hicle is used.
AdBlue® freezes at temperatures of -11 °C
(+13°F). The system has heating elements that
guarantee its operation even at low tempera-
tures.
When the

range is less than 2400 km

 the

instrument cluster screen displays a message
requesting an AdBlue® refill.

CarManuals2.com

314

Fuel and exhaust gas cleaning

If this message is ignored, the yellow warning
lamp will come on when the

remaining range

is less than 1000 km.

  . The indication that

in XXX km it will no longer be possible to restart
the engine will appear on the instrument panel
display.
If the yellow indicator lamp is ignored, when a

remaining range of 0 km

 is displayed, it will no

longer be possible to restart the engine. The red
warning lamp will light up  .
AdBlue® is a registered trademark of the Ger-
man Association of the Automotive Industry
(VDA) and is also known as AUS32 or DEF (Die-
sel Exhaust Fluid).

NOTICE

Overfilling with AdBlue® can cause damage
to the tank system.

Fill AdBlue®

Fig. 217

AdBlue tank cap®.

Operations prior to refilling

Park the vehicle on a flat surface and turn off
the ignition. If the vehicle is on a slope or on a
curb, the level indicator may not detect the refill
properly.
If an AdBlue® warning message is shown on the
instrument cluster display,

fill with at least the

minimum required amount (approx. 5 litres)

.

Only after adding this amount will the system
detect that AdBlue® has been added and you
will be able to start the engine again.

Fill with a refill bottle

Only use AdBlue® that complies with the ISO
22241-1 standard.

Only use original containers.

Open the tank cover

›››

Fig. 217

.

Unscrew the tank cap by turning it in an anti-

clockwise direction.

Please observe the manufacturer's instruc-

tions, indicated on the refill bottle.

Check the expiry date.

Remove the cap of the refill bottle.

Insert the neck of the bottle in the tank filler

neck vertically and screw the bottle on by
hand, by turning it in a clockwise direction.

Press the refill bottle in the direction of the

filler neck and hold it in this position.

Wait until the contents of the refill bottle have

been poured into the AdBlue® tank. Do not
compress or break the bottle!

Turn the bottle in a counter-clockwise direc-

tion and gently pull it upwards

›››

page 315

.

The AdBlue® tank is full when no more liquid

comes out of the bottle.

Screw on the tank cap in a clockwise direc-

tion until it is tightly closed.

Close the fuel tank flap.

Refilling AdBlue® at the dispenser

Valid for vehicles with selective catalytic reduc-
tion.

 Open the tank cap.

Turn the SCR tank cap anti-clockwise

›››

Fig. 217

.

CarManuals2.com

Fuel and exhaust gas cleaning

315

Engine management and emissions control system

Fill with AdBlue® until the nozzle stops for the

first time.

Close the SCR tube by turning it clockwise

until you hear a click.

Operations before driving

After refilling the tank, only switch on the igni-

tion.

Leave the ignition on for at least 30 seconds

for the system to detect the fluid load.

Make sure you wait for at least 30 seconds

before starting the engine!

WARNING

AdBlue® should only be stored in its origi-
nal container, which should be tightly closed
and kept in a safe place.

NOTICE

 When refilling, the nozzle grip should be

aligned downward. Otherwise the nozzle will
not connect automatically.

Do not try to add any more additive after

the nozzle has stopped for the first time. The
AdBlue® tank could overflow and AdBlue®
could spill out.

Only use AdBlue® that complies with the

ISO 22241-1 standard. Only use original con-
tainers.

Never mix AdBlue® with water, fuel or addi-

tives. Any type of damage caused by such a
mixture will not be covered by the warranty.

Never pour AdBlue® into the fuel tank! This

could result in engine damage.

Do not carry the refill bottle inside the

vehicle. If there is a leak (due to tempera-
ture changes or damage to the bottle), the
AdBlue® may damage the vehicle's interior.

For the sake of the environment

Dispose of the refill bottle in an environment-
friendly manner.

Note

Suitable AdBlue® refill bottles can be pur-
chased from SEAT dealerships.

Troubleshooting

 AdBlue® level too low

The indicator lamp lights up red.

The engine

cannot be restarted!

Stop the vehicle in a suitable, safe and flat area
then top up with the minimum required quantity
of AdBlue®

›››

page 314

.

 together with

: Fault in the AdBlue

system®

The indicator lamps light up red.

The engine

cannot be restarted!

Go to a specialised workshop and get the sys-
tem checked.

 The AdBlue® reserve is low

The indicator lamp lights up yellow.
To up AdBlue® within the number of kilometres
(or miles) that are indicated

›››

page 314

.

 together with

: Fault in the

AdBlue® system.

The control lamps light up yellow. There is a
fault in the AdBlue® system or non-conforming
AdBlue® fluid has been added. Go to a special-
ised workshop and get the system checked.

Engine management and
emissions control system

Introduction

WARNING

Due to the high temperatures reached by the
exhaust gas scrubbing system, you should
not park your vehicle near a surface that can
catch fire easily. Fire hazard!

CarManuals2.com

316

Fuel and exhaust gas cleaning

1)

Except 2.0l and 2.5l TSI petrol engines.

WARNING

Do not apply wax underneath the vehicle
around the area of the exhaust system: Fire
hazard!

Catalytic converter

To maintain the useful life of the catalytic
converter

 Only use unleaded petrol with petrol en-

gines.

Never run the fuel tank dry.

When changing or adding engine oil, do not

exceed the necessary amount

›››

page 341,

Checking and topping up the engine oil level

.

Never tow the vehicle to start it, use jump

leads if necessary

›››

page 320

.

If you should notice misfiring, uneven running or
loss of power when the car is moving, have the
vehicle inspected by a specialised workshop.
In general, the emissions warning lamp  will
light up when any of these symptoms occur. If
this happens, any unburnt fuel can enter the ex-
haust system and escape into the atmosphere.
The catalytic converter can also be damaged
by overheating.

NOTICE

Never run the fuel tank completely dry be-
cause an irregular fuel supply can cause ig-
nition faults. This allows unburnt fuel to enter
the exhaust system, which could cause over-
heating and damage the catalytic converter.

For the sake of the environment

Even when the emission control system is
working perfectly, there may be a smell of
sulphur from the gases on occasions. This
depends on the sulphur content of the fuel
used. This can quite often be avoided by
changing to another brand of fuel.

Particulate filter

Valid for: vehicles with petrol or diesel particu-
late filters

The particulate filter eliminates most of the
soot from the exhaust gas system. Under nor-
mal driving conditions the filter cleans itself.
If the filter does not clean itself (e.g. if short
journeys are made continuously), it becomes
blocked with soot and the following indication is
displayed to the driver:

 Particulate filter: cleaned

while the vehicle is moving. See
Manual.

The particulate filter needs cleaning (regenera-
tion).

Regeneration of the petrol and diesel partic-
ulate filter

1)

Requirements for the regeneration journey:

 the

engine is at operating temperature.

Drive at a speed of between 50120 km/h

(31-75 mph). This increases the temperature
and burns the soot in the filter

›››

page 317

.

Consider the legal speed limits as well as the

recommended gears.

End the regeneration journey once the con-

trol warning lamp has gone out.
If the warning lamp stays on after 30 minutes
of running in regeneration mode, have a speci-
alised workshop repair the fault.

Regeneration of the particulate filter (only
for 2.0l and 2.5l TSI engines)

Requirements for the regeneration journey:

 the

engine is at operating temperature.

 Drive at a speed of at least 80 km/h

›››

page 317

.

Completely remove your foot from the accel-

erator pedal for a few seconds to let the vehicle
roll with the gear engaged.

CarManuals2.com

Fuel and exhaust gas cleaning

317

Engine management and emissions control system

Consider the legal speed limits as well as the

recommended gears.

Repeat this procedure (accelerate and let

roll) until the control lamp turns off.
This procedure involves an autonomous par-
ticulate filter cleaning process and may take
some time.
If the warning lamp

does not turn off

, go imme-

diately to a specialised workshop to repair the
fault.

WARNING

Always adjust your speed to suit the weather
conditions, roads, braking distance and traf-
fic if the particulate filter is in its regeneration
phase. Route recommendations should never
make you disregard each country's specific
traffic regulations.

Note

If during the particulate filter regeneration
process you also get a fuel reserve warning

, the process may be interrupted. Refuel

and continue with the particulate filter re-
generation process.

NOTICE

 When the exhaust system detects that the

particulate filter is close to saturation, the
self-cleaning function of this system recom-
mends optimal driving for this function.

Due to the high temperatures caused by

the regeneration of the particulate filter, it is
possible that the radiator fan will activate af-
ter stopping the engine, even it its operating
temperature has not been reached.

Noise, smells and high idle speeds can oc-

cur during regeneration.

Always use the correct engine oil and the

correct fuel to make sure the useful life of the
particulate filter is not affected. Also avoid
making short trips all the time.

Troubleshooting

 Fault in the emissions control system

The indicator lamp lights up yellow.
Reduce speed and drive carefully to the near-
est specialised workshop to have the engine
checked.

 Combustion failures that could dam-

age the catalytic converter

The control lamp flashes yellow.
Reduce speed and drive carefully to the near-
est specialised workshop to have the engine
checked.

 Particulate filter clogged

The indicator lamp lights up yellow

›››

page 316

..

 Petrol engine management fault

The indicator lamp lights up yellow.
Have the engine checked as soon as possible
by a specialised workshop.
When the ignition is switched on, the

 (Elec-

tronic Power Control) lamp lights up and should
go off once the engine has started.

 Diesel engine preheating system

The indicator lamp lights up yellow.
The engine can be started straight away when
the lamp switches off.

 Diesel engine management fault

The control lamp flashes yellow.
Have the engine checked as soon as possible
by a specialised workshop.

NOTICE

While the indicator lamps

,  ,

 or

are on, there might be faults in the engine,
fuel consumption may go up and the engine
might lose power.

CarManuals2.com

318

Miscellaneous situations

1

2

3

4

5

6

7

8

Miscellaneous situa-
tions

Vehicle tool kit

On-board toolkit

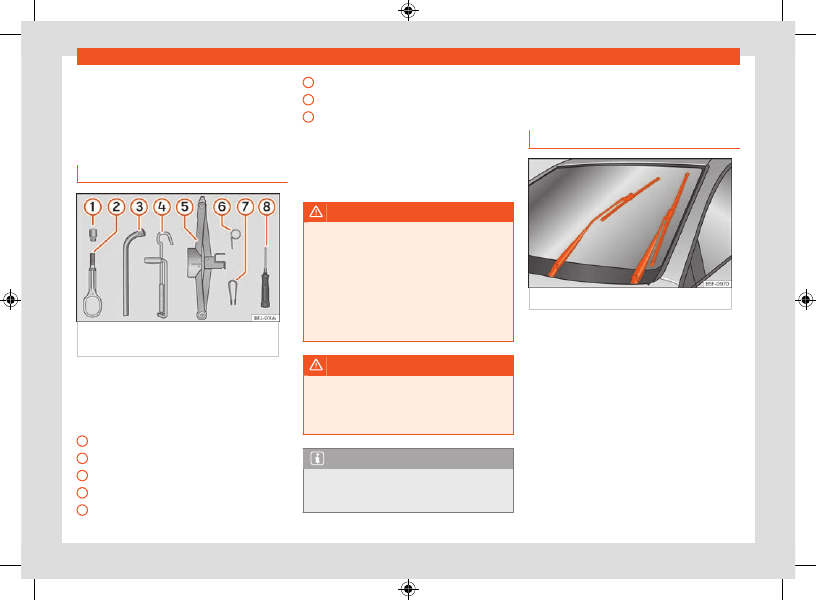

Fig. 218

Underneath the floor panel of the

luggage compartment: on-board tools.

The vehicle tool kit is located under the floor
panel in the luggage compartment. To access
the on-board tool

›››

page 289

.

The tool kit includes:

Adapter for the anti-theft bolt
Towing eye, removable
Wheel spanner
Crank handle for jack
Jack

Hook for extracting the central wheel trims
Clip for removing the wheel bolt caps
Screwdriver with hexagon socket in the
handle for screwing and unscrewing the
wheel nuts

Some of the items listed are only provided in
certain model versions, or are optional extras.

WARNING

When the vehicle tool kit, tyre mobility set
and spare wheel are loose in the interior they
can be violently thrown in case of a sudden
manoeuvre or braking and especially in acci-
dents, causing serious injury.

Ensure that the vehicle tool kit, the tyre

mobility set and the spare wheel or tempo-
rary spare wheel are safely secured in the
luggage compartment.

WARNING

Unsuitable or damaged vehicle tools can
cause injury or accidents.

Never work with inappropriate or damaged

tools.

Note

The jack does not generally require any
maintenance. If required, it should be
greased using universal type grease.

Changing the windscreen
wiper blades

Wiper service position

Fig. 219

Wipers in service position.

Ensure that the wiper blades are not frozen.
With the wiper in service position, it is possible
to the fold the wiper arms

›››

Fig. 219

.

Close the bonnet

›››

page 331

.

Switch the ignition on and off.

Briefly press the wiper lever downwards.

Before driving, always lower the wiper arms. Us-
ing the windscreen wiper lever, the windscreen
wiper arms return to their initial position.

CarManuals2.com

Miscellaneous situations

319

Changing the windscreen wiper blades

Note

The wiper arms can be moved into the re-

placement position when the front bonnet is
fully closed.

You can also use the service position, for

example, if you want to fix a cover over the
windscreen in the winter to keep it clear of
ice.

Changing the wiper rear wiper
blades

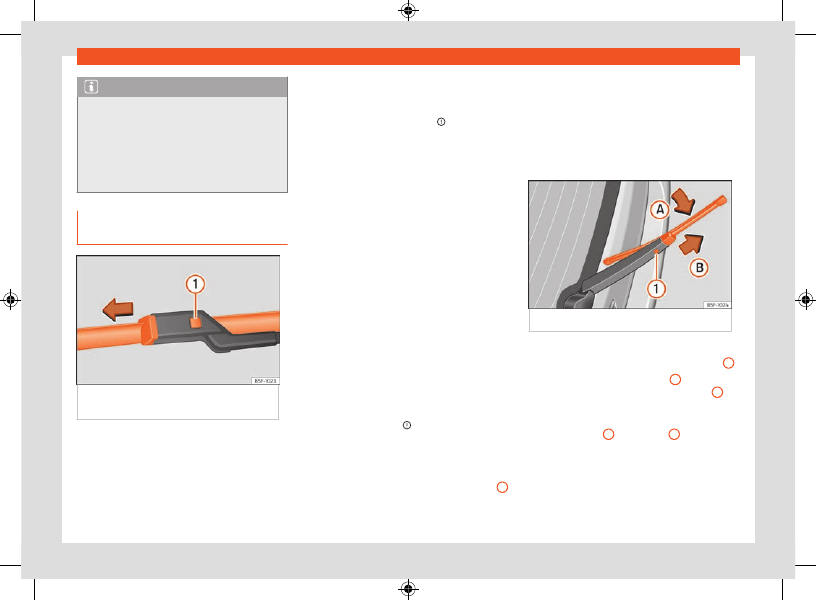

Fig. 220

Changing the windscreen wiper

blades

The windscreen wiper blades are supplied as
standard with a layer of graphite. This layer is
responsible for ensuring that the wipe is silent. If
the graphite layer is damaged, the noise of the
water as it is wiped across the windscreen will
be louder.

Check the condition of the wiper blades regu-
larly.

If the wipers scrape across the glass

,

they should be changed if they are damaged,
or cleaned if they are dirt

›››

.

If this does not produce the desired results,
the setting angle of the windscreen wiper arms
might be incorrect. They should be checked by
a specialised workshop and corrected if neces-
sary.
Damaged windscreen wiper blades should
be replaced immediately. These are available
from qualified workshops.

Raising and lowering windscreen wiper arms

Place the windscreen wipers in the service

position

›››

page 318

.

Grip the wiper arms

only

 by the blade's fas-

tening point.

Cleaning windscreen wiper blades

Raise the wiper arms.

Use a soft cloth to remove dust and dirt from

the windscreen wiper blades.

If the blades are very dirty, a sponge or damp

cloth may be used

›››

.

Changing the windscreen wiper blades

Lift and unfold the wiper arms.

Press and hold release button

›››

Fig. 220



1

and pull gently on the wiper blade in the direc-
tion of the arrow.

Fit a new wiper blade of the

same length

and design

 on to the wiper arm and hook it into

place.

Rest the wiper arms back onto the wind-

screen.

Changing the rear window wiper blade

Fig. 221

Changing the rear wiper blade

Separate the wiper arm from the rear window.

Rotate the blade lightly

›››

Fig. 221

 (arrow

A

).

Hold down the release button

1

 while gently

pulling the blade in the direction of arrow

B

.

Insert a new blade of the

same length and

type

 in the rear wiper arm in the opposite direc-

tion to the arrow

B

 until button

1

 hooks into

place.

Fold the wiper arm and rest it on the window.

CarManuals2.com

320

Miscellaneous situations

WARNING

Worn or dirty windscreen wiper blades re-
duce visibility and increase the risk of acci-
dent and serious injury.

Always replace damaged or worn wind-

screen wiper blades or blades that no longer
clean the windscreen properly.

NOTICE

Damaged or dirty windscreen wipers could

scratch the glass.

If products containing solvents, rough

sponges or sharp objects are used to clean
the blades, the graphite layer will be dam-
aged.

Never use fuel, nail varnish remover, paint

thinner or similar products to clean the win-
dows.

In icy conditions, always check that the

wiper blades are not frozen to the glass be-
fore using the wipers. In cold weather, it may
help to leave the vehicle parked with the wip-
ers in service position

›››

page 318

.

NOTICE

To prevent damage to the bonnet and the

wiper arms, only leave them in the service
position.

Before driving, always lower the wiper

arms.

Jump start

Introduction

If the engine fails to start because of a dis-
charged 12-volt battery, the battery can be
connected to the battery of another vehicle to
start the engine.
Jump leads complying with the

DIN 72553

standard

 are needed for starting (see cable

manufacturer's instructions). The wire cross
section must be at least 25 mm

2

 for petrol en-

gines and at least 35 mm

2

 for diesel engines.

NOTICE

To avoid considerable damage to the vehicle
electrical system, note the following care-
fully:

If the jump leads are connected incor-

rectly, a short circuit may occur.

Use only jump leads with fully insulated

clamps.

Do not allow the vehicles to come into con-

tact with each other, otherwise current may
start to flow as soon as the positive poles are
connected.

Jump start: description

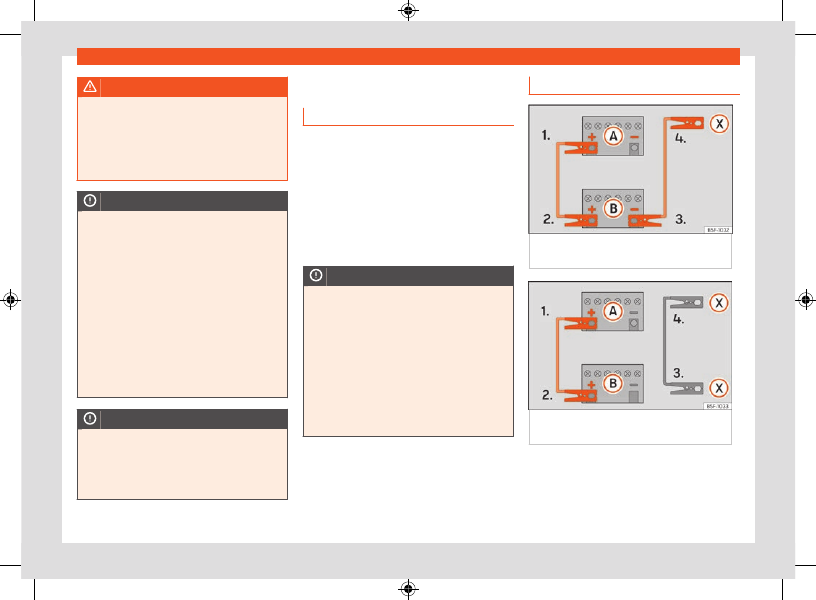

Fig. 222

Diagram of connections for vehicles

without Start Stop system

Fig. 223

Diagram of connections for vehicles

with Start Stop system

The discharged battery must be properly con-
nected to the on-board network.
Make sure the battery clamps have sufficient
metal-to-metal contact with the battery termi-
nals.

CarManuals2.com

Miscellaneous situations

321

Jump start

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

Jump lead terminal connections

The jump leads should only be connected in
the order

1 > 2 > 3 > 4



›››

Fig. 223

.

Switch off the ignition of both vehicles

›››

.

Connect one end of the

red

 jump lead to

the positive

+

 terminal of the vehicle with

the flat battery

A

.

Connect the other end of the

red

 jump lead

to the positive terminal

+

 in the vehicle

providing assistance

B

.

Vehicles without a Start-Stop system:

 con-

nect one end of the black jump lead to the
negative terminal

 of the vehicle provid-

ing the current

B



›››

Fig. 222

.

Vehicles with a Start-stop system:

 connect

one end of the black jump lead

X

 to a

suitable ground terminal, to a solid piece of
metal in the engine block, or to the engine
block itself

›››

Fig. 223

.

Connect the other end of the

black

 jump

lead

X

 to a solid metal component bolted

to the engine block or to the engine block
itself of the vehicle with the flat battery. Do
not connect it to a point near the battery

A

.

Position the leads in such a way that they
cannot come into contact with any moving
parts in the engine compartment.

Starting

Start the engine of the vehicle with the
boosting battery and let it run at idling
speed.
Start the engine of the vehicle with the flat
battery and wait for 2 or 3 minutes until the
engine is running.

Removing the jump leads

Before you remove the jump leads, switch
off the dipped beam headlights if they are
switched on.
Turn on the heater blower and heated rear
window in the vehicle with the flat battery.
This helps minimise voltage peaks which
are generated when the leads are discon-
nected.
When the engine is running, disconnect the
leads in reverse order to the details given
above.

If the engine fails to start after about 10 sec-
onds, switch off the starter and try again after
about 1 minute.

WARNING

Please note the safety warnings refer-

ring to working in the engine compartment

›››

page 331

.

The battery providing assistance must

have the same voltage as the flat battery
(12V) and approximately the same capacity
(see imprint on battery). Failure to comply
could result in an explosion.

Never use jump leads when one of the bat-

teries is frozen. Danger of explosion! Even
after the battery has thawed, battery acid
could leak and cause chemical burns. If a
battery freezes, it should be replaced.

Keep sparks, flames and lighted cigarettes

away from batteries, danger of explosion.
Failure to comply could result in an explo-
sion.

Observe the instructions provided by the

manufacturer of the jump leads.

Do not connect the negative cable from

the other vehicle directly to the negative ter-
minal of the flat battery. The gas emitted
from the battery could be ignited by sparks.
Danger of explosion.

Never attach the negative cable to fuel

system components or the brake lines in the
other vehicle.

The non-insulated parts of the battery

clamps must not be allowed to touch. The
jump lead attached to the positive battery
terminal must not touch metal parts of the
vehicle, this can cause a short circuit.

CarManuals2.com

322

Miscellaneous situations

Position the leads in such a way that they

cannot come into contact with any moving
parts in the engine compartment.

Do not lean on the batteries. This could re-

sult in chemical burns.

Take into account the instruction manual of

the jump lead manufacturer and the instruc-
tion manual of the other vehicle.

NOTICE

Immediately go to a specialist workshop and
have the 12 volt battery checked.

Towing the vehicle

Introduction

It takes practice to tow a vehicle, especially
when using a tow cable. Both drivers should be
well informed of the special features of towing.
Inexperienced drivers should refrain from tow-
ing.
During towing, make sure at all times that no
inadmissible traction forces or jolts are gener-
ated. On roads without a firm surface there is
always the danger of overloading the attach-
ment parts.
Take into account the legal provisions regarding
tow starting and towing.

Tow start

Tow starting means starting a vehicle's engine
while another puts it in motion by pulling it.
The vehicle can be towed with a tow bar or
cable

Towing

Towing means a vehicle pulling another vehicle
that is not in a condition to run.
The vehicle can be towed with a tow bar or
cable.

The maximum permitted speed is 50 km/h

(30 mph).

The maximum permitted distance is 50 km

(30 miles).

Tow cable and tow bar

It is safer for the vehicle to be towed using a tow
bar, avoiding damage to the vehicle. The tow
cable should only be used if a tow bar is not
available.
A tow rope should be slightly elastic to avoid
damage to both vehicles. It is advisable to use
a tow rope made of synthetic fibre or similarly
elastic material.

Tow with a tow truck

If a breakdown lorry is used, vehicles with au-
tomatic transmission are only allowed to be
towed with the front wheels suspended.

Towing vehicles with four-wheel drive
(4Drive)

Four-wheel drive vehicles (4Drive) can be
towed using a tow bar or tow rope. If the vehicle
is towed with the front or rear axle suspended,
the engine must be switched off, otherwise the
transmission may be damaged.

WARNING

During the towing of a vehicle, the driving
behaviour and braking capacity change con-
siderably.

WARNING

Never allow the vehicle to be towed if it has
no power.

When towing, never remove the key from

the ignition or disconnect the ignition with
the ignition and start button. Otherwise, the
electronic lock of the steering column could
suddenly get blocked and it would be impos-
sible to steer the vehicle. This could cause an
accident, serious injury and loss of control of
the vehicle.

If the vehicle runs out of power during tow-

ing, stop the process immediately and seek
the assistance of specialised personnel.

CarManuals2.com

Miscellaneous situations

323

Towing the vehicle

NOTICE

Towing the vehicle with a tow cable or a tow
bar can cause damage to the vehicle.

If the vehicle is towed with a tow cable or

tow bar, special care must be taken.

If possible, have the vehicle transported on

a tow truck.

NOTICE

If the vehicle is pushed by hand, the tail light
units, the side spoilers of the rear window
and large sheet metal surfaces may be dam-
aged. In addition, the rear spoiler could be
detached.

If the vehicle is pushed by hand, the tail

light units, the side spoilers of the rear win-
dow, large sheet metal surfaces or the rear
spoiler.

NOTICE

Removing and attaching the cover and the
towing eye may cause damage to the vehi-
cle, for example, on the paintwork.

To avoid damaging the vehicle, remove and

replace the cover and the towing eye care-
fully.

NOTICE

Using a towing eye that is not suitable for the
vehicle can damage it.

When towing, always use the vehicle’s tow-

ing eye, which forms part of the on-board
tools, or an appropriate eye for towing.

Instructions for tow-starting and
towing

During towing, the change of direction can be
signalled on the towed vehicle even when the
hazard warning lights are on. To do so, at the
same time, the turn signal lever must be oper-
ated with ignition switched on. During this time
the hazard warning lights remain disconnected.
When the turn signal lever is returned to the
rest position, the hazard warning lights will be
automatically reactivated.

Cases where tow starting and towing the ve-
hicle are not permitted

Do not allow the vehicle to be towed in the
following situations:

The vehicle’s gearbox is damaged or has no

lubricant.

The 12-volt battery is discharged. In vehicles

with the “Keyless Access” locking and ignition
system the steering remains locked and the
parking brake cannot be deactivated and the
steering column lock cannot be released if they
are connected.

If a distance above 50 km needs to be travel-

led.

There is no guarantee that the wheels will

turn smoothly or that the steering will work after
an accident.
If the vehicle cannot be towed on its wheels for
any of the reasons mentioned above, request
assistance from specialised personnel and, if
necessary, have the vehicle transported with-
out the wheels touching the ground.

Tow start

Steps to be taken prior to tow starting

Vehicles with an automatic gearbox:

 Due to

technical reasons, tow starting the vehicle is not
allowed. Attempt to start the engine using the
starting aid

›››

page 320

.

Vehicles with a manual gearbox:

 In general, it

is not recommended to tow start the vehicle. If
the engine does not start, try the starting aid
first

›››

page 320

. Please note that, in the case

of petrol engines, the maximum permitted dis-
tance for tow starting is 50 m.

 Secure the tow cable or tow bar using only

the attachment points provided for this pur-
pose.

Switch on the ignition and the hazard warning

lights.

Engage 2nd or 3rd gear while the vehicle is

stopped.

Press the clutch and hold it down.

CarManuals2.com

324

Miscellaneous situations

When both vehicles are in motion, release the

clutch pedal.

As soon as the engine starts, depress the

clutch and disengage the gear to avoid collid-
ing with the towing vehicle.

NOTICE

When tow-starting, unburnt fuel could enter
the catalytic converter and damage it.

Towing

Previous steps

Secure the tow cable or tow bar using only

the attachment points provided for this purpose

›››

. Depending on the equipment, these

points may be a towing device or a towing eye.

Make sure the tow cable is not twisted. Other-

wise the towing eye could unscrew during tow-
ing.

Switch on the ignition and the hazard warning

lights of both vehicles. If necessary, take into
account other different provisions that may ex-
ist in this regard.

Take into account the instructions on towing

provided in the instruction manual of the other
vehicle.

Towing vehicle (front)

Do not actually start driving until the cable is

tight.

Accelerate with particular care.

Avoid sudden braking and manoeuvres.

Vehicles with a manual gearbox:

When starting to drive, use the clutch very

gently.

Towed vehicle (behind)

Make sure the ignition is switched on so that

the steering wheel does not lock and so that, if
necessary, you can use the turn signals and the
windscreen wiper.

The brake servo and power steering only

work when the engine is running. Otherwise,
you will have to depress the brake pedal con-
siderably harder and more force will be needed
to turn the steering wheel.

Release the electronic parking brake.

Make sure the tow cable is always taut.

Disengage the gear or place the gear selec-

tor in the

N

position.

WARNING

Never attach the tow rope or tow bar to axle
or running gear components. They could be
damaged, resulting in an accident and seri-
ous injury.

Seek specialist assistance and, if applica-

ble, have the vehicle transported on a tow
truck.

NOTICE

The vehicle can only be towed if the state of
charge of the 12-volt battery is sufficient to
disengage the electronic parking brake and
the steering column lock. If the vehicle has
no power supply or there is an electric sys-
tem fault, the engine must be jump-started
to release the electronic parking brake and
deactivate the electronic lock of the steering
column.

CarManuals2.com

Miscellaneous situations

325

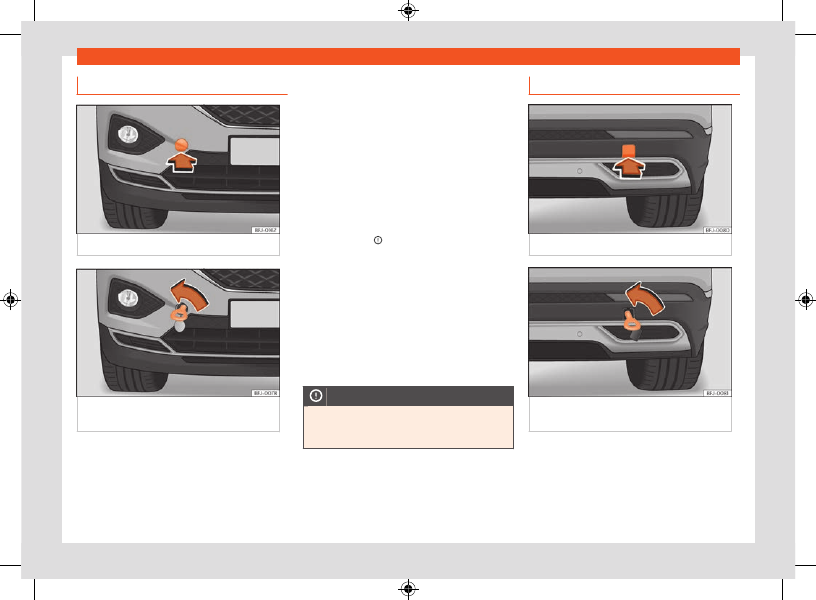

Towing the vehicle

Front towline anchorage

Fig. 224

Front bumper on right: remove the lid.

Fig. 225

Right side of the front bumper: towline

anchorage screwed in.

The housing of the removable towline anchor-
age is on the right side of the front bumper un-
derneath a cover

›››

Fig. 224

.

The towing eye should always be kept in the
vehicle.

Bear in mind the instructions for towing

›››

page 323

.

Fitting the towline anchorage

Remove the towing eye from the vehicle tool

kit in the luggage compartment

›››

page 318

.

Remove the cover by pressing down on its

base and leave it hanging from the vehicle

›››

Fig. 224

.

Screw the towing eye in the housing by

turning it to the maximum

anticlockwise



›››

Fig. 225

 ,

›››

. Use a suitable object that

can completely and securely tighten the towing
eye in its housing.

After towing, unscrew the towing eye

clock-

wise

 with a suitable object.

Replace the cover and push it in until it clicks

into place.

Clean the towing eye if necessary and then

store it in the luggage compartment along with
the other vehicle tools.

NOTICE

The towing eye must always be completely
and firmly tightened. Otherwise, it could
jump out of the housing during towing.

Rear towline anchorage

Fig. 226

Rear bumper on right: remove the lid.

Fig. 227

Right side of the rear bumper: towline

anchorage screwed in.

The housing of the screw towing eye is on
the right side of the rear bumper behind a lid

›››

Fig. 226

.

CarManuals2.com

326

Miscellaneous situations

Vehicles fitted as standard with a towing
bracket



do not

 have any housing for the screw

towing eye behind the lid. In this case, the tow
hitch needs to be extracted or installed and
used for towing

›››

page 299

 ,

›››

.

Bear in mind the instructions for towing

›››

page 323

.

Assemble the rear towing eye (cars without
a factory-equipped towing bracket)

 Remove the towing eye from the vehicle tool

kit in the luggage compartment

›››

page 318

.

Press the lower side of the lid

›››

Fig. 226

 to

unclip it.

Remove the lid and let it hang from the vehi-

cle.

Screw the towing eye in the housing by

turning it to the maximum

anticlockwise



›››

Fig. 227

 ,

›››

. Use a suitable object that

can completely and securely tighten the towing
eye in its housing.

After towing, unscrew the towing eye

clock-

wise

 with a suitable object.

Replace the cover and press until the tab

snaps into the bumper.

Clean the towing eye if necessary and then

store it in the luggage compartment along with
the other vehicle tools.

NOTICE

 The towing eye must always be com-

pletely and firmly tightened. Otherwise, it
could be released while towing and tow-
starting.

 If the vehicle is factory-equipped with a

towing bracket, it is only allowed to tow with
a tow bar if this has been specially designed
to be installed with a tow hitch. If an unsuita-
ble tow bar is used, both the tow hitch and
the vehicle may be damaged. Instead, a tow
rope should be used.

Fuses

Introduction

In general, a fuse can be assigned to various
electrical components. Likewise, an electrical
component can be protected by several fuses.
Only replace fuses when the cause of the
problem has been solved. If a newly inserted
fuse blows after a short time, you must have
the electrical system checked by a specialised
workshop as soon as possible.

WARNING

The high voltages in the electrical system
can give serious electrical shocks, causing
burns and even death!

Never touch the electrical wiring of the ig-

nition system.

Take care not to cause short circuits in the

electrical system.

WARNING

Using unsuitable fuses, repairing fuses or
bridging a current circuit without fuses can
cause a fire and serious injury.

Never use a fuse with a higher value. Only

replace fuses with a fuse of the same amper-
age (same colour and markings) and size.

Never replace a fuse by a metal strip, sta-

ple or similar.

NOTICE

To prevent damage to the vehicle’s electri-

cal system, before replacing a fuse always
turn off the ignition, the lights and all electri-
cal elements.

Protect the fuse boxes when open to pre-

vent the entry of dust or humidity as they can
damage the electrical system.

CarManuals2.com

Miscellaneous situations

327

Fuses

Note

In the vehicle, there are more fuses than
those indicated in this chapter. These should
only be replaced by a specialist workshop.

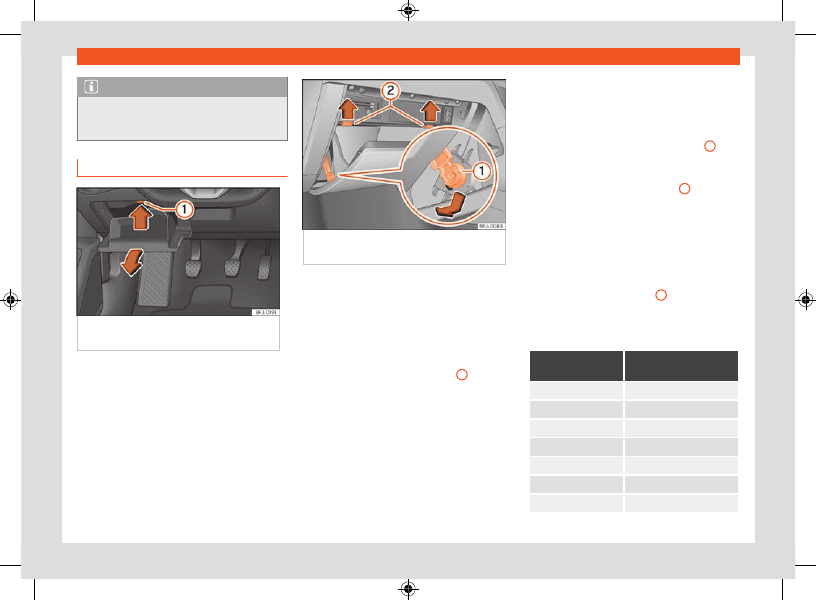

Fuses inside the vehicle

Fig. 228

On the dashboard on the driver side:

lid of the fuse box.

Fig. 229

Right-hand drive vehicles: fuse box

cover under the passenger side dash panel.

Vehicles with the steering wheel on the left:
open the fuse box cover under the dash
panel

 Open the storage compartment on the driver

side

›››

Fig. 228

.

In this case, empty the storage compartment.

Press the locking tab

›››

Fig. 228



1

 upwards,

in the direction of the arrow, and at the same
time open the storage compartment even more
and remove it until the fuse box can be ac-
cessed.

To install the storage compartment, insert it in

the openings of the dashboard and press it until
you hear it click on both sides. Close it.

Right-hand drive vehicles: open the fuse box
behind the glove compartment

Open the glove compartment and, if neces-

sary, empty it.

Move the locking element

›››

Fig. 229



1

into the support hole facing downwards and
remove it to one side.

Press the end pivots

›››

Fig. 229



2

 upwards,

in the direction of the arrows, and at the same
time open the glove compartment even more.

To mount the glove compartment, place it in

the correct position. Insert the braking element
into the hole of the base and move it upwards
until you hear it click. Carefully press the glove
compartment forwards, against the resistance
of the end pivots

›››

Fig. 229



2

..

Identifying fuses below the dashboard by
colours

Colour

Current intensity in

amps

Orange

5

Brown

7.5

Red

10

Blue

15

Yellow

20

White or transparent

25

Green

30

CarManuals2.com

328

Miscellaneous situations

Colour

Current intensity in

amps

Orange

40

NOTICE

Always carefully remove the fuse box cov-

ers and refit them correctly to avoid prob-
lems with your vehicle.

Protect the fuse boxes when open to avoid

the entry of dust or humidity. Dirt and humid-
ity inside fuse boxes can cause damage to
the electrical system.

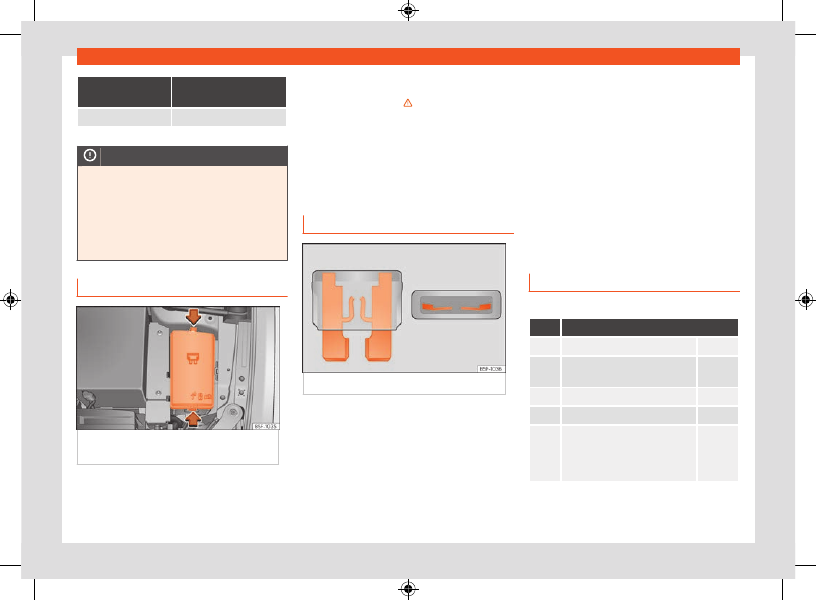

Fuses in the engine compartment

Fig. 230

In the engine compartment: lid of the

fuse box.

To open the engine compartment fuse box

Raise the bonnet

›››

 on page 331

.

Press the locking tabs to unlock the fuse box

cover

›››

Fig. 230

.

Then lift the cover out.

To

fit

 the cover, place it on the fuse box. Push

the locking tabs down until they click audibly
into place.

Replace a blown fuse

Fig. 231

Image of a blown fuse.

Preparations

Switch off the ignition, lights and all electrical

equipment.

Open the corresponding fuse box

›››

page 327

›››

page 328

.

Recognise a blown fuse

A blown fuse can be recognised if the metal
strip is melted

›››

Fig. 231

.

Point a lamp at the fuse to see if it has blown.

To replace a fuse

Remove the fuse.

Replace the blown fuse by one with an

iden-

tical

 amperage rating (same colour and mark-

ings) and

identical

 size.

Replace the cover again or close the fuse box

lid.

Fuse placement

Fuses in the vehicle interior

No.

Consumers/Amps

1

Adblue® (SCR)

30

4

DWA warning horn, on-board
computer

7.5

5

Gateway

7.5

6

Automatic gearbox lever

7.5

7

Air conditioning and heating
control panel, back window
heating, auxiliary heating, rear
heating

10

CarManuals2.com

Miscellaneous situations

329

Fuses

No.

Consumers/Amps

8

Diagnosis, electronic parking
brake switch, light switch, re-
verse light, interior lighting, driv-
ing mode, lit-up door sill, light/
humidity/rain sensor, curve
lighting control unit

7.5

9

Steering column control unit

7.5

10

Radio display

7.5

11

On-board computer control unit

40

12

Infotainment radio

30

13

Driver seat belt pre-tensioner

25

14

Air conditioner fan

40

15

Steering column release

10

16

GSM signal reception and sta-
bilisation, mobile phone inter-
face, USB connections control
unit

7.5

17

Dashboard, OCU navigation in-
terface

7.5

18

Surroundings camera and rear
camera control unit

7.5

19

Kessy

7.5

20

SCT 1.5 L engine vacuum pump

7.5/15

21

4x4 Haldex Control Unit

15

22

Trailer

15

23

Electric sunroof

20

No.

Consumers/Amps

24

On-board computer

40

25

Left doors

30

26

Heated seats

30

27

Interior light

30

28

Trailer

25

30

PHEV. Switching off the high
voltage system for rescue tasks.
Identified by a yellow label.

10

31

Electrical lid control unit

30

32

Control unit for park distance
control, front camera and radar

10

33

Airbag

7.5

34

Reverse switch, climate sensor,
electrochromic mirror, electro-
mechanical brake

7.5

35

Diagnosis connector

7.5

38

Trailer

25

39

Right doors

30

40/1 12V socket

20

41

Passenger seat belt pre-ten-
sioner

25

42

Central locking

40

43

Digital sound control unit

30

44

Trailer

15

No.

Consumers/Amps

45

Electric driver's seat

15

47

Rear window wiper

15

48

SoundAktor

7.5

49

Starter motor

7.5

51

Rear AC

25

52

Driving mode

15

53

Heated rear window

30

Fuse arrangement in engine compartment

No.

Consumers/Amps

1

ABS/ESP control unit

25

2

ABS/ESP control unit

40/60

3

Engine control unit (petrol/die-
sel)

15/30

4

Engine sensors, electric fans,
pressure regulator, flow rate
meter, spark plug relay (diesel),
PTC relays

7.5/10

5

Engine sensors

10

6

Brake light sensor

7.5

7

Engine power supply

7.5/10

8

Lambda probe

10/15

9

Engine

10/20

10

Fuel pump control unit

15/20

CarManuals2.com

330

Miscellaneous situations

No.

Consumers/Amps

11

PTC

40

12

PTC

40

13

Automatic transmission oil cool-
ing pump

30

15

Horn

15

16

Ignition coil relay (2.0 petrol),
inverter, on-board control unit

10/20

17

Engine control unit, ABS/ESP
control unit, primary relay

7.5

18

Terminal 30 (positive reference)

7.5

19

Front windscreen washer

30

20

eBKV

40

21

Automatic gearbox control unit

15

22

Engine control unit

7.5

23

Starter motor

30

24

PTC

40

36

Left headlight

15

37

Parking heating

20

38

Right headlight

15

Note

In the vehicle, there are more fuses than

those indicated in this chapter. These should
only be changed by a specialised workshop.

 Positions not containing a fuse do not ap-

pear in the following tables.

Some of the equipment listed in the tables

below pertain only to certain versions of the
model or are optional extras.

Please note that the above lists, while cor-

rect at the time of printing, are subject to
change.

Changing bulbs

Change a bulb

LED technology lights

Full-LED headlights handle all light functions
(daylight, side light, turn signal, dipped beam
and route light) with light emitting diodes (LEDs)
as a light source.
Full-LED headlights are designed to last the
lifetime of the car and light bulbs cannot be
replaced. In case of headlight failure, go to an
authorised workshop to have it replaced.

The fog lights, tail lights, number plate light, side
turn signals and additional brake light are all
LED bulbs. With this in mind, they should be re-
placed by a technical service.

CarManuals2.com















Content      ..     8      9      10      11     ..
